WAN HAI 173
9350147 | 9V5644 | 9350147 by ********* Last update: Fri Jun 21 2024
General Info
Ship Name:WAN HAI 173
IMO Code:9350147
Call Sign:9V5644
Line Operator:9350147
Class Name for Sister Ships:MCC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):162.10
LOA (Length Overall):172.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,809
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View

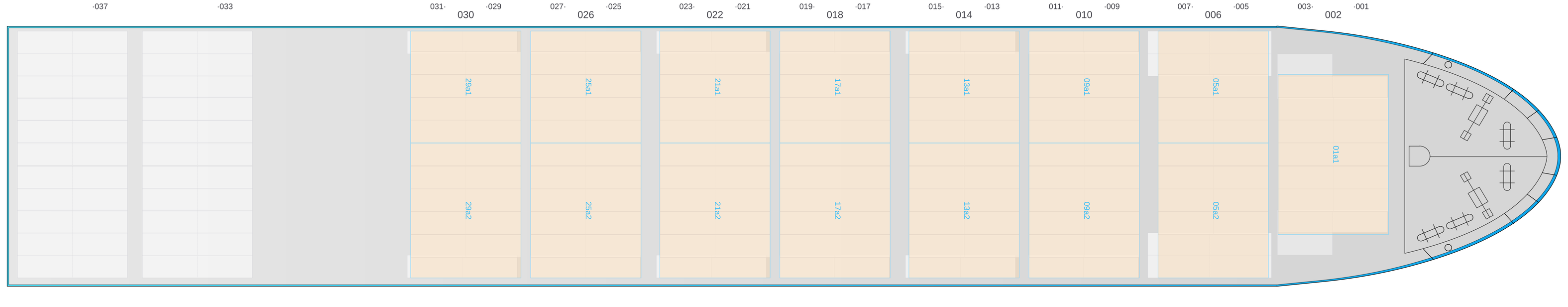

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

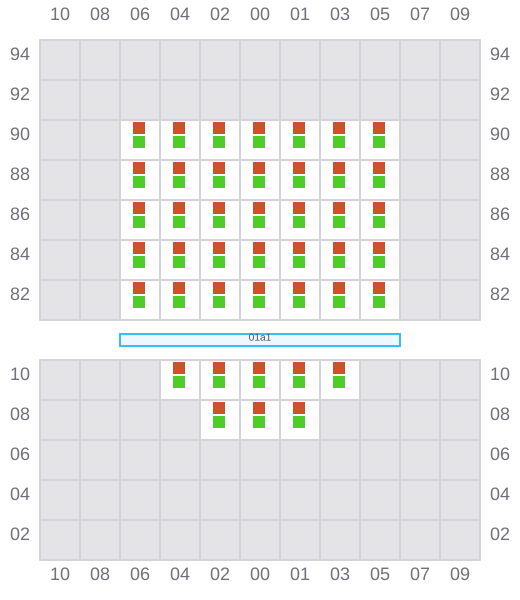

001 (002)
- →
003
- ←
- → / ?

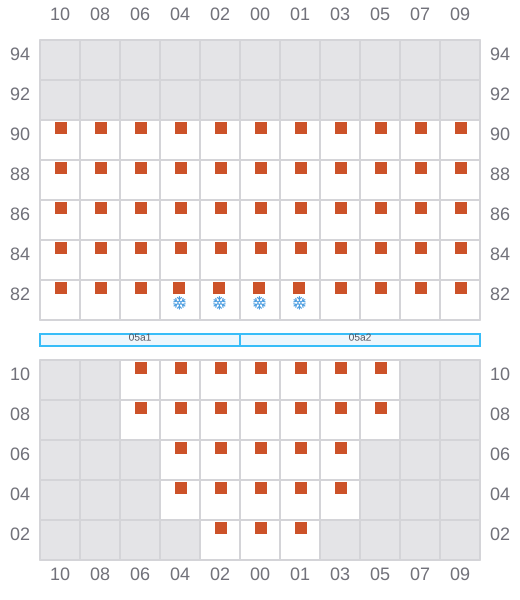

005 (006)
- →
007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?

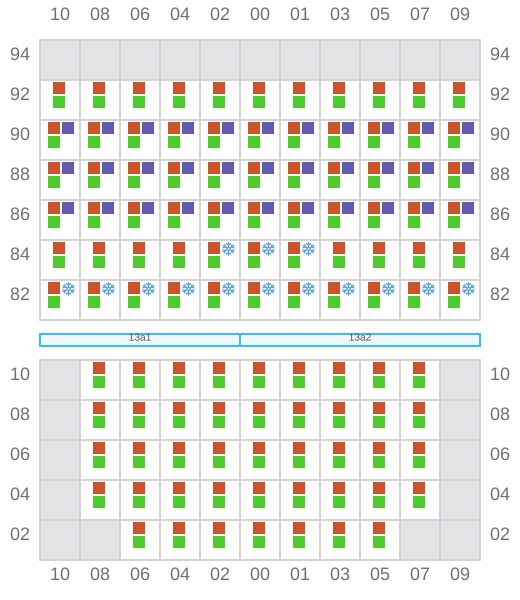

013 (014)
- →
- ← / ?
015
- ←
- → / ?

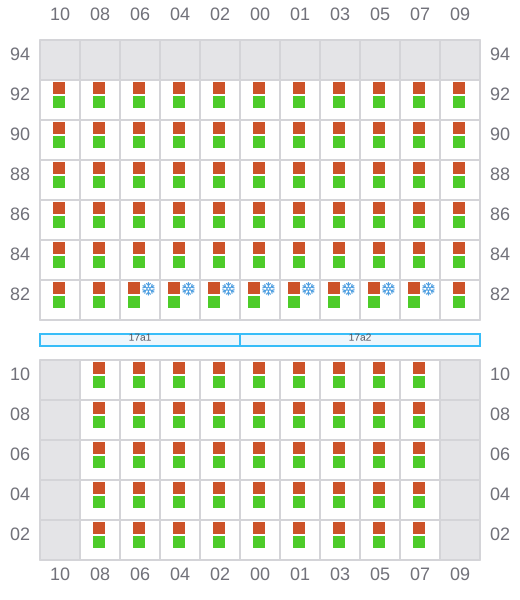

017 (018)
- →
- ← / ?
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?
025 (026)
- →
- ← / ?
027
- ←
- → / ?

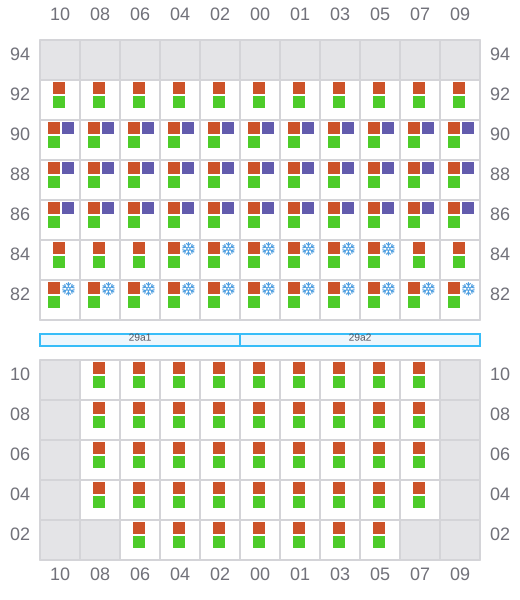

029 (030)
- →
- ← / ?
031
- ←
- → / ?
033 (034)
- → / ?
- ← / ?
035
- ← / ?
- → / ?
037 (038)
- → / ?
- ← / ?
039
- ← / ?
