WAN HAI 308
9536985 | 9V8080 | 9536985 by ********* Last update: Tue May 07 2024

General Info

Ship Name:WAN HAI 308
IMO Code:9536985
Call Sign:9V8080
Line Operator:9536985
Class Name for Sister Ships:HANJIN MANZANILLO
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,564

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

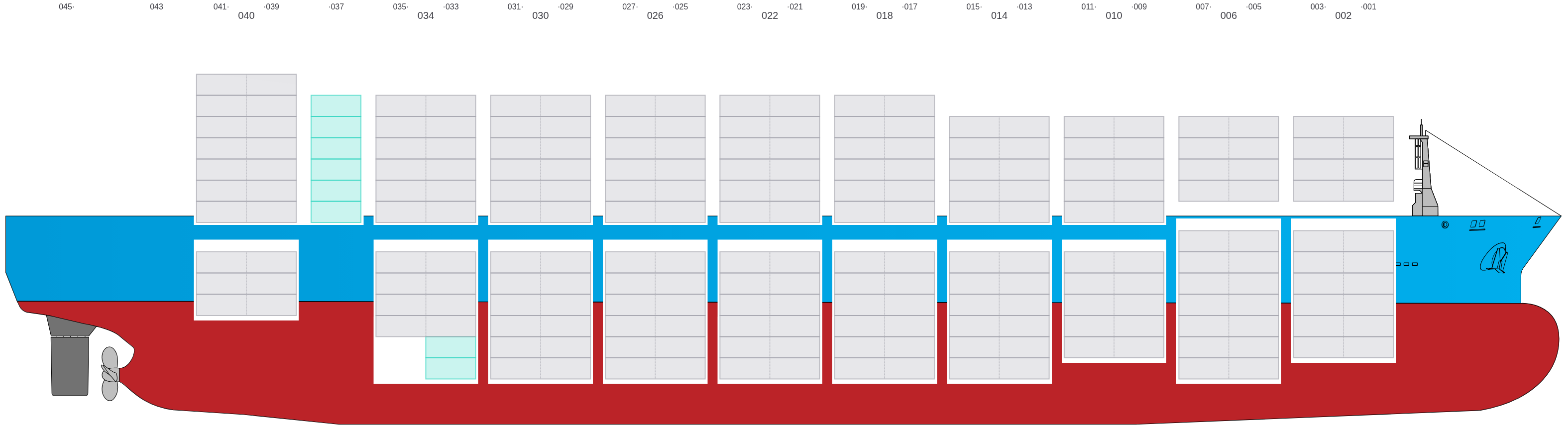

Side View

Side view of WAN HAI 308

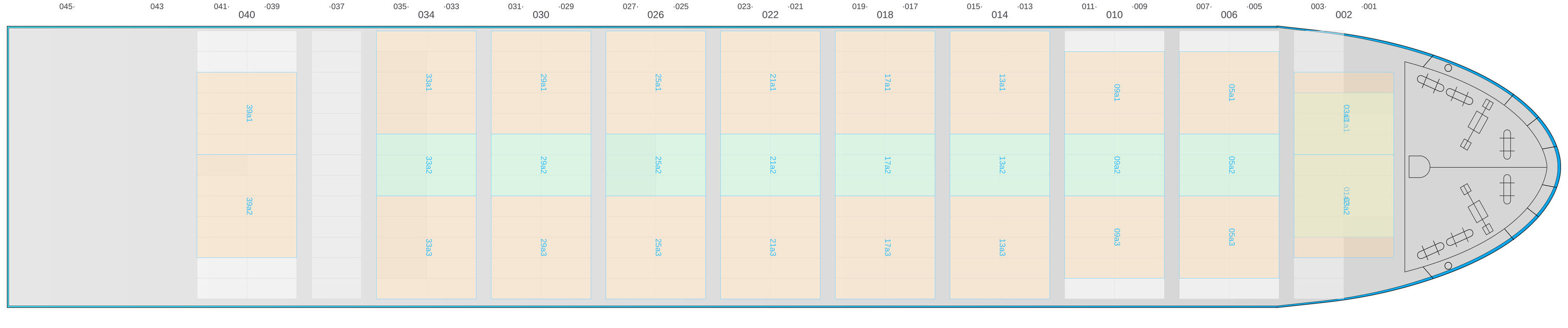

Hatch-Covers View

Deck view of WAN HAI 308

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of WAN HAI 308

003 (002)

  • ←
Bay 003 view and slots of WAN HAI 308

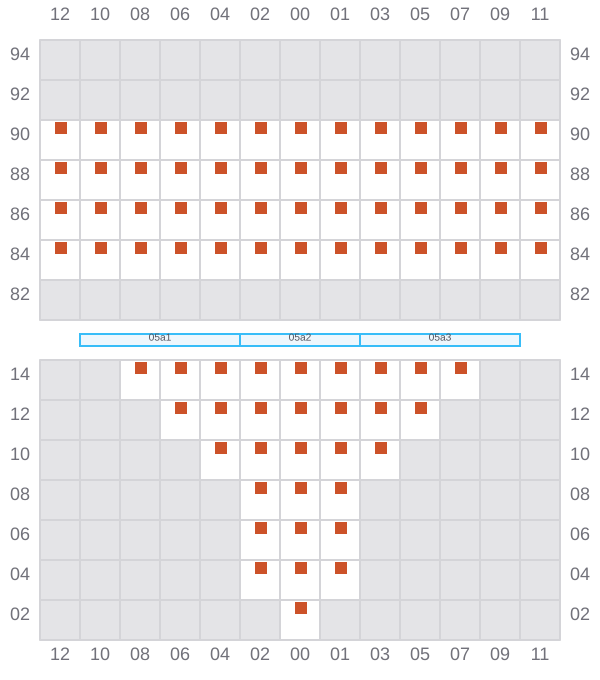

005

  • →
Bay 005 view and slots of WAN HAI 308

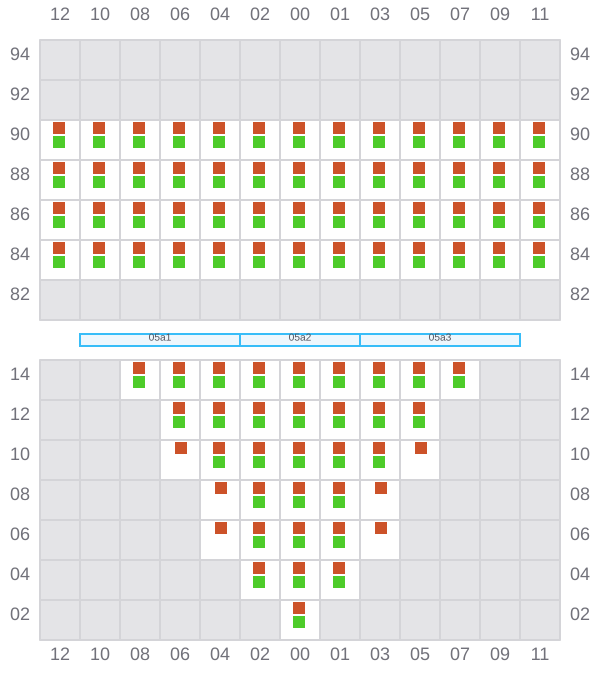

007 (006)

  • ←
Bay 007 view and slots of WAN HAI 308

009

  • →

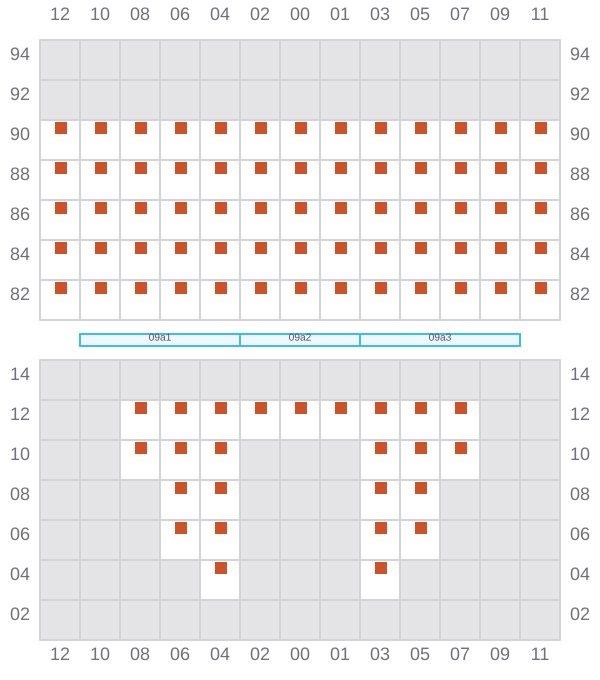

Bay 009 view and slots of WAN HAI 308

011 (010)

  • ←
Bay 011 view and slots of WAN HAI 308

013

  • →
Bay 013 view and slots of WAN HAI 308

015 (014)

  • ←
Bay 015 view and slots of WAN HAI 308

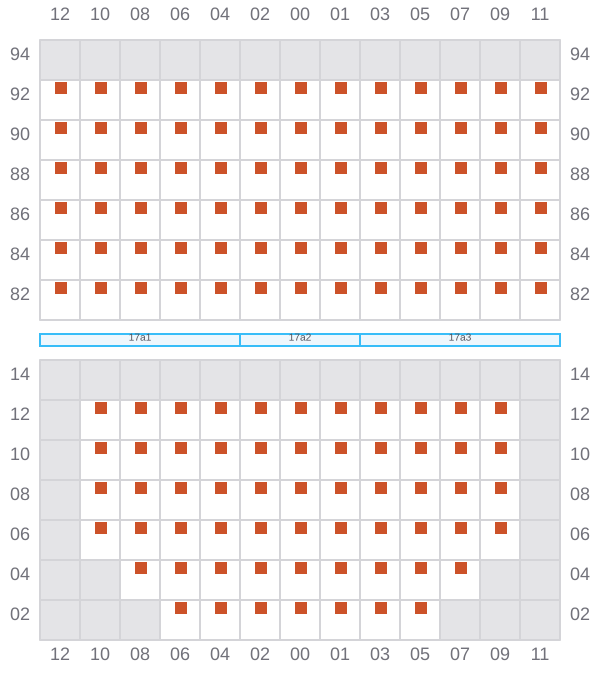

017

  • →
Bay 017 view and slots of WAN HAI 308

019 (018)

  • ←

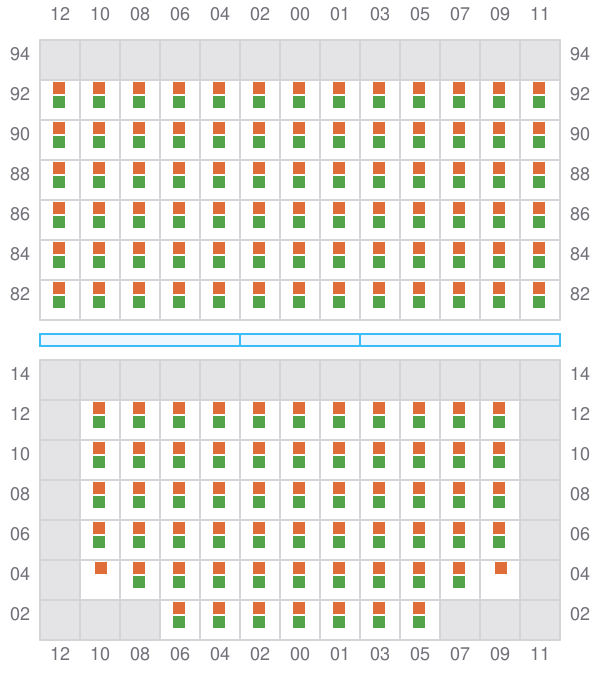

Bay 019 view and slots of WAN HAI 308

021

  • →
Bay 021 view and slots of WAN HAI 308

023 (022)

  • ←
Bay 023 view and slots of WAN HAI 308

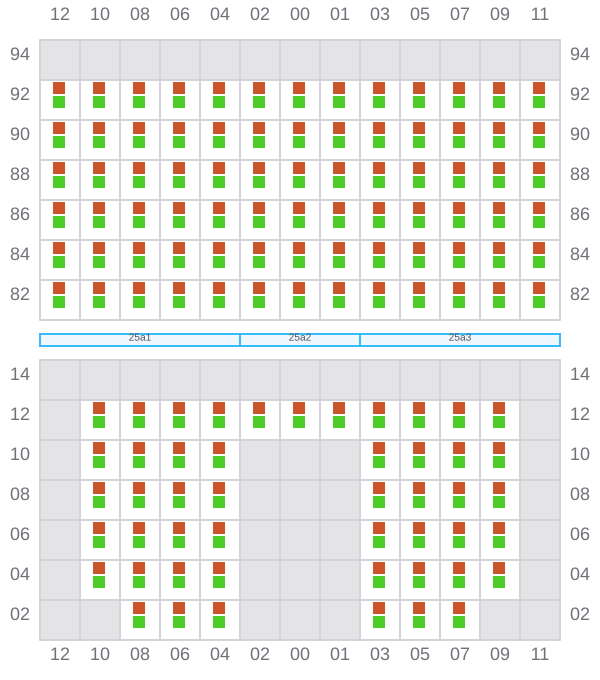

025

  • →

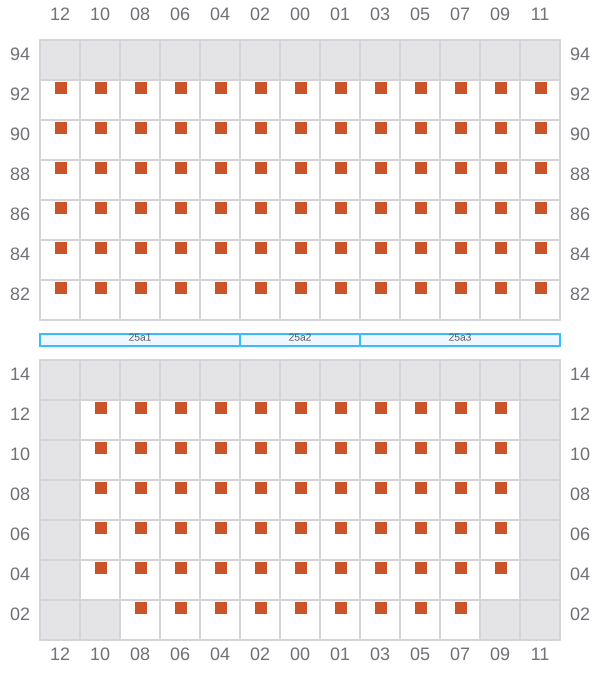

Bay 025 view and slots of WAN HAI 308

027 (026)

  • ←
Bay 027 view and slots of WAN HAI 308

029

  • →
Bay 029 view and slots of WAN HAI 308

031 (030)

  • ←
Bay 031 view and slots of WAN HAI 308

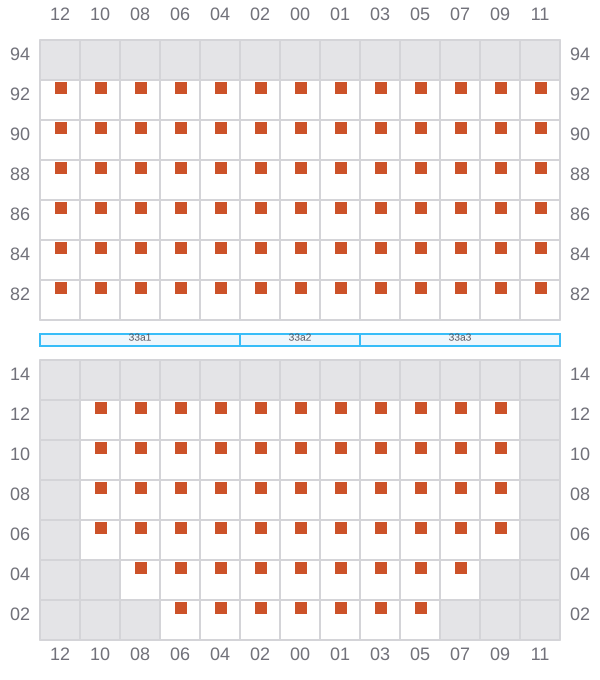

033

  • →
Bay 033 view and slots of WAN HAI 308

035 (034)

  • ←

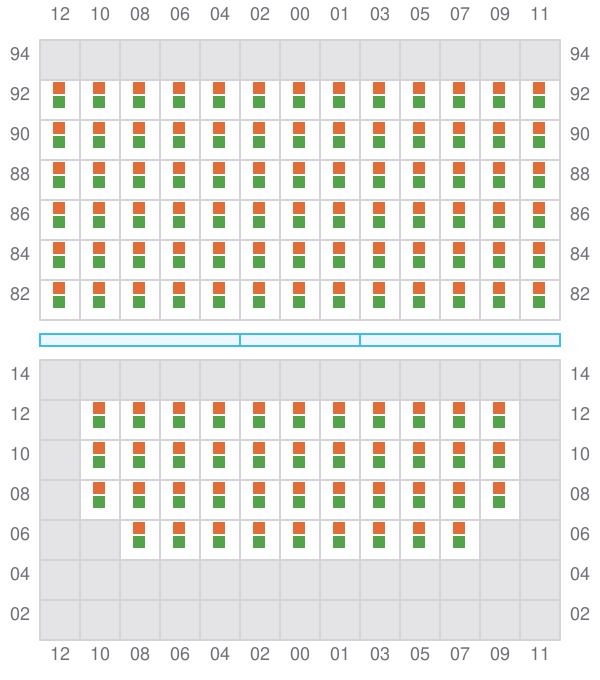

Bay 035 view and slots of WAN HAI 308

037

  • → / ?

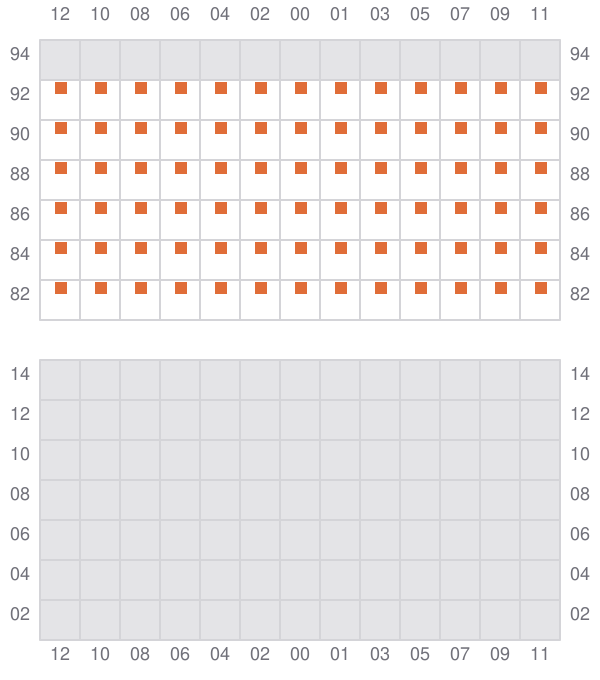

Bay 037 view and slots of WAN HAI 308

039

  • →

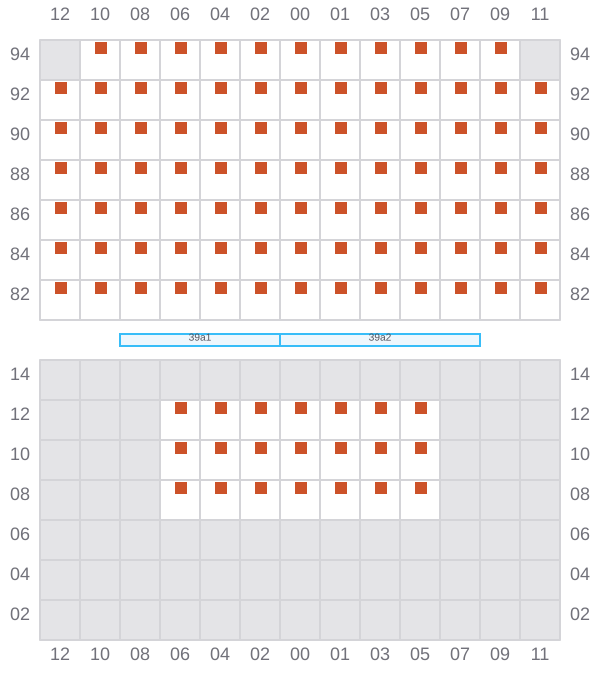

Bay 039 view and slots of WAN HAI 308

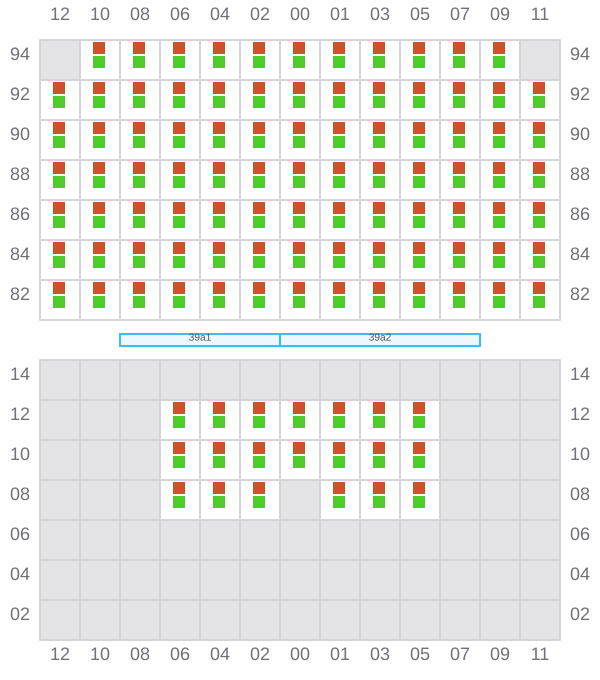

041 (040)

  • ←
Bay 041 view and slots of WAN HAI 308

043

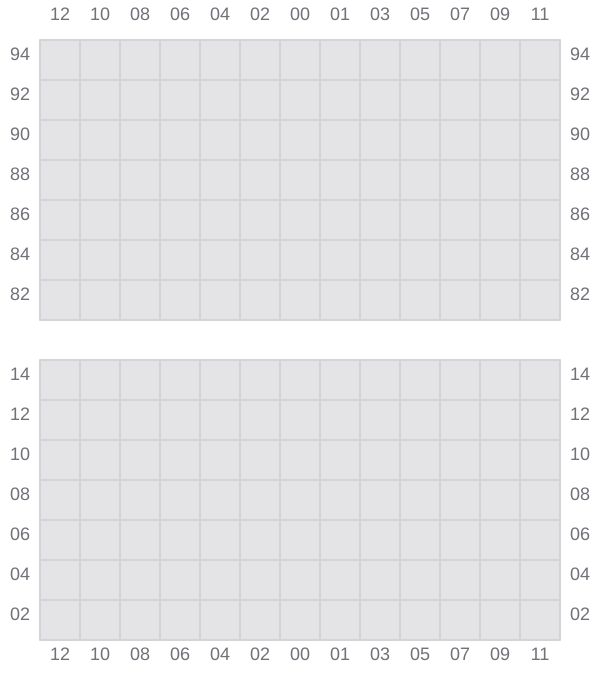

Bay 043 view and slots of WAN HAI 308

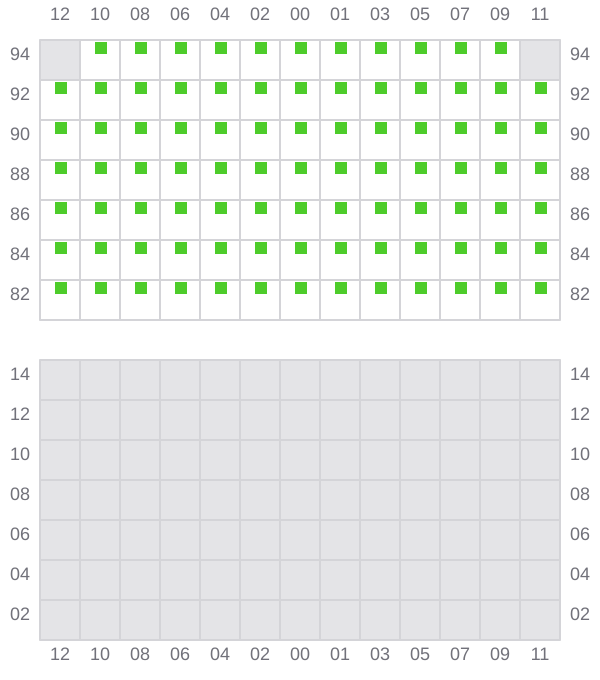

045 (044)

  • ← / ?
Bay 045 view and slots of WAN HAI 308
