WAN HAI 355
9930375 | 9V7384 | WAN HAI LINES LTD by ******************** Last update: Wed Sep 23 2026

General Info

Ship Name:WAN HAI 355
IMO Code:9930375
Call Sign:9V7384
Line Operator:WAN HAI LINES LTD
Class Name for Sister Ships:W355
Year Built:2022
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):196.00
LOA (Length Overall):204.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:045
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,996

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of WAN HAI 355

Hatch-Covers View

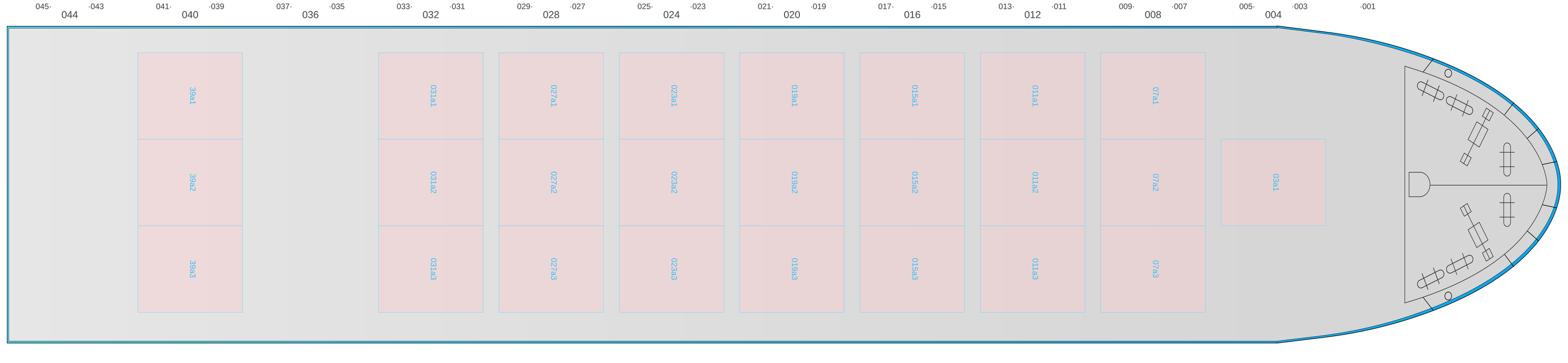

Deck view of WAN HAI 355

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ? / ?
  • ? / ?
  • ✓

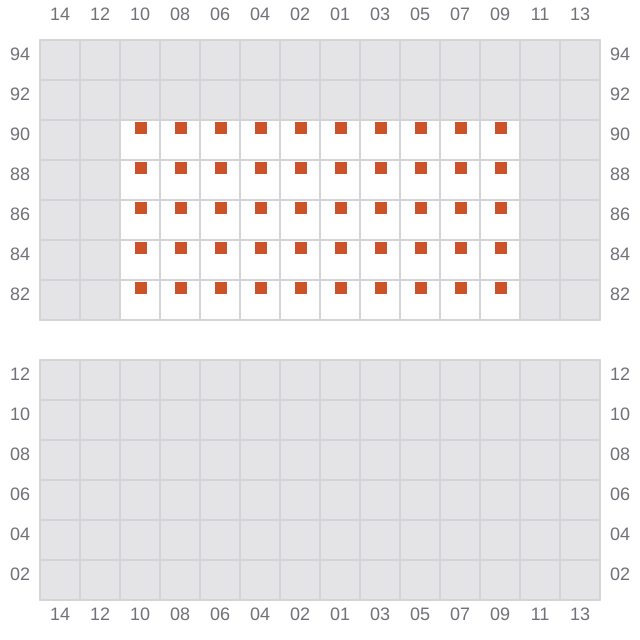

Bay 001 view and slots of WAN HAI 355

003

  • →
  • →
  • ✓

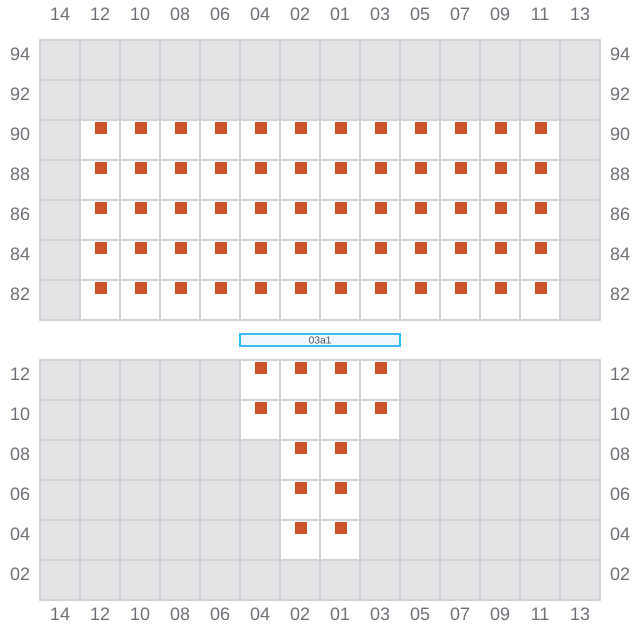

Bay 003 view and slots of WAN HAI 355

005 (004)

  • ←
  • ✓

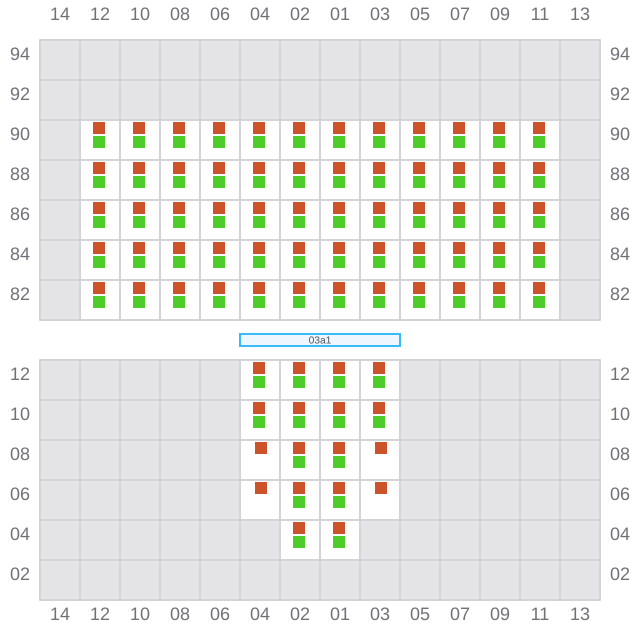

Bay 005 view and slots of WAN HAI 355

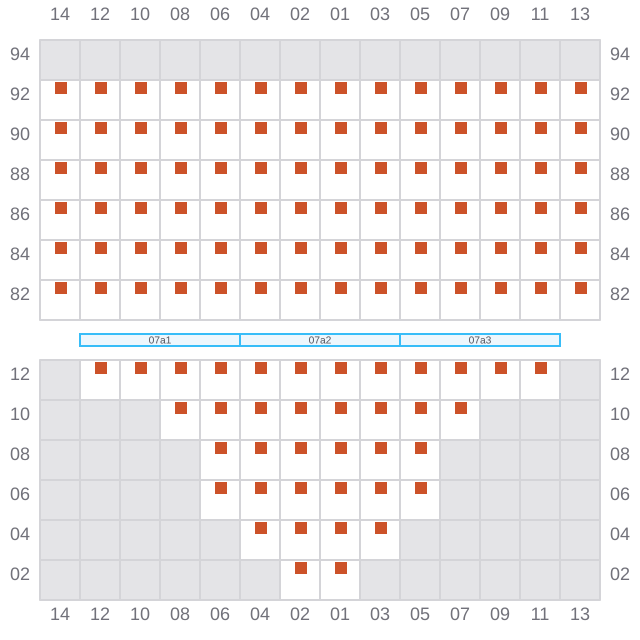

007

  • →
  • ✓
Bay 007 view and slots of WAN HAI 355

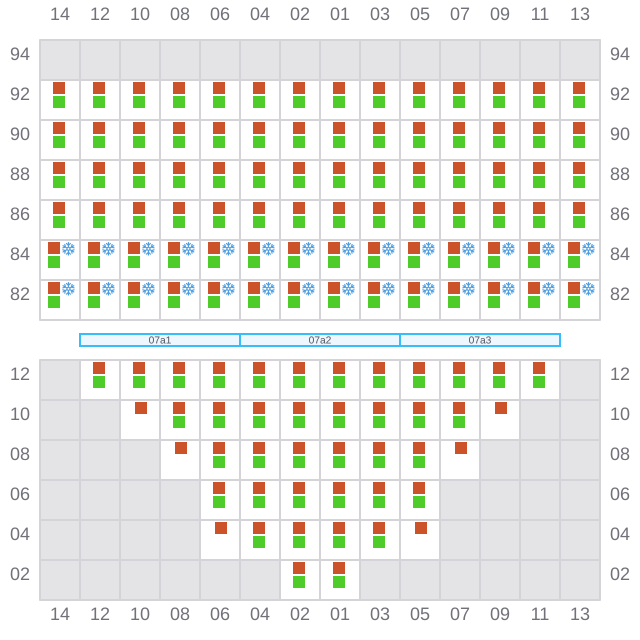

009 (008)

  • ←
  • ✓
Bay 009 view and slots of WAN HAI 355

011

  • →
  • ✓

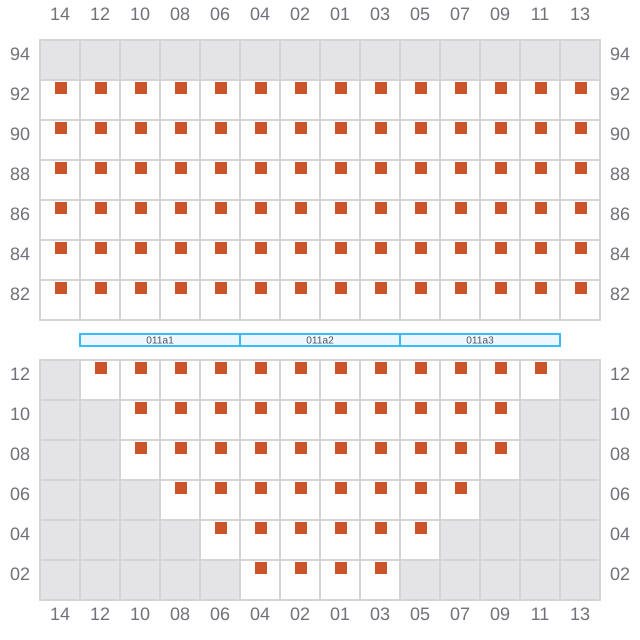

Bay 011 view and slots of WAN HAI 355

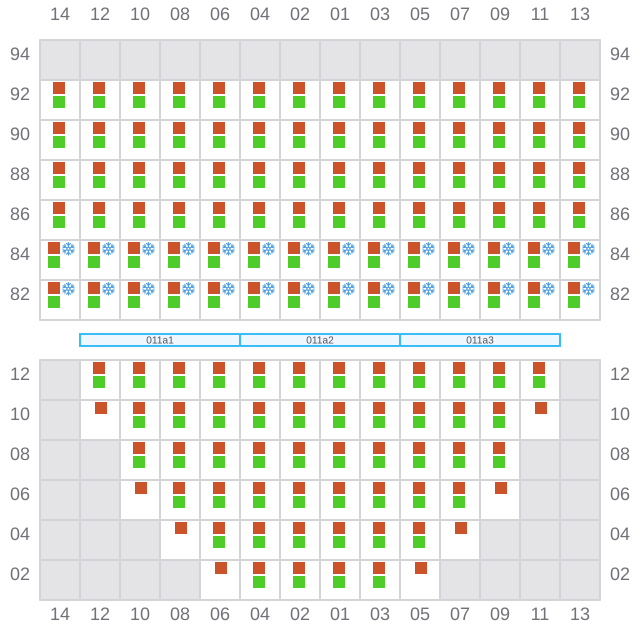

013 (012)

  • ←
  • ✓
Bay 013 view and slots of WAN HAI 355

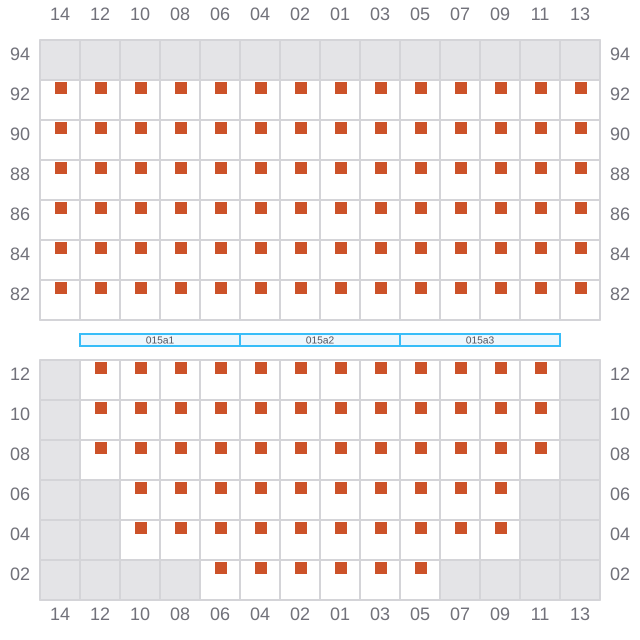

015

  • →
  • ✓
Bay 015 view and slots of WAN HAI 355

017 (016)

  • ←
  • ✓

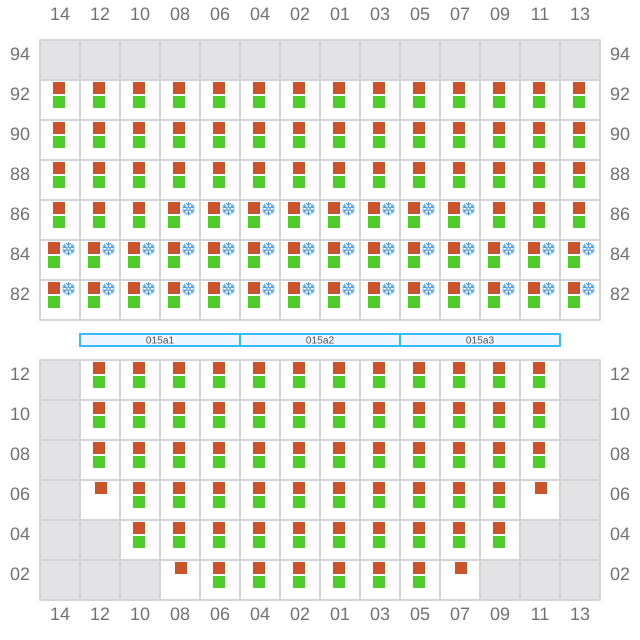

Bay 017 view and slots of WAN HAI 355

019

  • →
  • ✓
Bay 019 view and slots of WAN HAI 355

021 (020)

  • ←
  • ✓

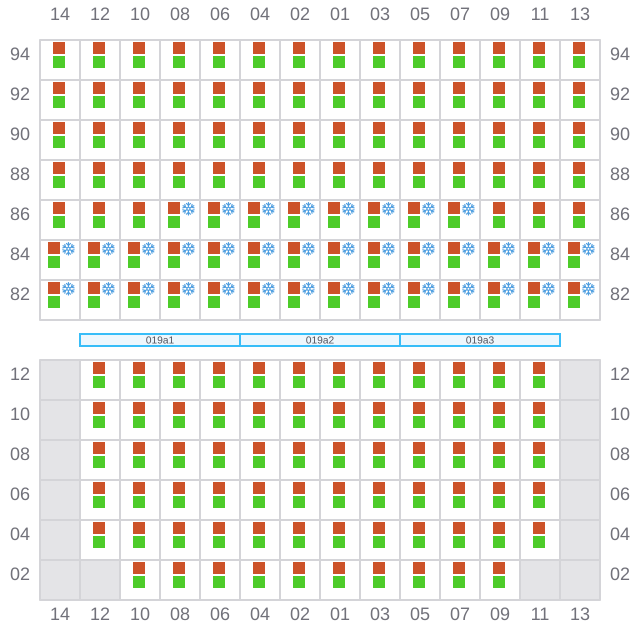

Bay 021 view and slots of WAN HAI 355

023

  • →
  • ✓

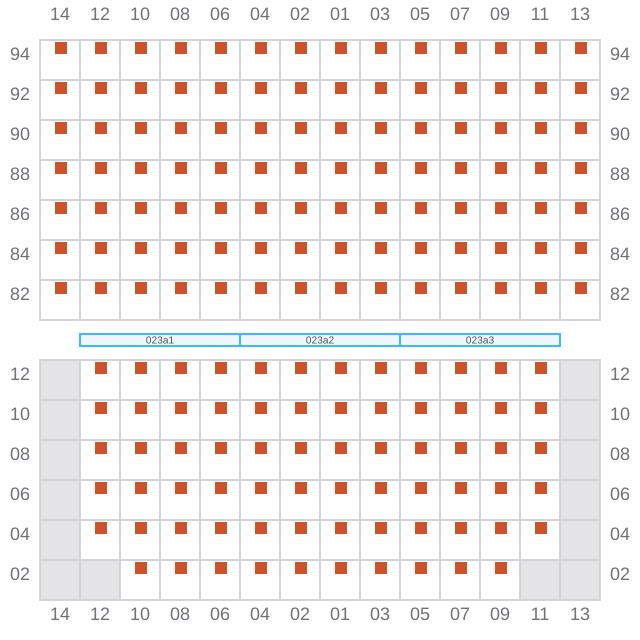

Bay 023 view and slots of WAN HAI 355

025 (024)

  • ←
  • ✓

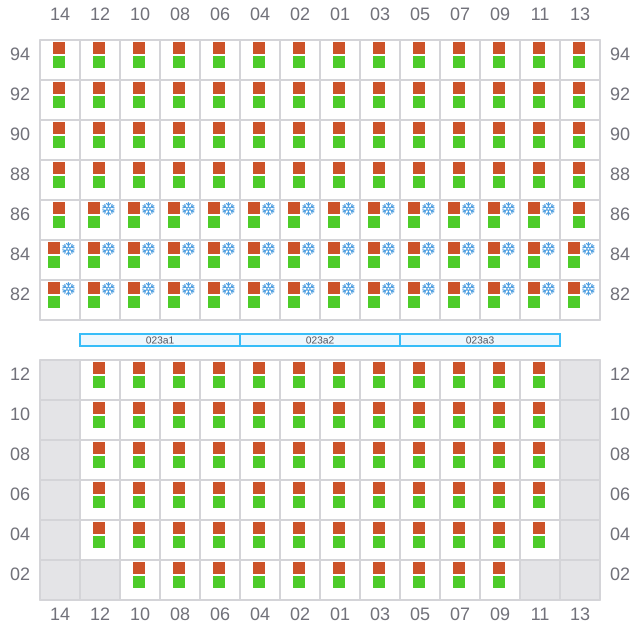

Bay 025 view and slots of WAN HAI 355

027

  • →
  • ✓
Bay 027 view and slots of WAN HAI 355

029 (028)

  • ←
  • ✓
Bay 029 view and slots of WAN HAI 355

031

  • →
  • ✓

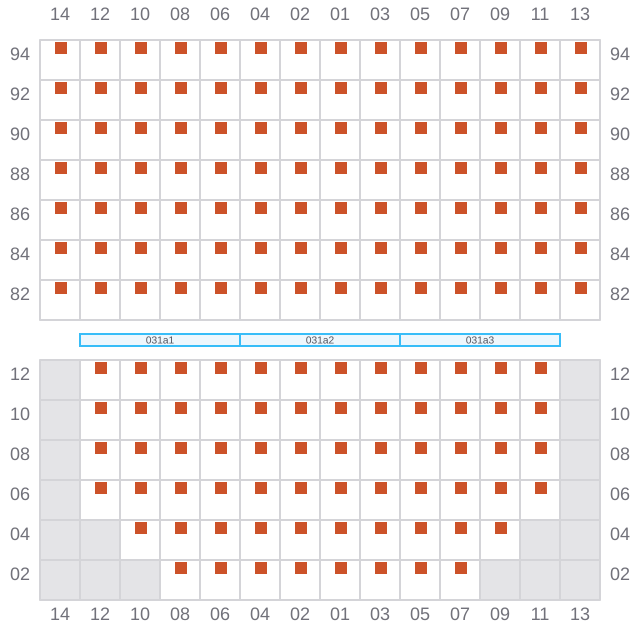

Bay 031 view and slots of WAN HAI 355

033 (032)

  • ←
  • ✓

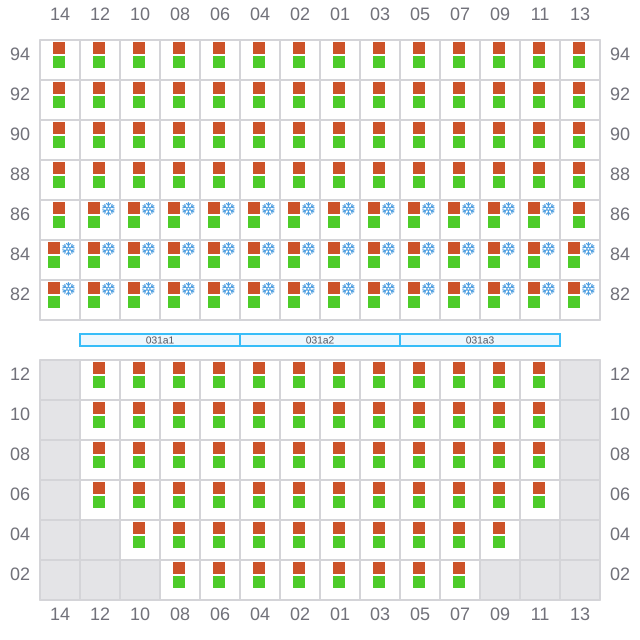

Bay 033 view and slots of WAN HAI 355

035

  • →
  • ✓
Bay 035 view and slots of WAN HAI 355

037 (036)

  • ←
  • ✓

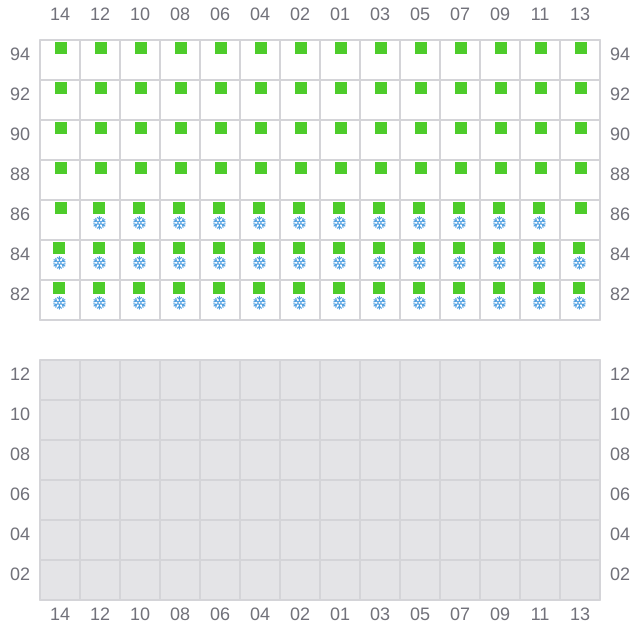

Bay 037 view and slots of WAN HAI 355

039

  • →
  • ✓

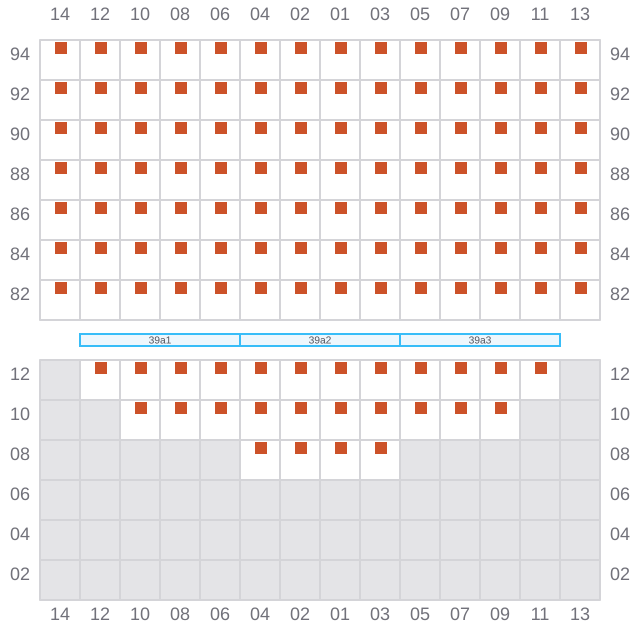

Bay 039 view and slots of WAN HAI 355

041 (040)

  • ←
  • ✓

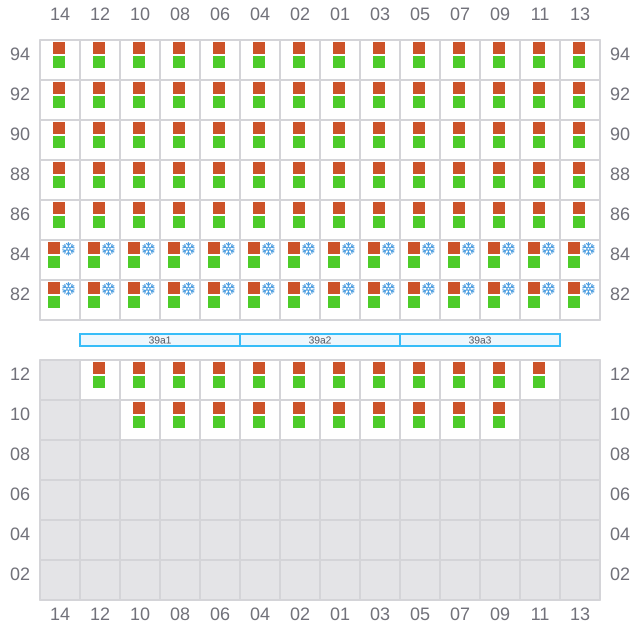

Bay 041 view and slots of WAN HAI 355

043

  • →
  • ✓

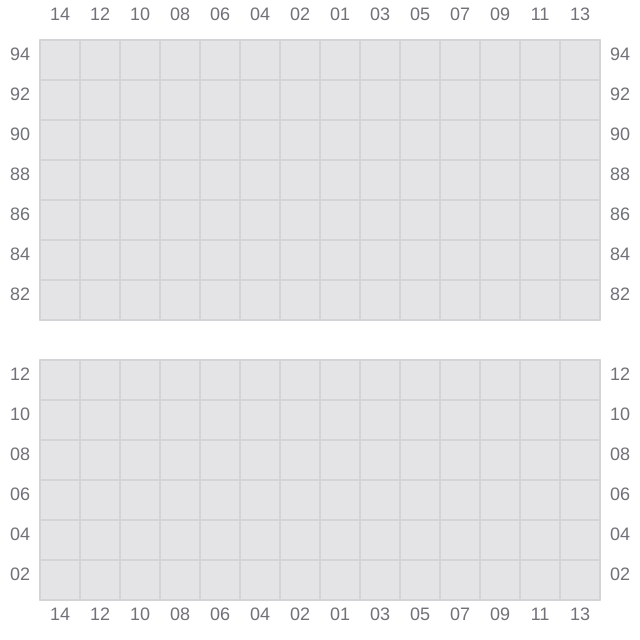

Bay 043 view and slots of WAN HAI 355

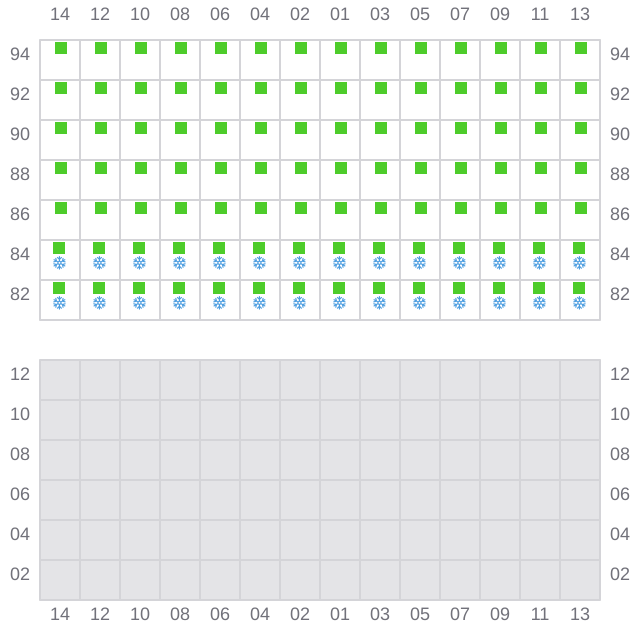

045 (044)

  • ←
  • ✓
Bay 045 view and slots of WAN HAI 355
