WAN HAI 501
9294848 | S6AS7 | 9294 by ********* Last update: Tue Apr 09 2024

General Info

Ship Name:WAN HAI 501

IMO Code:9294848

Call Sign:S6AS7

Line Operator:9294

Class Name for Sister Ships:CHINA

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:061

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,276

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

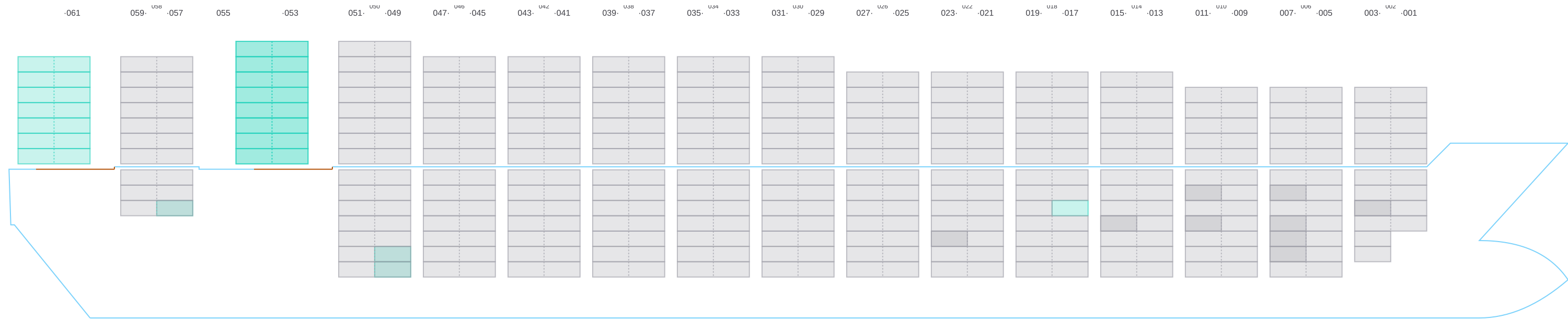

Side View

Side view of WAN HAI 501

Hatch-Covers View

Deck view of WAN HAI 501

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

Bay 001 view and slots of WAN HAI 501

003 (002)

←

Bay 003 view and slots of WAN HAI 501

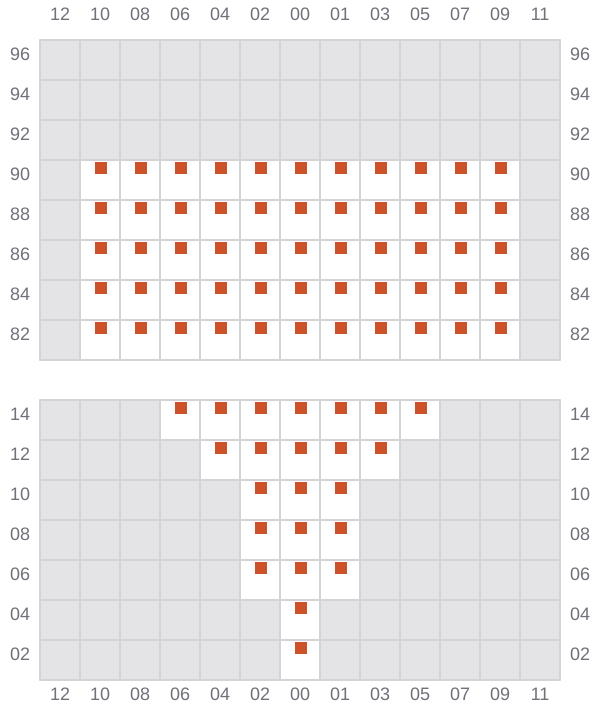

005

→

Bay 005 view and slots of WAN HAI 501

007 (006)

←

Bay 007 view and slots of WAN HAI 501

009

→

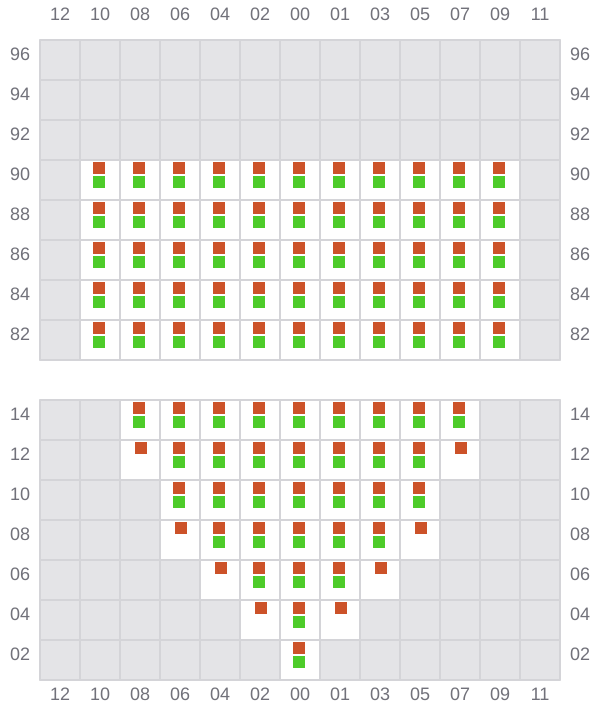

Bay 009 view and slots of WAN HAI 501

011 (010)

←

Bay 011 view and slots of WAN HAI 501

013

→

Bay 013 view and slots of WAN HAI 501

015 (014)

←

Bay 015 view and slots of WAN HAI 501

017

→

Bay 017 view and slots of WAN HAI 501

019 (018)

←

Bay 019 view and slots of WAN HAI 501

021

→

Bay 021 view and slots of WAN HAI 501

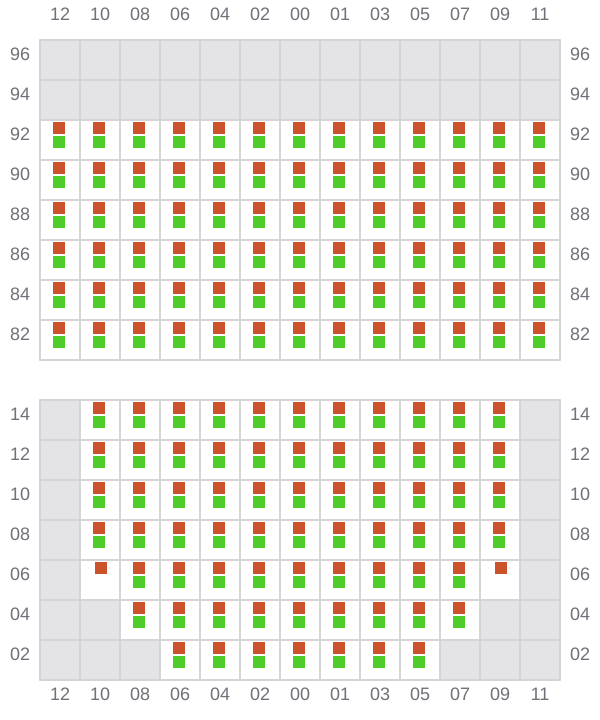

023 (022)

←

Bay 023 view and slots of WAN HAI 501

025

→

Bay 025 view and slots of WAN HAI 501

027 (026)

←

Bay 027 view and slots of WAN HAI 501

029

→

Bay 029 view and slots of WAN HAI 501

031 (030)

←

Bay 031 view and slots of WAN HAI 501

033

→

Bay 033 view and slots of WAN HAI 501

035 (034)

←

Bay 035 view and slots of WAN HAI 501

037

→

Bay 037 view and slots of WAN HAI 501

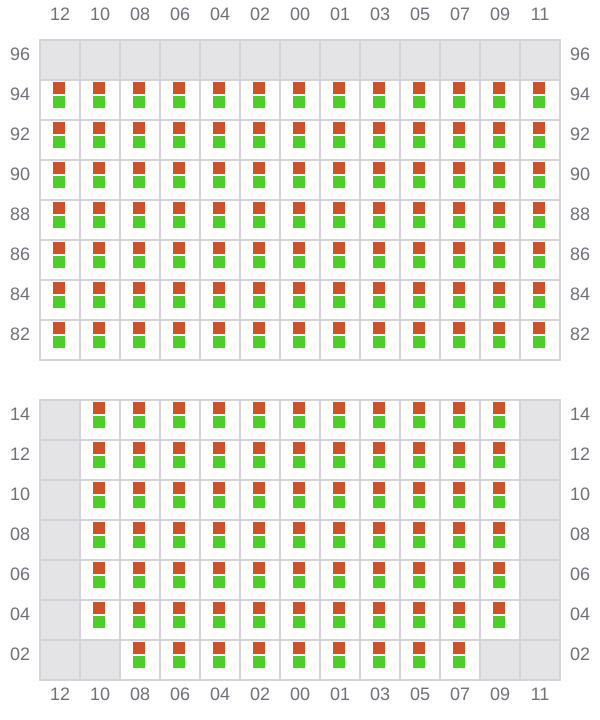

039 (038)

←

Bay 039 view and slots of WAN HAI 501

041

→

Bay 041 view and slots of WAN HAI 501

043 (042)

←

Bay 043 view and slots of WAN HAI 501

045

→

Bay 045 view and slots of WAN HAI 501

047 (046)

←

Bay 047 view and slots of WAN HAI 501

049

→

Bay 049 view and slots of WAN HAI 501

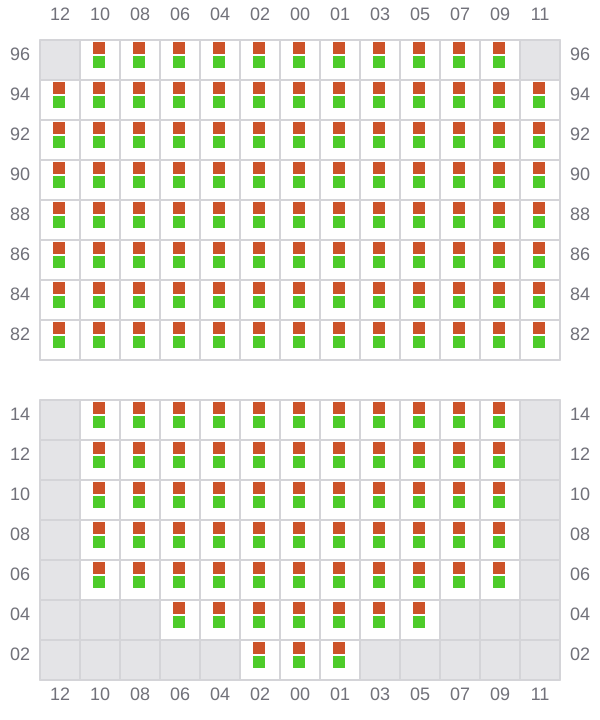

051 (050)

←

Bay 051 view and slots of WAN HAI 501

053 (054)

^→ / _?

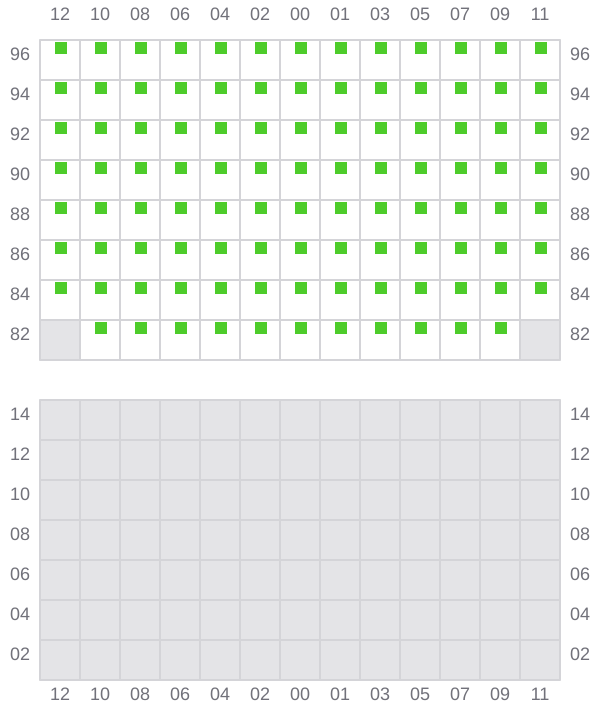

Bay 053 view and slots of WAN HAI 501

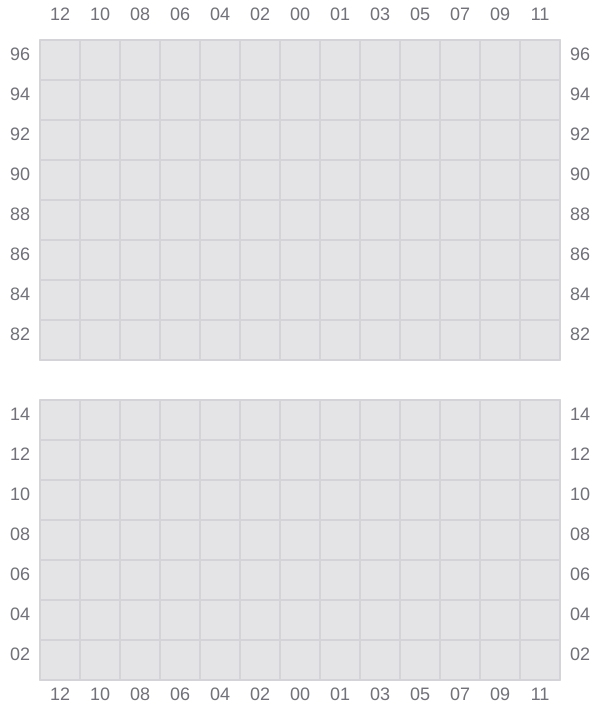

055

Bay 055 view and slots of WAN HAI 501

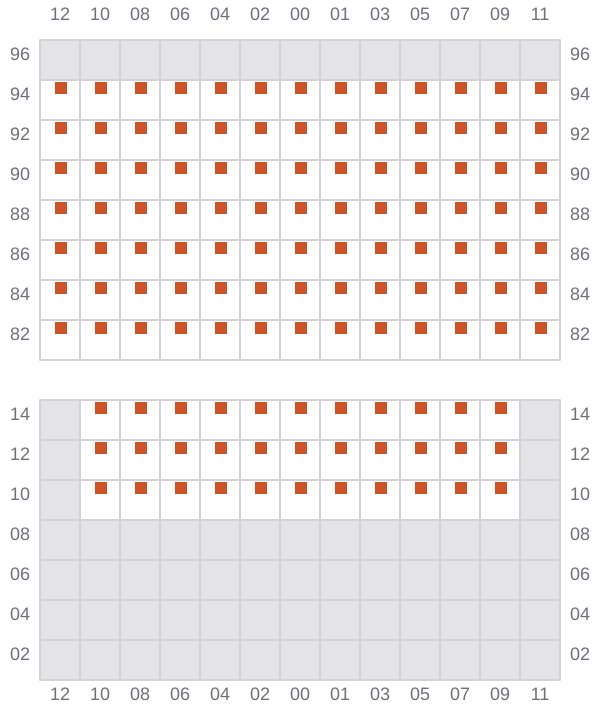

057

→

Bay 057 view and slots of WAN HAI 501

059 (058)

←

Bay 059 view and slots of WAN HAI 501

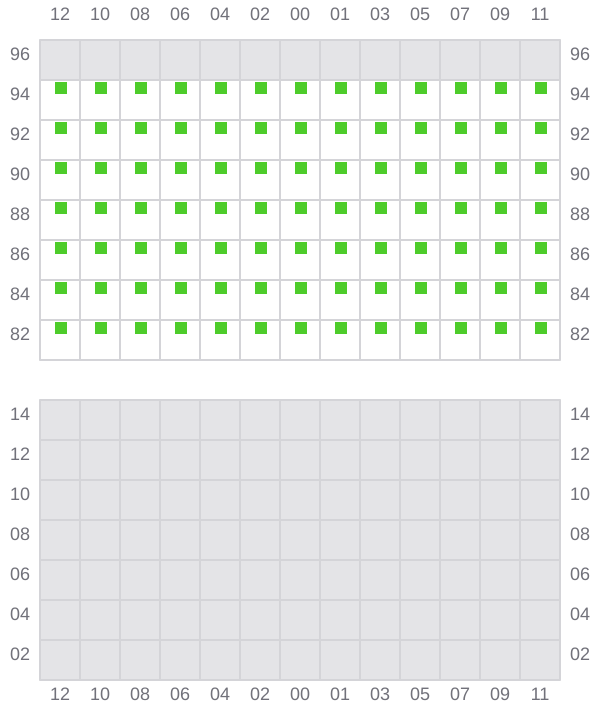

061 (062)

^→ / _?

Bay 061 view and slots of WAN HAI 501
