WAN HAI 502
9294850 | S6AS8 | 929485 by ********* Last update: Mon Jul 01 2024
General Info
Ship Name:WAN HAI 502
IMO Code:9294850
Call Sign:S6AS8
Line Operator:929485
Class Name for Sister Ships:KLINE
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,252
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

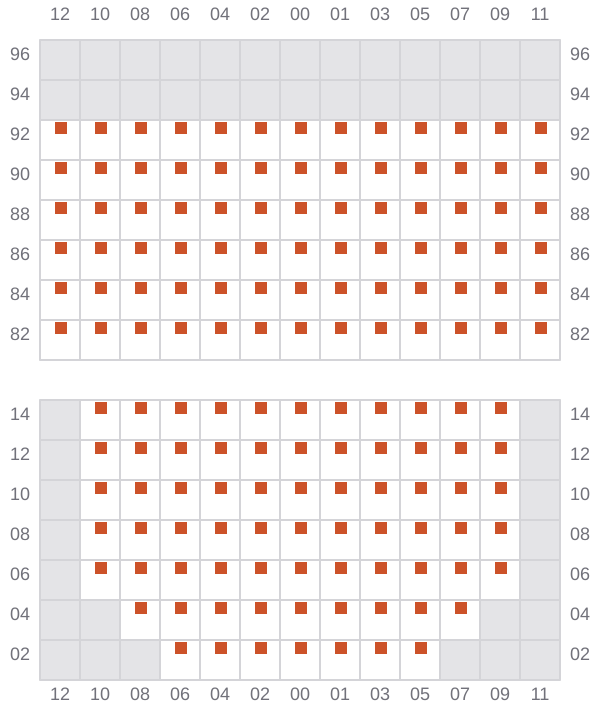

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →

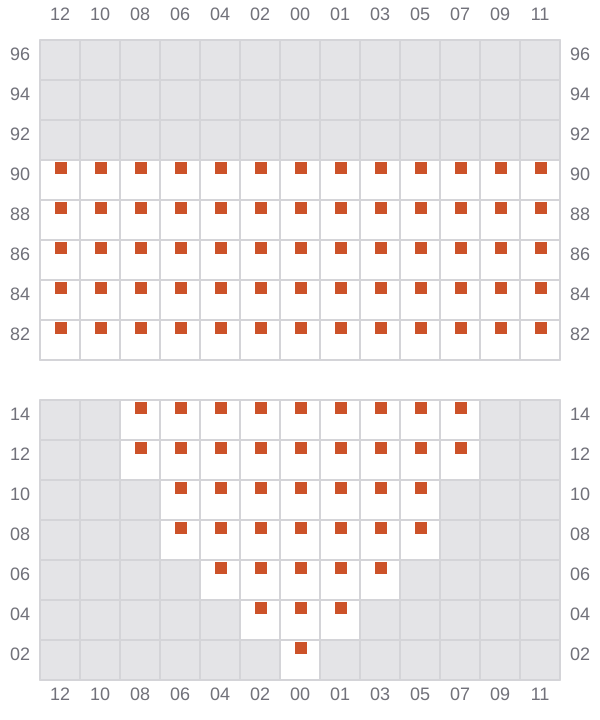

011
- ←
013 (014)
- →
015
- ←
017 (018)
- →
019
- ←

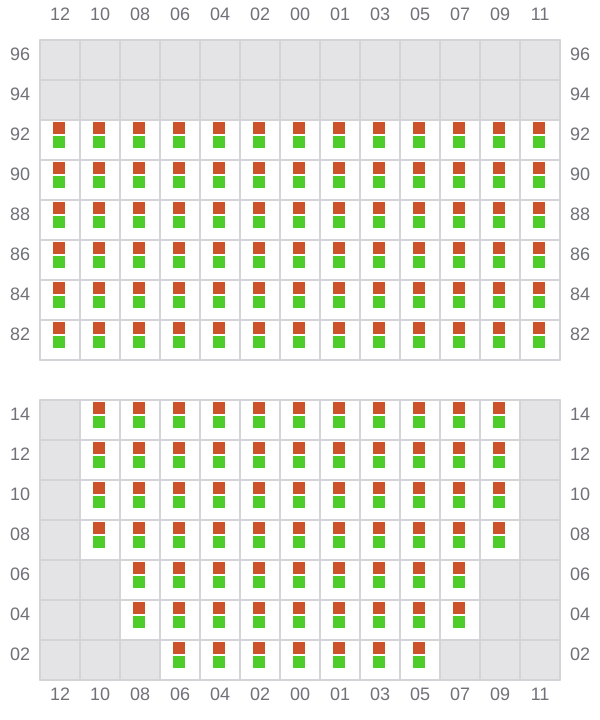

021 (022)
- →
023
- ←

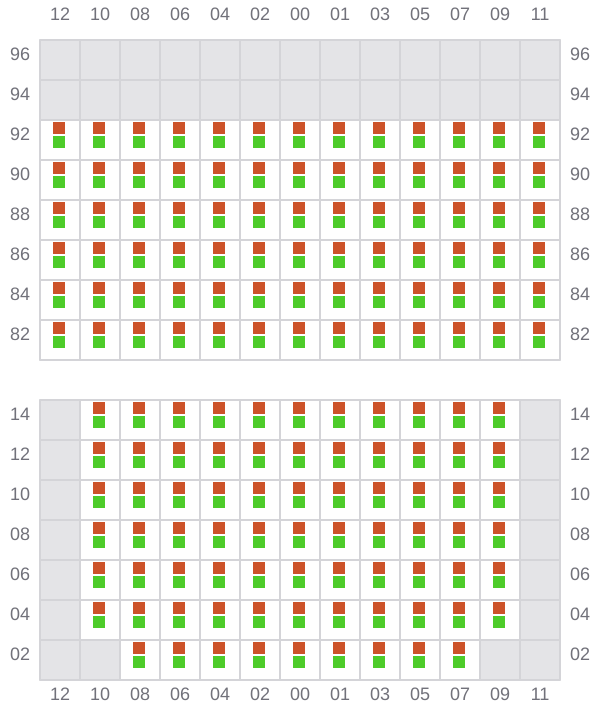

025 (026)
- →
027
- ←
029 (030)
- →

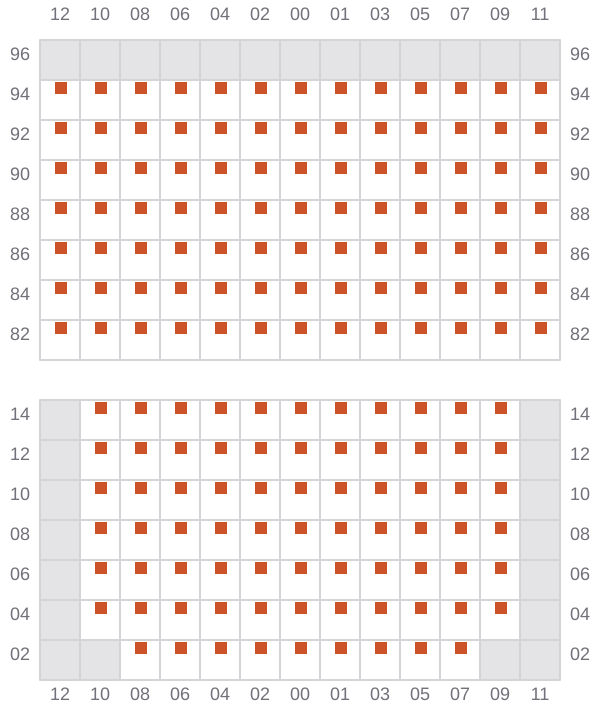

031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←
041 (042)
- →
043
- ←

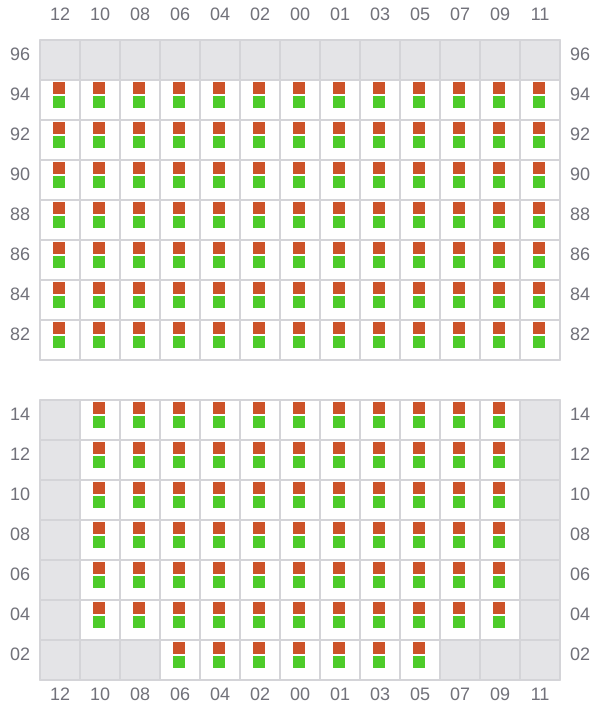

045 (046)
- →
047
- ←

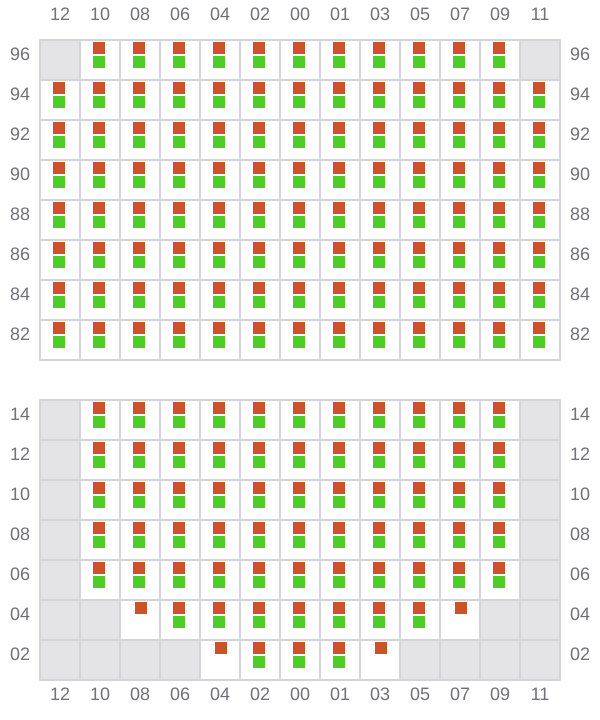

049 (050)
- →
051
- ←
053 (054)
- → / ?

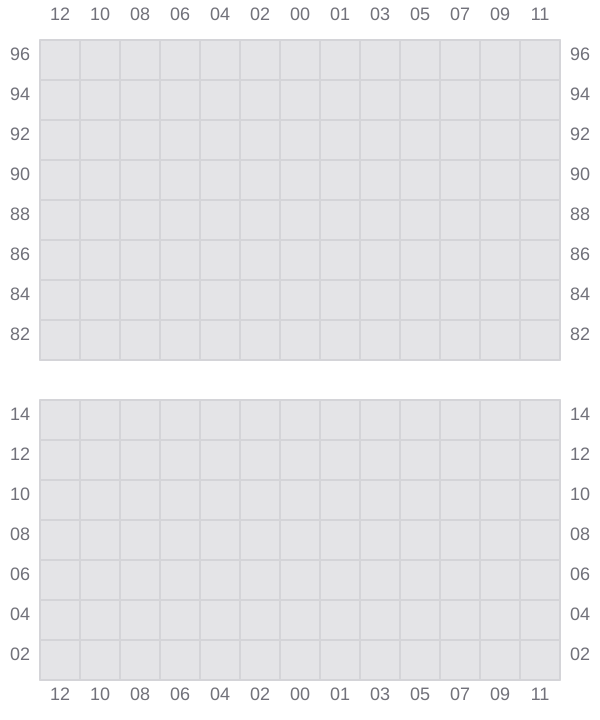

055
057 (058)
- →
059
- ←
061 (062)
- → / ?
