WAN HAI 503
9294862 | S6AV2 | 9294862 by ********* Last update: Fri May 03 2024

General Info

Ship Name:WAN HAI 503

IMO Code:9294862

Call Sign:S6AV2

Line Operator:9294862

Class Name for Sister Ships:WAN HAI 503

Year Built:2005

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:063

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,254

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of WAN HAI 503

Hatch-Covers View

Deck view of WAN HAI 503

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001

→

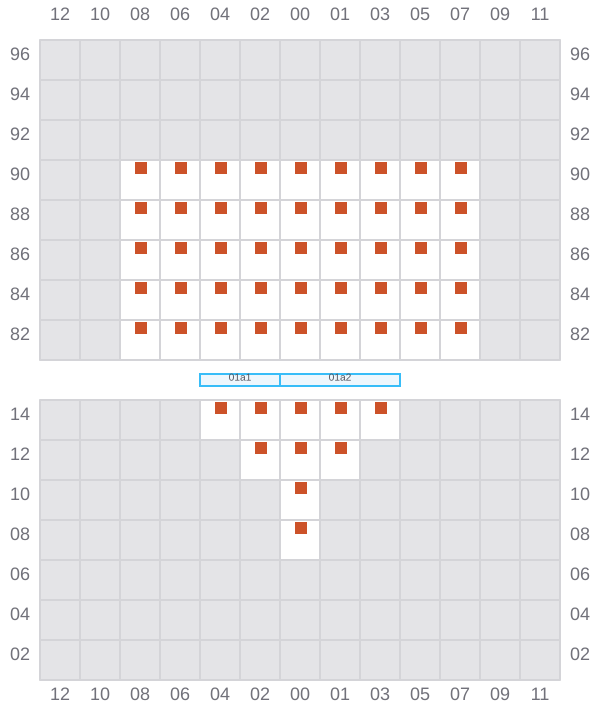

Bay 001 view and slots of WAN HAI 503

003 (002)

←

Bay 003 view and slots of WAN HAI 503

005

→

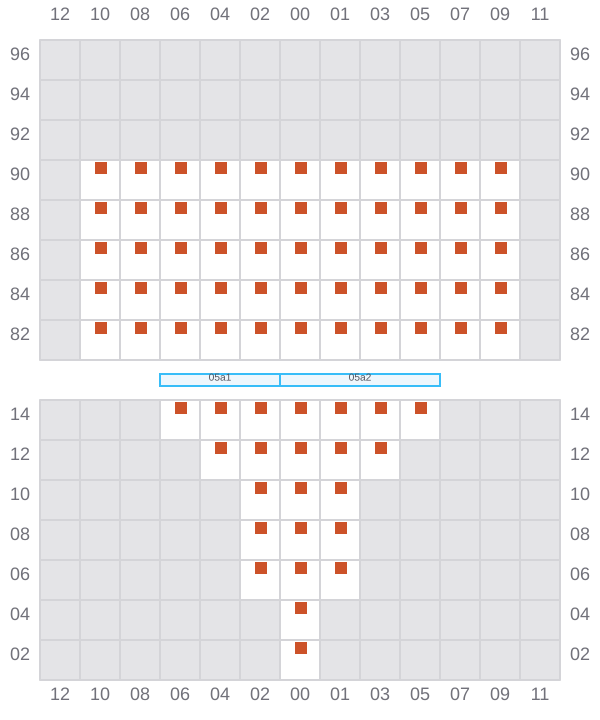

Bay 005 view and slots of WAN HAI 503

007 (006)

←

Bay 007 view and slots of WAN HAI 503

009

→

Bay 009 view and slots of WAN HAI 503

011 (010)

←

Bay 011 view and slots of WAN HAI 503

013

→

Bay 013 view and slots of WAN HAI 503

015 (014)

←

Bay 015 view and slots of WAN HAI 503

017

→

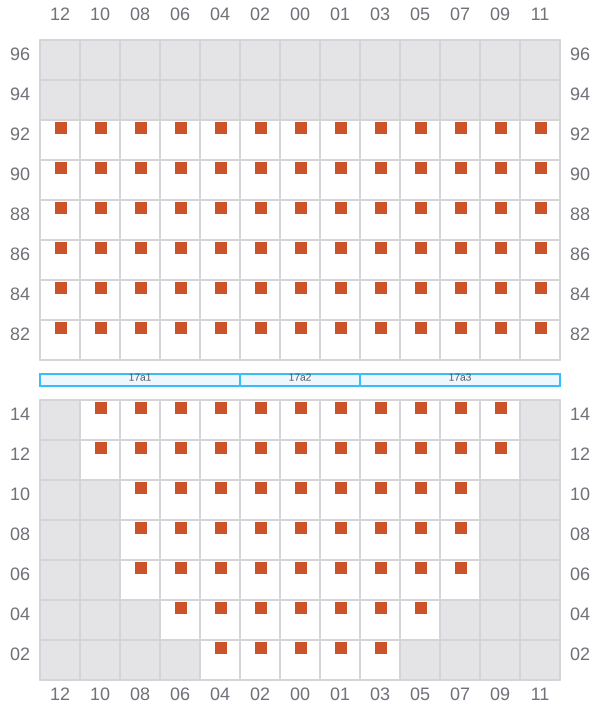

Bay 017 view and slots of WAN HAI 503

019 (018)

←

Bay 019 view and slots of WAN HAI 503

021

→

Bay 021 view and slots of WAN HAI 503

023 (022)

←

Bay 023 view and slots of WAN HAI 503

025

→

Bay 025 view and slots of WAN HAI 503

027 (026)

←

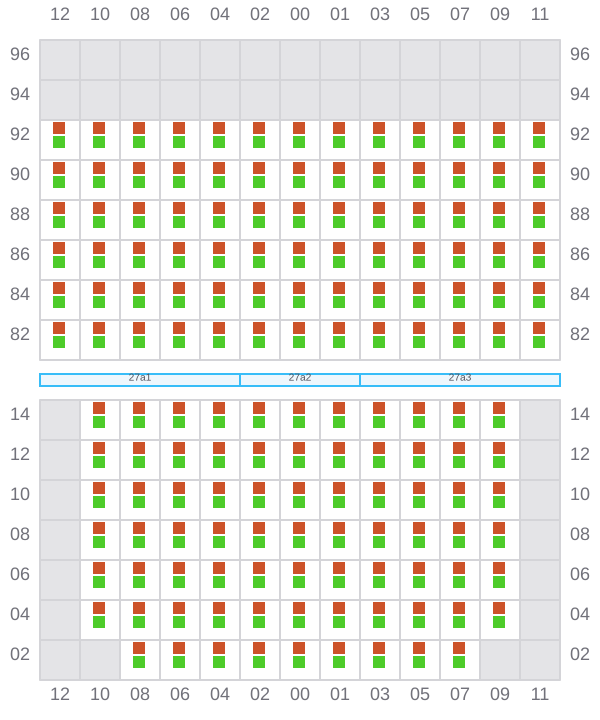

Bay 027 view and slots of WAN HAI 503

029

→

Bay 029 view and slots of WAN HAI 503

031 (030)

←

Bay 031 view and slots of WAN HAI 503

033

→

Bay 033 view and slots of WAN HAI 503

035 (034)

←

Bay 035 view and slots of WAN HAI 503

037

→

Bay 037 view and slots of WAN HAI 503

039 (038)

←

Bay 039 view and slots of WAN HAI 503

041

→

Bay 041 view and slots of WAN HAI 503

043 (042)

←

Bay 043 view and slots of WAN HAI 503

045

→

Bay 045 view and slots of WAN HAI 503

047 (046)

←

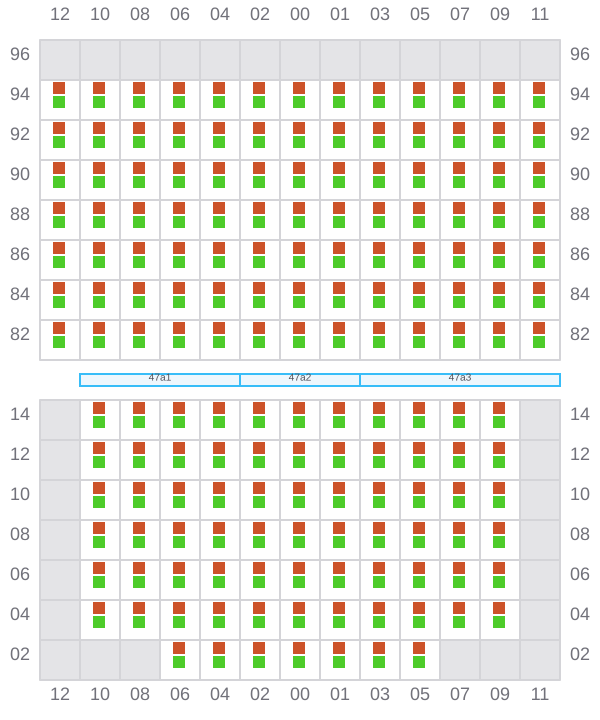

Bay 047 view and slots of WAN HAI 503

049

→

Bay 049 view and slots of WAN HAI 503

051 (050)

←

Bay 051 view and slots of WAN HAI 503

053

Bay 053 view and slots of WAN HAI 503

055 (054)

^← / _?

Bay 055 view and slots of WAN HAI 503

057

→

Bay 057 view and slots of WAN HAI 503

059 (058)

←

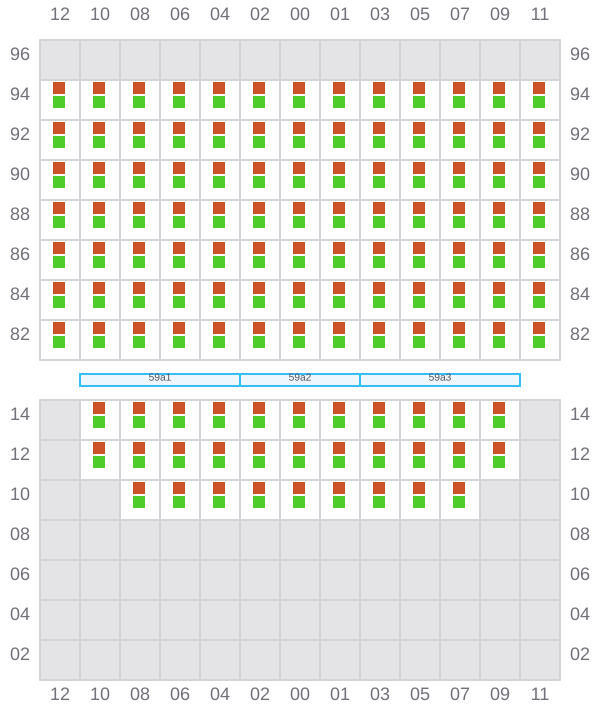

Bay 059 view and slots of WAN HAI 503

061

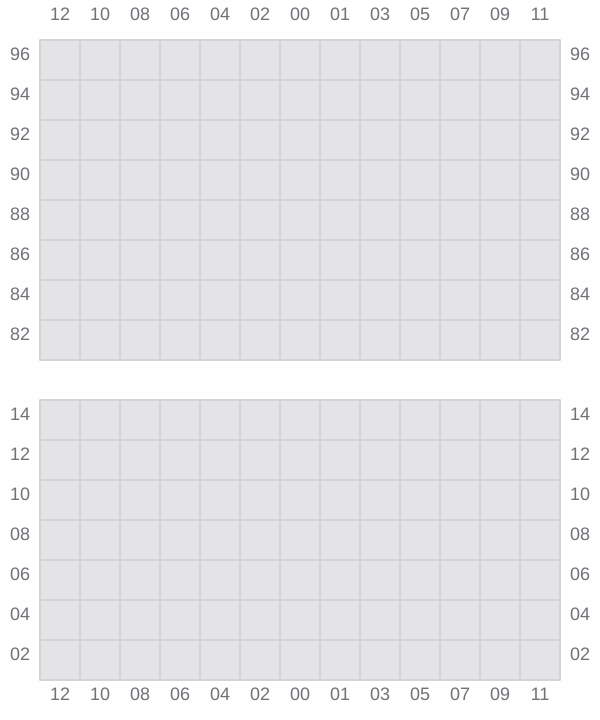

Bay 061 view and slots of WAN HAI 503

063 (062)

^← / _?

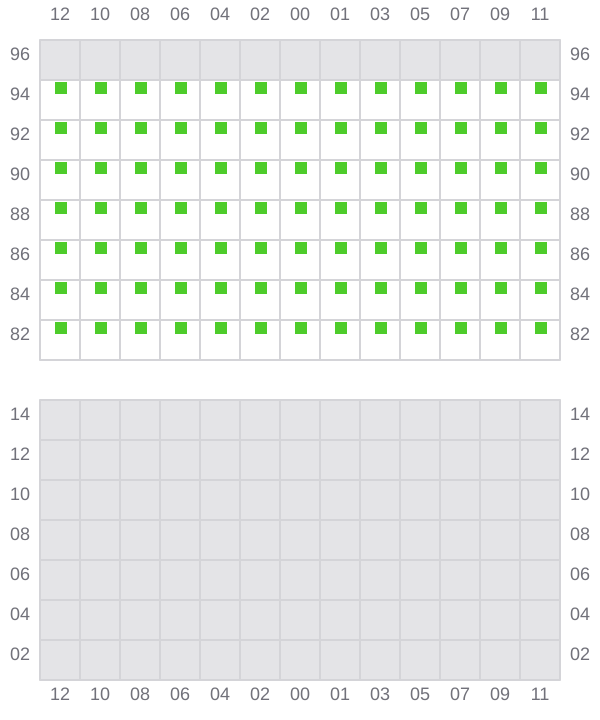

Bay 063 view and slots of WAN HAI 503
