WAN HAI 505
9294874 | S6AV3 | 9294874 by ********* Last update: Wed Apr 24 2024

General Info

Ship Name:WAN HAI 505
IMO Code:9294874
Call Sign:S6AV3
Line Operator:9294874
Class Name for Sister Ships:MOL DYNASTY
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,252

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of WAN HAI 505

Hatch-Covers View

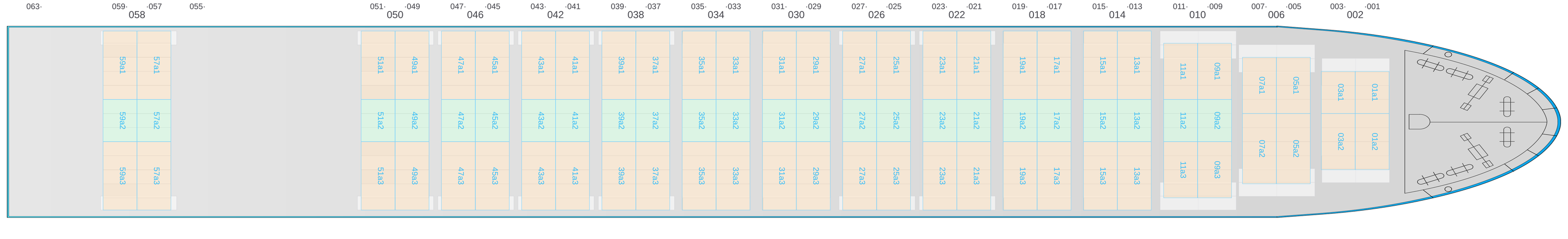

Deck view of WAN HAI 505

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

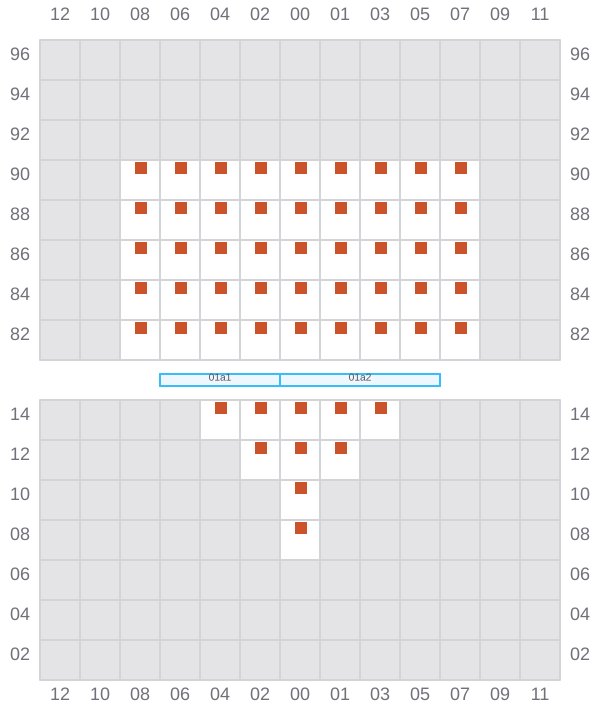

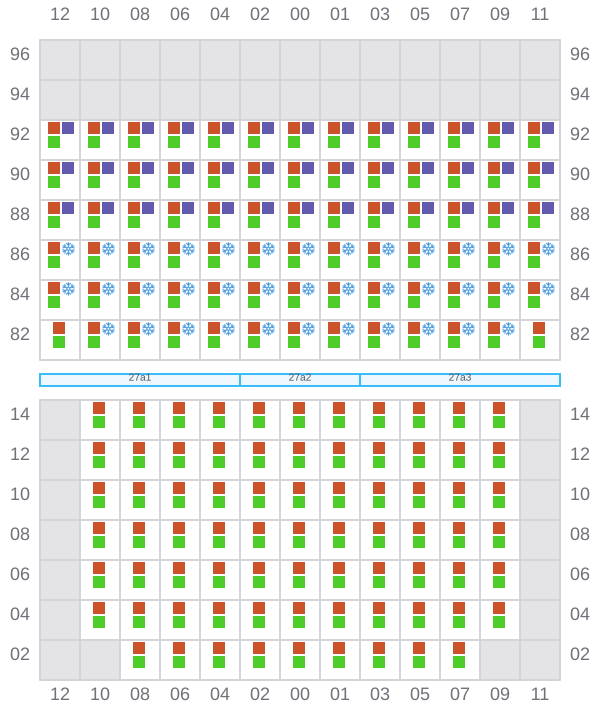

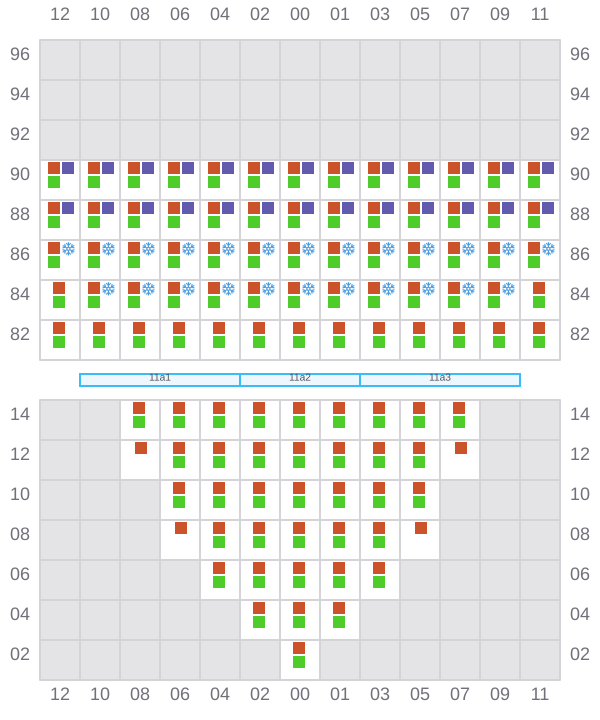

Bay 001 view and slots of WAN HAI 505

003 (002)

  • ←
  • →

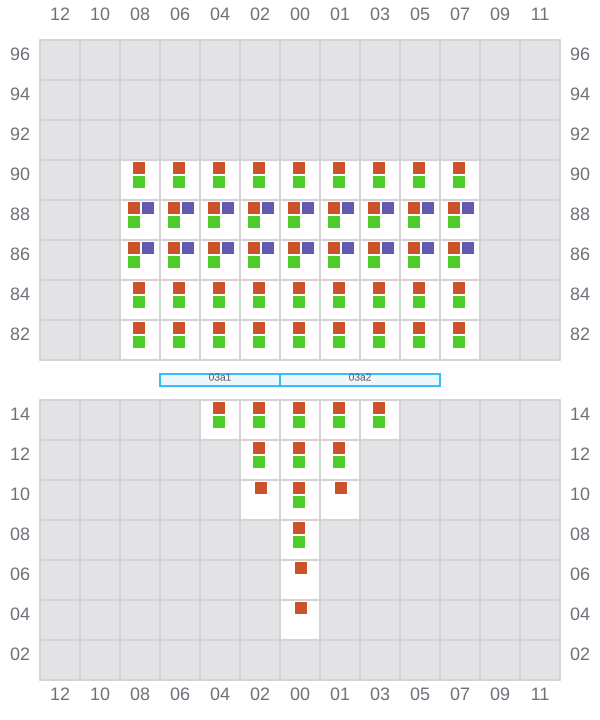

Bay 003 view and slots of WAN HAI 505

005

  • →
  • →

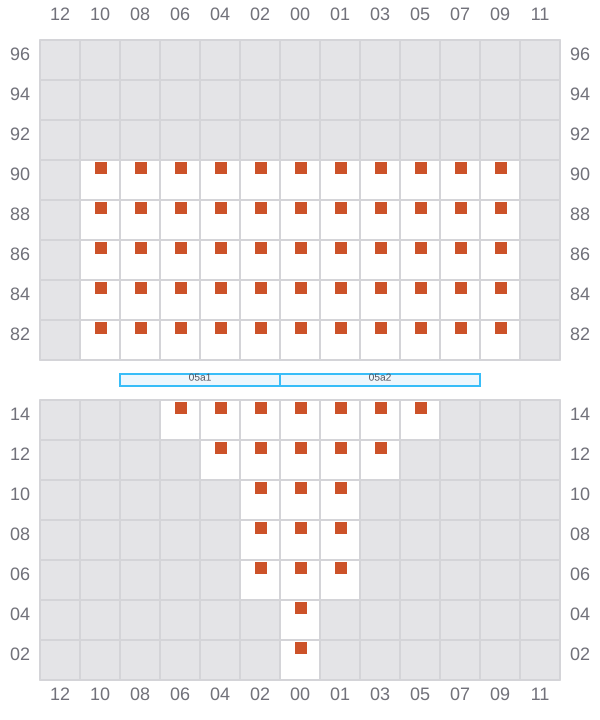

Bay 005 view and slots of WAN HAI 505

007 (006)

  • ←
  • →

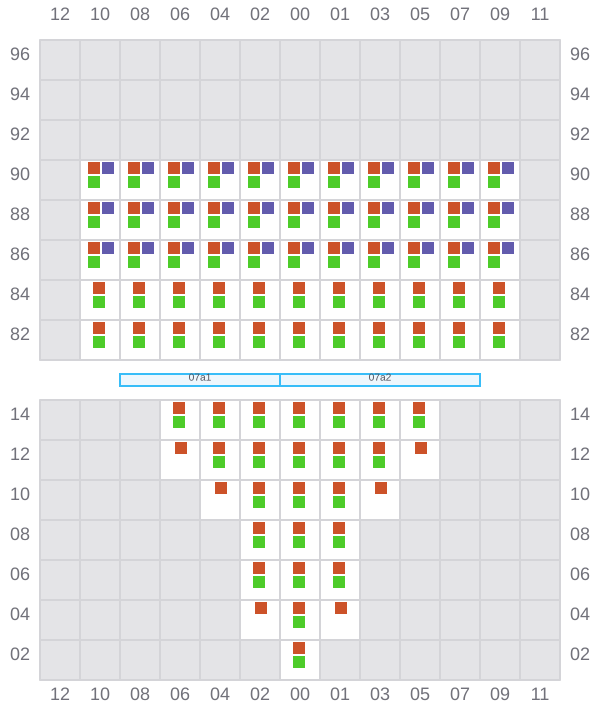

Bay 007 view and slots of WAN HAI 505

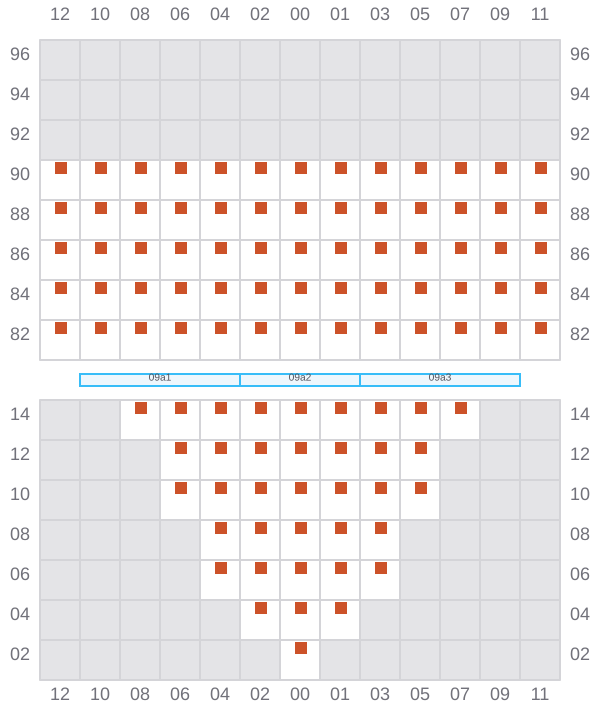

009

  • →
  • →
Bay 009 view and slots of WAN HAI 505

011 (010)

  • ←
  • → / ?
  • →
Bay 011 view and slots of WAN HAI 505

013

  • →
  • →

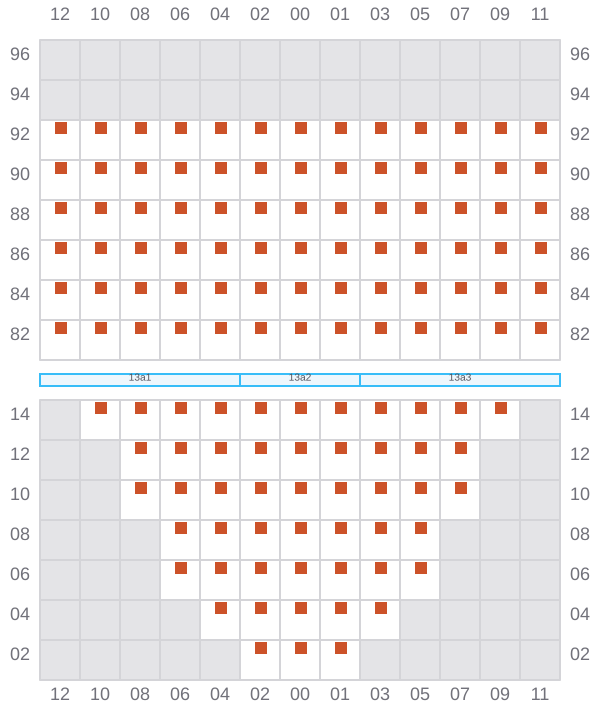

Bay 013 view and slots of WAN HAI 505

015 (014)

  • ←
  • → / ?
  • →

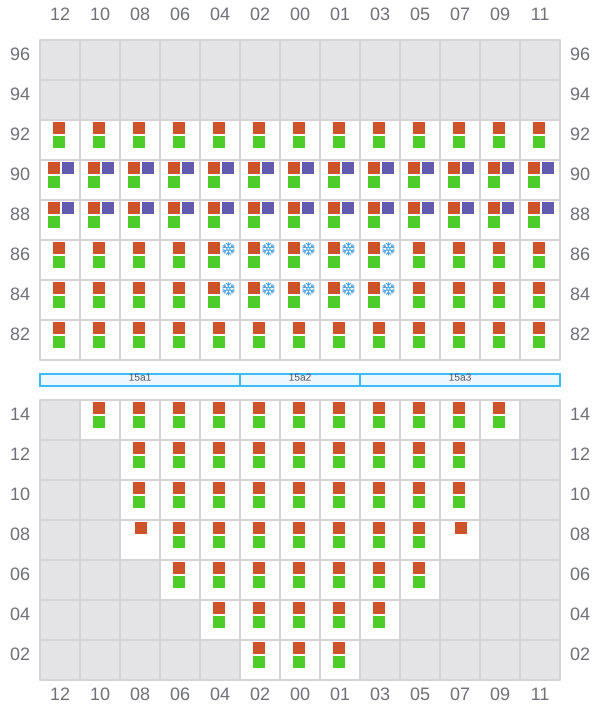

Bay 015 view and slots of WAN HAI 505

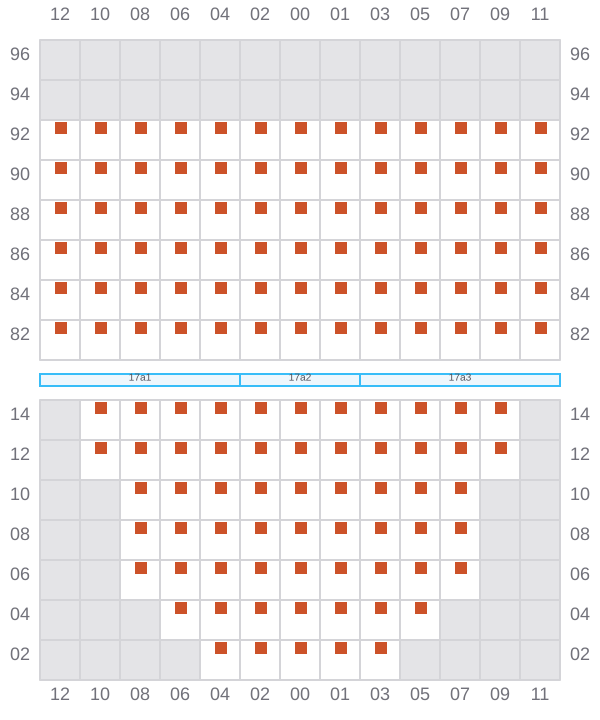

017

  • →
  • →
Bay 017 view and slots of WAN HAI 505

019 (018)

  • ←
  • → / ?
  • →

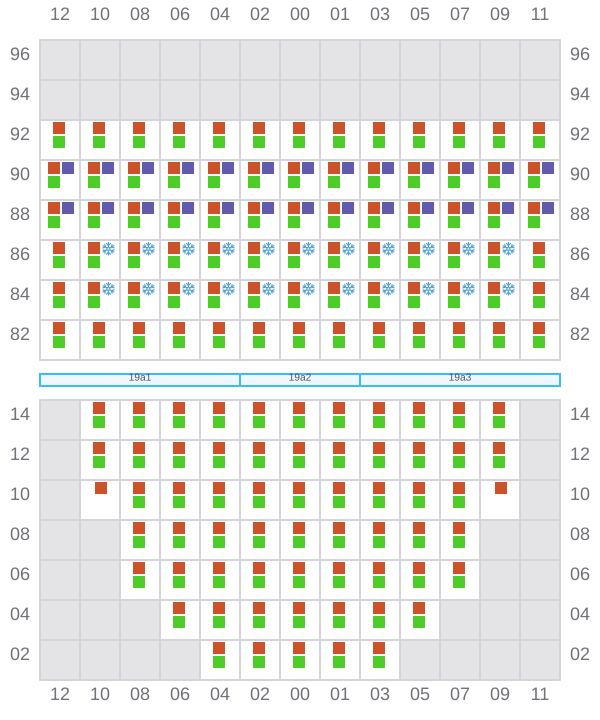

Bay 019 view and slots of WAN HAI 505

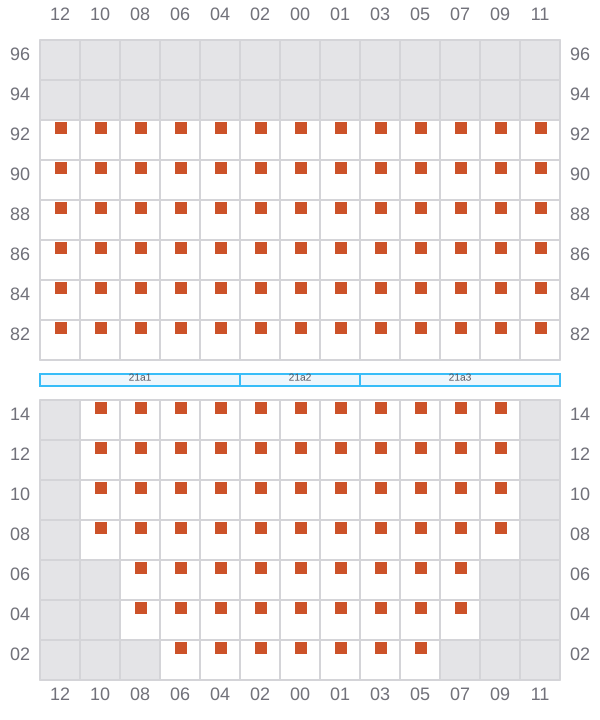

021

  • →
  • →
Bay 021 view and slots of WAN HAI 505

023 (022)

  • ←
  • → / ?
  • →

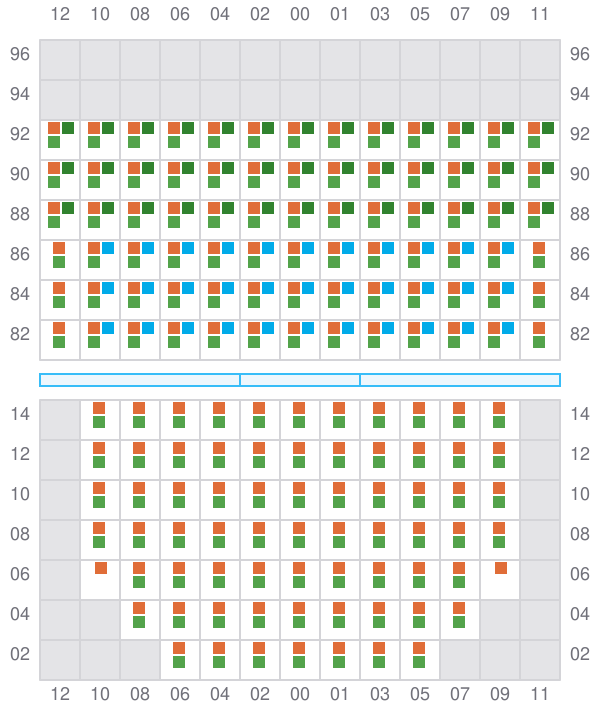

Bay 023 view and slots of WAN HAI 505

025

  • →
  • →

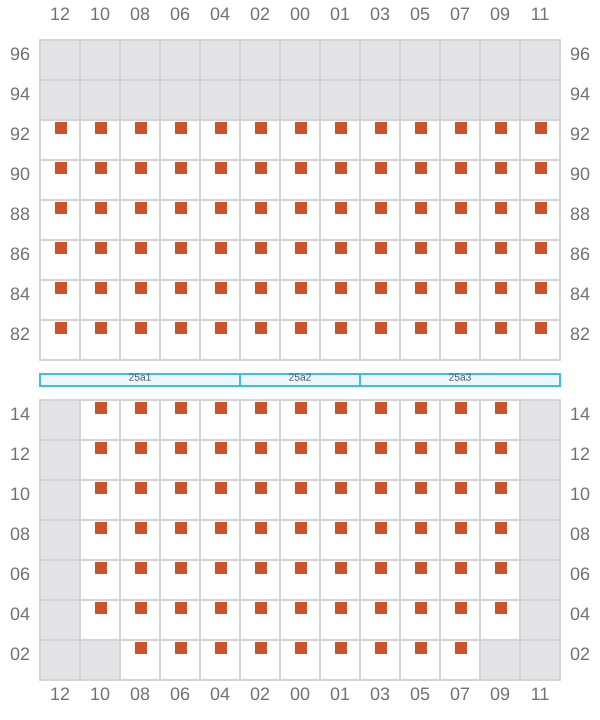

Bay 025 view and slots of WAN HAI 505

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of WAN HAI 505

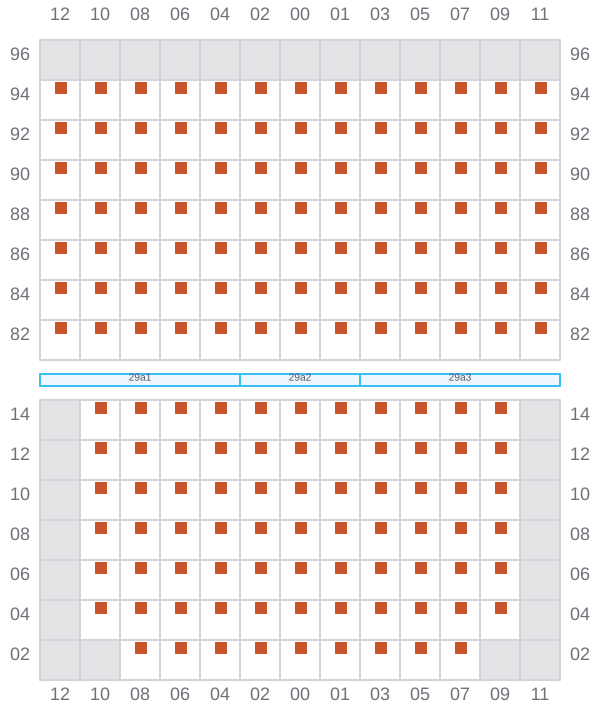

029

  • →
  • →
Bay 029 view and slots of WAN HAI 505

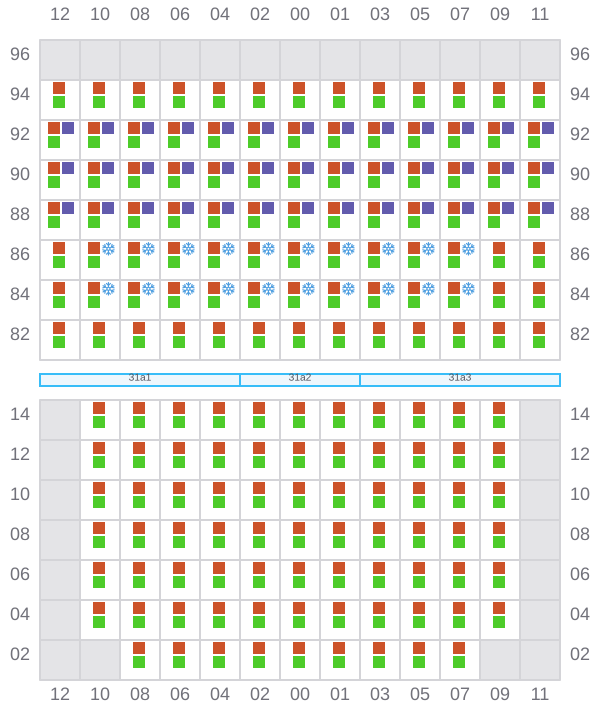

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of WAN HAI 505

033

  • →
  • →
Bay 033 view and slots of WAN HAI 505

035 (034)

  • ←
  • → / ?
  • →

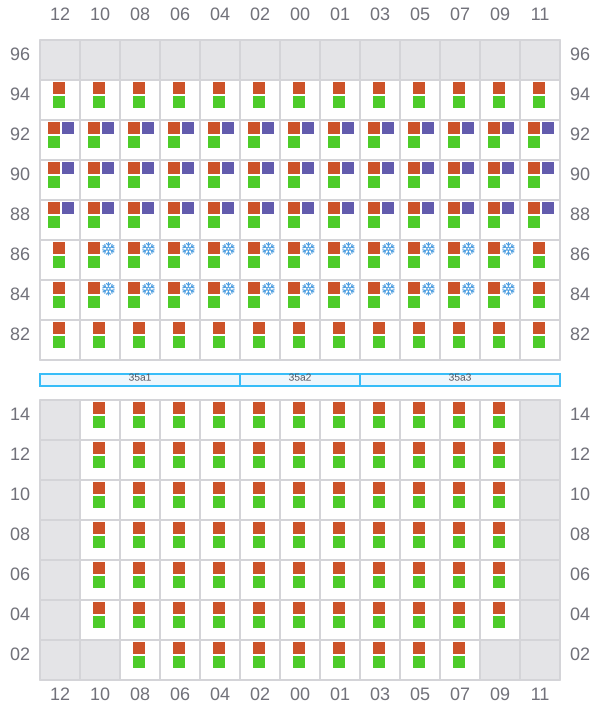

Bay 035 view and slots of WAN HAI 505

037

  • →
  • →
Bay 037 view and slots of WAN HAI 505

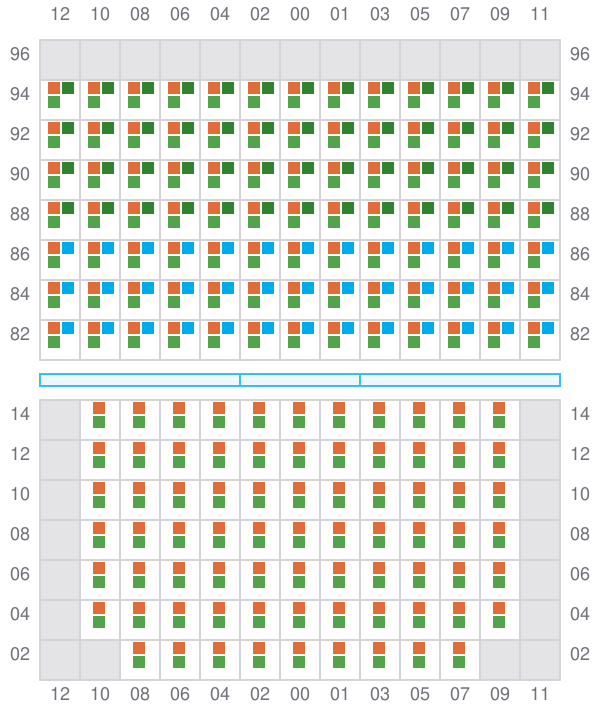

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of WAN HAI 505

041

  • →
  • →
Bay 041 view and slots of WAN HAI 505

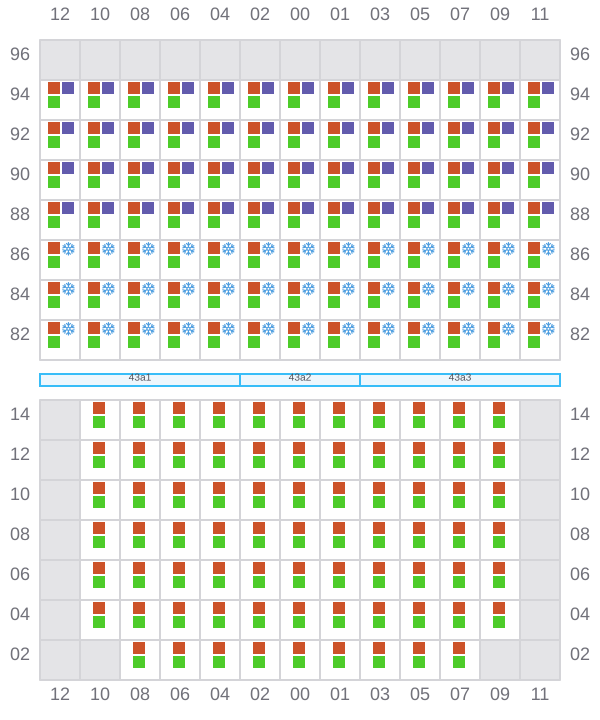

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of WAN HAI 505

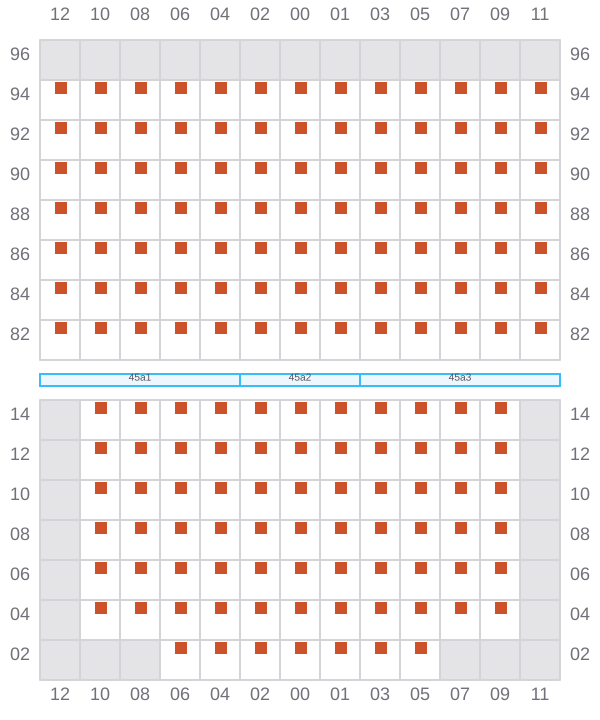

045

  • →
  • →
Bay 045 view and slots of WAN HAI 505

047 (046)

  • ←
  • → / ?
  • →

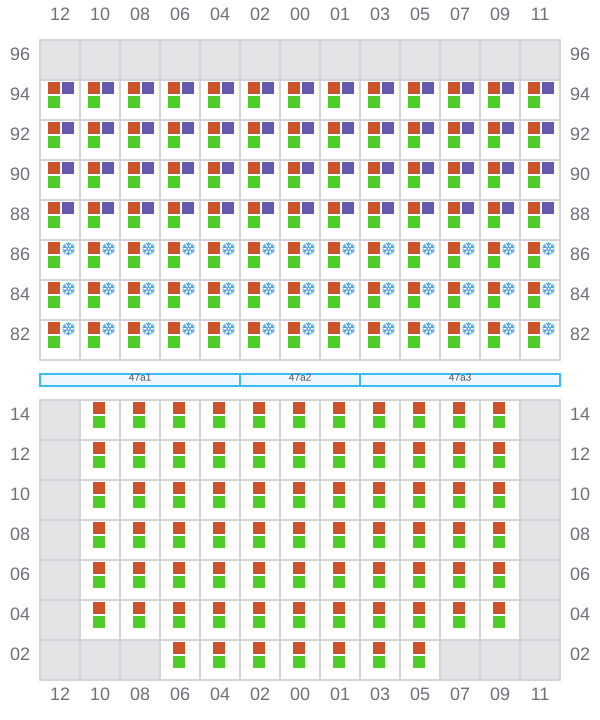

Bay 047 view and slots of WAN HAI 505

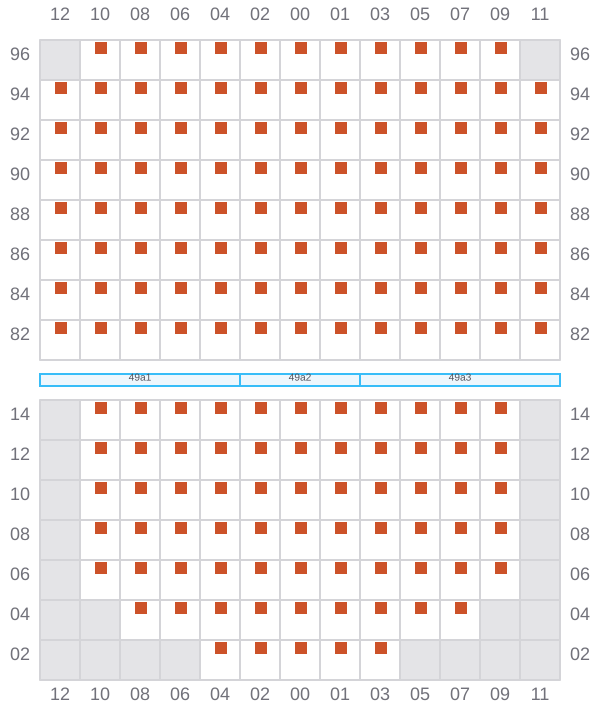

049

  • →
  • →
Bay 049 view and slots of WAN HAI 505

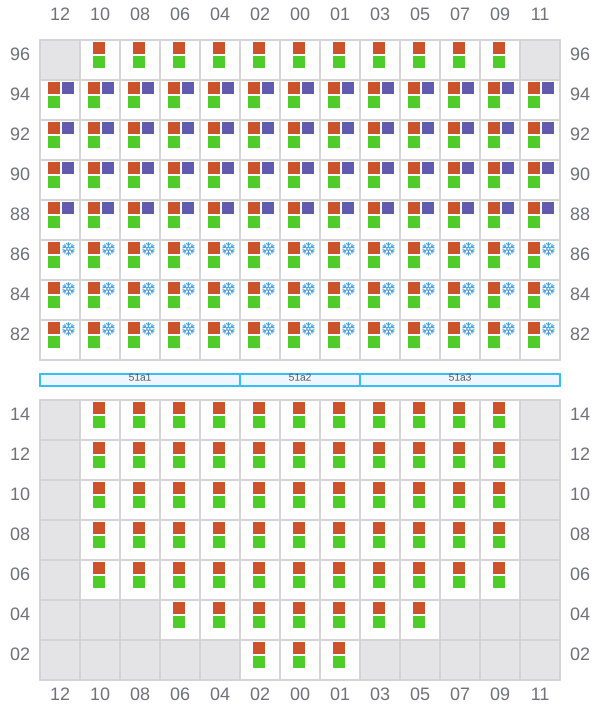

051 (050)

  • ←
  • → / ?
  • →
Bay 051 view and slots of WAN HAI 505

053

Bay 053 view and slots of WAN HAI 505

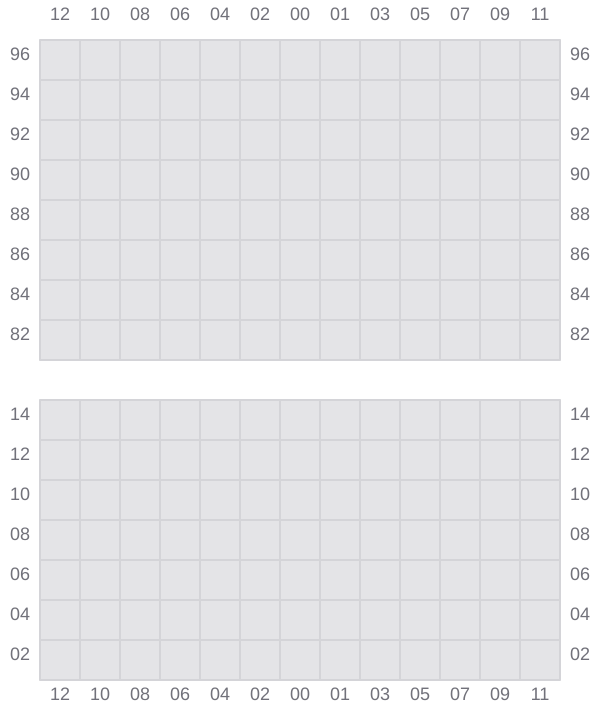

055 (054)

  • ← / ?
  • ← / ?
  • → / ?
Bay 055 view and slots of WAN HAI 505

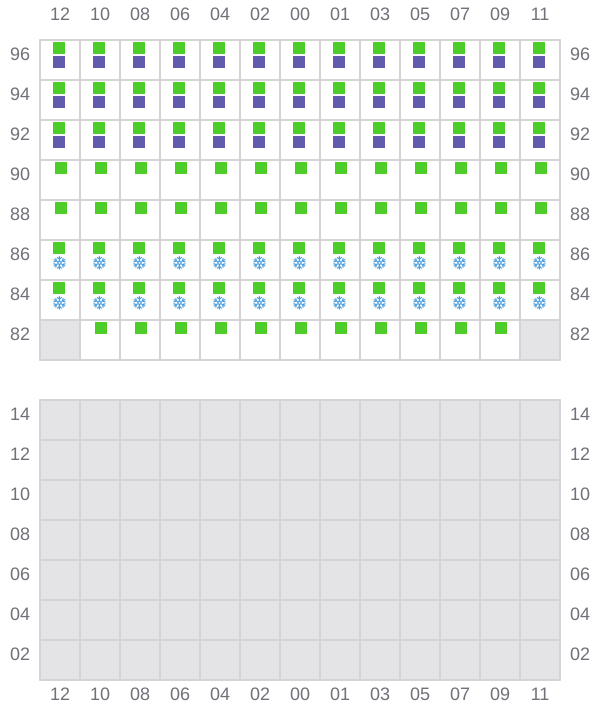

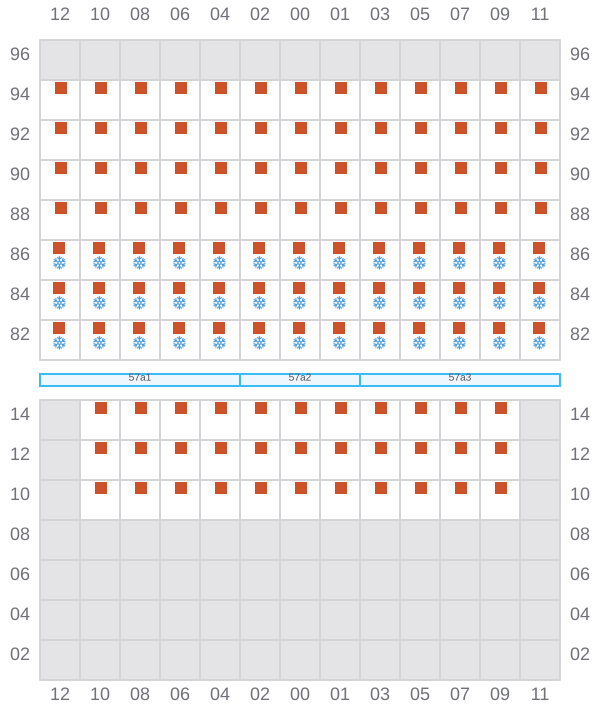

057

  • →
  • ← / ?
  • →
Bay 057 view and slots of WAN HAI 505

059 (058)

  • ←
  • →

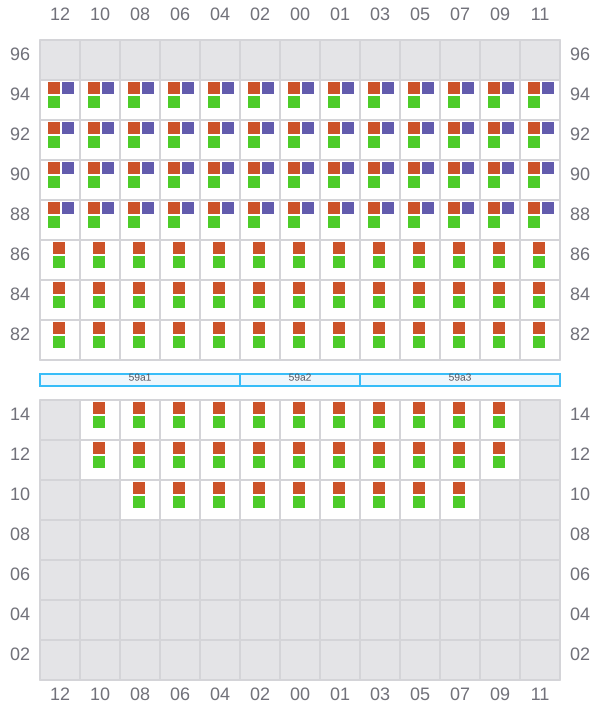

Bay 059 view and slots of WAN HAI 505

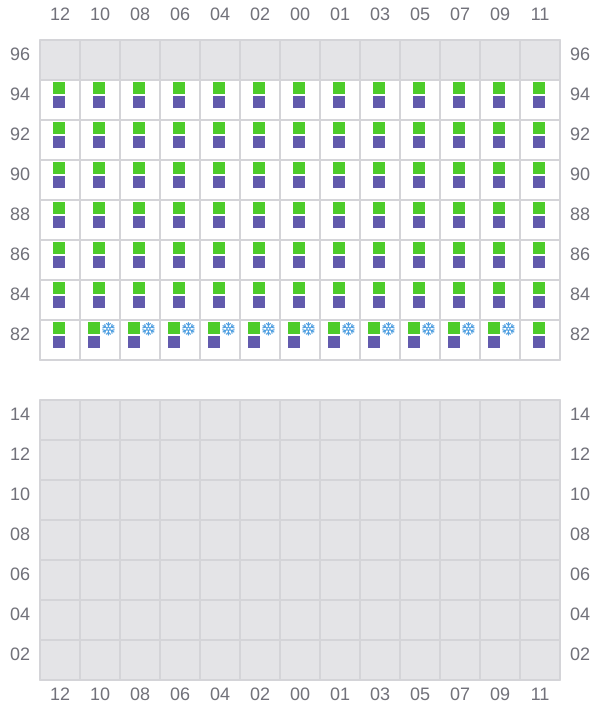

061

Bay 061 view and slots of WAN HAI 505

063 (062)

  • ← / ?
  • ← / ?
  • → / ?
Bay 063 view and slots of WAN HAI 505
