WAN HAI 507
9326407 | 9VJJ5 | 9326407 by ********* Last update: Fri May 03 2024

General Info

Ship Name:WAN HAI 507
IMO Code:9326407
Call Sign:9VJJ5
Line Operator:9326407
Class Name for Sister Ships:WAN HAI 507
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,262

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

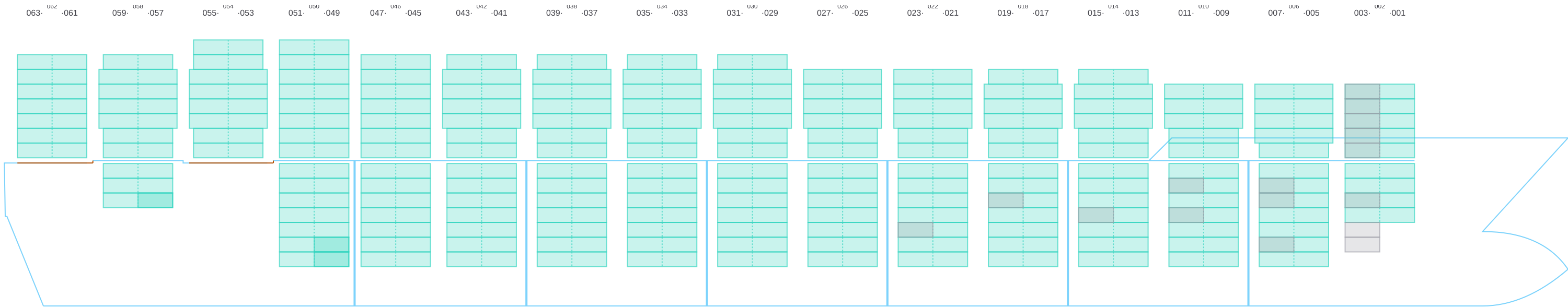

Side view of WAN HAI 507

Hatch-Covers View

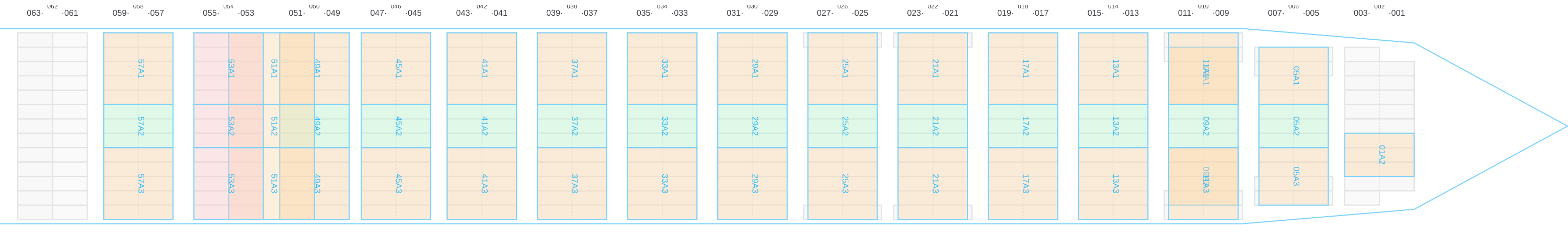

Deck view of WAN HAI 507

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • →

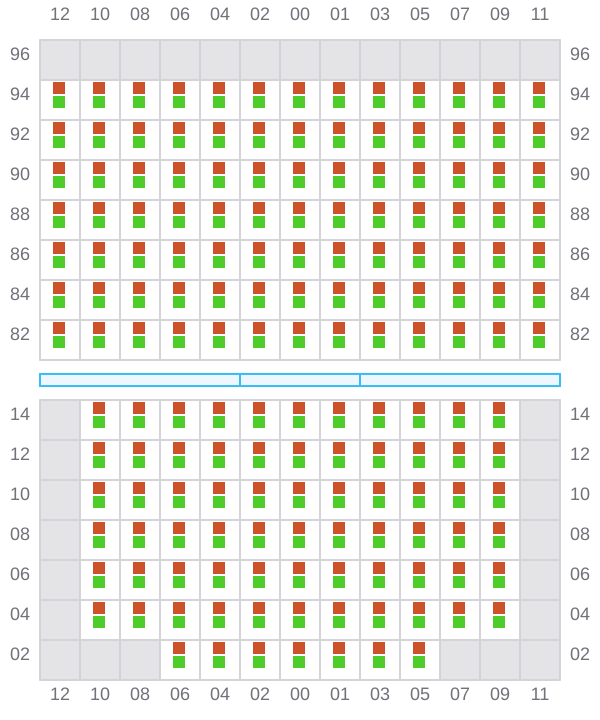

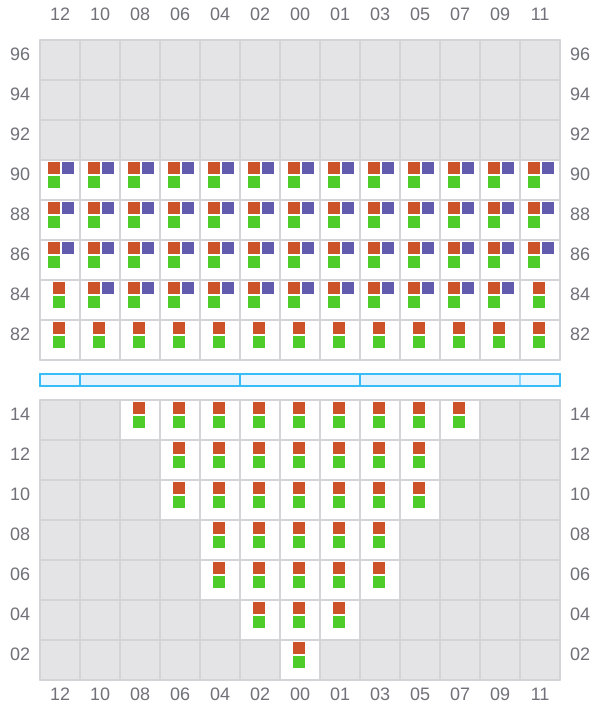

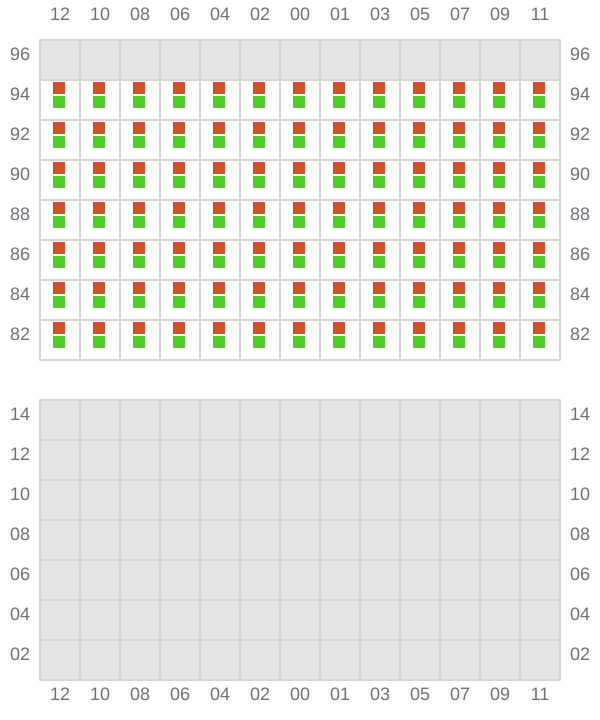

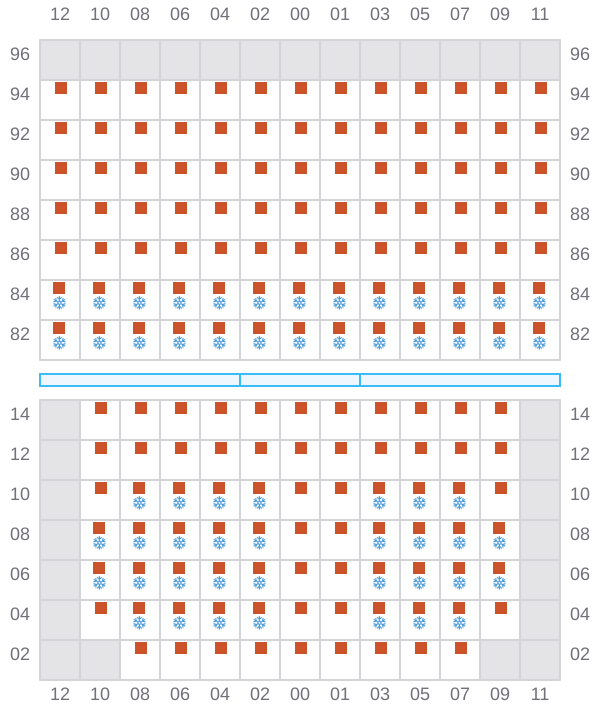

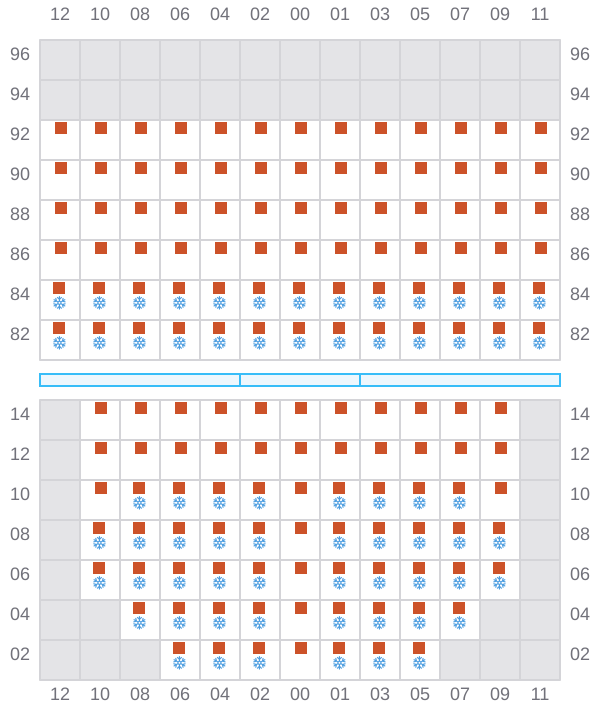

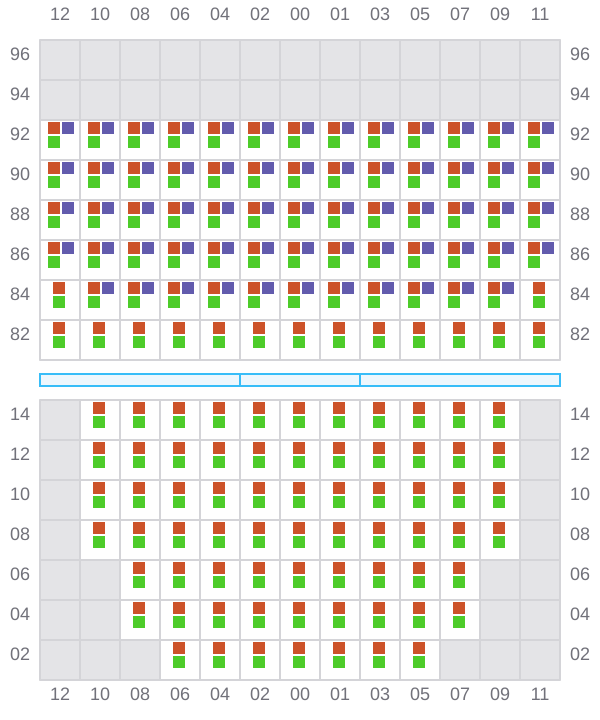

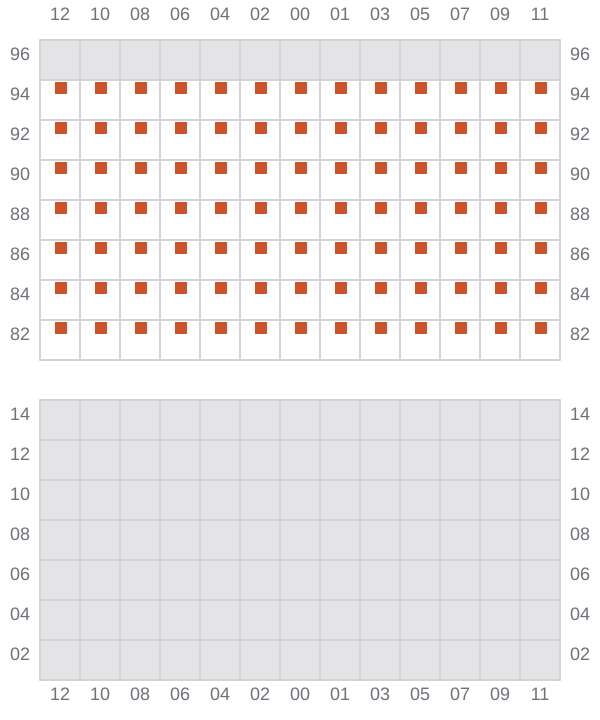

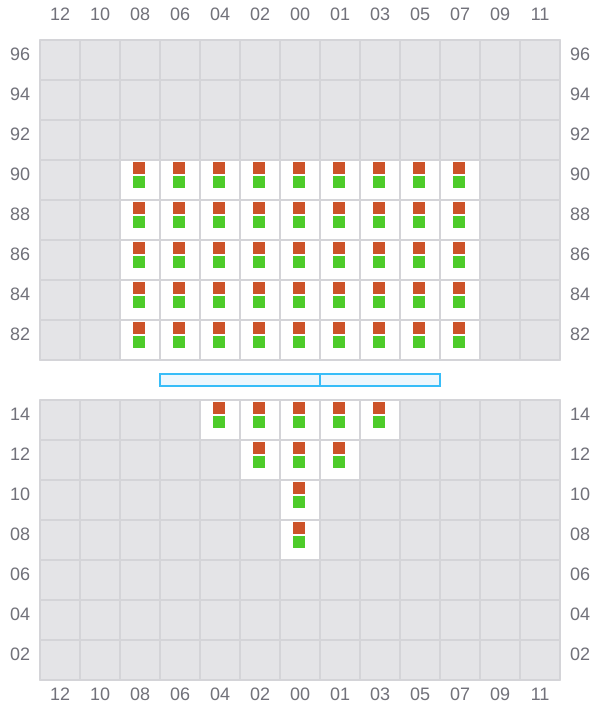

Bay 001 view and slots of WAN HAI 507

003

  • ←
  • → / ?
  • →

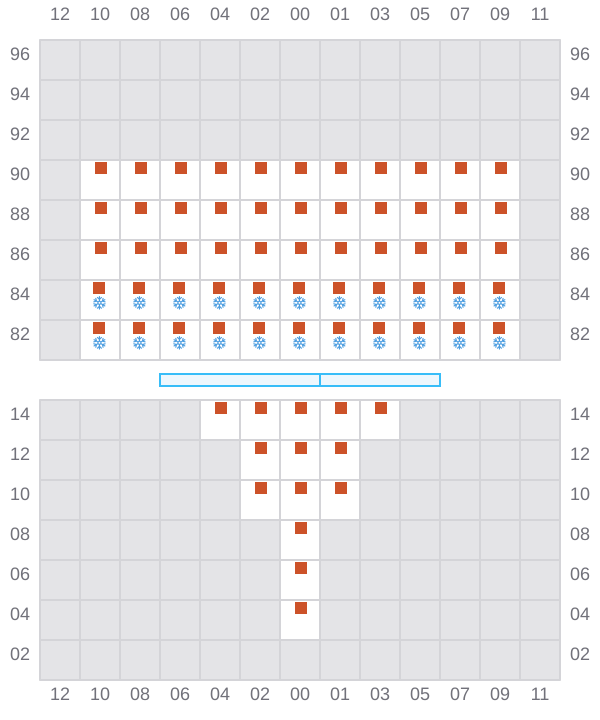

Bay 003 view and slots of WAN HAI 507

005 (006)

  • →
  • →

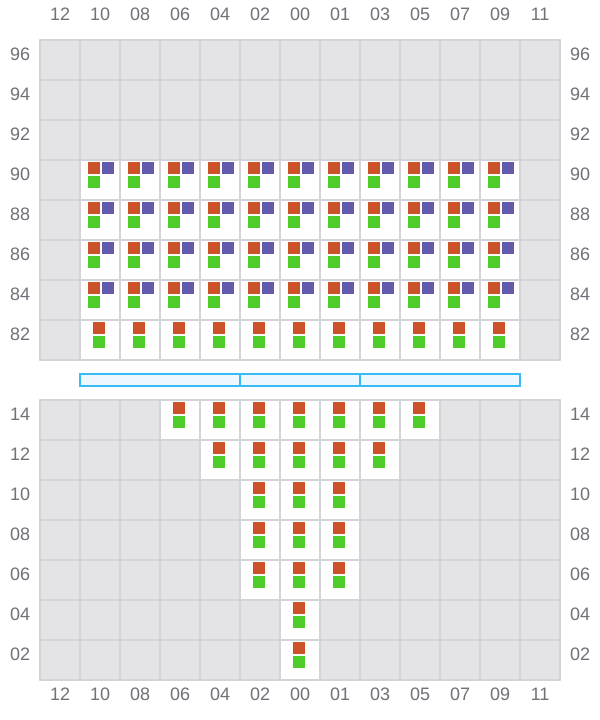

Bay 005 view and slots of WAN HAI 507

007

  • ←
  • → / ?
  • →

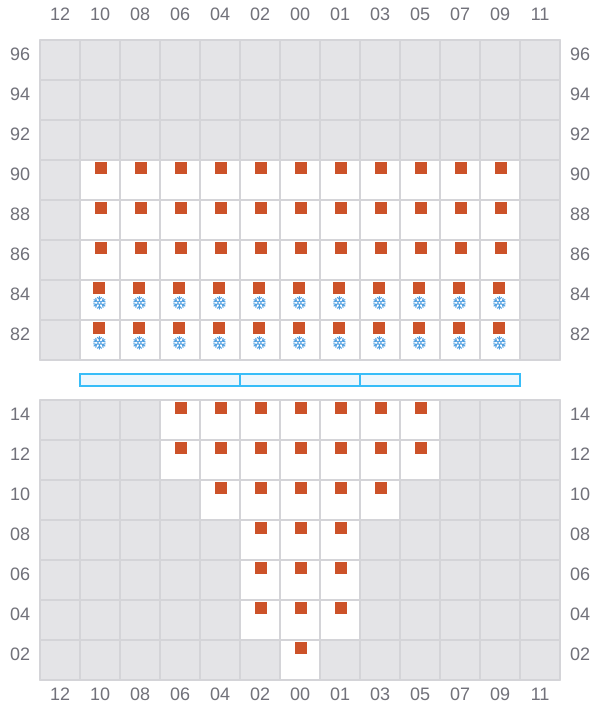

Bay 007 view and slots of WAN HAI 507

009 (010)

  • →
  • →
Bay 009 view and slots of WAN HAI 507

011

  • ←
  • →
  • →

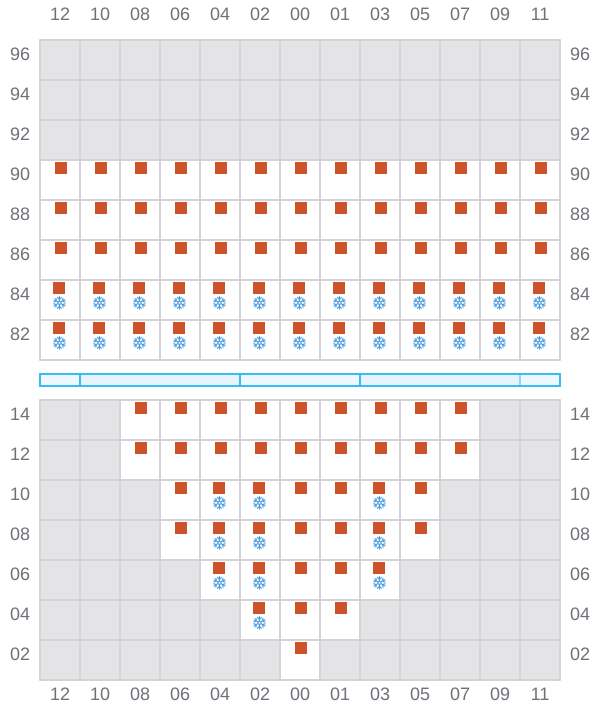

Bay 011 view and slots of WAN HAI 507

013 (014)

  • →
  • →

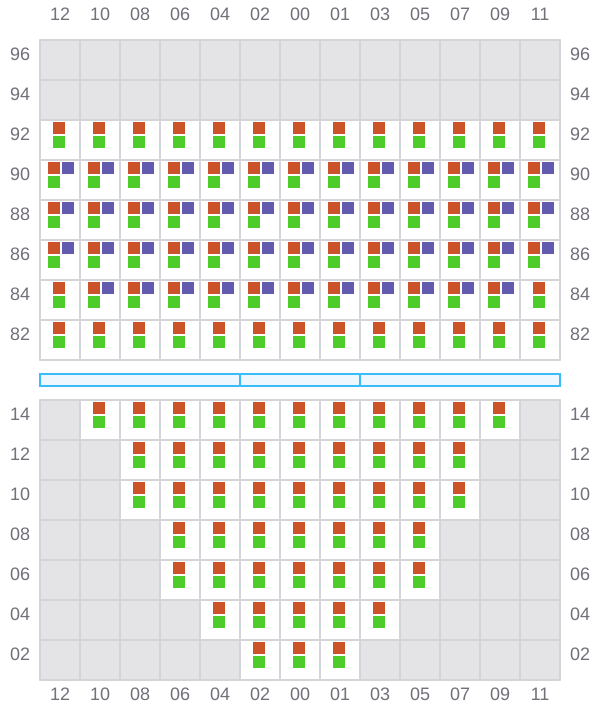

Bay 013 view and slots of WAN HAI 507

015

  • ←
  • →
  • →

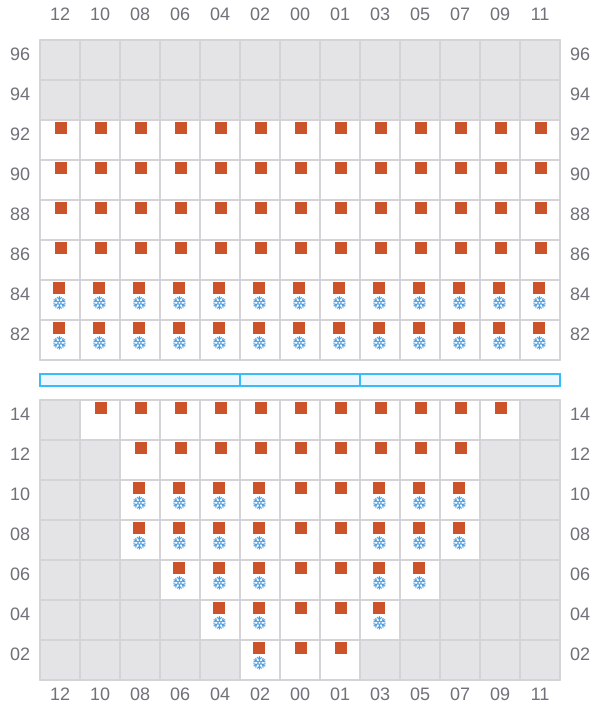

Bay 015 view and slots of WAN HAI 507

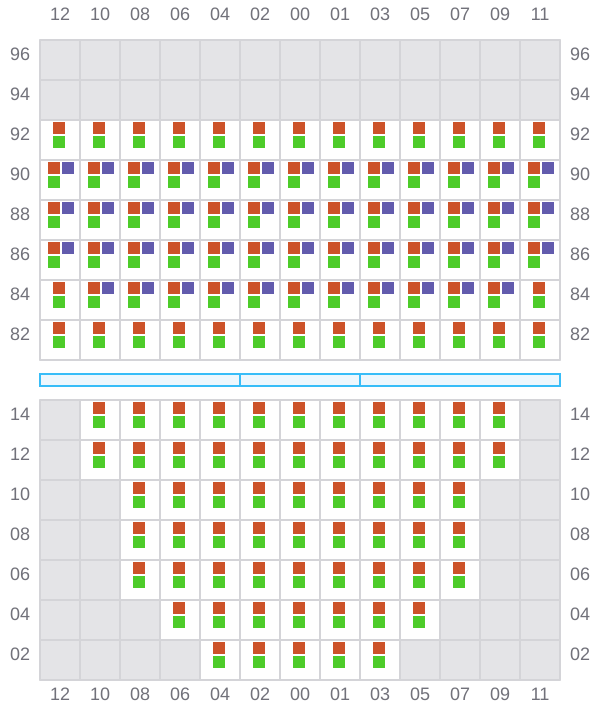

017 (018)

  • →
  • →
Bay 017 view and slots of WAN HAI 507

019

  • ←
  • →
  • →
Bay 019 view and slots of WAN HAI 507

021 (022)

  • →
  • →
Bay 021 view and slots of WAN HAI 507

023

  • ←
  • →
  • →
Bay 023 view and slots of WAN HAI 507

025 (026)

  • →
  • →
Bay 025 view and slots of WAN HAI 507

027

  • ←
  • →
  • →

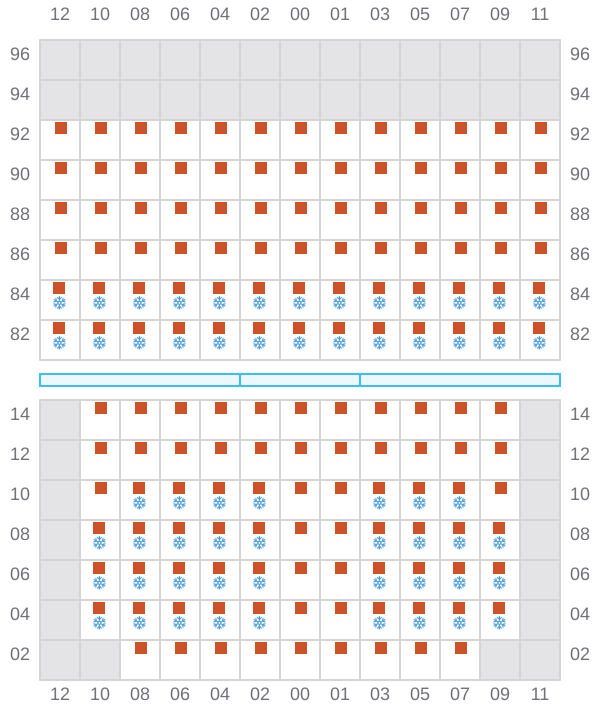

Bay 027 view and slots of WAN HAI 507

029 (030)

  • →
  • →
Bay 029 view and slots of WAN HAI 507

031

  • ←
  • →
  • →
Bay 031 view and slots of WAN HAI 507

033 (034)

  • →
  • →
Bay 033 view and slots of WAN HAI 507

035

  • ←
  • →
  • →
Bay 035 view and slots of WAN HAI 507

037 (038)

  • →
  • →

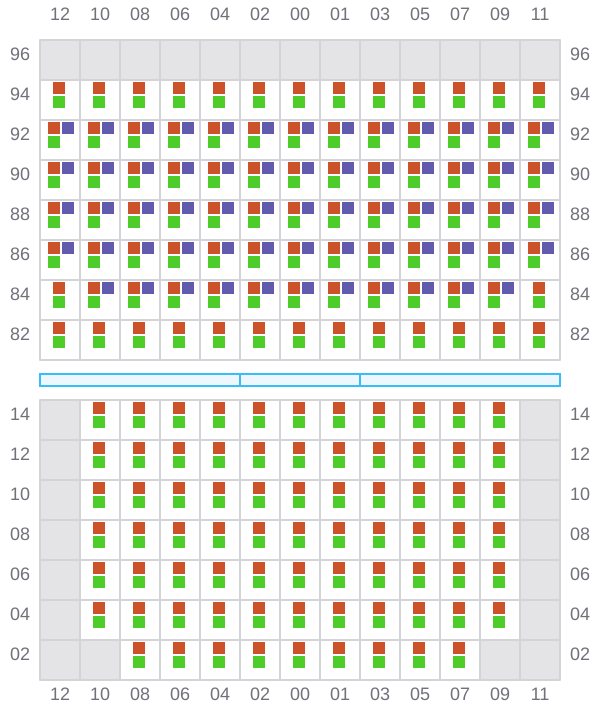

Bay 037 view and slots of WAN HAI 507

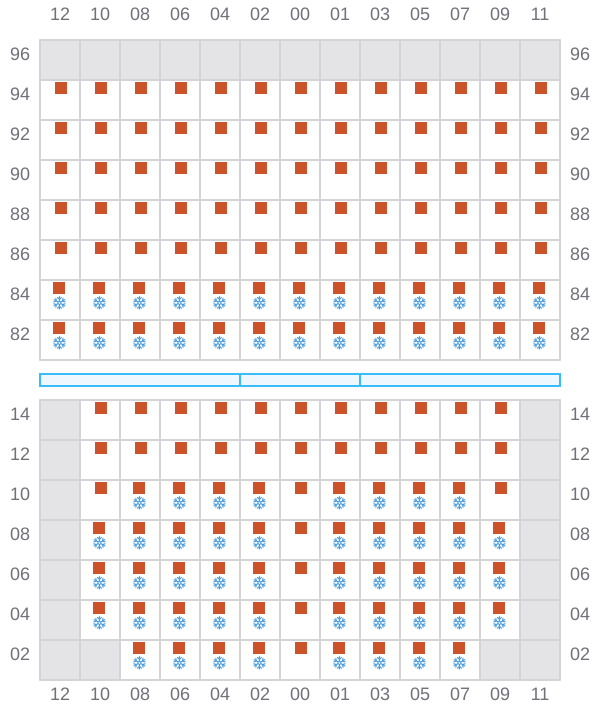

039

  • ←
  • →
  • →
Bay 039 view and slots of WAN HAI 507

041 (042)

  • →
  • →
Bay 041 view and slots of WAN HAI 507

043

  • ←
  • →
  • →
Bay 043 view and slots of WAN HAI 507

045 (046)

  • →
  • →
Bay 045 view and slots of WAN HAI 507

047

  • ←
  • →
  • →

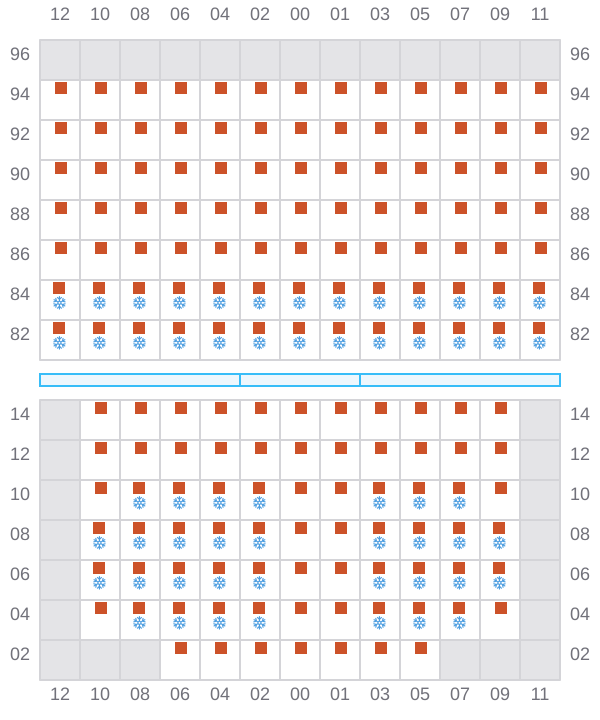

Bay 047 view and slots of WAN HAI 507

049 (050)

  • →
  • ← / ?
  • →

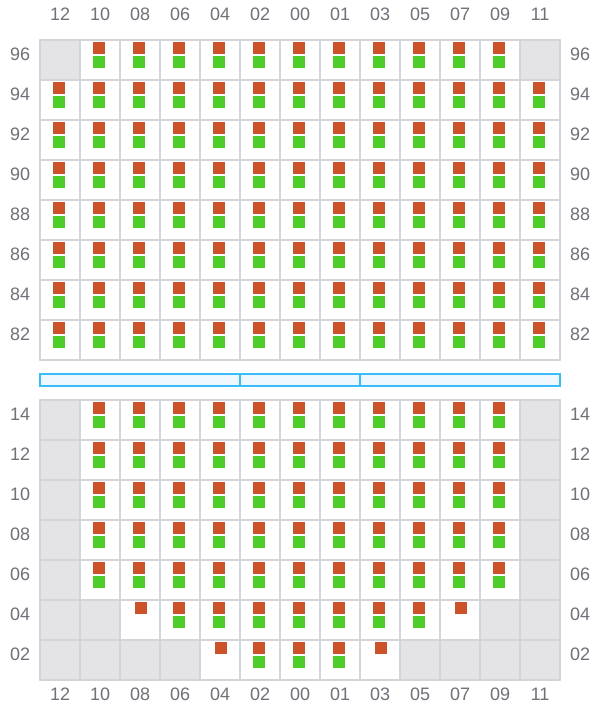

Bay 049 view and slots of WAN HAI 507

051

  • ←
  • →
Bay 051 view and slots of WAN HAI 507

053 (054)

  • → / ?
  • ← / ?
  • → / ?
Bay 053 view and slots of WAN HAI 507

055

  • ← / ?
  • → / ?
Bay 055 view and slots of WAN HAI 507

057 (058)

  • →
  • ← / ?
  • →

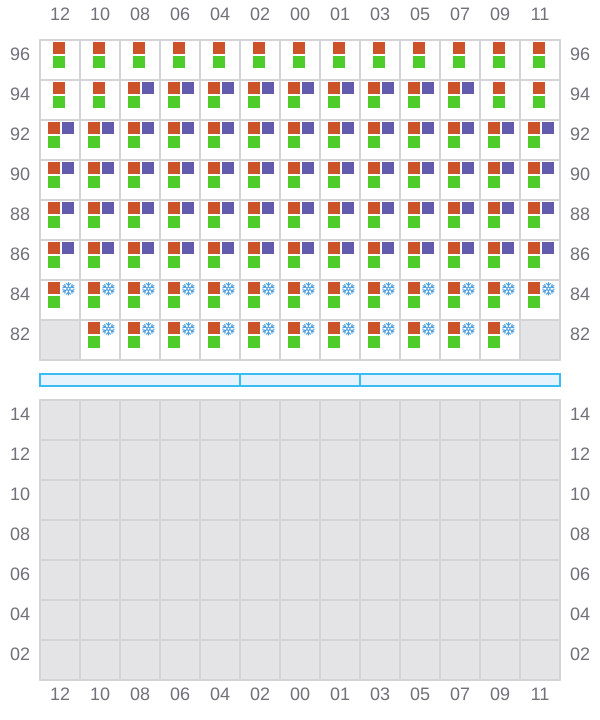

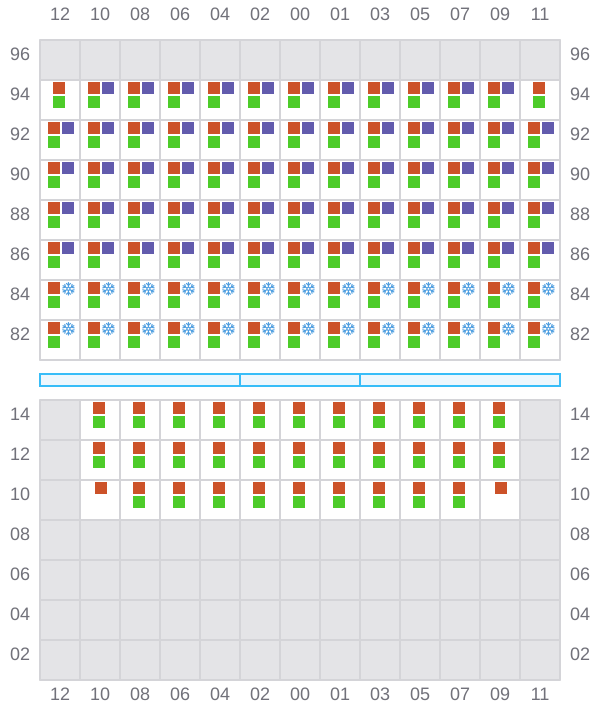

Bay 057 view and slots of WAN HAI 507

059

  • ←
  • →

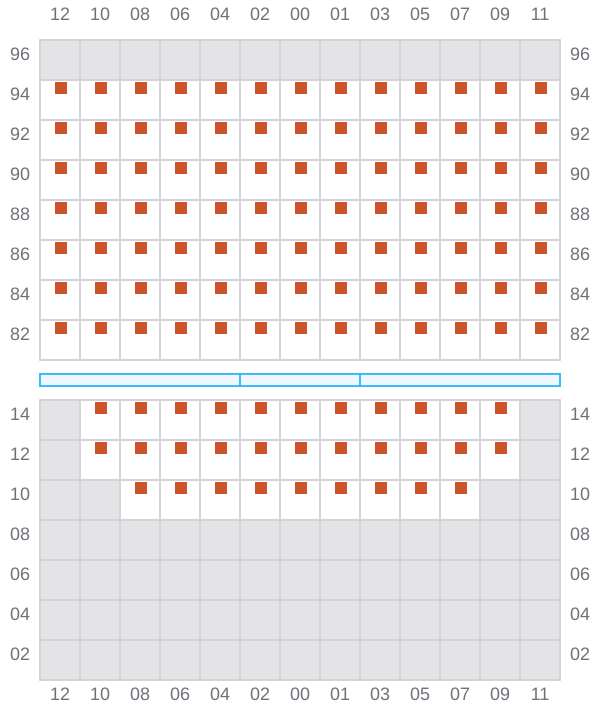

Bay 059 view and slots of WAN HAI 507

061 (062)

  • → / ?
  • ← / ?
  • → / ?

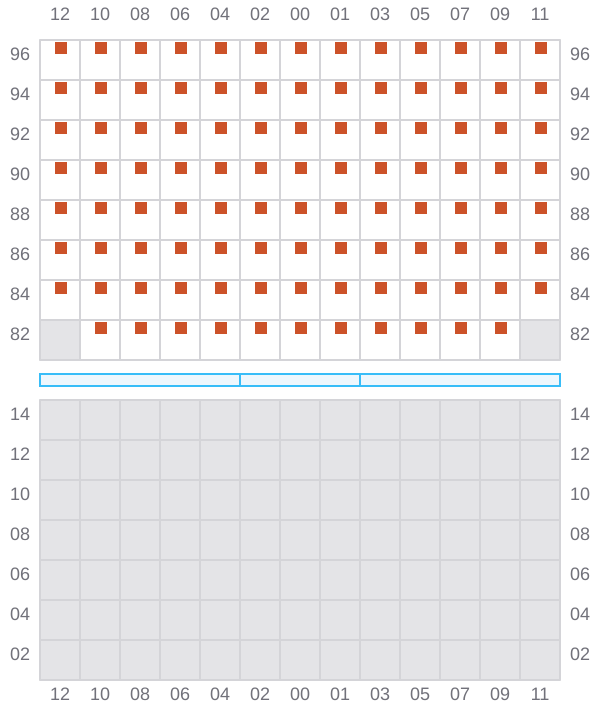

Bay 061 view and slots of WAN HAI 507
