WAN HAI 521
9400186 | 9V3760 | 9400186 by ********* Last update: Thu May 02 2024

General Info

Ship Name:WAN HAI 521

IMO Code:9400186

Call Sign:9V3760

Line Operator:9400186

Class Name for Sister Ships:HAMONIA GALICIA

Year Built:2010

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:059

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,045

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

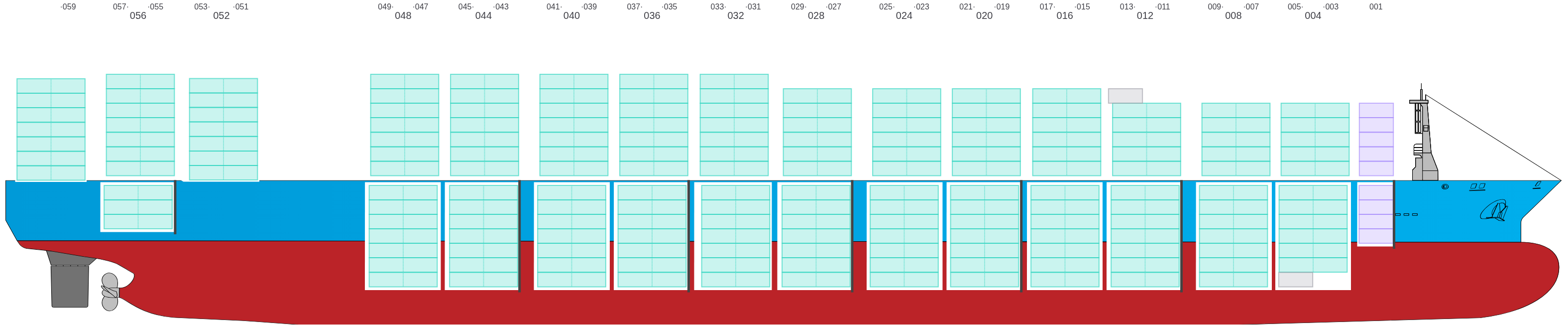

Side view of WAN HAI 521

Hatch-Covers View

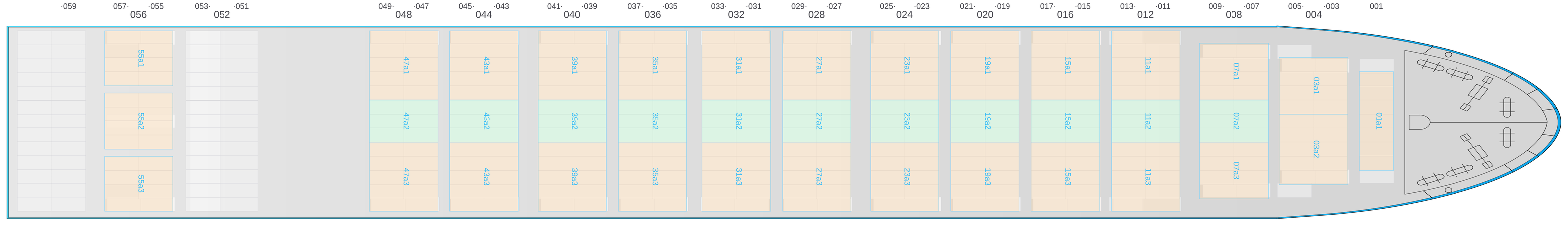

Deck view of WAN HAI 521

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

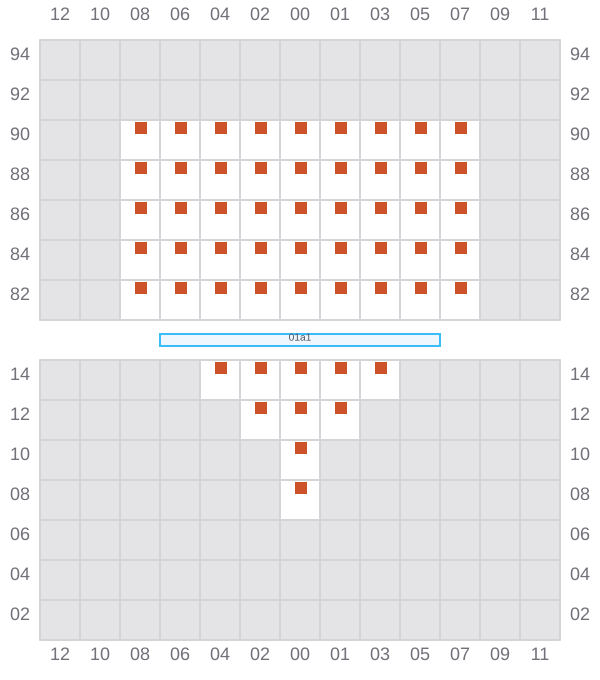

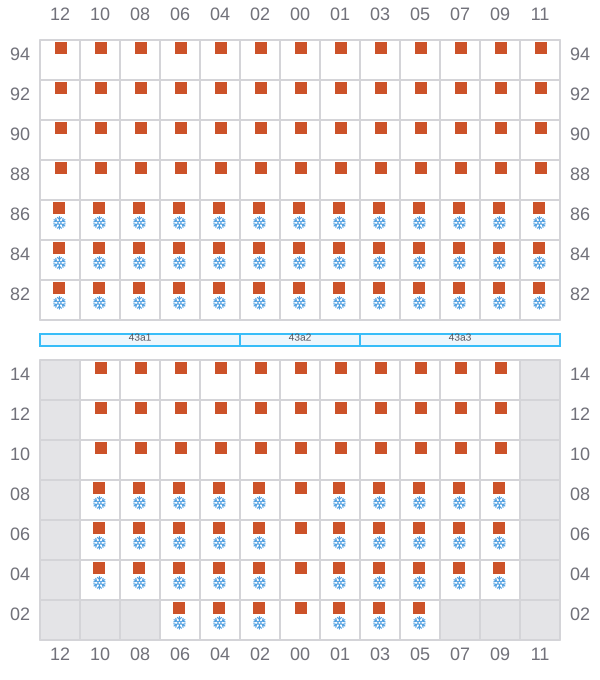

001

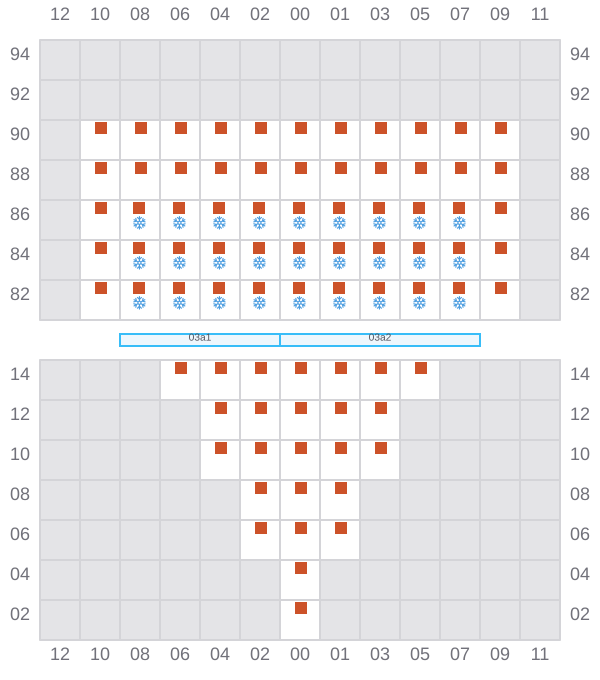

Bay 001 view and slots of WAN HAI 521

003 (004)

→

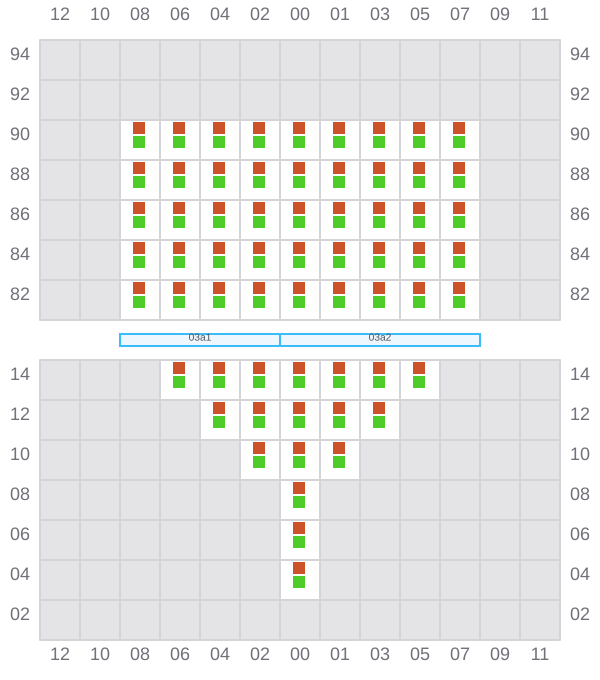

Bay 003 view and slots of WAN HAI 521

005

←
^→ / _?

Bay 005 view and slots of WAN HAI 521

007 (008)

→

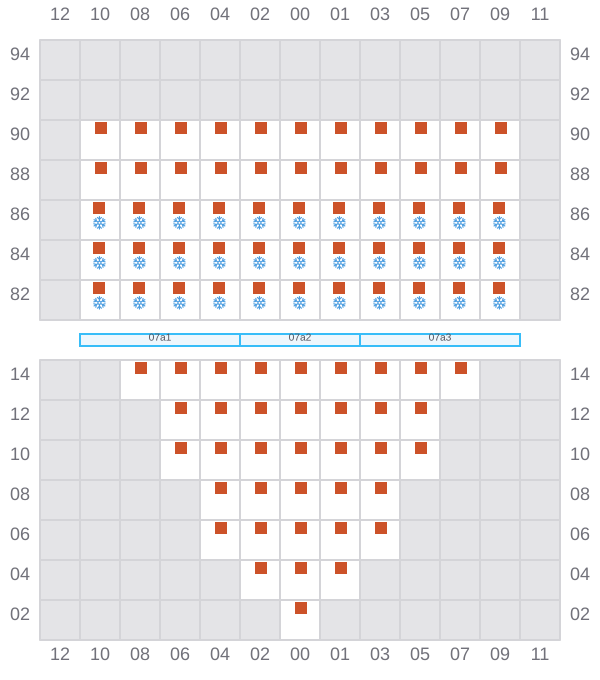

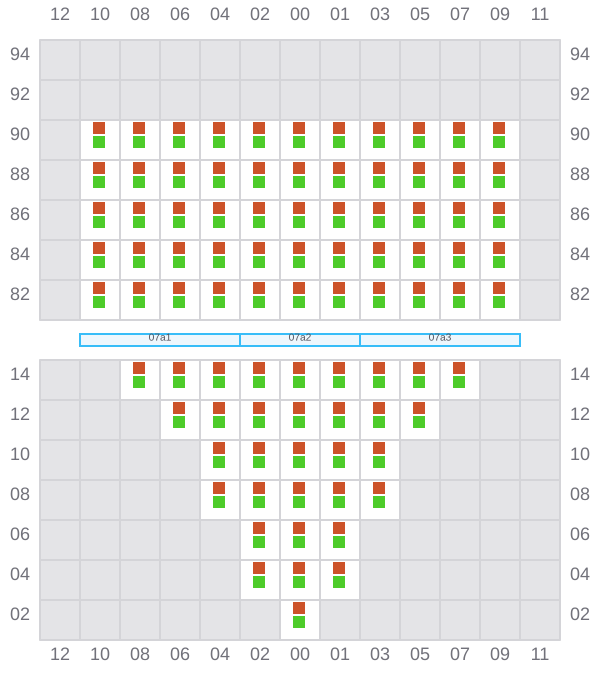

Bay 007 view and slots of WAN HAI 521

009

←
^→ / _?

Bay 009 view and slots of WAN HAI 521

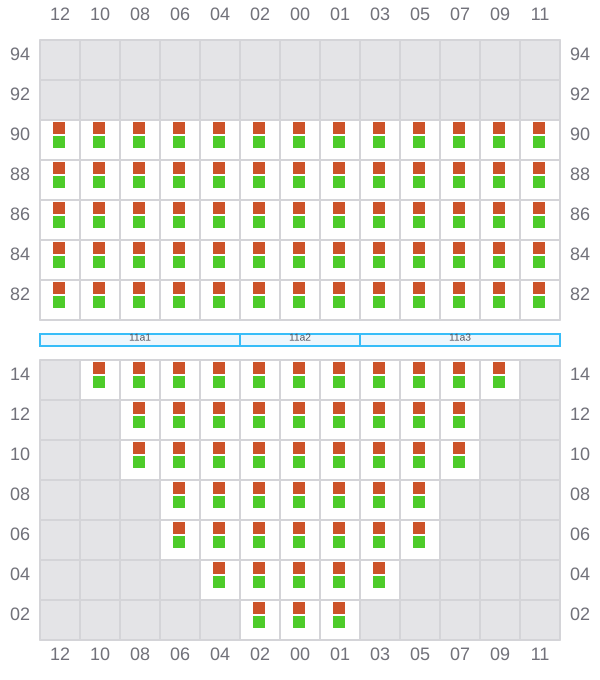

011 (012)

→

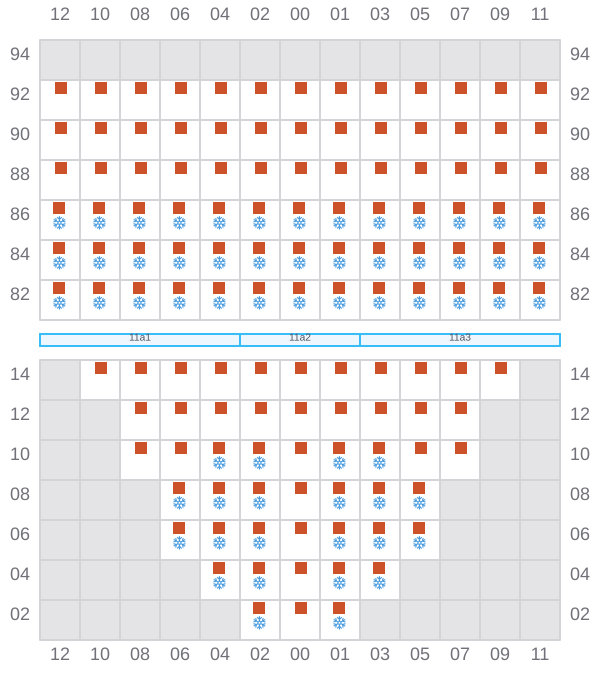

Bay 011 view and slots of WAN HAI 521

013

←
→

Bay 013 view and slots of WAN HAI 521

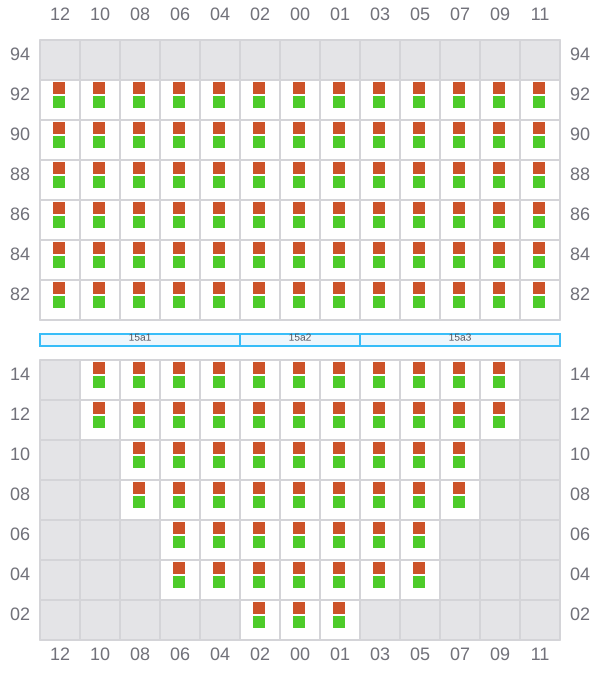

015 (016)

→

Bay 015 view and slots of WAN HAI 521

017

←
→

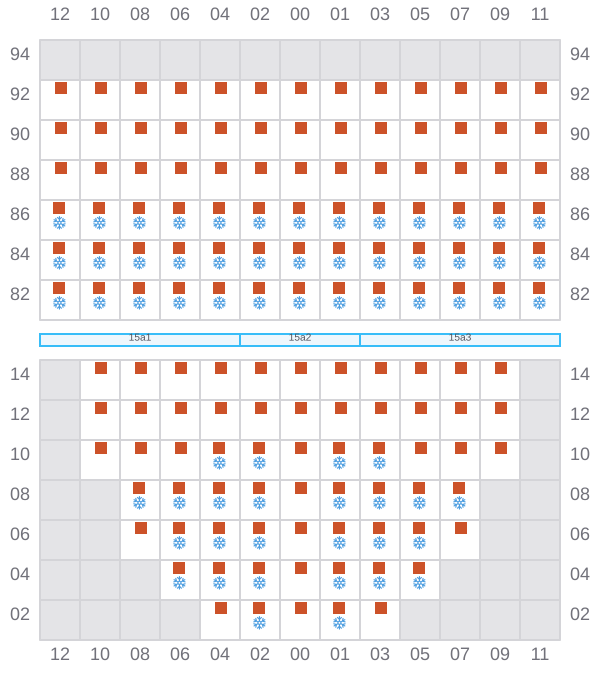

Bay 017 view and slots of WAN HAI 521

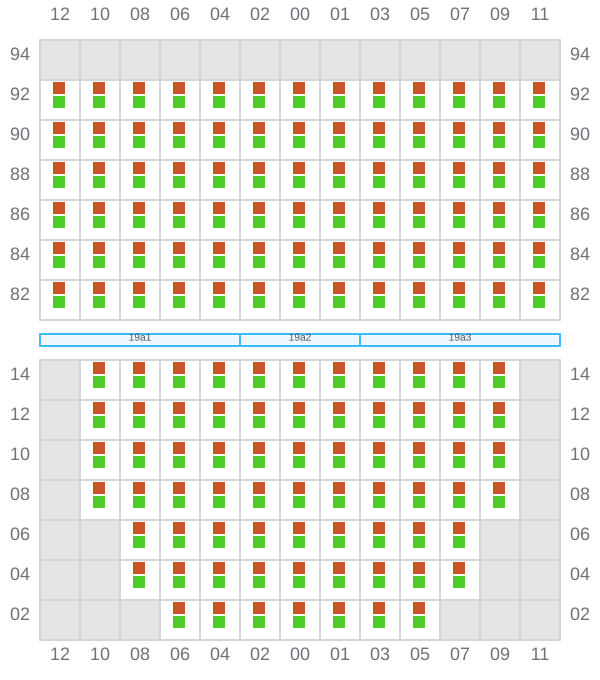

019 (020)

→

Bay 019 view and slots of WAN HAI 521

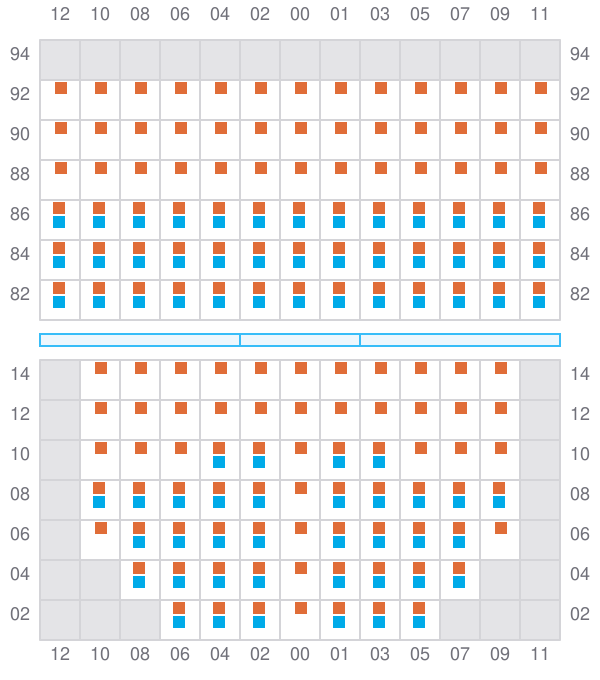

021

←
→

Bay 021 view and slots of WAN HAI 521

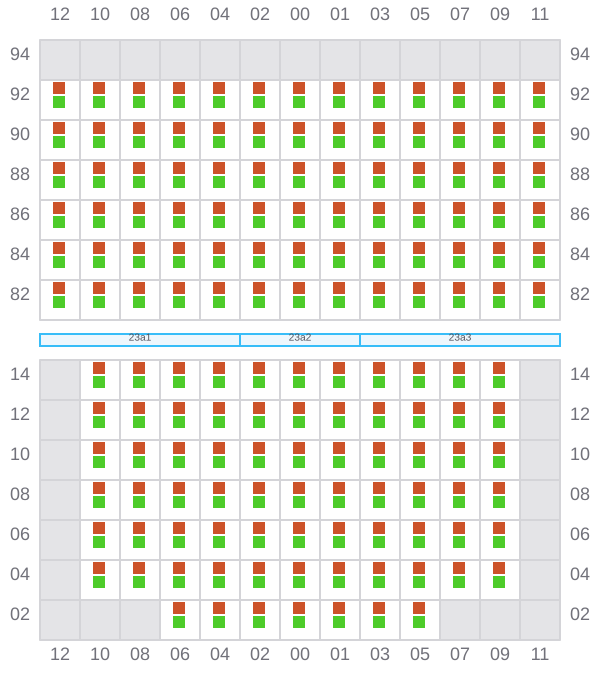

023 (024)

→

Bay 023 view and slots of WAN HAI 521

025

←
→

Bay 025 view and slots of WAN HAI 521

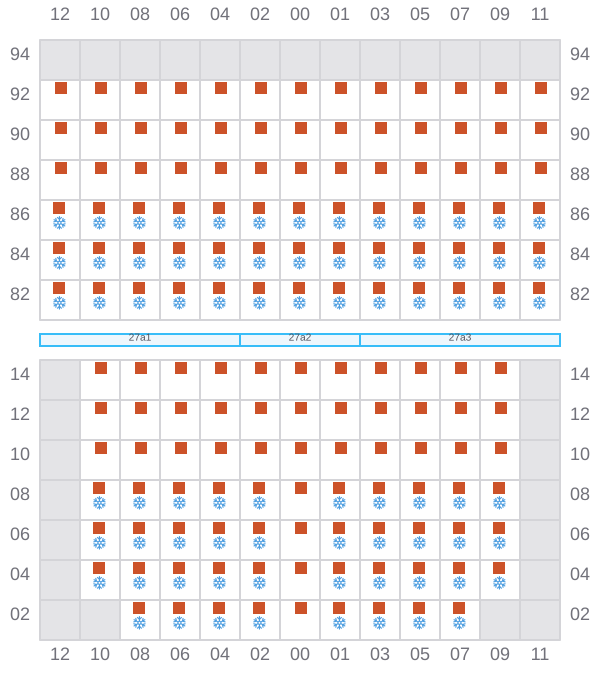

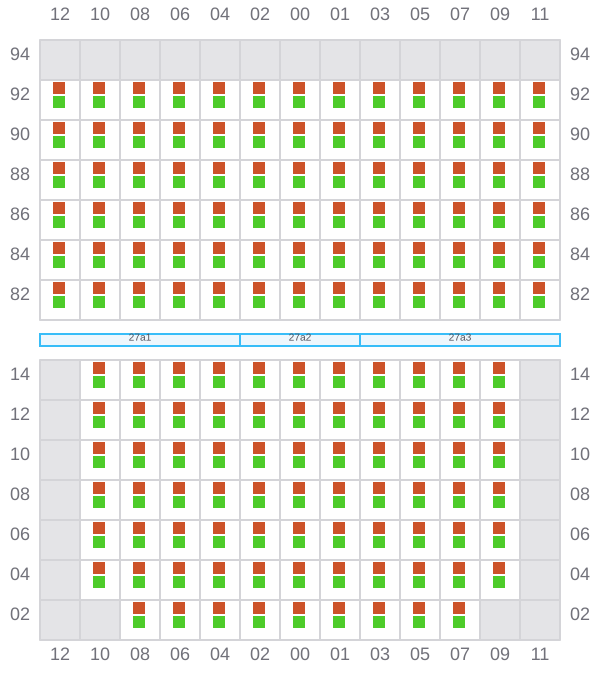

027 (028)

→

Bay 027 view and slots of WAN HAI 521

029

←
→

Bay 029 view and slots of WAN HAI 521

031 (032)

→

Bay 031 view and slots of WAN HAI 521

033

←
→

Bay 033 view and slots of WAN HAI 521

035 (036)

→

Bay 035 view and slots of WAN HAI 521

037

←
→

Bay 037 view and slots of WAN HAI 521

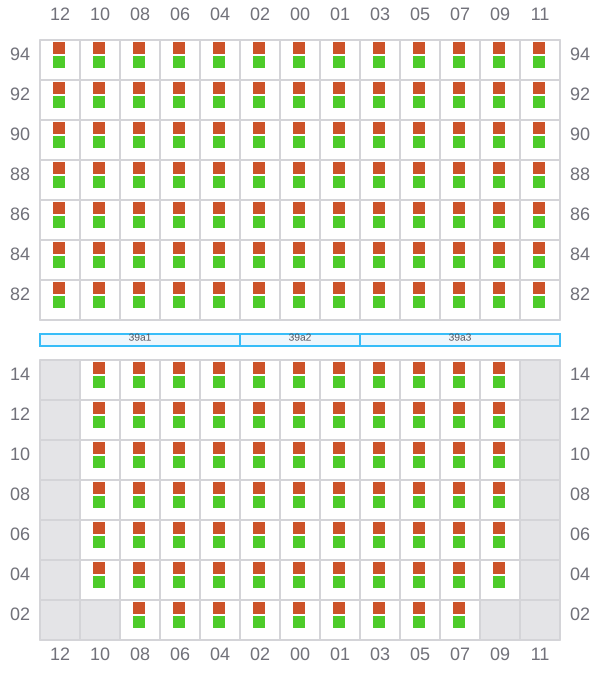

039 (040)

→

Bay 039 view and slots of WAN HAI 521

041

←
→

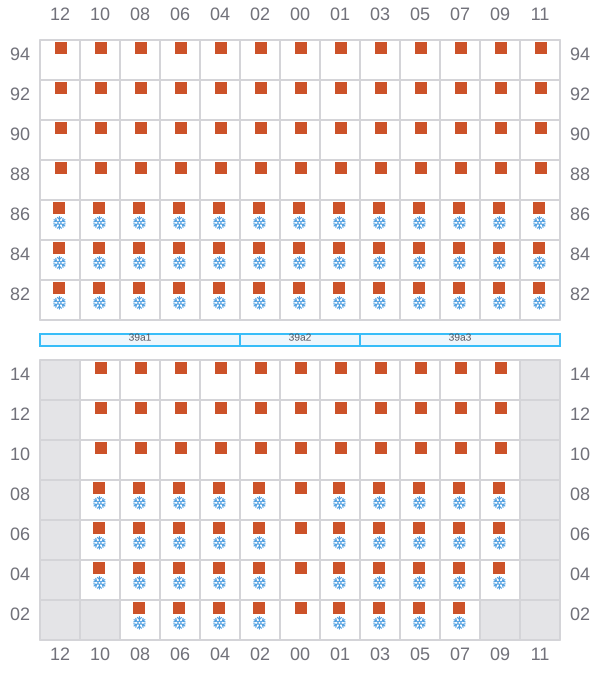

Bay 041 view and slots of WAN HAI 521

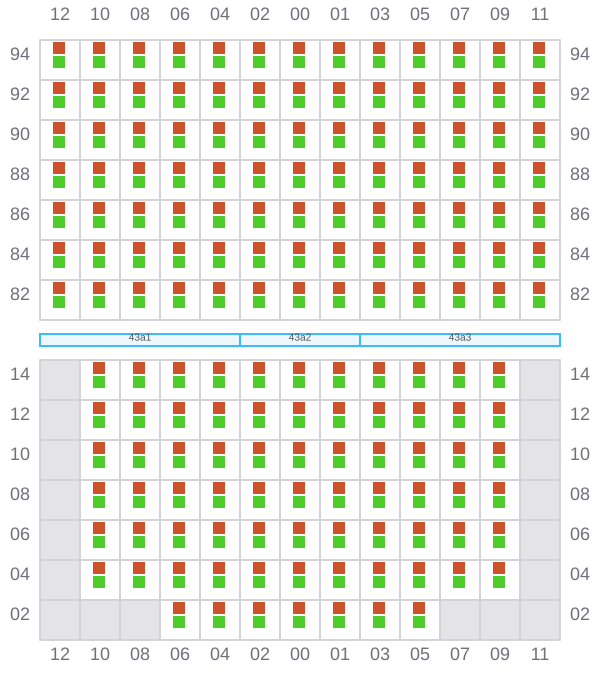

043 (044)

→

Bay 043 view and slots of WAN HAI 521

045

←
→

Bay 045 view and slots of WAN HAI 521

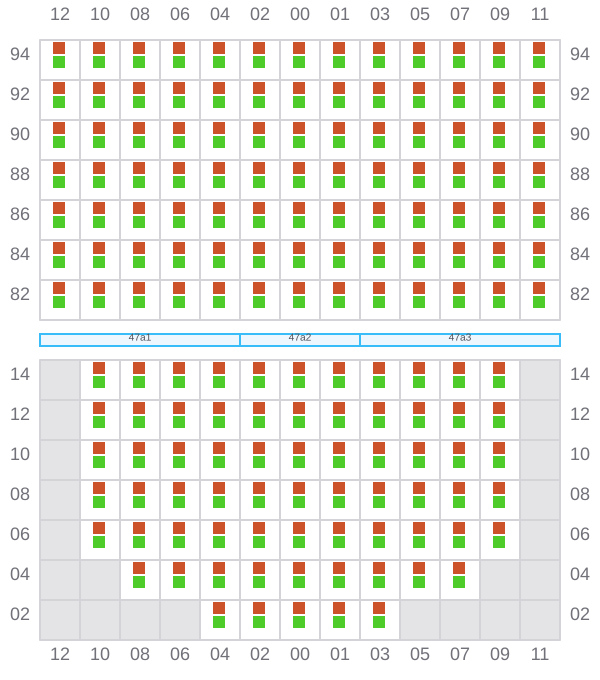

047 (048)

→

Bay 047 view and slots of WAN HAI 521

049

←
→

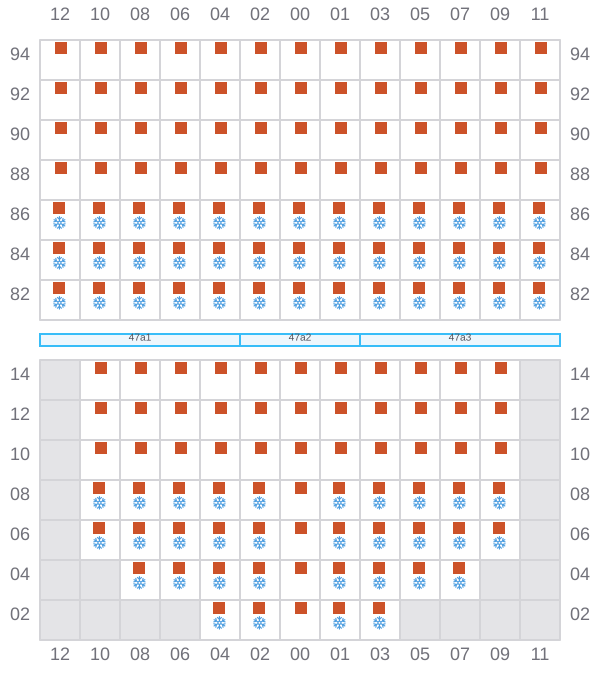

Bay 049 view and slots of WAN HAI 521

051 (052)

^→ / _?

Bay 051 view and slots of WAN HAI 521

053

^← / _?
^→ / _?

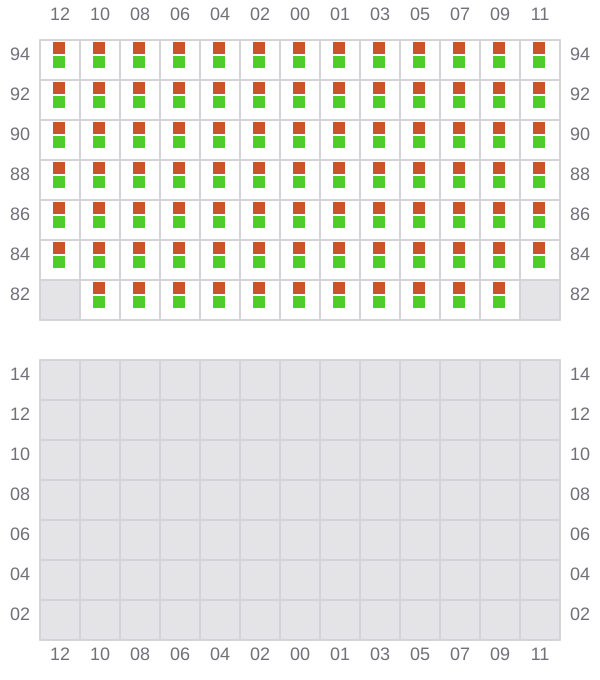

Bay 053 view and slots of WAN HAI 521

055 (056)

→

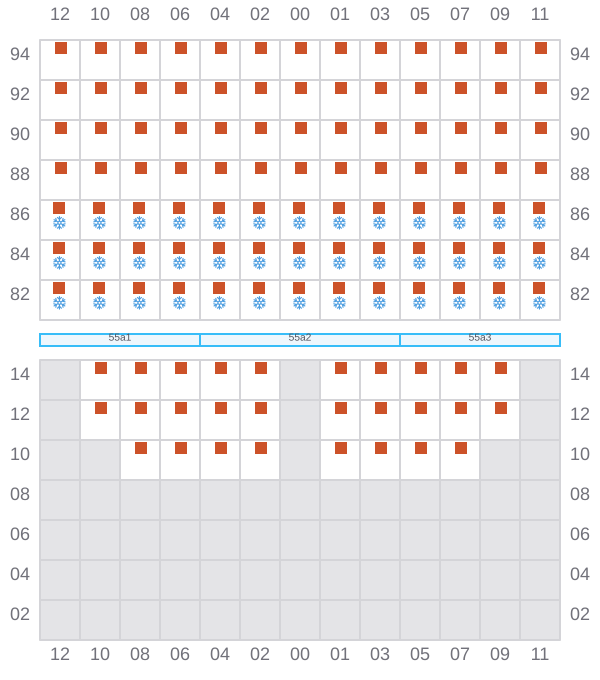

Bay 055 view and slots of WAN HAI 521

057

←
^→ / _?

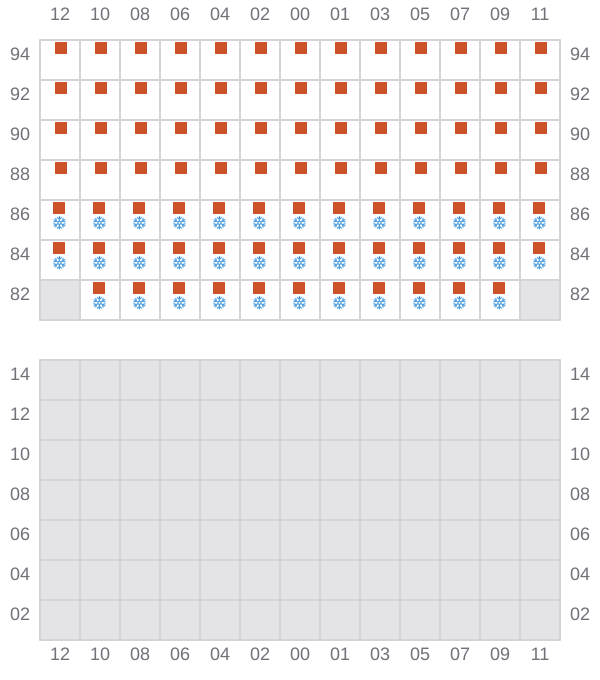

Bay 057 view and slots of WAN HAI 521

059 (060)

^→ / _?
^→ / _?

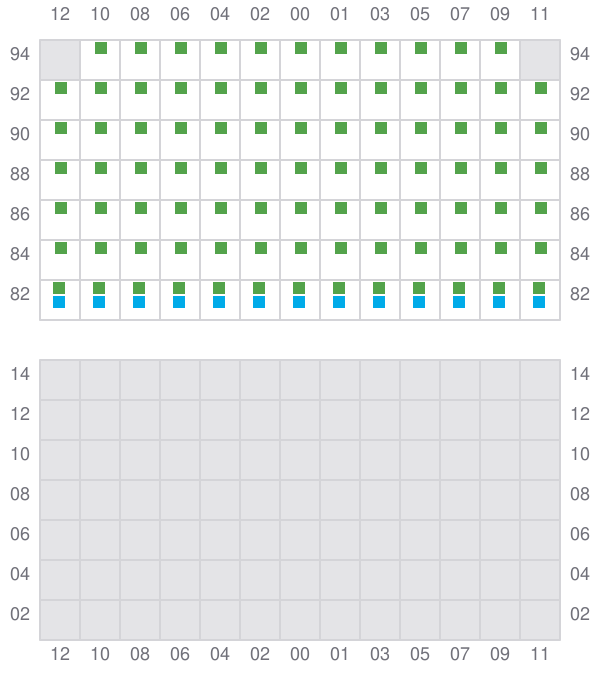

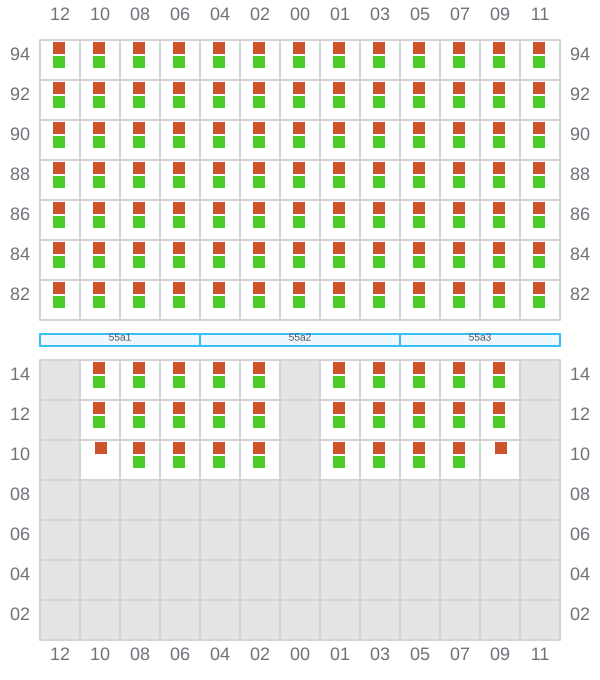

Bay 059 view and slots of WAN HAI 521
