WAN HAI 522
9440784 | 9V7056 | 9440784 by ********* Last update: Wed May 08 2024

General Info

Ship Name:WAN HAI 522

IMO Code:9440784

Call Sign:9V7056

Line Operator:9440784

Class Name for Sister Ships:HARRIER HUNTER

Year Built:2009

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:061

Max ISO Row:12

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:82

Max Below ISO Tier:14

Min Below ISO Tier:02

Total TEU:4,573

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

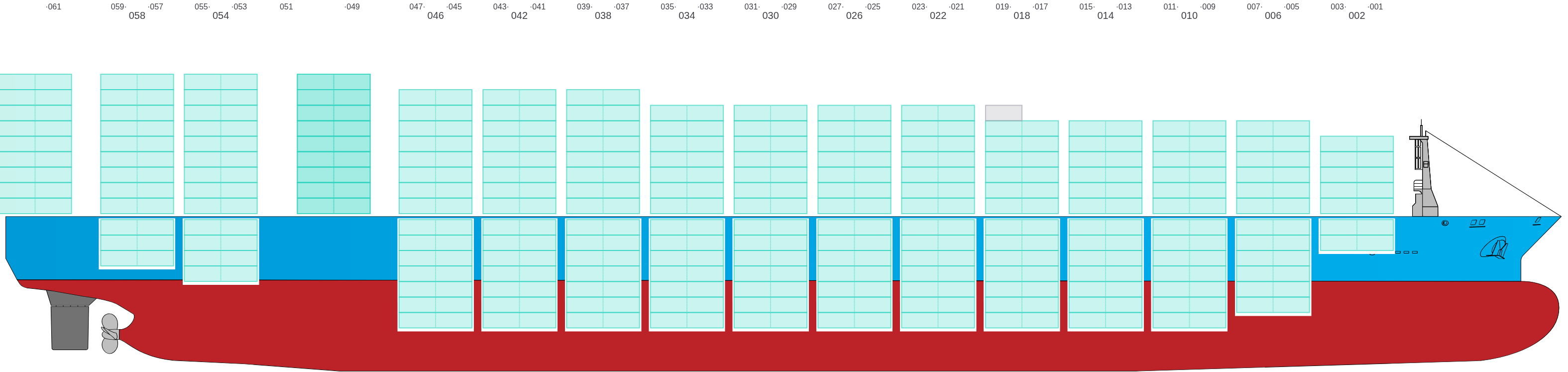

Side view of WAN HAI 522

Hatch-Covers View

Deck view of WAN HAI 522

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

Bay 001 view and slots of WAN HAI 522

003

←

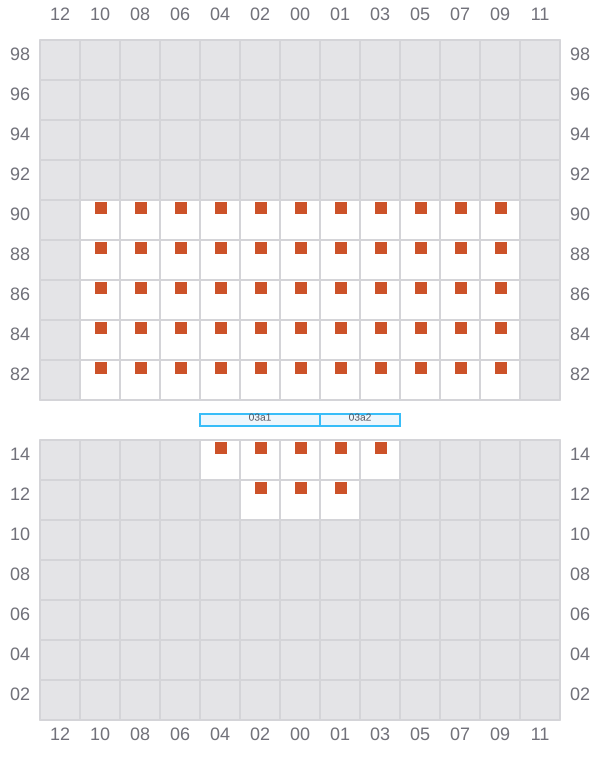

Bay 003 view and slots of WAN HAI 522

005 (006)

→

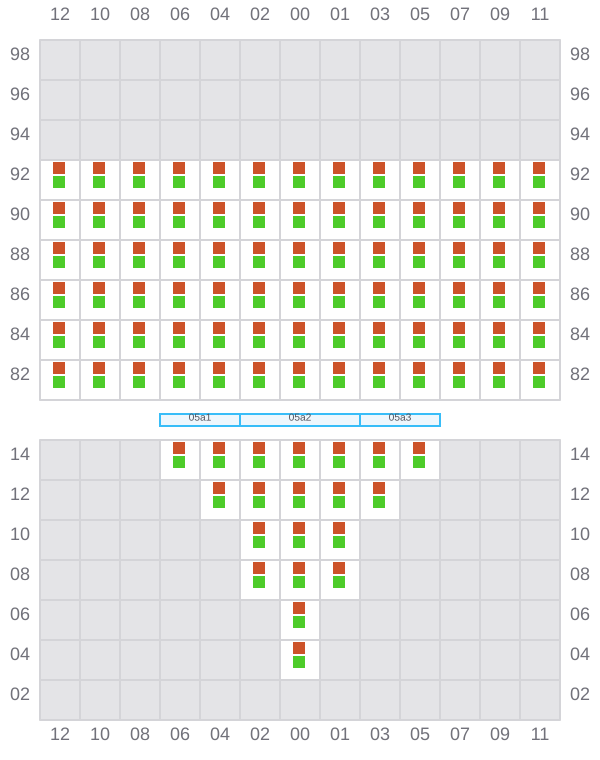

Bay 005 view and slots of WAN HAI 522

007

←

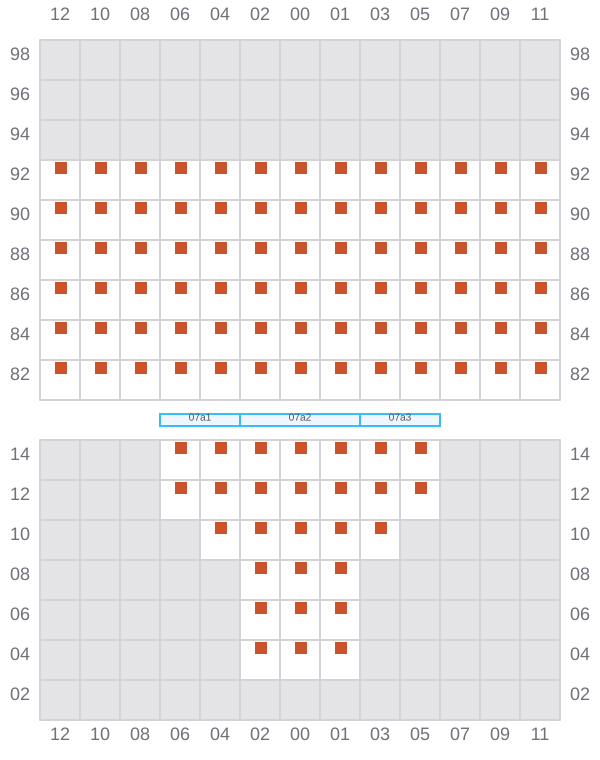

Bay 007 view and slots of WAN HAI 522

009 (010)

→

Bay 009 view and slots of WAN HAI 522

011

←

Bay 011 view and slots of WAN HAI 522

013 (014)

→

Bay 013 view and slots of WAN HAI 522

015

←

Bay 015 view and slots of WAN HAI 522

017 (018)

→

Bay 017 view and slots of WAN HAI 522

019

←

Bay 019 view and slots of WAN HAI 522

021 (022)

→

Bay 021 view and slots of WAN HAI 522

023

←

Bay 023 view and slots of WAN HAI 522

025 (026)

→

Bay 025 view and slots of WAN HAI 522

027

←

Bay 027 view and slots of WAN HAI 522

029 (030)

→

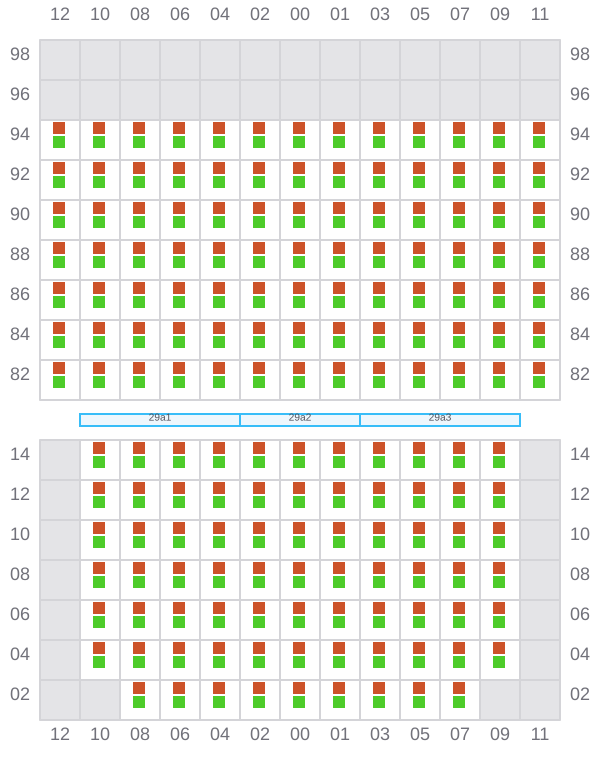

Bay 029 view and slots of WAN HAI 522

031

←

Bay 031 view and slots of WAN HAI 522

033 (034)

→

Bay 033 view and slots of WAN HAI 522

035

←

Bay 035 view and slots of WAN HAI 522

037 (038)

→

Bay 037 view and slots of WAN HAI 522

039

←

Bay 039 view and slots of WAN HAI 522

041 (042)

→

Bay 041 view and slots of WAN HAI 522

043

←

Bay 043 view and slots of WAN HAI 522

045 (046)

→

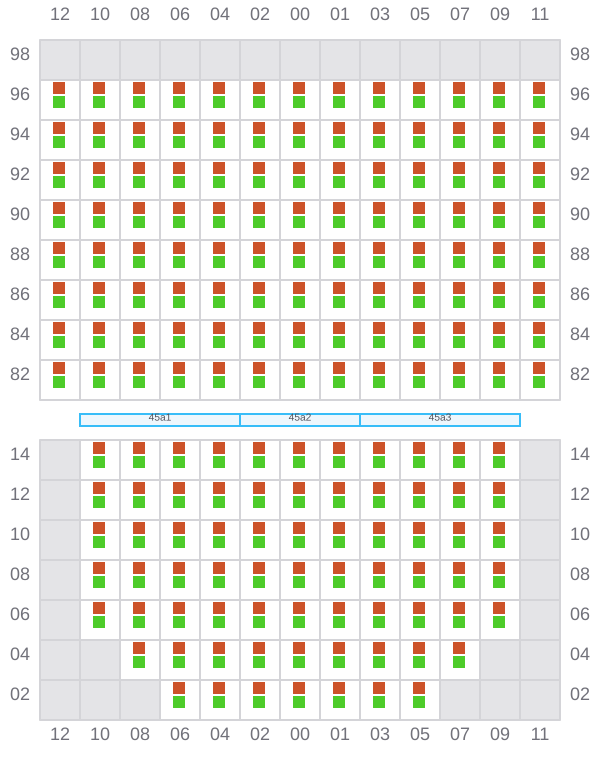

Bay 045 view and slots of WAN HAI 522

047

←

Bay 047 view and slots of WAN HAI 522

049 (050)

^→ / _?

Bay 049 view and slots of WAN HAI 522

051

Bay 051 view and slots of WAN HAI 522

053 (054)

→

Bay 053 view and slots of WAN HAI 522

055

←

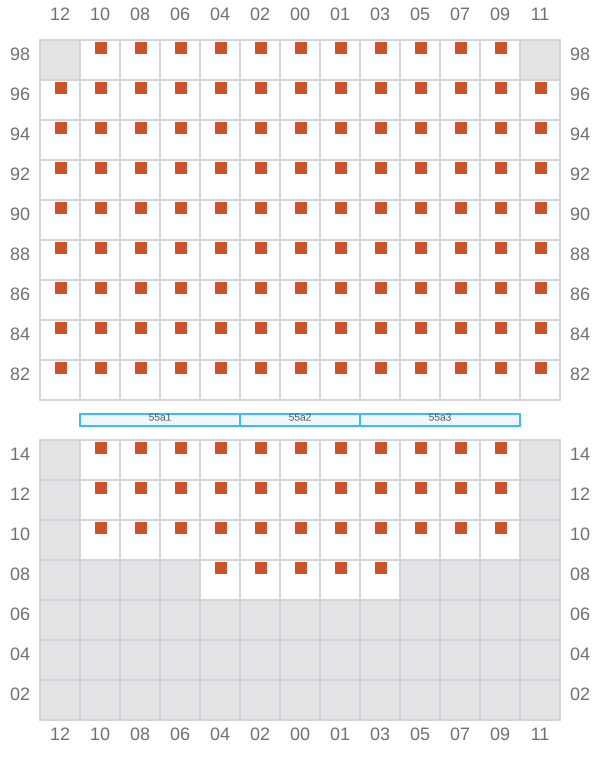

Bay 055 view and slots of WAN HAI 522

057 (058)

→

Bay 057 view and slots of WAN HAI 522

059

←

Bay 059 view and slots of WAN HAI 522

061 (062)

^→ / _?

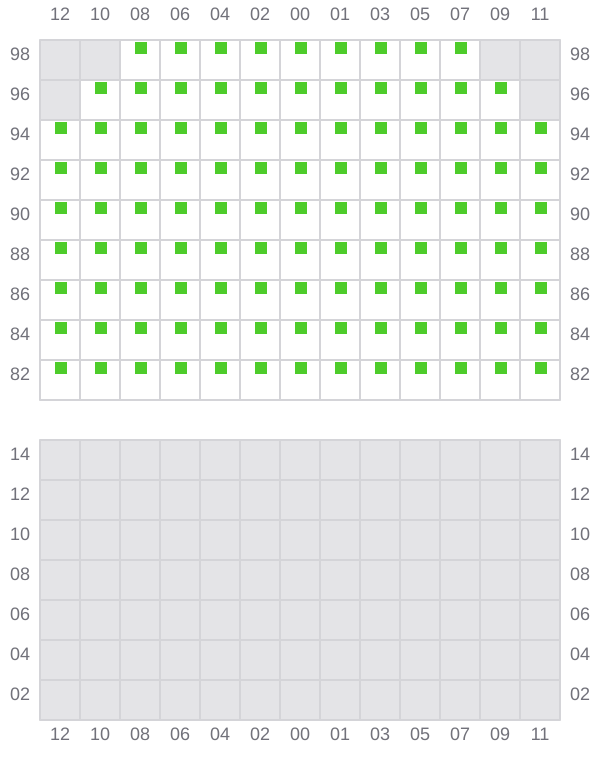

Bay 061 view and slots of WAN HAI 522
