WAN HAI 621
9385025 | 9V2196 | HMM by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:WAN HAI 621
IMO Code:9385025
Call Sign:9V2196
Line Operator:HMM
Class Name for Sister Ships:HHNY
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):276.00
LOA (Length Overall):293.20
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:067
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,350

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of WAN HAI 621

Hatch-Covers View

Deck view of WAN HAI 621

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of WAN HAI 621

003 (004)

  • → / ?
  • →
Bay 003 view and slots of WAN HAI 621

005

  • ← / ?
  • → / ?
  • →
Bay 005 view and slots of WAN HAI 621

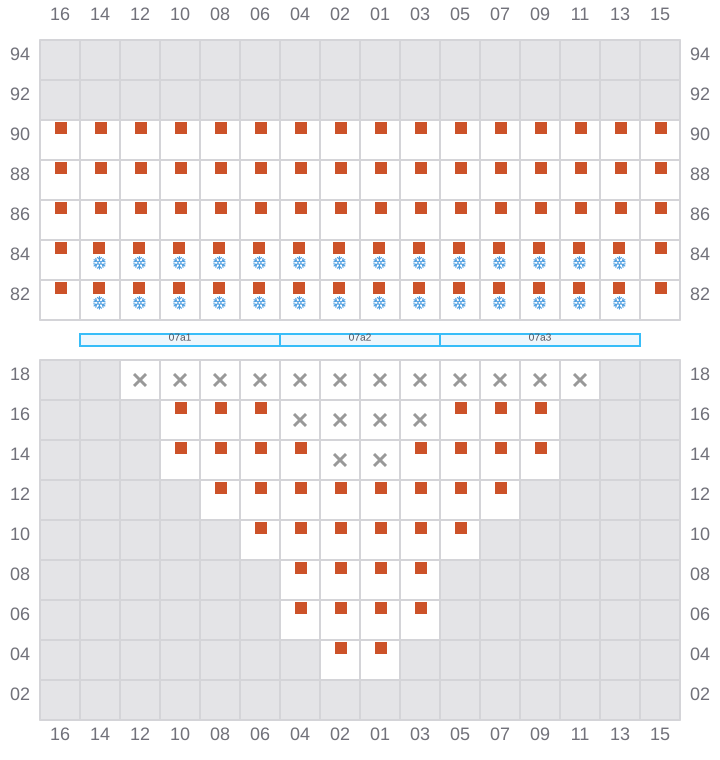

007 (008)

  • →
  • →
Bay 007 view and slots of WAN HAI 621

009

  • ←
  • → / ?
  • →
Bay 009 view and slots of WAN HAI 621

011 (012)

  • → / ?
  • →
Bay 011 view and slots of WAN HAI 621

013

  • ← / ?
  • → / ?
  • →
Bay 013 view and slots of WAN HAI 621

015 (016)

  • →
  • →
Bay 015 view and slots of WAN HAI 621

017

  • ←
  • → / ?
  • →
Bay 017 view and slots of WAN HAI 621

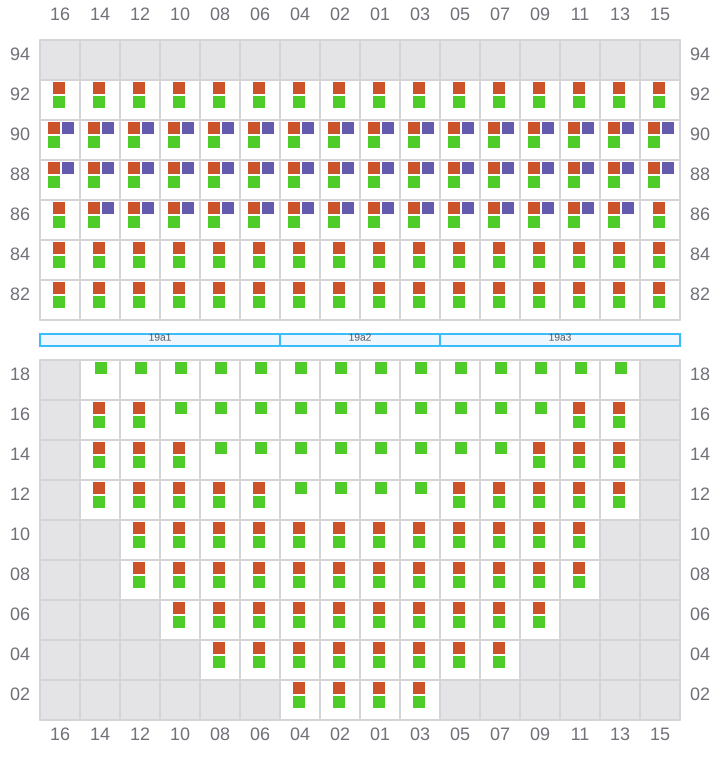

019 (020)

  • →
  • →
Bay 019 view and slots of WAN HAI 621

021

  • ←
  • → / ?
  • →
Bay 021 view and slots of WAN HAI 621

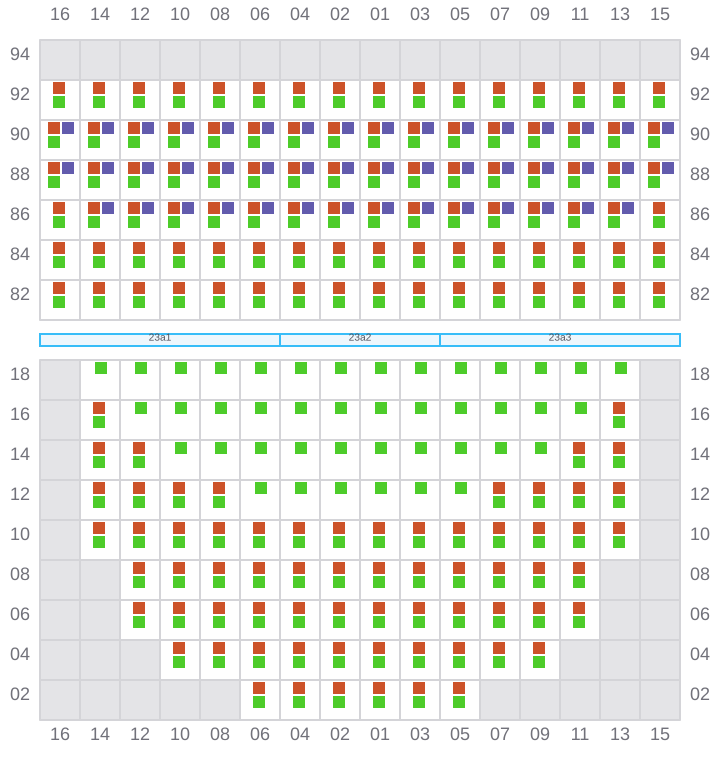

023 (024)

  • →
  • →
Bay 023 view and slots of WAN HAI 621

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of WAN HAI 621

027 (028)

  • →
  • →
Bay 027 view and slots of WAN HAI 621

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of WAN HAI 621

031 (032)

  • →
  • →
Bay 031 view and slots of WAN HAI 621

033

  • ←
  • → / ?
  • →
Bay 033 view and slots of WAN HAI 621

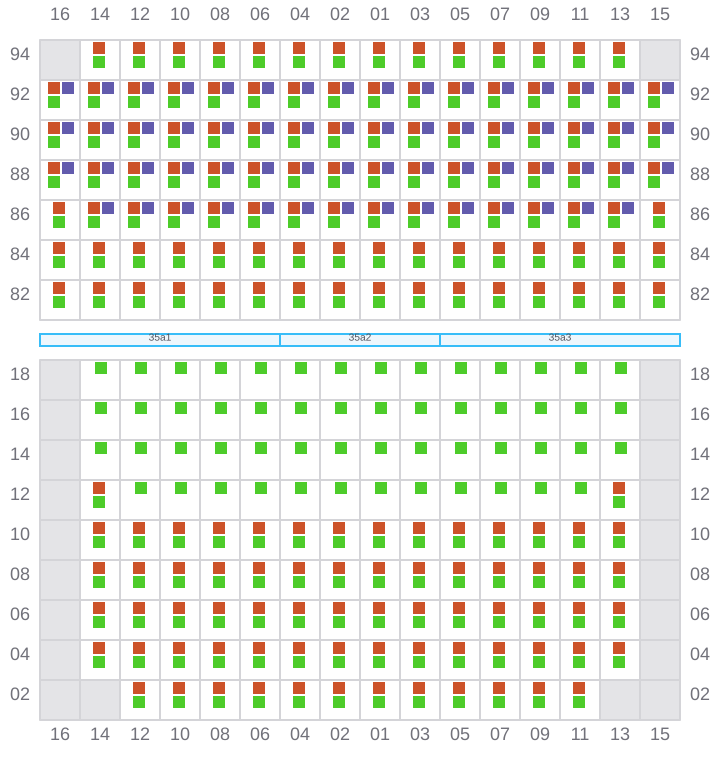

035 (036)

  • →
  • →
Bay 035 view and slots of WAN HAI 621

037

  • ←
  • → / ?
  • →
Bay 037 view and slots of WAN HAI 621

039 (040)

  • →
  • →
Bay 039 view and slots of WAN HAI 621

041

  • ←
  • → / ?
  • →
Bay 041 view and slots of WAN HAI 621

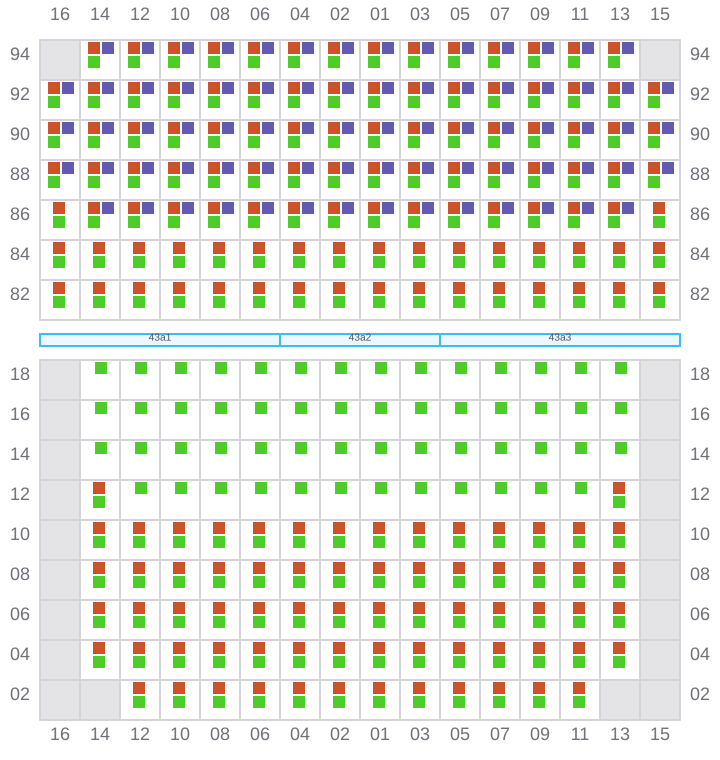

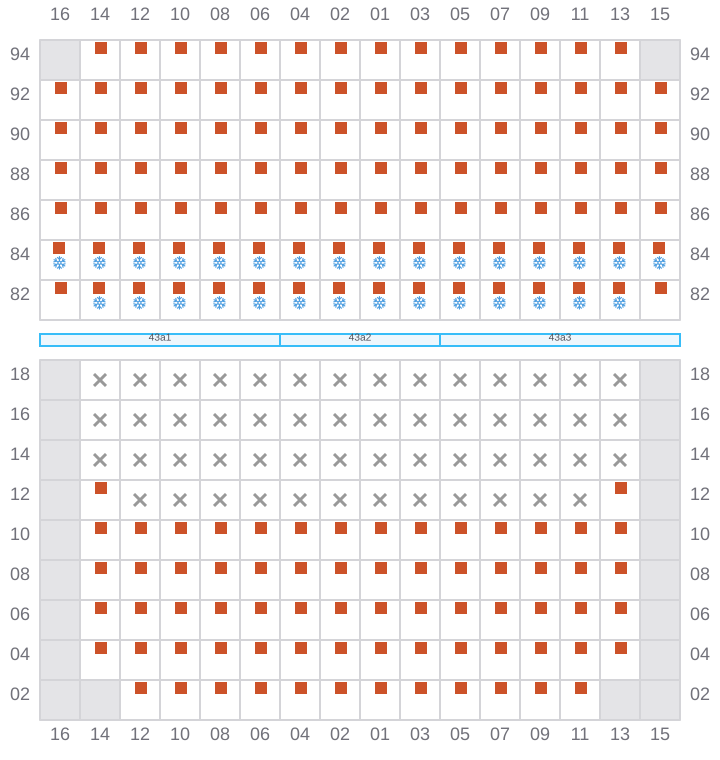

043 (044)

  • →
  • →
Bay 043 view and slots of WAN HAI 621

045

  • ←
  • → / ?
  • →
Bay 045 view and slots of WAN HAI 621

047 (048)

  • →
  • →
Bay 047 view and slots of WAN HAI 621

049

  • ←
  • → / ?
  • →
Bay 049 view and slots of WAN HAI 621

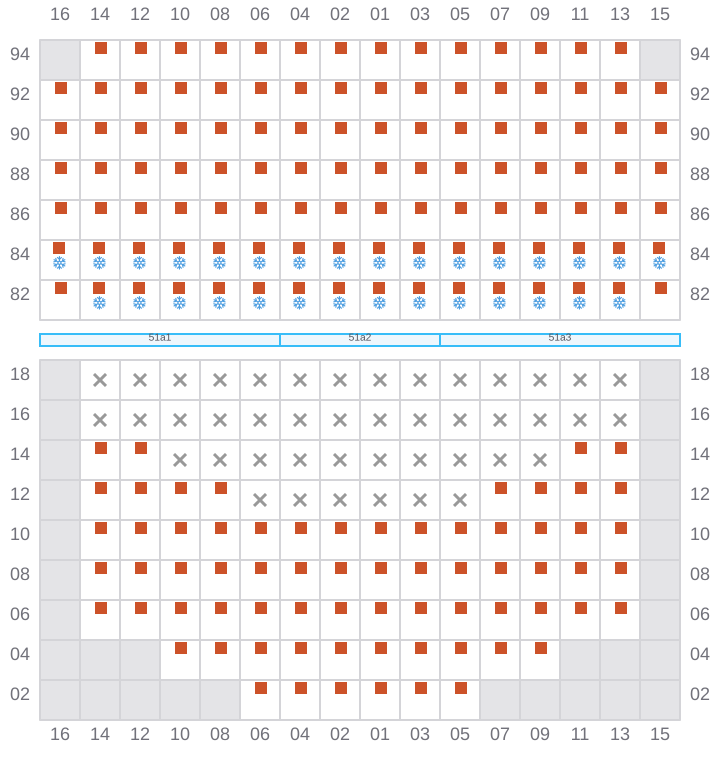

051 (052)

  • →
  • →
Bay 051 view and slots of WAN HAI 621

053

  • ←
  • → / ?
  • →
Bay 053 view and slots of WAN HAI 621

055 (056)

  • →
  • →
Bay 055 view and slots of WAN HAI 621

057

  • ←
  • → / ?
  • →
Bay 057 view and slots of WAN HAI 621

059 (060)

  • →
  • →
Bay 059 view and slots of WAN HAI 621

061

  • ←
  • → / ?
  • →
Bay 061 view and slots of WAN HAI 621

063 (064)

  • →
  • →
Bay 063 view and slots of WAN HAI 621

065

  • ←
  • → / ?
  • →
Bay 065 view and slots of WAN HAI 621

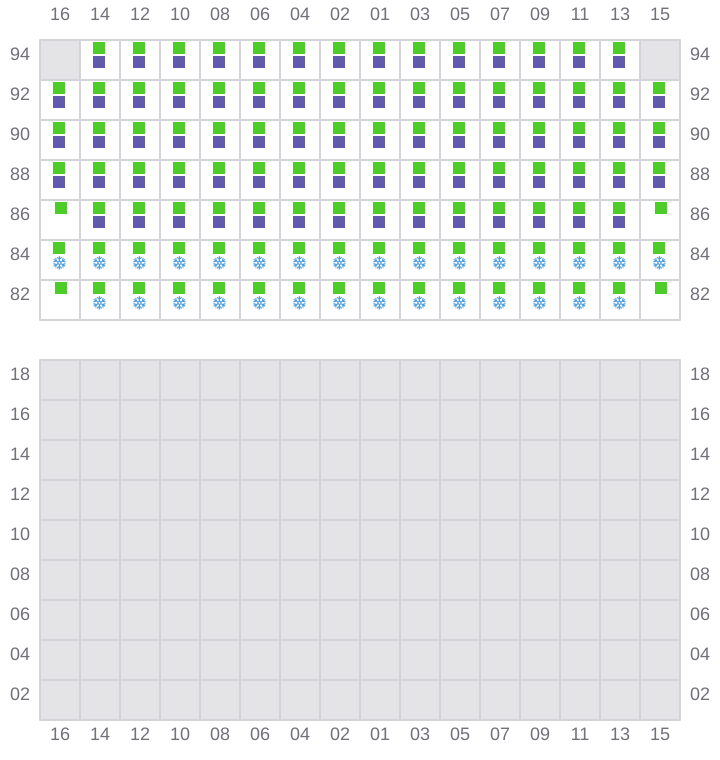

067 (068)

  • → / ?
  • ← / ?
  • → / ?
Bay 067 view and slots of WAN HAI 621
