WAN HAI 621
9385025 | 9V2196 | 9385025 by ********* Last update: Tue May 07 2024
General Info
Ship Name:WAN HAI 621
IMO Code:9385025
Call Sign:9V2196
Line Operator:9385025
Class Name for Sister Ships:NEW YORK
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,380
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

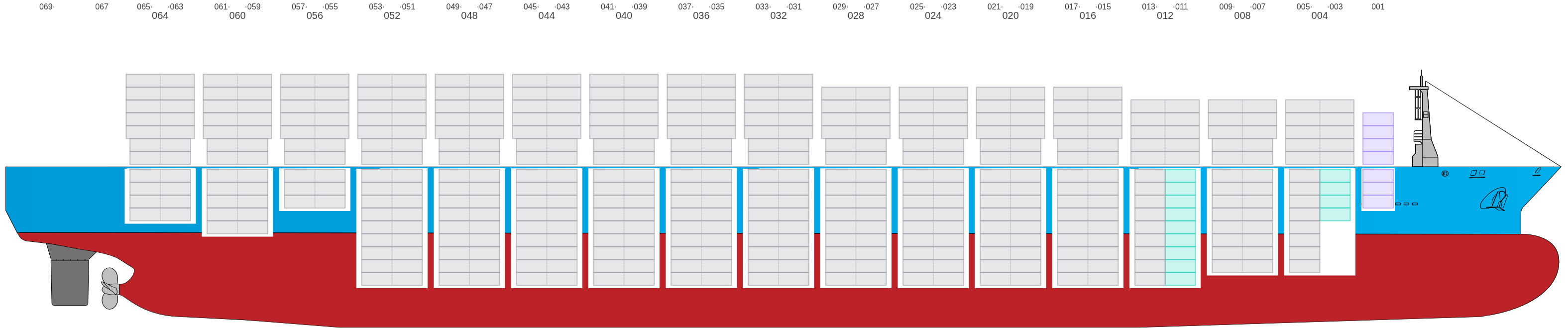

Side View

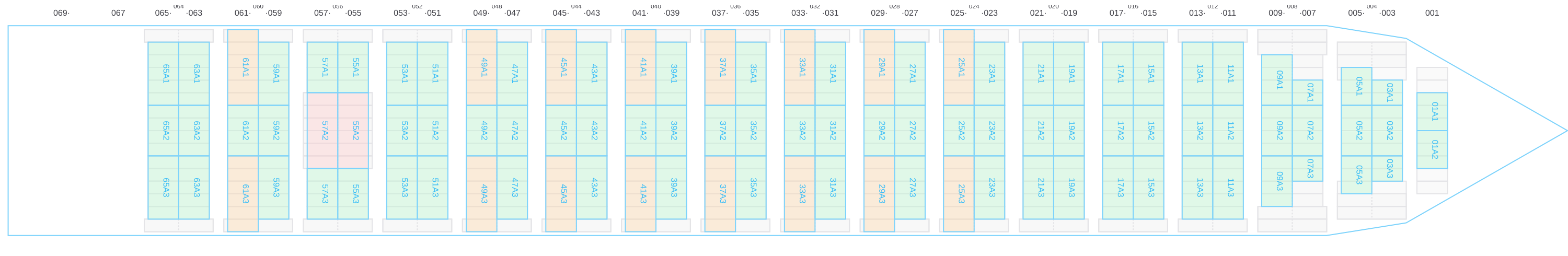

Hatch-Covers View

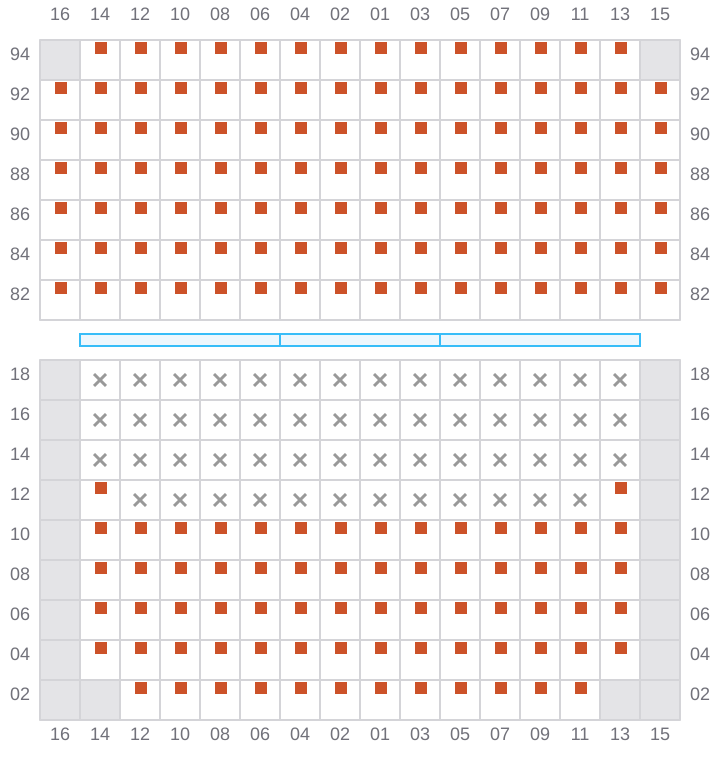

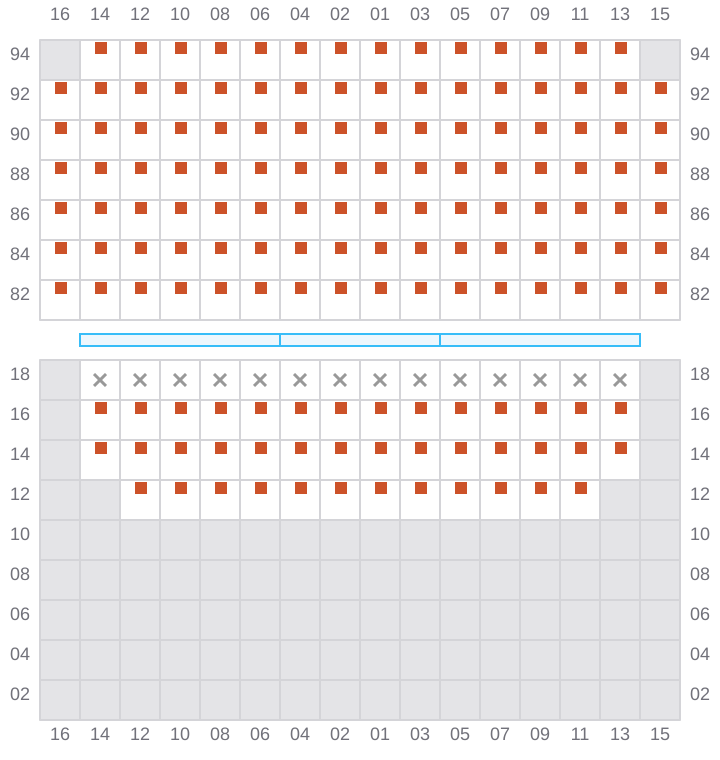

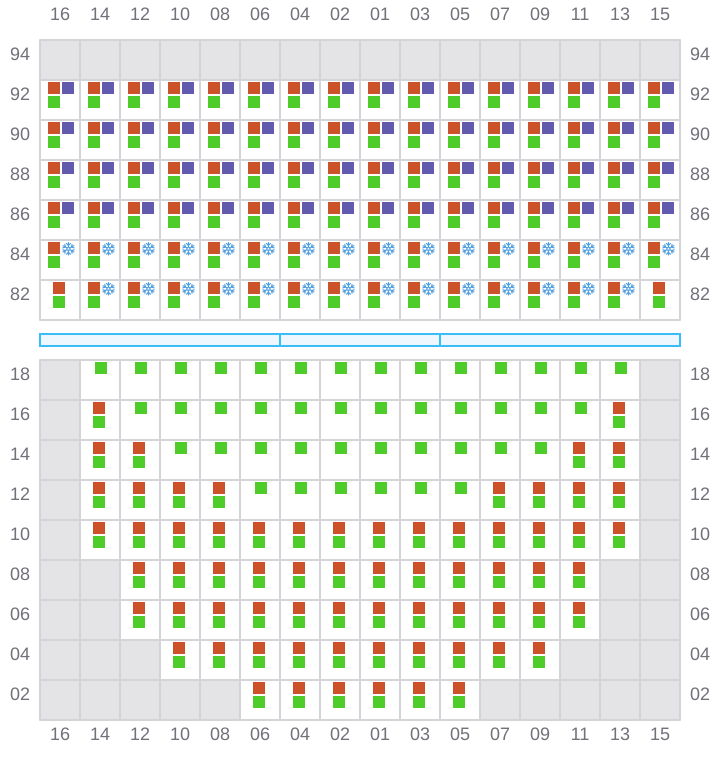

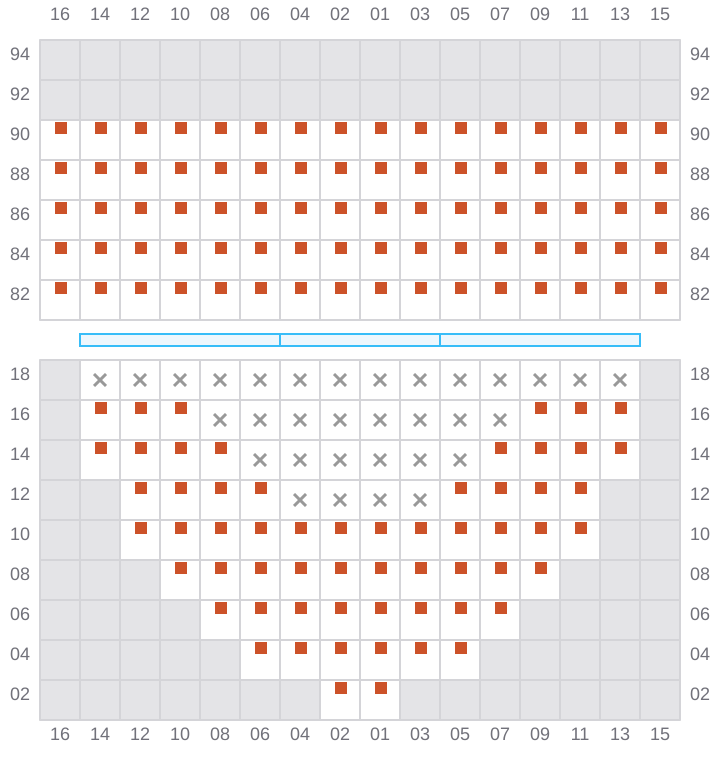

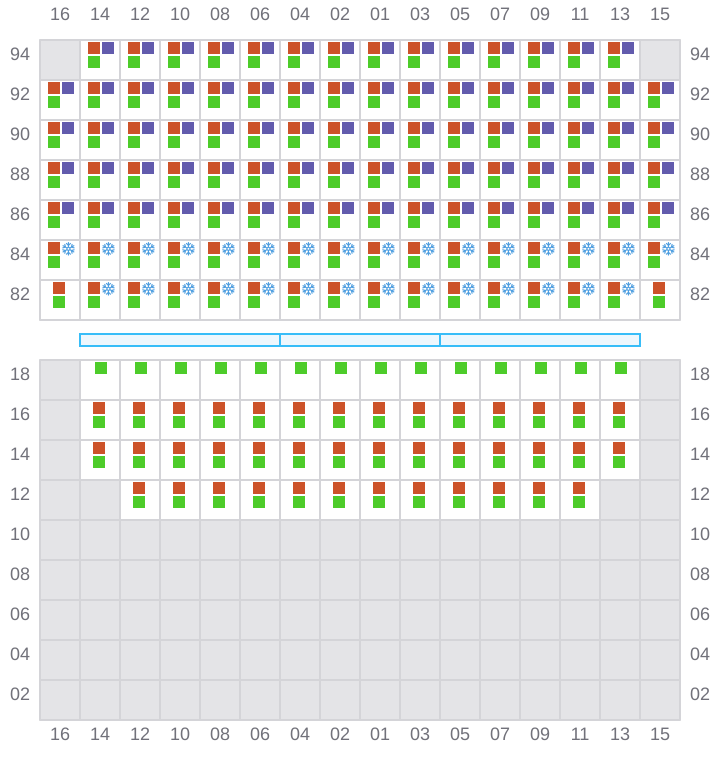

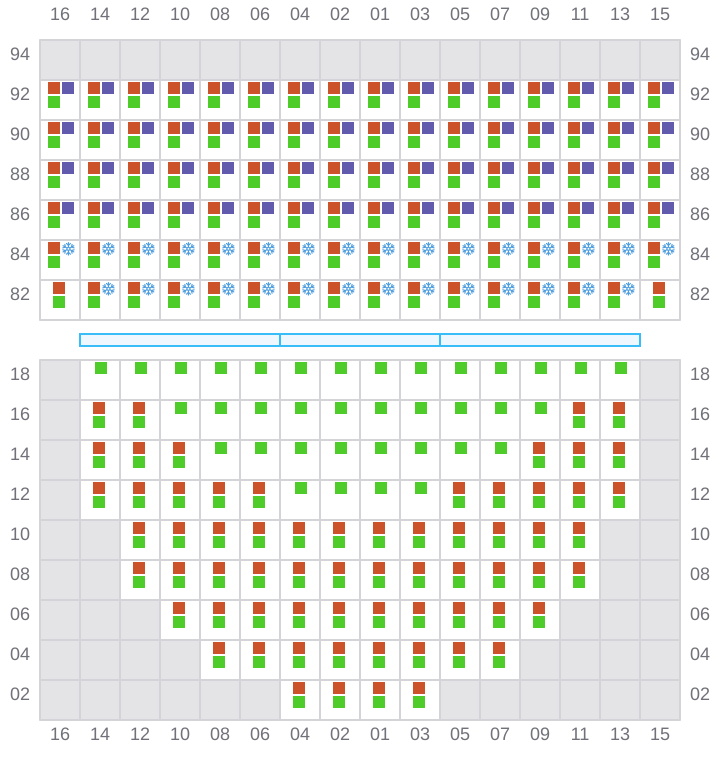

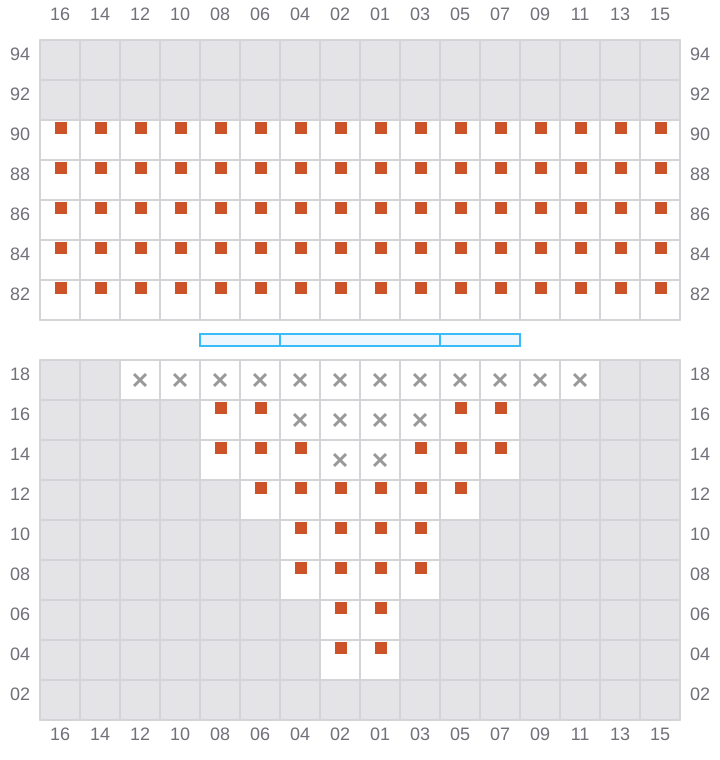

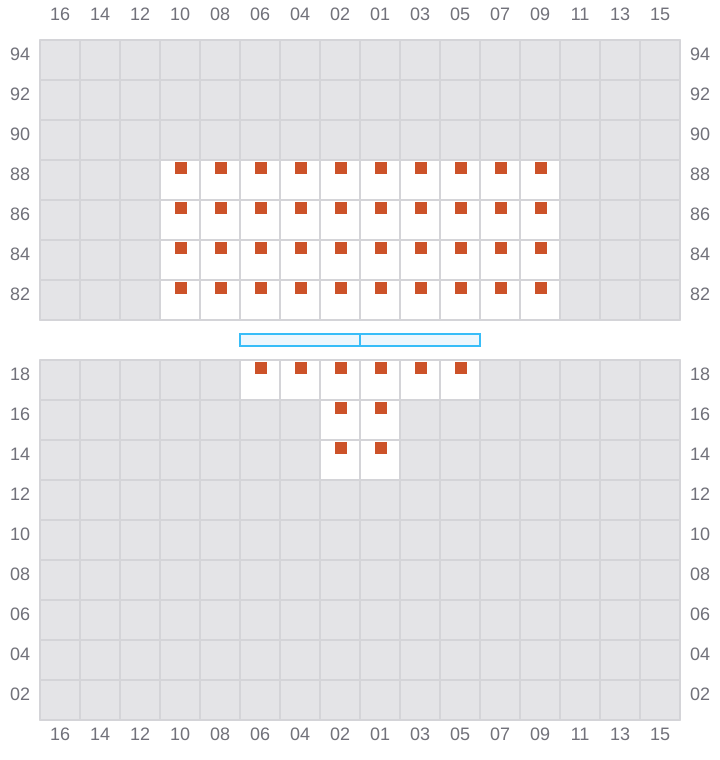

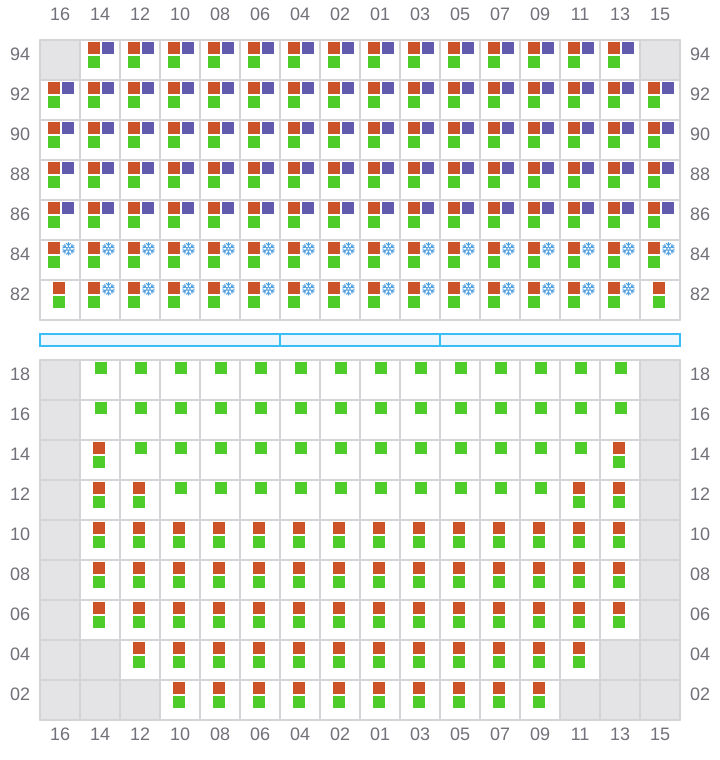

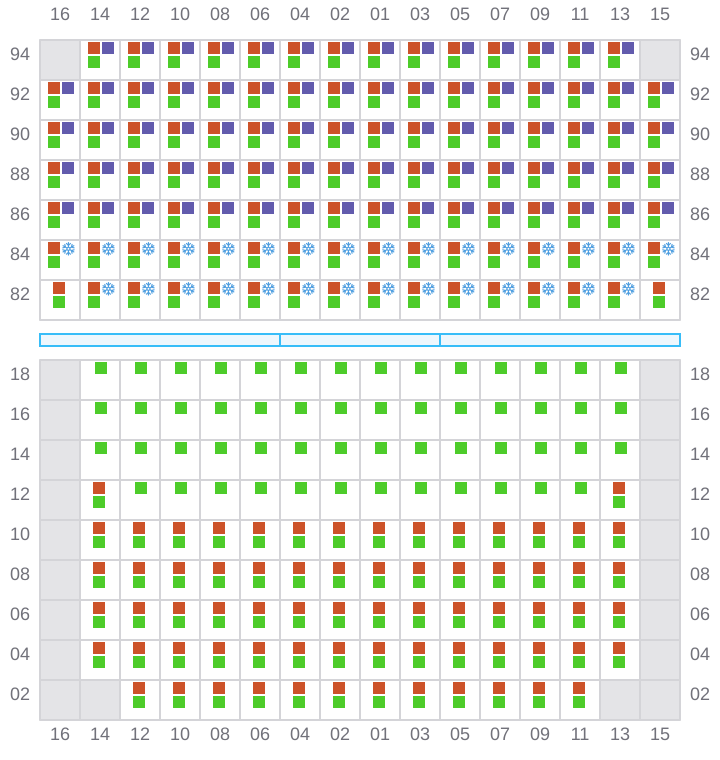

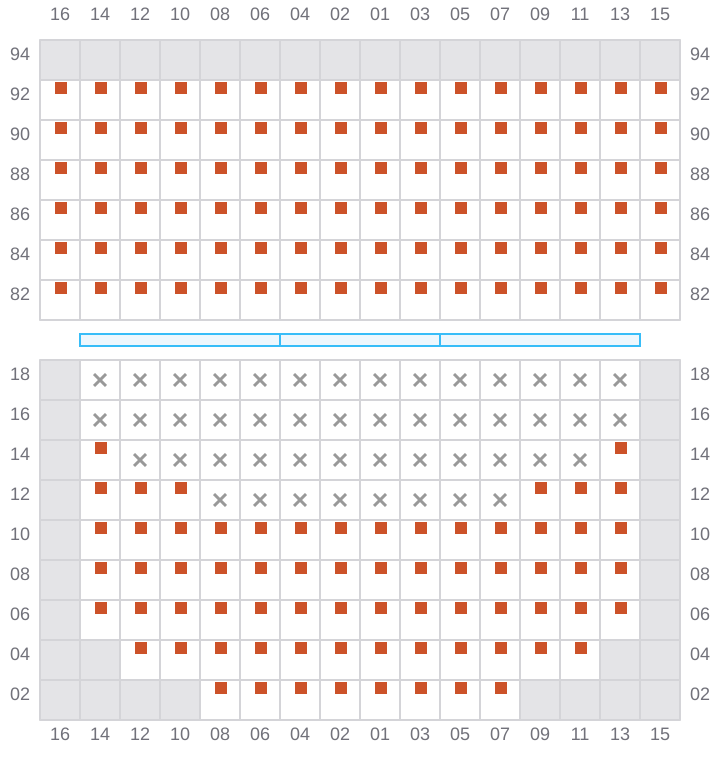

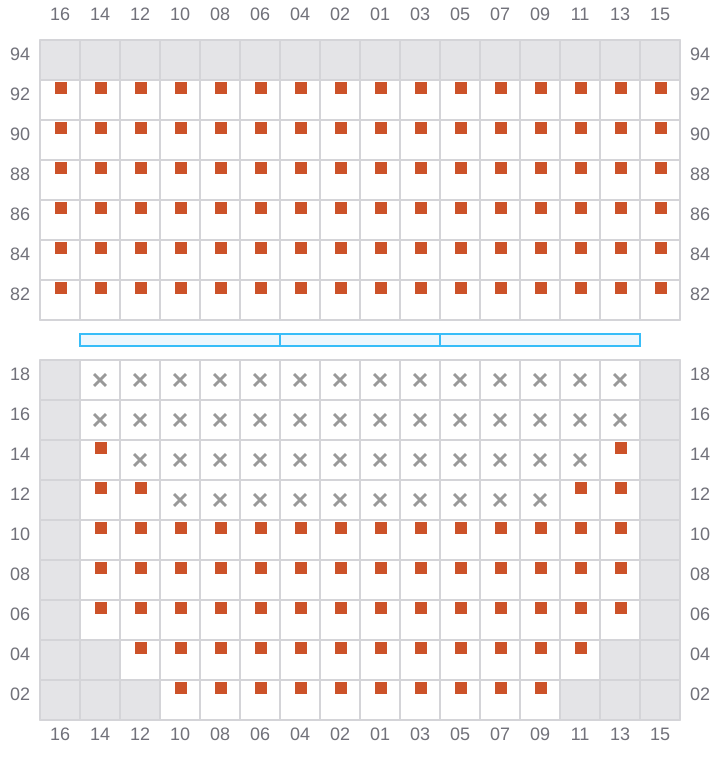

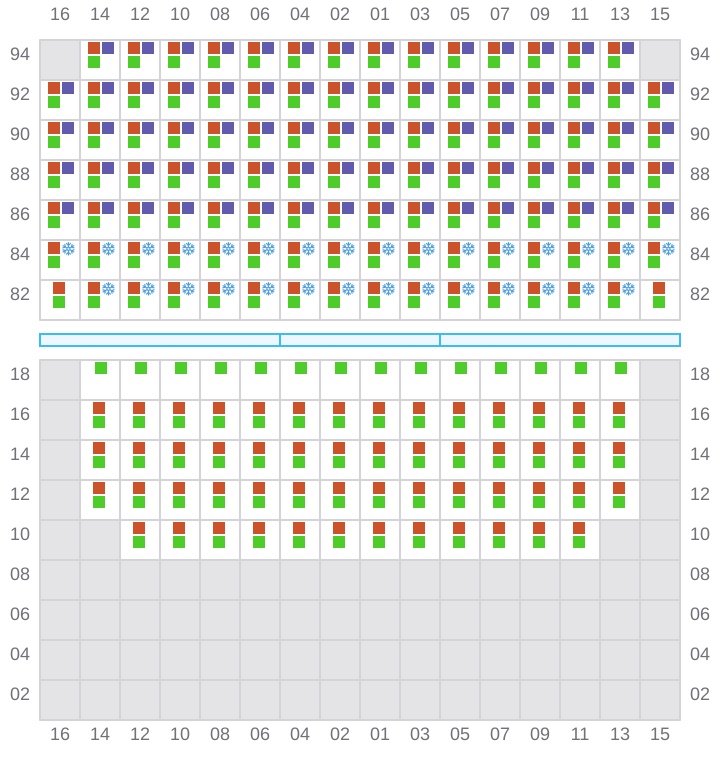

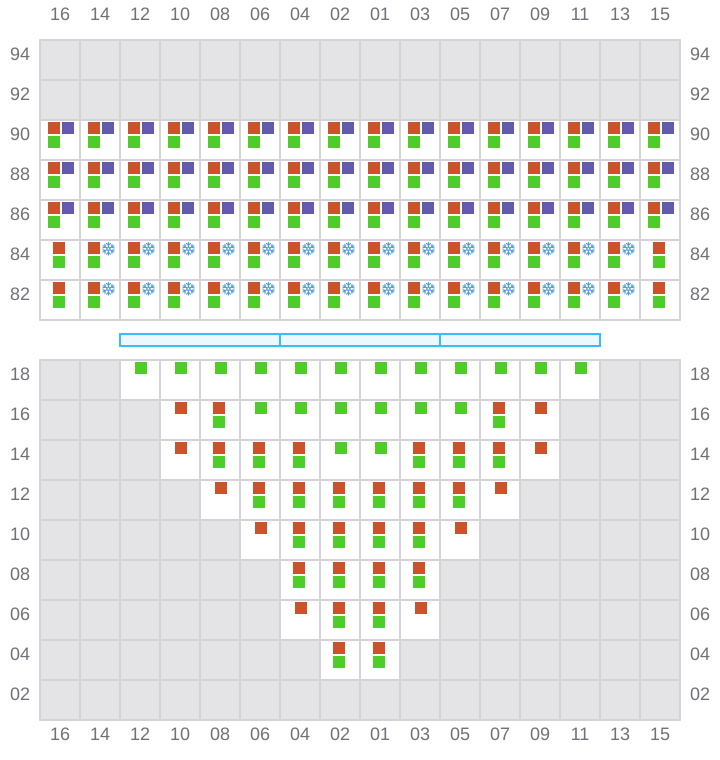

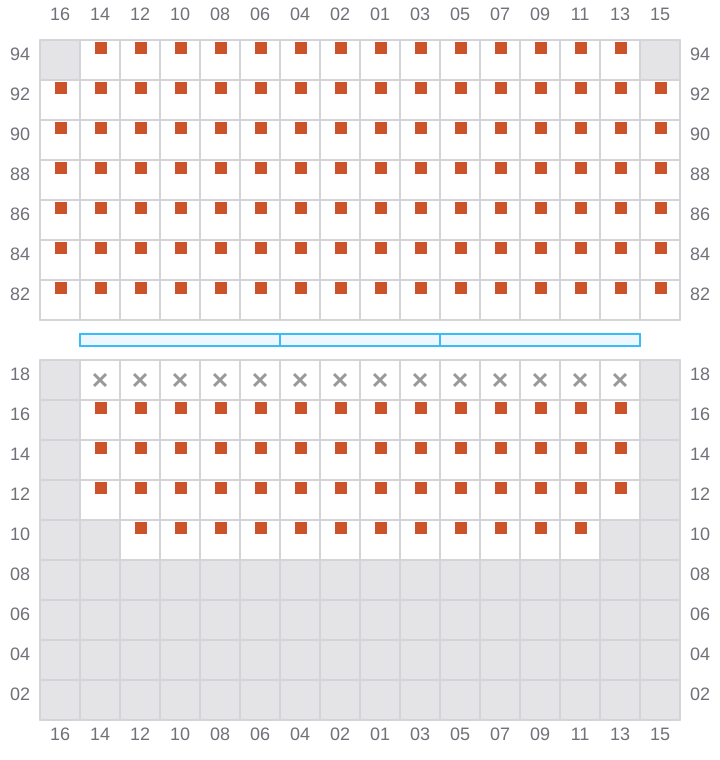

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

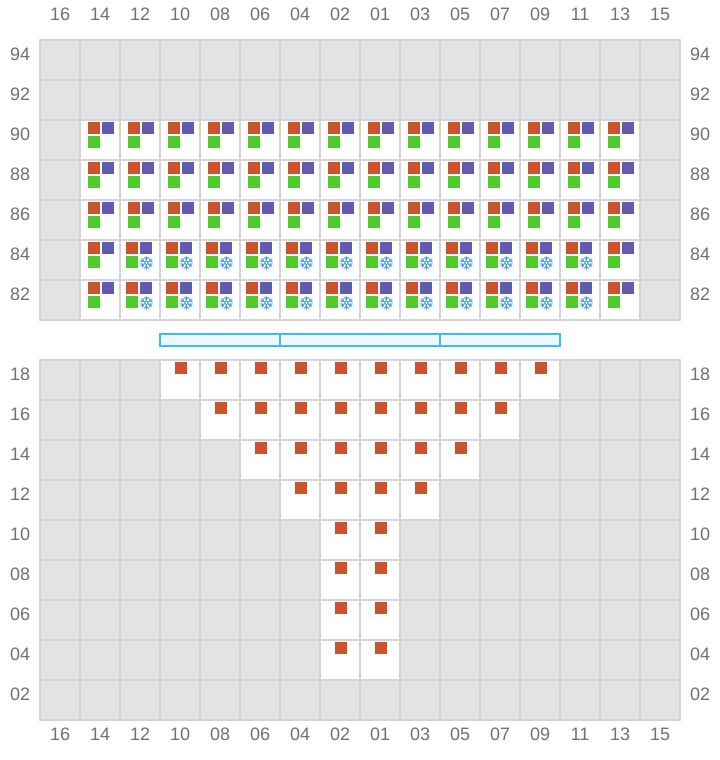

001

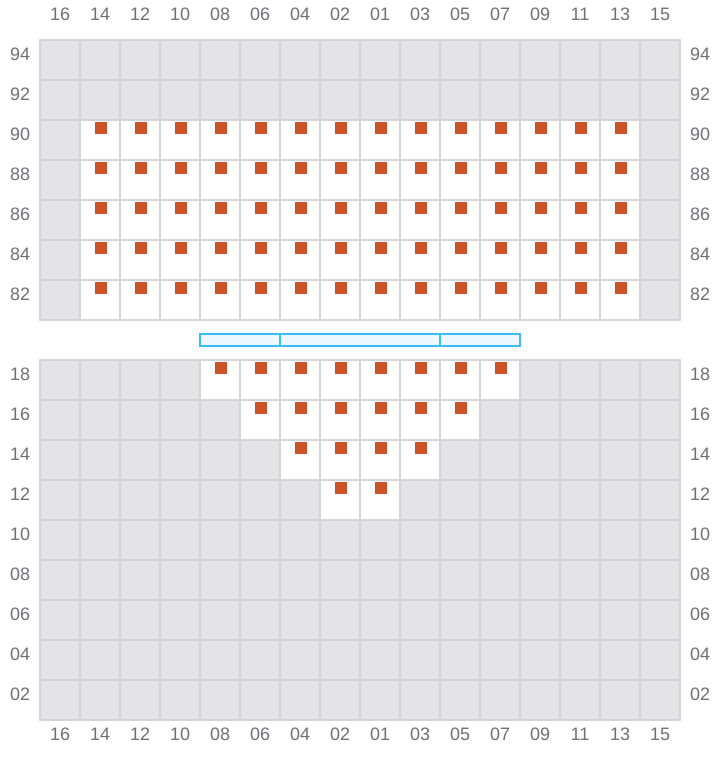

003
- →
005 (004)
- ←
007
- →
009 (008)
- ←
011
- →

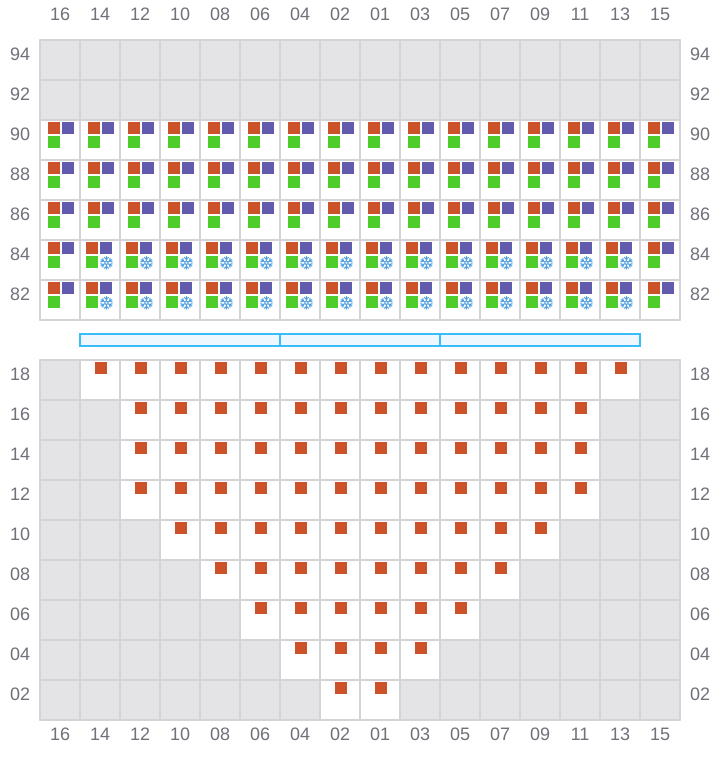

013 (012)
- ←
015
- →

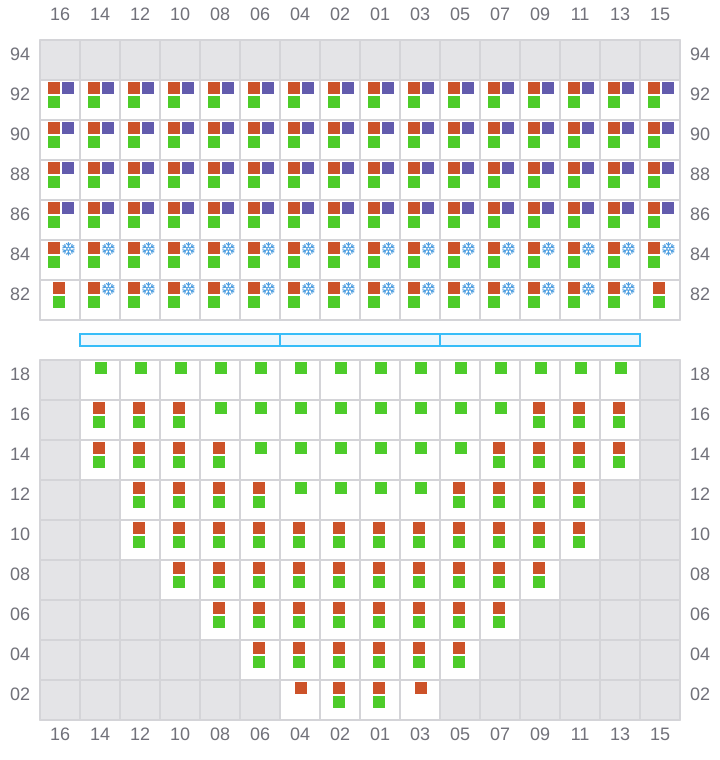

017 (016)
- ←

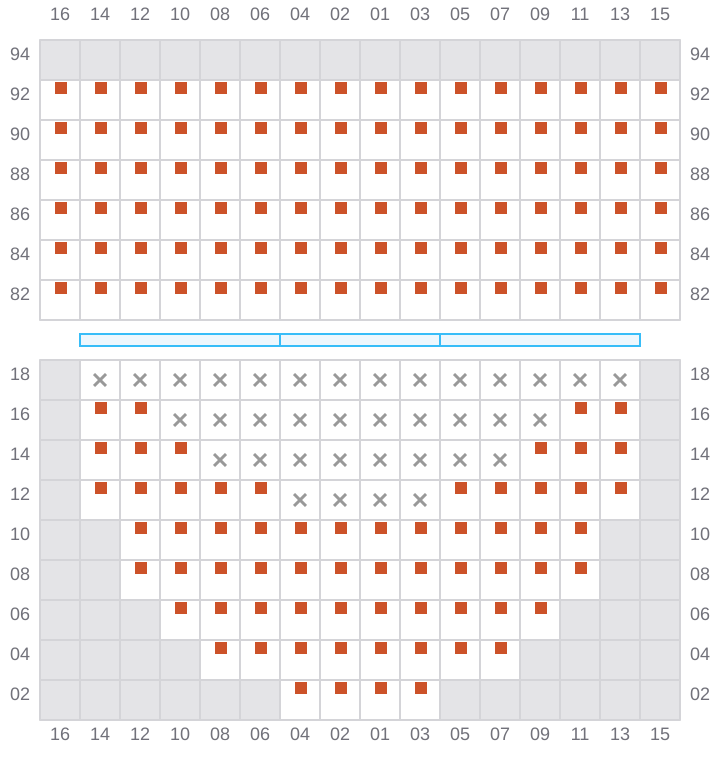

019
- →
021 (020)
- ←
023
- →

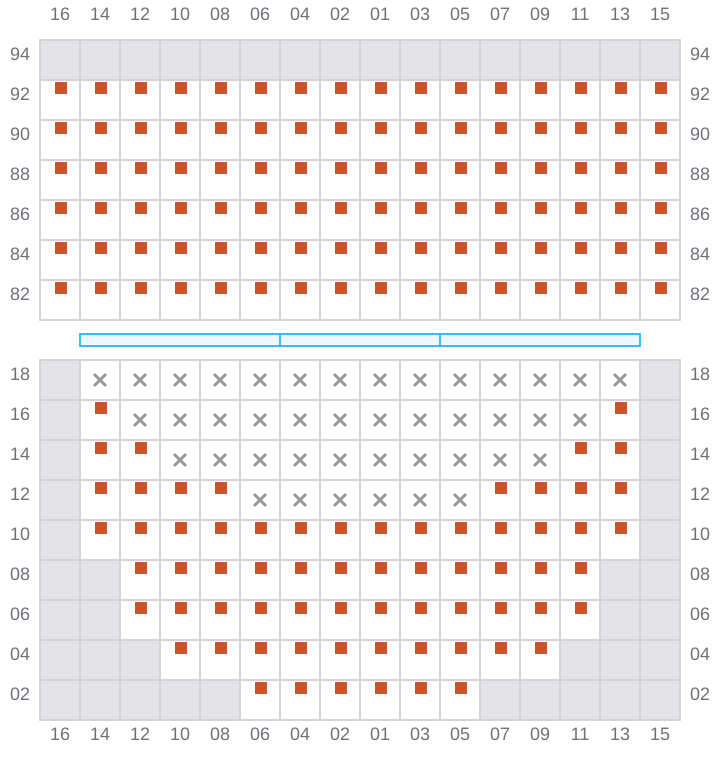

025 (024)
- ←
027
- →

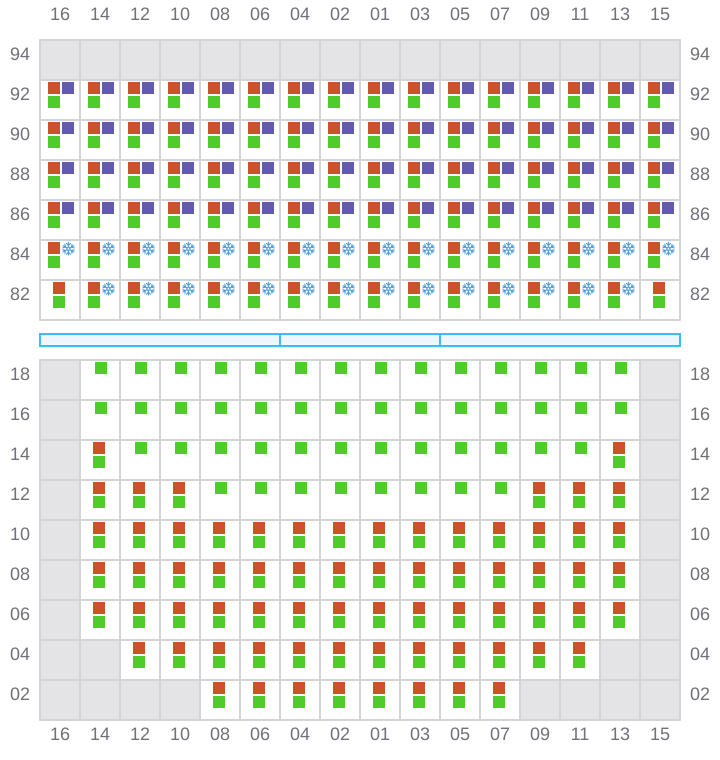

029 (028)
- ←
031
- →
033 (032)
- ←
035
- →
037 (036)
- ←
039
- →
041 (040)
- ←
043
- →
045 (044)
- ←

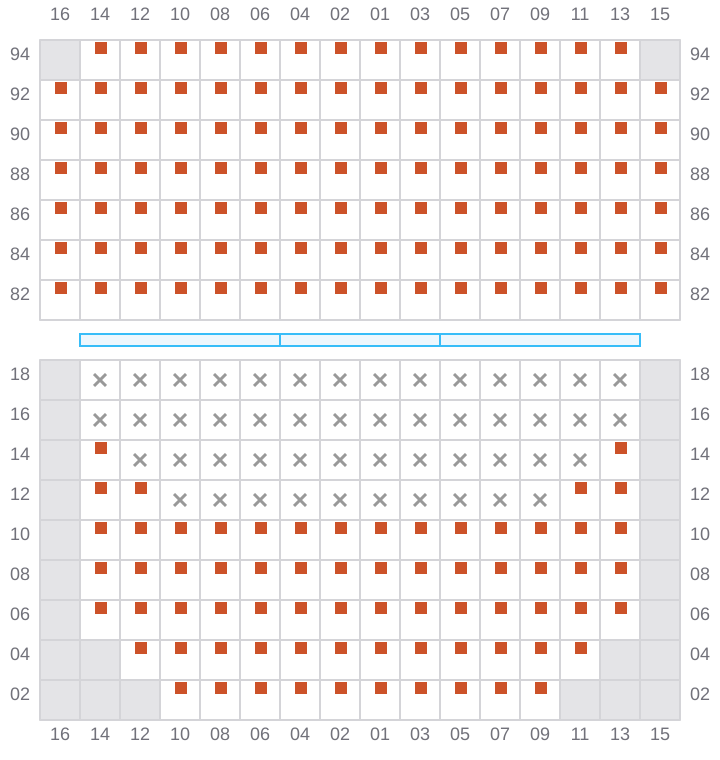

047
- →
049 (048)
- ←
051
- →
053 (052)
- ←
055
- →
057 (056)
- ←
059
- →
061 (060)
- ←
063
- →
065 (064)
- ←
067

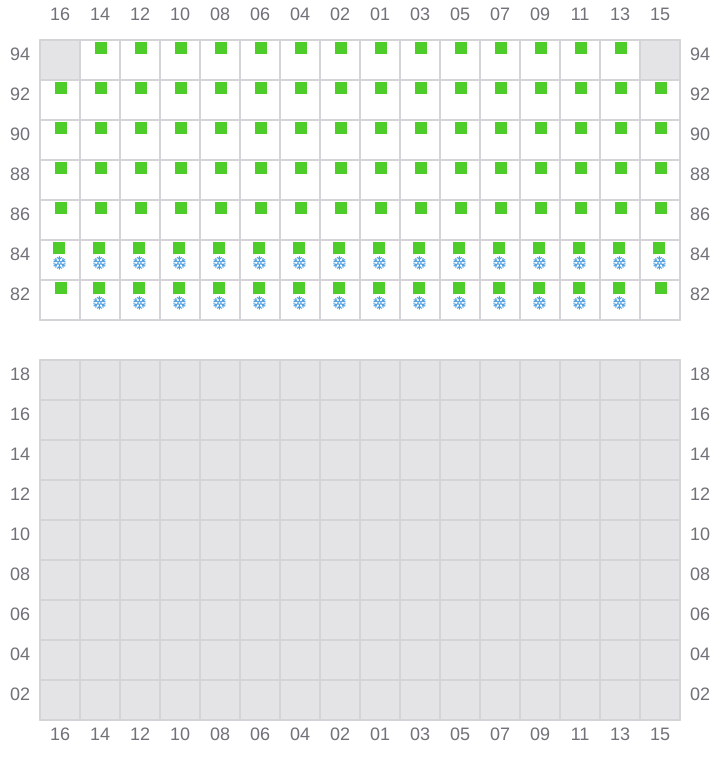

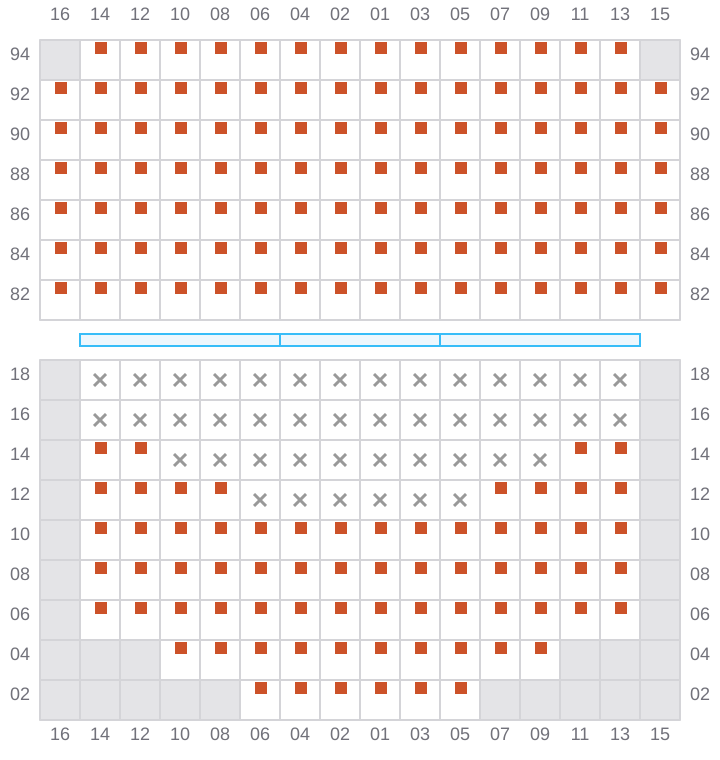

069 (068)
- ← / ?
