WAN HAI 622
9307035 | 9V7053 | 9307035 by ********* Last update: Mon May 20 2024
General Info
Ship Name:WAN HAI 622
IMO Code:9307035
Call Sign:9V7053
Line Operator:9307035
Class Name for Sister Ships:MOL PARTNER
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):276.00
LOA (Length Overall):293.19
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,350
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

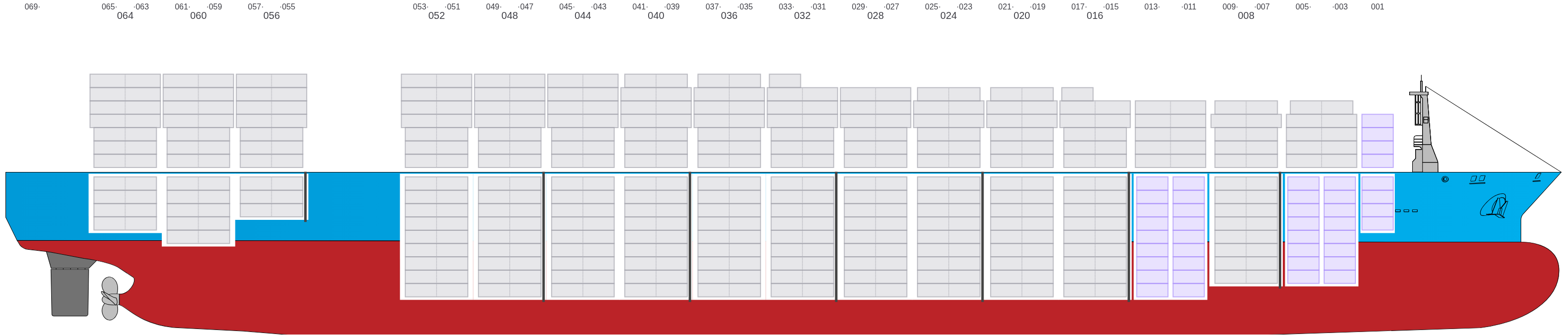

Side View
![Side view of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-sideView.png?v=1716230084283)

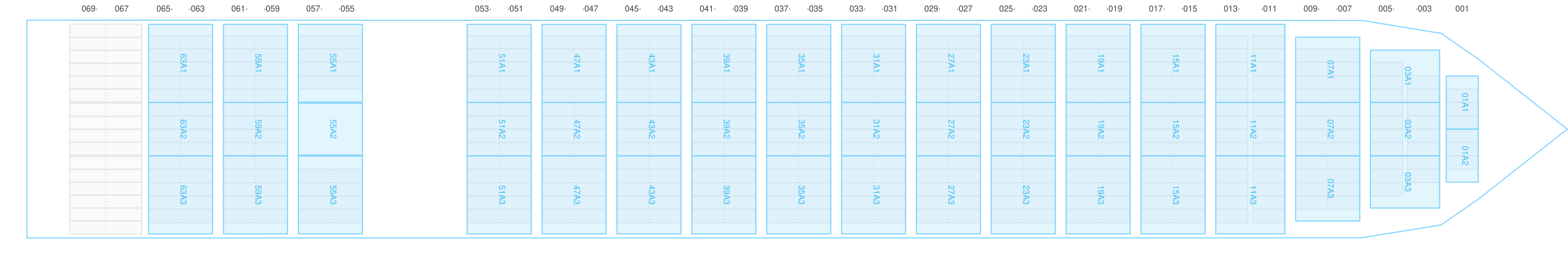

Hatch-Covers View
![Deck view of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-deckView.png?v=1716230084283)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

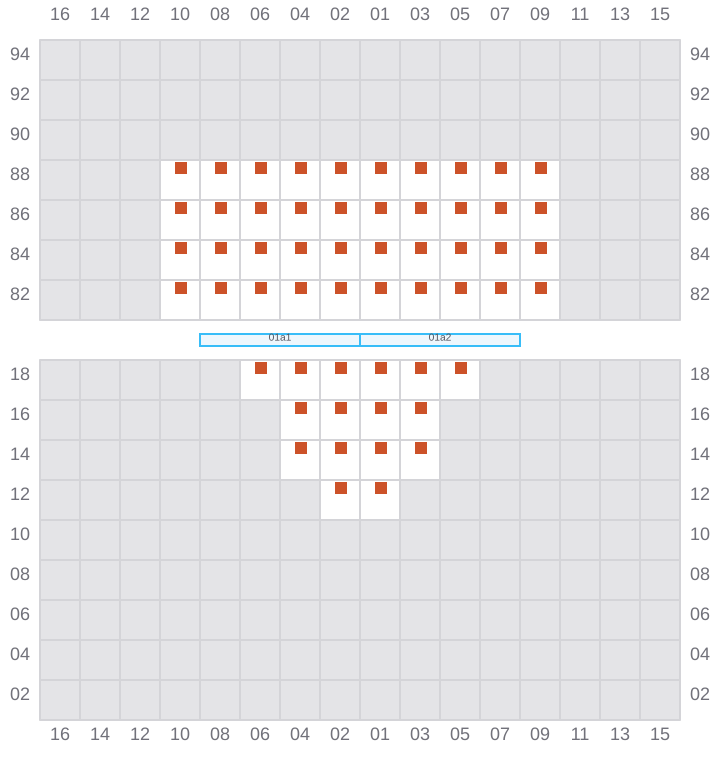

001
- →
![Bay 001 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b001.png?v=1716230084283)

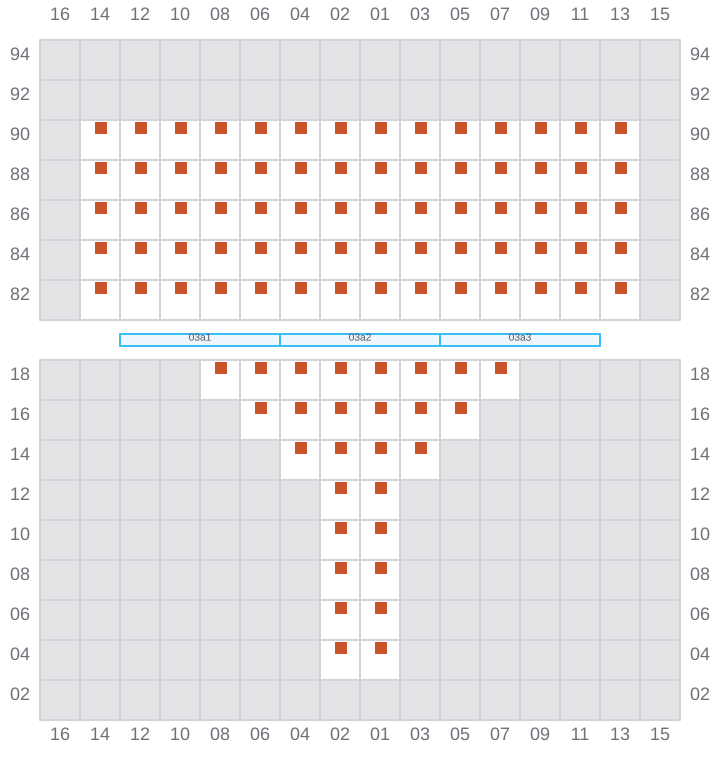

003
- → / ?
- →
![Bay 003 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b003.png?v=1716230084283)

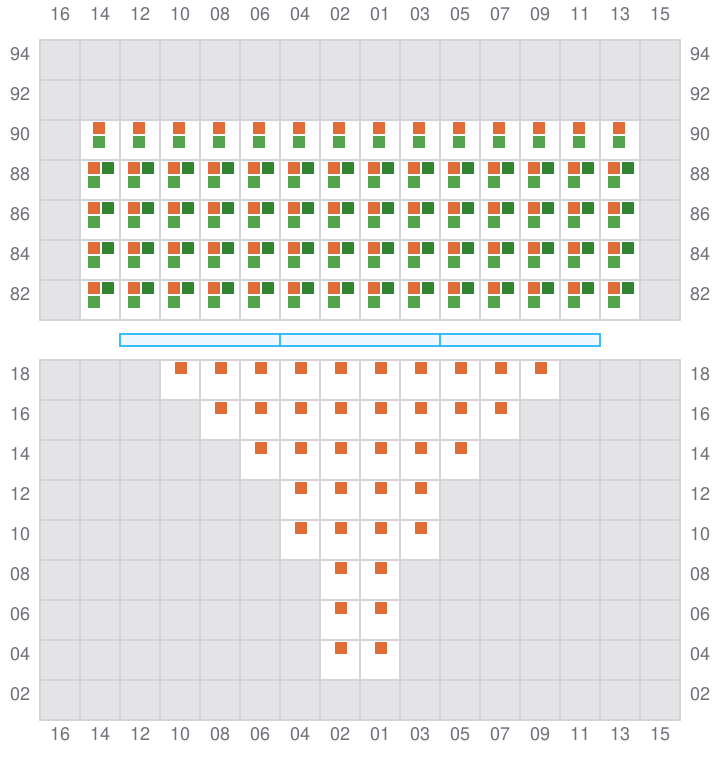

005 (004)
- ← / ?
- → / ?
- →
![Bay 005 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b005.png?v=1716230084283)

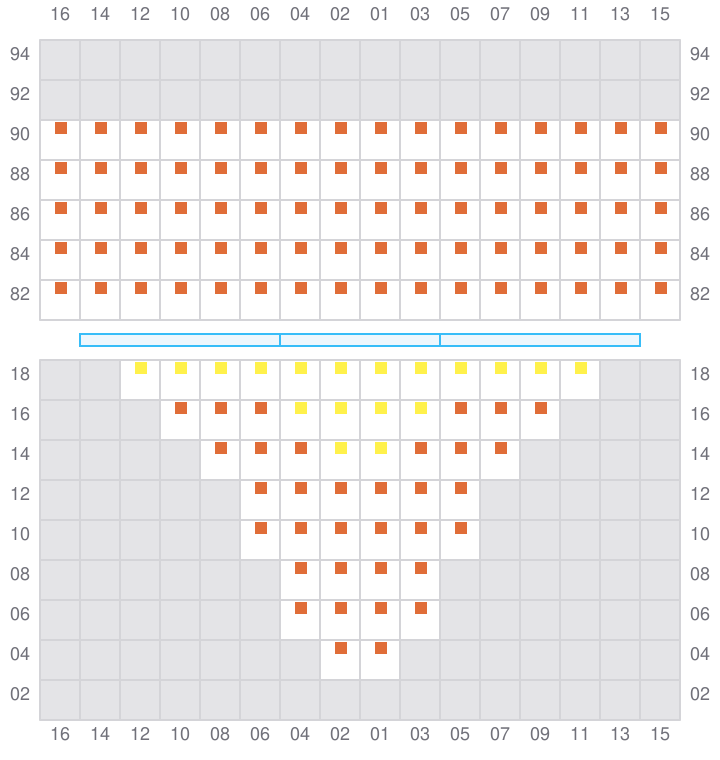

007
- →
- →
![Bay 007 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b007.png?v=1716230084283)

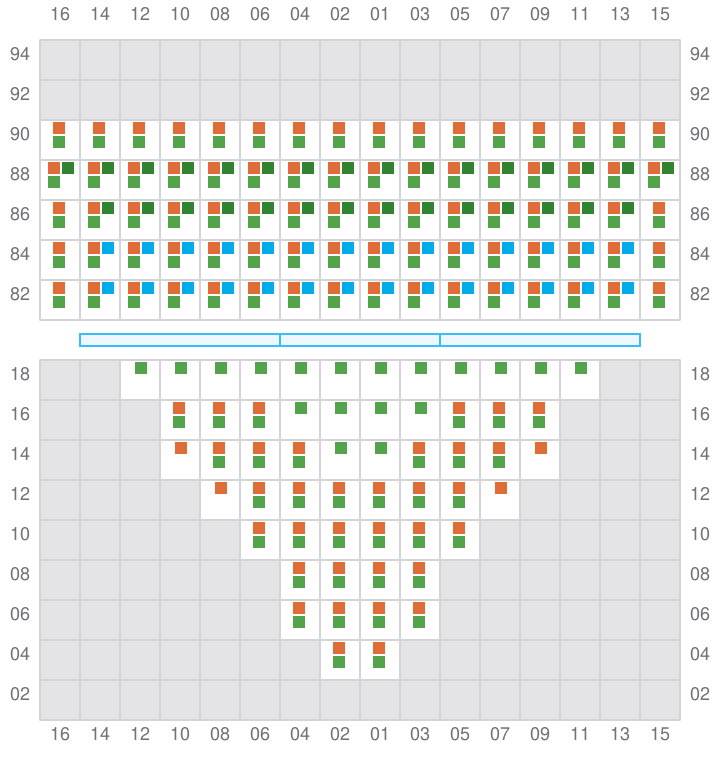

009 (008)
- ←
- → / ?
- →
![Bay 009 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b009.png?v=1716230084283)

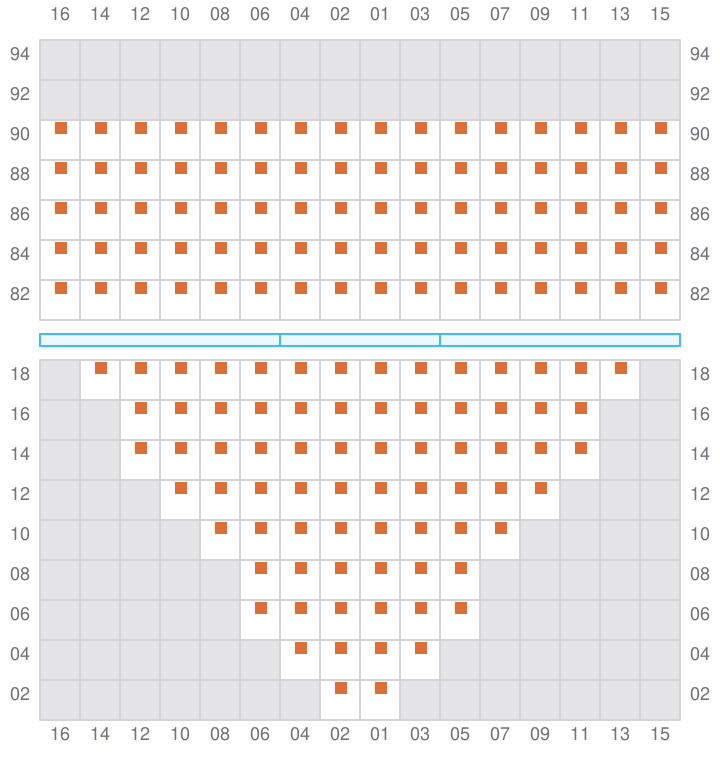

011
- → / ?
- →
![Bay 011 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b011.png?v=1716230084283)

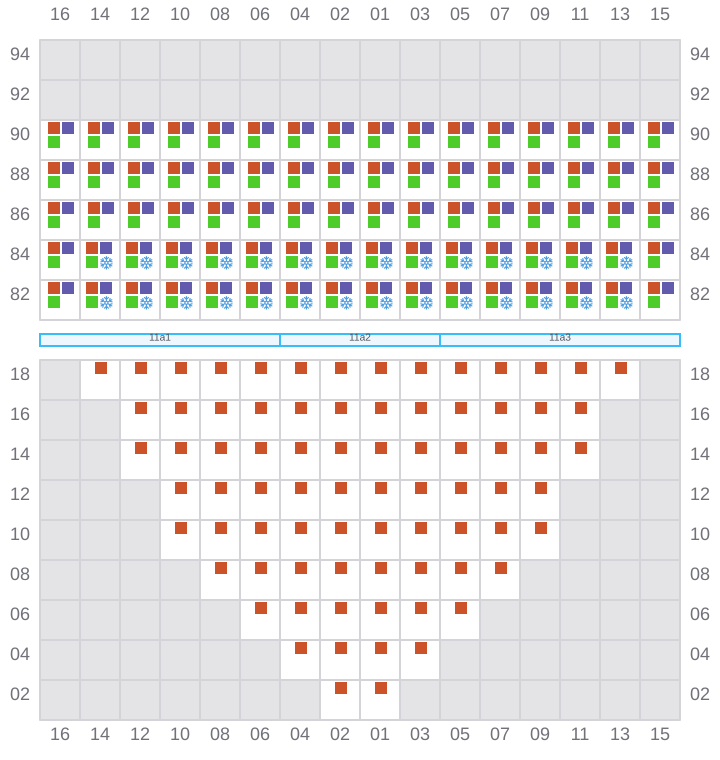

013 (012)
- ← / ?
- → / ?
- →
![Bay 013 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b013.png?v=1716230084283)

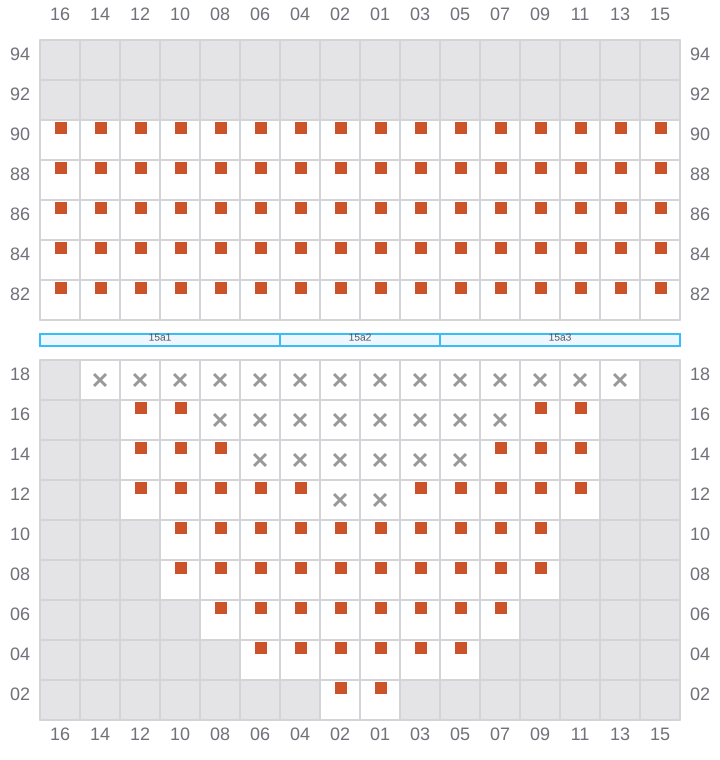

015
- →
- →
![Bay 015 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b015.png?v=1716230084283)

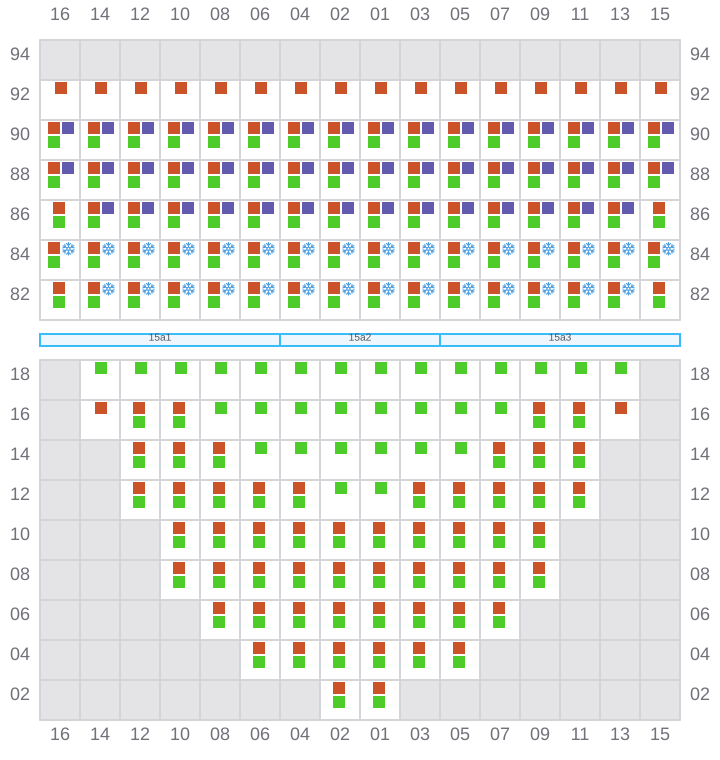

017 (016)
- ←
- → / ?
- →
![Bay 017 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b017.png?v=1716230084283)

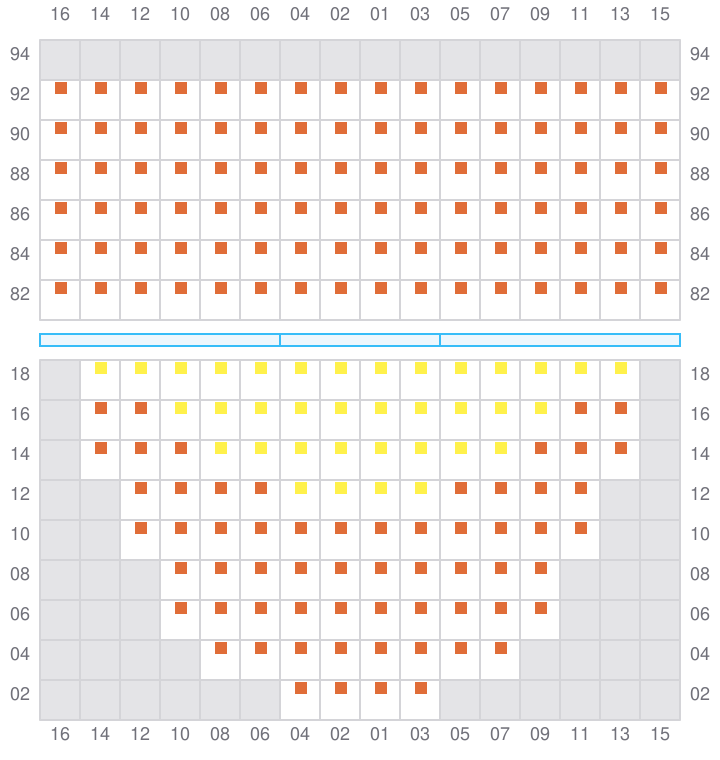

019
- →
- →
![Bay 019 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b019.png?v=1716230084283)

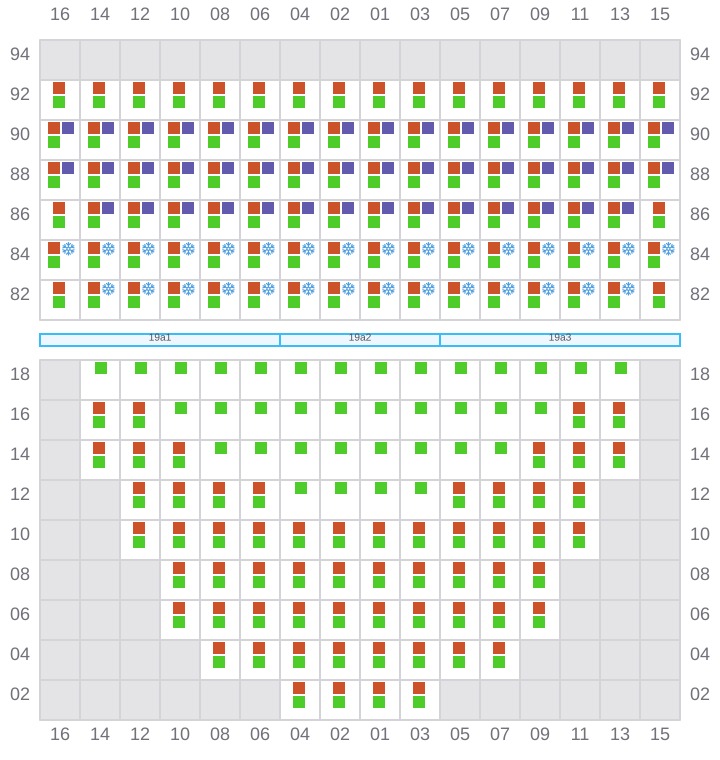

021 (020)
- ←
- → / ?
- →
![Bay 021 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b021.png?v=1716230084283)
023
- →
- →
![Bay 023 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b023.png?v=1716230084283)

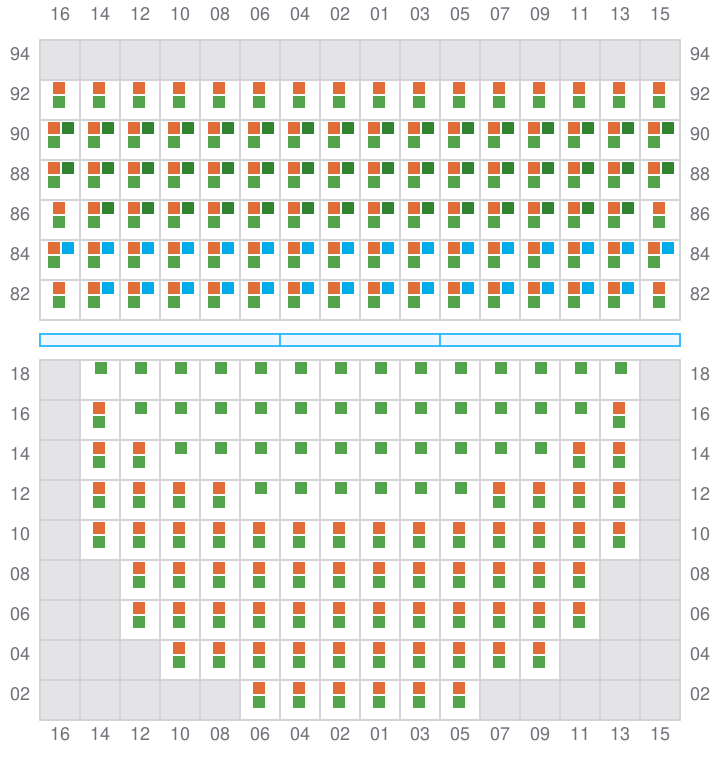

025 (024)
- ←
- → / ?
- →
![Bay 025 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b025.png?v=1716230084283)

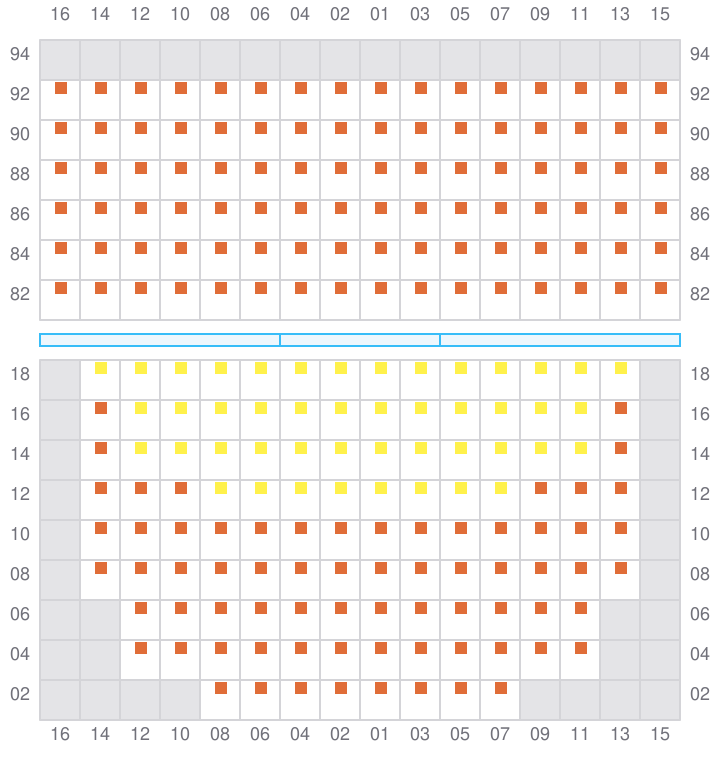

027
- →
- →
![Bay 027 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b027.png?v=1716230084283)

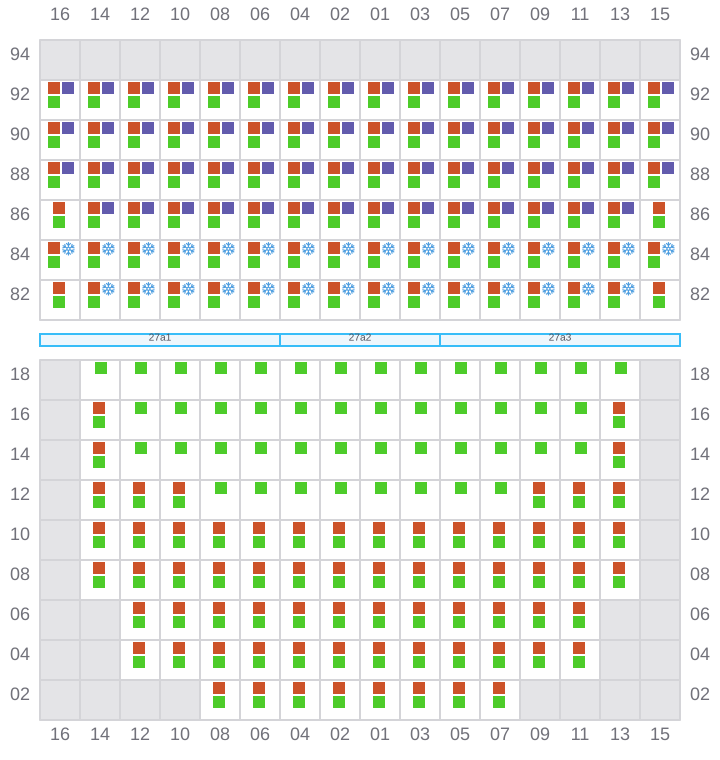

029 (028)
- ←
- → / ?
- →
![Bay 029 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b029.png?v=1716230084283)

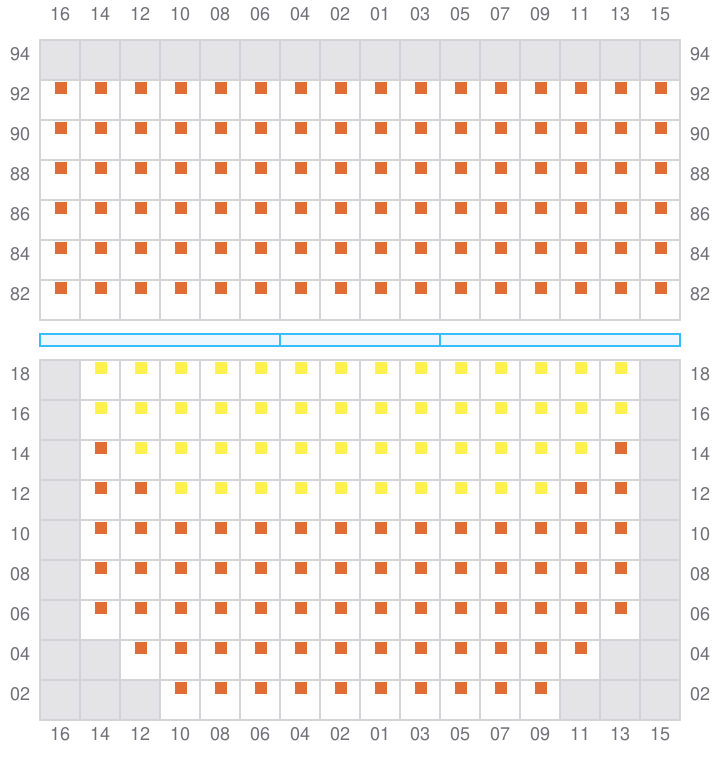

031
- →
- →
![Bay 031 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b031.png?v=1716230084283)

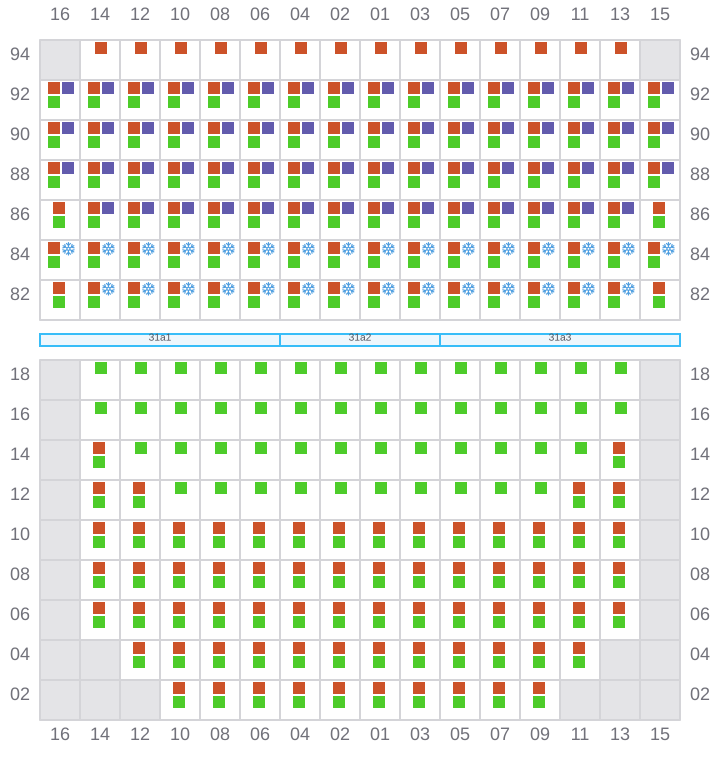

033 (032)
- ←
- → / ?
- →
![Bay 033 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b033.png?v=1716230084283)

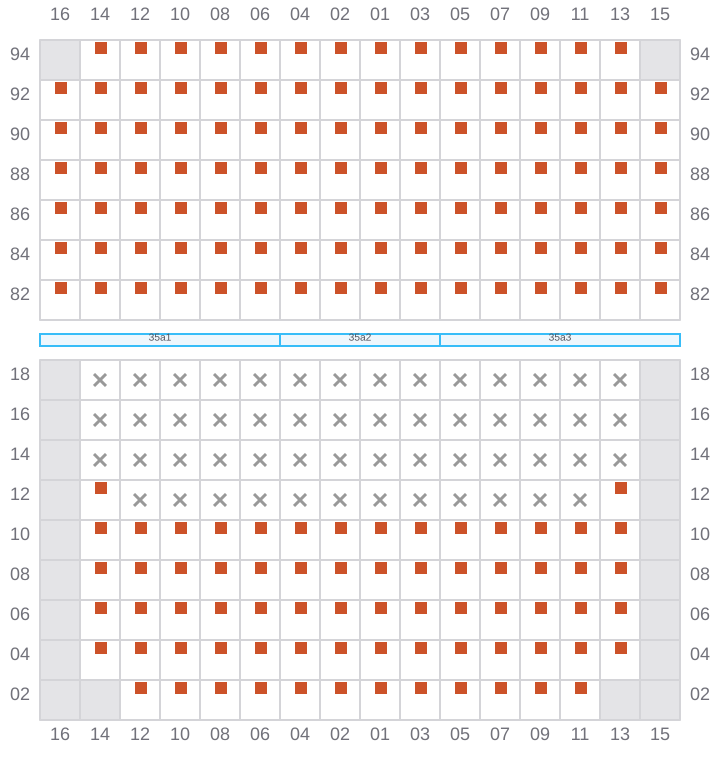

035
- →
- →
![Bay 035 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b035.png?v=1716230084283)
037 (036)
- ←
- → / ?
- →
![Bay 037 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b037.png?v=1716230084283)

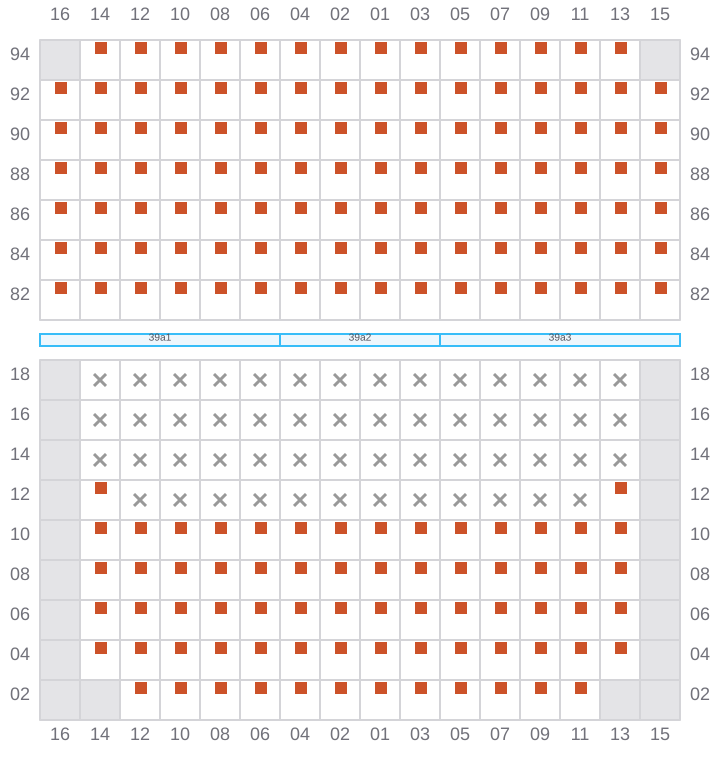

039
- →
- →
![Bay 039 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b039.png?v=1716230084283)

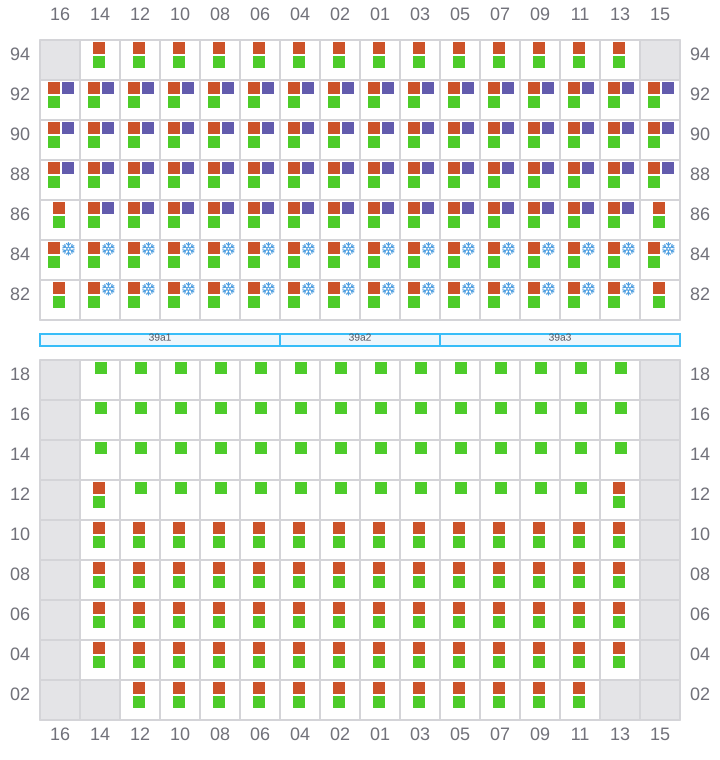

041 (040)
- ←
- → / ?
- →
![Bay 041 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b041.png?v=1716230084283)

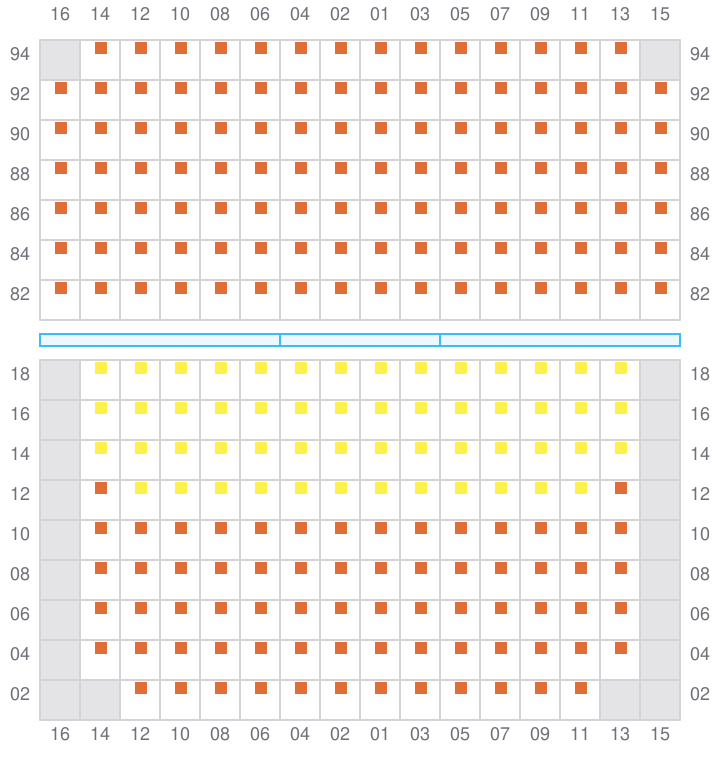

043
- →
- →
![Bay 043 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b043.png?v=1716230084283)

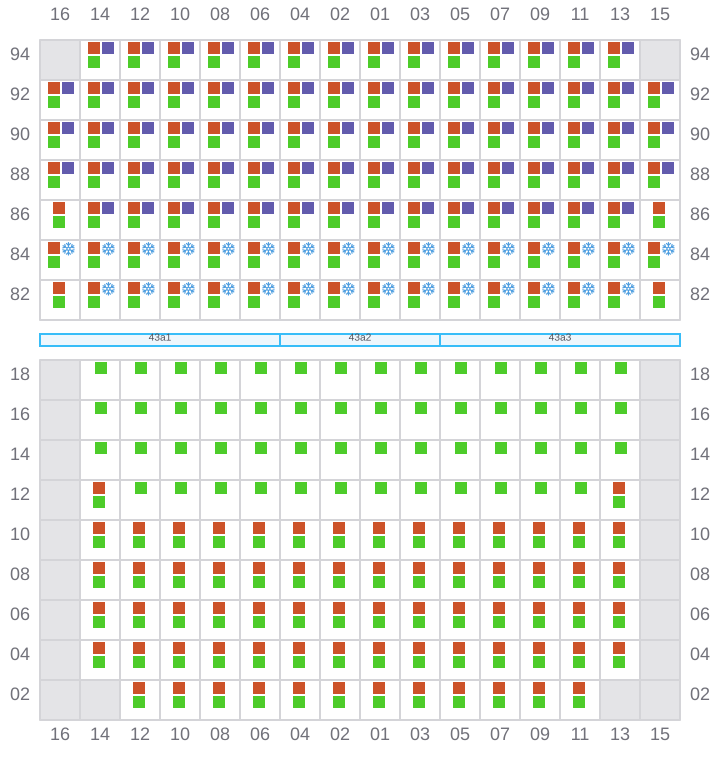

045 (044)
- ←
- → / ?
- →
![Bay 045 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b045.png?v=1716230084283)

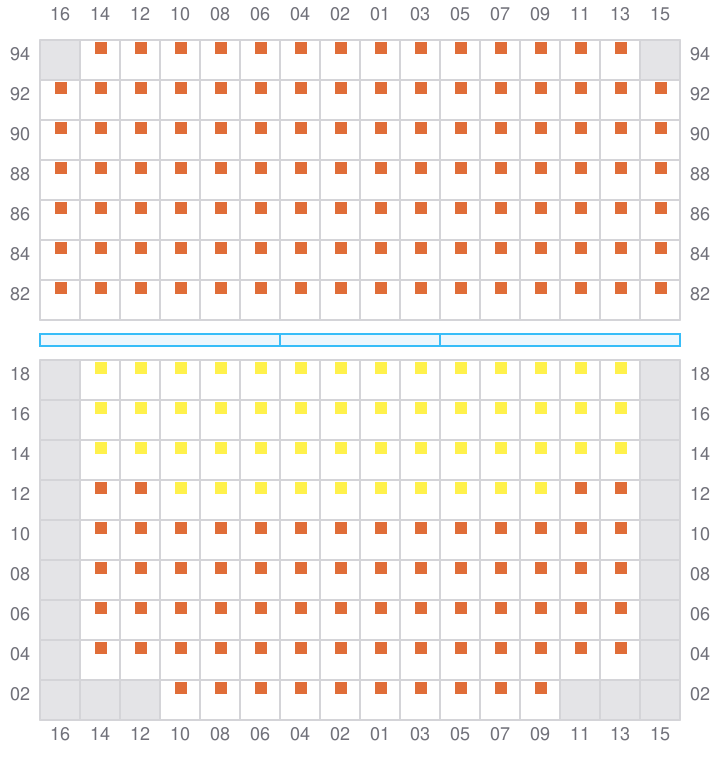

047
- →
- →
![Bay 047 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b047.png?v=1716230084283)

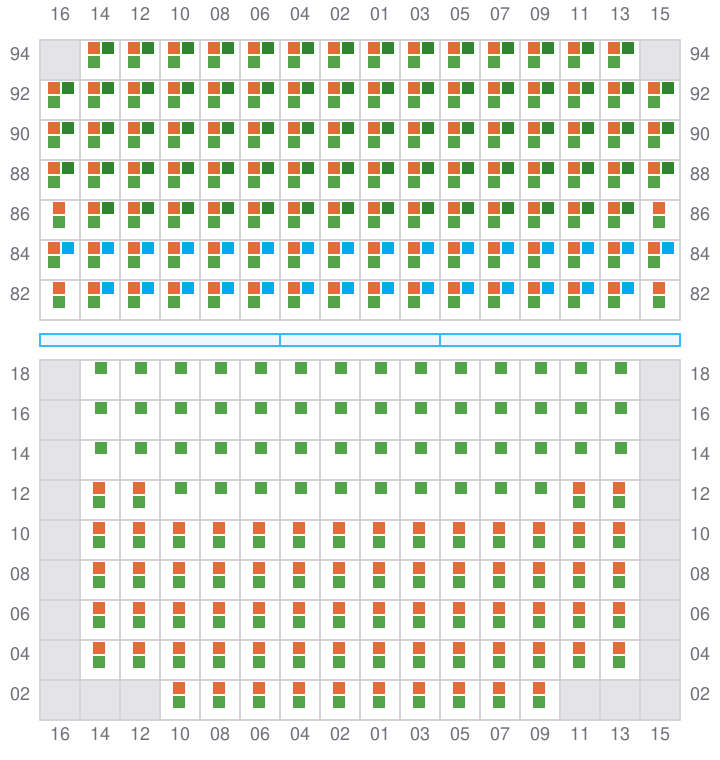

049 (048)
- ←
- → / ?
- →
![Bay 049 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b049.png?v=1716230084283)

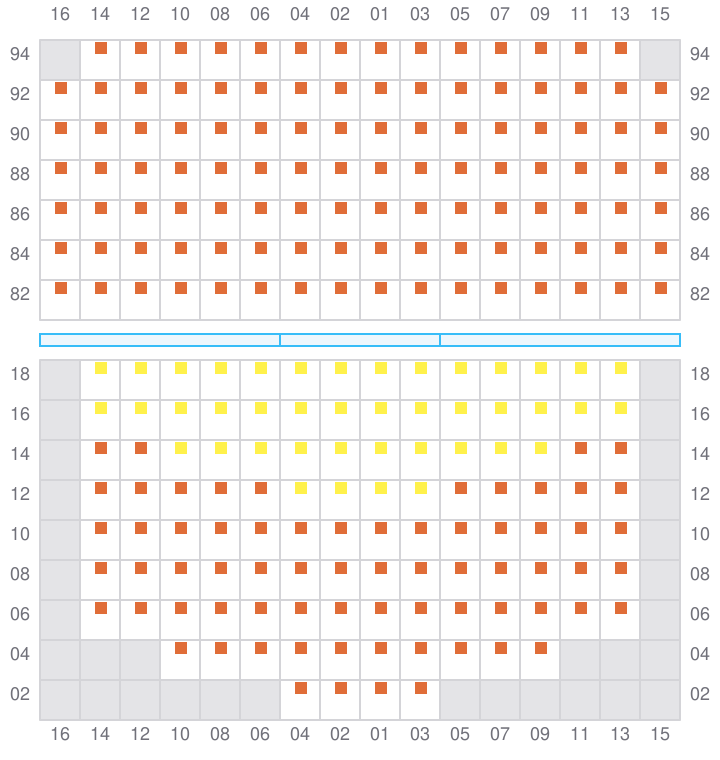

051
- →
- →
![Bay 051 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b051.png?v=1716230084283)

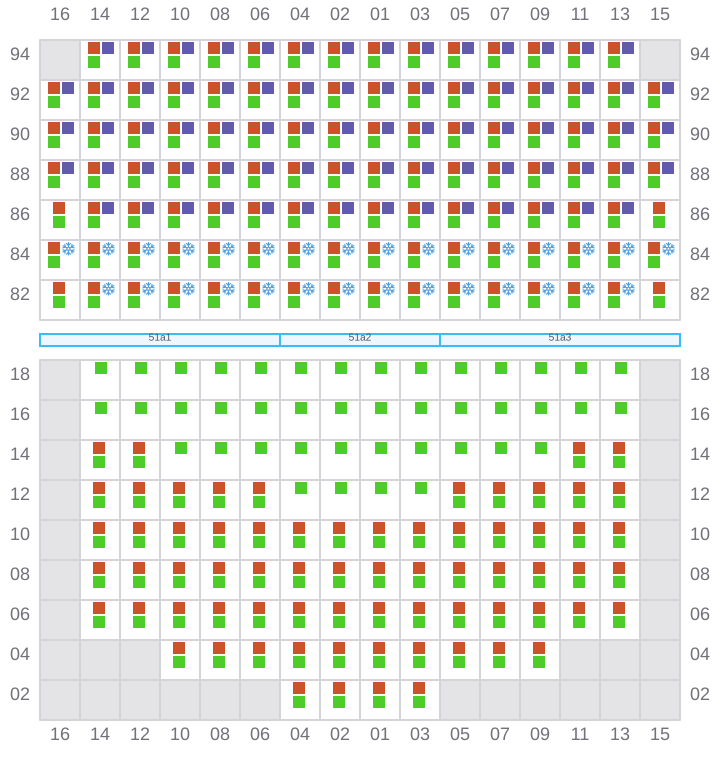

053 (052)
- ←
- → / ?
- →
![Bay 053 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b053.png?v=1716230084283)

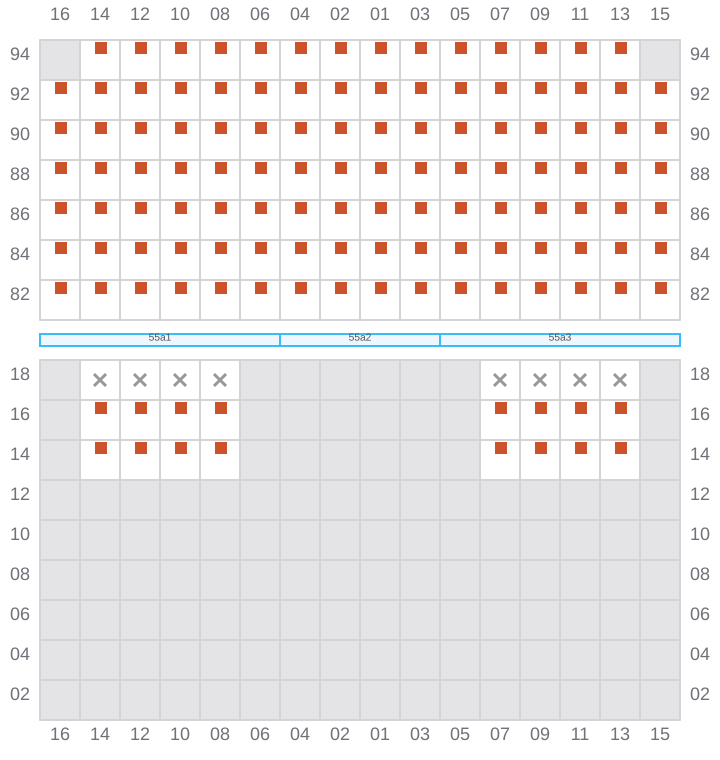

055
- →
- →
![Bay 055 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b055.png?v=1716230084283)

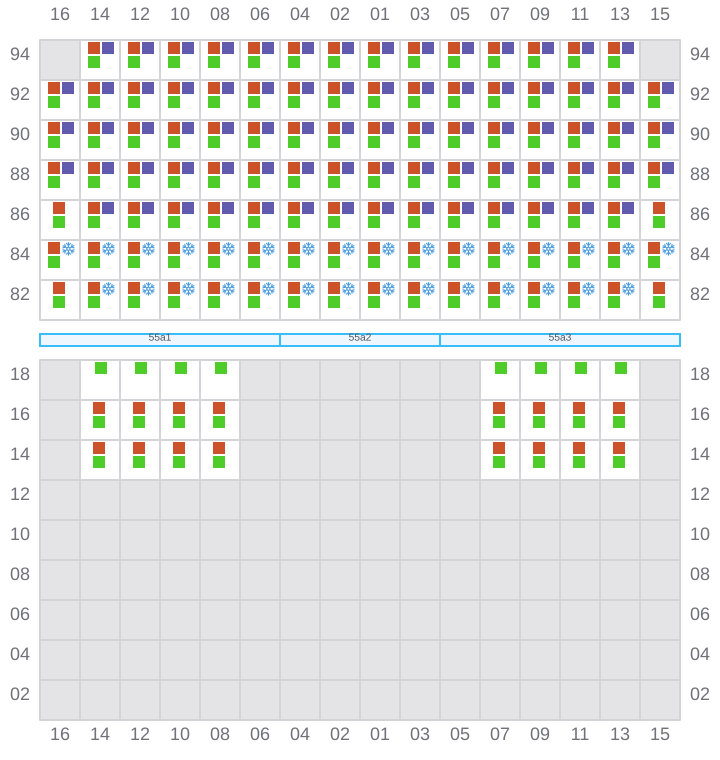

057 (056)
- ←
- → / ?
- →
![Bay 057 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b057.png?v=1716230084283)

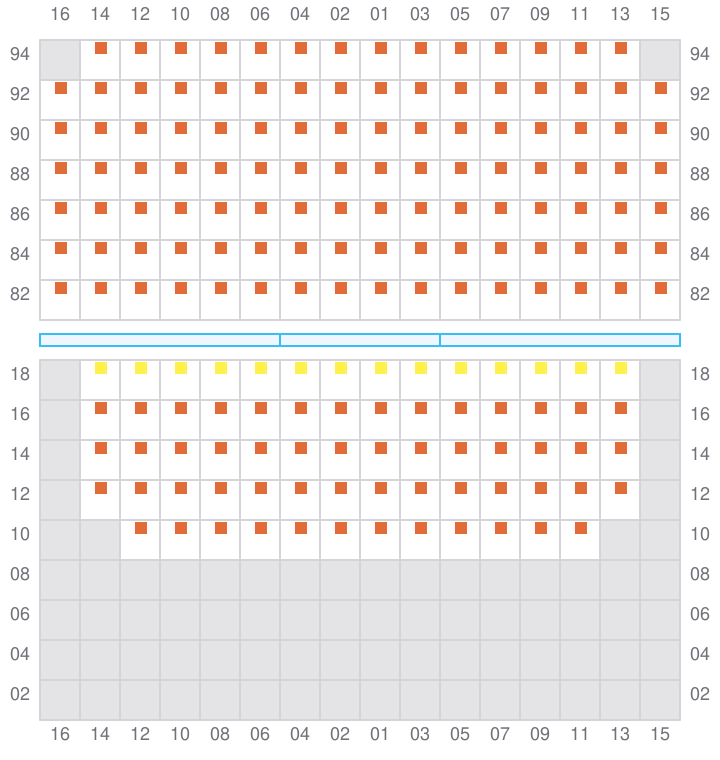

059
- →
- →
![Bay 059 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b059.png?v=1716230084283)
061 (060)
- ←
- → / ?
- →
![Bay 061 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b061.png?v=1716230084283)

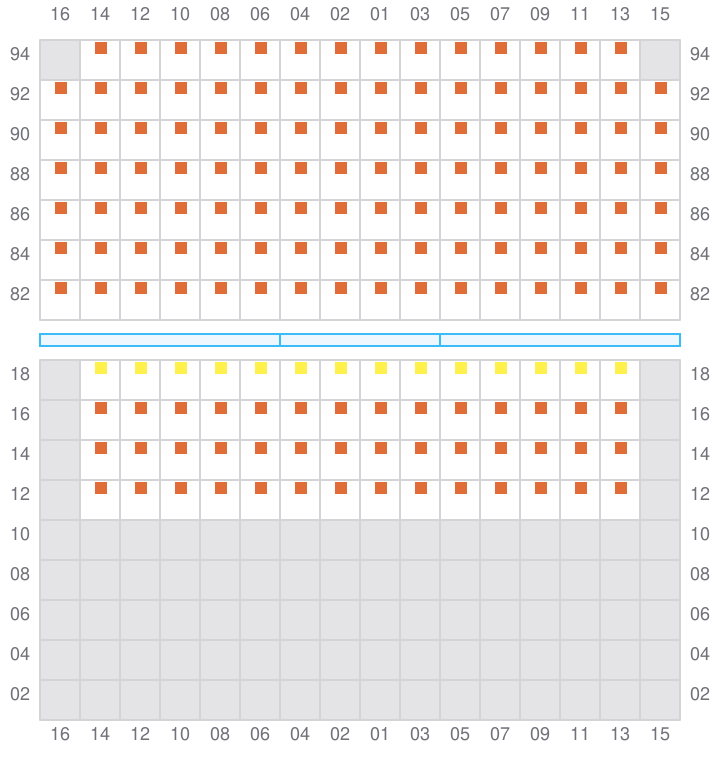

063
- →
- →
![Bay 063 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b063.png?v=1716230084283)

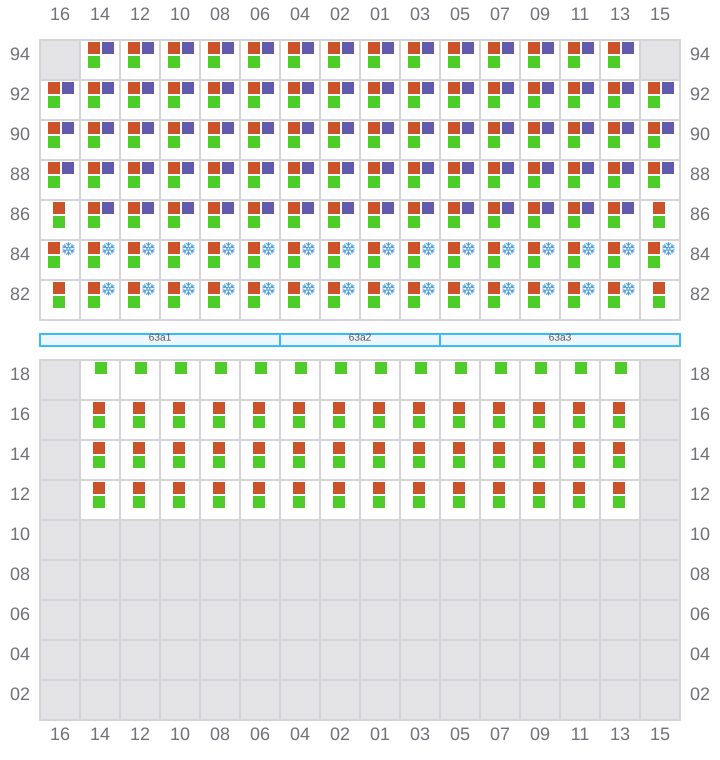

065 (064)
- ←
- → / ?
- →
![Bay 065 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b065.png?v=1716230084283)

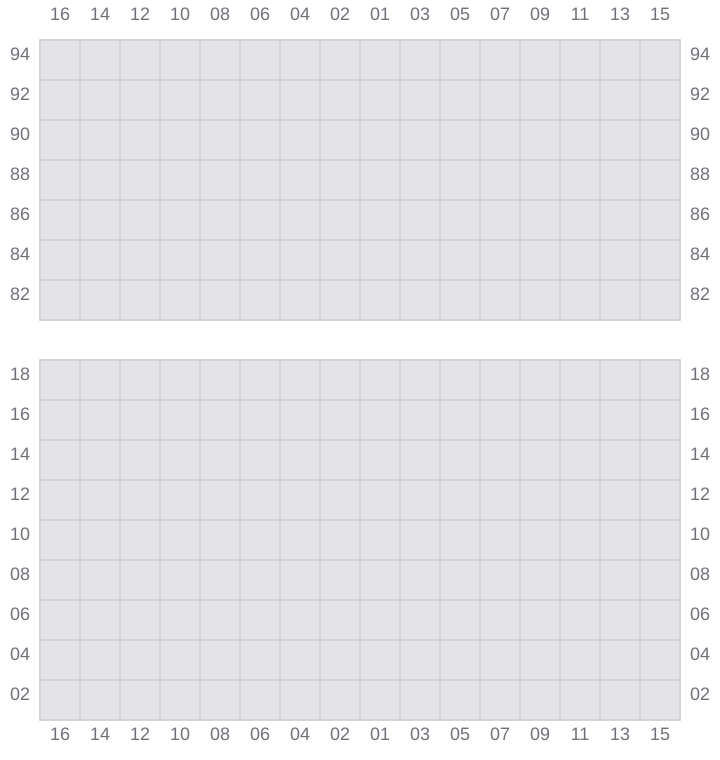

067
![Bay 067 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b067.png?v=1716230084283)

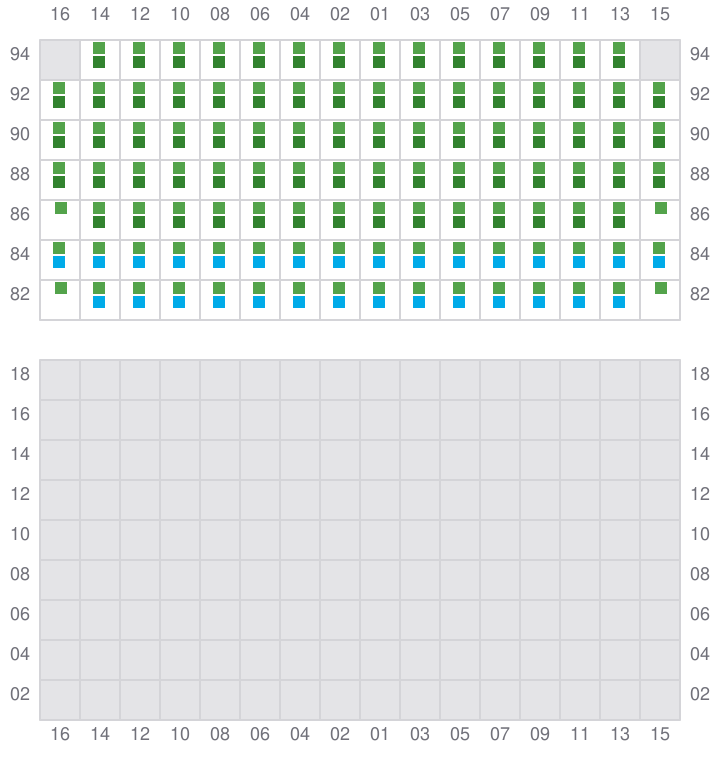

069 (068)
- ← / ?
- ← / ?
- → / ?
![Bay 069 view and slots of WAN HAI 622](/vessel-images/4a17472a-124b-4540-b5f4-0cd8ddbf5482-b069.png?v=1716230084283)
