WAN HAI 721
9398242 | 9V7143 | 9398242 by ******************** Last update: Wed May 28 2025

General Info

Ship Name:WAN HAI 721
IMO Code:9398242
Call Sign:9V7143
Line Operator:9398242
Class Name for Sister Ships:APL
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.02
LOA (Length Overall):304.15
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,969

Centers of Gravity

LCG Values:Known
LCG Data:99%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

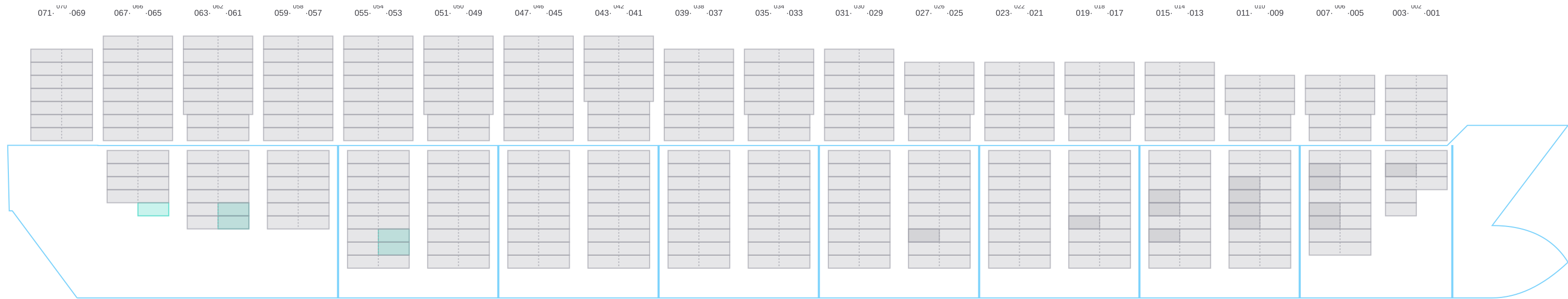

Side View

Side view of WAN HAI 721

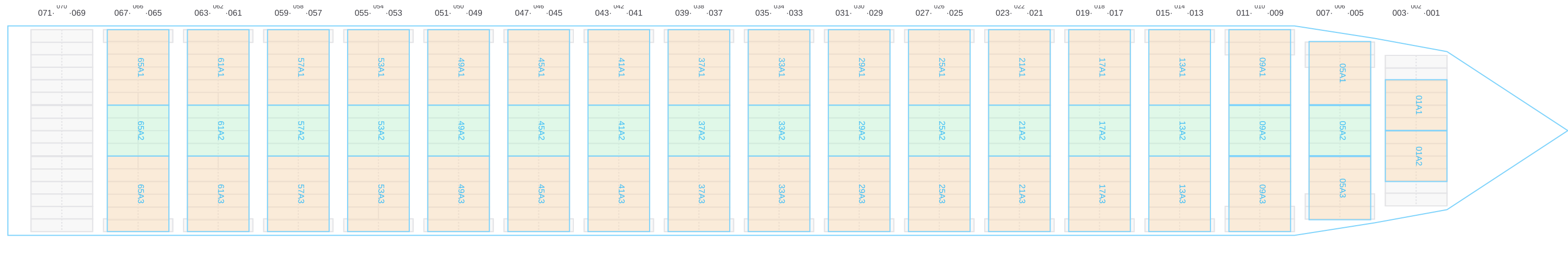

Hatch-Covers View

Deck view of WAN HAI 721

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • → / ?
  • → / ?

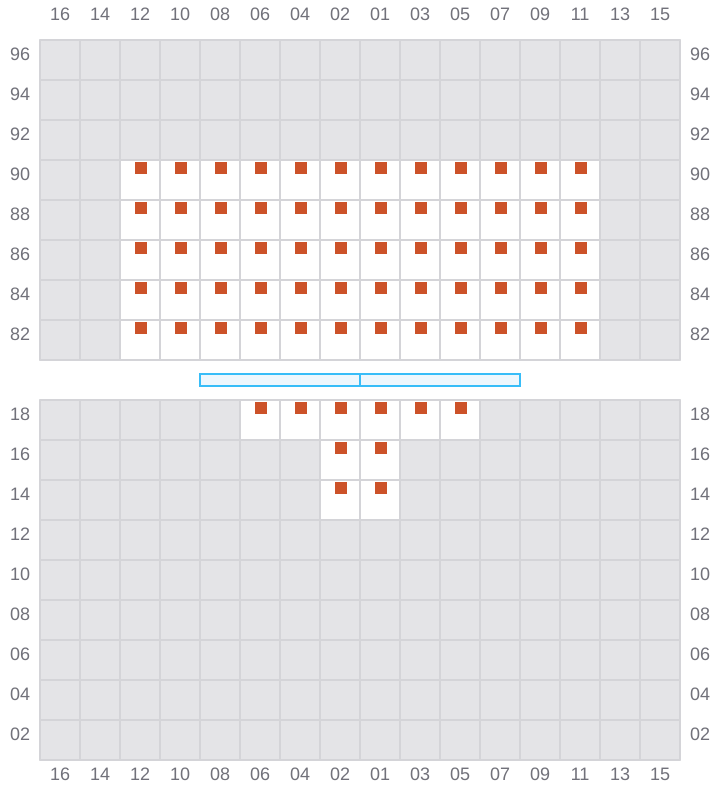

Bay 001 view and slots of WAN HAI 721

003 (002)

  • ←
  • → / ?
  • → / ?

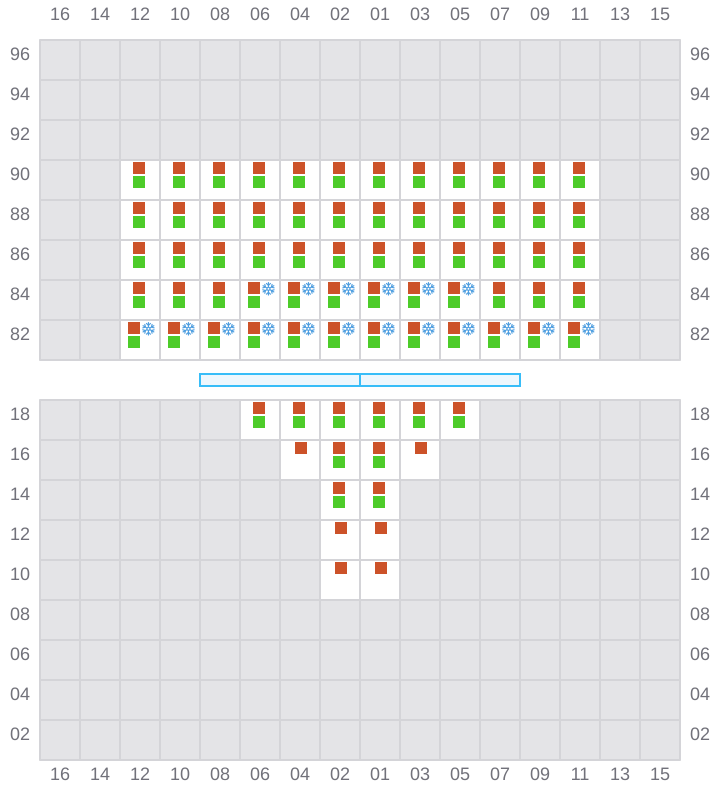

Bay 003 view and slots of WAN HAI 721

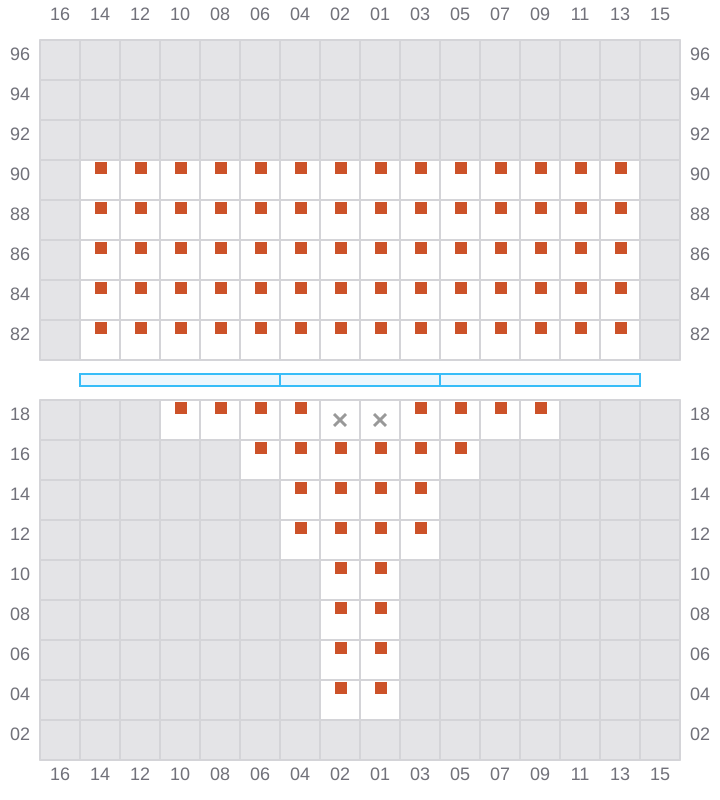

005

  • →
  • → / ?
  • → / ?
Bay 005 view and slots of WAN HAI 721

007 (006)

  • ←
  • → / ?

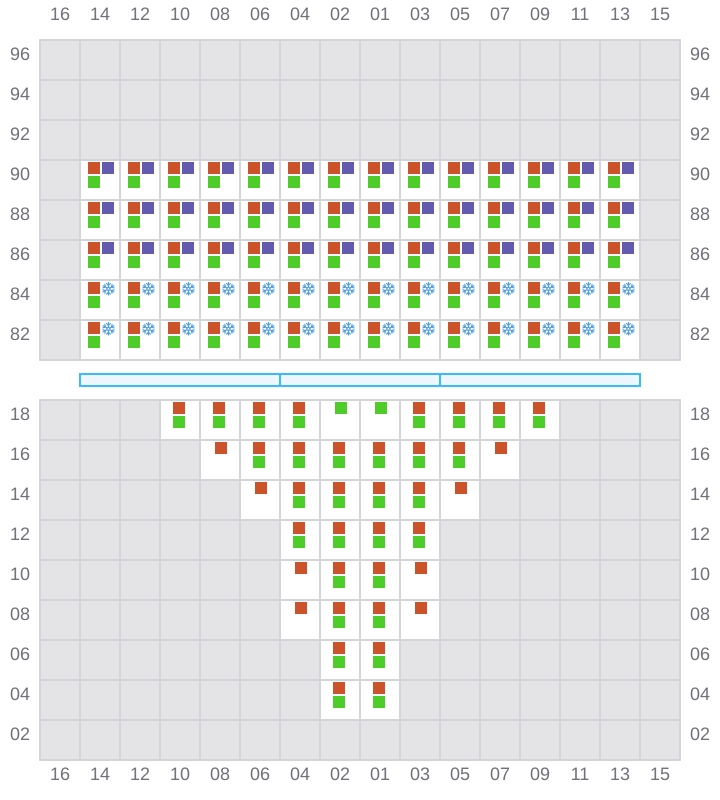

Bay 007 view and slots of WAN HAI 721

009

  • →
  • → / ?
  • → / ?

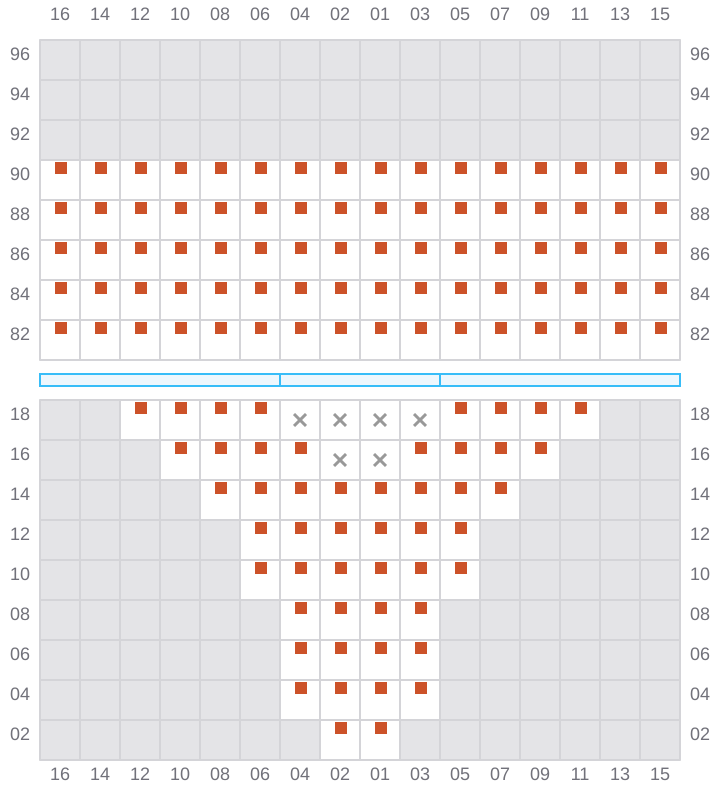

Bay 009 view and slots of WAN HAI 721

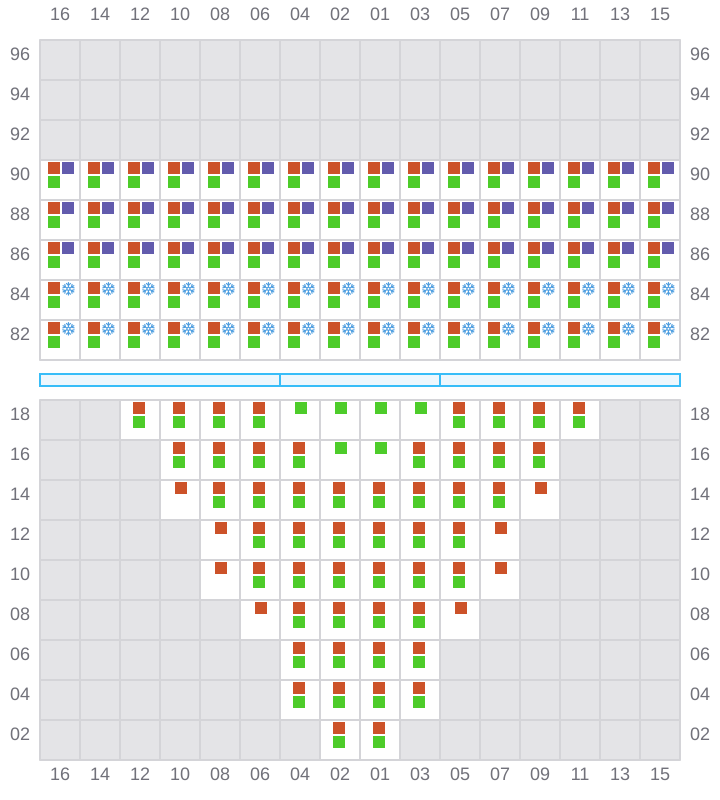

011 (010)

  • ←
  • → / ?
Bay 011 view and slots of WAN HAI 721

013

  • →
  • → / ?

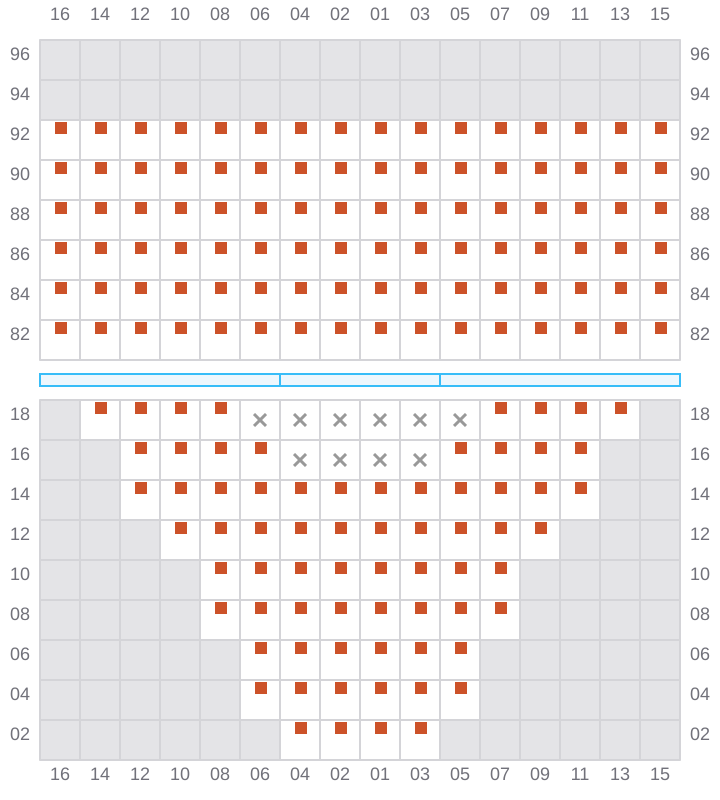

Bay 013 view and slots of WAN HAI 721

015 (014)

  • ←
  • → / ?

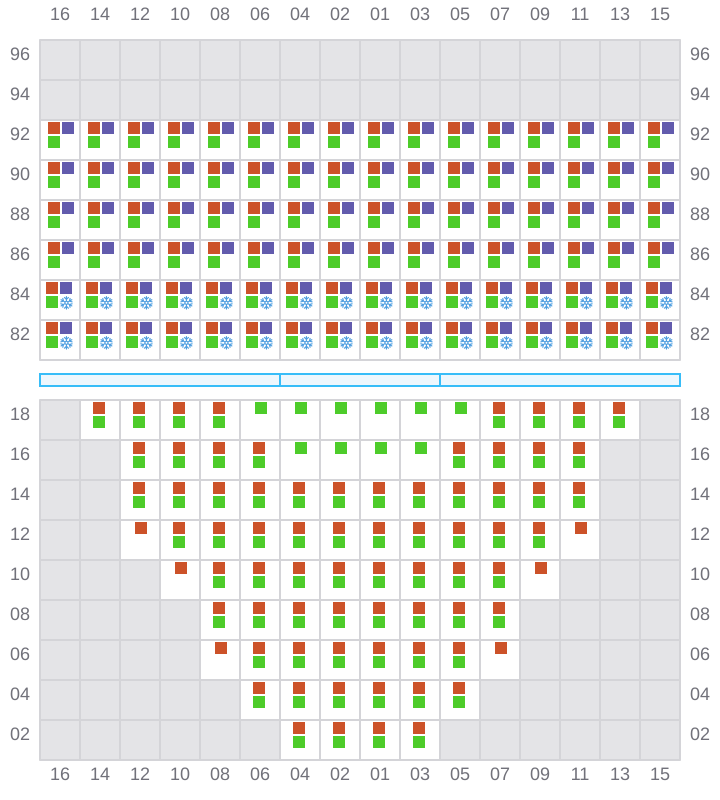

Bay 015 view and slots of WAN HAI 721

017

  • →
  • → / ?

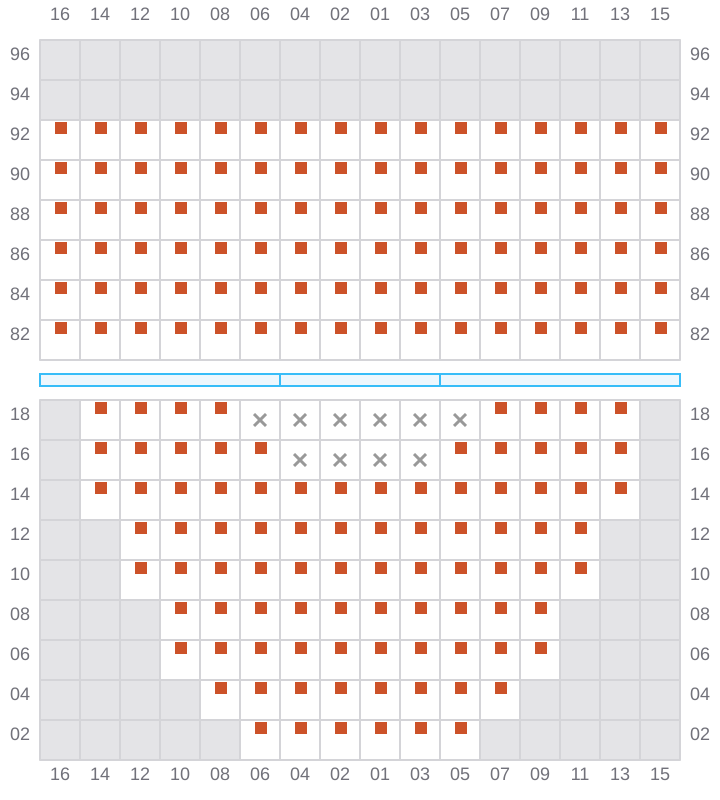

Bay 017 view and slots of WAN HAI 721

019 (018)

  • ←
  • → / ?

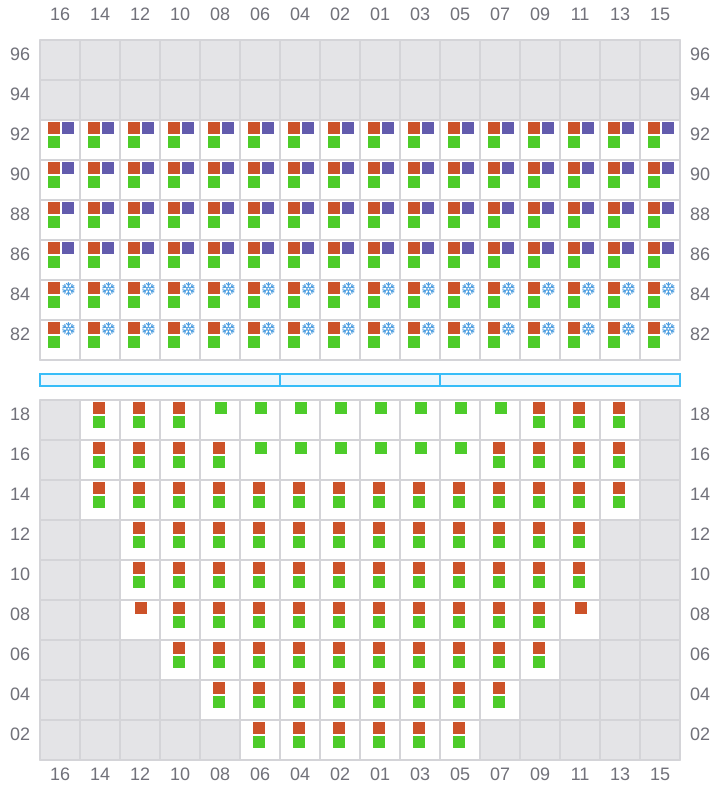

Bay 019 view and slots of WAN HAI 721

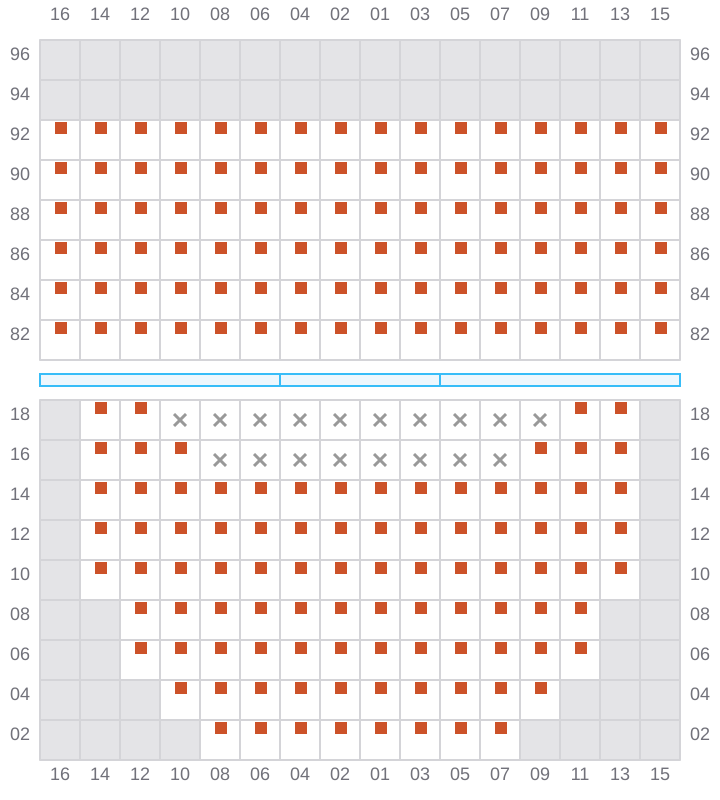

021

  • →
  • → / ?
Bay 021 view and slots of WAN HAI 721

023 (022)

  • ←
  • → / ?

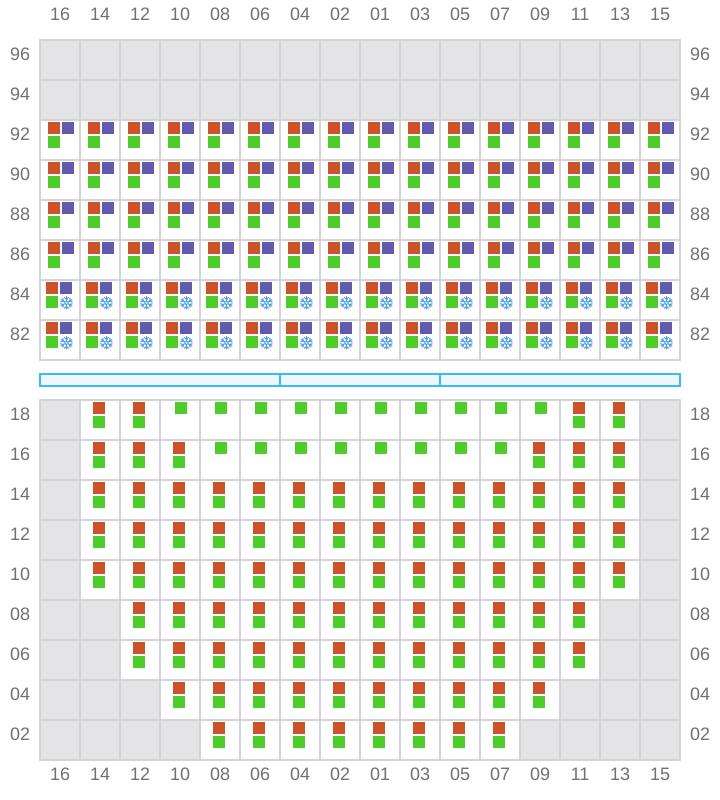

Bay 023 view and slots of WAN HAI 721

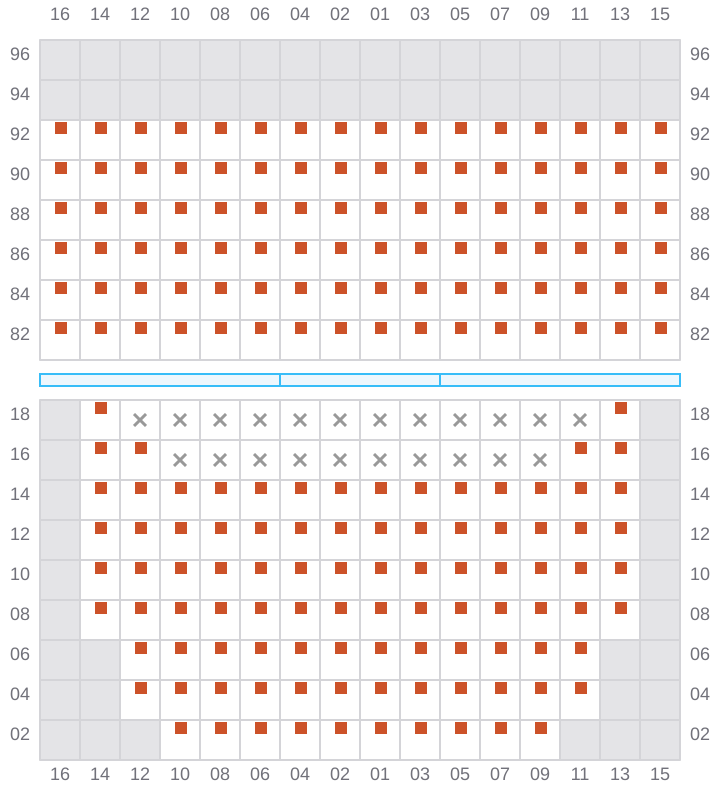

025

  • →
  • → / ?
Bay 025 view and slots of WAN HAI 721

027 (026)

  • ←
  • → / ?
Bay 027 view and slots of WAN HAI 721

029

  • →
  • → / ?
Bay 029 view and slots of WAN HAI 721

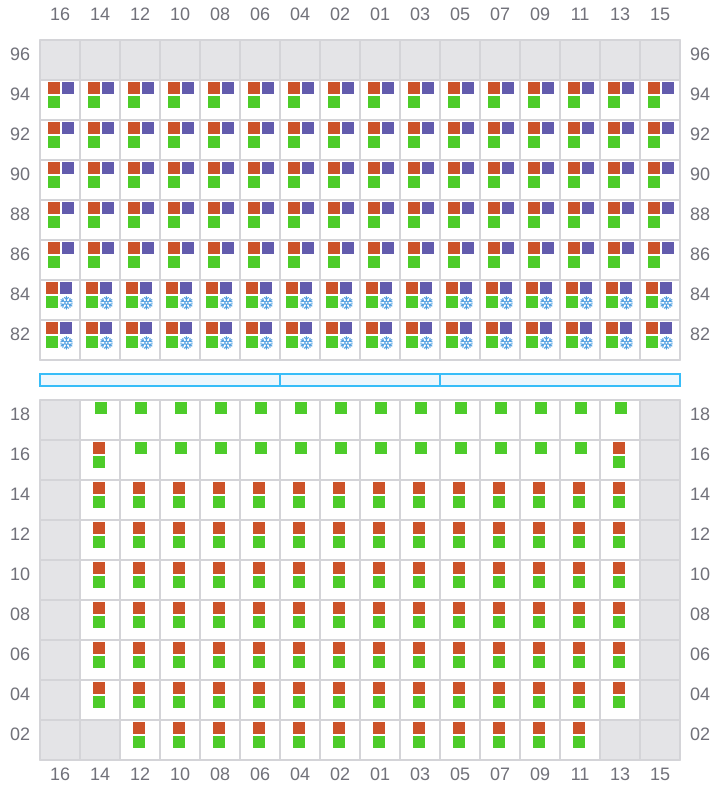

031 (030)

  • ←
  • → / ?
Bay 031 view and slots of WAN HAI 721

033

  • →
  • → / ?
Bay 033 view and slots of WAN HAI 721

035 (034)

  • ←
  • → / ?

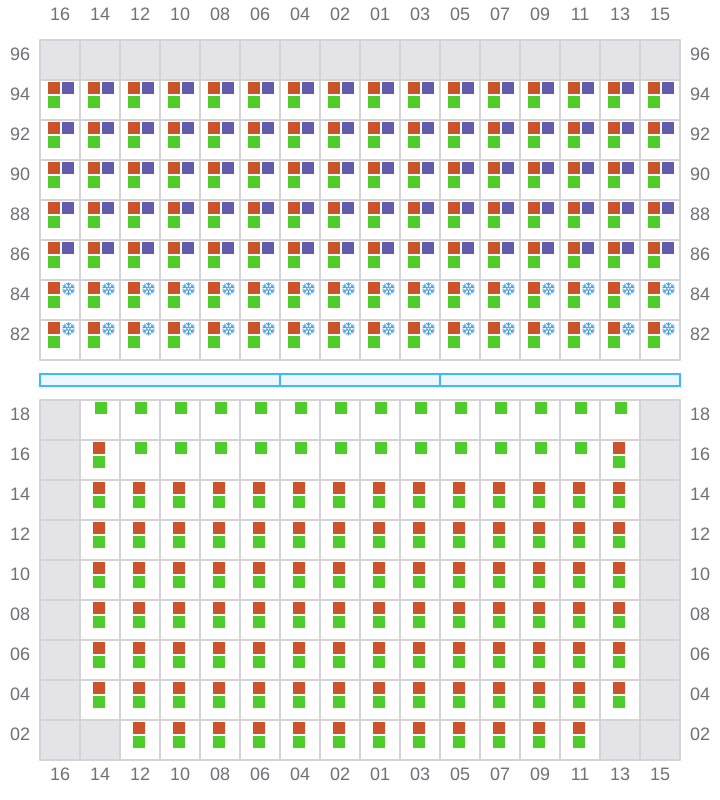

Bay 035 view and slots of WAN HAI 721

037

  • →
  • → / ?

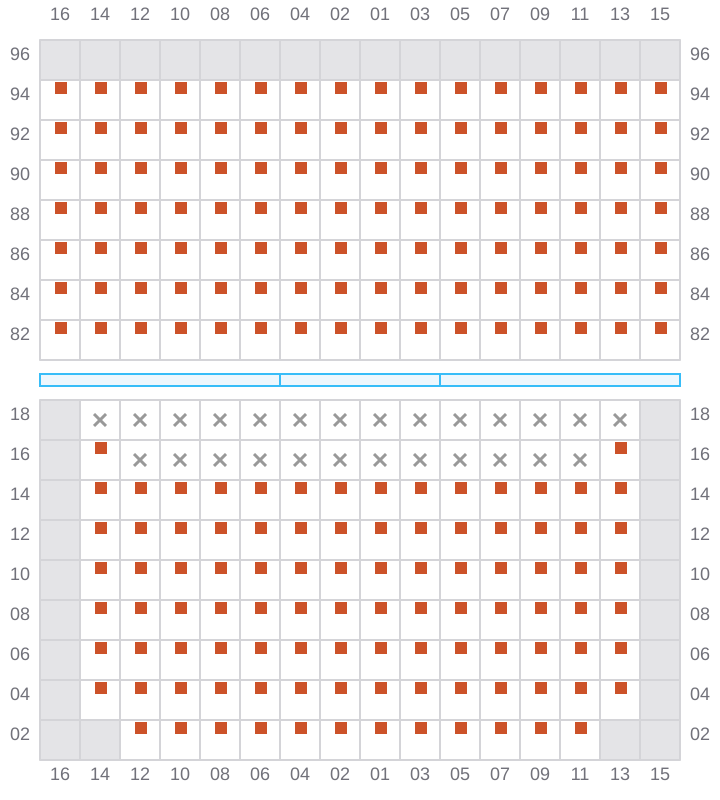

Bay 037 view and slots of WAN HAI 721

039 (038)

  • ←
  • → / ?

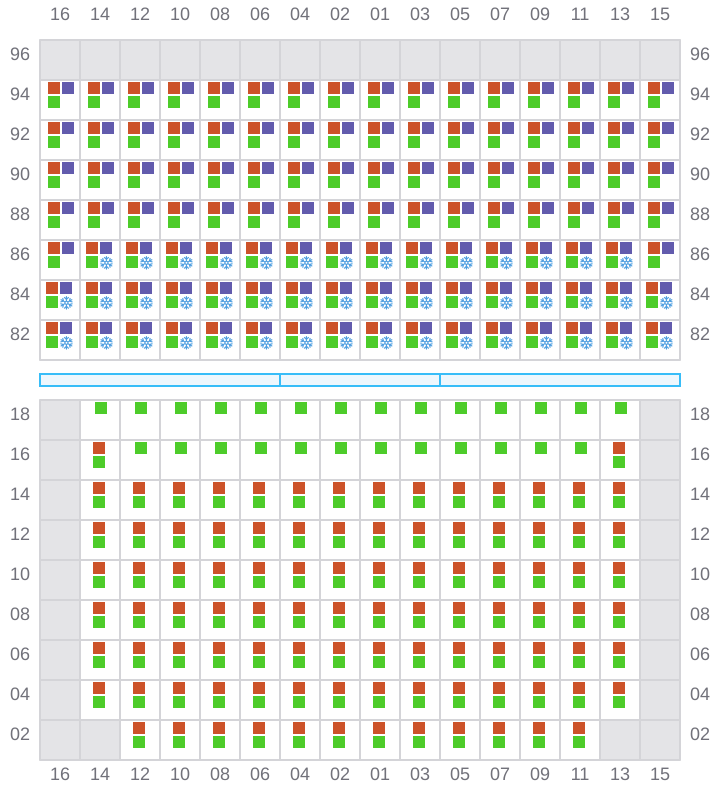

Bay 039 view and slots of WAN HAI 721

041

  • →
  • → / ?
Bay 041 view and slots of WAN HAI 721

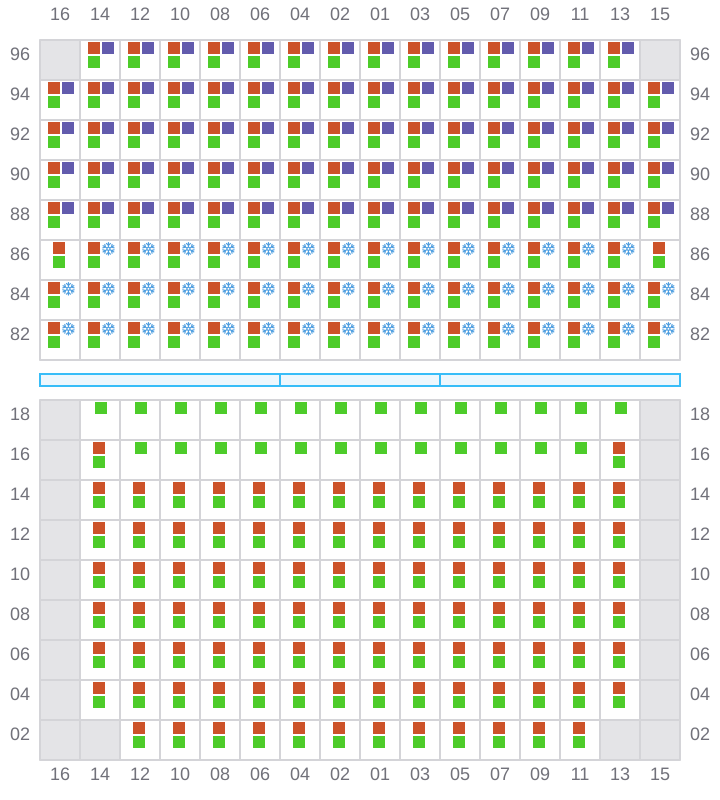

043 (042)

  • ←
  • → / ?
Bay 043 view and slots of WAN HAI 721

045

  • →

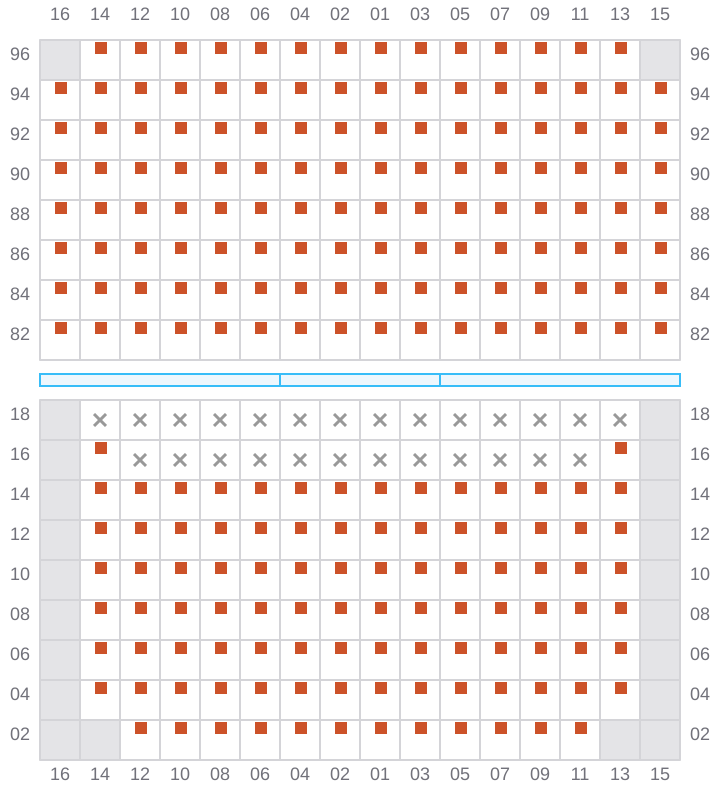

Bay 045 view and slots of WAN HAI 721

047 (046)

  • ←
  • → / ?

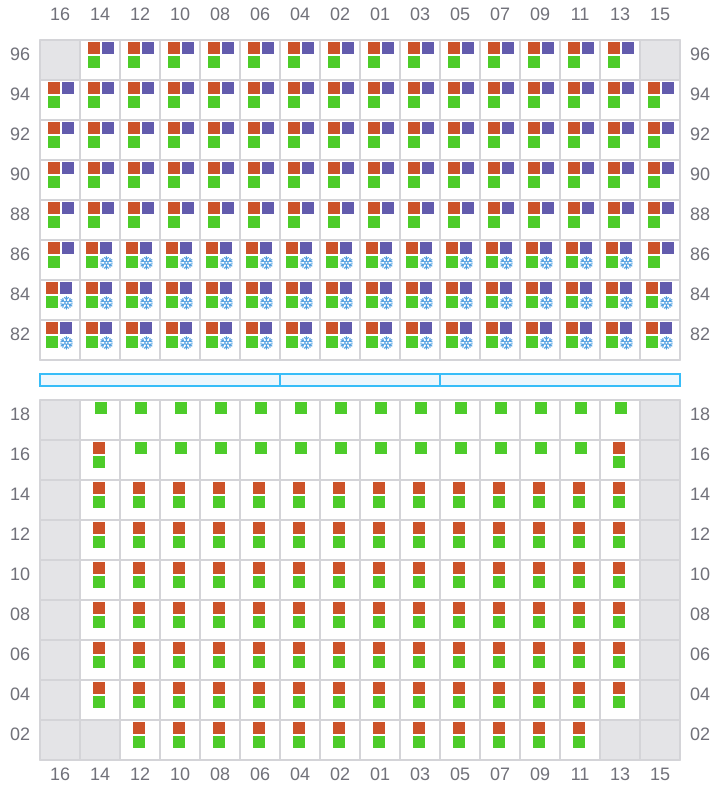

Bay 047 view and slots of WAN HAI 721

049

  • →
  • → / ?

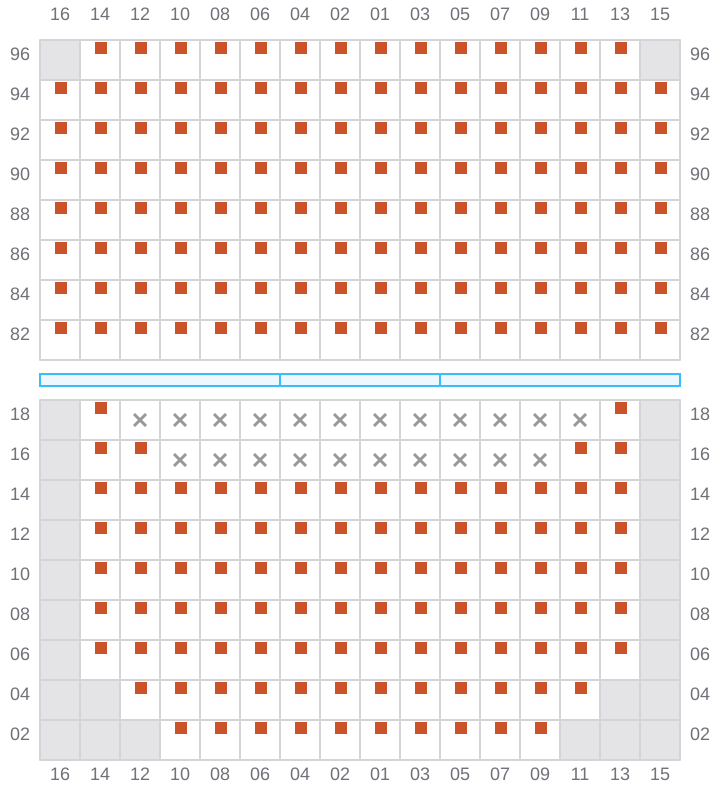

Bay 049 view and slots of WAN HAI 721

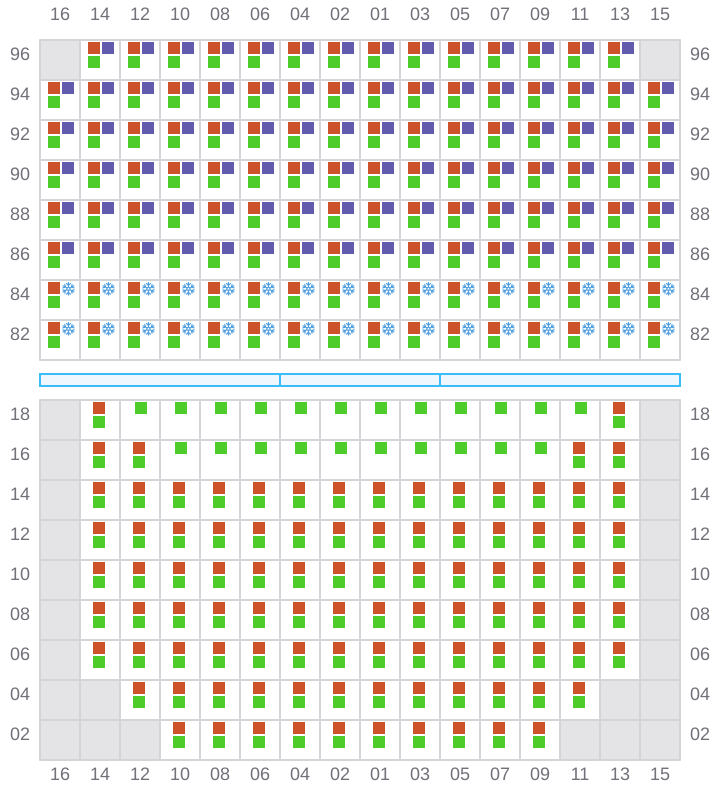

051 (050)

  • ←
  • → / ?
Bay 051 view and slots of WAN HAI 721

053

  • →

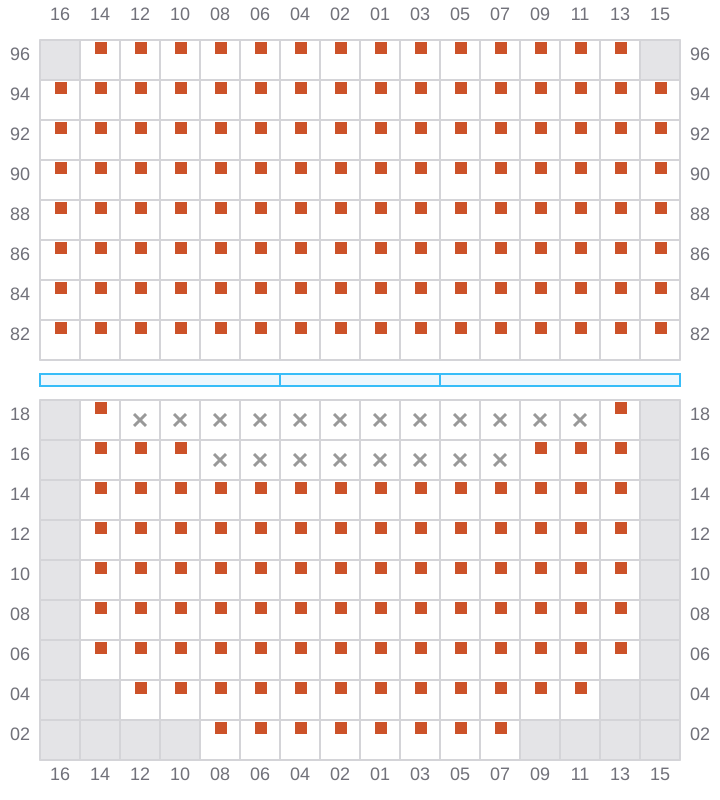

Bay 053 view and slots of WAN HAI 721

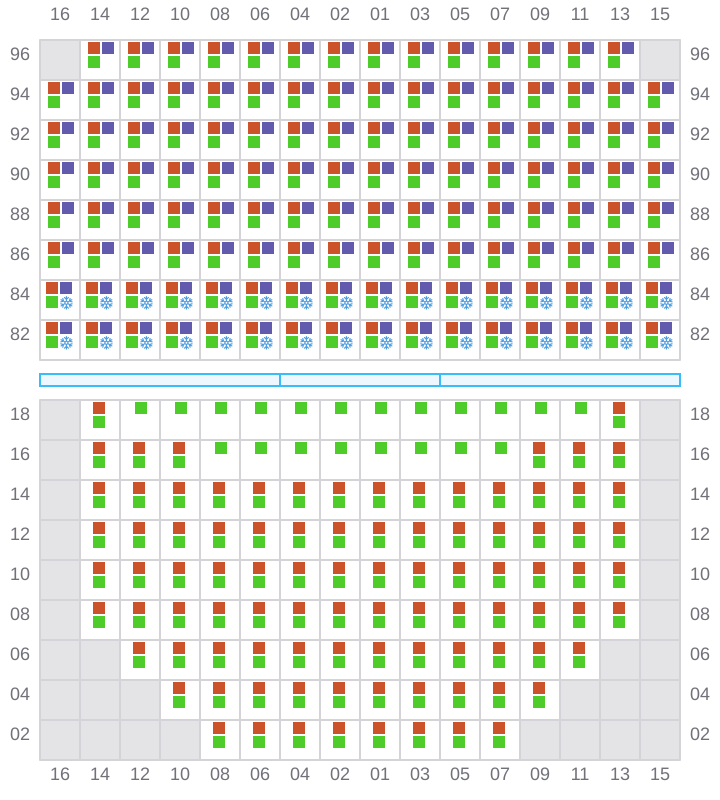

055 (054)

  • ←
  • → / ?
Bay 055 view and slots of WAN HAI 721

057

  • →

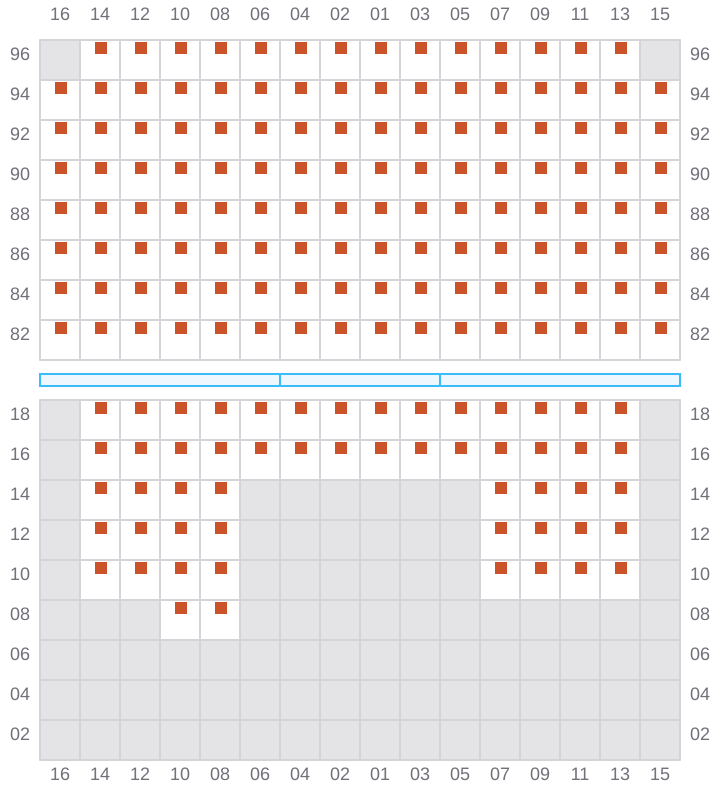

Bay 057 view and slots of WAN HAI 721

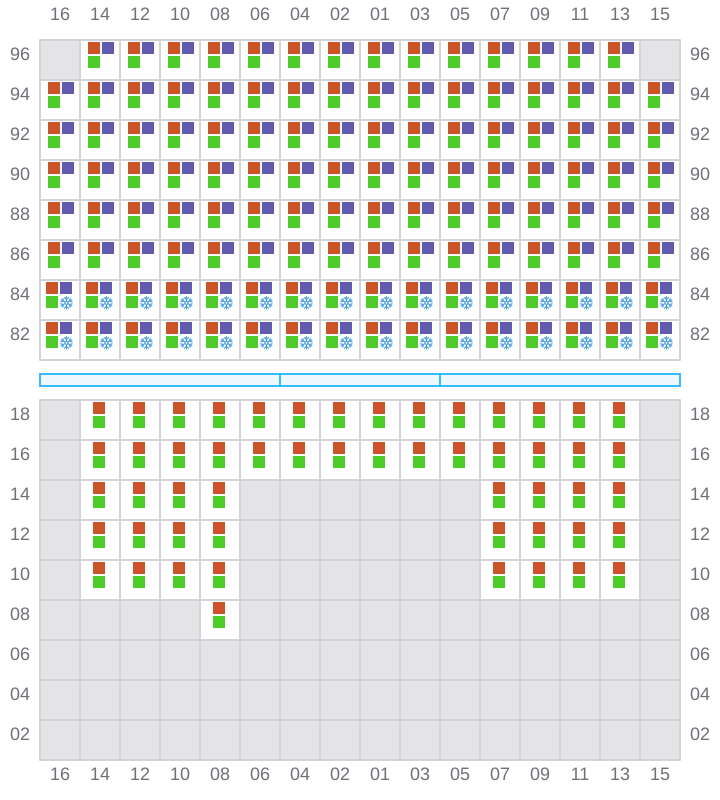

059 (058)

  • ←
  • → / ?
Bay 059 view and slots of WAN HAI 721

061

  • →
  • → / ?

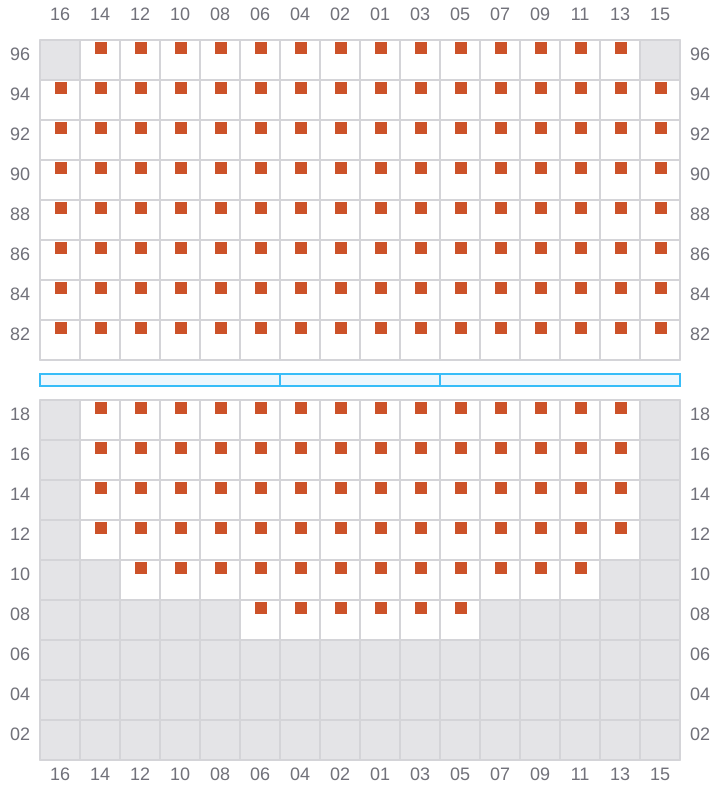

Bay 061 view and slots of WAN HAI 721

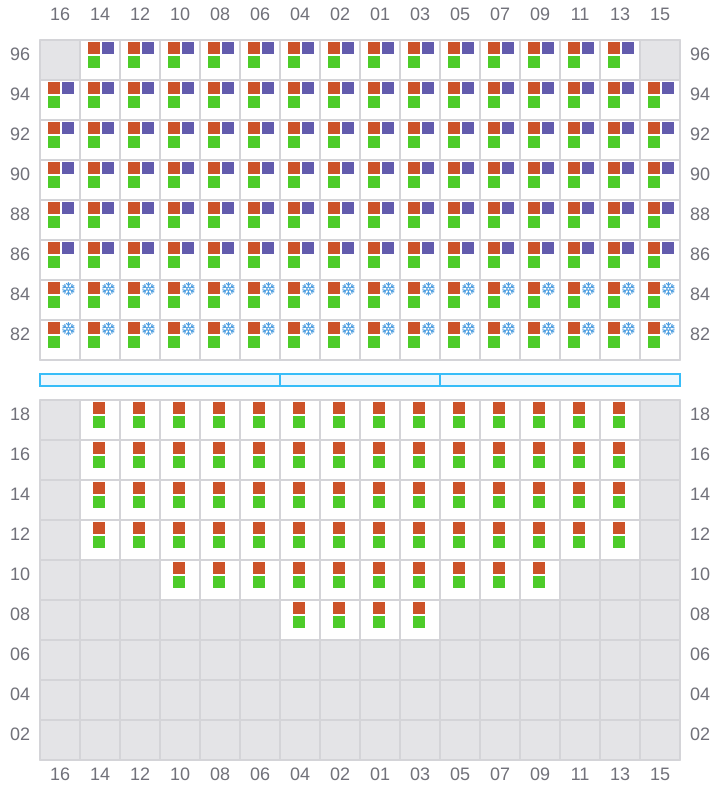

063 (062)

  • ←
  • → / ?
Bay 063 view and slots of WAN HAI 721

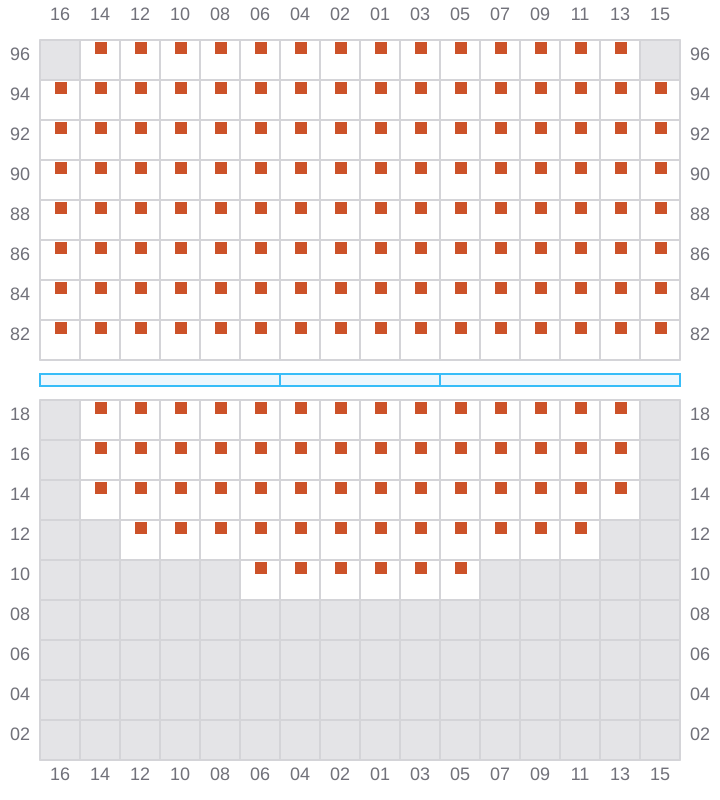

065

  • →
  • → / ?
Bay 065 view and slots of WAN HAI 721

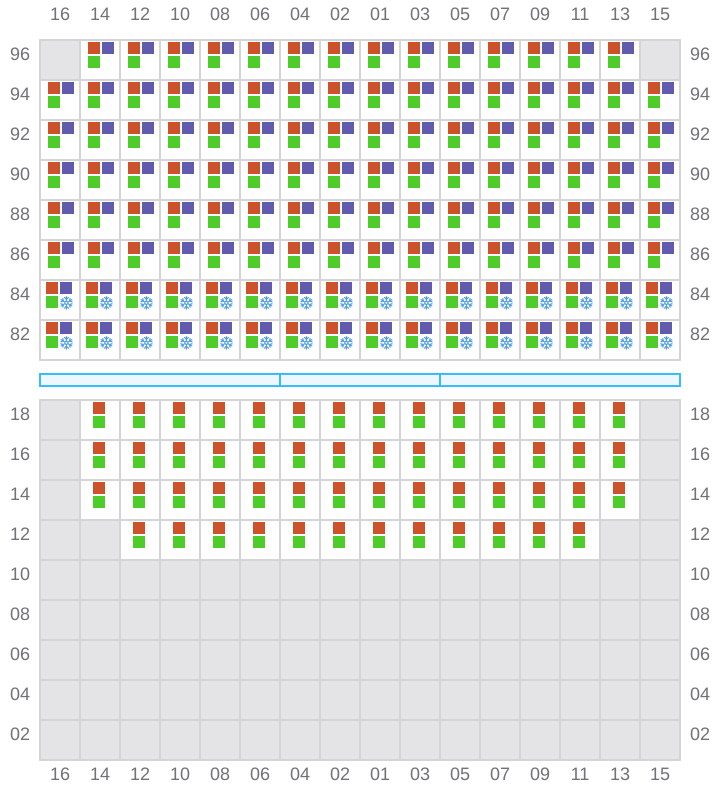

067 (066)

  • ←
  • → / ?
Bay 067 view and slots of WAN HAI 721

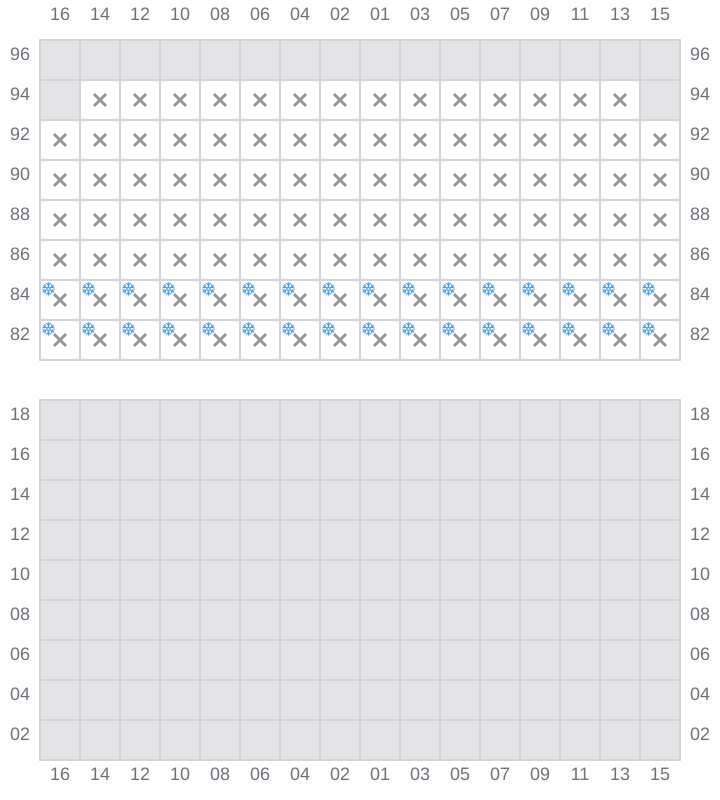

069

  • →
  • → / ?
Bay 069 view and slots of WAN HAI 721

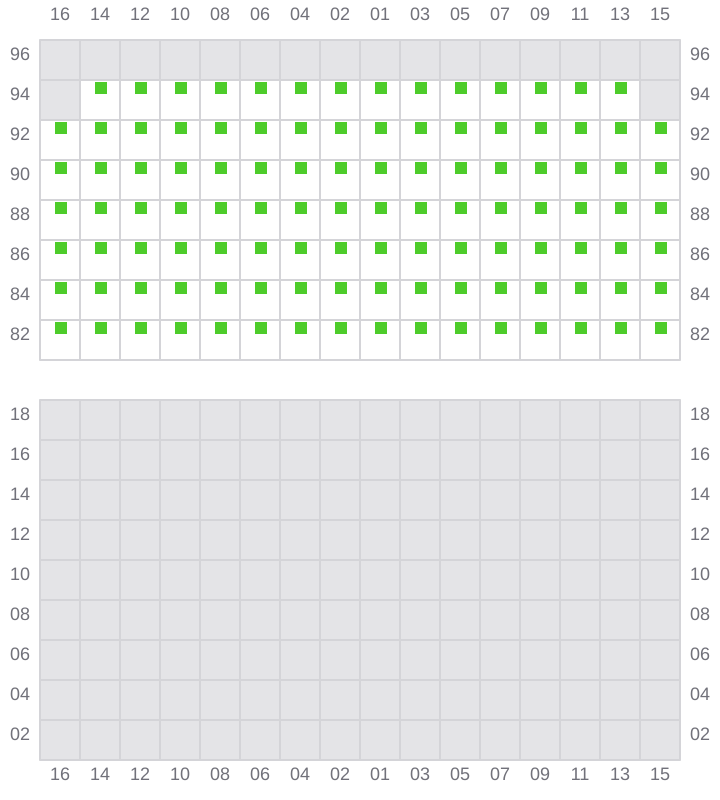

071 (070)

  • ←
Bay 071 view and slots of WAN HAI 721
