WAN HAI 722
9398230 | 9V7155 | MSK by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:WAN HAI 722
IMO Code:9398230
Call Sign:9V7155
Line Operator:MSK
Class Name for Sister Ships:AST
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.03
LOA (Length Overall):304.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,305
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

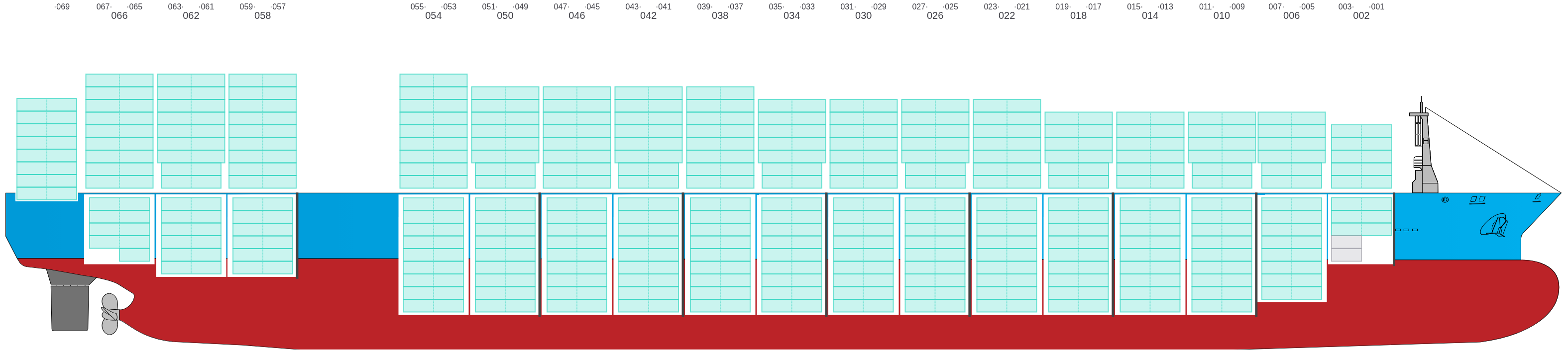

Side View
![Side view of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-sideView.png?v=1687561693556)
Hatch-Covers View
![Deck view of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-deckView.png?v=1687561693556)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

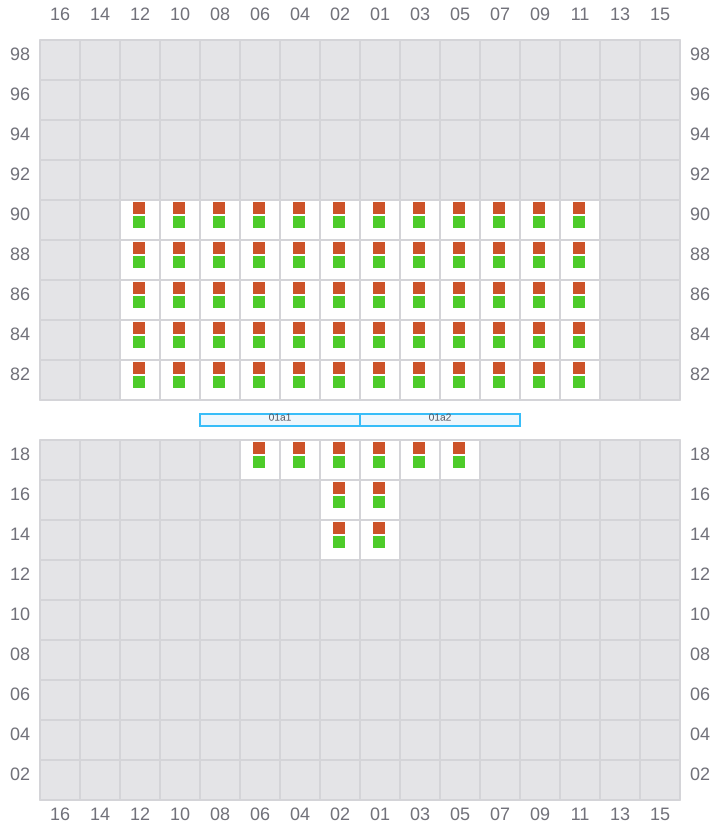

001 (002)
- →
- → / ?
- → / ?
![Bay 001 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b001.png?v=1687561693556)

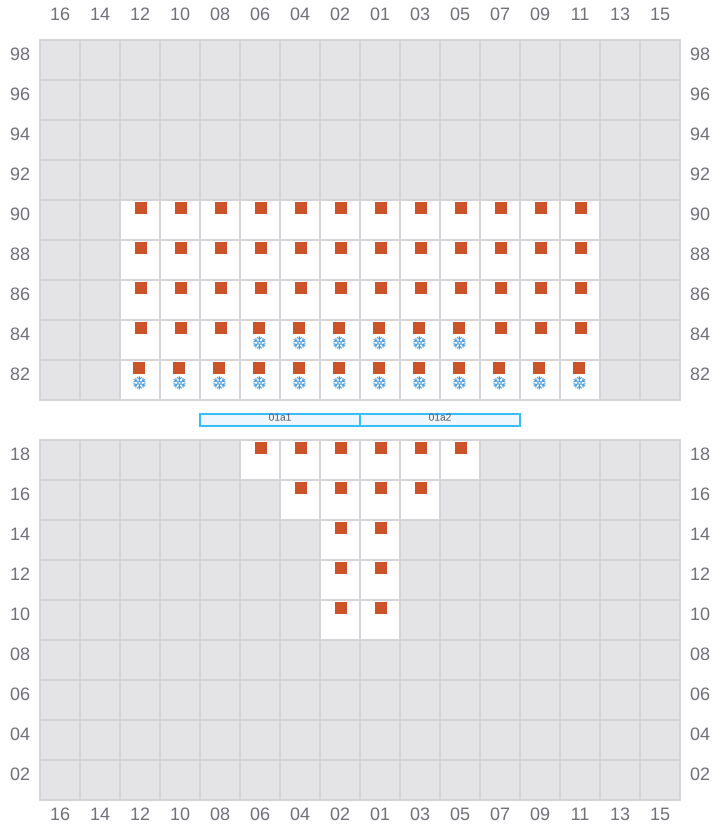

003
- ←
- → / ?
- → / ?
![Bay 003 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b003.png?v=1687561693556)

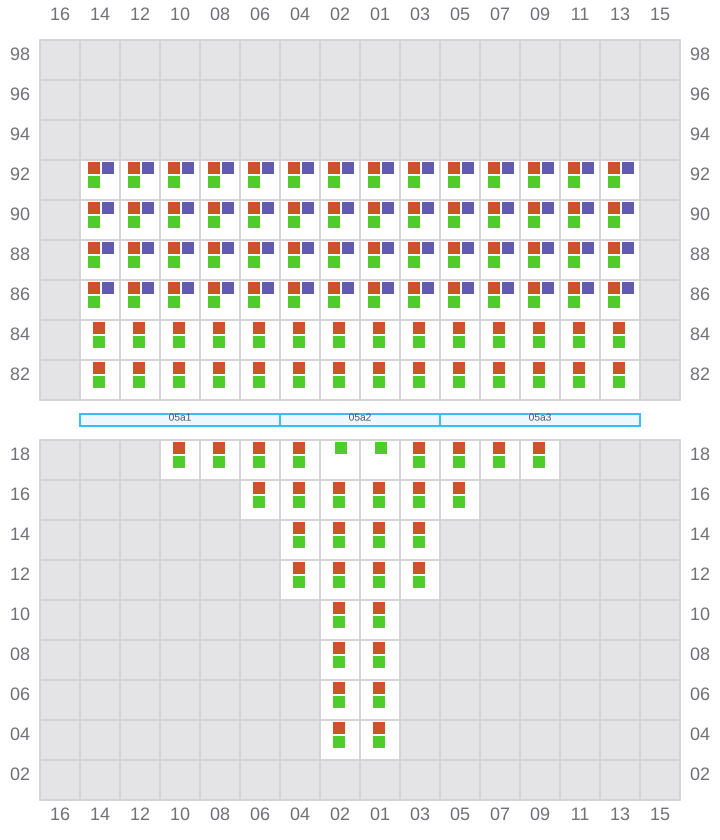

005 (006)
- →
- → / ?
- → / ?
![Bay 005 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b005.png?v=1687561693556)

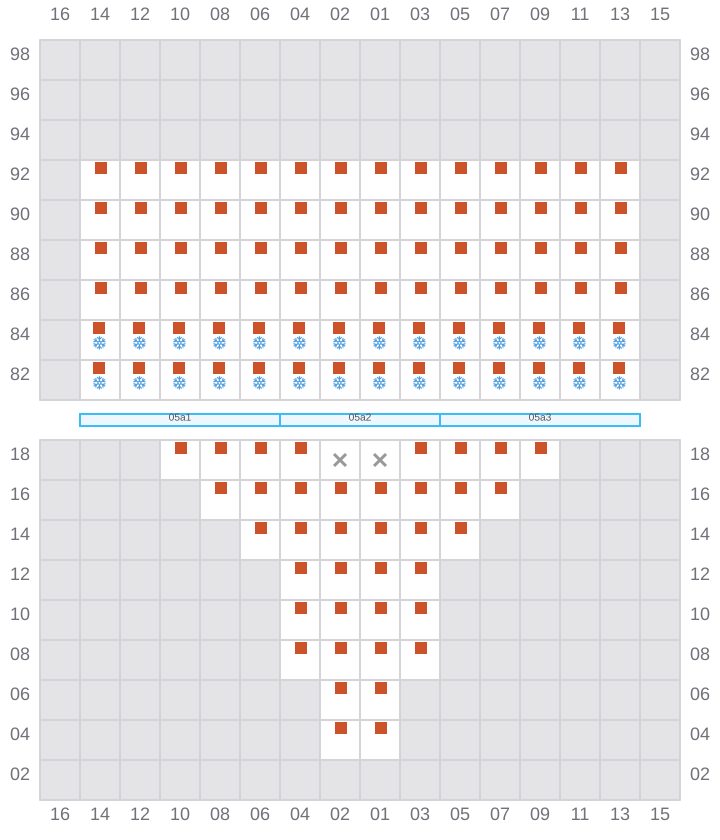

007
- ←
- → / ?
![Bay 007 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b007.png?v=1687561693556)

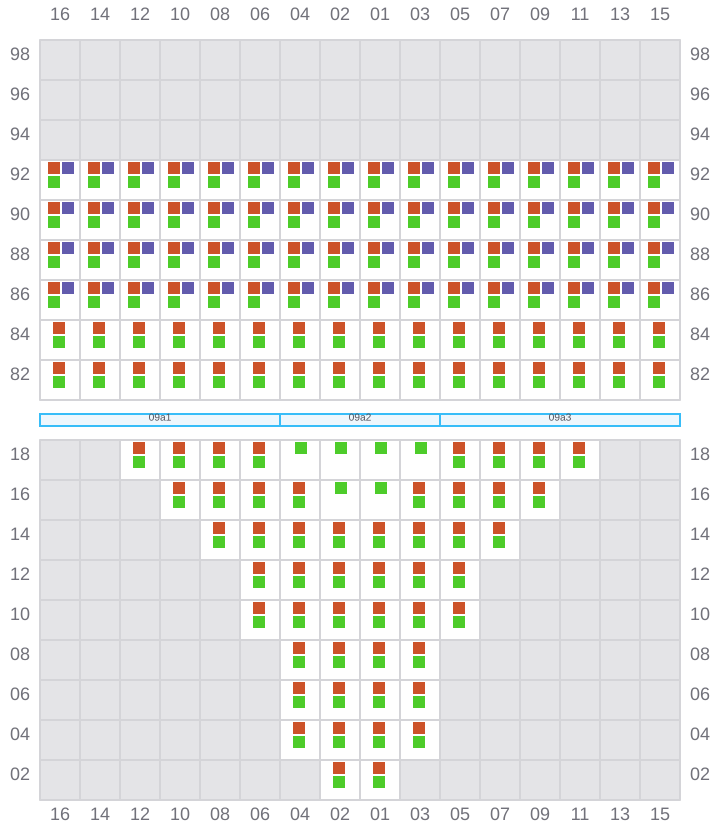

009 (010)
- →
- → / ?
- → / ?
![Bay 009 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b009.png?v=1687561693556)

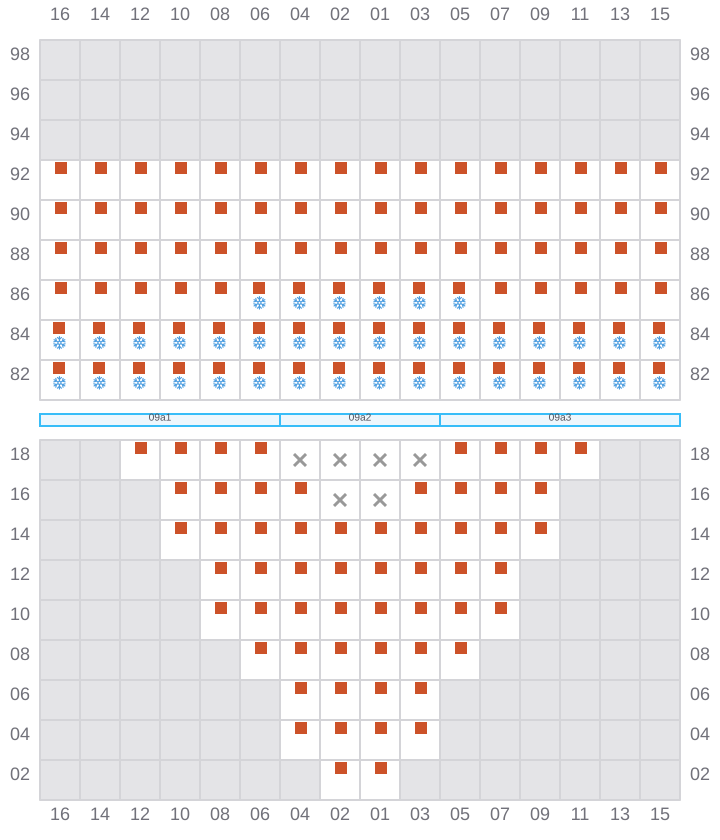

011
- ←
- → / ?
![Bay 011 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b011.png?v=1687561693556)

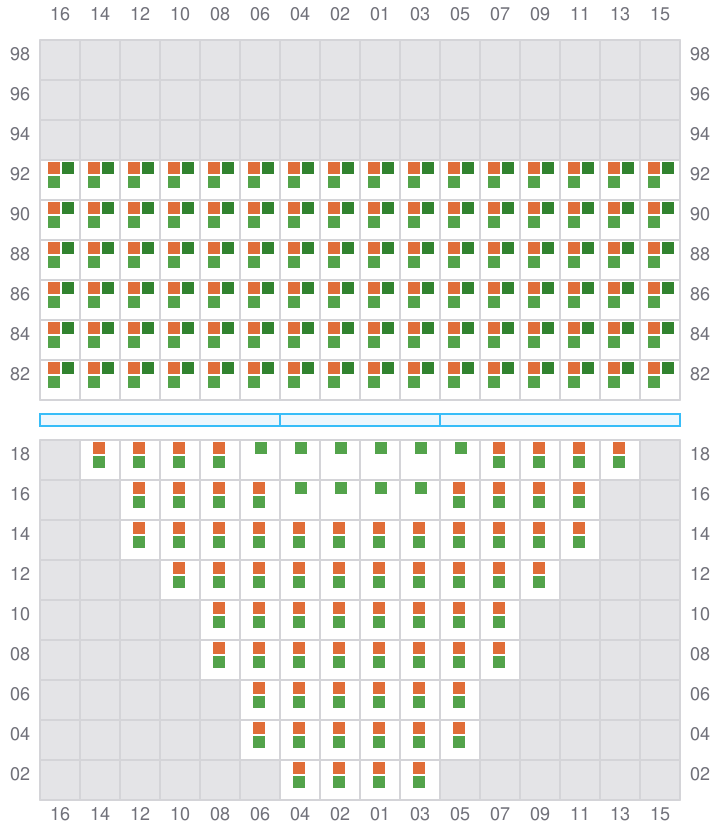

013 (014)
- →
- → / ?
![Bay 013 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b013.png?v=1687561693556)

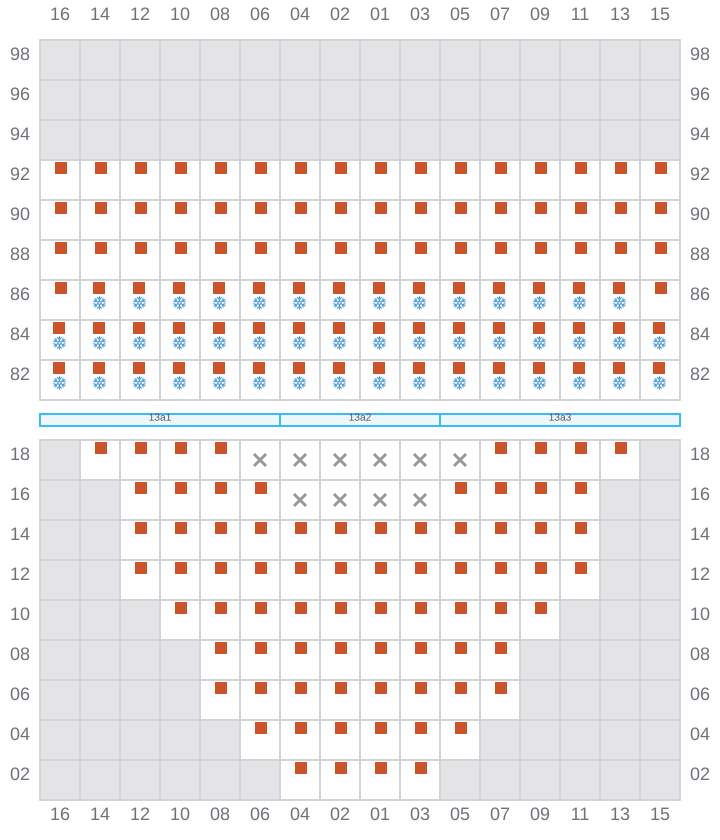

015
- ←
- → / ?
![Bay 015 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b015.png?v=1687561693556)

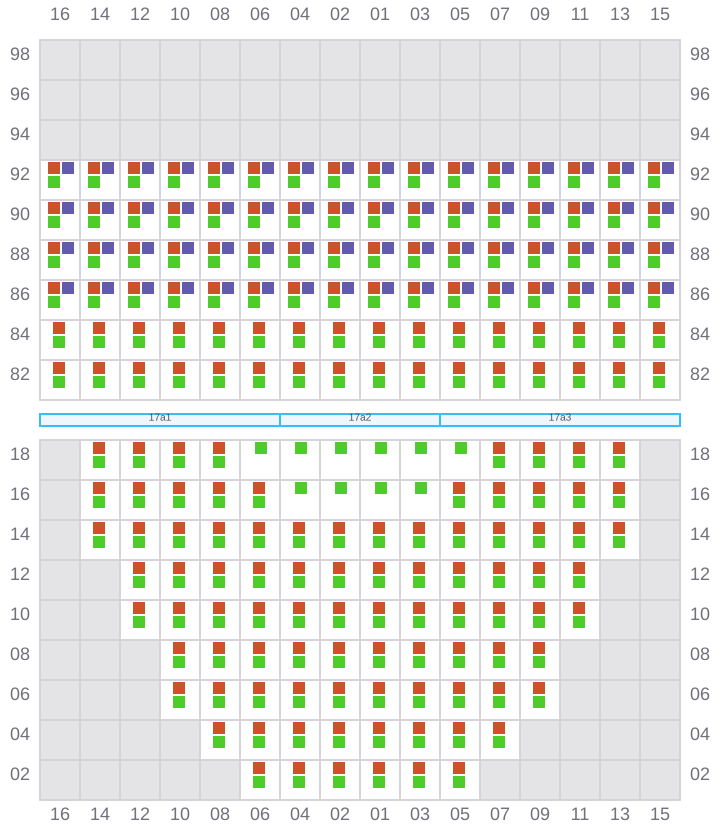

017 (018)
- →
- → / ?
![Bay 017 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b017.png?v=1687561693556)

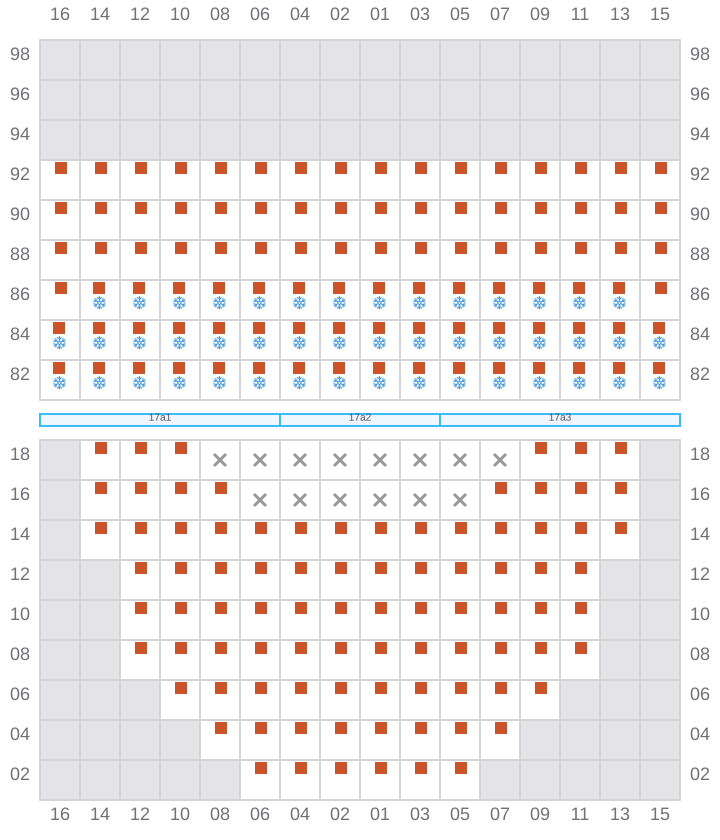

019
- ←
- → / ?
![Bay 019 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b019.png?v=1687561693556)

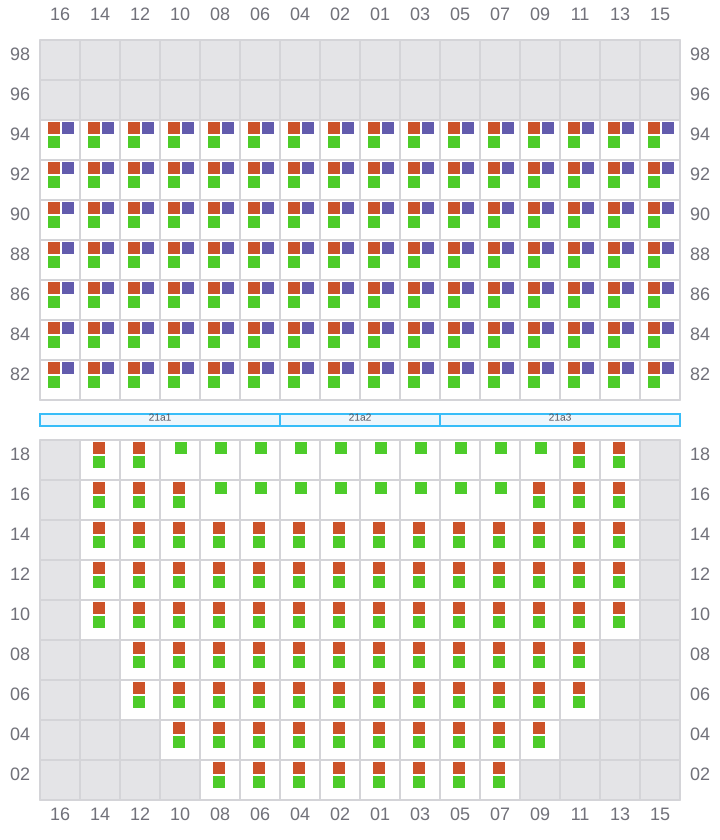

021 (022)
- →
- → / ?
![Bay 021 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b021.png?v=1687561693556)

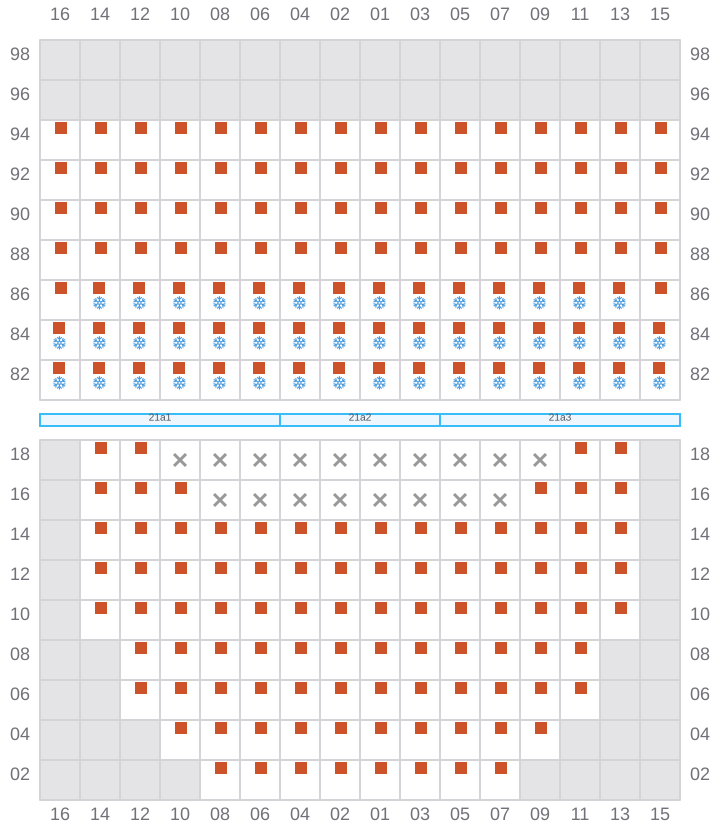

023
- ←
- → / ?
![Bay 023 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b023.png?v=1687561693556)

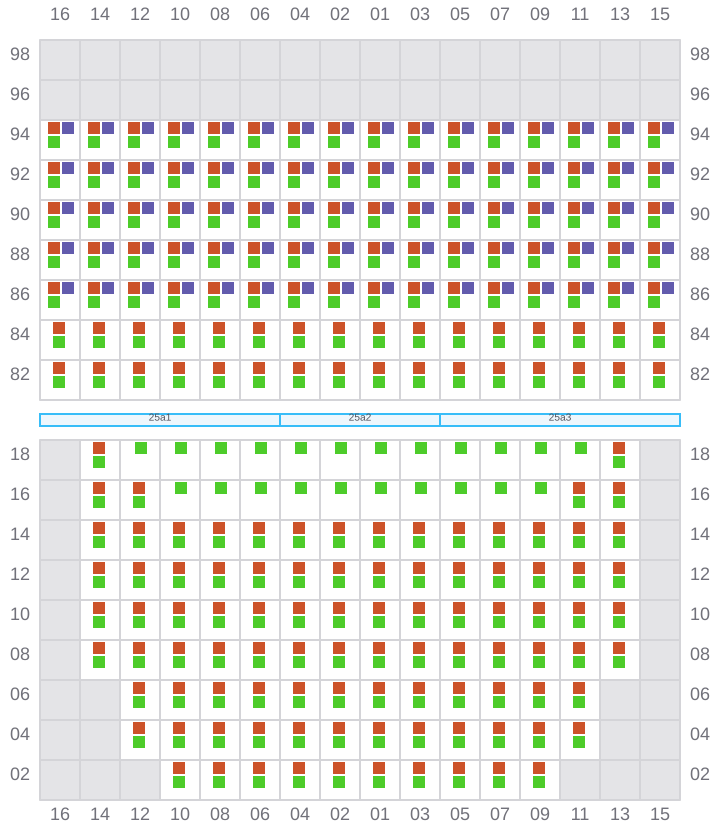

025 (026)
- →
- → / ?
![Bay 025 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b025.png?v=1687561693556)

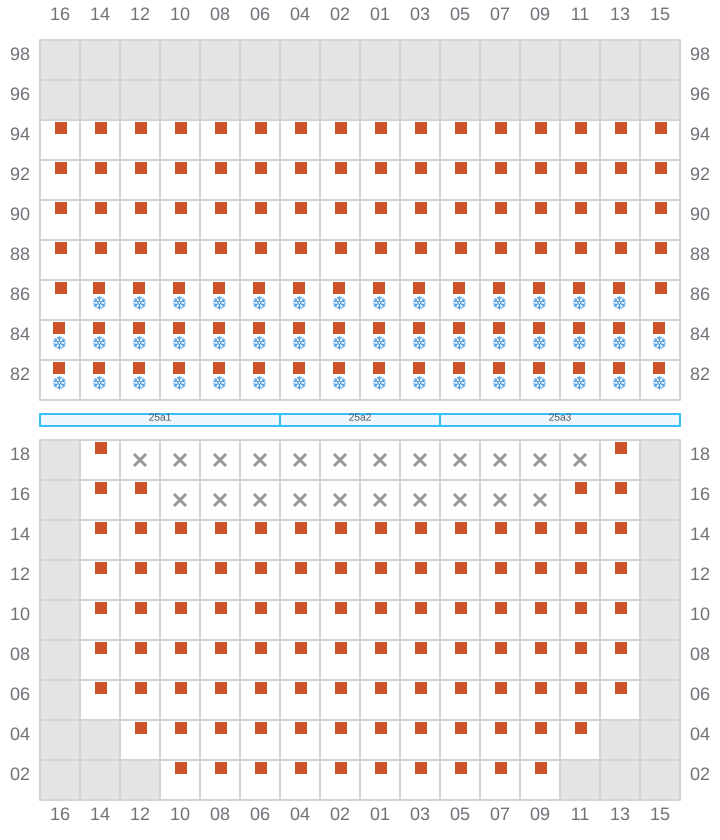

027
- ←
- → / ?
![Bay 027 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b027.png?v=1687561693556)

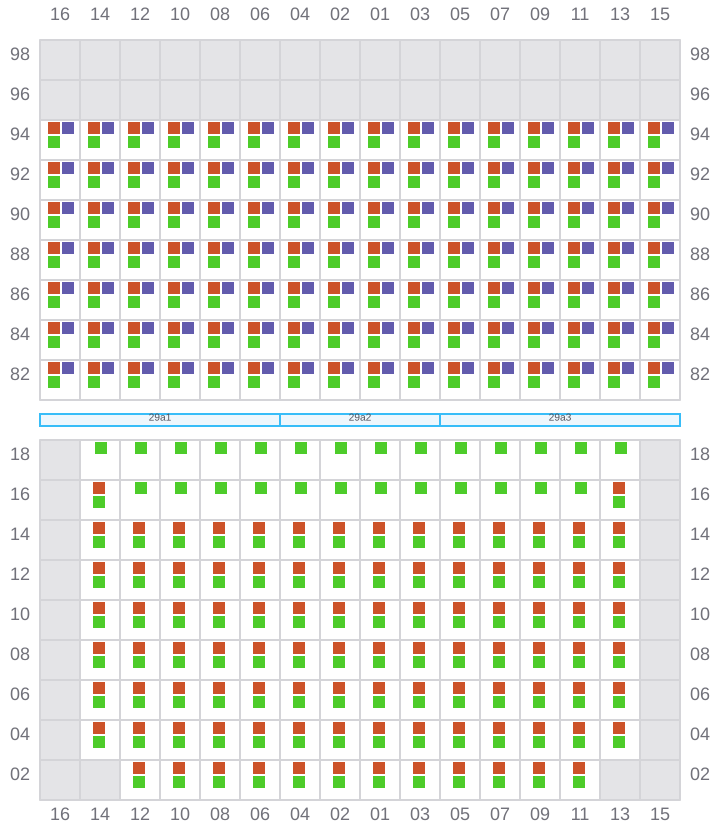

029 (030)
- →
- → / ?
![Bay 029 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b029.png?v=1687561693556)
031
- ←
- → / ?
![Bay 031 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b031.png?v=1687561693556)

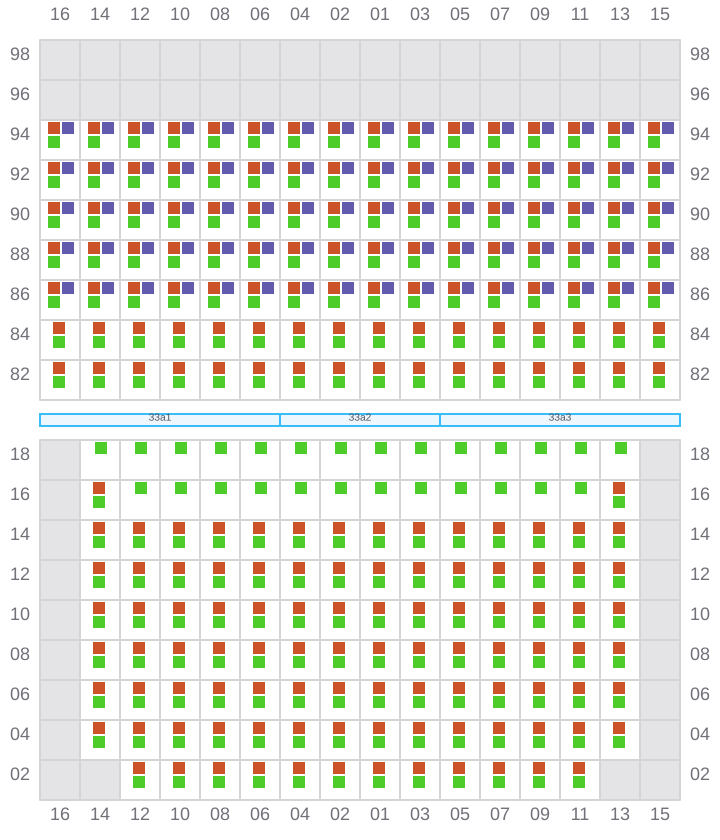

033 (034)
- →
- → / ?
![Bay 033 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b033.png?v=1687561693556)

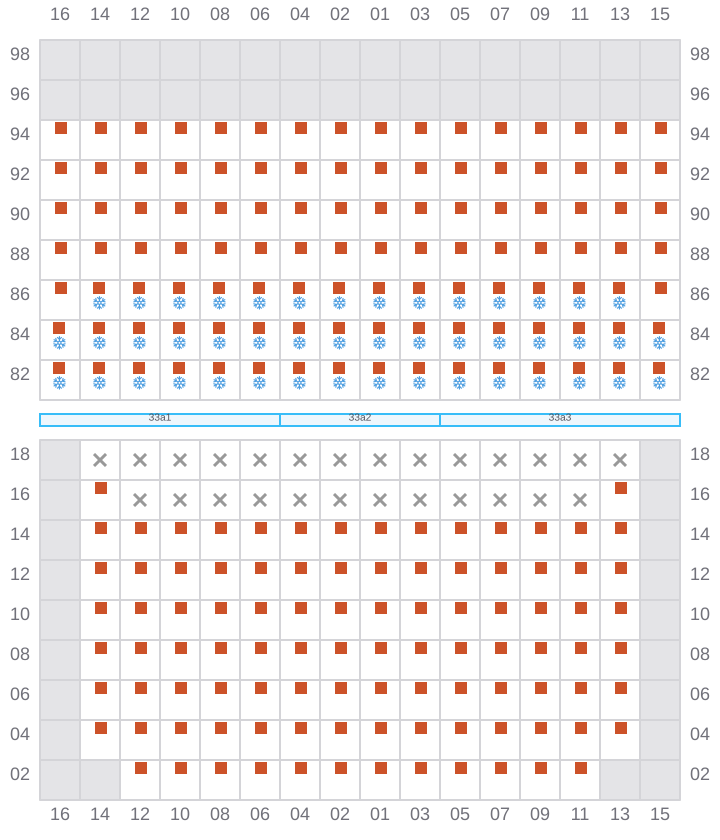

035
- ←
- → / ?
![Bay 035 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b035.png?v=1687561693556)

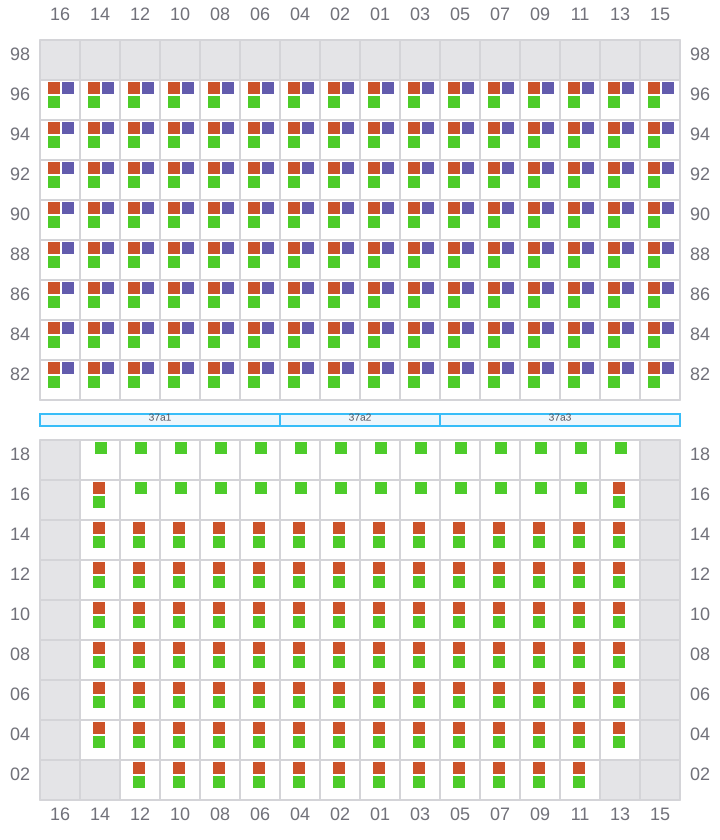

037 (038)
- →
- → / ?
![Bay 037 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b037.png?v=1687561693556)

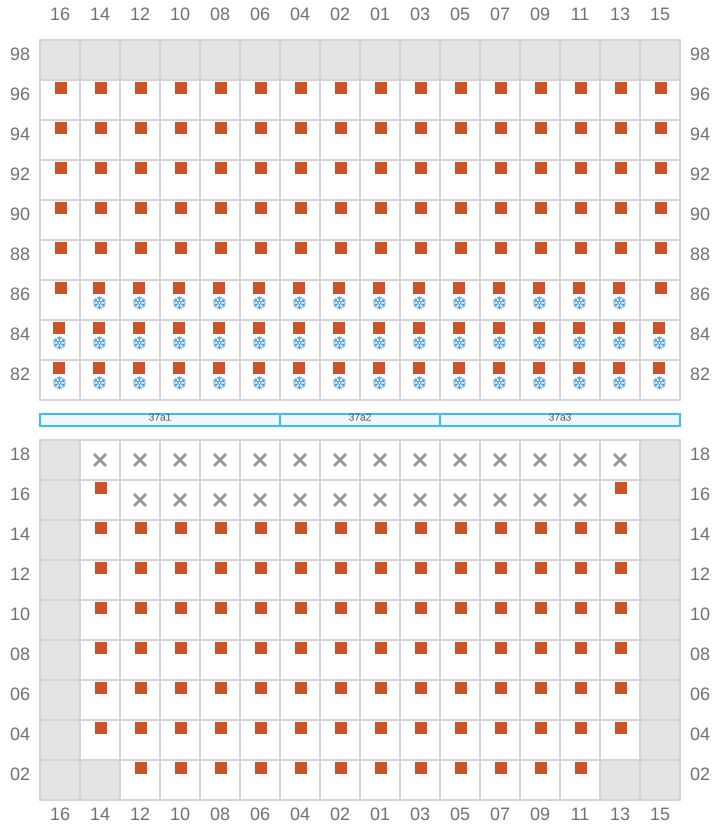

039
- ←
- → / ?
![Bay 039 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b039.png?v=1687561693556)

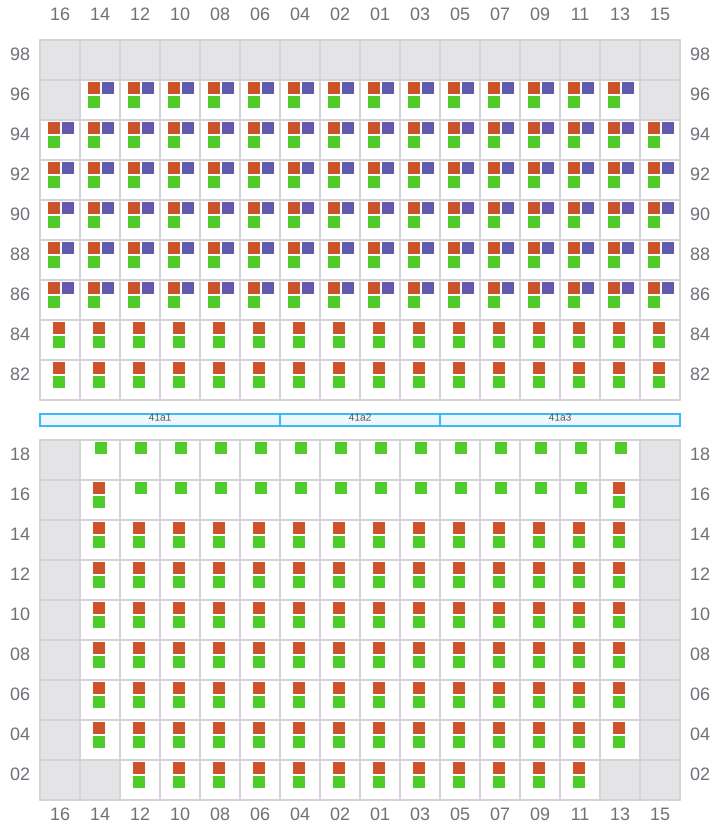

041 (042)
- →
- → / ?
![Bay 041 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b041.png?v=1687561693556)

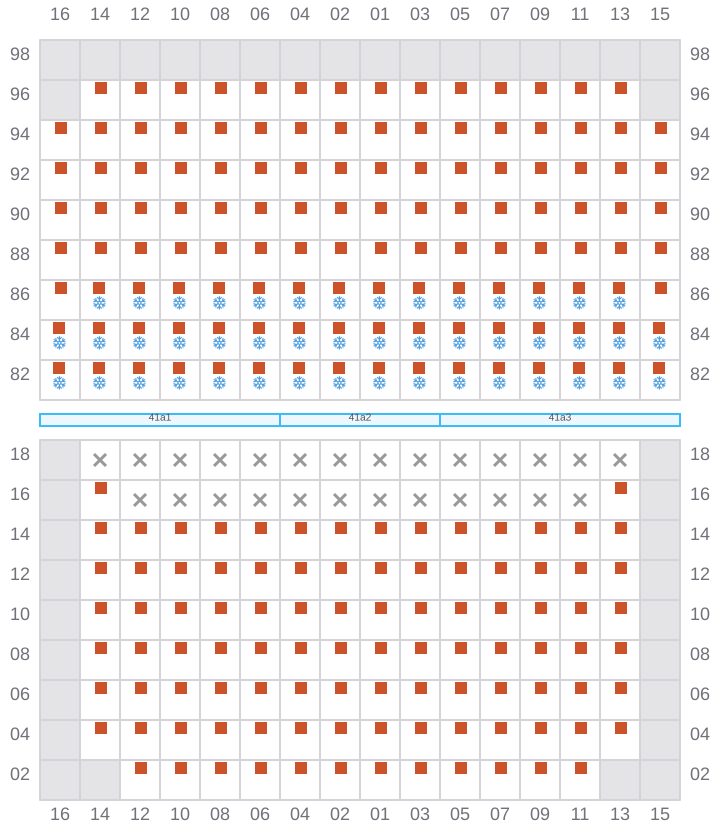

043
- ←
- → / ?
![Bay 043 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b043.png?v=1687561693556)

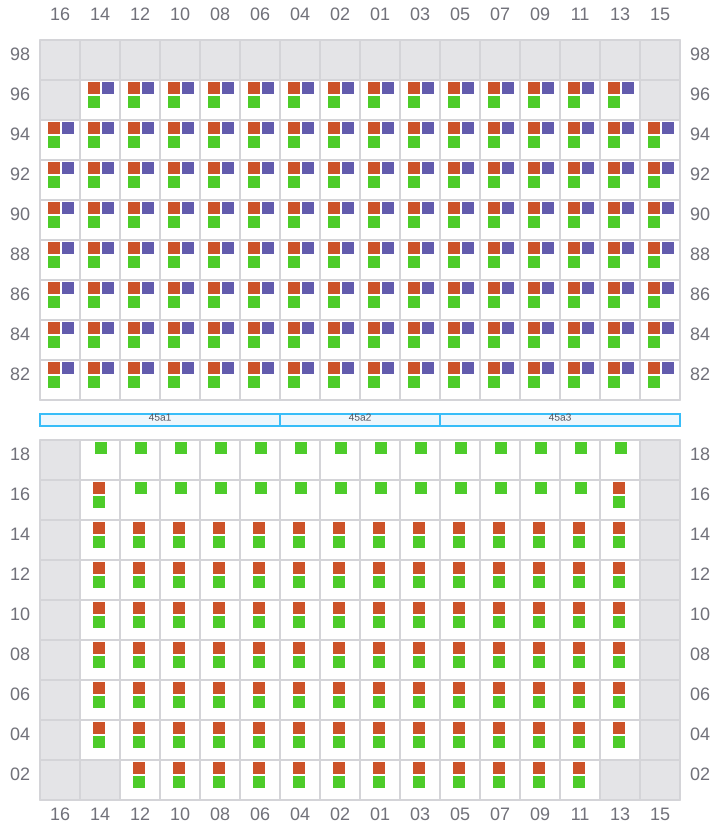

045 (046)
- →
![Bay 045 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b045.png?v=1687561693556)

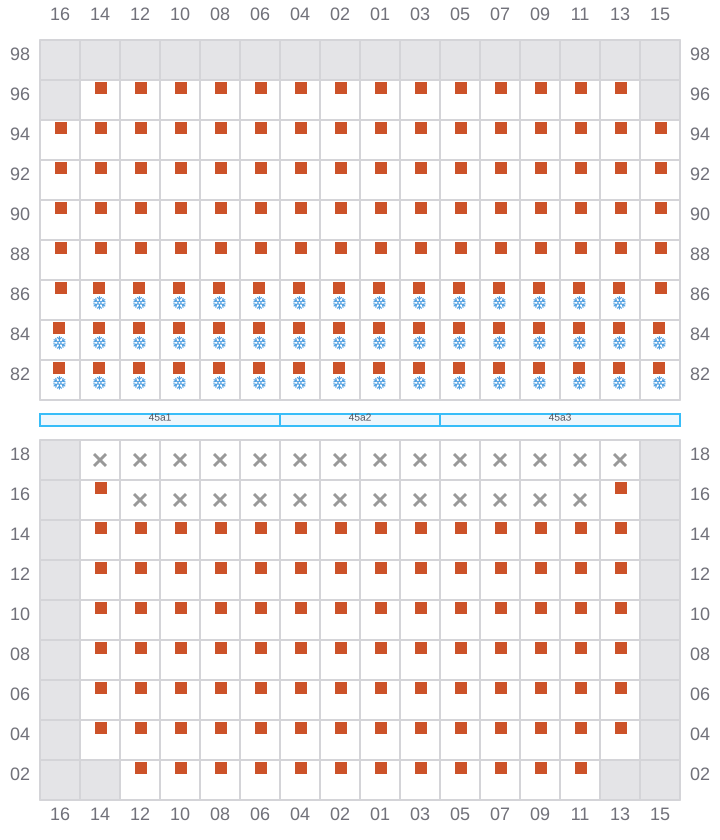

047
- ←
- → / ?
![Bay 047 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b047.png?v=1687561693556)

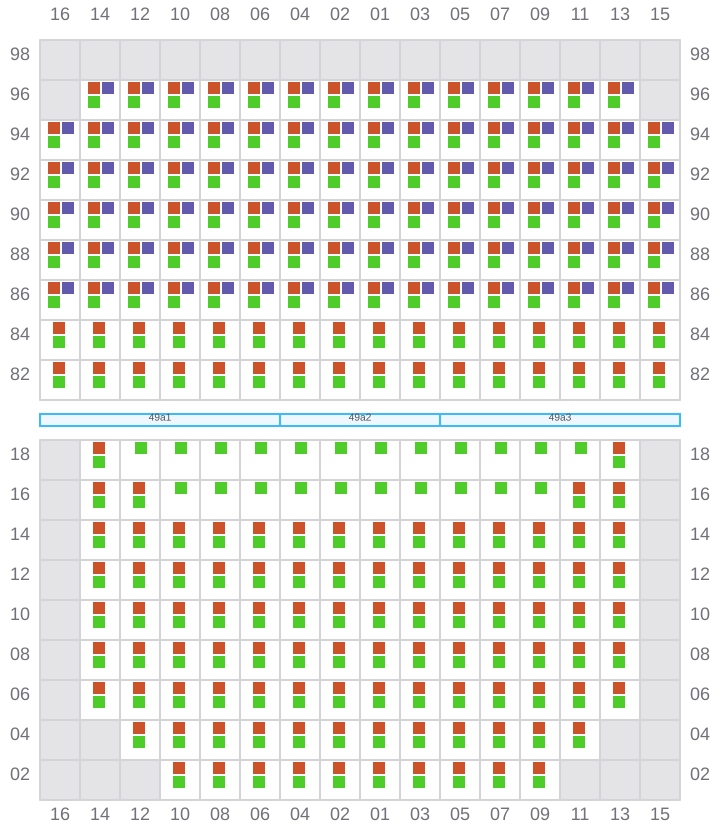

049 (050)
- →
- → / ?
![Bay 049 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b049.png?v=1687561693556)

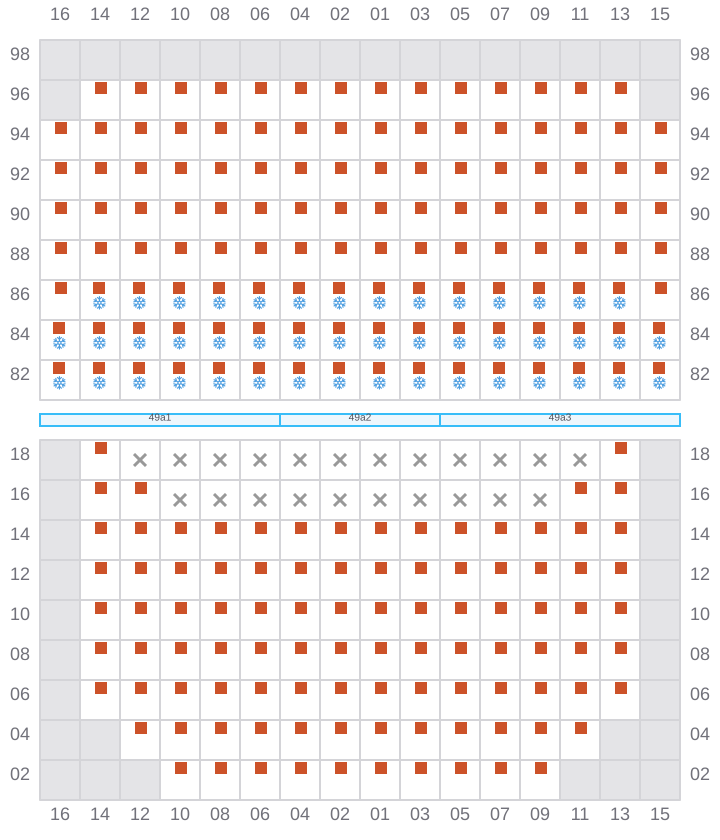

051
- ←
- → / ?
![Bay 051 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b051.png?v=1687561693556)

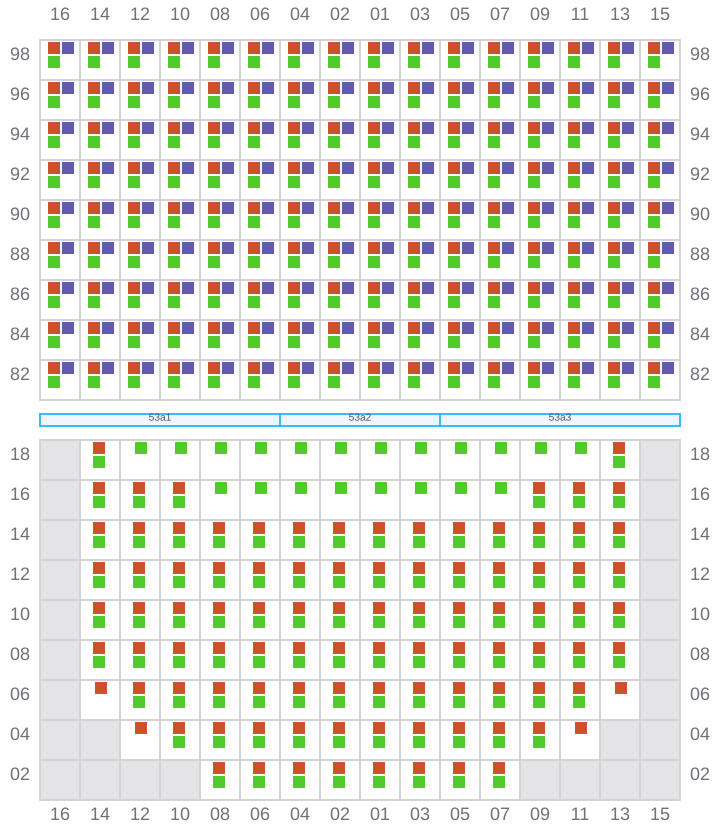

053 (054)
- →
![Bay 053 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b053.png?v=1687561693556)

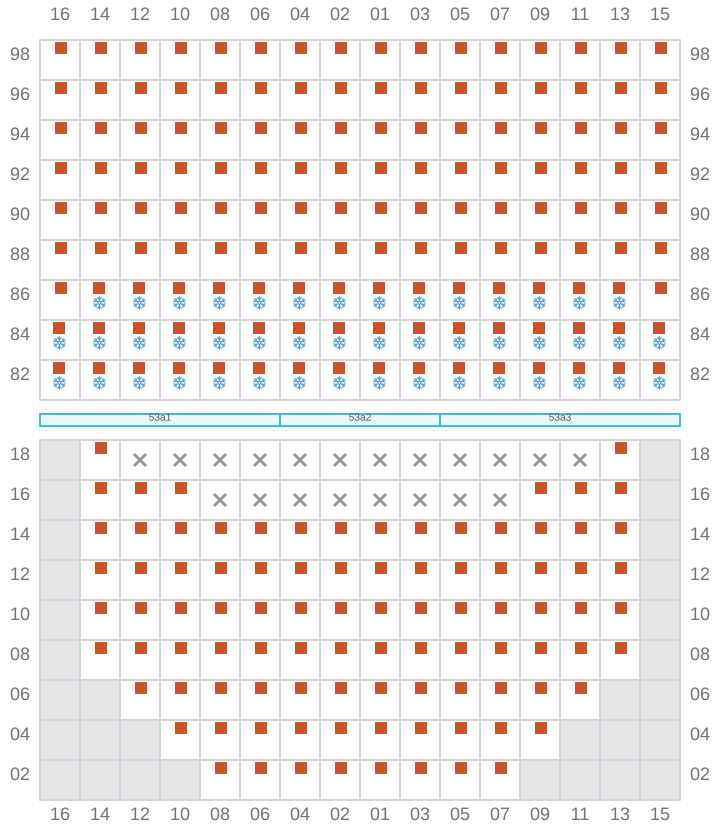

055
- ←
- → / ?
![Bay 055 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b055.png?v=1687561693556)

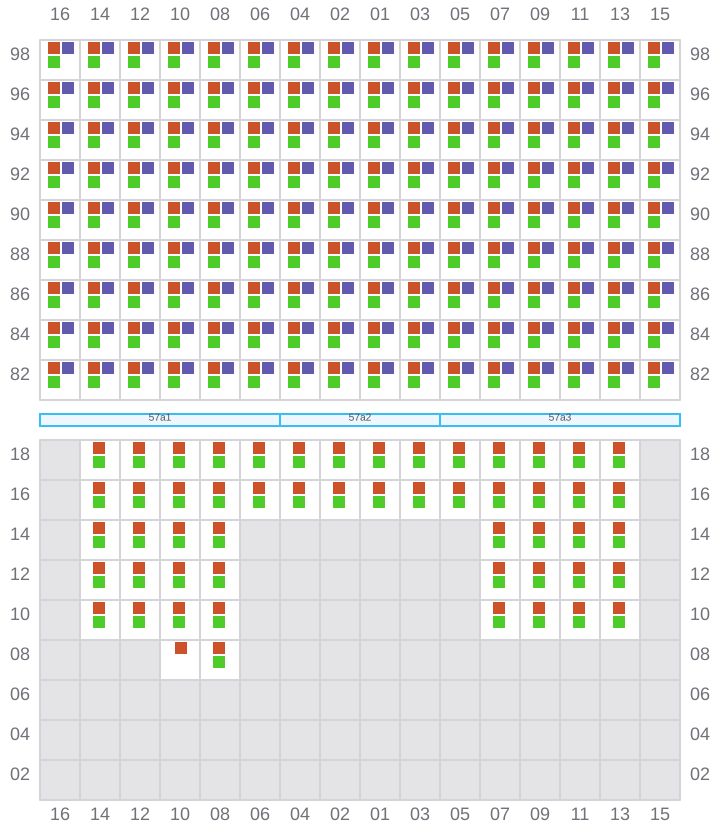

057 (058)
- →
![Bay 057 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b057.png?v=1687561693556)

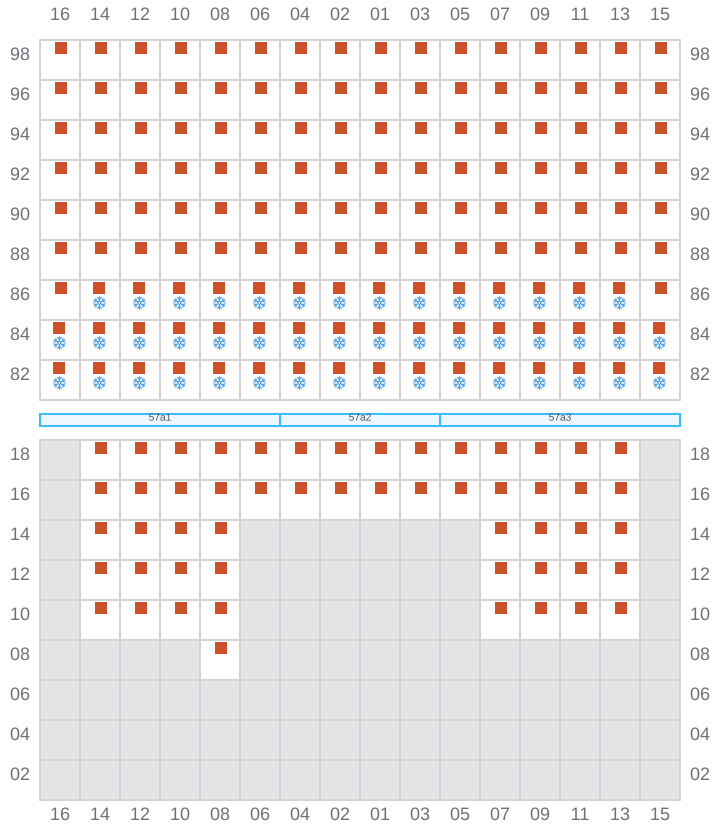

059
- ←
- → / ?
![Bay 059 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b059.png?v=1687561693556)

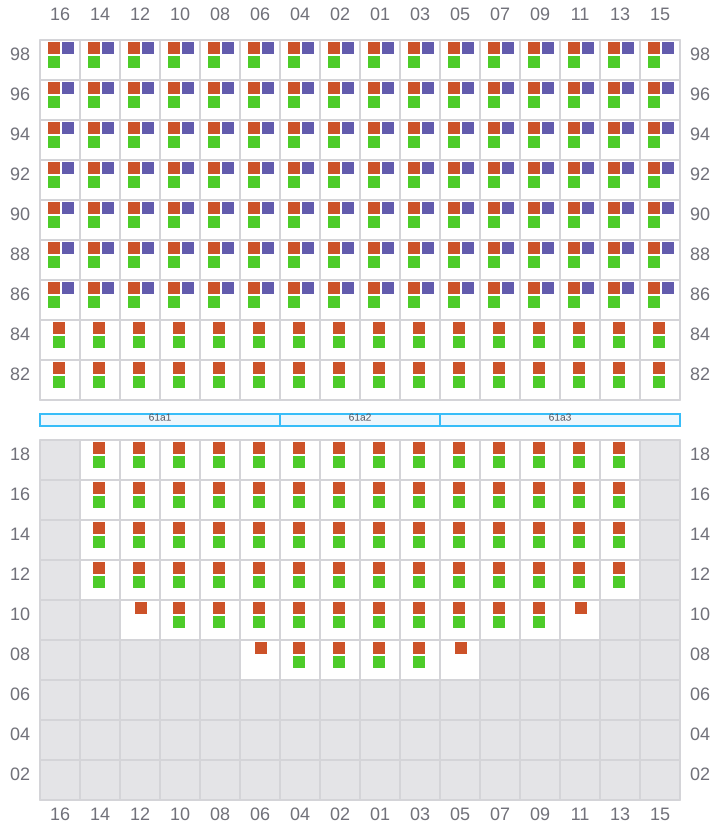

061 (062)
- →
- → / ?
![Bay 061 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b061.png?v=1687561693556)

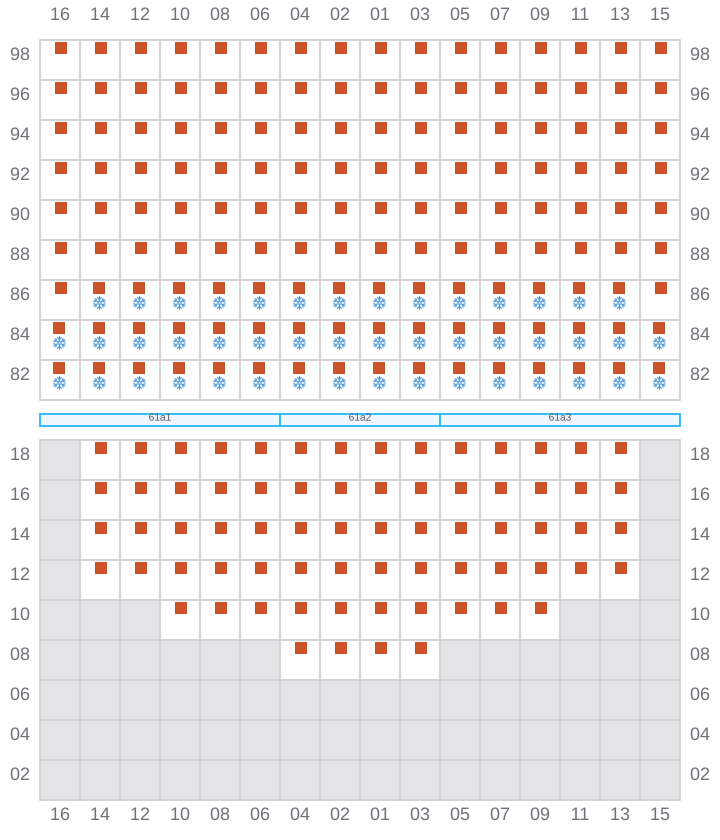

063
- ←
- → / ?
![Bay 063 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b063.png?v=1687561693556)

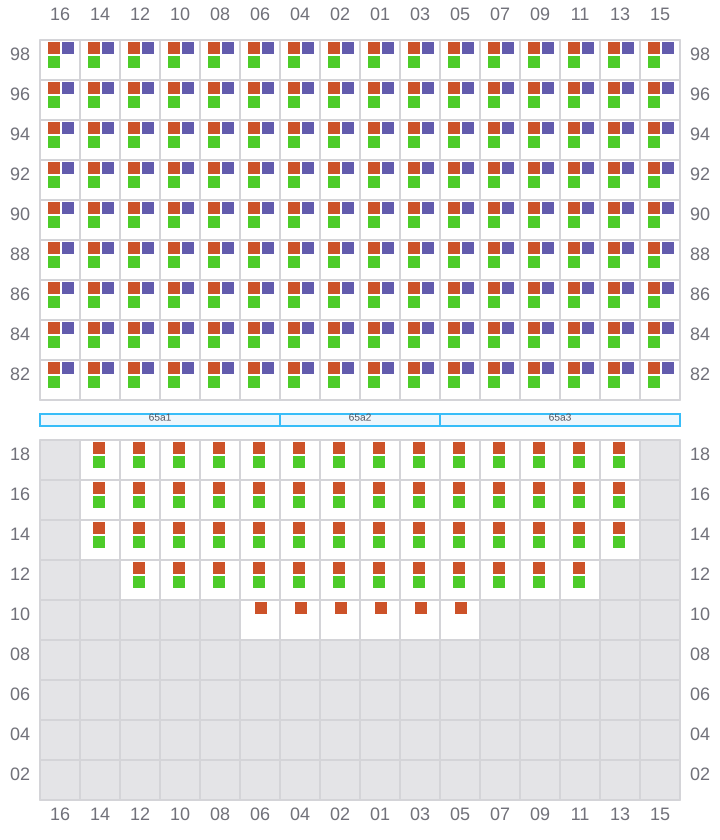

065 (066)
- →
- → / ?
![Bay 065 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b065.png?v=1687561693556)

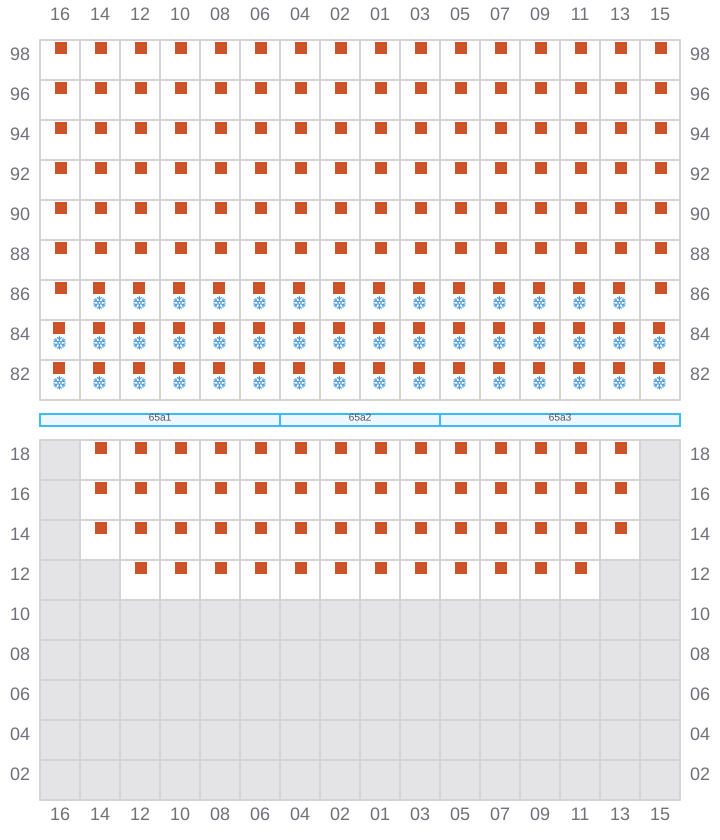

067
- ←
- → / ?
![Bay 067 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b067.png?v=1687561693556)

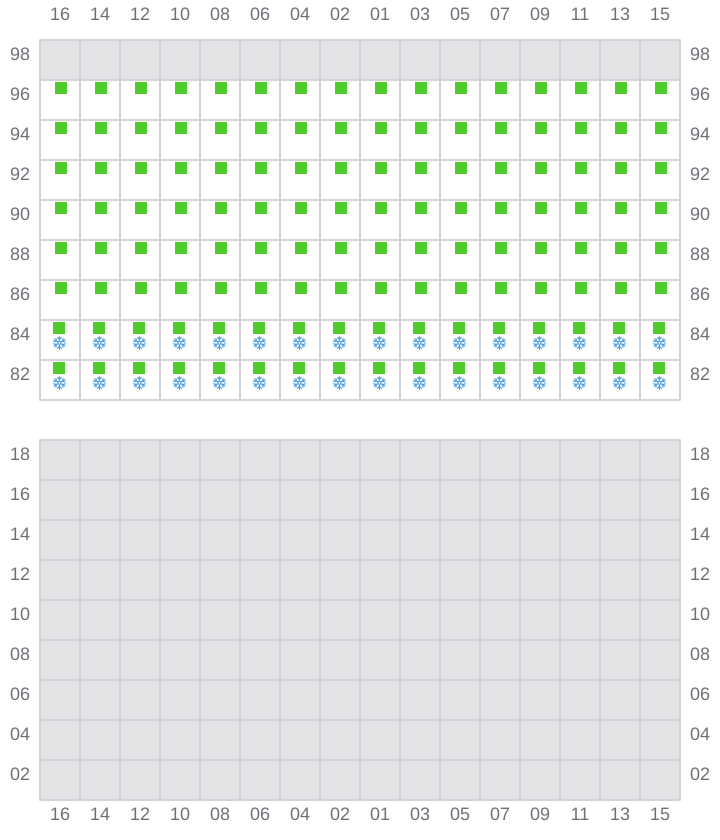

069 (070)
- → / ?
- → / ?
![Bay 069 view and slots of WAN HAI 722](/vessel-images/767242b3-4f42-4002-9ae2-7e128c51dd01-b069.png?v=1687561693556)
