WAN HAI 723
9398254 | 9V7326 | 9398254 by ********* Last update: Wed Apr 03 2024

General Info

Ship Name:WAN HAI 723
IMO Code:9398254
Call Sign:9V7326
Line Operator:9398254
Class Name for Sister Ships:APL
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.03
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,964

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of WAN HAI 723

Hatch-Covers View

Deck view of WAN HAI 723

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →
  • → / ?
  • → / ?
Bay 001 view and slots of WAN HAI 723

003

  • ←
  • → / ?
  • → / ?

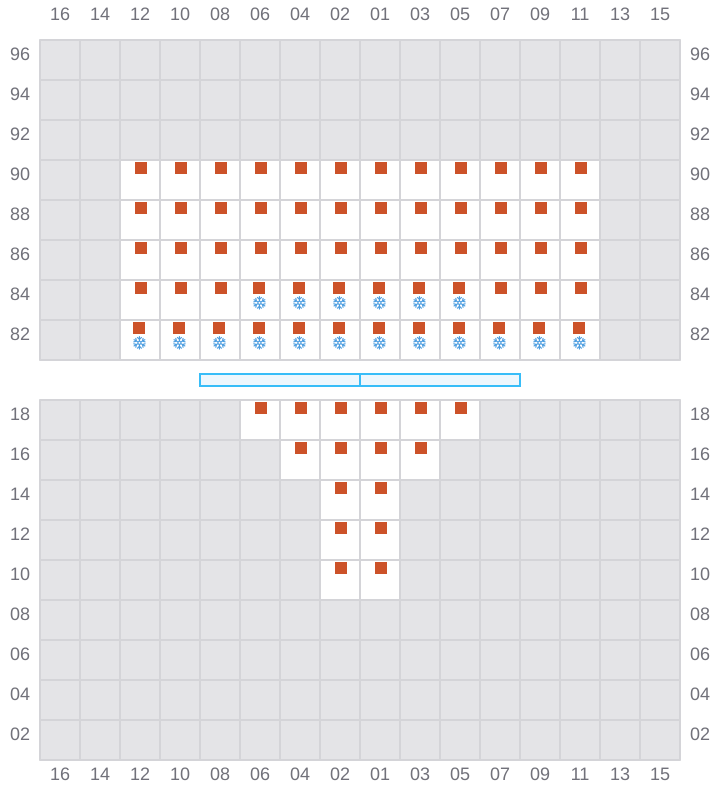

Bay 003 view and slots of WAN HAI 723

005 (006)

  • →
  • → / ?
  • → / ?

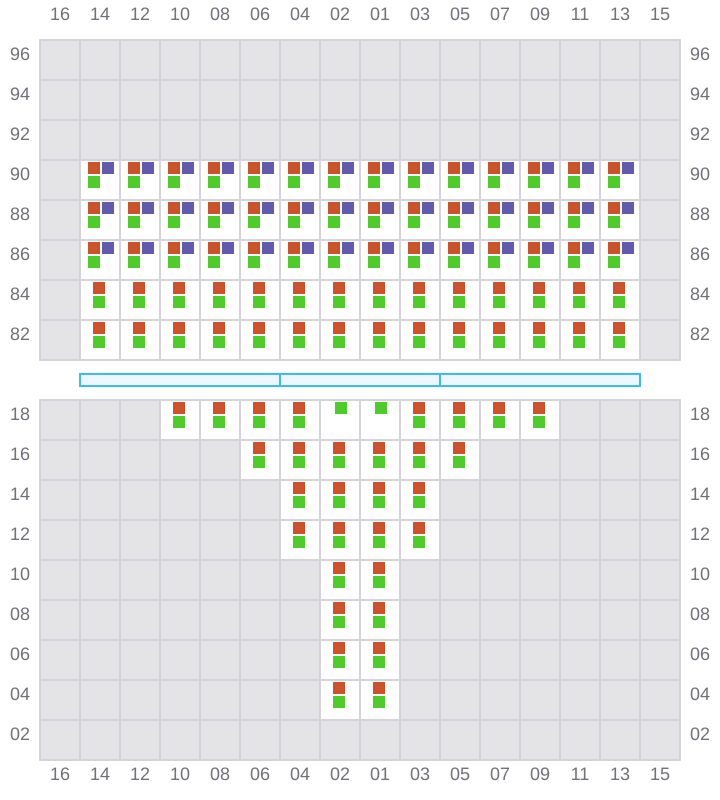

Bay 005 view and slots of WAN HAI 723

007

  • ←
  • → / ?

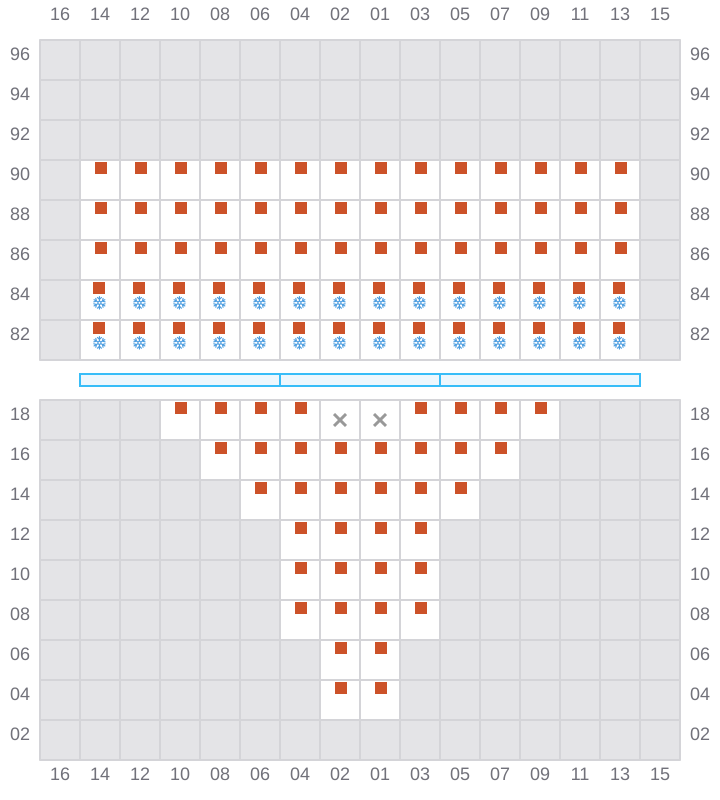

Bay 007 view and slots of WAN HAI 723

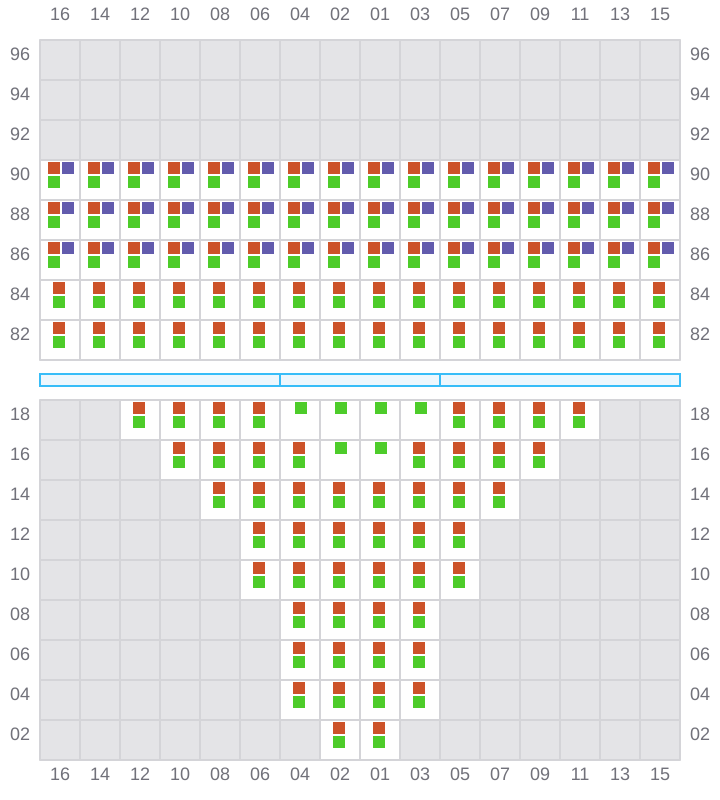

009 (010)

  • →
  • → / ?
  • → / ?
Bay 009 view and slots of WAN HAI 723

011

  • ←
  • → / ?

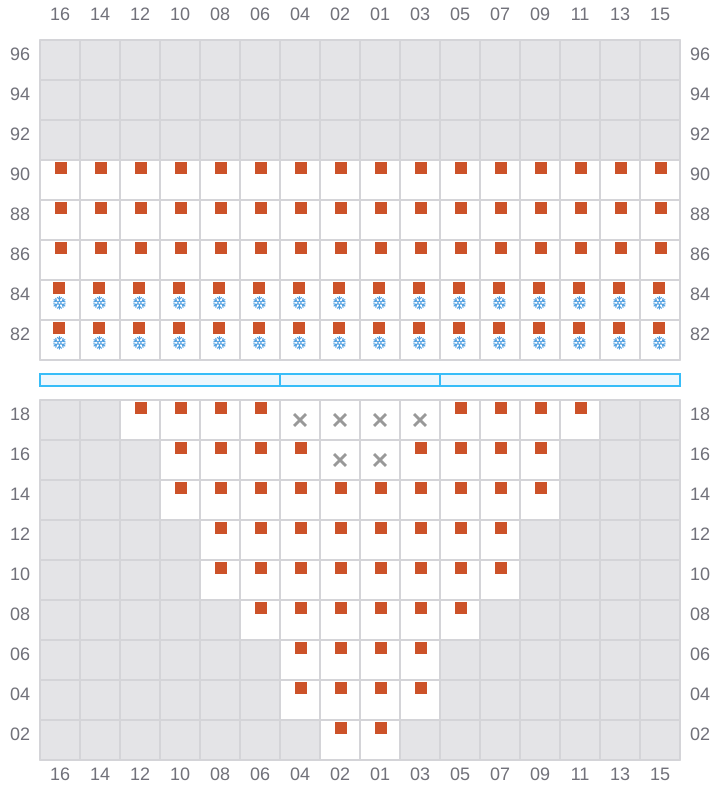

Bay 011 view and slots of WAN HAI 723

013 (014)

  • →
  • → / ?
Bay 013 view and slots of WAN HAI 723

015

  • ←
  • → / ?
Bay 015 view and slots of WAN HAI 723

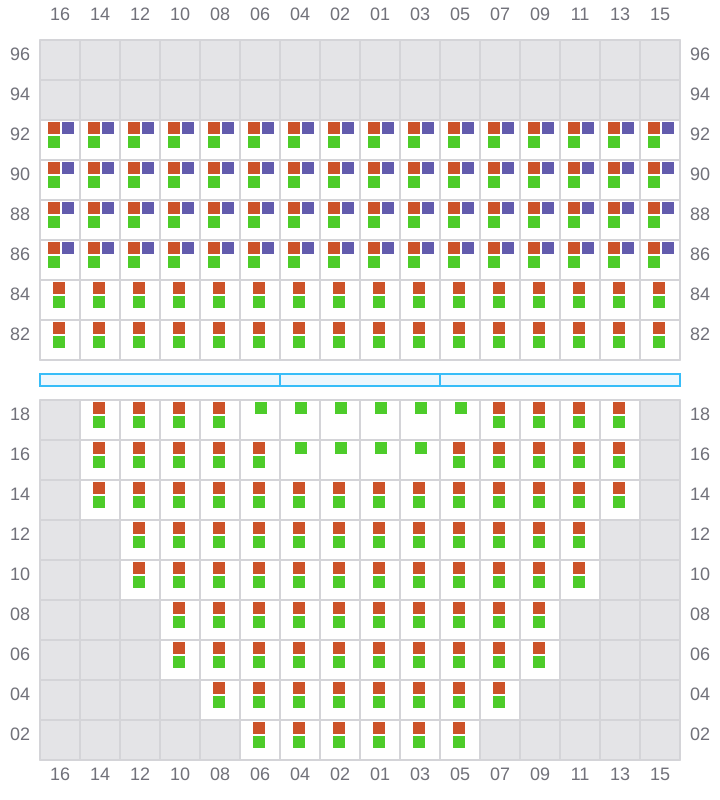

017 (018)

  • →
  • → / ?

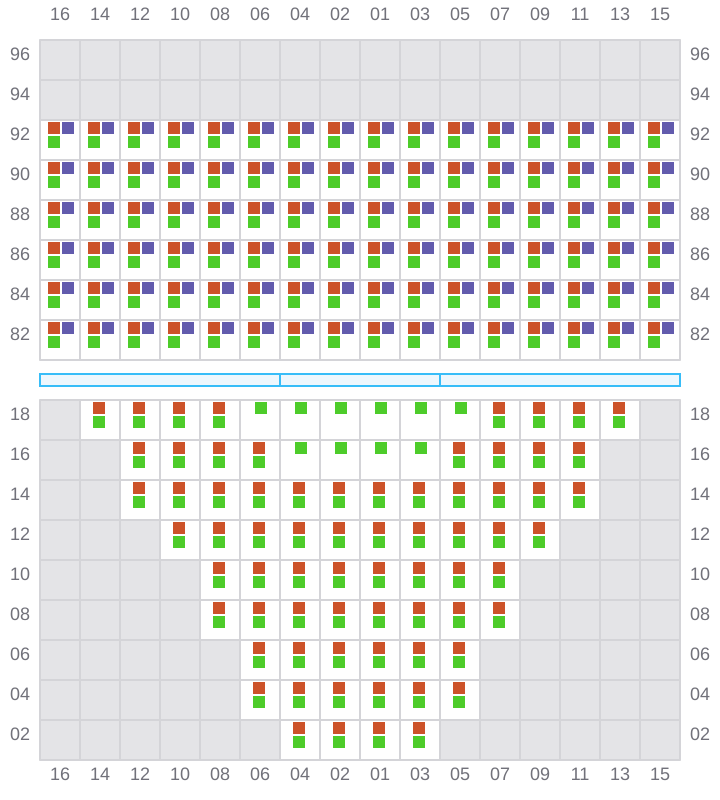

Bay 017 view and slots of WAN HAI 723

019

  • ←
  • → / ?

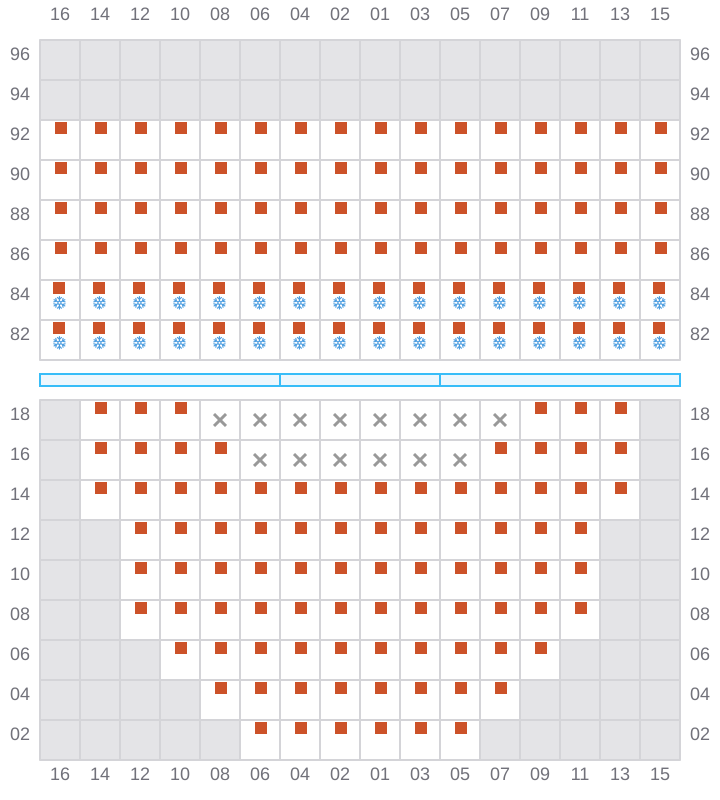

Bay 019 view and slots of WAN HAI 723

021 (022)

  • →
  • → / ?
Bay 021 view and slots of WAN HAI 723

023

  • ←
  • → / ?

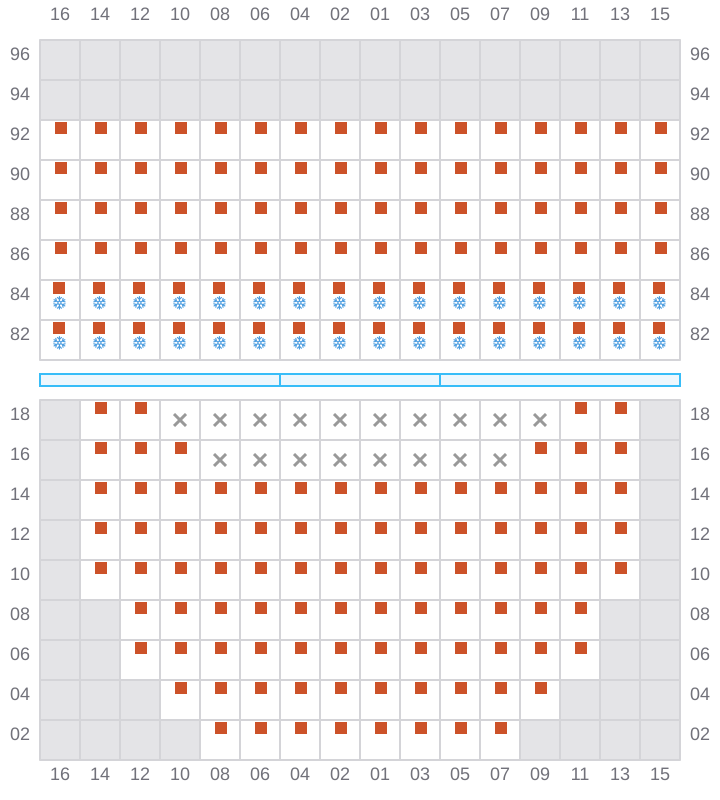

Bay 023 view and slots of WAN HAI 723

025 (026)

  • →
  • → / ?

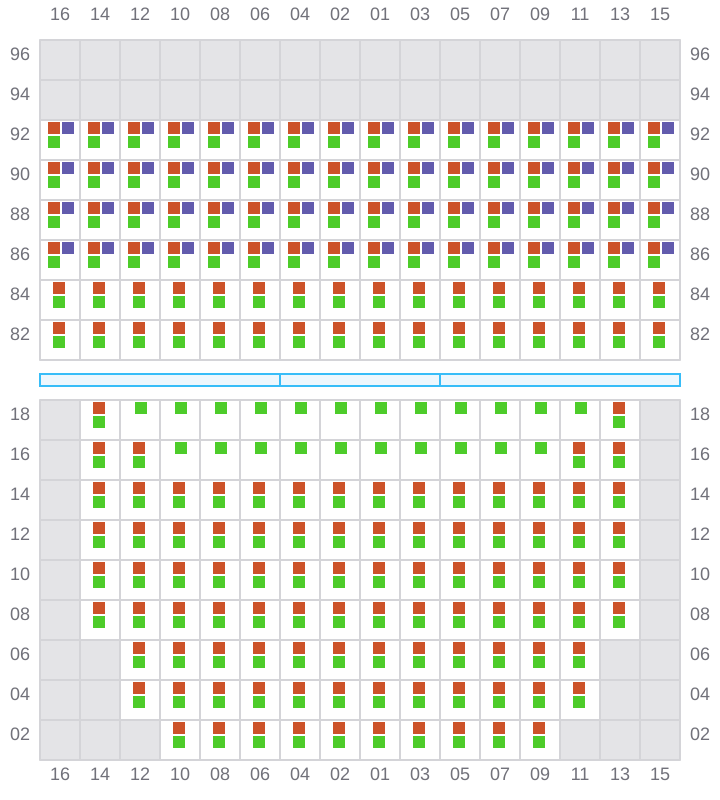

Bay 025 view and slots of WAN HAI 723

027

  • ←
  • → / ?
Bay 027 view and slots of WAN HAI 723

029 (030)

  • →
  • → / ?
Bay 029 view and slots of WAN HAI 723

031

  • ←
  • → / ?

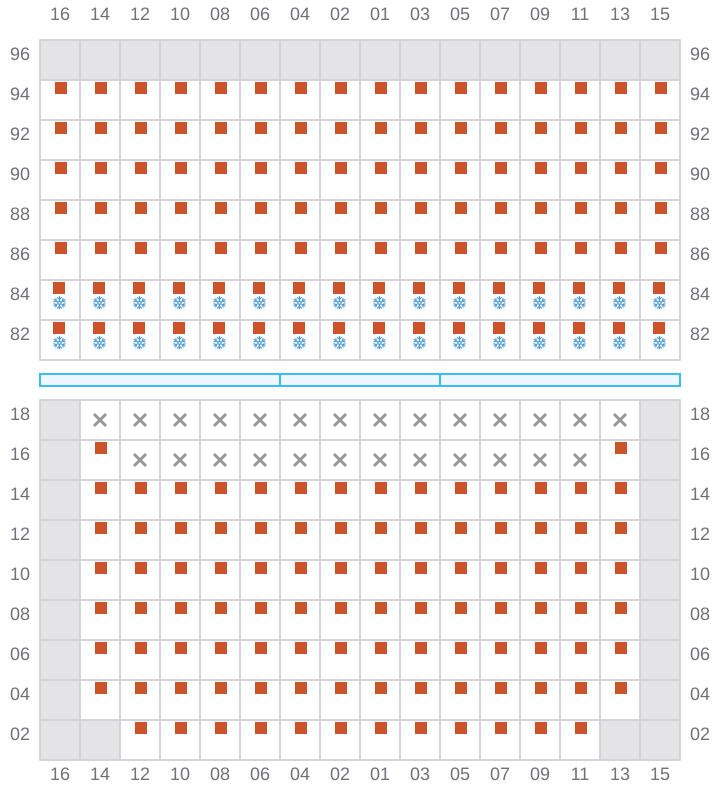

Bay 031 view and slots of WAN HAI 723

033 (034)

  • →
  • → / ?

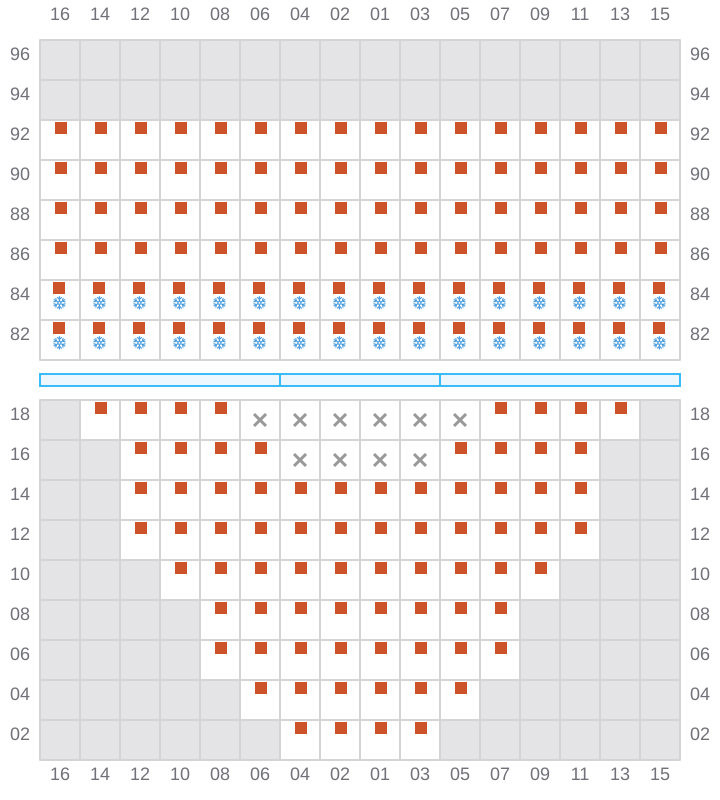

Bay 033 view and slots of WAN HAI 723

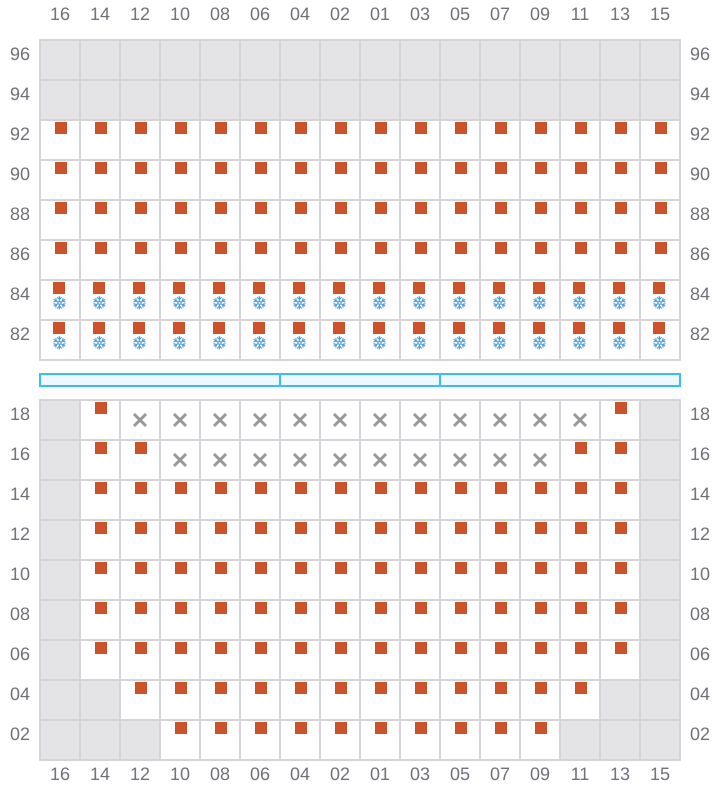

035

  • ←
  • → / ?
Bay 035 view and slots of WAN HAI 723

037 (038)

  • →
  • → / ?

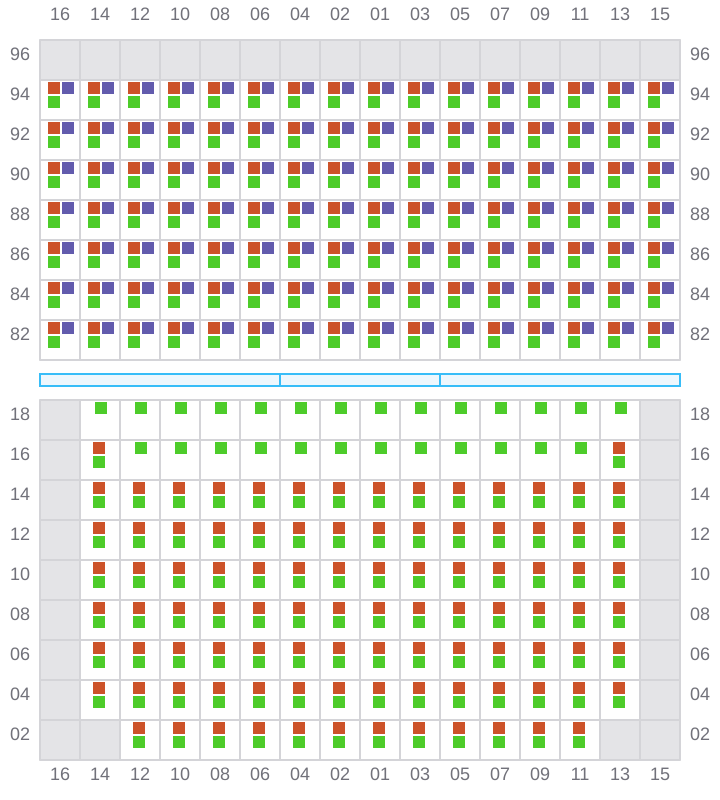

Bay 037 view and slots of WAN HAI 723

039

  • ←
  • → / ?
Bay 039 view and slots of WAN HAI 723

041 (042)

  • →
  • → / ?
Bay 041 view and slots of WAN HAI 723

043

  • ←
  • → / ?
Bay 043 view and slots of WAN HAI 723

045 (046)

  • →

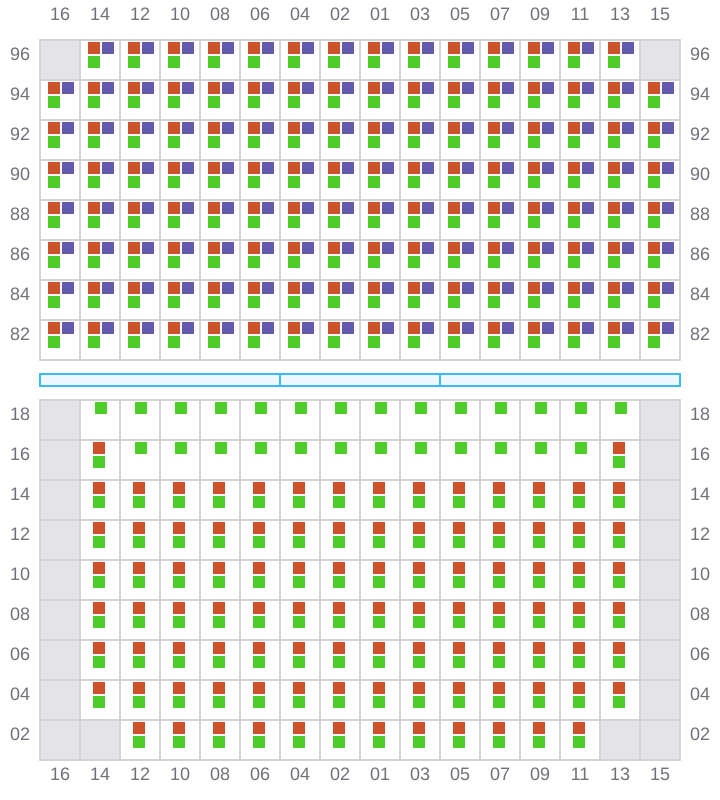

Bay 045 view and slots of WAN HAI 723

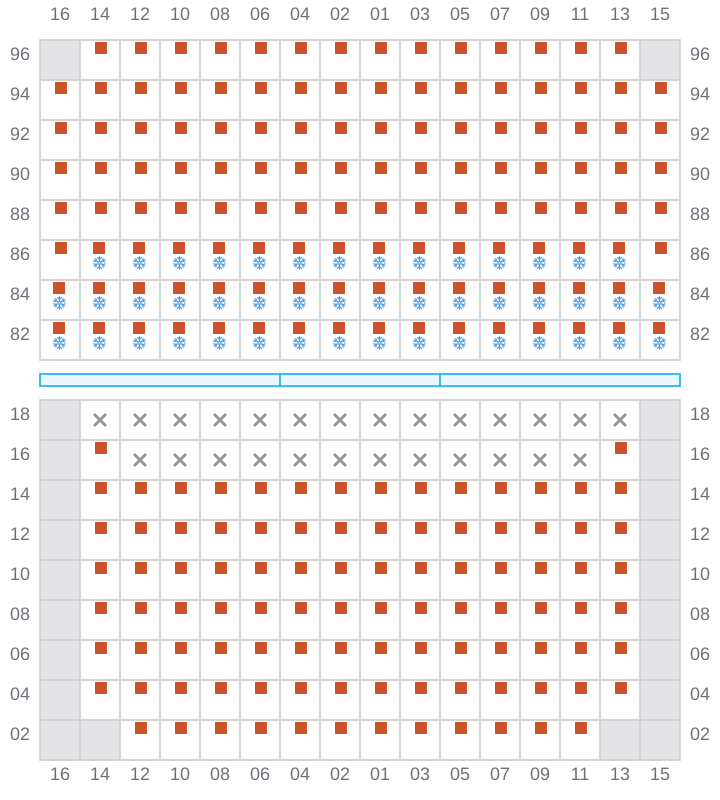

047

  • ←
  • → / ?
Bay 047 view and slots of WAN HAI 723

049 (050)

  • →
  • → / ?
Bay 049 view and slots of WAN HAI 723

051

  • ←
  • → / ?
Bay 051 view and slots of WAN HAI 723

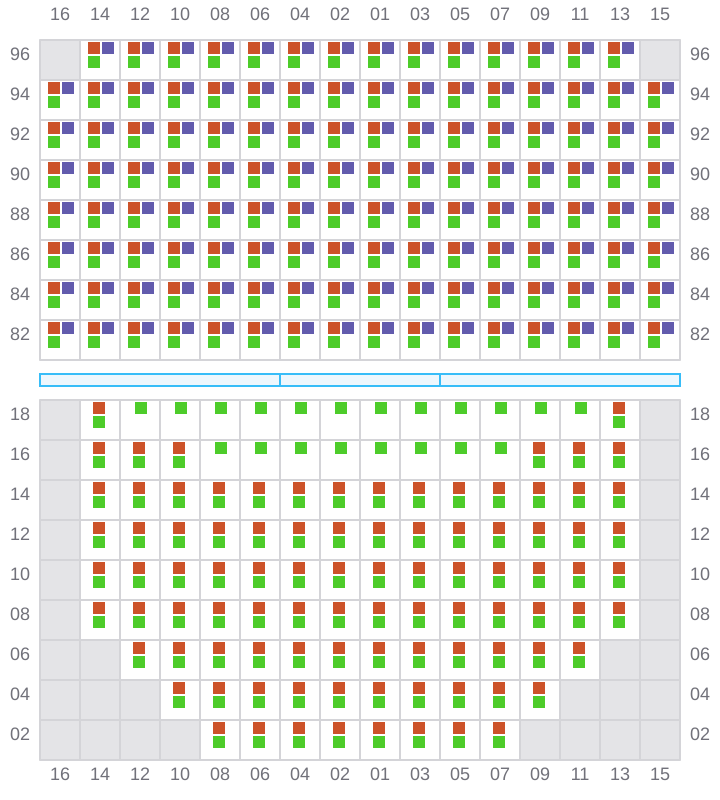

053 (054)

  • →
Bay 053 view and slots of WAN HAI 723

055

  • ←
  • → / ?
Bay 055 view and slots of WAN HAI 723

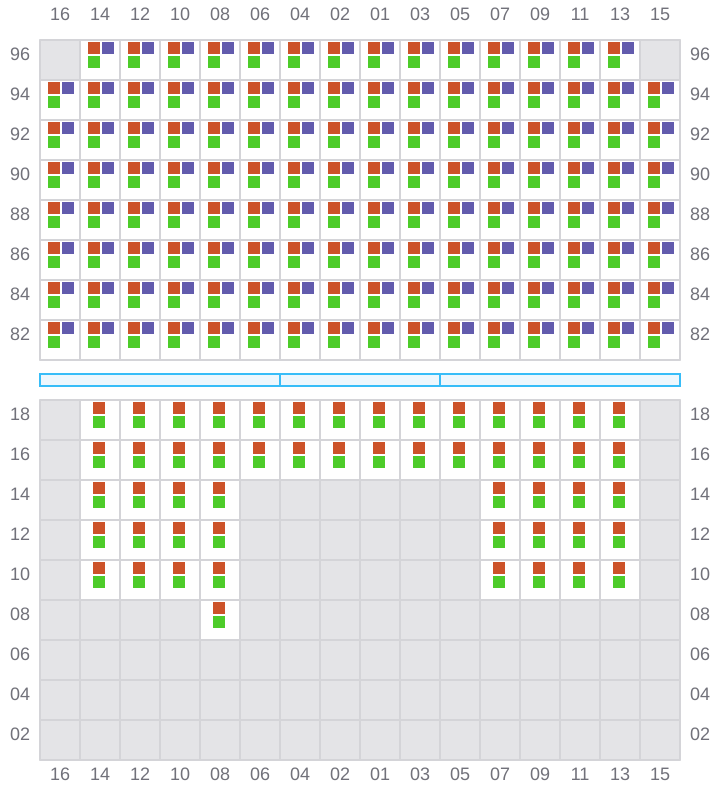

057 (058)

  • →

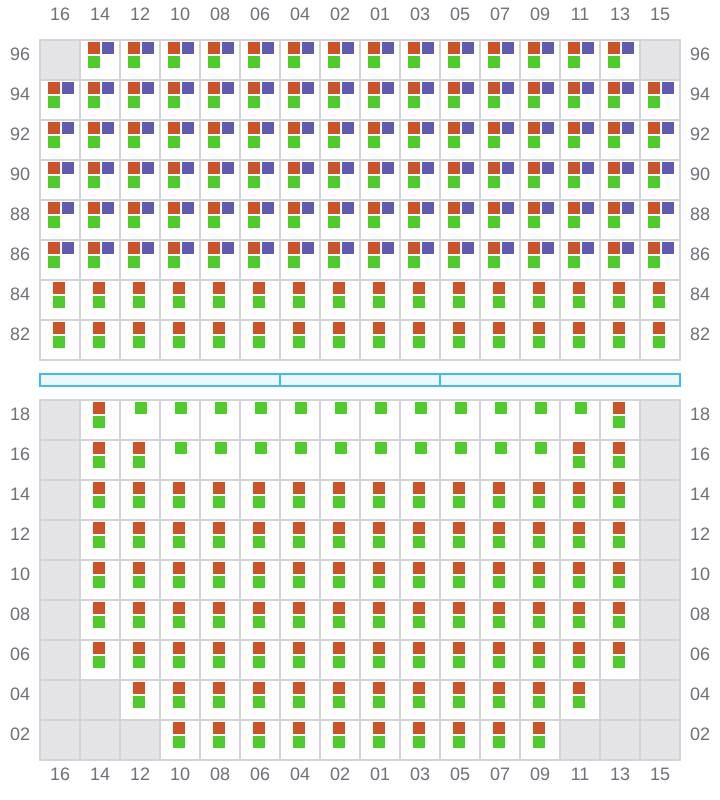

Bay 057 view and slots of WAN HAI 723

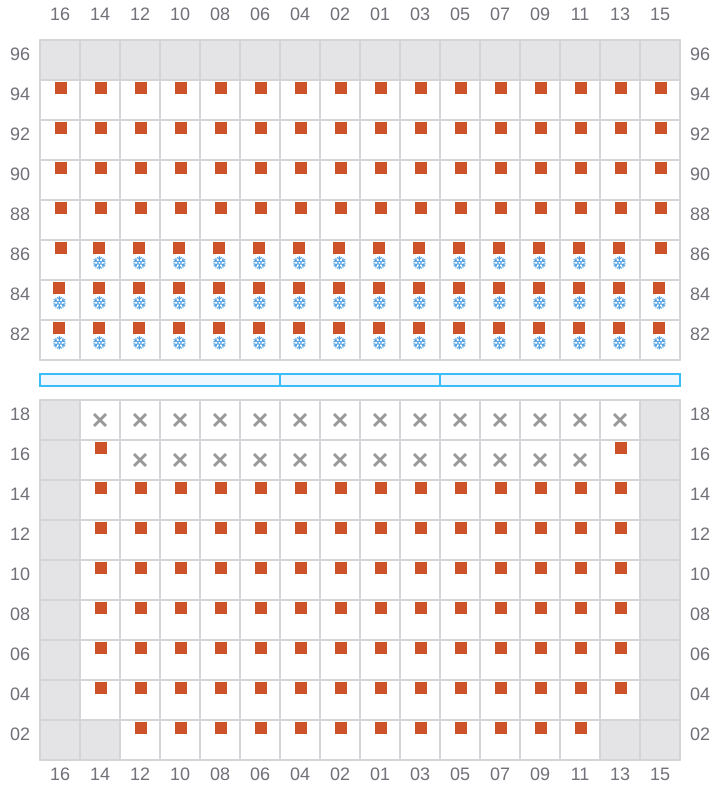

059

  • ←
  • → / ?
Bay 059 view and slots of WAN HAI 723

061 (062)

  • →
  • → / ?

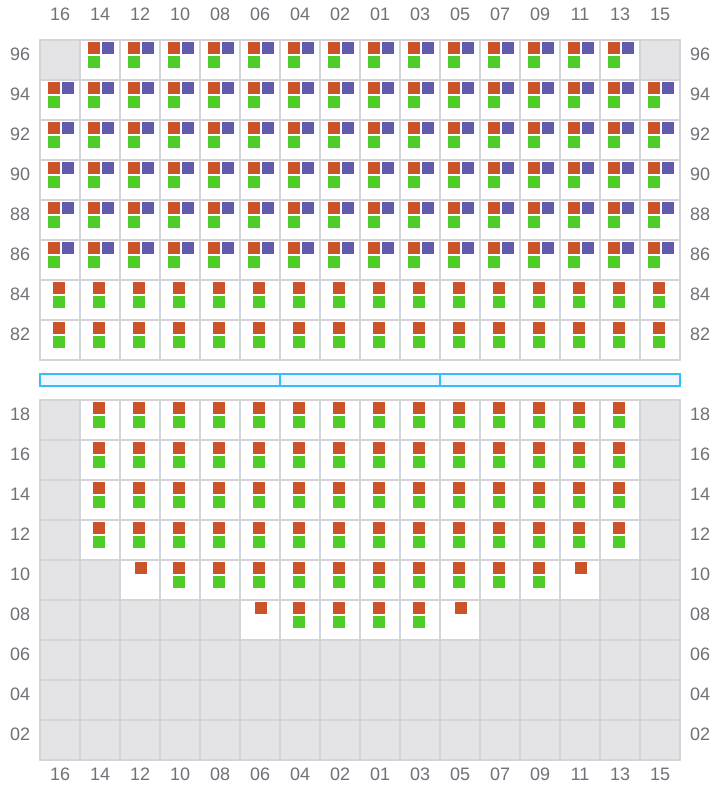

Bay 061 view and slots of WAN HAI 723

063

  • ←
  • → / ?
Bay 063 view and slots of WAN HAI 723

065 (066)

  • →
  • → / ?
Bay 065 view and slots of WAN HAI 723

067

  • ←
  • → / ?

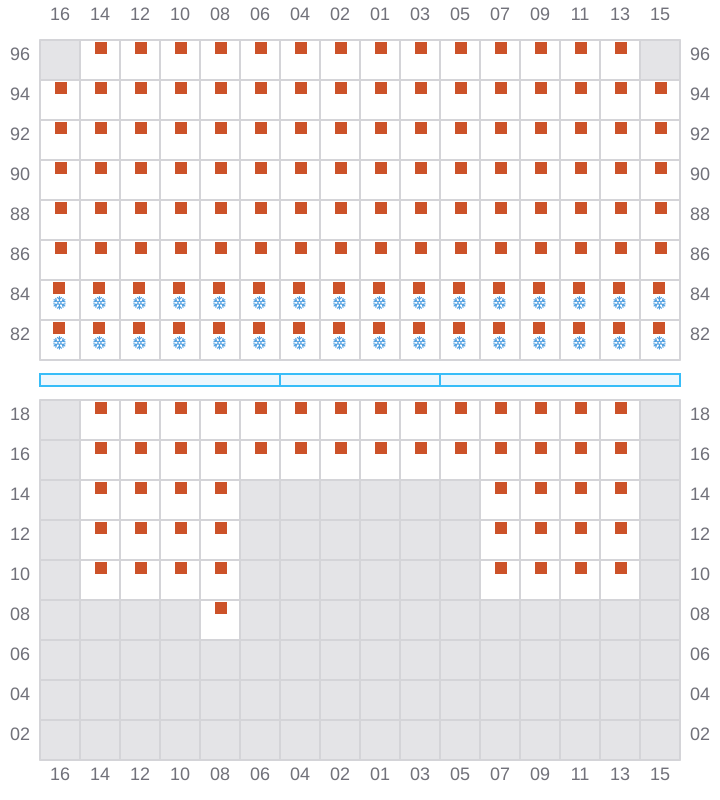

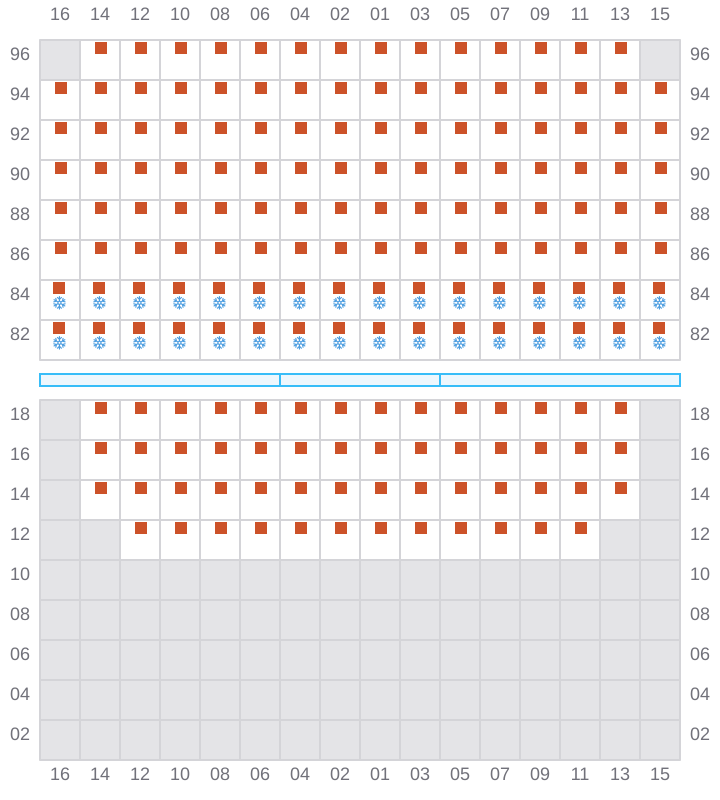

Bay 067 view and slots of WAN HAI 723

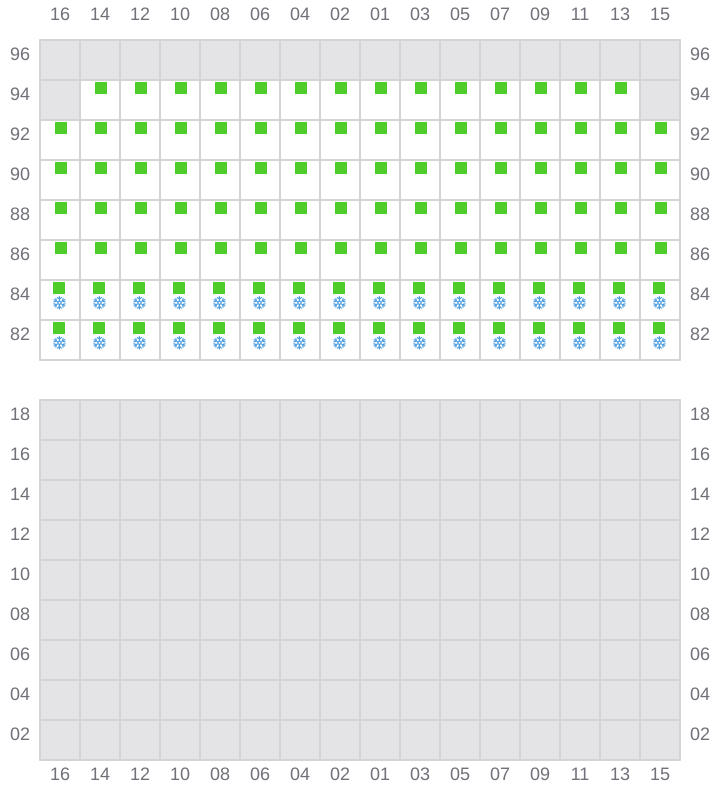

069 (070)

  • → / ?
  • → / ?
Bay 069 view and slots of WAN HAI 723
