WARNOW BELUGA
9437127 | V2DM4 | 9437127 by ********* Last update: Tue Jun 18 2024
General Info
Ship Name:WARNOW BELUGA
IMO Code:9437127
Call Sign:V2DM4
Line Operator:9437127
Class Name for Sister Ships:MCC
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,304
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

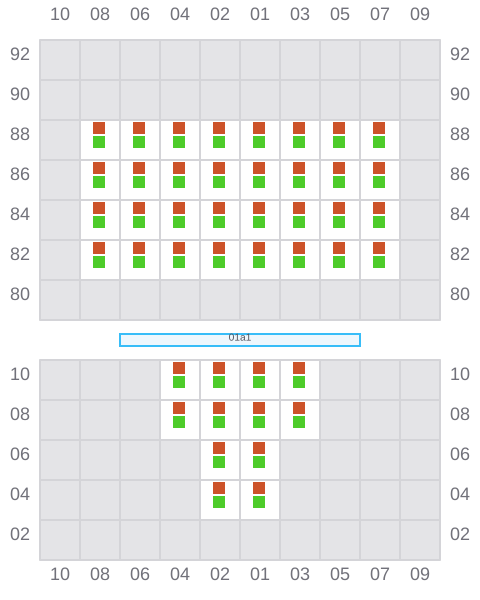

001 (002)
- →

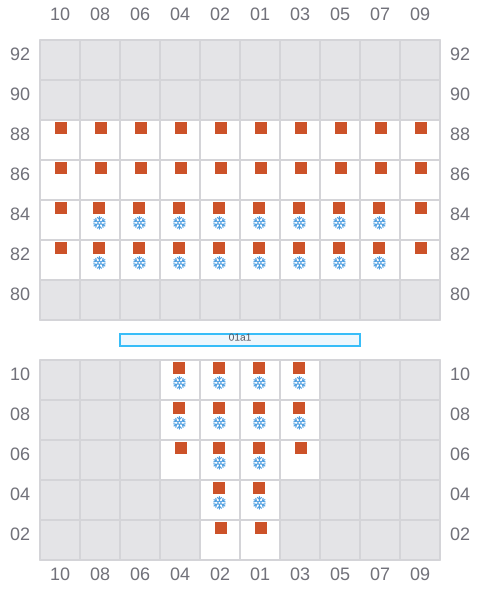

003
- ←
- →

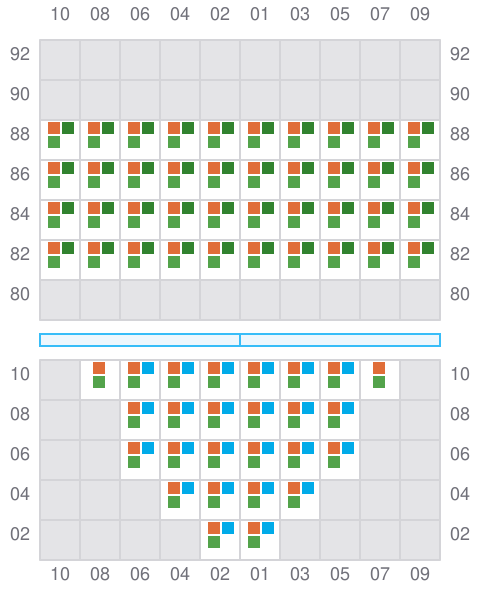

005 (006)
- →
- ? / ←

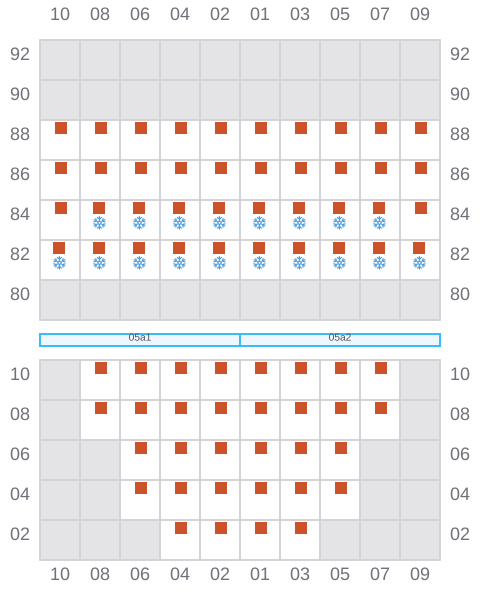

007
- ←
- → / ?

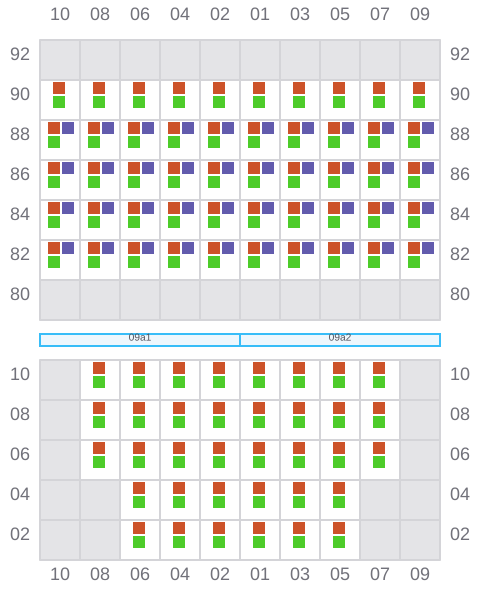

009 (010)
- →

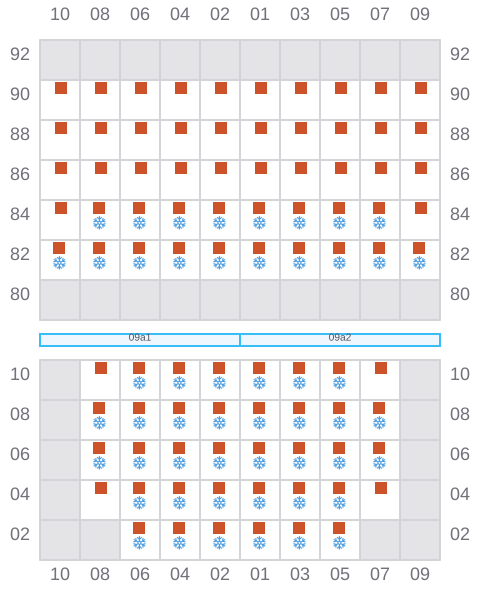

011
- ←
- →

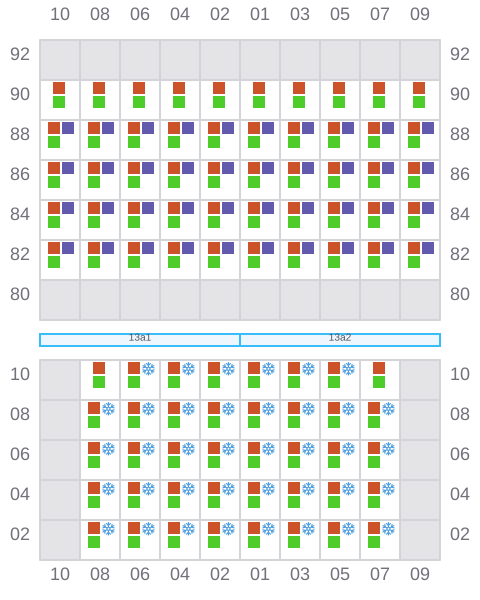

013 (014)
- →
- ? / ←

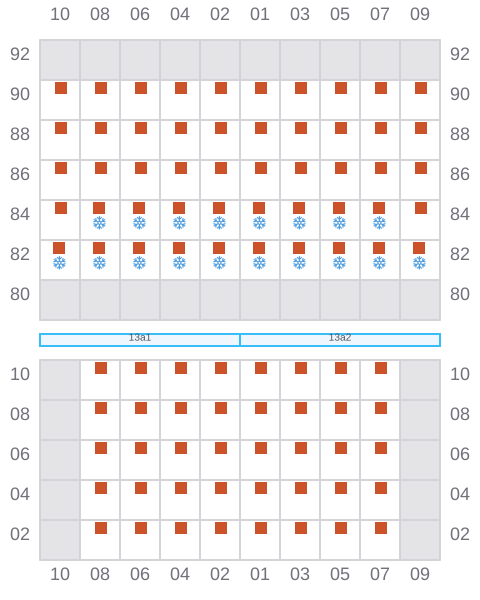

015
- ←
- → / ?

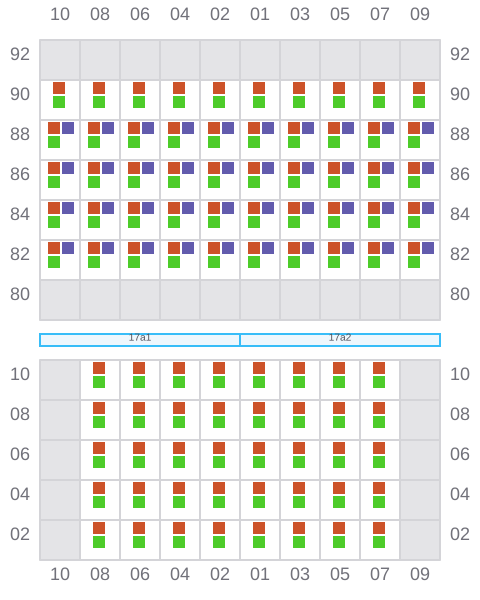

017 (018)
- →

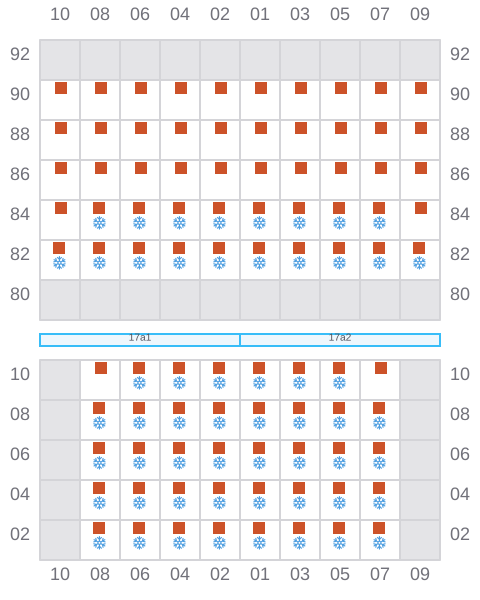

019
- ←
- →
021 (022)
- →
- ? / ←

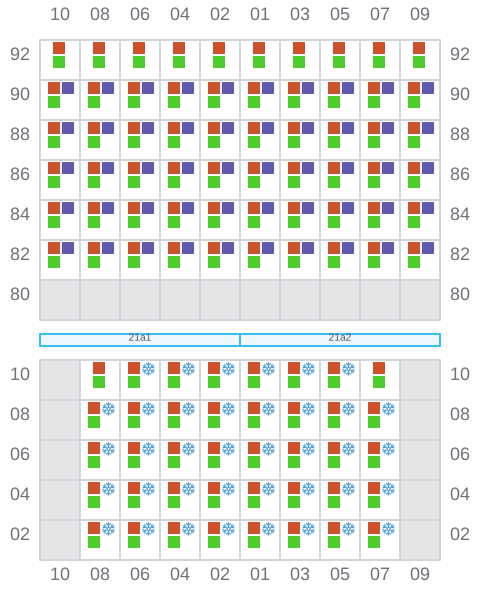

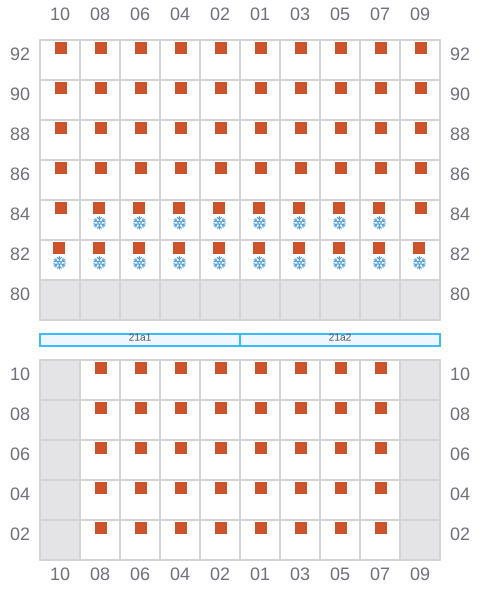

023
- ←
- → / ?

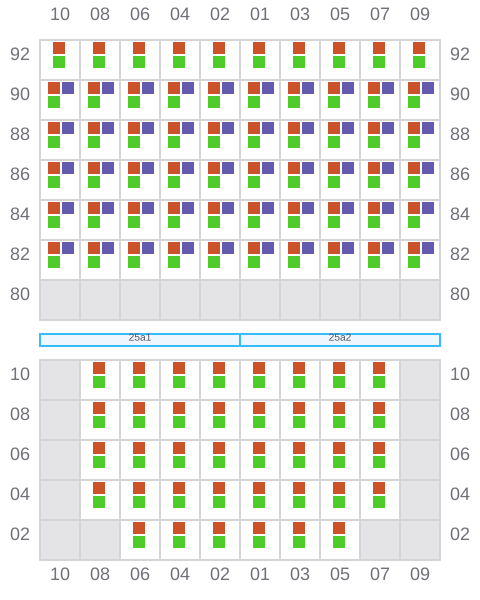

025 (026)
- →

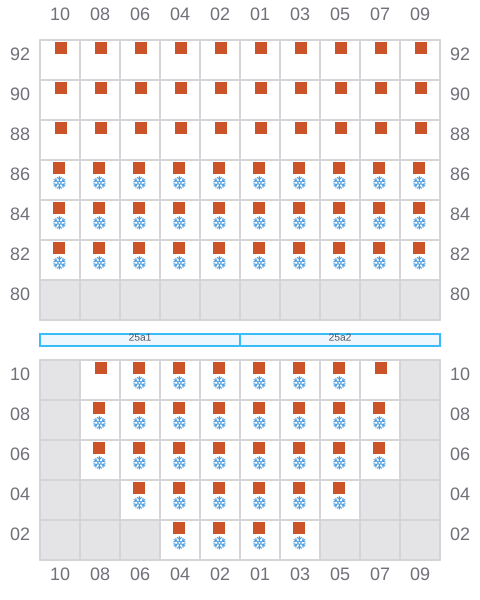

027
- ←
- →

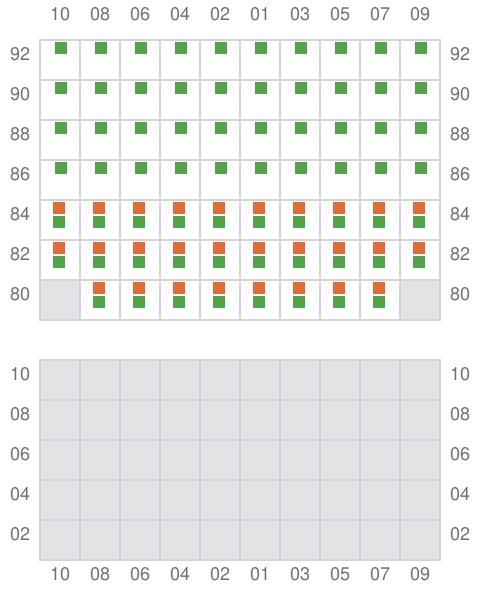

029 (030)
- → / ?

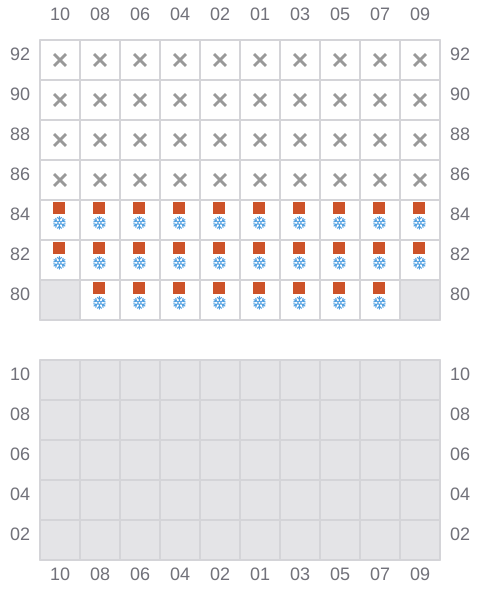

031
- ← / ?
- → / ?
