WARNOW CHIEF
9449857 | 5BVL2 | 9449857 by ********* Last update: Tue May 21 2024
General Info
Ship Name:WARNOW CHIEF
IMO Code:9449857
Call Sign:5BVL2
Line Operator:9449857
Class Name for Sister Ships:WARNOWCHIEF
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,498
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
003
- ←
- →
005 (006)
- →
- ? / ←
007
- ←
- → / ?

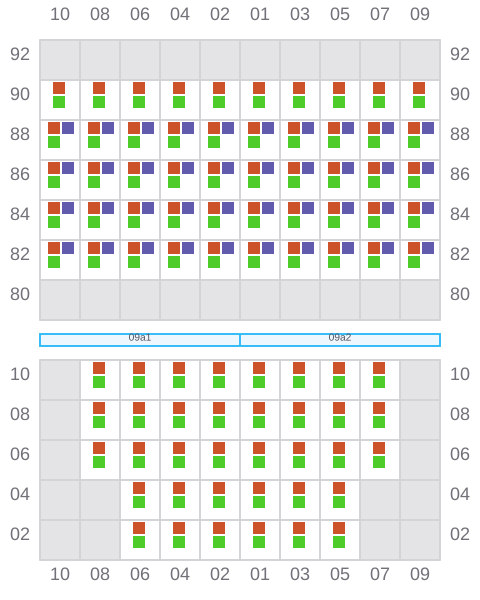

009 (010)
- →
011
- ←
- →
013 (014)
- →
- ? / ←
015
- ←
- → / ?

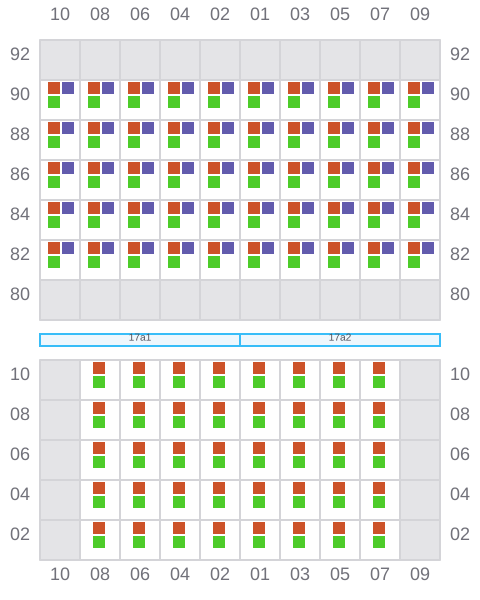

017 (018)
- →
019
- ←
- ? / →
021 (022)
- →
023
- ←
- →
025 (026)
- →
- ? / ←
027
- ←
- → / ?
029 (030)
- →
031
- ←
- →
033 (034)
- → / ?
- → / ?

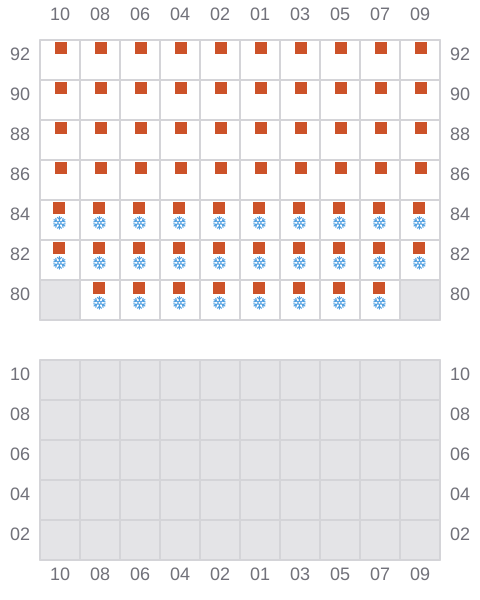

035
- ← / ?
- → / ?
