WEC FRANS HALS
9326964 | CQAG3 | 9326964 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:WEC FRANS HALS
IMO Code:9326964
Call Sign:CQAG3
Line Operator:9326964
Class Name for Sister Ships:23A
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:1,146

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of WEC FRANS HALS

Hatch-Covers View

Deck view of WEC FRANS HALS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

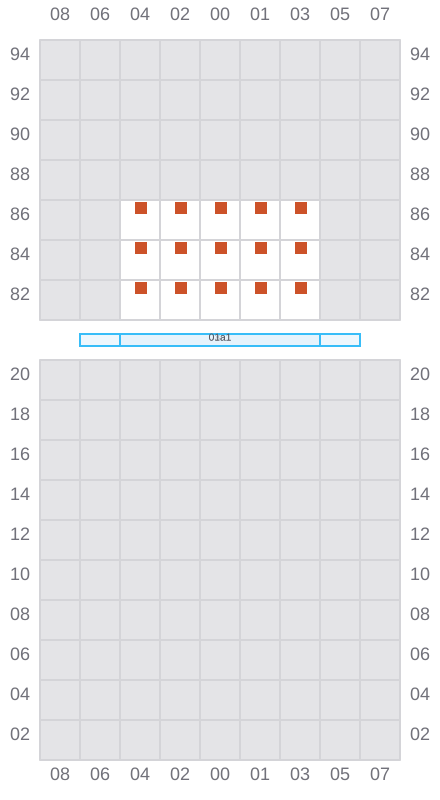

Bay 001 view and slots of WEC FRANS HALS

003 (004)

  • →
  • ← / ?
Bay 003 view and slots of WEC FRANS HALS

005

  • → / ?
Bay 005 view and slots of WEC FRANS HALS

007 (008)

  • →
  • ←

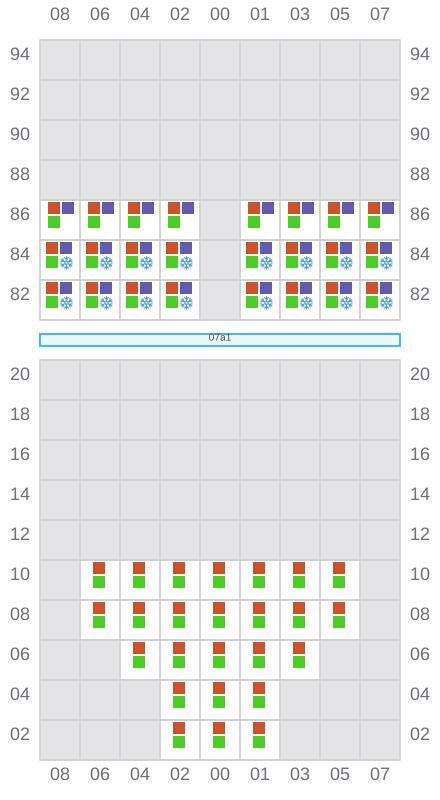

Bay 007 view and slots of WEC FRANS HALS

009

Bay 009 view and slots of WEC FRANS HALS

011 (012)

  • ? / →
  • ? / ←

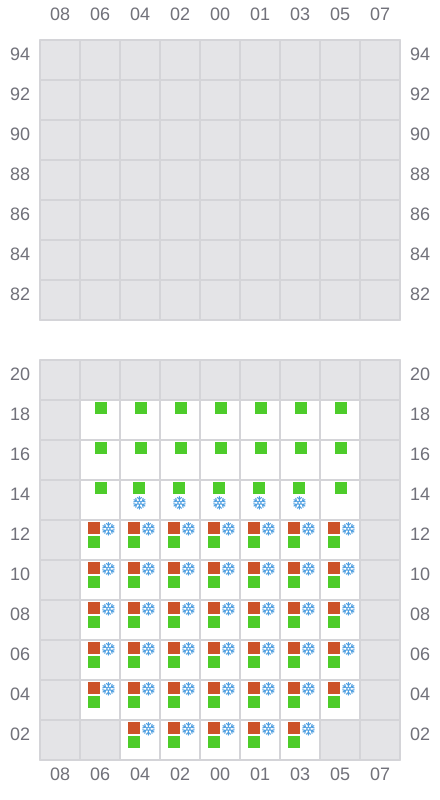

Bay 011 view and slots of WEC FRANS HALS

013

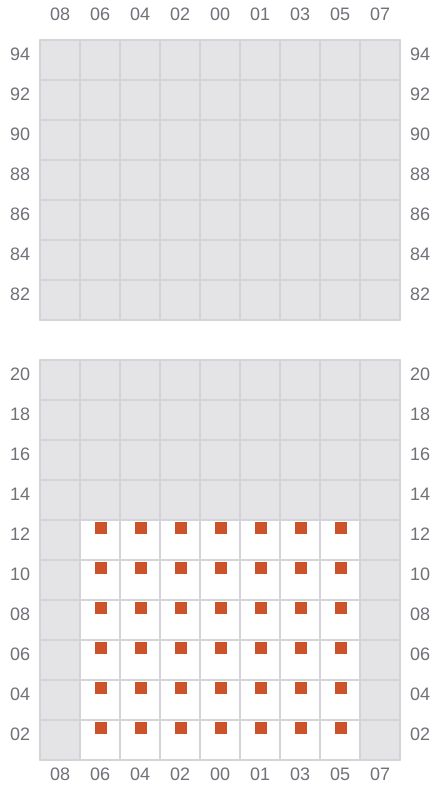

Bay 013 view and slots of WEC FRANS HALS

015 (016)

  • ? / →
Bay 015 view and slots of WEC FRANS HALS

017

  • ? / →
Bay 017 view and slots of WEC FRANS HALS

019 (020)

  • ? / →
  • ? / ←

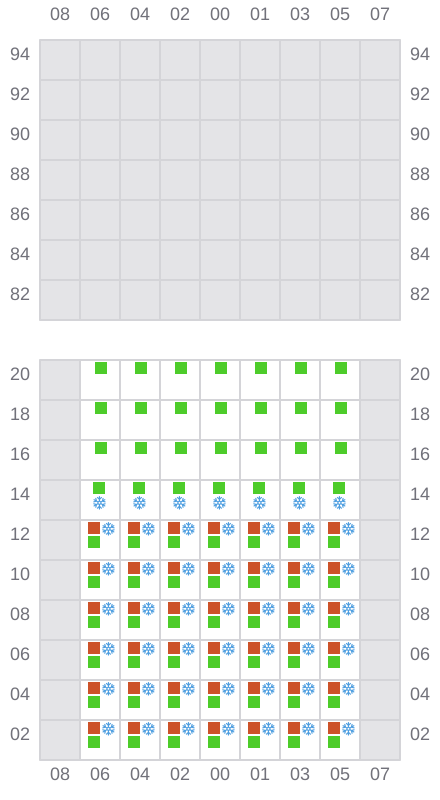

Bay 019 view and slots of WEC FRANS HALS

021

Bay 021 view and slots of WEC FRANS HALS

023 (024)

  • ? / →

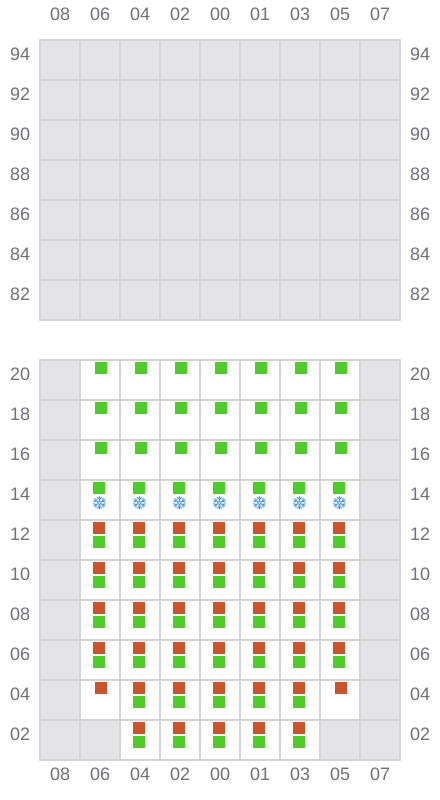

Bay 023 view and slots of WEC FRANS HALS

025

  • ? / →
Bay 025 view and slots of WEC FRANS HALS

027 (028)

  • → / ?
  • ← / ?

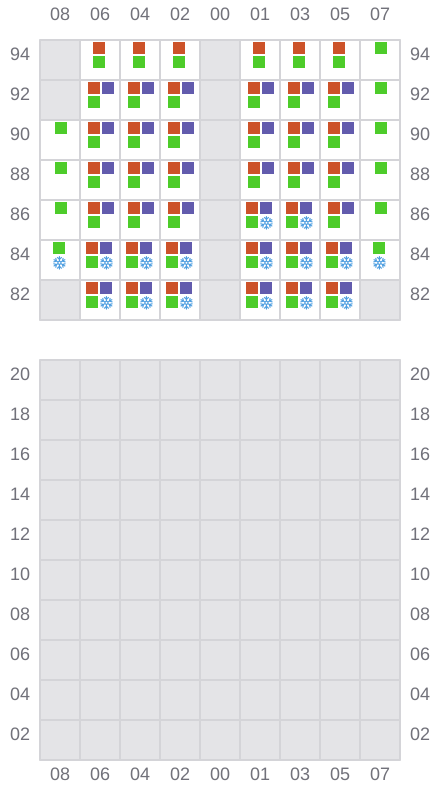

Bay 027 view and slots of WEC FRANS HALS

029

Bay 029 view and slots of WEC FRANS HALS

031

  • → / ?

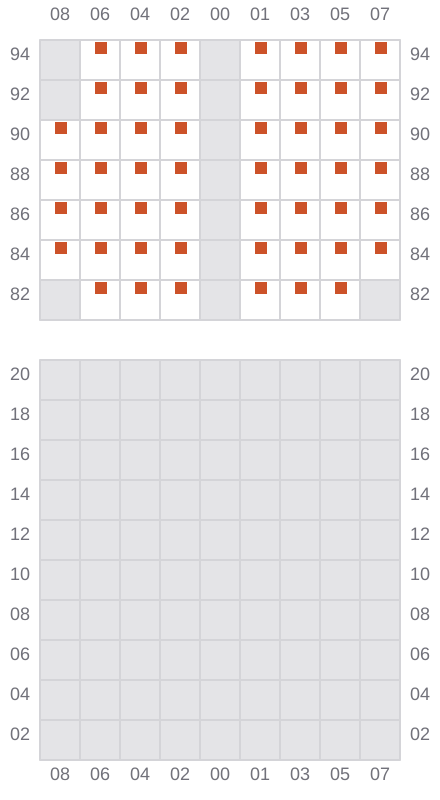

Bay 031 view and slots of WEC FRANS HALS
