WES SINA
9392901 | V2CW6 | 9392901 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:WES SINA
IMO Code:9392901
Call Sign:V2CW6
Line Operator:9392901
Class Name for Sister Ships:42B
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):143.00
LOA (Length Overall):143.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:1,049
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

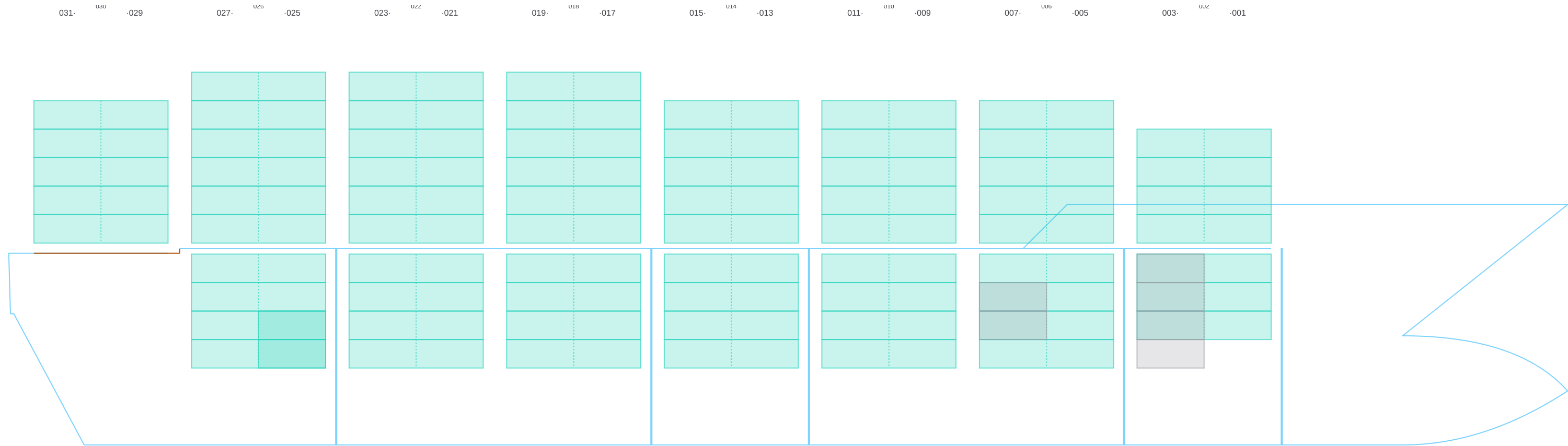

Side View

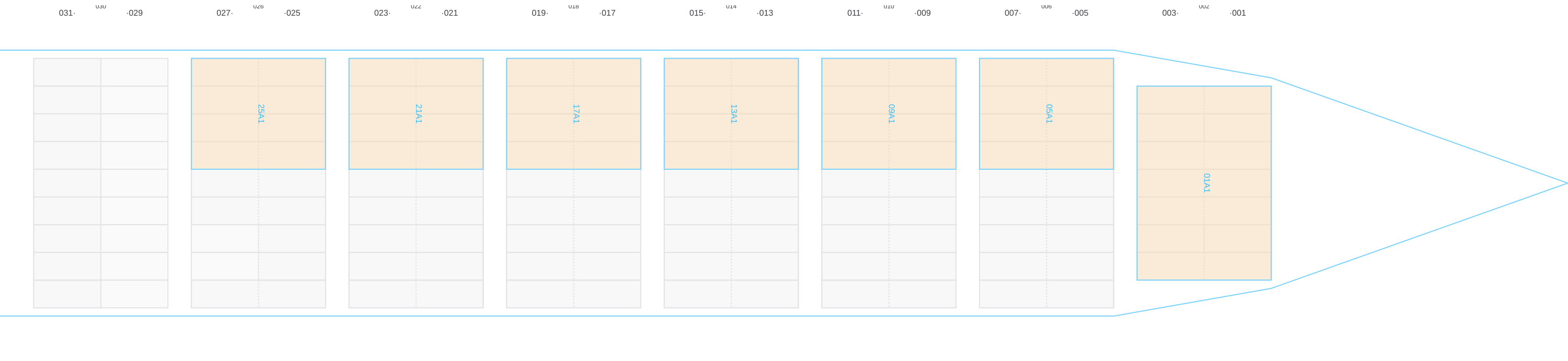

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

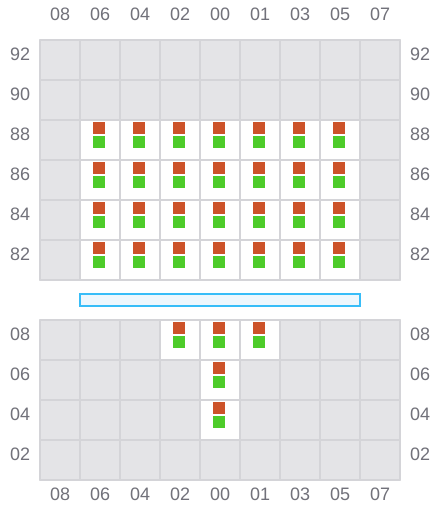

001 (002)
- →

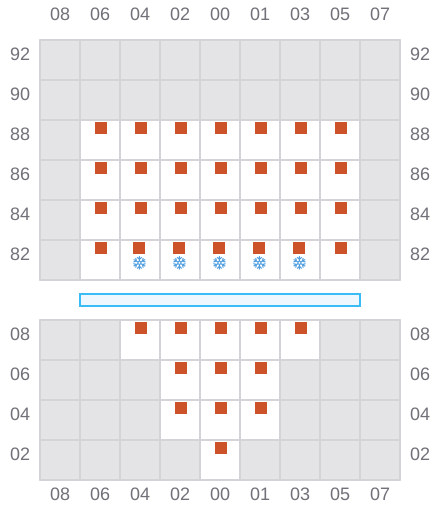

003
- ←
- → / ?

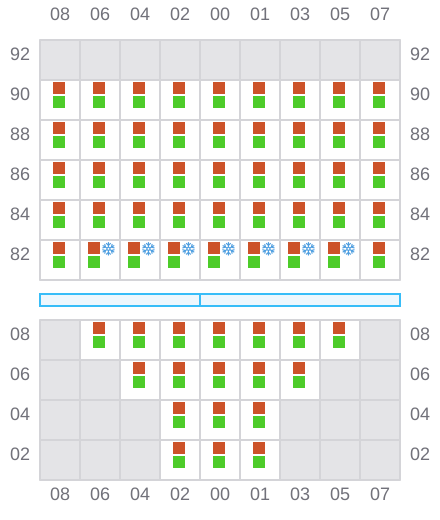

005 (006)
- →
- ← / ?

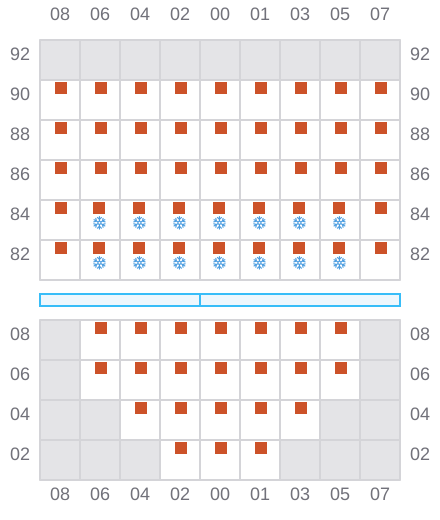

007
- ←
- → / ?
009 (010)
- →
- ← / ?
011
- ←
- → / ?

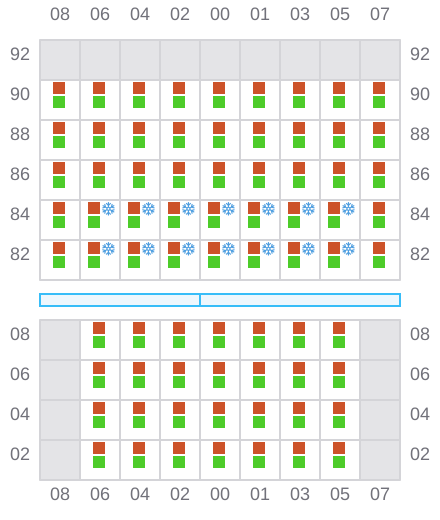

013 (014)
- →
- ← / ?
015
- ←
- → / ?

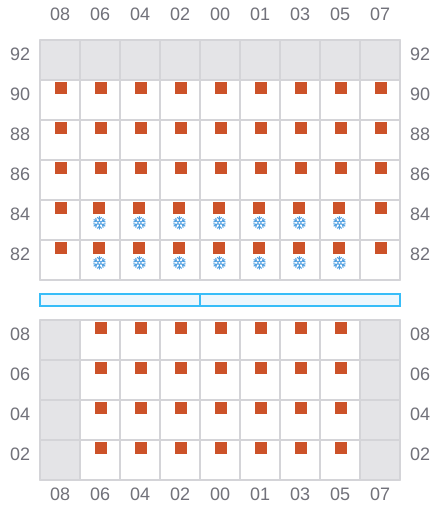

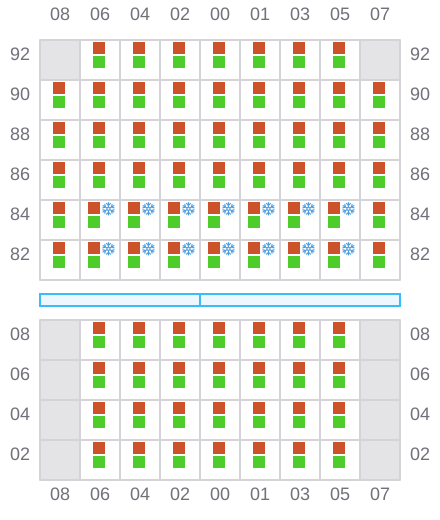

017 (018)
- →
- ← / ?

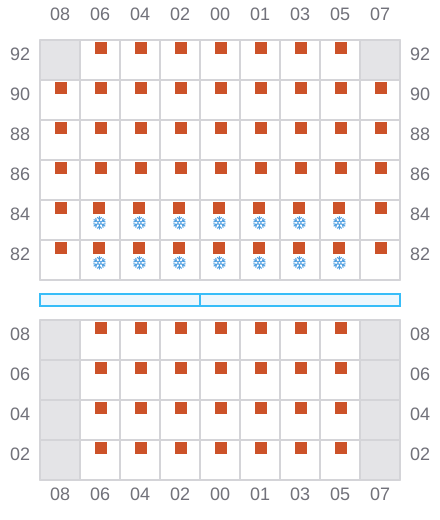

019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?
025 (026)
- →
- ← / ?

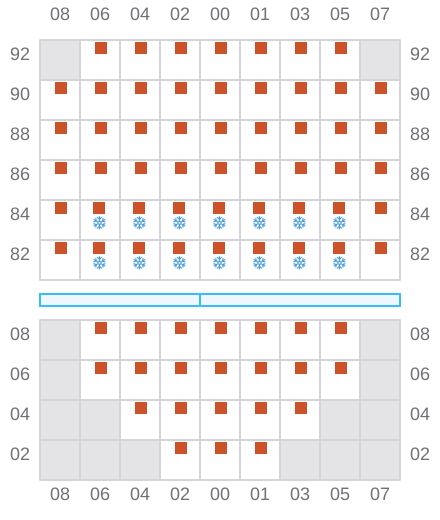

027
- ←
- → / ?

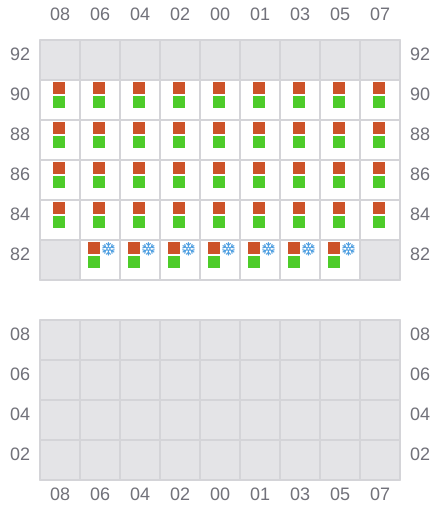

029 (030)
- → / ?
- ← / ?

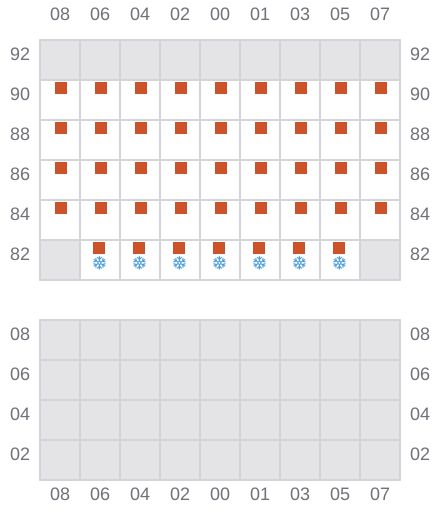

031
- ← / ?
- → / ?
