WHUTTHI BHUM
9308405 | 9V7222 | 9308405 by ********* Last update: Tue Apr 30 2024
General Info
Ship Name:WHUTTHI BHUM
IMO Code:9308405
Call Sign:9V7222
Line Operator:9308405
Class Name for Sister Ships:COSCO DAMMAM
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):209.62
LOA (Length Overall):221.69
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,752
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

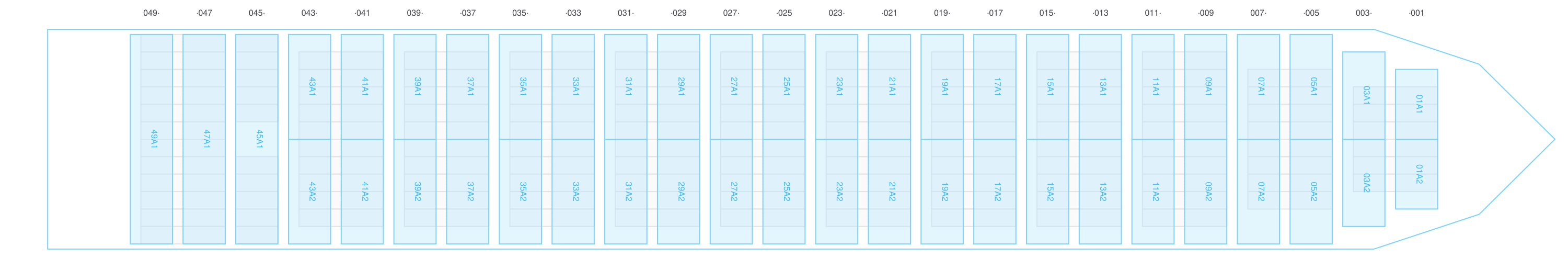

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

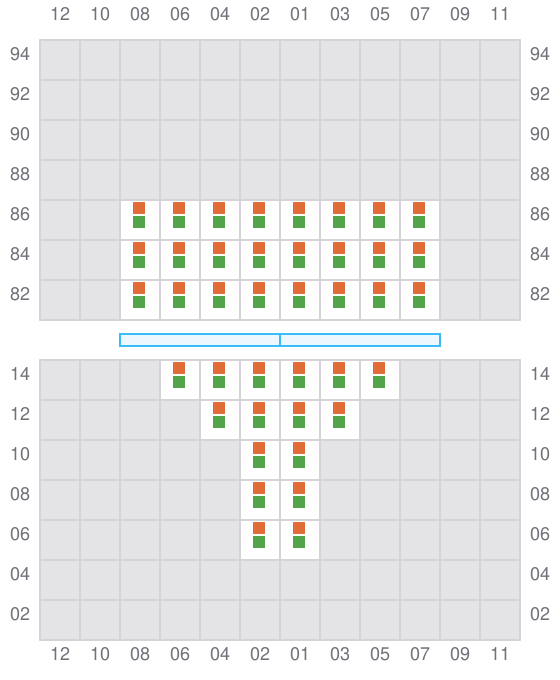

001 (002)
- →

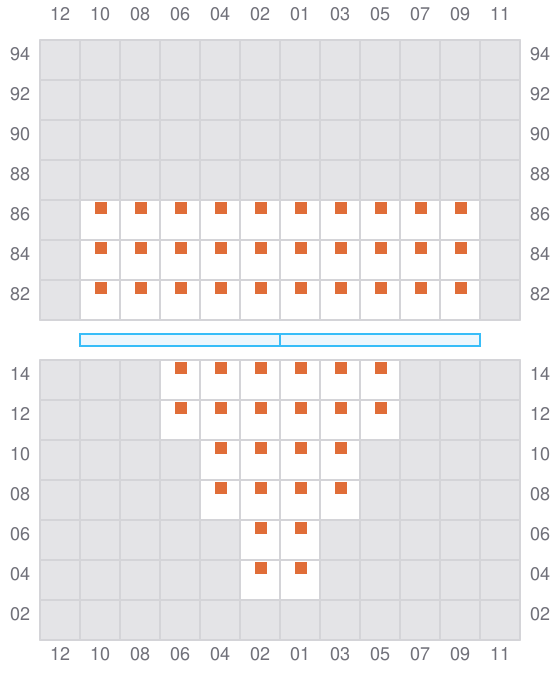

003
- ←

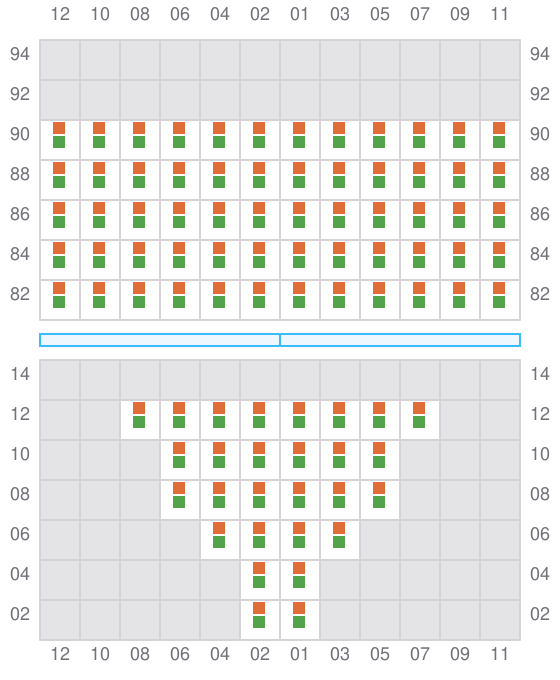

005 (006)
- →

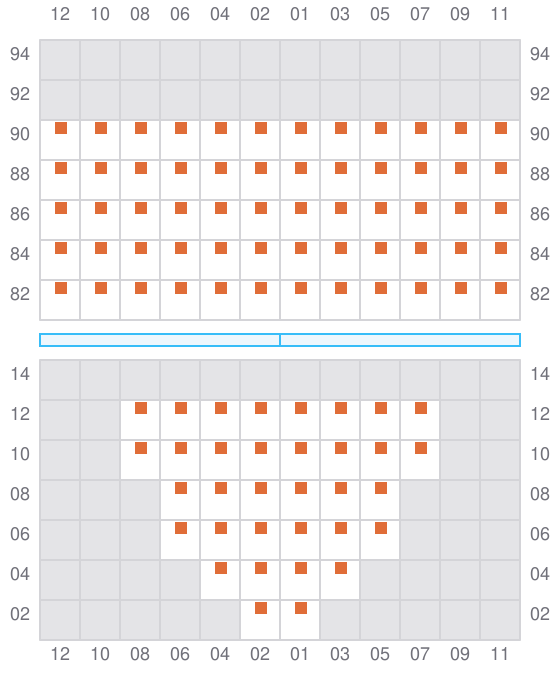

007
- ←

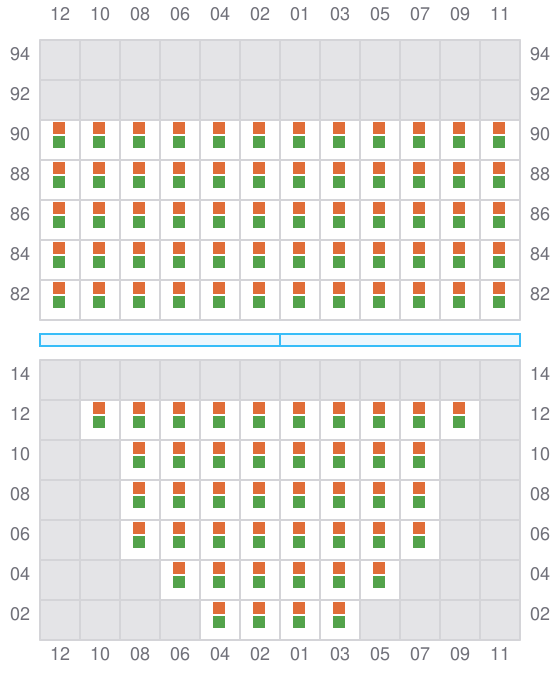

009 (010)
- →

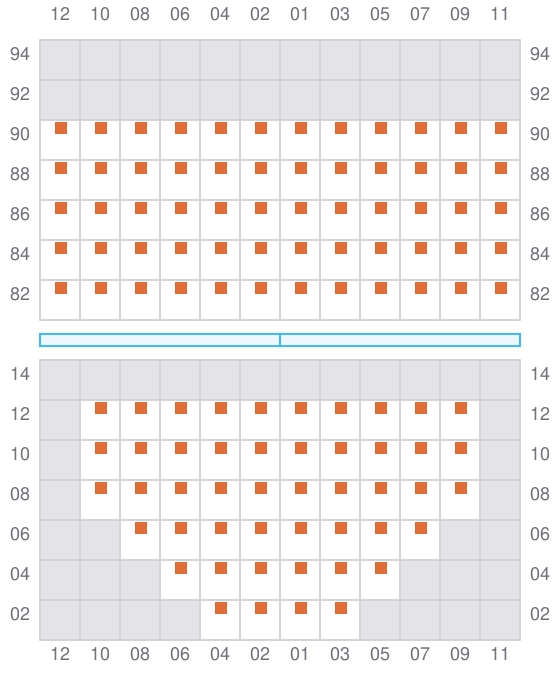

011
- ←

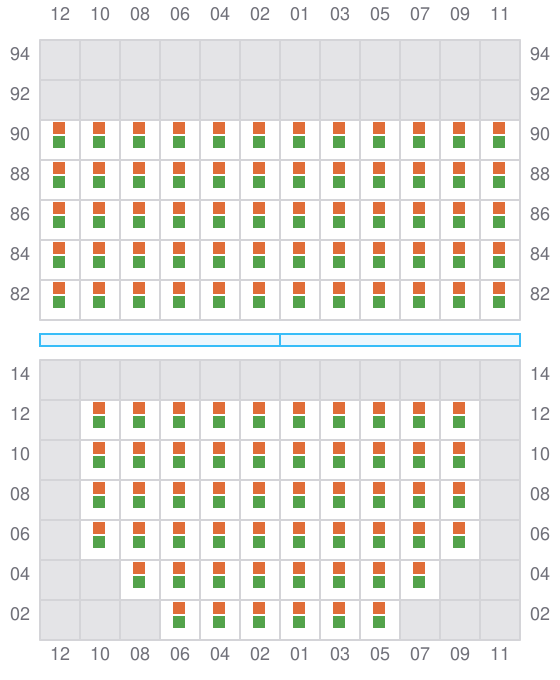

013 (014)
- →

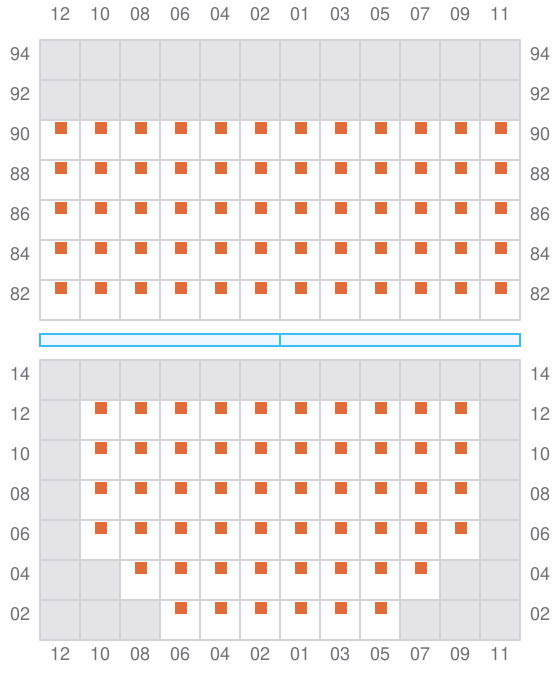

015
- ←

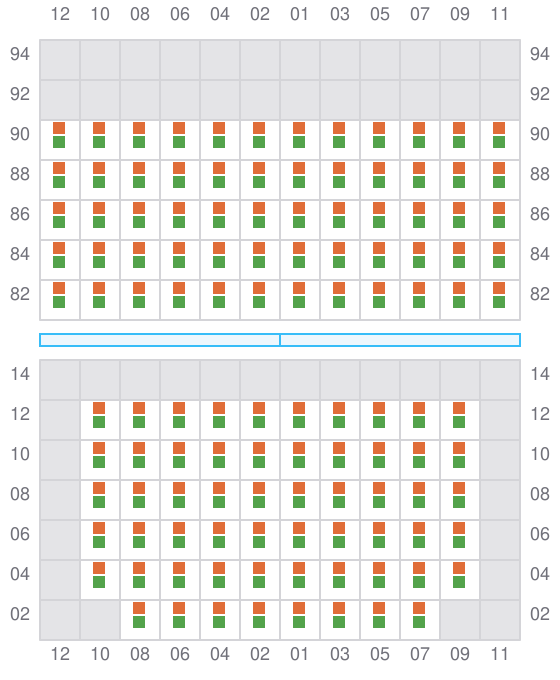

017 (018)
- →

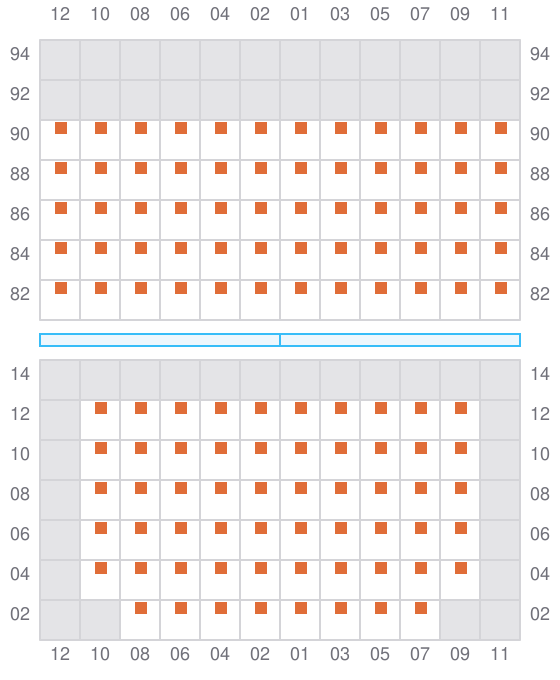

019
- ←
021 (022)
- →
023
- ←
025 (026)
- →
027
- ←
029 (030)
- →
031
- ←

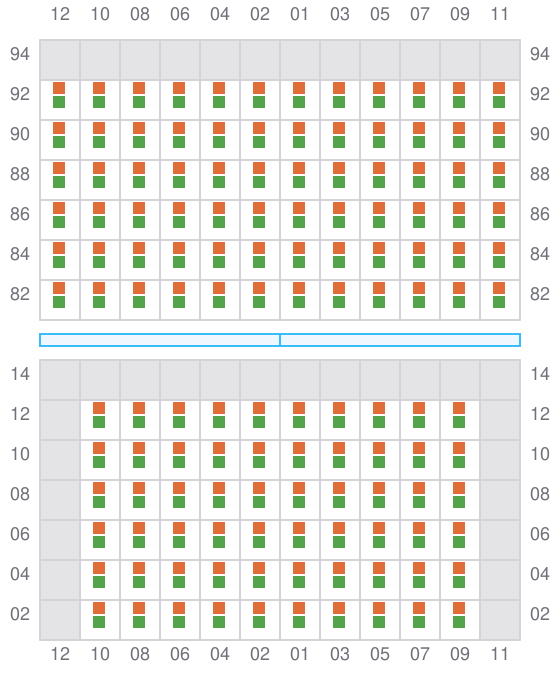

033 (034)
- →

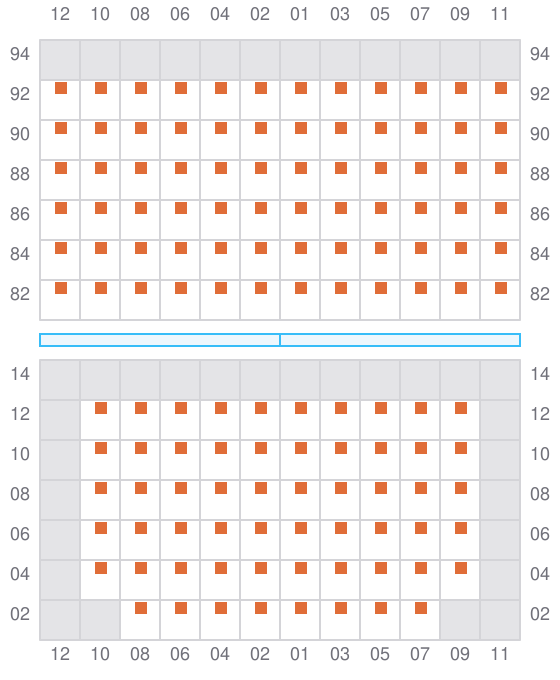

035
- ←

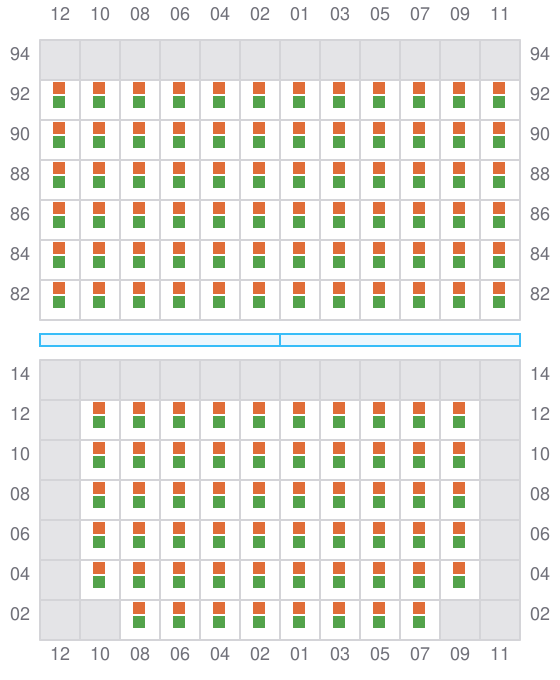

037 (038)
- →
039
- ←

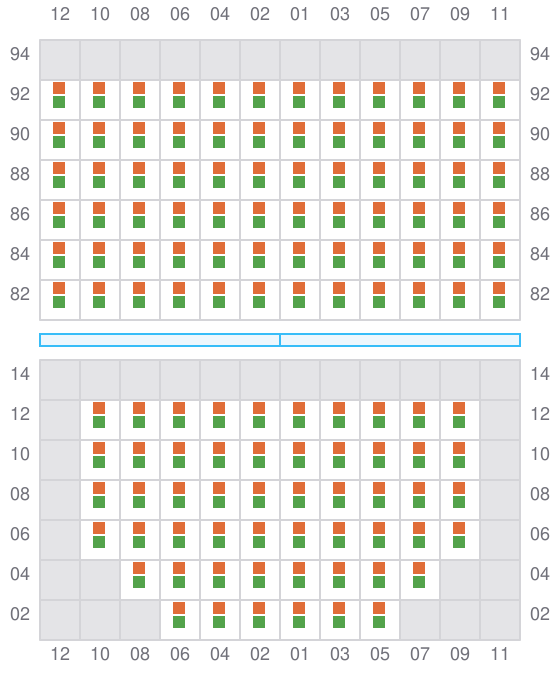

041 (042)
- →

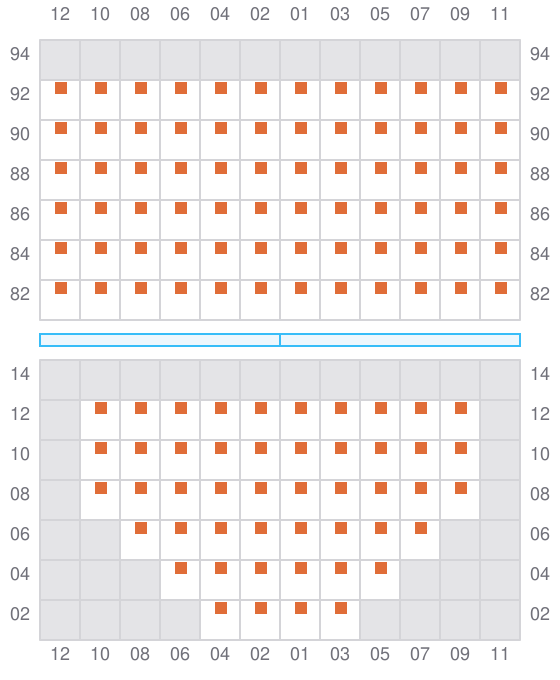

043
- ←

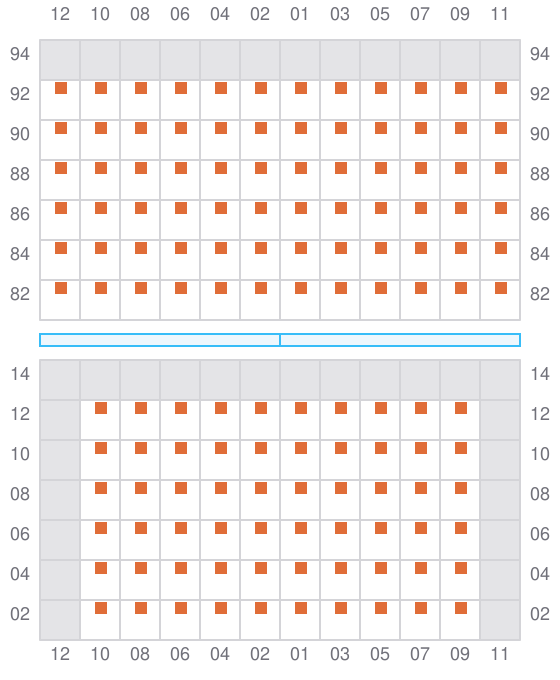

045
- ← / ?

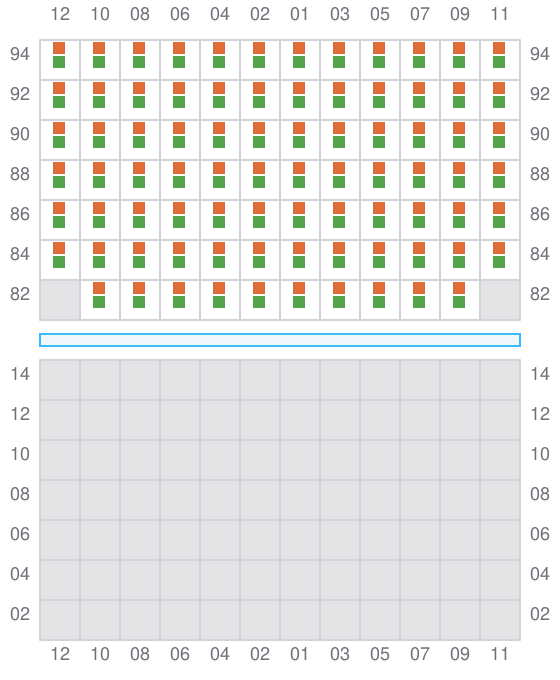

047 (048)
- → / ?

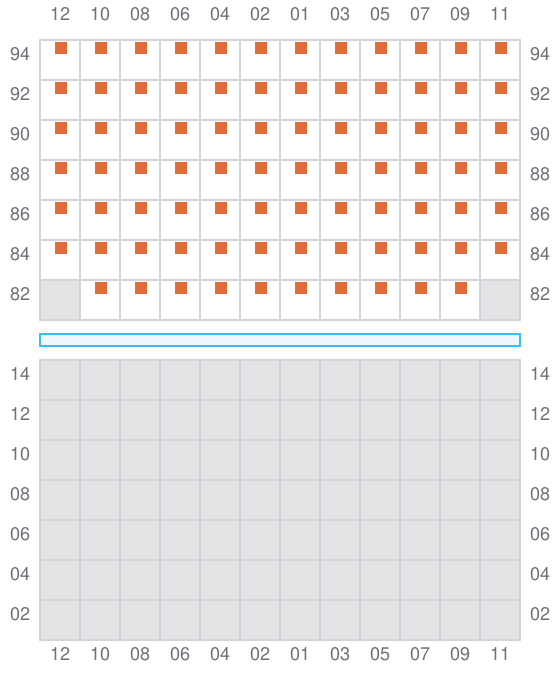

049
- ← / ?
