WIDE ALPHA
9694529 | V7FN5 | 9694529 by ********* Last update: Thu Jun 13 2024

General Info

Ship Name:WIDE ALPHA
IMO Code:9694529
Call Sign:V7FN5
Line Operator:9694529
Class Name for Sister Ships:MSL
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,466

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of WIDE ALPHA

Hatch-Covers View

Deck view of WIDE ALPHA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

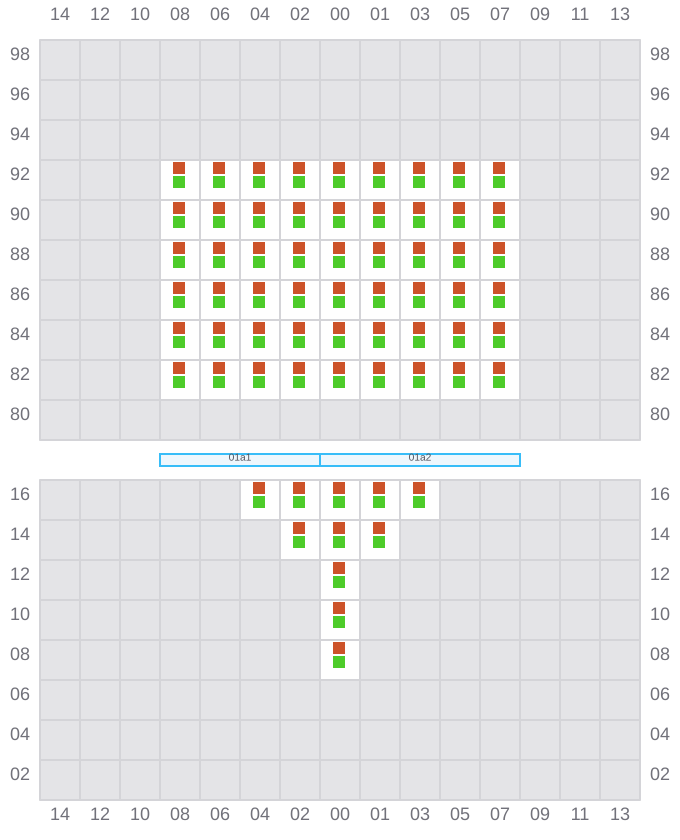

Bay 001 view and slots of WIDE ALPHA

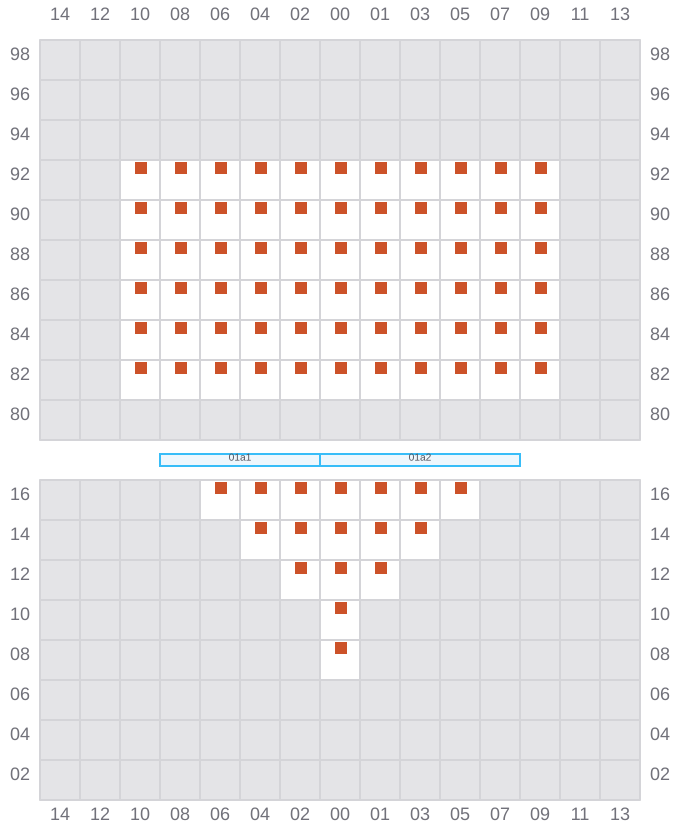

003

  • ←
Bay 003 view and slots of WIDE ALPHA

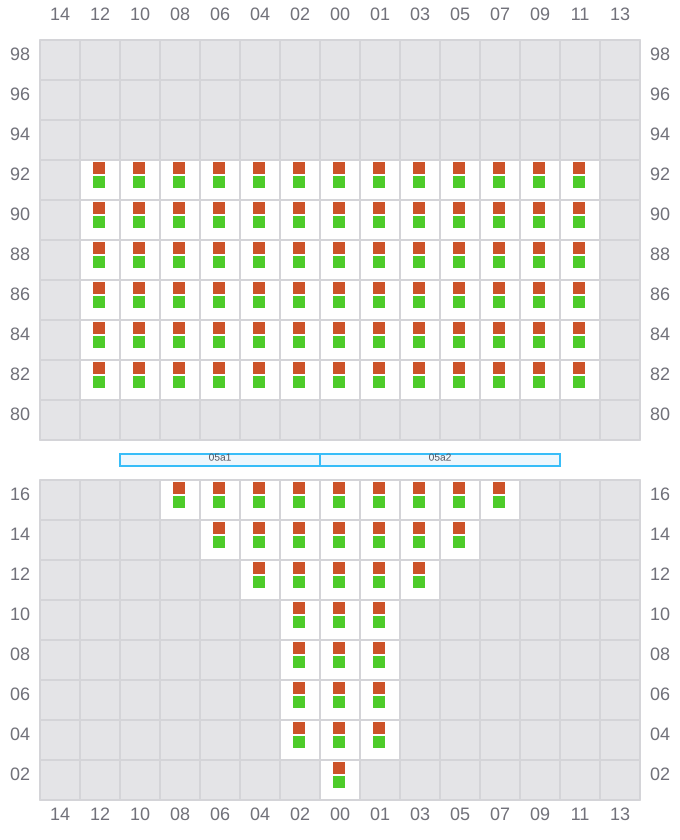

005 (006)

  • →
Bay 005 view and slots of WIDE ALPHA

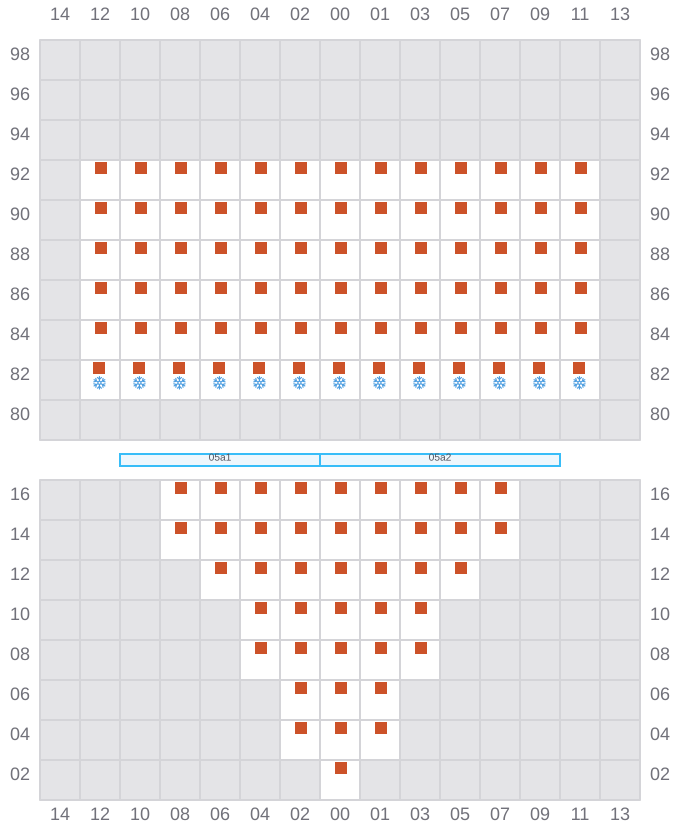

007

  • ←
  • → / ?
Bay 007 view and slots of WIDE ALPHA

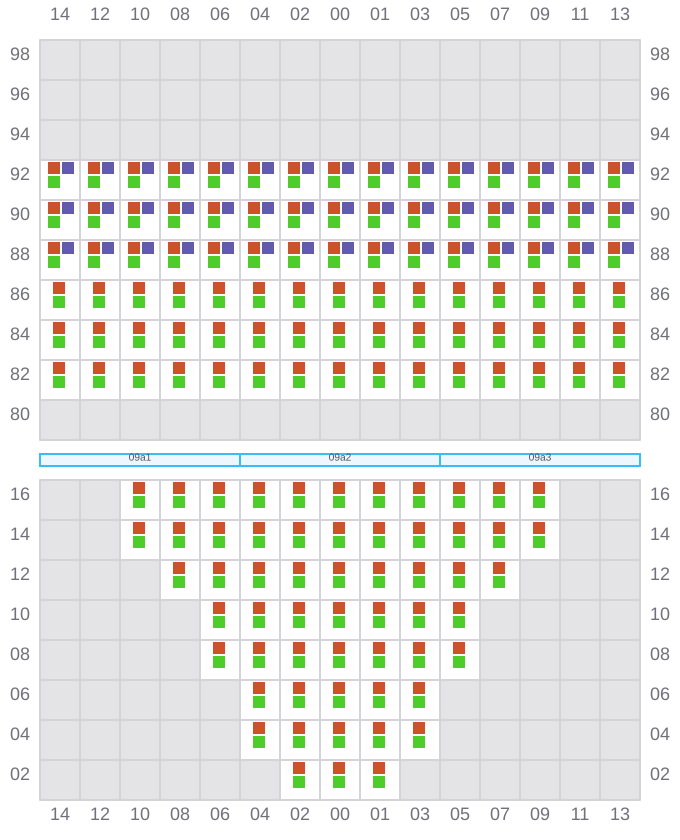

009 (010)

  • →
Bay 009 view and slots of WIDE ALPHA

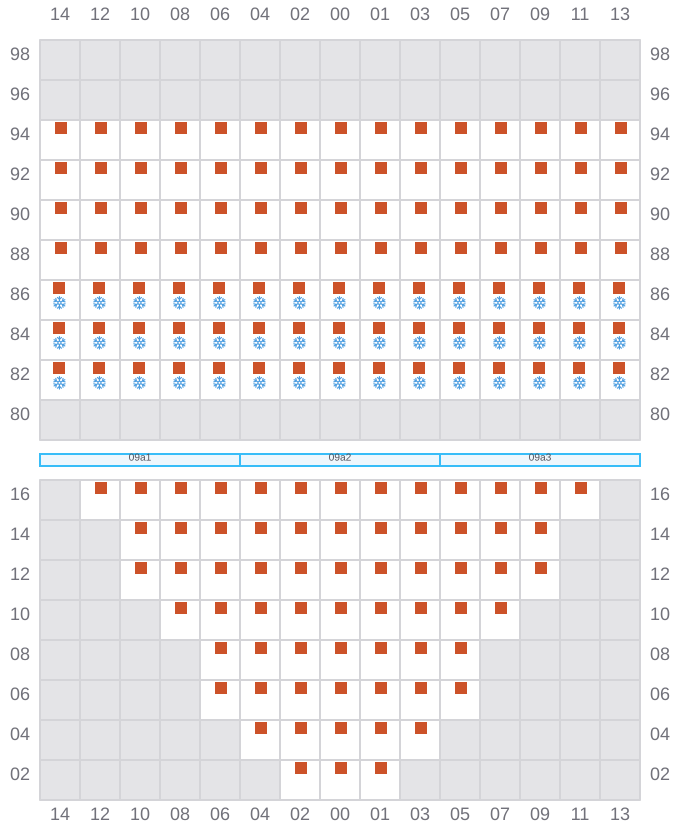

011

  • ←
  • → / ?
Bay 011 view and slots of WIDE ALPHA

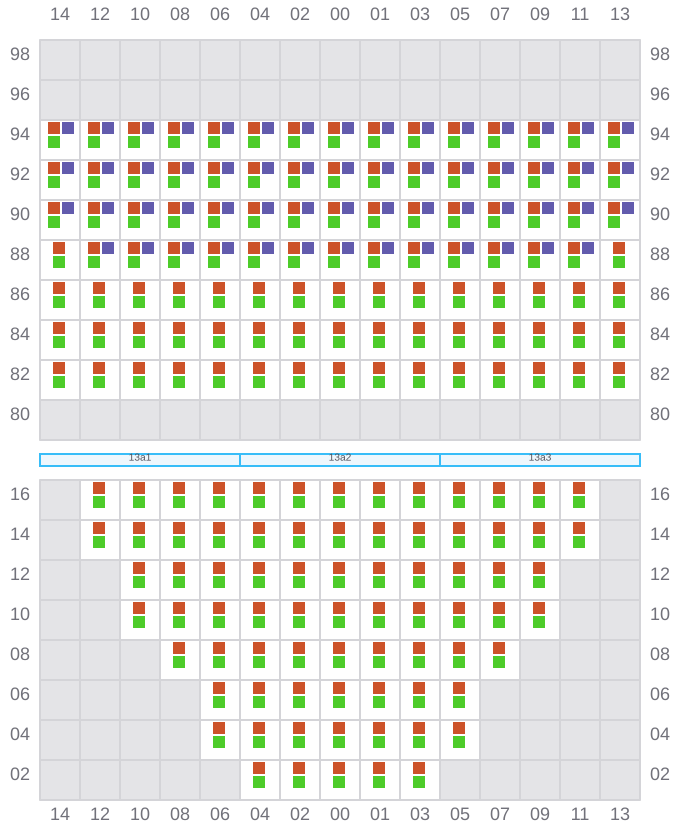

013 (014)

  • →
Bay 013 view and slots of WIDE ALPHA

015

  • ←
  • → / ?
Bay 015 view and slots of WIDE ALPHA

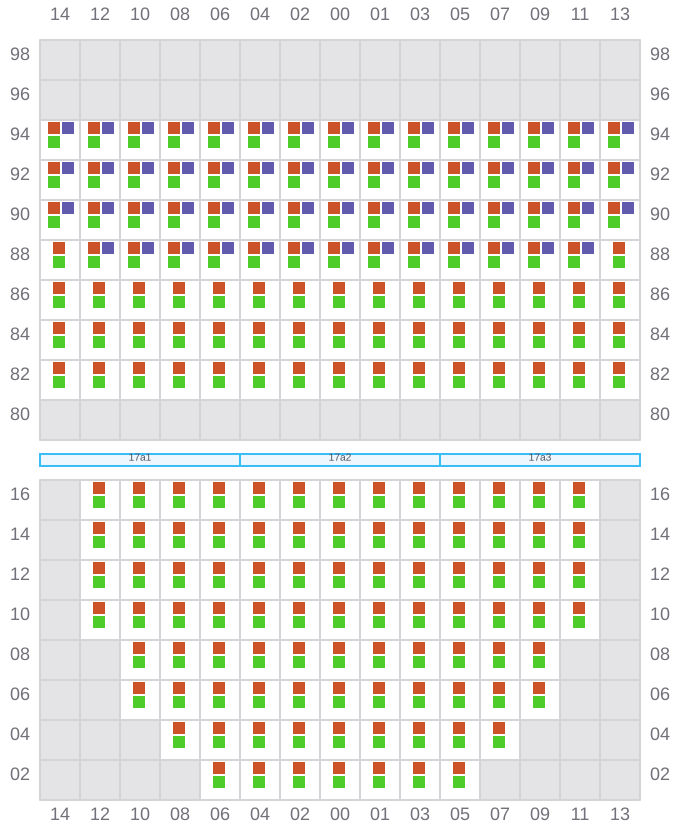

017 (018)

  • →
Bay 017 view and slots of WIDE ALPHA

019

  • ←
  • → / ?

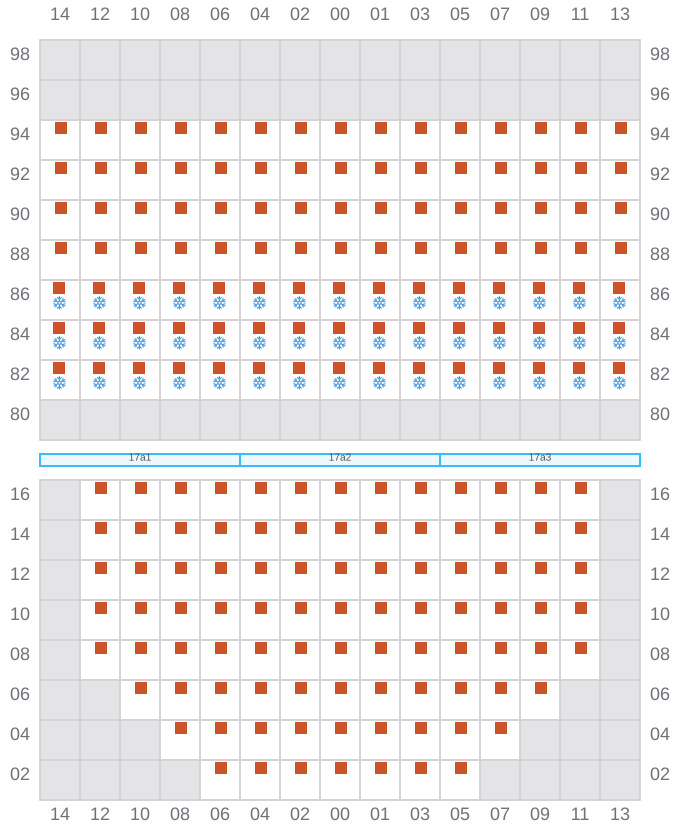

Bay 019 view and slots of WIDE ALPHA

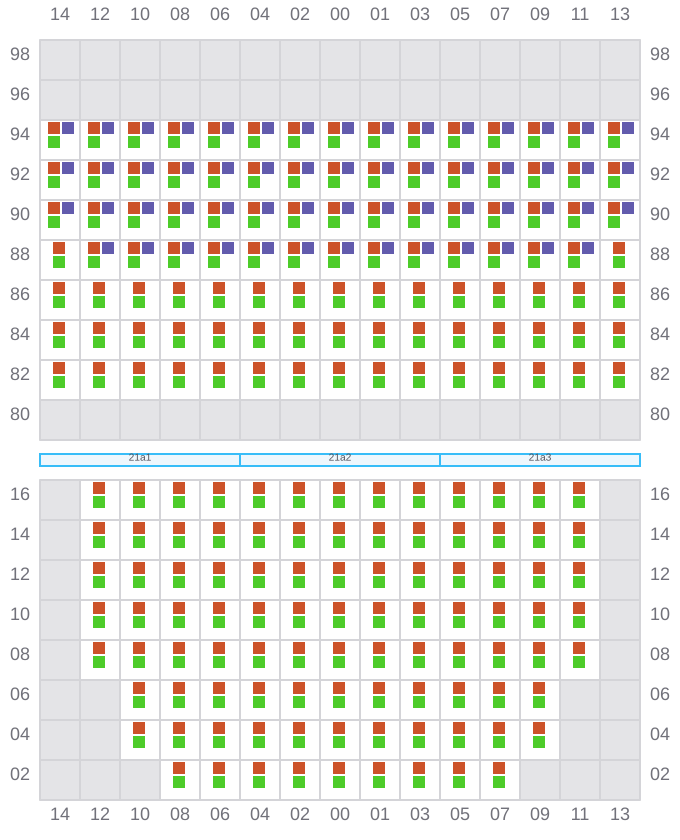

021 (022)

  • →
Bay 021 view and slots of WIDE ALPHA

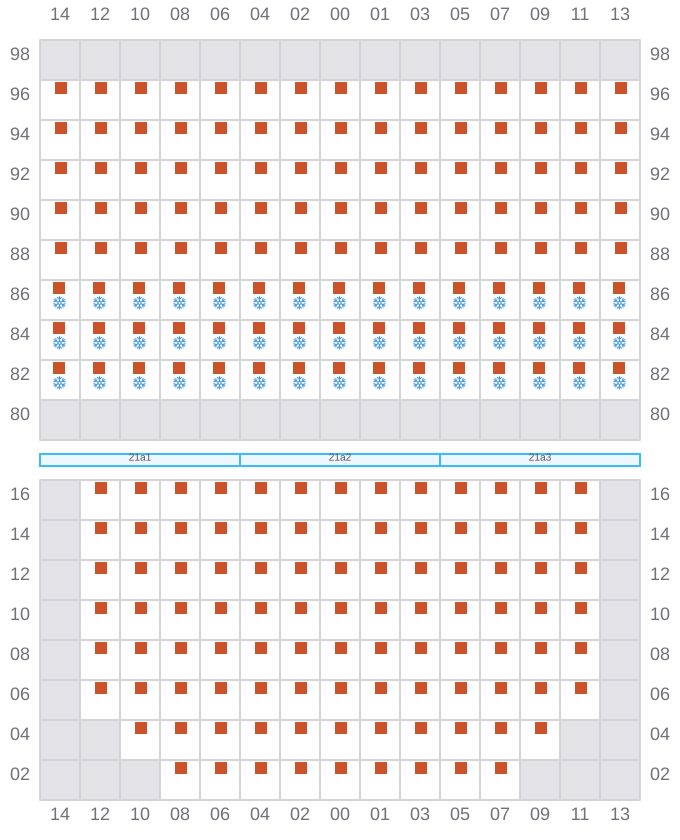

023

  • ←
  • → / ?
Bay 023 view and slots of WIDE ALPHA

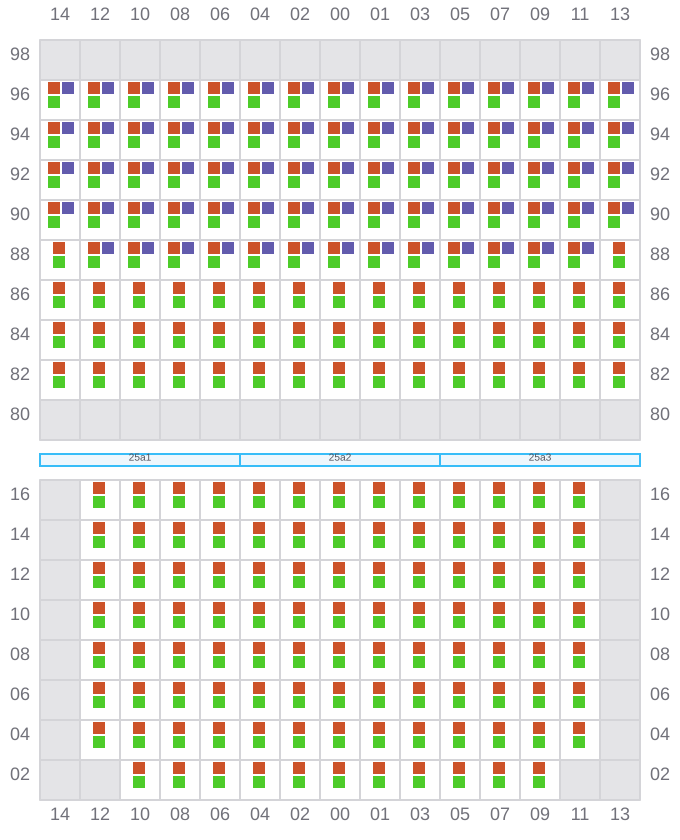

025 (026)

  • →
Bay 025 view and slots of WIDE ALPHA

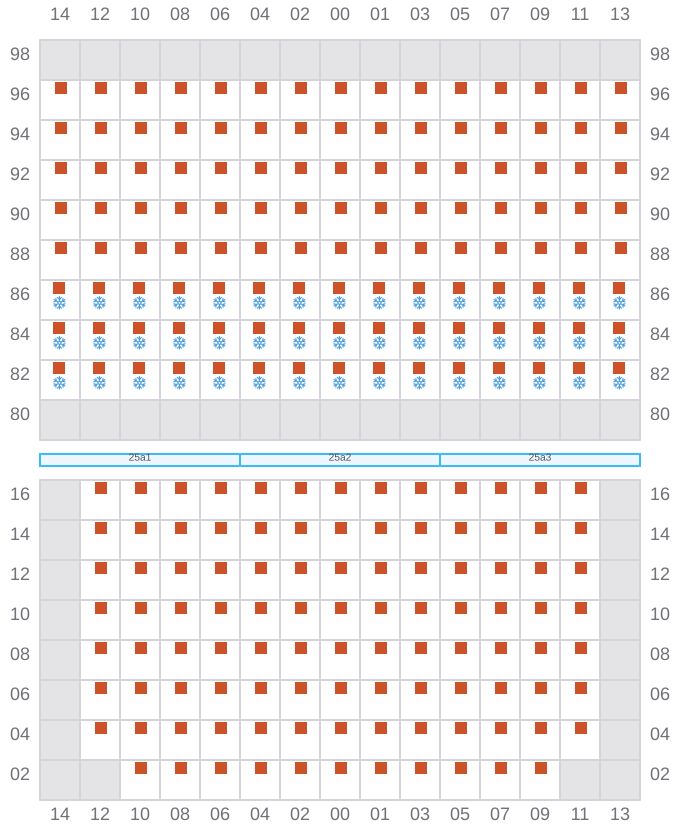

027

  • ←
  • → / ?
Bay 027 view and slots of WIDE ALPHA

029 (030)

  • →
Bay 029 view and slots of WIDE ALPHA

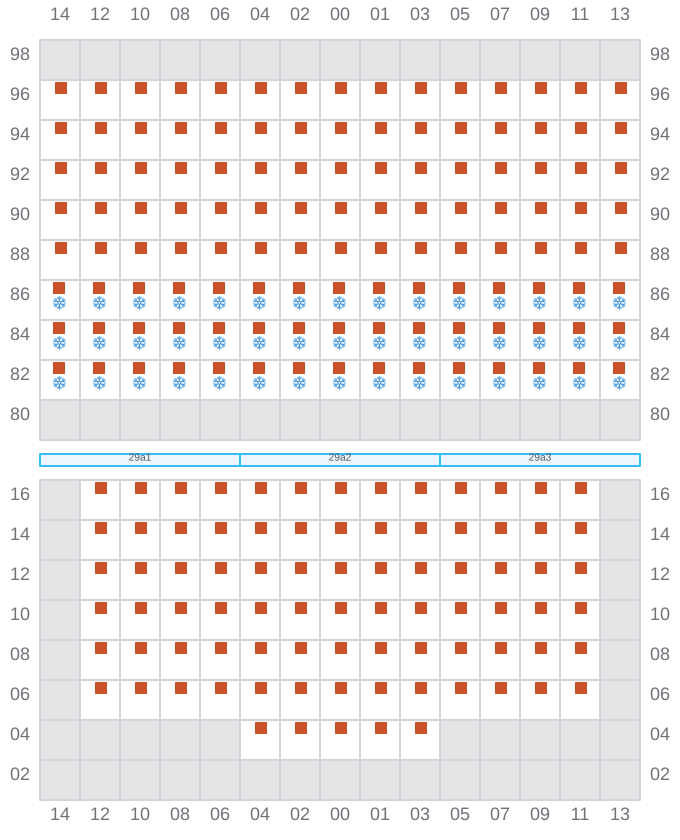

031

  • ←
  • → / ?

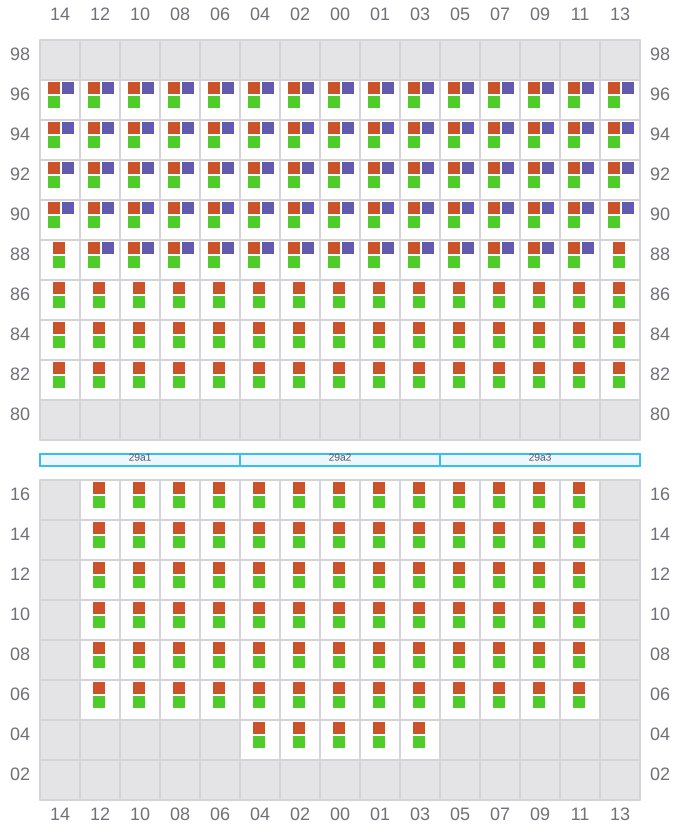

Bay 031 view and slots of WIDE ALPHA

033 (034)

  • →
Bay 033 view and slots of WIDE ALPHA

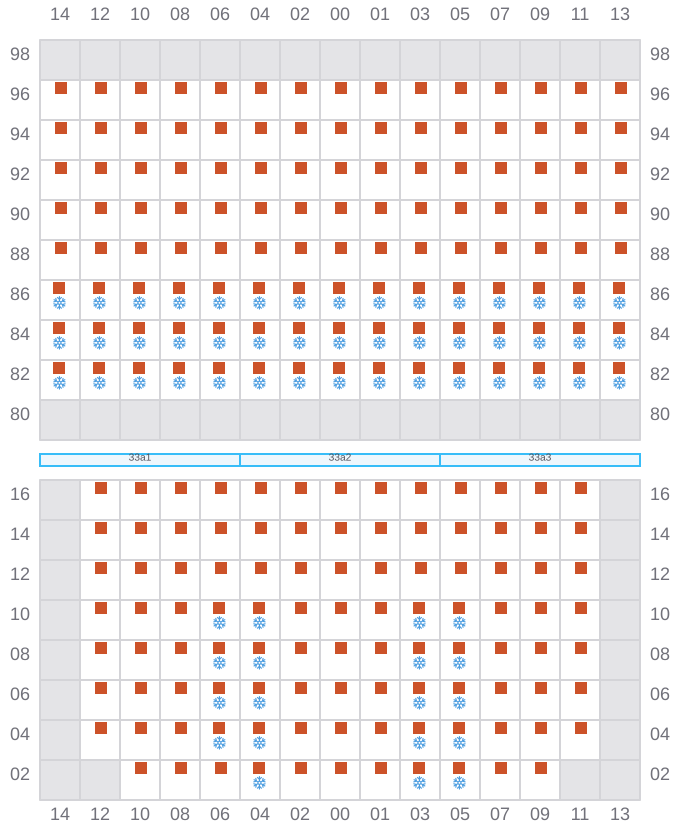

035

  • ←
  • →
Bay 035 view and slots of WIDE ALPHA

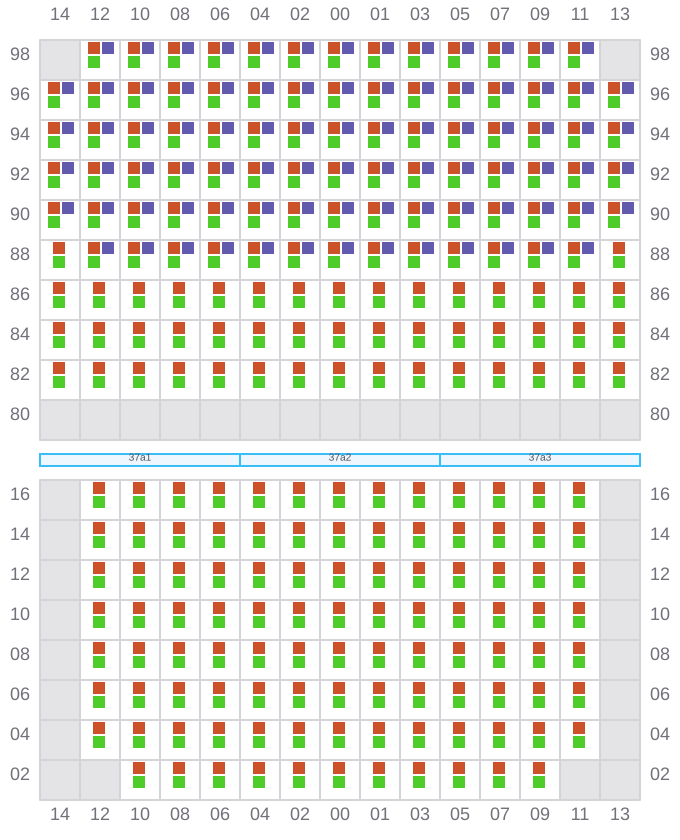

037 (038)

  • →
Bay 037 view and slots of WIDE ALPHA

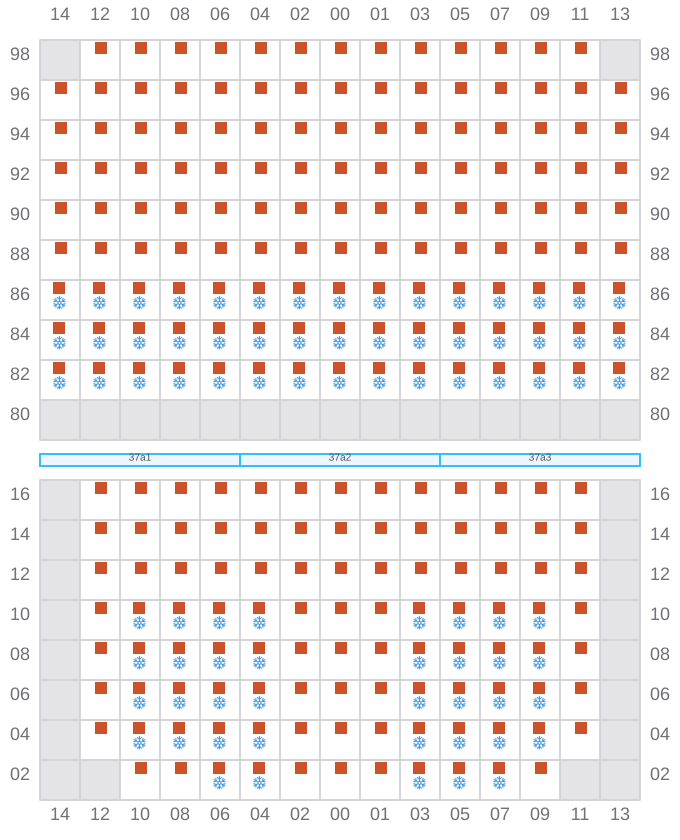

039

  • ←
  • →
Bay 039 view and slots of WIDE ALPHA

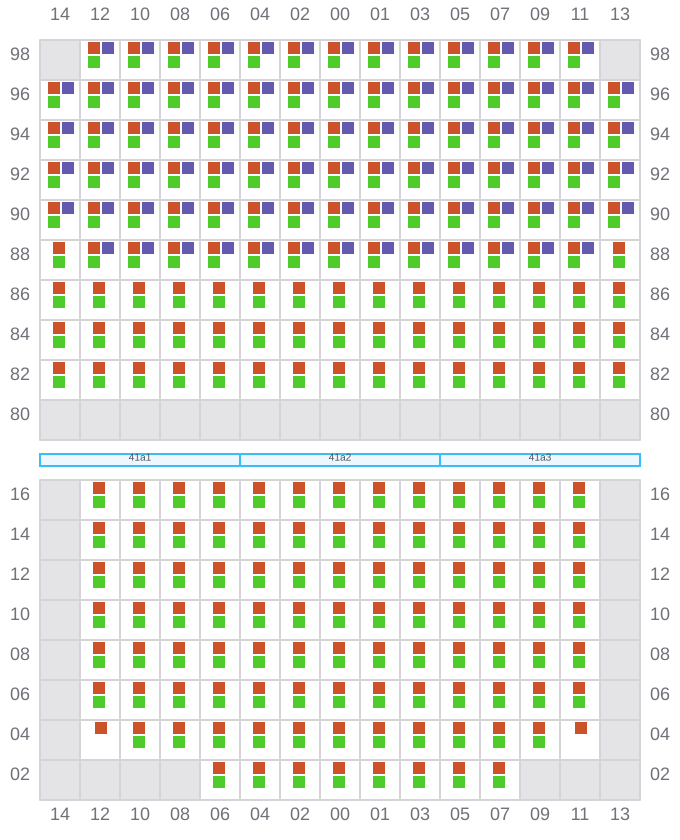

041 (042)

  • →
Bay 041 view and slots of WIDE ALPHA

043

  • ←
  • → / ?

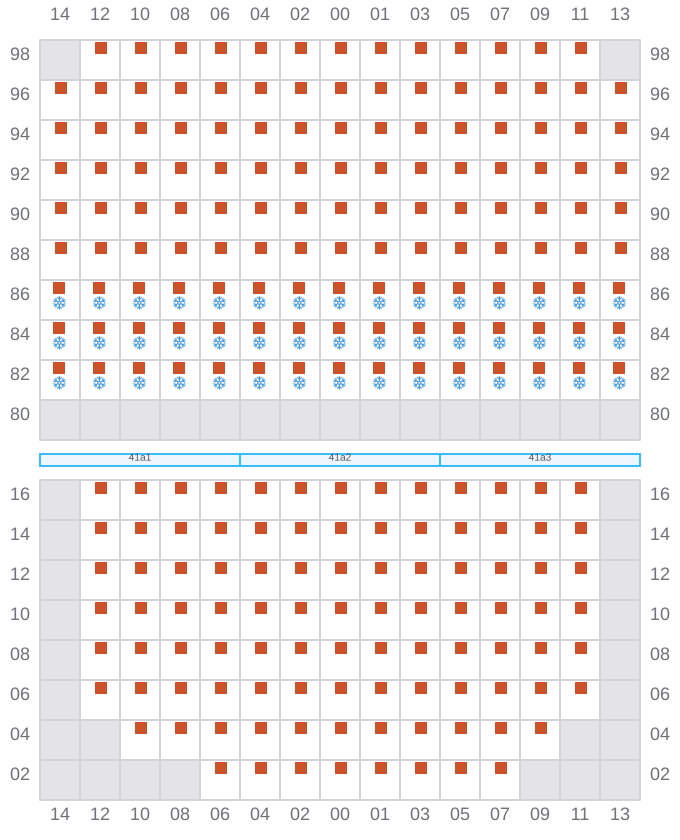

Bay 043 view and slots of WIDE ALPHA

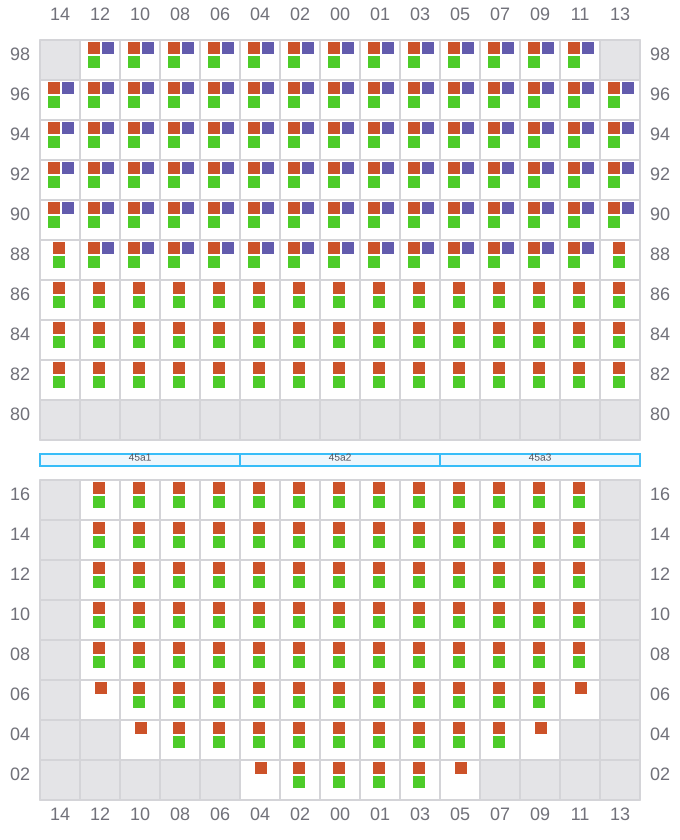

045 (046)

  • →
Bay 045 view and slots of WIDE ALPHA

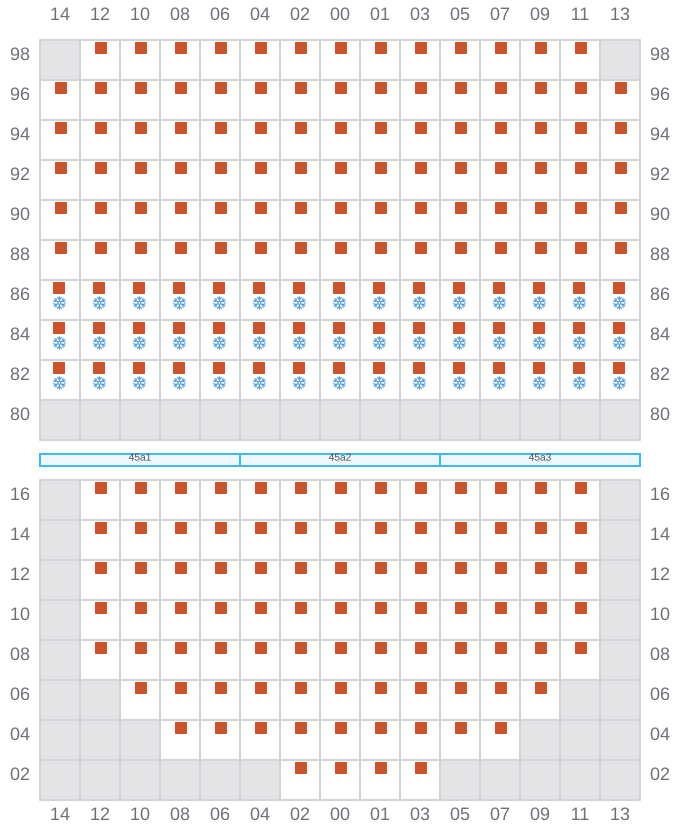

047

  • ←
  • → / ?
Bay 047 view and slots of WIDE ALPHA

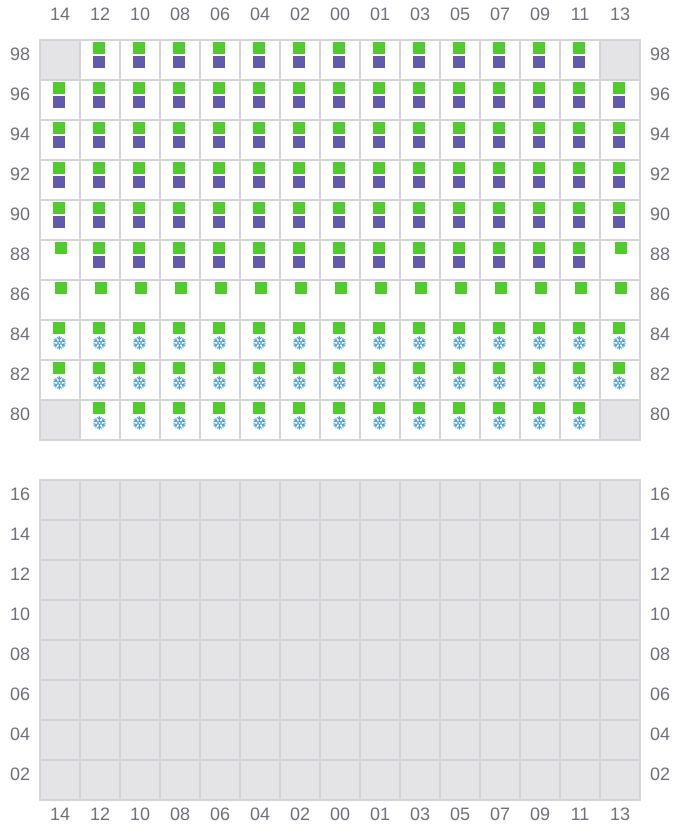

049 (050)

  • → / ?
  • ← / ?
Bay 049 view and slots of WIDE ALPHA

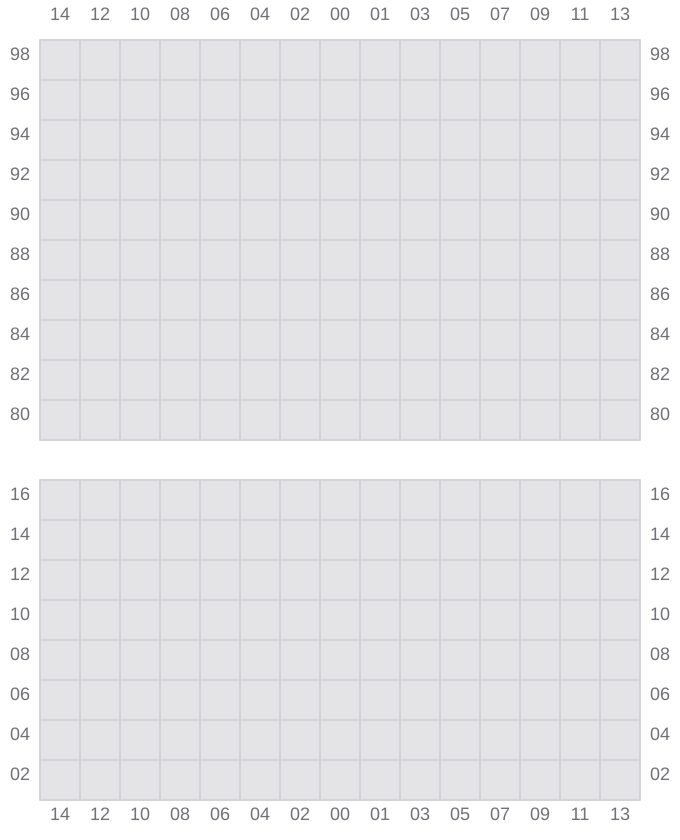

051

Bay 051 view and slots of WIDE ALPHA

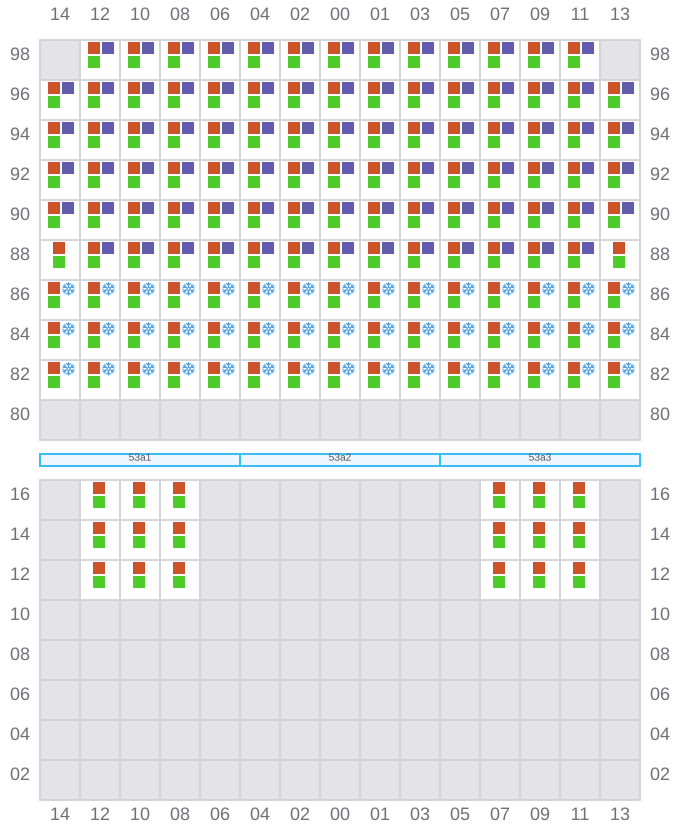

053 (054)

  • →
  • ← / ?
Bay 053 view and slots of WIDE ALPHA

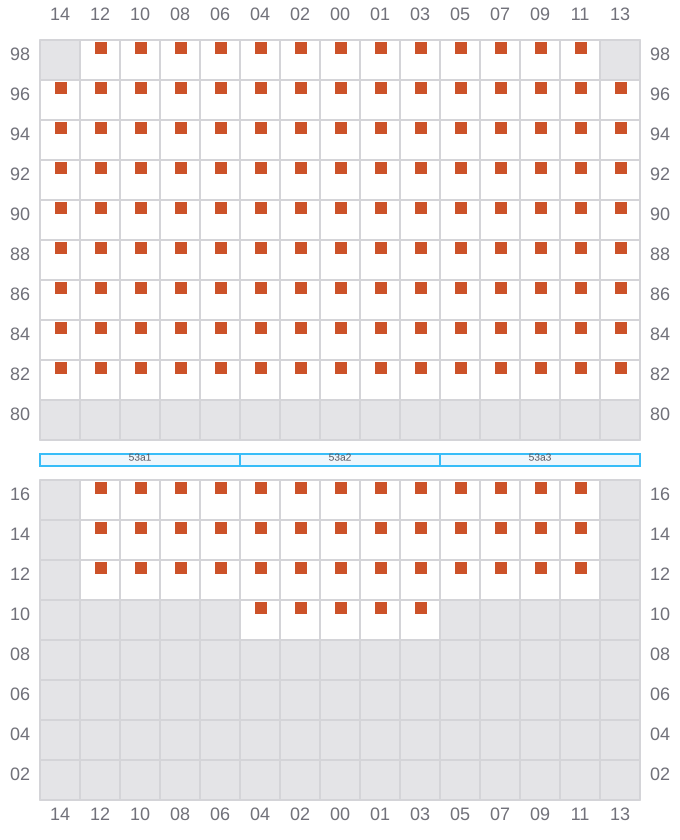

055

  • ←
Bay 055 view and slots of WIDE ALPHA

057 (058)

  • → / ?
  • ← / ?

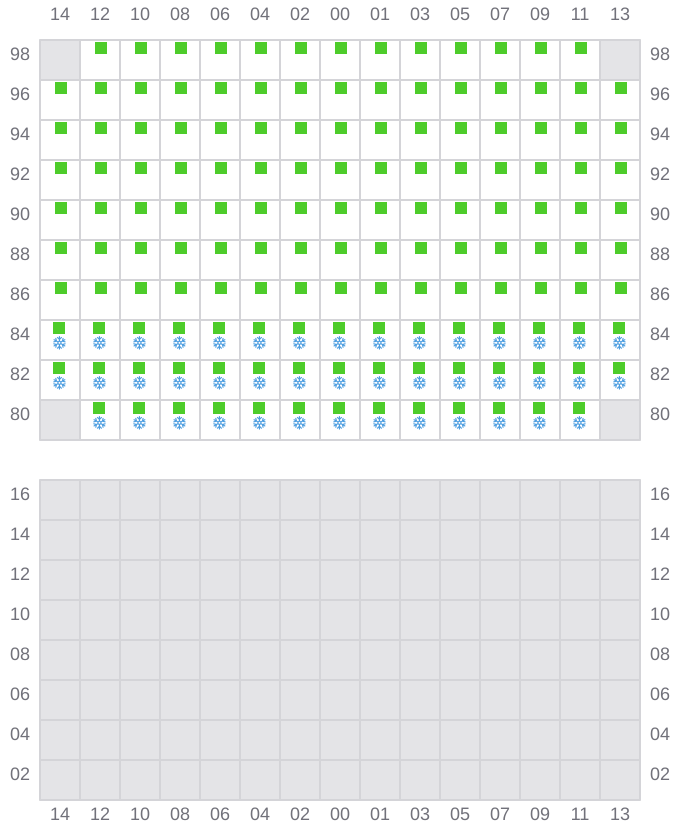

Bay 057 view and slots of WIDE ALPHA
