WIDE HOTEL
9694593 | V7GQ8 | 9694593 by ********* Last update: Mon Jun 24 2024
General Info
Ship Name:WIDE HOTEL
IMO Code:9694593
Call Sign:V7GQ8
Line Operator:9694593
Class Name for Sister Ships:MAE
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):244.00
LOA (Length Overall):255.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,466
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
Hatch-Covers View

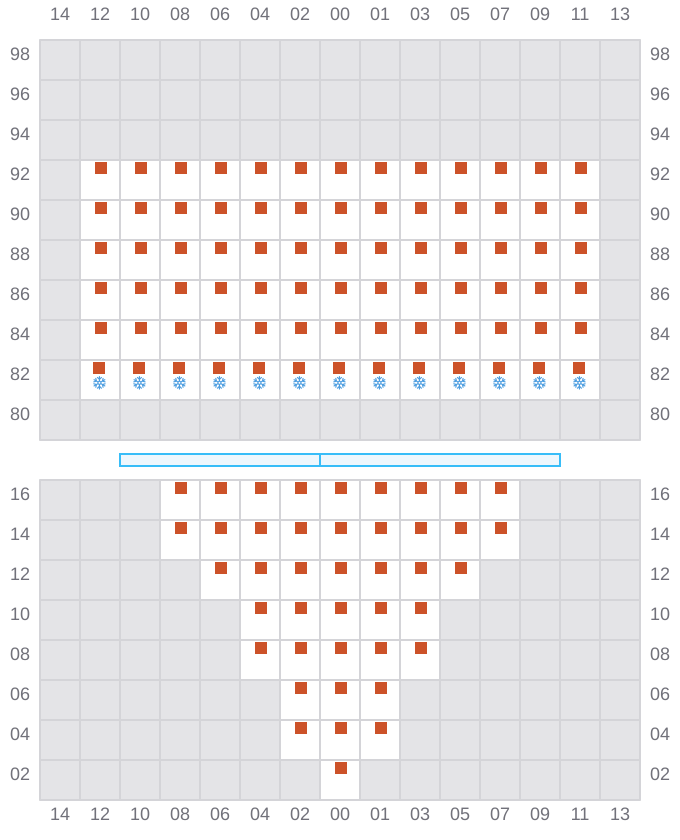

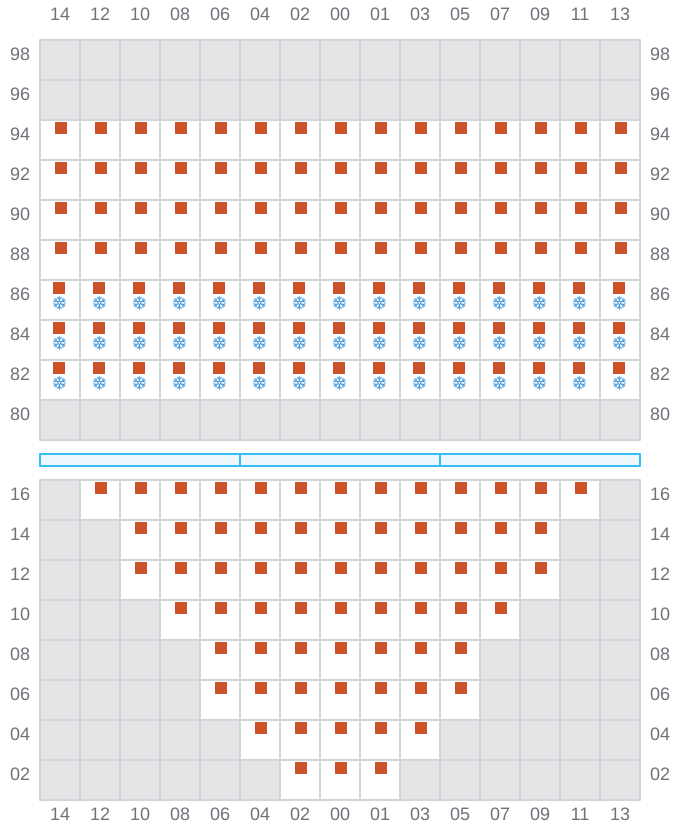

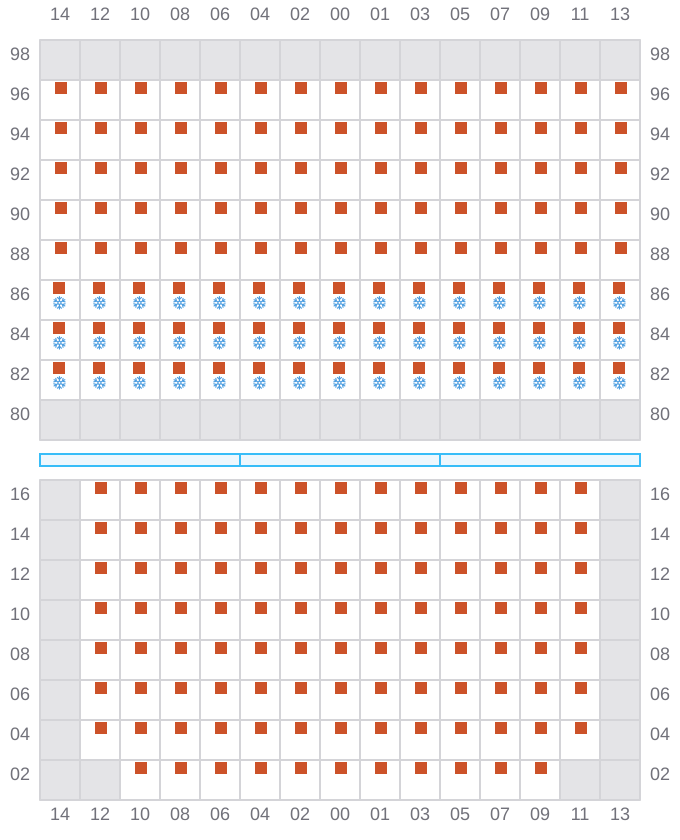

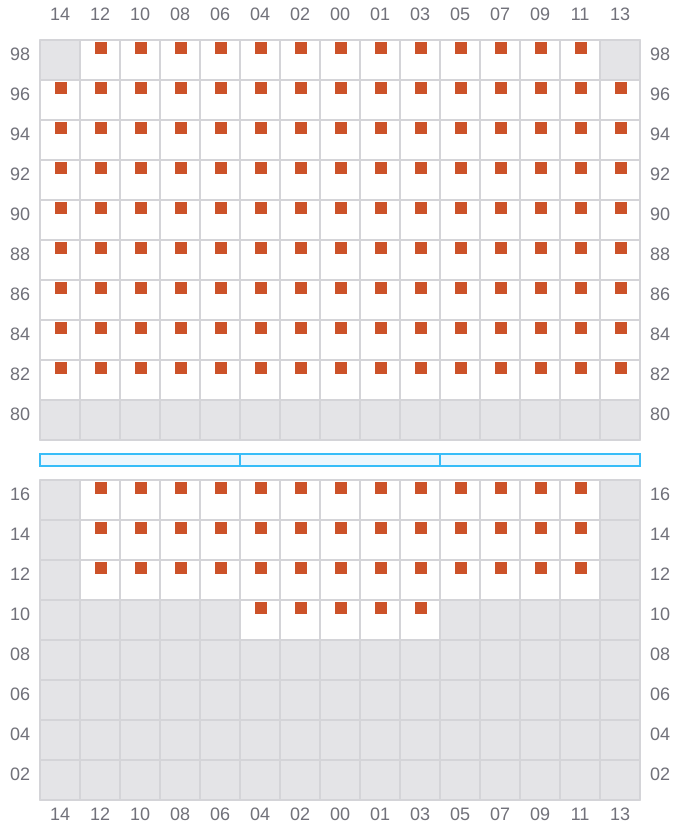

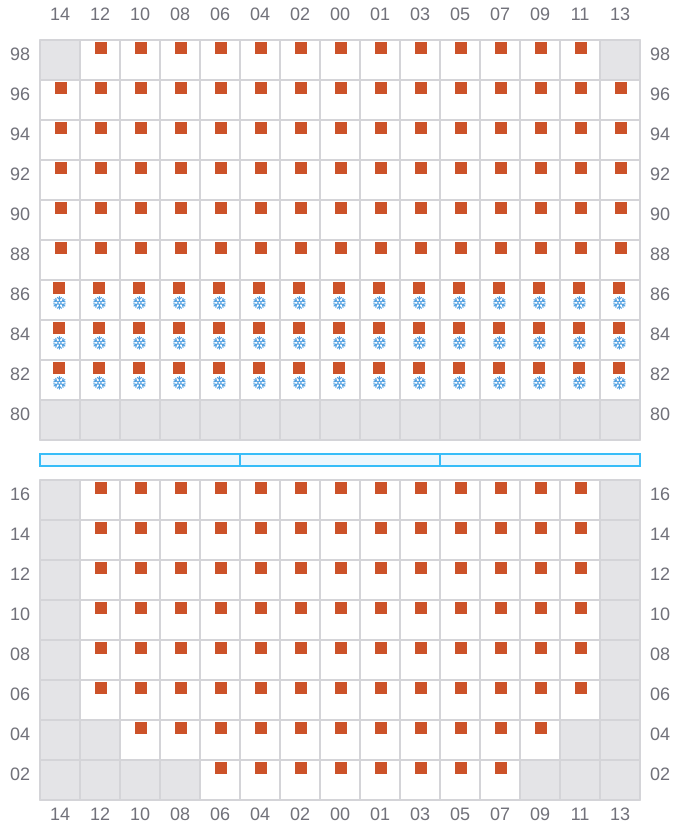

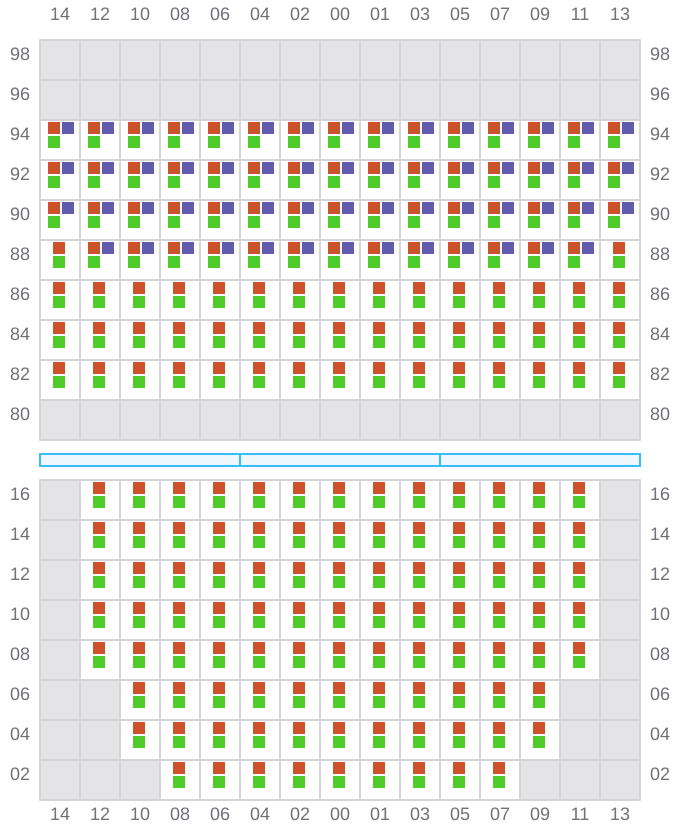

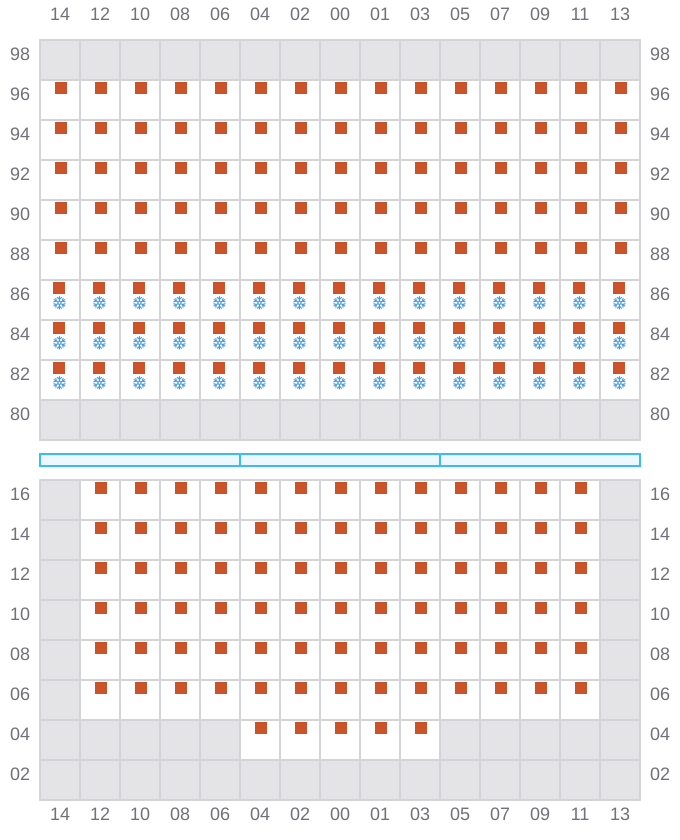

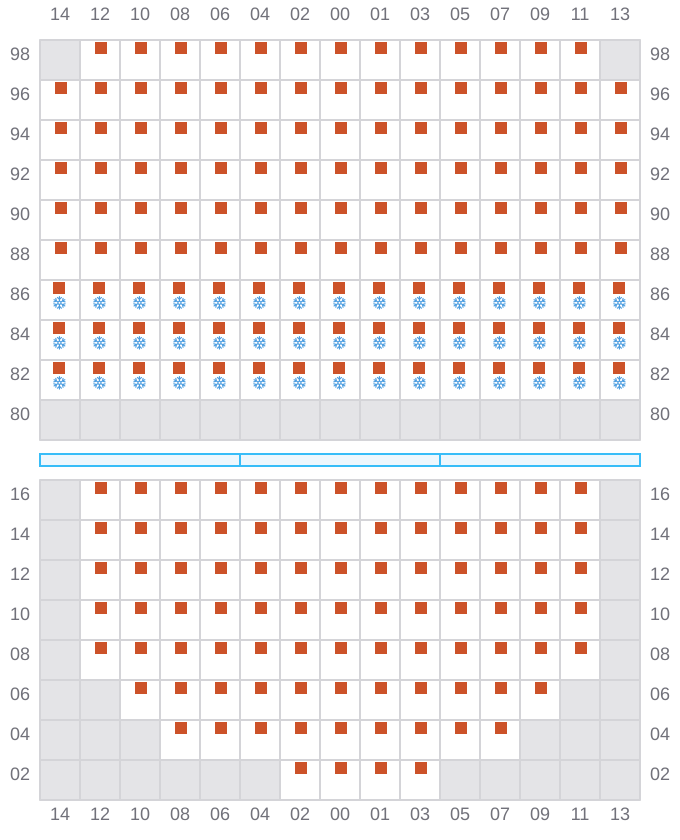

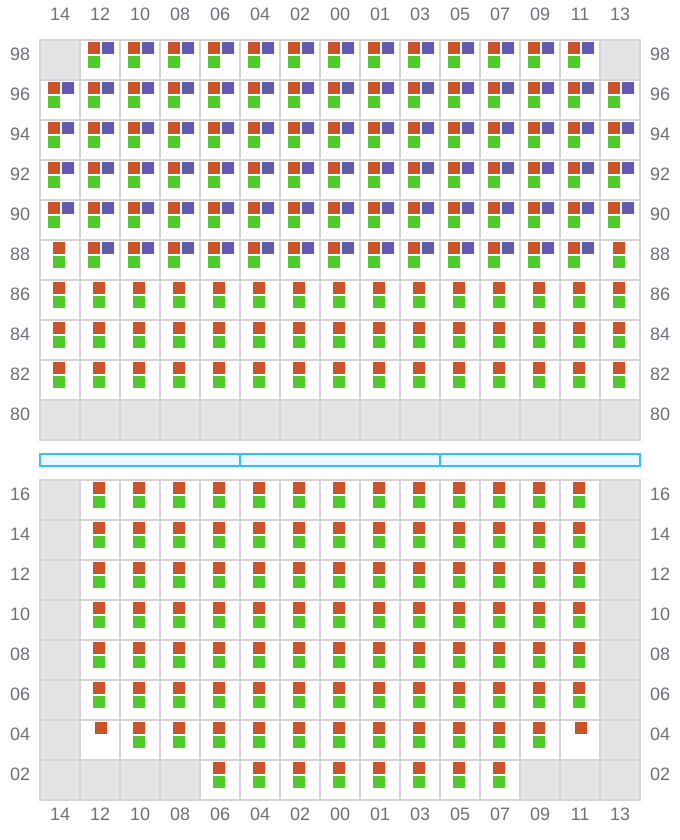

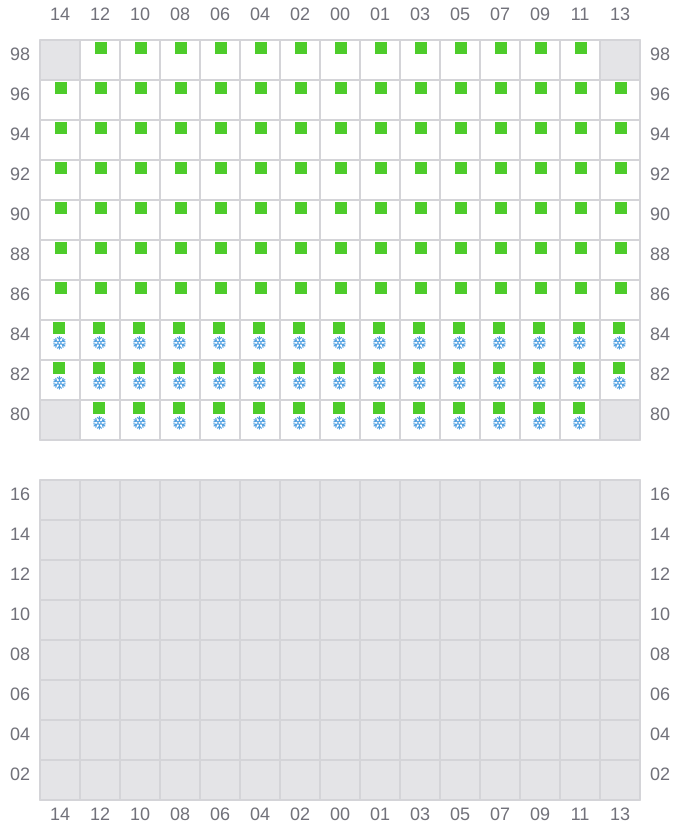

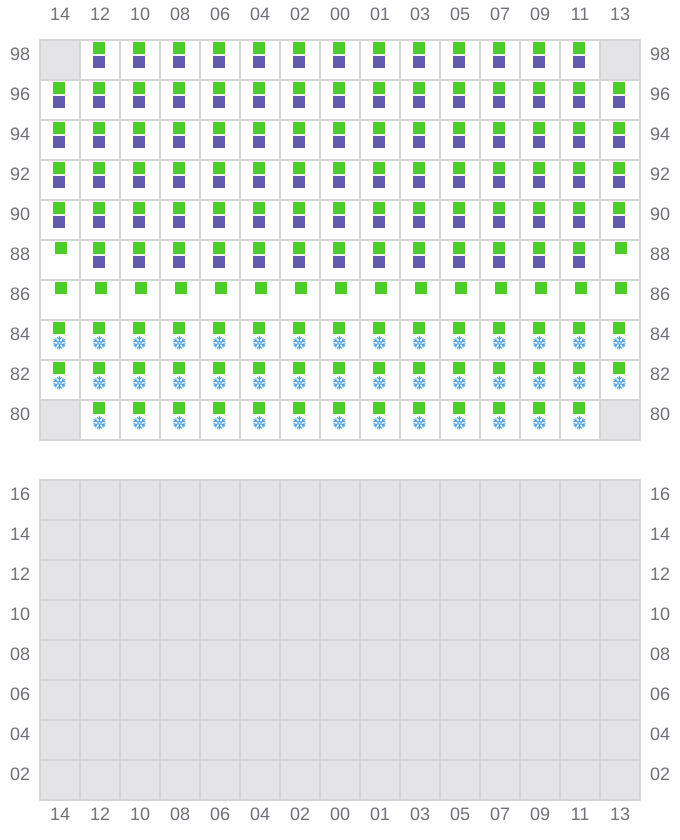

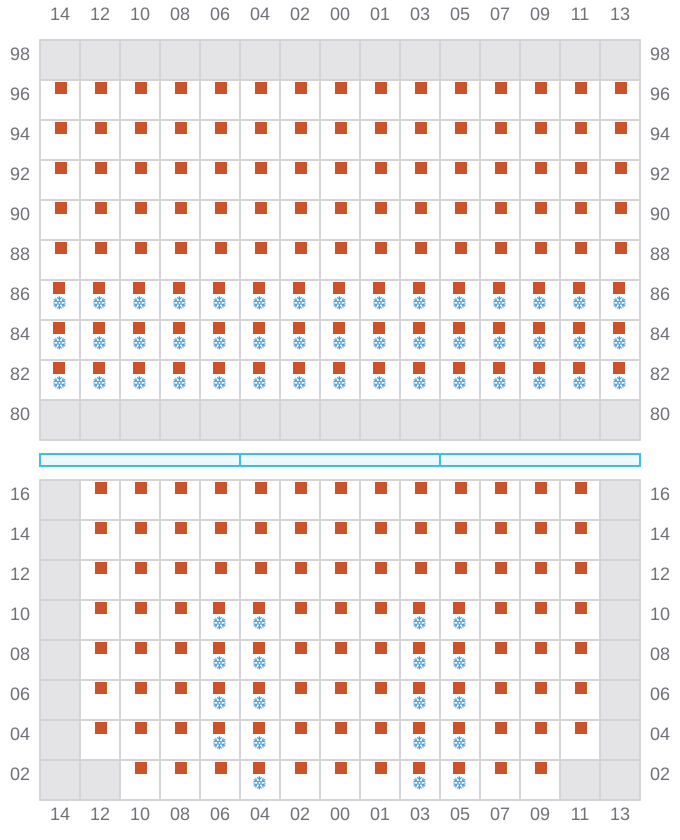

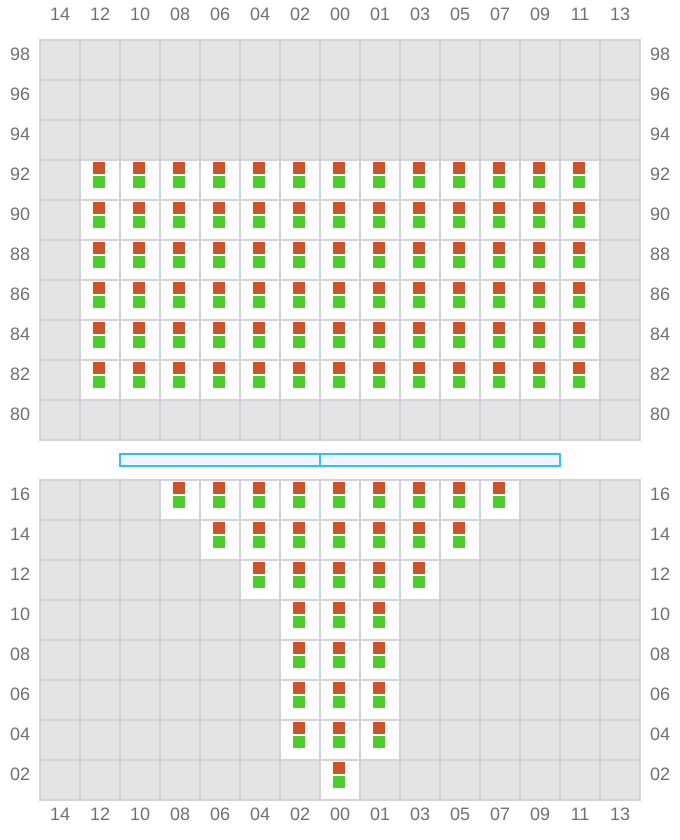

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

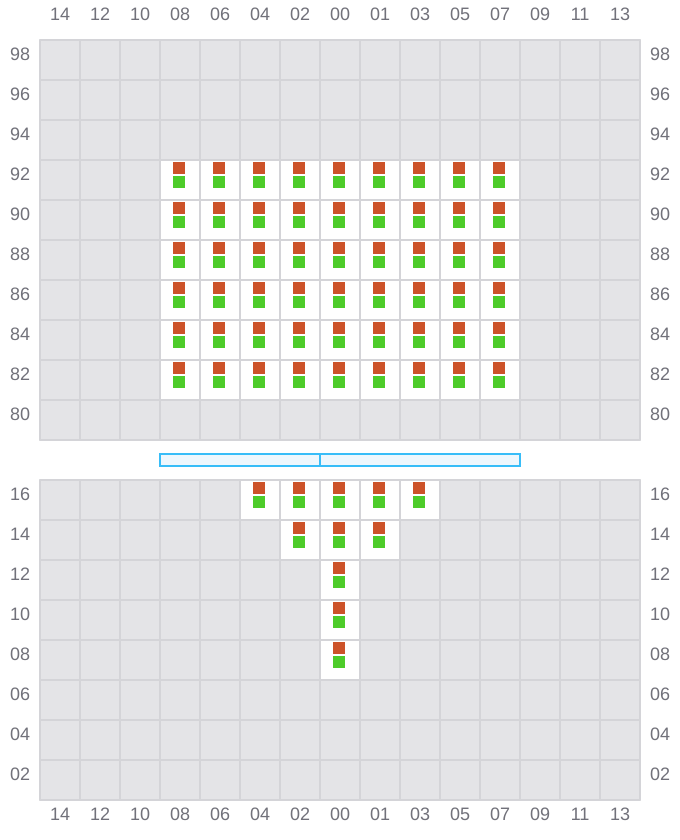

001 (002)
- →

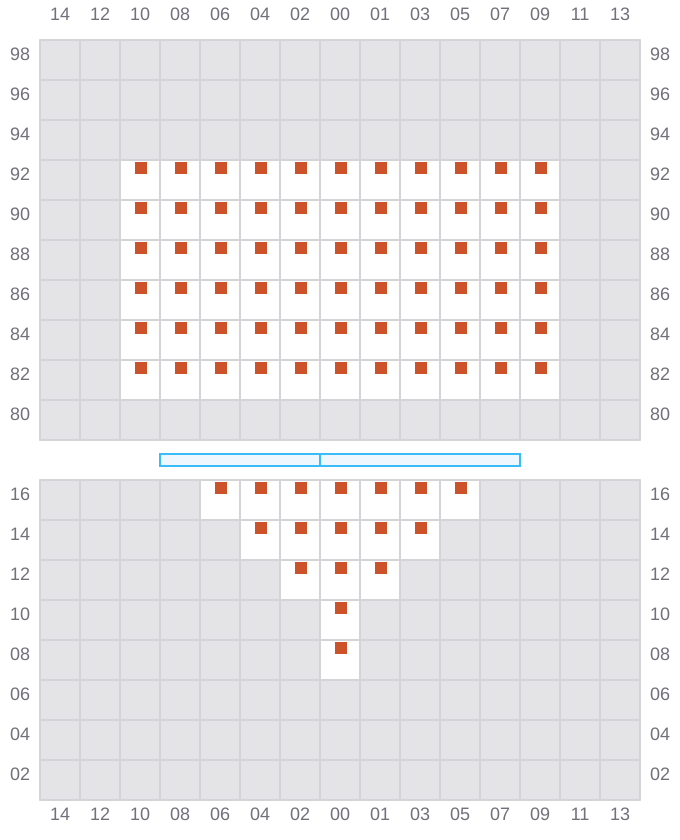

003
- ←
005 (006)
- →
007
- ←
- → / ?

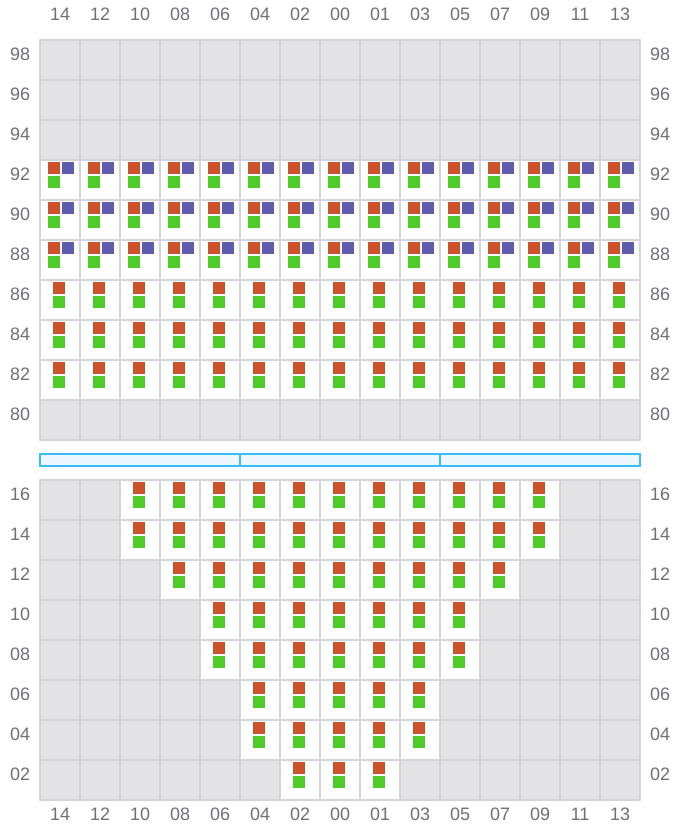

009 (010)
- →
011
- ←
- → / ?

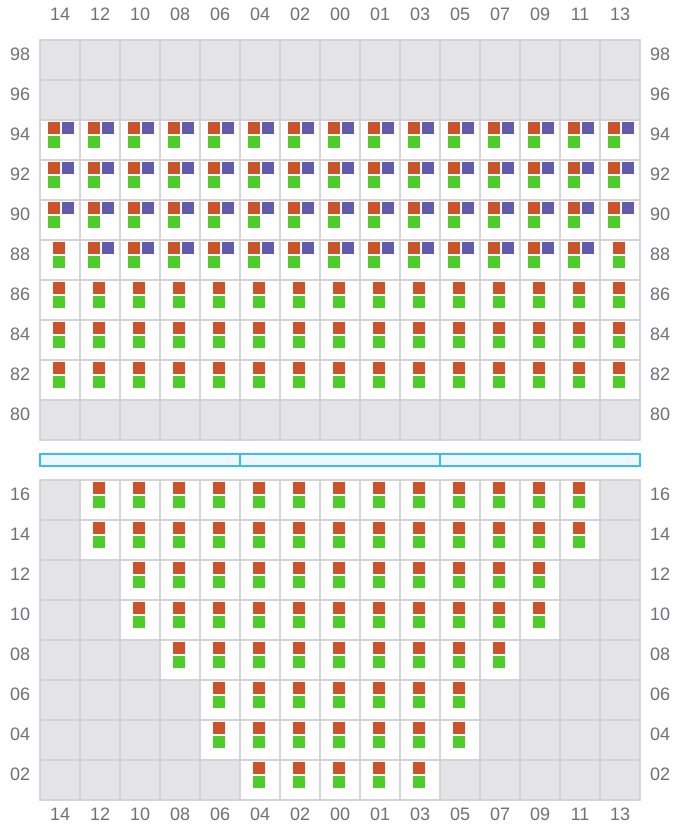

013 (014)
- →
015
- ←
- → / ?

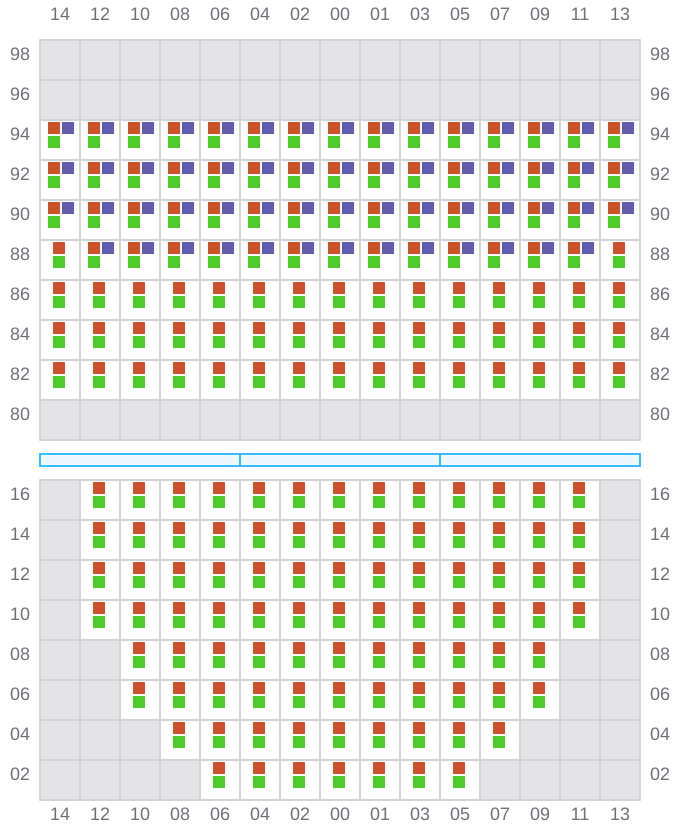

017 (018)
- →

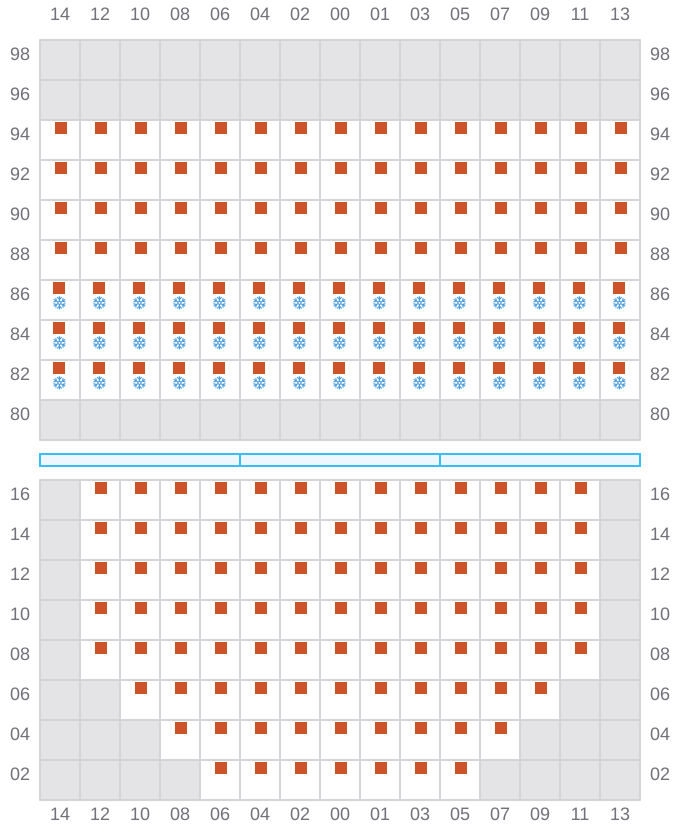

019
- ←
- → / ?
021 (022)
- →

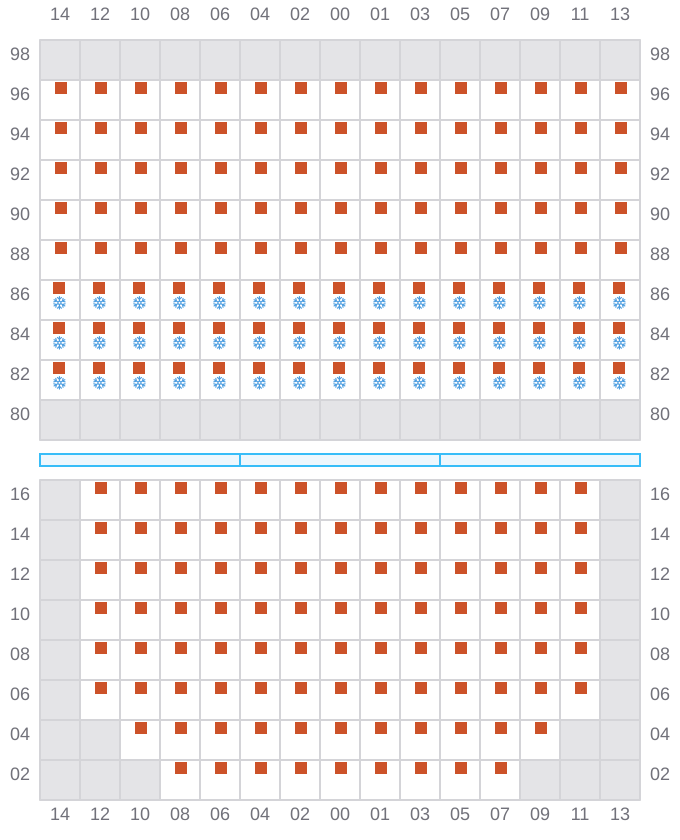

023
- ←
- → / ?
025 (026)
- →
027
- ←
- → / ?

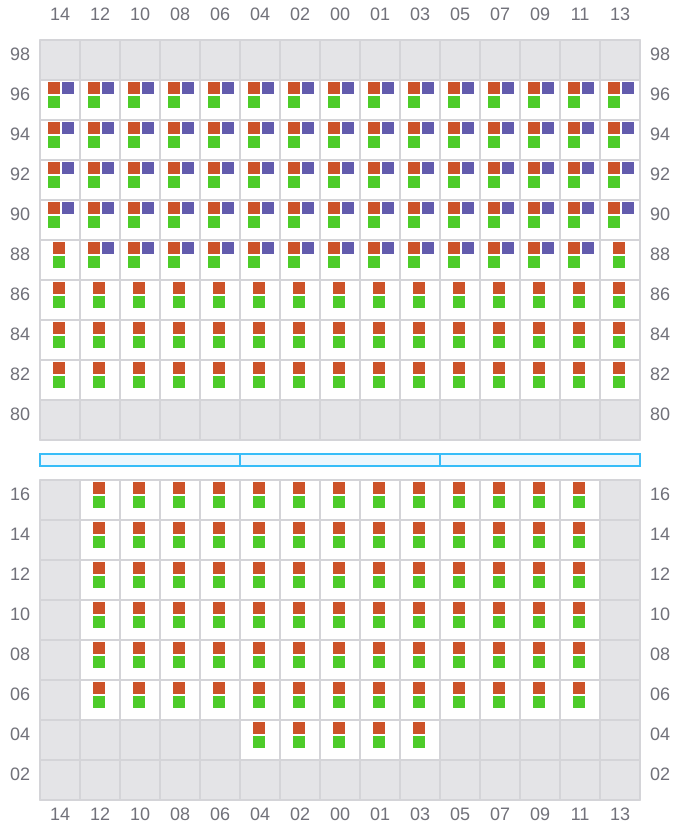

029 (030)
- →
031
- ←
- → / ?

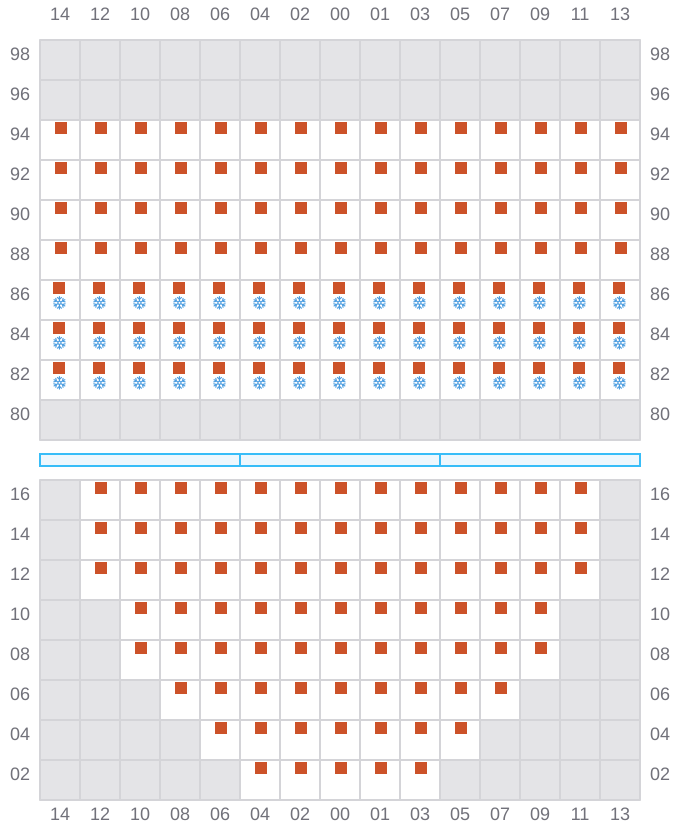

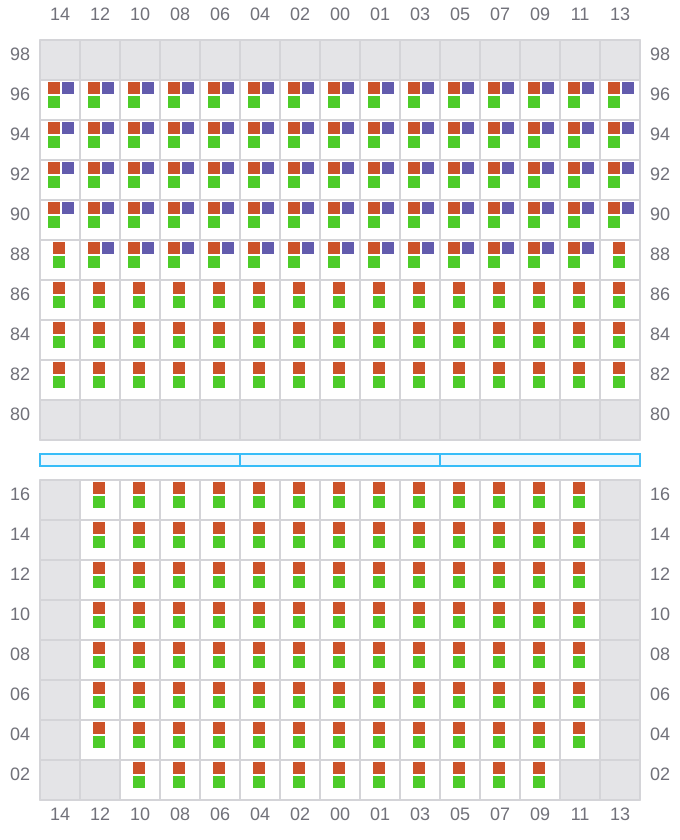

033 (034)
- →
035
- ←
- →

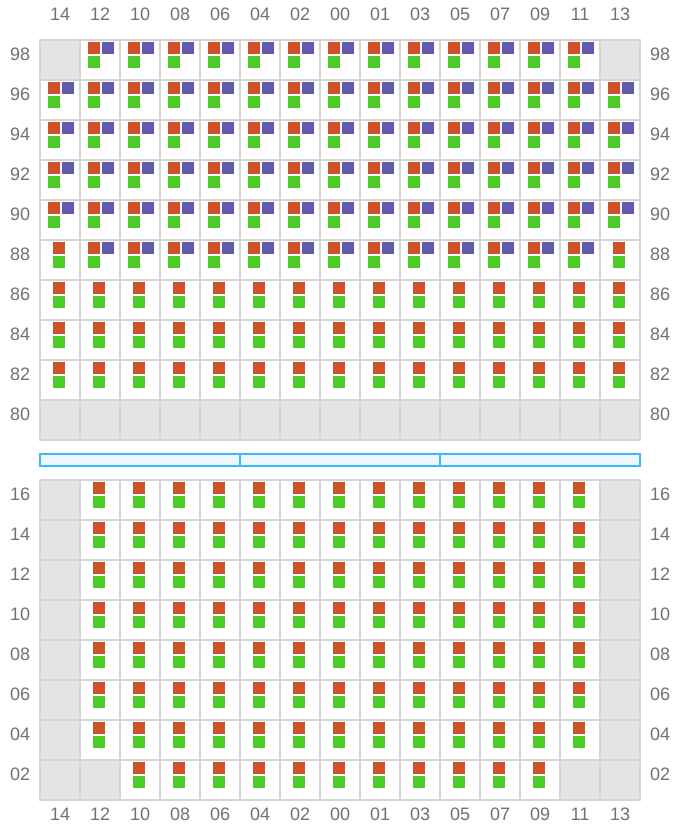

037 (038)
- →

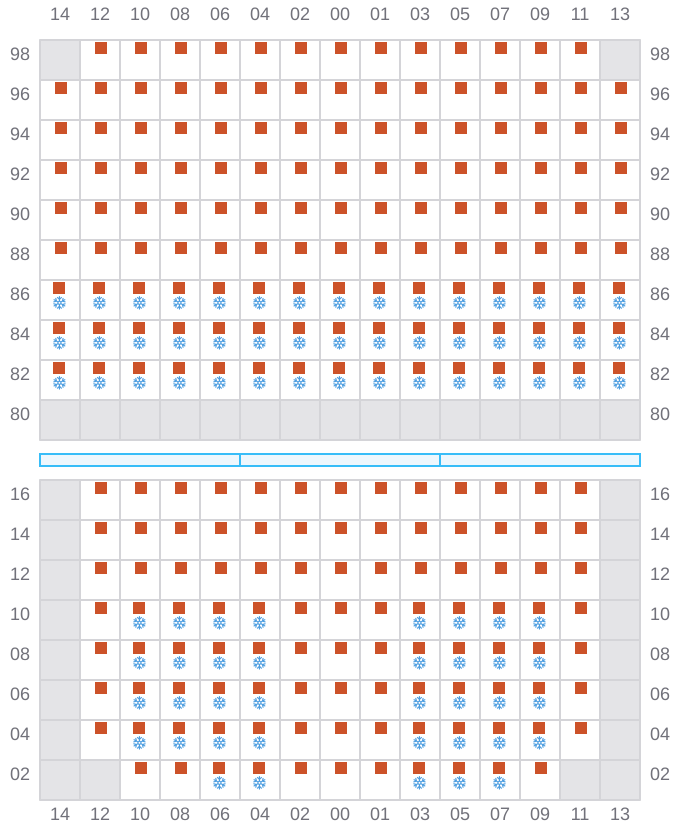

039
- ←
- →
041 (042)
- →
043
- ←
- → / ?
045 (046)
- →
047
- ←
- → / ?
049 (050)
- → / ?
- ← / ?
051

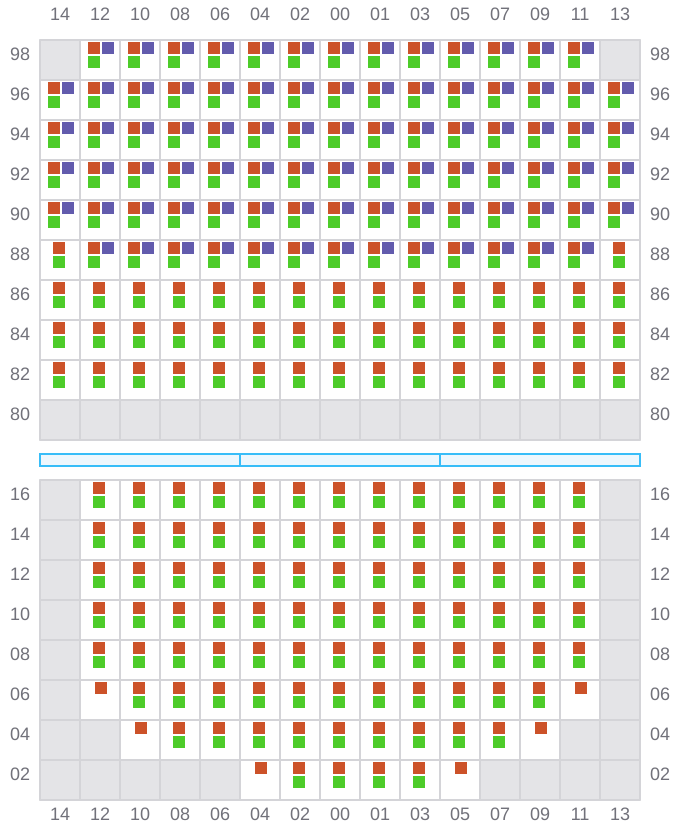

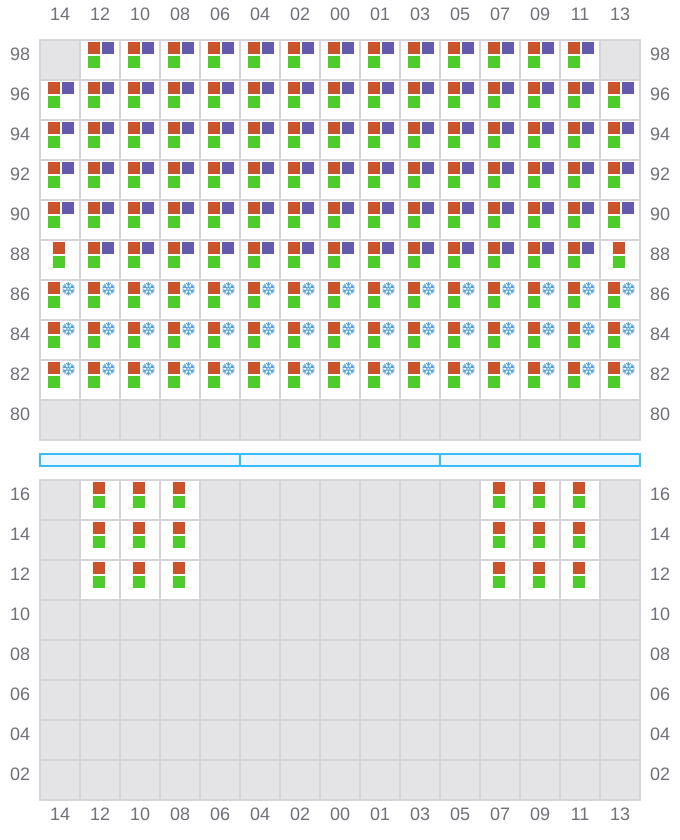

053 (054)
- →
- ← / ?
055
- ←
057 (058)
- → / ?
- ← / ?
