WIDE INDIA
9698252 | V7GQ9 | HMM by *********************** Last update: Wed Feb 05 2025
General Info
Ship Name:WIDE INDIA
IMO Code:9698252
Call Sign:V7GQ9
Line Operator:HMM
Class Name for Sister Ships:HWID
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):244.00
LOA (Length Overall):255.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,466
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

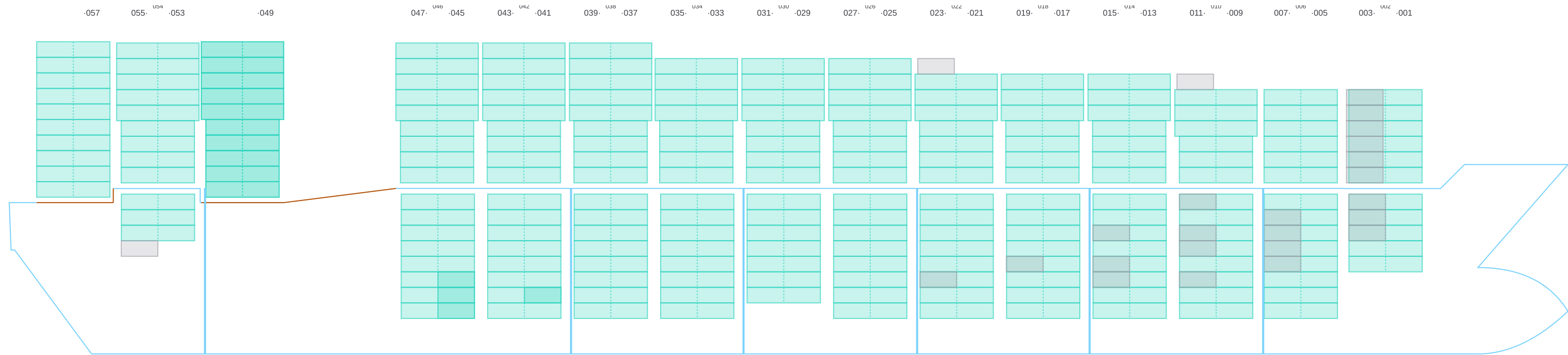

Side View
Hatch-Covers View

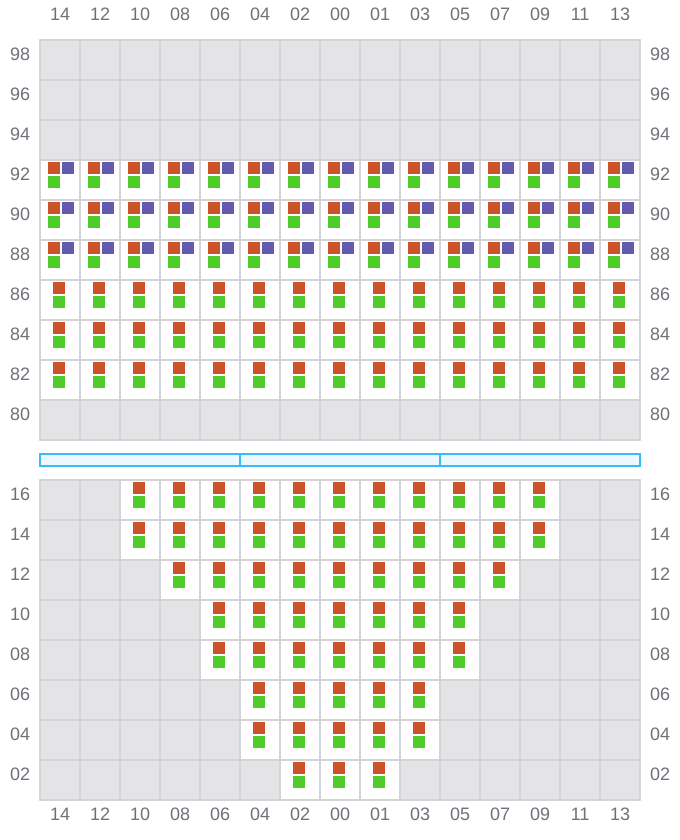

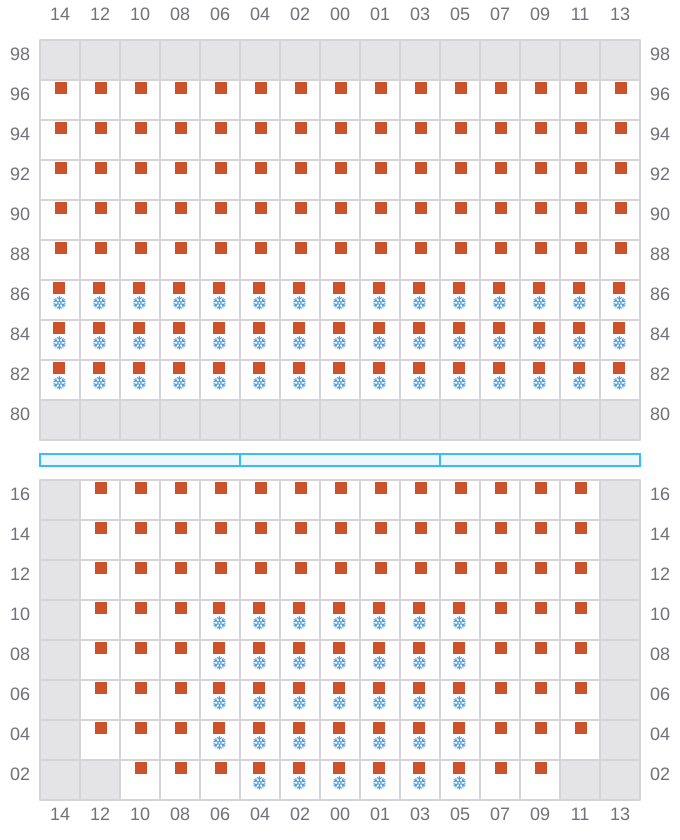

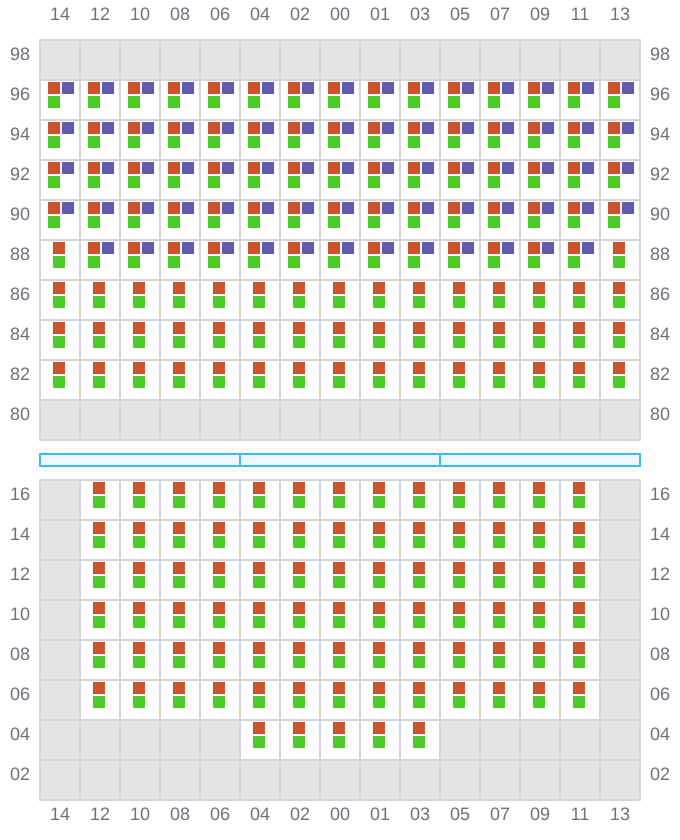

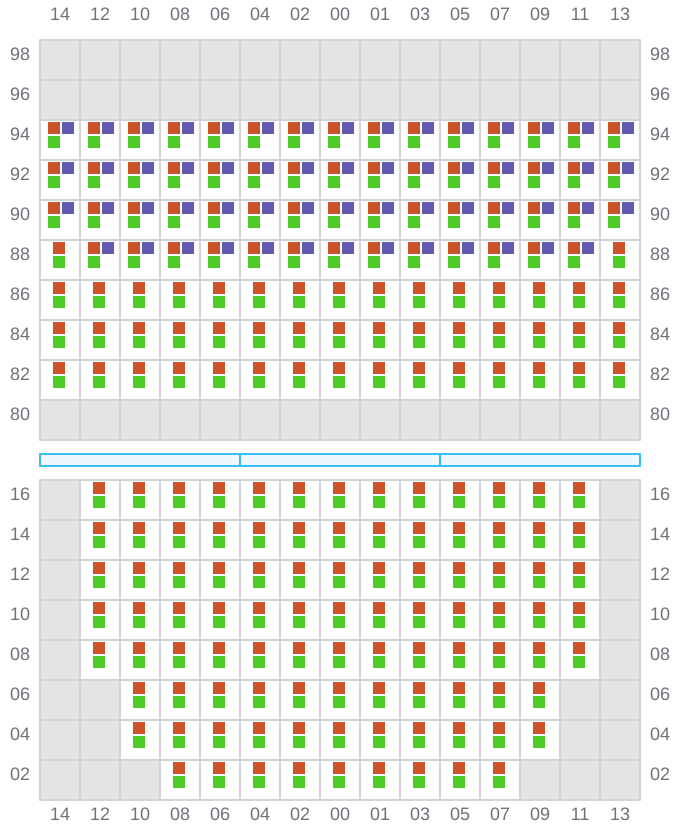

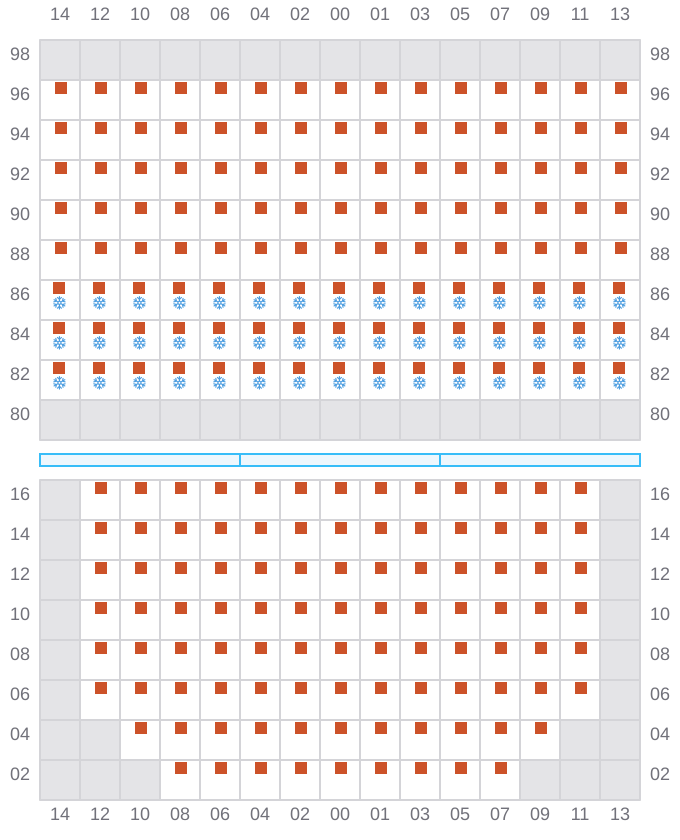

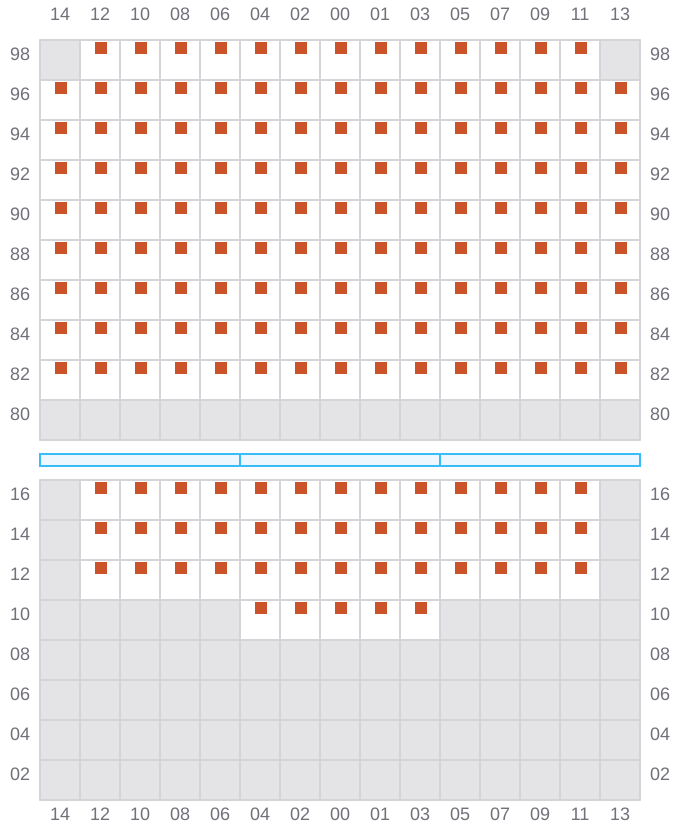

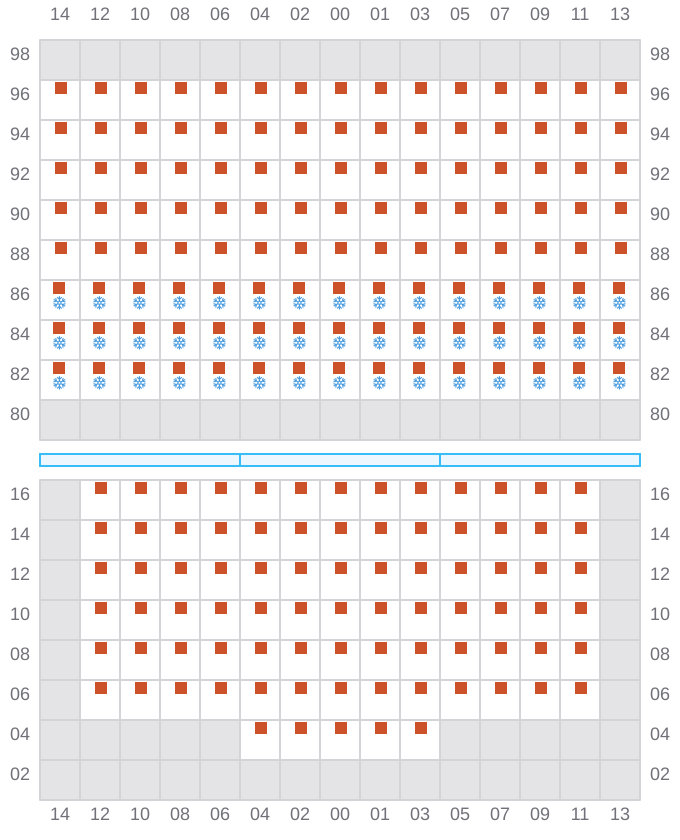

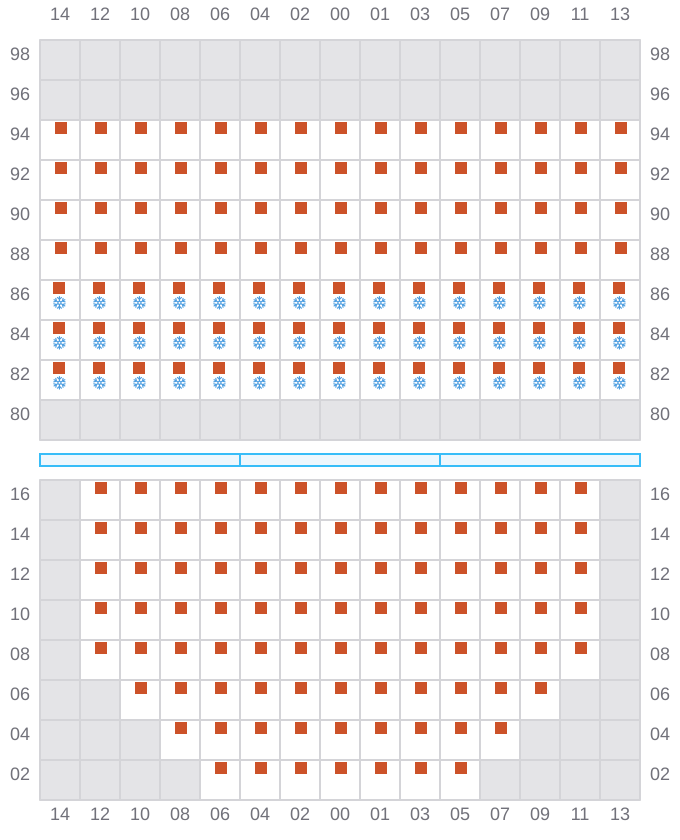

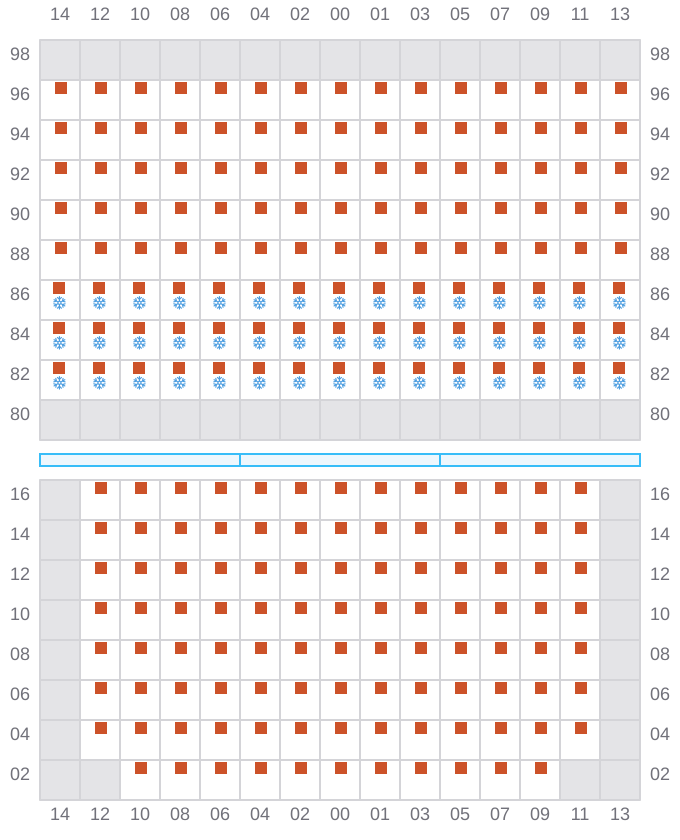

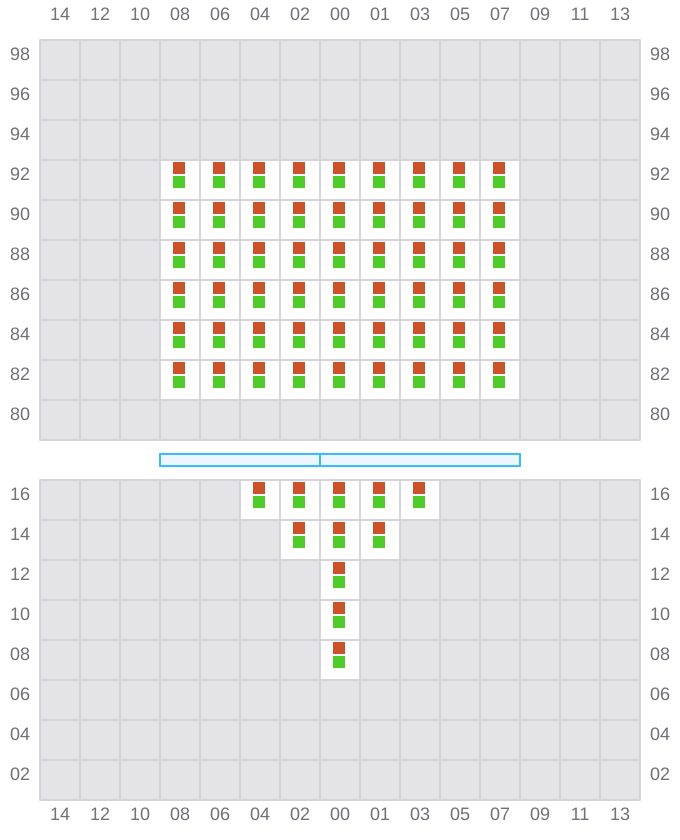

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

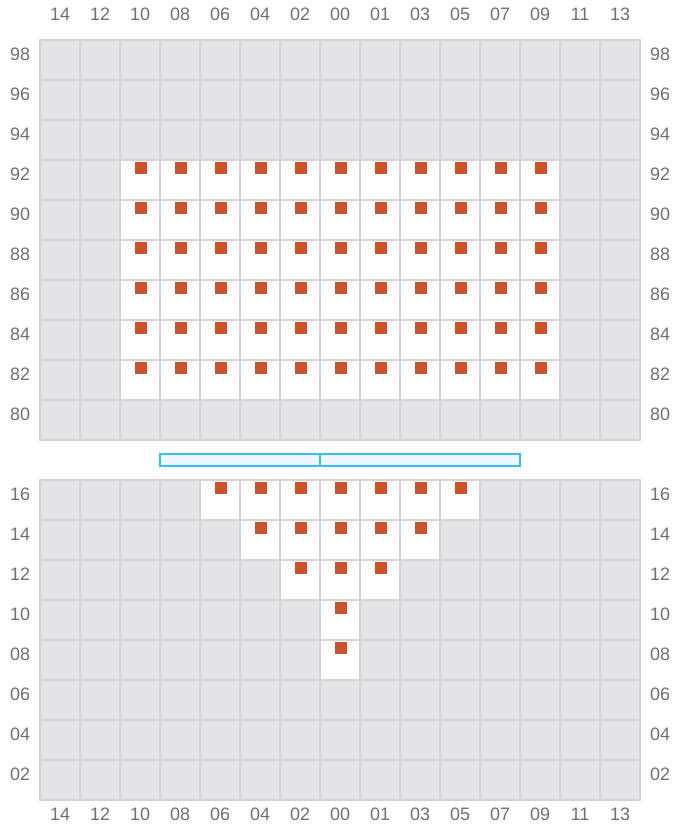

001 (002)
- →
- →
003
- ←
- →

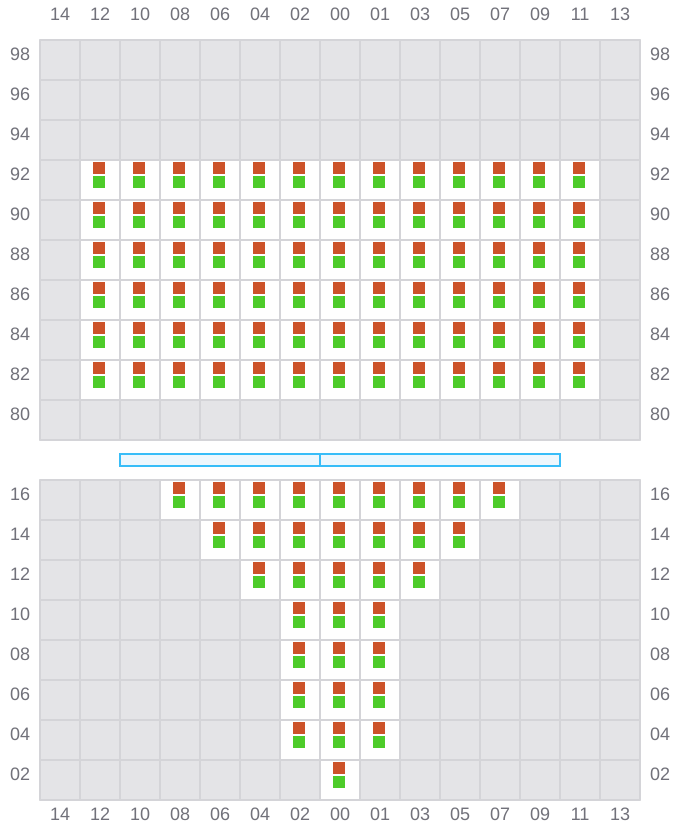

005 (006)
- →
- →

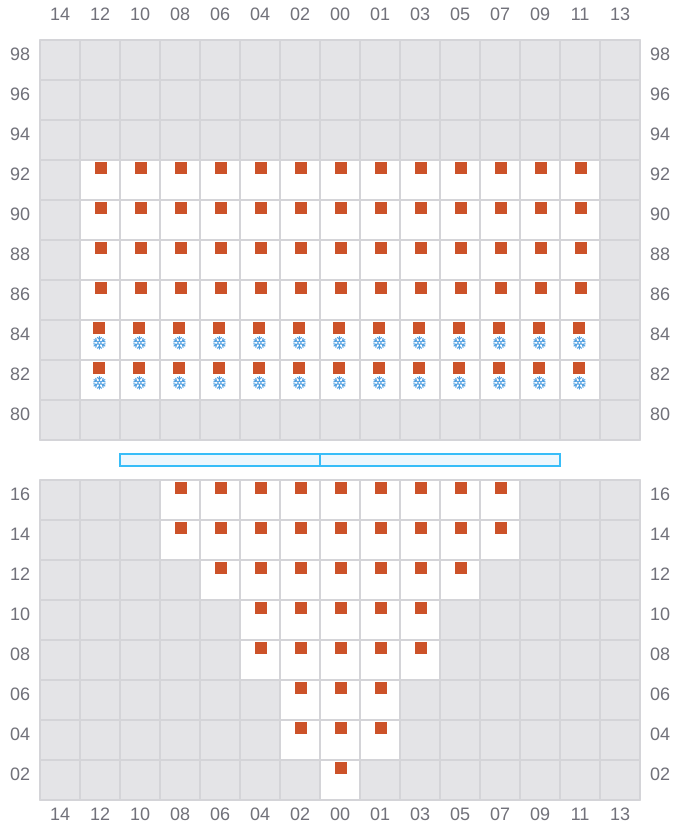

007
- ←
- → / ?
- →

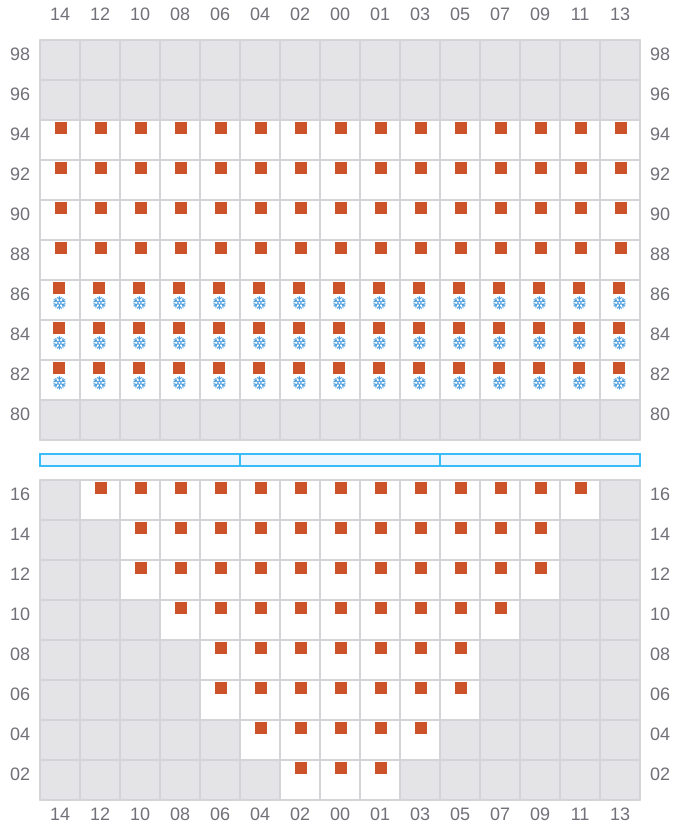

009 (010)
- →
- →
011
- ←
- → / ?
- →

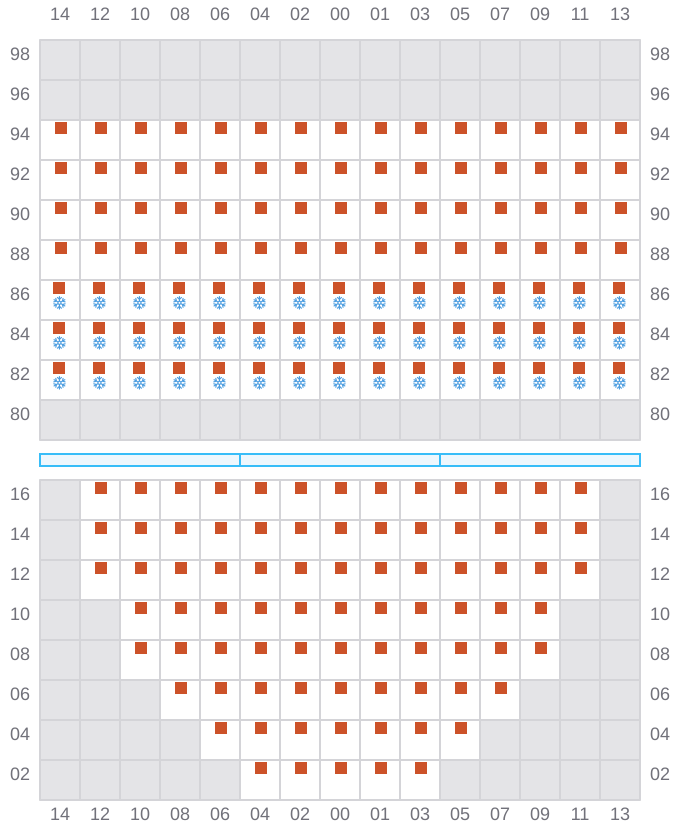

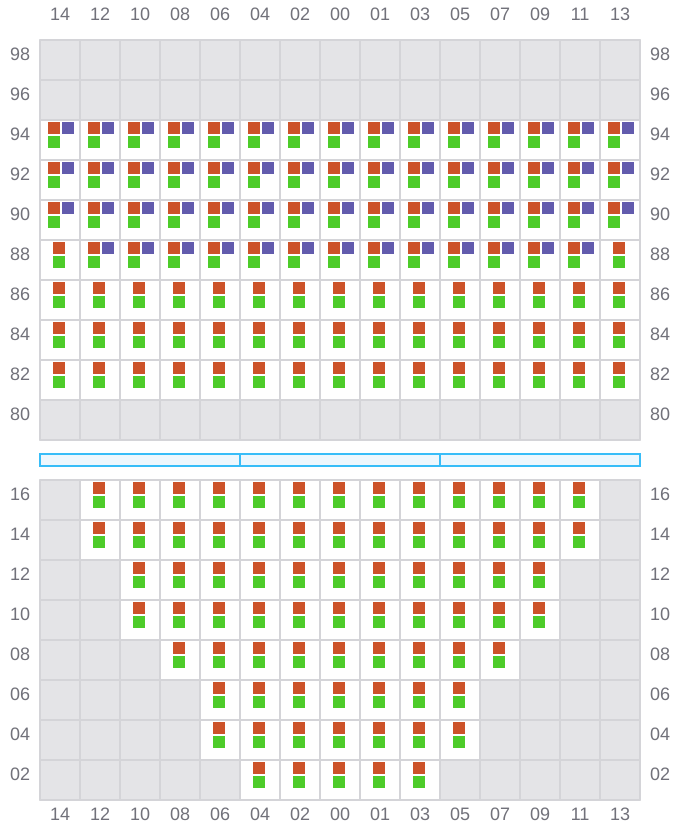

013 (014)
- →
- →
015
- ←
- → / ?
- →

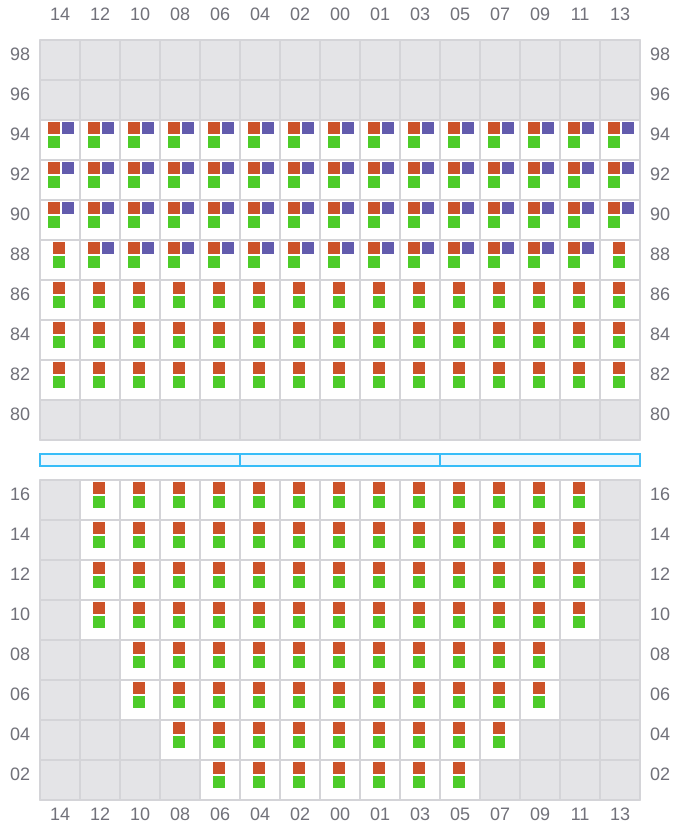

017 (018)
- →
- →
019
- ←
- → / ?
- →
021 (022)
- →
- →
023
- ←
- → / ?
- →

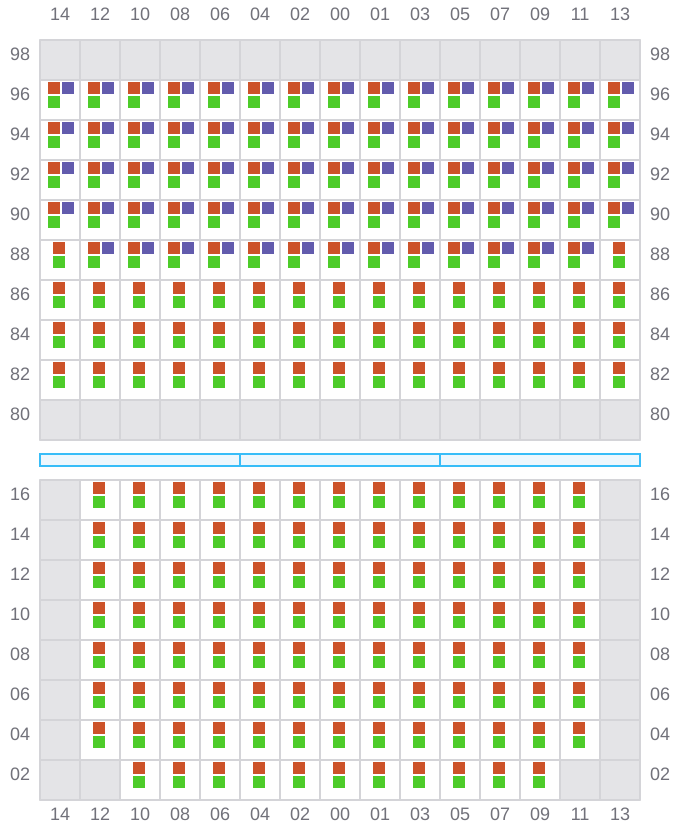

025 (026)
- →
- →
027
- ←
- → / ?
- →
029 (030)
- →
- →
031
- ←
- → / ?
- →
033 (034)
- →
- →
035
- ←
- →
- →
037 (038)
- →
- →

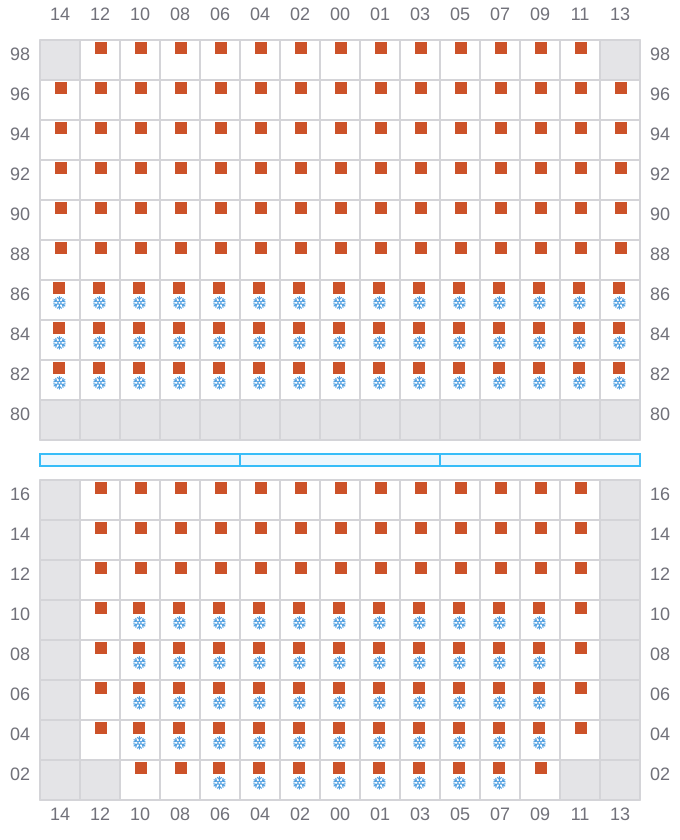

039
- ←
- →
- →

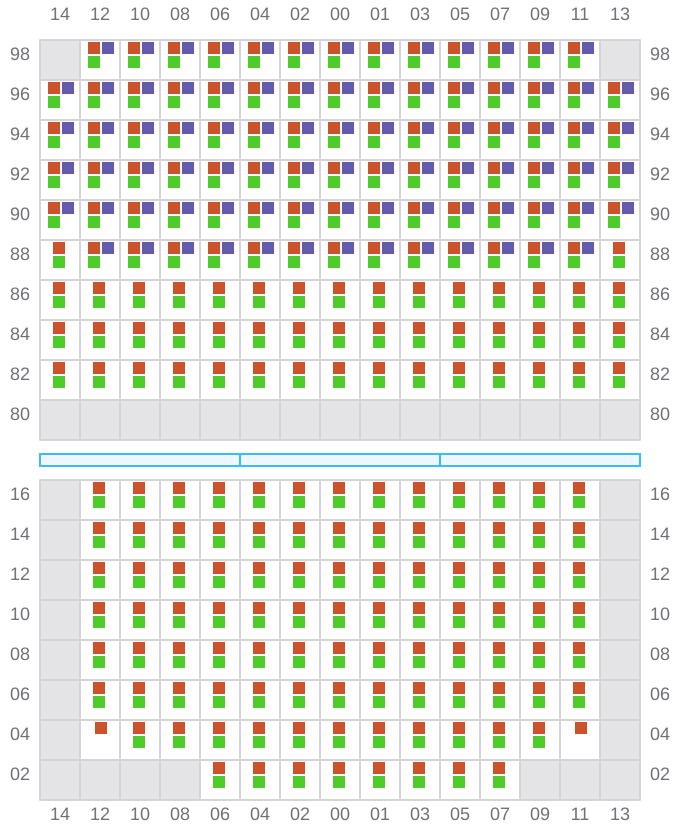

041 (042)
- →
- →

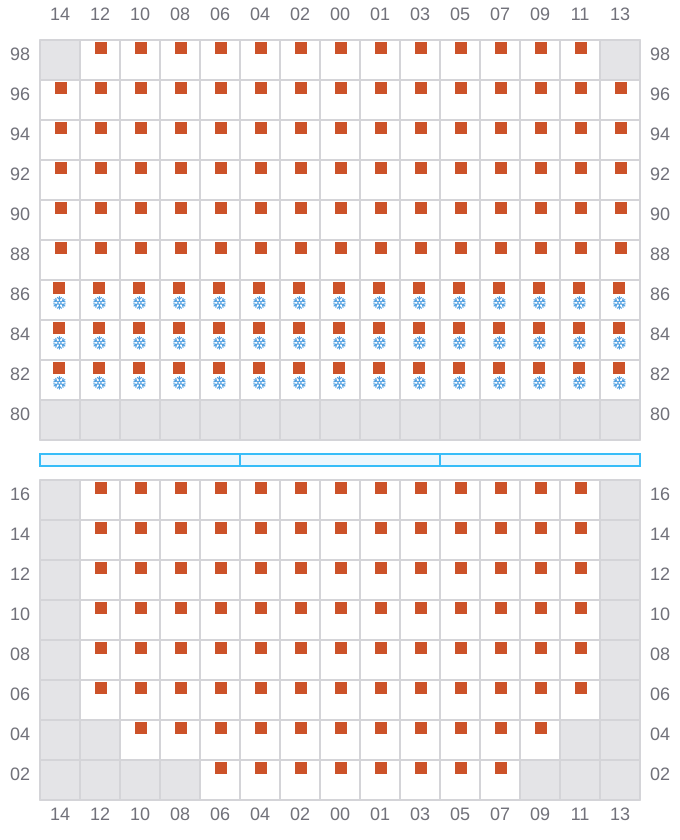

043
- ←
- → / ?
- →

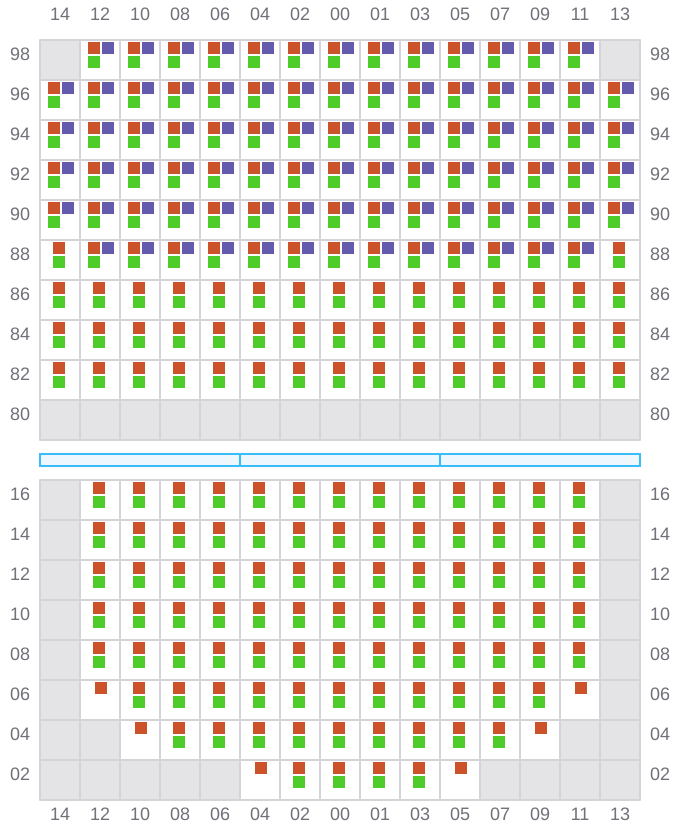

045 (046)
- →
- →

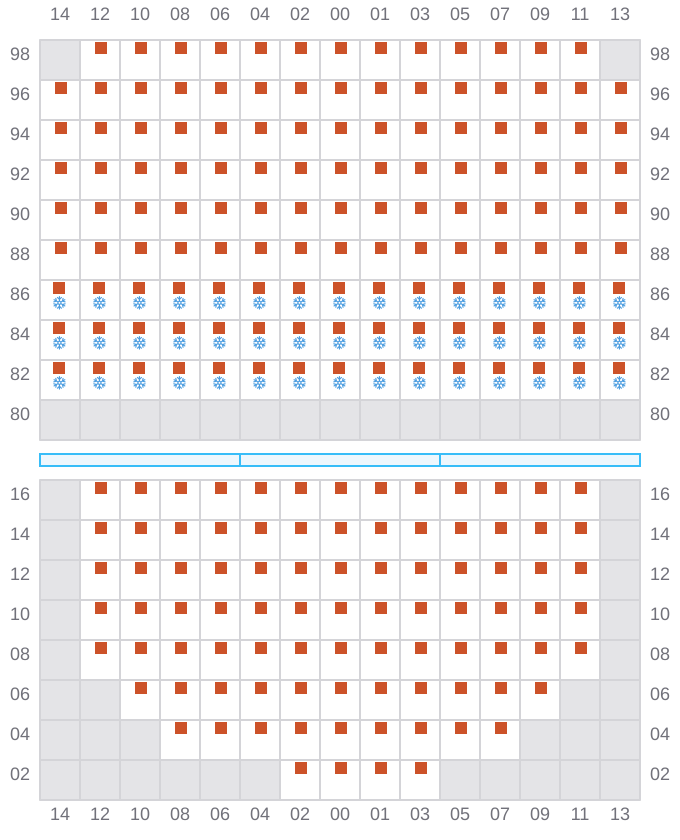

047
- ←
- → / ?
- →

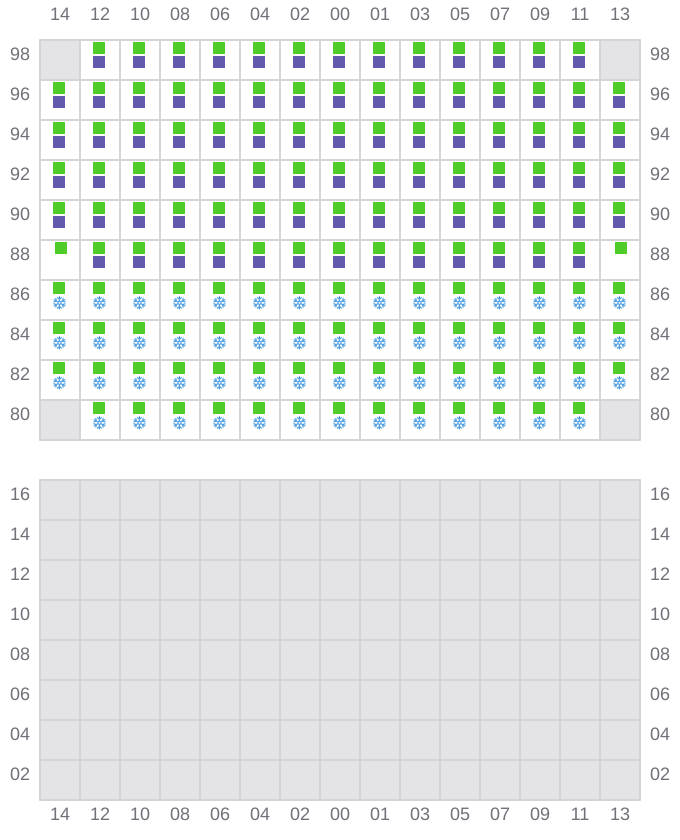

049 (050)
- → / ?
- ← / ?
- → / ?
051
053 (054)
- →
- ← / ?
- →
055
- ←
- →

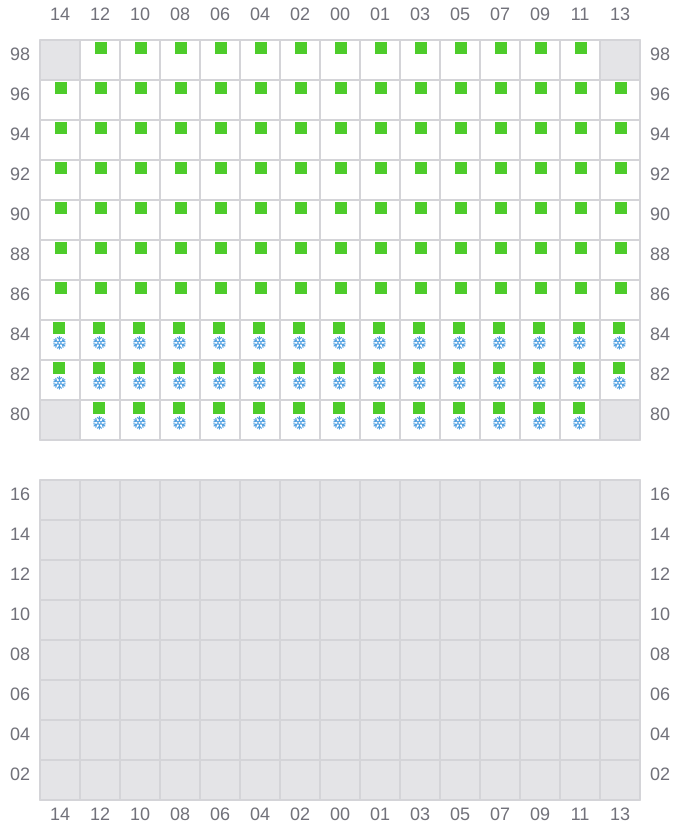

057 (058)
- → / ?
- ← / ?
- → / ?
