WILSON DOVER
9005754 | 8PUH | 9005754 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:WILSON DOVER
IMO Code:9005754
Call Sign:8PUH
Line Operator:9005754
Class Name for Sister Ships:00D
Year Built:1993
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:019
Max ISO Row:04
Center Line Row:Yes
Max Above ISO Tier:84
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:362
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

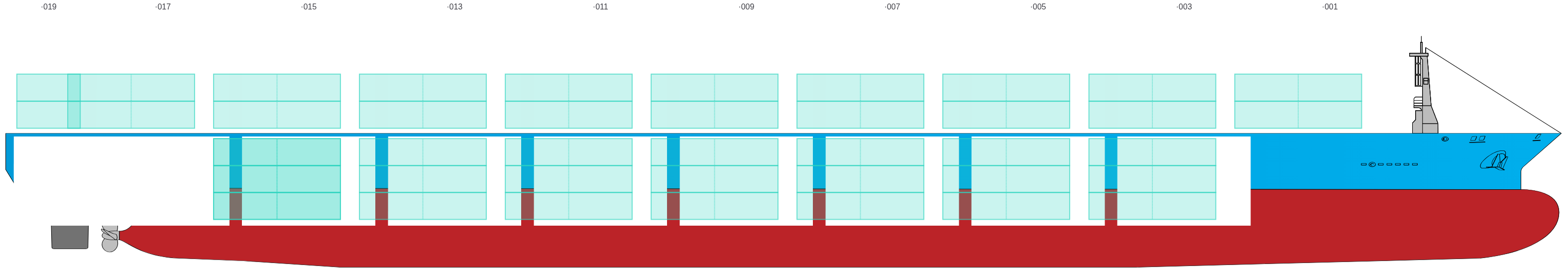

Side View

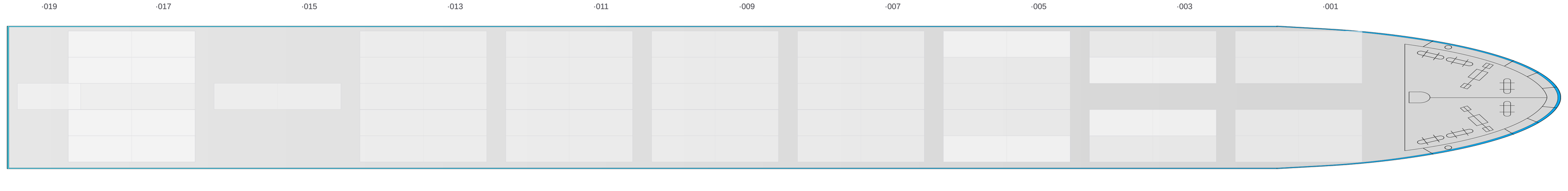

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

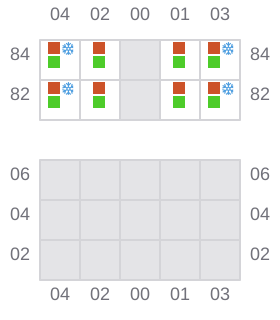

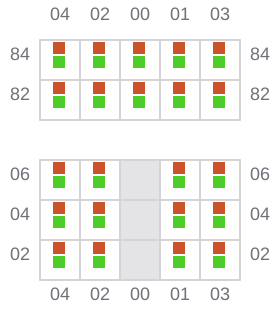

001 (002)
- → / ?
- ← / ?

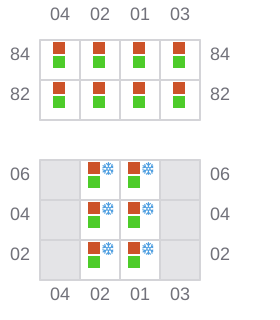

003 (004)
- →
005 (006)
- →
007 (008)
- →
009 (010)
- →

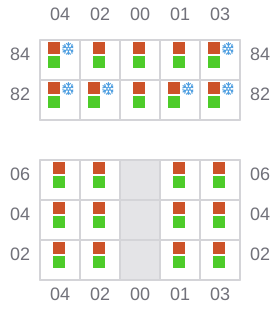

011 (012)
- →
- → / ?

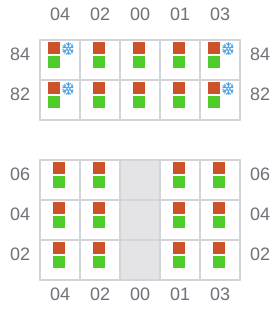

013 (014)
- →
- ← / ?
015 (016)
- →
017 (018)
- →

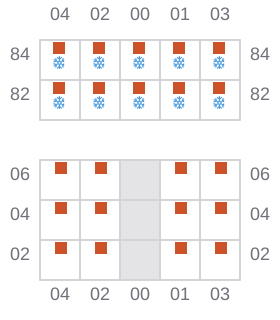

019
- → / ←
- → / ?
