X-PRESS GODAVARI
9353735 | 9HA3137 | CMA by *********************** Last update: Thu Jan 16 2025

General Info

Ship Name:X-PRESS GODAVARI
IMO Code:9353735
Call Sign:9HA3137
Line Operator:CMA
Class Name for Sister Ships:FVPH
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:033
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:901

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of X-PRESS GODAVARI

Hatch-Covers View

Deck view of X-PRESS GODAVARI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

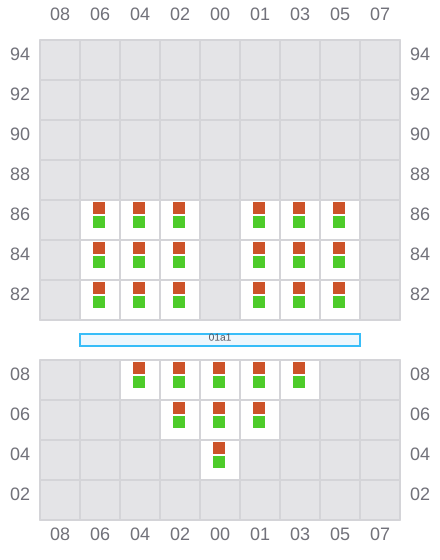

Bay 001 view and slots of X-PRESS GODAVARI

003

  • ←
  • →

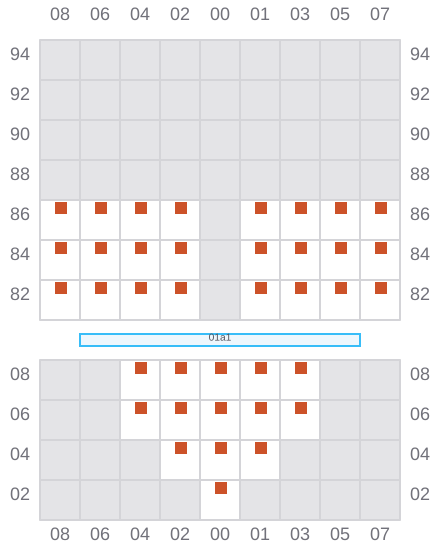

Bay 003 view and slots of X-PRESS GODAVARI

005 (006)

  • →
  • → / ?
  • →

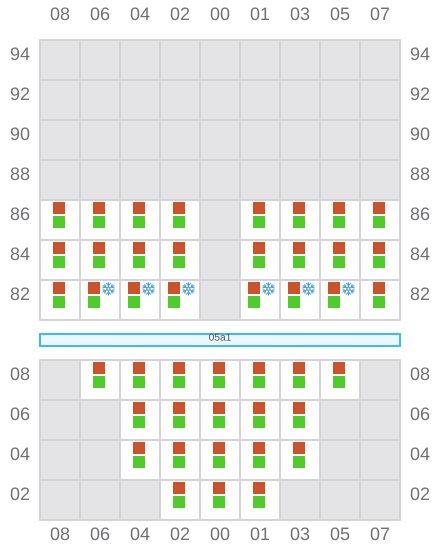

Bay 005 view and slots of X-PRESS GODAVARI

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of X-PRESS GODAVARI

009 (010)

  • →
  • ←
  • →

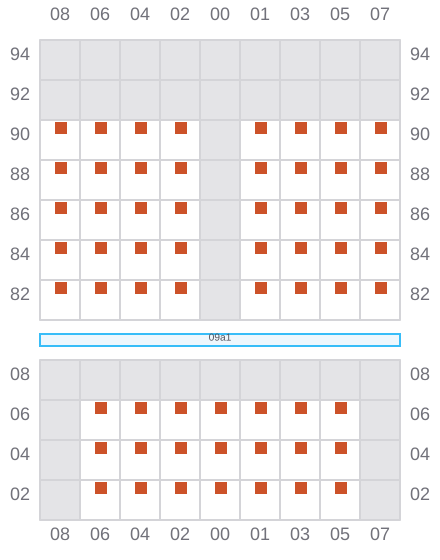

Bay 009 view and slots of X-PRESS GODAVARI

011

  • ←
  • →
Bay 011 view and slots of X-PRESS GODAVARI

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of X-PRESS GODAVARI

015

  • ←
  • →
Bay 015 view and slots of X-PRESS GODAVARI

017

  • → / ?
Bay 017 view and slots of X-PRESS GODAVARI

019 (020)

  • →
  • ←
  • →
Bay 019 view and slots of X-PRESS GODAVARI

021

  • ←
  • →
Bay 021 view and slots of X-PRESS GODAVARI

023 (024)

  • →
  • → / ?
  • →
Bay 023 view and slots of X-PRESS GODAVARI

025

  • ←
  • → / ?
  • →
Bay 025 view and slots of X-PRESS GODAVARI

027 (028)

  • →
  • → / ?
  • →
Bay 027 view and slots of X-PRESS GODAVARI

029

  • ←
  • → / ?
  • →
Bay 029 view and slots of X-PRESS GODAVARI

031 (032)

  • → / ?
  • ← / ?
  • → / ?
Bay 031 view and slots of X-PRESS GODAVARI

033

  • ← / ?
  • → / ?
  • → / ?

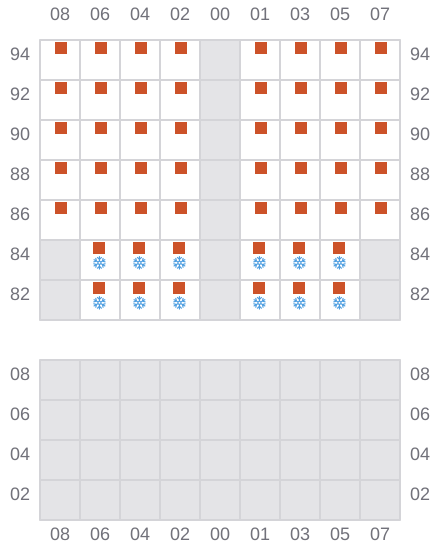

Bay 033 view and slots of X-PRESS GODAVARI
