X PRESS MACHU PICCHU
9325441 | 9V8324 | 9325441 by ********* Last update: Thu Jul 11 2024
General Info
Ship Name:X PRESS MACHU PICCHU
IMO Code:9325441
Call Sign:9V8324
Line Operator:9325441
Class Name for Sister Ships:MSL
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,451
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

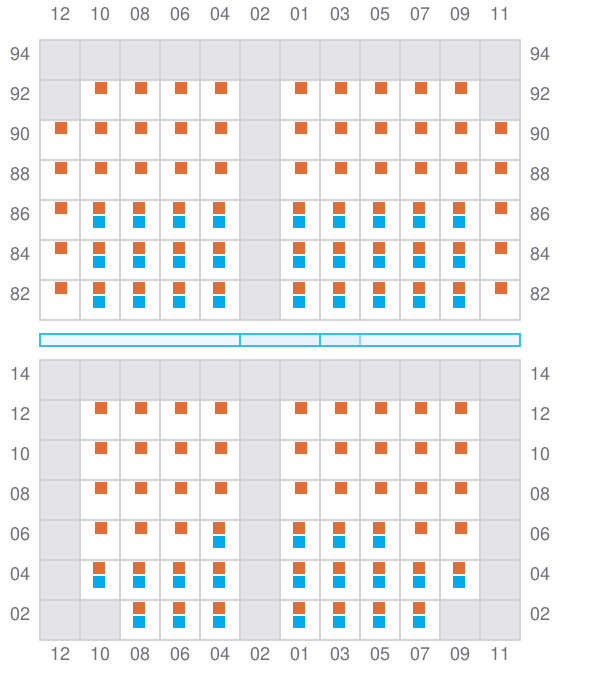

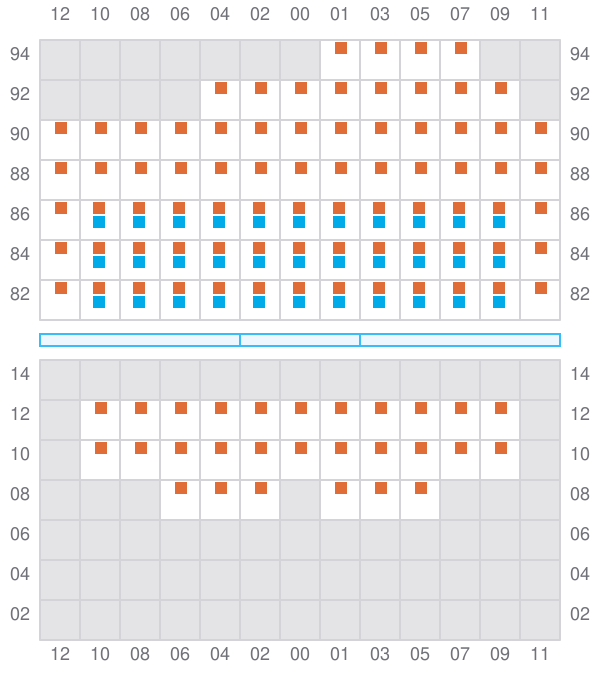

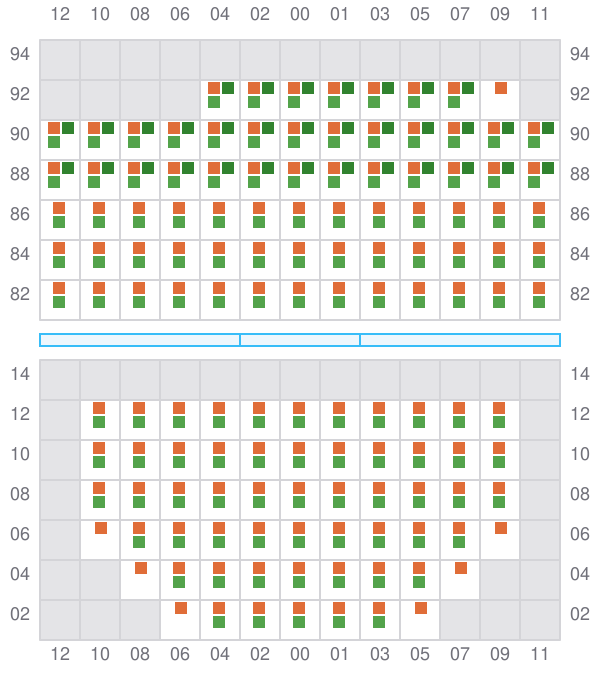

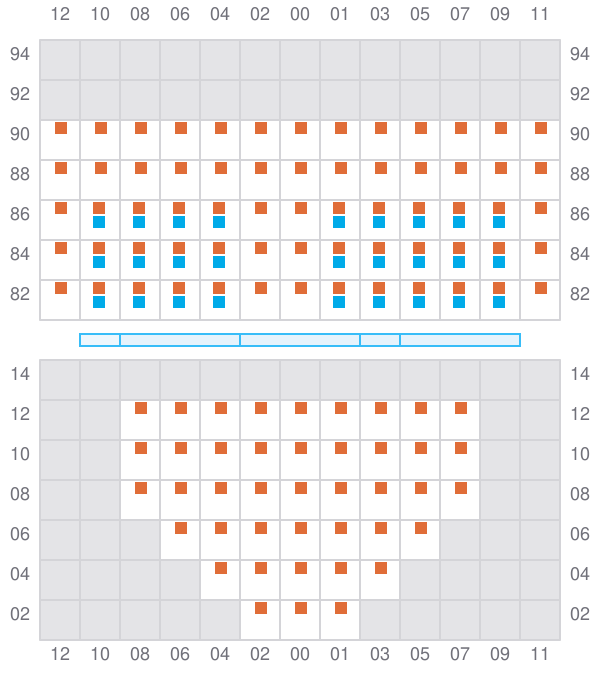

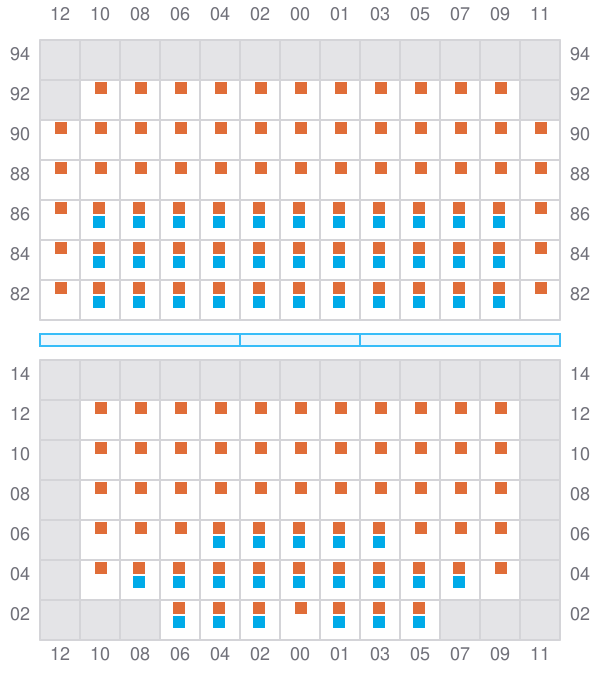

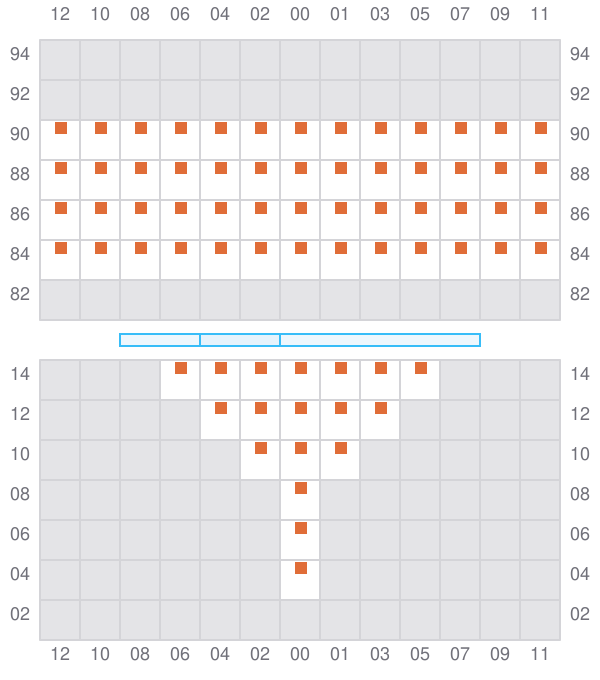

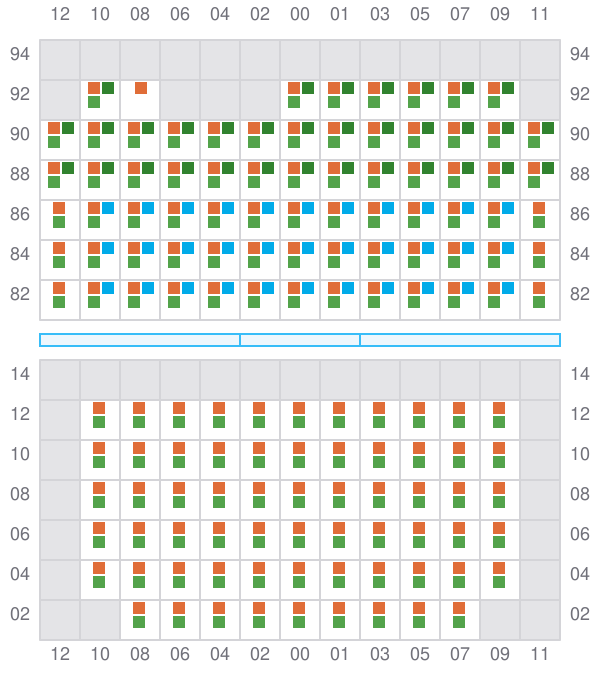

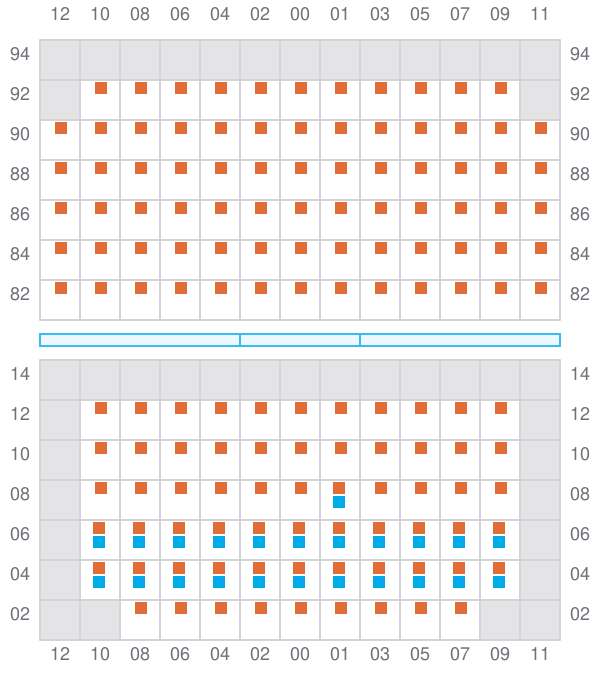

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

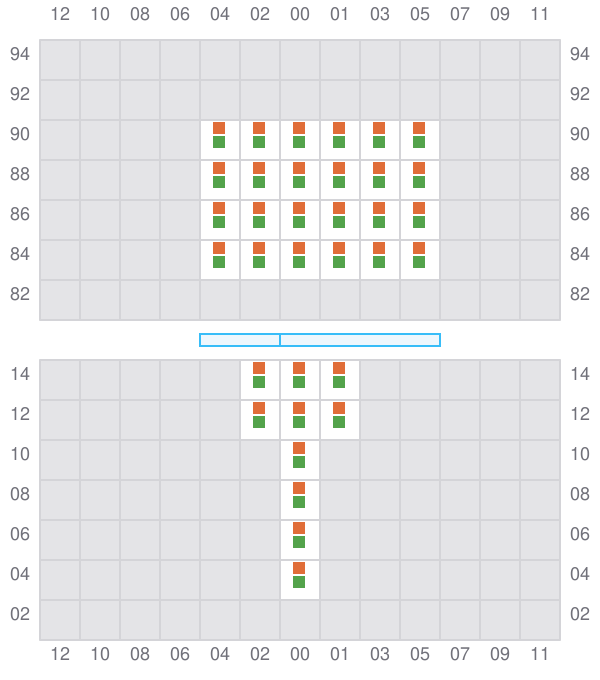

001 (002)
- →
003
- ←
005 (006)
- →
007
- ←
009 (010)
- →
011
- ←
- → / ?

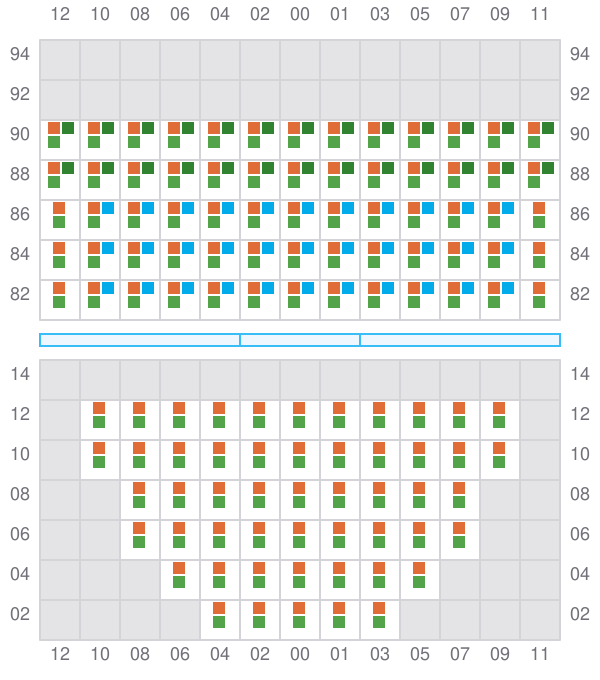

013 (014)
- →
- ← / ?

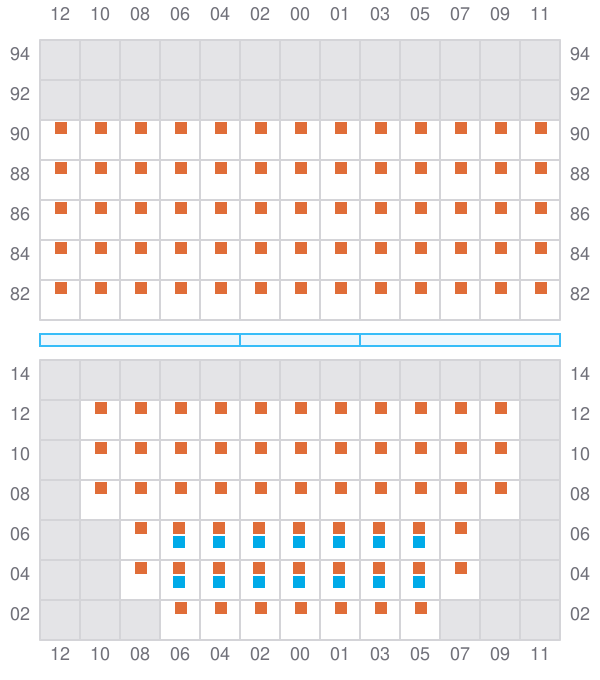

015
- ←
- ? / →

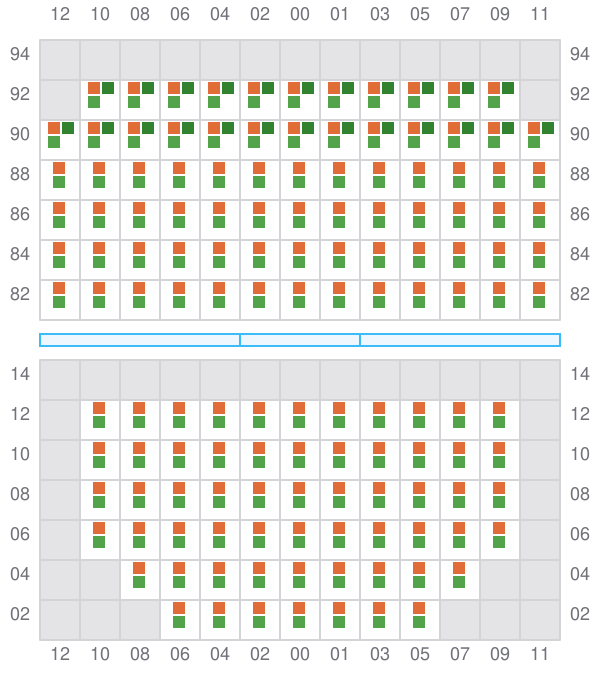

017 (018)
- →
019
- ←
- →

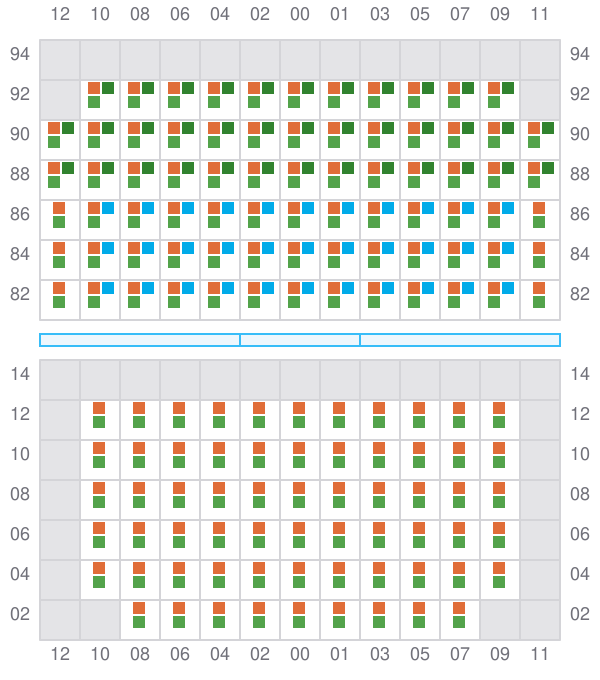

021 (022)
- →
- ← / ?
023
- ←
- ? / →

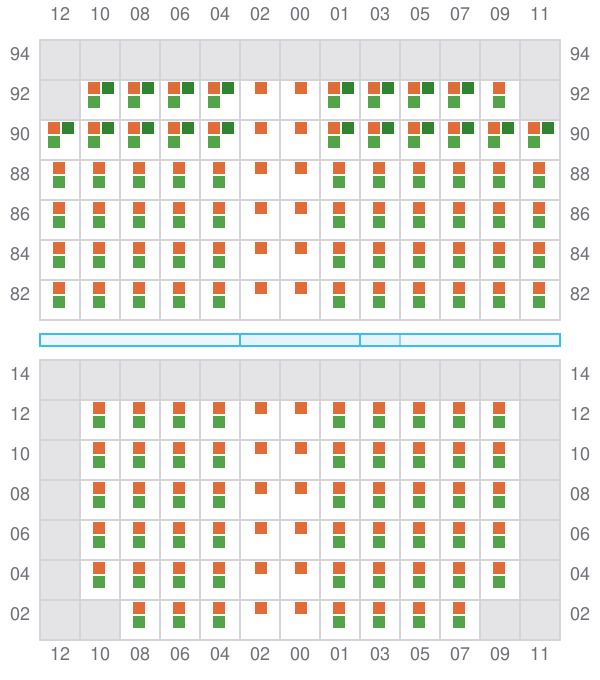

025 (026)
- →
027
- ←
- →
029 (030)
- →
- ← / ?
031
- ←
- ? / →
033 (034)
- →
035
- ←
037
039 (040)
- →

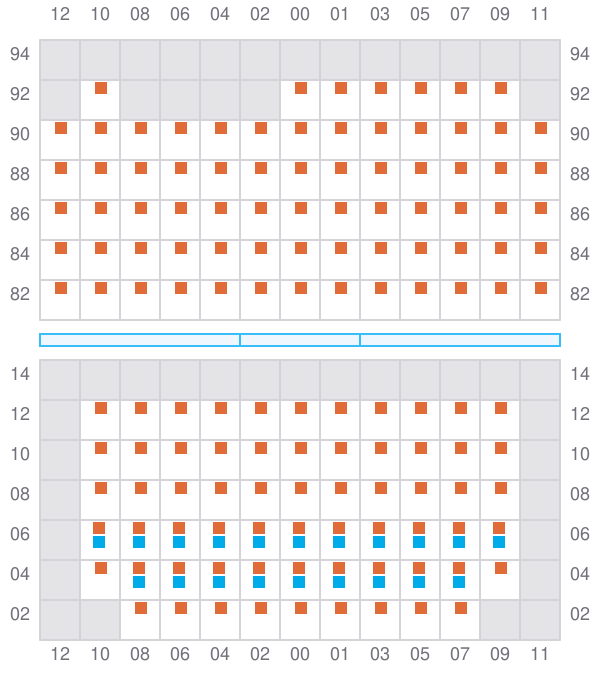

041
- ←
- → / ?

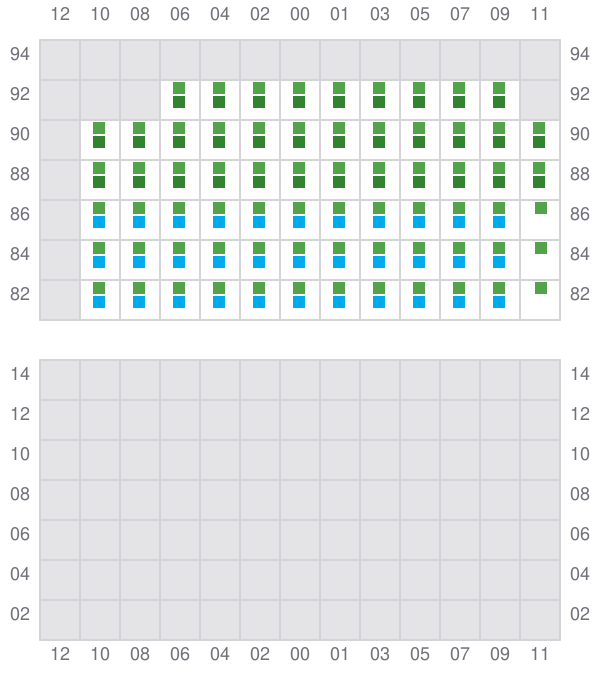

043 (044)
- → / ?
- ← / ?
