X-PRESS NILWALA
9744659 | 9V7184 | HLC by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:X-PRESS NILWALA

IMO Code:9744659

Call Sign:9V7184

Line Operator:HLC

Class Name for Sister Ships:HNDV

Year Built:2015

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:033

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:94

Min Above ISO Tier:82

Max Below ISO Tier:10

Min Below ISO Tier:02

Total TEU:1,744

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
^? / _→

Bay 001 view and slots of X-PRESS NILWALA

003 (002)

Bay 003 view and slots of X-PRESS NILWALA

005

Bay 005 view and slots of X-PRESS NILWALA

007 (006)

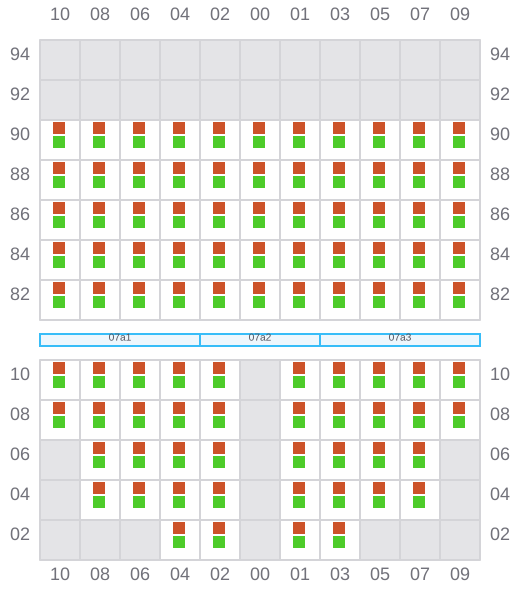

Bay 007 view and slots of X-PRESS NILWALA

009

Bay 009 view and slots of X-PRESS NILWALA

011 (010)

Bay 011 view and slots of X-PRESS NILWALA

013

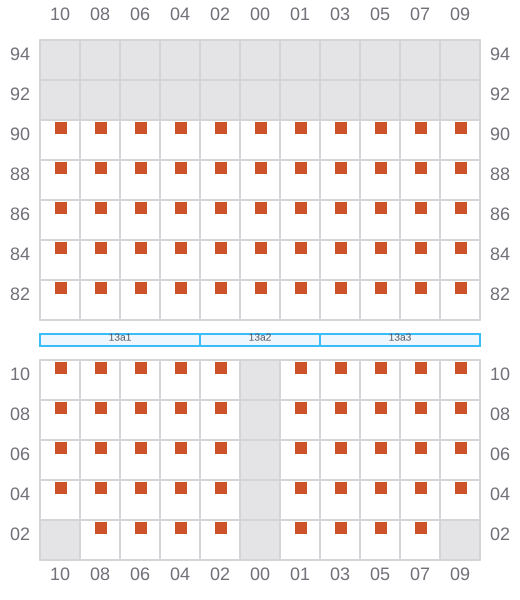

Bay 013 view and slots of X-PRESS NILWALA

015 (014)

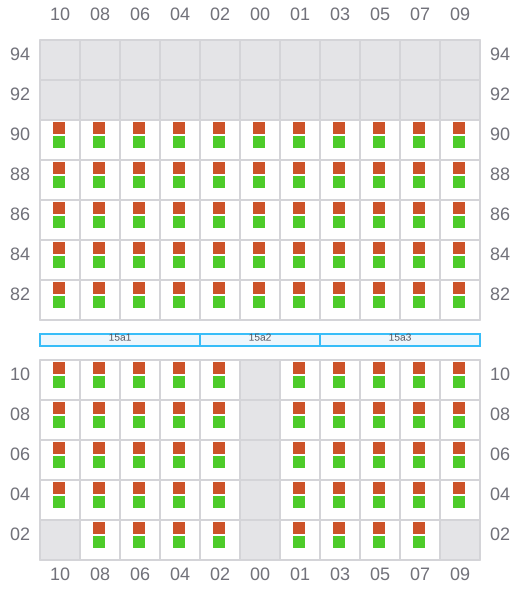

Bay 015 view and slots of X-PRESS NILWALA

017

Bay 017 view and slots of X-PRESS NILWALA

019 (018)

Bay 019 view and slots of X-PRESS NILWALA

021

Bay 021 view and slots of X-PRESS NILWALA

023 (022)

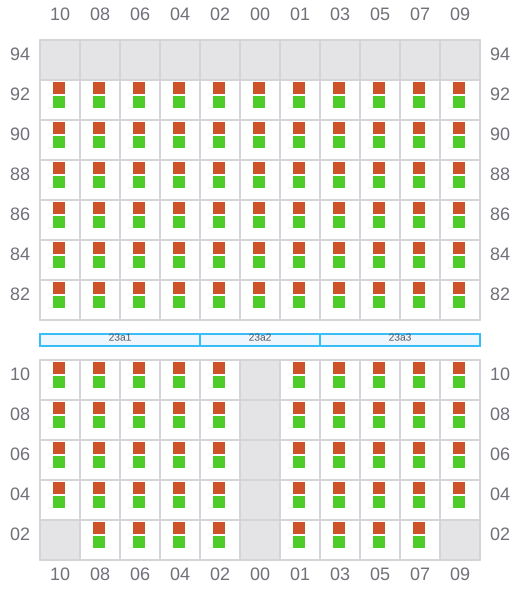

Bay 023 view and slots of X-PRESS NILWALA

025

Bay 025 view and slots of X-PRESS NILWALA

027 (026)

Bay 027 view and slots of X-PRESS NILWALA

029

Bay 029 view and slots of X-PRESS NILWALA

031 (030)

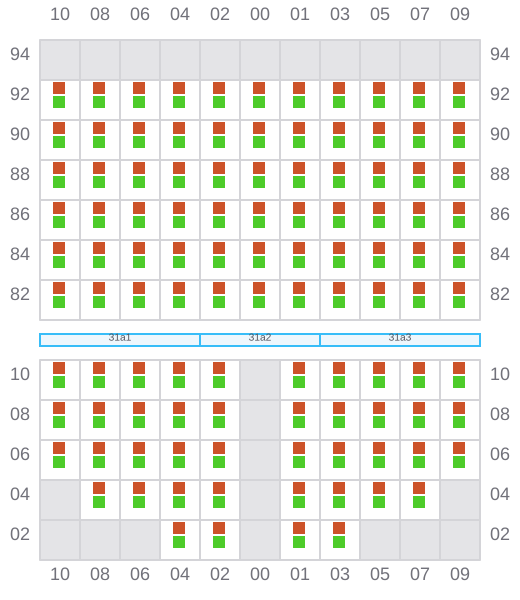

Bay 031 view and slots of X-PRESS NILWALA

033 (034)

^→ / _?
^→ / _?

Bay 033 view and slots of X-PRESS NILWALA
