X PRESS ODYSSEY
9656137 | 9V7017 | 9656137 by ********* Last update: Thu Jun 13 2024

General Info

Ship Name:X PRESS ODYSSEY
IMO Code:9656137
Call Sign:9V7017
Line Operator:9656137
Class Name for Sister Ships:MAE
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,047

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of X PRESS ODYSSEY

Hatch-Covers View

Deck view of X PRESS ODYSSEY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

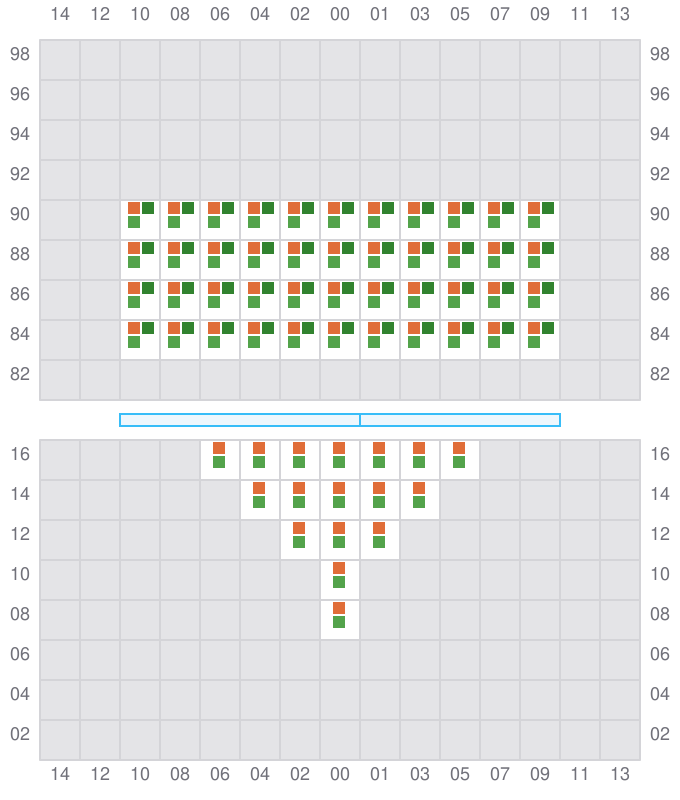

Bay 001 view and slots of X PRESS ODYSSEY

003

  • ←

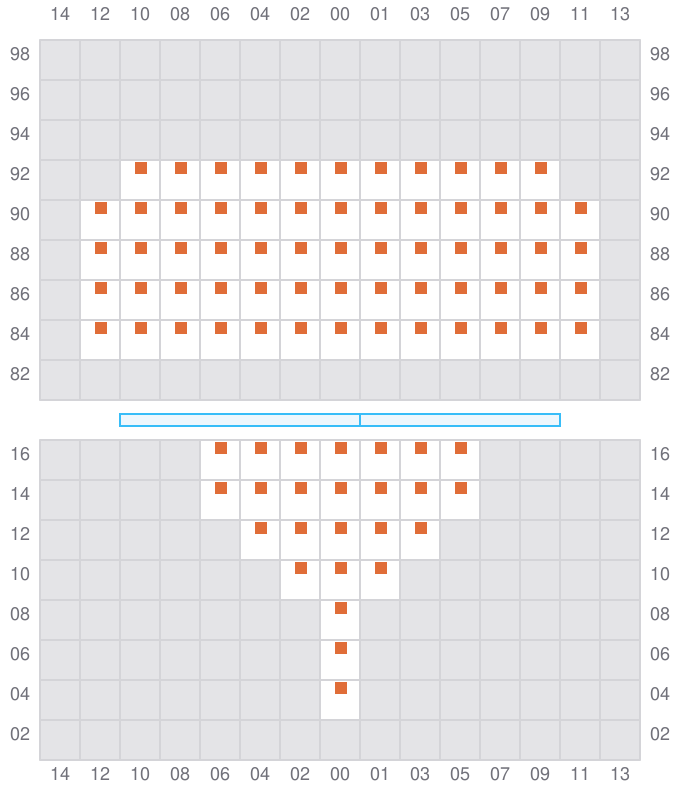

Bay 003 view and slots of X PRESS ODYSSEY

005 (006)

  • →
Bay 005 view and slots of X PRESS ODYSSEY

007

  • ←
  • → / ?

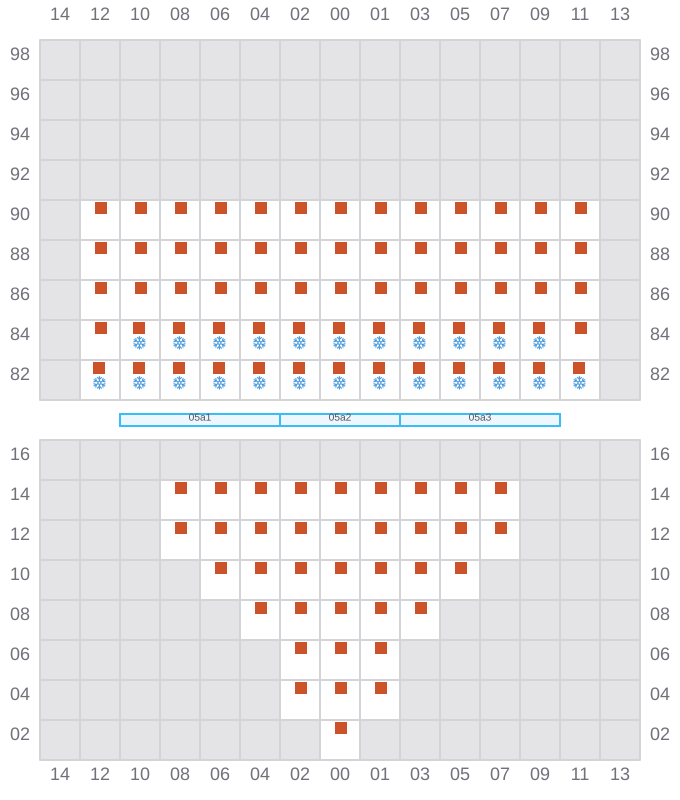

Bay 007 view and slots of X PRESS ODYSSEY

009 (010)

  • →

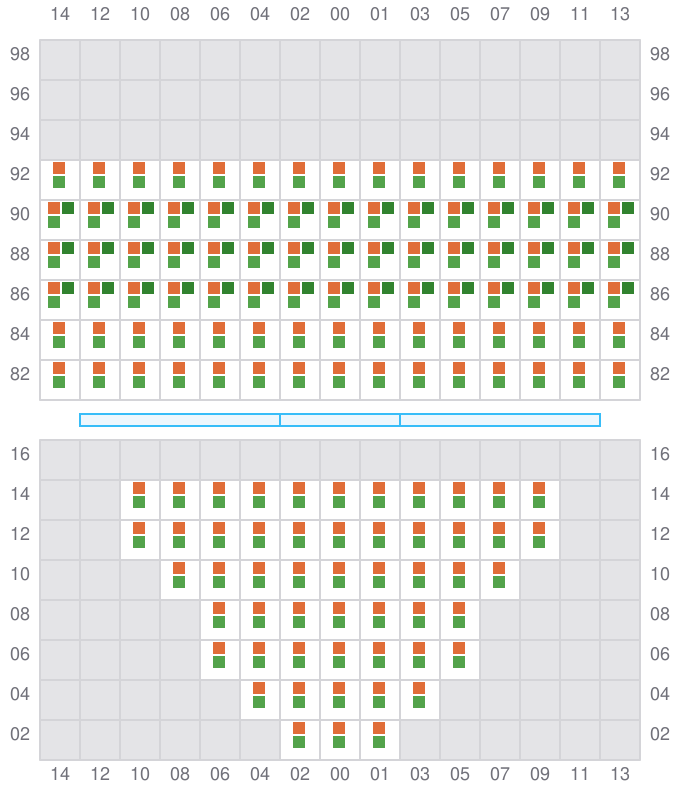

Bay 009 view and slots of X PRESS ODYSSEY

011

  • ←
  • → / ?

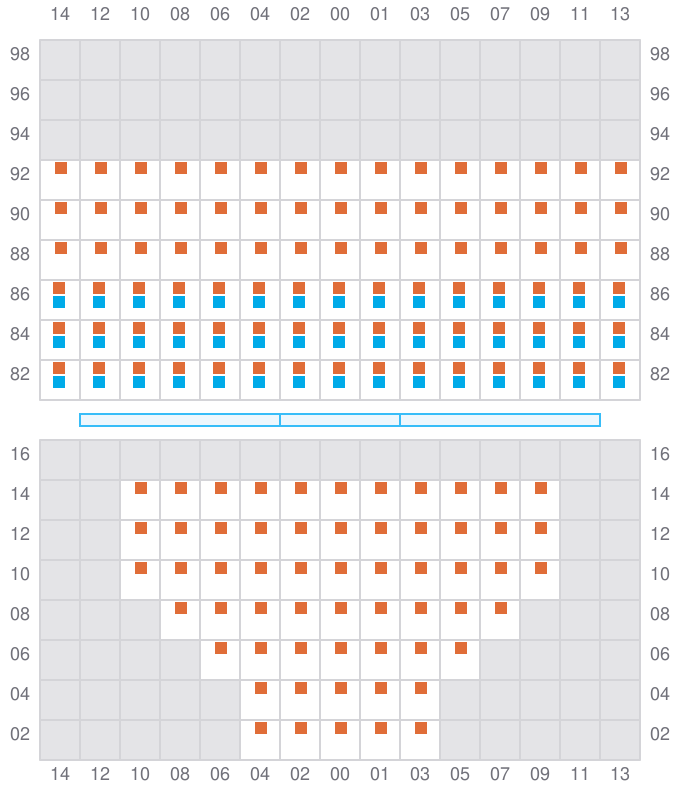

Bay 011 view and slots of X PRESS ODYSSEY

013 (014)

  • →

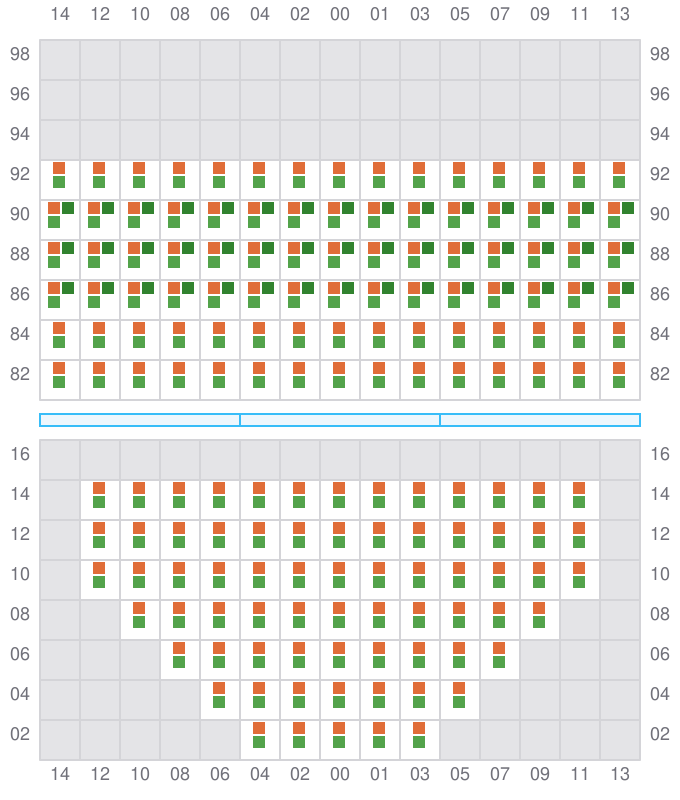

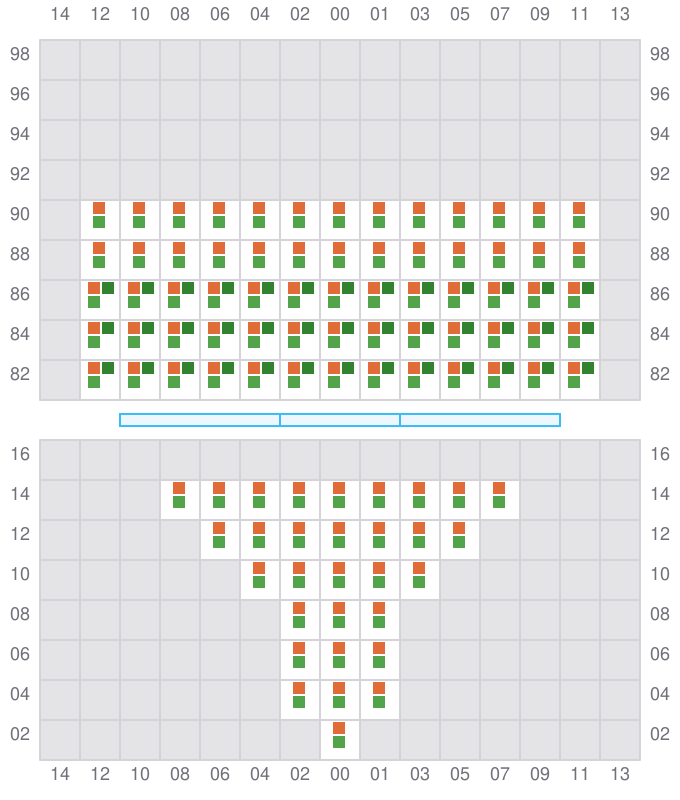

Bay 013 view and slots of X PRESS ODYSSEY

015

  • ←
  • → / ?

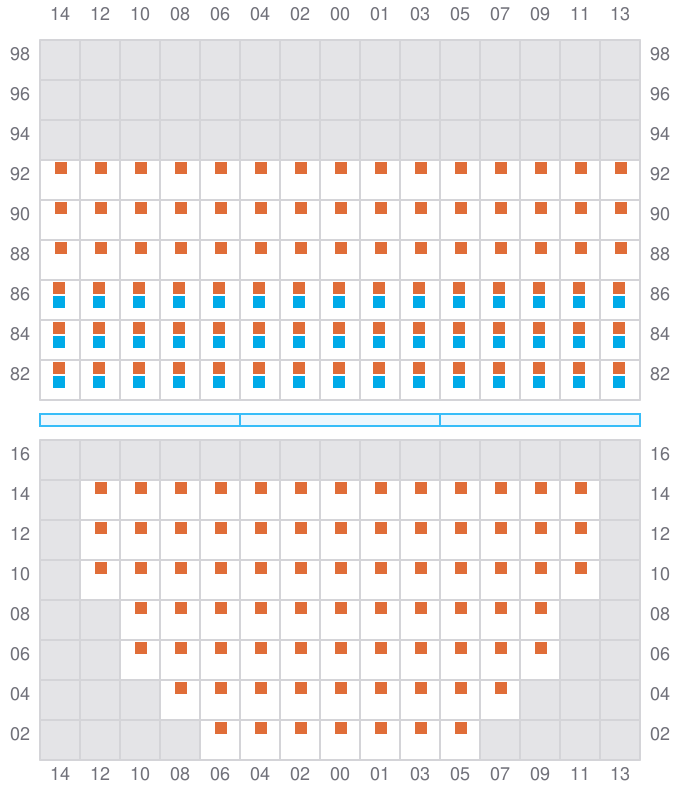

Bay 015 view and slots of X PRESS ODYSSEY

017 (018)

  • →
Bay 017 view and slots of X PRESS ODYSSEY

019

  • ←
  • → / ?

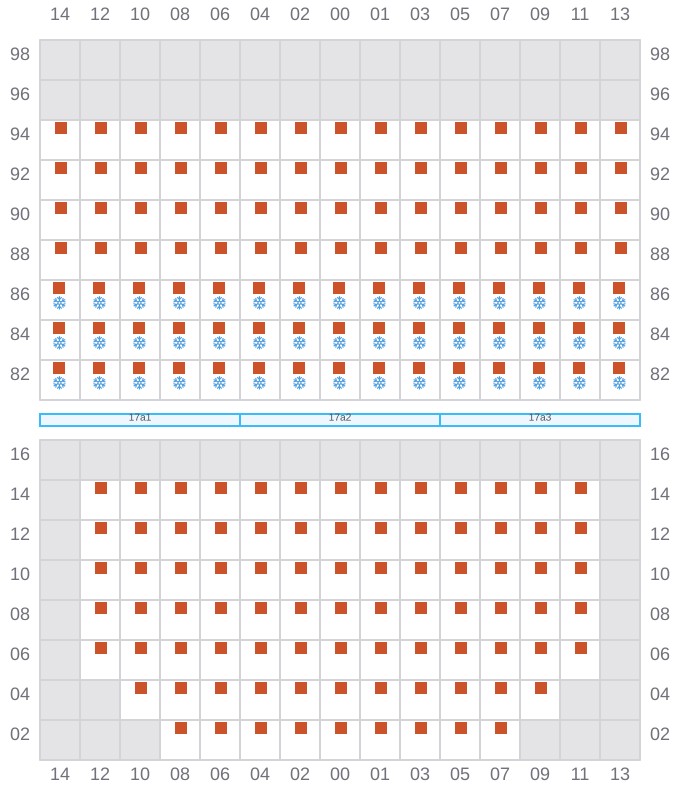

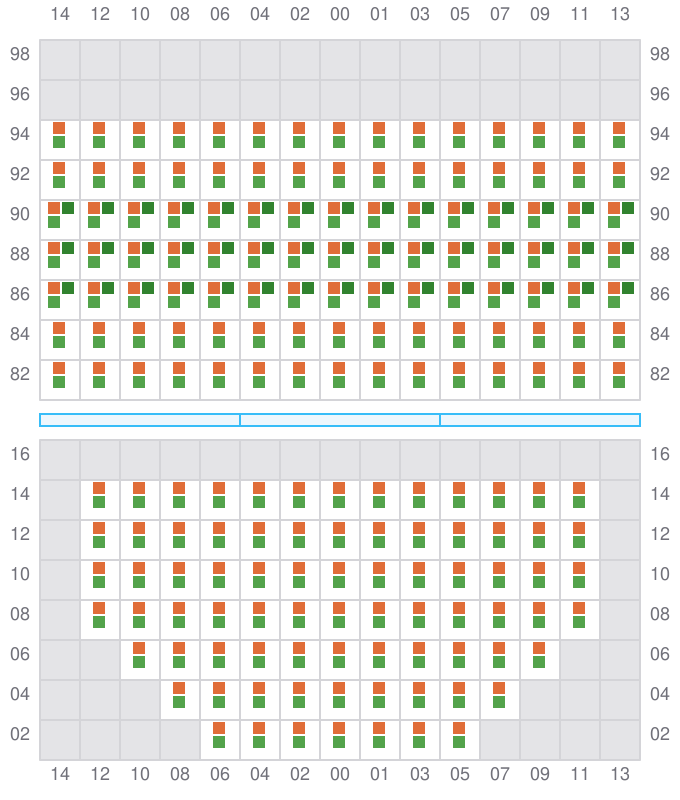

Bay 019 view and slots of X PRESS ODYSSEY

021 (022)

  • →

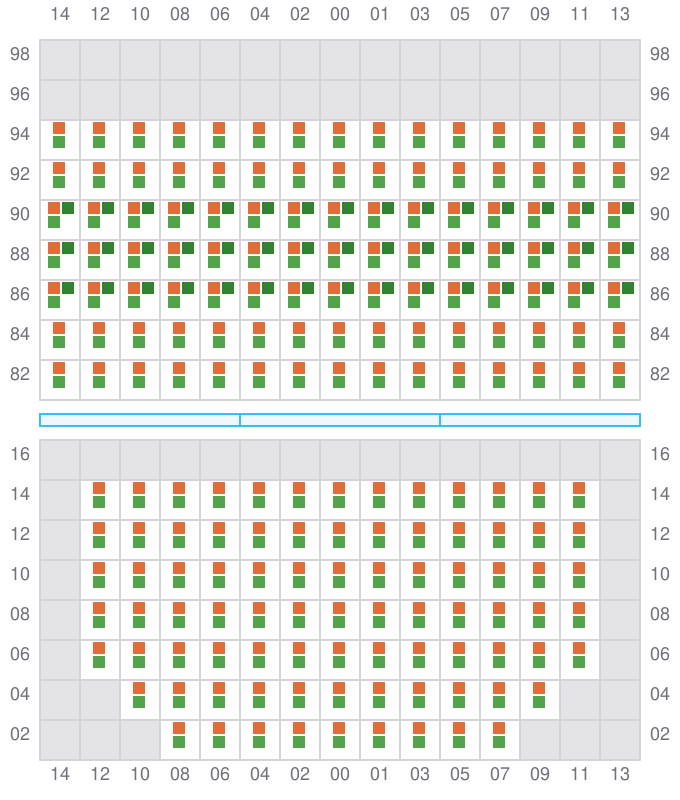

Bay 021 view and slots of X PRESS ODYSSEY

023

  • ←
  • → / ?

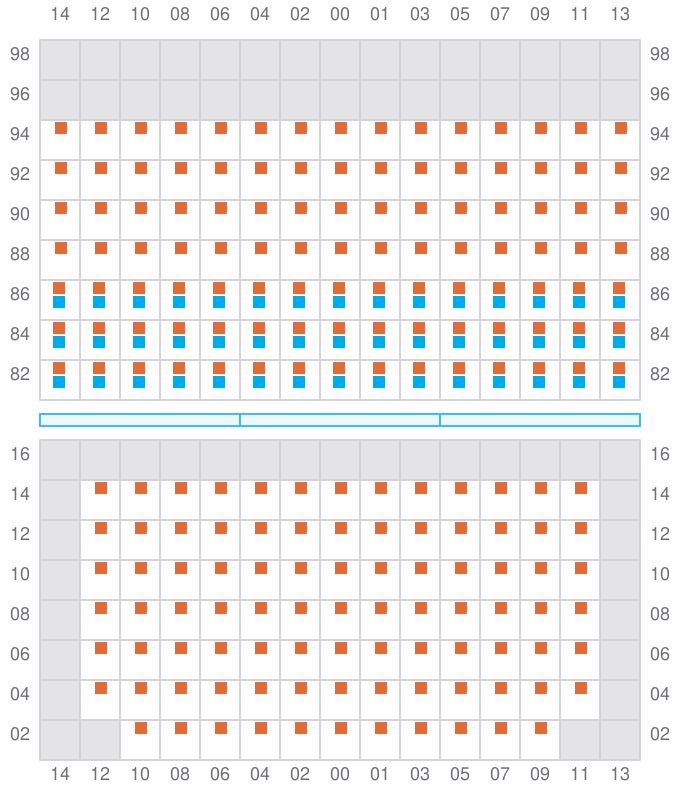

Bay 023 view and slots of X PRESS ODYSSEY

025 (026)

  • →
Bay 025 view and slots of X PRESS ODYSSEY

027

  • ←
  • → / ?
Bay 027 view and slots of X PRESS ODYSSEY

029 (030)

  • →
Bay 029 view and slots of X PRESS ODYSSEY

031

  • ←
  • → / ?
Bay 031 view and slots of X PRESS ODYSSEY

033 (034)

  • →

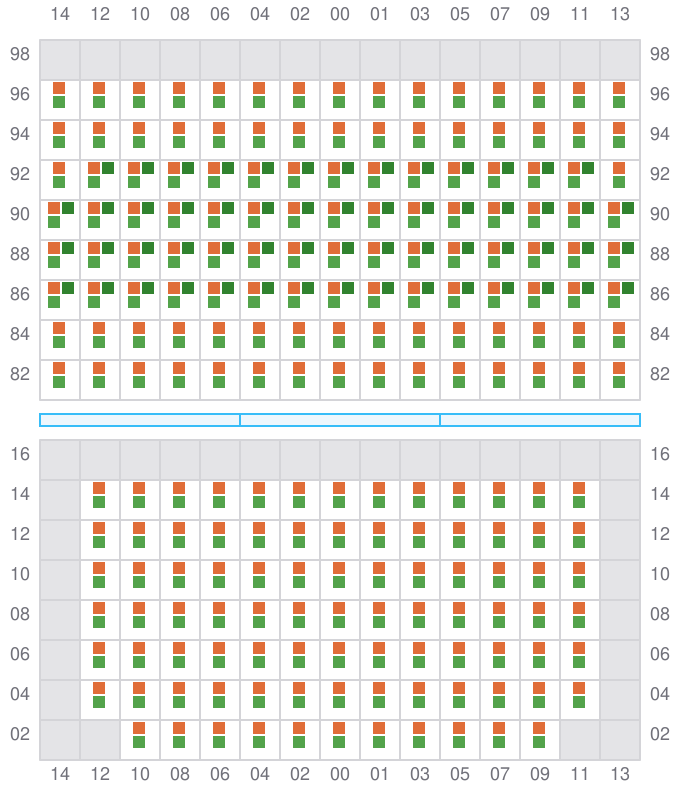

Bay 033 view and slots of X PRESS ODYSSEY

035

  • ←
  • → / ?

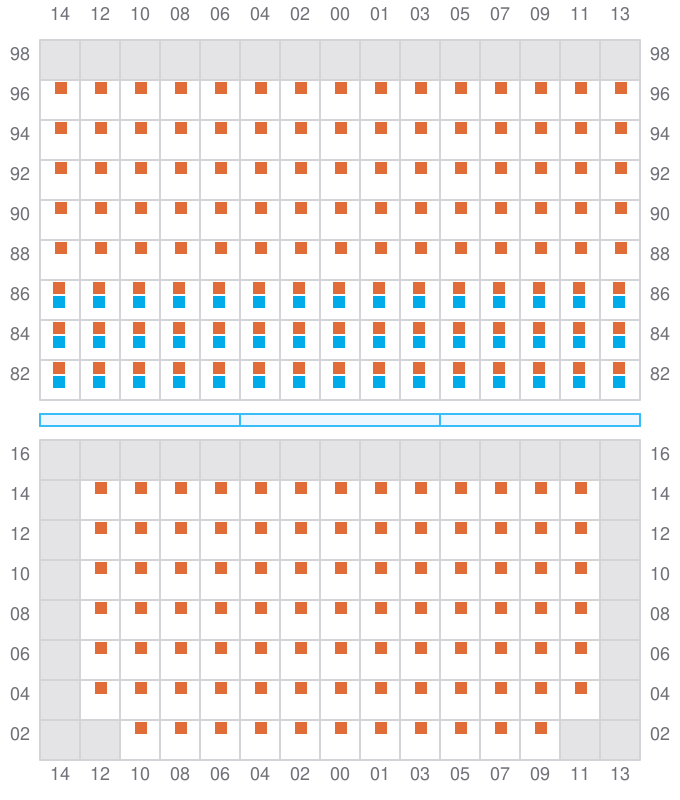

Bay 035 view and slots of X PRESS ODYSSEY

037 (038)

  • →
Bay 037 view and slots of X PRESS ODYSSEY

039

  • ←
  • → / ?
Bay 039 view and slots of X PRESS ODYSSEY

041 (042)

  • →

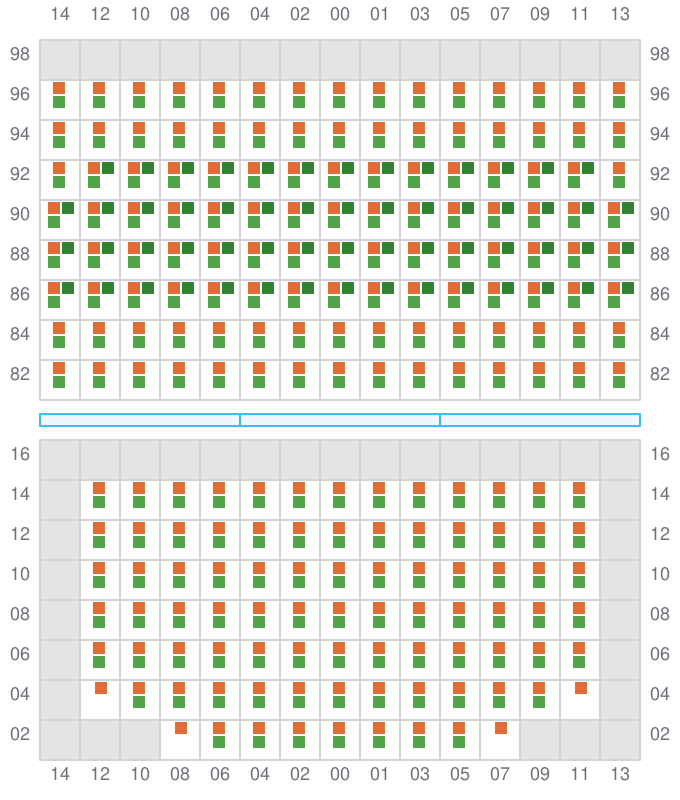

Bay 041 view and slots of X PRESS ODYSSEY

043

  • ←
  • → / ?

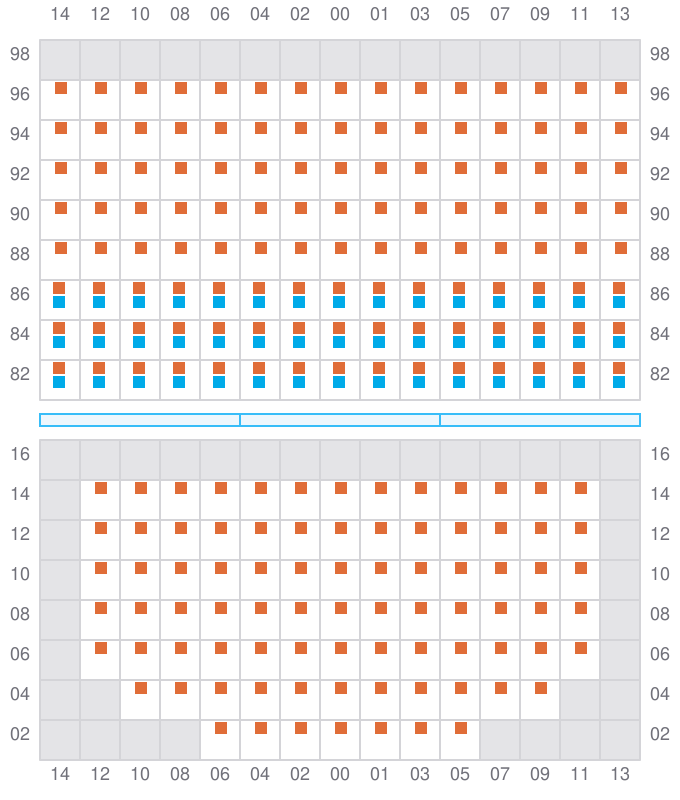

Bay 043 view and slots of X PRESS ODYSSEY

045 (046)

  • →

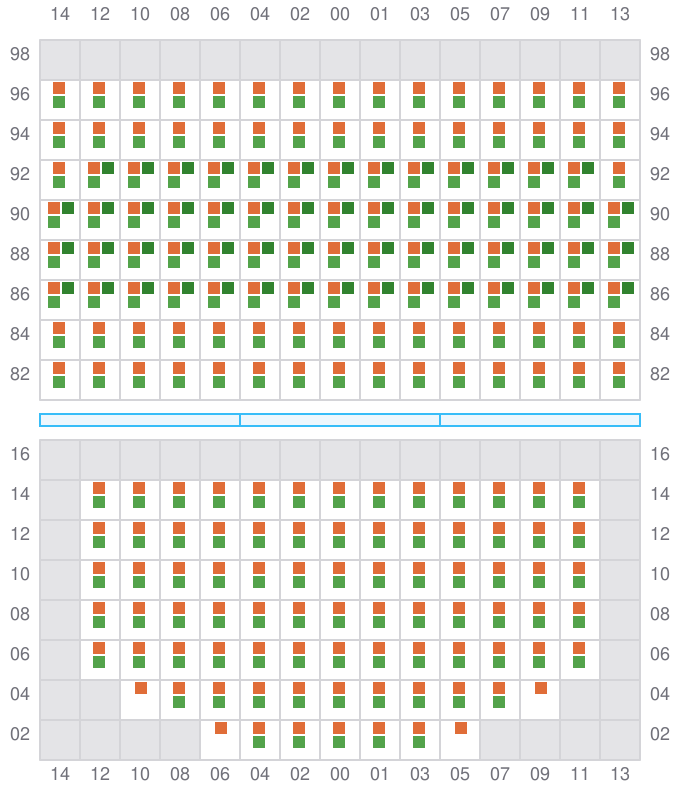

Bay 045 view and slots of X PRESS ODYSSEY

047

  • ←
  • → / ?

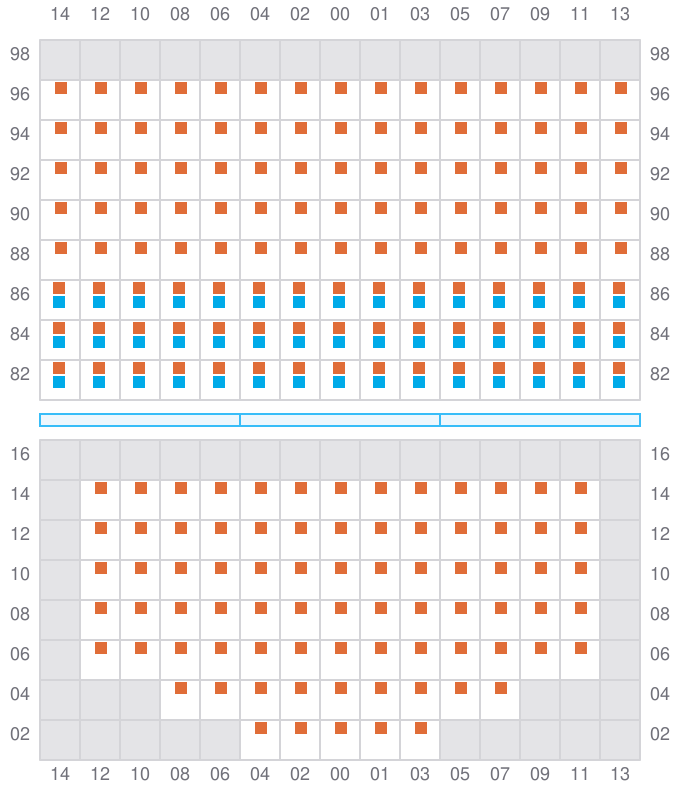

Bay 047 view and slots of X PRESS ODYSSEY

049 (050)

  • → / ?

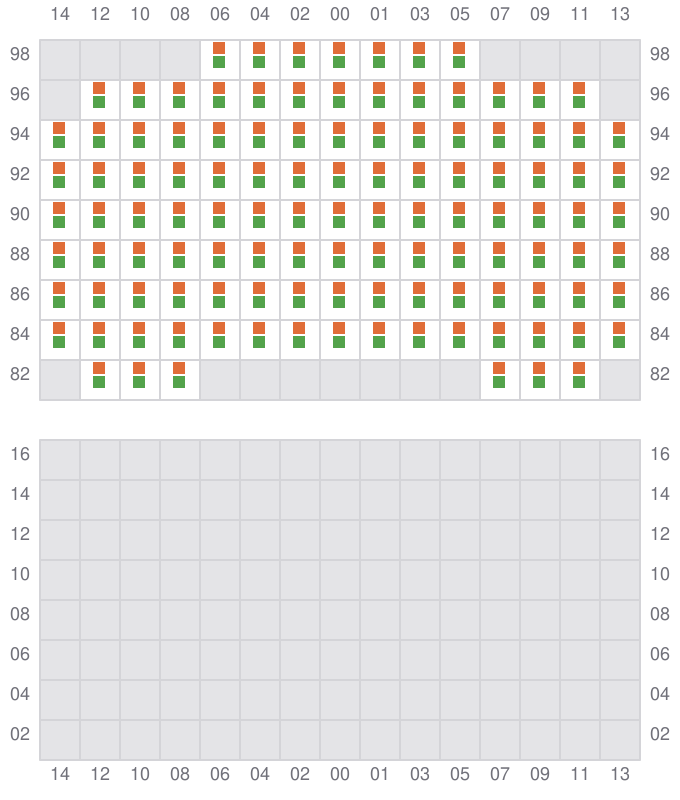

Bay 049 view and slots of X PRESS ODYSSEY

051

  • → / ?

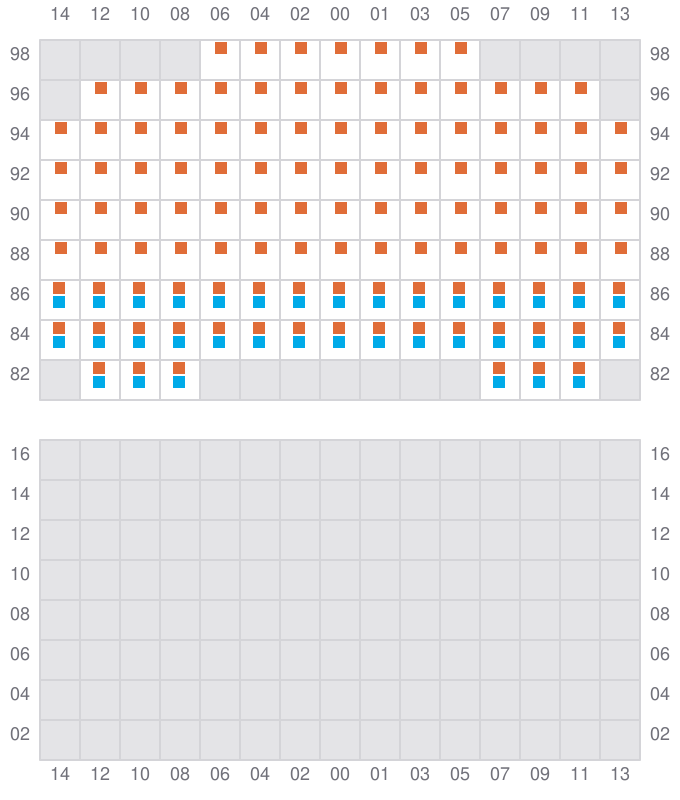

Bay 051 view and slots of X PRESS ODYSSEY

053 (054)

  • →

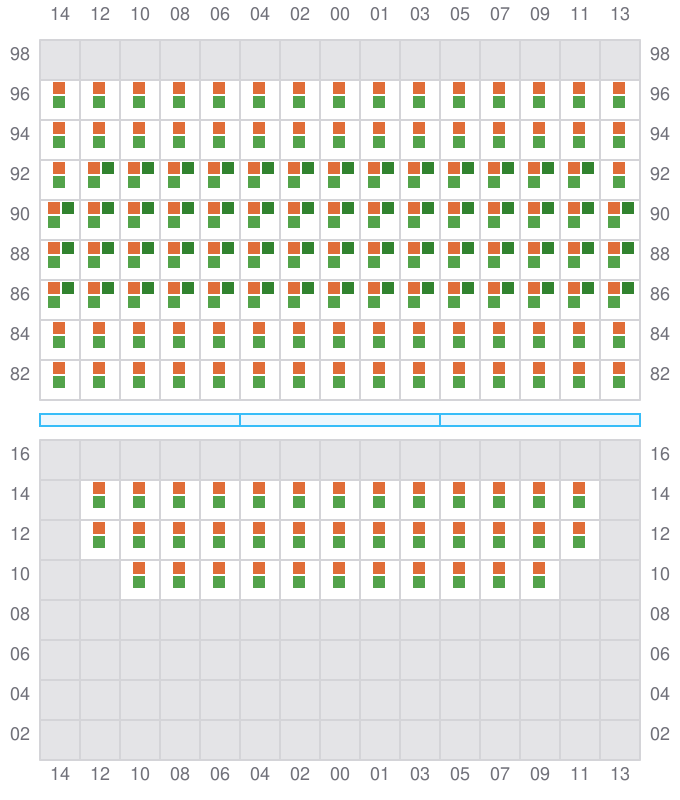

Bay 053 view and slots of X PRESS ODYSSEY

055

  • ←
  • → / ?

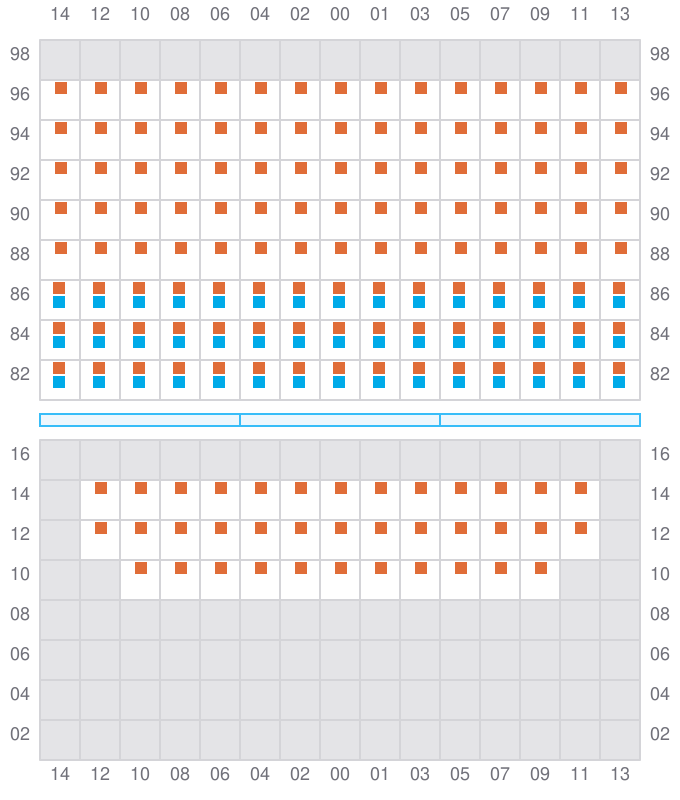

Bay 055 view and slots of X PRESS ODYSSEY

057 (058)

  • → / ?
  • → / ?
Bay 057 view and slots of X PRESS ODYSSEY
