X-PRESS PISCES
9967524 | 9V8977 | X-PRESS FEEDERS by ********************* Last update: Sat May 10 2025

General Info

Ship Name:X-PRESS PISCES
IMO Code:9967524
Call Sign:9V8977
Line Operator:X-PRESS FEEDERS
Class Name for Sister Ships:X-PRESS PISCES
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):272.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:7,058

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

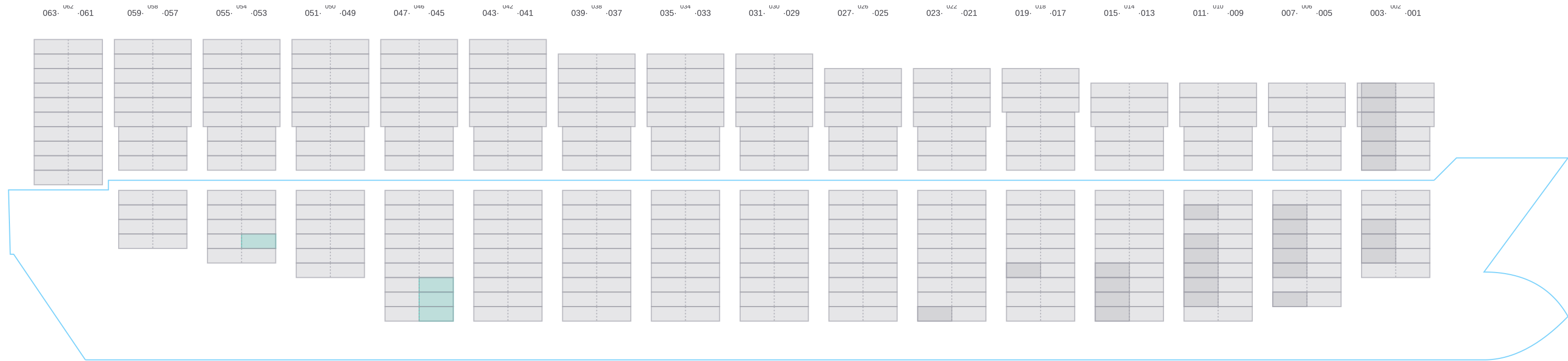

Side View

Side view of X-PRESS PISCES

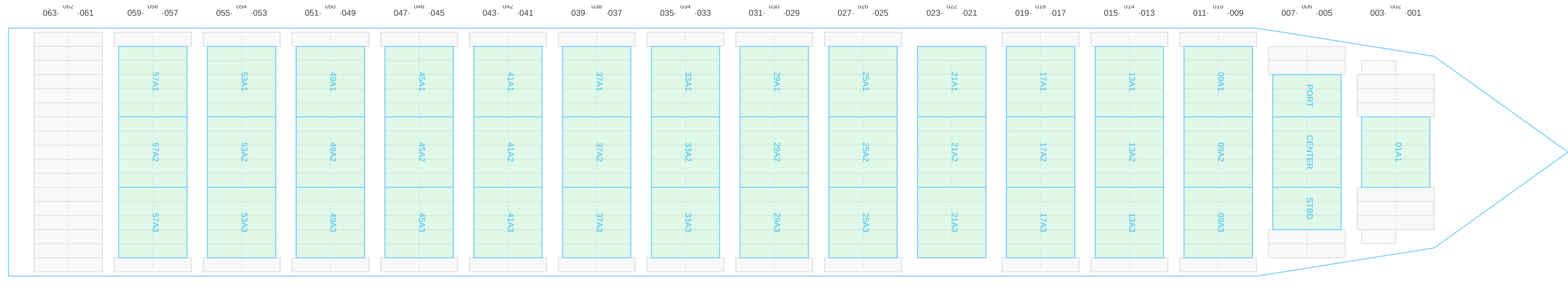

Hatch-Covers View

Deck view of X-PRESS PISCES

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • →
  • ✓

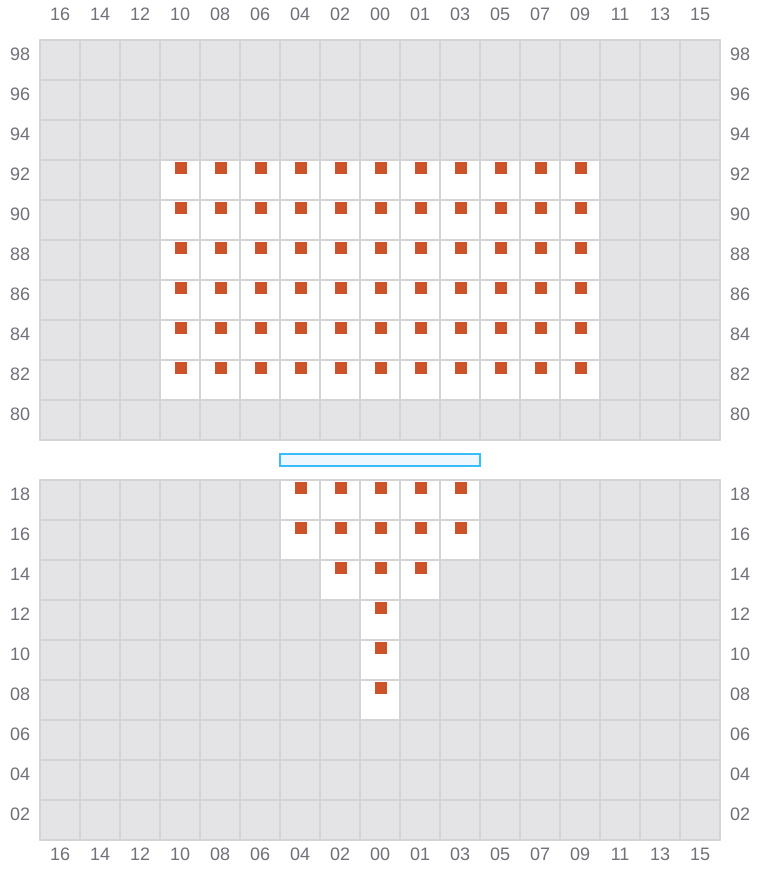

Bay 001 view and slots of X-PRESS PISCES

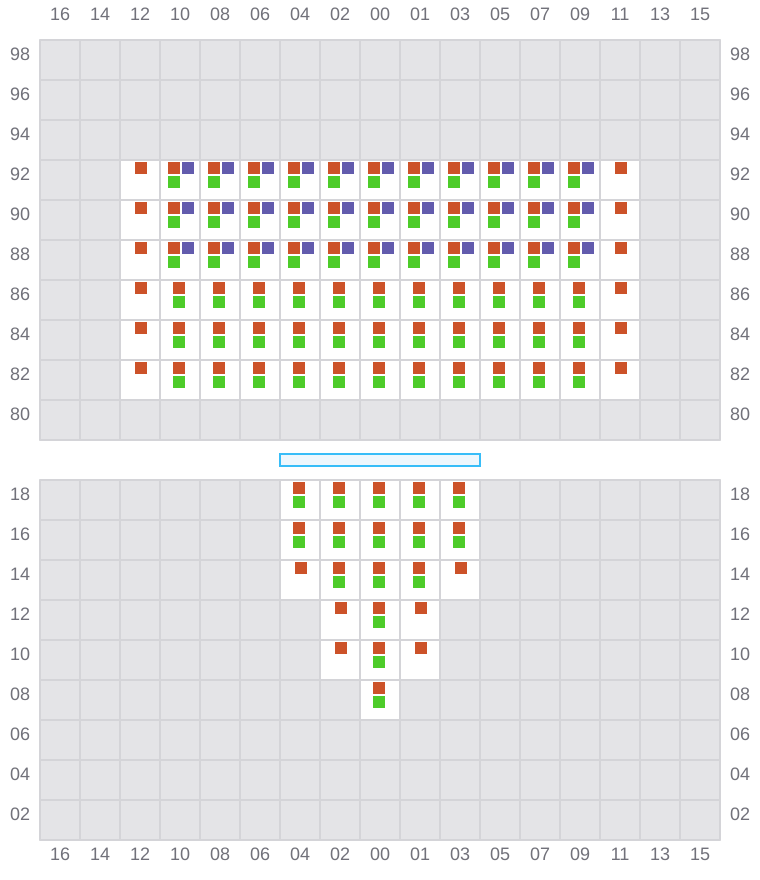

003 (002)

  • ←
  • →
  • ✓
Bay 003 view and slots of X-PRESS PISCES

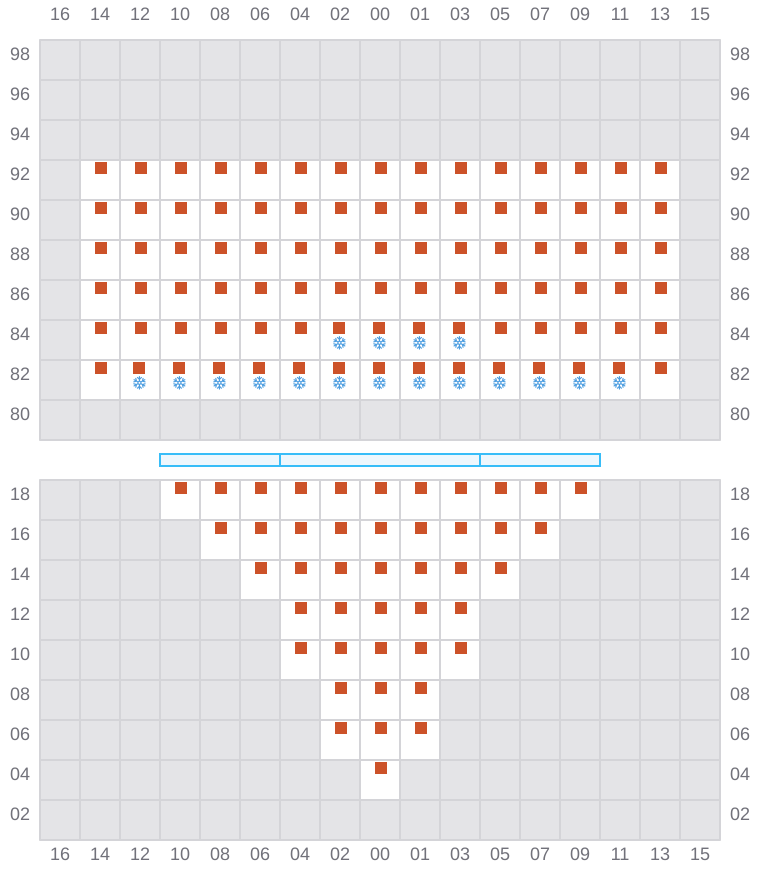

005

  • →
  • →
  • ✓
Bay 005 view and slots of X-PRESS PISCES

007 (006)

  • ←
  • →
  • ✓
Bay 007 view and slots of X-PRESS PISCES

009

  • →
  • →
  • ✓

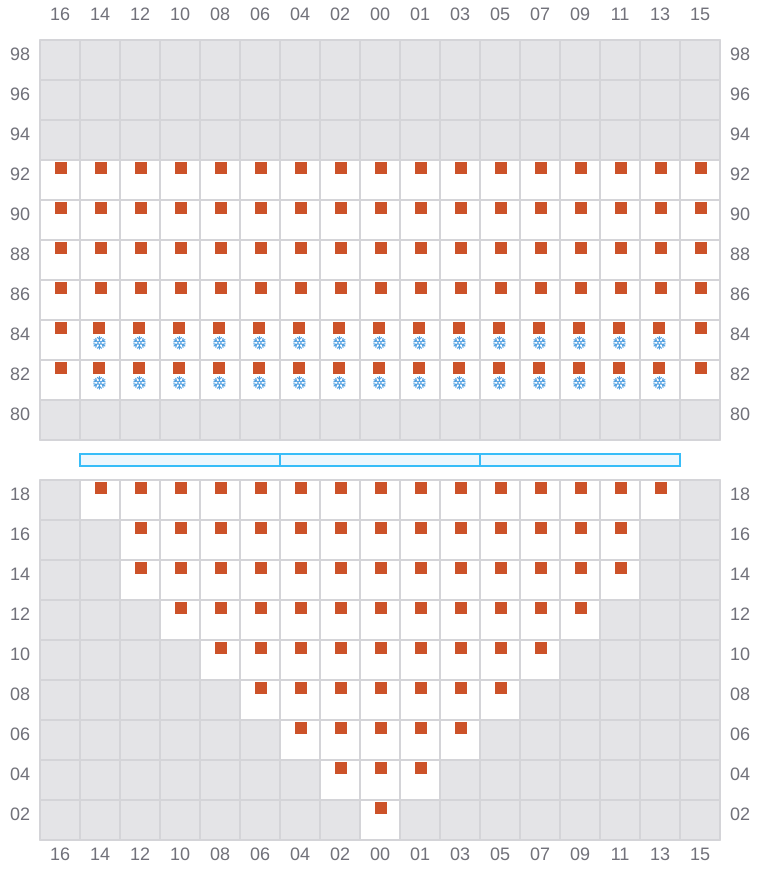

Bay 009 view and slots of X-PRESS PISCES

011 (010)

  • ←
  • →
  • ✓

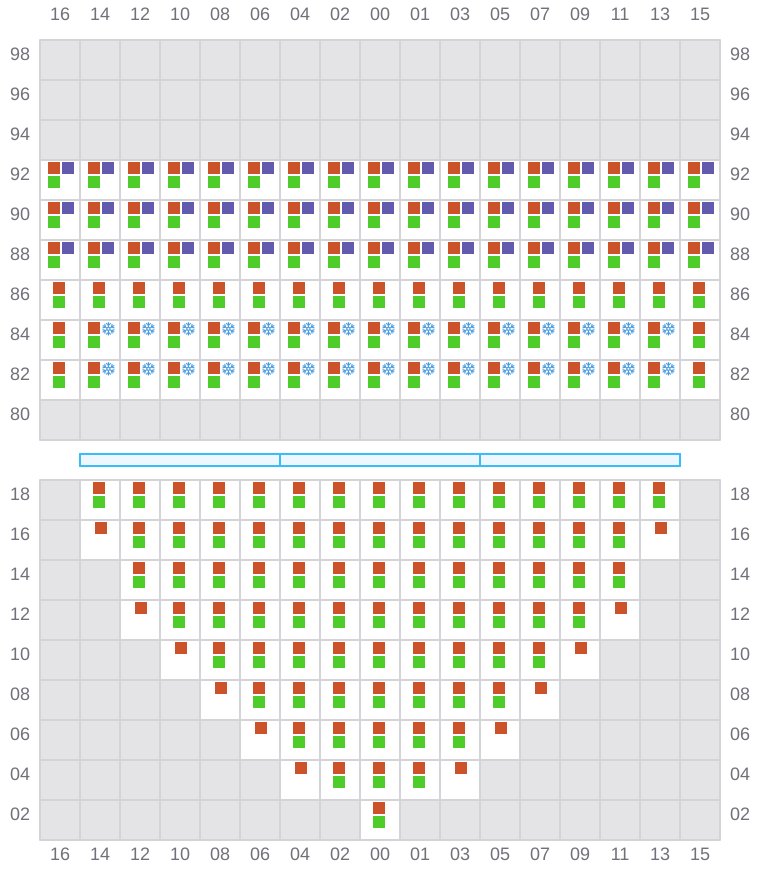

Bay 011 view and slots of X-PRESS PISCES

013

  • →
  • →
  • ✓

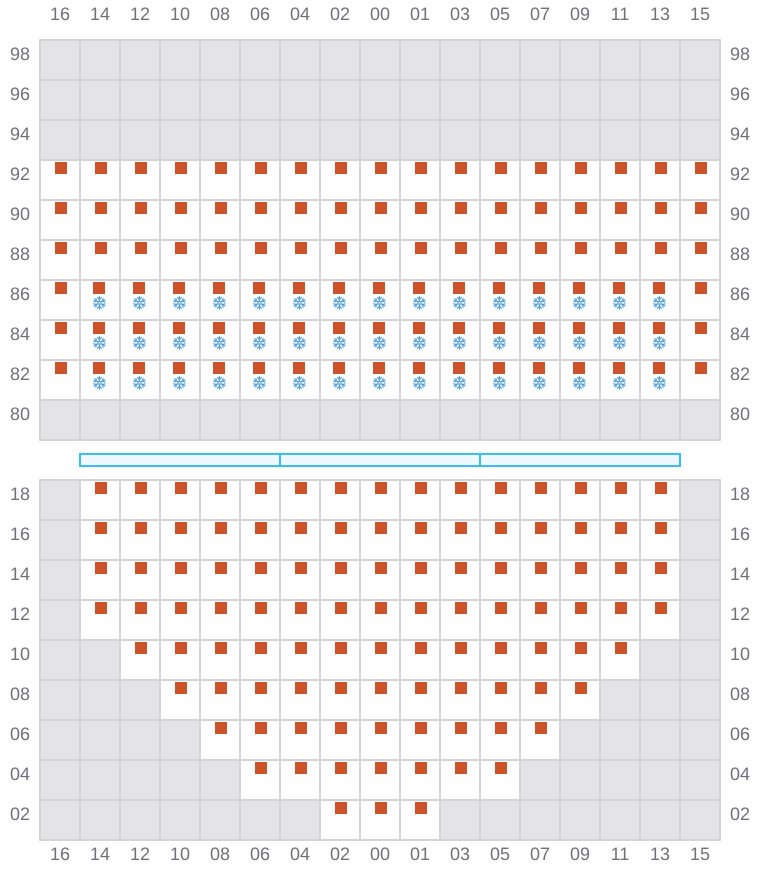

Bay 013 view and slots of X-PRESS PISCES

015 (014)

  • ←
  • →
  • ✓

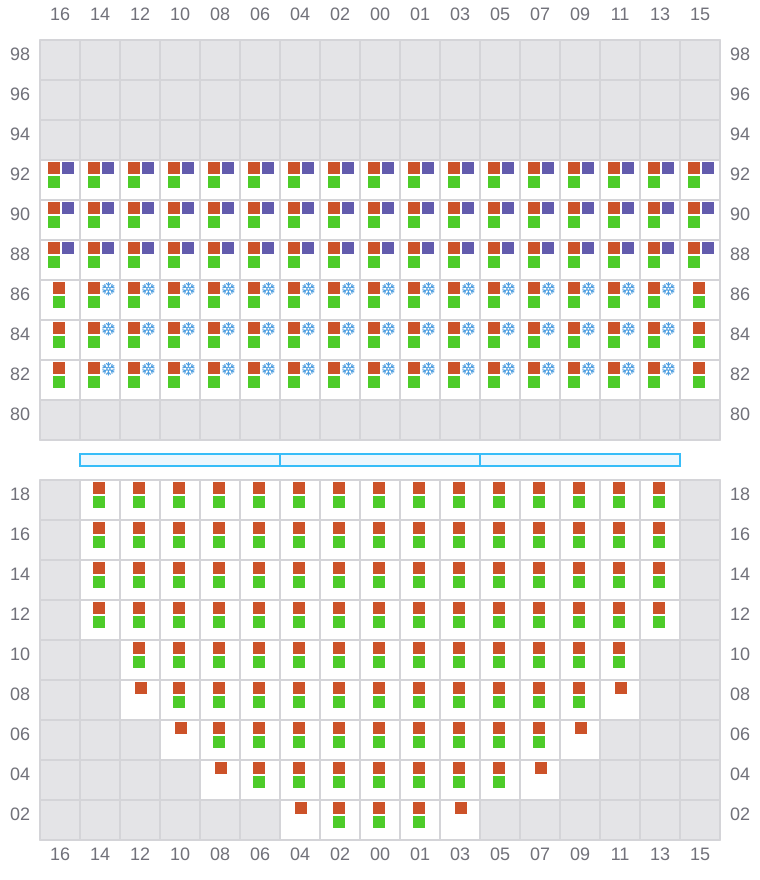

Bay 015 view and slots of X-PRESS PISCES

017

  • →
  • →
  • ✓

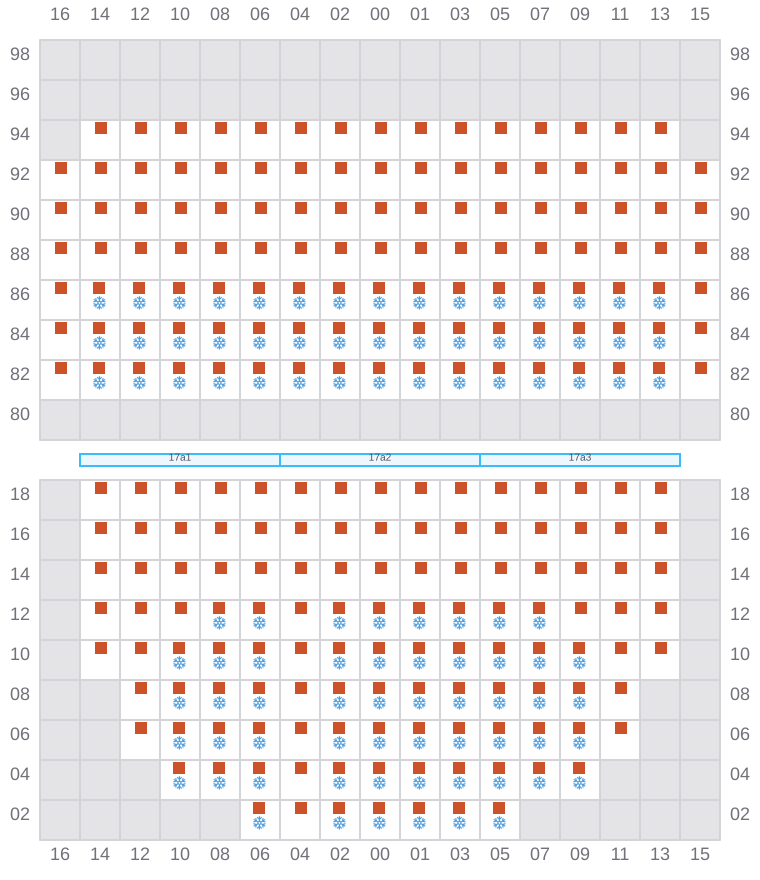

Bay 017 view and slots of X-PRESS PISCES

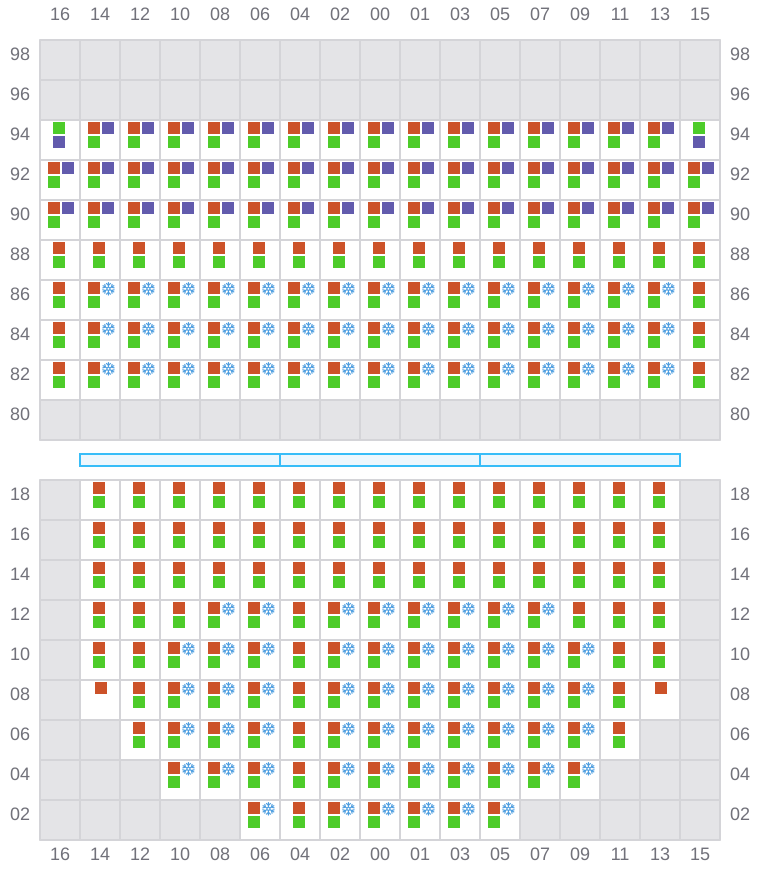

019 (018)

  • ←
  • →
  • ✓
Bay 019 view and slots of X-PRESS PISCES

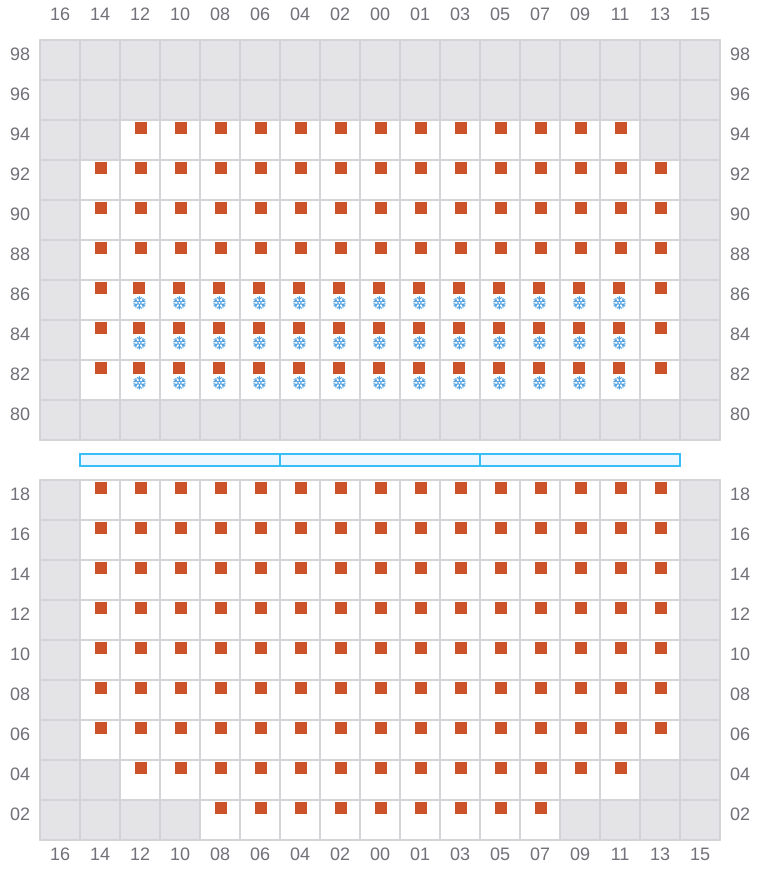

021

  • →
  • →
  • ✓
Bay 021 view and slots of X-PRESS PISCES

023 (022)

  • ←
  • →
  • ✓

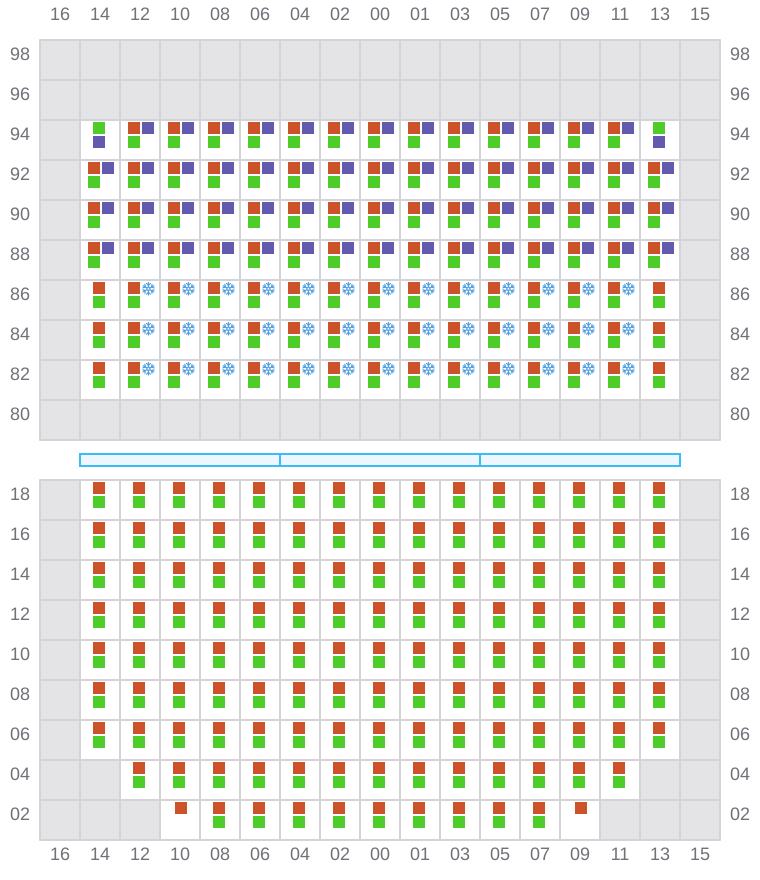

Bay 023 view and slots of X-PRESS PISCES

025

  • →
  • → / ←
  • ✓

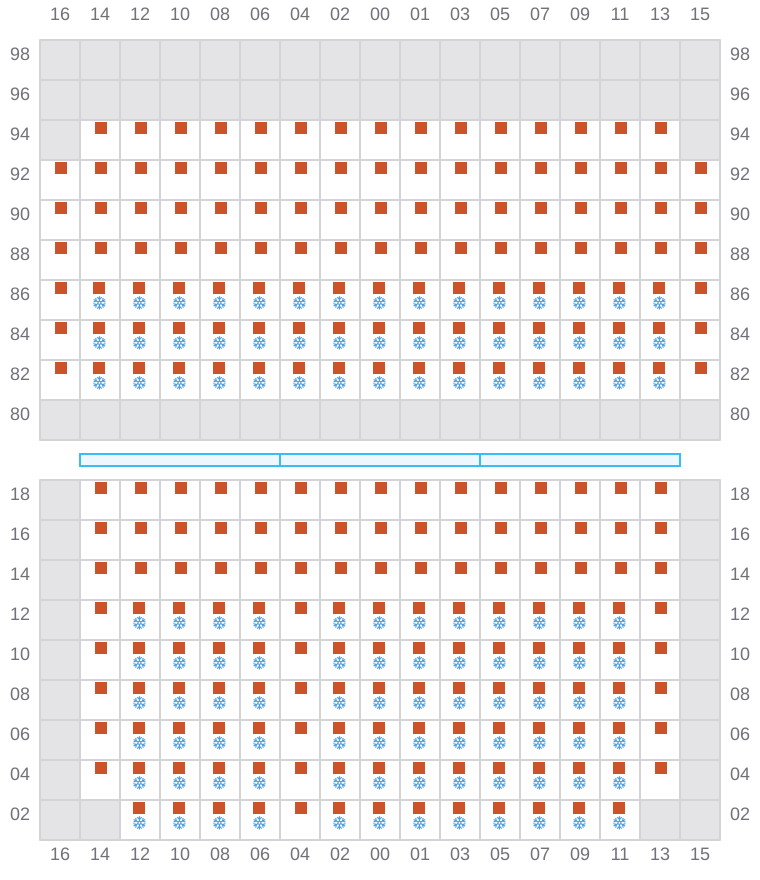

Bay 025 view and slots of X-PRESS PISCES

027 (026)

  • ←
  • →
  • ✓

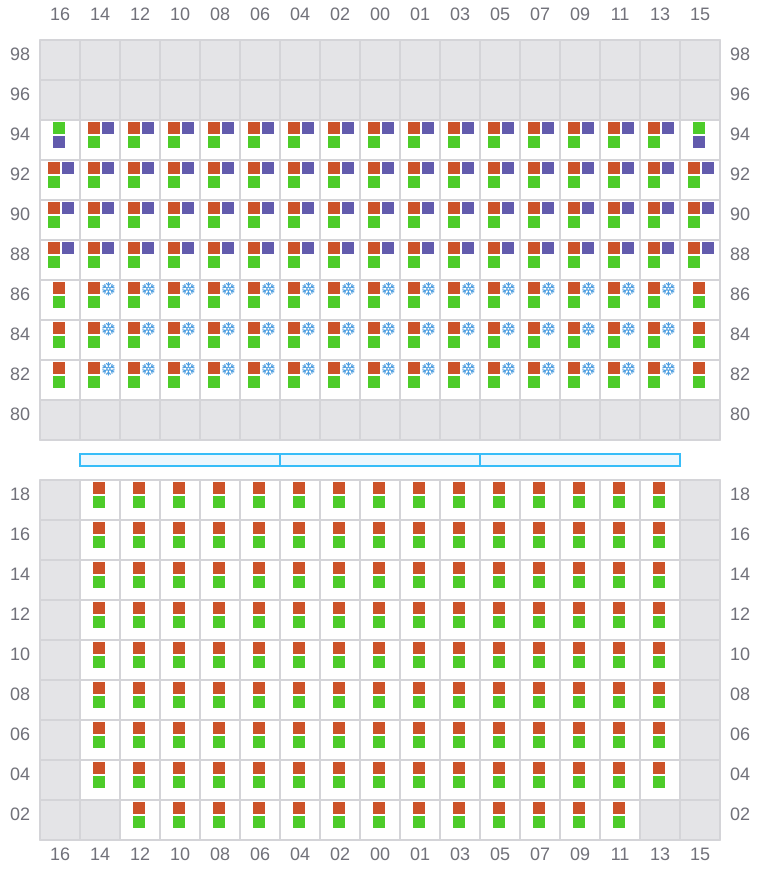

Bay 027 view and slots of X-PRESS PISCES

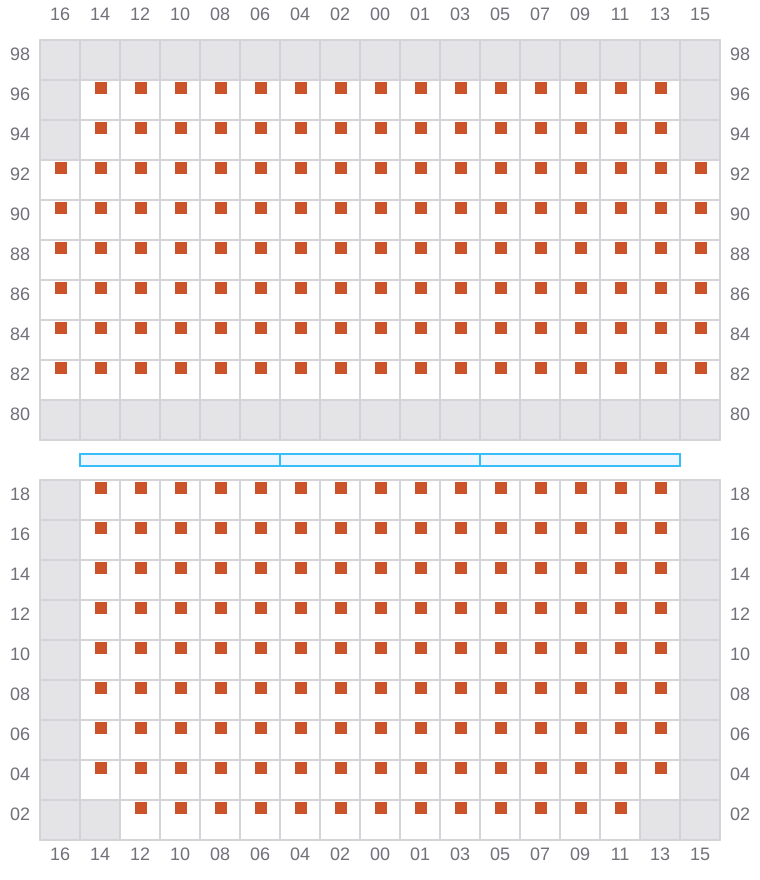

029

  • →
  • →
  • ✓
Bay 029 view and slots of X-PRESS PISCES

031 (030)

  • ←
  • →
  • ✓
Bay 031 view and slots of X-PRESS PISCES

033

  • →
  • →
  • ✓

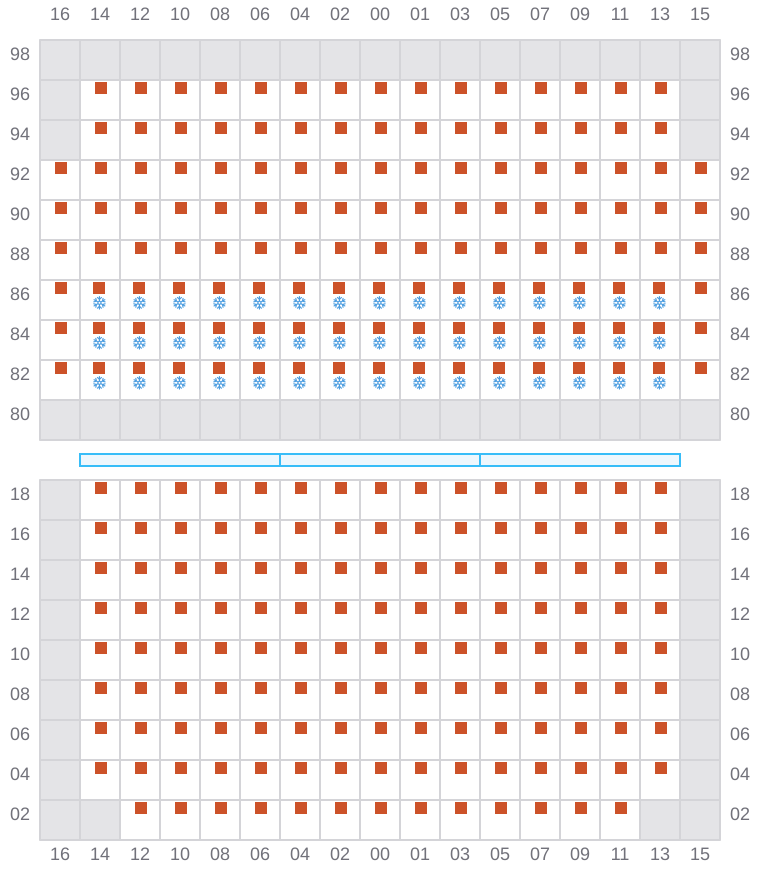

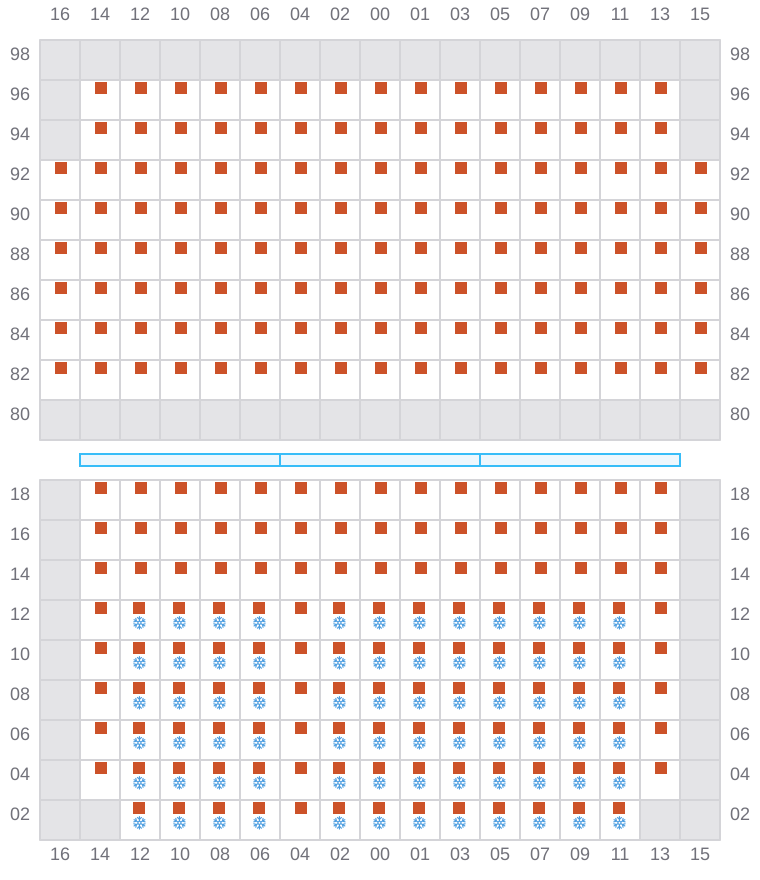

Bay 033 view and slots of X-PRESS PISCES

035 (034)

  • ←
  • →
  • ✓

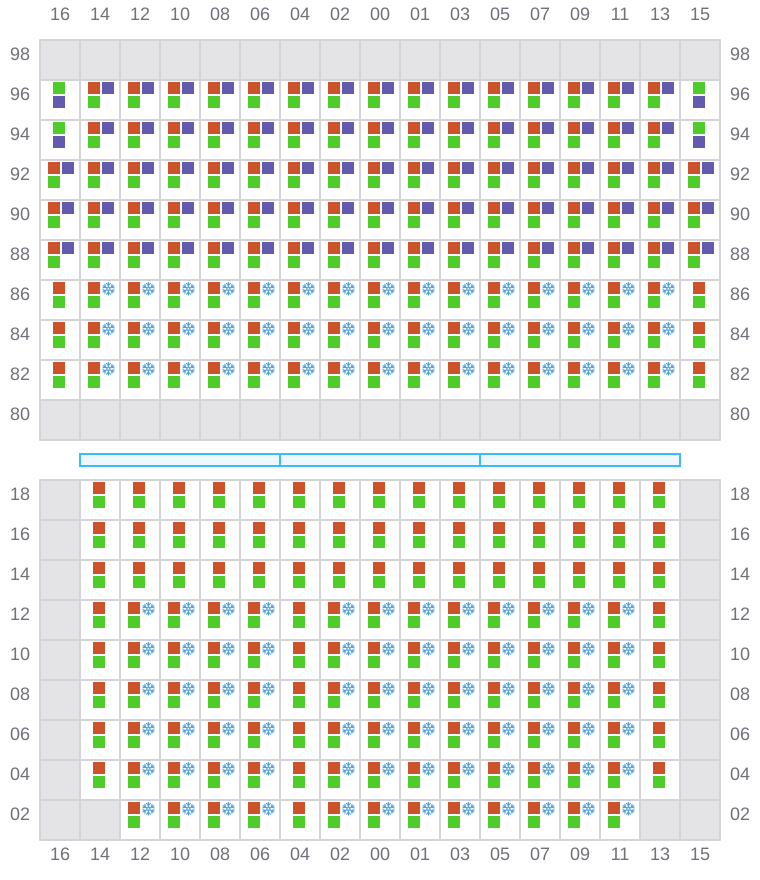

Bay 035 view and slots of X-PRESS PISCES

037

  • →
  • →
  • ✓
Bay 037 view and slots of X-PRESS PISCES

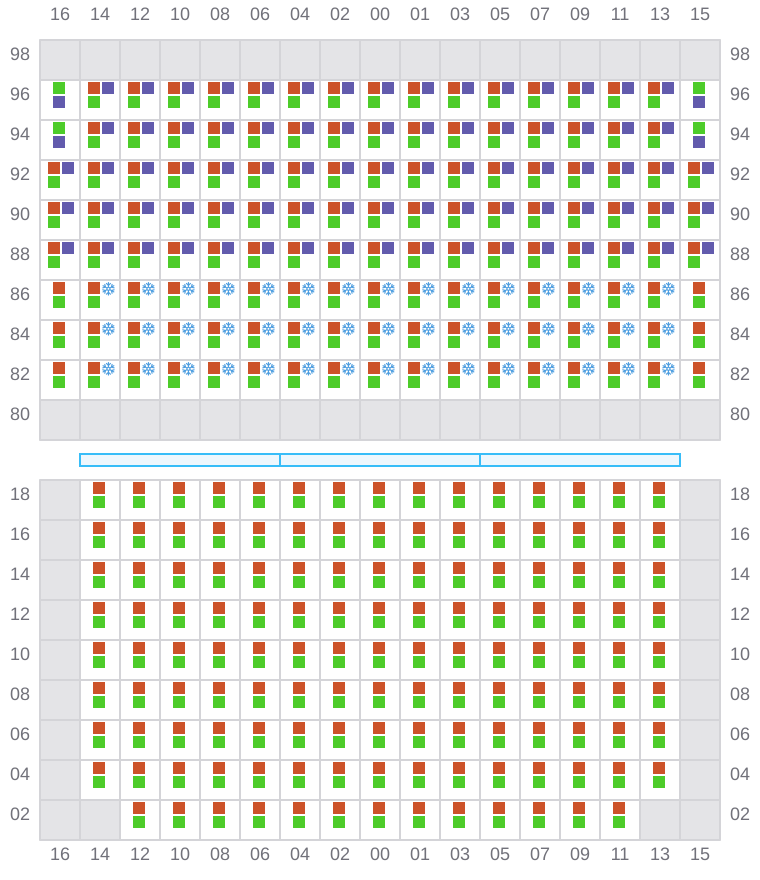

039 (038)

  • ←
  • →
  • ✓
Bay 039 view and slots of X-PRESS PISCES

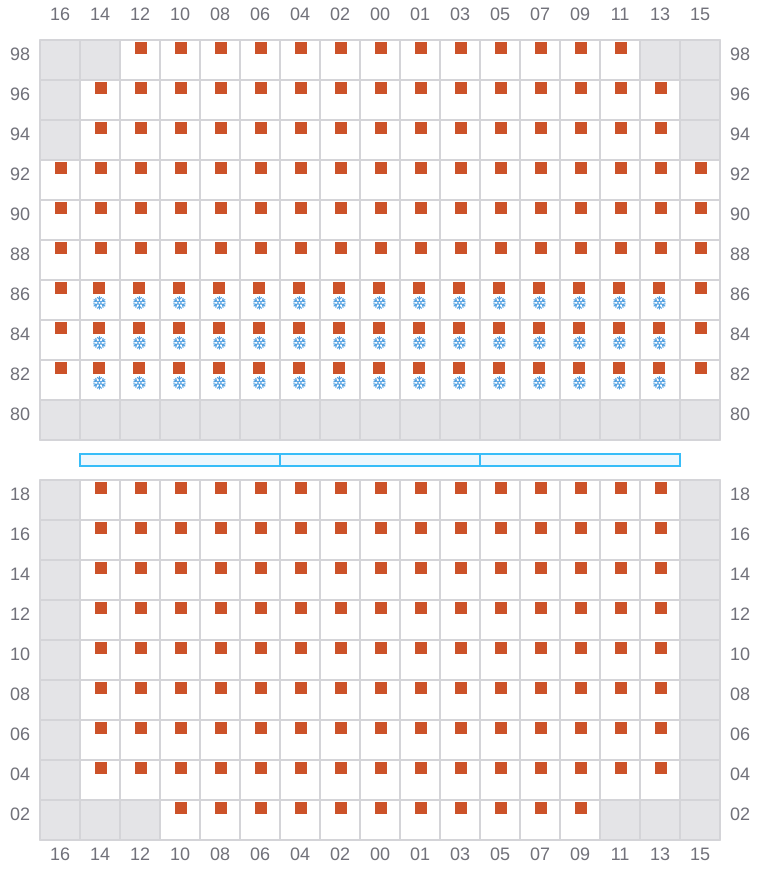

041

  • →
  • →
  • ✓
Bay 041 view and slots of X-PRESS PISCES

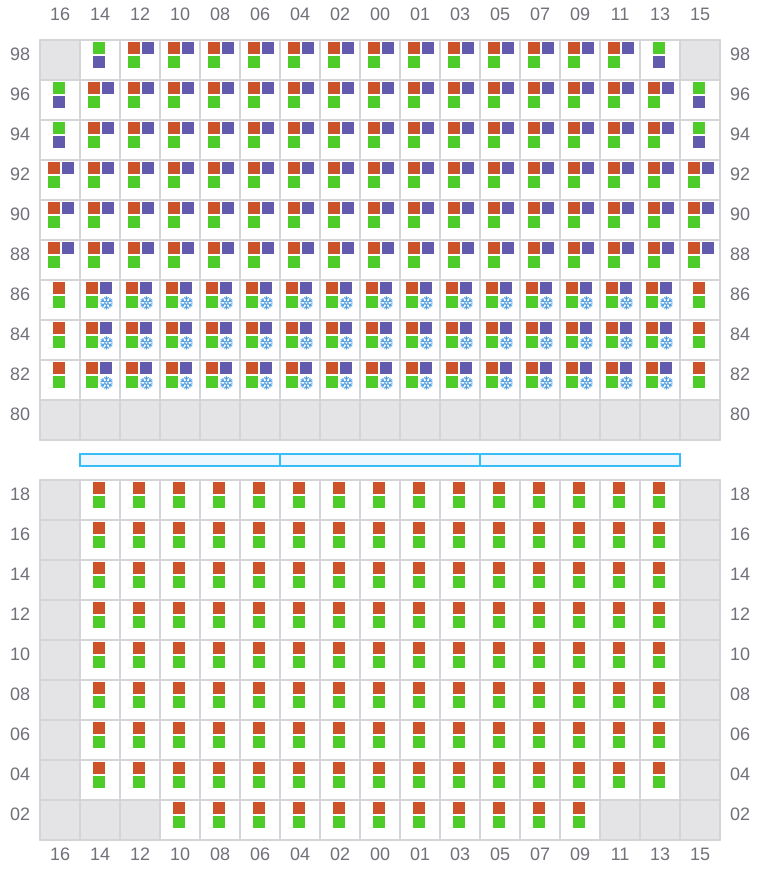

043 (042)

  • ←
  • →
  • ✓
Bay 043 view and slots of X-PRESS PISCES

045

  • →
  • →
  • ✓

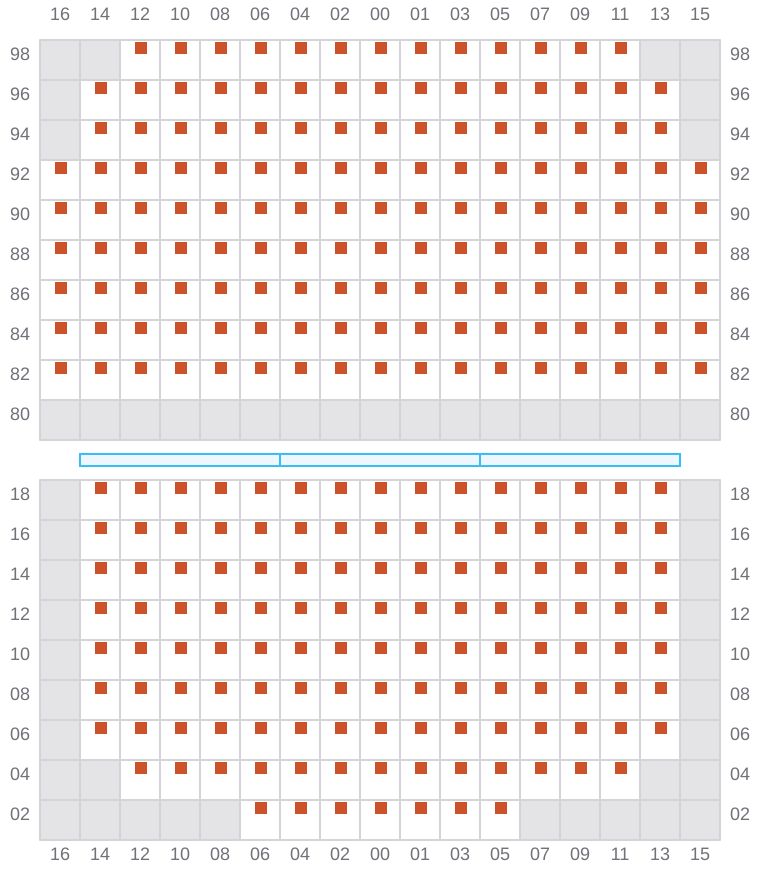

Bay 045 view and slots of X-PRESS PISCES

047 (046)

  • ←
  • →
  • ✓

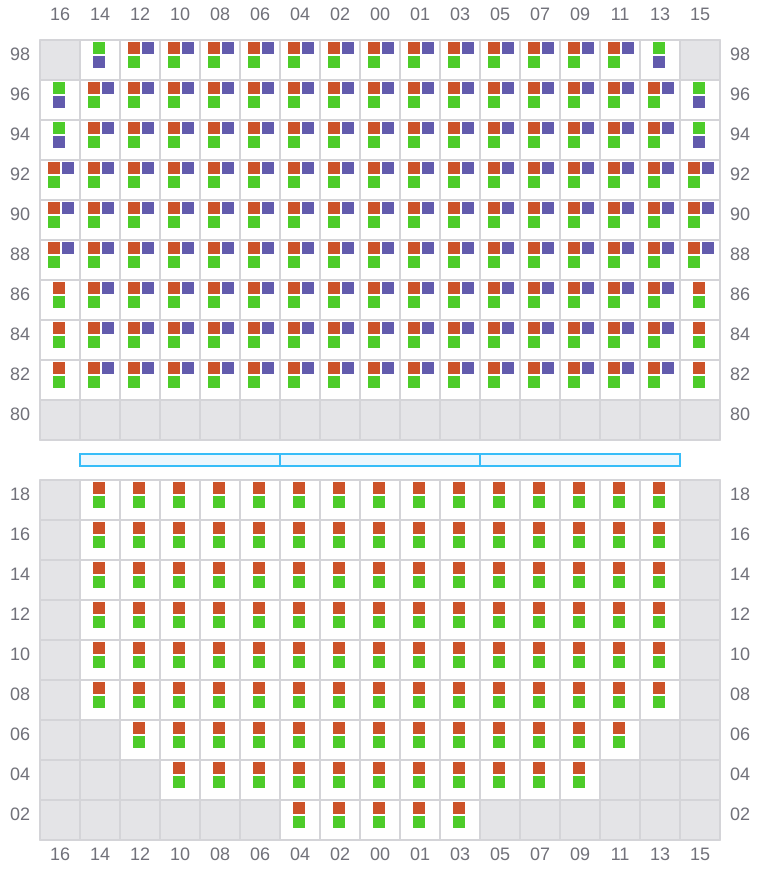

Bay 047 view and slots of X-PRESS PISCES

049

  • →
  • →
  • ✓

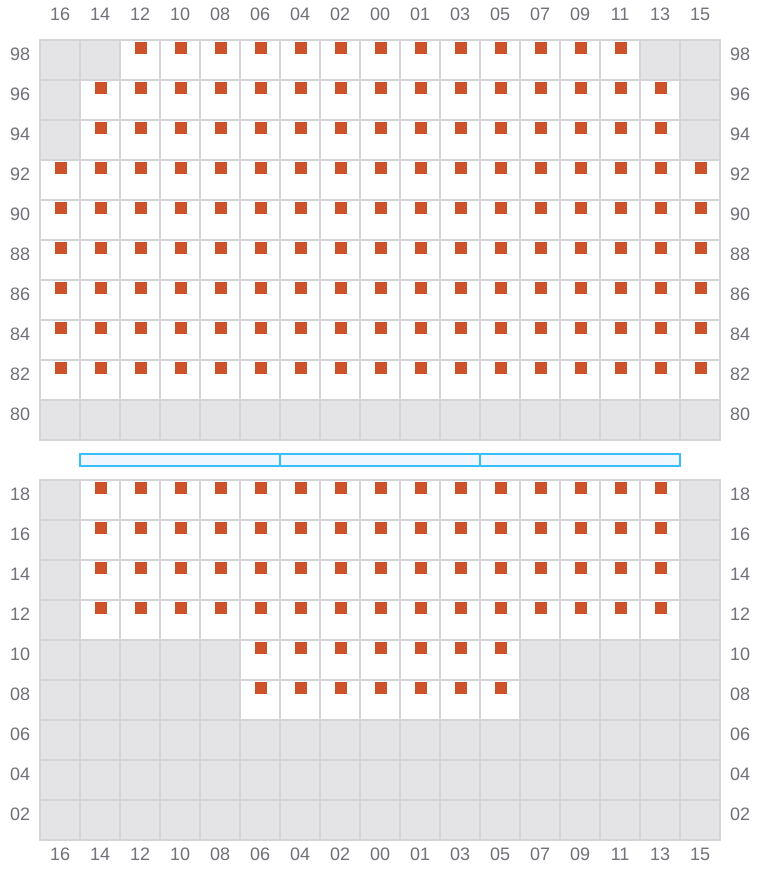

Bay 049 view and slots of X-PRESS PISCES

051 (050)

  • ←
  • →
  • ✓

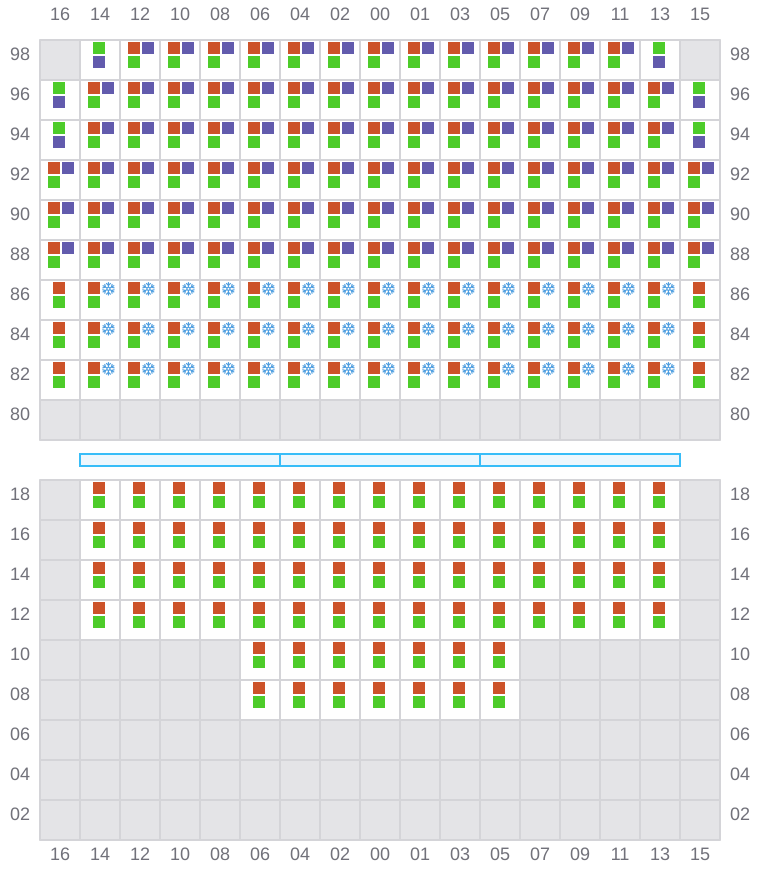

Bay 051 view and slots of X-PRESS PISCES

053

  • →
  • →
  • ✓

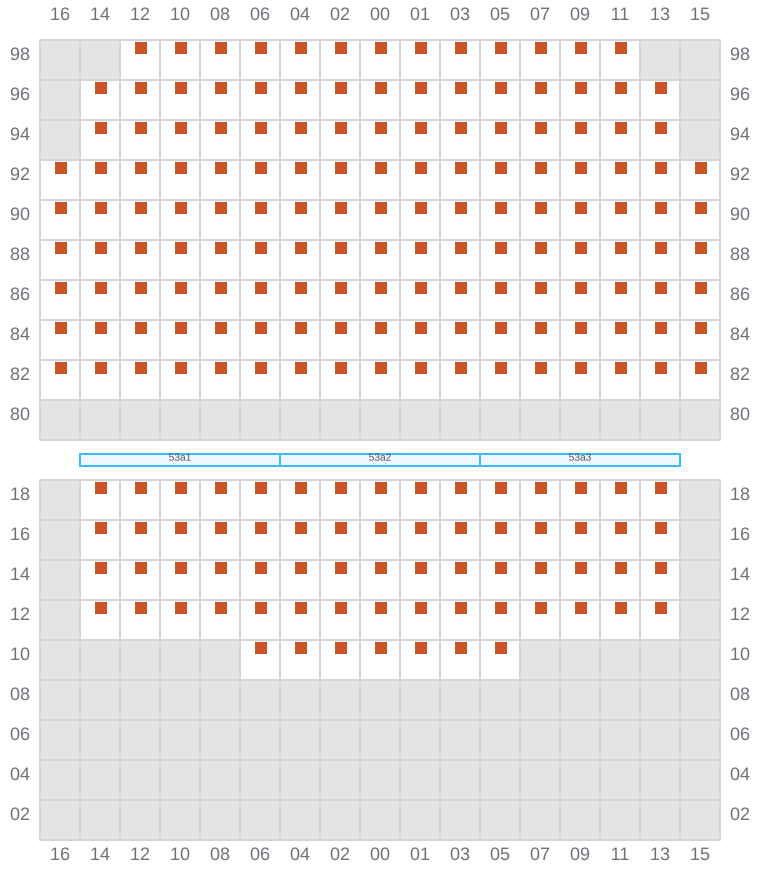

Bay 053 view and slots of X-PRESS PISCES

055 (054)

  • ←
  • →
  • ✓

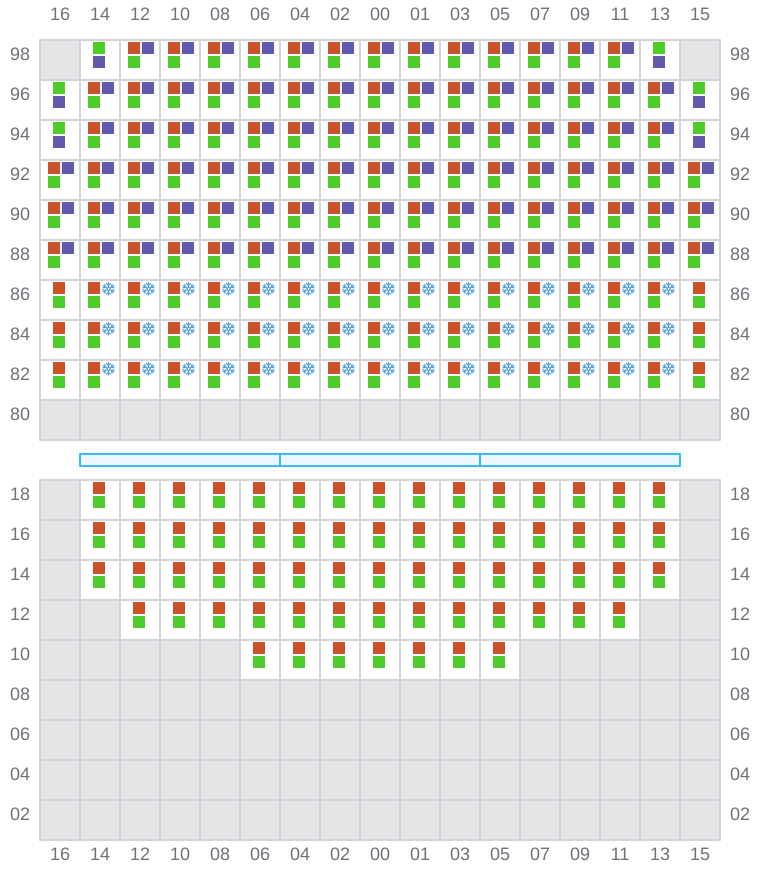

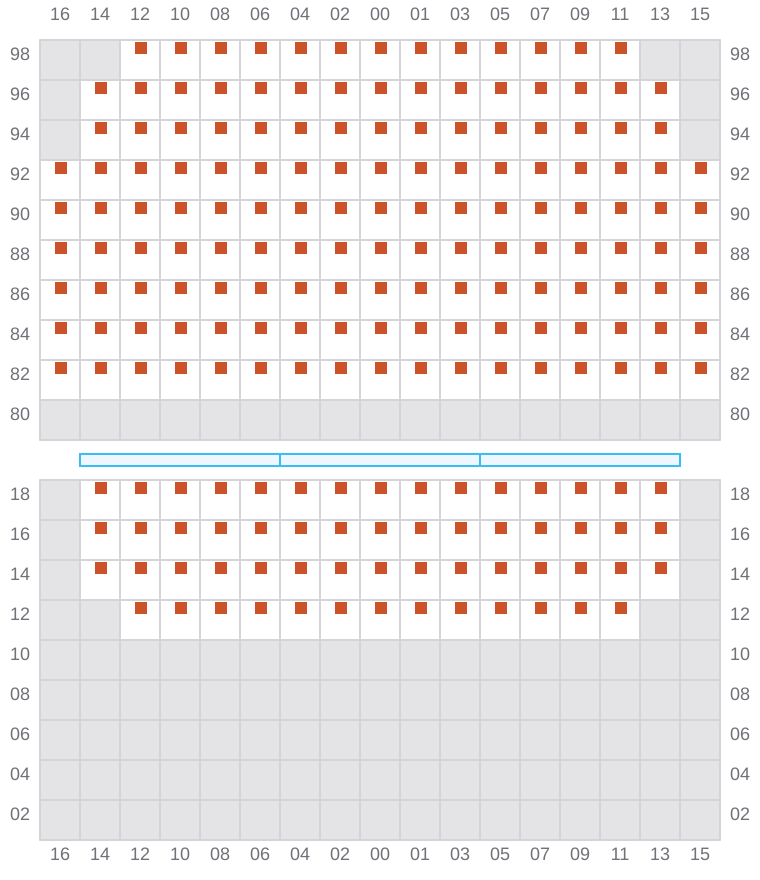

Bay 055 view and slots of X-PRESS PISCES

057

  • →
  • →
  • ✓
Bay 057 view and slots of X-PRESS PISCES

059 (058)

  • ←
  • →
  • ✓

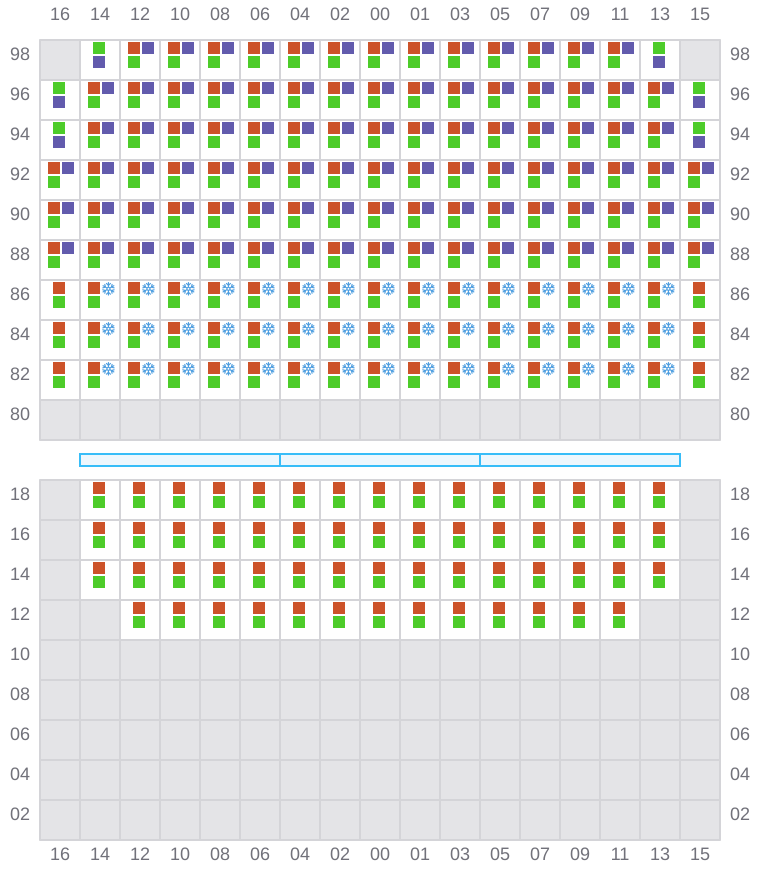

Bay 059 view and slots of X-PRESS PISCES

061

  • →
  • →
  • ? / ?
  • ✓

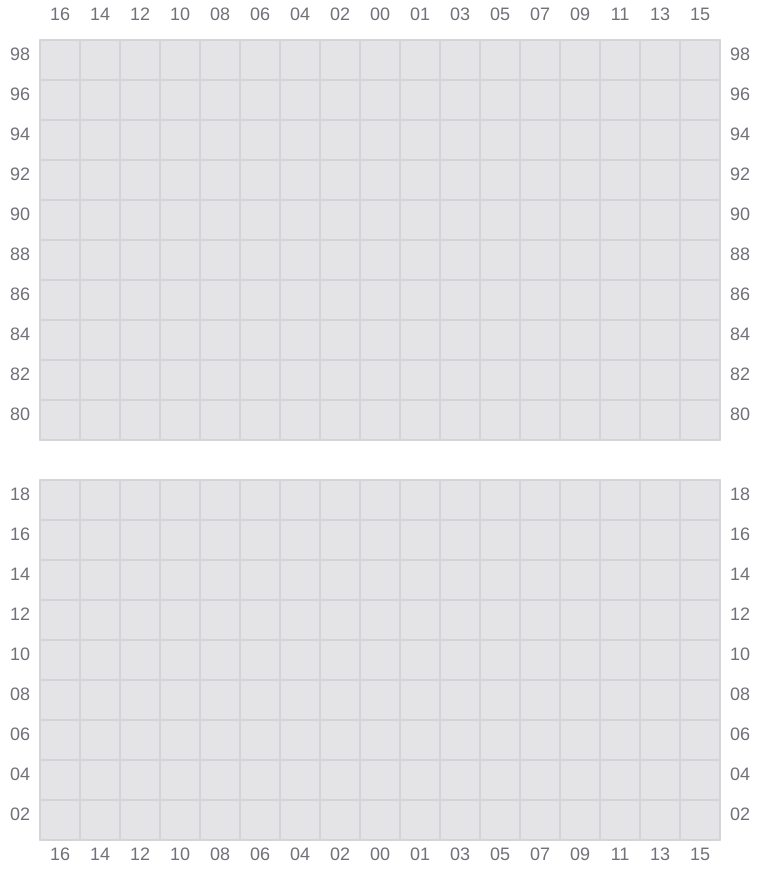

Bay 061 view and slots of X-PRESS PISCES

063 (062)

  • ←
  • →
  • ? / ?
  • ✓

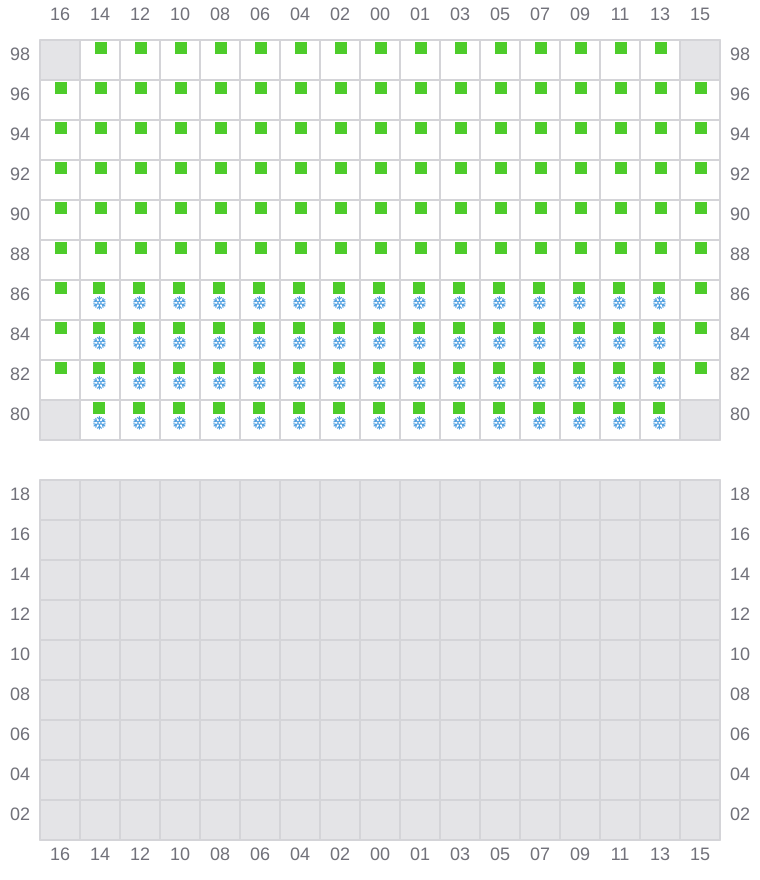

Bay 063 view and slots of X-PRESS PISCES
