XIN CHANG SHA
9312559 | BPBS | 9312559 by ********* Last update: Tue Jul 16 2024

General Info

Ship Name:XIN CHANG SHA
IMO Code:9312559
Call Sign:BPBS
Line Operator:9312559
Class Name for Sister Ships:CSC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,196

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

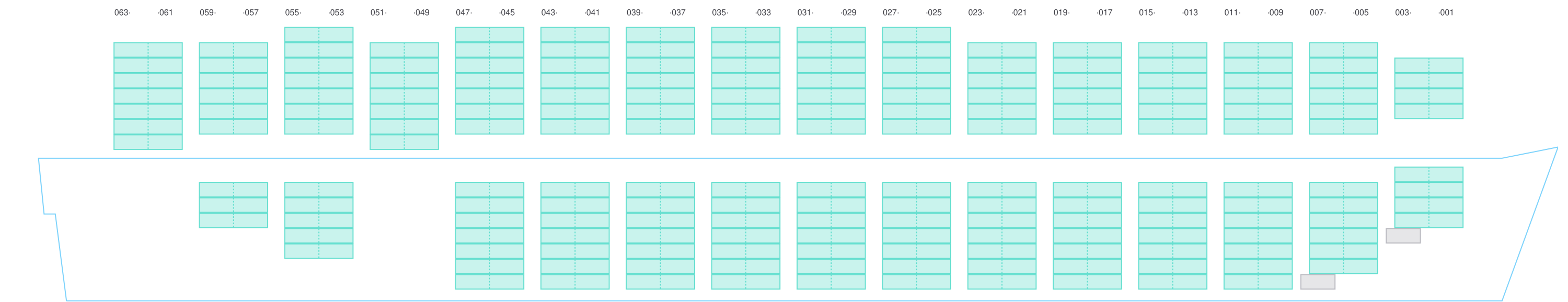

Side view of XIN CHANG SHA

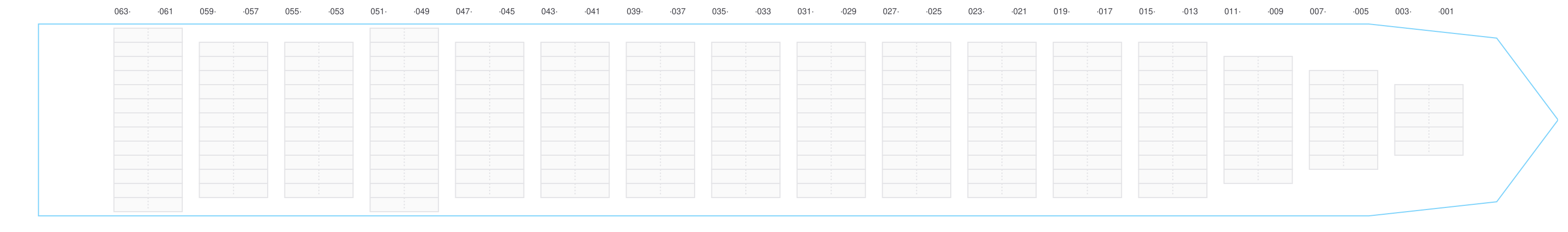

Hatch-Covers View

Deck view of XIN CHANG SHA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

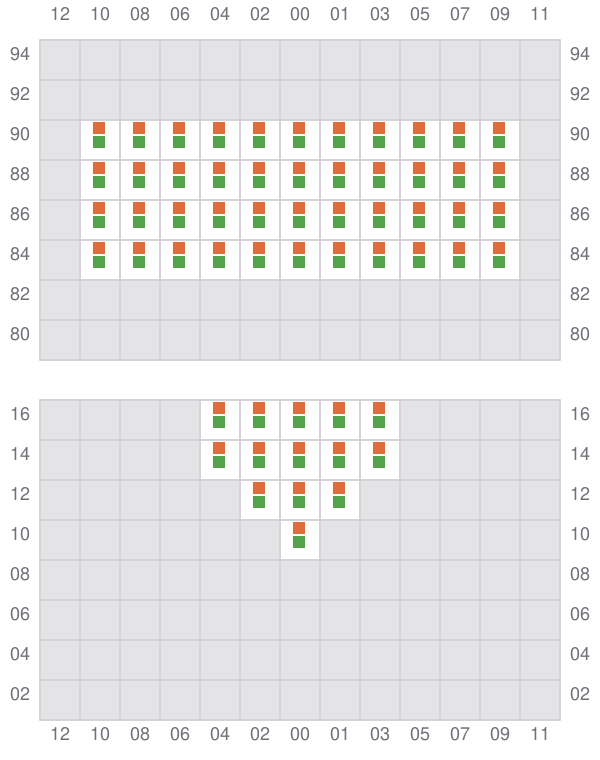

Bay 001 view and slots of XIN CHANG SHA

003

  • ←

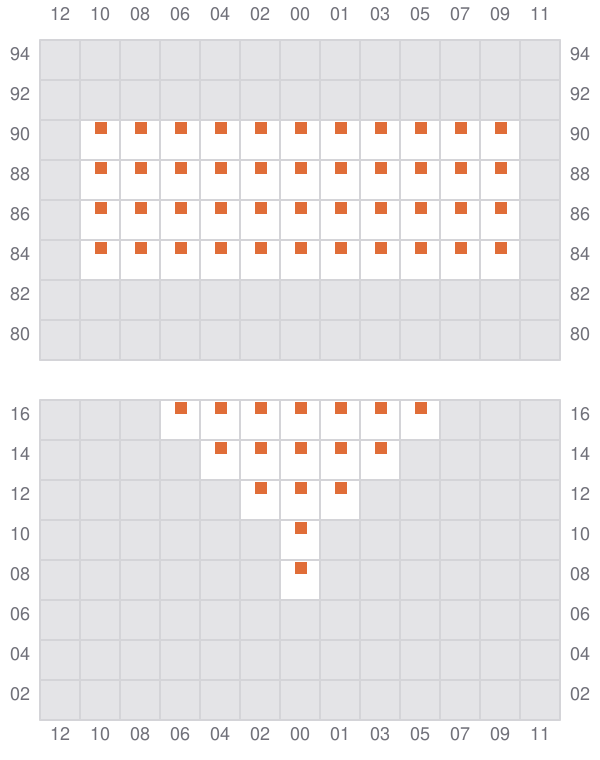

Bay 003 view and slots of XIN CHANG SHA

005 (006)

  • →

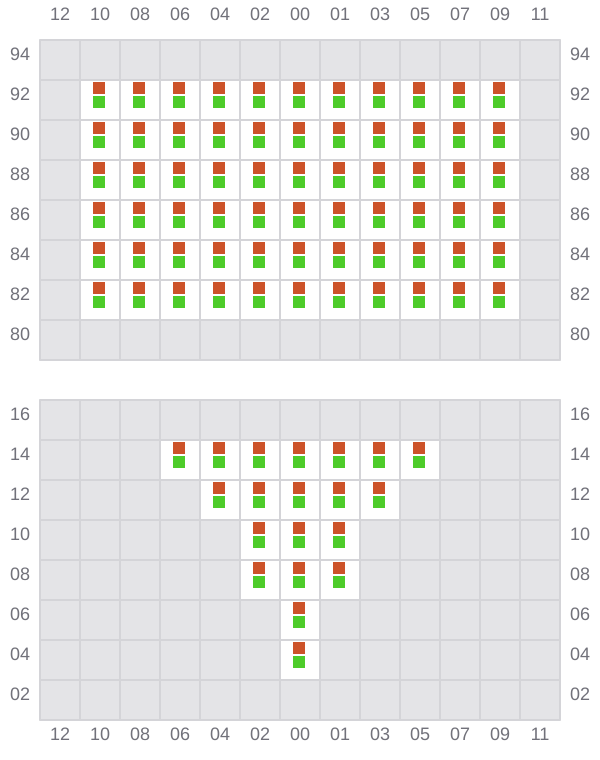

Bay 005 view and slots of XIN CHANG SHA

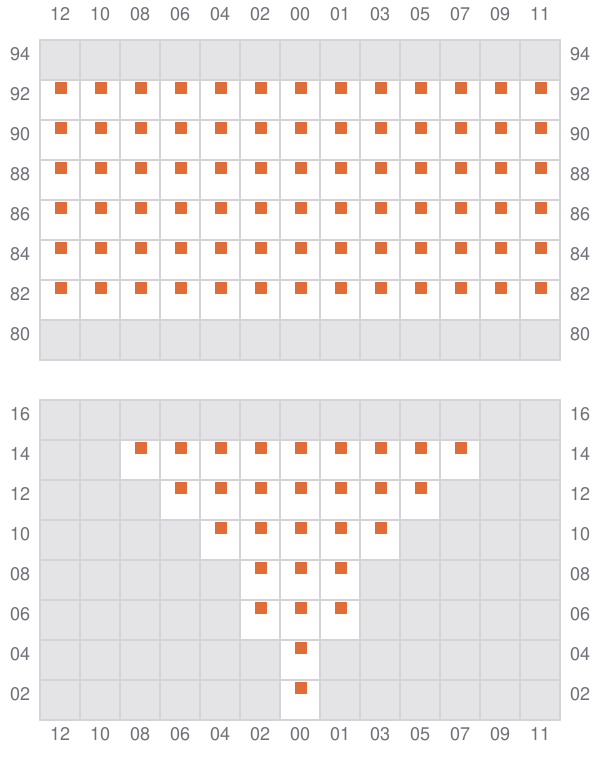

007

  • ←
Bay 007 view and slots of XIN CHANG SHA

009 (010)

  • →

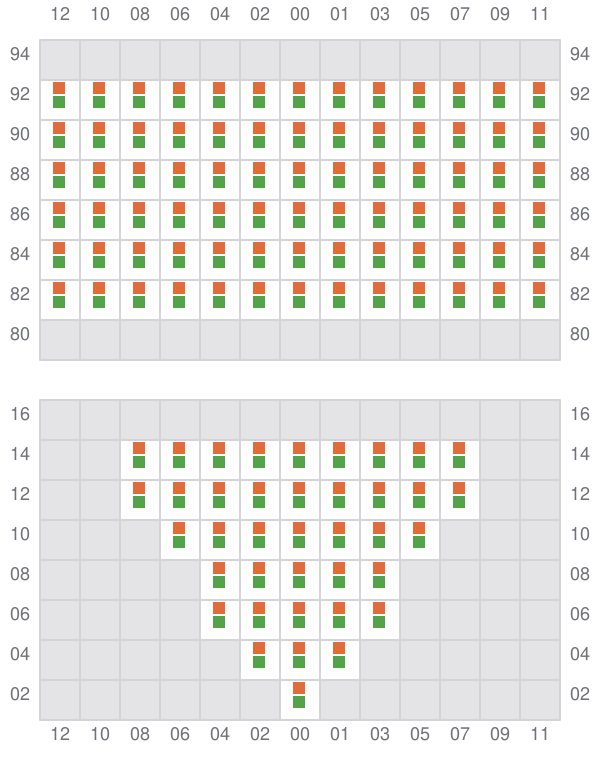

Bay 009 view and slots of XIN CHANG SHA

011

  • ←

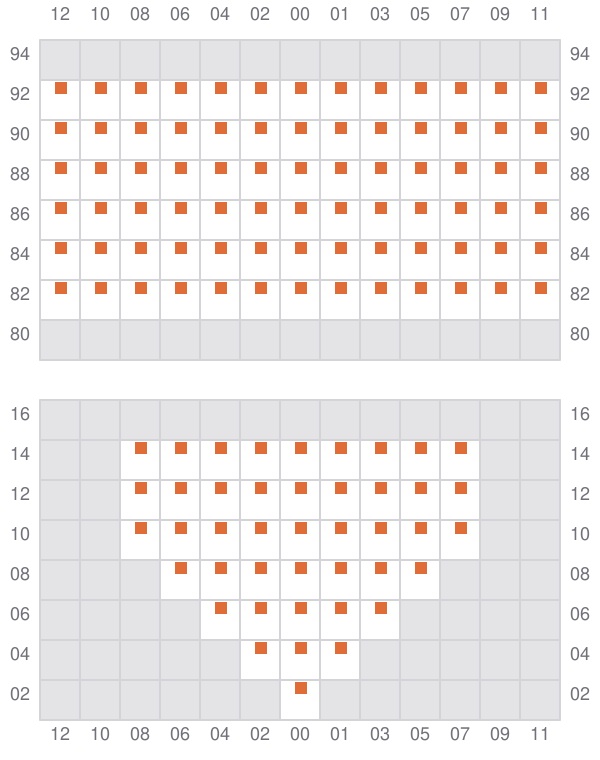

Bay 011 view and slots of XIN CHANG SHA

013 (014)

  • →

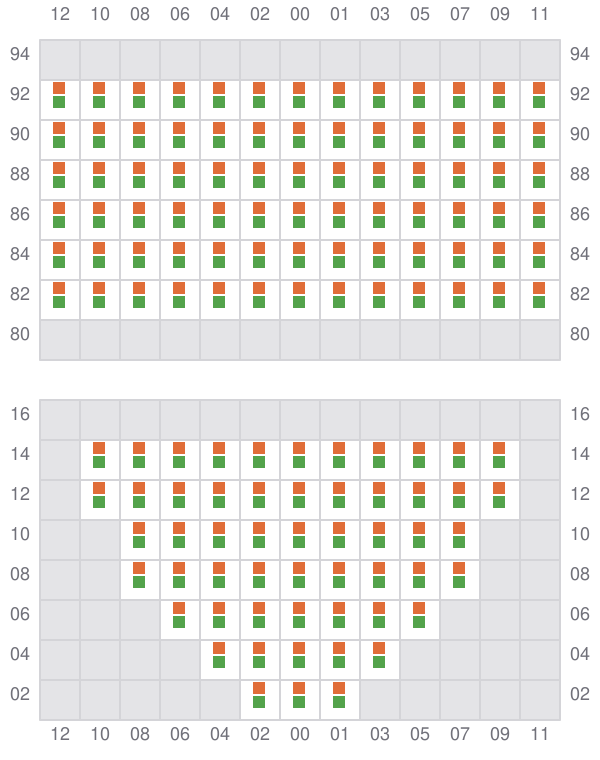

Bay 013 view and slots of XIN CHANG SHA

015

  • ←

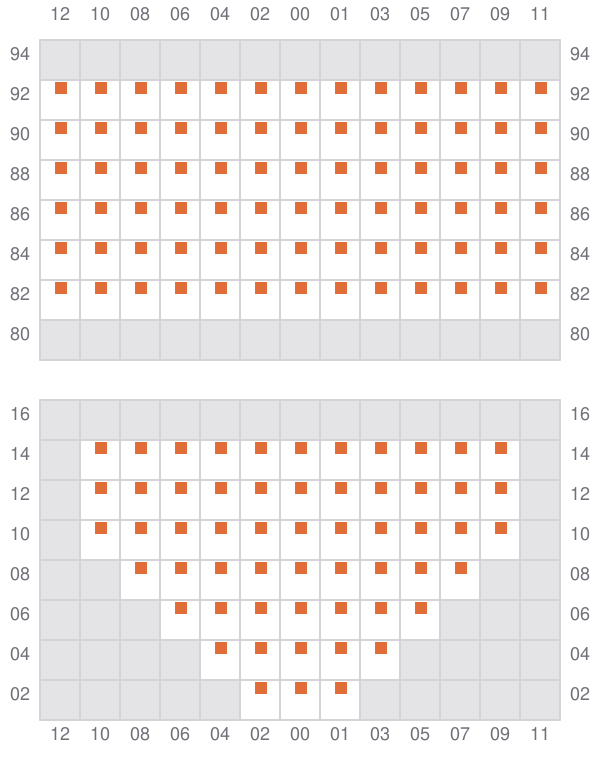

Bay 015 view and slots of XIN CHANG SHA

017 (018)

  • →

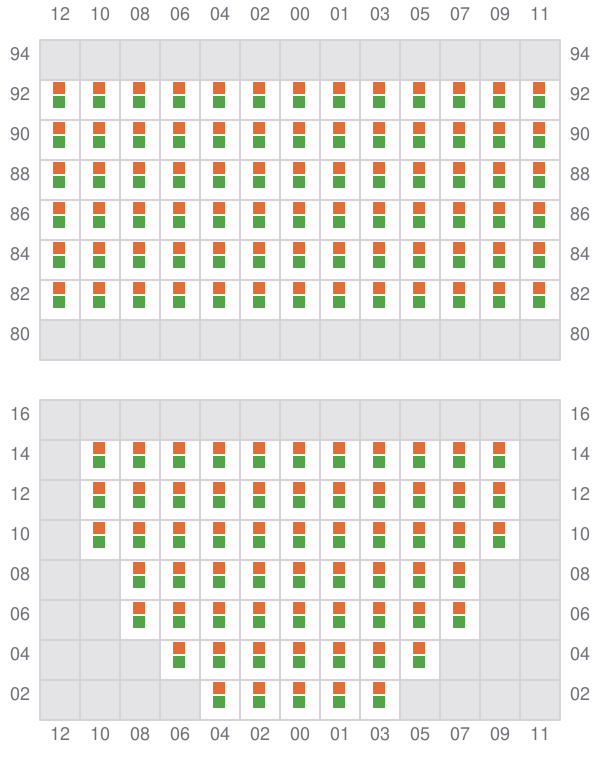

Bay 017 view and slots of XIN CHANG SHA

019

  • ←

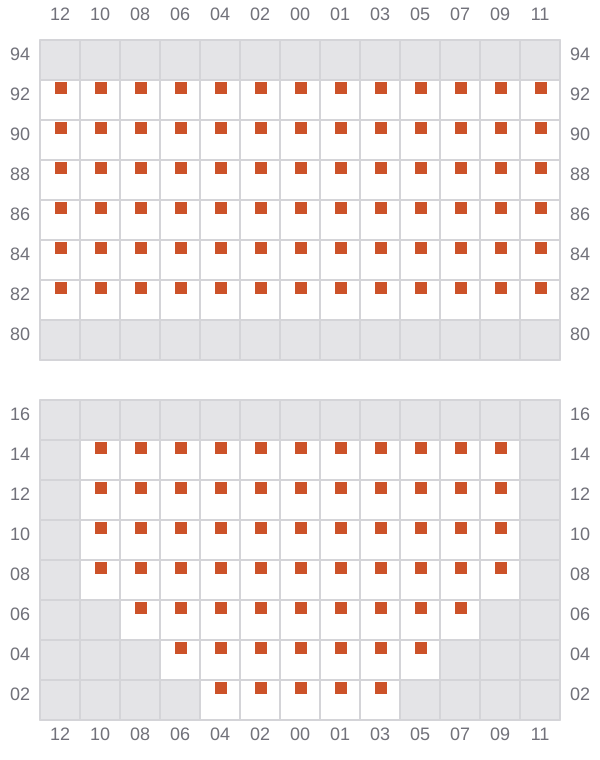

Bay 019 view and slots of XIN CHANG SHA

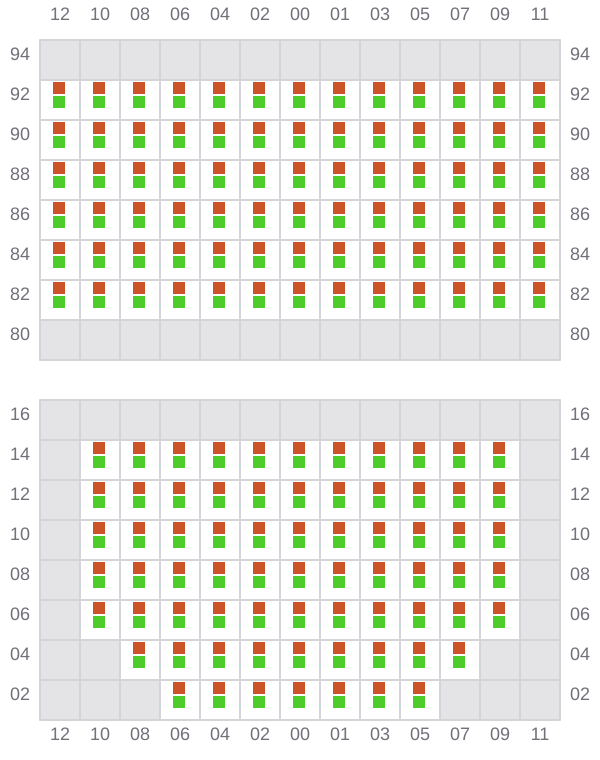

021 (022)

  • →
Bay 021 view and slots of XIN CHANG SHA

023

  • ←

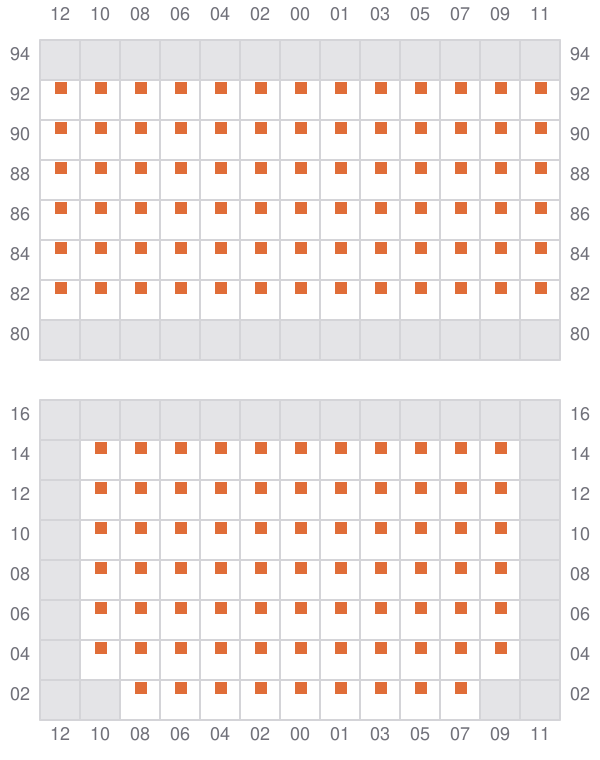

Bay 023 view and slots of XIN CHANG SHA

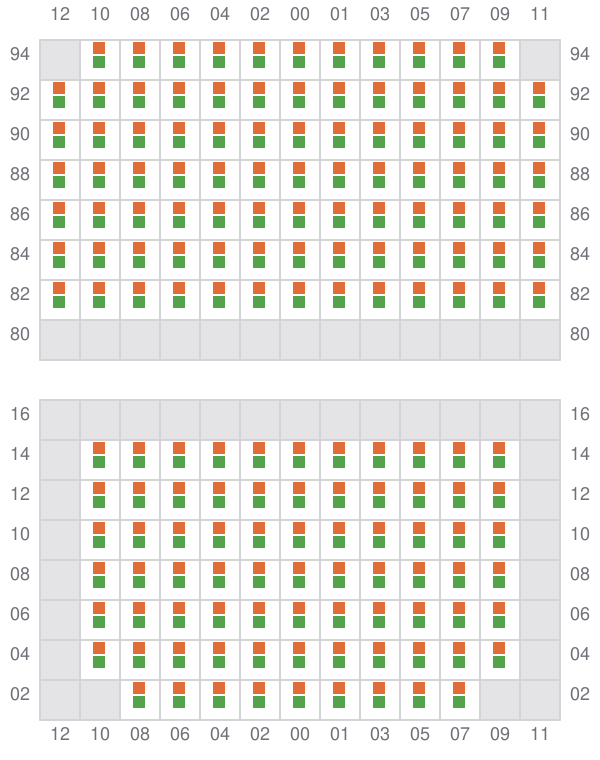

025 (026)

  • →
Bay 025 view and slots of XIN CHANG SHA

027

  • ←

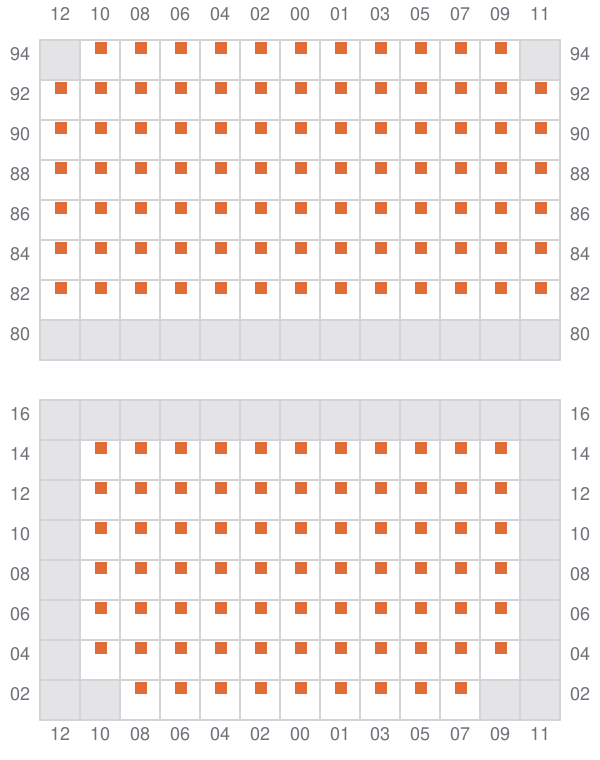

Bay 027 view and slots of XIN CHANG SHA

029 (030)

  • →
Bay 029 view and slots of XIN CHANG SHA

031

  • ←
Bay 031 view and slots of XIN CHANG SHA

033 (034)

  • →

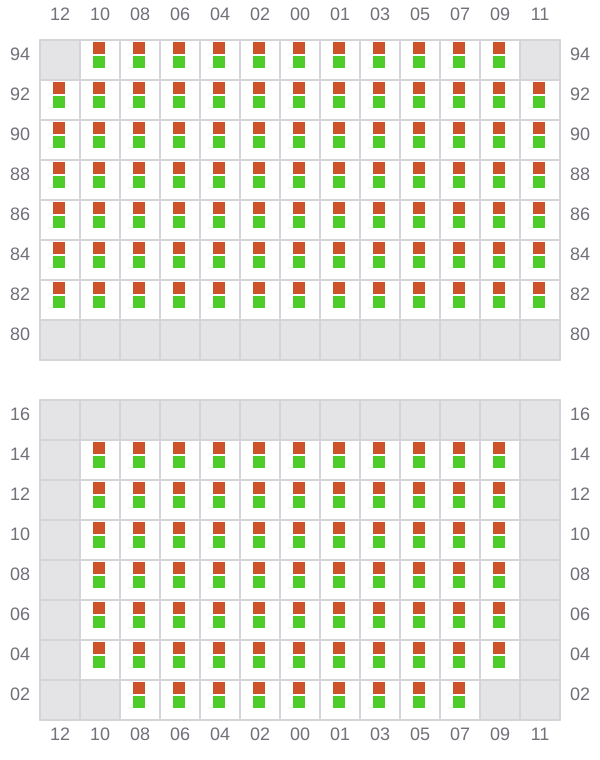

Bay 033 view and slots of XIN CHANG SHA

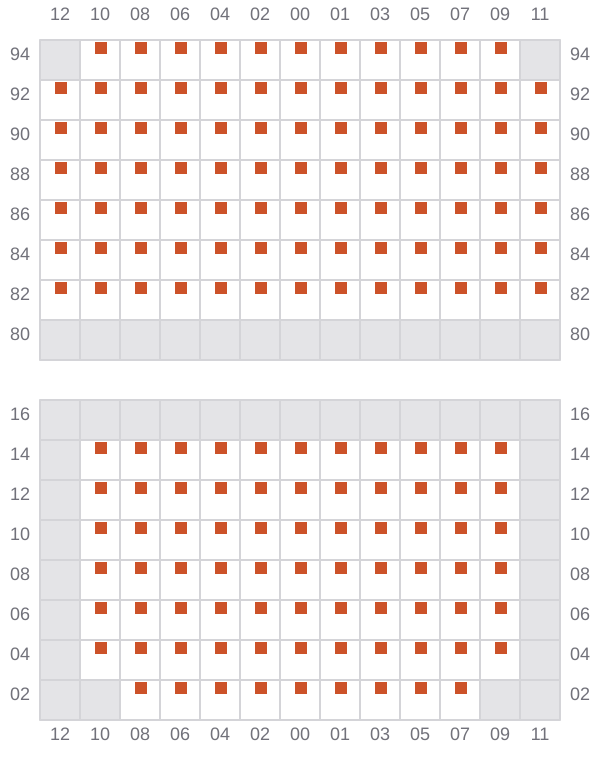

035

  • ←
Bay 035 view and slots of XIN CHANG SHA

037 (038)

  • →
Bay 037 view and slots of XIN CHANG SHA

039

  • ←
Bay 039 view and slots of XIN CHANG SHA

041 (042)

  • →

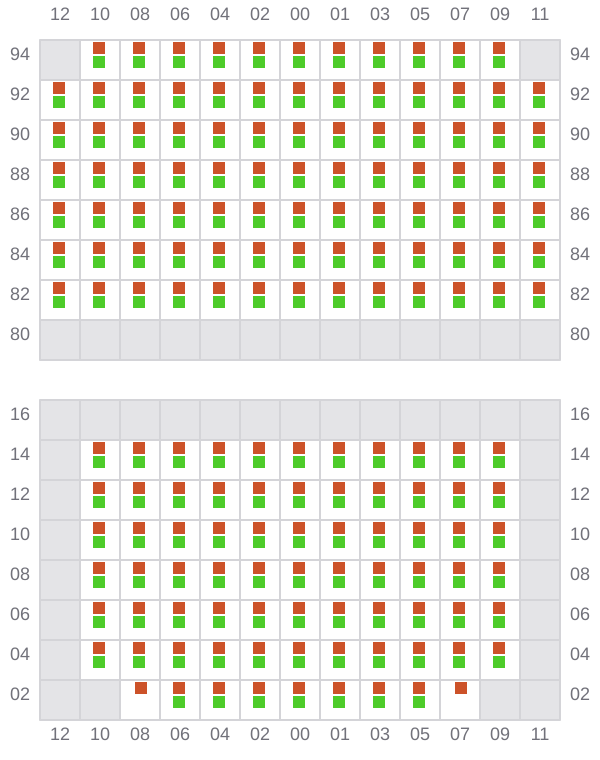

Bay 041 view and slots of XIN CHANG SHA

043

  • ←
Bay 043 view and slots of XIN CHANG SHA

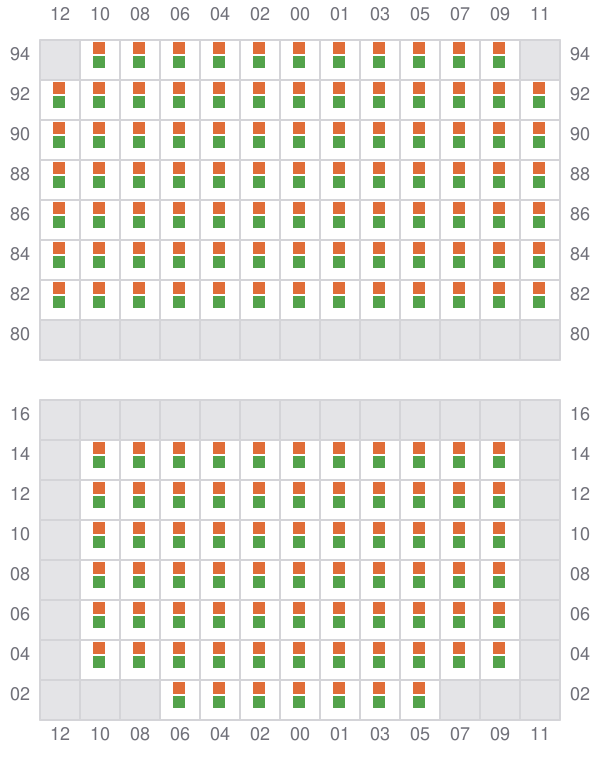

045 (046)

  • →
Bay 045 view and slots of XIN CHANG SHA

047

  • ←

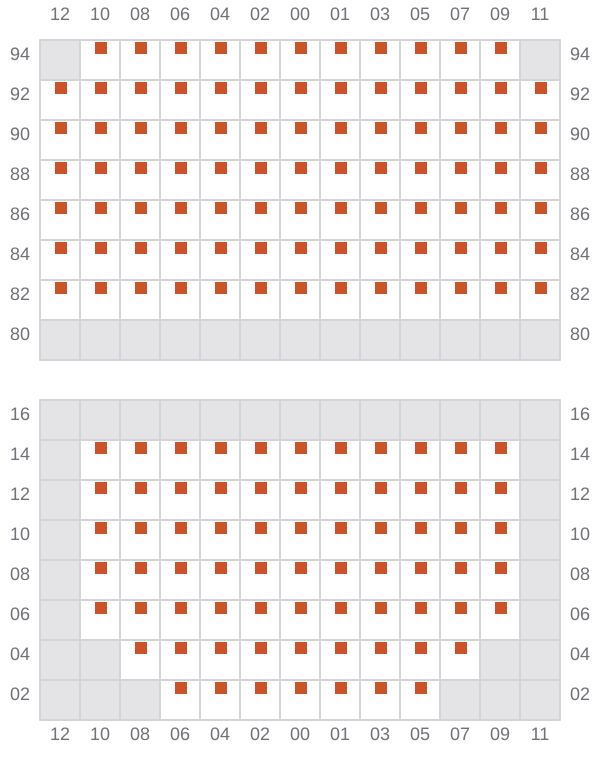

Bay 047 view and slots of XIN CHANG SHA

049 (050)

  • → / ?

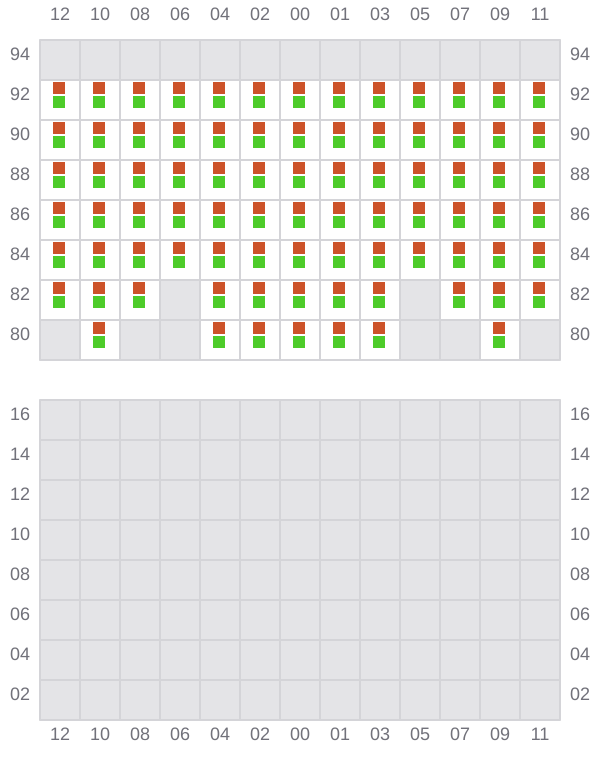

Bay 049 view and slots of XIN CHANG SHA

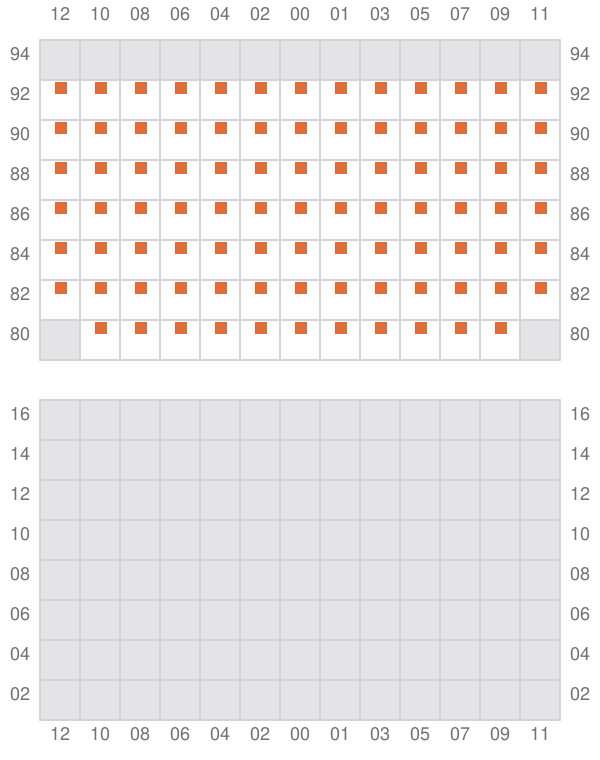

051

  • ← / ?
Bay 051 view and slots of XIN CHANG SHA

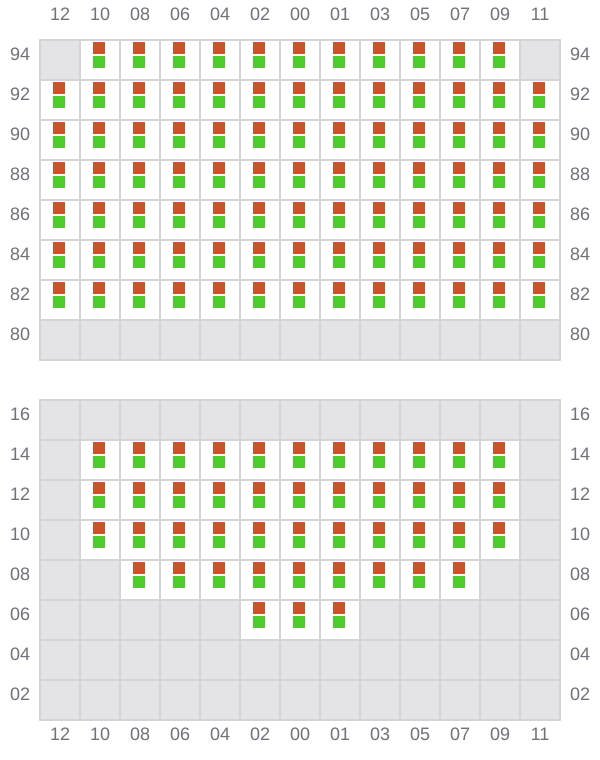

053 (054)

  • →
Bay 053 view and slots of XIN CHANG SHA

055

  • ←

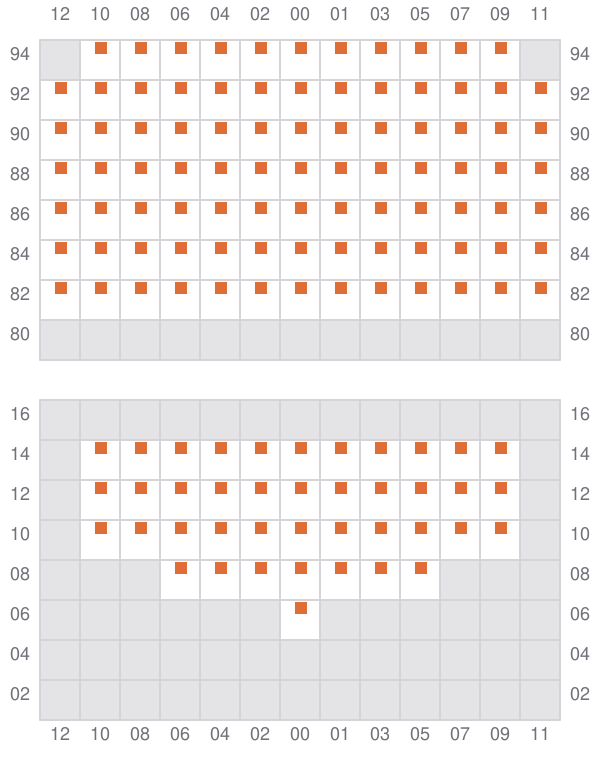

Bay 055 view and slots of XIN CHANG SHA

057 (058)

  • →

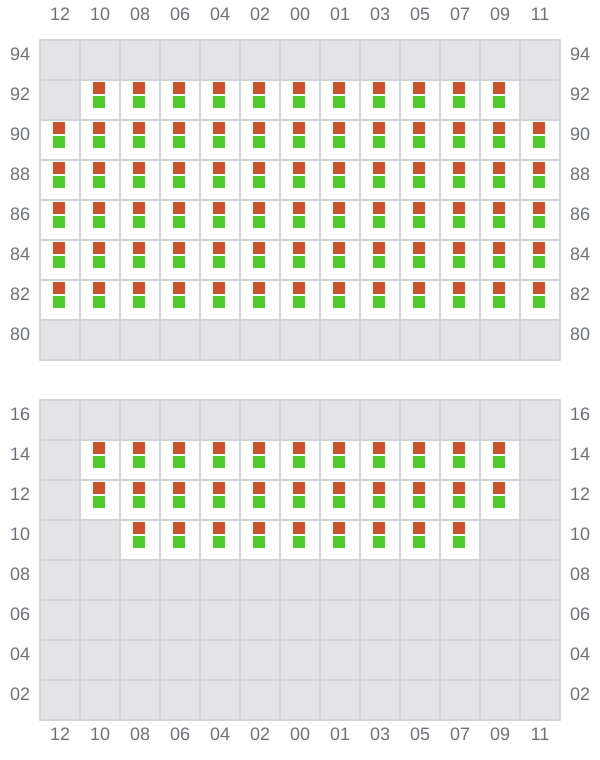

Bay 057 view and slots of XIN CHANG SHA

059

  • ←

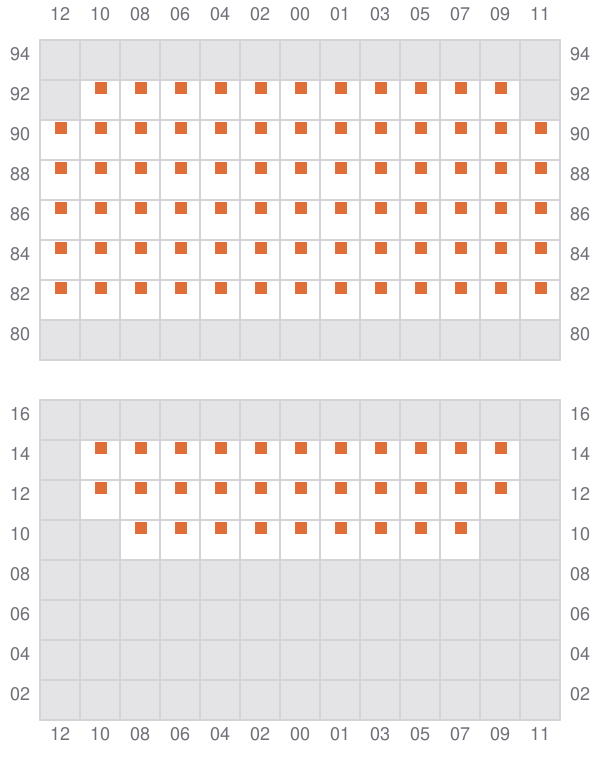

Bay 059 view and slots of XIN CHANG SHA

061 (062)

  • → / ?

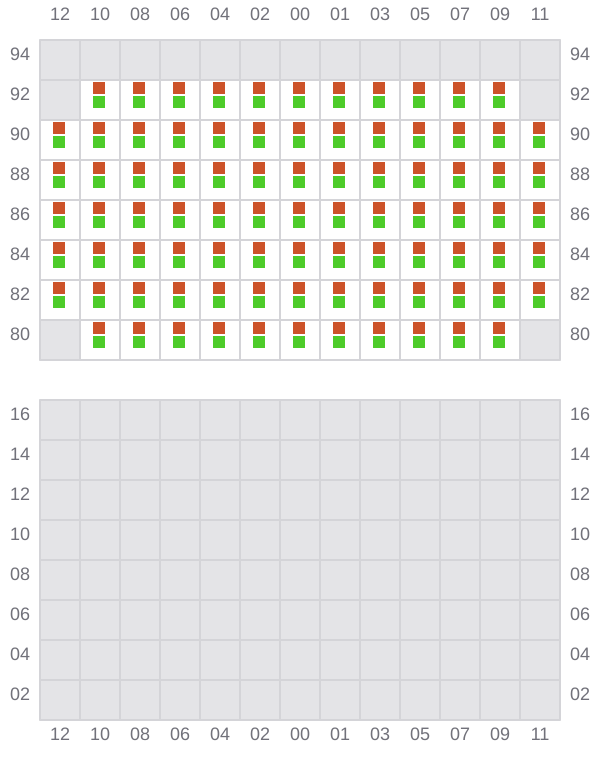

Bay 061 view and slots of XIN CHANG SHA

063

  • ← / ?

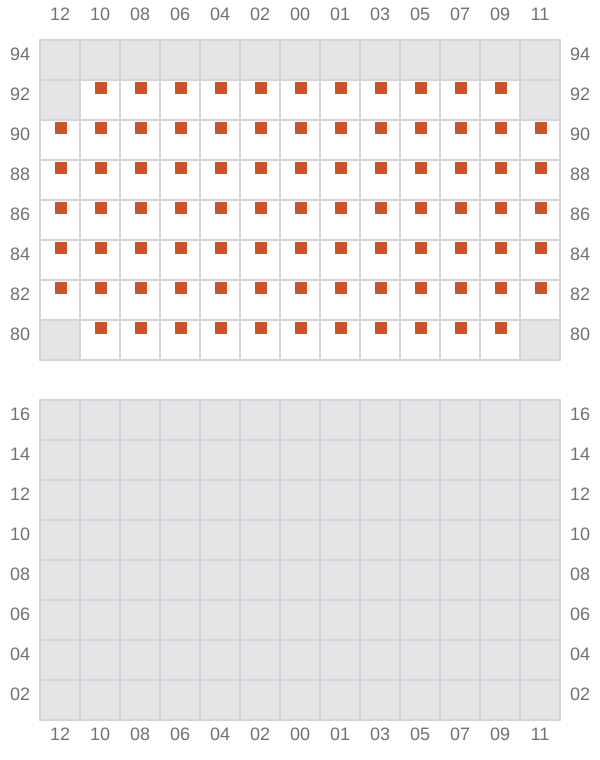

Bay 063 view and slots of XIN CHANG SHA
