XIN LONG YUN 86
9162265 | BQLA | 9162265 by ********* Last update: Fri Mar 08 2024

General Info

Ship Name:XIN LONG YUN 86
IMO Code:9162265
Call Sign:BQLA
Line Operator:9162265
Class Name for Sister Ships:35R
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,196

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

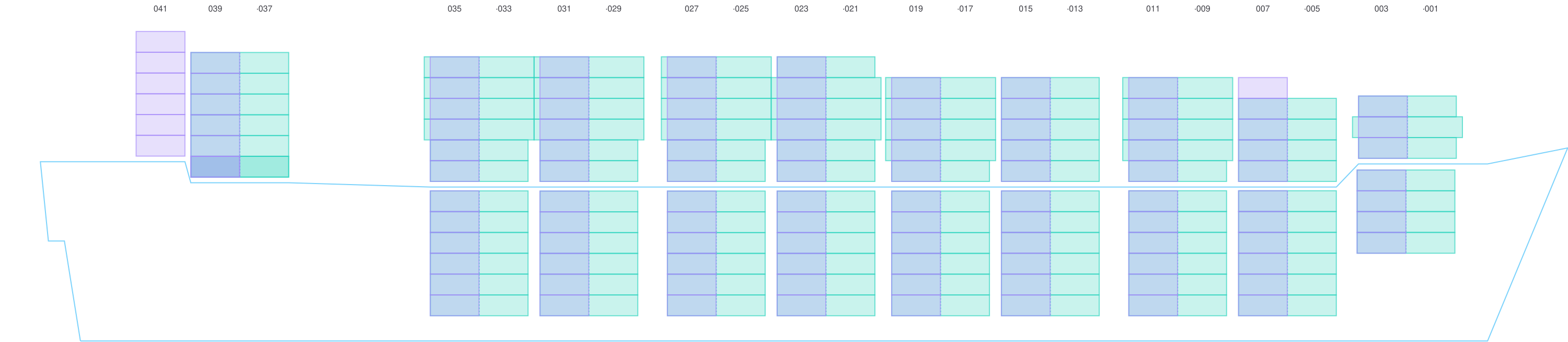

Side View

Side view of XIN LONG YUN 86

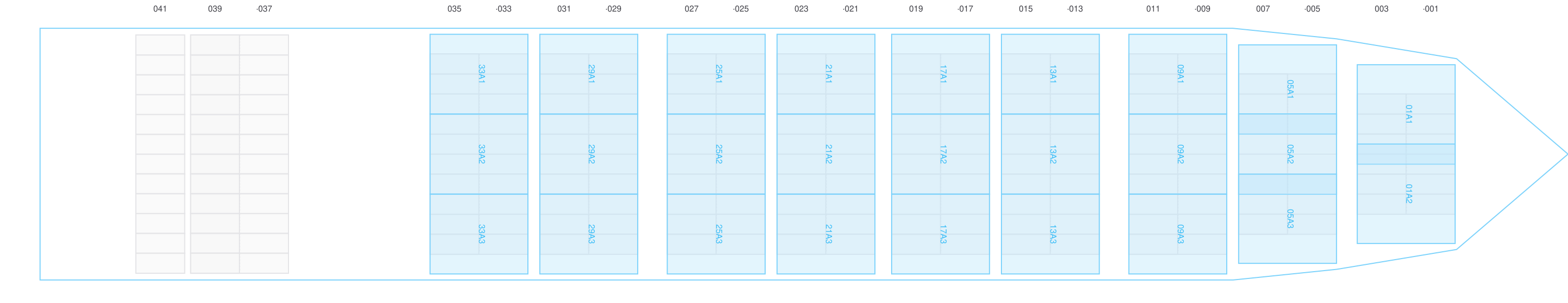

Hatch-Covers View

Deck view of XIN LONG YUN 86

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

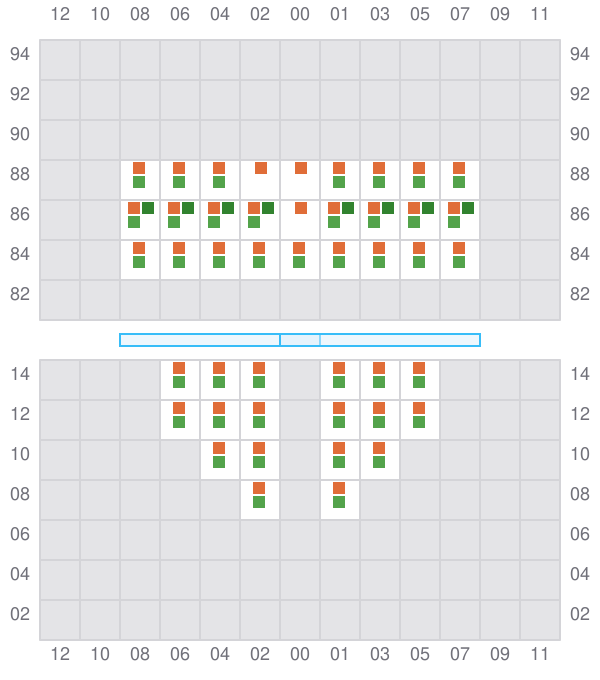

Bay 001 view and slots of XIN LONG YUN 86

003

  • → / ?

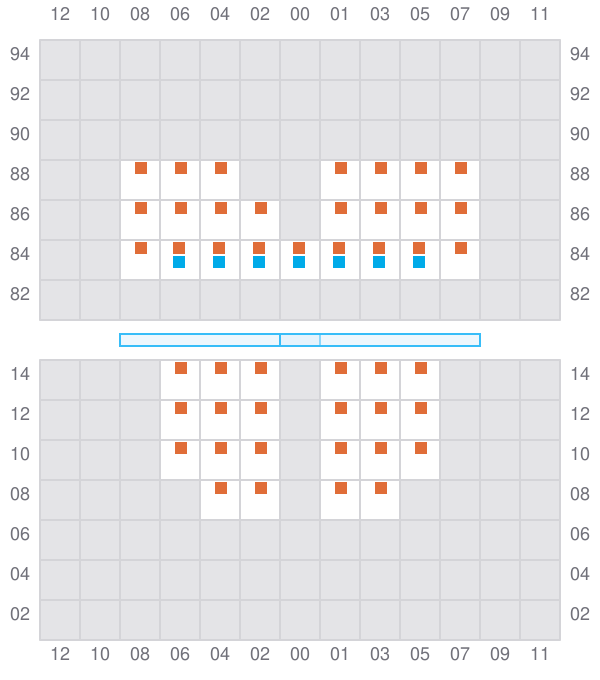

Bay 003 view and slots of XIN LONG YUN 86

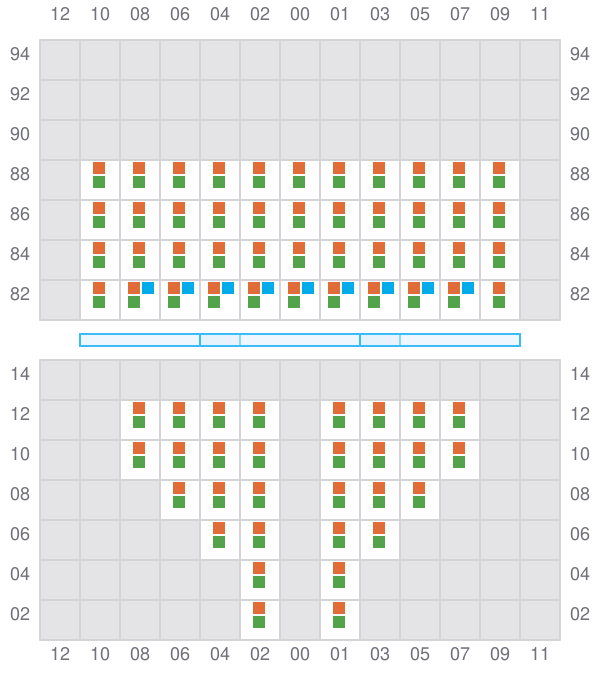

005 (006)

  • →
  • ← / ?
Bay 005 view and slots of XIN LONG YUN 86

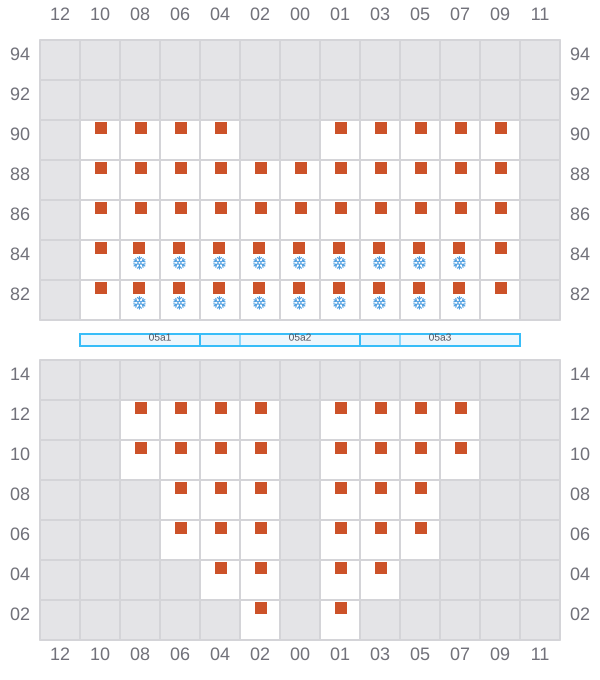

007

  • → / ?
Bay 007 view and slots of XIN LONG YUN 86

009 (010)

  • →
  • ← / ?

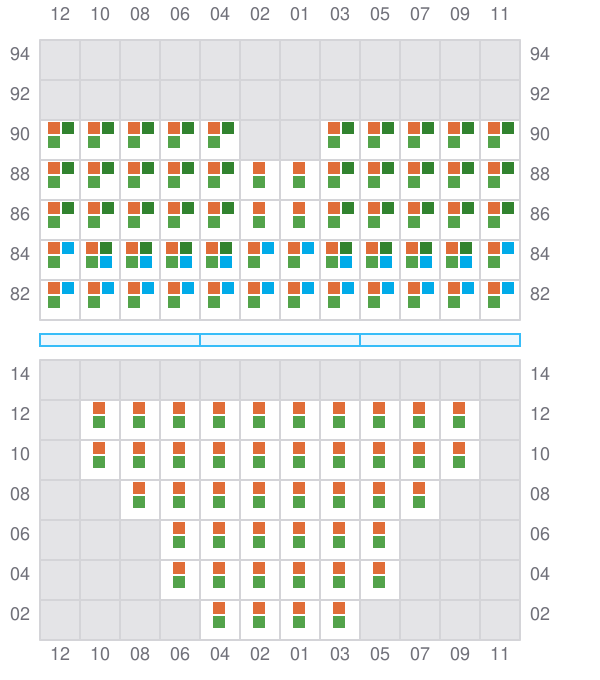

Bay 009 view and slots of XIN LONG YUN 86

011

  • → / ?

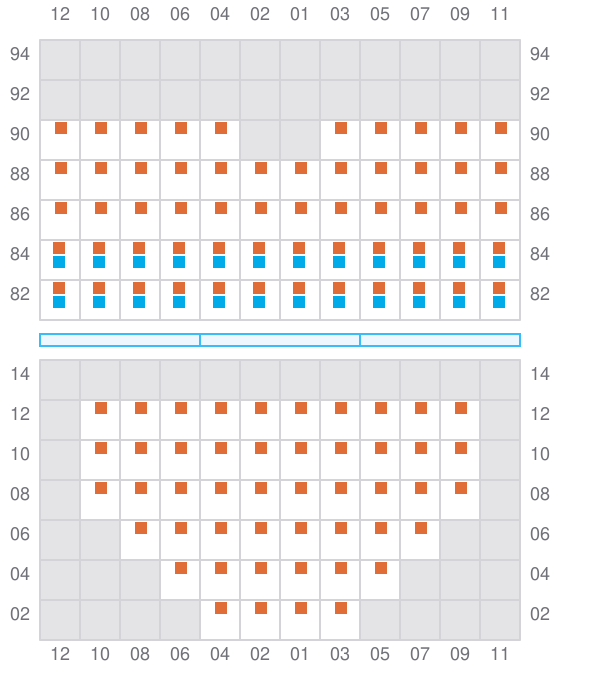

Bay 011 view and slots of XIN LONG YUN 86

013 (014)

  • →
Bay 013 view and slots of XIN LONG YUN 86

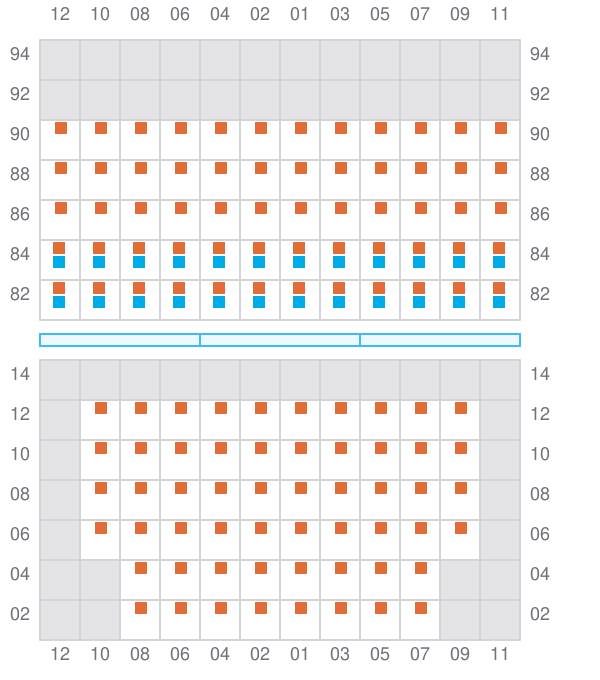

015

  • → / ?
Bay 015 view and slots of XIN LONG YUN 86

017 (018)

  • →

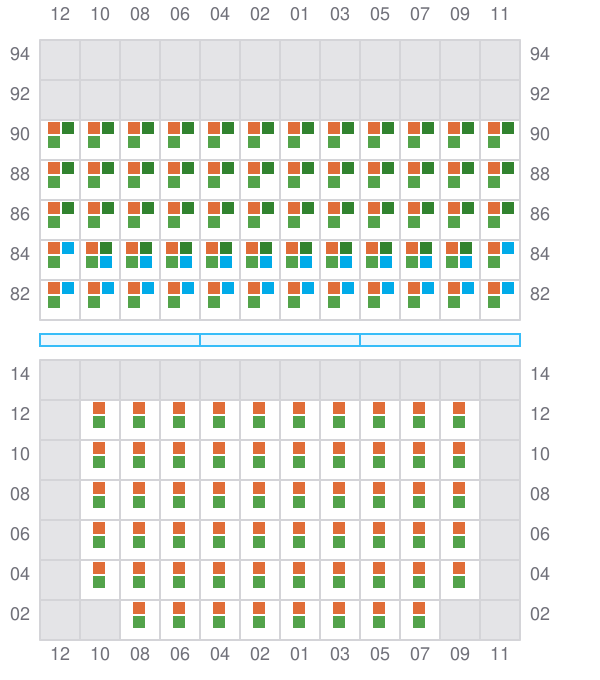

Bay 017 view and slots of XIN LONG YUN 86

019

  • → / ?

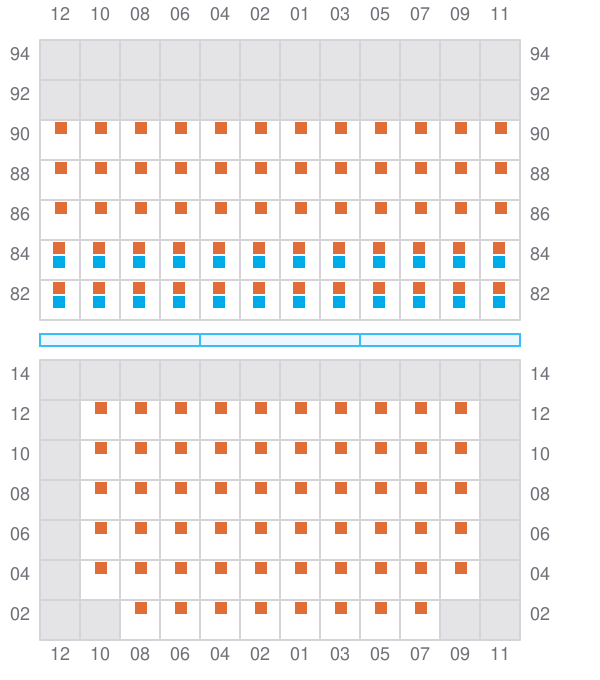

Bay 019 view and slots of XIN LONG YUN 86

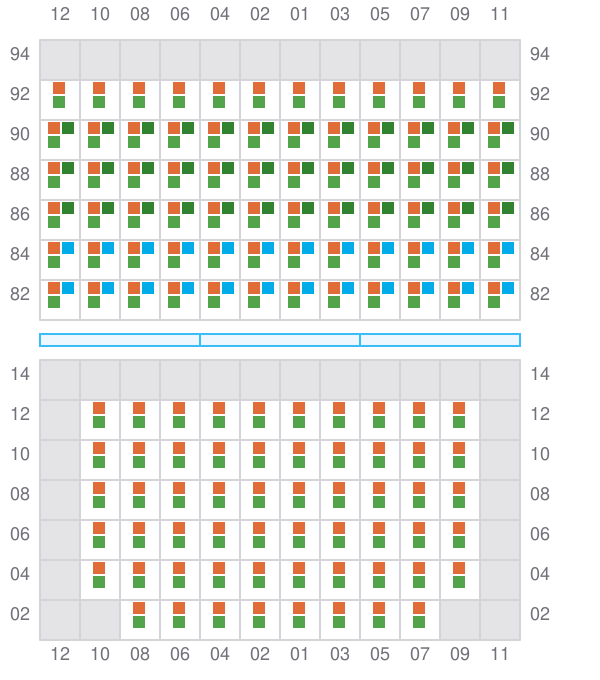

021 (022)

  • →
Bay 021 view and slots of XIN LONG YUN 86

023

  • → / ?

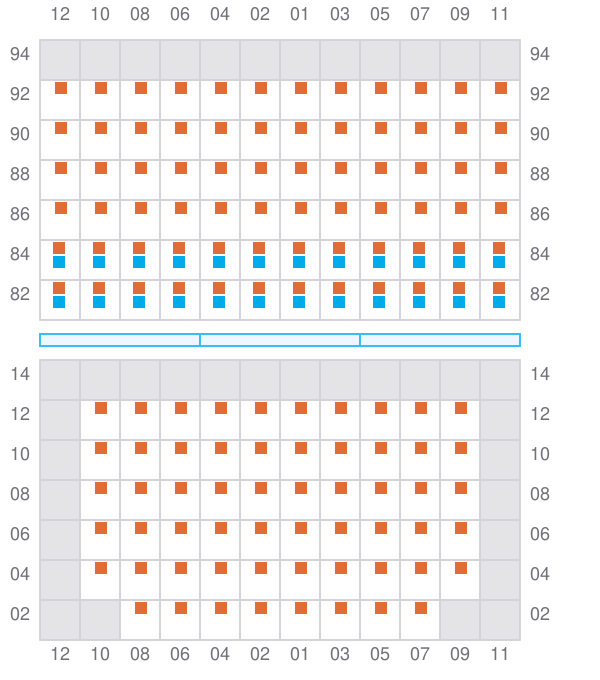

Bay 023 view and slots of XIN LONG YUN 86

025 (026)

  • →

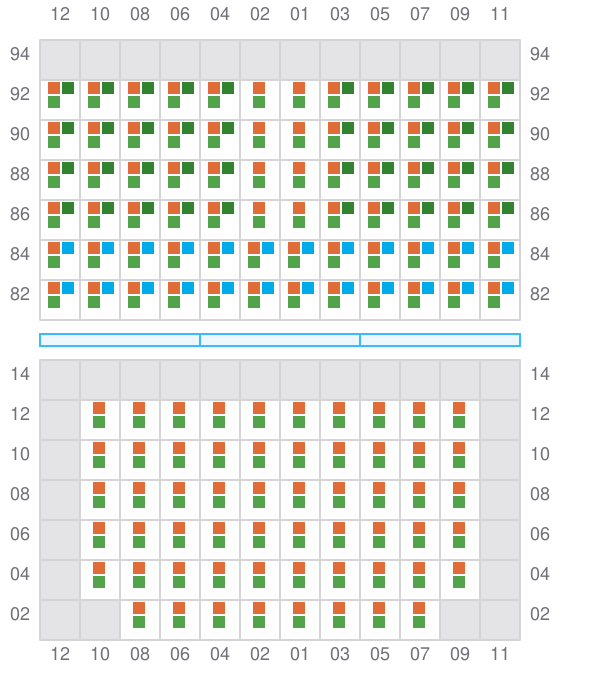

Bay 025 view and slots of XIN LONG YUN 86

027

  • → / ?
Bay 027 view and slots of XIN LONG YUN 86

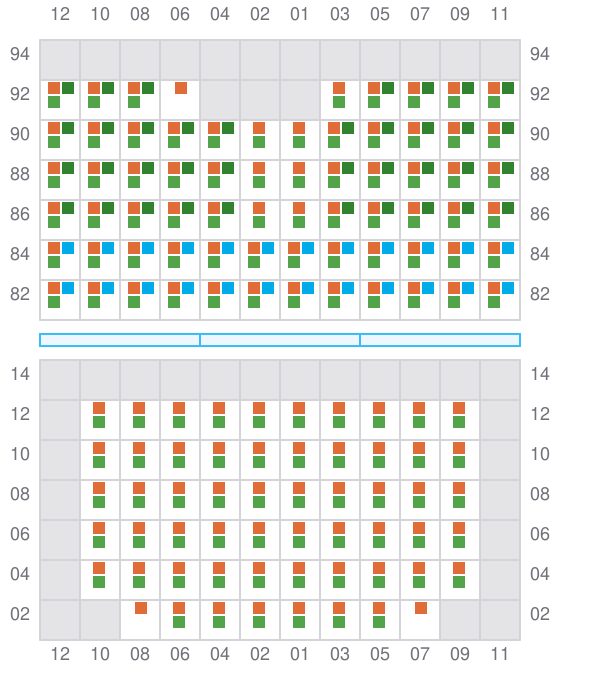

029 (030)

  • →
Bay 029 view and slots of XIN LONG YUN 86

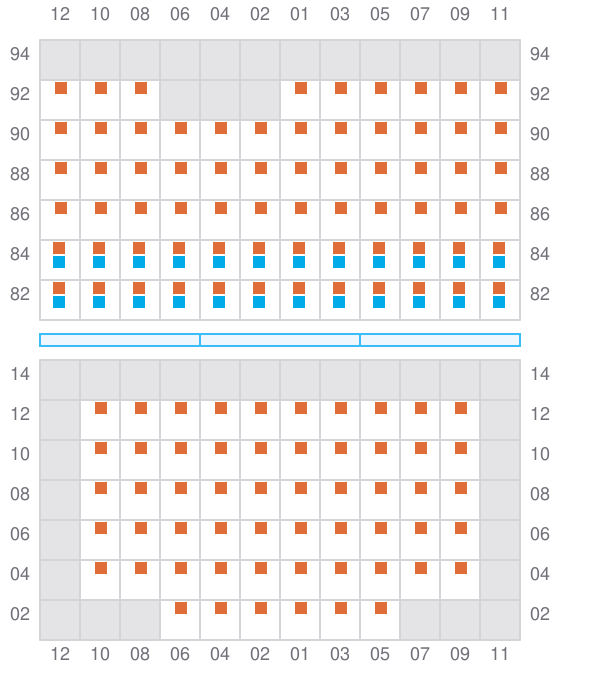

031

  • → / ?
Bay 031 view and slots of XIN LONG YUN 86

033 (034)

  • →

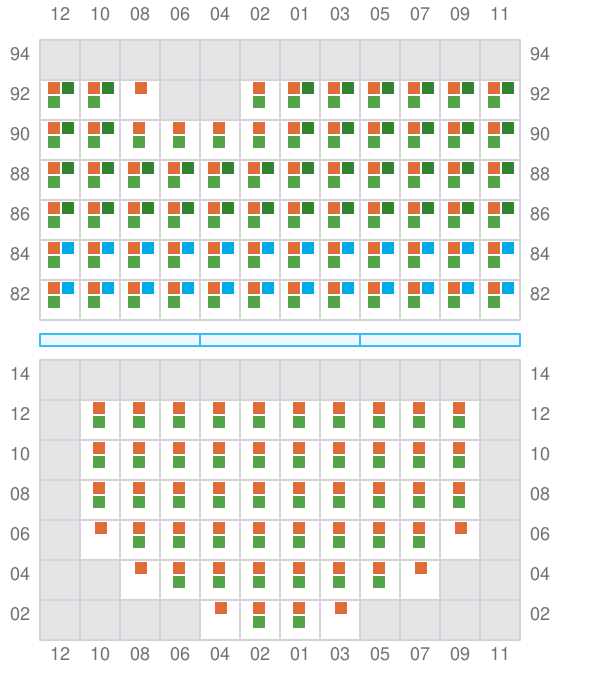

Bay 033 view and slots of XIN LONG YUN 86

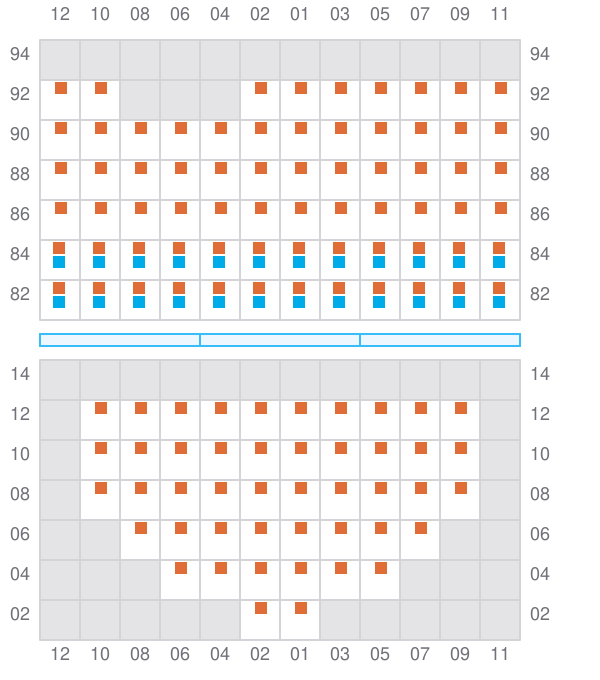

035

  • → / ?
Bay 035 view and slots of XIN LONG YUN 86

037 (038)

  • → / ?
  • ← / ?

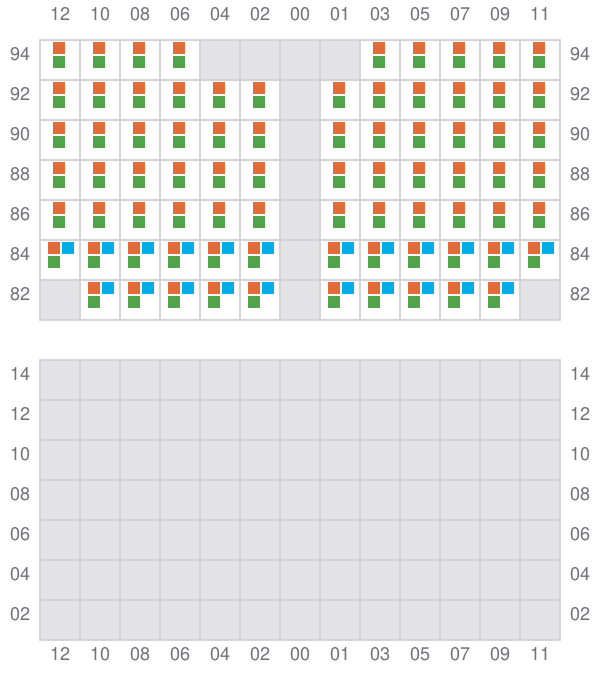

Bay 037 view and slots of XIN LONG YUN 86

039

  • → / ?

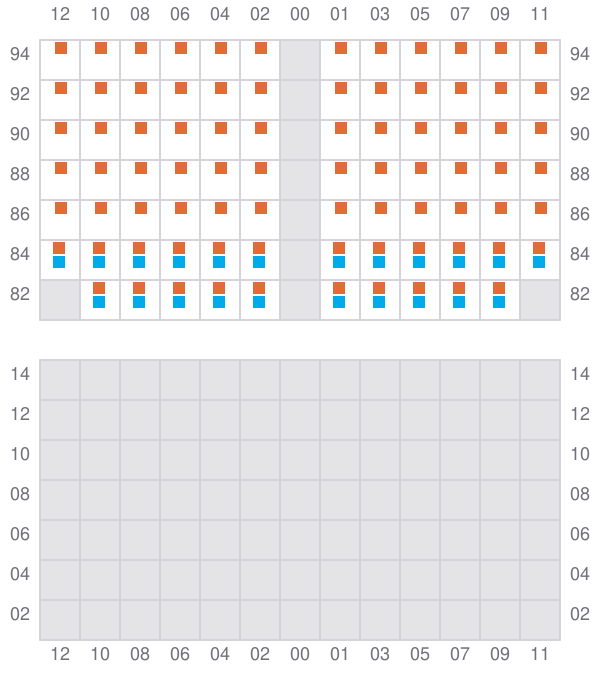

Bay 039 view and slots of XIN LONG YUN 86

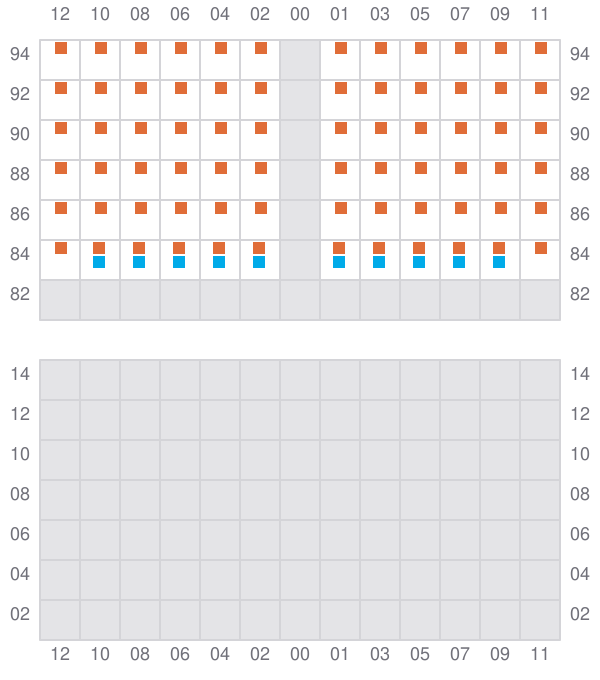

041

  • ← / ?
Bay 041 view and slots of XIN LONG YUN 86
