XIN QIN HUANG DAO
9304784 | BPBD | 93047 by ********* Last update: Thu Jun 27 2024
General Info
Ship Name:XIN QIN HUANG DAO
IMO Code:9304784
Call Sign:BPBD
Line Operator:93047
Class Name for Sister Ships:CMA
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,698
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View

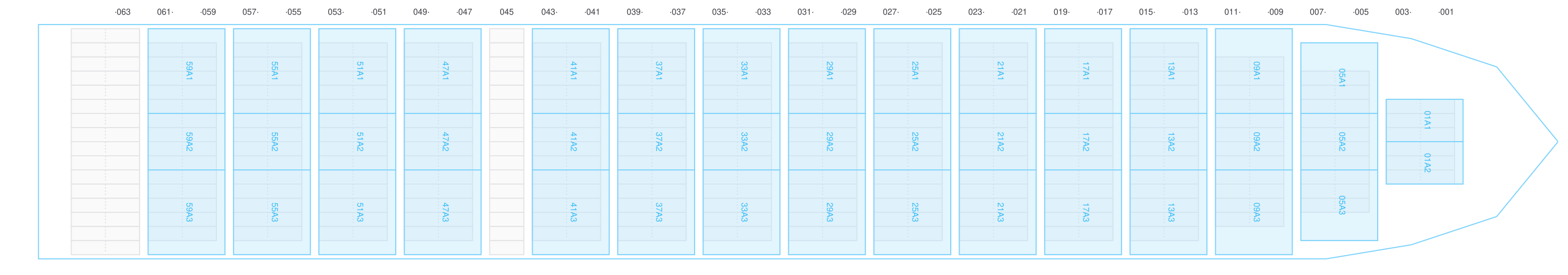

Hatch-Covers View

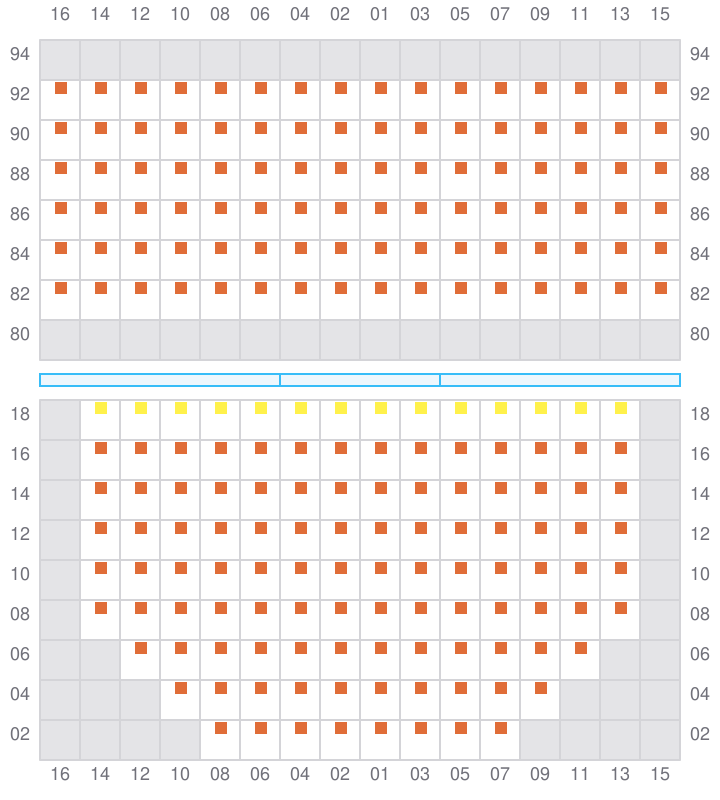

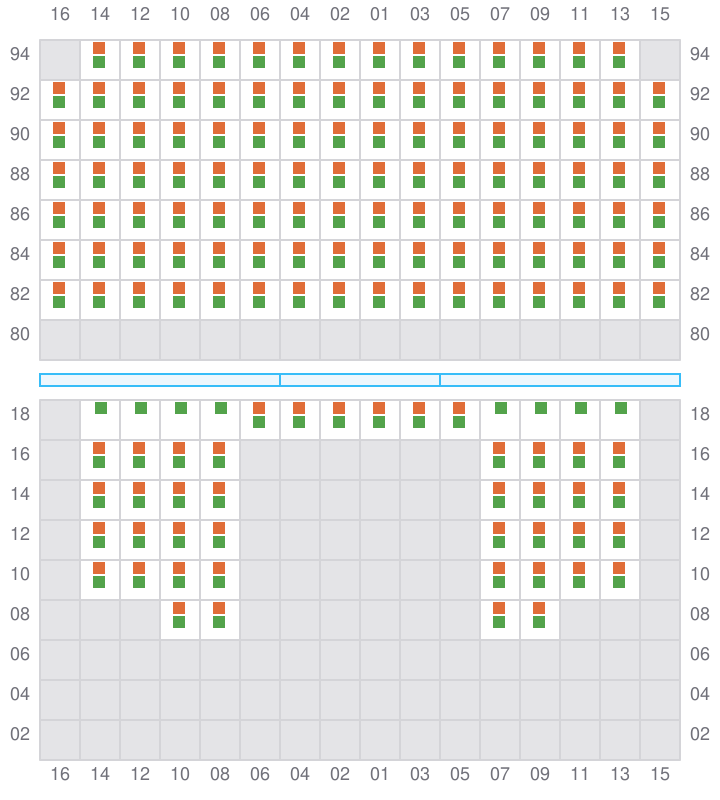

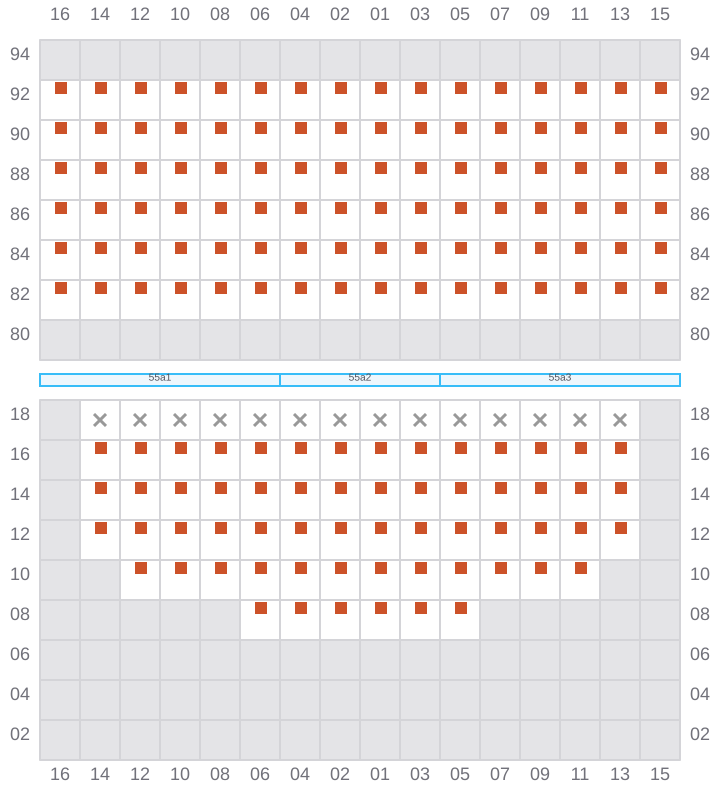

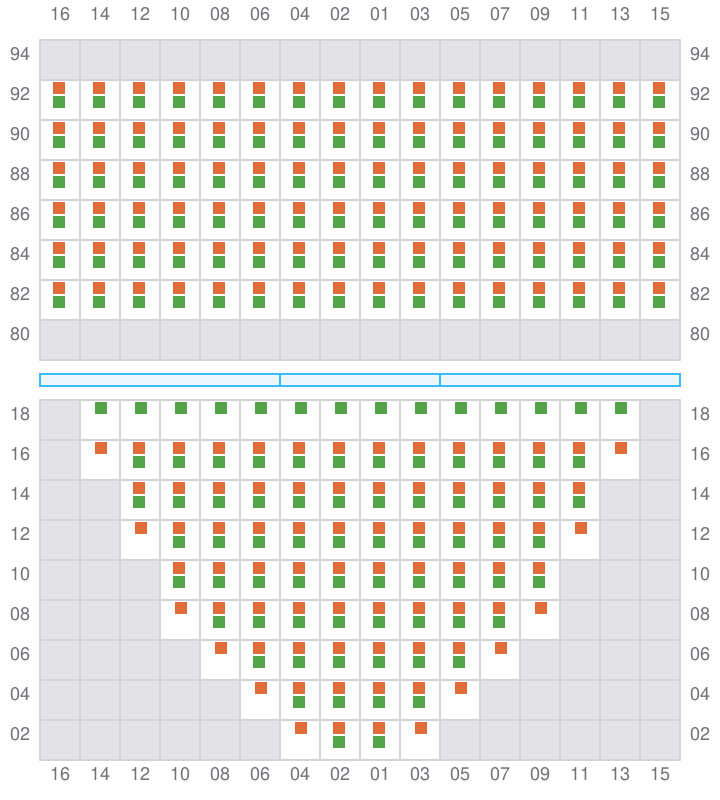

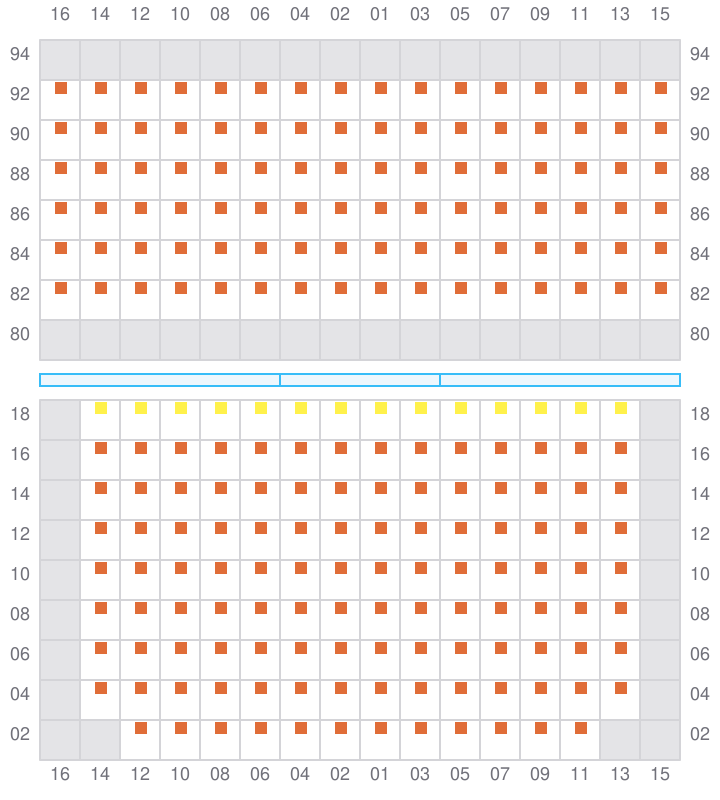

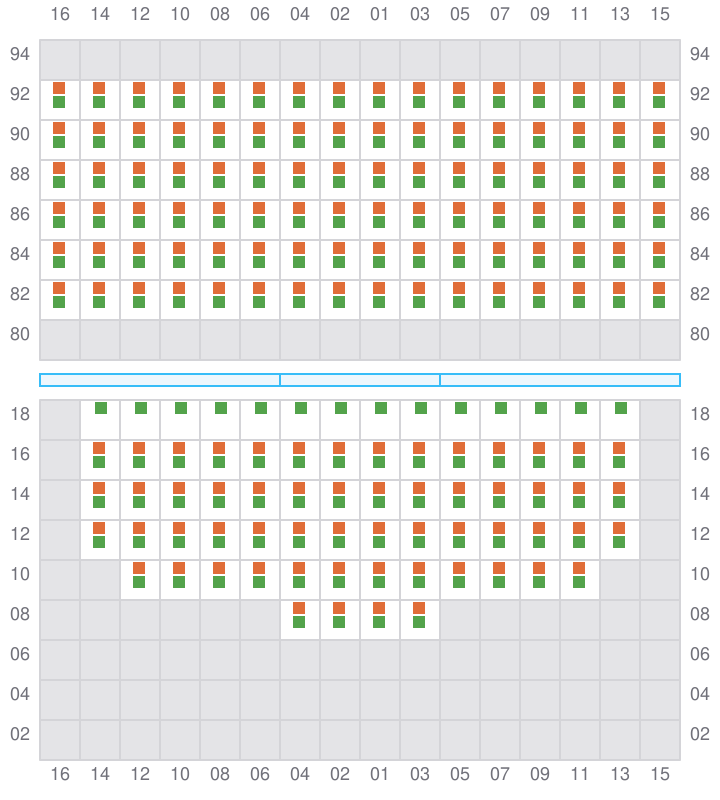

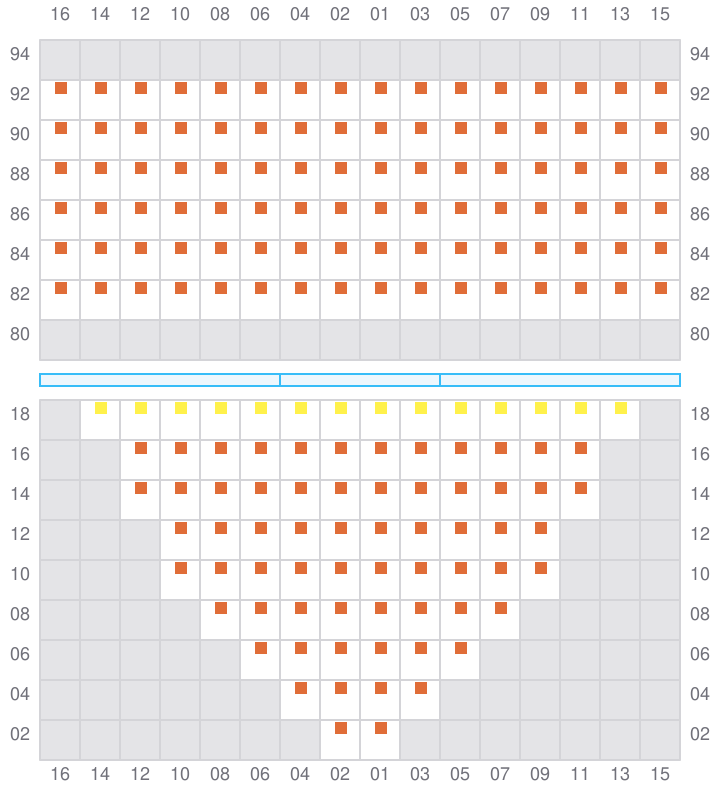

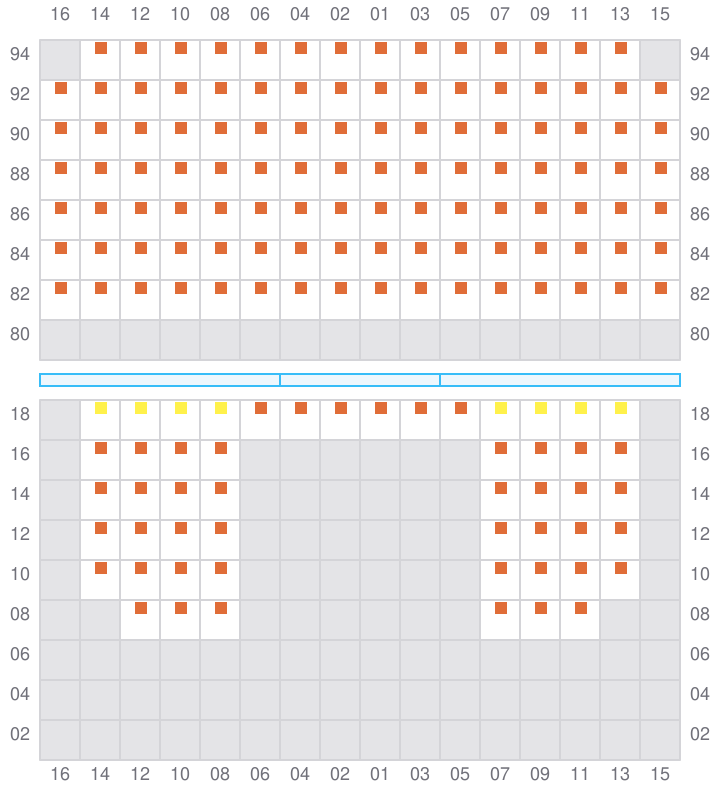

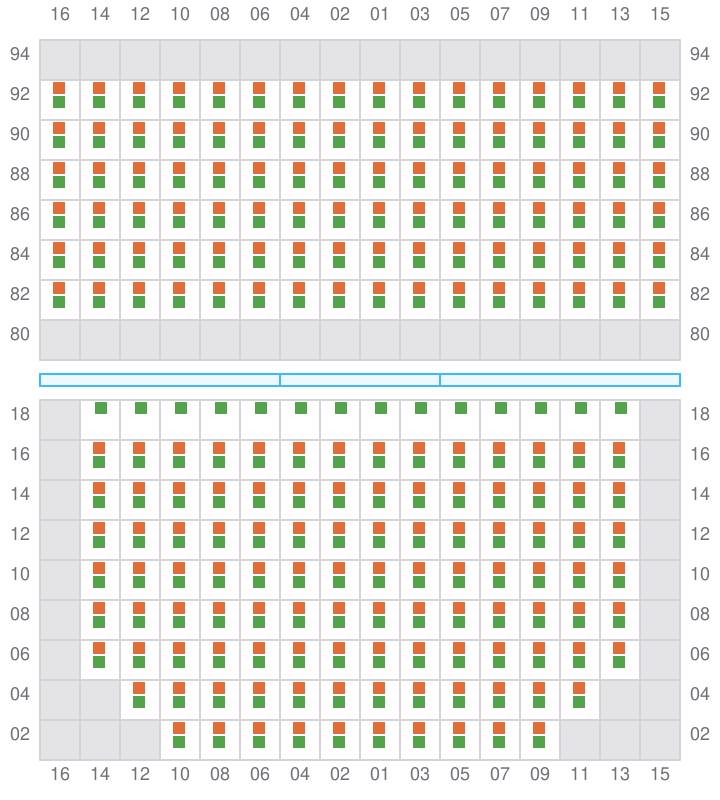

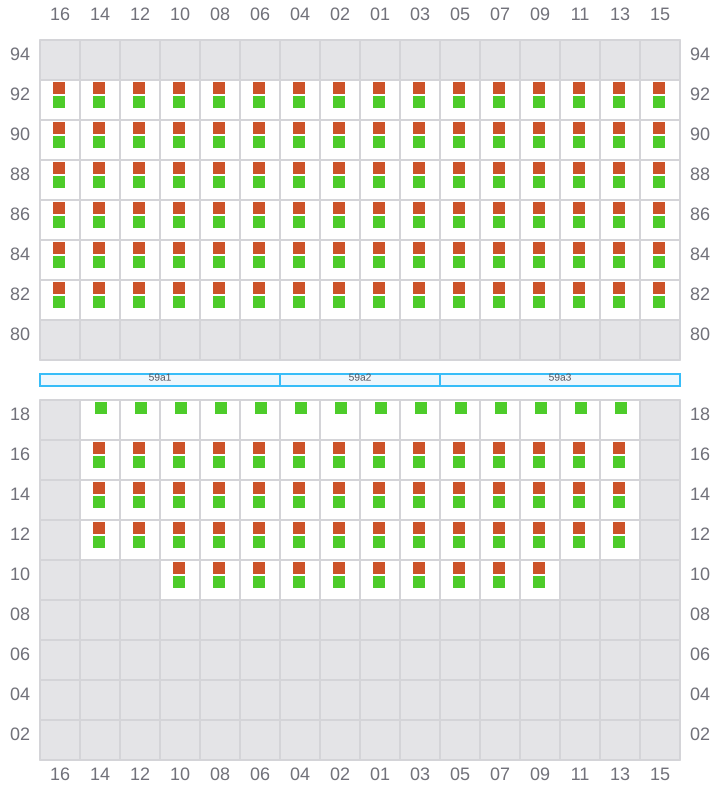

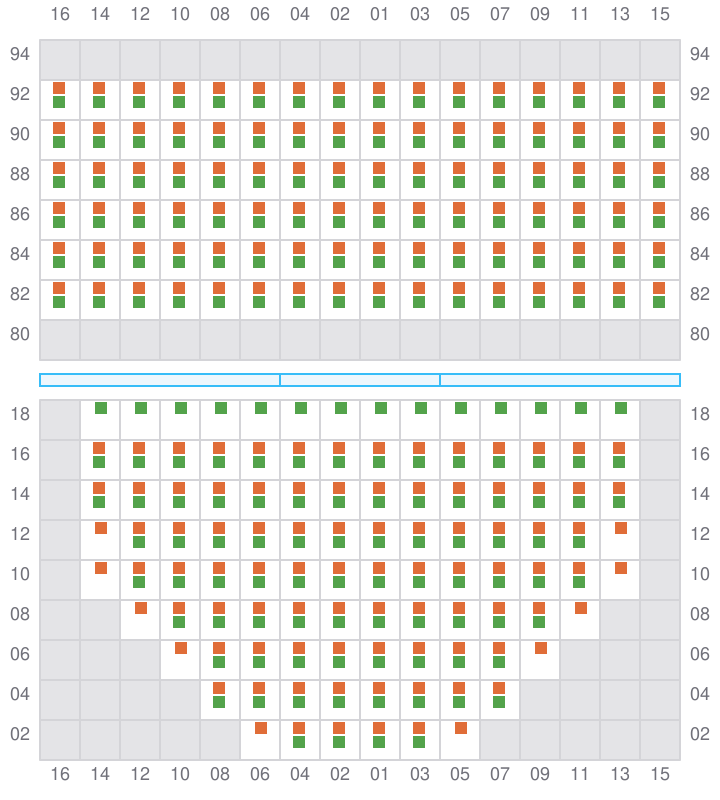

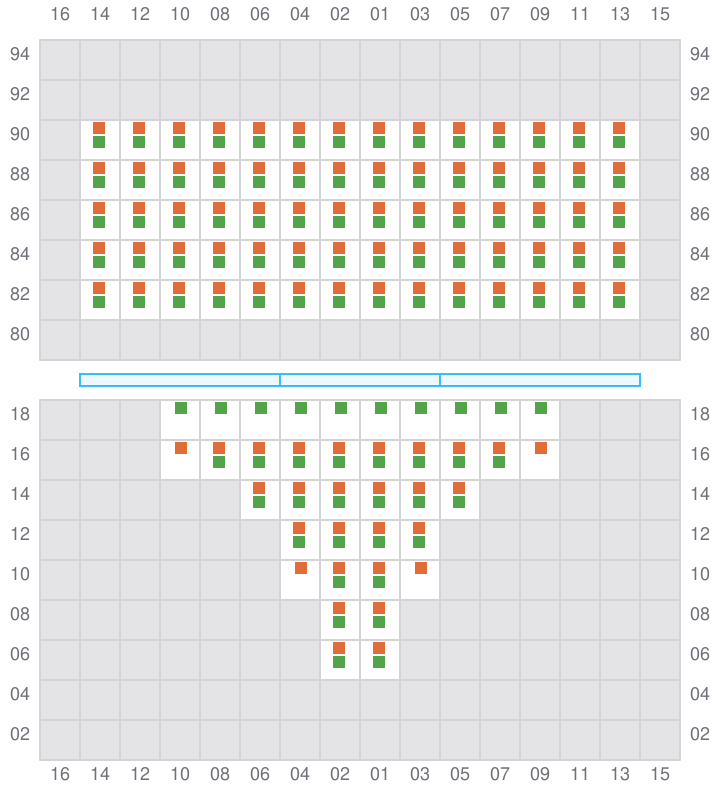

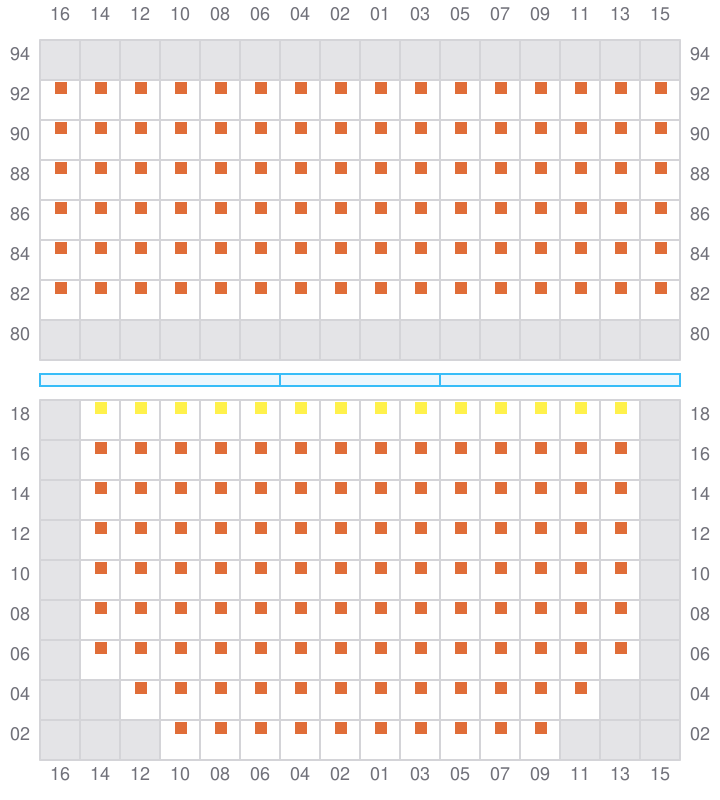

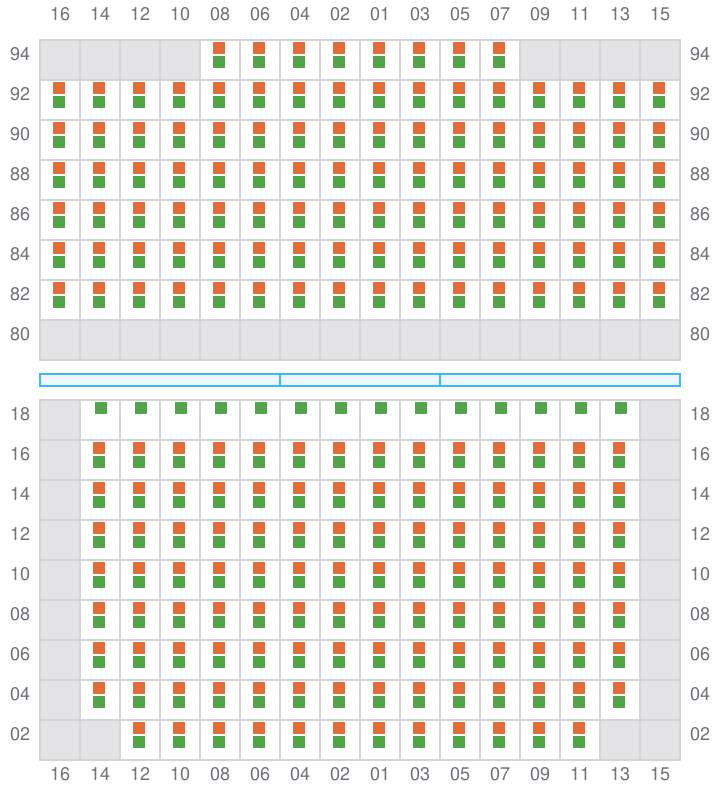

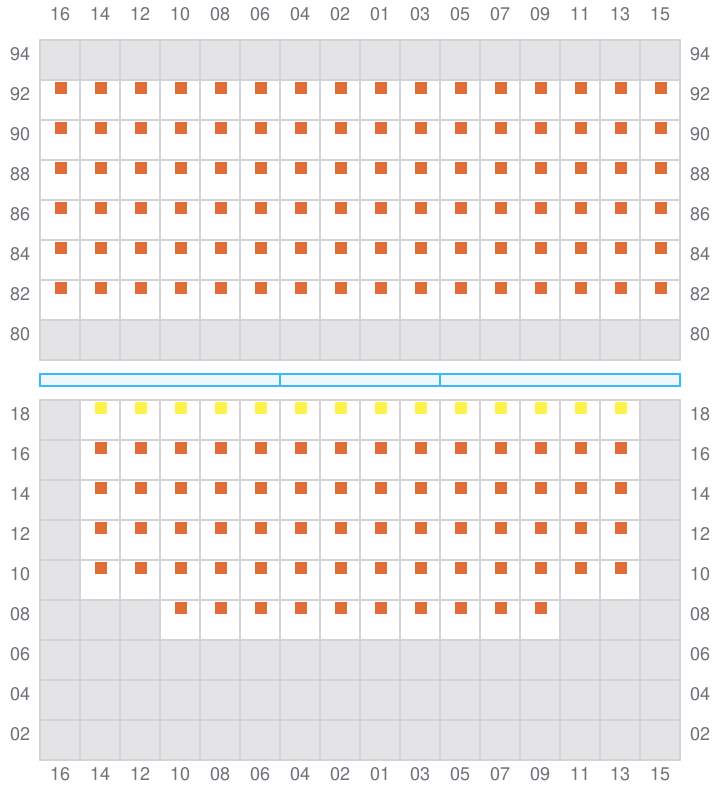

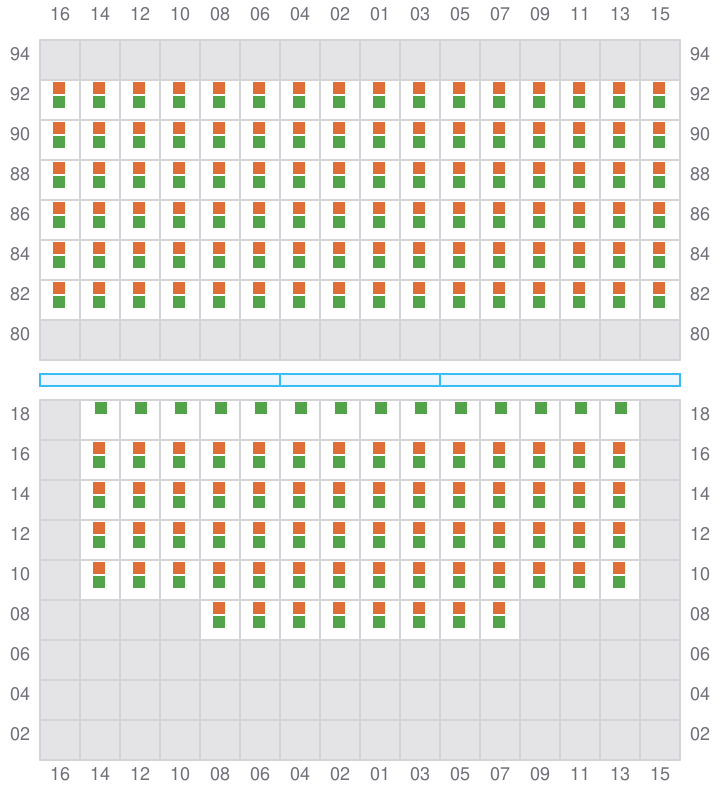

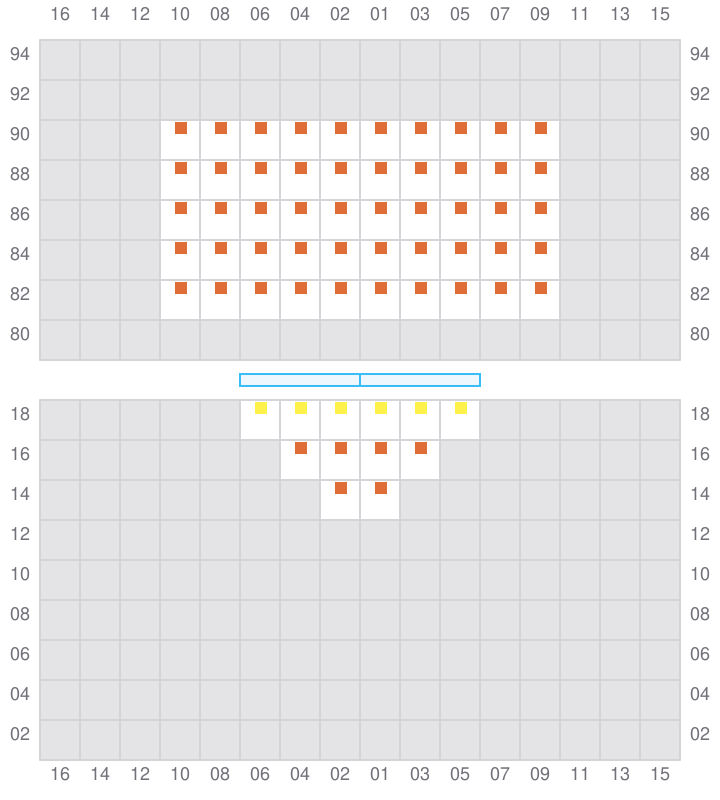

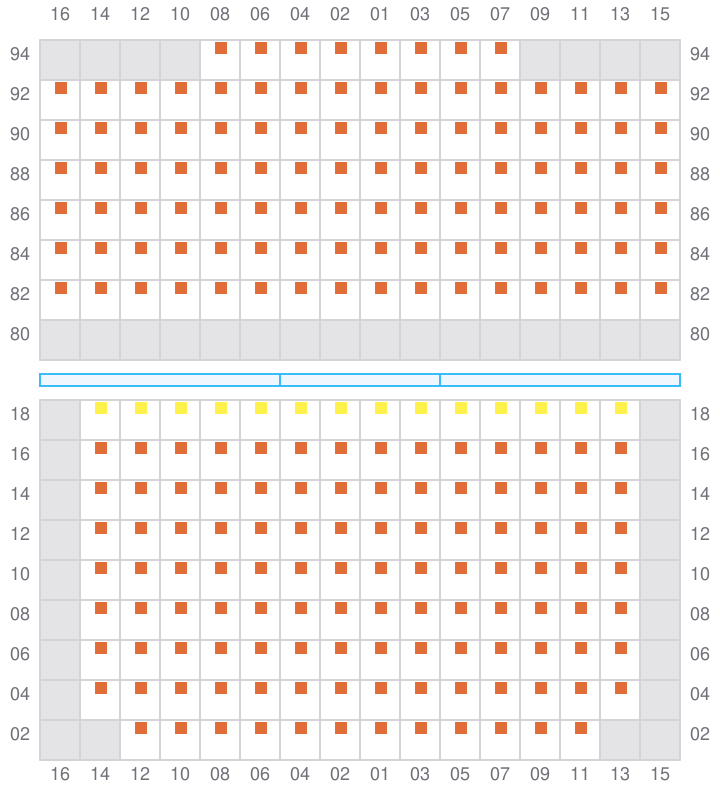

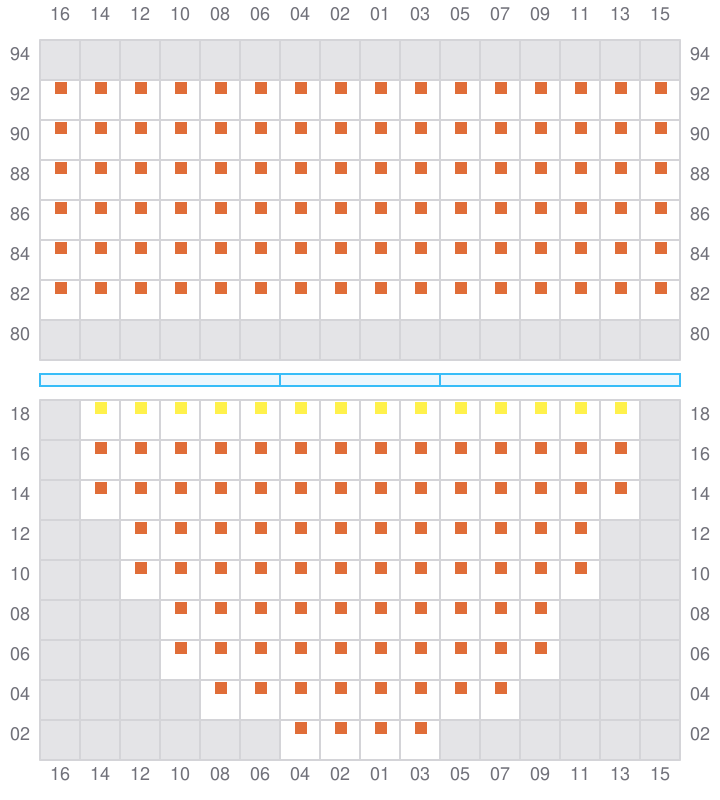

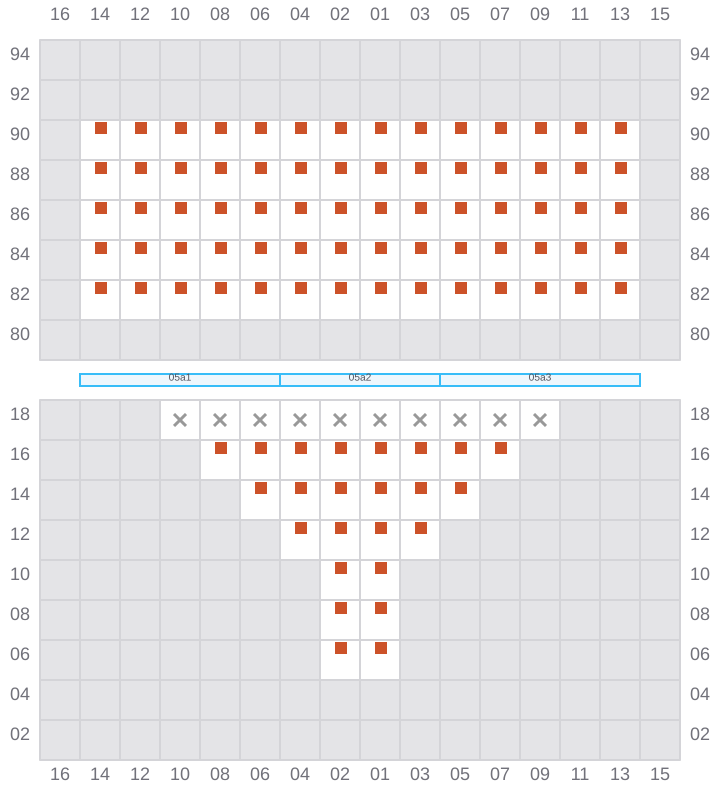

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←

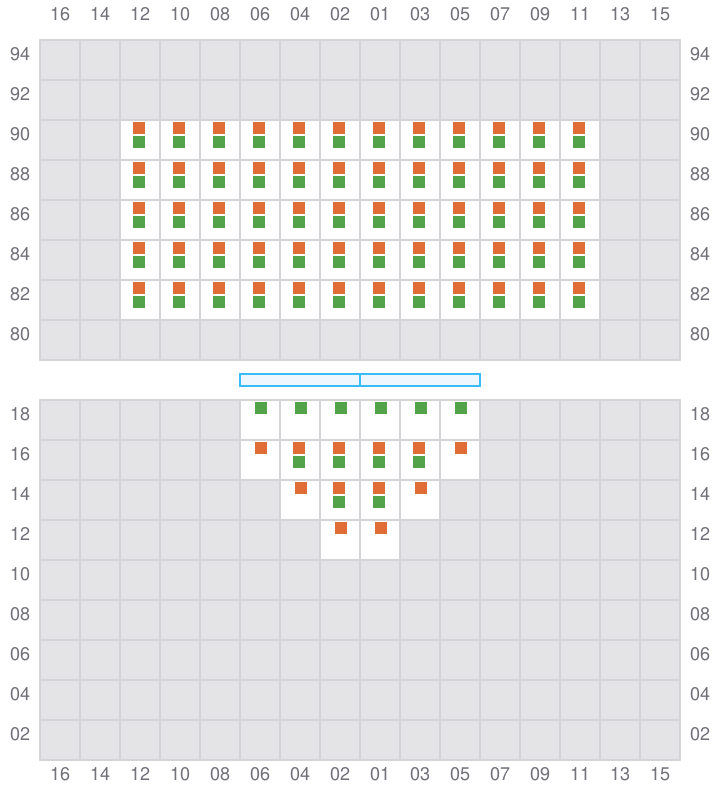

005
- →
007 (006)
- ←
009
- →
011 (010)
- ←
013
- →
015 (014)
- ←
017
- →
019 (018)
- ←

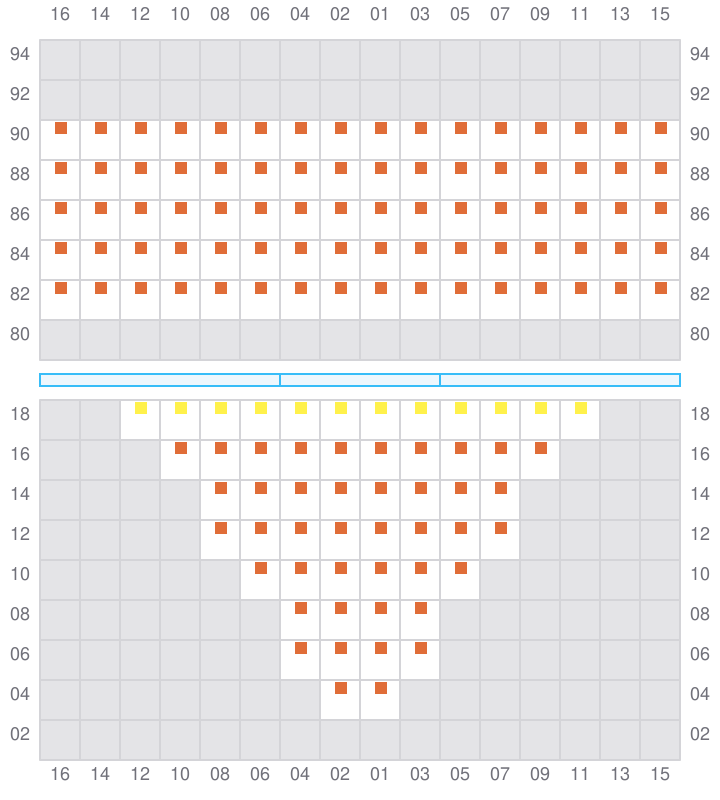

021
- →

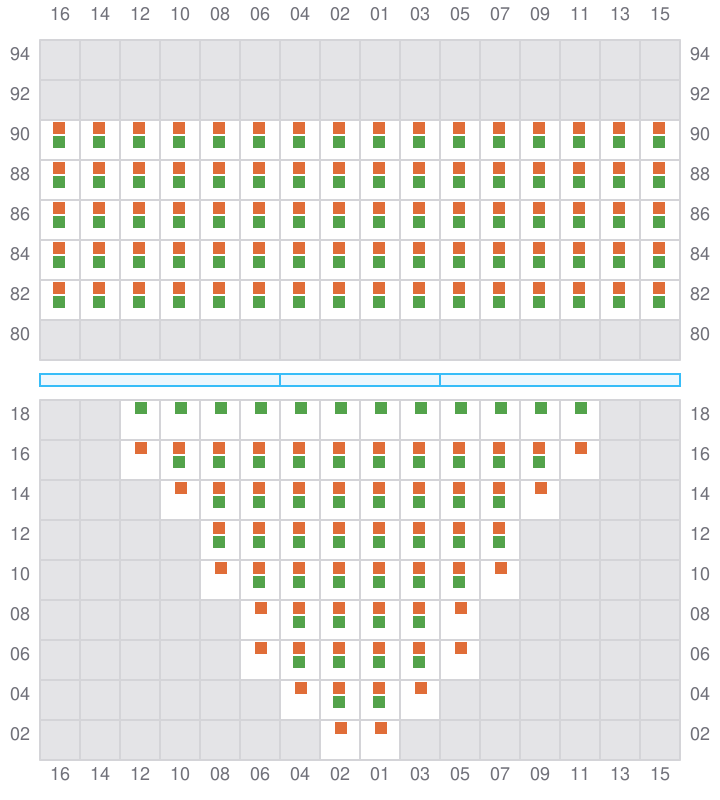

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- →
039 (038)
- ←

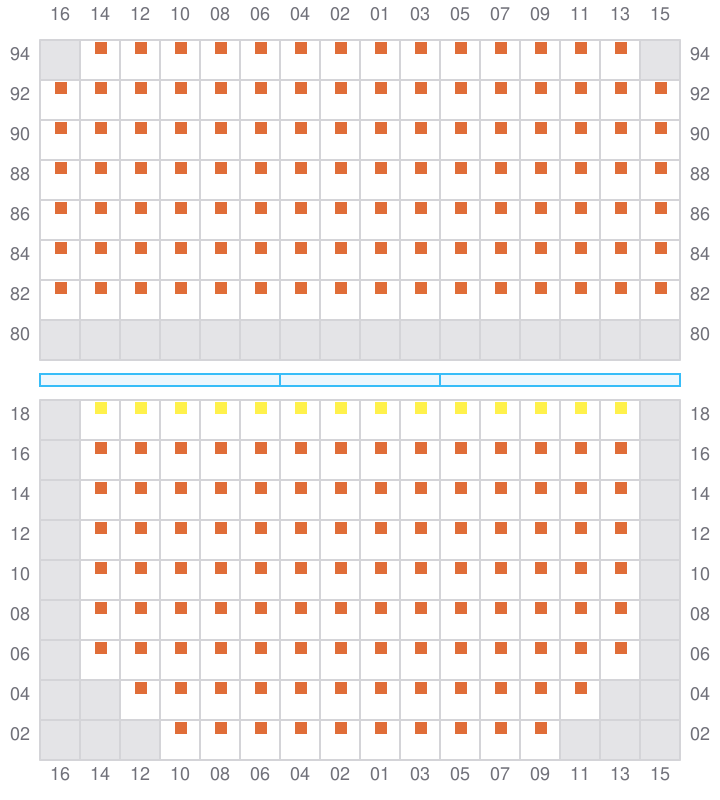

041
- →
043 (042)
- ←

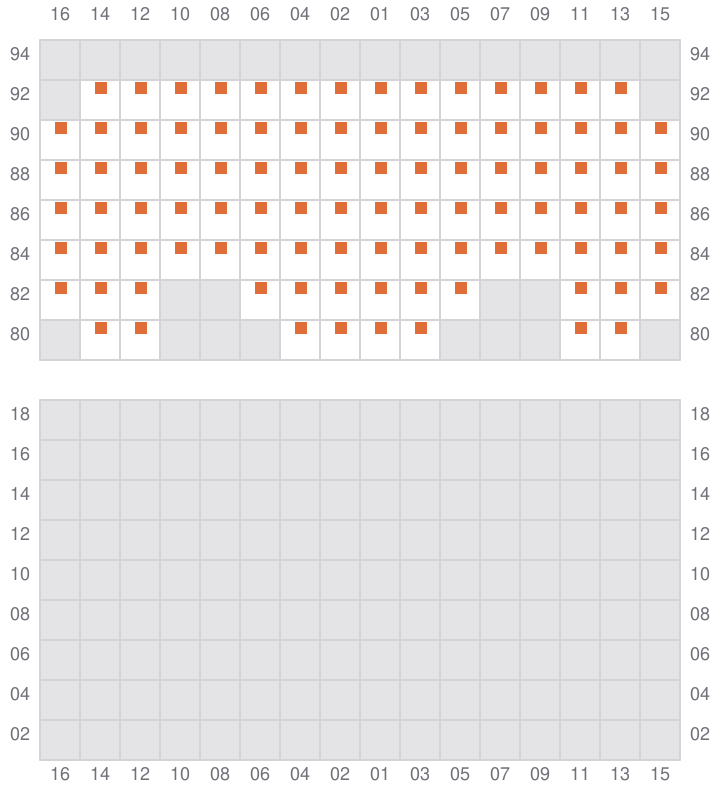

045

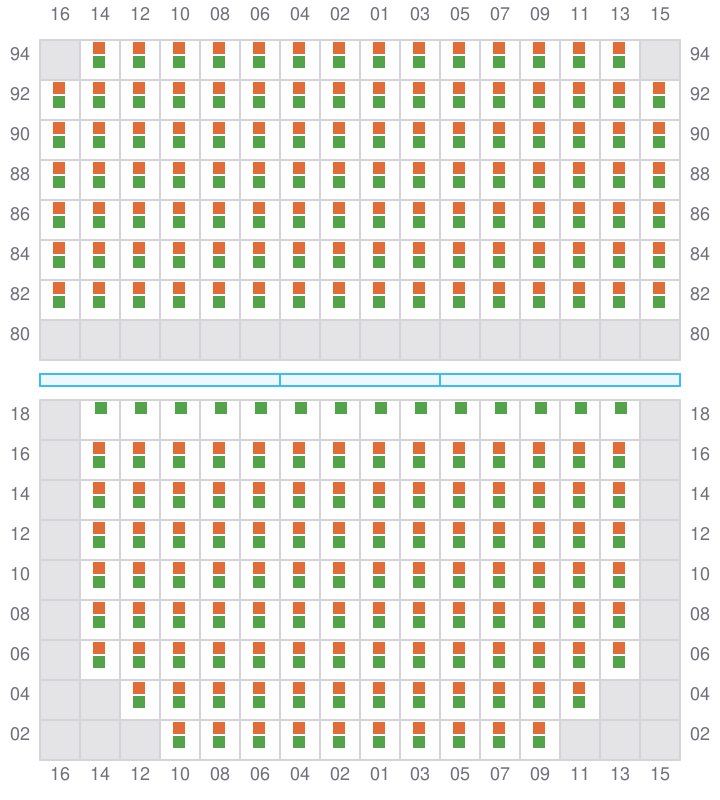

047
- →
049 (048)
- ←
051
- →
053 (052)
- ←
055
- →
057 (056)
- ←

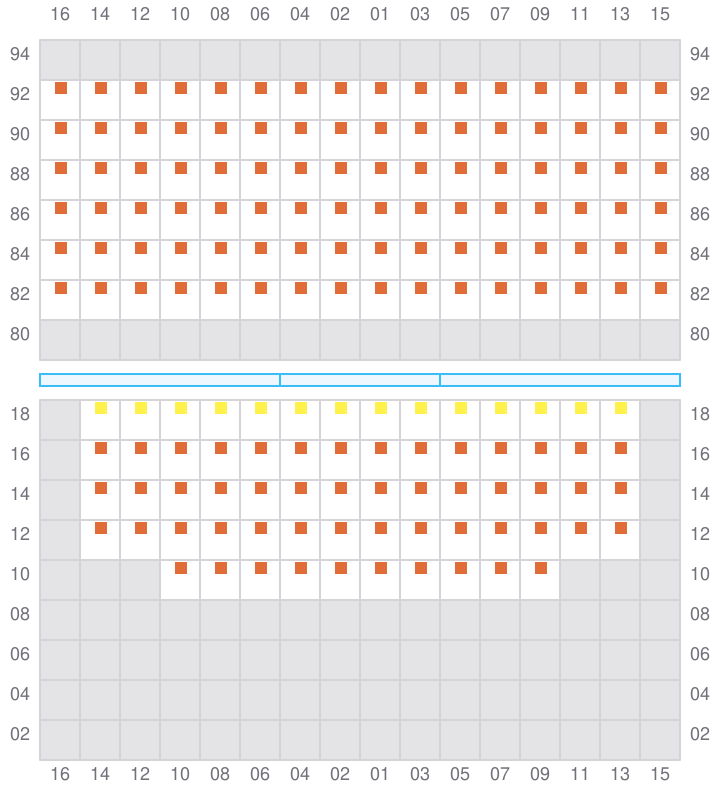

059
- →
061 (060)
- ←

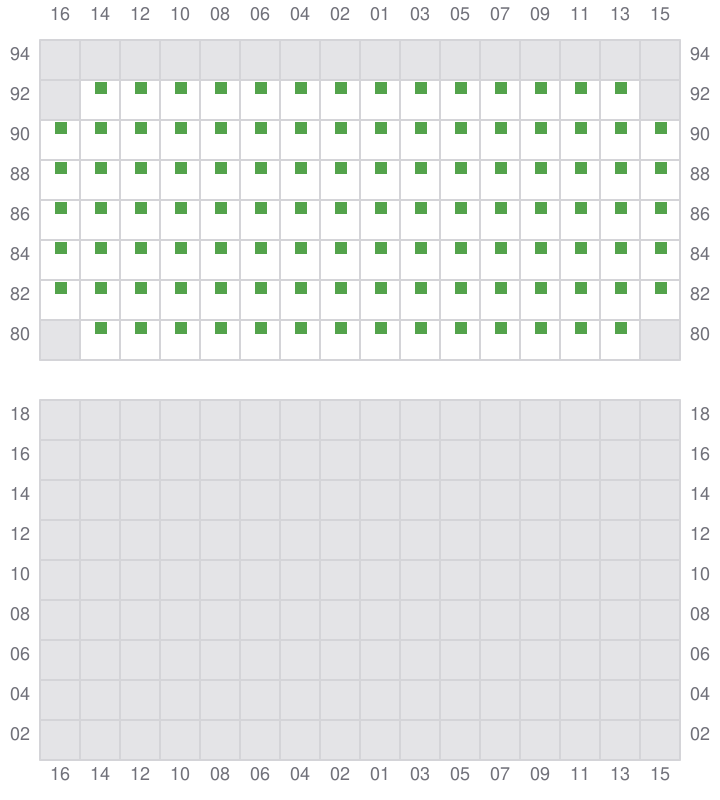

063 (064)
- → / ?
