XIN WEI HAI
9312573 | BPBV | 9312573 by ********* Last update: Thu May 09 2024

General Info

Ship Name:XIN WEI HAI
IMO Code:9312573
Call Sign:BPBV
Line Operator:9312573
Class Name for Sister Ships:XIN WEI HAI
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,196

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of XIN WEI HAI

Hatch-Covers View

Deck view of XIN WEI HAI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

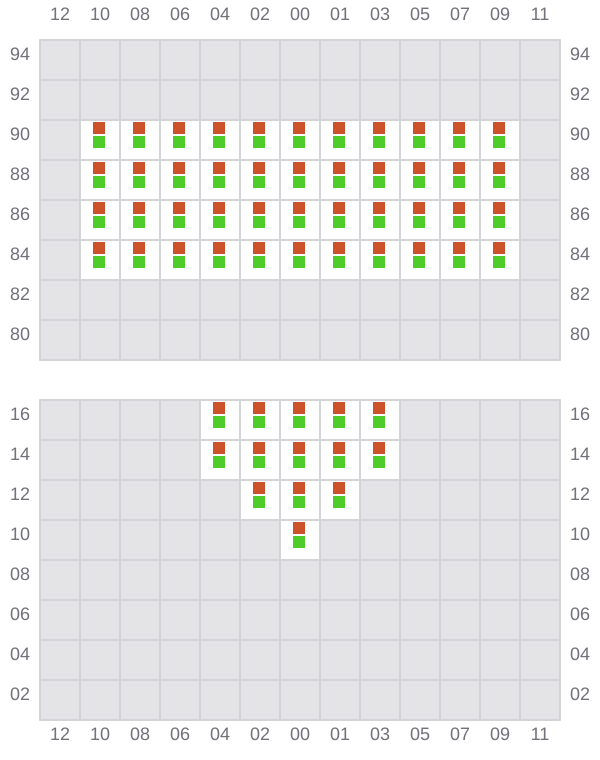

Bay 001 view and slots of XIN WEI HAI

003

  • ←

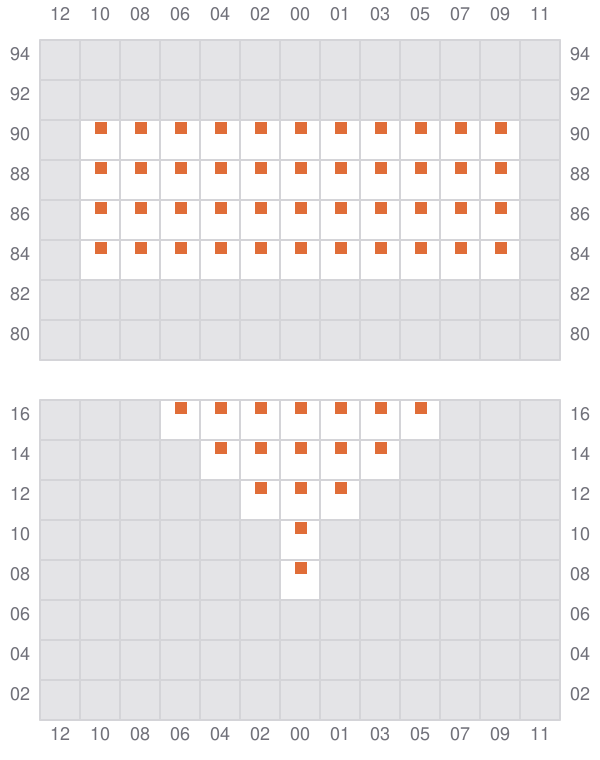

Bay 003 view and slots of XIN WEI HAI

005 (006)

  • →
Bay 005 view and slots of XIN WEI HAI

007

  • ←
Bay 007 view and slots of XIN WEI HAI

009 (010)

  • →
Bay 009 view and slots of XIN WEI HAI

011

  • ←

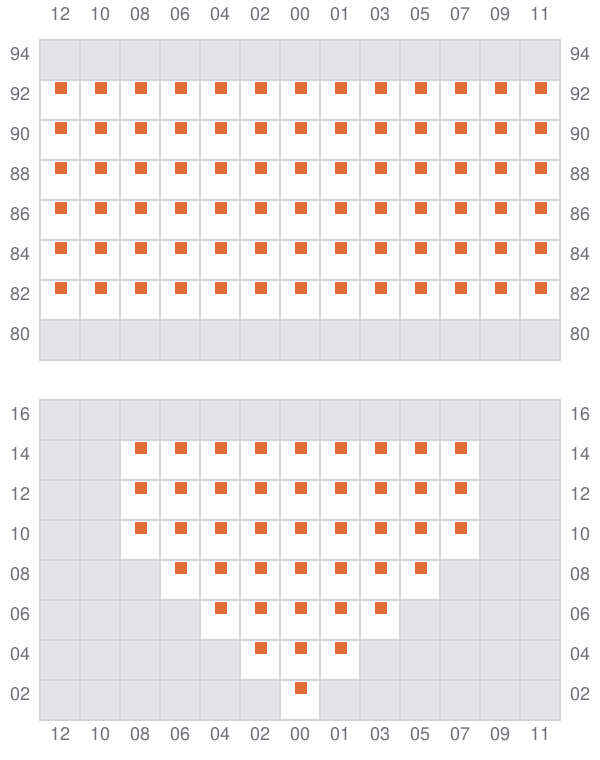

Bay 011 view and slots of XIN WEI HAI

013 (014)

  • →

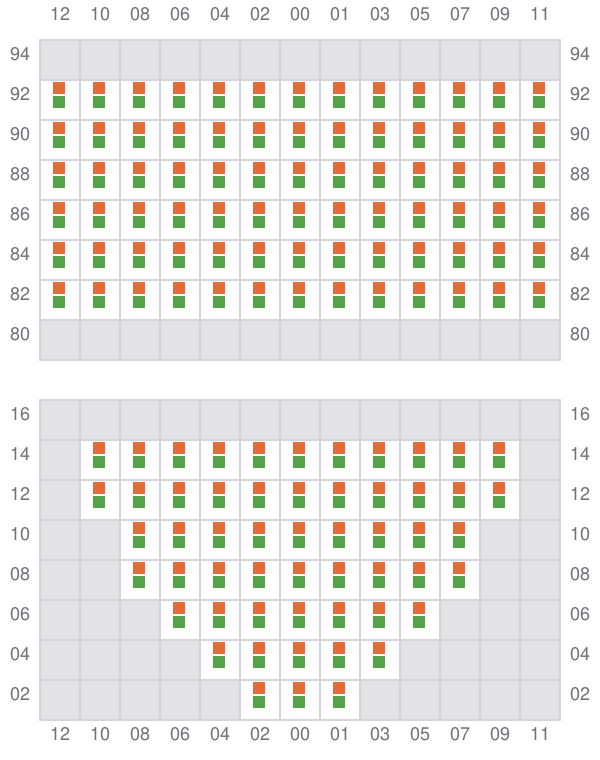

Bay 013 view and slots of XIN WEI HAI

015

  • ←
Bay 015 view and slots of XIN WEI HAI

017 (018)

  • →
Bay 017 view and slots of XIN WEI HAI

019

  • ←
Bay 019 view and slots of XIN WEI HAI

021 (022)

  • →
Bay 021 view and slots of XIN WEI HAI

023

  • ←

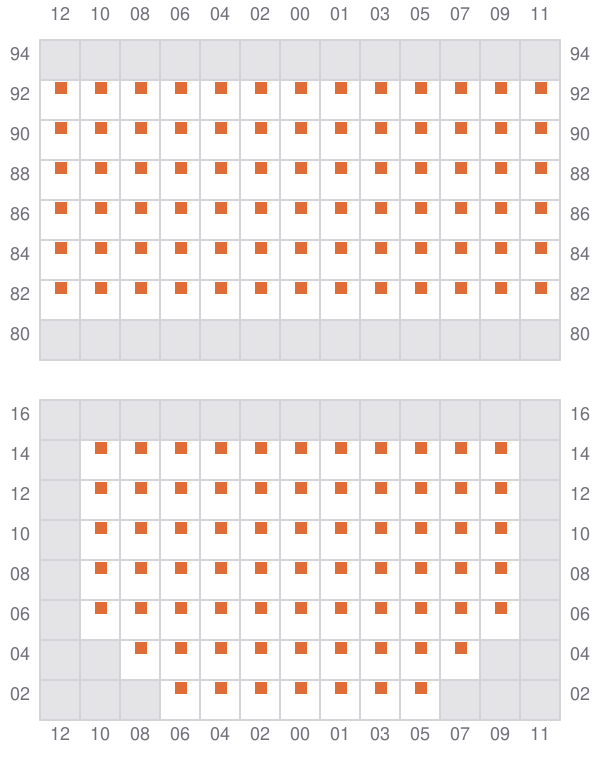

Bay 023 view and slots of XIN WEI HAI

025 (026)

  • →
Bay 025 view and slots of XIN WEI HAI

027

  • ←

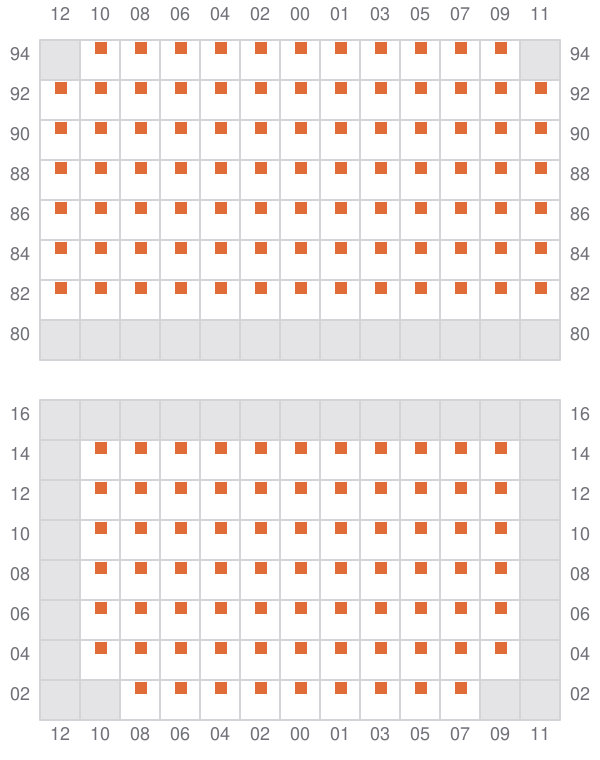

Bay 027 view and slots of XIN WEI HAI

029 (030)

  • →

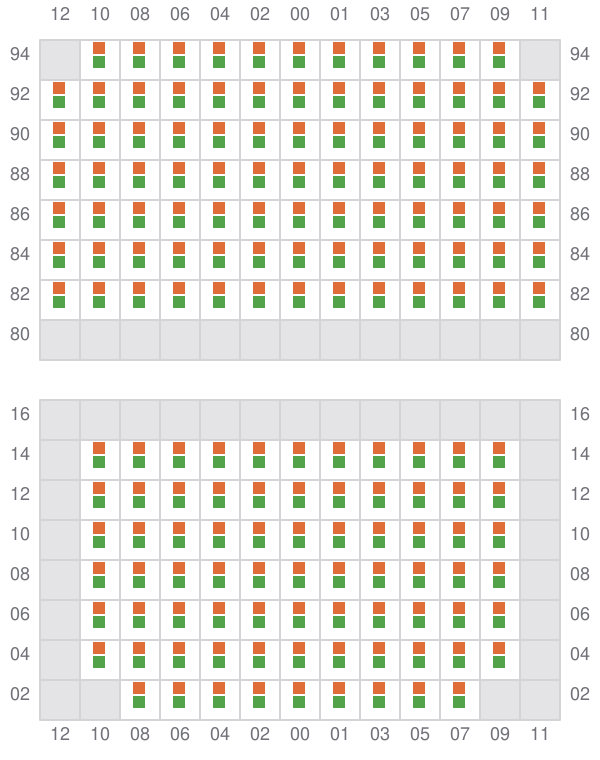

Bay 029 view and slots of XIN WEI HAI

031

  • ←
Bay 031 view and slots of XIN WEI HAI

033 (034)

  • →
Bay 033 view and slots of XIN WEI HAI

035

  • ←
Bay 035 view and slots of XIN WEI HAI

037 (038)

  • →
Bay 037 view and slots of XIN WEI HAI

039

  • ←
Bay 039 view and slots of XIN WEI HAI

041 (042)

  • →
Bay 041 view and slots of XIN WEI HAI

043

  • ←
Bay 043 view and slots of XIN WEI HAI

045 (046)

  • →
Bay 045 view and slots of XIN WEI HAI

047

  • ←
Bay 047 view and slots of XIN WEI HAI

049 (050)

  • → / ?
Bay 049 view and slots of XIN WEI HAI

051

  • ← / ?
Bay 051 view and slots of XIN WEI HAI

053 (054)

  • →
Bay 053 view and slots of XIN WEI HAI

055

  • ←
Bay 055 view and slots of XIN WEI HAI

057 (058)

  • →

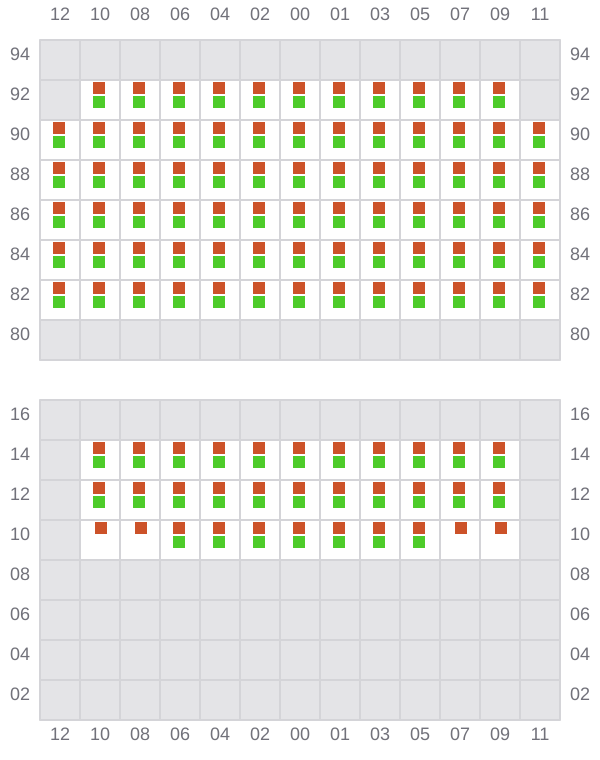

Bay 057 view and slots of XIN WEI HAI

059

  • ←
Bay 059 view and slots of XIN WEI HAI

061 (062)

  • → / ?
Bay 061 view and slots of XIN WEI HAI

063

  • ← / ?
Bay 063 view and slots of XIN WEI HAI
