XIN WEN ZHOU
9523043 | BPKJ | 9523043 by ********* Last update: Tue Jul 16 2024
General Info
Ship Name:XIN WEN ZHOU
IMO Code:9523043
Call Sign:BPKJ
Line Operator:9523043
Class Name for Sister Ships:CSC
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,752
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

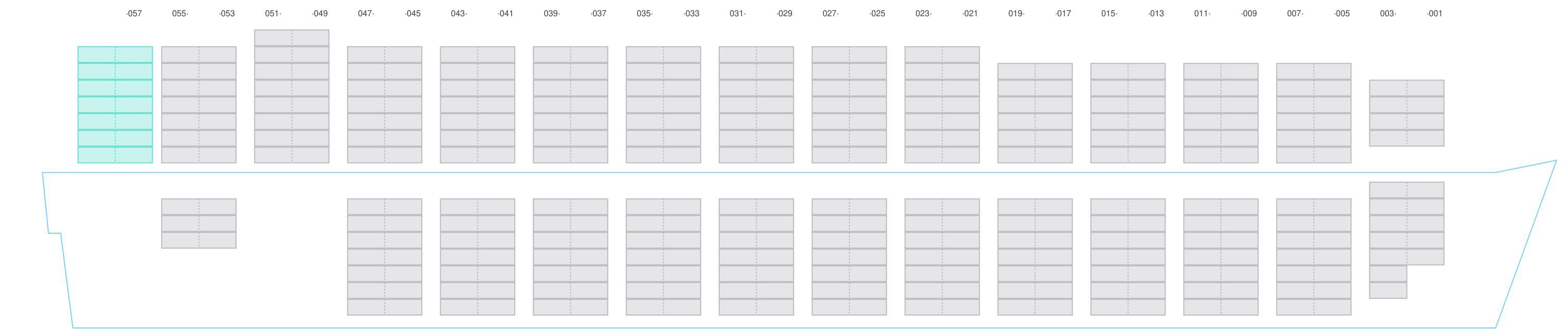

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

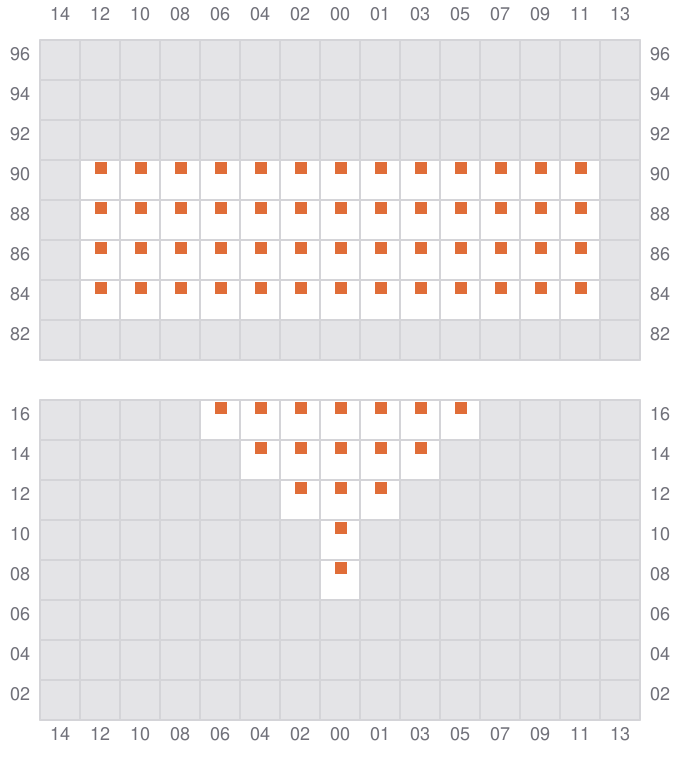

001
- →

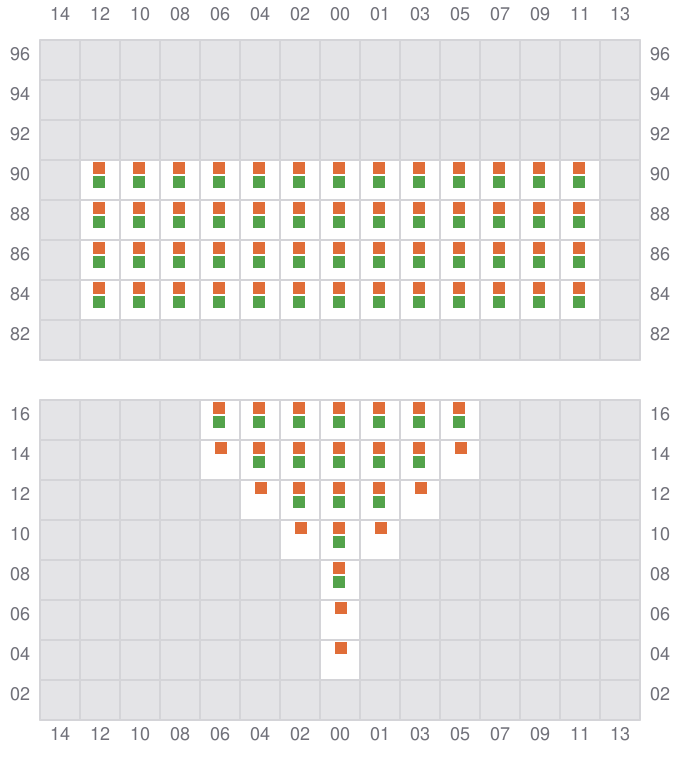

003 (002)
- ←

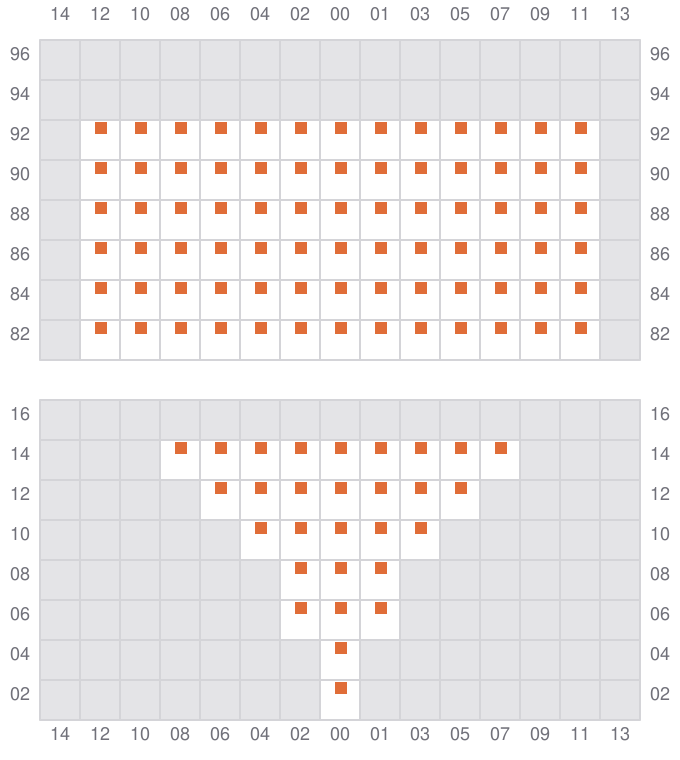

005
- →

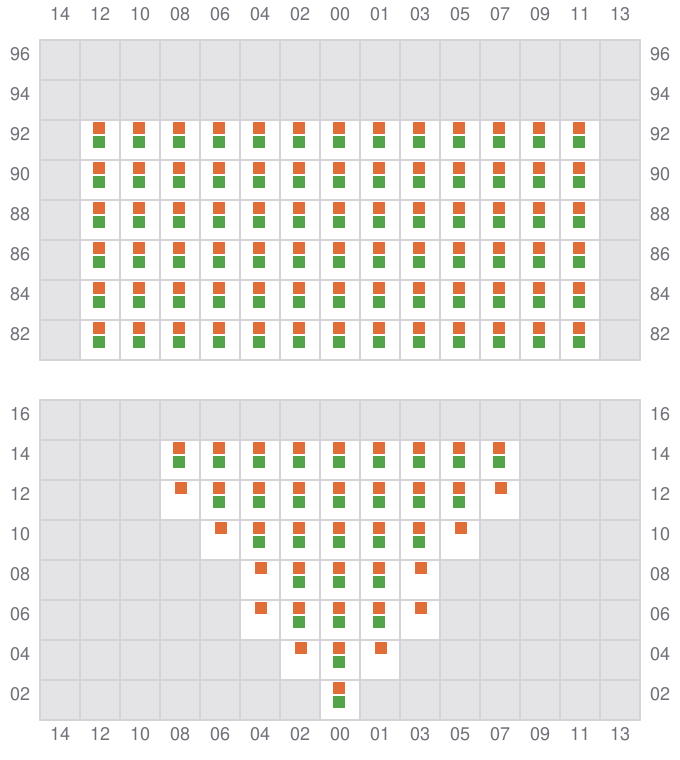

007 (006)
- ←

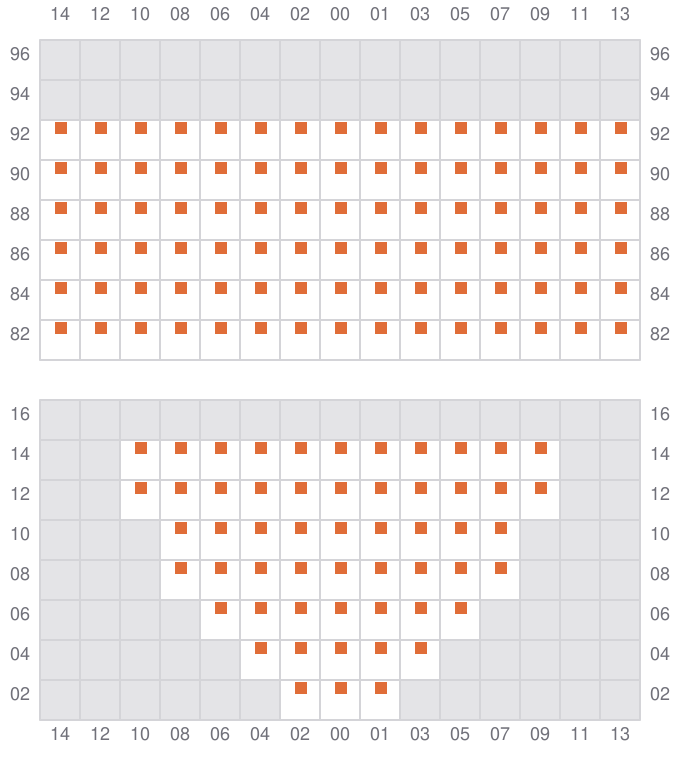

009
- →

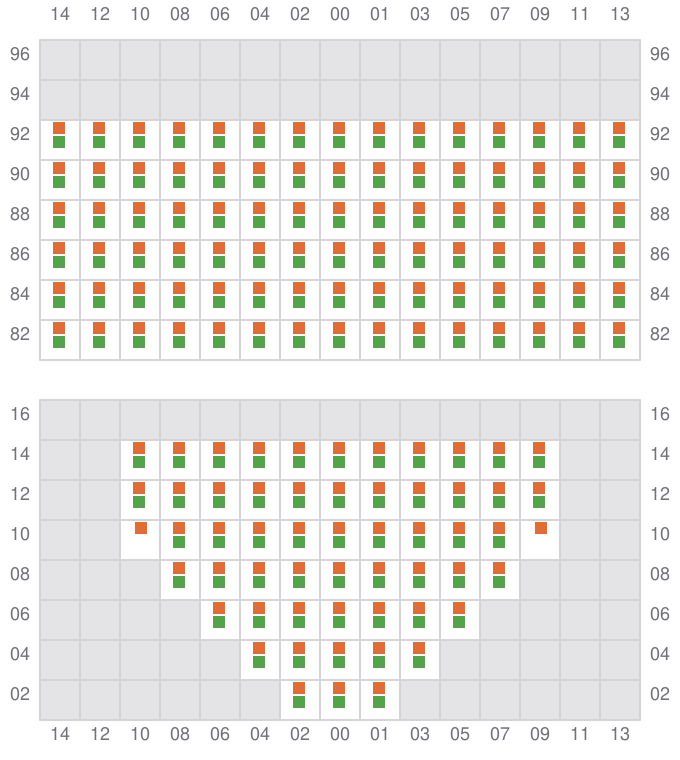

011 (010)
- ←

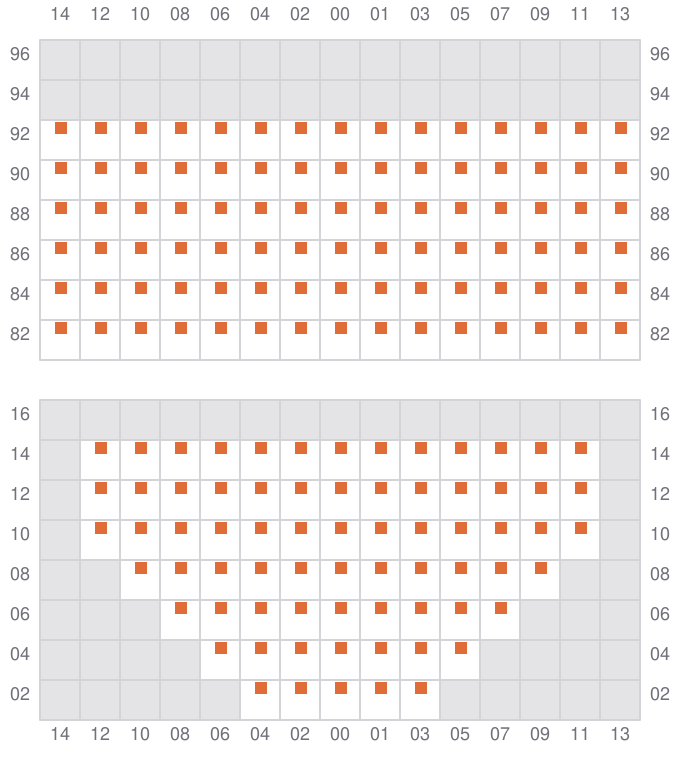

013
- →

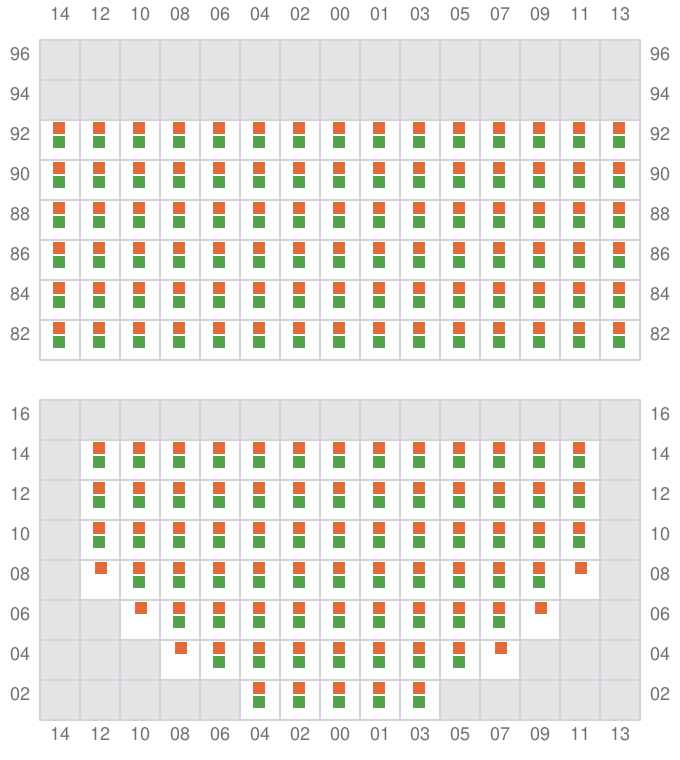

015 (014)
- ←

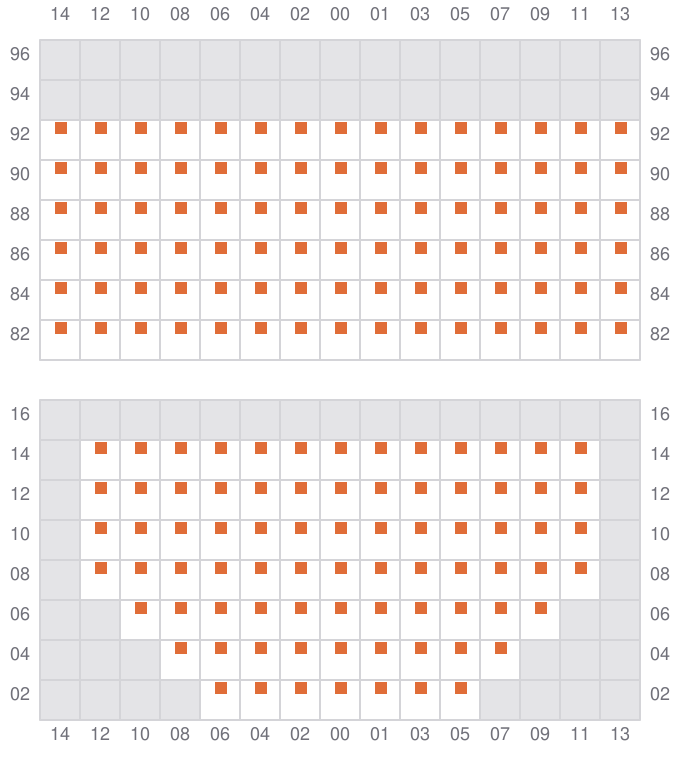

017
- →

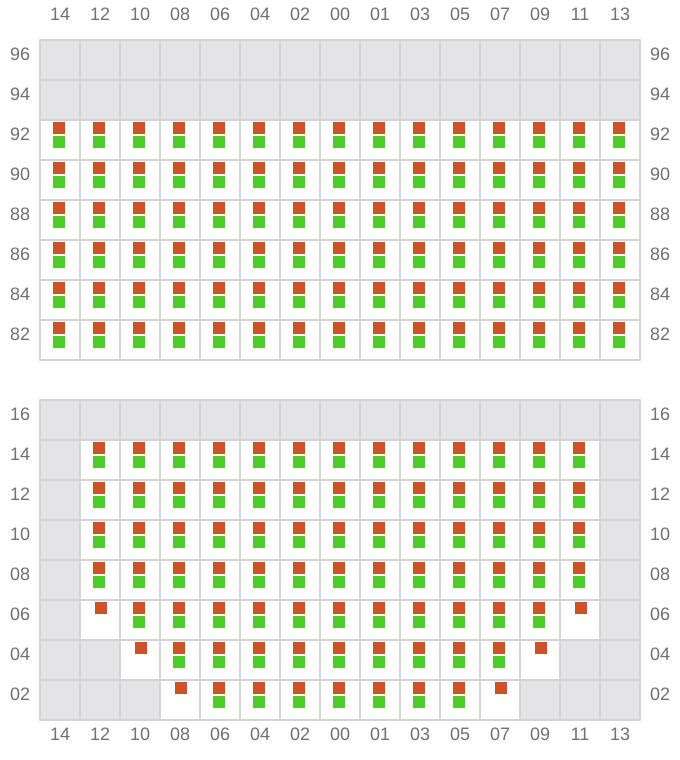

019 (018)
- ←
021
- →

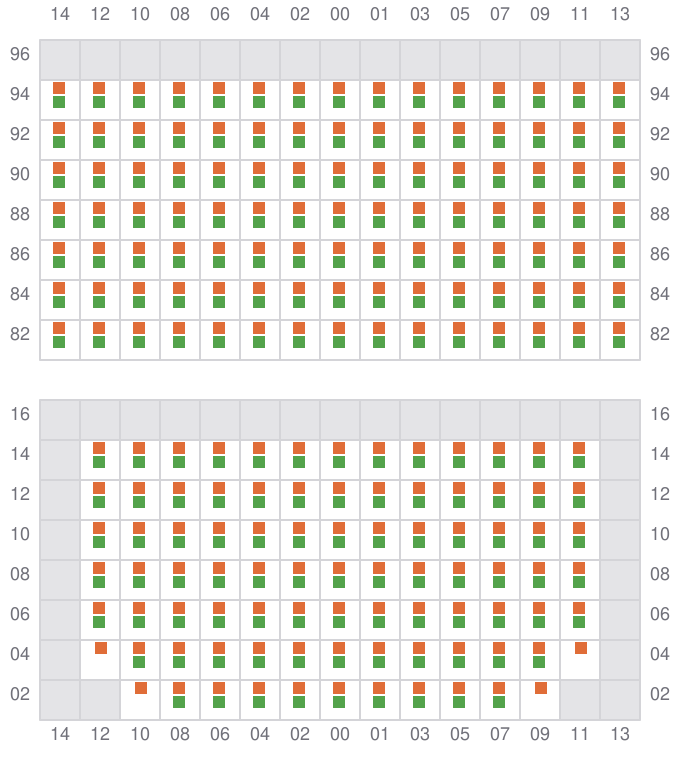

023 (022)
- ←
025
- →
027 (026)
- ←
029
- →
031 (030)
- ←
033
- →
035 (034)
- ←

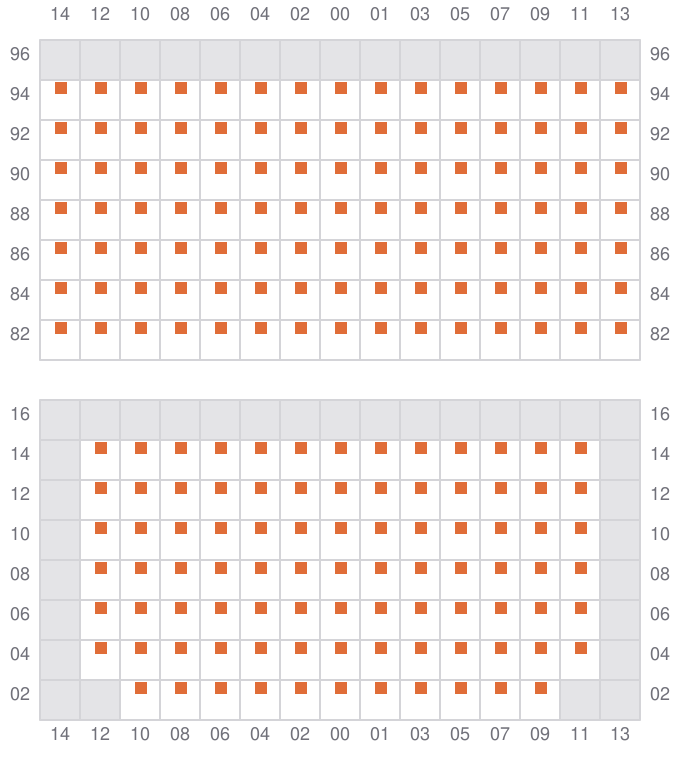

037
- →

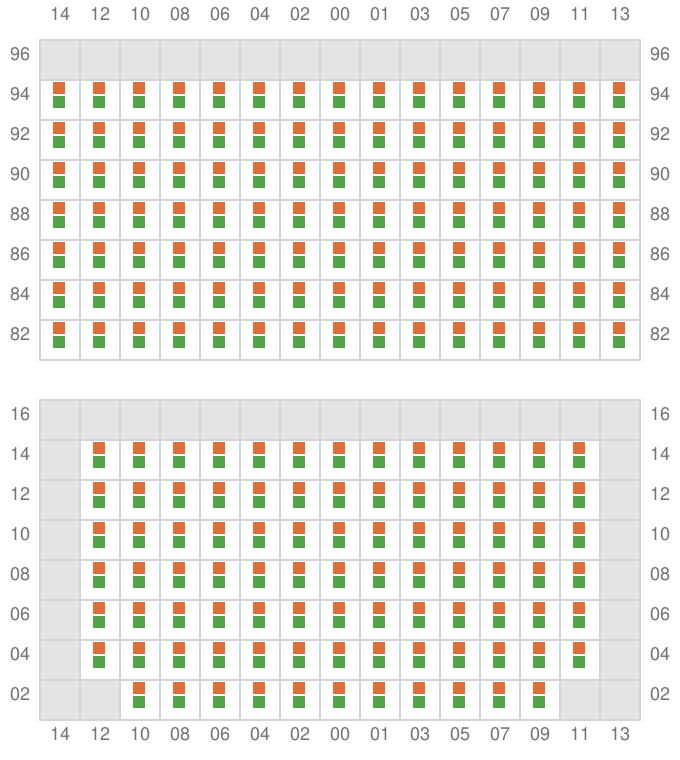

039 (038)
- ←

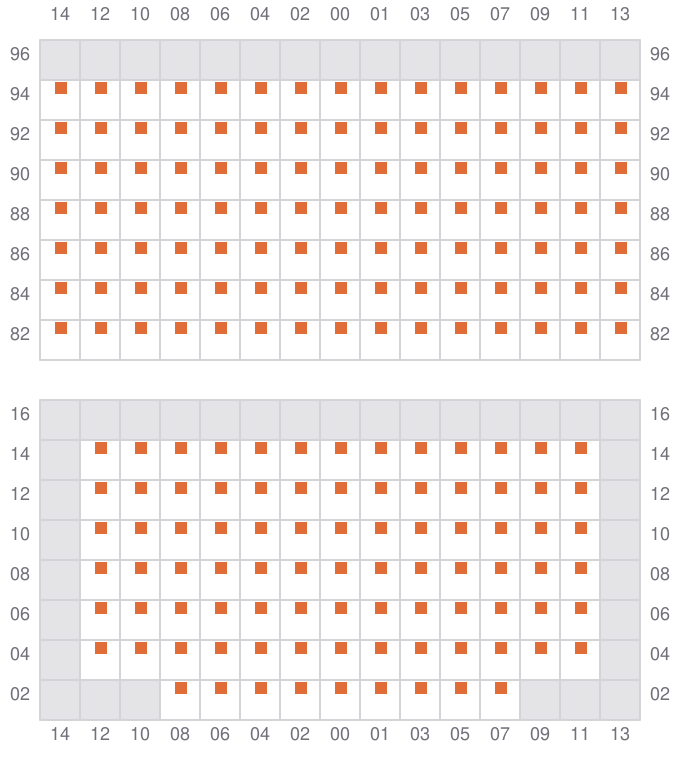

041
- →
043 (042)
- ←

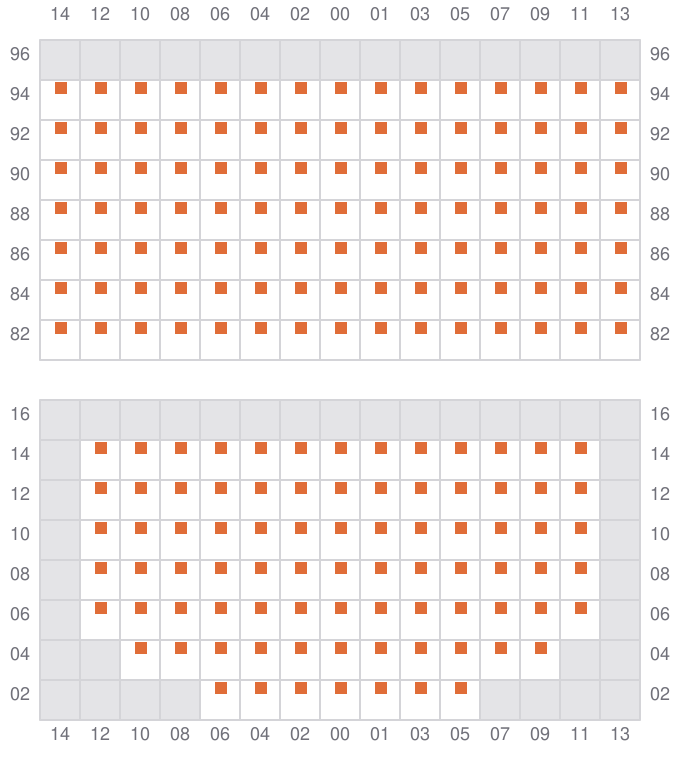

045
- →
047 (046)
- ←

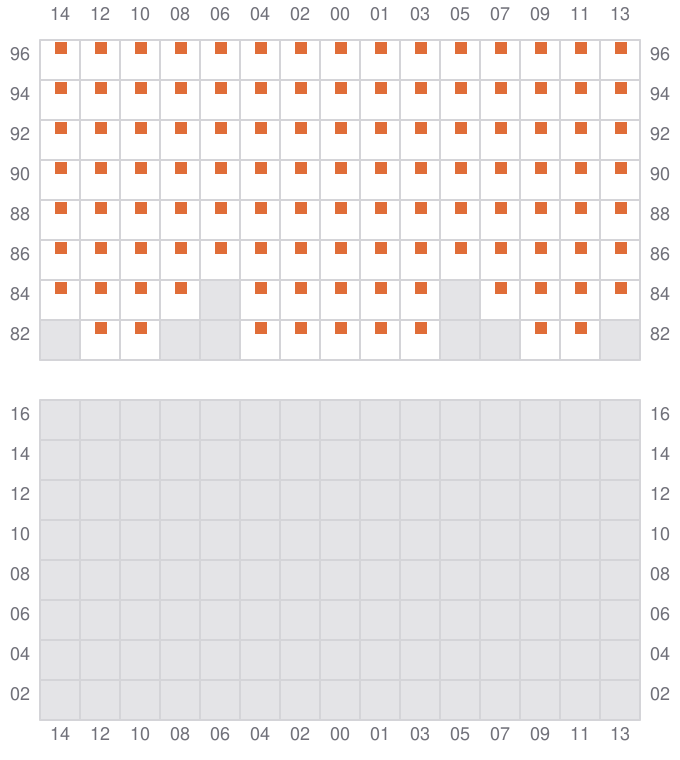

049
- → / ?
051 (050)
- ← / ?

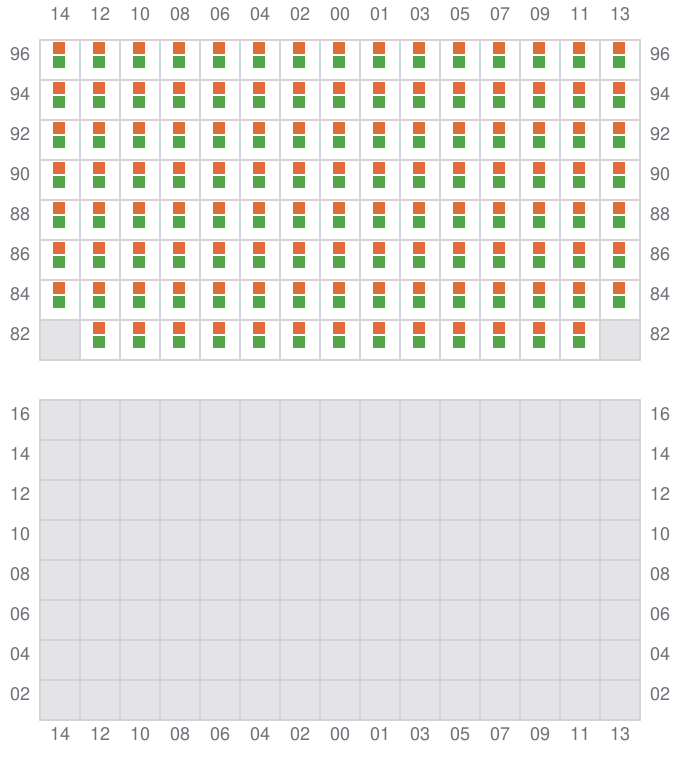

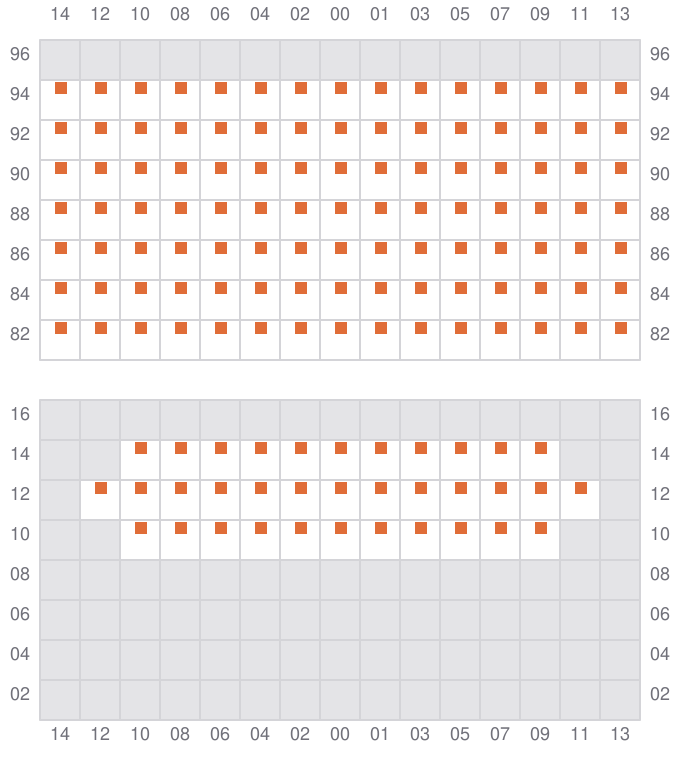

053
- →

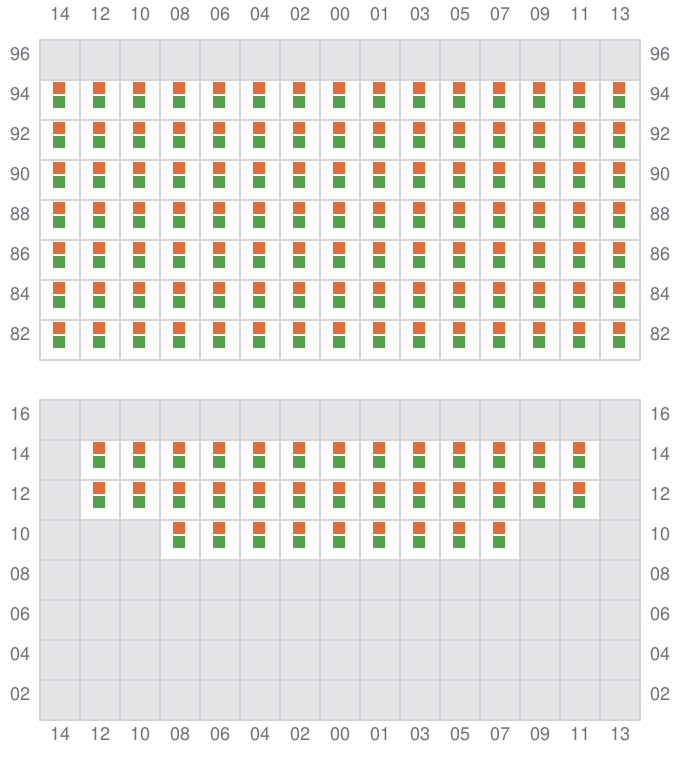

055 (054)
- ←

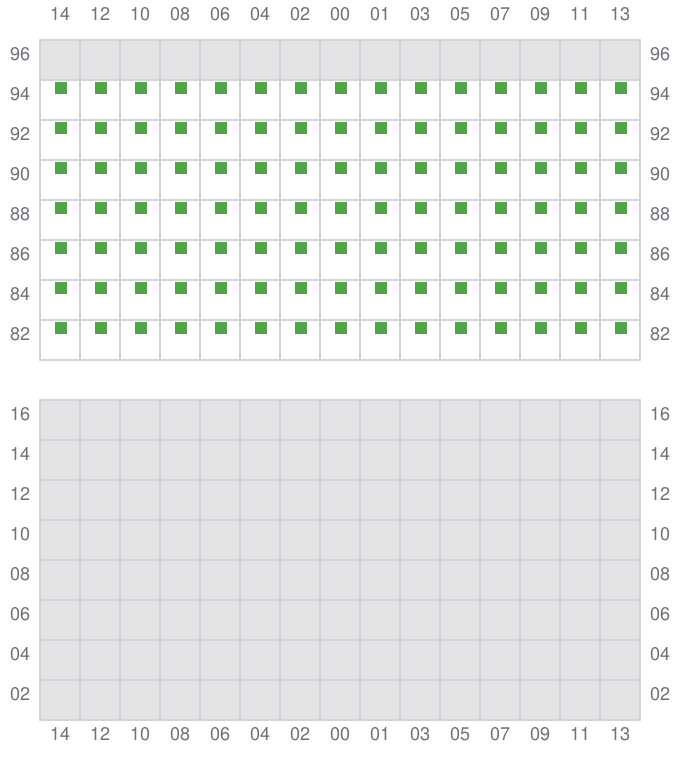

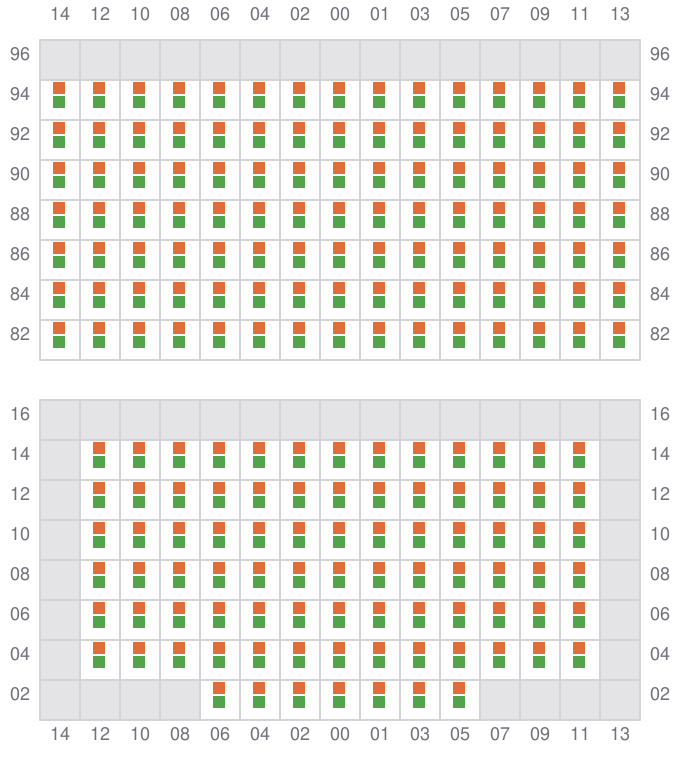

057 (058)
- → / ?
