XIN XIA MEN
9270476 | BPBB | 9270476 by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:XIN XIA MEN
IMO Code:9270476
Call Sign:BPBB
Line Operator:9270476
Class Name for Sister Ships:CMA
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:063
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,698

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of XIN XIA MEN

Hatch-Covers View

Deck view of XIN XIA MEN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of XIN XIA MEN

003 (002)

  • ←
Bay 003 view and slots of XIN XIA MEN

005

  • →
Bay 005 view and slots of XIN XIA MEN

007 (006)

  • ←
Bay 007 view and slots of XIN XIA MEN

009

  • →
Bay 009 view and slots of XIN XIA MEN

011 (010)

  • ←

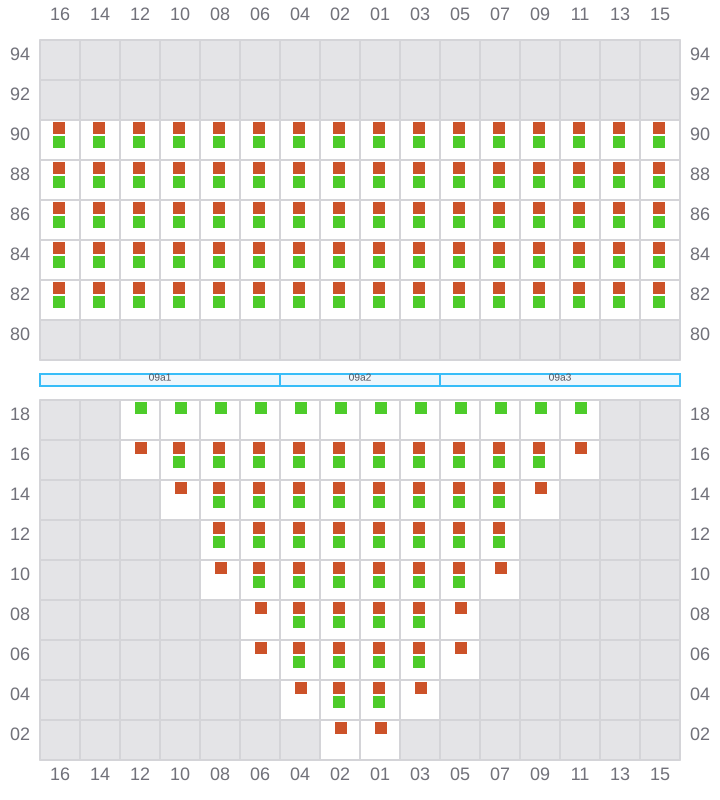

Bay 011 view and slots of XIN XIA MEN

013

  • →
Bay 013 view and slots of XIN XIA MEN

015 (014)

  • ←
Bay 015 view and slots of XIN XIA MEN

017

  • →
Bay 017 view and slots of XIN XIA MEN

019 (018)

  • ←
Bay 019 view and slots of XIN XIA MEN

021

  • →
Bay 021 view and slots of XIN XIA MEN

023 (022)

  • ←
Bay 023 view and slots of XIN XIA MEN

025

  • →

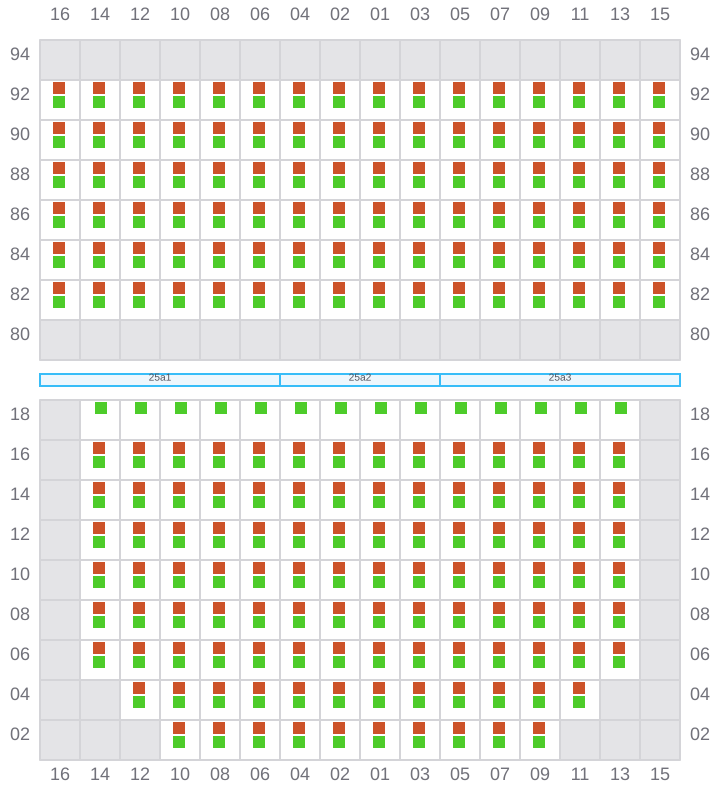

Bay 025 view and slots of XIN XIA MEN

027 (026)

  • ←
Bay 027 view and slots of XIN XIA MEN

029

  • →
Bay 029 view and slots of XIN XIA MEN

031 (030)

  • ←
Bay 031 view and slots of XIN XIA MEN

033

  • →
Bay 033 view and slots of XIN XIA MEN

035 (034)

  • ←
Bay 035 view and slots of XIN XIA MEN

037

  • →

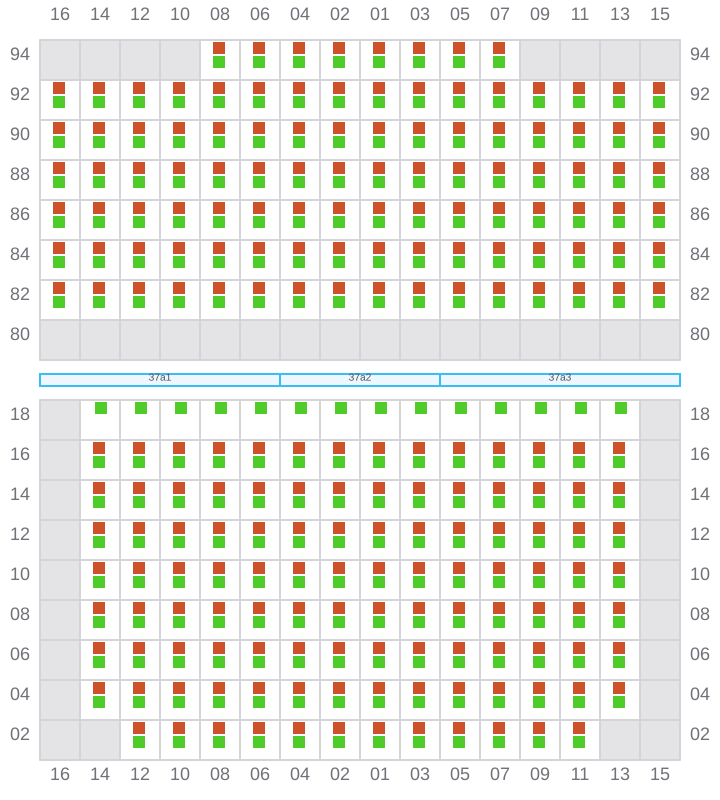

Bay 037 view and slots of XIN XIA MEN

039 (038)

  • ←
Bay 039 view and slots of XIN XIA MEN

041

  • →
Bay 041 view and slots of XIN XIA MEN

043 (042)

  • ←
Bay 043 view and slots of XIN XIA MEN

045

Bay 045 view and slots of XIN XIA MEN

047

  • →
Bay 047 view and slots of XIN XIA MEN

049 (048)

  • ←
Bay 049 view and slots of XIN XIA MEN

051

  • →

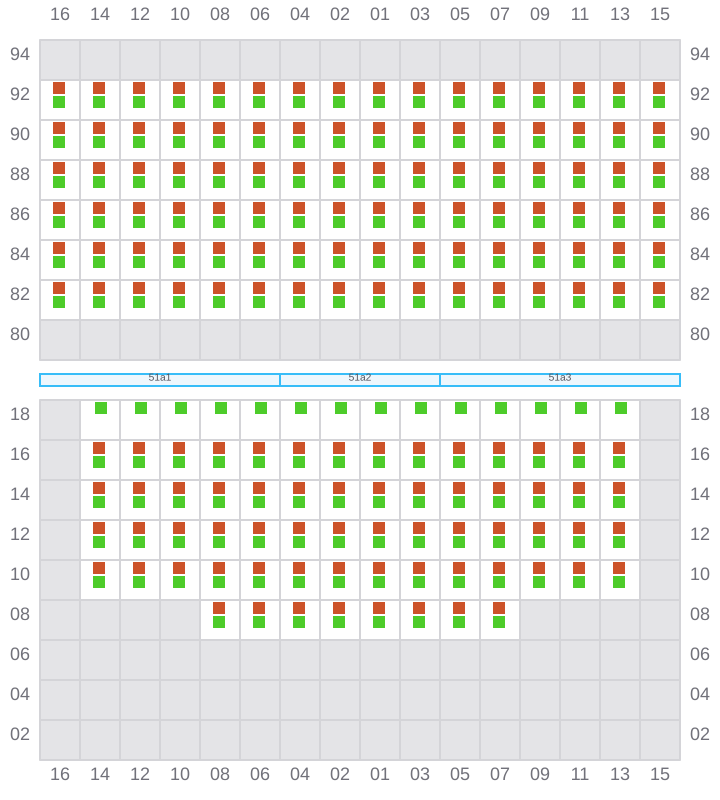

Bay 051 view and slots of XIN XIA MEN

053 (052)

  • ←
Bay 053 view and slots of XIN XIA MEN

055

  • →

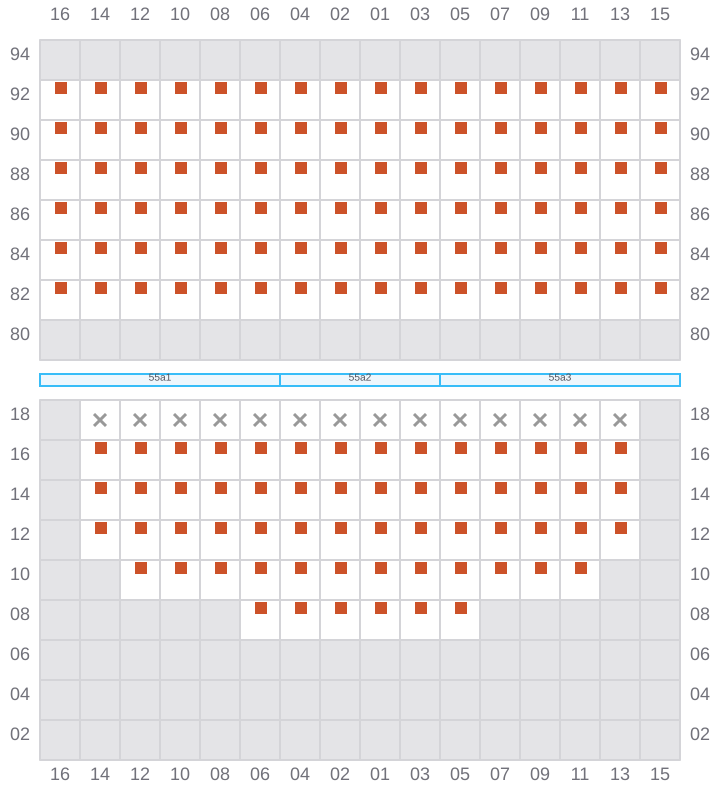

Bay 055 view and slots of XIN XIA MEN

057 (056)

  • ←
Bay 057 view and slots of XIN XIA MEN

059

  • →

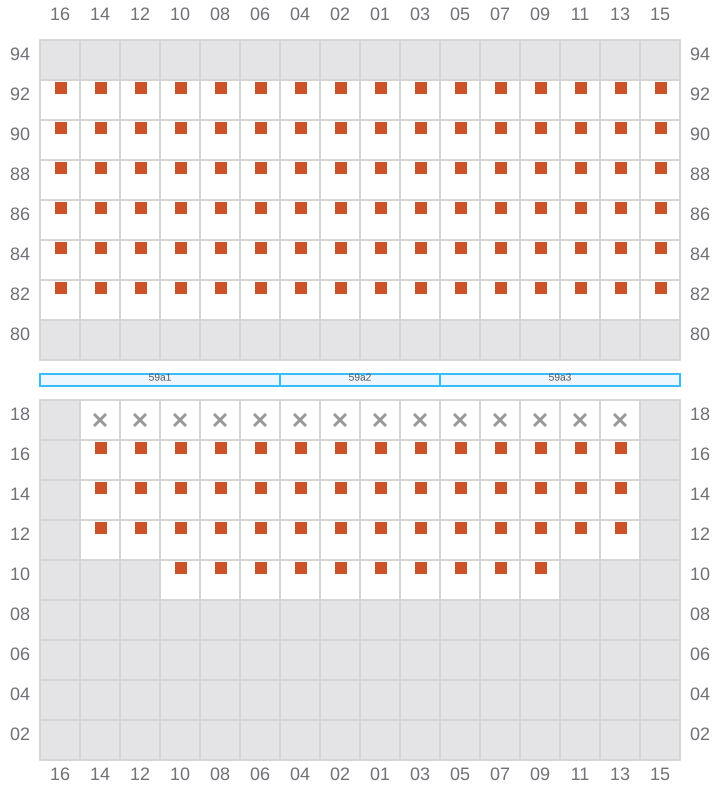

Bay 059 view and slots of XIN XIA MEN

061 (060)

  • ←
Bay 061 view and slots of XIN XIA MEN

063 (064)

  • → / ?
Bay 063 view and slots of XIN XIA MEN
