XIN YA ZHOU
9334935 | BPKA | 9334935 by ********* Last update: Wed May 01 2024

General Info

Ship Name:XIN YA ZHOU
IMO Code:9334935
Call Sign:BPKA
Line Operator:9334935
Class Name for Sister Ships:XIN YA ZHOU
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,554

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

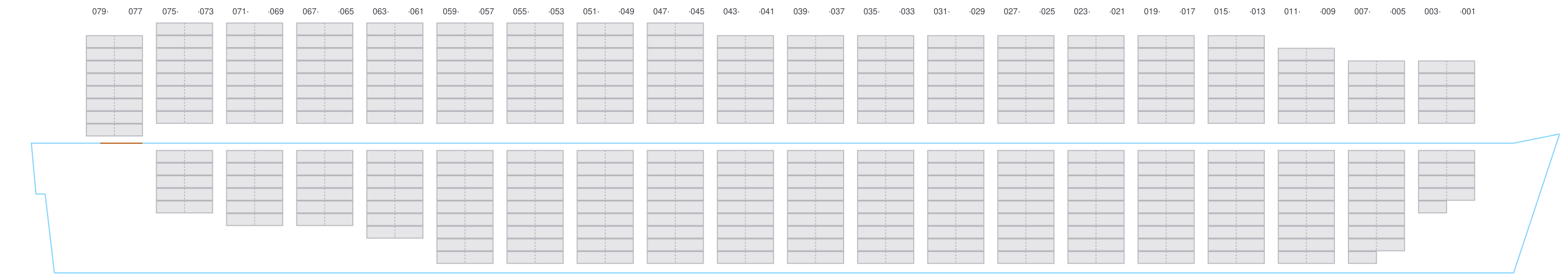

Side View

Side view of XIN YA ZHOU

Hatch-Covers View

Deck view of XIN YA ZHOU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

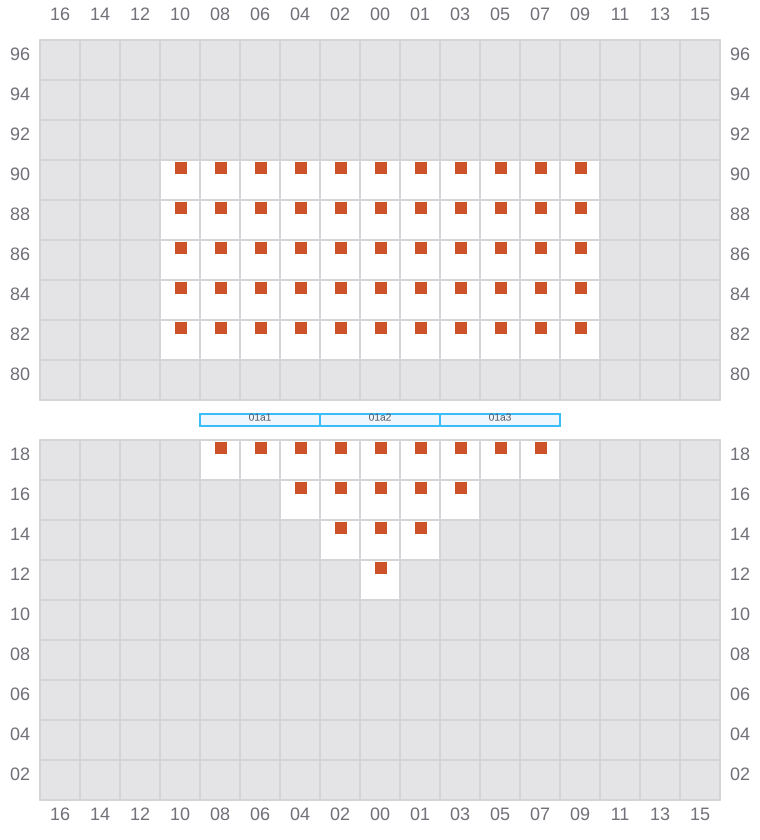

Bay 001 view and slots of XIN YA ZHOU

003 (002)

  • ←

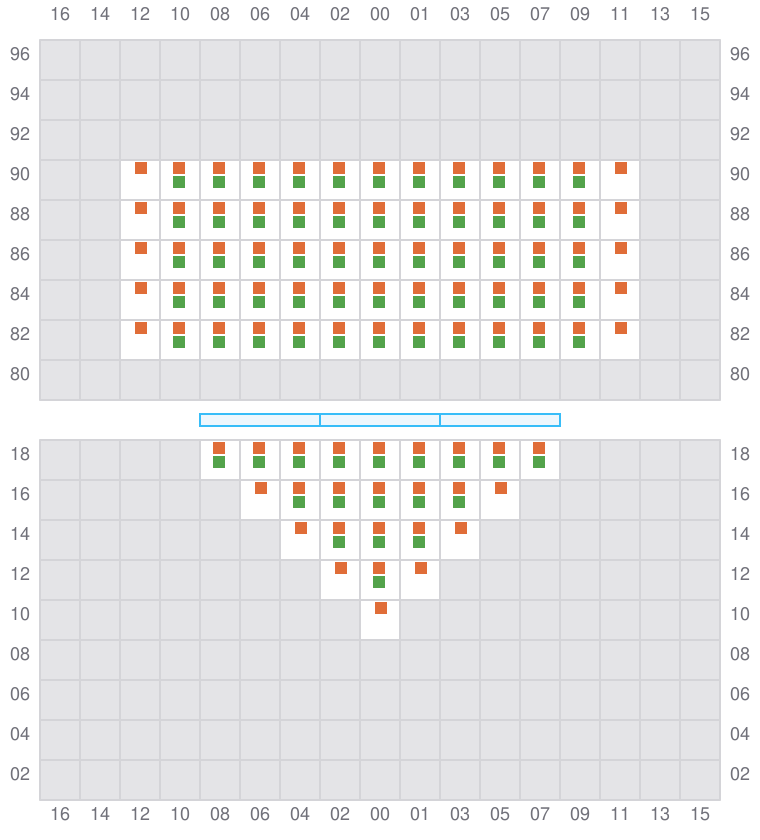

Bay 003 view and slots of XIN YA ZHOU

005

  • →

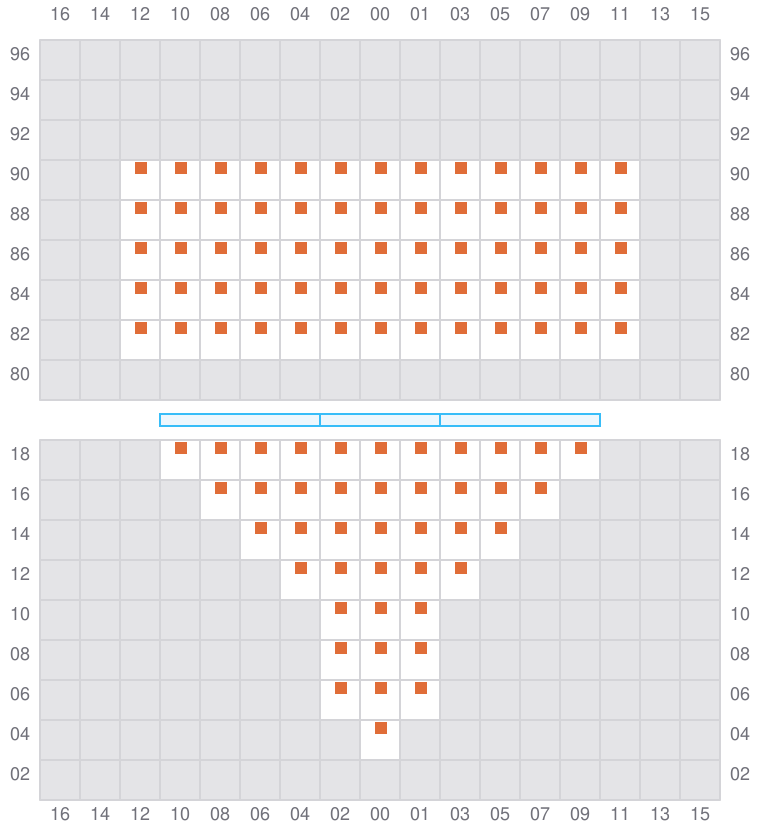

Bay 005 view and slots of XIN YA ZHOU

007 (006)

  • ←

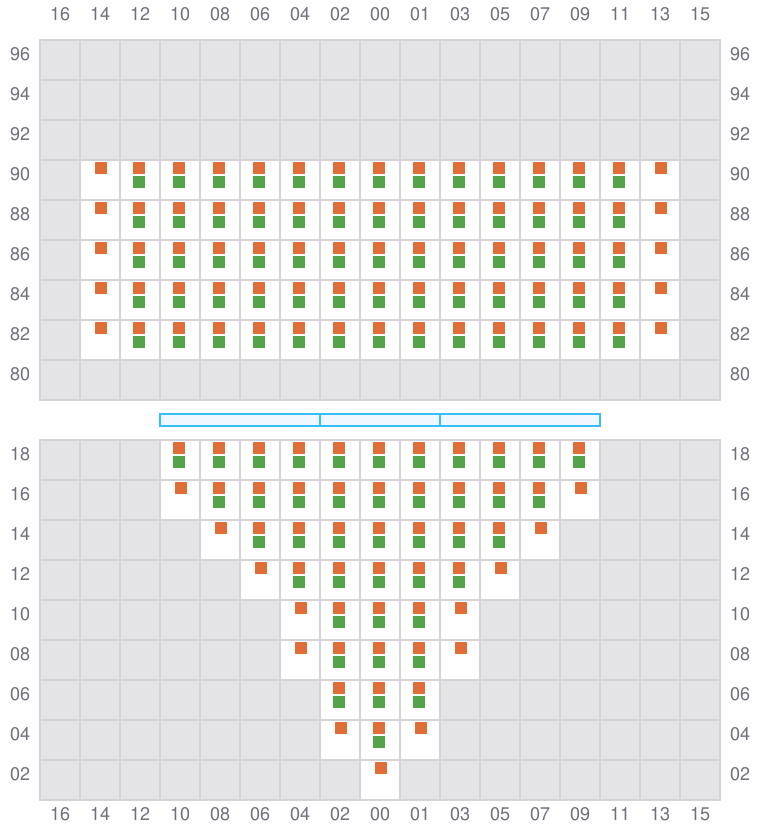

Bay 007 view and slots of XIN YA ZHOU

009

  • →

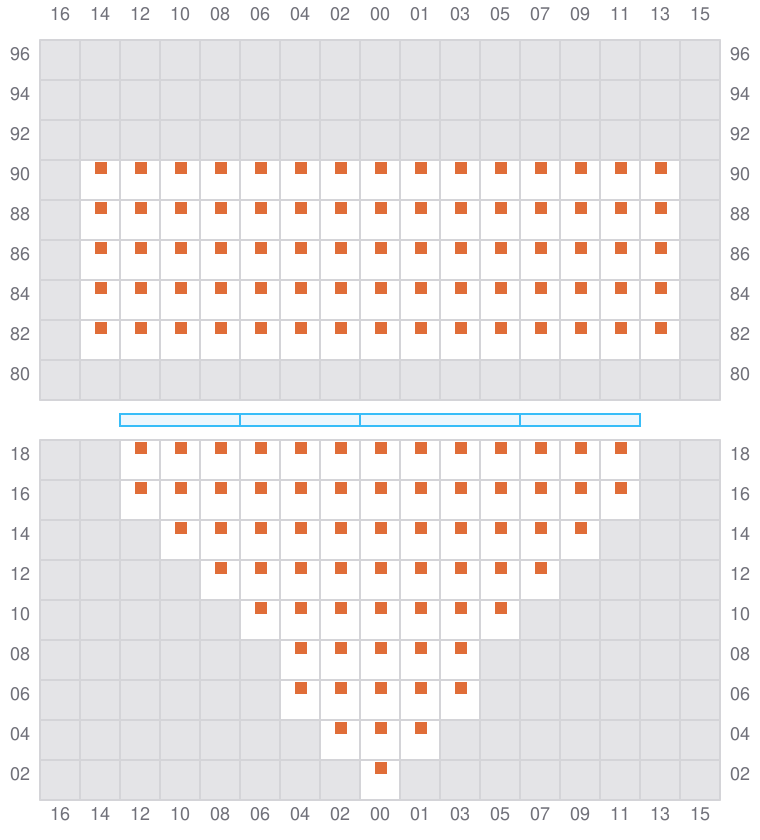

Bay 009 view and slots of XIN YA ZHOU

011 (010)

  • ←

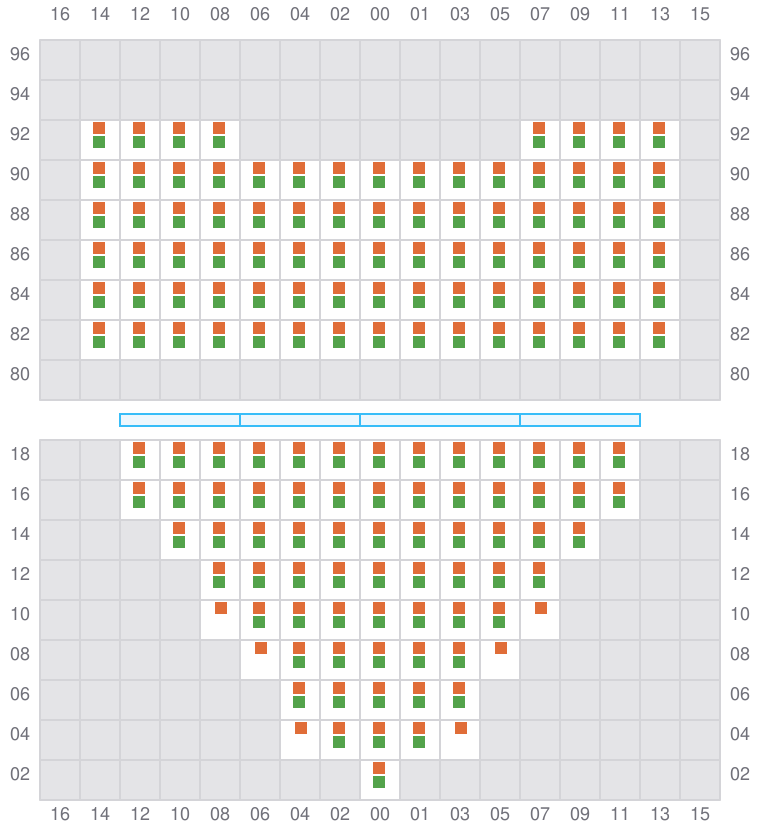

Bay 011 view and slots of XIN YA ZHOU

013

  • →

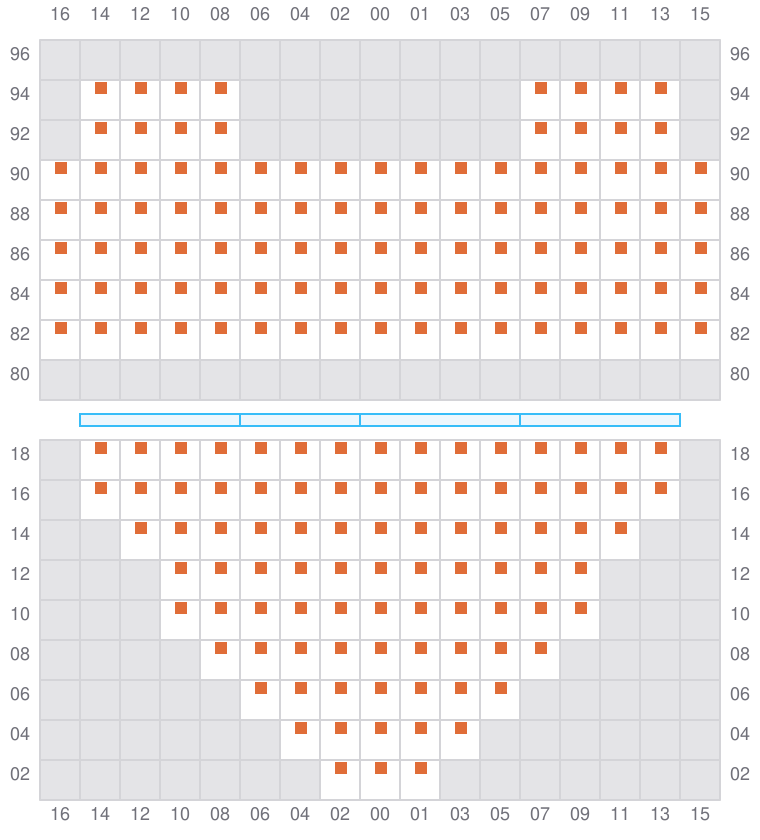

Bay 013 view and slots of XIN YA ZHOU

015 (014)

  • ←

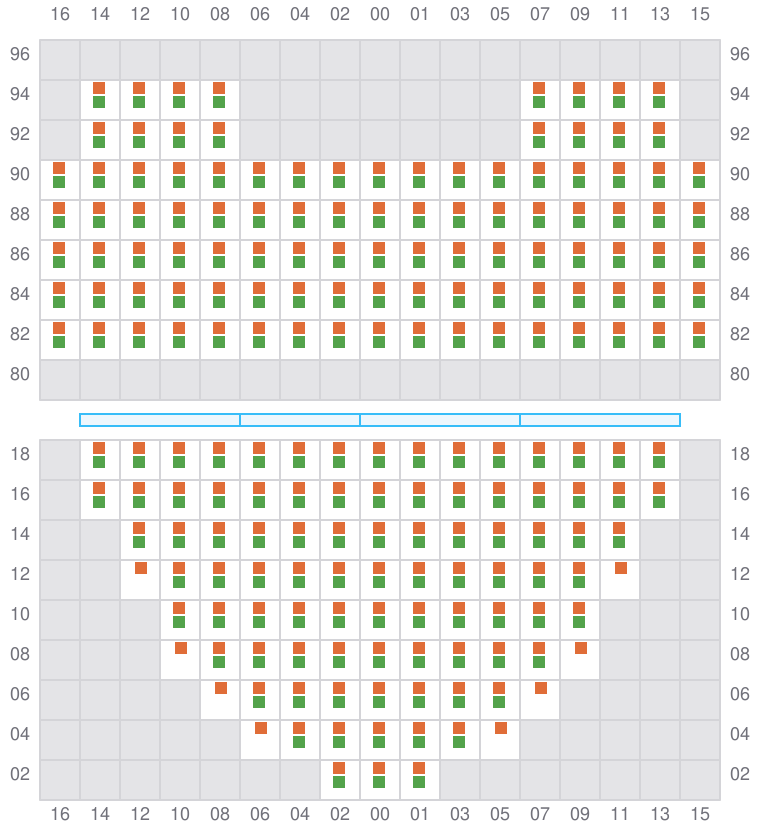

Bay 015 view and slots of XIN YA ZHOU

017

  • →

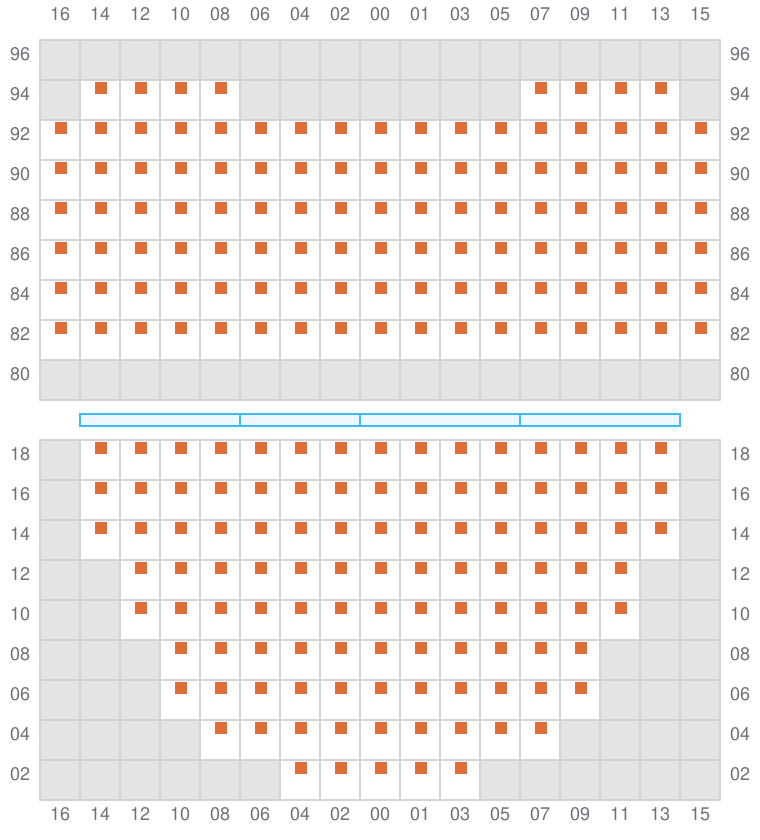

Bay 017 view and slots of XIN YA ZHOU

019 (018)

  • ←

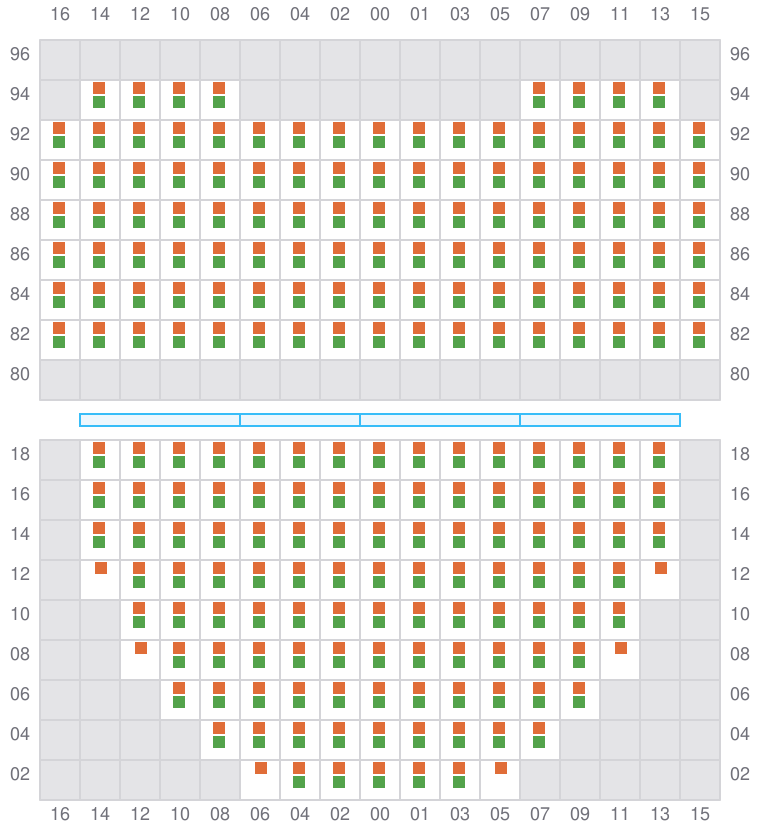

Bay 019 view and slots of XIN YA ZHOU

021

  • →

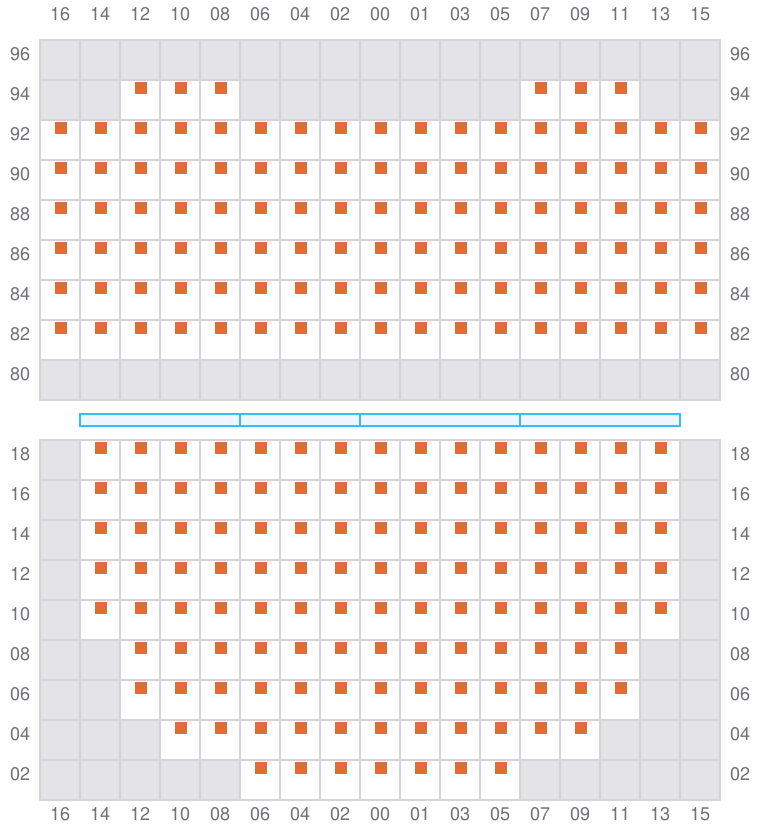

Bay 021 view and slots of XIN YA ZHOU

023 (022)

  • ←

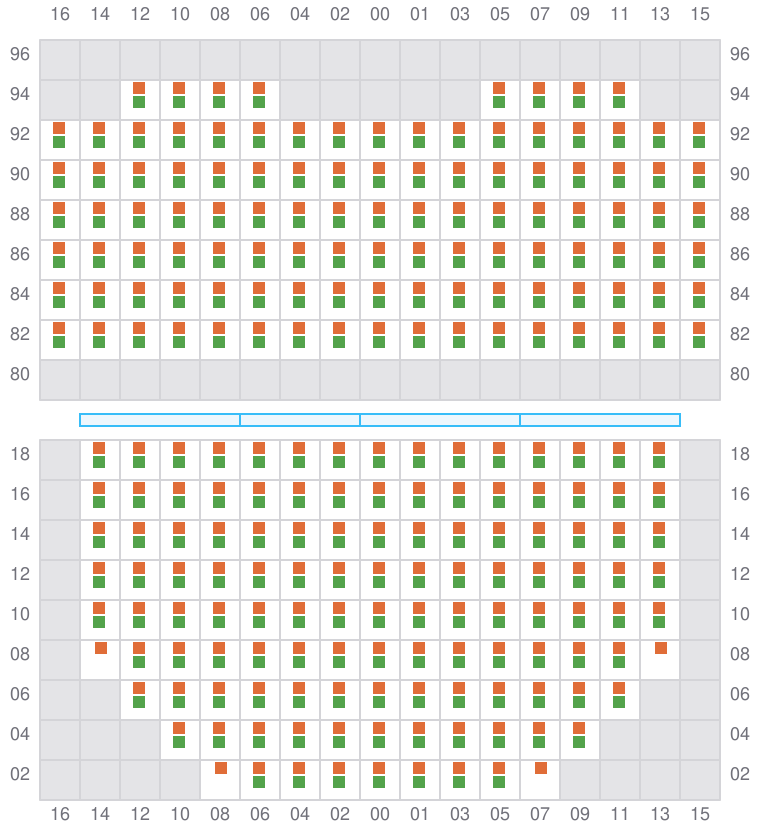

Bay 023 view and slots of XIN YA ZHOU

025

  • →
Bay 025 view and slots of XIN YA ZHOU

027 (026)

  • ←

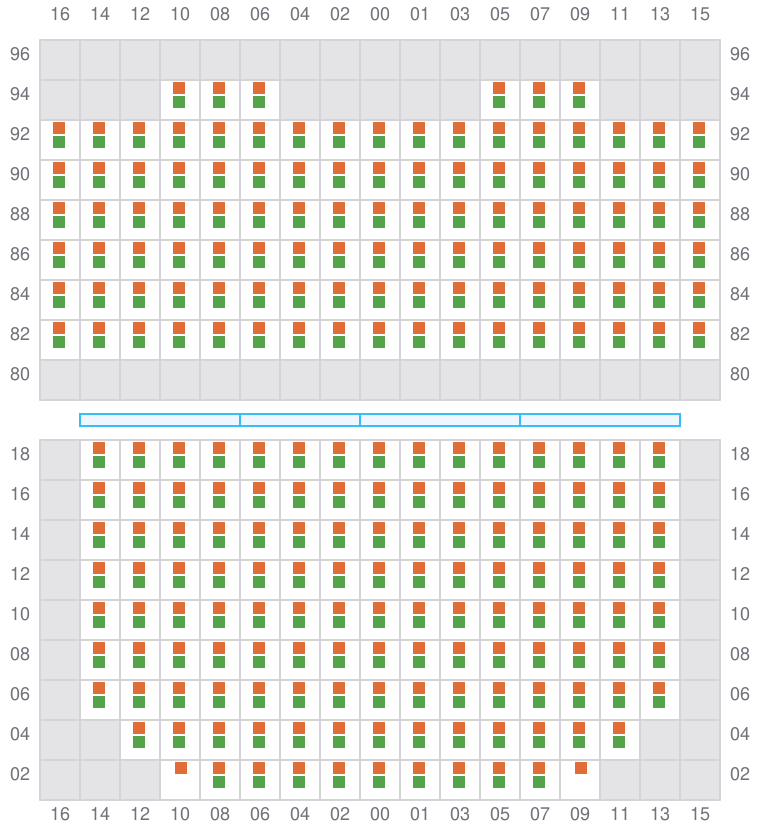

Bay 027 view and slots of XIN YA ZHOU

029

  • →

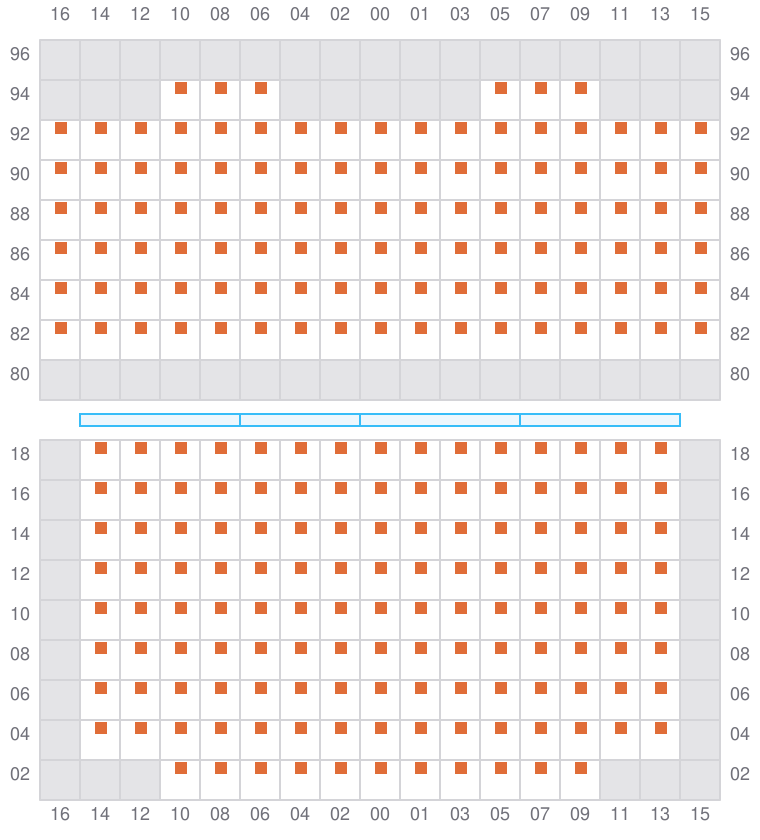

Bay 029 view and slots of XIN YA ZHOU

031 (030)

  • ←

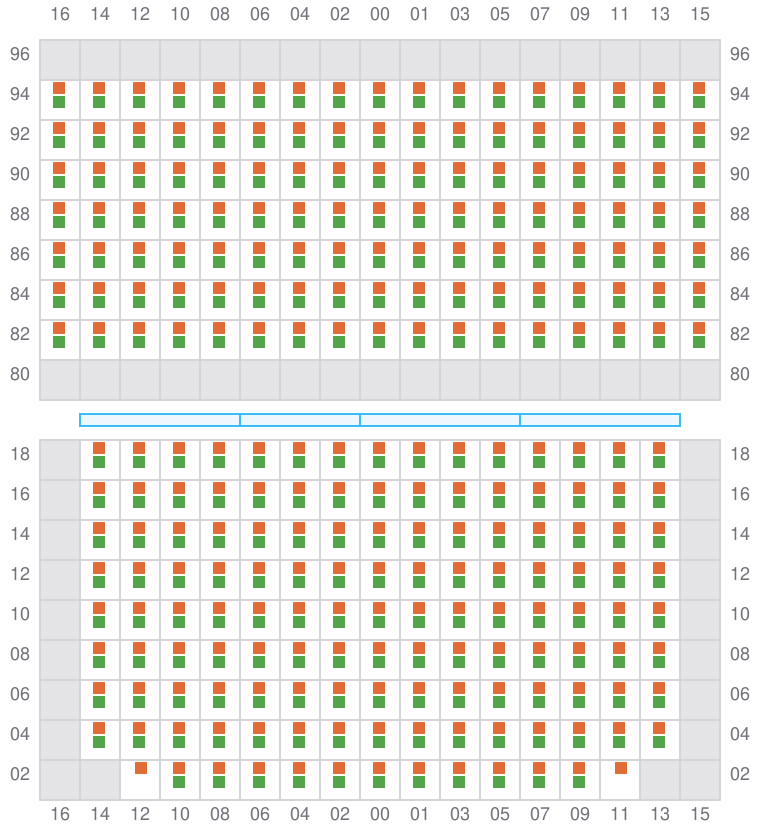

Bay 031 view and slots of XIN YA ZHOU

033

  • →
Bay 033 view and slots of XIN YA ZHOU

035 (034)

  • ←
Bay 035 view and slots of XIN YA ZHOU

037

  • →
Bay 037 view and slots of XIN YA ZHOU

039 (038)

  • ←

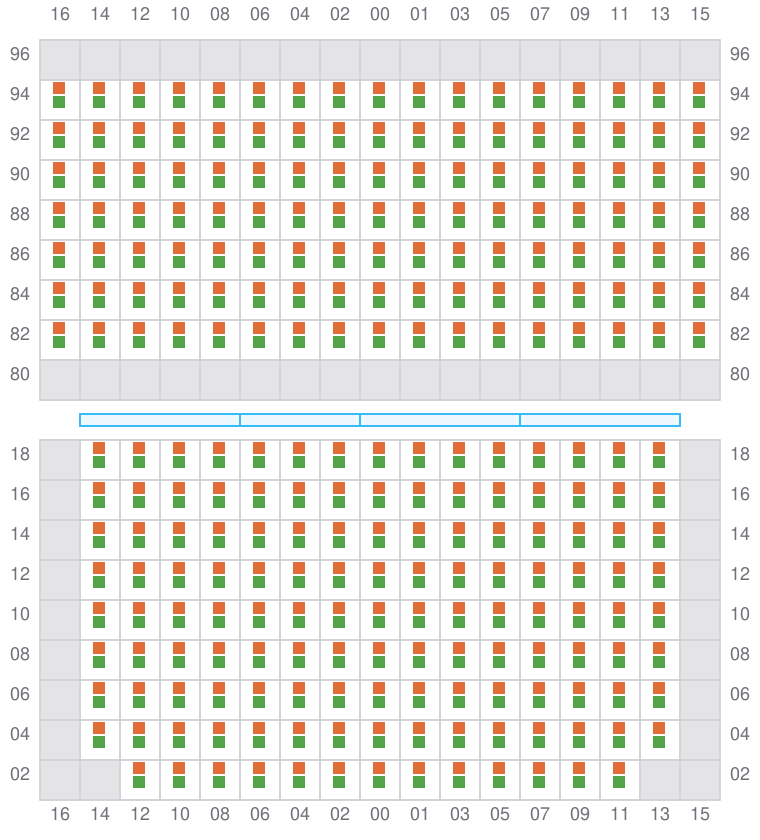

Bay 039 view and slots of XIN YA ZHOU

041

  • →

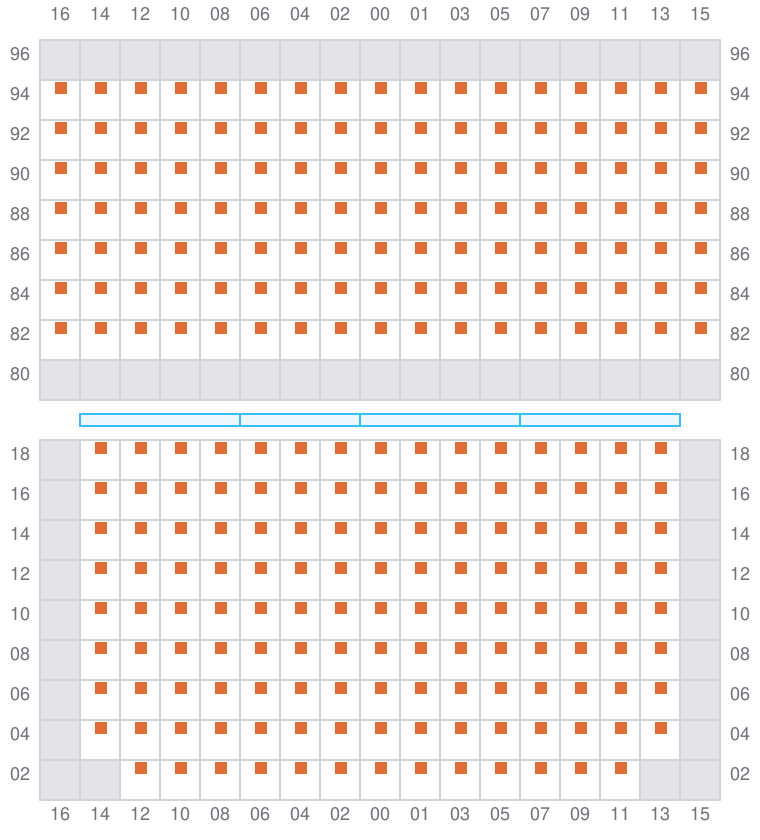

Bay 041 view and slots of XIN YA ZHOU

043 (042)

  • ←
Bay 043 view and slots of XIN YA ZHOU

045

  • →

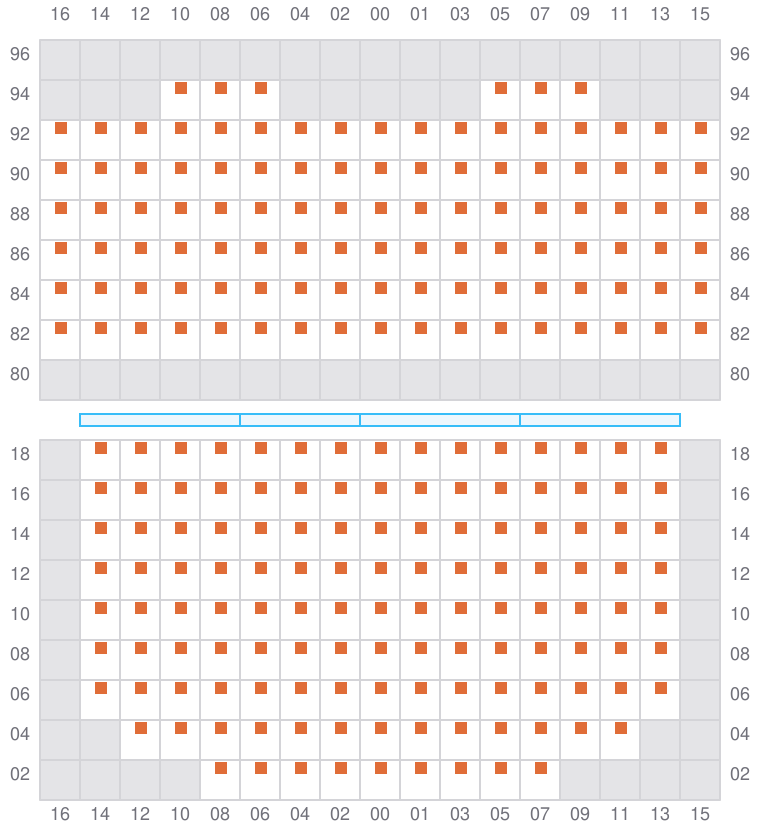

Bay 045 view and slots of XIN YA ZHOU

047 (046)

  • ←
Bay 047 view and slots of XIN YA ZHOU

049

  • →

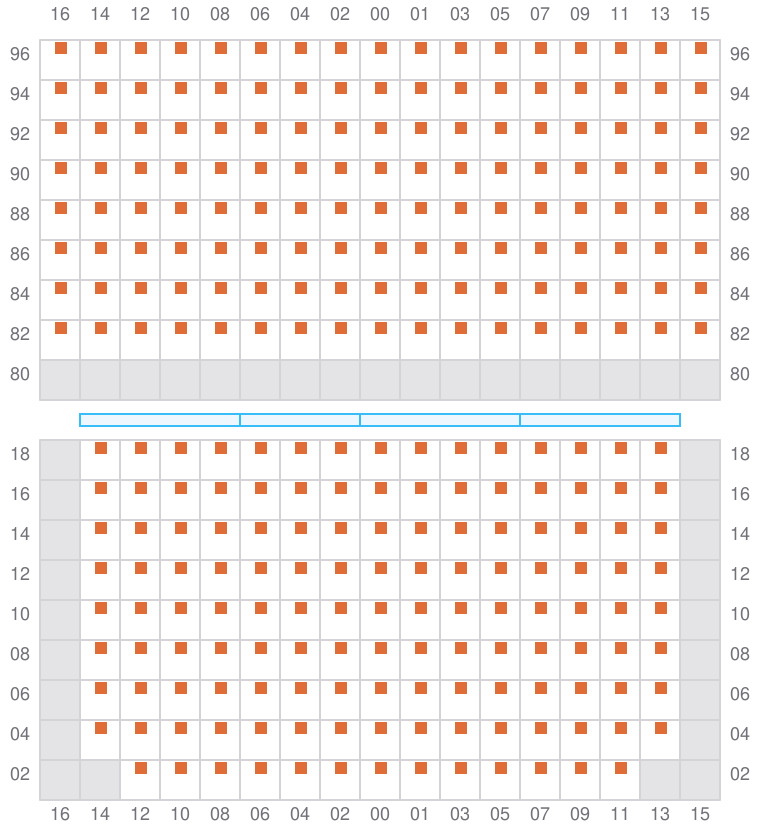

Bay 049 view and slots of XIN YA ZHOU

051 (050)

  • ←
Bay 051 view and slots of XIN YA ZHOU

053

  • →

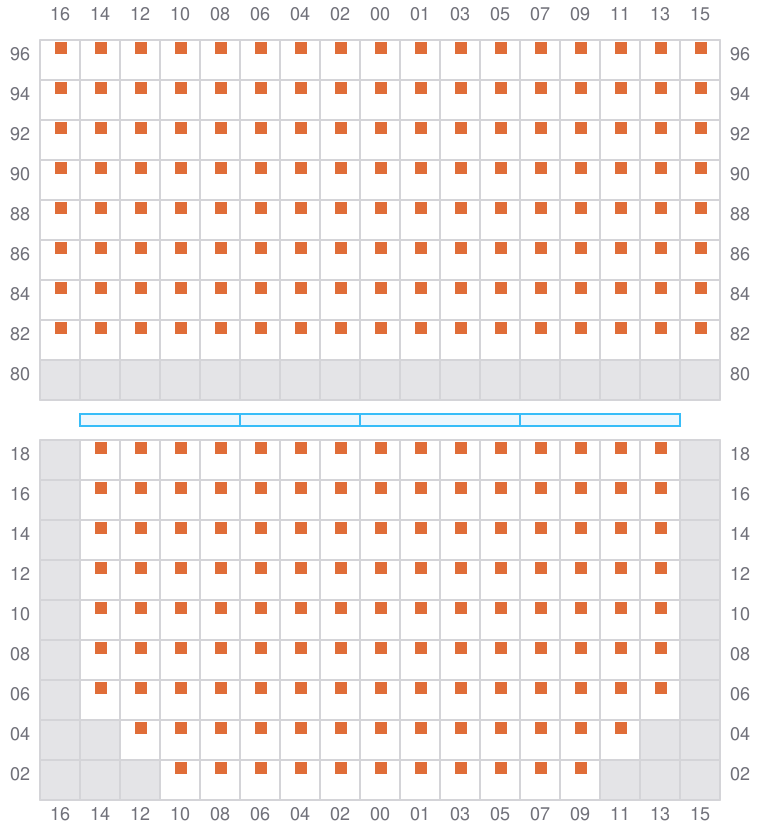

Bay 053 view and slots of XIN YA ZHOU

055 (054)

  • ←

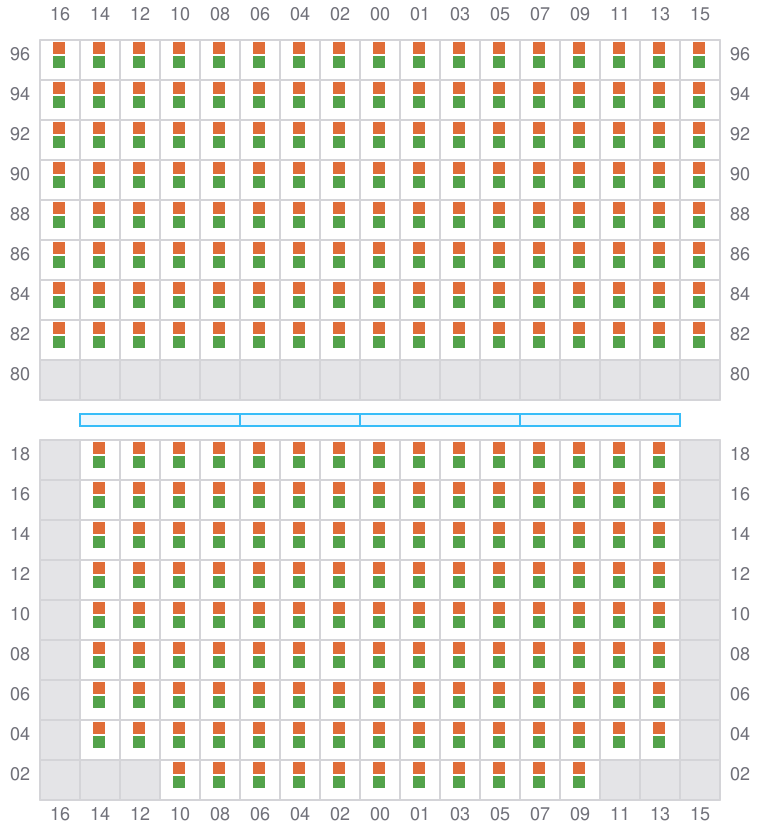

Bay 055 view and slots of XIN YA ZHOU

057

  • →
Bay 057 view and slots of XIN YA ZHOU

059 (058)

  • ←

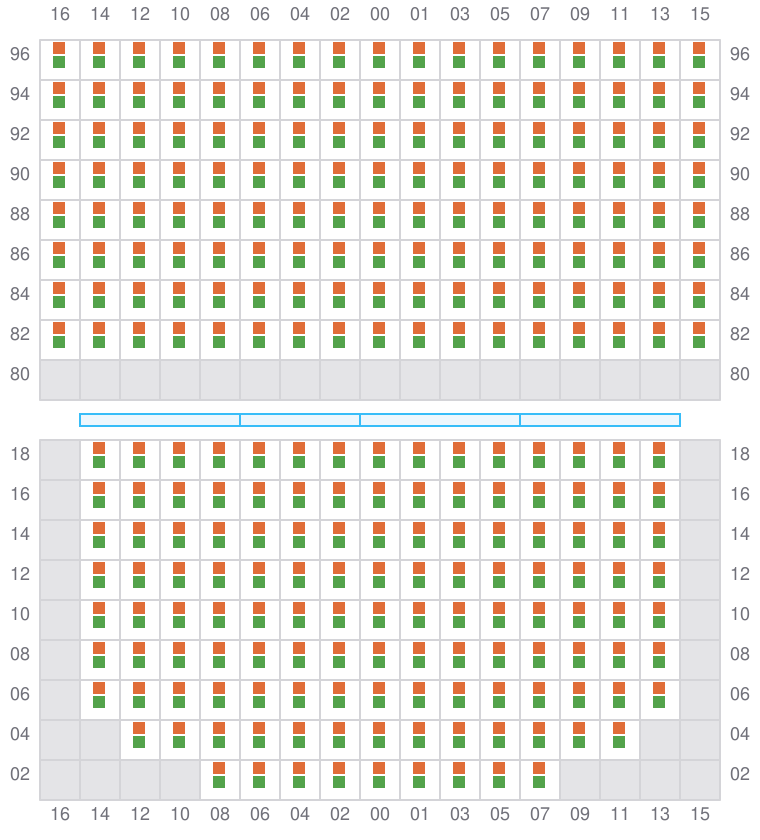

Bay 059 view and slots of XIN YA ZHOU

061

  • →

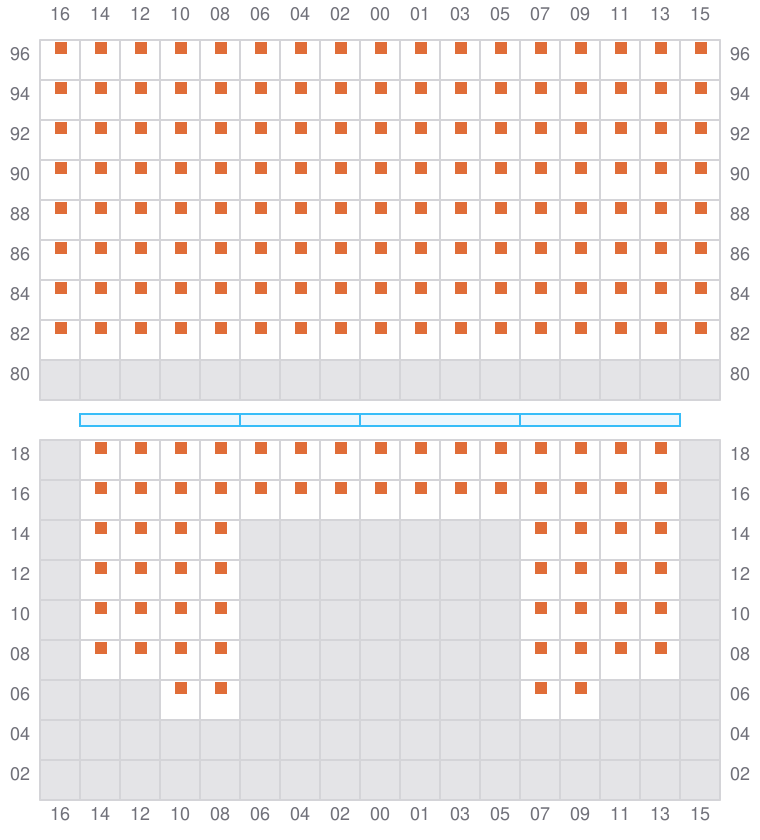

Bay 061 view and slots of XIN YA ZHOU

063 (062)

  • ←

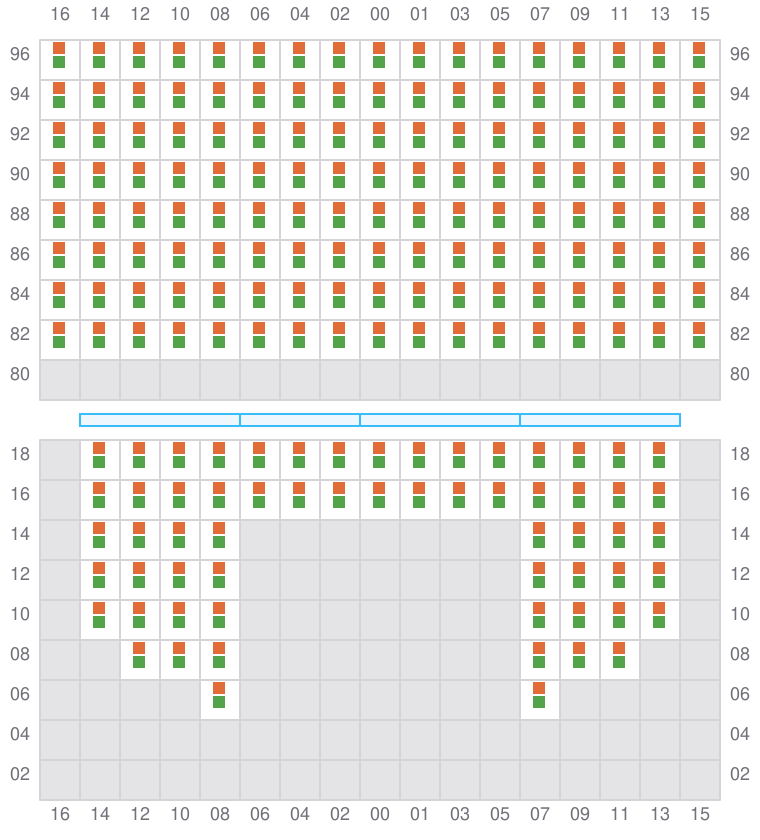

Bay 063 view and slots of XIN YA ZHOU

065

  • →
Bay 065 view and slots of XIN YA ZHOU

067 (066)

  • ←

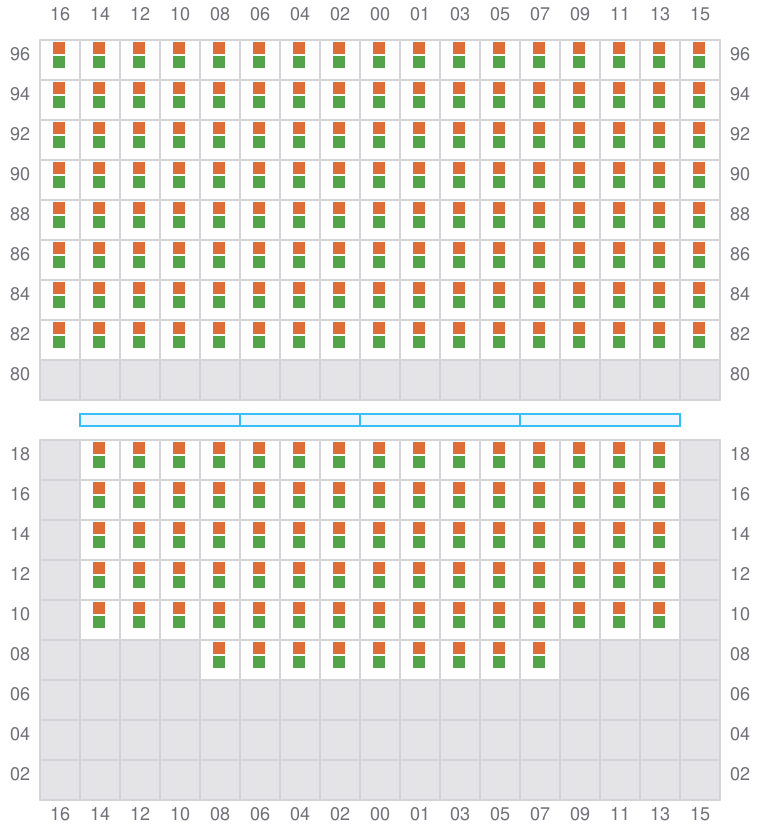

Bay 067 view and slots of XIN YA ZHOU

069

  • →

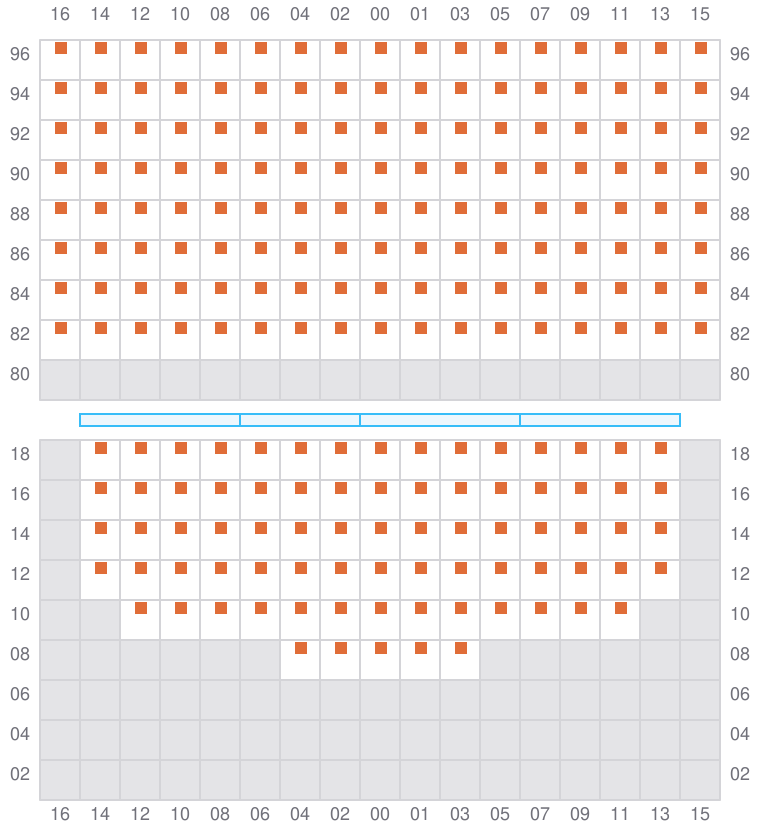

Bay 069 view and slots of XIN YA ZHOU

071 (070)

  • ←

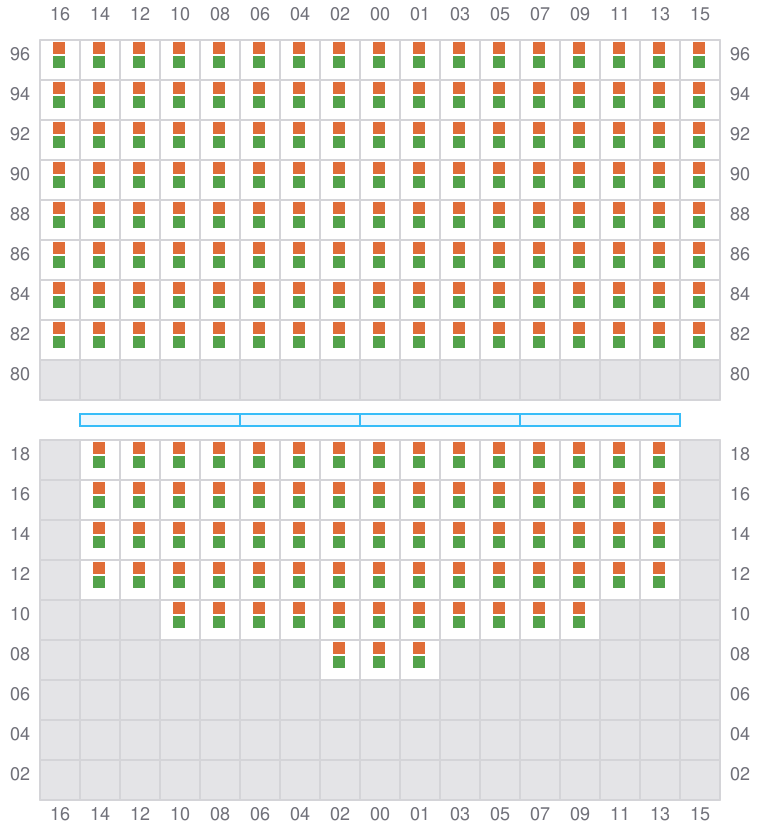

Bay 071 view and slots of XIN YA ZHOU

073

  • →

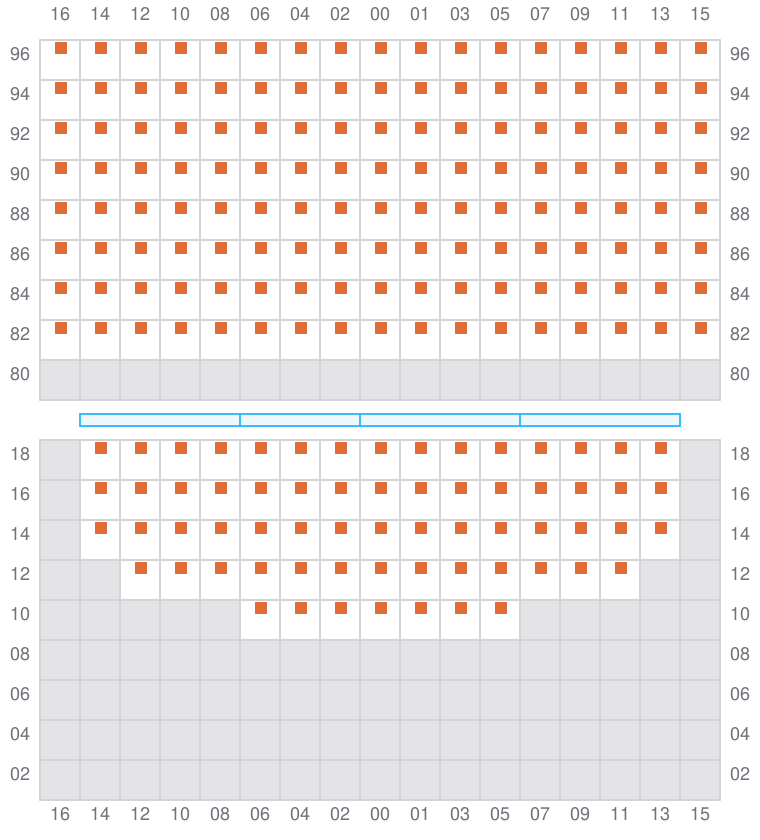

Bay 073 view and slots of XIN YA ZHOU

075 (074)

  • ←

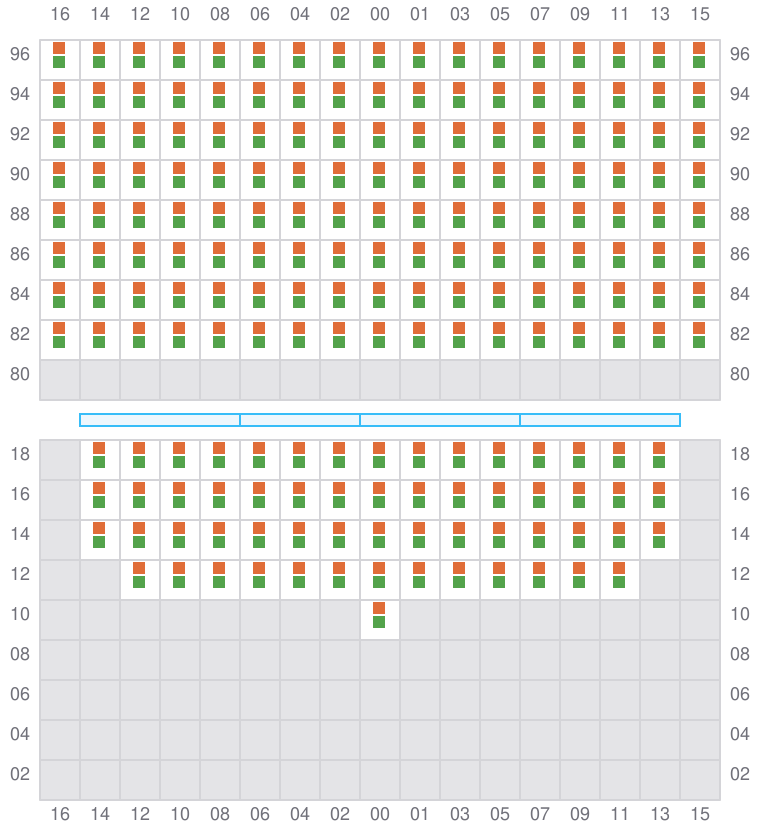

Bay 075 view and slots of XIN YA ZHOU

077

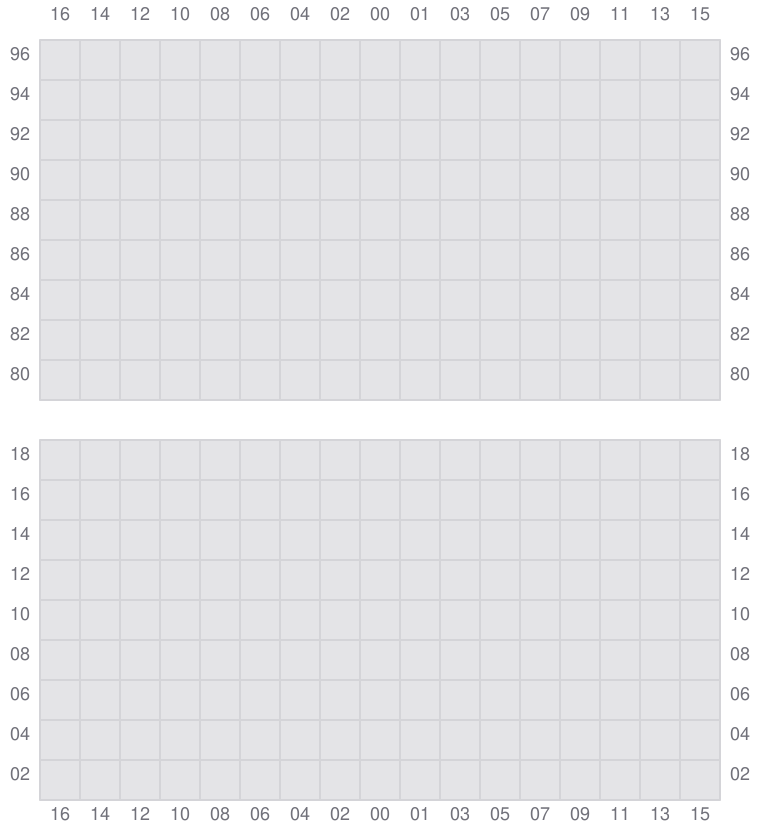

Bay 077 view and slots of XIN YA ZHOU

079 (078)

  • ← / ?

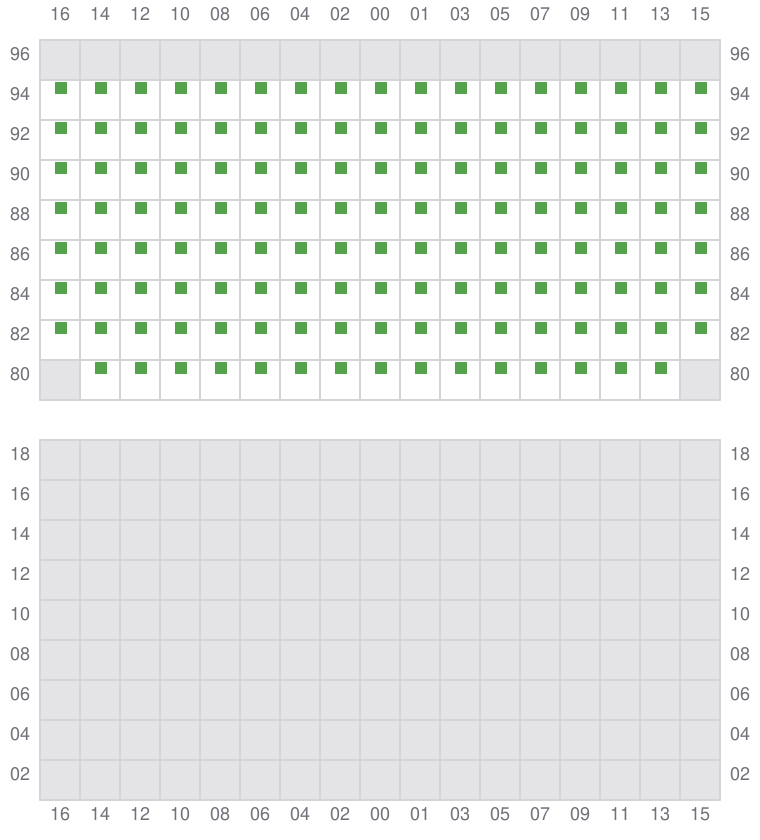

Bay 079 view and slots of XIN YA ZHOU
