XIN ZHAN JIANG
9378814 | BPBW | 9378814 by ********* Last update: Tue Apr 09 2024

General Info

Ship Name:XIN ZHAN JIANG
IMO Code:9378814
Call Sign:BPBW
Line Operator:9378814
Class Name for Sister Ships:CHS
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,260

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

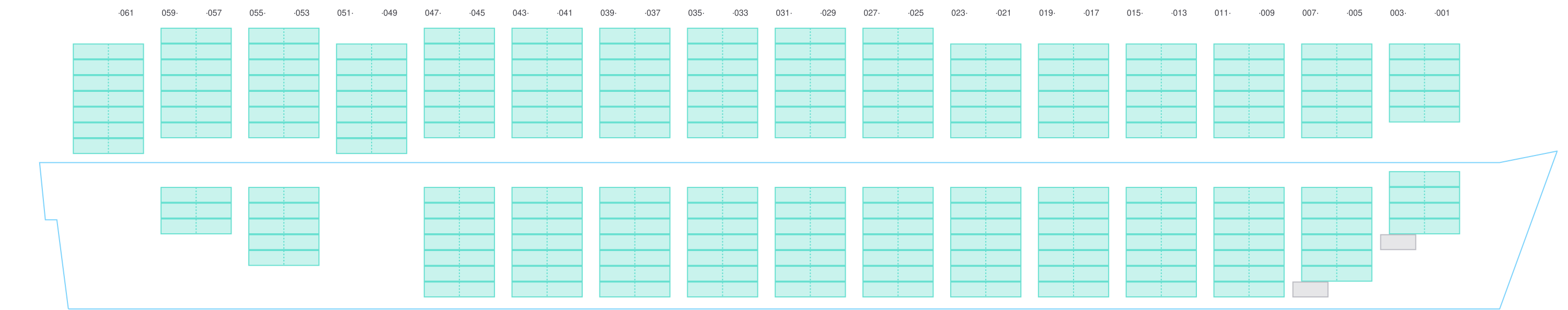

Side View

Side view of XIN ZHAN JIANG

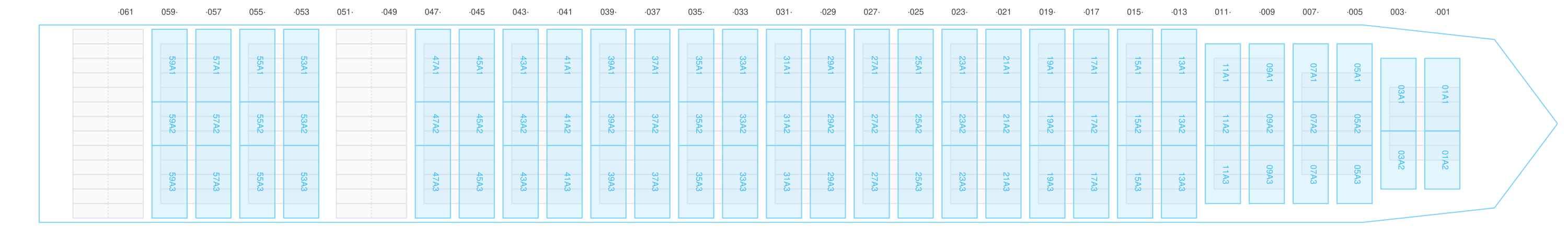

Hatch-Covers View

Deck view of XIN ZHAN JIANG

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001 (002)

  • →

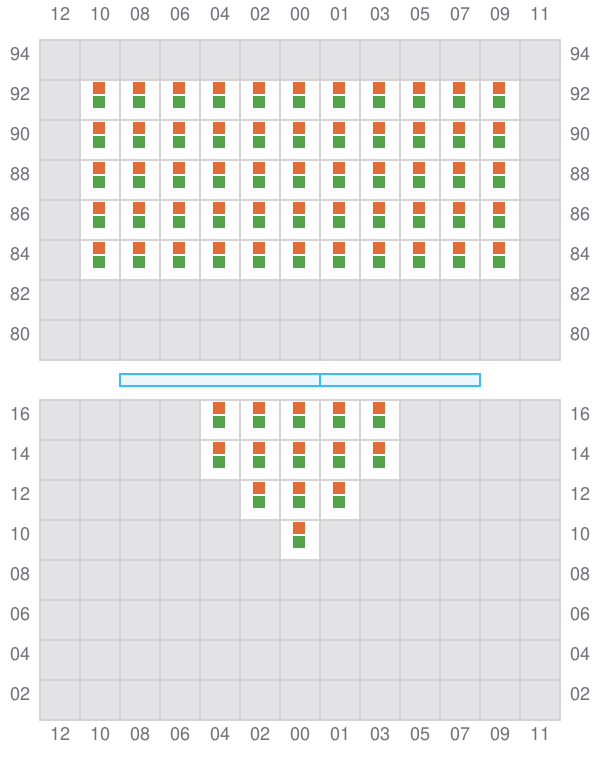

Bay 001 view and slots of XIN ZHAN JIANG

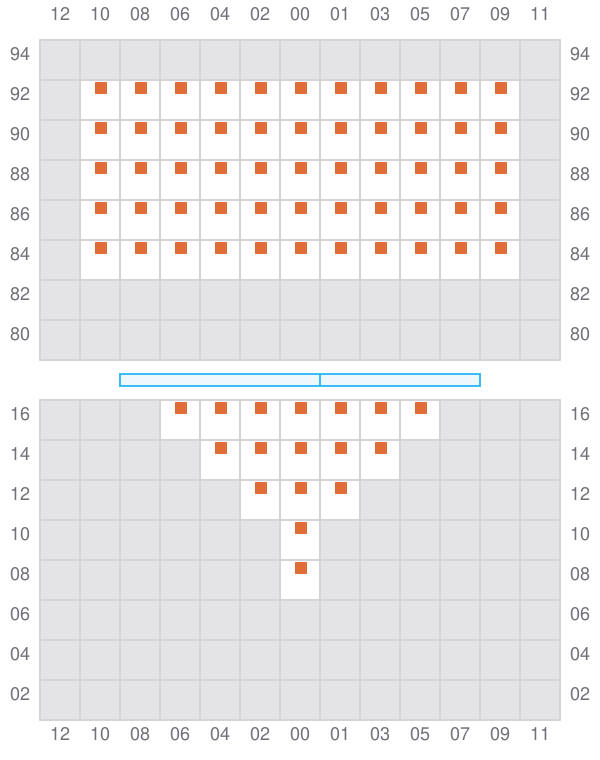

003

  • ←
Bay 003 view and slots of XIN ZHAN JIANG

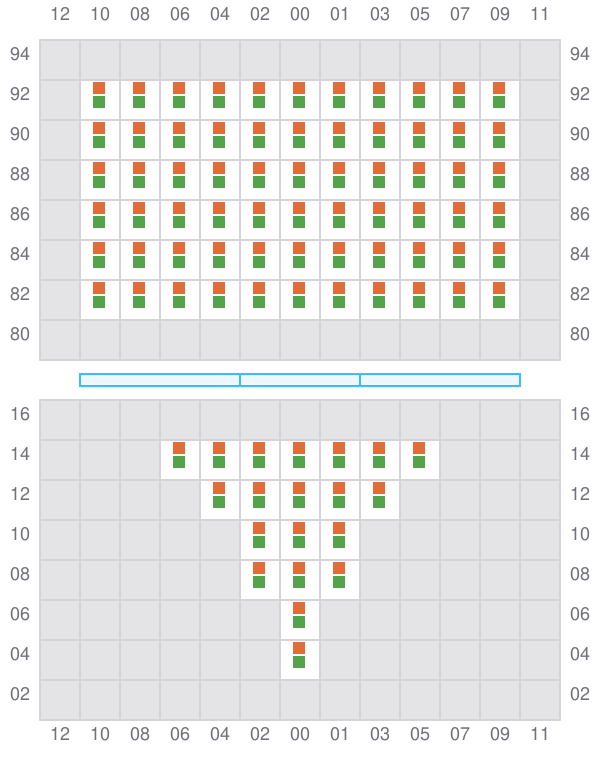

005 (006)

  • →
Bay 005 view and slots of XIN ZHAN JIANG

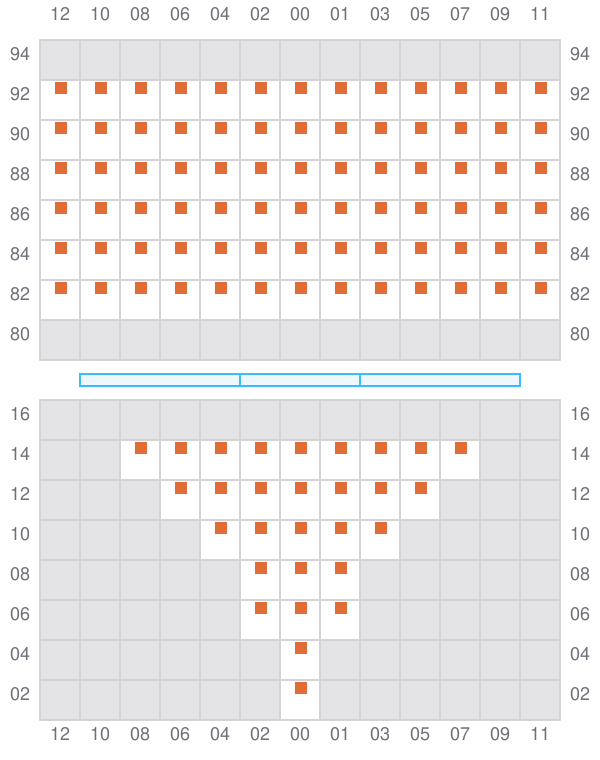

007

  • ←
Bay 007 view and slots of XIN ZHAN JIANG

009 (010)

  • →

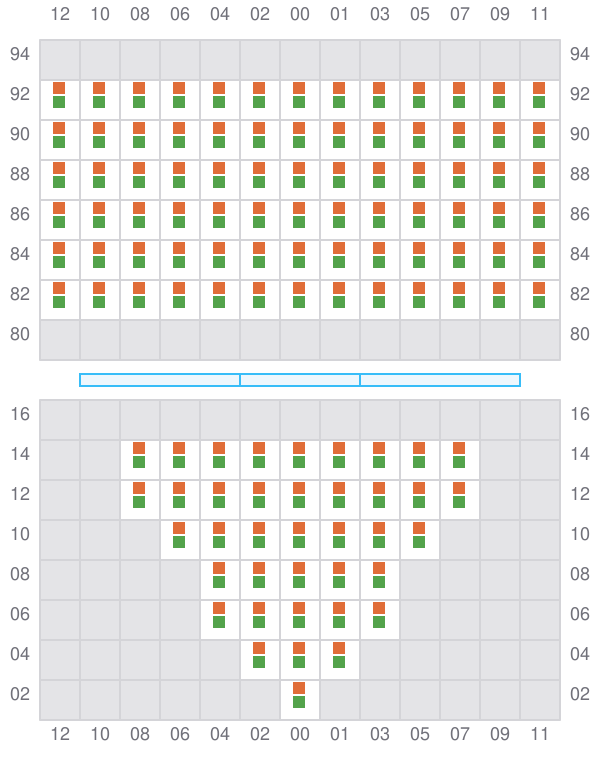

Bay 009 view and slots of XIN ZHAN JIANG

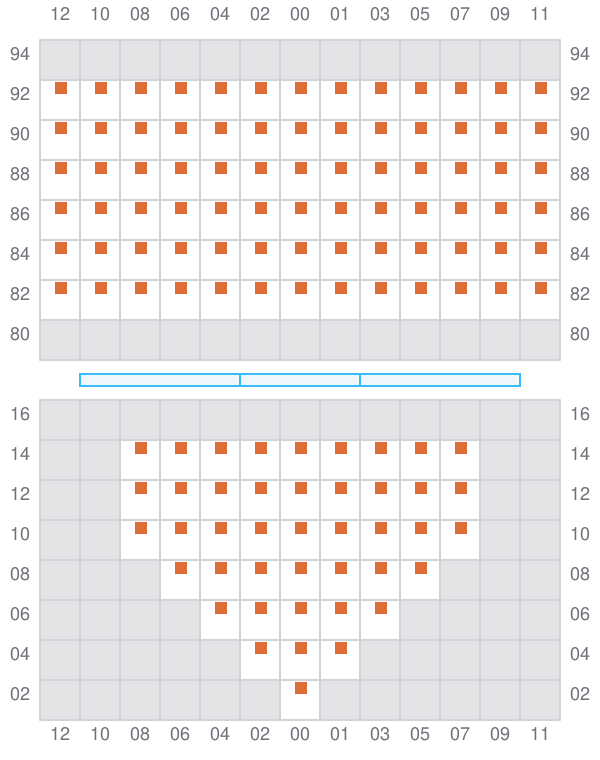

011

  • ←
Bay 011 view and slots of XIN ZHAN JIANG

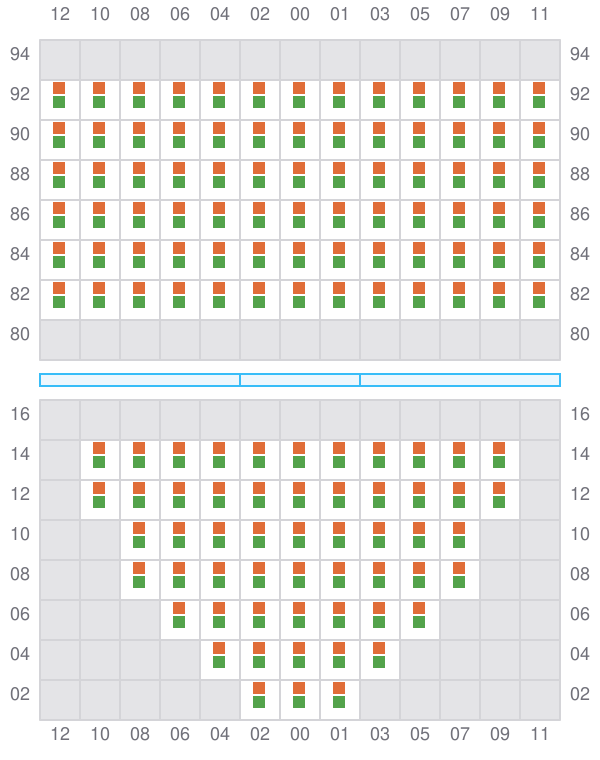

013 (014)

  • →
Bay 013 view and slots of XIN ZHAN JIANG

015

  • ←

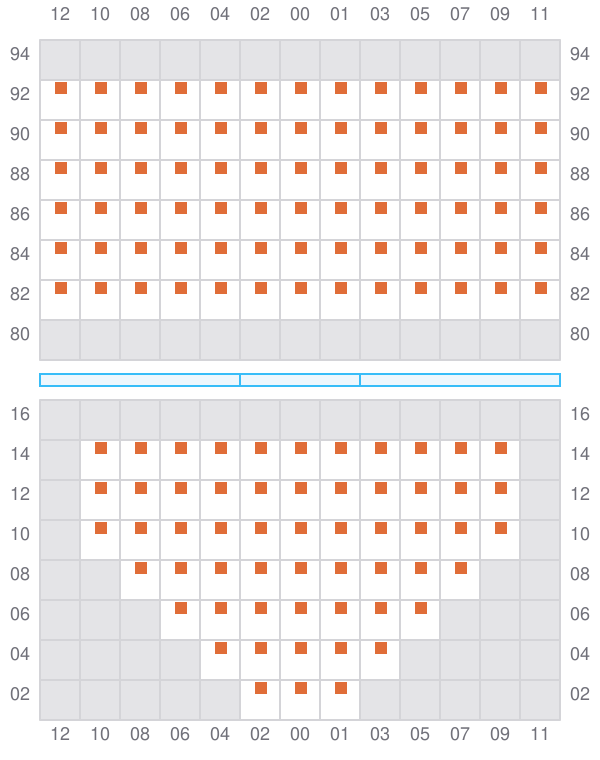

Bay 015 view and slots of XIN ZHAN JIANG

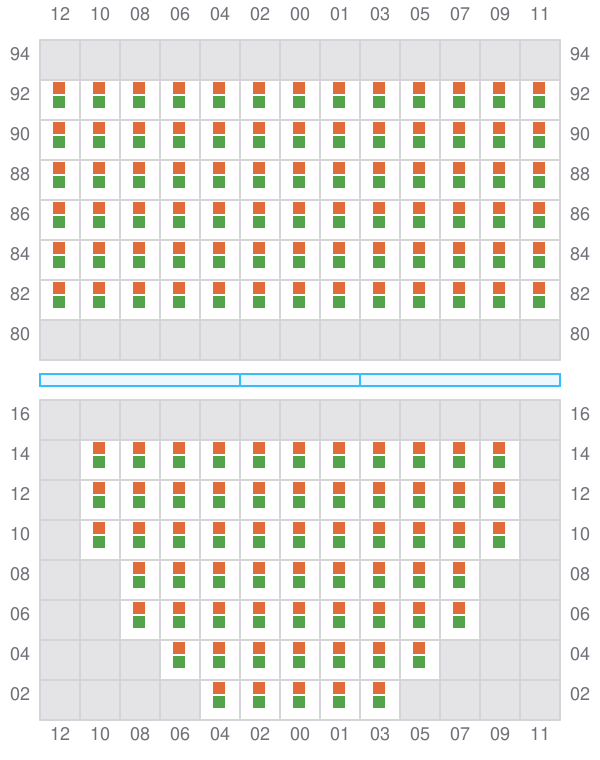

017 (018)

  • →
Bay 017 view and slots of XIN ZHAN JIANG

019

  • ←

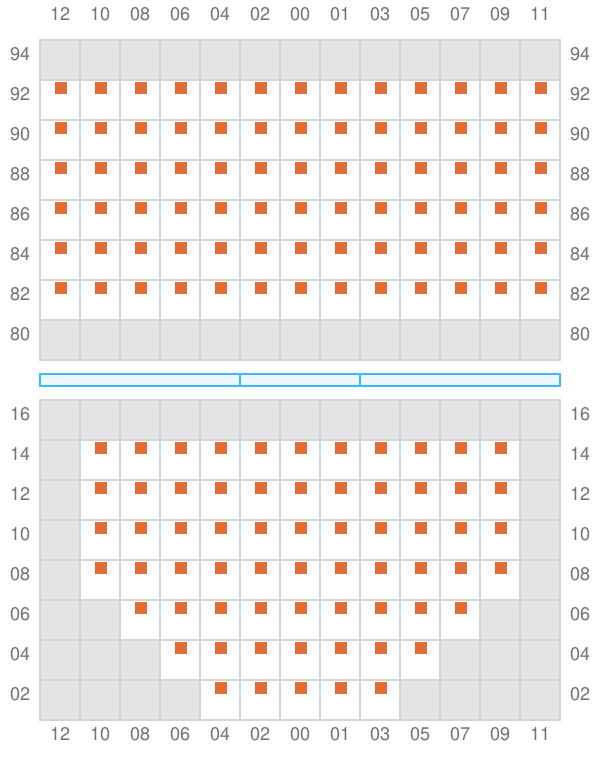

Bay 019 view and slots of XIN ZHAN JIANG

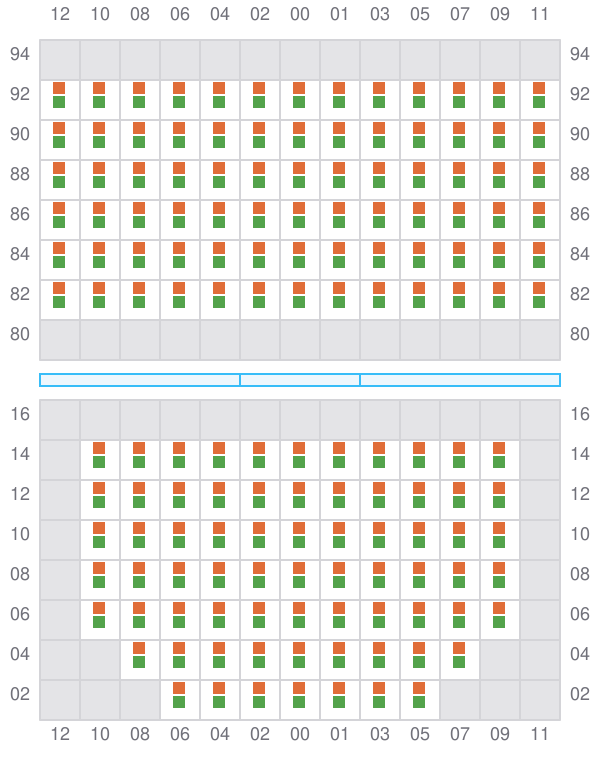

021 (022)

  • →
Bay 021 view and slots of XIN ZHAN JIANG

023

  • ←

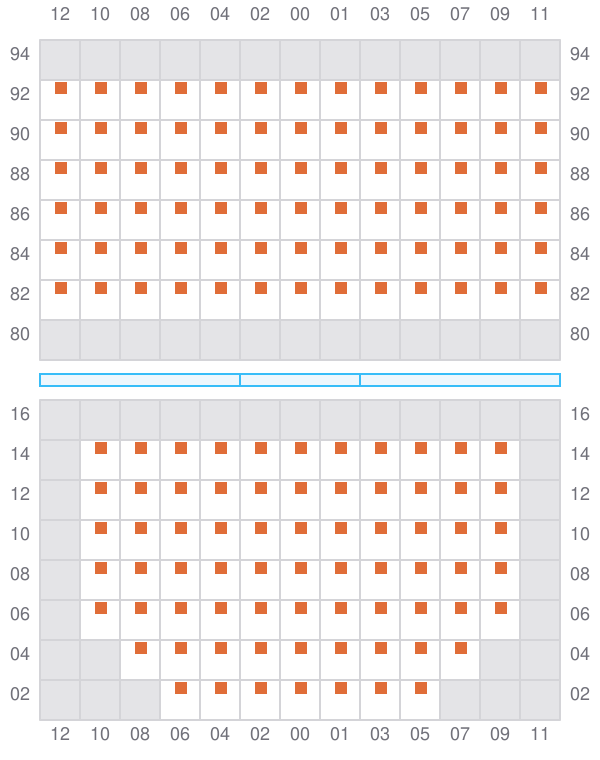

Bay 023 view and slots of XIN ZHAN JIANG

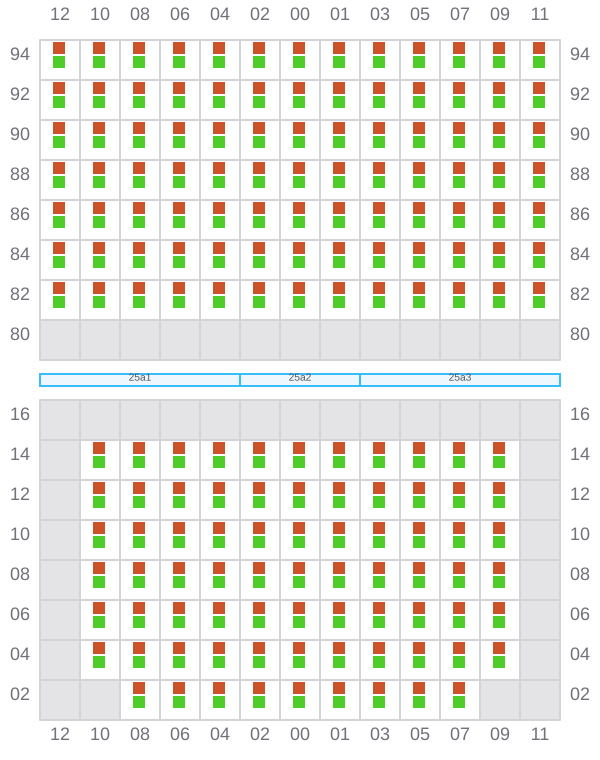

025 (026)

  • →
Bay 025 view and slots of XIN ZHAN JIANG

027

  • ←
Bay 027 view and slots of XIN ZHAN JIANG

029 (030)

  • →
Bay 029 view and slots of XIN ZHAN JIANG

031

  • ←

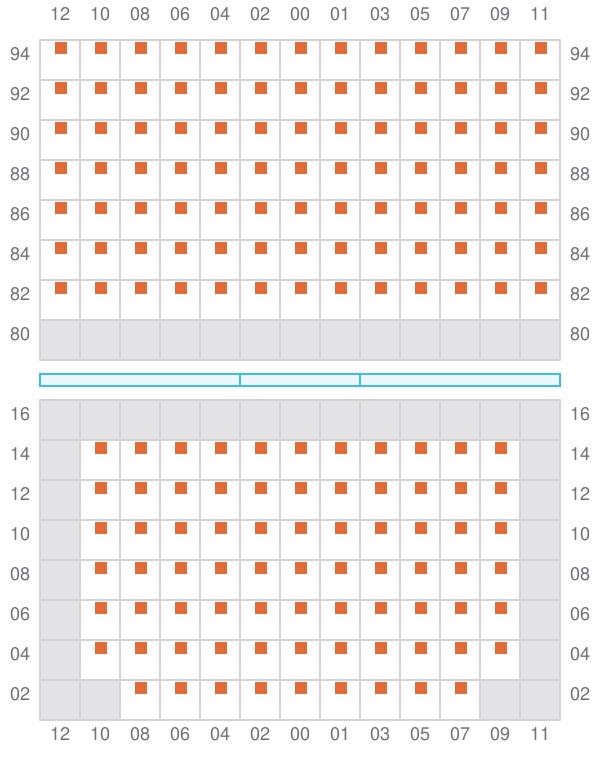

Bay 031 view and slots of XIN ZHAN JIANG

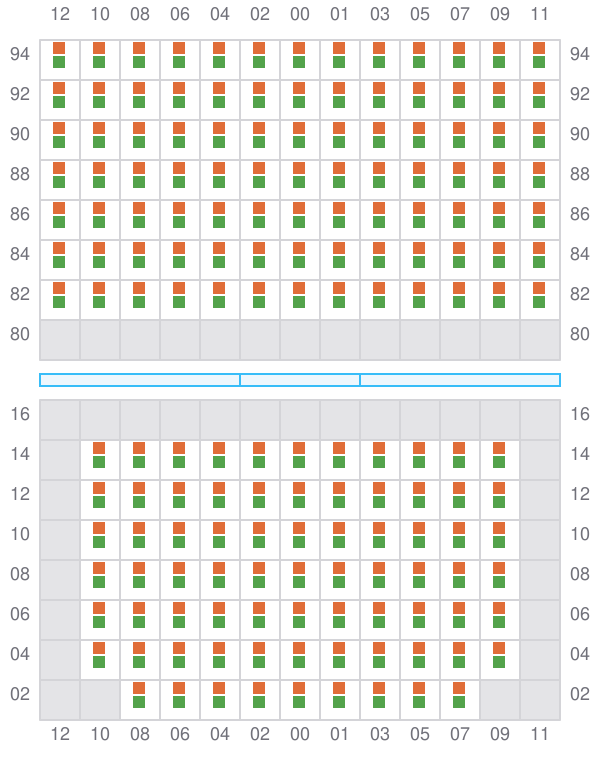

033 (034)

  • →
Bay 033 view and slots of XIN ZHAN JIANG

035

  • ←
Bay 035 view and slots of XIN ZHAN JIANG

037 (038)

  • →
Bay 037 view and slots of XIN ZHAN JIANG

039

  • ←
Bay 039 view and slots of XIN ZHAN JIANG

041 (042)

  • →
Bay 041 view and slots of XIN ZHAN JIANG

043

  • ←
Bay 043 view and slots of XIN ZHAN JIANG

045 (046)

  • →

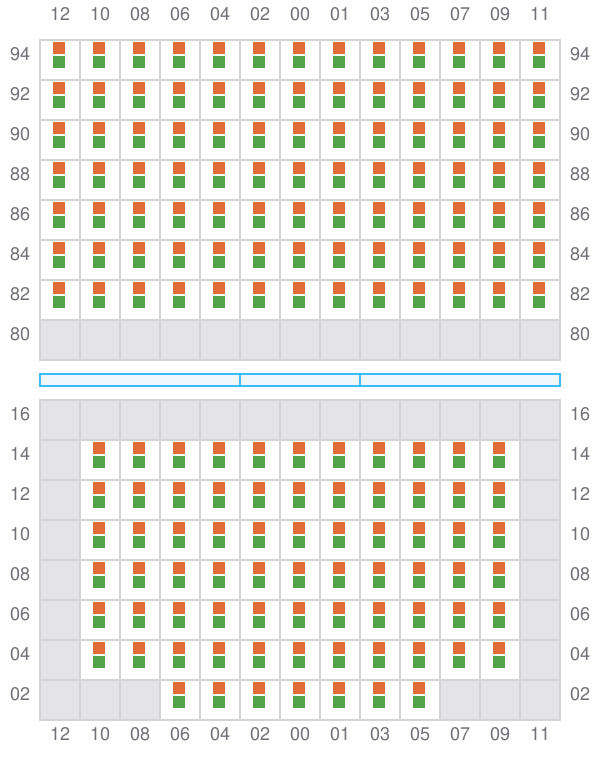

Bay 045 view and slots of XIN ZHAN JIANG

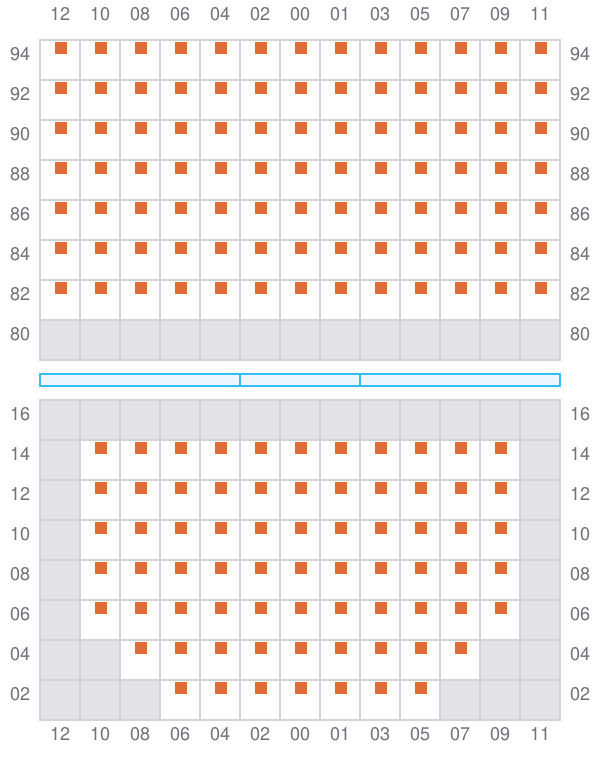

047

  • ←
Bay 047 view and slots of XIN ZHAN JIANG

049 (050)

  • → / ?

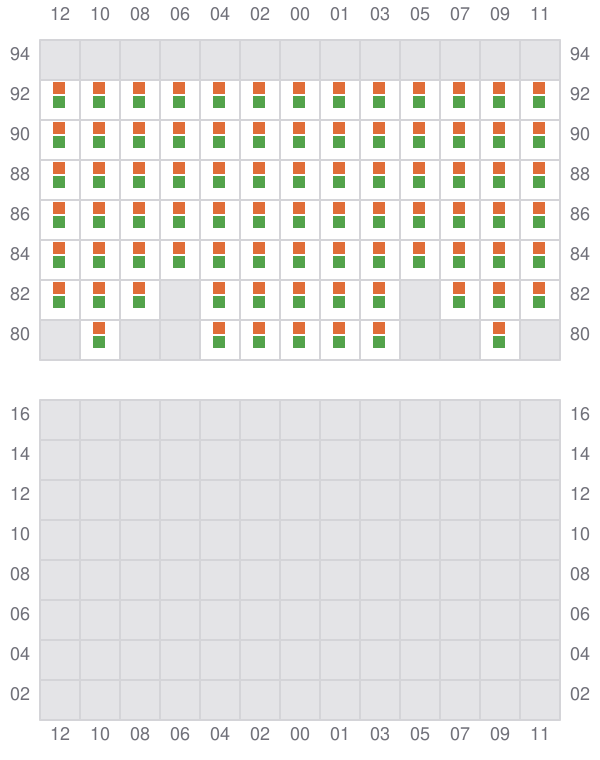

Bay 049 view and slots of XIN ZHAN JIANG

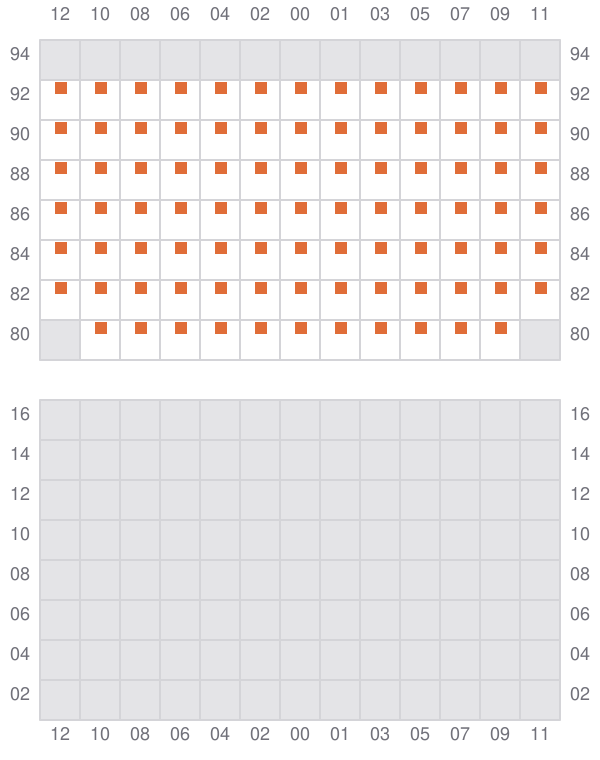

051

  • ← / ?
Bay 051 view and slots of XIN ZHAN JIANG

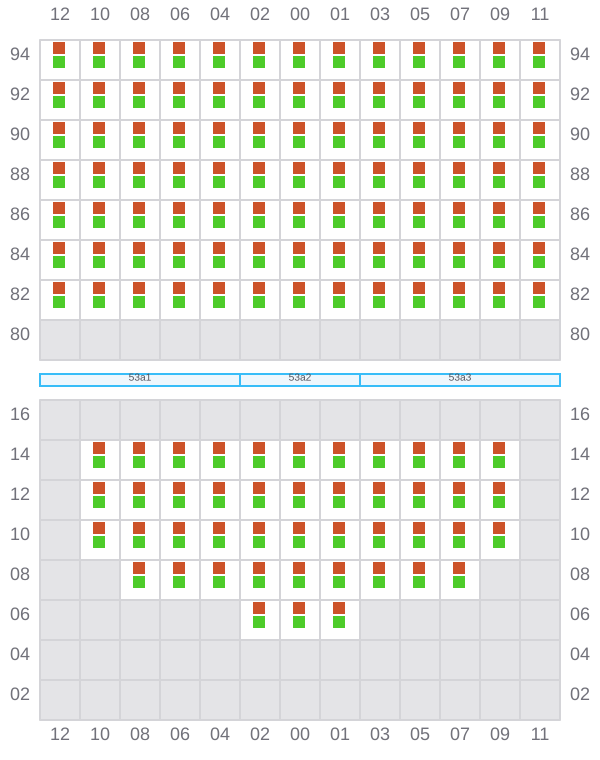

053 (054)

  • →
Bay 053 view and slots of XIN ZHAN JIANG

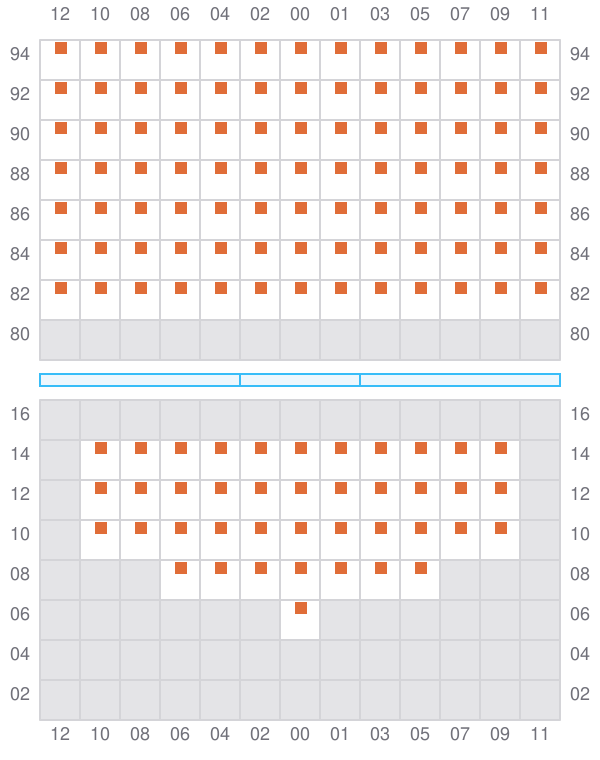

055

  • ←
Bay 055 view and slots of XIN ZHAN JIANG

057 (058)

  • →

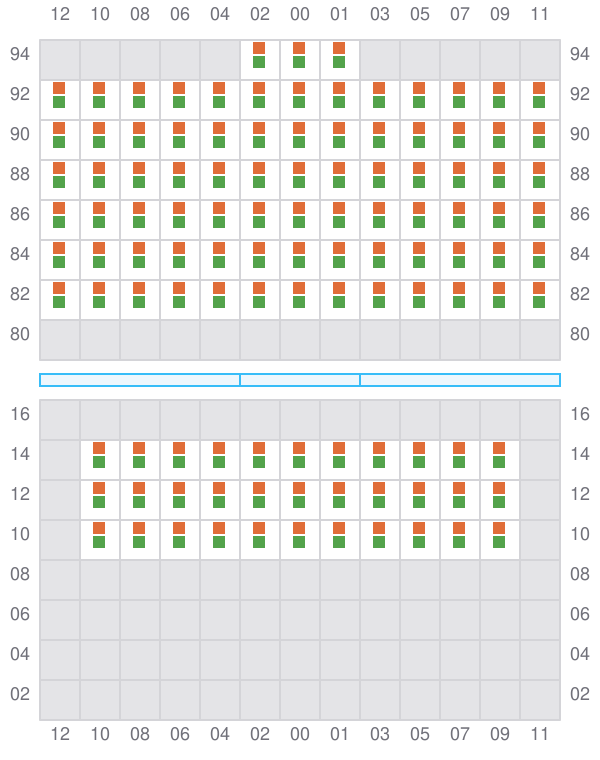

Bay 057 view and slots of XIN ZHAN JIANG

059

  • ←

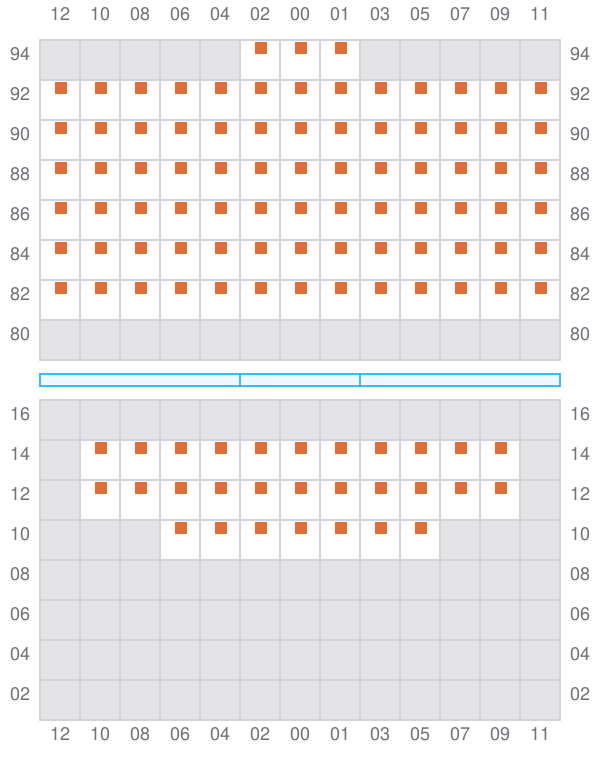

Bay 059 view and slots of XIN ZHAN JIANG

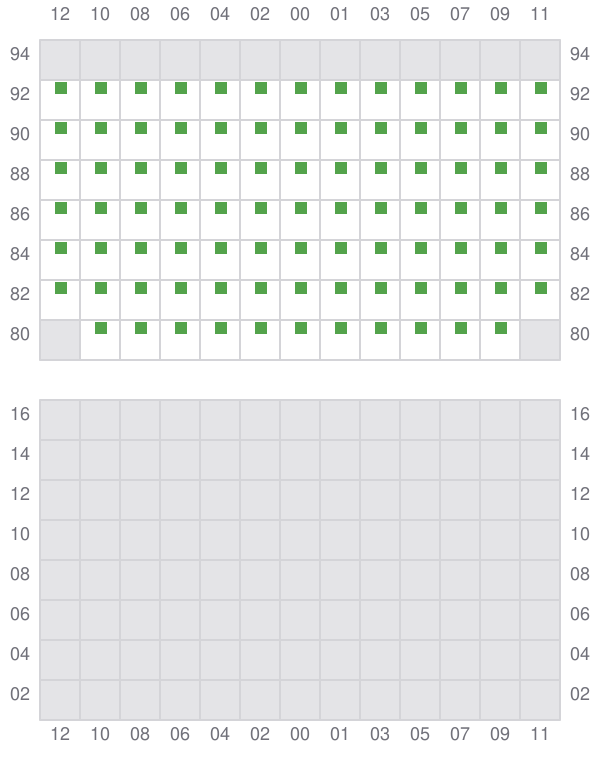

061 (062)

  • → / ?
Bay 061 view and slots of XIN ZHAN JIANG
