XUTRA BHUM
9308675 | HSB3402 | 9308675 by ********* Last update: Tue Jun 25 2024
General Info
Ship Name:XUTRA BHUM
IMO Code:9308675
Call Sign:HSB3402
Line Operator:9308675
Class Name for Sister Ships:MSC
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,378
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

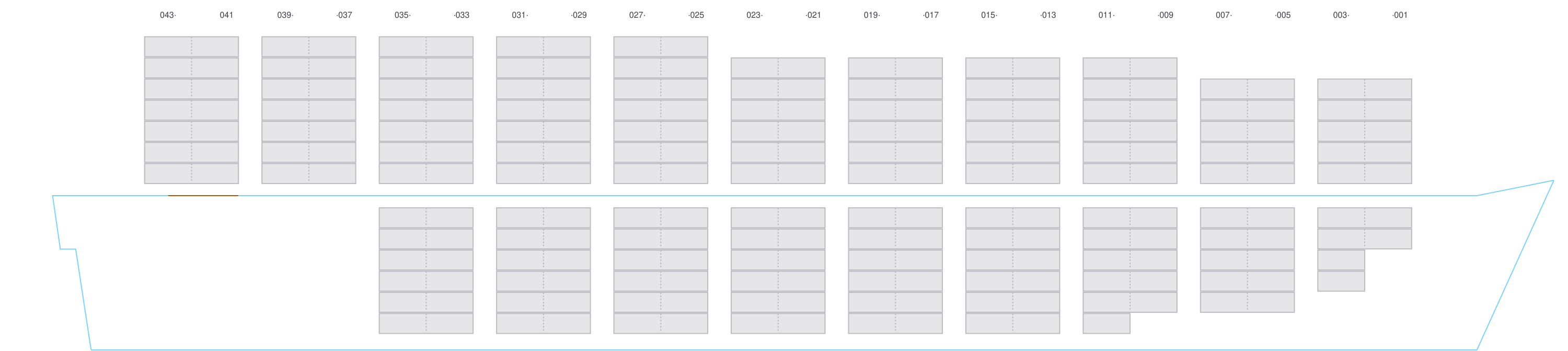

Side View

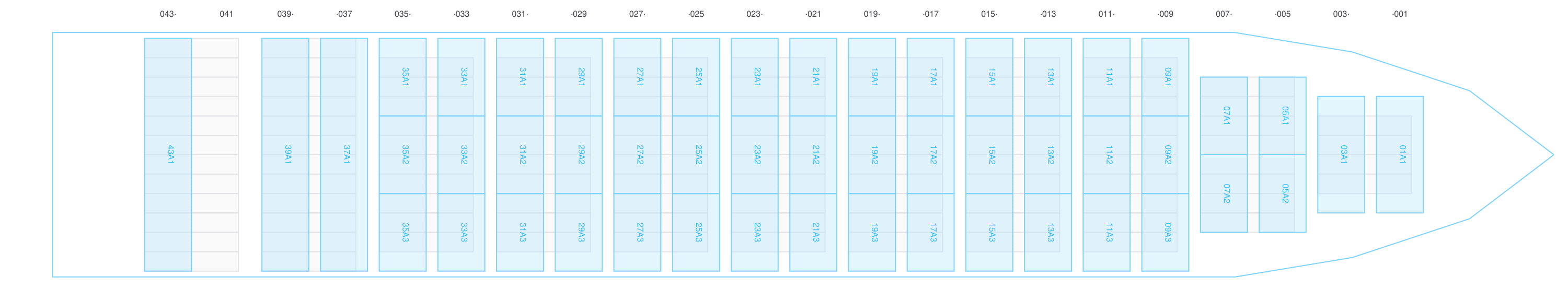

Hatch-Covers View

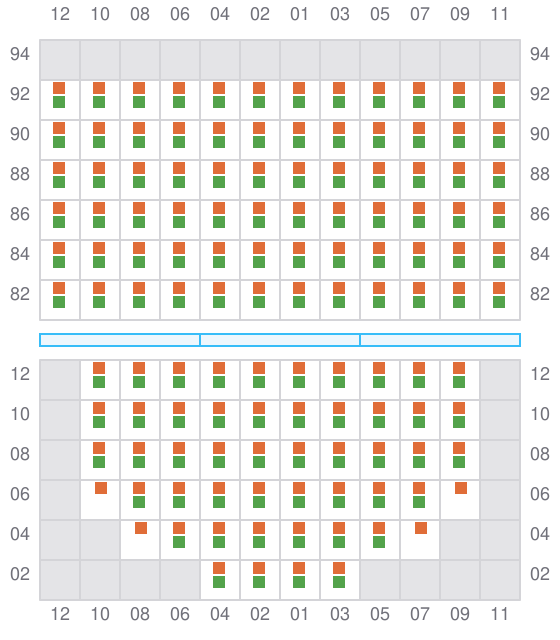

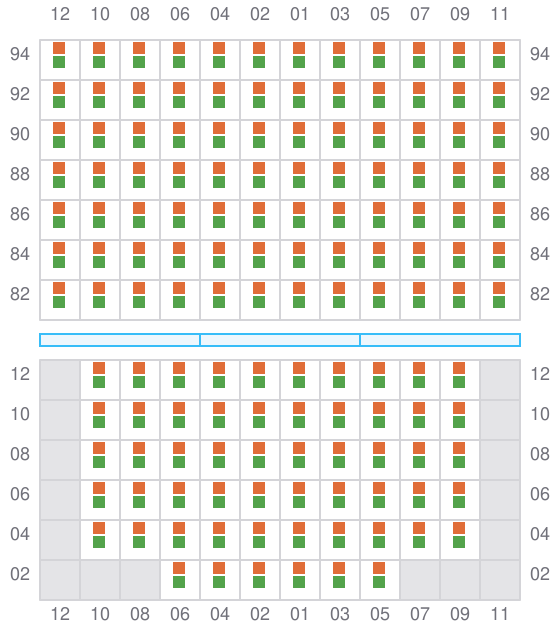

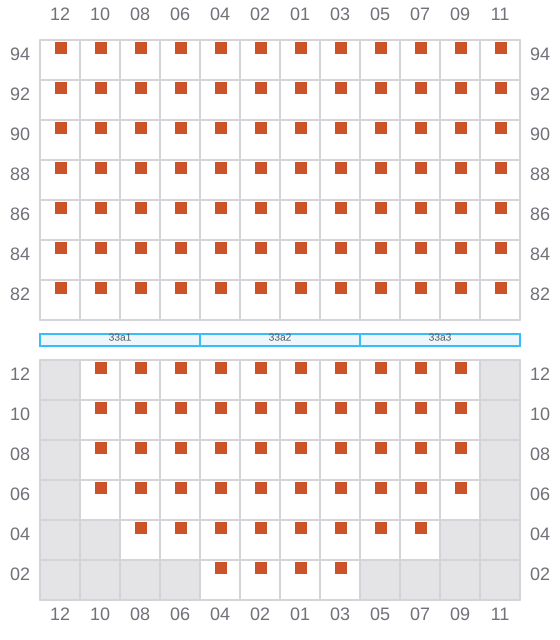

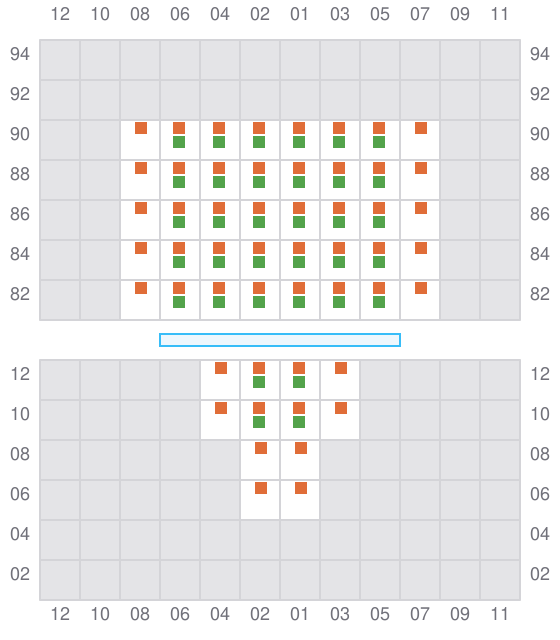

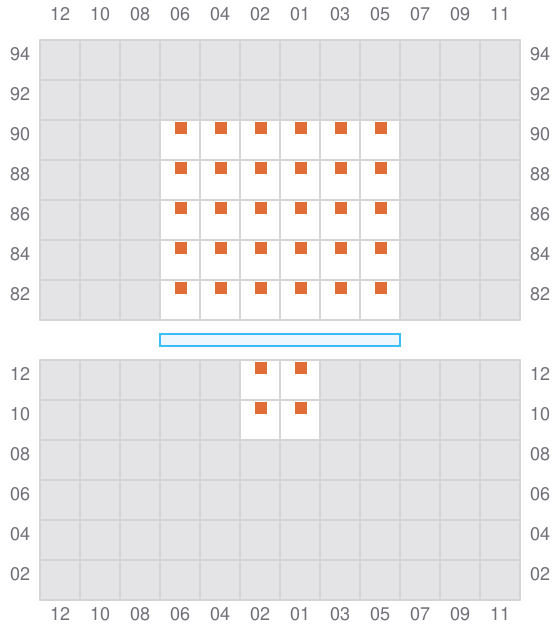

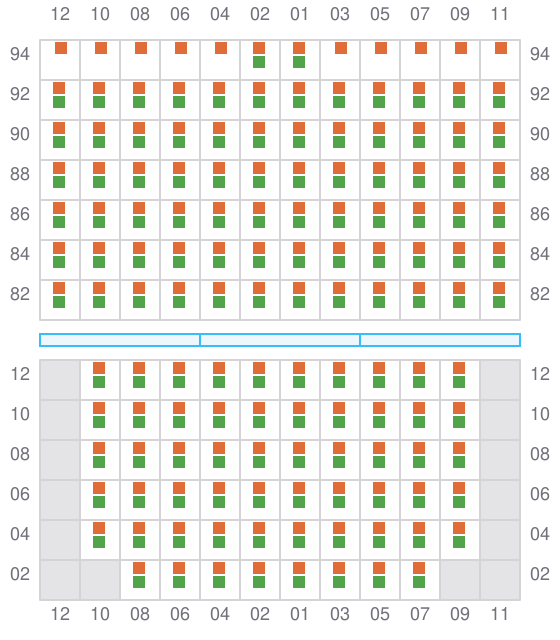

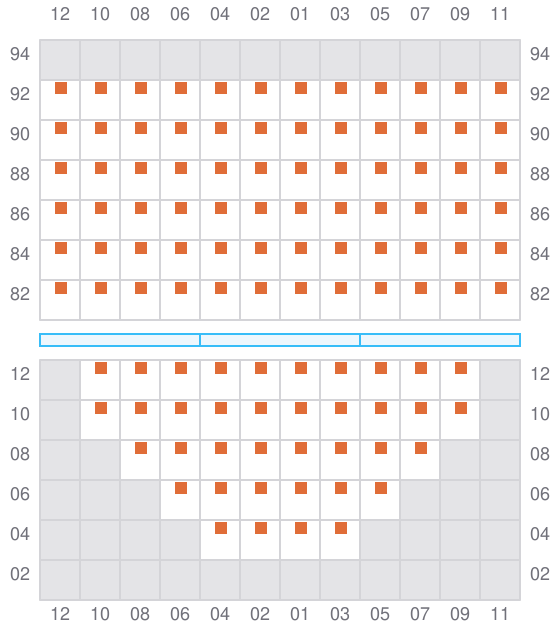

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←
005
- →

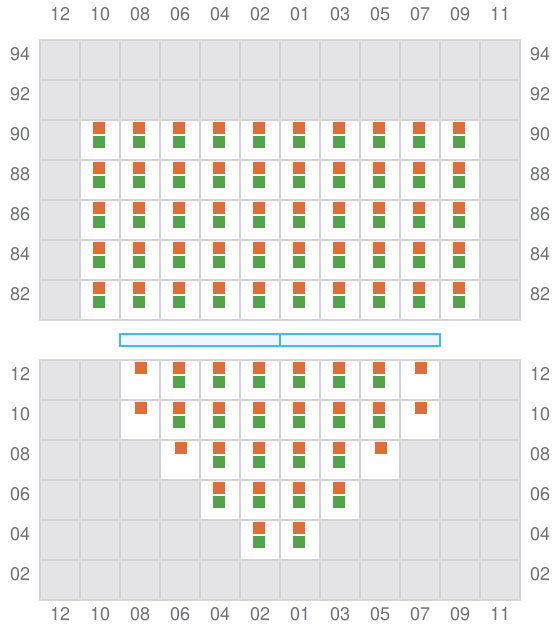

007 (006)
- ←
009
- →
011 (010)
- ←

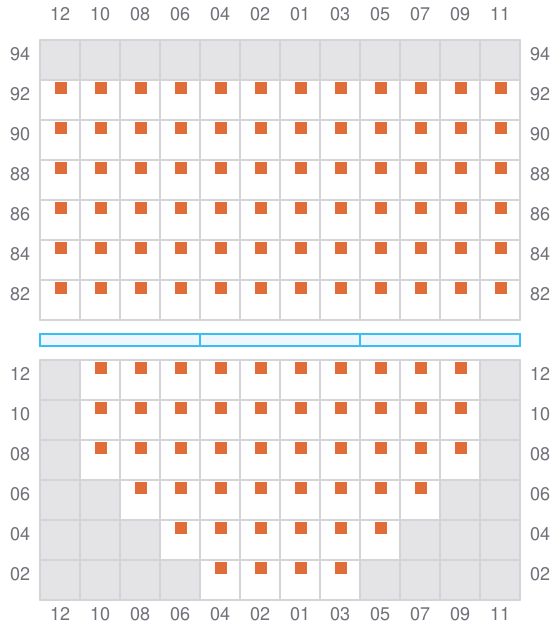

013
- →
015 (014)
- ←

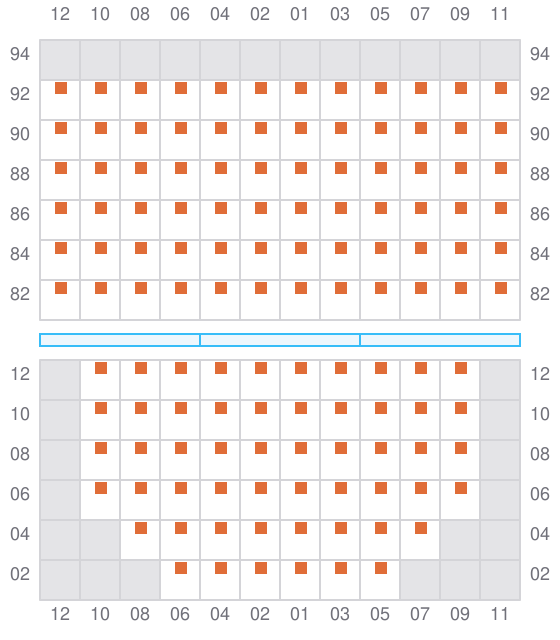

017
- →

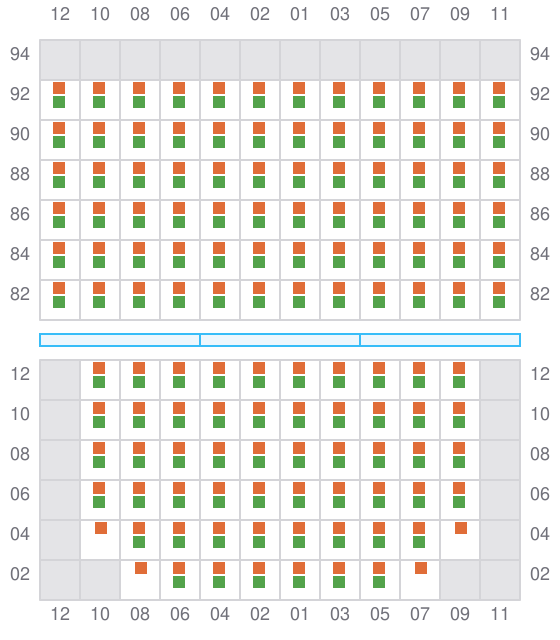

019 (018)
- ←

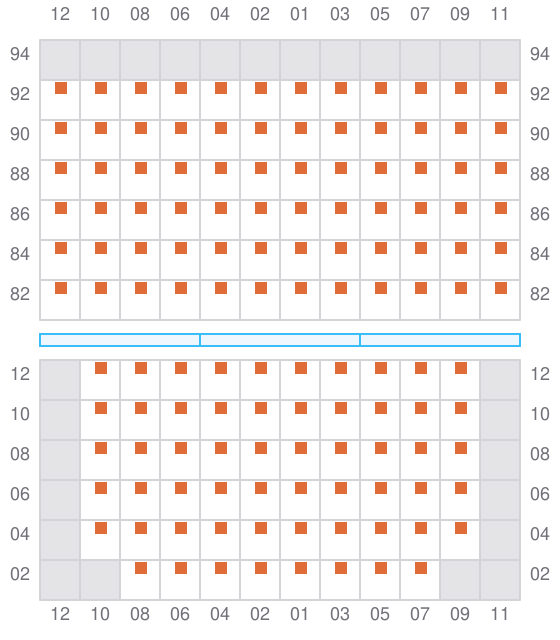

021
- →
023 (022)
- ←
025
- →
027 (026)
- ←

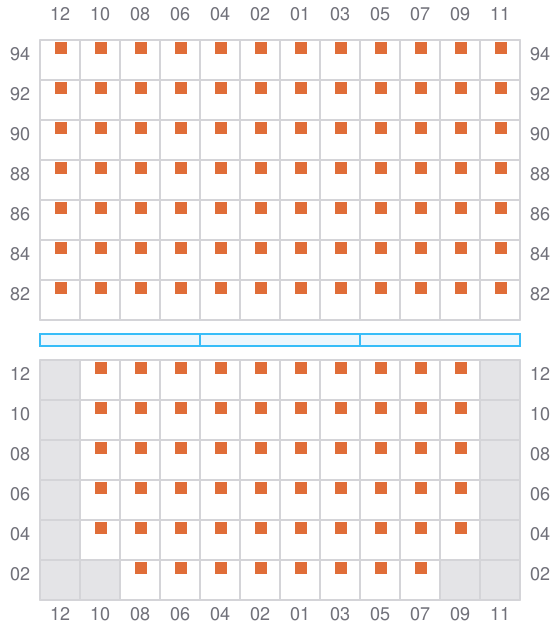

029
- →
031 (030)
- ←
033
- →
035 (034)
- ←
037
- → / ?
039 (038)
- ← / ?

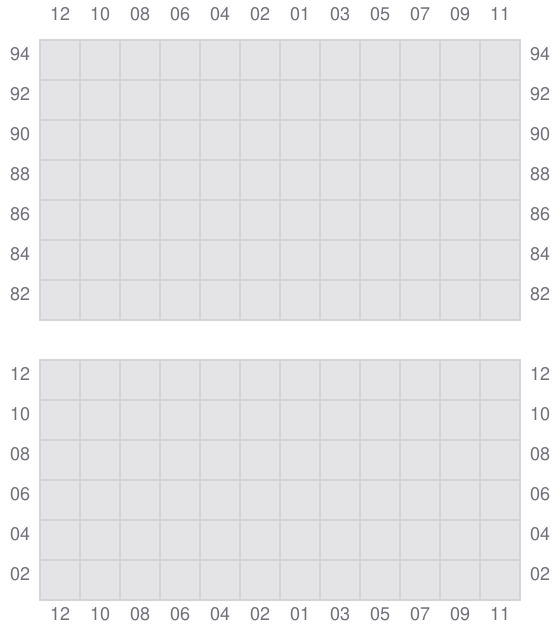

041

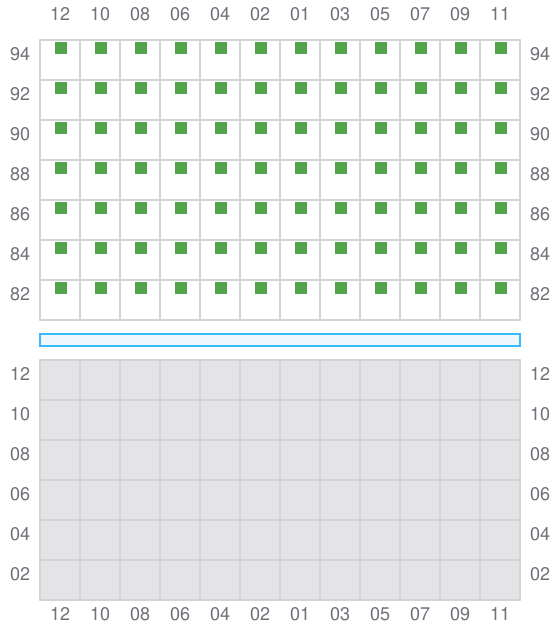

043 (042)
- ← / ?
