YM EFFICIENCY
9353280 | A8OS5 | 9353280 by ******************** Last update: Thu May 01 2025
General Info
Ship Name:YM EFFICIENCY
IMO Code:9353280
Call Sign:A8OS5
Line Operator:9353280
Class Name for Sister Ships:YM EFFICIENCY
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):256.50
LOA (Length Overall):268.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,218
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

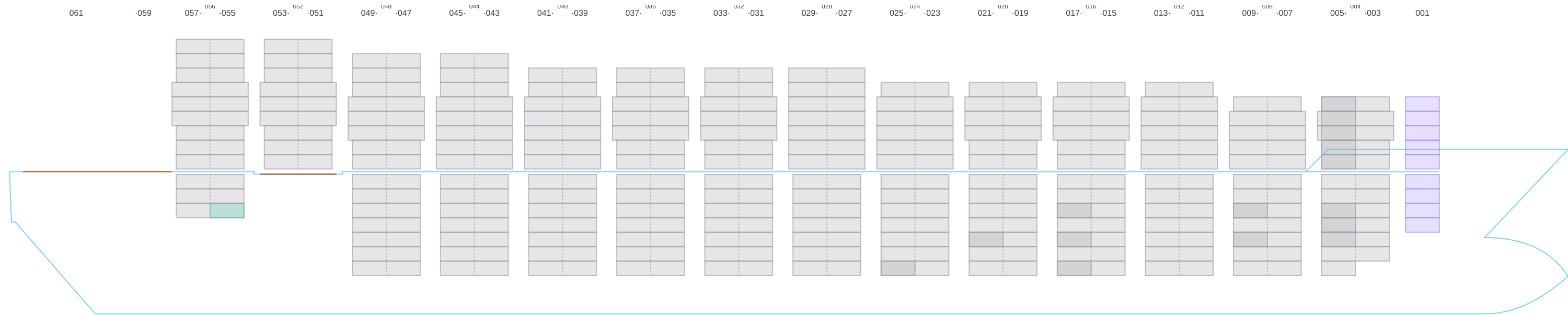

Side View

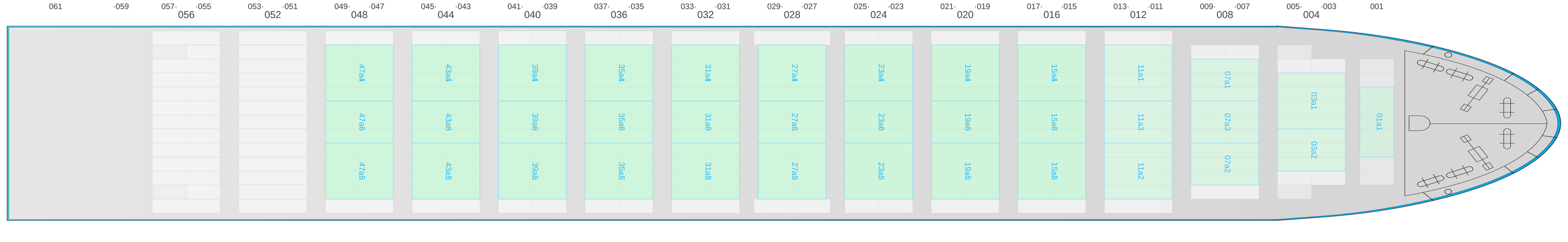

Hatch-Covers View

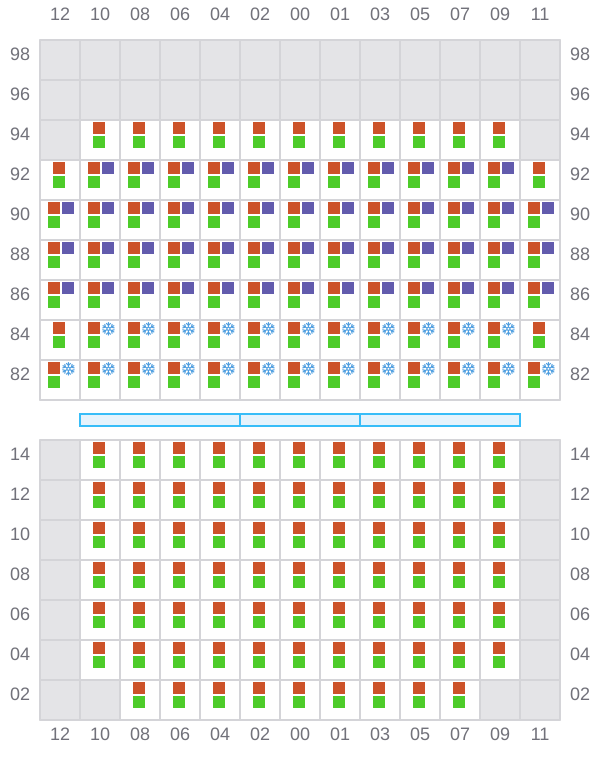

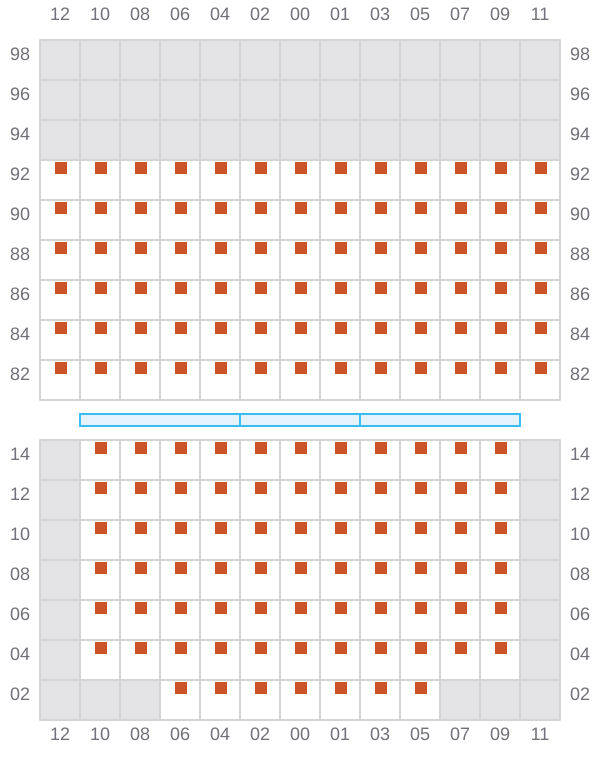

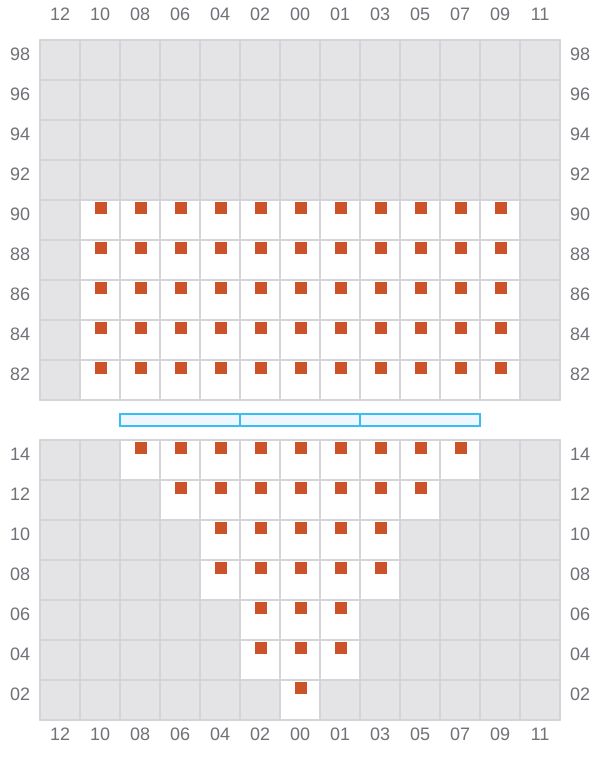

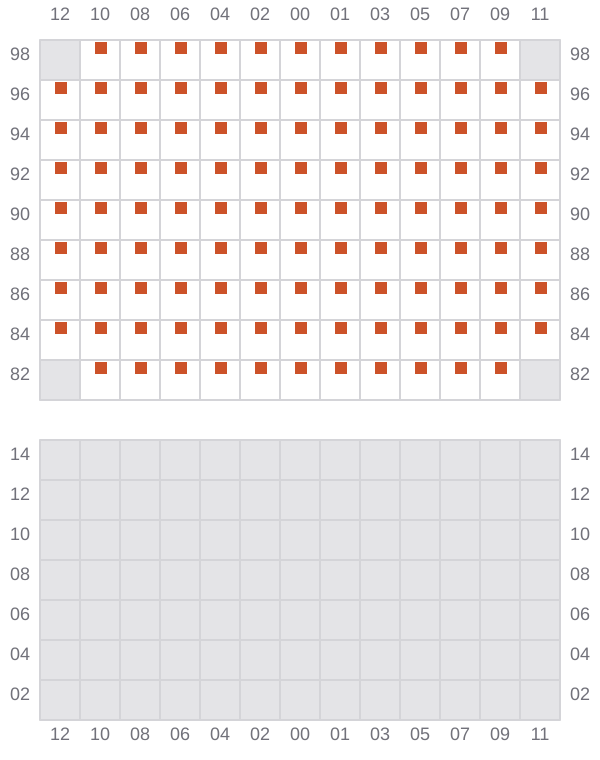

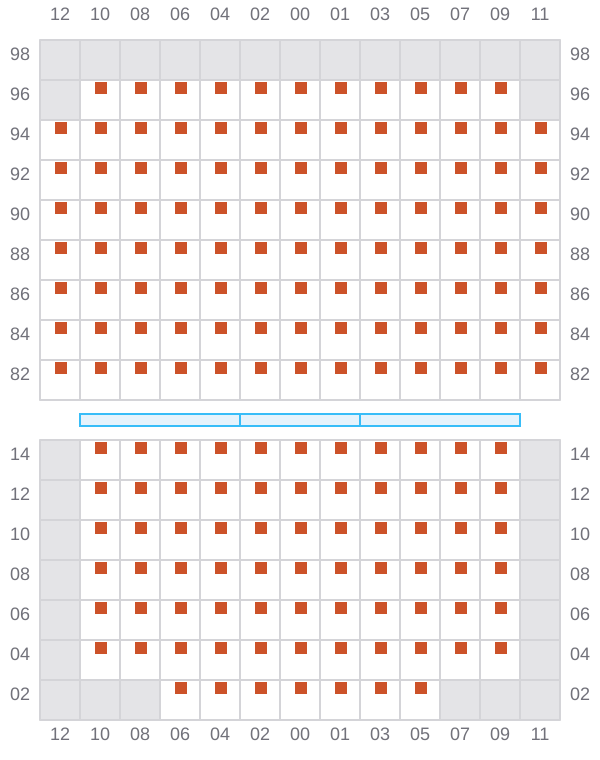

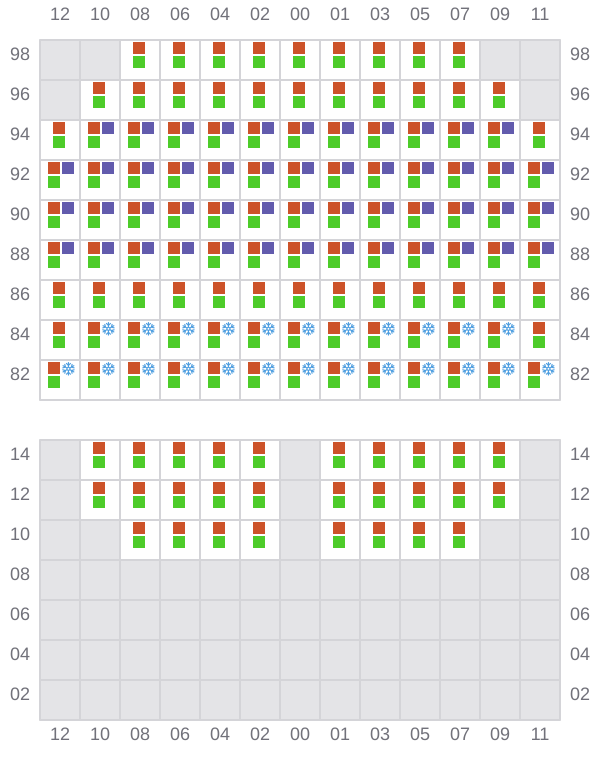

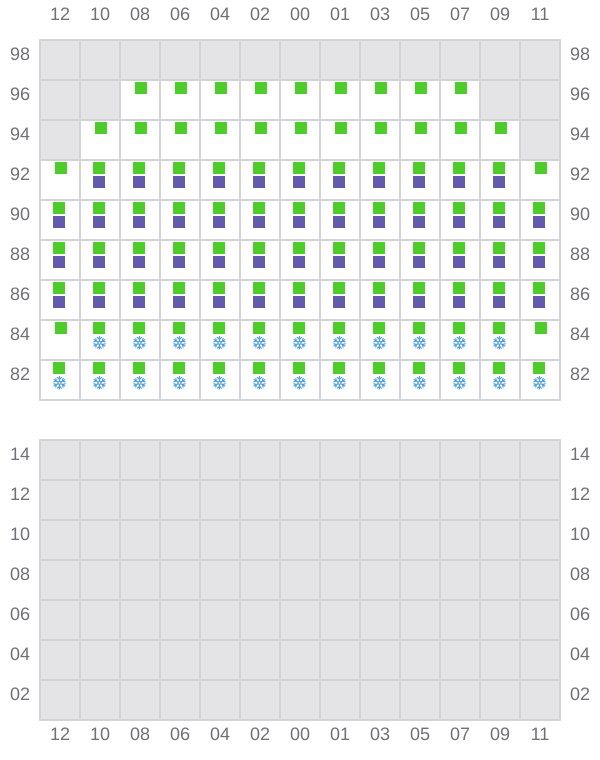

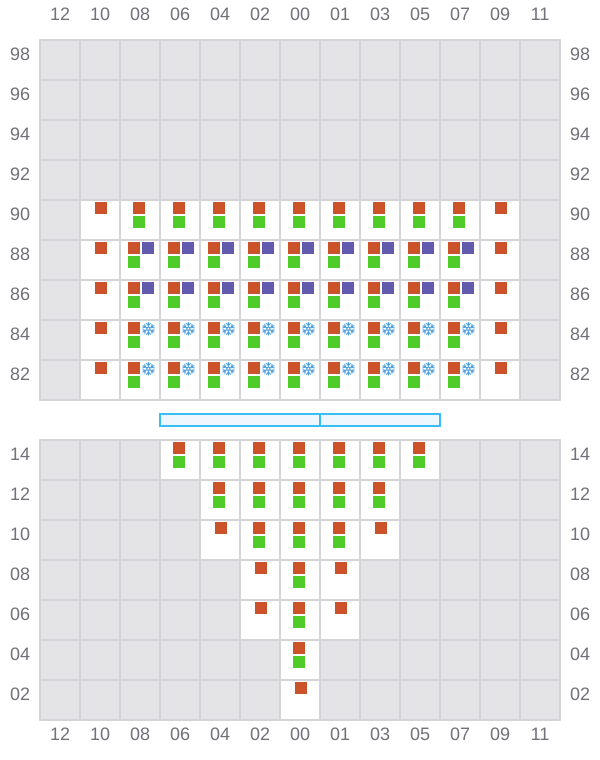

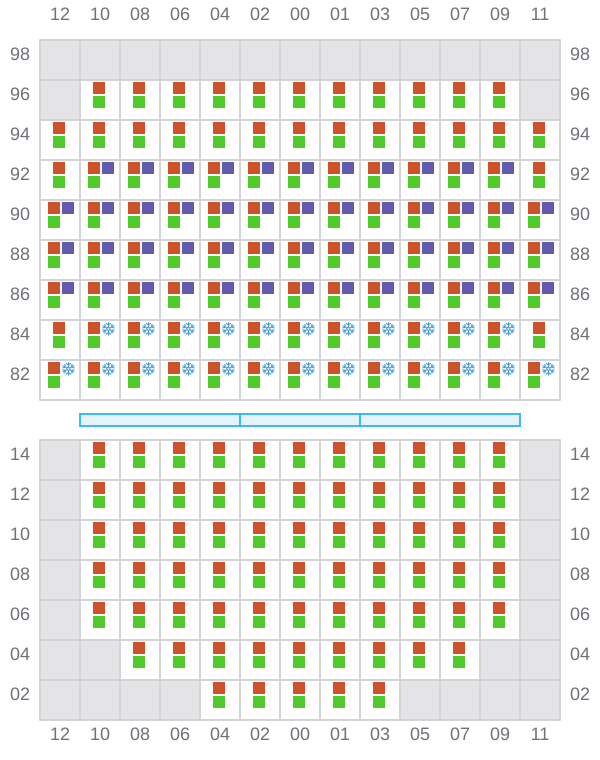

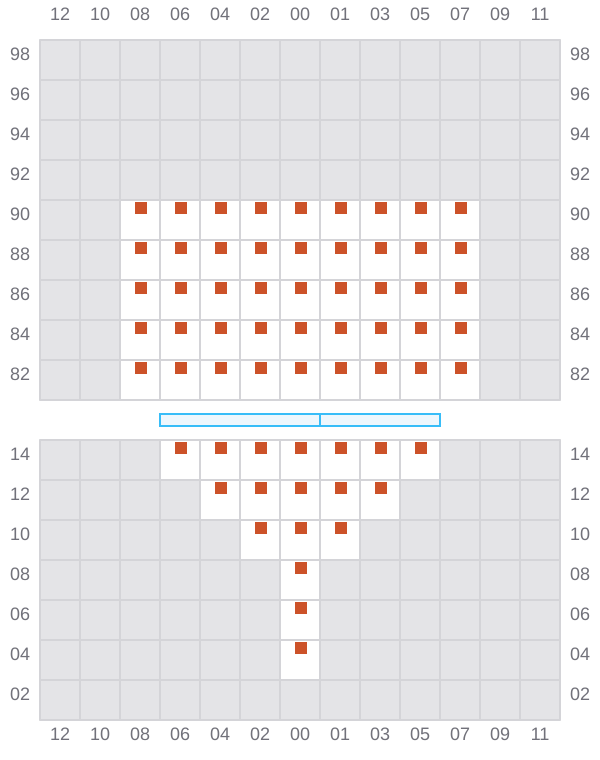

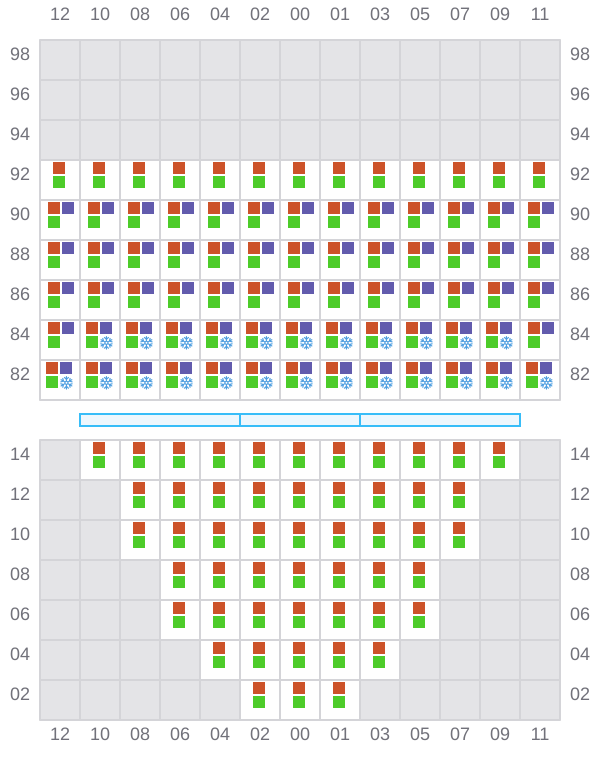

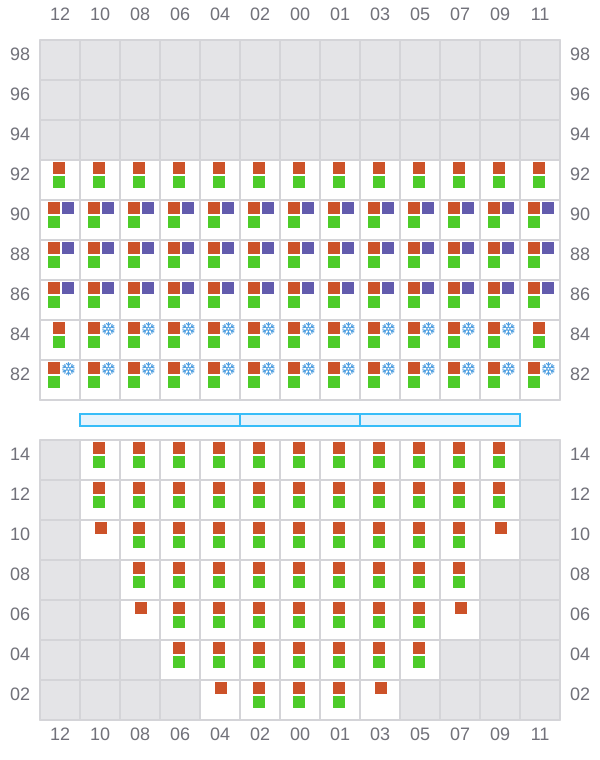

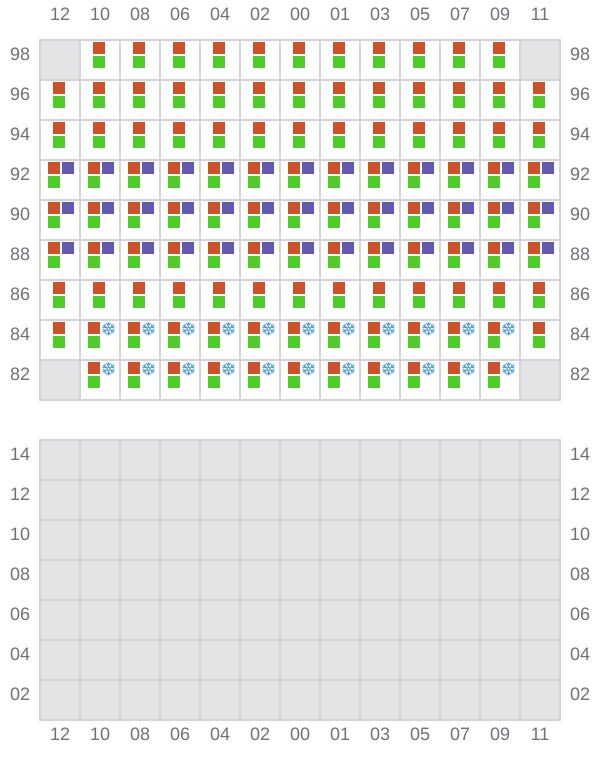

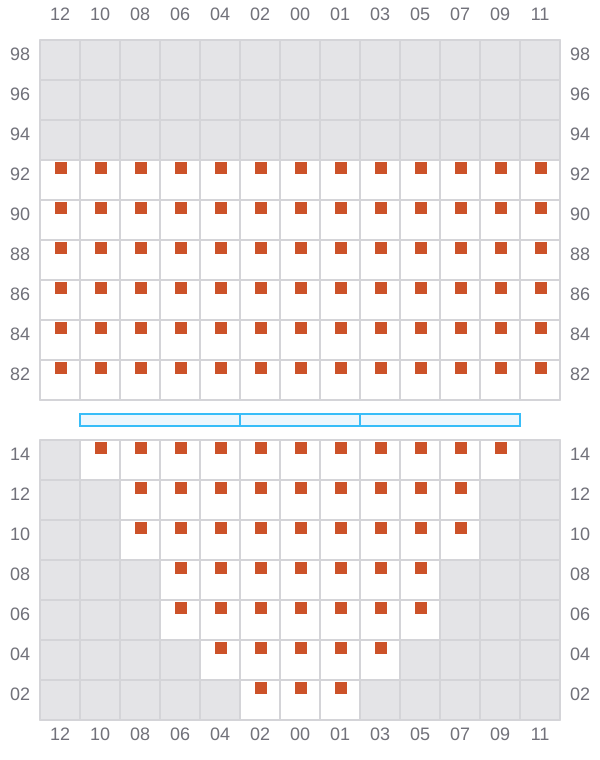

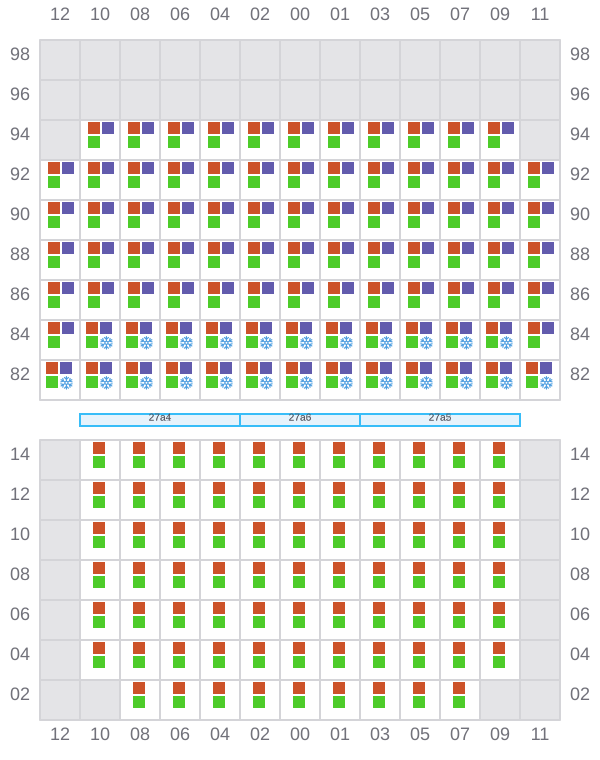

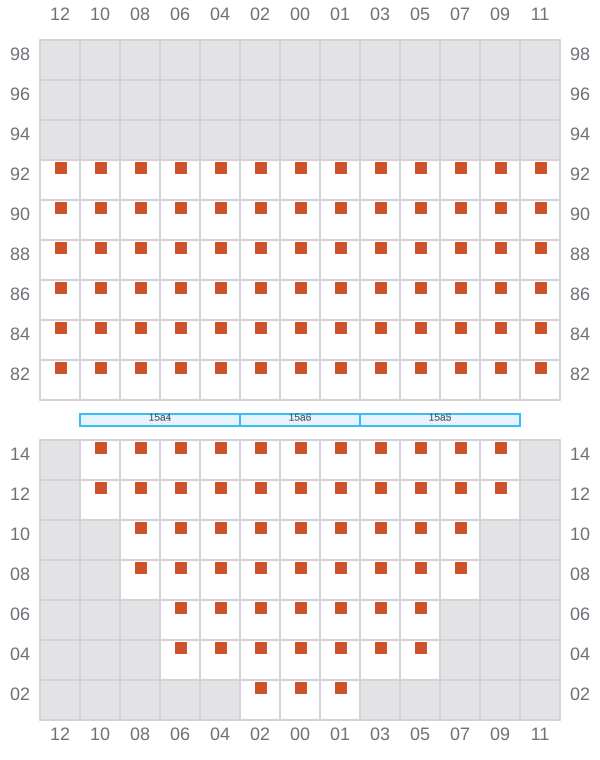

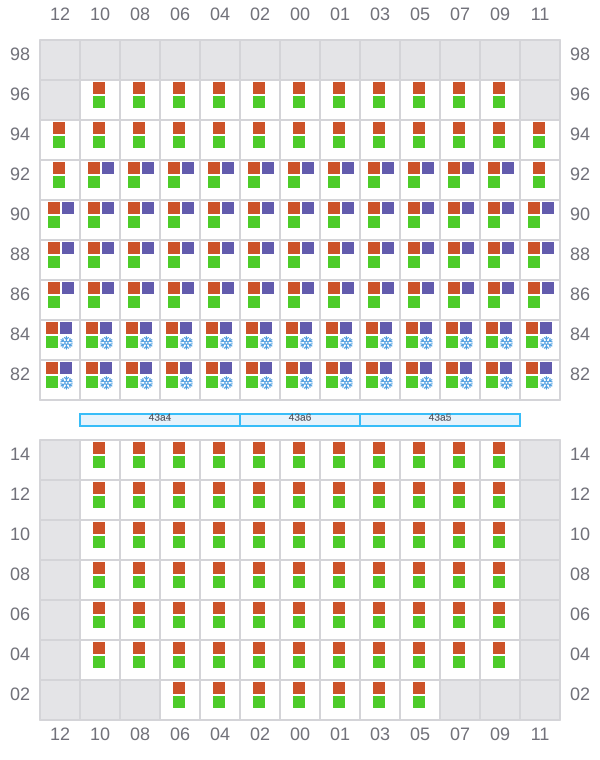

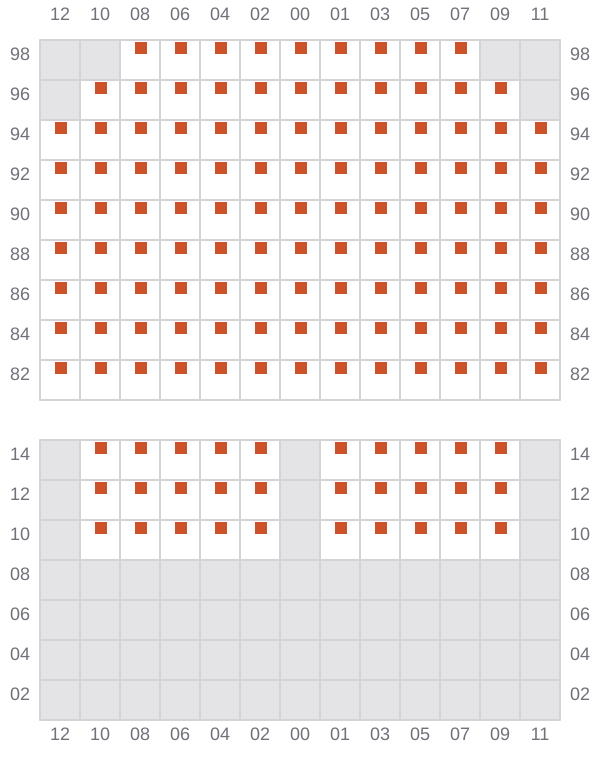

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

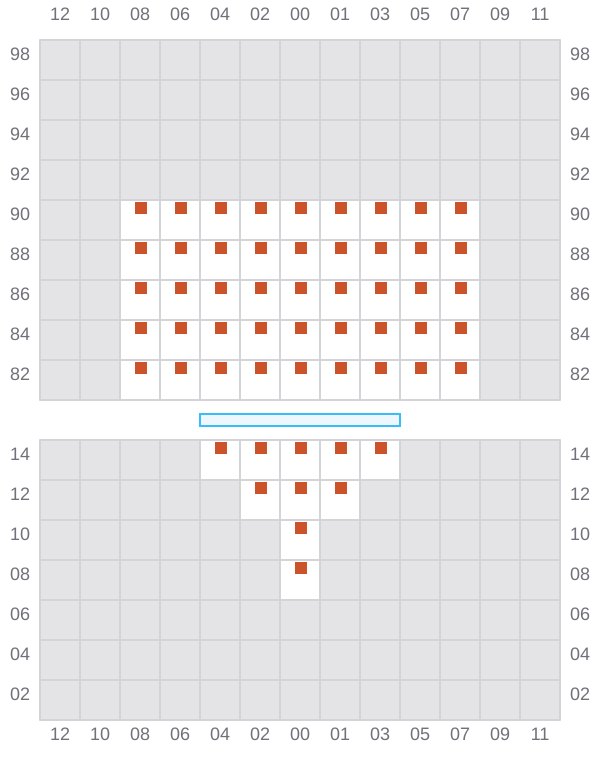

001
003
- →
005 (004)
- ←
007
- →

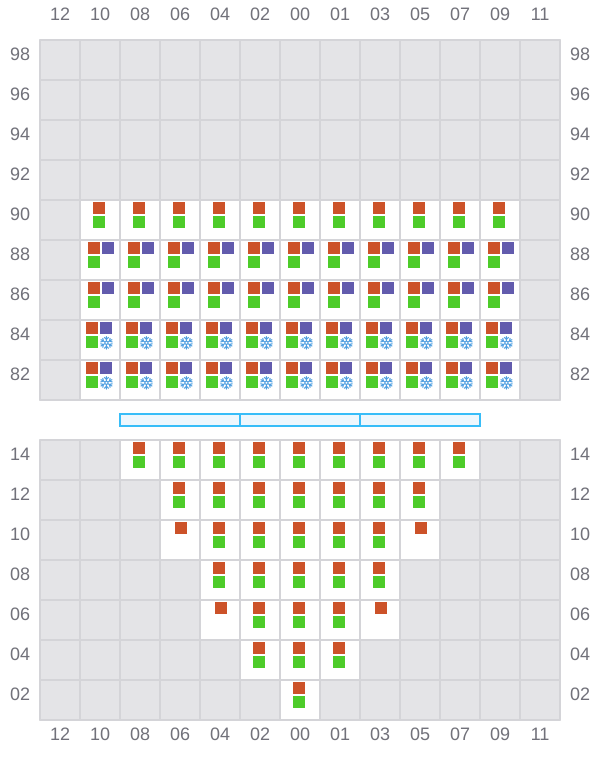

009 (008)
- ←
011
- →
013 (012)
- ←
015
- →
017 (016)
- ←

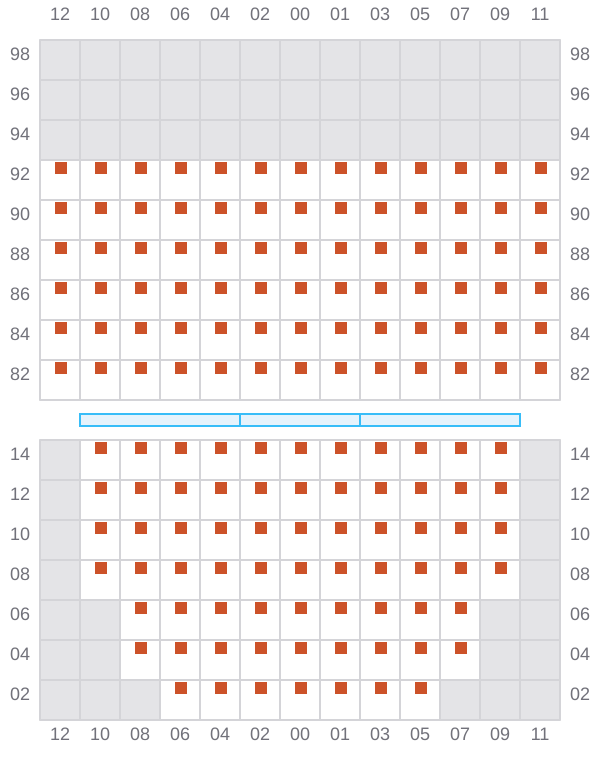

019
- →

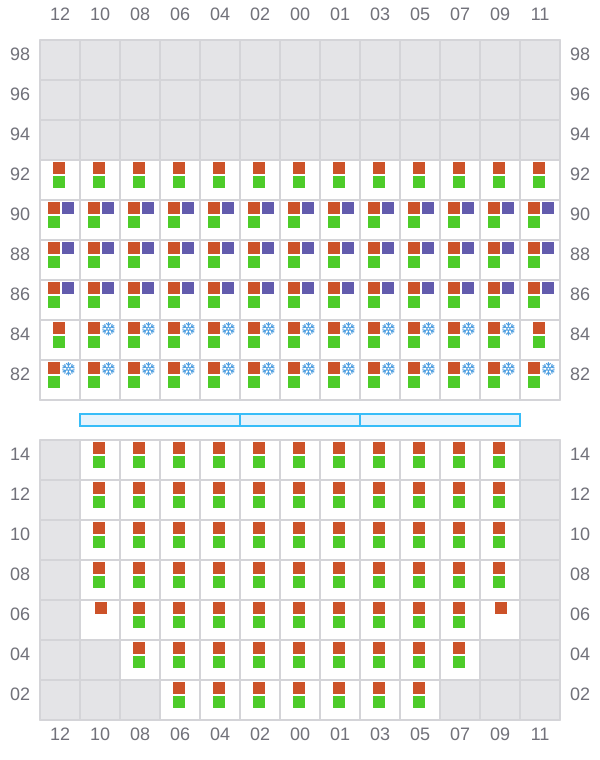

021 (020)
- ←
023
- →

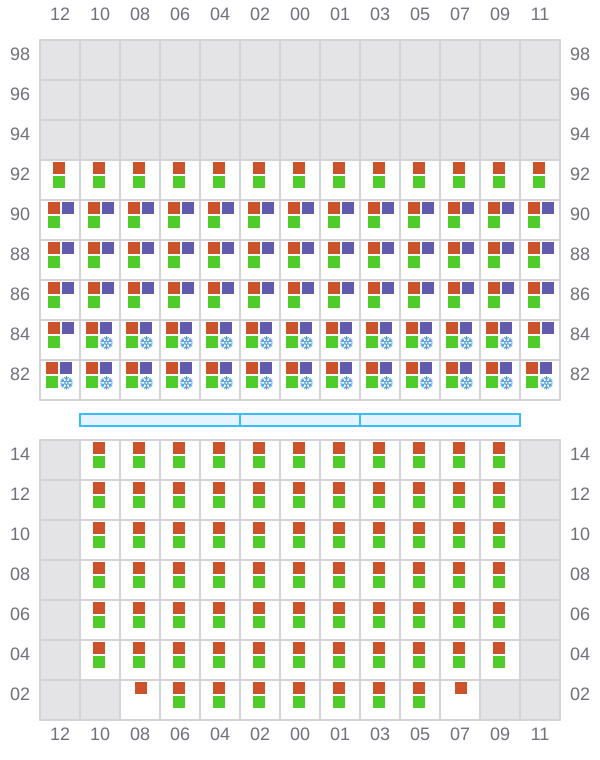

025 (024)
- ←
027
- →
029 (028)
- ←

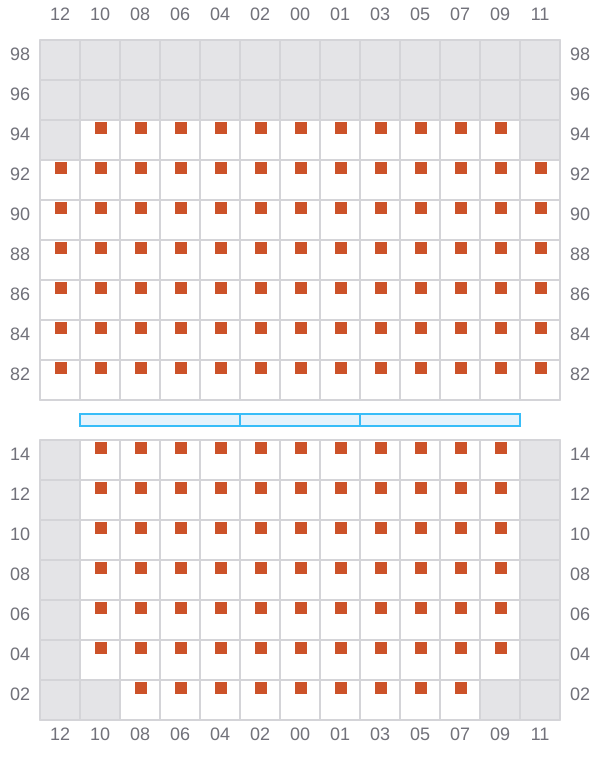

031
- →
033 (032)
- ←
035
- →
037 (036)
- ←
039
- →
041 (040)
- ←
043
- →
045 (044)
- ←
047
- →
049 (048)
- ←
051
- →
053 (052)
- ← / →
055
- →
057 (056)
- ←

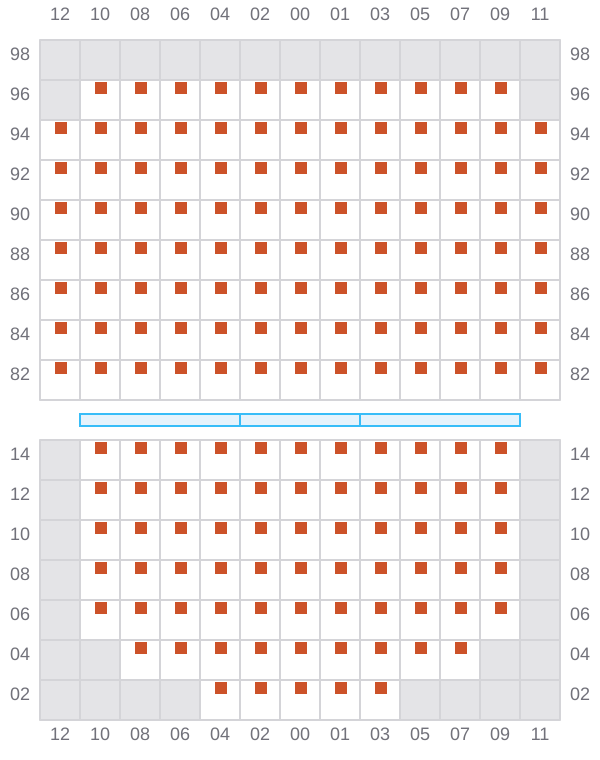

059
- → / ?
061
