YM TARGET
9860934 | D5XC6 | YML by ******************** Last update: Mon Feb 17 2025

General Info

Ship Name:YM TARGET
IMO Code:9860934
Call Sign:D5XC6
Line Operator:YML
Class Name for Sister Ships:YTGT
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):256.50
LOA (Length Overall):268.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:13,046

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of YM TARGET

Hatch-Covers View

Deck view of YM TARGET

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓

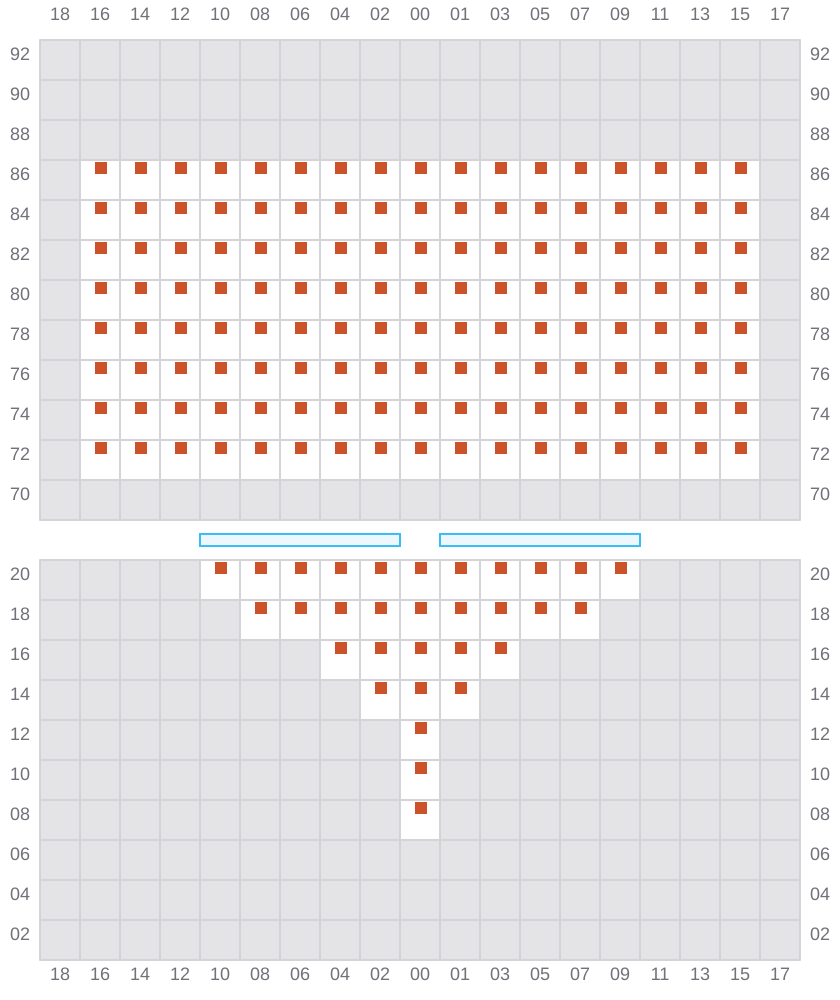

Bay 001 view and slots of YM TARGET

003 (002)

  • ←
  • ✓

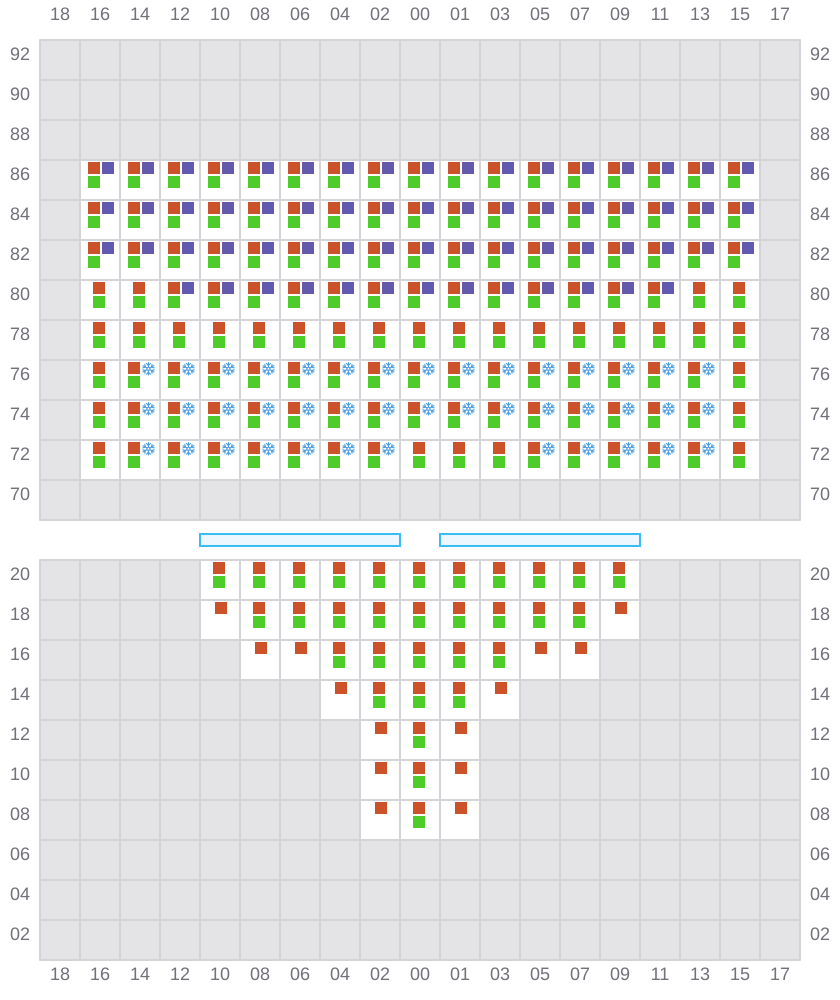

Bay 003 view and slots of YM TARGET

005

  • →
  • ✓

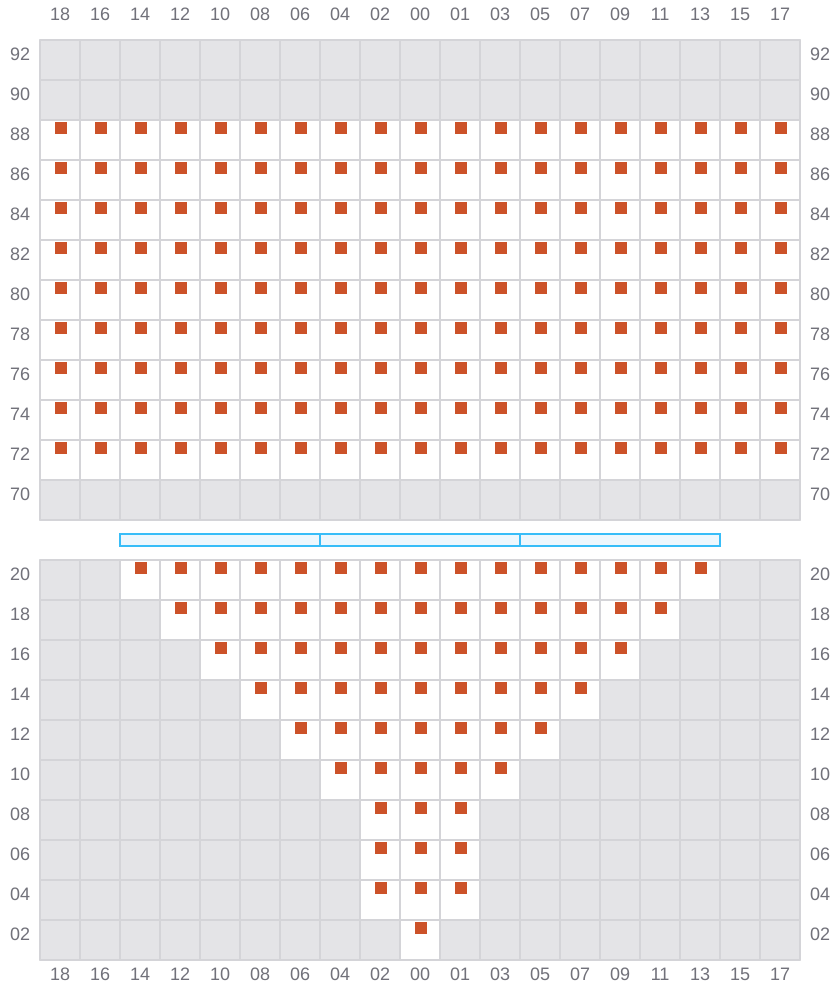

Bay 005 view and slots of YM TARGET

007 (006)

  • ←
  • ✓

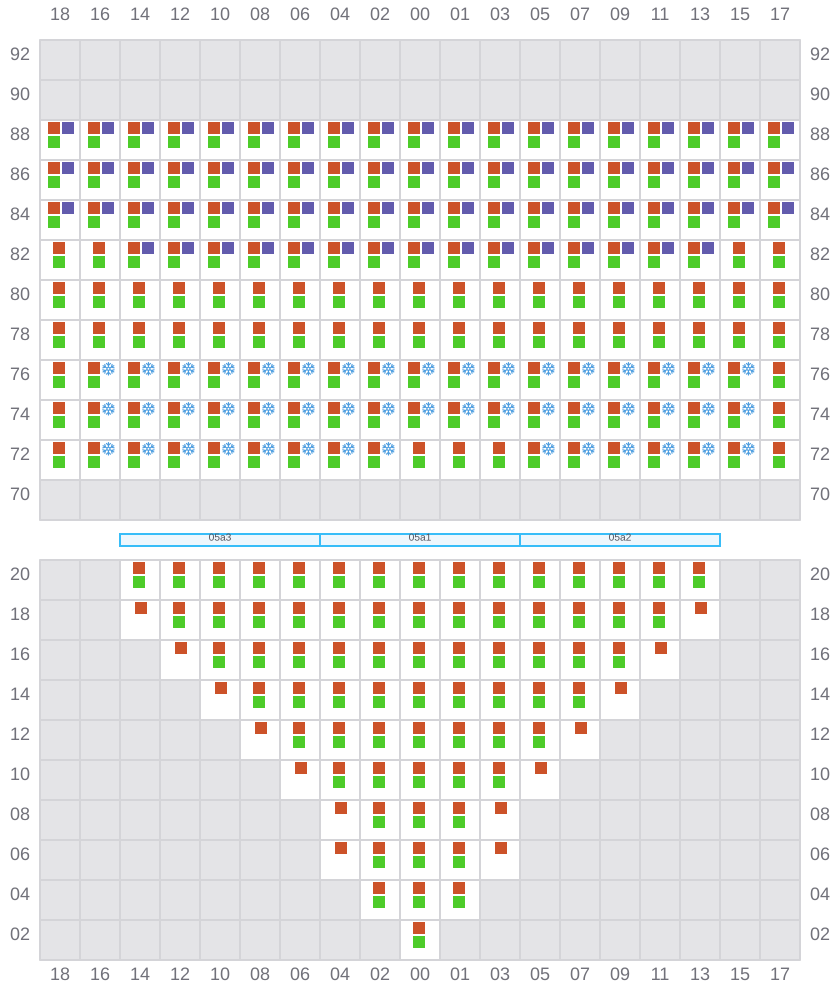

Bay 007 view and slots of YM TARGET

009

  • →
  • ✓

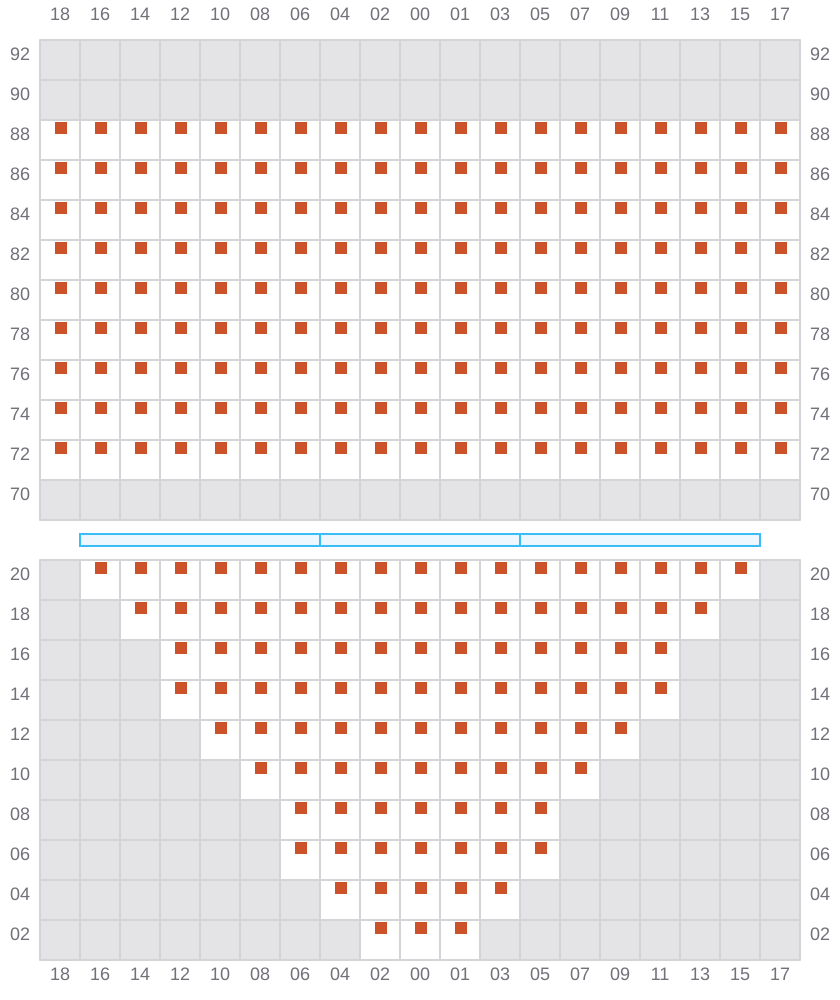

Bay 009 view and slots of YM TARGET

011 (010)

  • ←
  • ✓

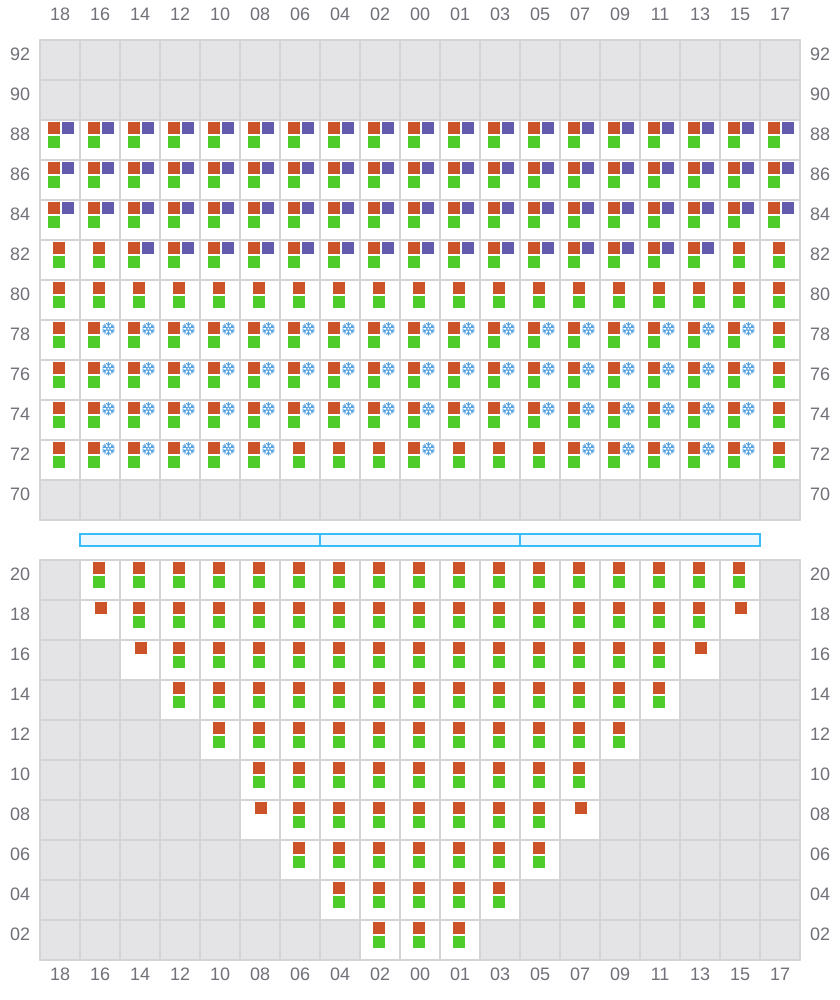

Bay 011 view and slots of YM TARGET

013

  • →
  • ✓

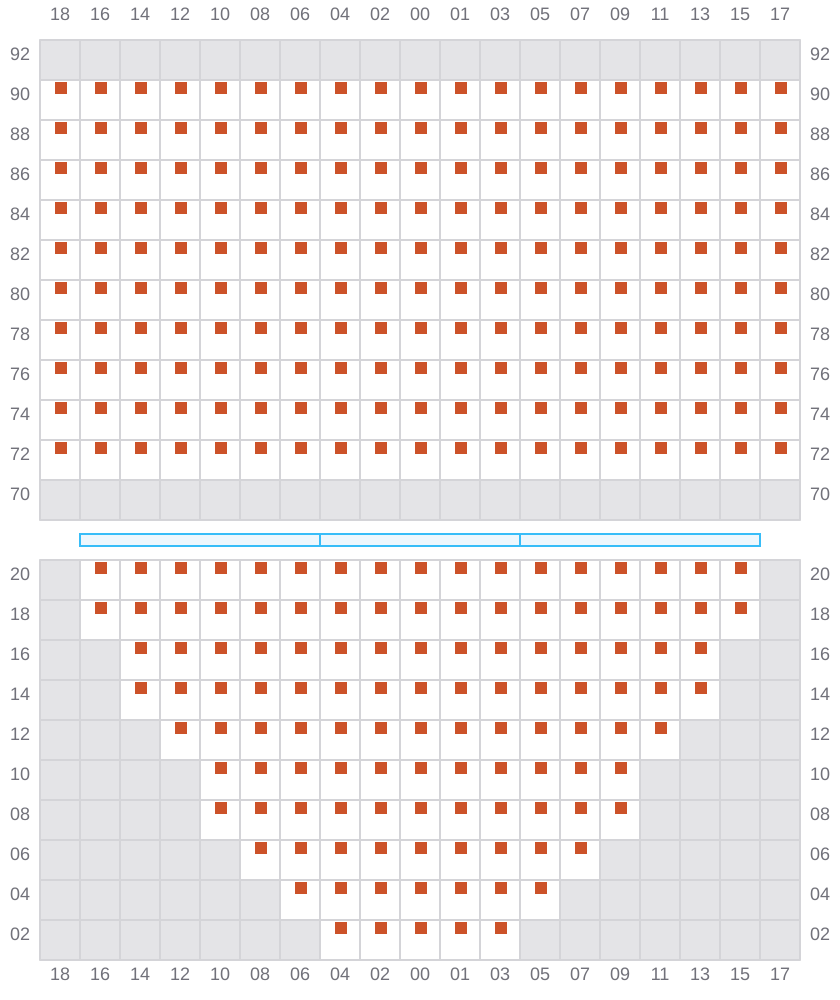

Bay 013 view and slots of YM TARGET

015 (014)

  • ←
  • ✓
Bay 015 view and slots of YM TARGET

017

  • →
  • ✓

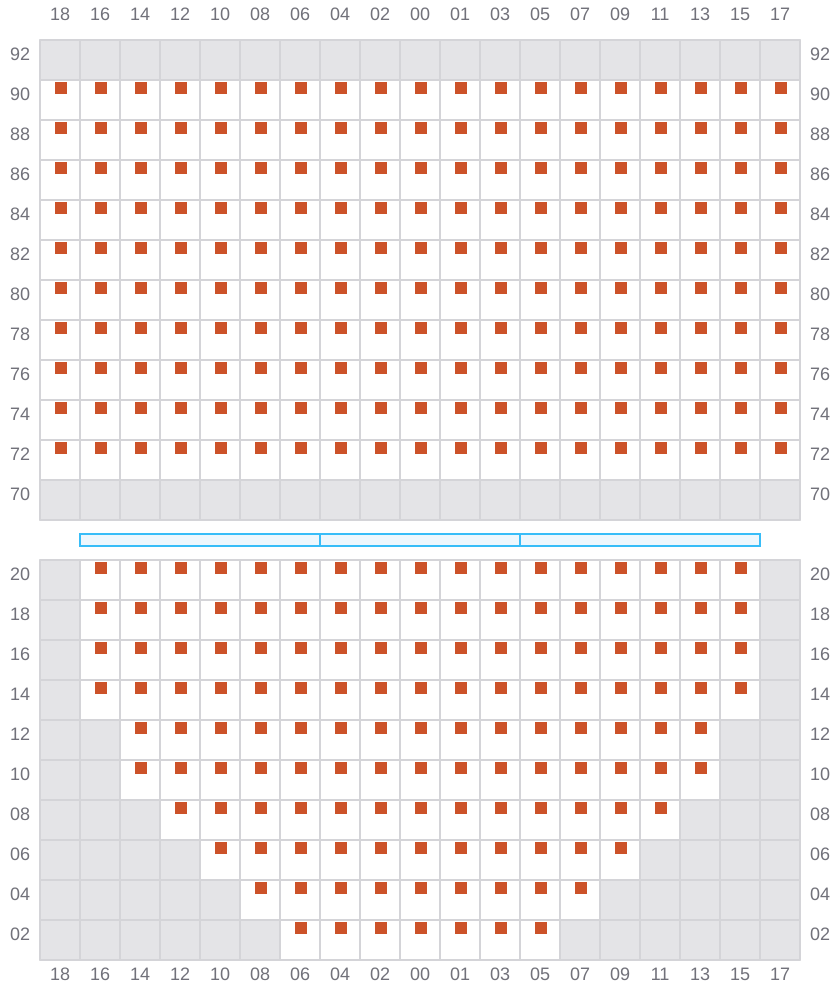

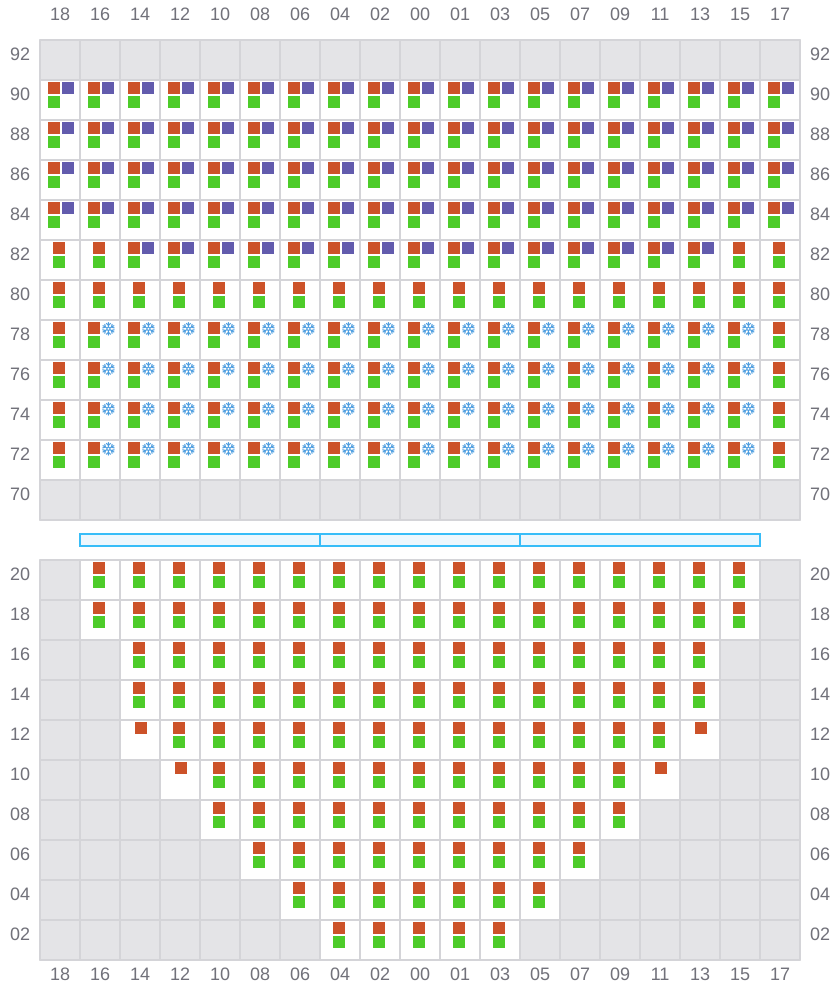

Bay 017 view and slots of YM TARGET

019 (018)

  • ←
  • ✓

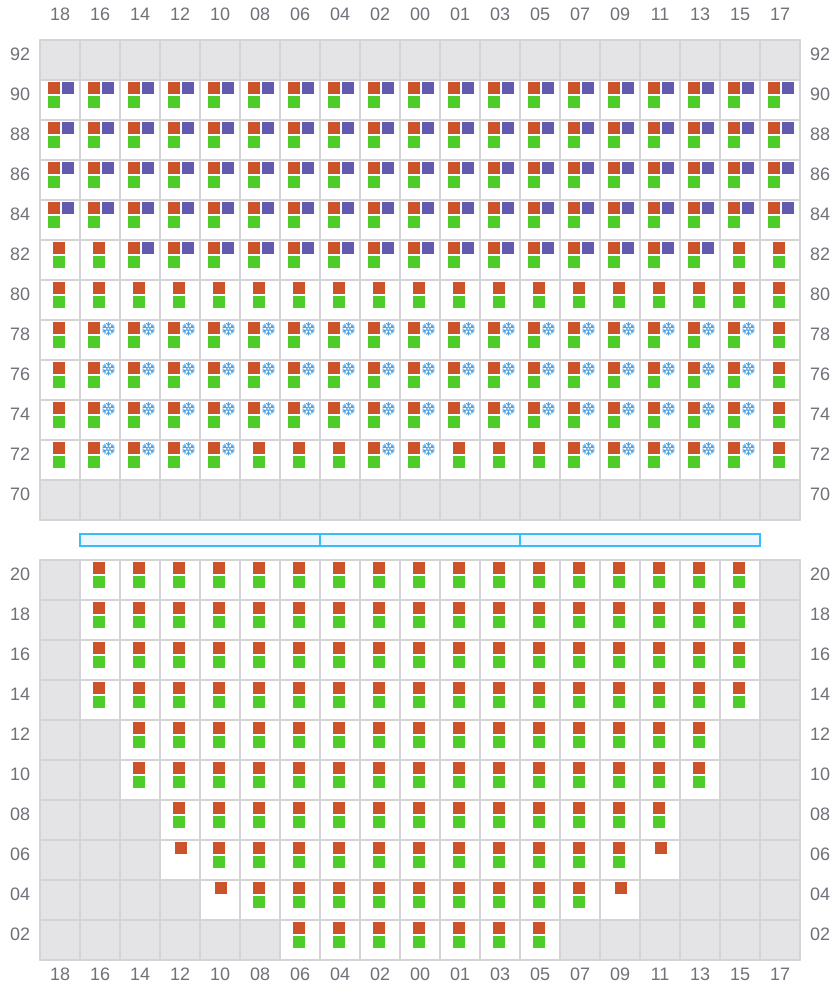

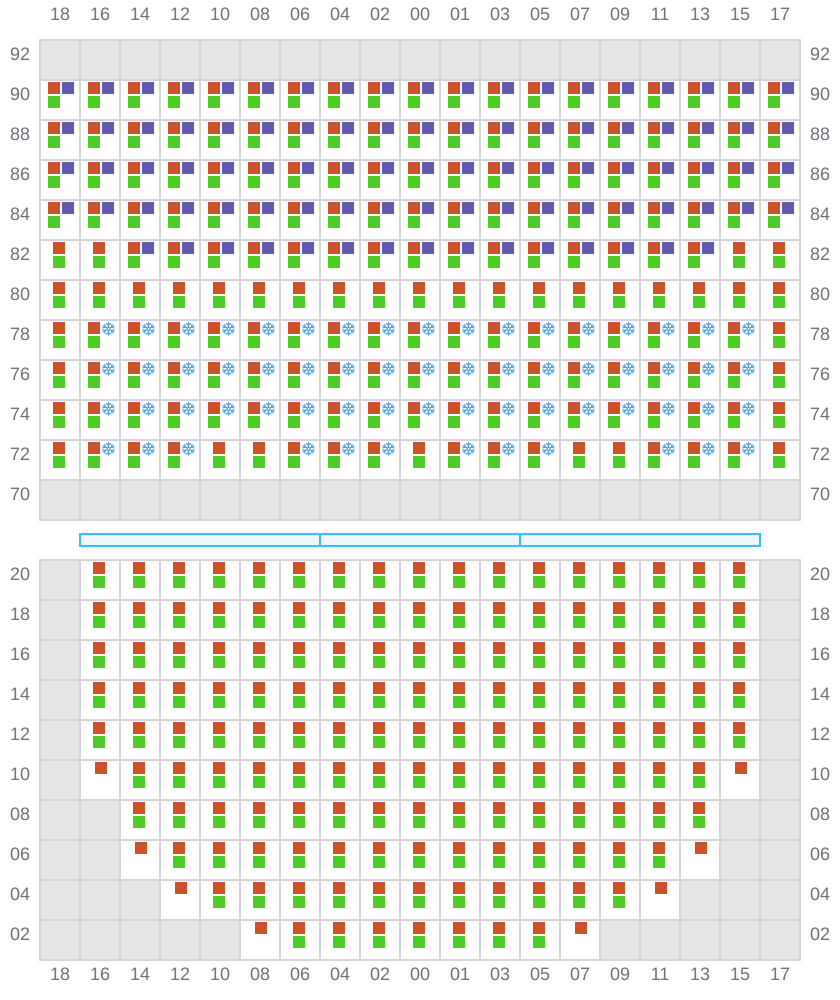

Bay 019 view and slots of YM TARGET

021

  • →
  • ✓

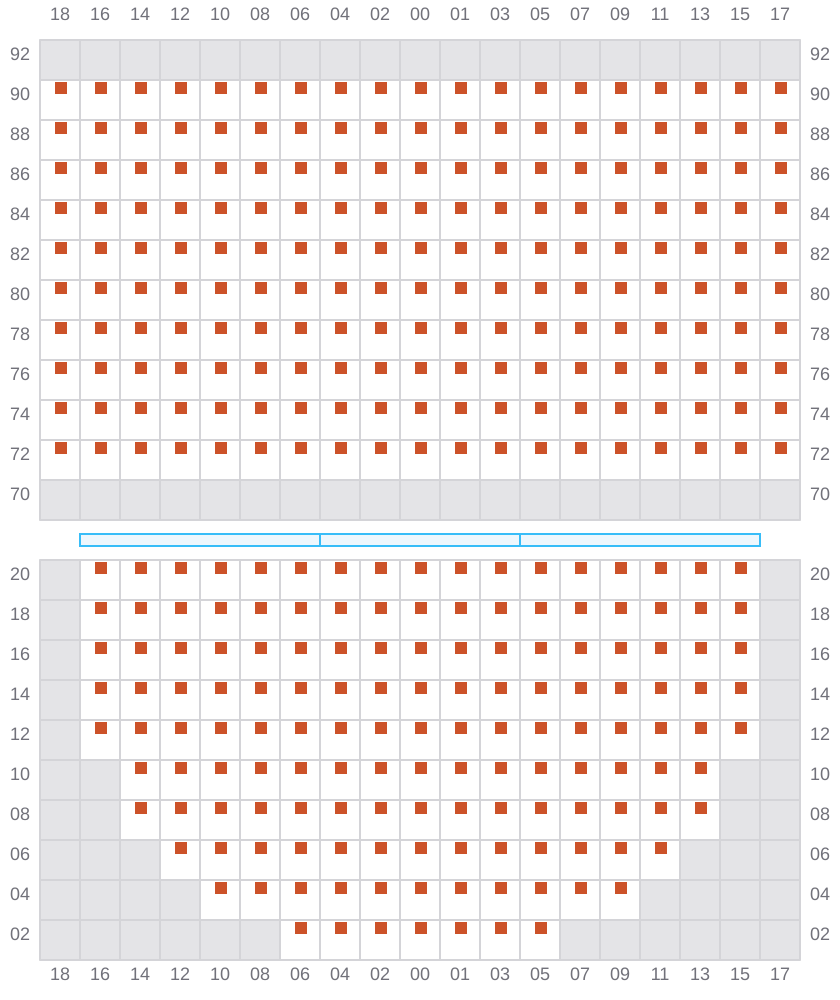

Bay 021 view and slots of YM TARGET

023 (022)

  • ←
  • ✓
Bay 023 view and slots of YM TARGET

025

  • →
  • ✓

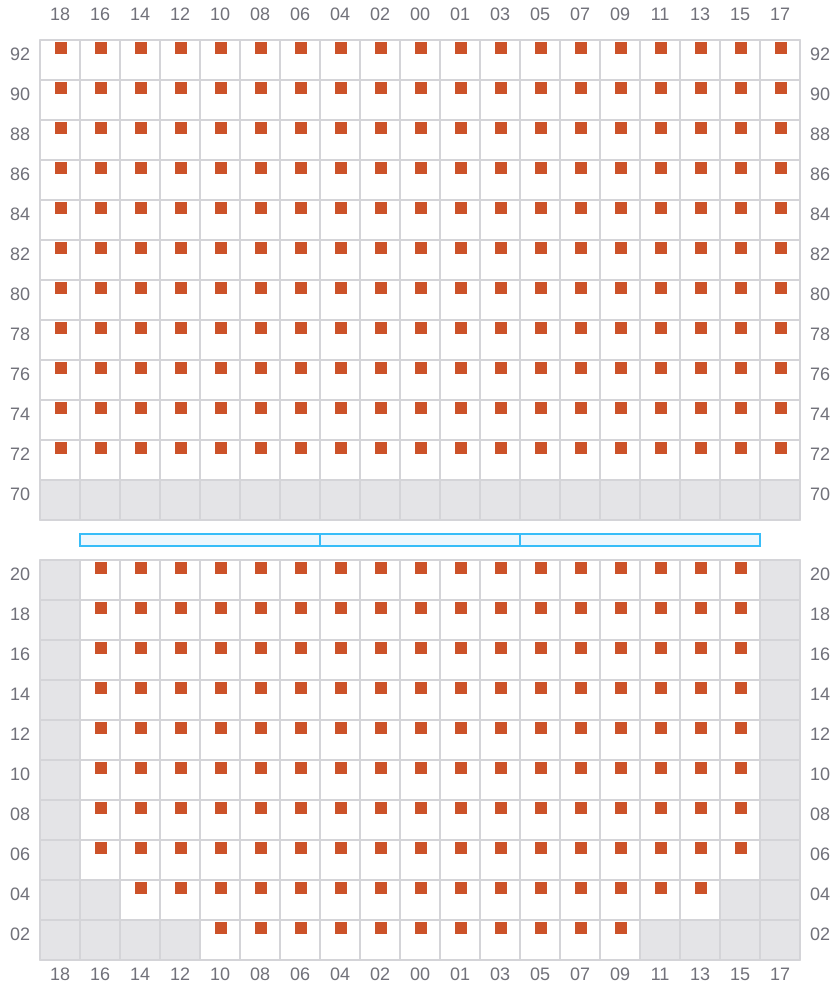

Bay 025 view and slots of YM TARGET

027 (026)

  • ←
  • ✓
Bay 027 view and slots of YM TARGET

029

  • →
  • ✓
Bay 029 view and slots of YM TARGET

031 (030)

  • ←
  • ✓

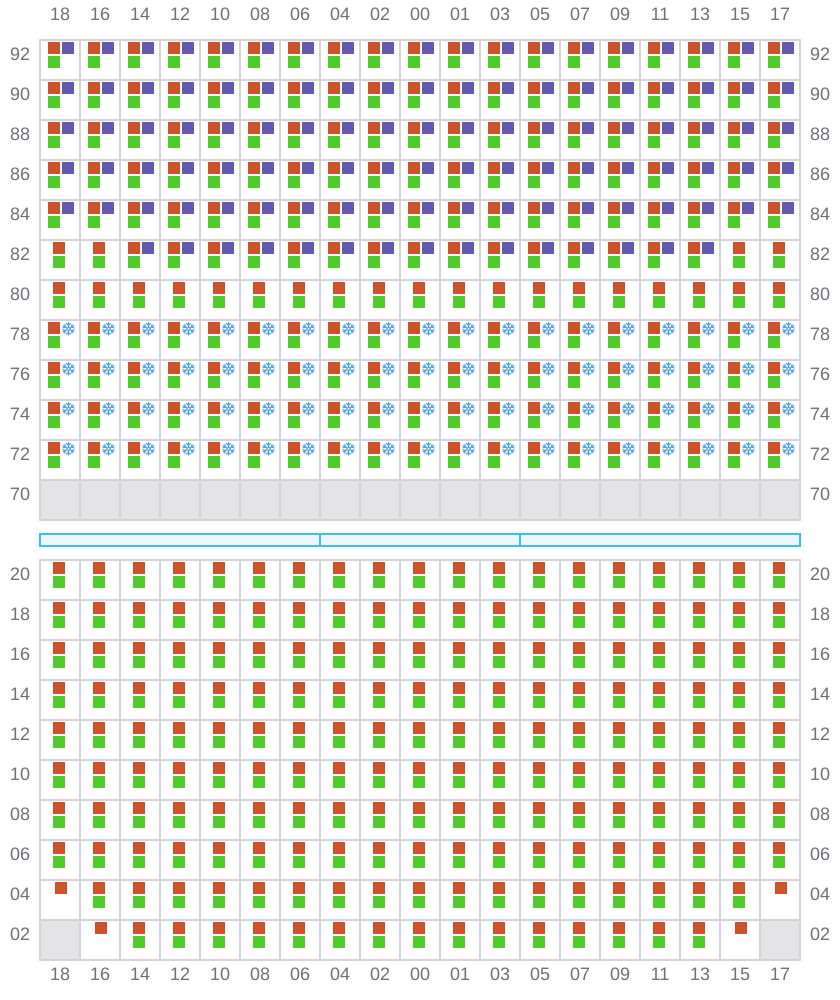

Bay 031 view and slots of YM TARGET

033

  • →
  • ✓
Bay 033 view and slots of YM TARGET

035 (034)

  • ←
  • ✓
Bay 035 view and slots of YM TARGET

037

  • →
  • ✓

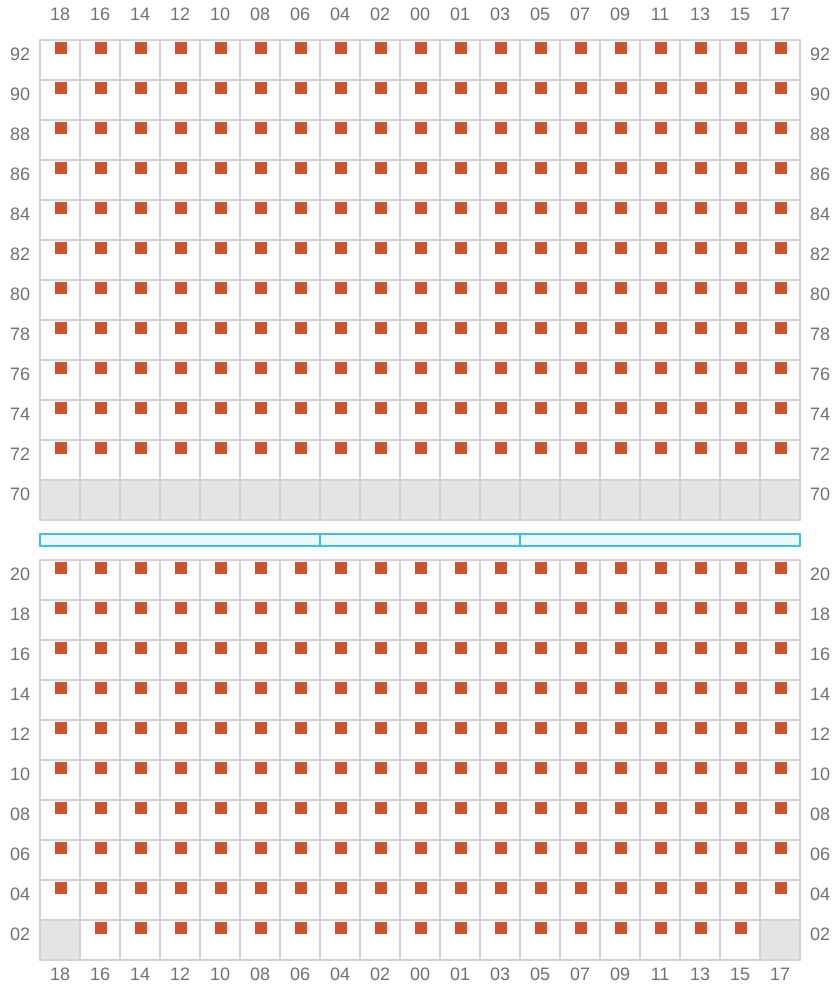

Bay 037 view and slots of YM TARGET

039 (038)

  • ←
  • ✓

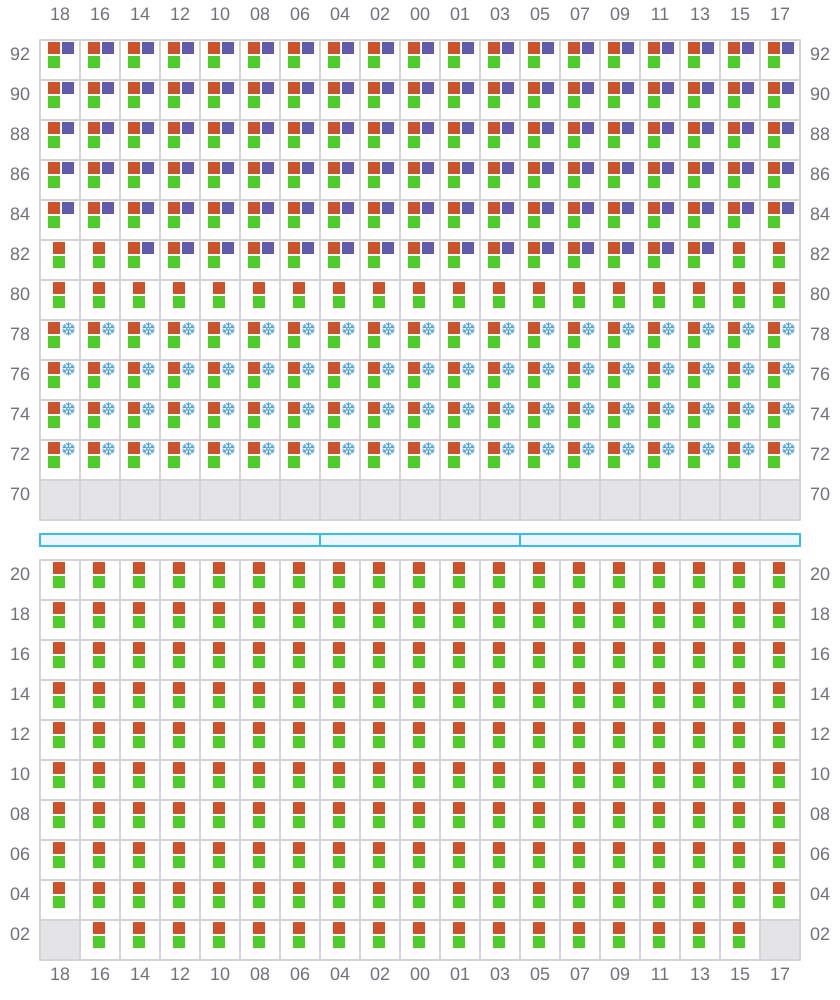

Bay 039 view and slots of YM TARGET

041

  • →
  • ✓
Bay 041 view and slots of YM TARGET

043 (042)

  • ←
  • ✓
Bay 043 view and slots of YM TARGET

045

  • →
  • ✓
Bay 045 view and slots of YM TARGET

047 (046)

  • ←
  • ✓
Bay 047 view and slots of YM TARGET

049

  • →
  • ✓
Bay 049 view and slots of YM TARGET

051 (050)

  • ←
  • ✓
Bay 051 view and slots of YM TARGET

053

  • →
  • ✓

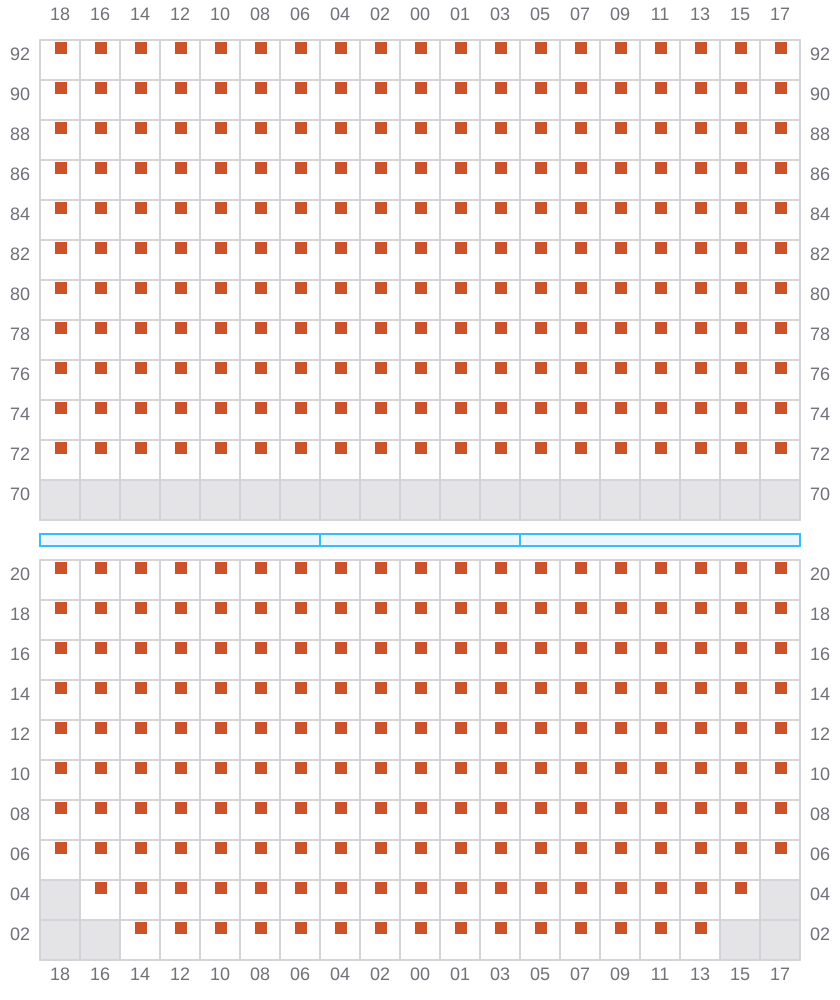

Bay 053 view and slots of YM TARGET

055 (054)

  • ←
  • ✓

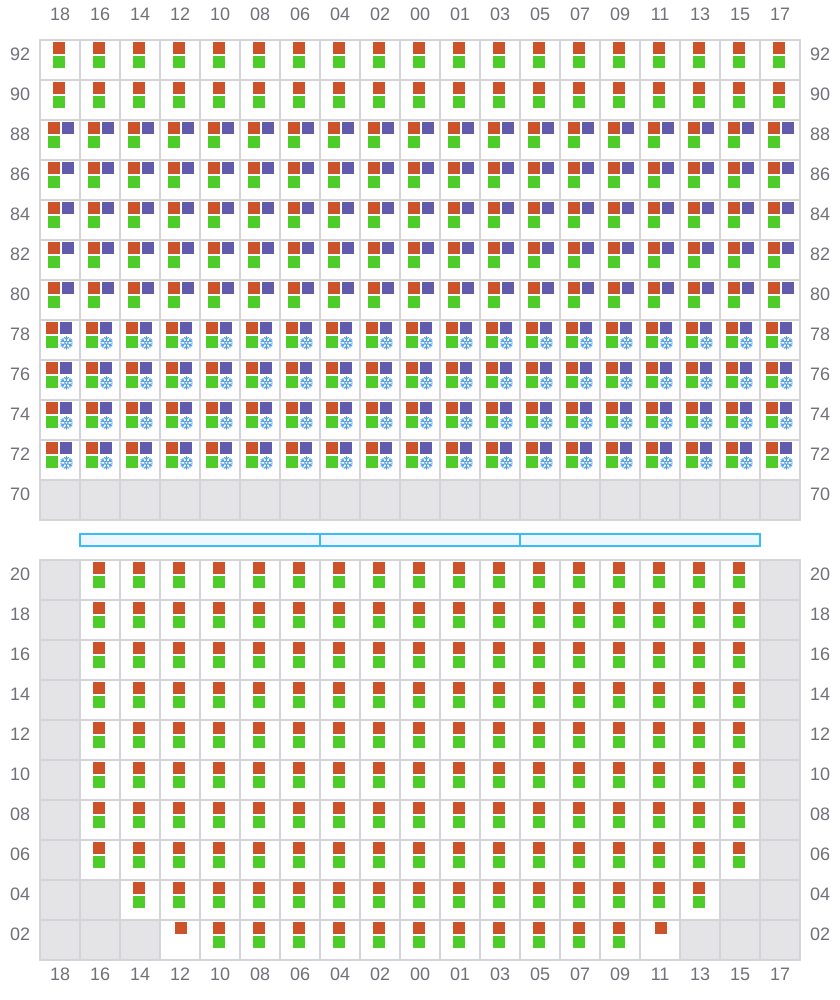

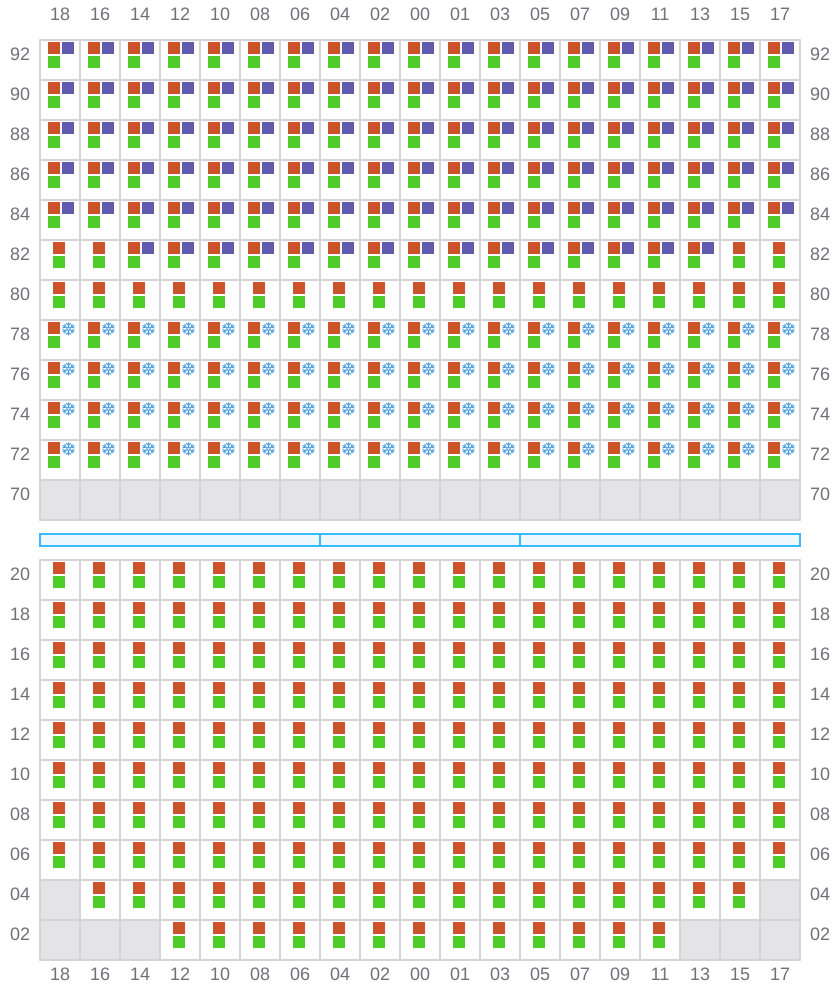

Bay 055 view and slots of YM TARGET

057

  • →
  • ✓

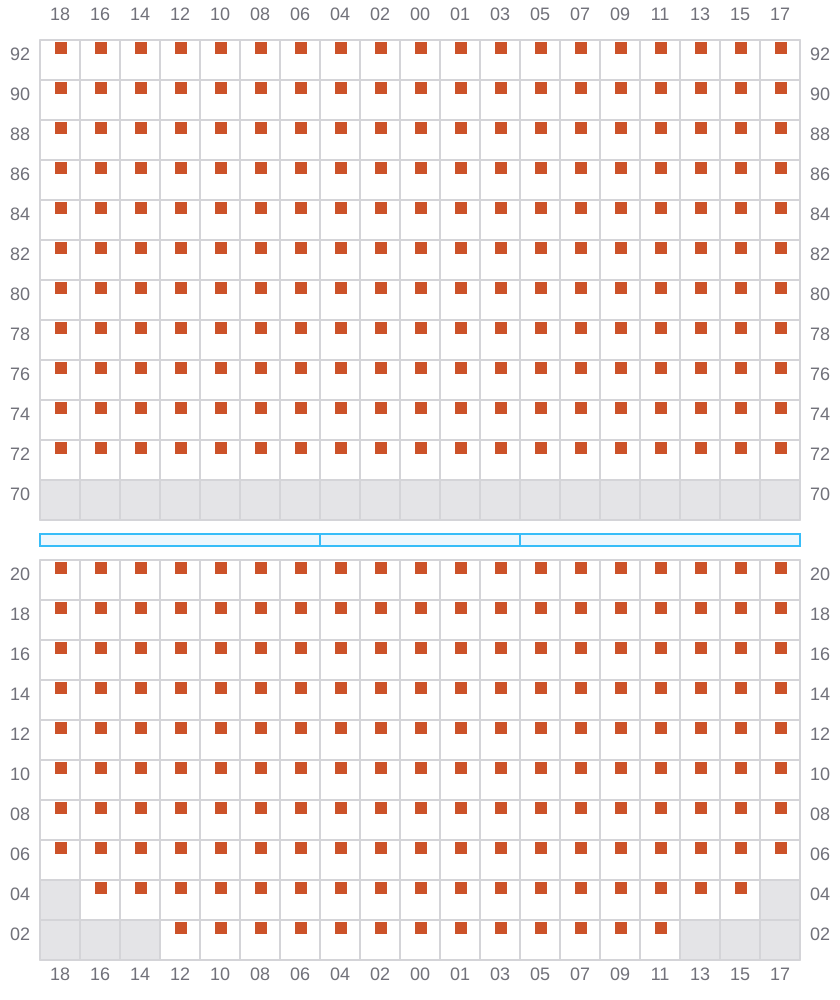

Bay 057 view and slots of YM TARGET

059 (058)

  • ←
  • ✓
Bay 059 view and slots of YM TARGET

061

  • →
  • ? / ?
  • ? / ?
  • ✓
Bay 061 view and slots of YM TARGET

063 (062)

  • ←
  • ? / ?
  • ? / ?
  • ✓

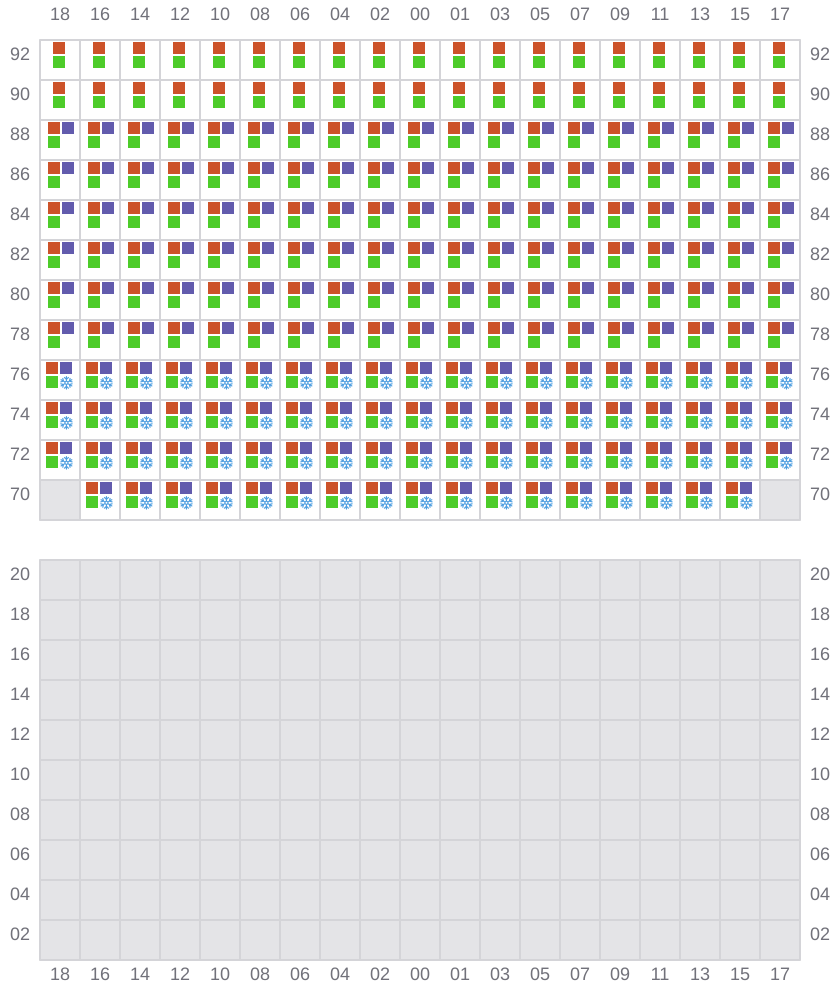

Bay 063 view and slots of YM TARGET

065

  • →
  • ✓

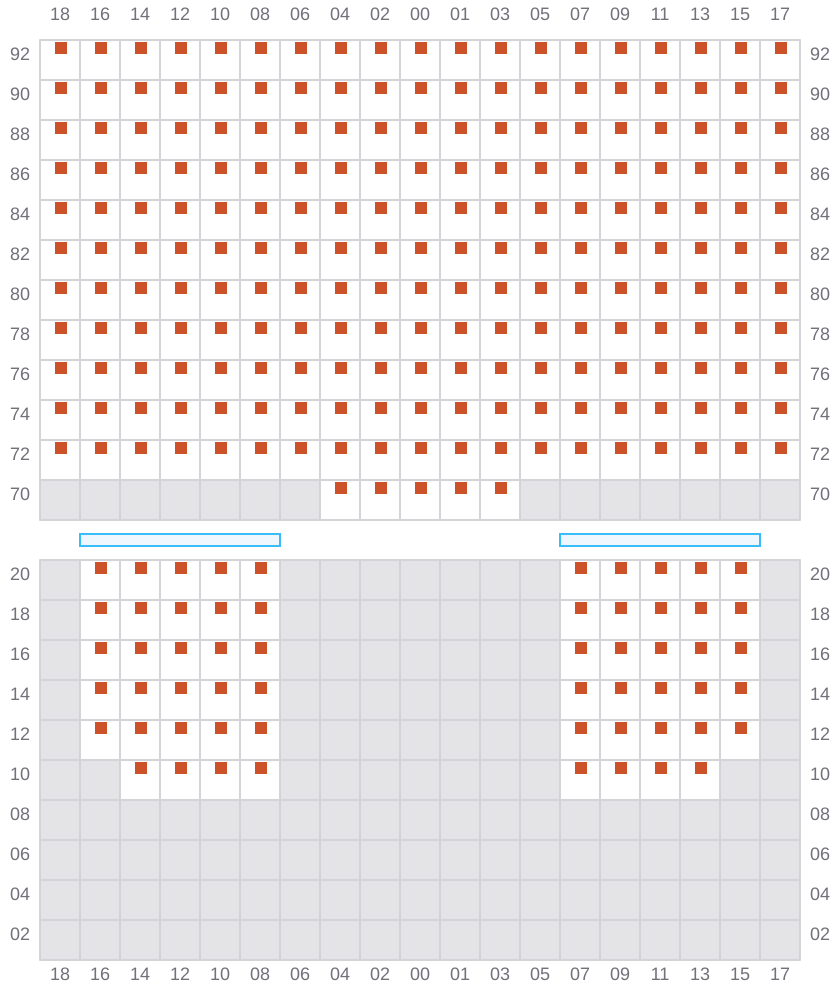

Bay 065 view and slots of YM TARGET

067 (066)

  • ←
  • ✓

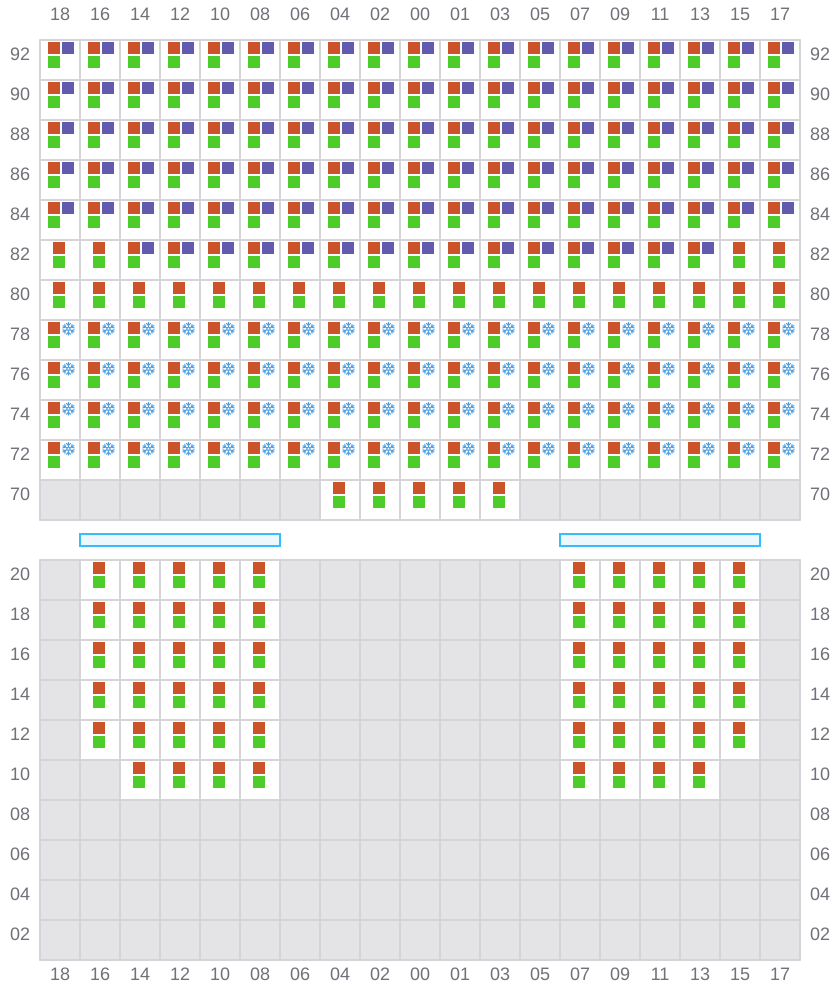

Bay 067 view and slots of YM TARGET

069

  • →
  • ✓
Bay 069 view and slots of YM TARGET

071 (070)

  • ←
  • ✓

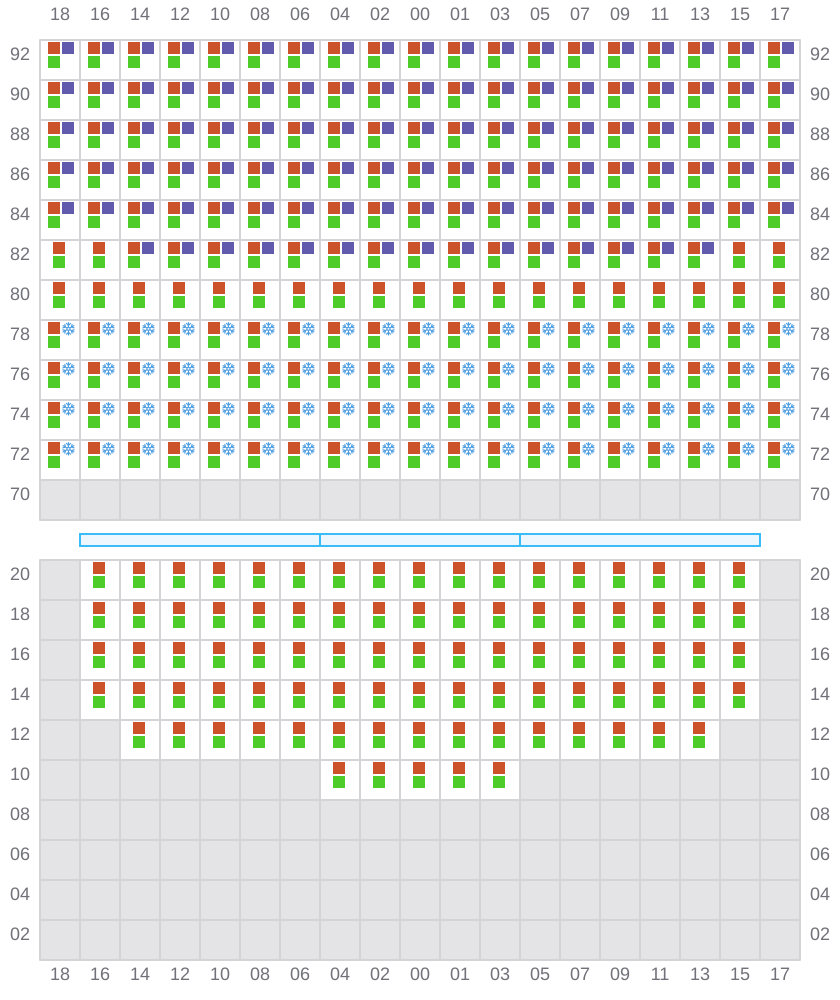

Bay 071 view and slots of YM TARGET

073

  • →
  • ✓

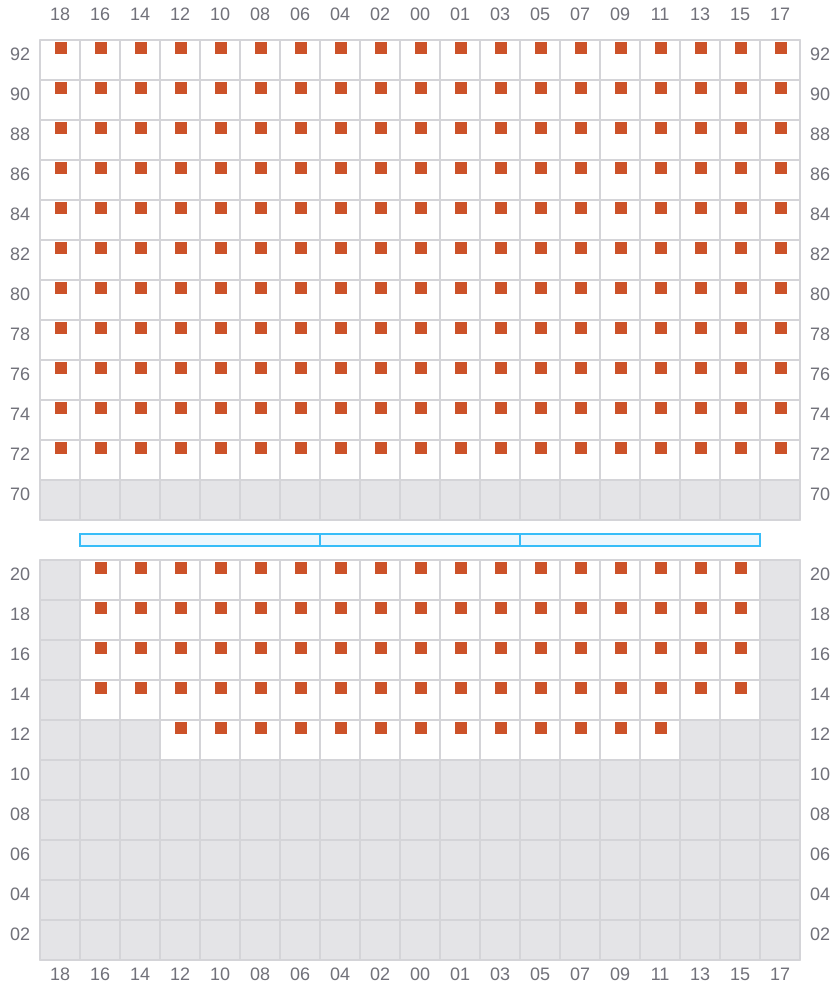

Bay 073 view and slots of YM TARGET

075 (074)

  • ←
  • ✓

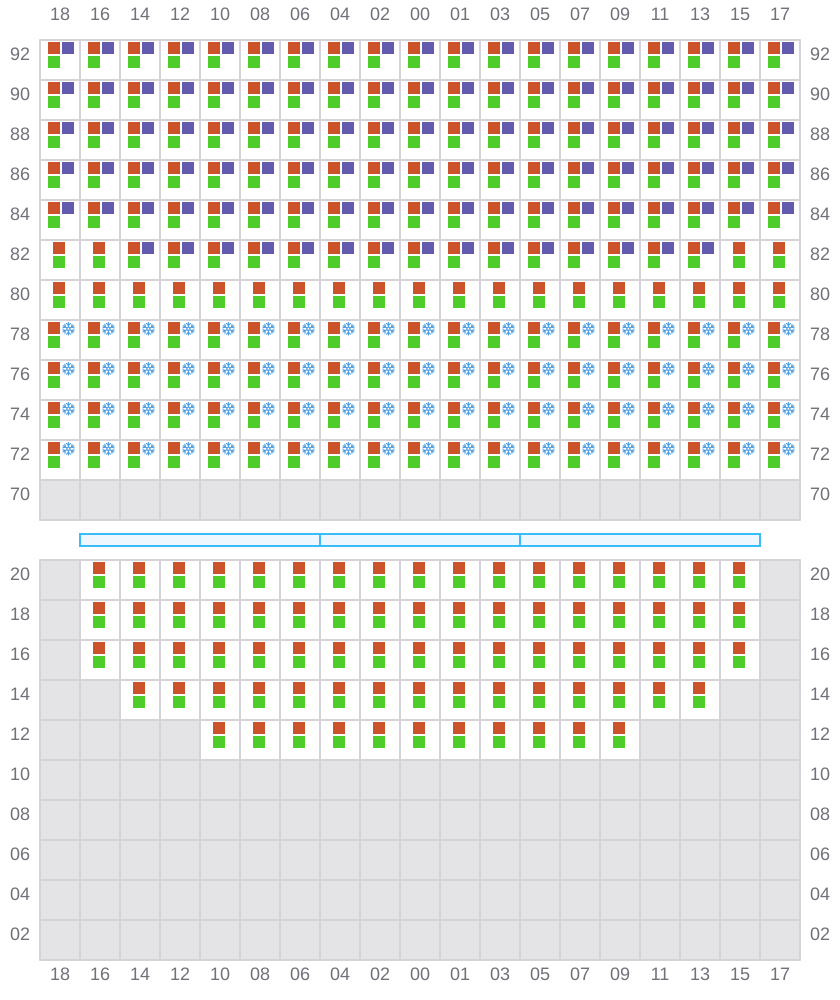

Bay 075 view and slots of YM TARGET

077

  • →
  • ? / ?
  • ? / ?
  • ✓

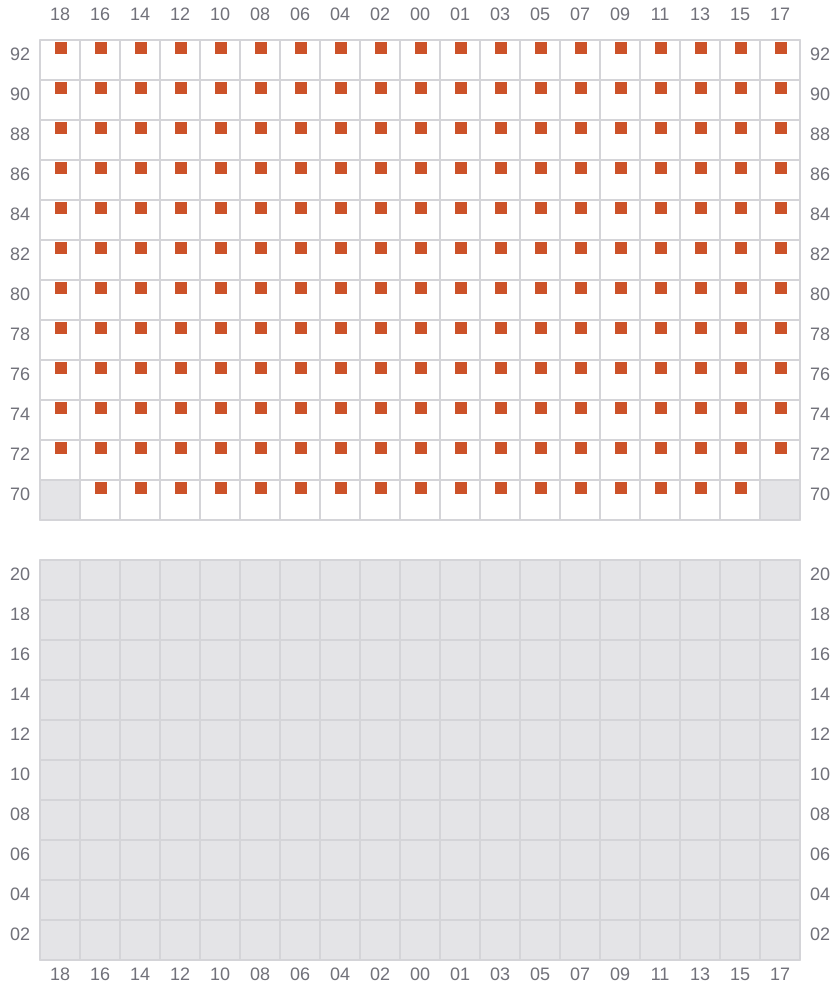

Bay 077 view and slots of YM TARGET

079 (078)

  • ←
  • ? / ?
  • ? / ?
  • ✓

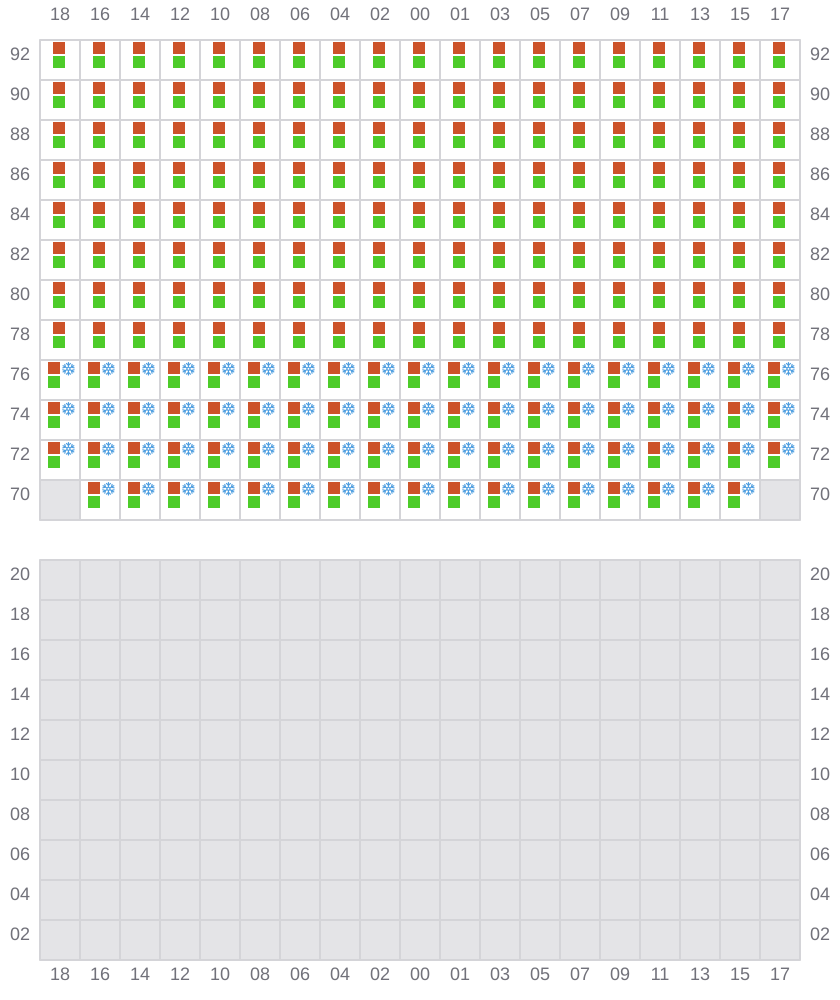

Bay 079 view and slots of YM TARGET
