YM TRAVEL
9878503 | 9V9758 | YANG MING MARINE TRANSPORT by ********** Last update: Tue Jan 06 2026
General Info
Ship Name:YM TRAVEL
IMO Code:9878503
Call Sign:9V9758
Line Operator:YANG MING MARINE TRANSPORT
Class Name for Sister Ships:
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.33
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:075
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:70
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:7,472
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

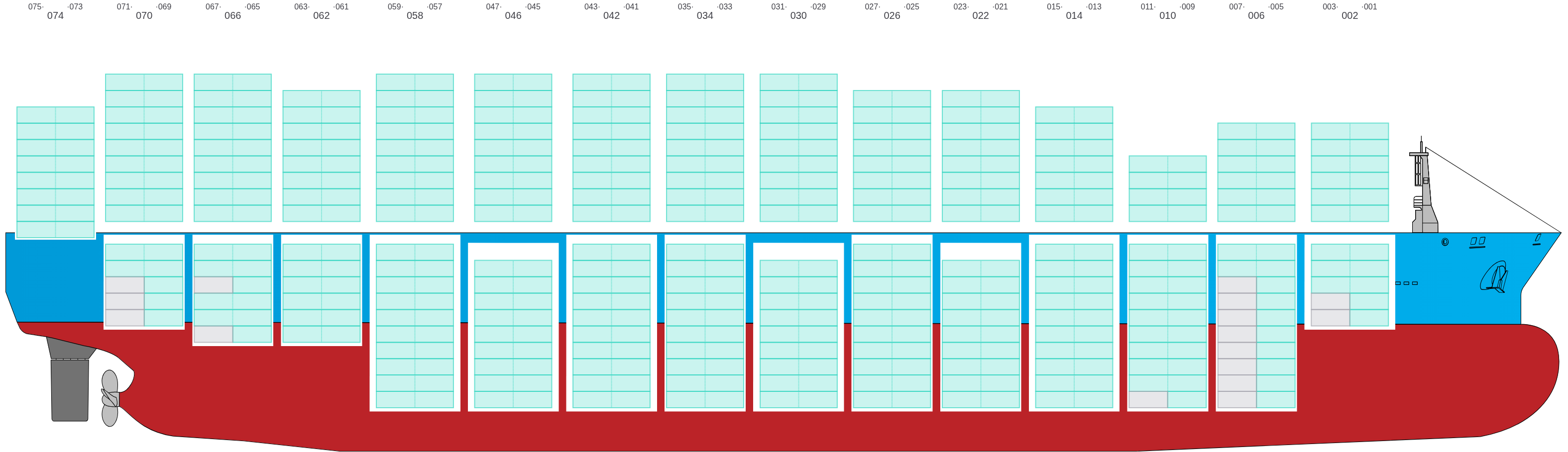

Side View

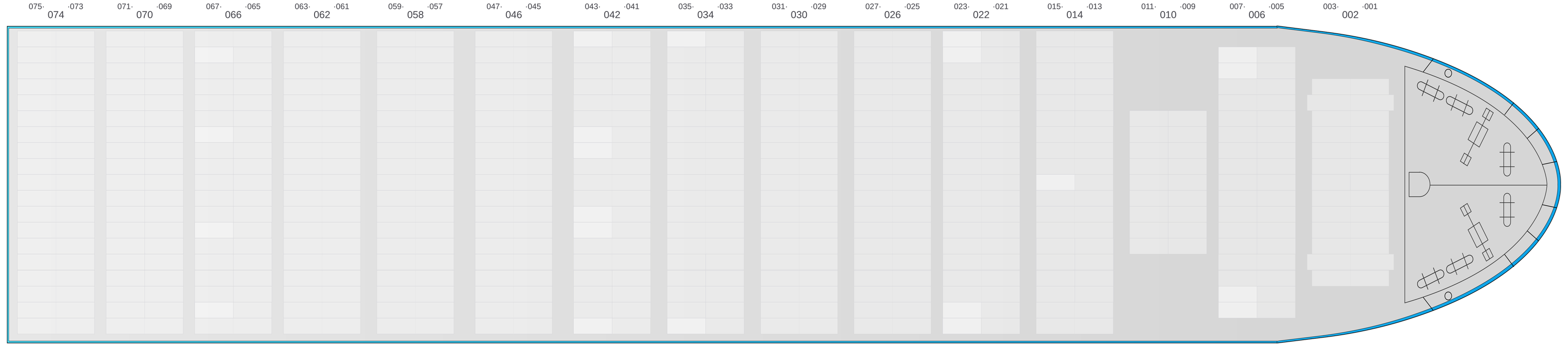

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

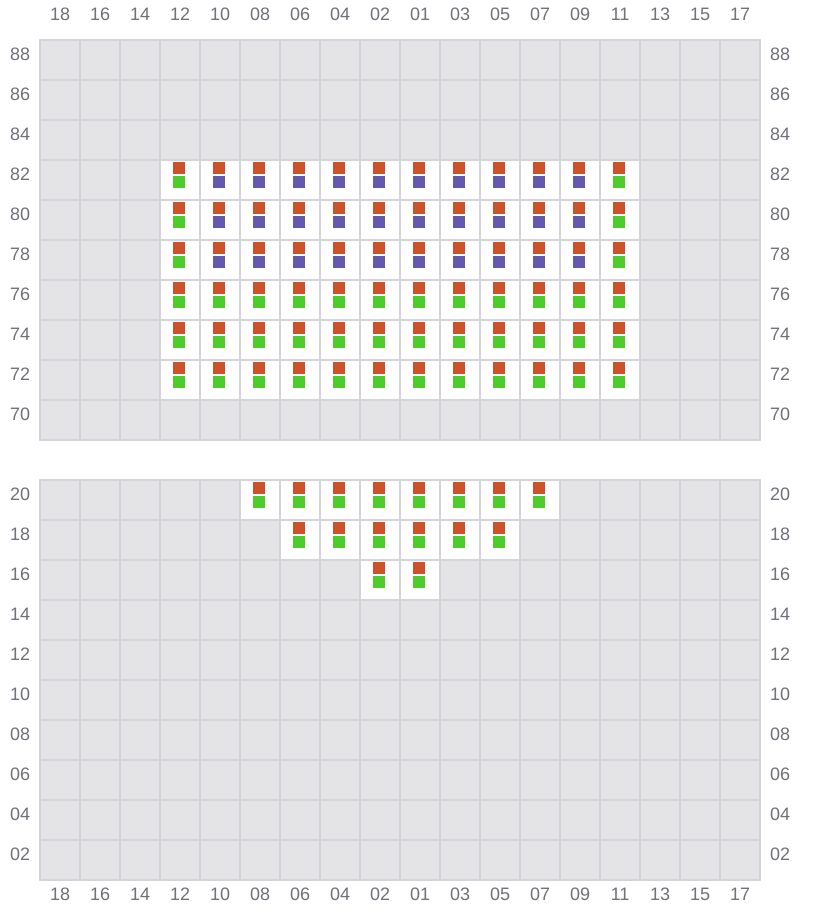

001 (002)
- →

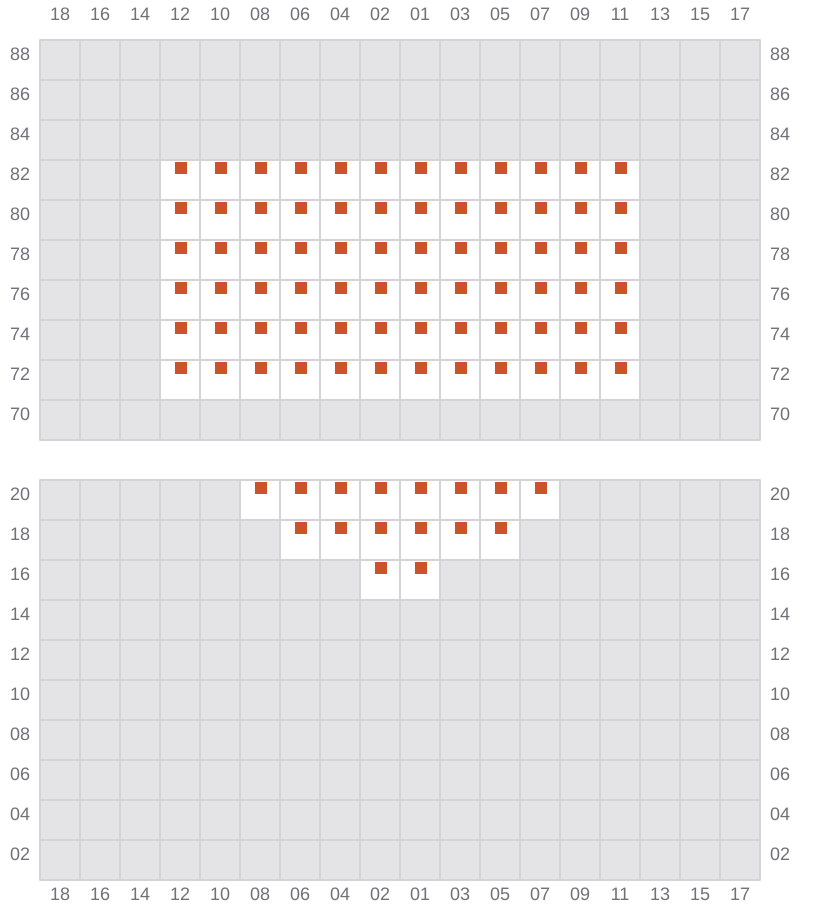

003
- ←

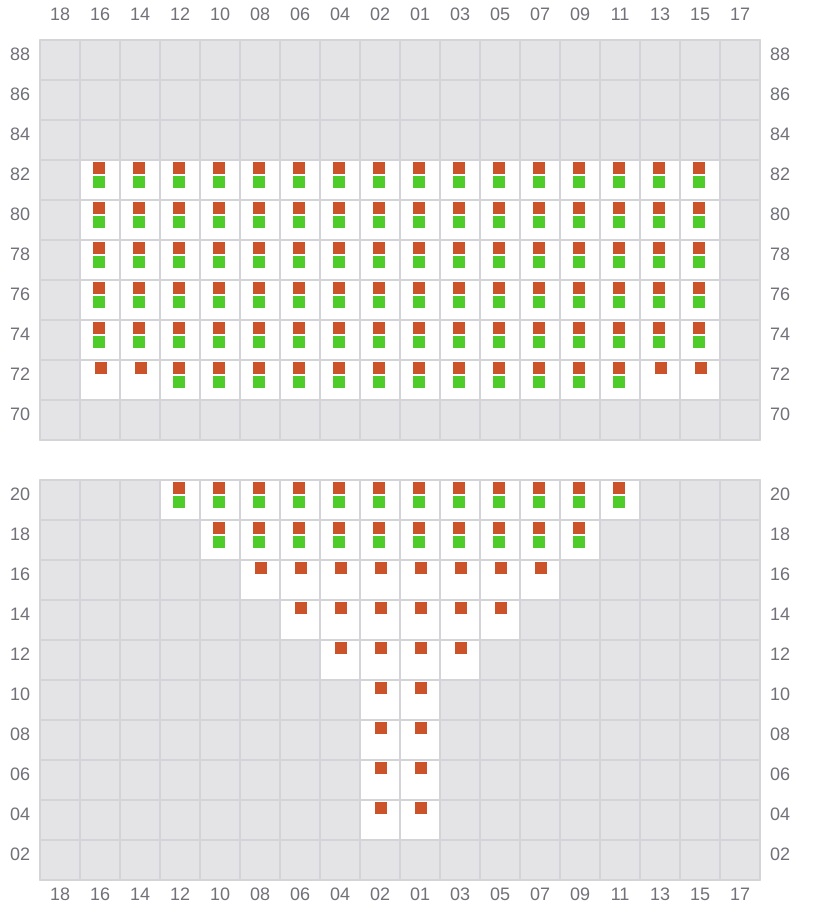

005 (006)
- →

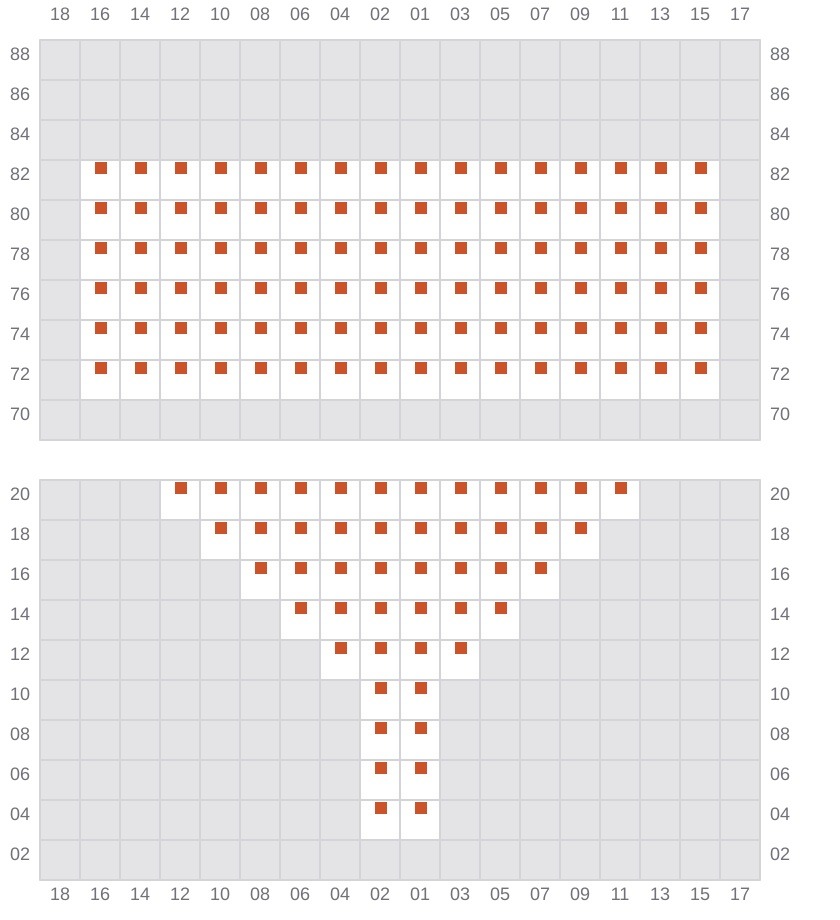

007
- ←

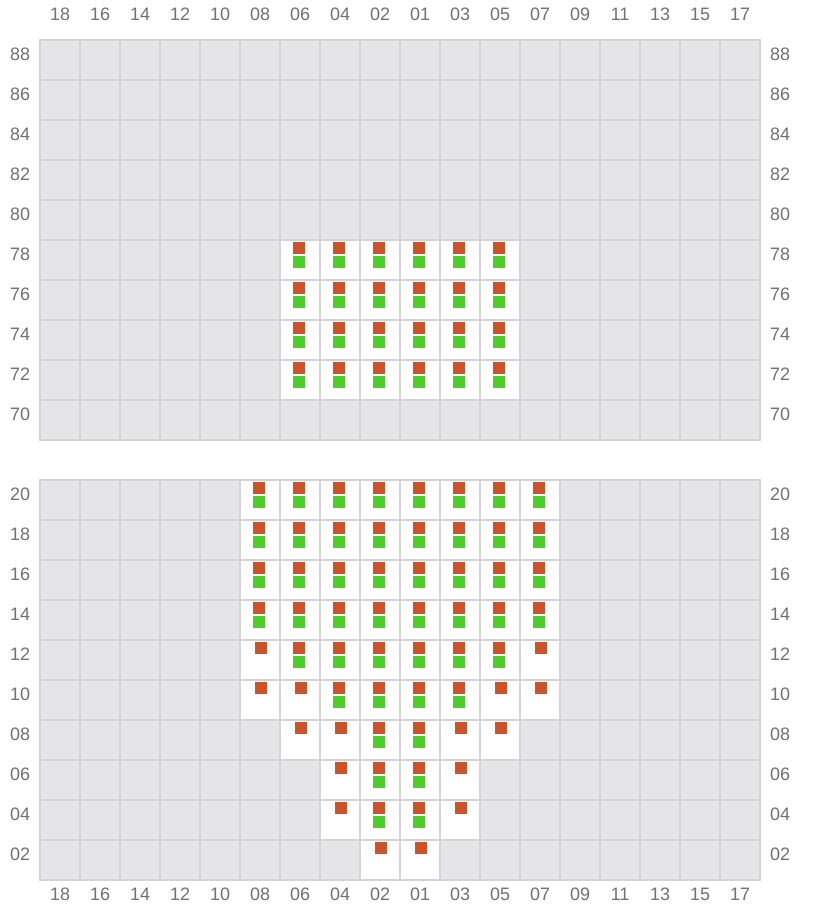

009 (010)
- →

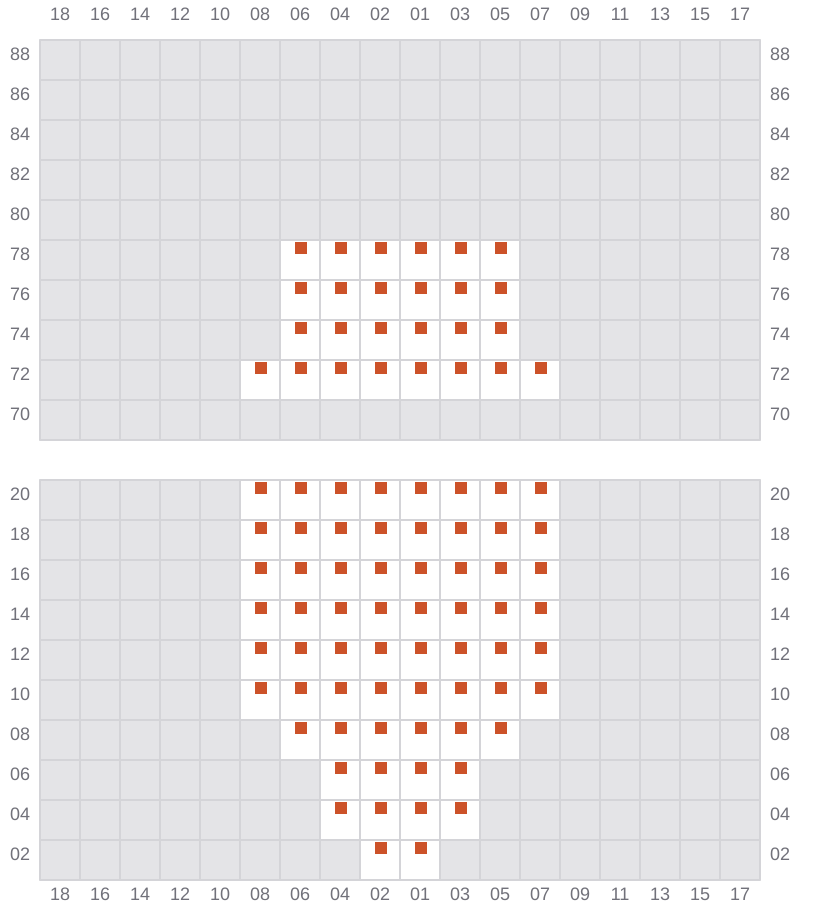

011
- ←

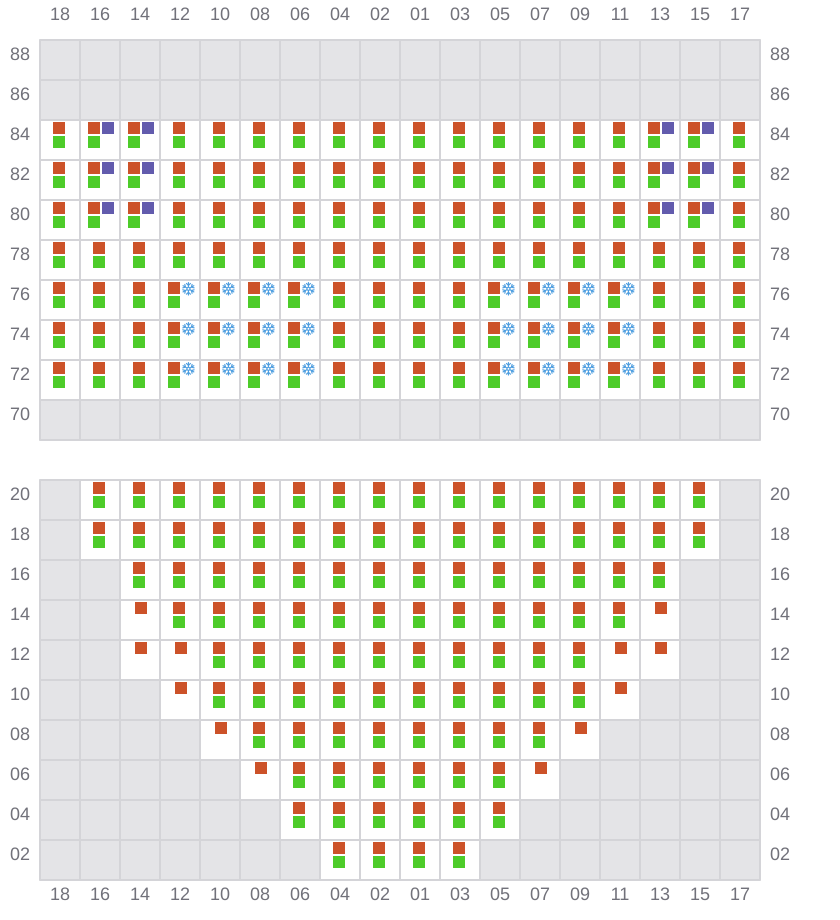

013 (014)
- →

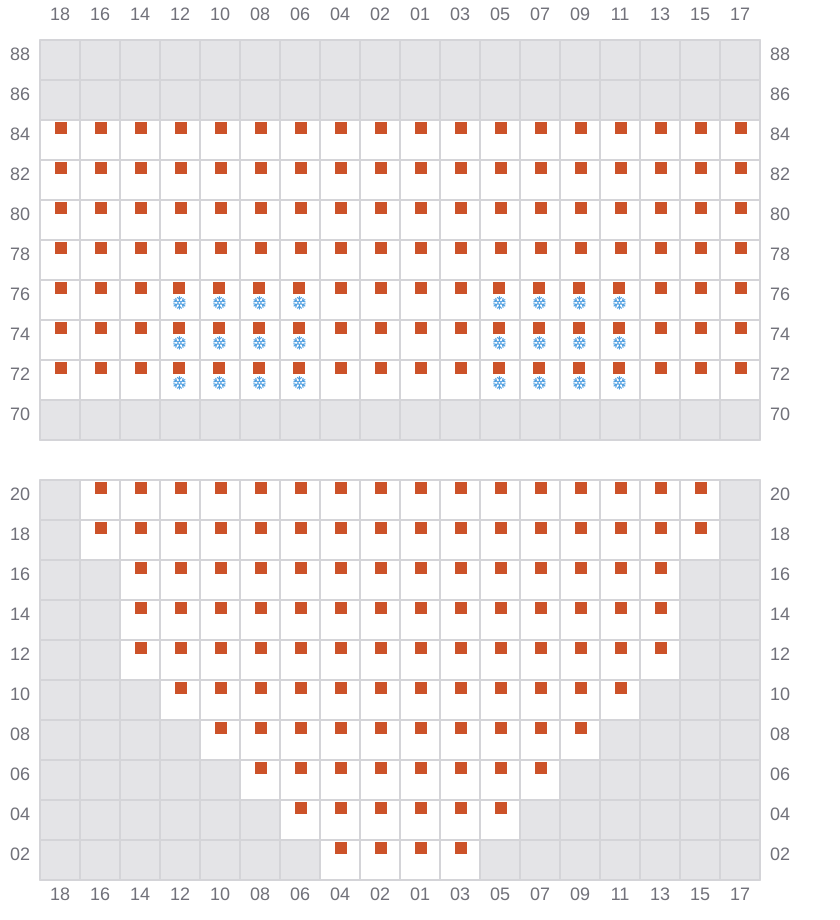

015
- ←

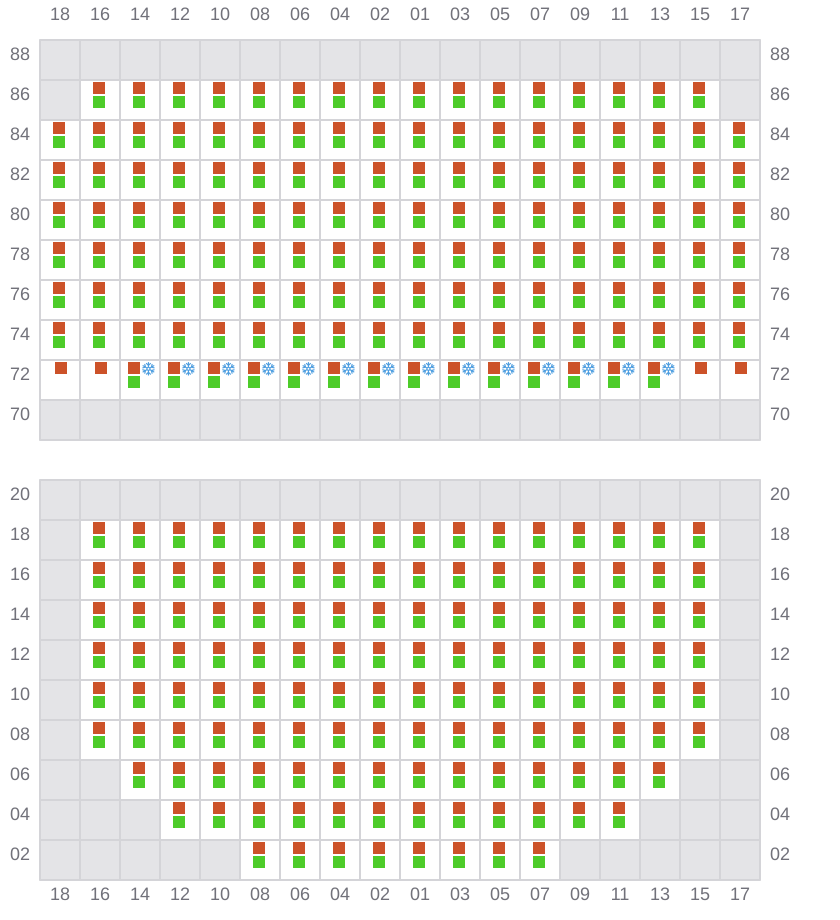

021 (022)
- →

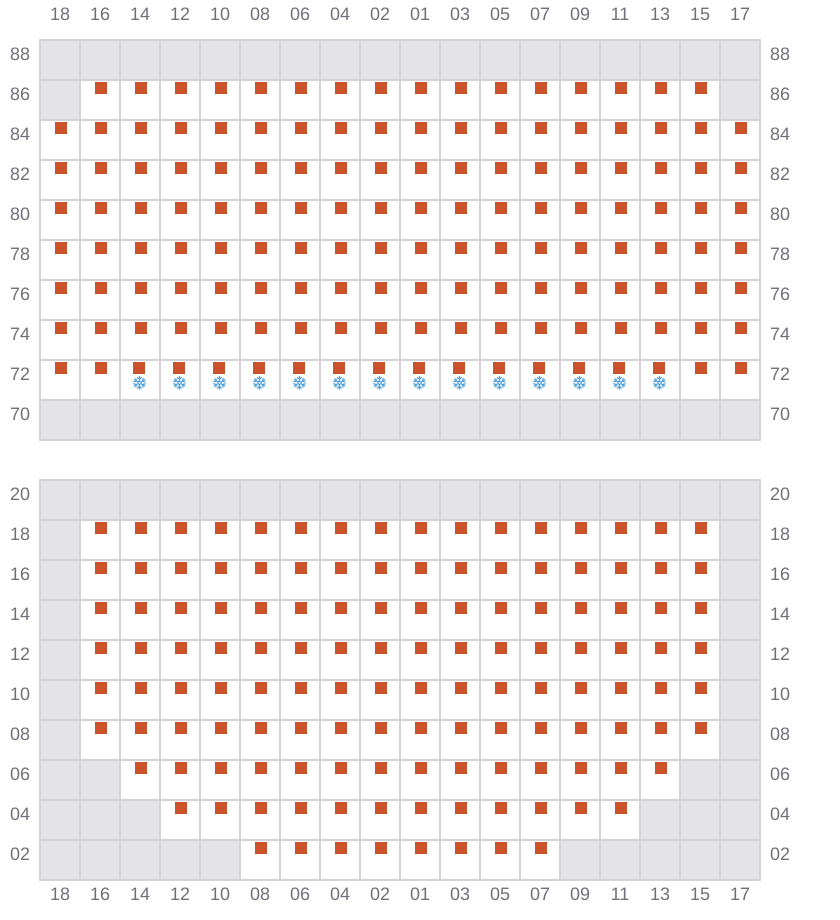

023
- ←

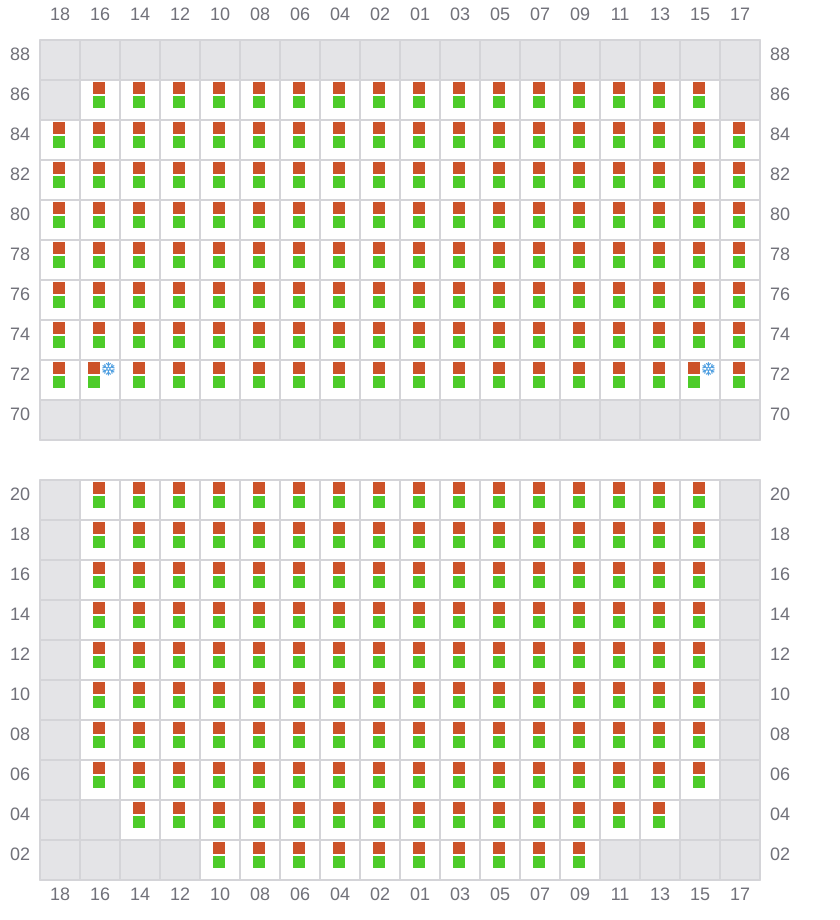

025 (026)
- →
027
- ←
029 (030)
- →

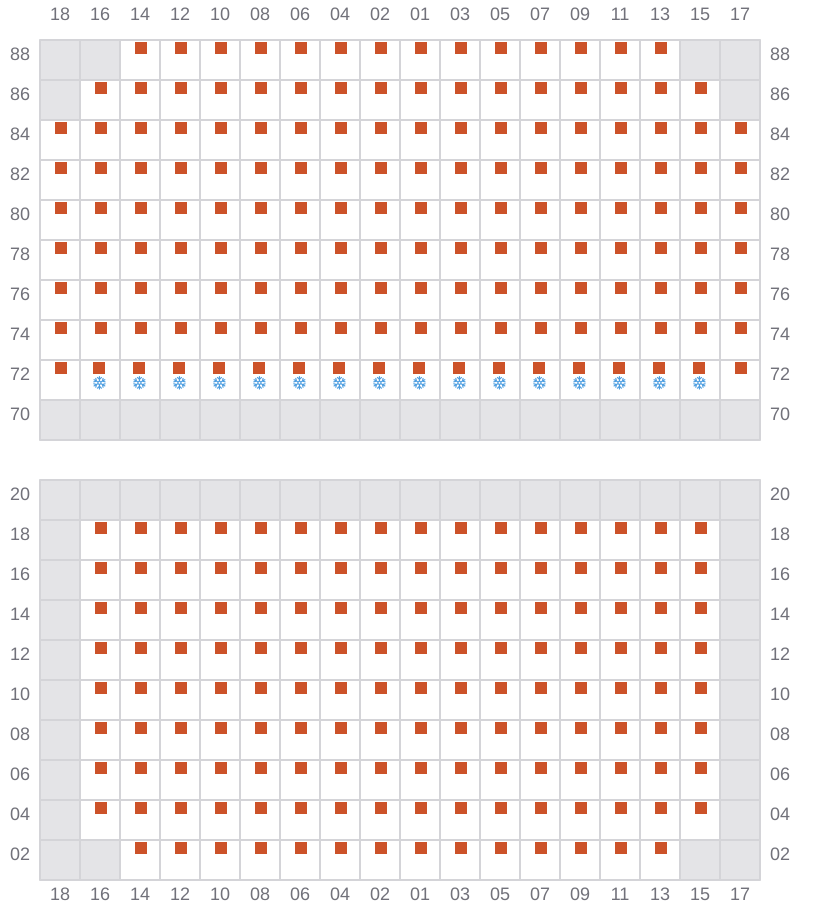

031
- ←

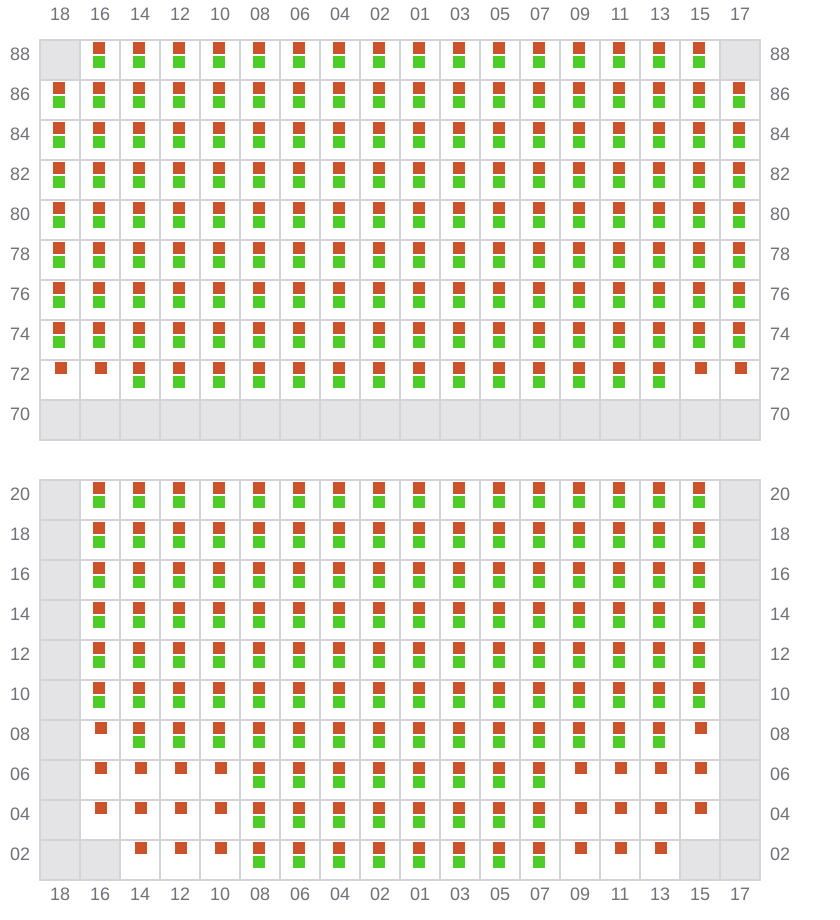

033 (034)
- →

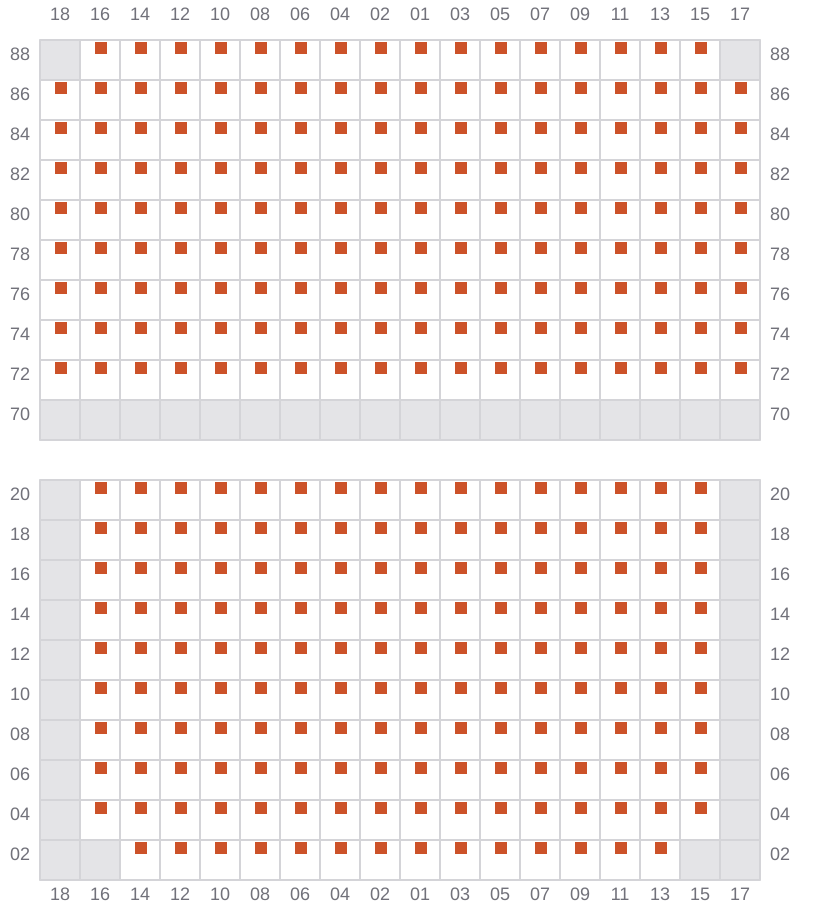

035
- ←

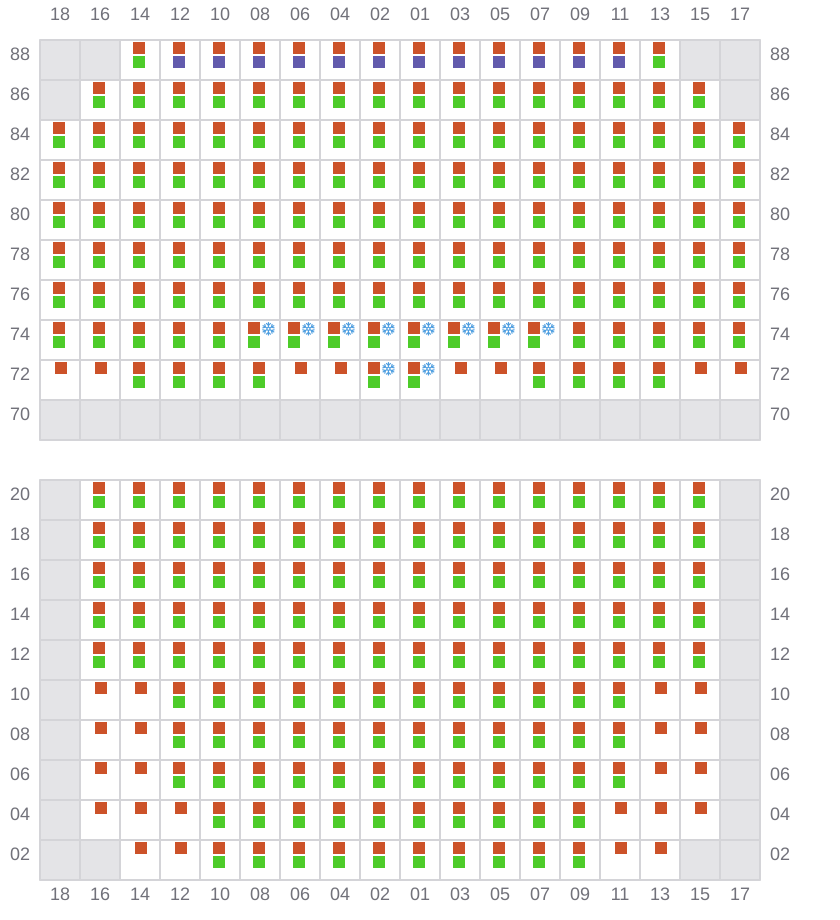

041 (042)
- →

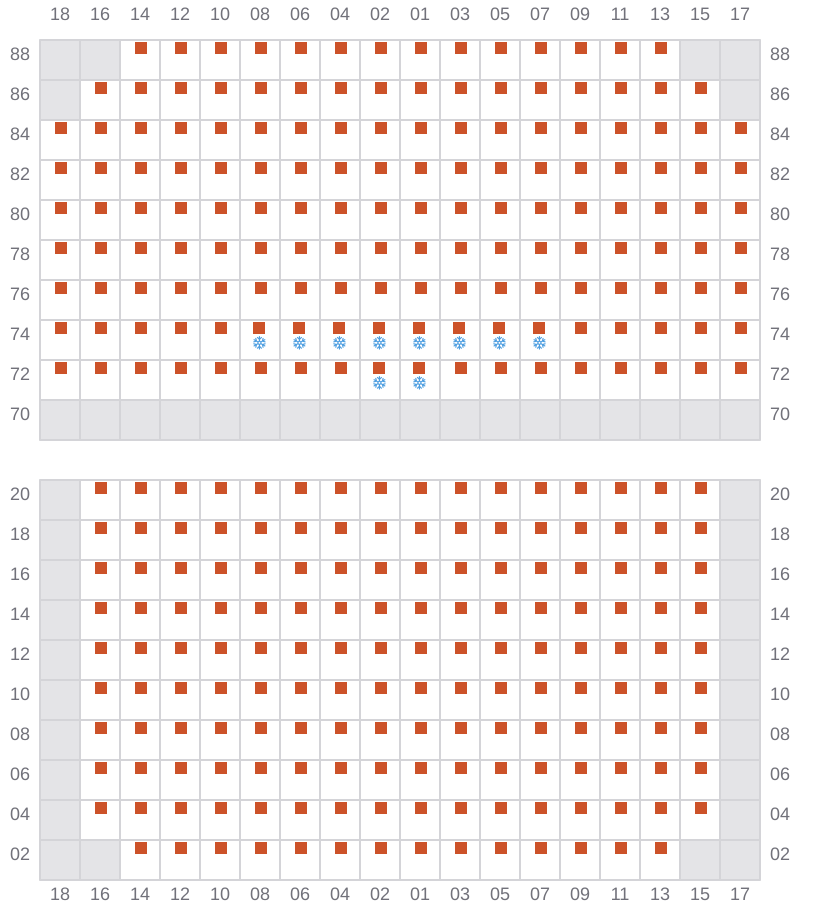

043
- ←

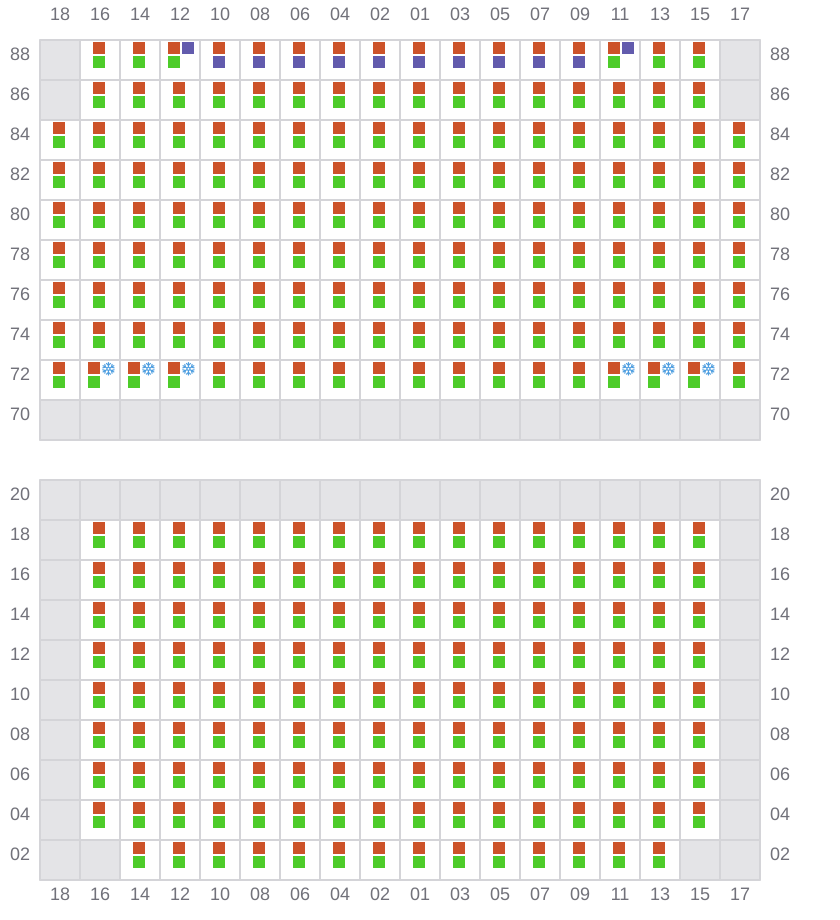

045 (046)
- →
047
- ←

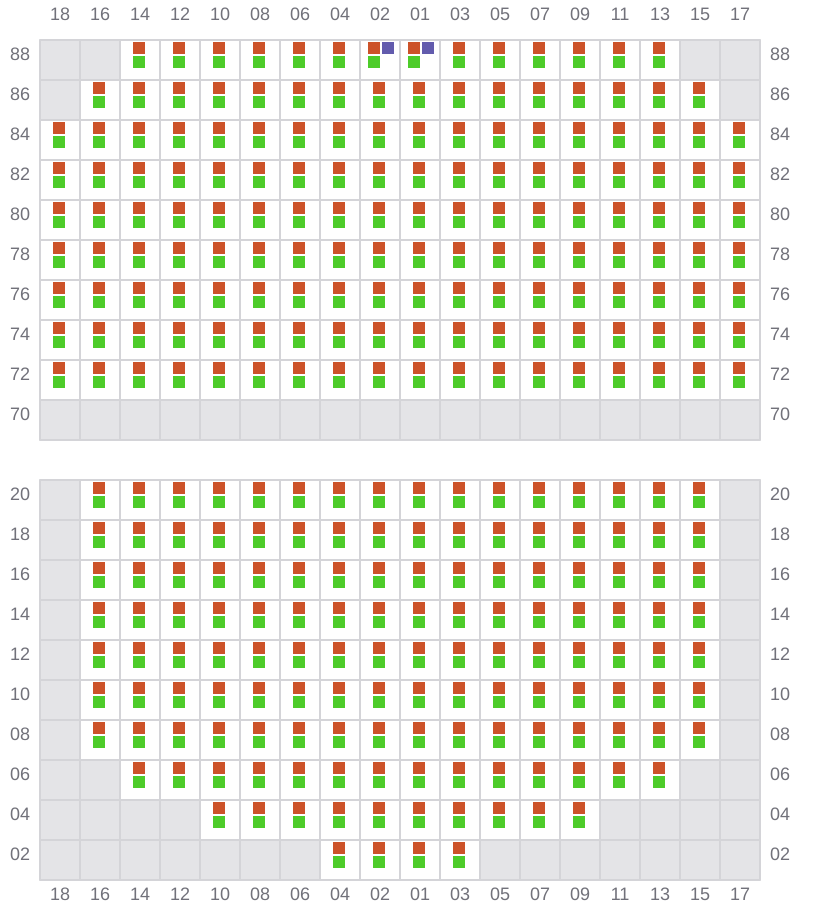

057 (058)
- →

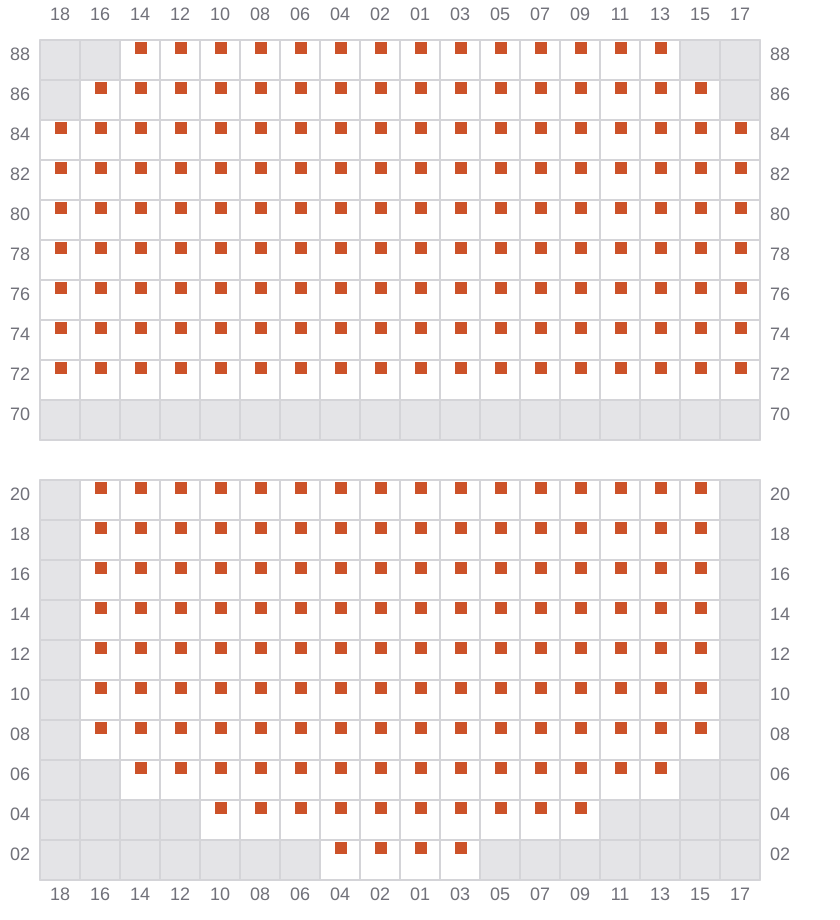

059
- ←

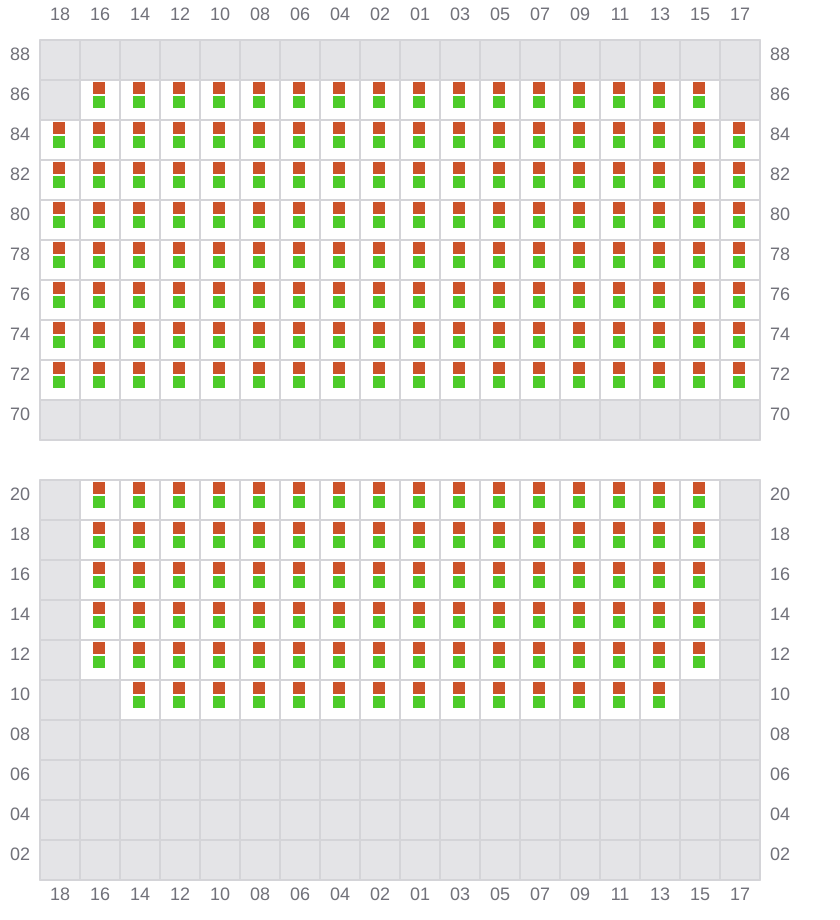

061 (062)
- →

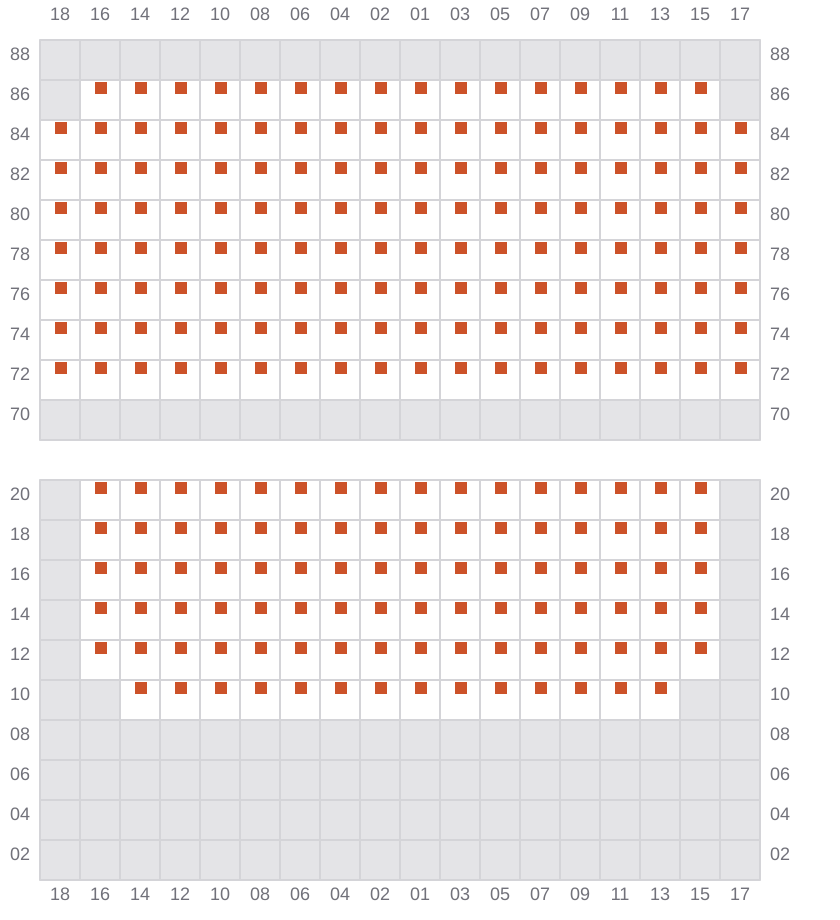

063
- ←

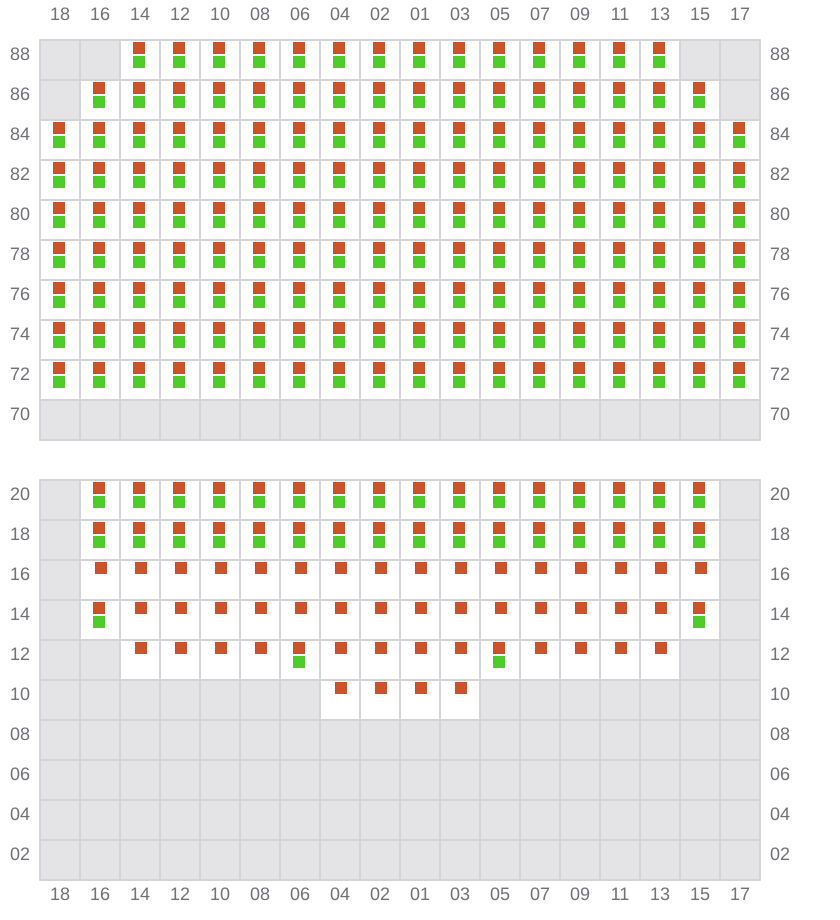

065 (066)
- →

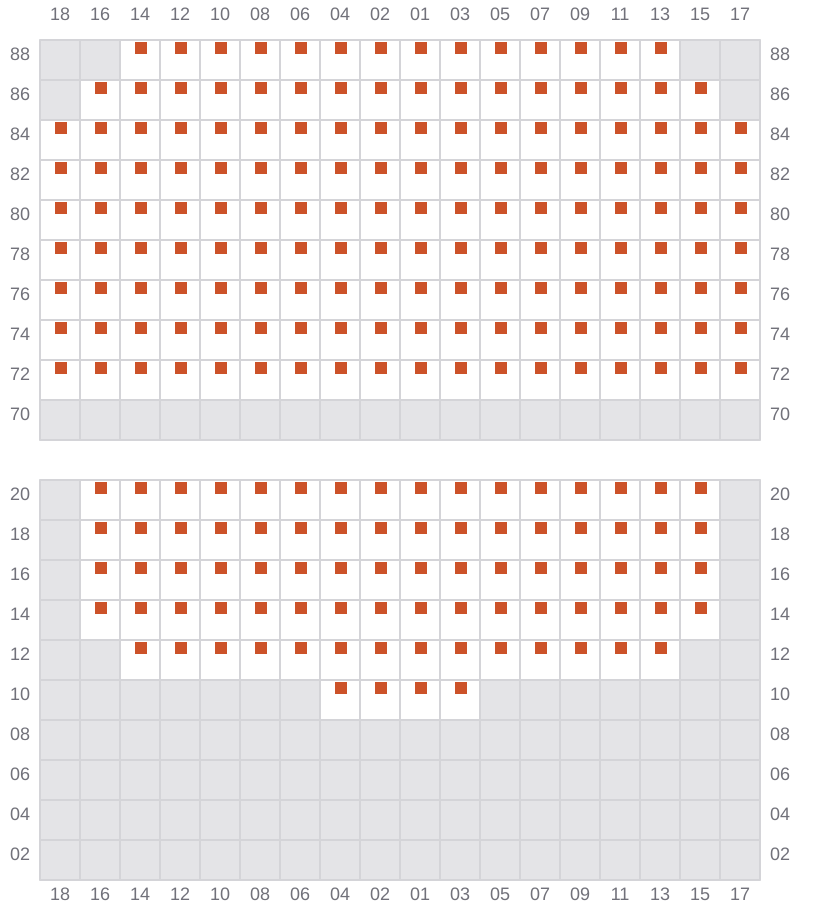

067
- ←

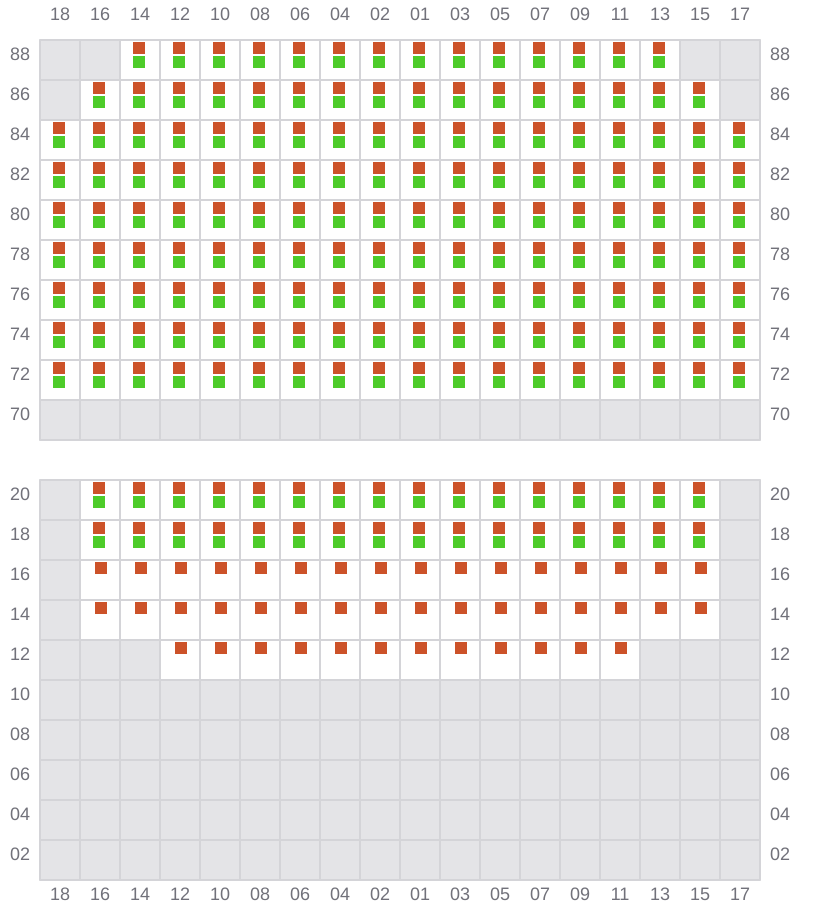

069 (070)
- →

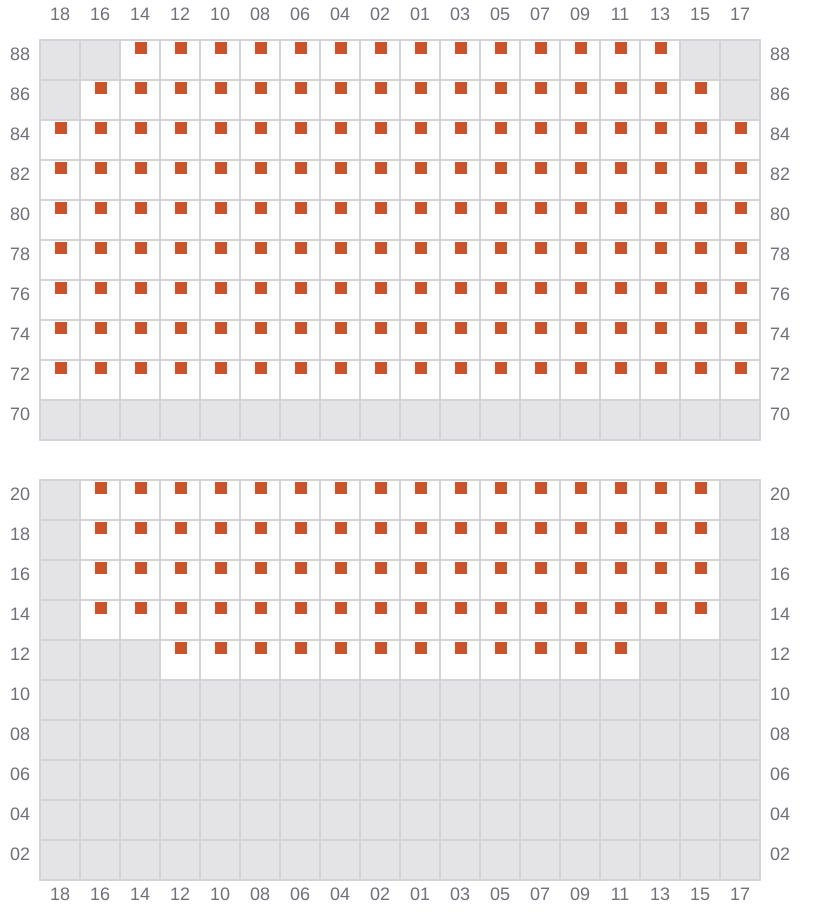

071
- ←

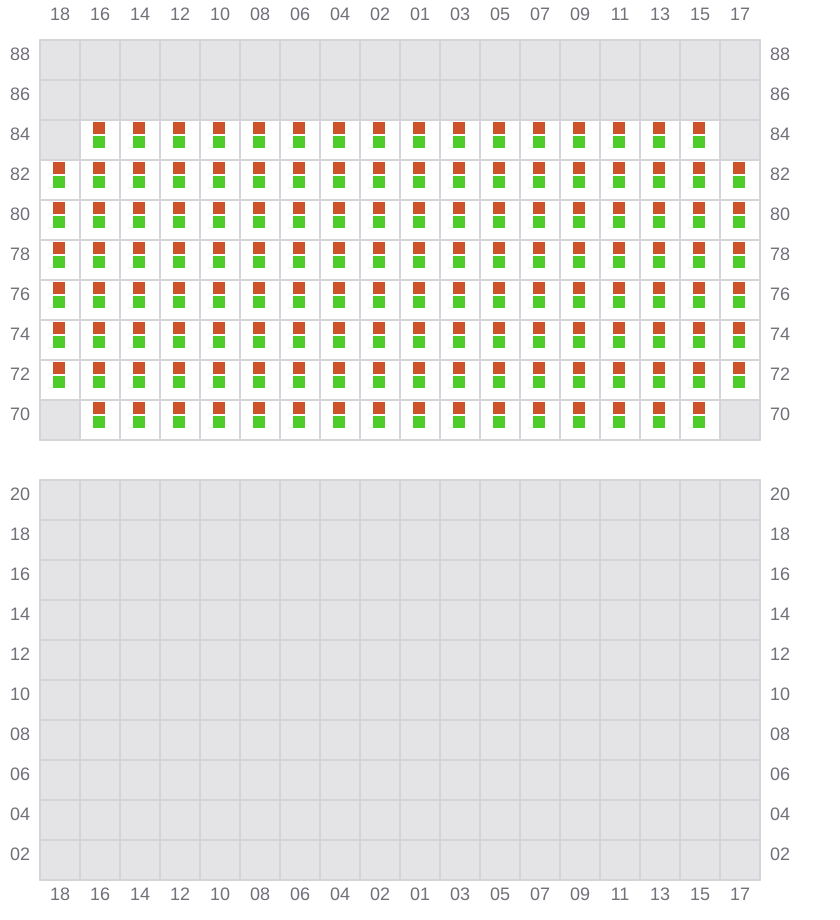

073 (074)
- → /

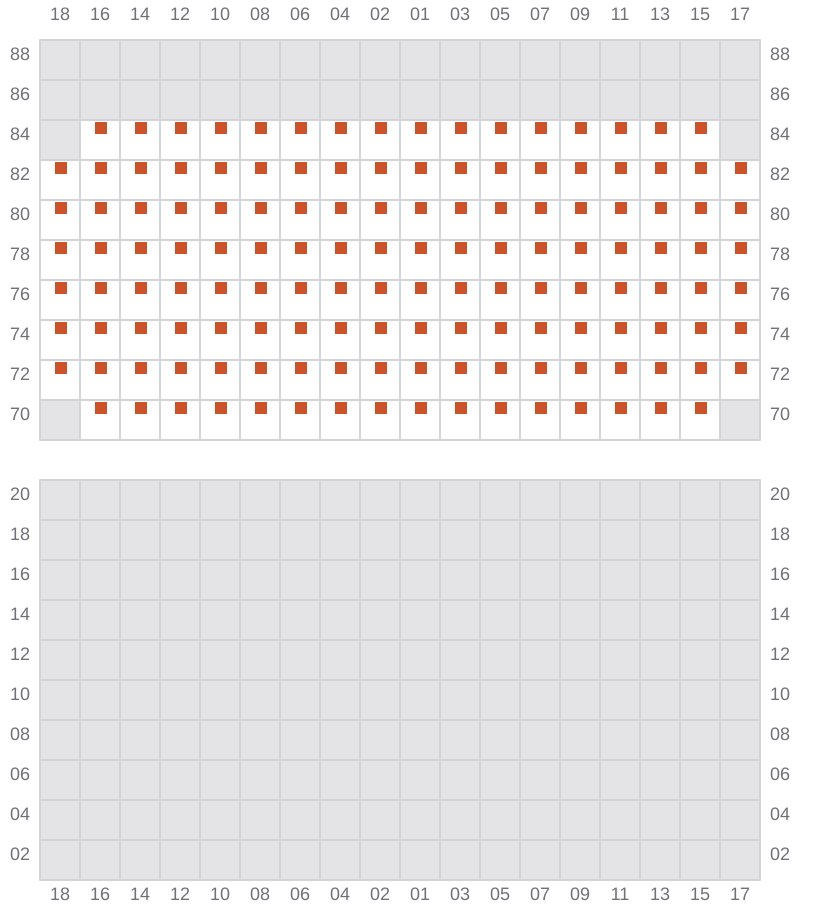

075
- ← /
