YM UNICORN
9462732 | BLHI | YANG MING MARINE TRANSPORT by ********************* Last update: Mon Feb 17 2025

General Info

Ship Name:YM UNICORN
IMO Code:9462732
Call Sign:BLHI
Line Operator:YANG MING MARINE TRANSPORT
Class Name for Sister Ships:CR
Year Built:2013
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):318.20
LOA (Length Overall):333.20
Stern to AFT PP:91.85
Features Informed:Standard
Also Known As...:-
40' Bays Location:-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,604

Centers of Gravity

LCG Values:Estimated
LCG Data:1%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

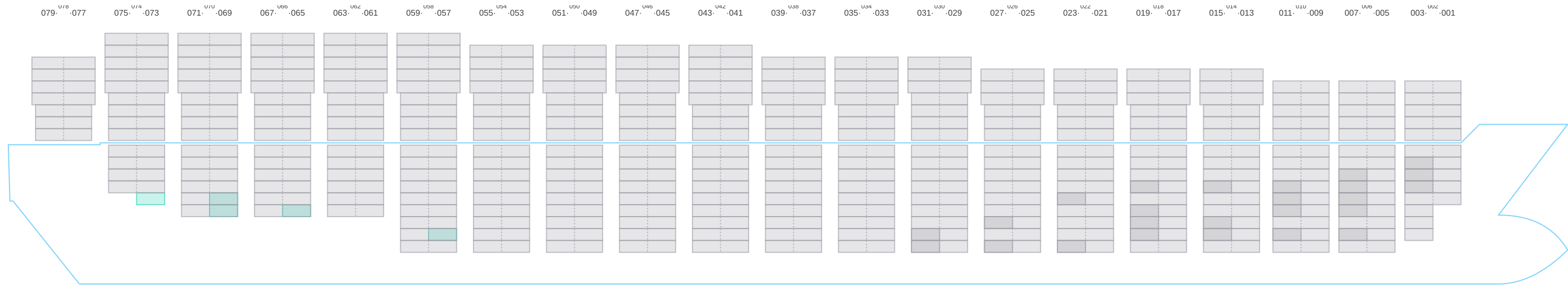

Side View

Side view of YM UNICORN

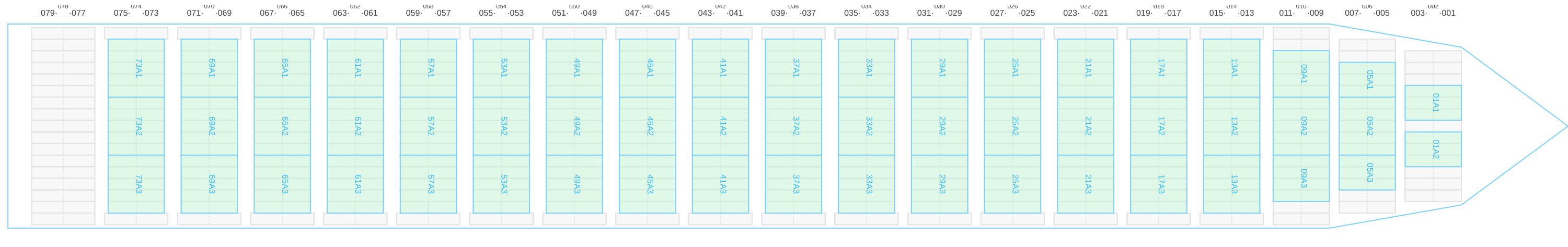

Hatch-Covers View

Deck view of YM UNICORN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

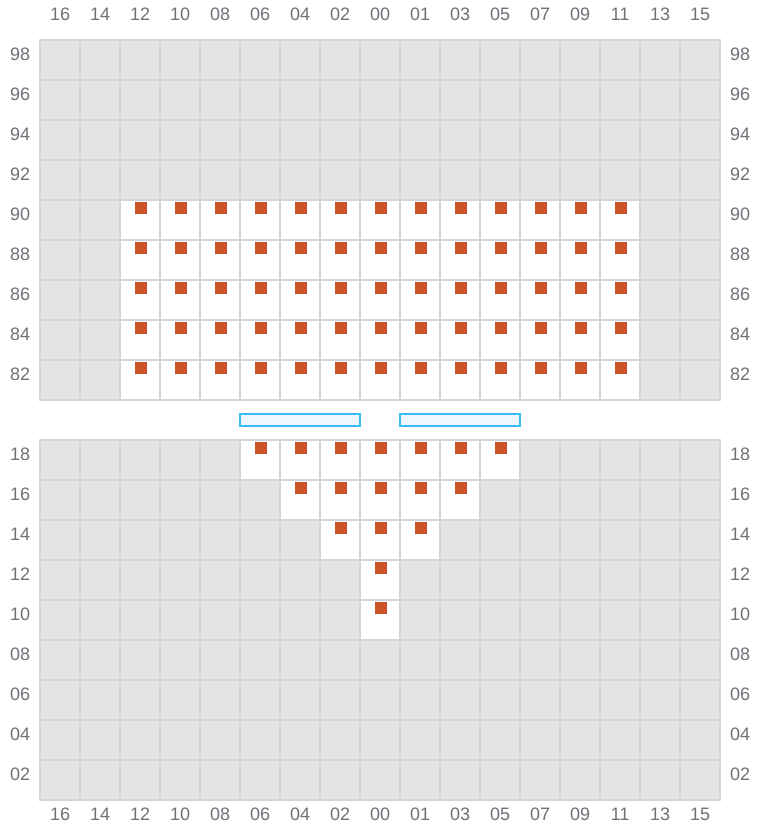

001

  • →
  • ✓
Bay 001 view and slots of YM UNICORN

003 (002)

  • ←
  • ✓
Bay 003 view and slots of YM UNICORN

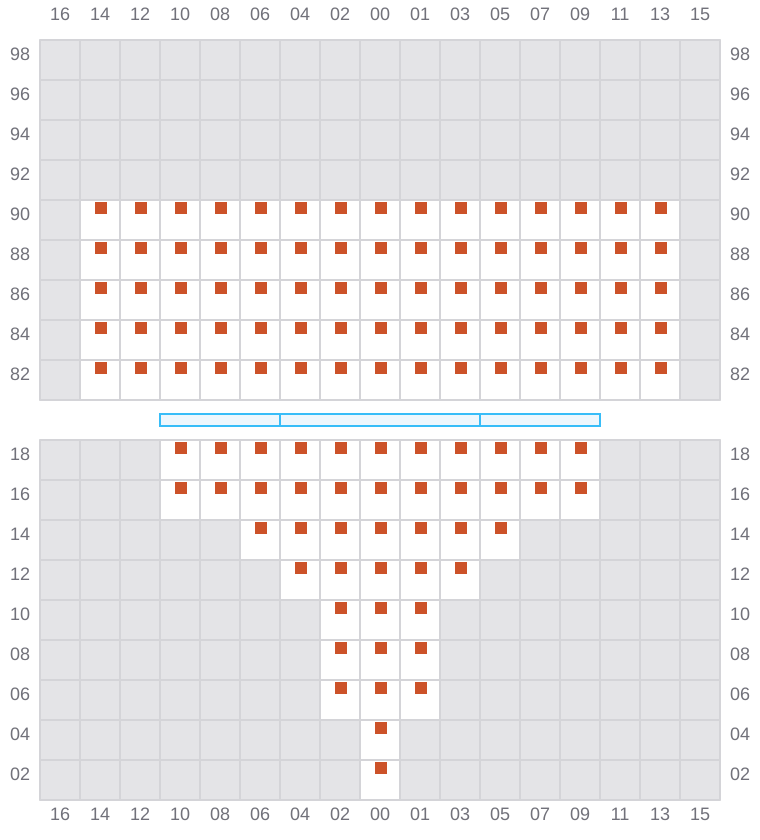

005

  • →
  • ✓
Bay 005 view and slots of YM UNICORN

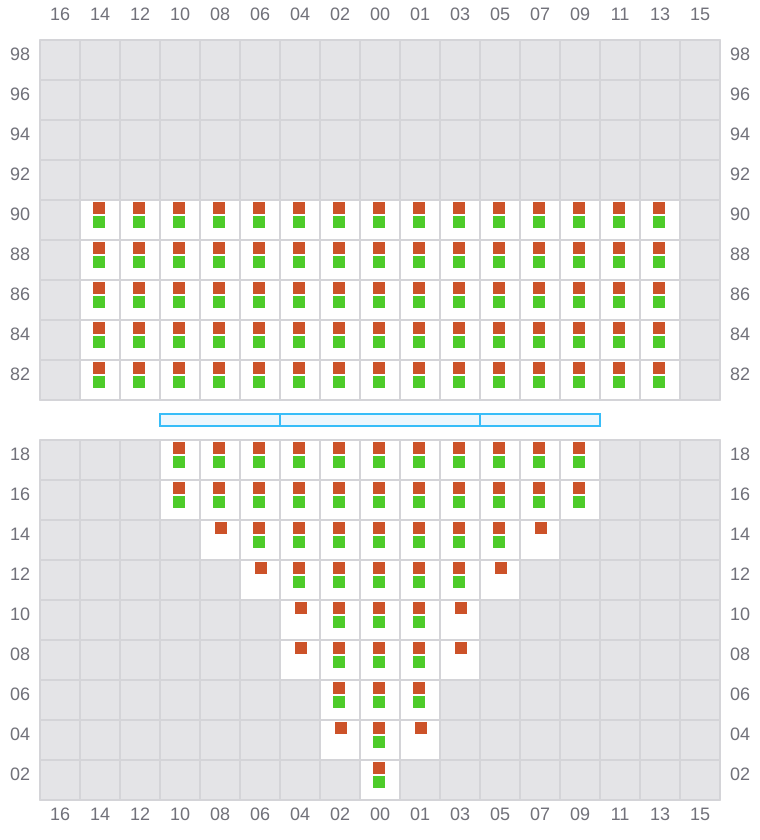

007 (006)

  • ←
  • ✓
Bay 007 view and slots of YM UNICORN

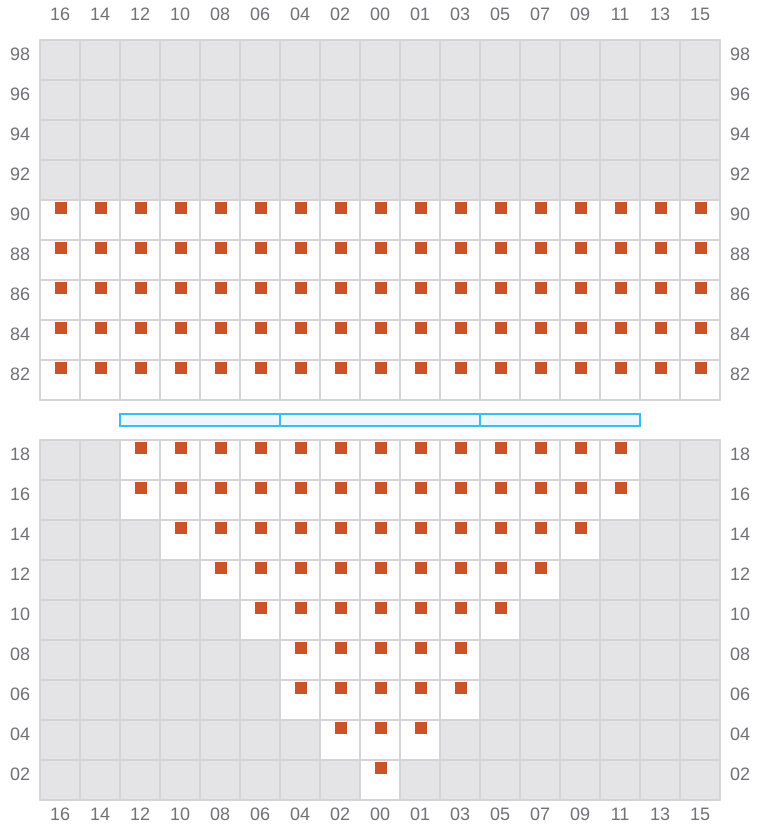

009

  • →
  • ✓
Bay 009 view and slots of YM UNICORN

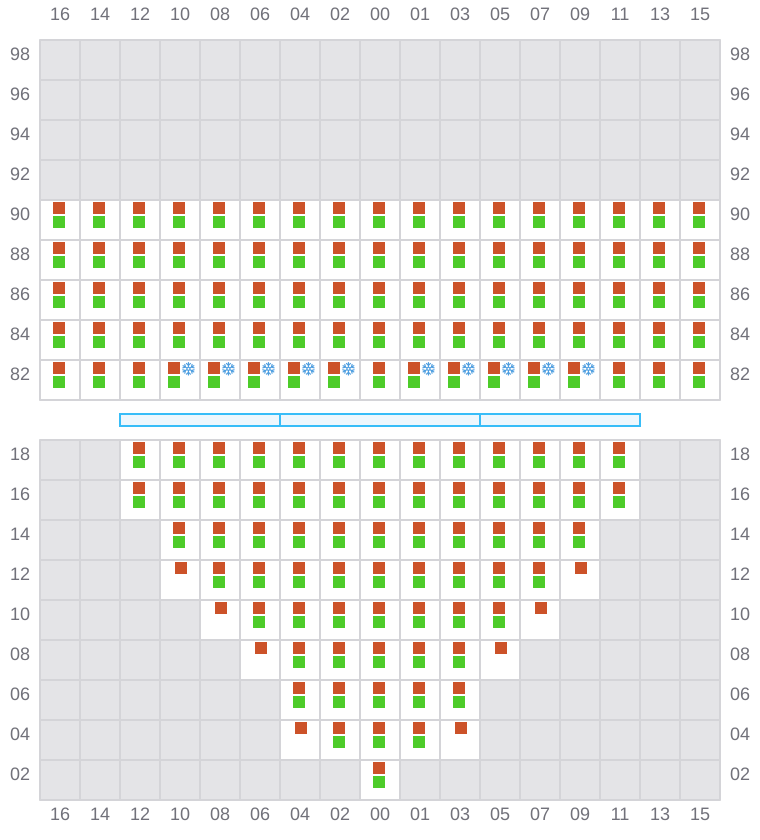

011 (010)

  • ←
  • ✓
Bay 011 view and slots of YM UNICORN

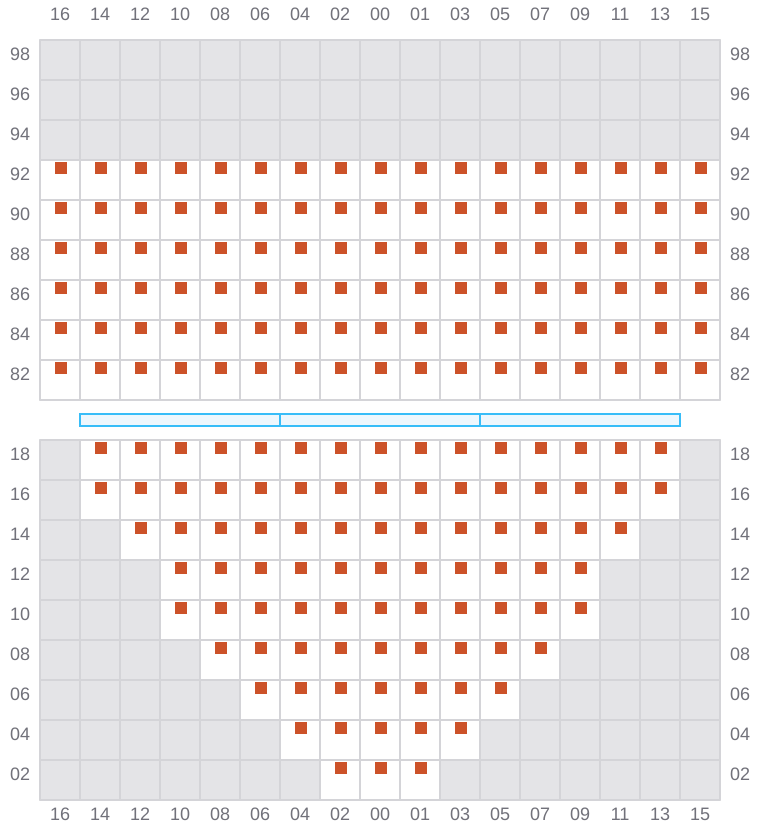

013

  • →
  • ✓
Bay 013 view and slots of YM UNICORN

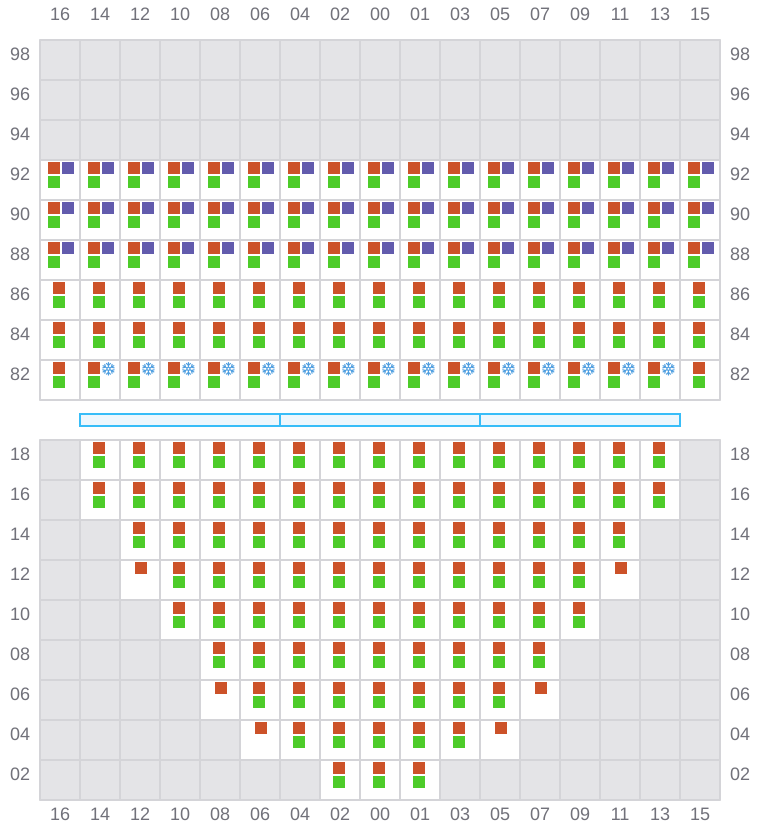

015 (014)

  • ←
  • ✓
Bay 015 view and slots of YM UNICORN

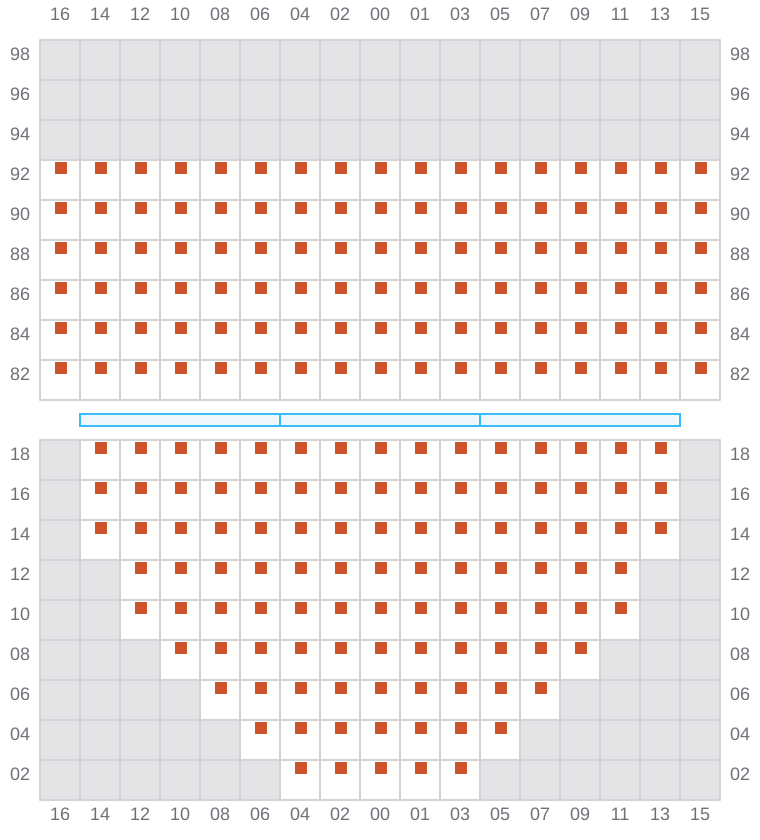

017

  • →
  • ✓
Bay 017 view and slots of YM UNICORN

019 (018)

  • ←
  • ✓

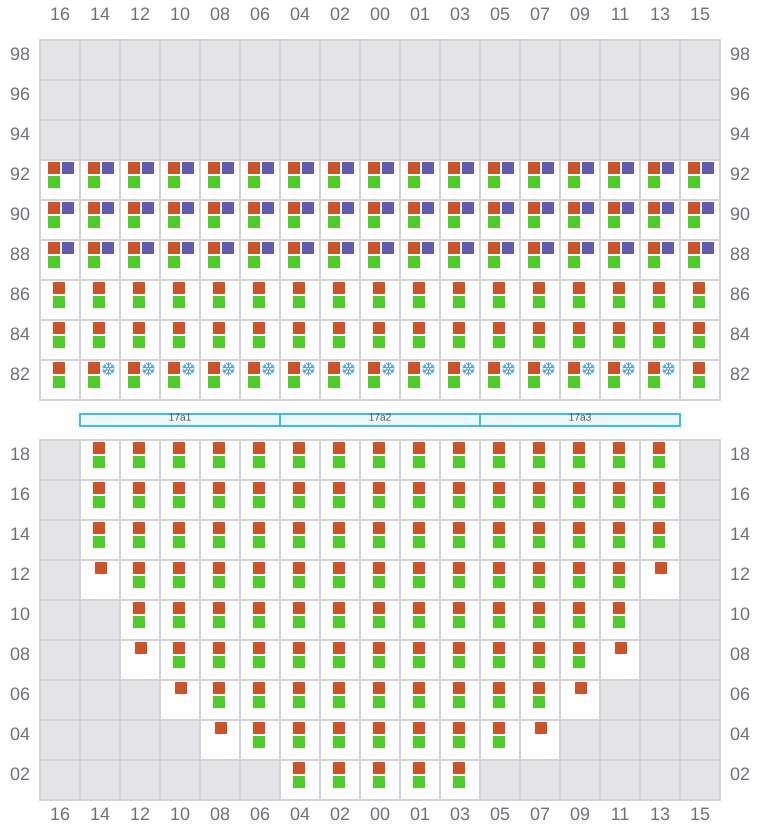

Bay 019 view and slots of YM UNICORN

021

  • →
  • ✓

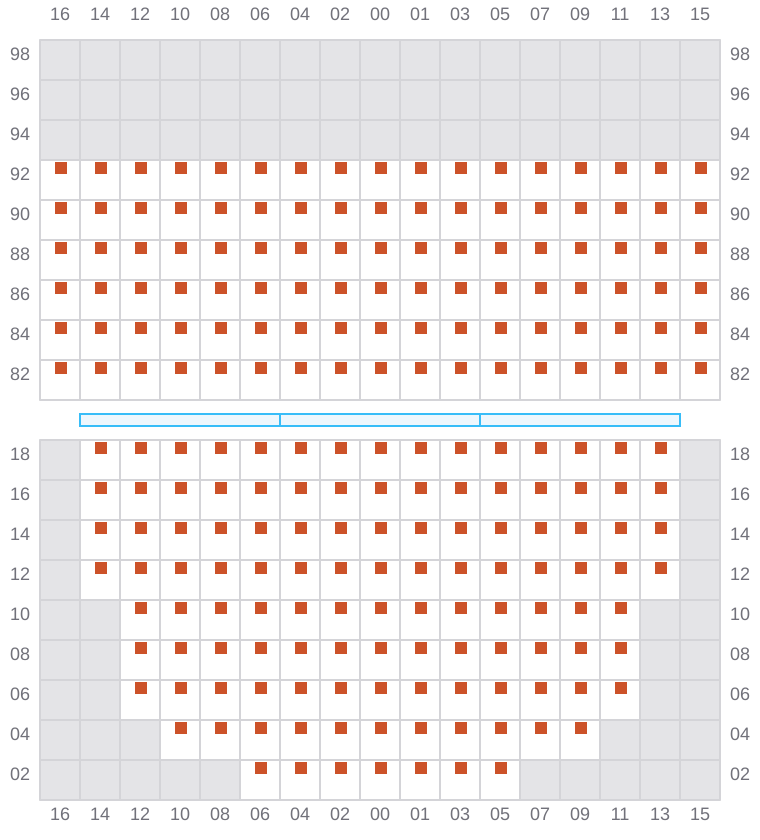

Bay 021 view and slots of YM UNICORN

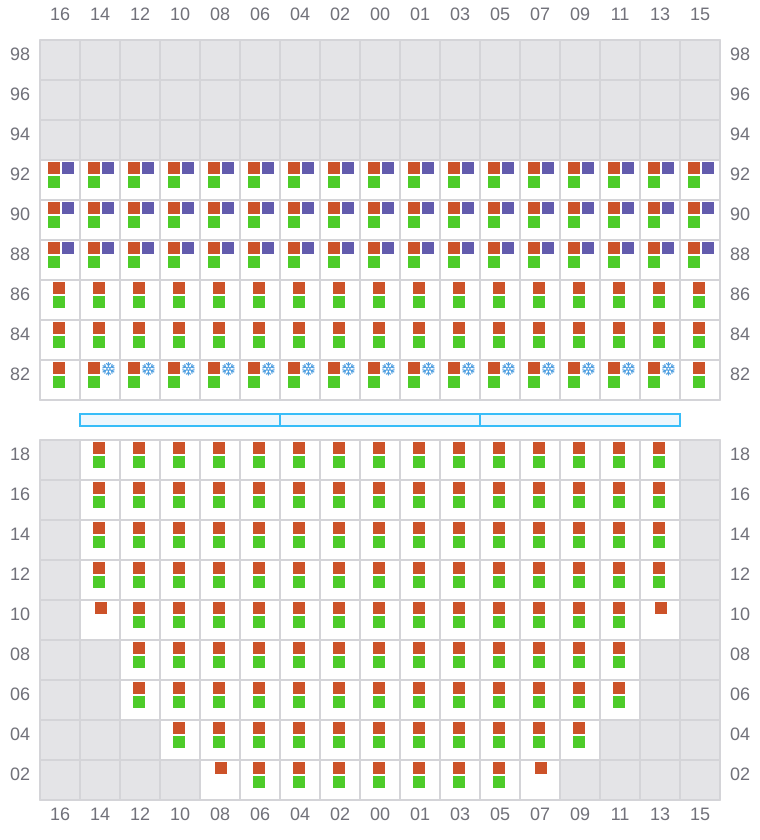

023 (022)

  • ←
  • ✓
Bay 023 view and slots of YM UNICORN

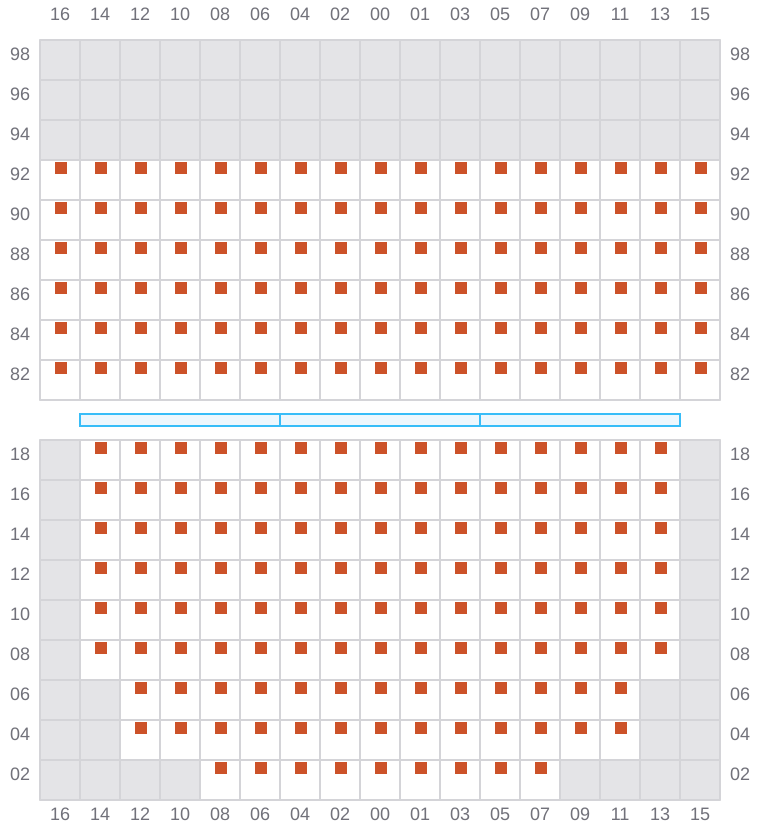

025

  • →
  • ✓
Bay 025 view and slots of YM UNICORN

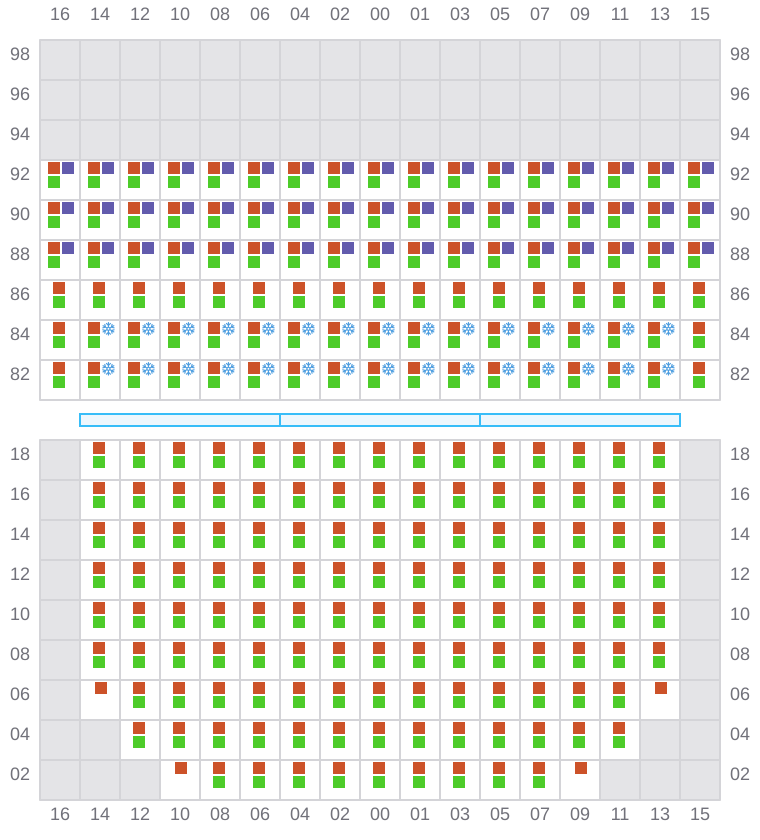

027 (026)

  • ←
  • ✓
Bay 027 view and slots of YM UNICORN

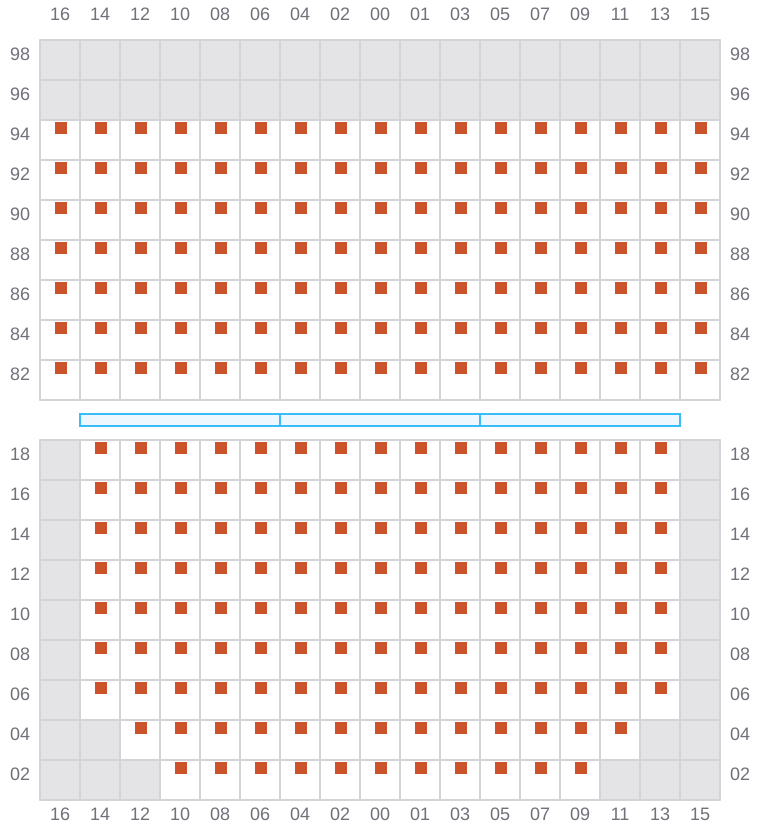

029

  • →
  • ✓
Bay 029 view and slots of YM UNICORN

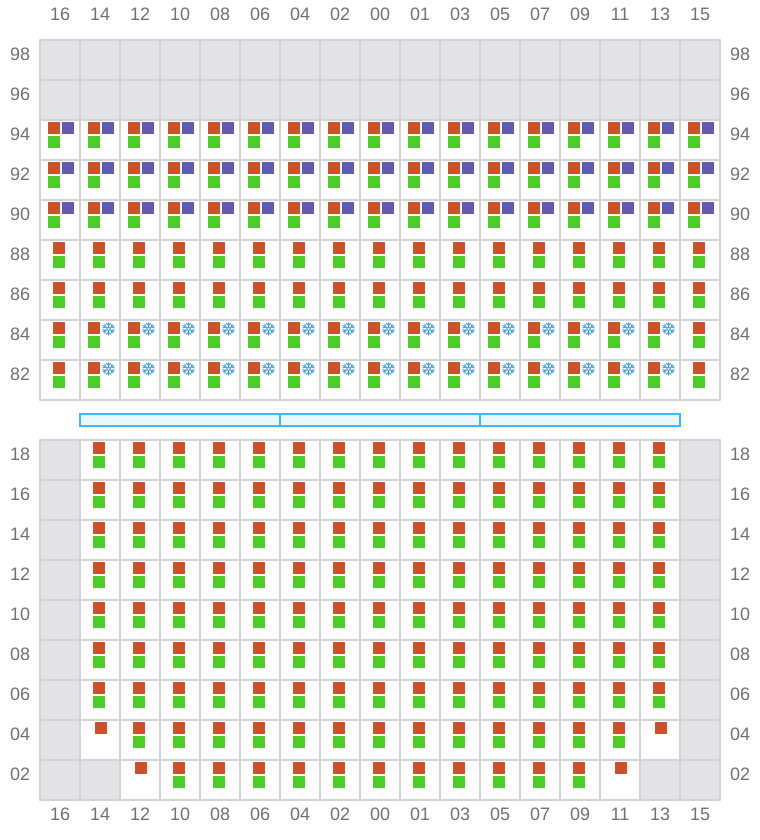

031 (030)

  • ←
  • ✓
Bay 031 view and slots of YM UNICORN

033

  • →
  • ✓
Bay 033 view and slots of YM UNICORN

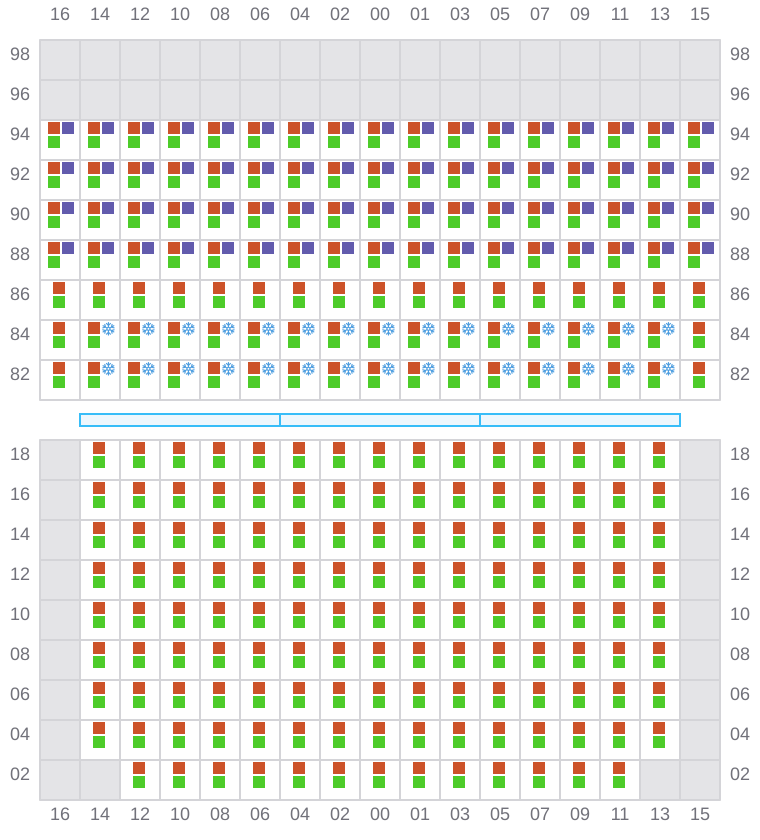

035 (034)

  • ←
  • ✓
Bay 035 view and slots of YM UNICORN

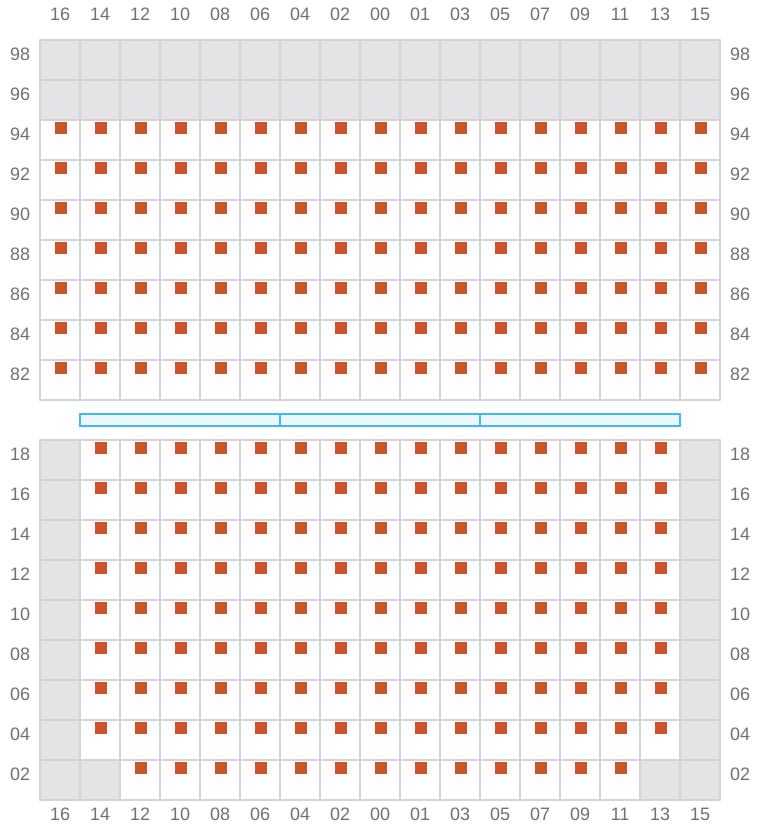

037

  • →
  • ✓
Bay 037 view and slots of YM UNICORN

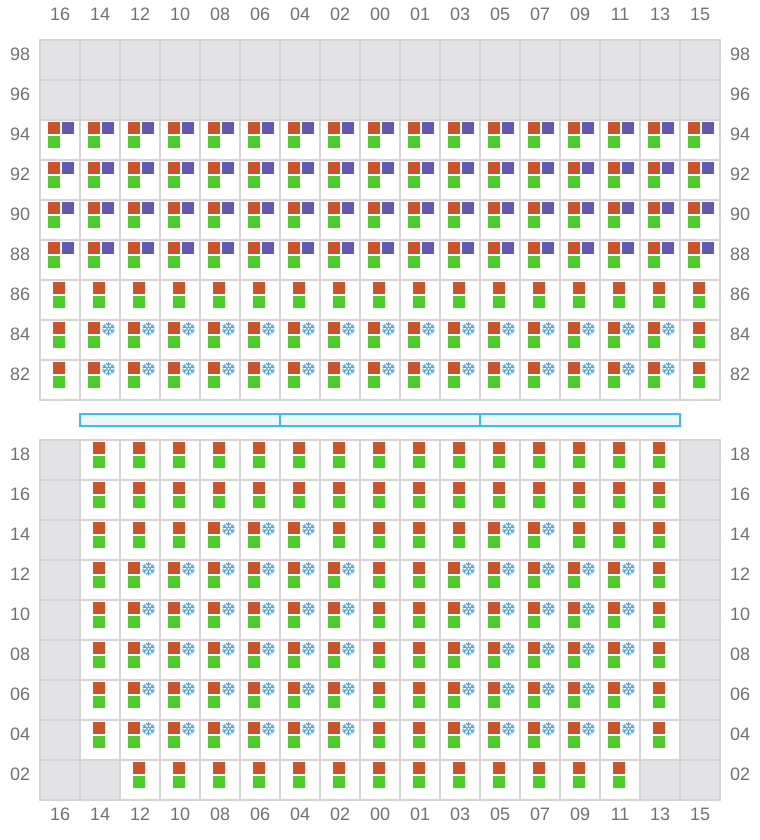

039 (038)

  • ←
  • ✓
Bay 039 view and slots of YM UNICORN

041

  • →
  • ✓
Bay 041 view and slots of YM UNICORN

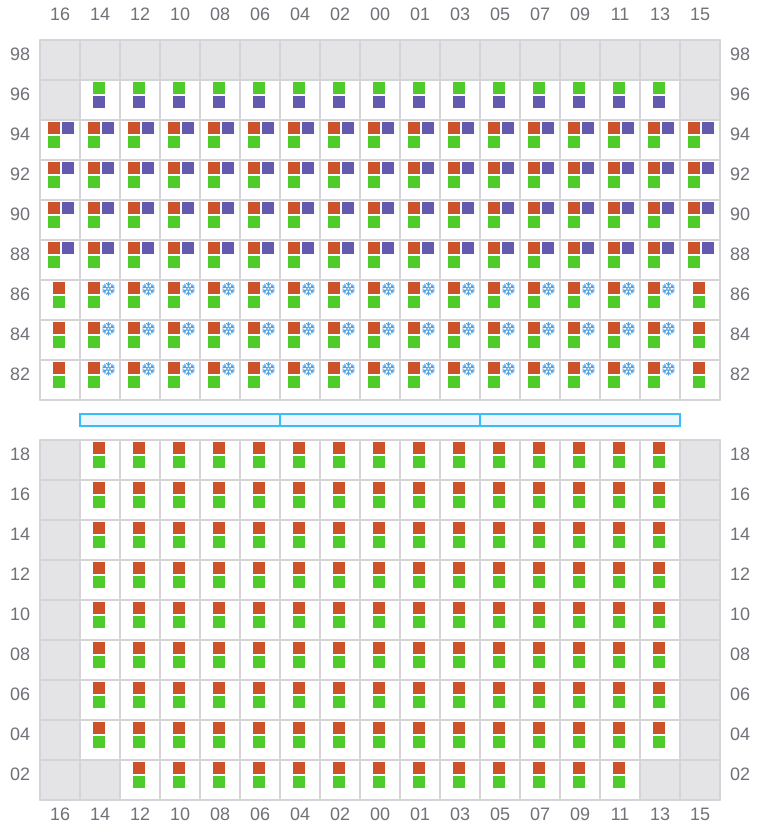

043 (042)

  • ←
  • ✓
Bay 043 view and slots of YM UNICORN

045

  • →
  • ✓

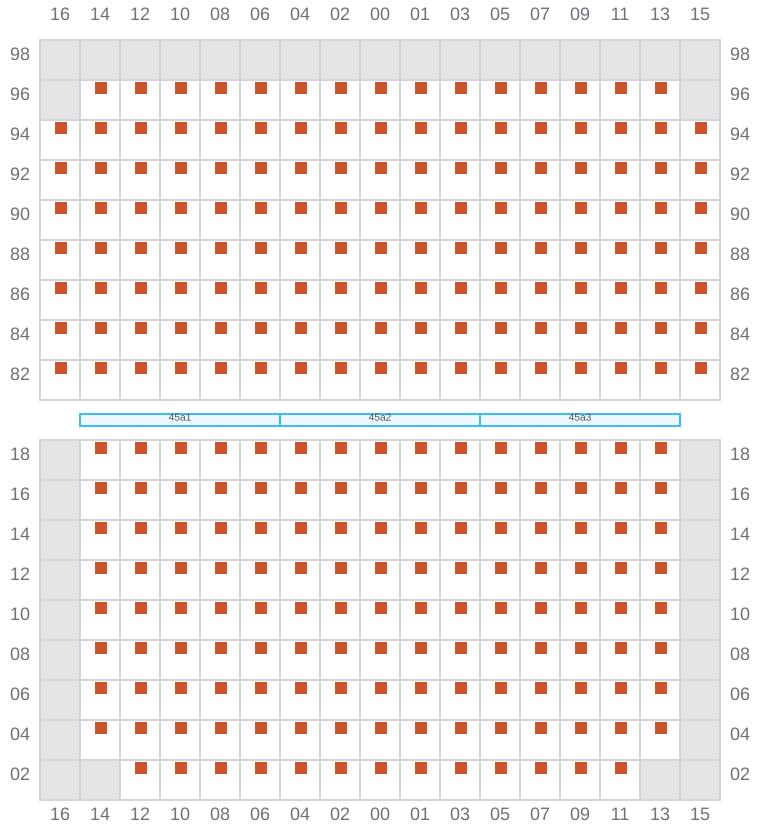

Bay 045 view and slots of YM UNICORN

047 (046)

  • ←
  • ✓
Bay 047 view and slots of YM UNICORN

049

  • →
  • ✓
Bay 049 view and slots of YM UNICORN

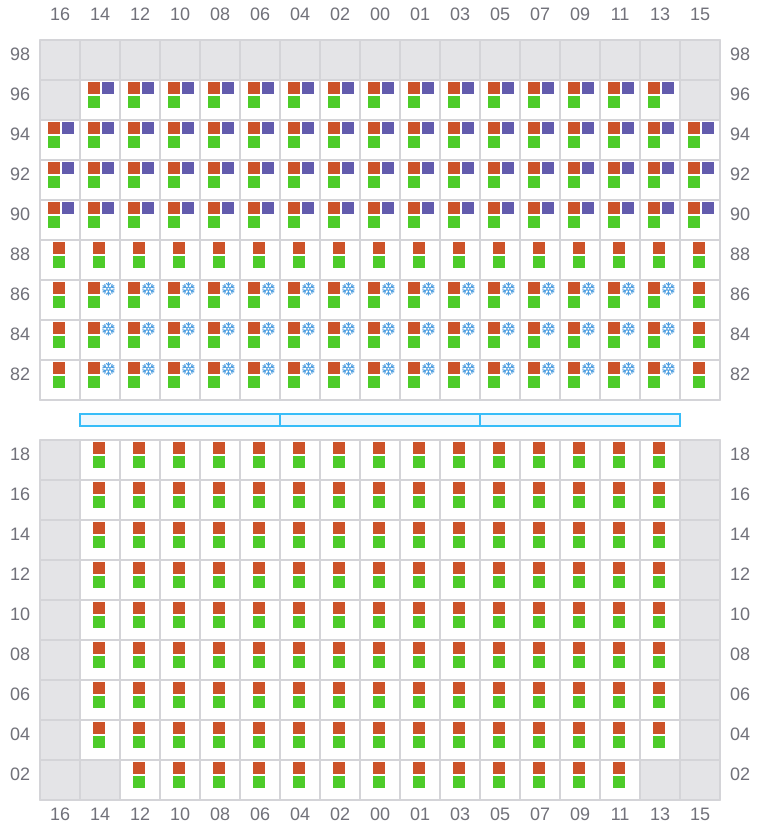

051 (050)

  • ←
  • ✓
Bay 051 view and slots of YM UNICORN

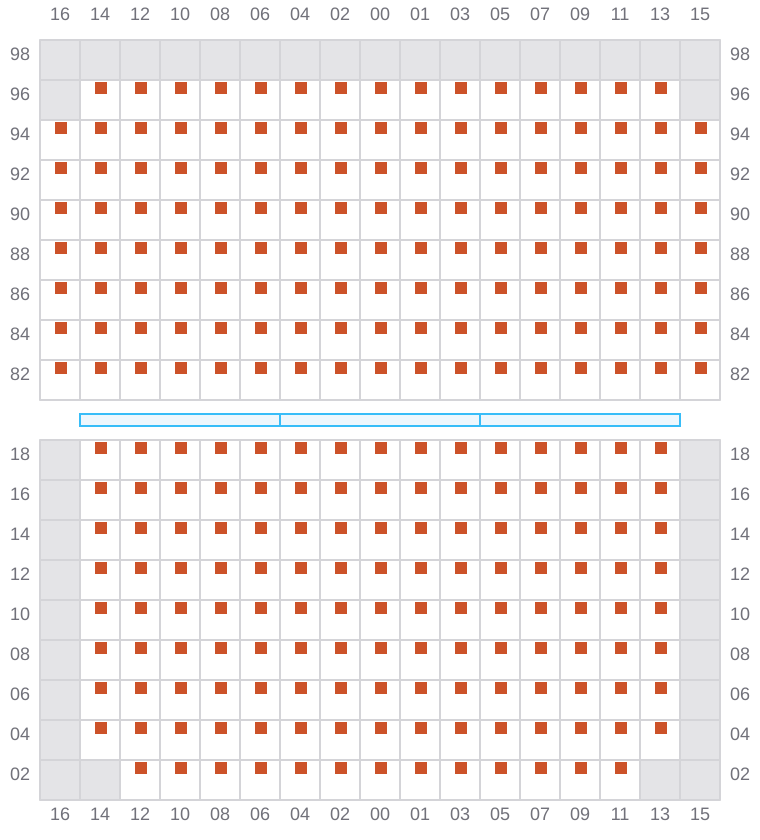

053

  • →
  • ✓
Bay 053 view and slots of YM UNICORN

055 (054)

  • ←
  • ✓
Bay 055 view and slots of YM UNICORN

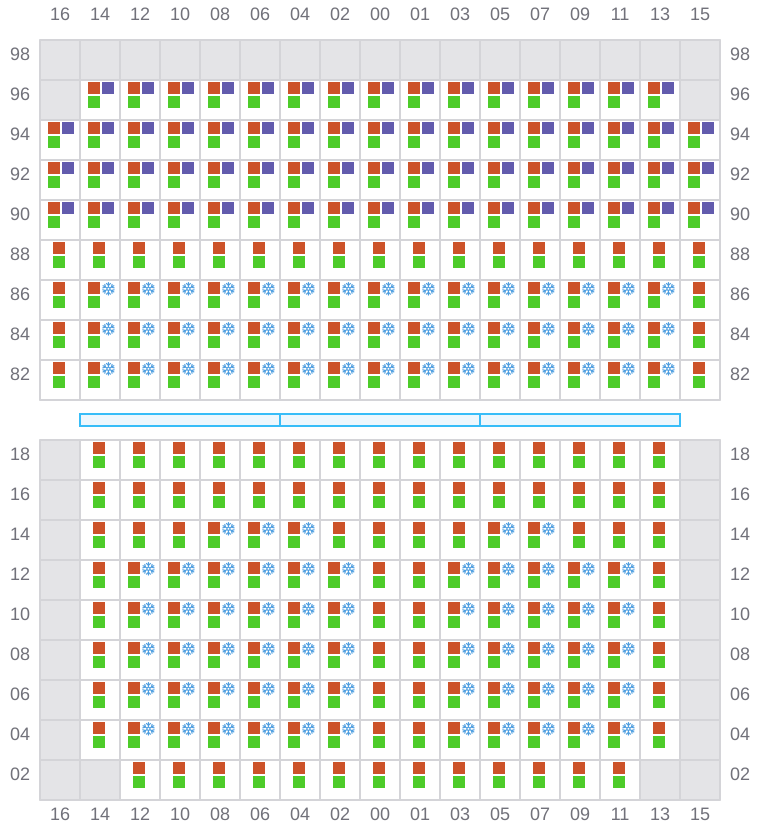

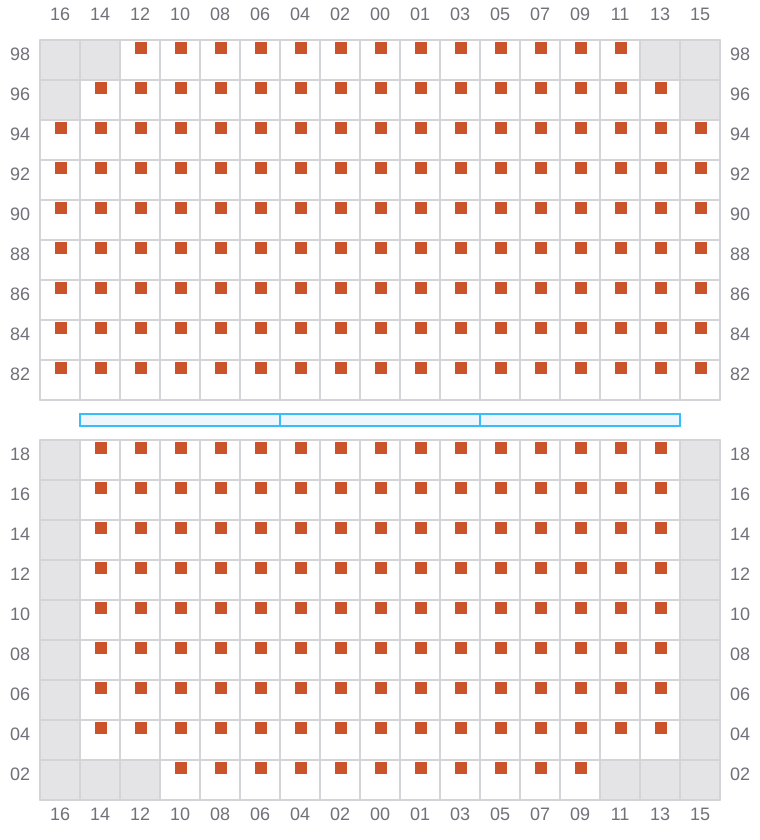

057

  • →
  • ✓
Bay 057 view and slots of YM UNICORN

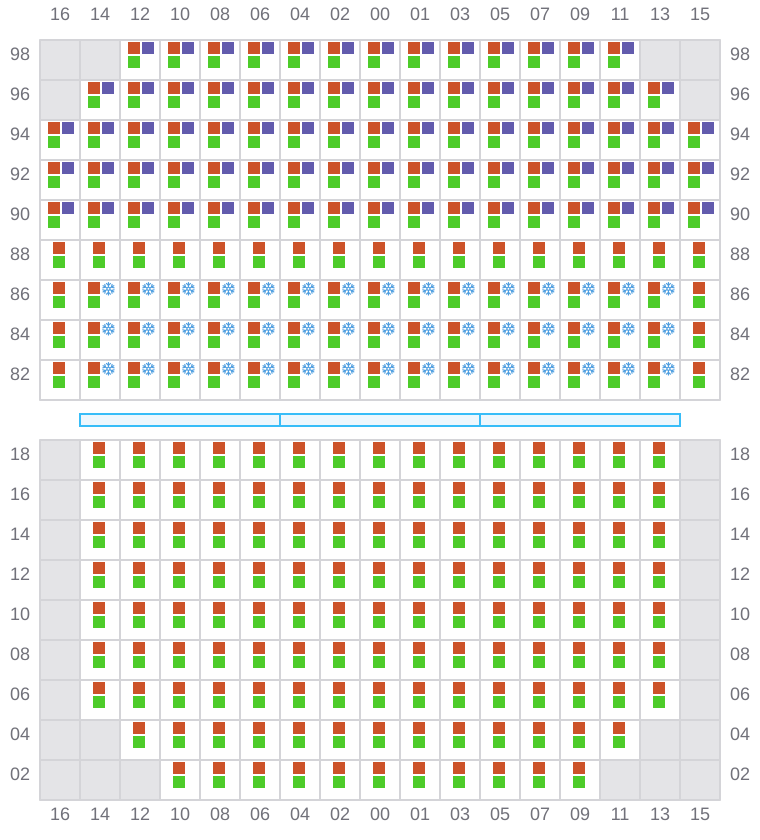

059 (058)

  • ←
  • ✓
Bay 059 view and slots of YM UNICORN

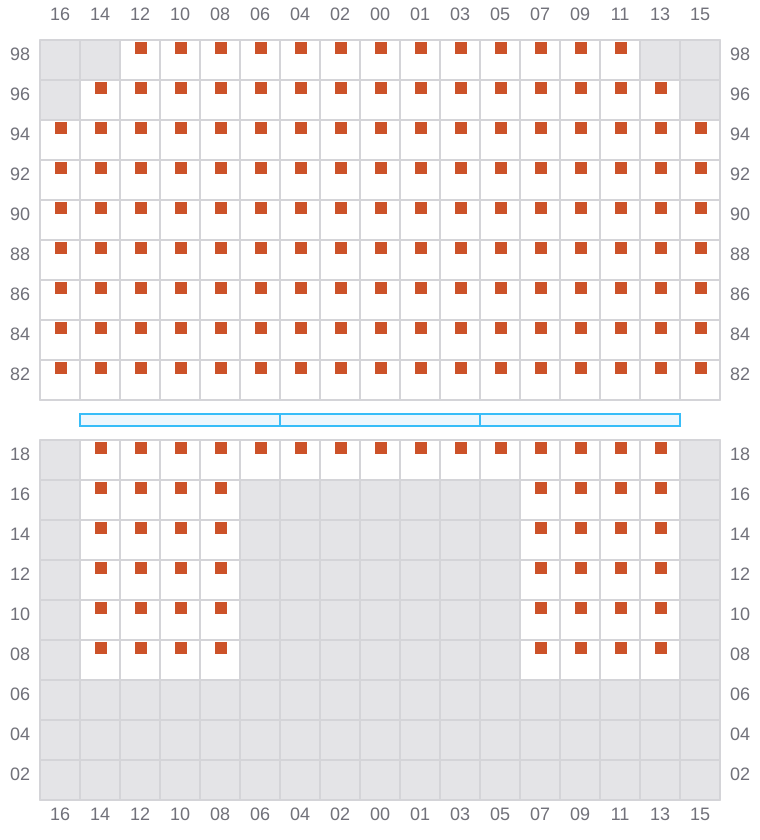

061

  • →
  • ✓
Bay 061 view and slots of YM UNICORN

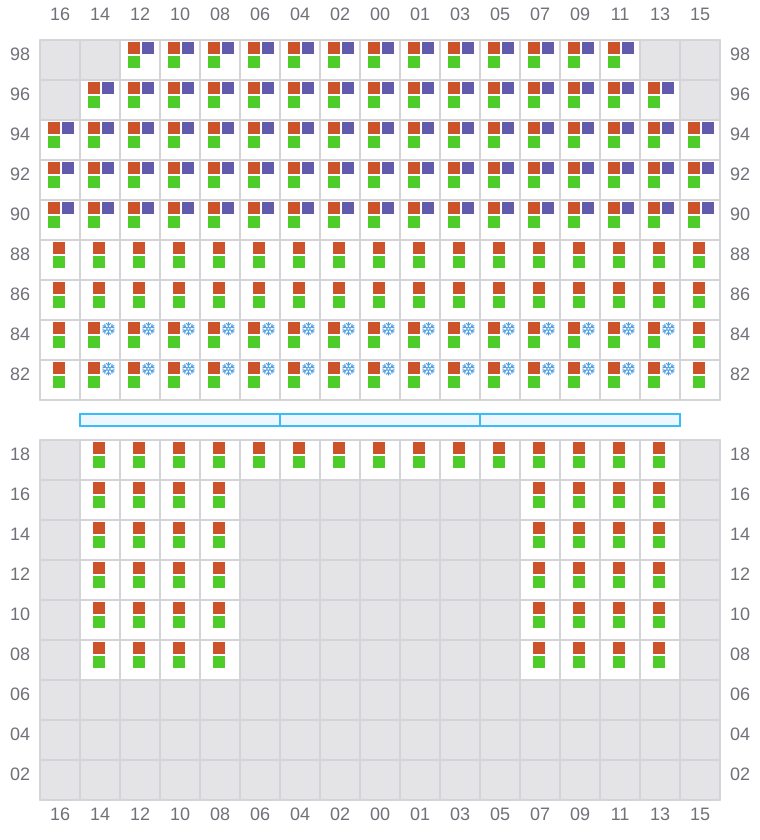

063 (062)

  • ←
  • ✓
Bay 063 view and slots of YM UNICORN

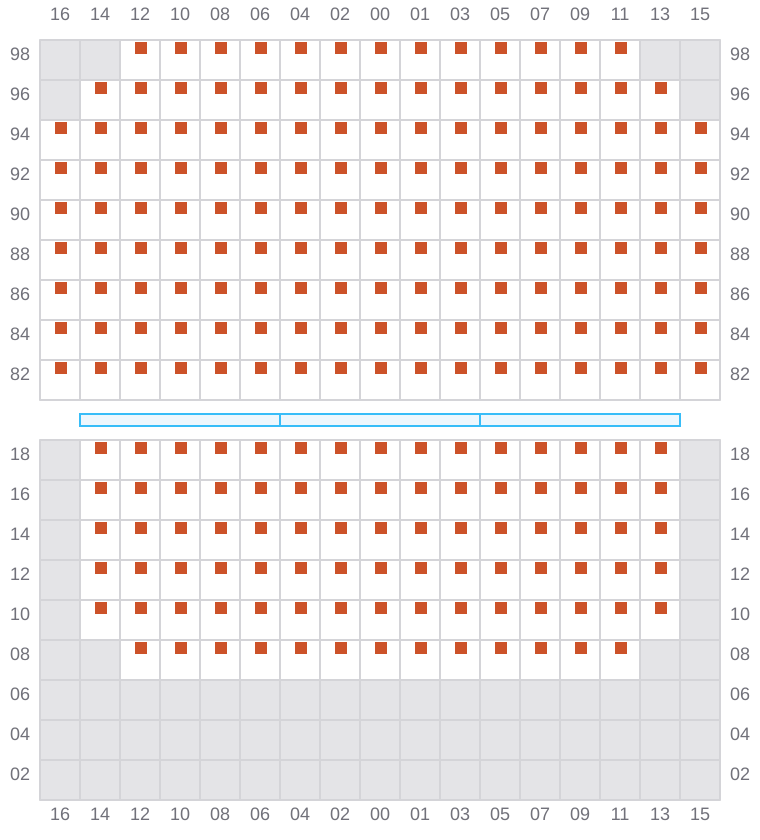

065

  • →
  • ✓
Bay 065 view and slots of YM UNICORN

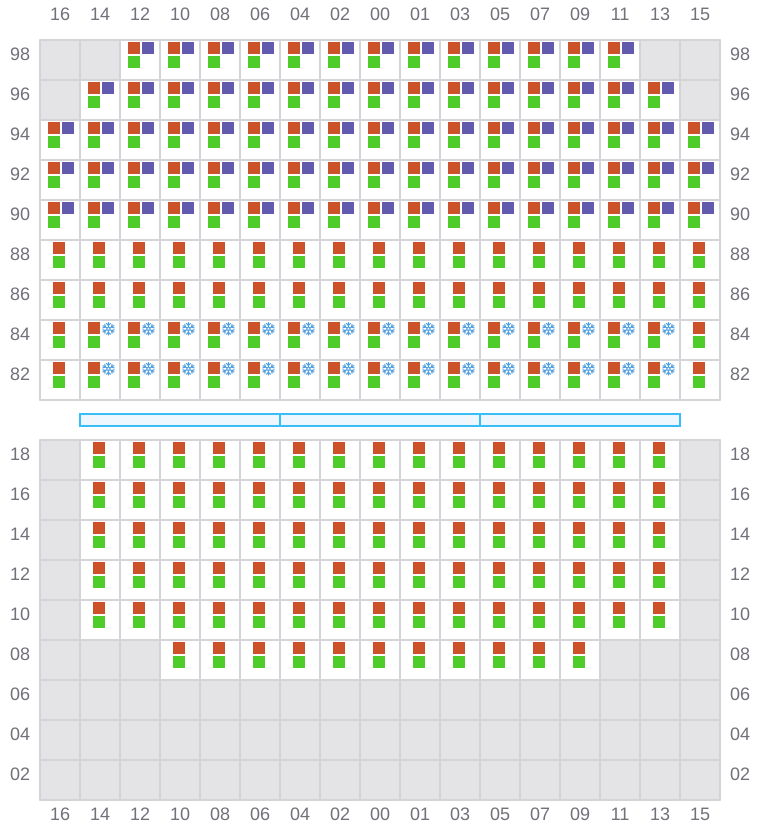

067 (066)

  • ←
  • ✓
Bay 067 view and slots of YM UNICORN

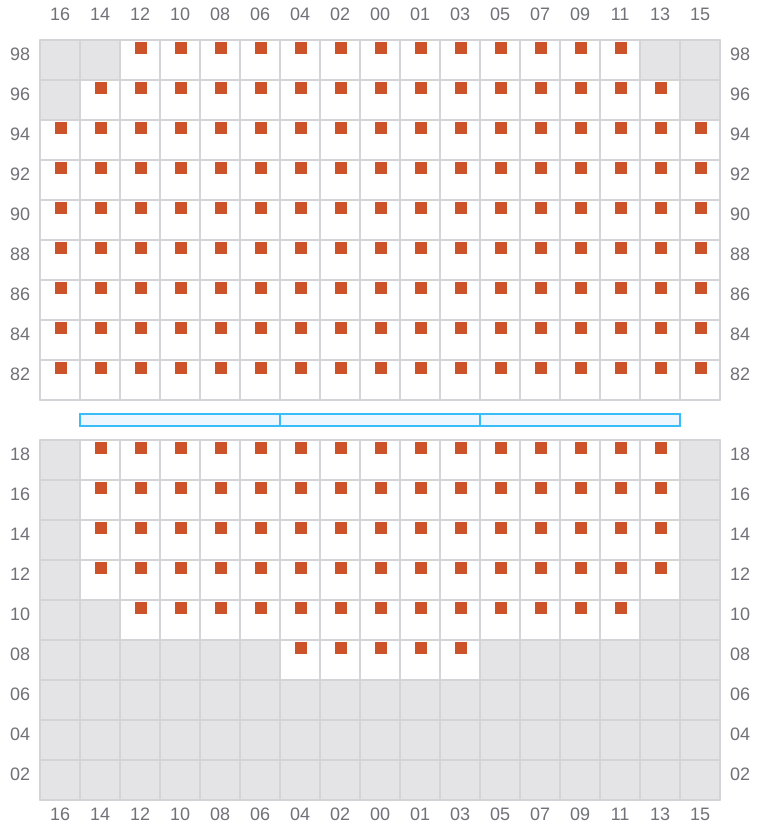

069

  • →
  • ✓
Bay 069 view and slots of YM UNICORN

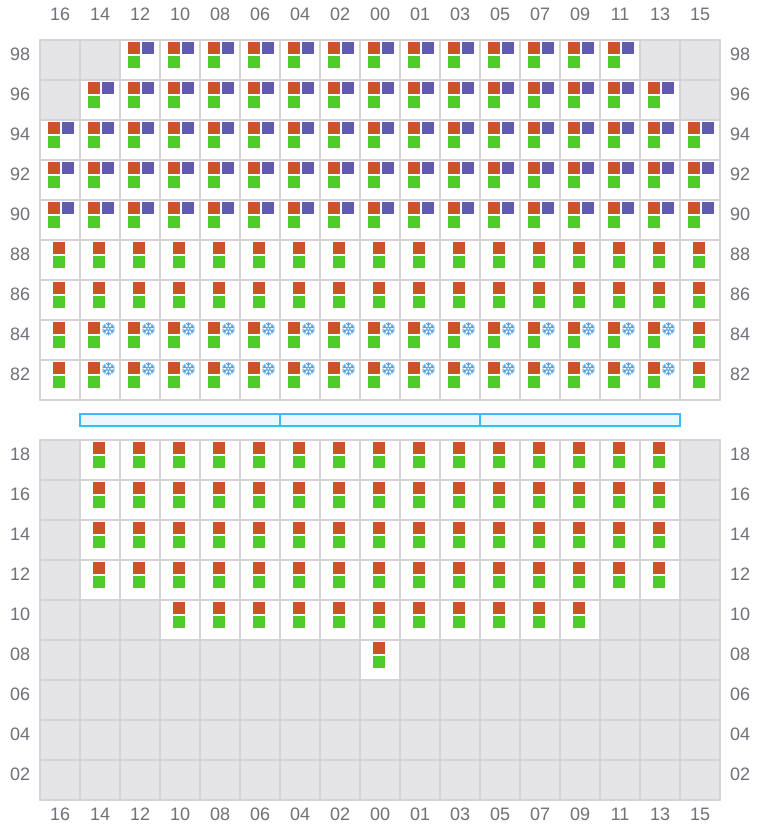

071 (070)

  • ←
  • ✓
Bay 071 view and slots of YM UNICORN

073

  • →
  • ✓

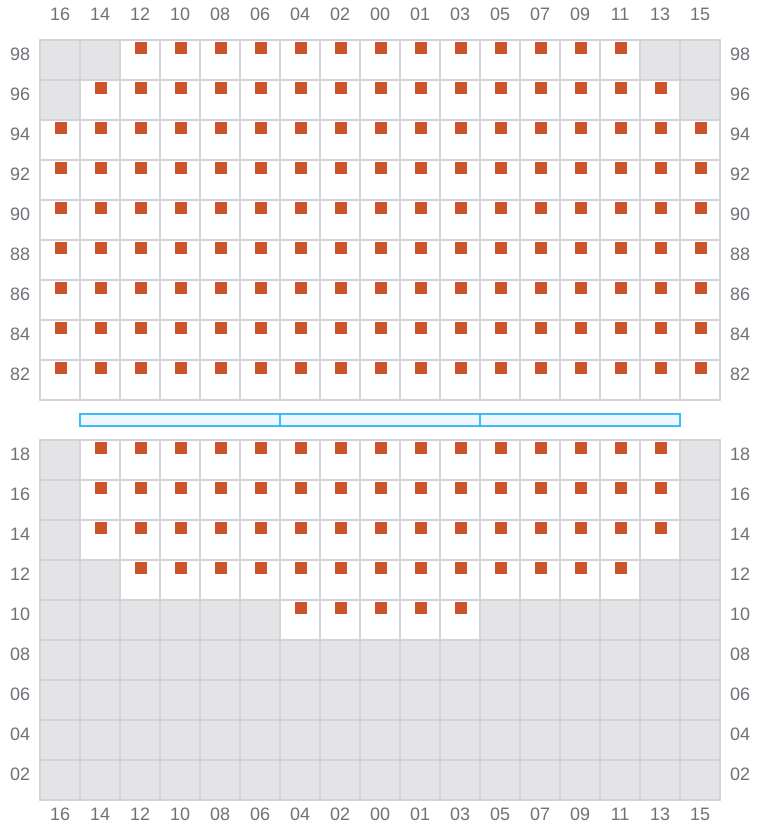

Bay 073 view and slots of YM UNICORN

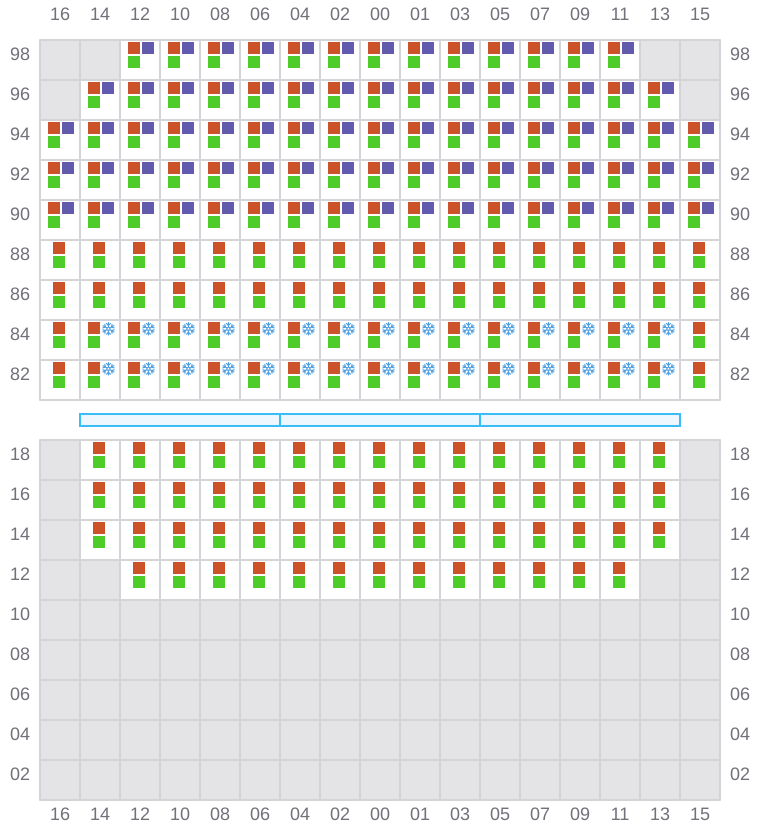

075 (074)

  • ←
  • ✓
Bay 075 view and slots of YM UNICORN

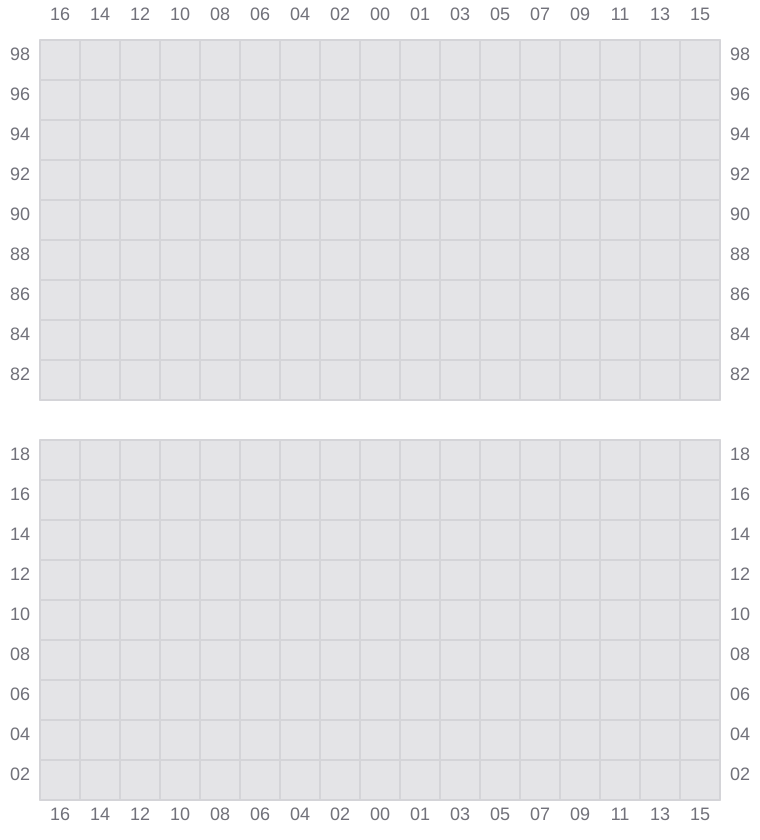

077

  • →
  • ✓
Bay 077 view and slots of YM UNICORN

079 (078)

  • ←
  • ? / ?
  • ? / ?
  • ✓

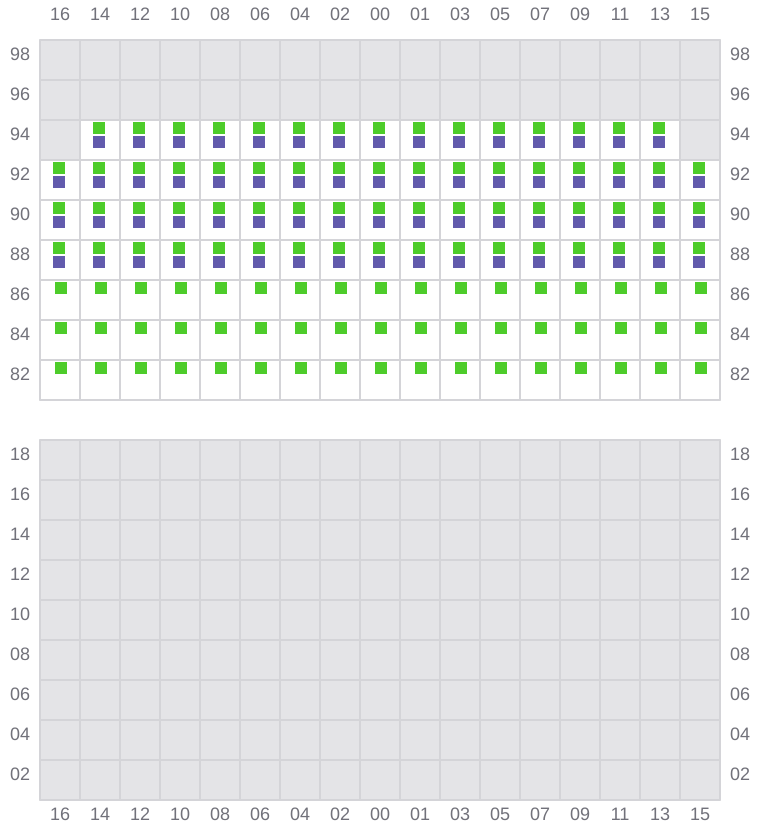

Bay 079 view and slots of YM UNICORN
