YM WELCOME
9708459 | 9VMX8 | YML by ********** Last update: Thu Oct 30 2025
General Info
Ship Name:YM WELCOME
IMO Code:9708459
Call Sign:9VMX8
Line Operator:YML
Class Name for Sister Ships:WELC
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):351.55
LOA (Length Overall):368.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:90
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,198
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Estimated
TCG Data:0%

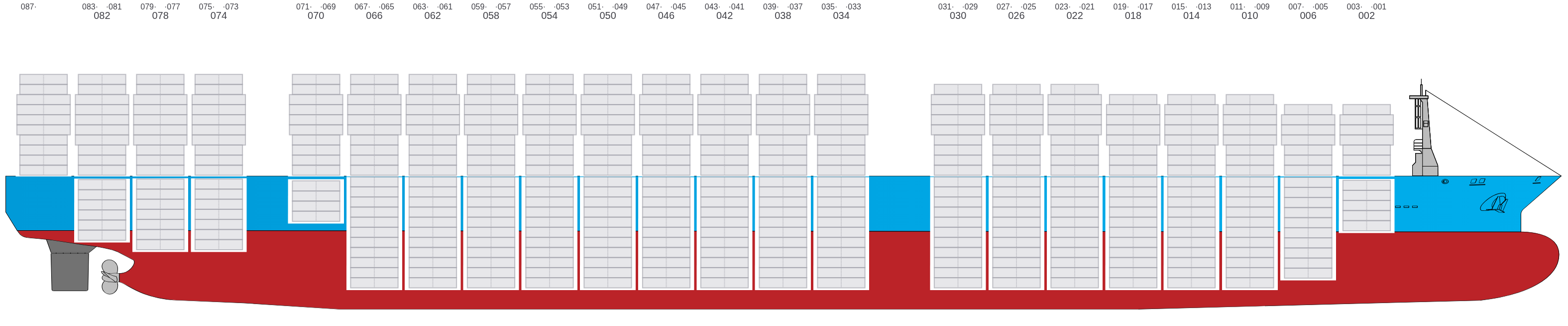

Side View

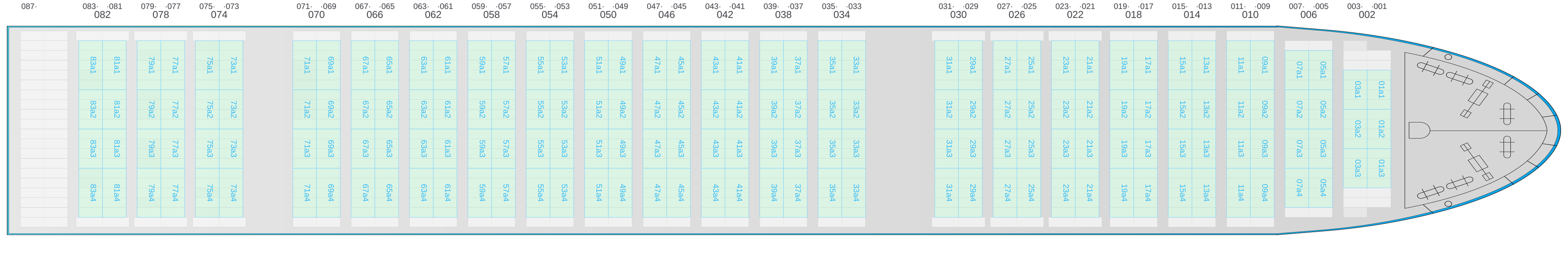

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

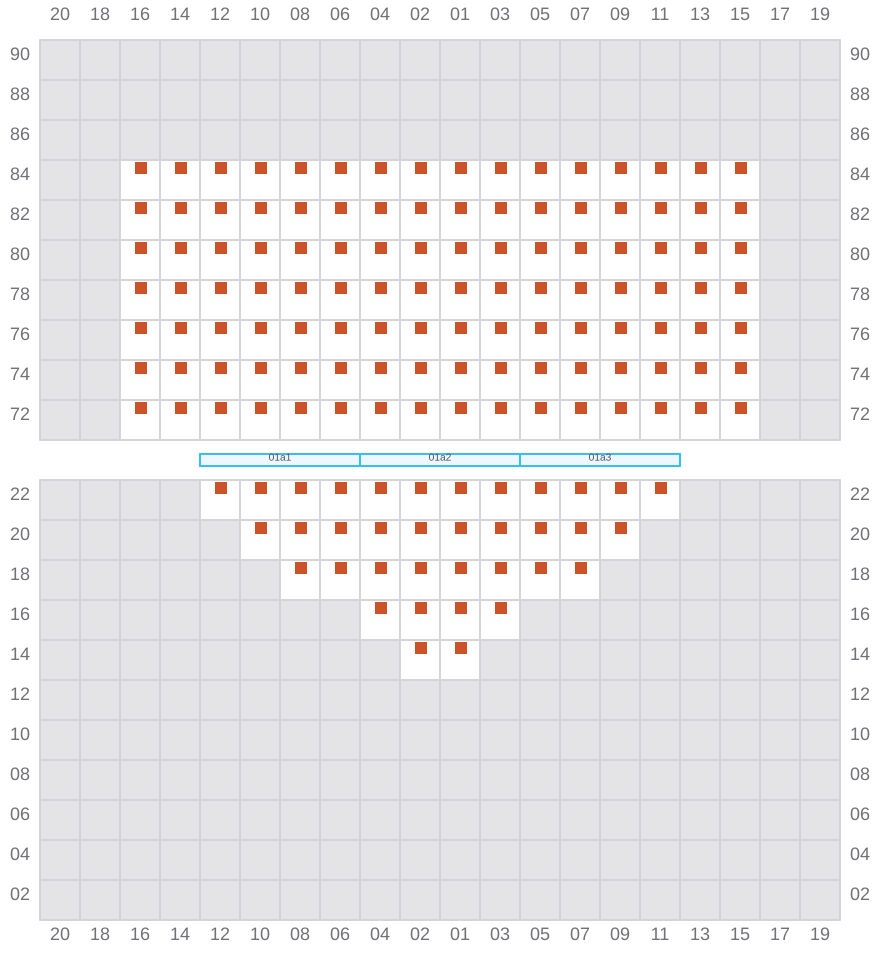

001
- →

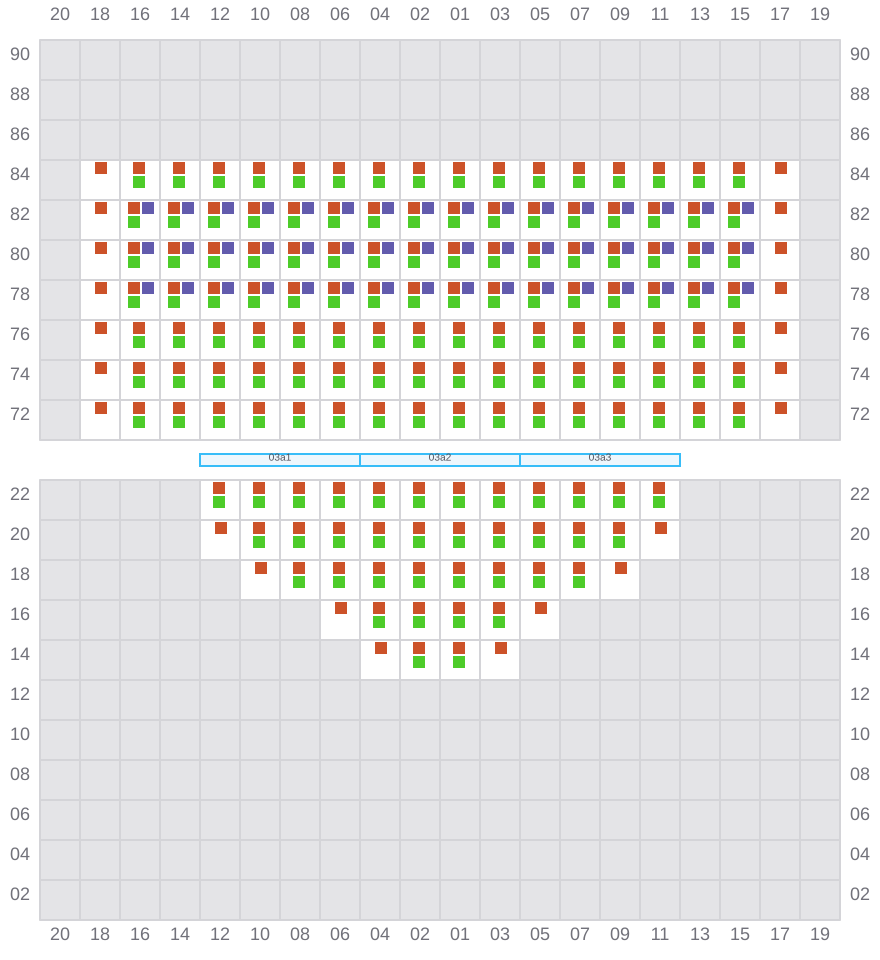

003 (002)
- ←

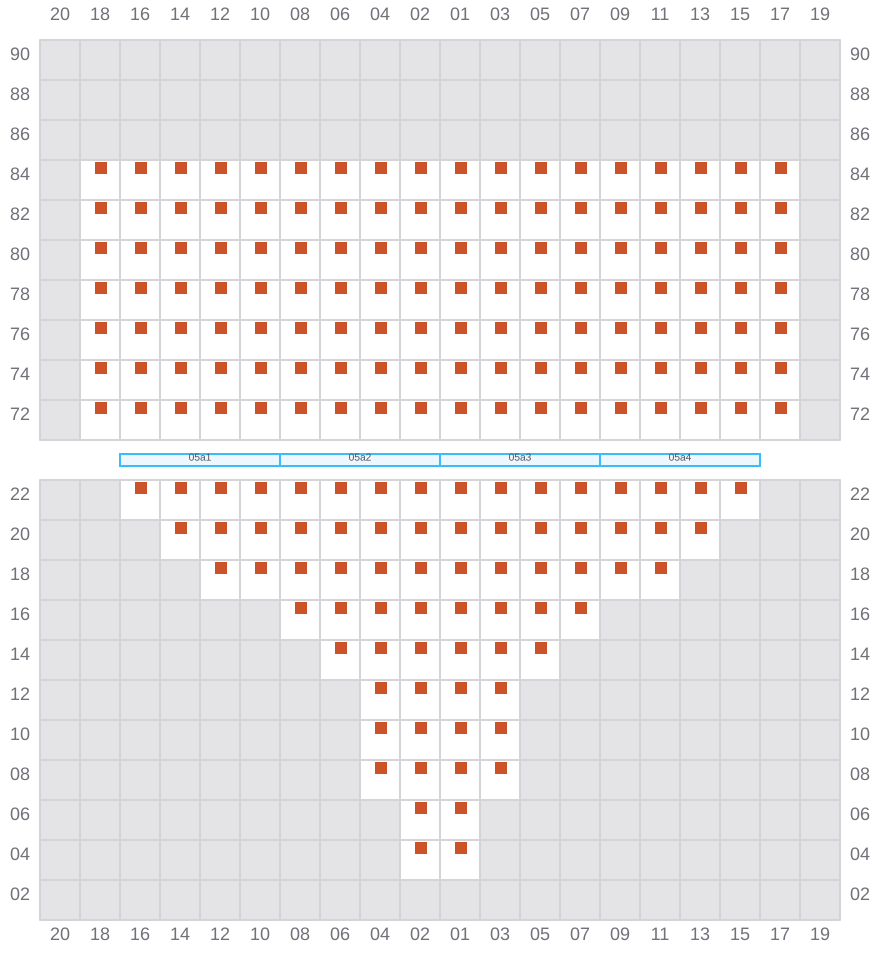

005
- →

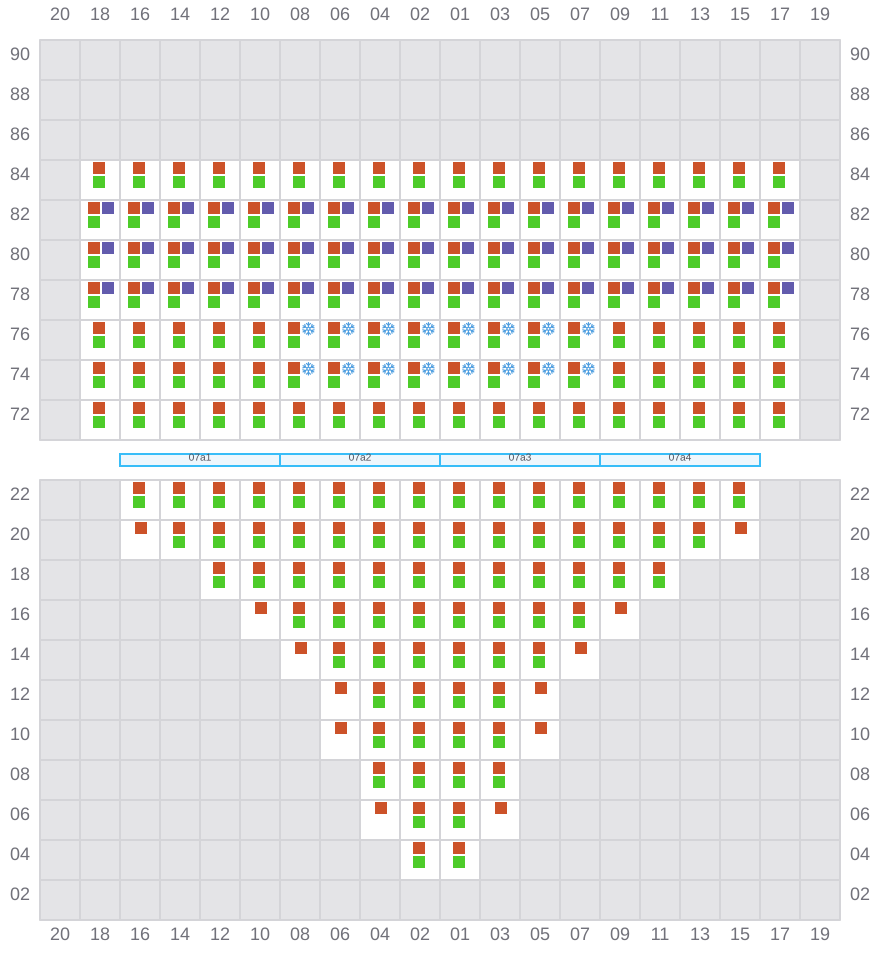

007 (006)
- ←

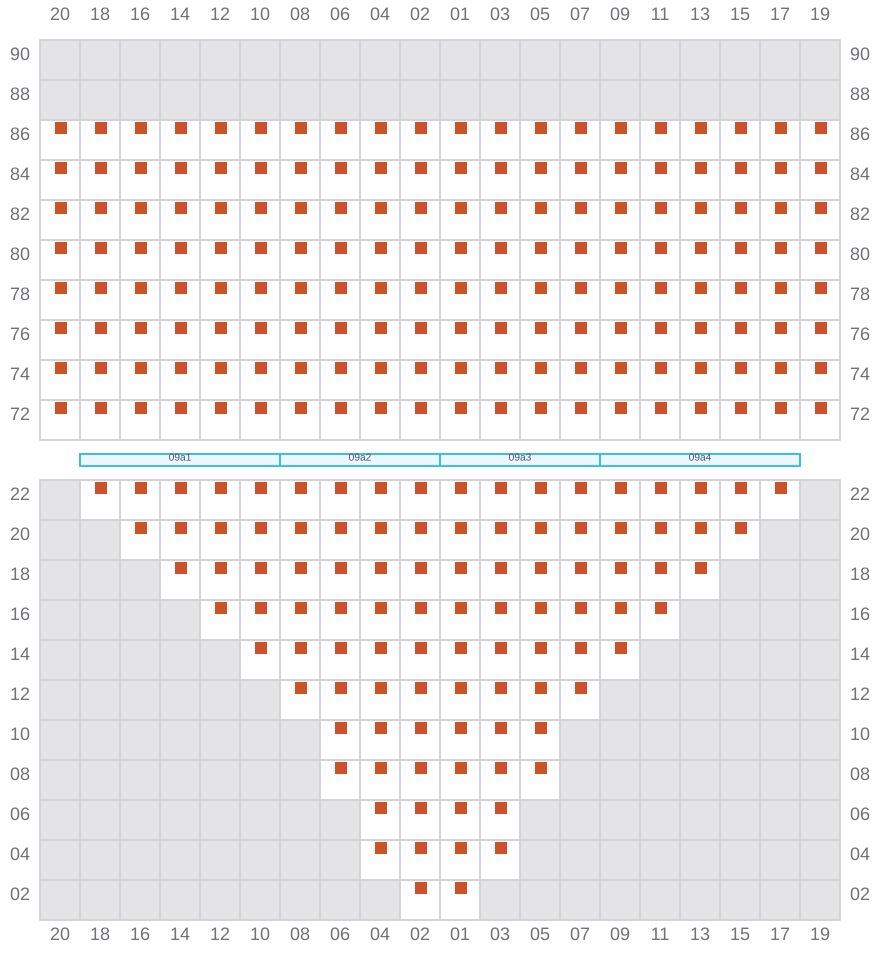

009
- →

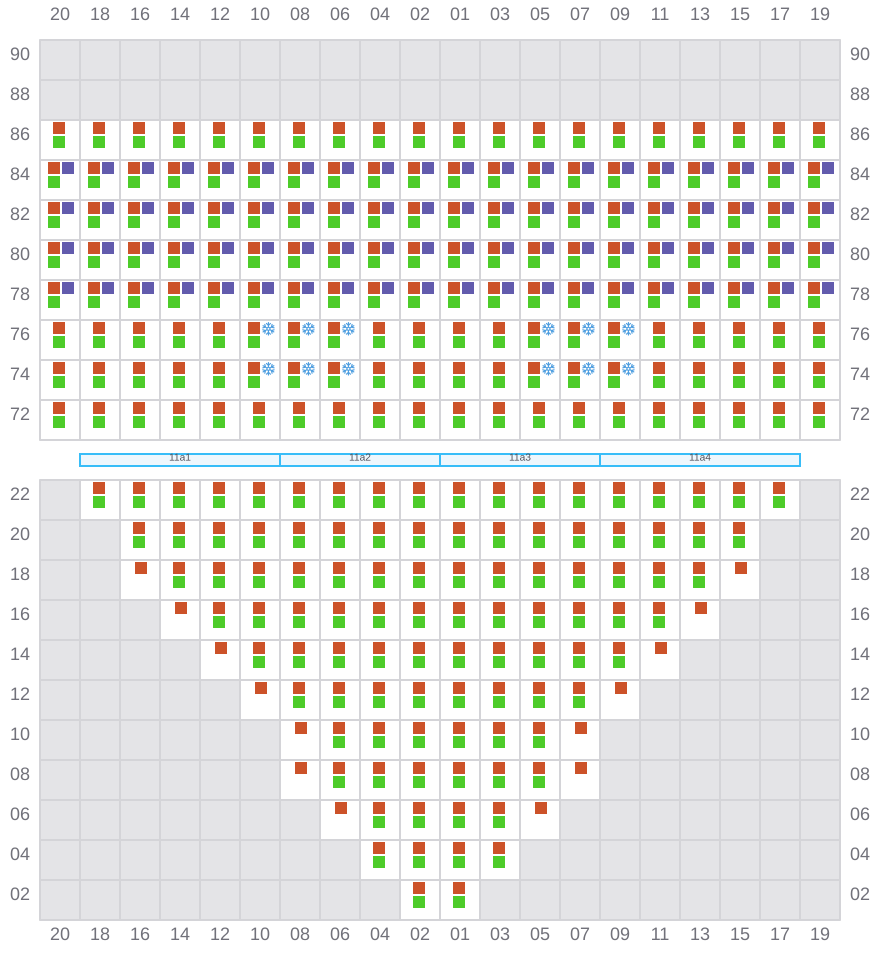

011 (010)
- ←

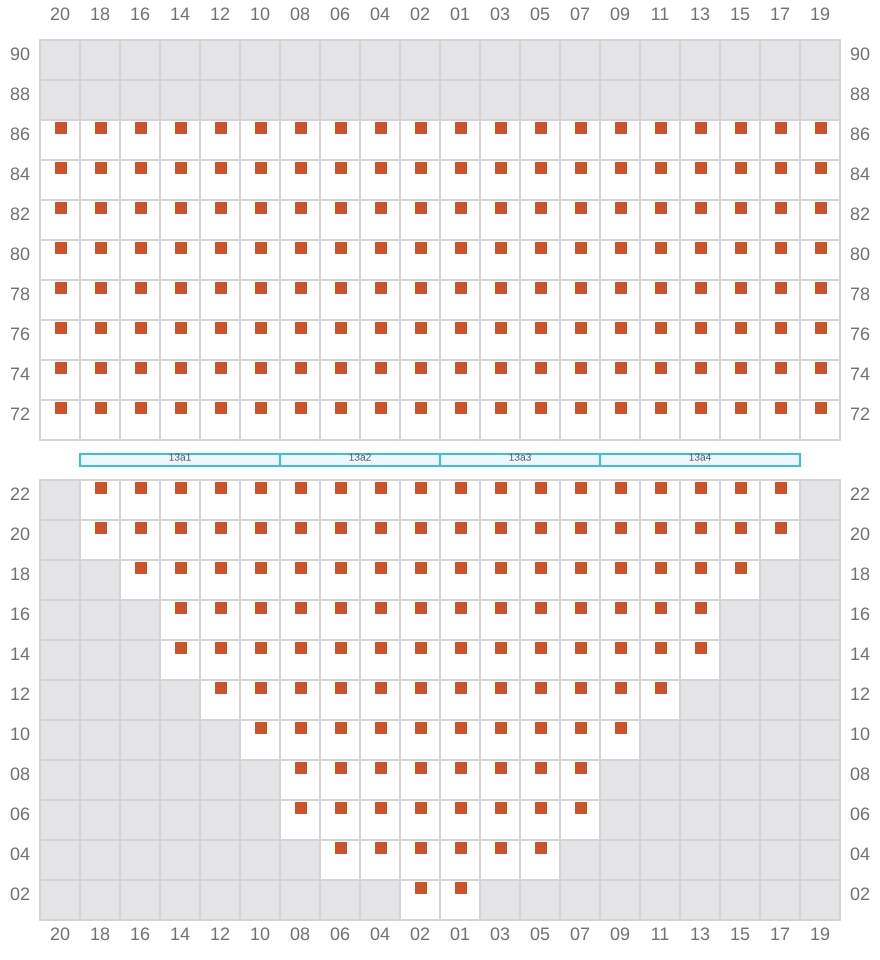

013
- →

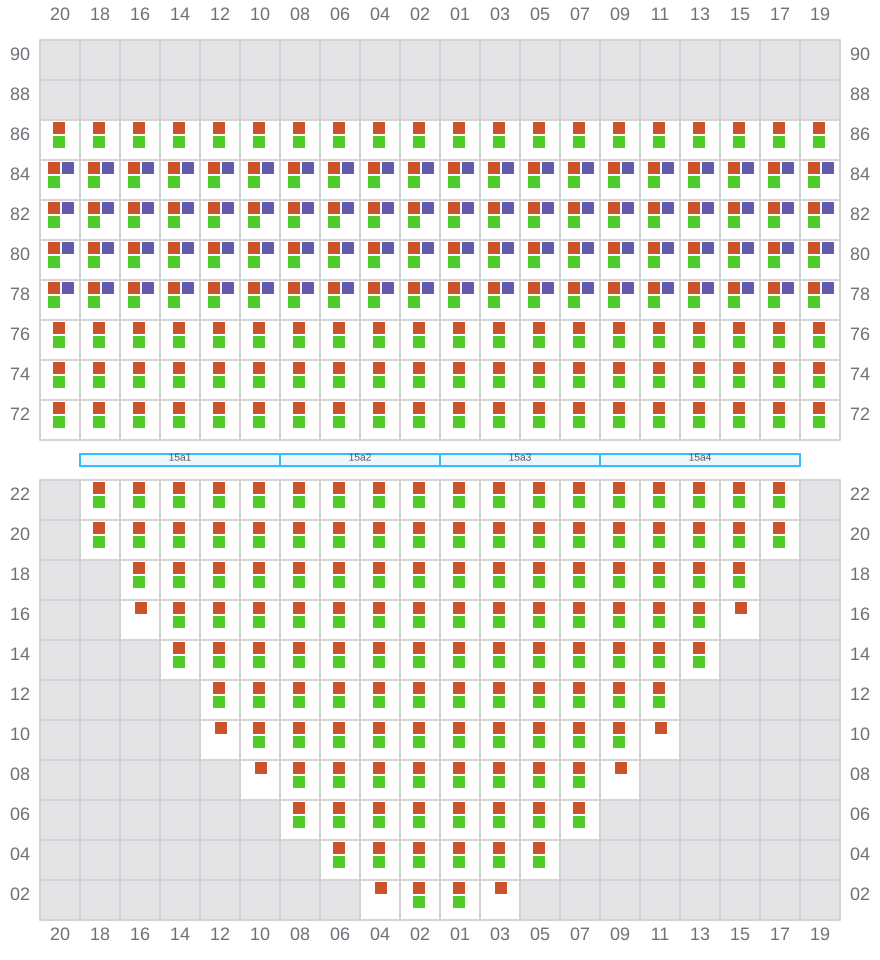

015 (014)
- ←

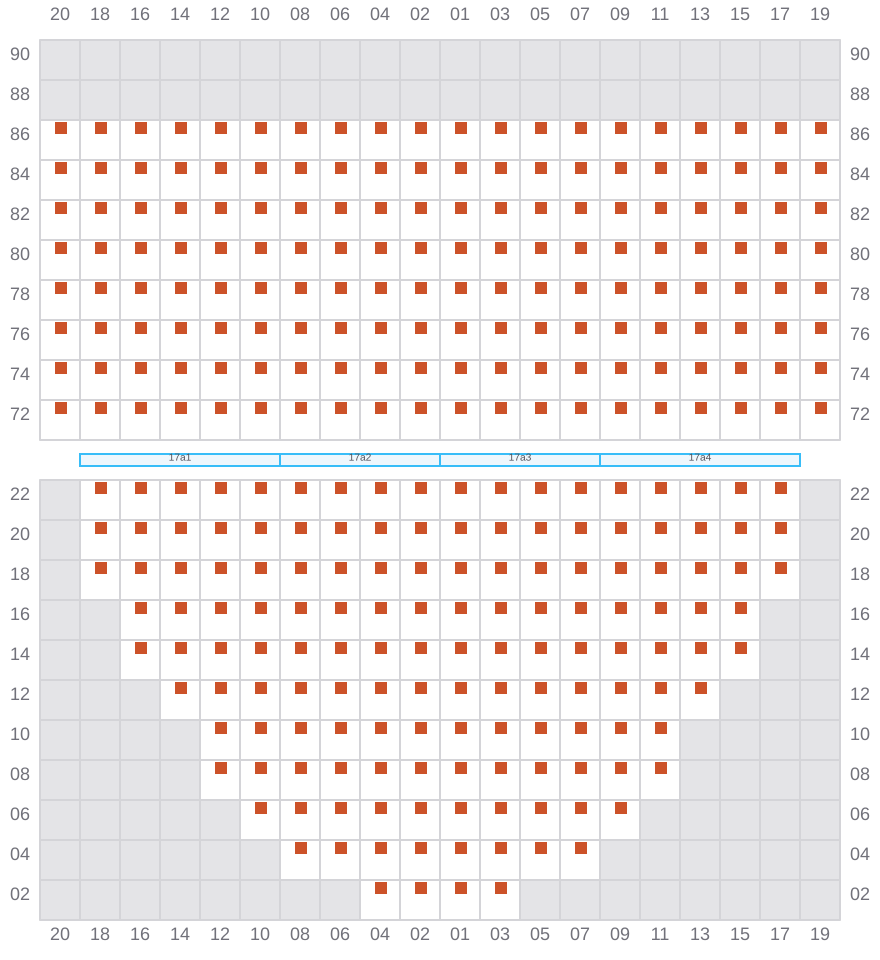

017
- →

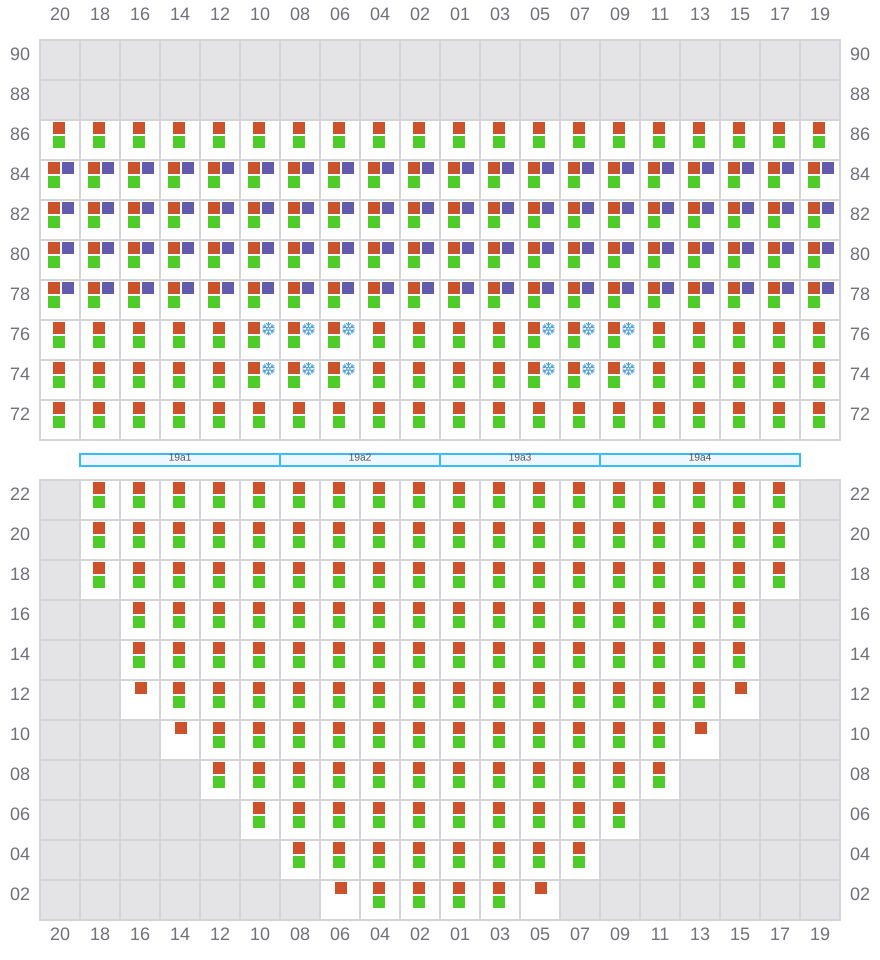

019 (018)
- ←

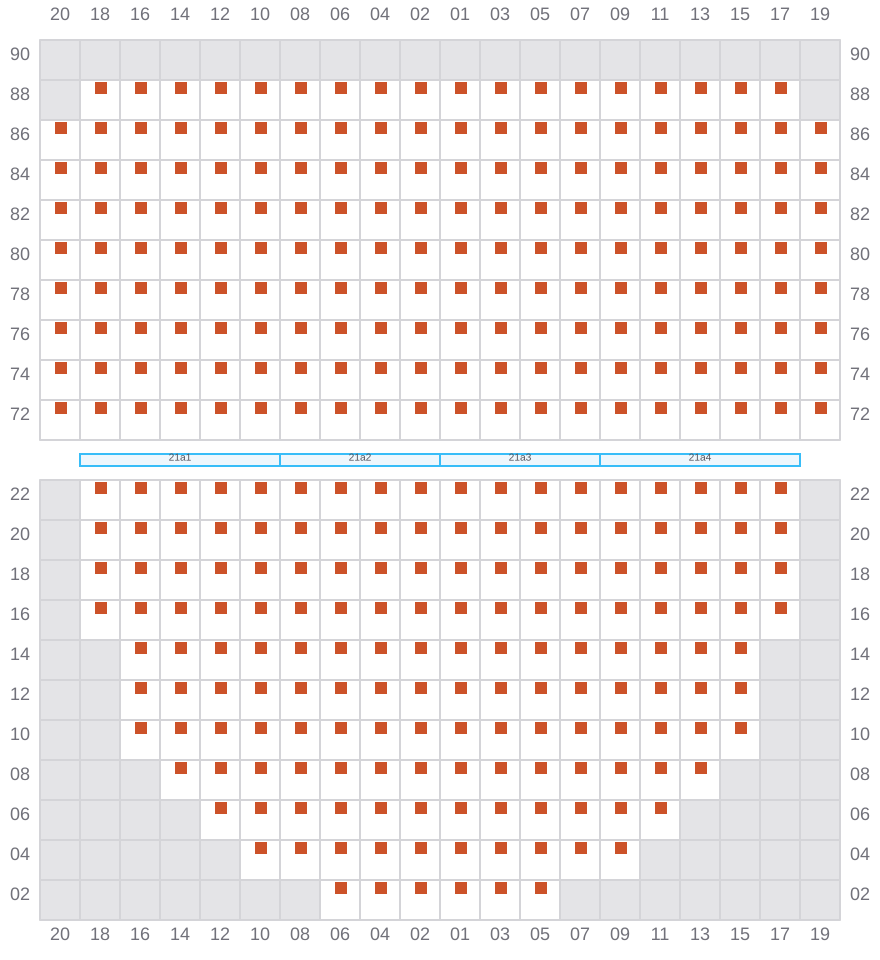

021
- →

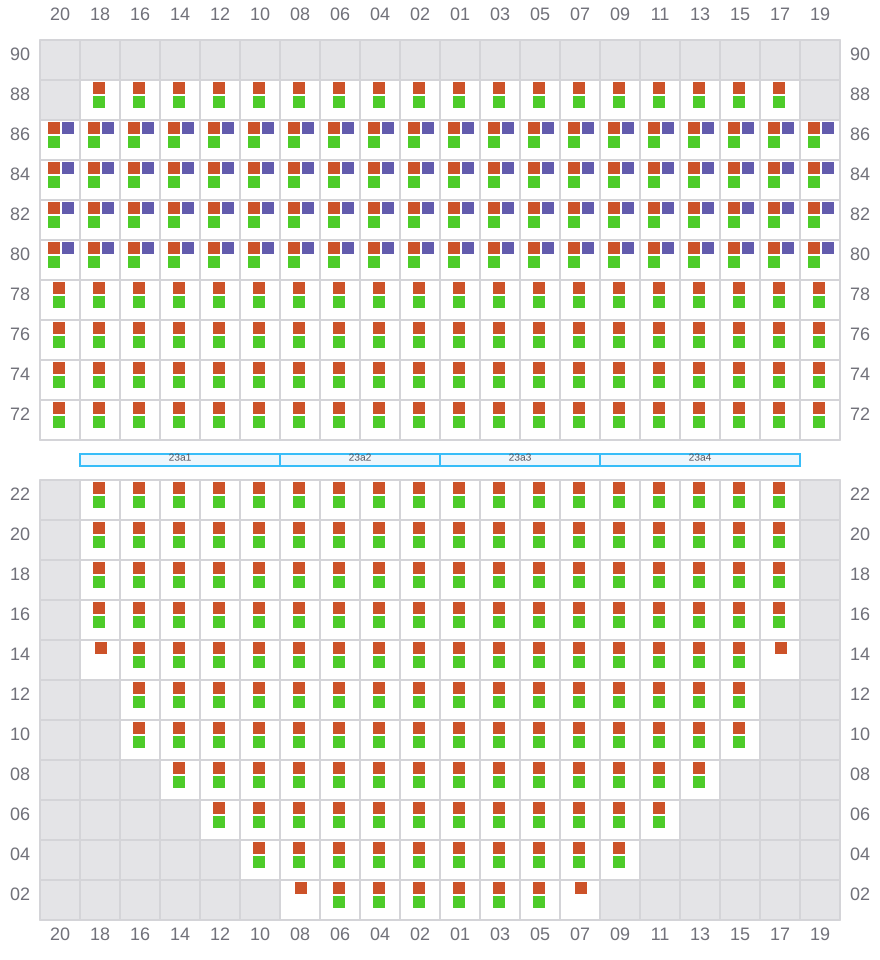

023 (022)
- ←
025
- →

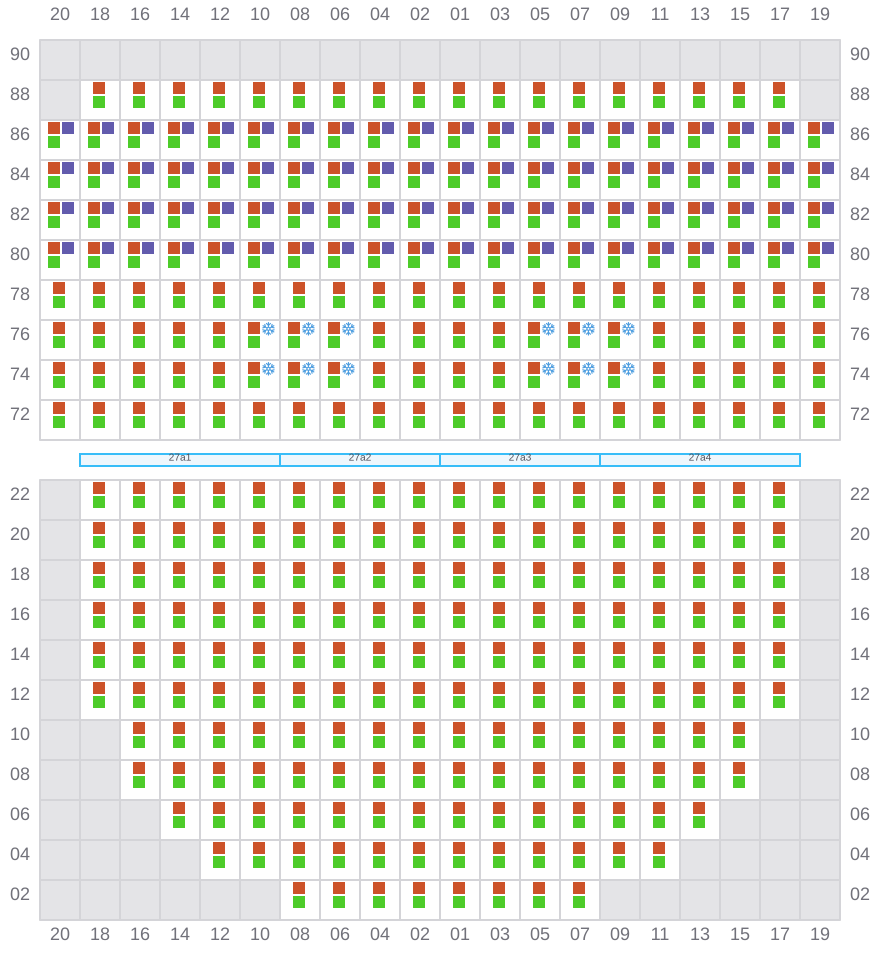

027 (026)
- ←

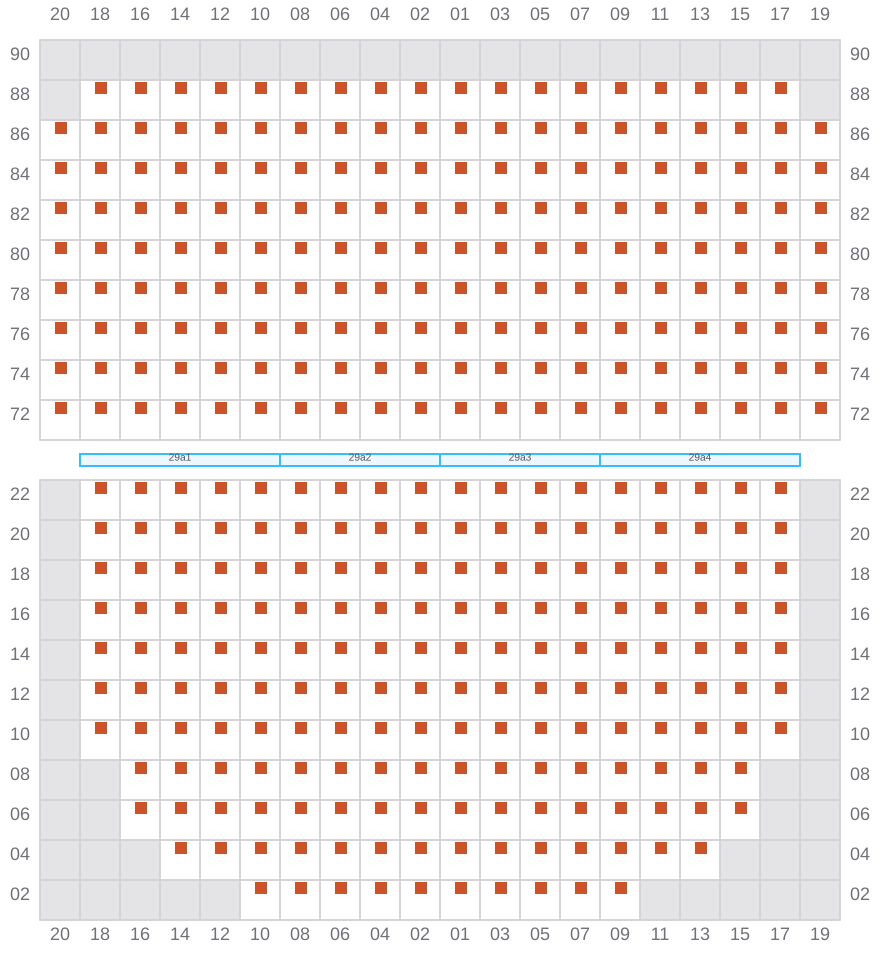

029
- →

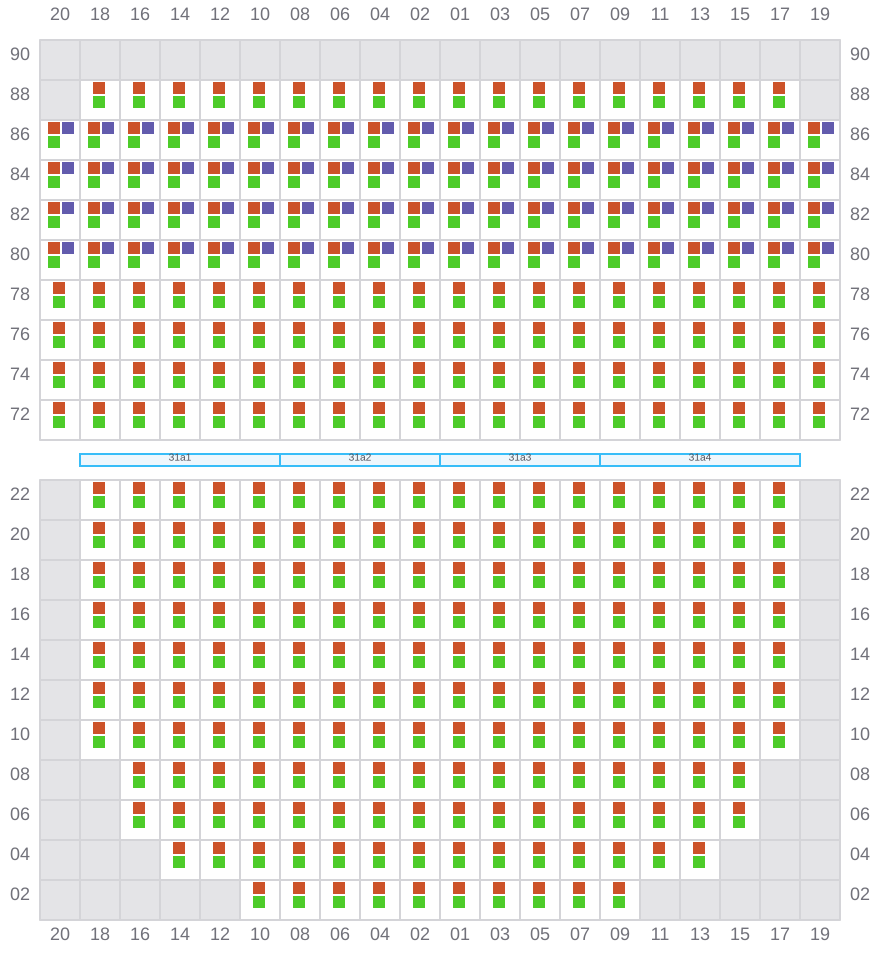

031 (030)
- ←

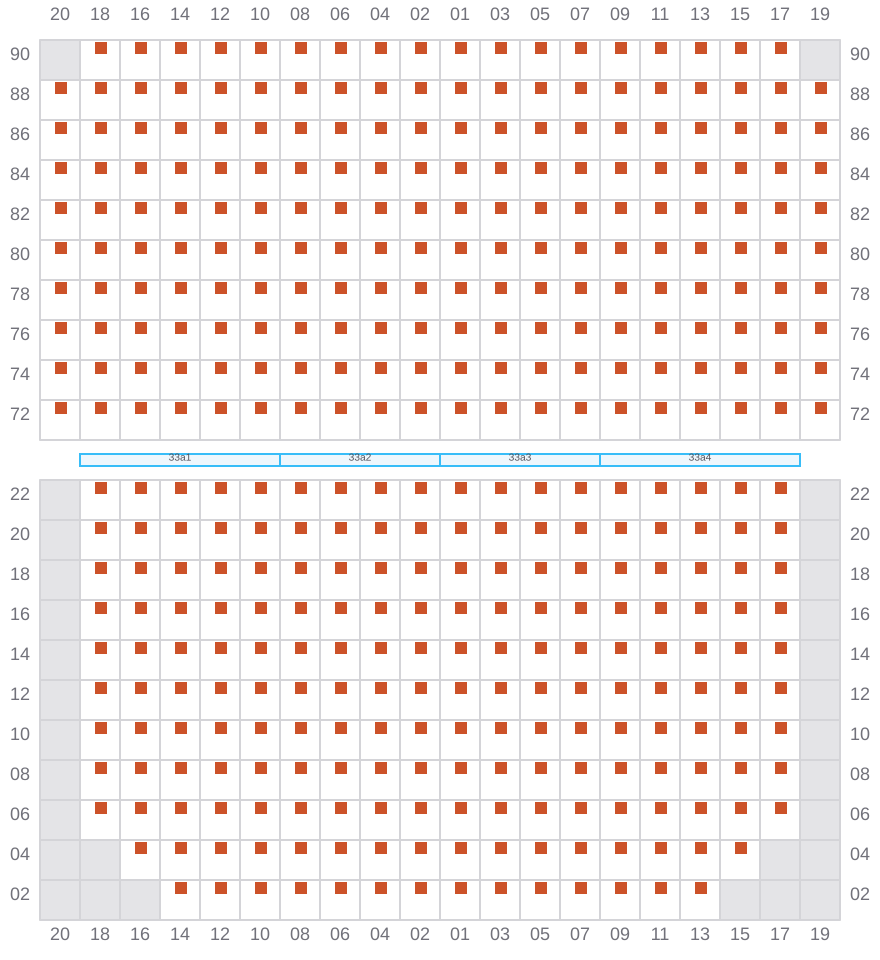

033
- →

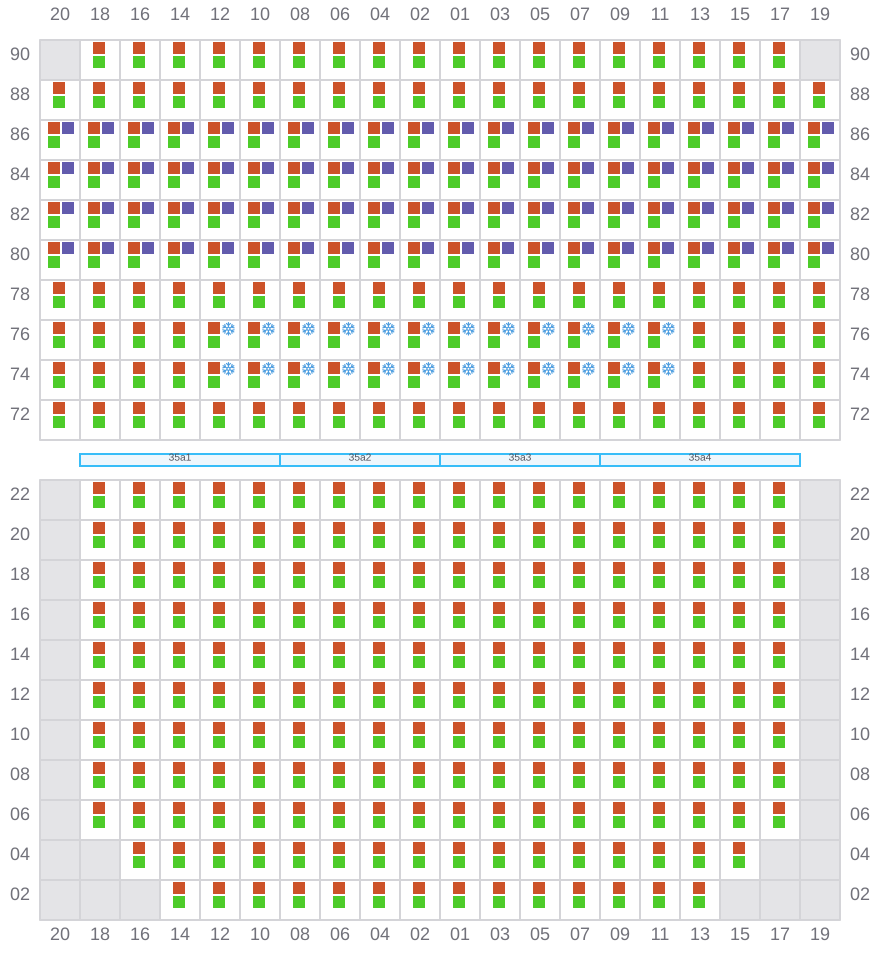

035 (034)
- ←

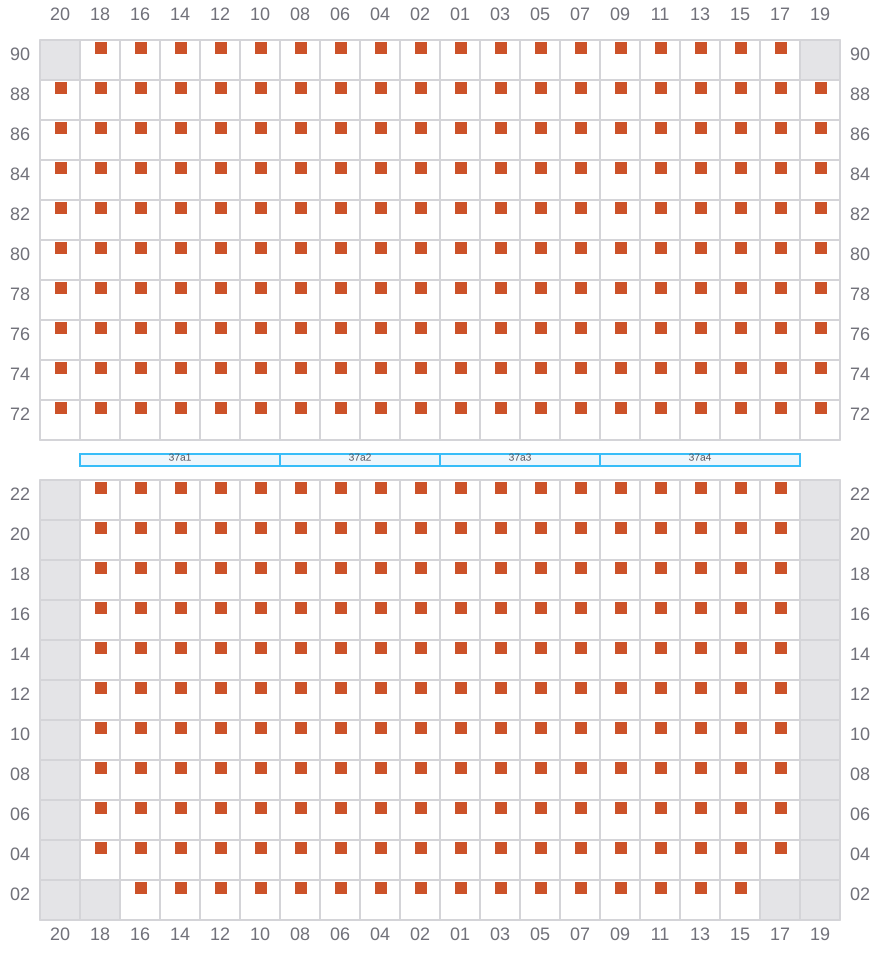

037
- →

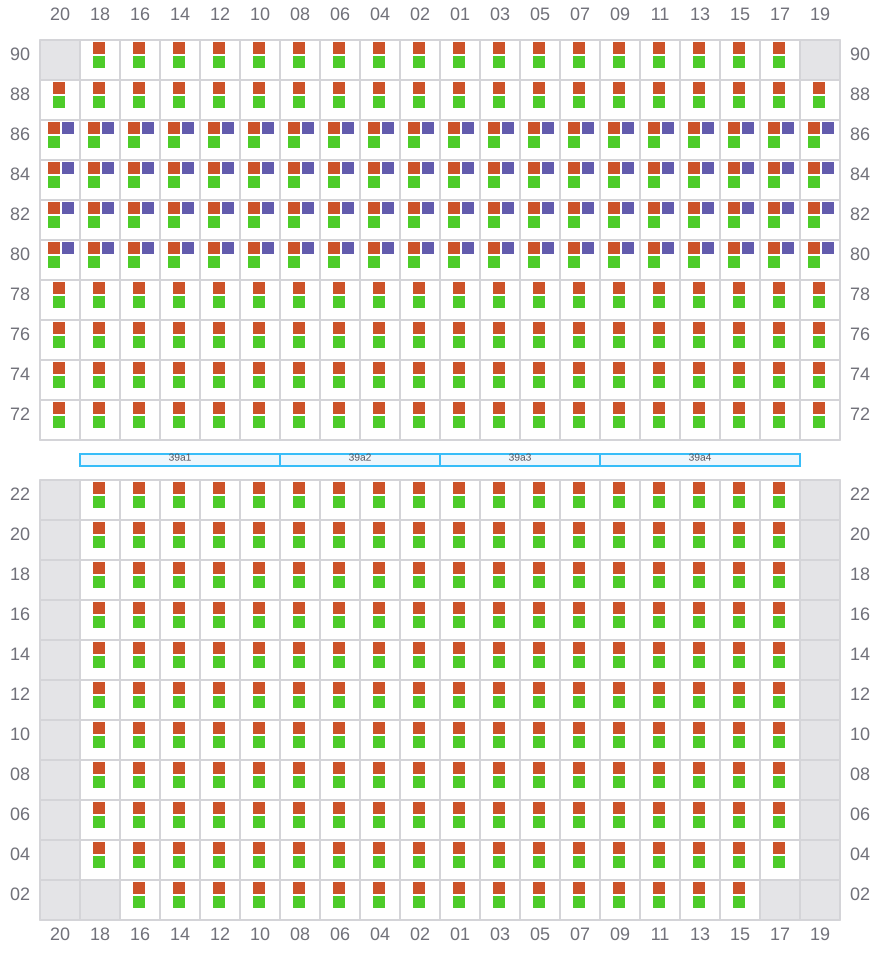

039 (038)
- ←
041
- →
043 (042)
- ←

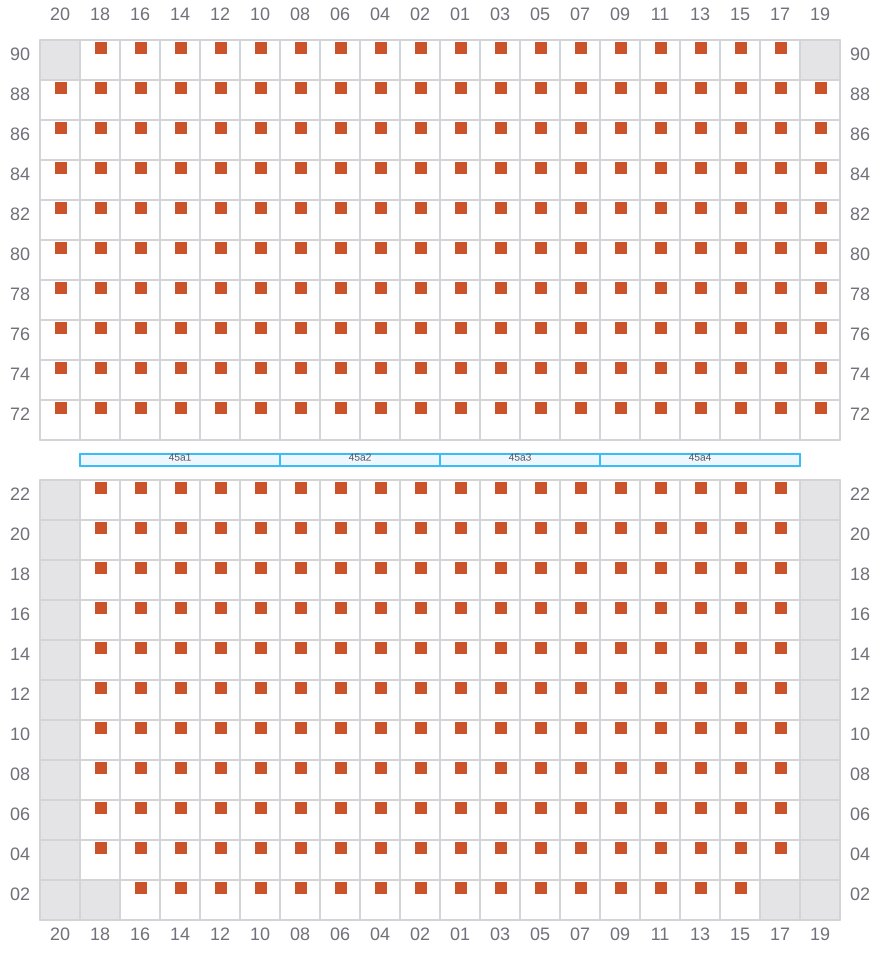

045
- →
047 (046)
- ←

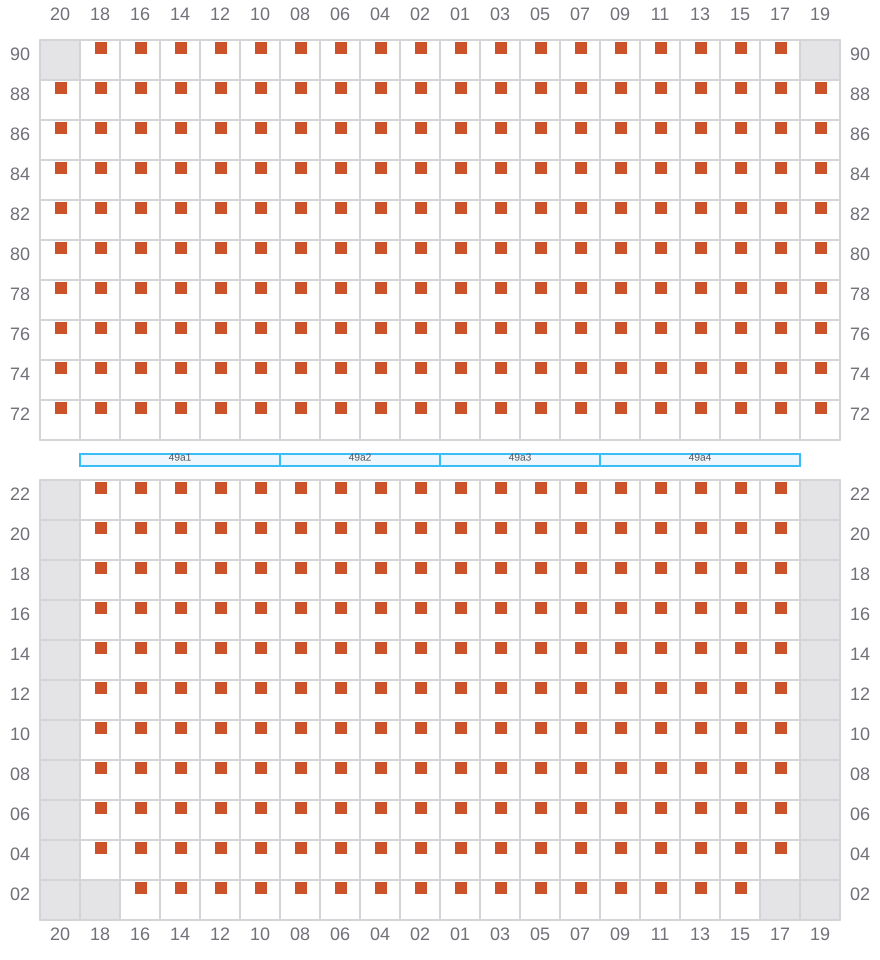

049
- →

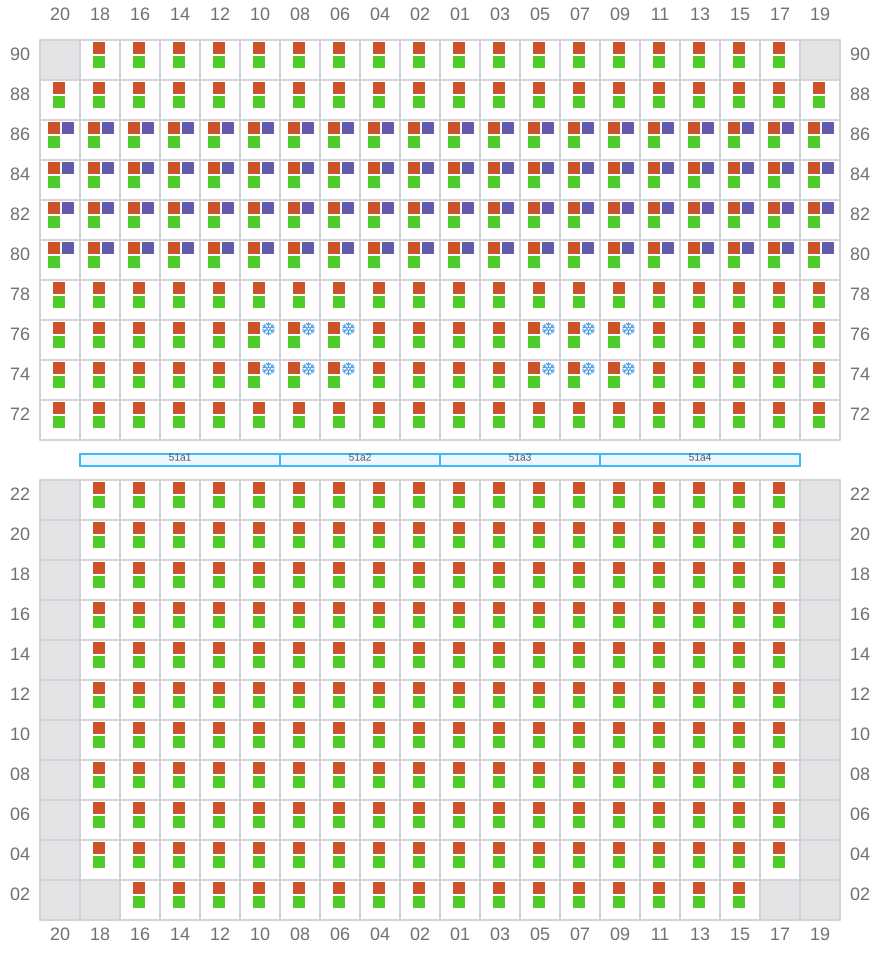

051 (050)
- ←

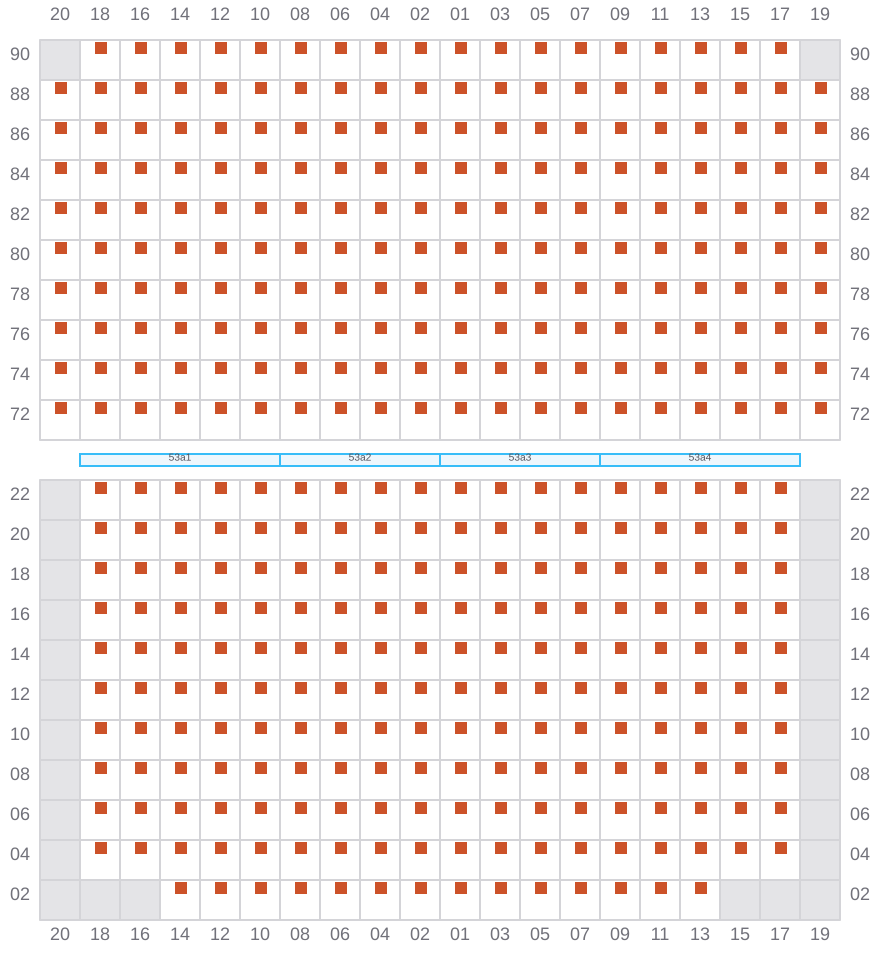

053
- →

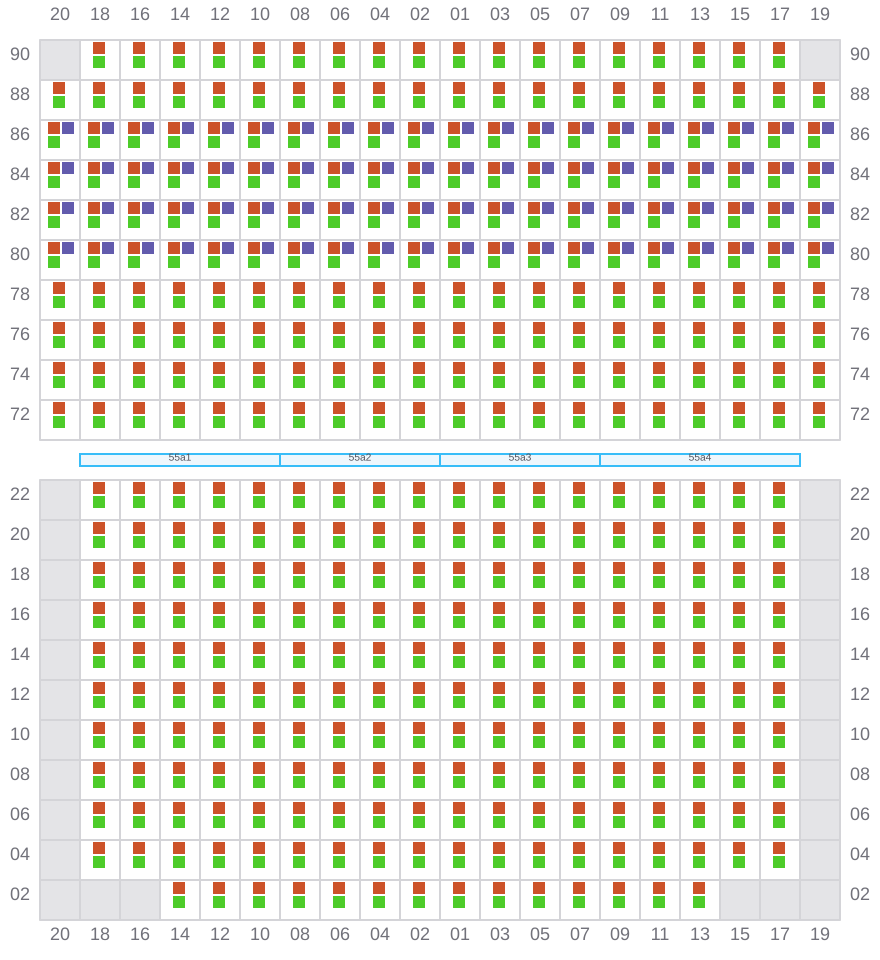

055 (054)
- ←
057
- →

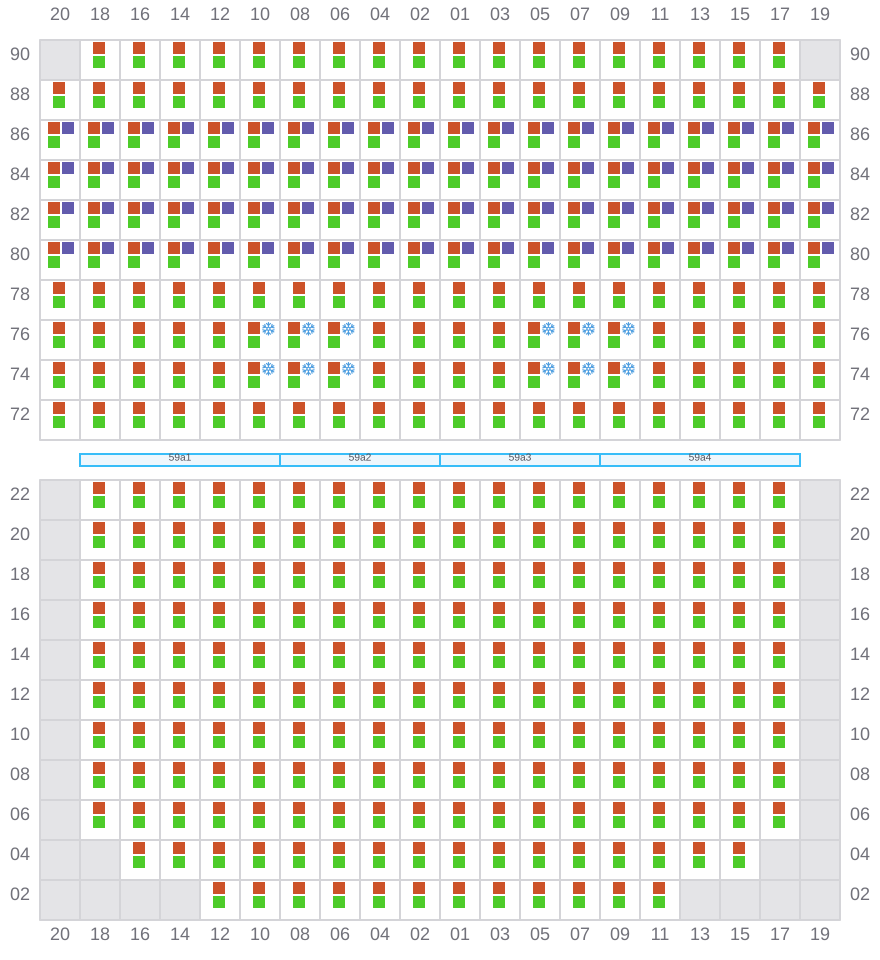

059 (058)
- ←

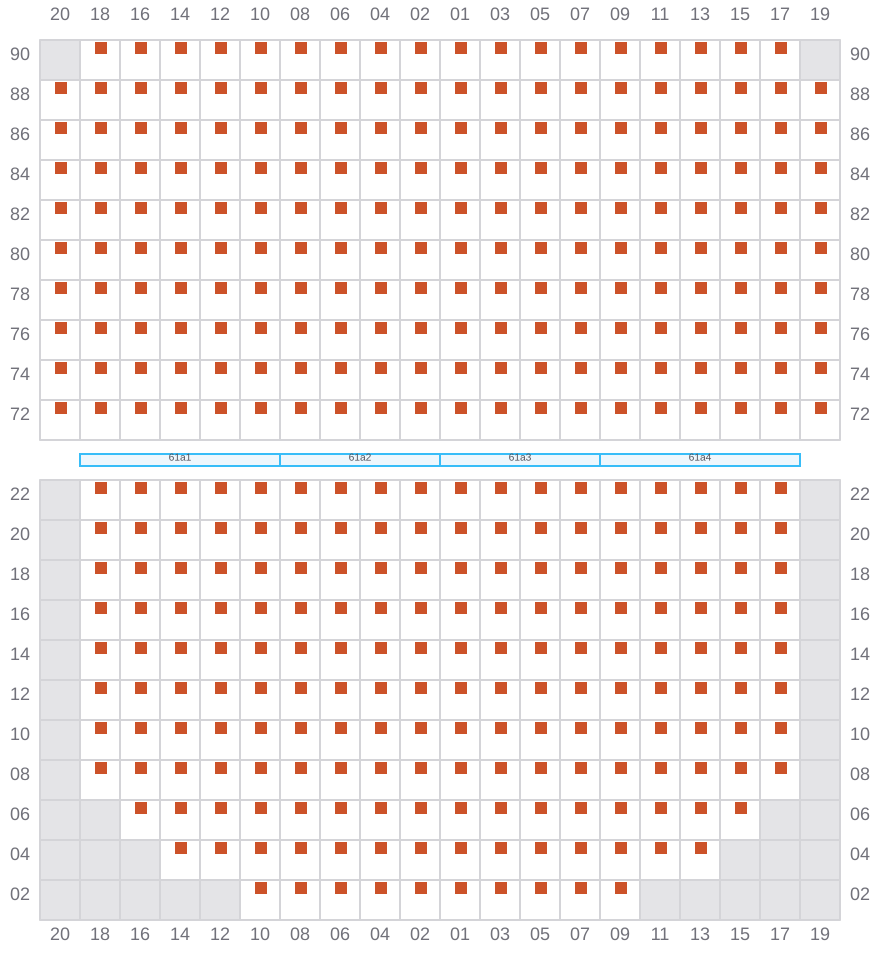

061
- →

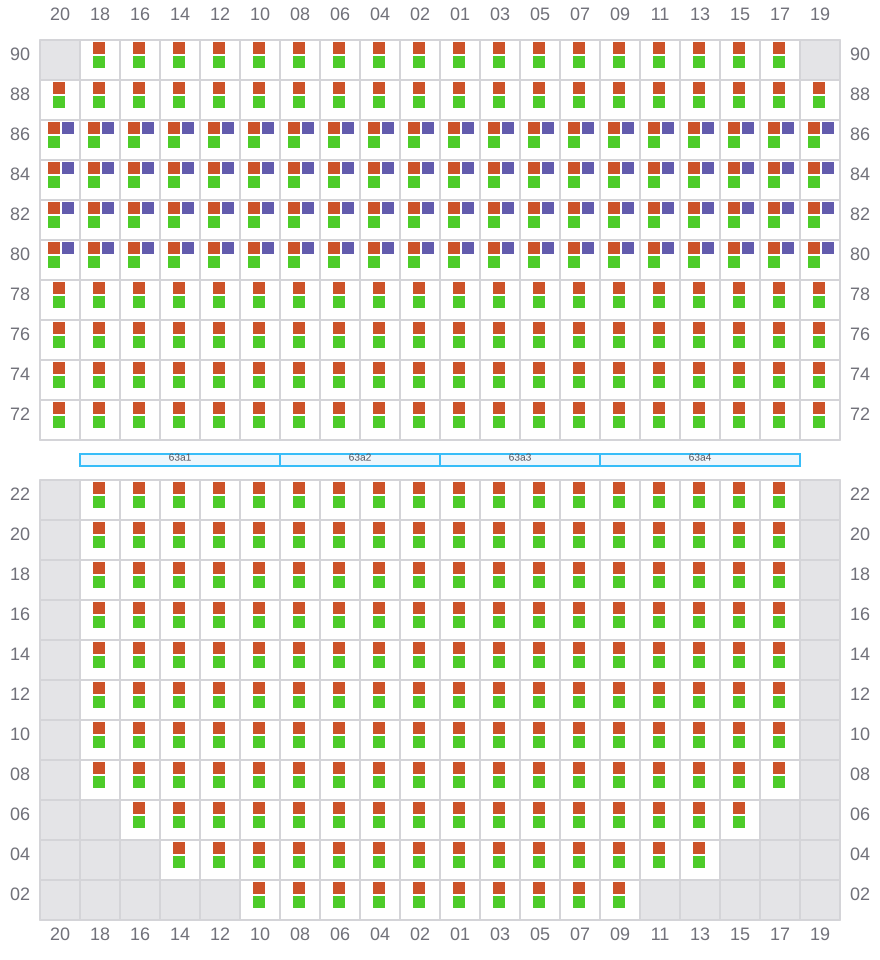

063 (062)
- ←

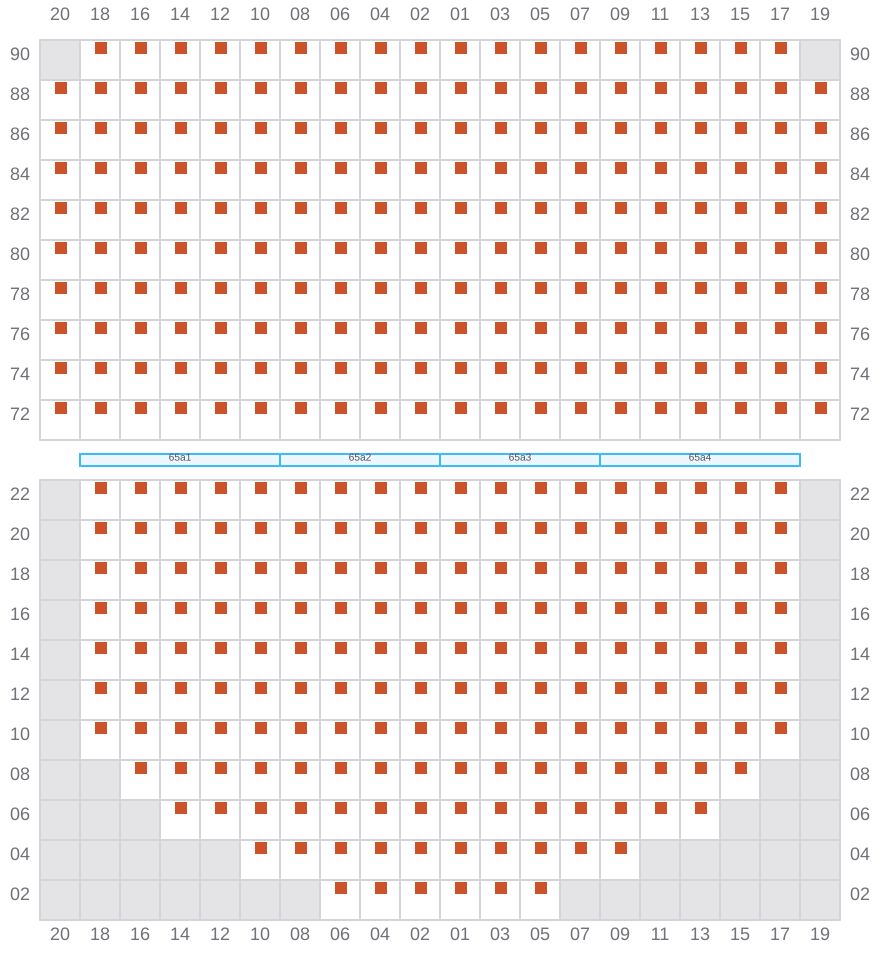

065
- →

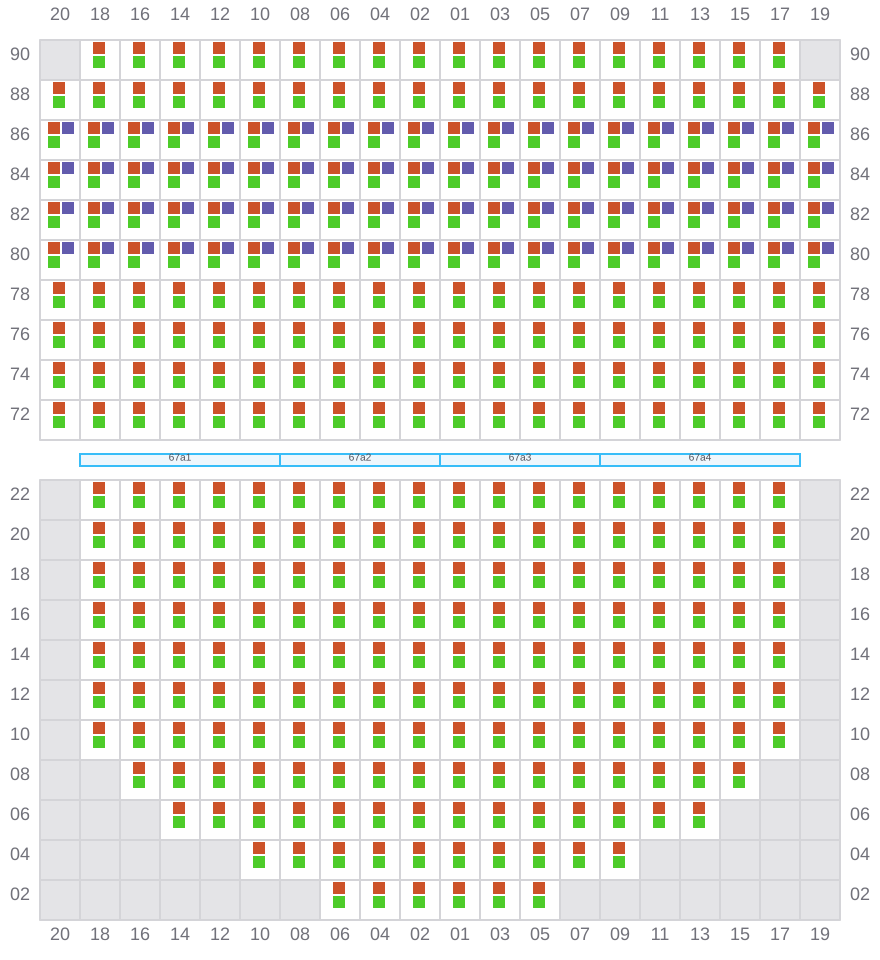

067 (066)
- ←

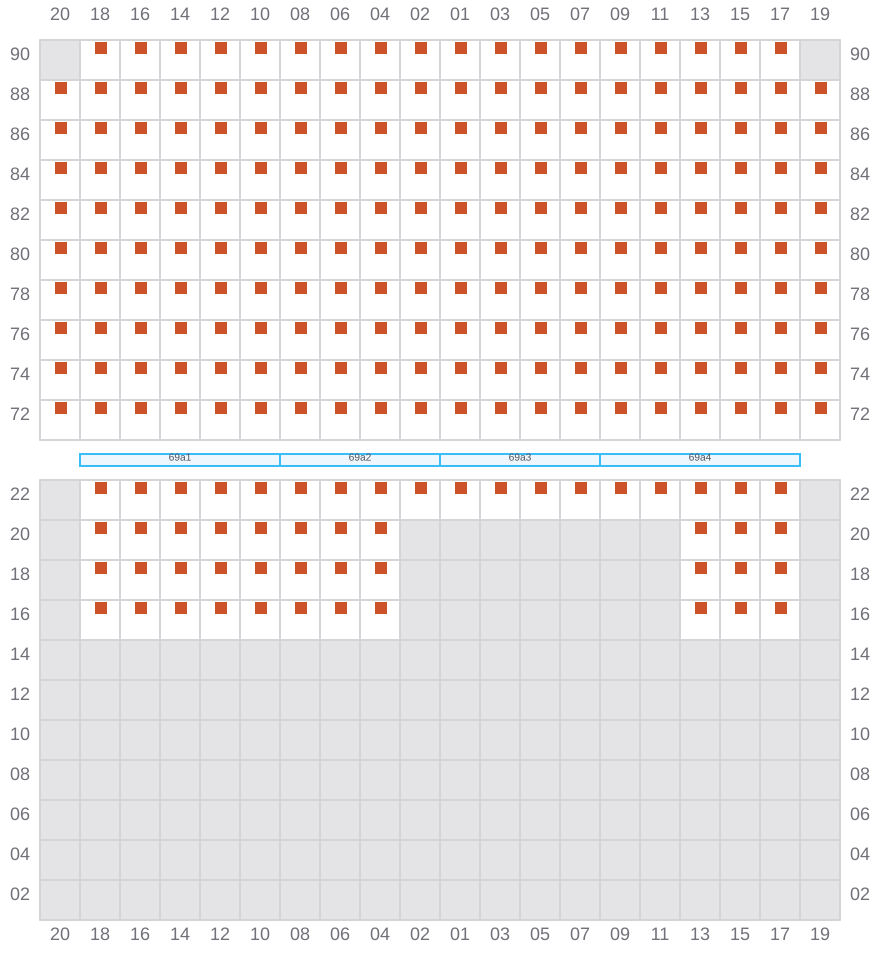

069
- →

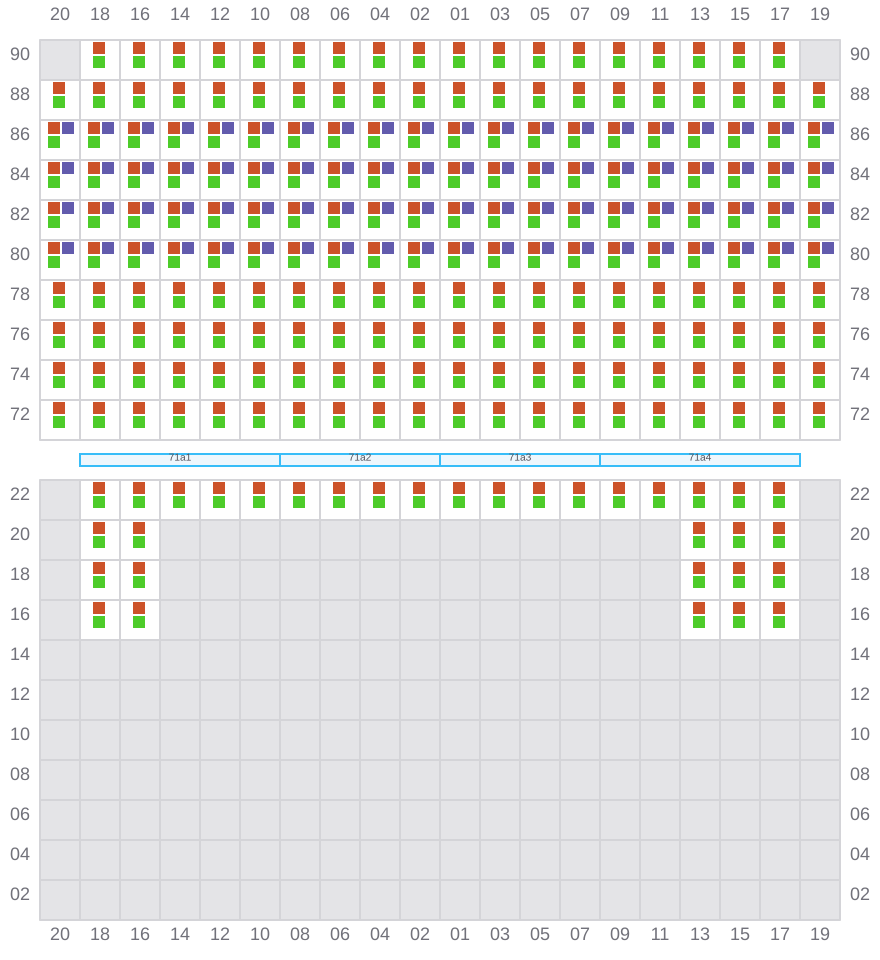

071 (070)
- ←
073
- →

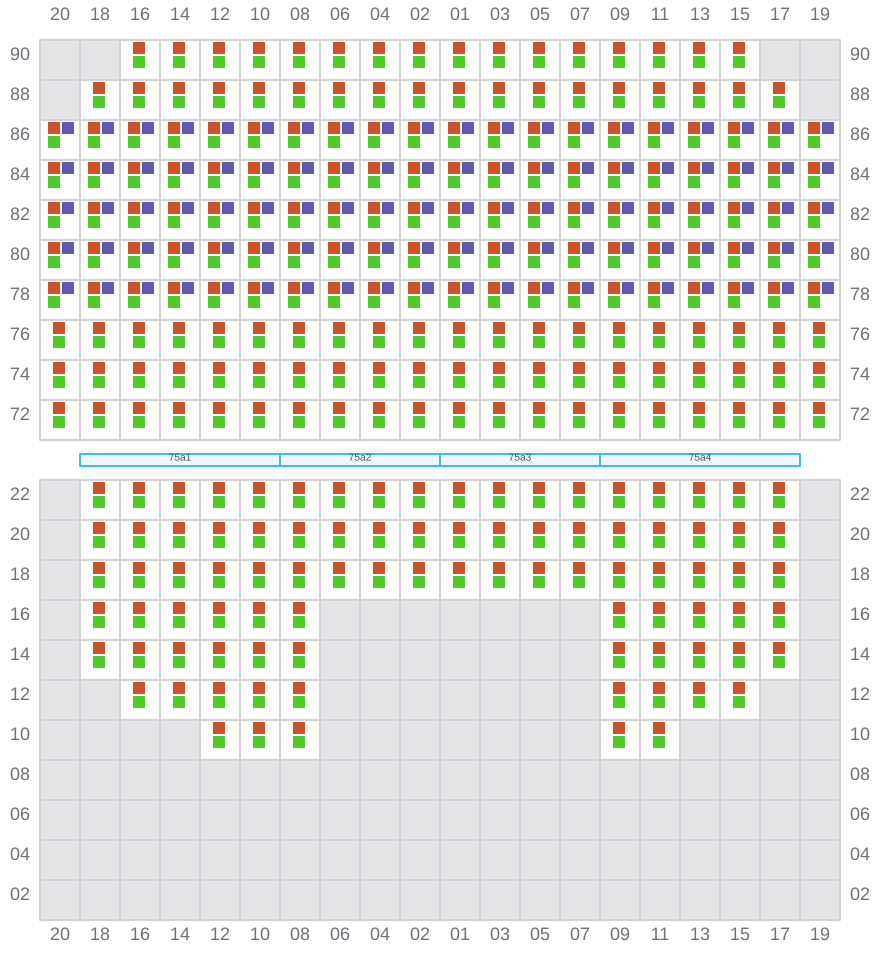

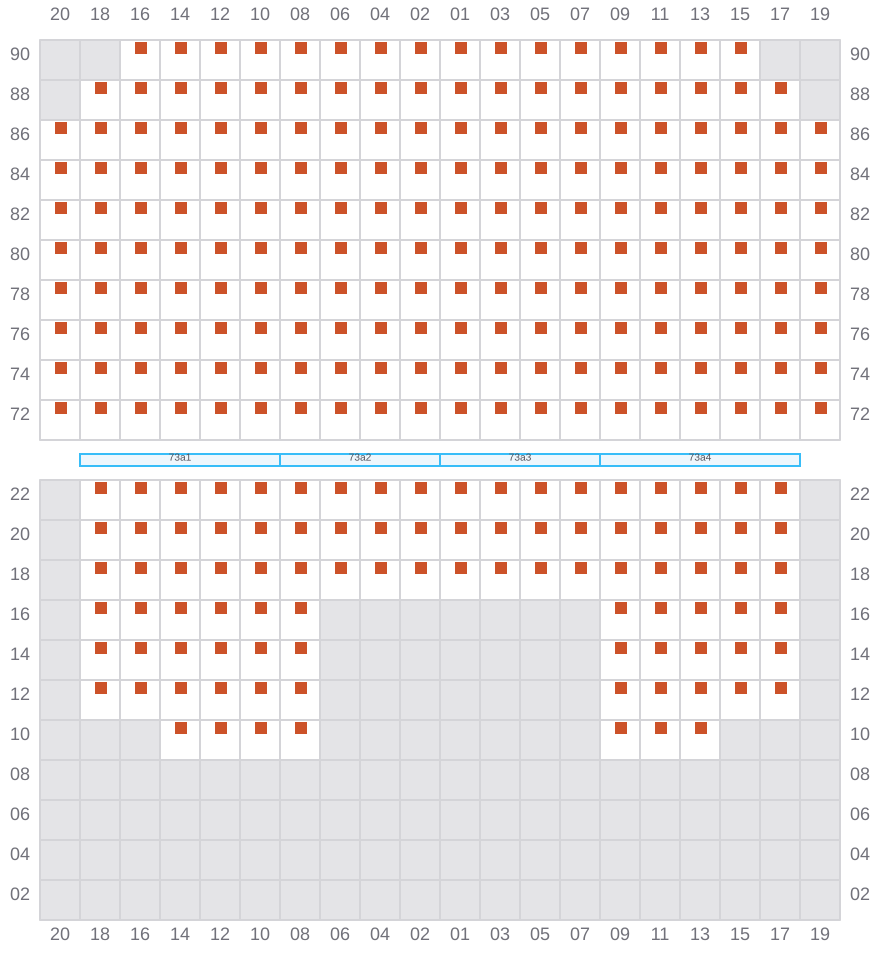

075 (074)
- ←

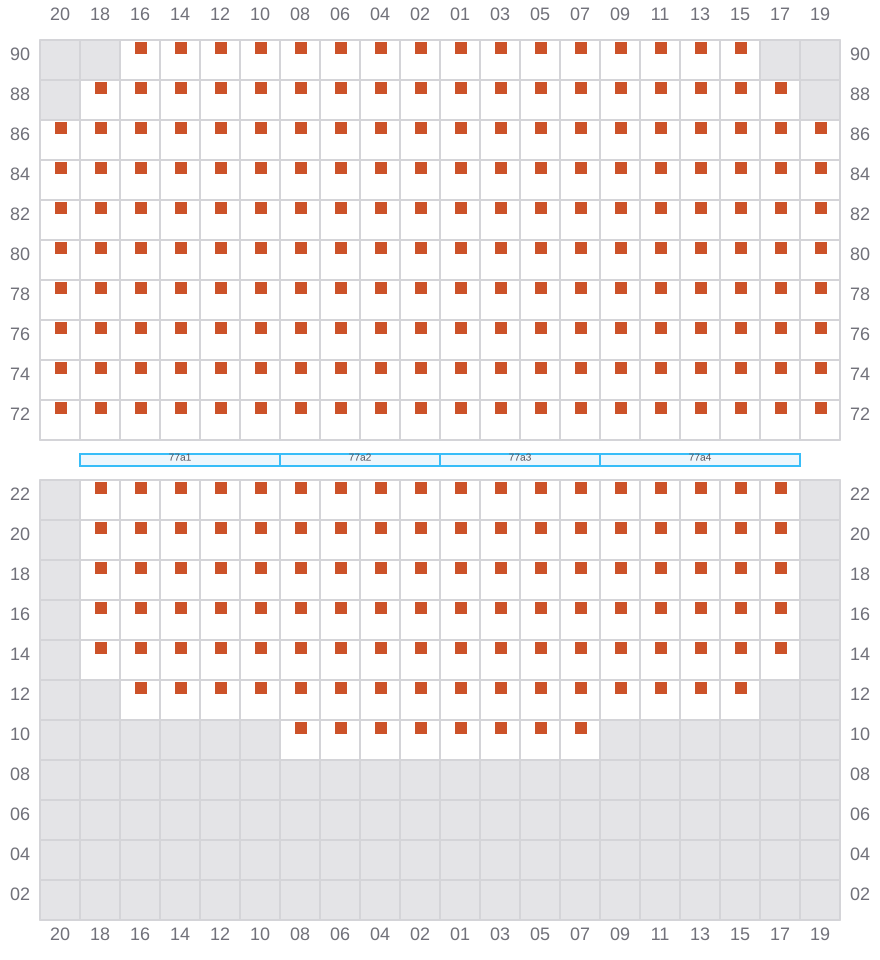

077
- →

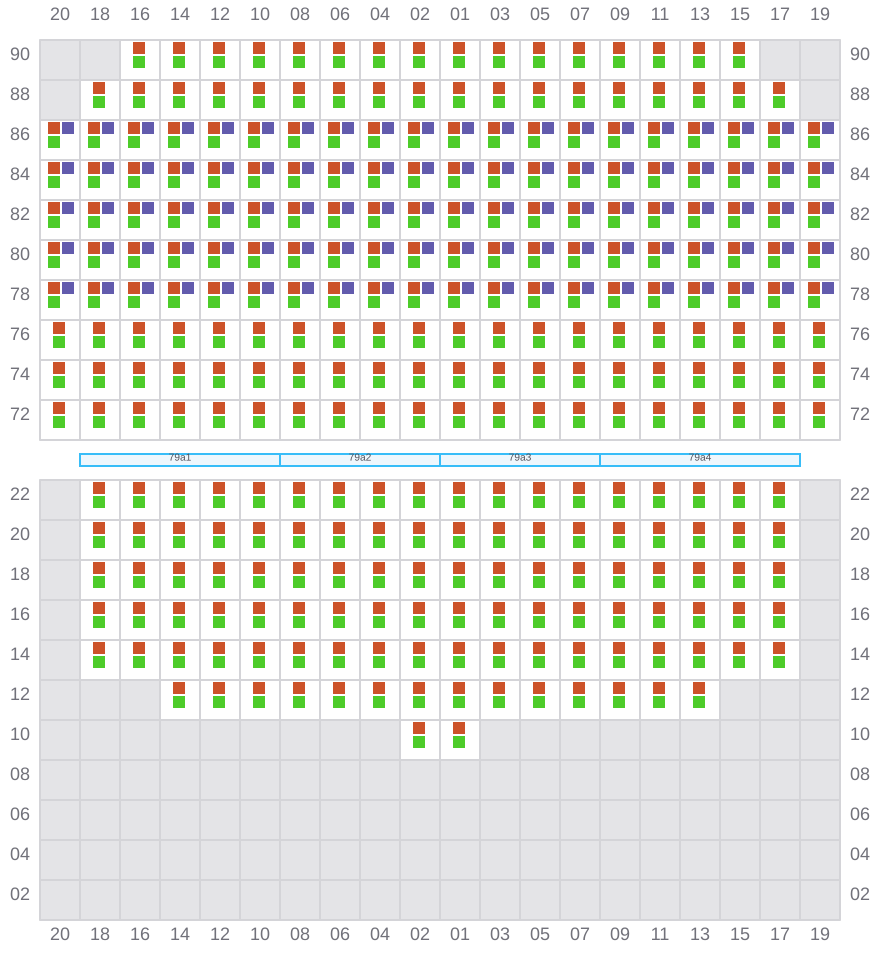

079 (078)
- ←

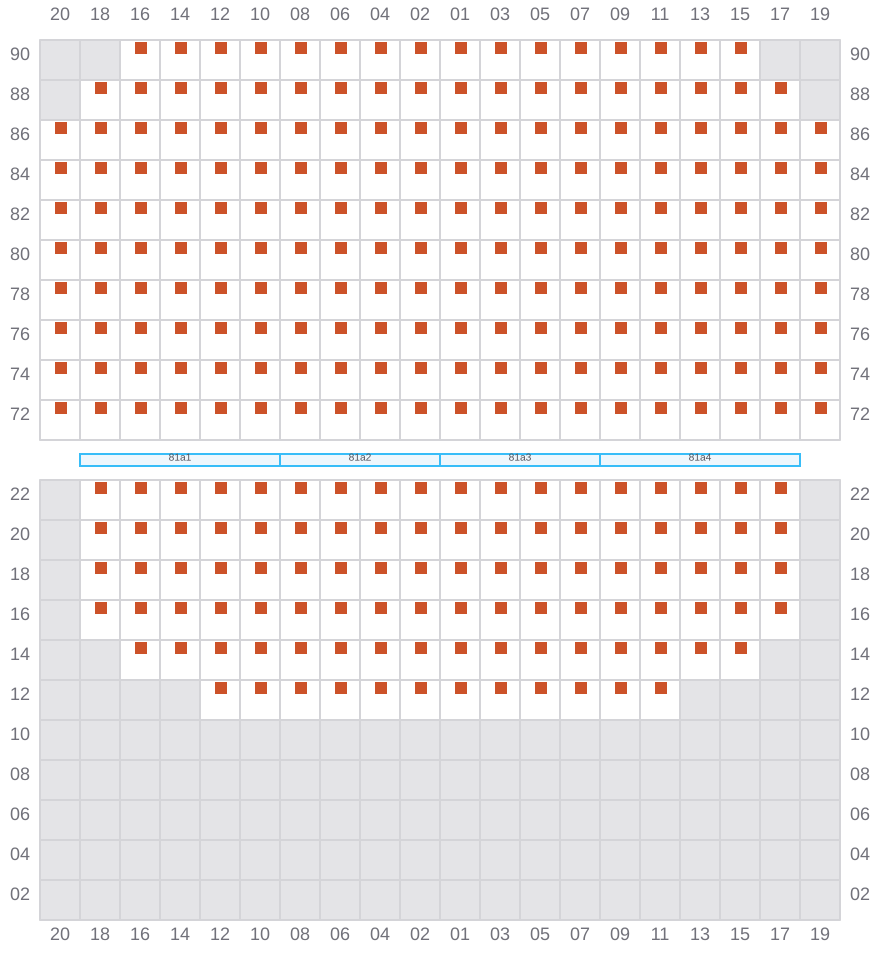

081
- →

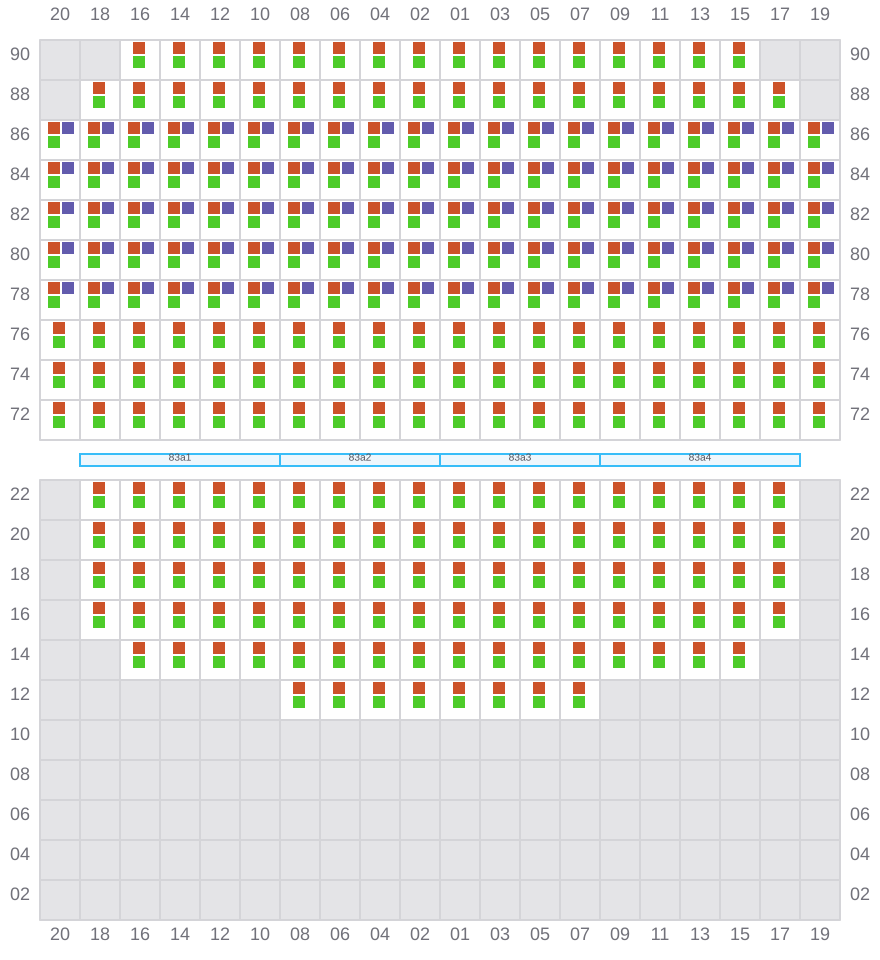

083 (082)
- ←

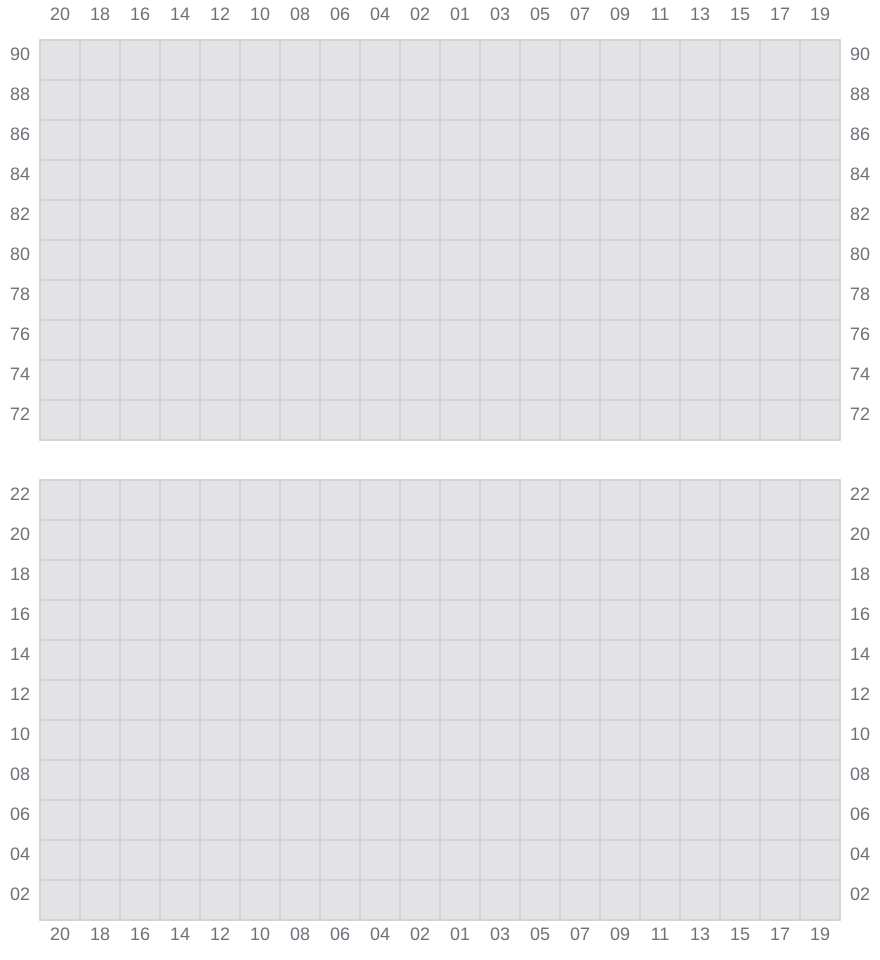

085
- → / ?

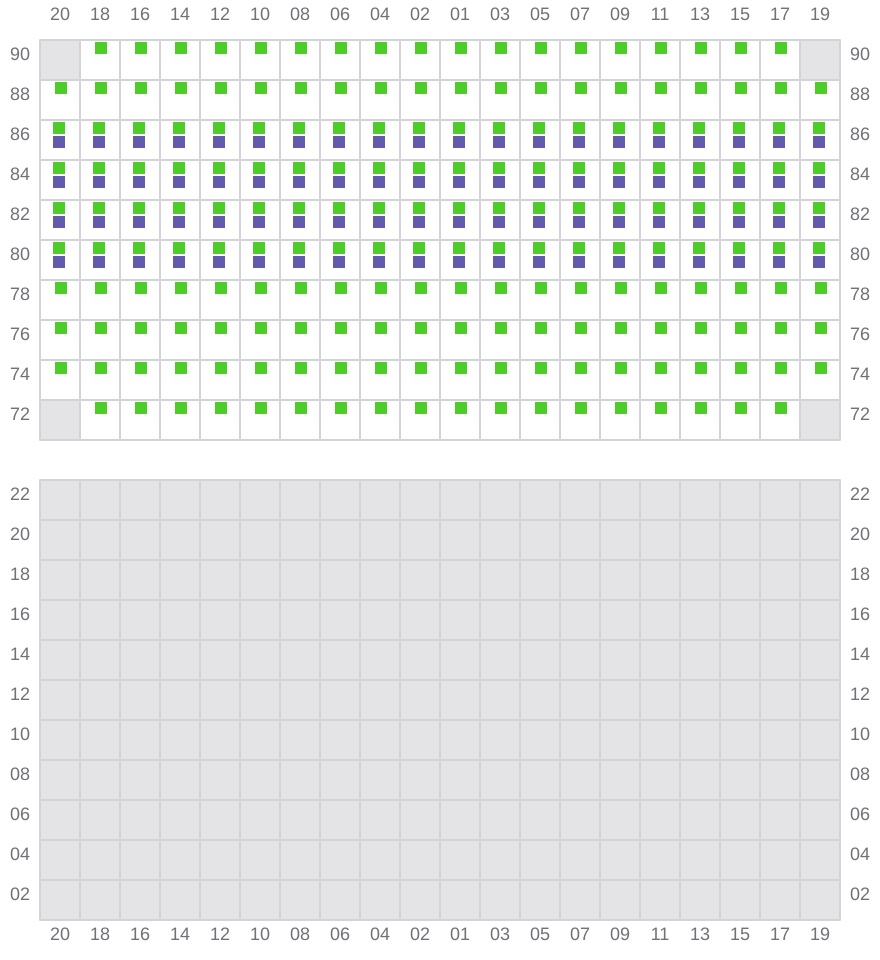

087 (086)
- ← / ?
