YM WELLBEING
9820908 | 9V9755 | YANG MING MARINE TRANSPORT by ************** Last update: Tue Sep 22 2026

General Info

Ship Name:YM WELLBEING

IMO Code:9820908

Call Sign:9V9755

Line Operator:YANG MING MARINE TRANSPORT

Class Name for Sister Ships:YM WISH

Year Built:2018

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):350.00

LOA (Length Overall):366.44

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

40' Bays Location:-

Size Summary

ISO Bays:087

Max ISO Row:20

Center Line Row:No

Max Above ISO Tier:90

Min Above ISO Tier:70

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:14,518

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

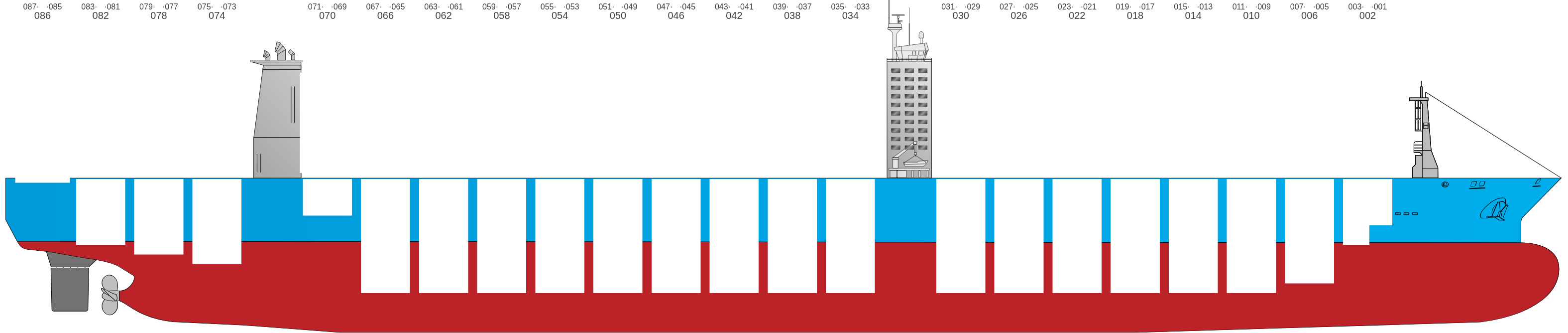

Side view of YM WELLBEING

Hatch-Covers View

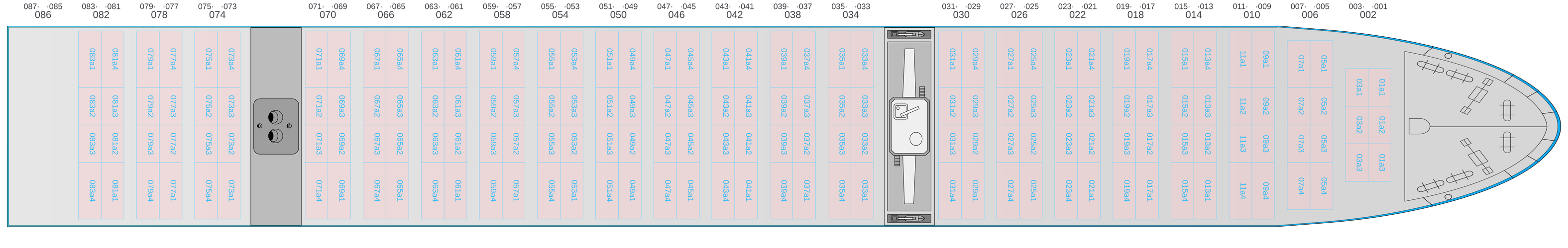

Deck view of YM WELLBEING

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001

→
^? / _→
→
✓

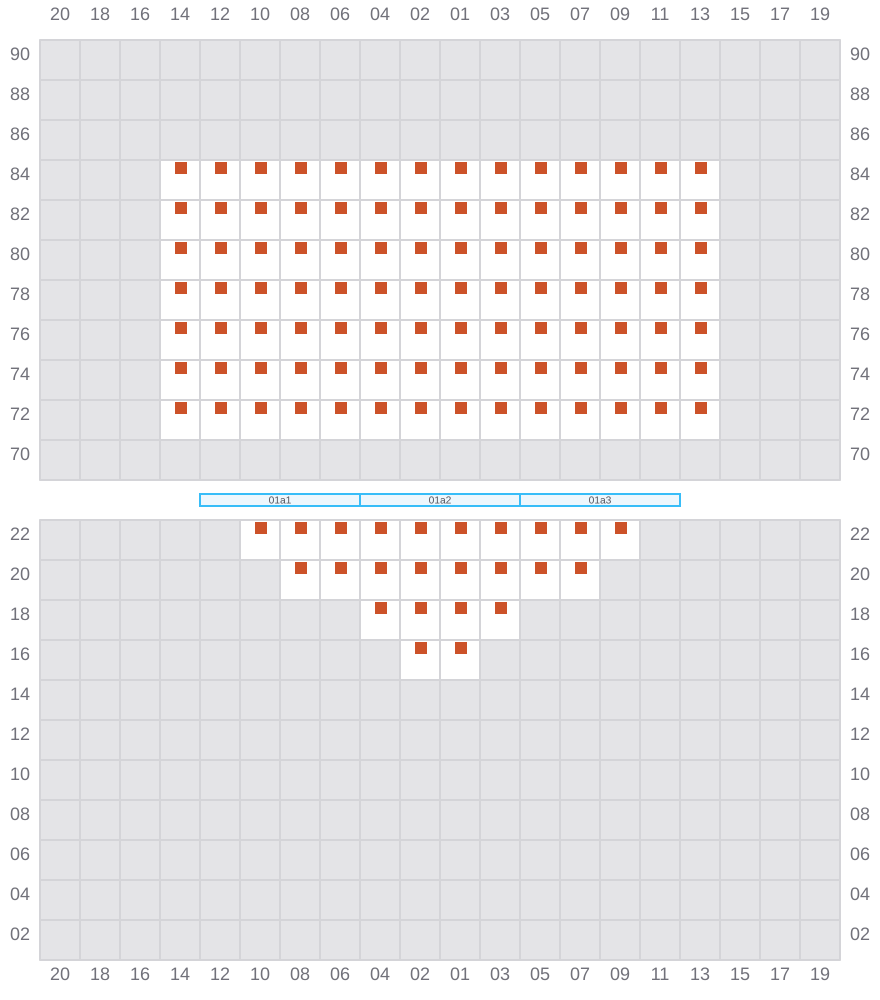

Bay 001 view and slots of YM WELLBEING

003 (002)

←
^? / _→
→
✓

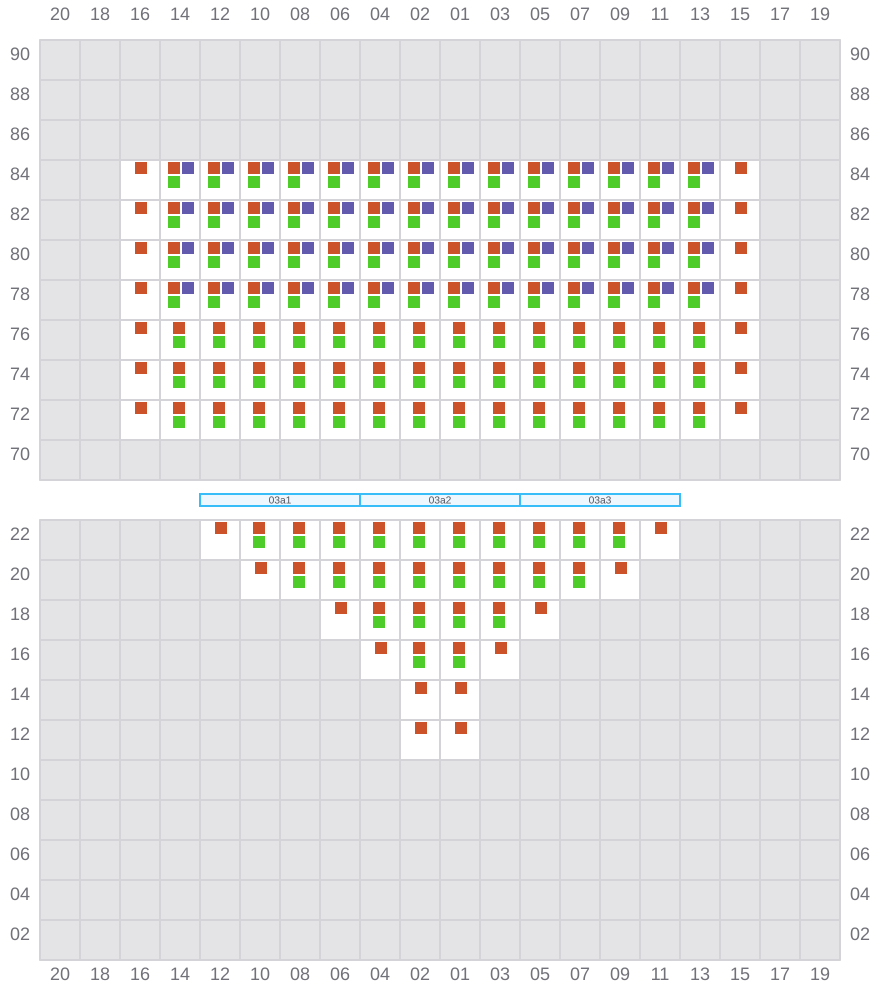

Bay 003 view and slots of YM WELLBEING

005

→
→
→
✓

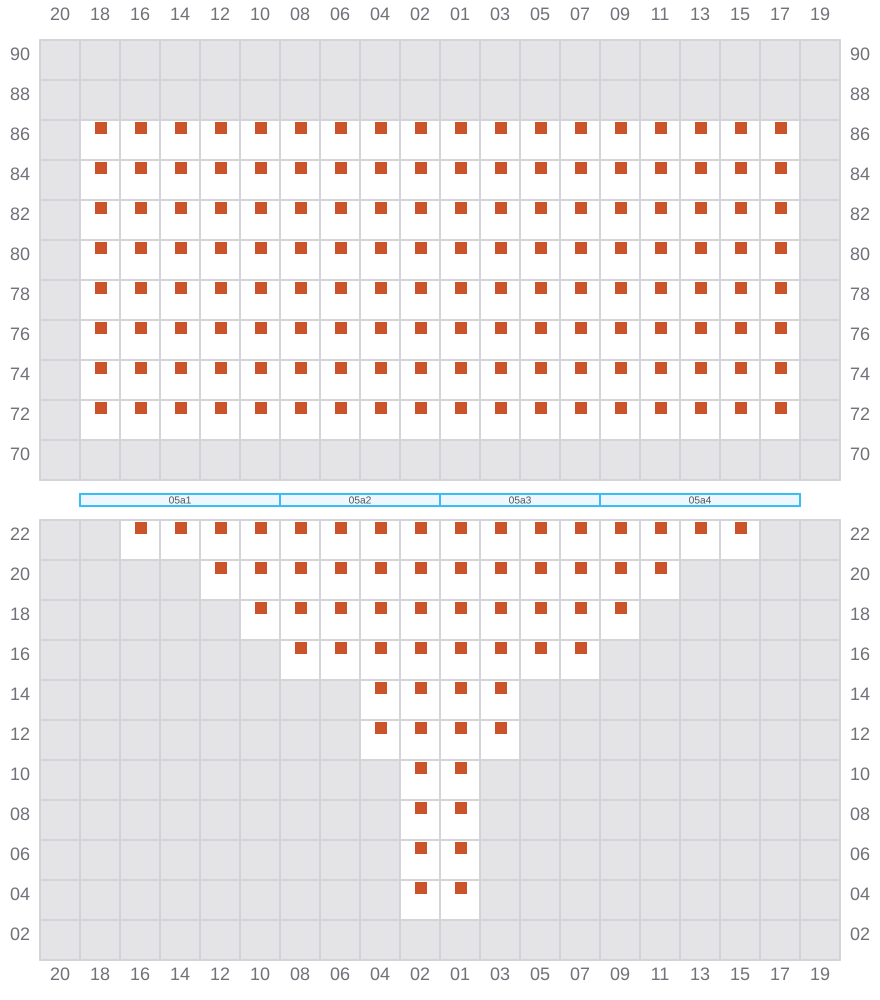

Bay 005 view and slots of YM WELLBEING

007 (006)

←
→
→
✓

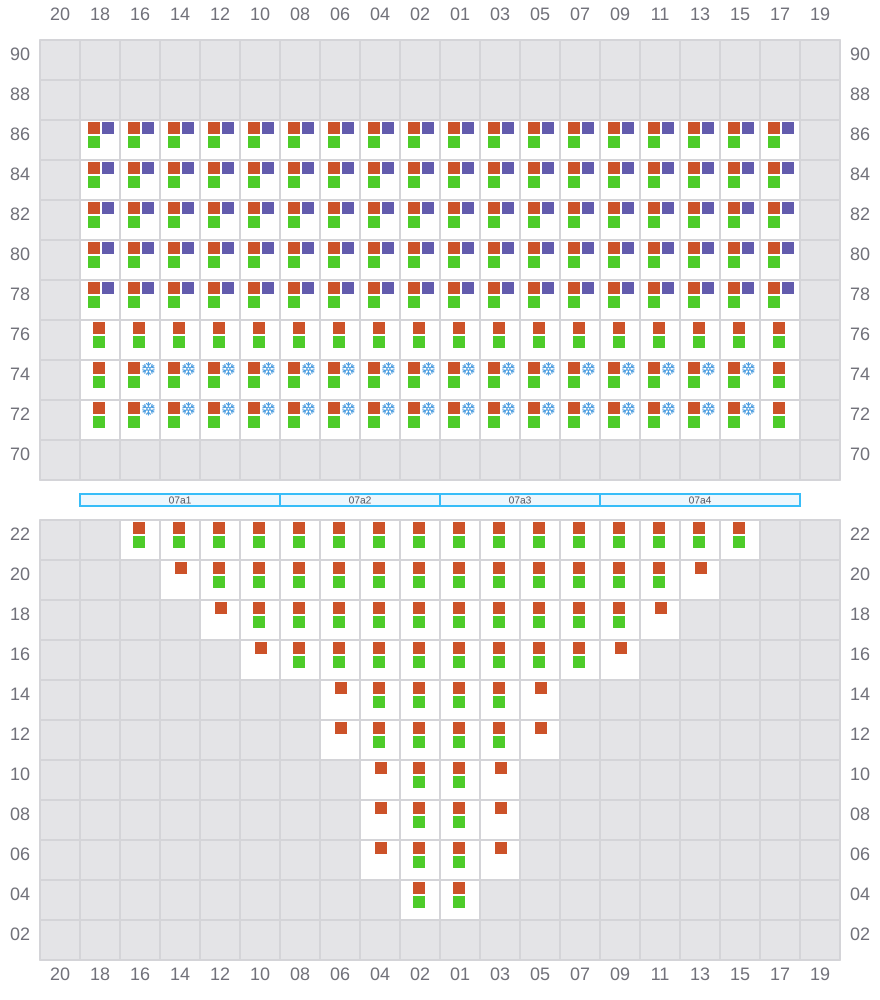

Bay 007 view and slots of YM WELLBEING

009

→
→
→
✓

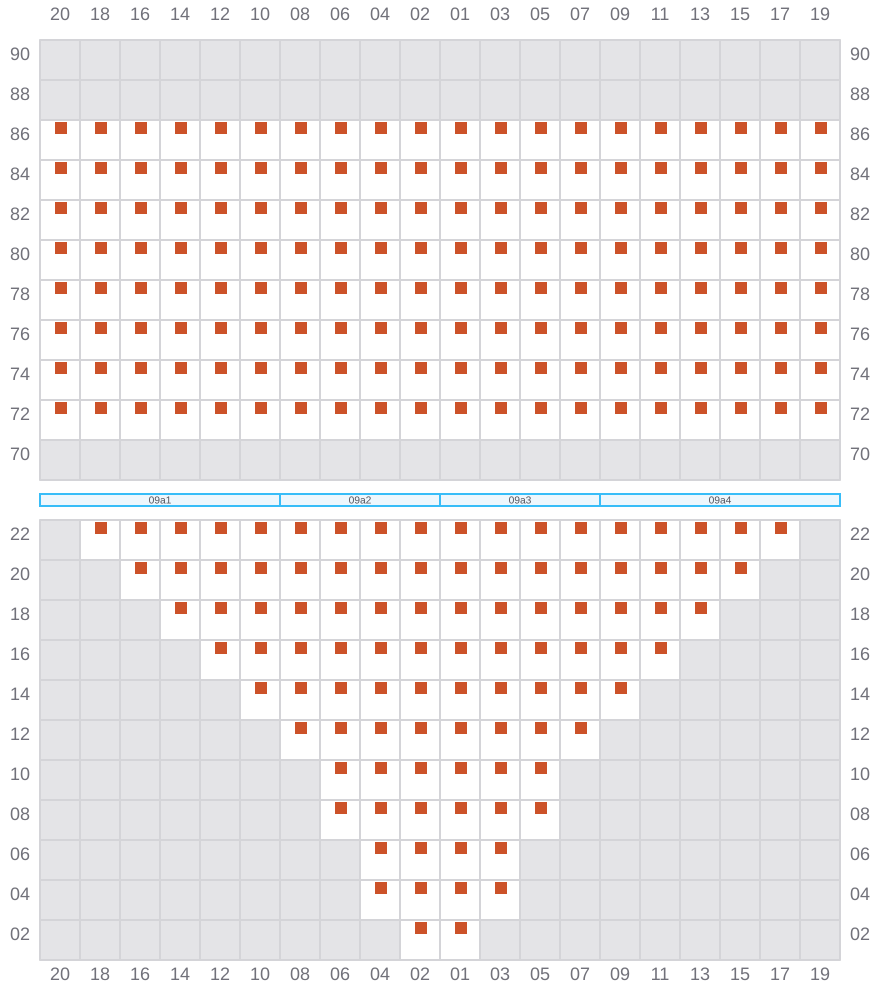

Bay 009 view and slots of YM WELLBEING

011 (010)

←
→
→
✓

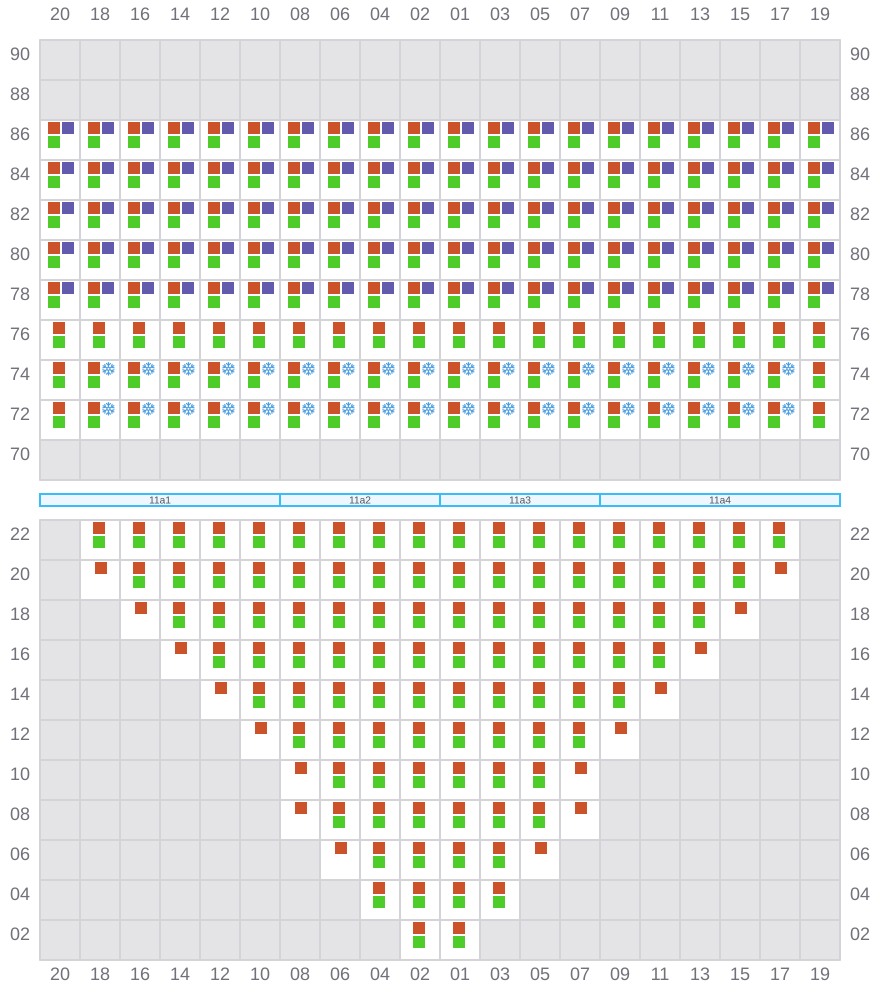

Bay 011 view and slots of YM WELLBEING

013

→
→
→
✓

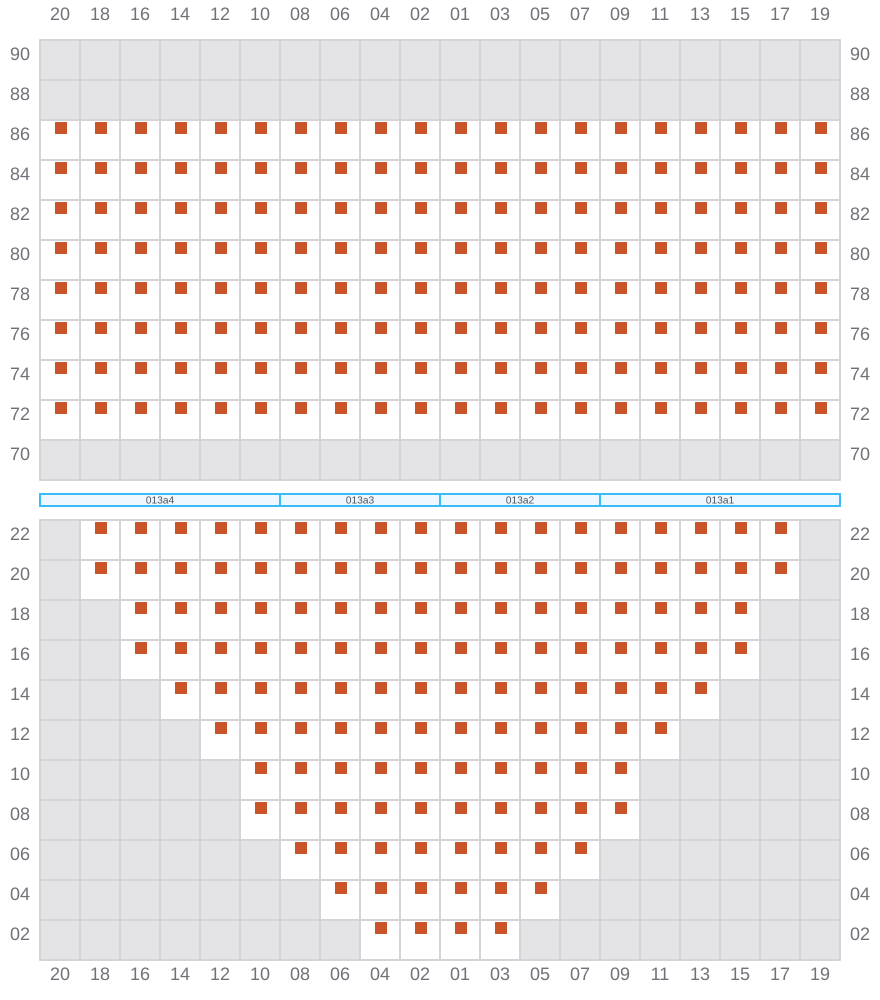

Bay 013 view and slots of YM WELLBEING

015 (014)

←
→
→
✓

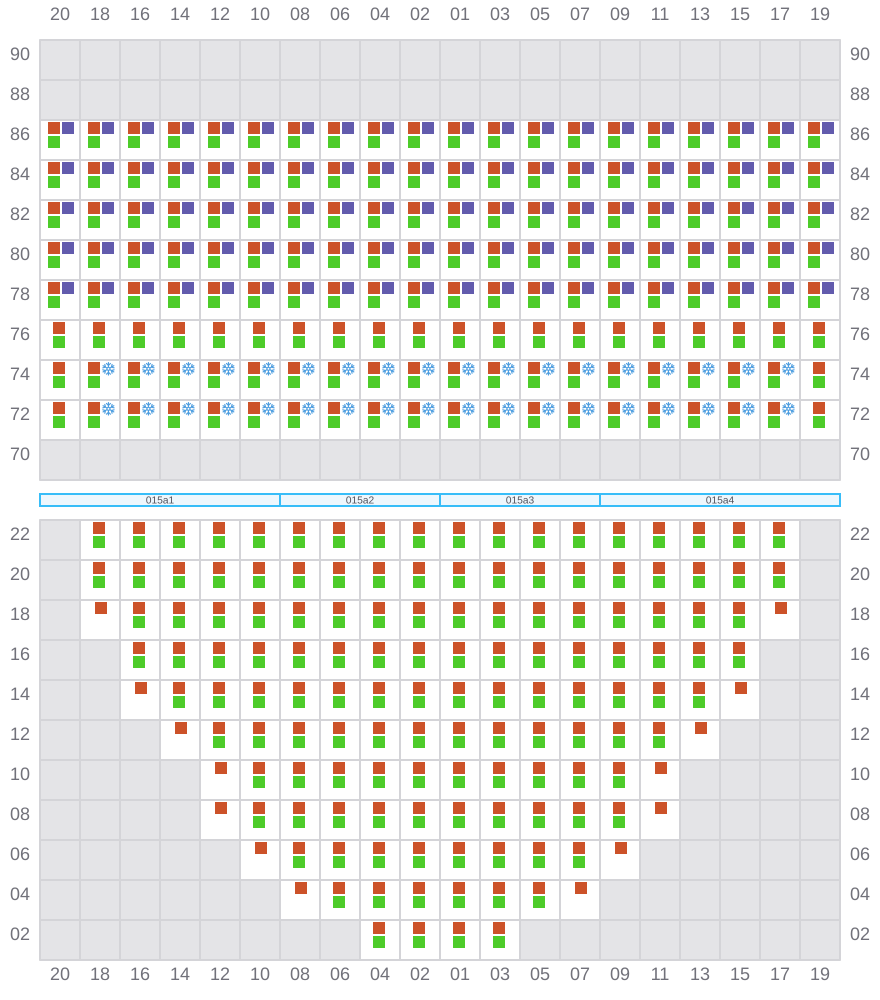

Bay 015 view and slots of YM WELLBEING

017

→
→
→
✓

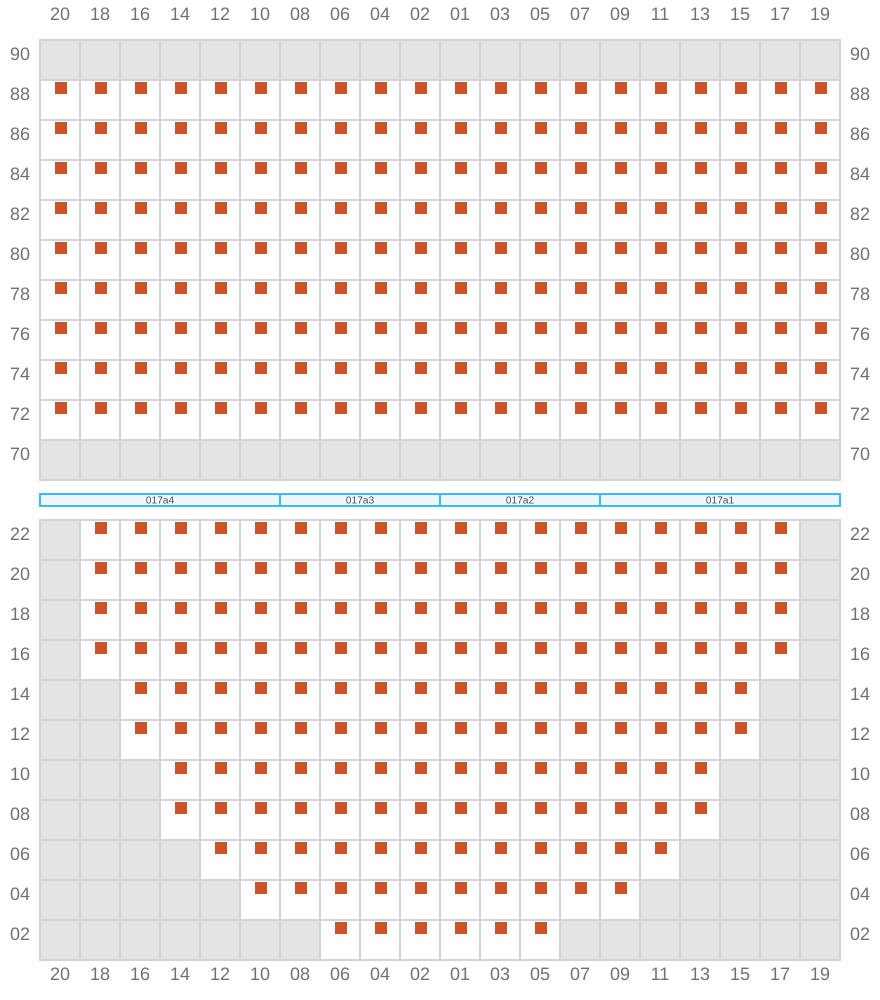

Bay 017 view and slots of YM WELLBEING

019 (018)

←
→
→
✓

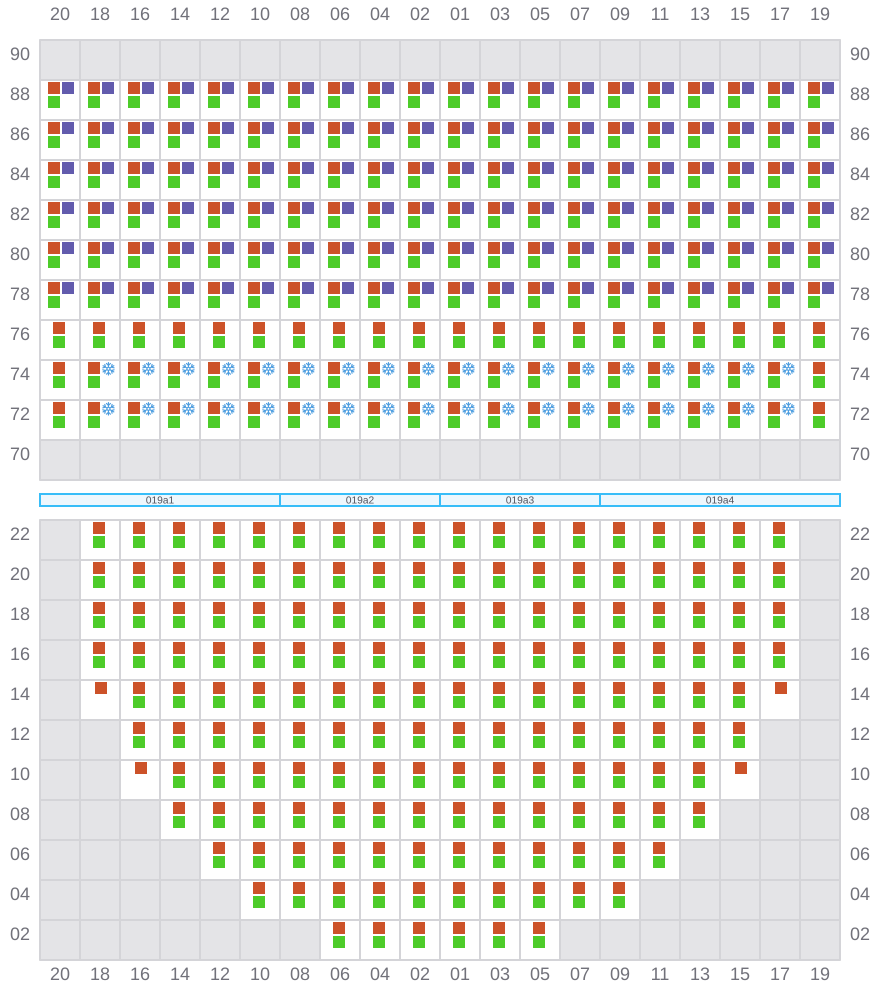

Bay 019 view and slots of YM WELLBEING

021

→
→
→
✓

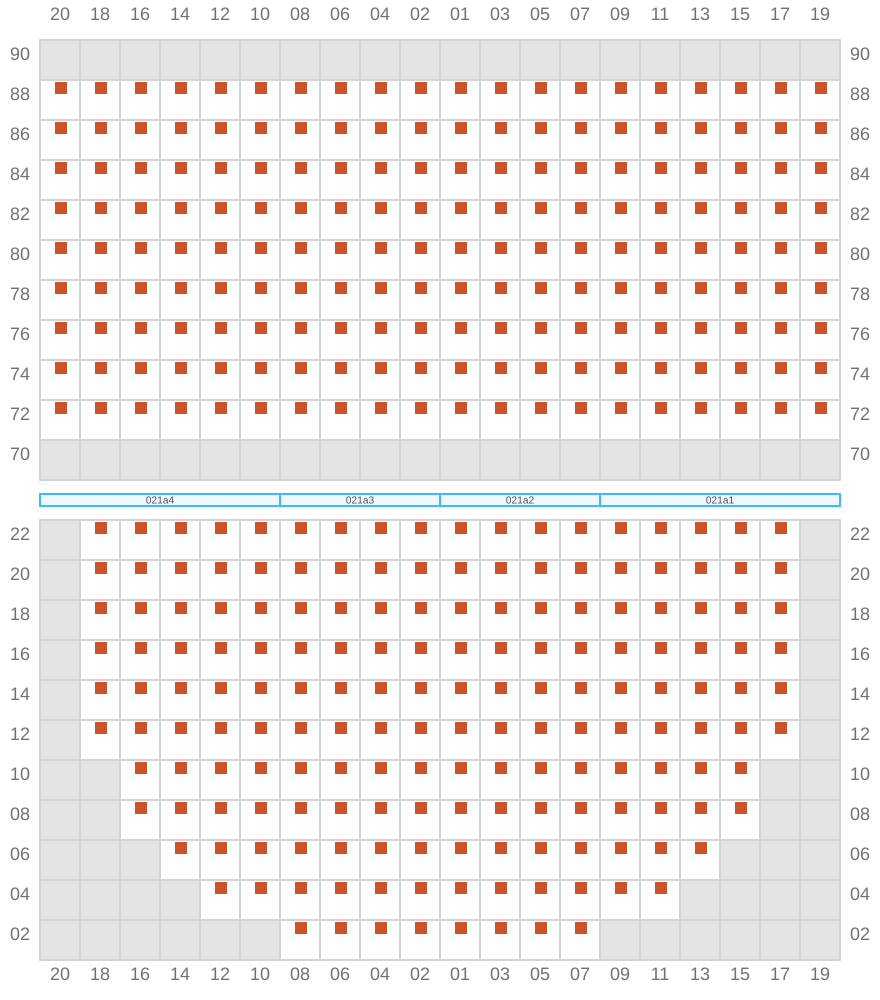

Bay 021 view and slots of YM WELLBEING

023 (022)

←
→
→
✓

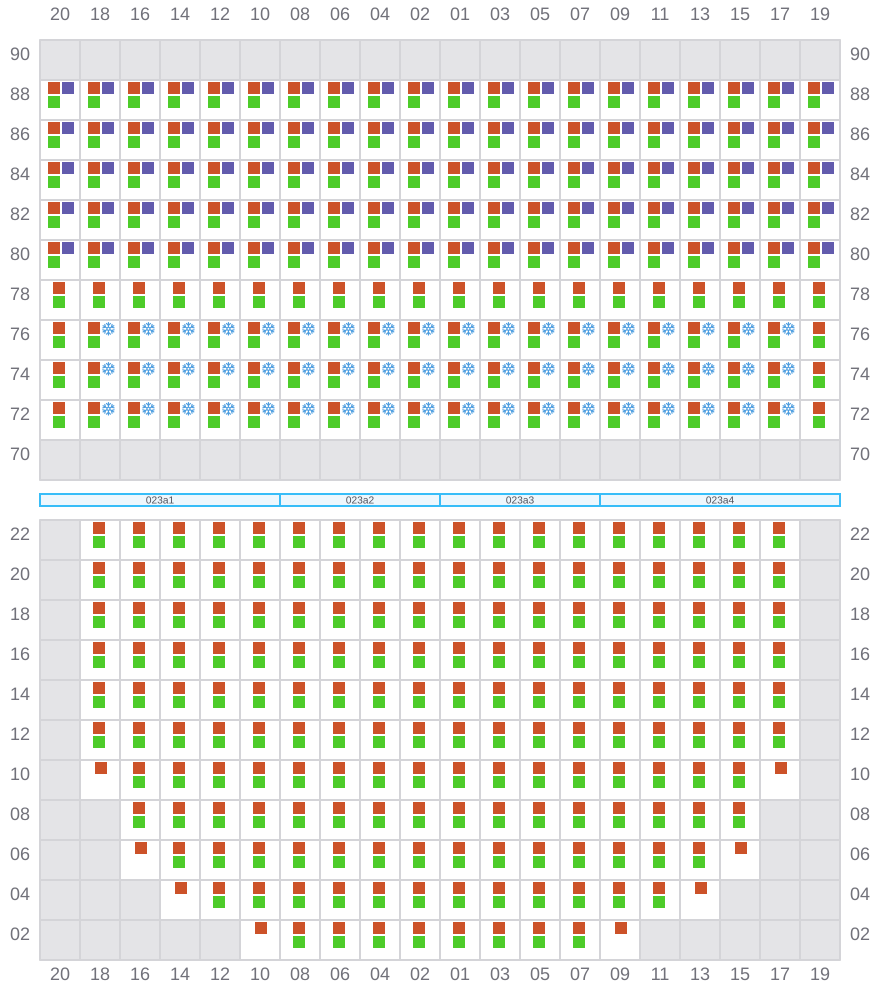

Bay 023 view and slots of YM WELLBEING

025

→
→
→
✓

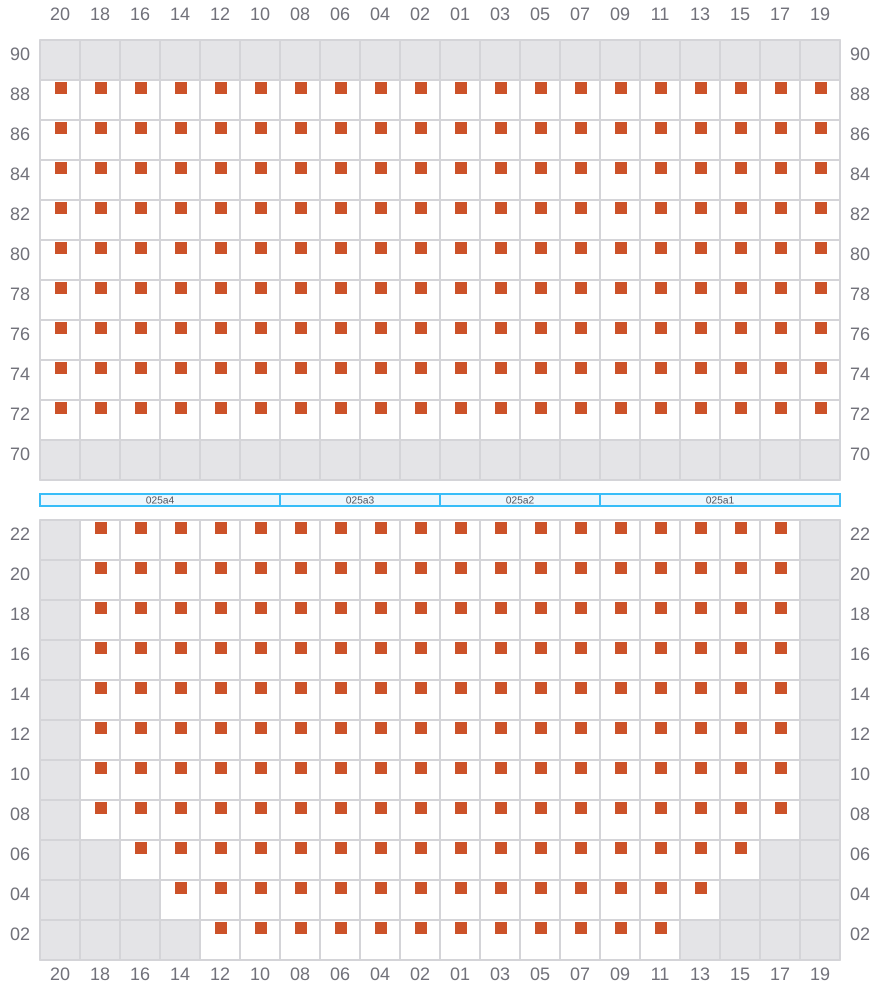

Bay 025 view and slots of YM WELLBEING

027 (026)

←
→
→
✓

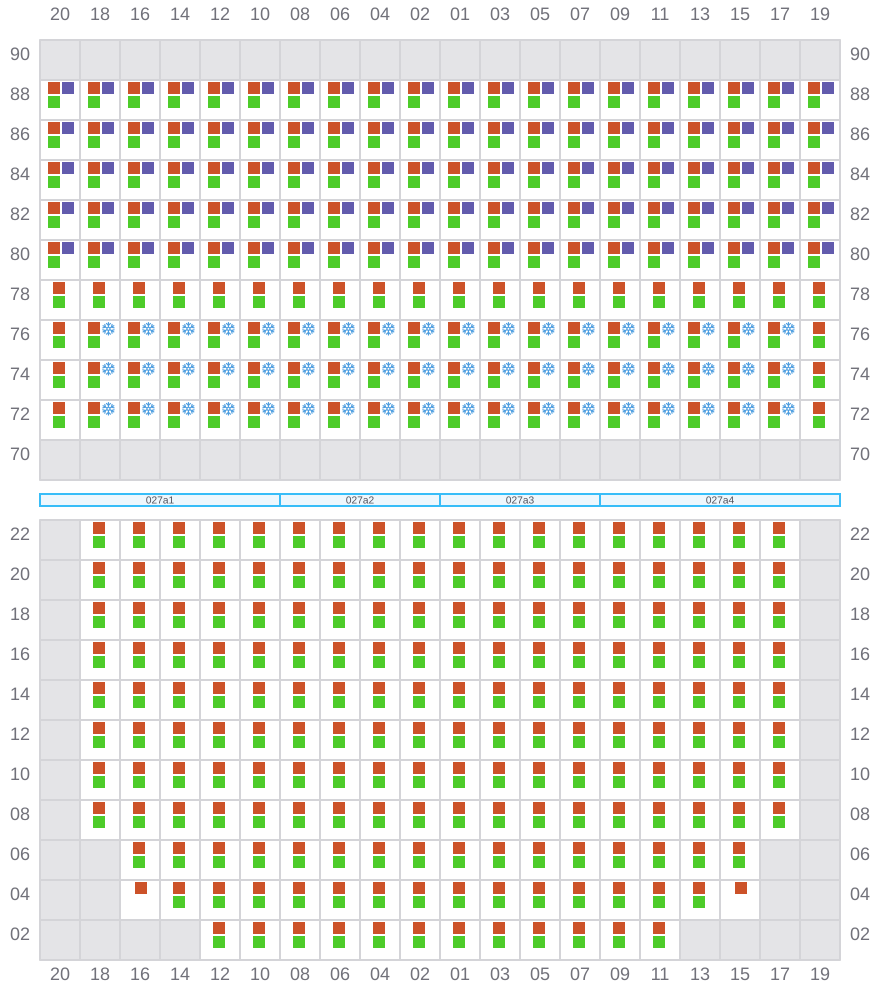

Bay 027 view and slots of YM WELLBEING

029

→
→
→
✓

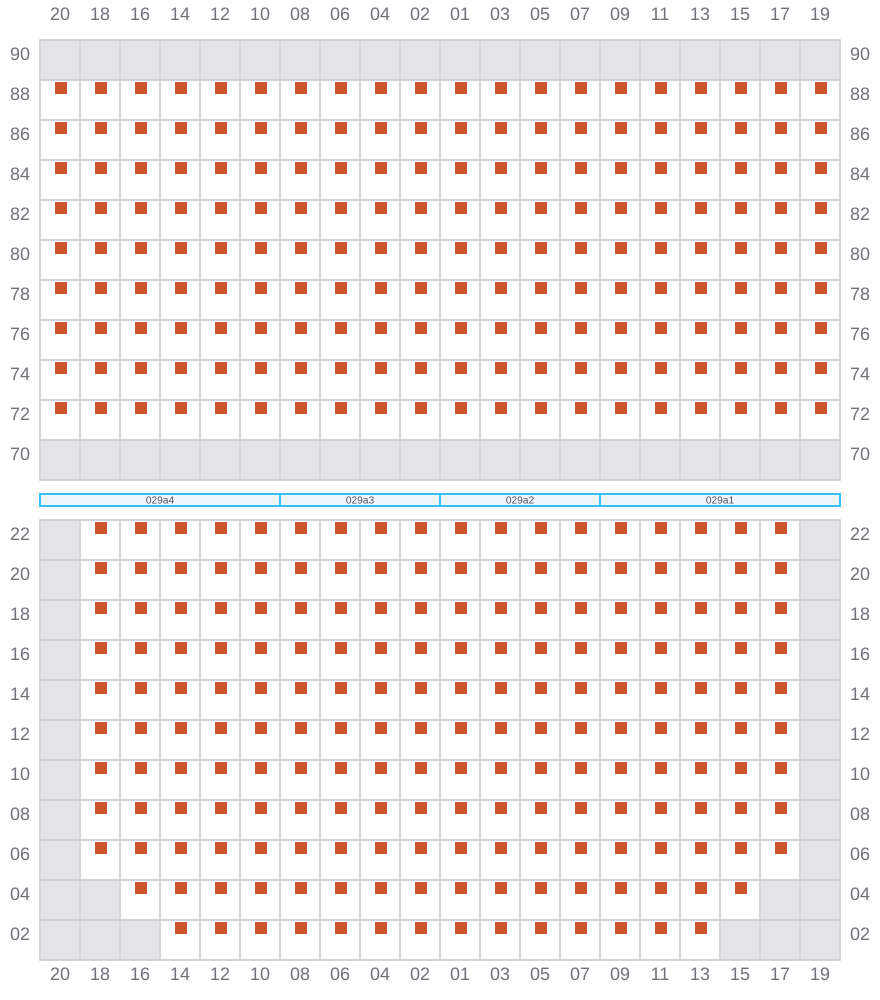

Bay 029 view and slots of YM WELLBEING

031 (030)

←
→
→
✓

Bay 031 view and slots of YM WELLBEING

033

→
→
→
✓

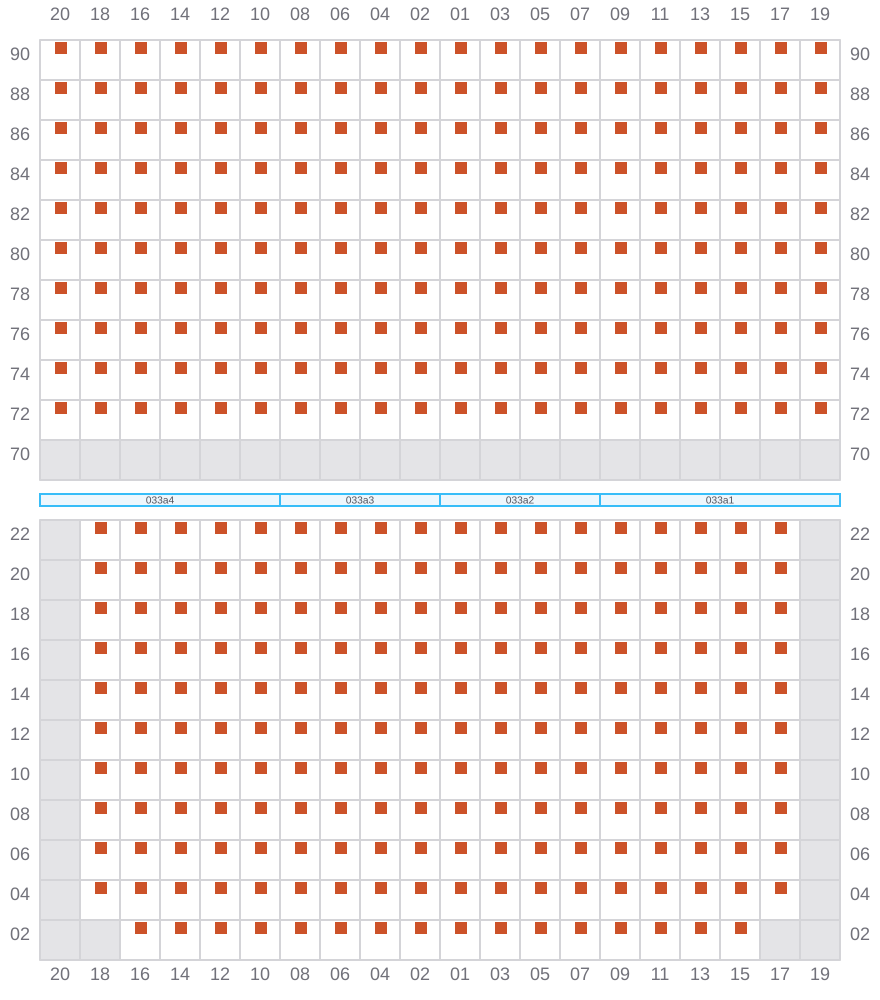

Bay 033 view and slots of YM WELLBEING

035 (034)

←
→
→
✓

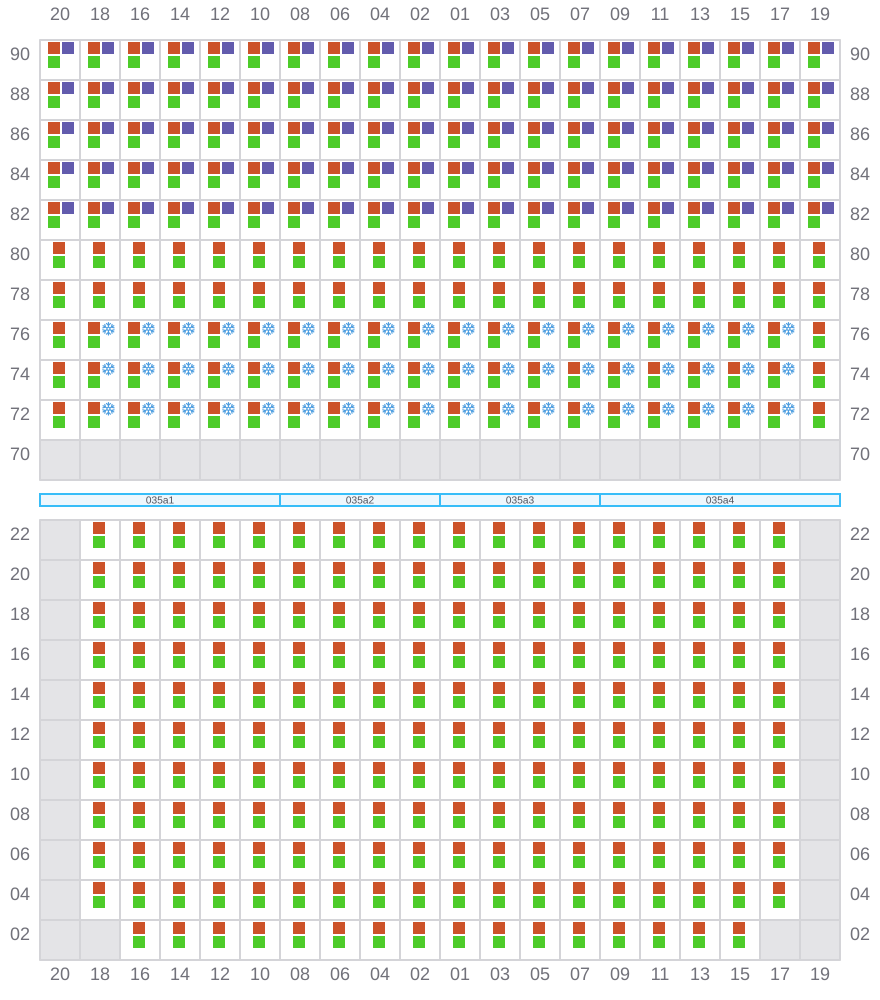

Bay 035 view and slots of YM WELLBEING

037

→
→
→
✓

Bay 037 view and slots of YM WELLBEING

039 (038)

←
→
→
✓

Bay 039 view and slots of YM WELLBEING

041

→
→
→
✓

Bay 041 view and slots of YM WELLBEING

043 (042)

←
→
→
✓

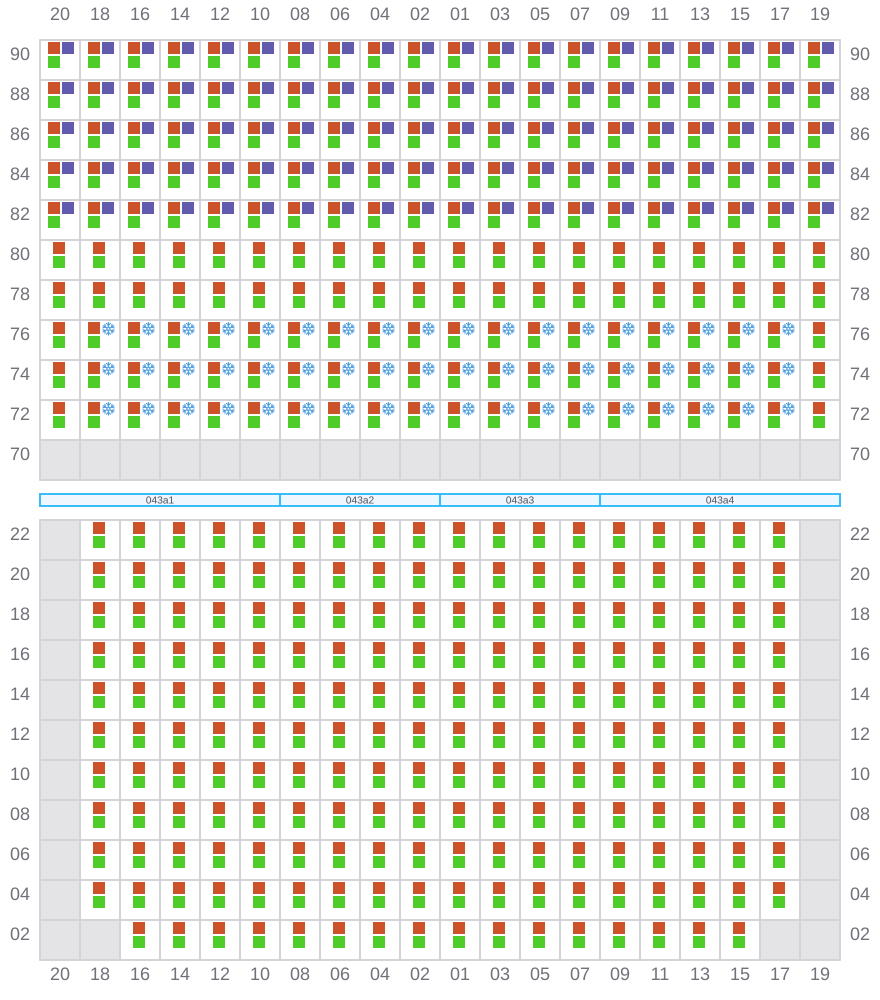

Bay 043 view and slots of YM WELLBEING

045

→
→
→
✓

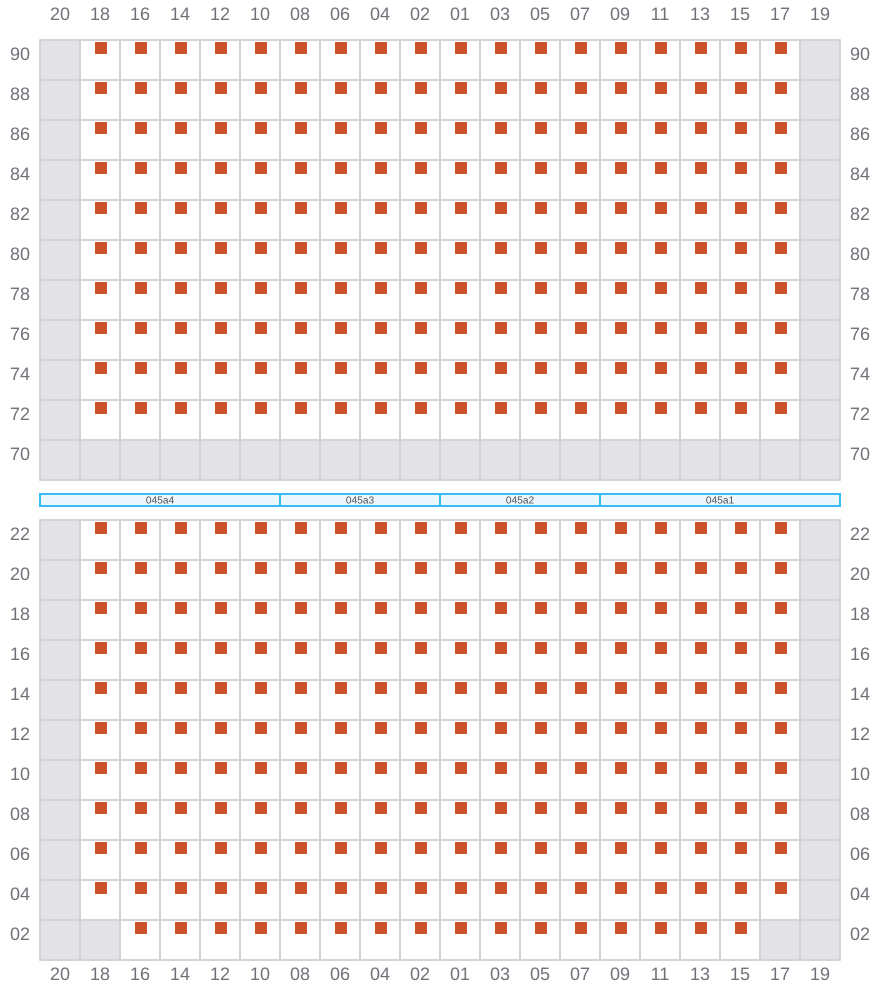

Bay 045 view and slots of YM WELLBEING

047 (046)

←
→
→
✓

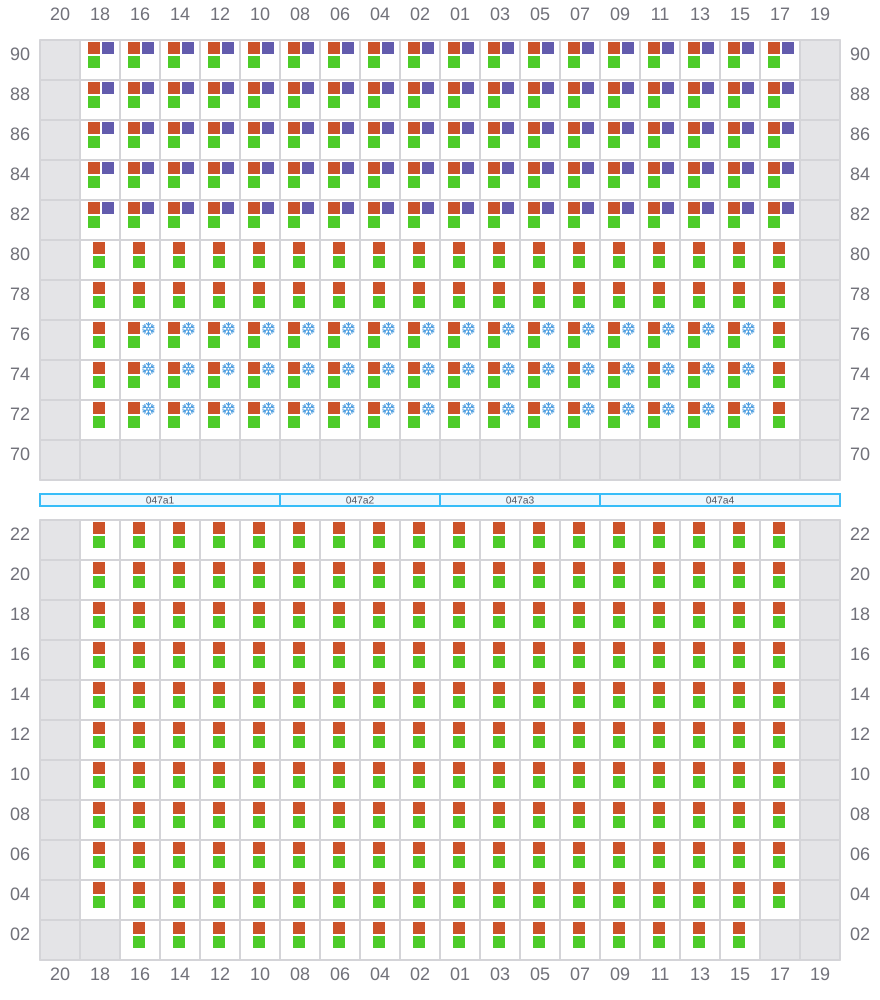

Bay 047 view and slots of YM WELLBEING

049

→
→
→
✓

Bay 049 view and slots of YM WELLBEING

051 (050)

←
→
→
✓

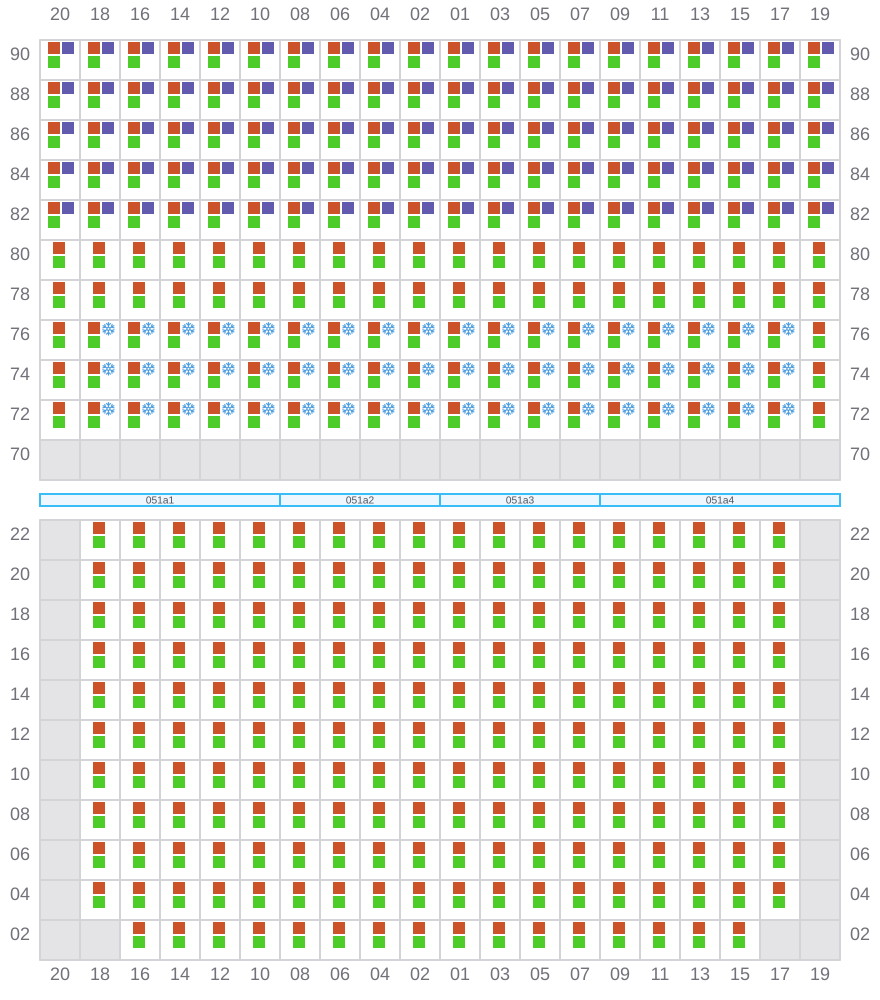

Bay 051 view and slots of YM WELLBEING

053

→
→
→
✓

Bay 053 view and slots of YM WELLBEING

055 (054)

←
→
→
✓

Bay 055 view and slots of YM WELLBEING

057

→
→
→
✓

Bay 057 view and slots of YM WELLBEING

059 (058)

←
→
→
✓

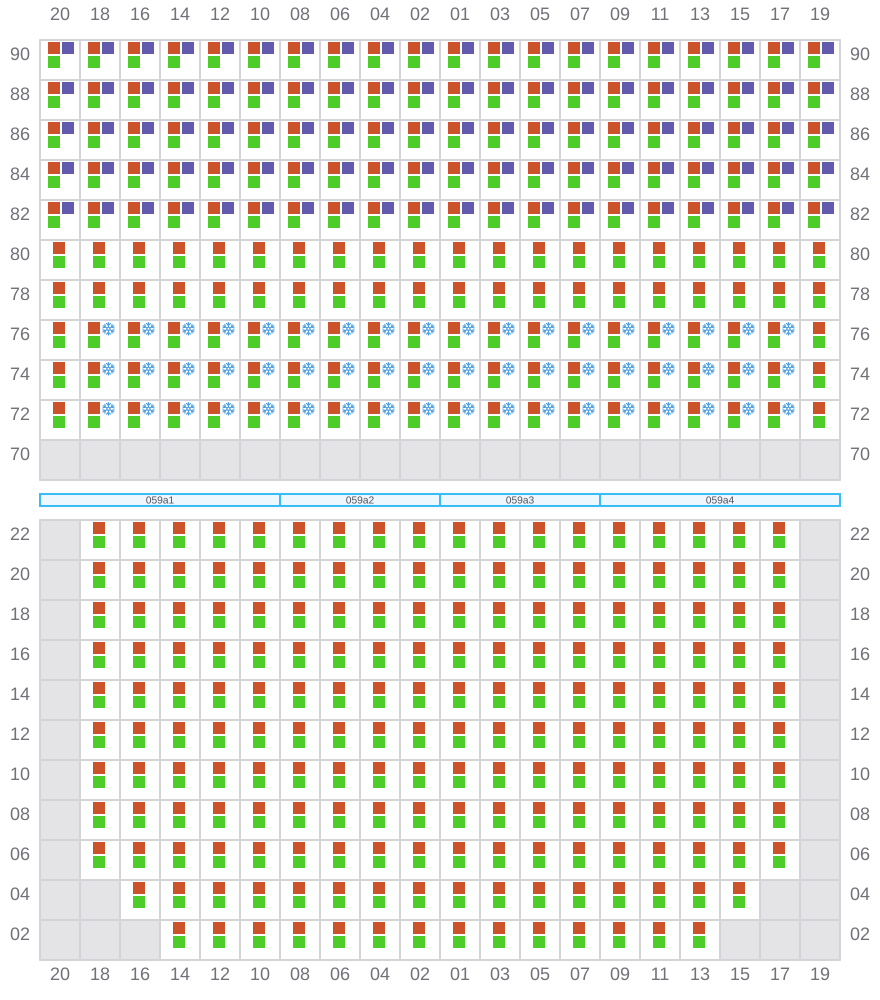

Bay 059 view and slots of YM WELLBEING

061

→
→
→
✓

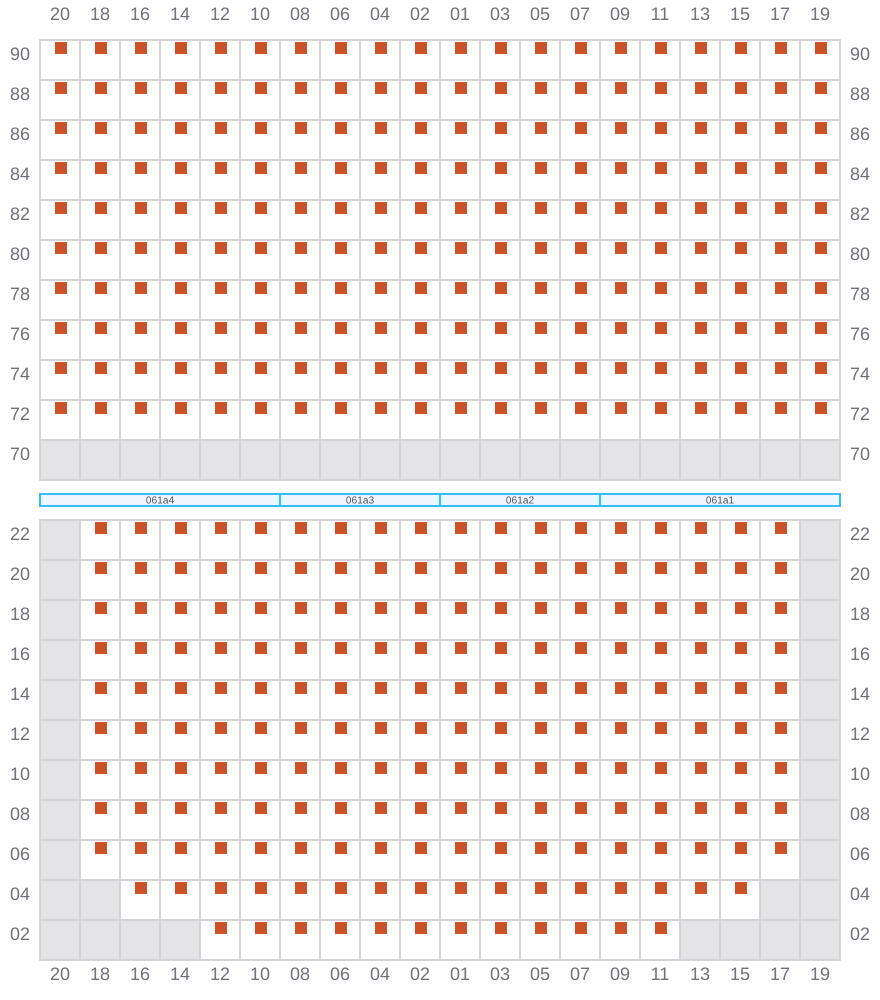

Bay 061 view and slots of YM WELLBEING

063 (062)

←
→
→
✓

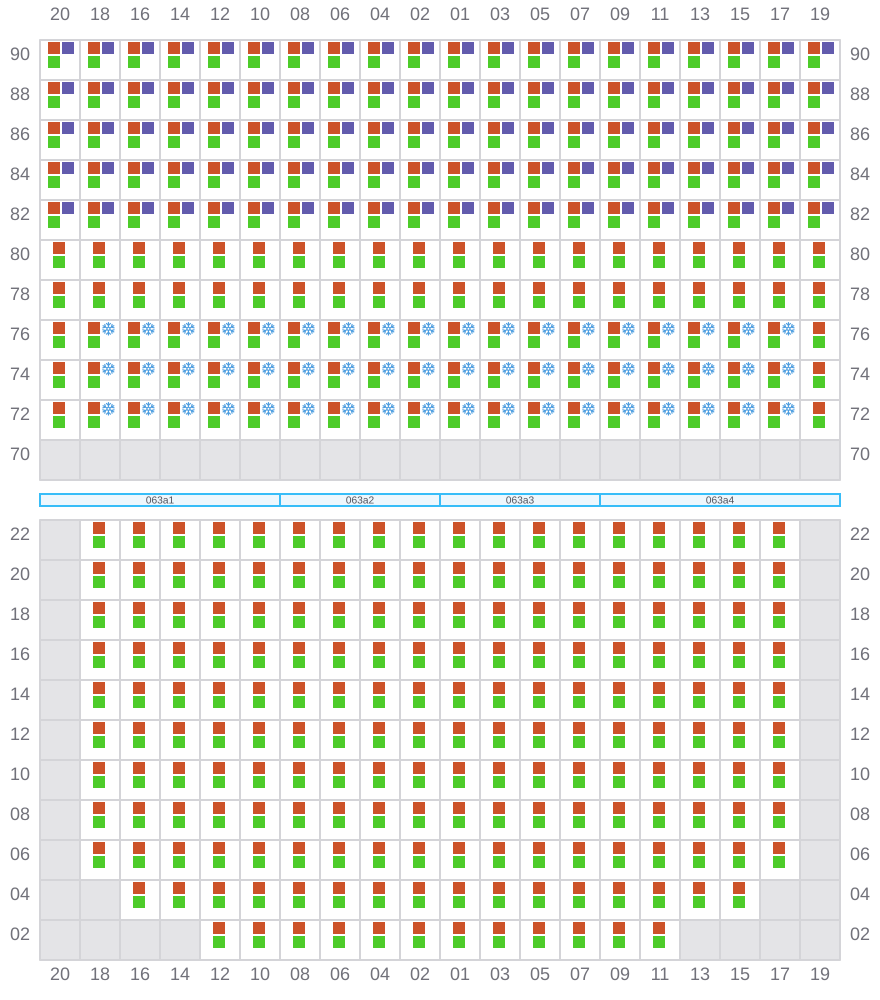

Bay 063 view and slots of YM WELLBEING

065

→
→
→
✓

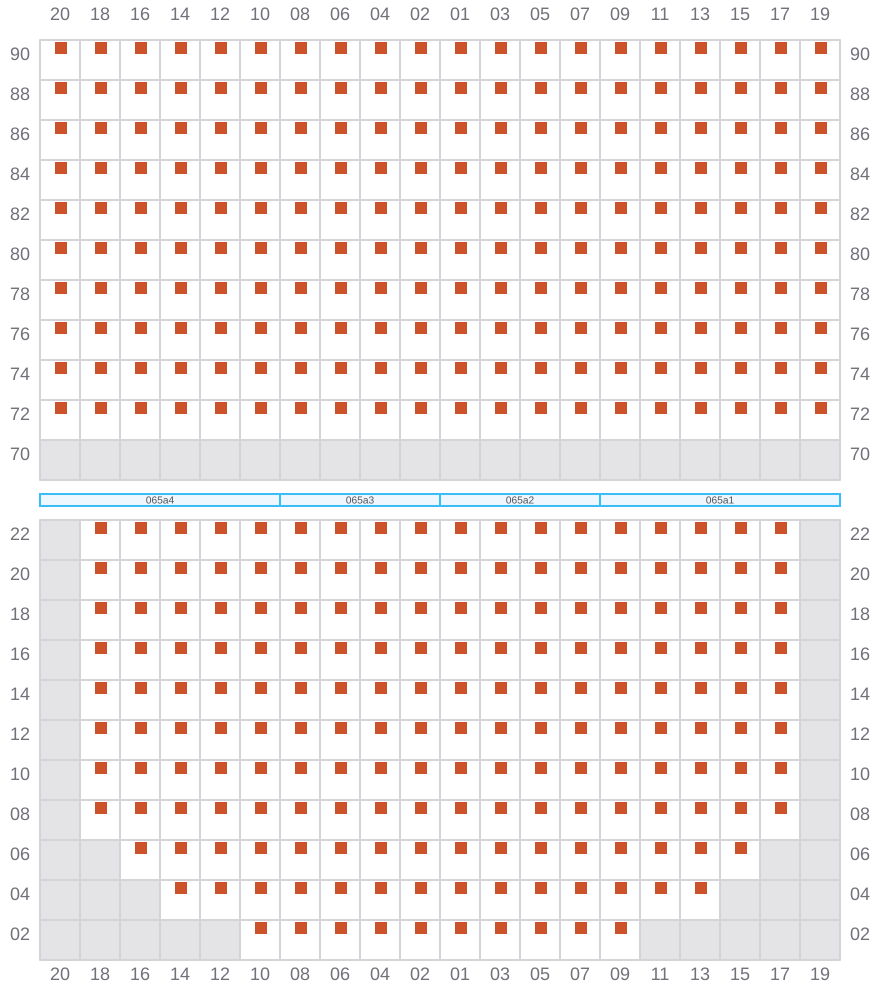

Bay 065 view and slots of YM WELLBEING

067 (066)

←
→
→
✓

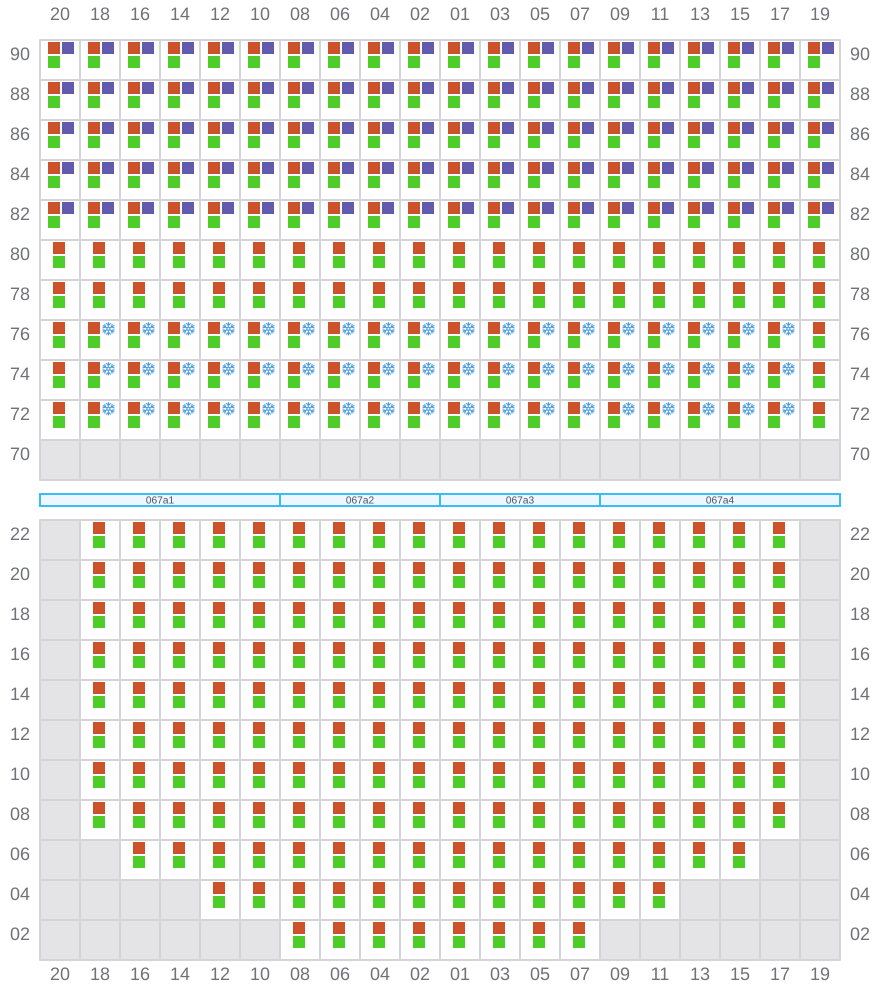

Bay 067 view and slots of YM WELLBEING

069

→
→
→
✓

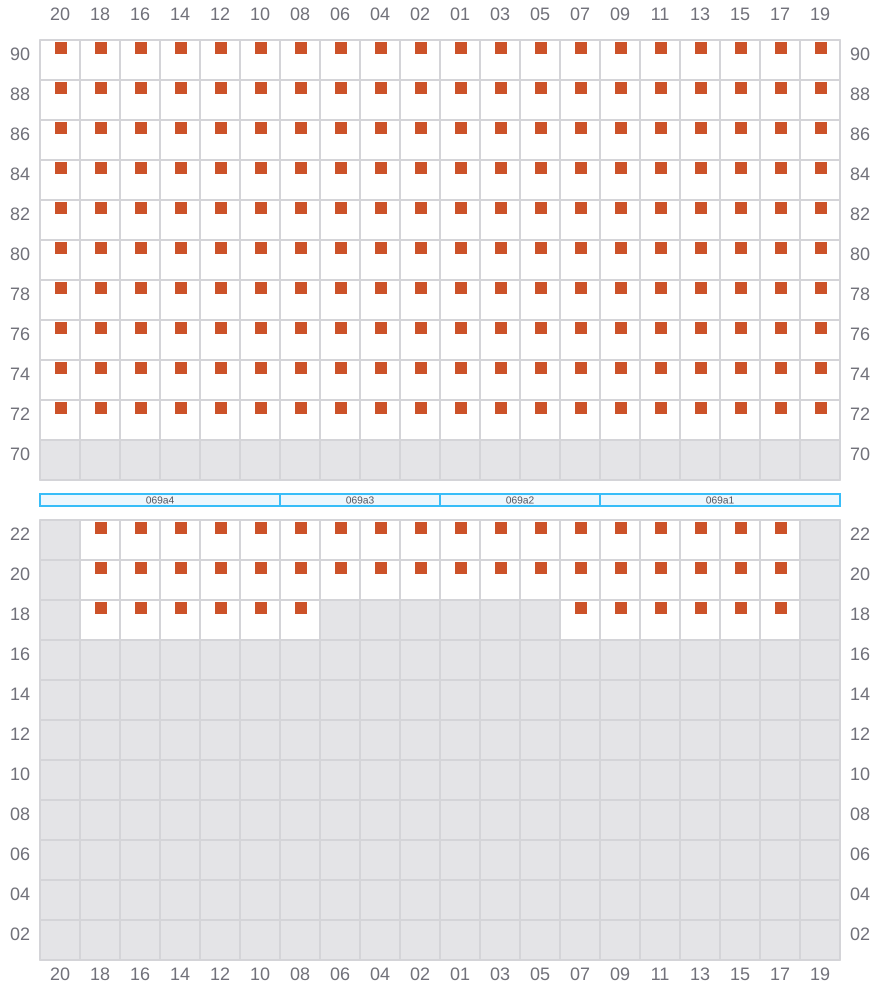

Bay 069 view and slots of YM WELLBEING

071 (070)

←
→
→
✓

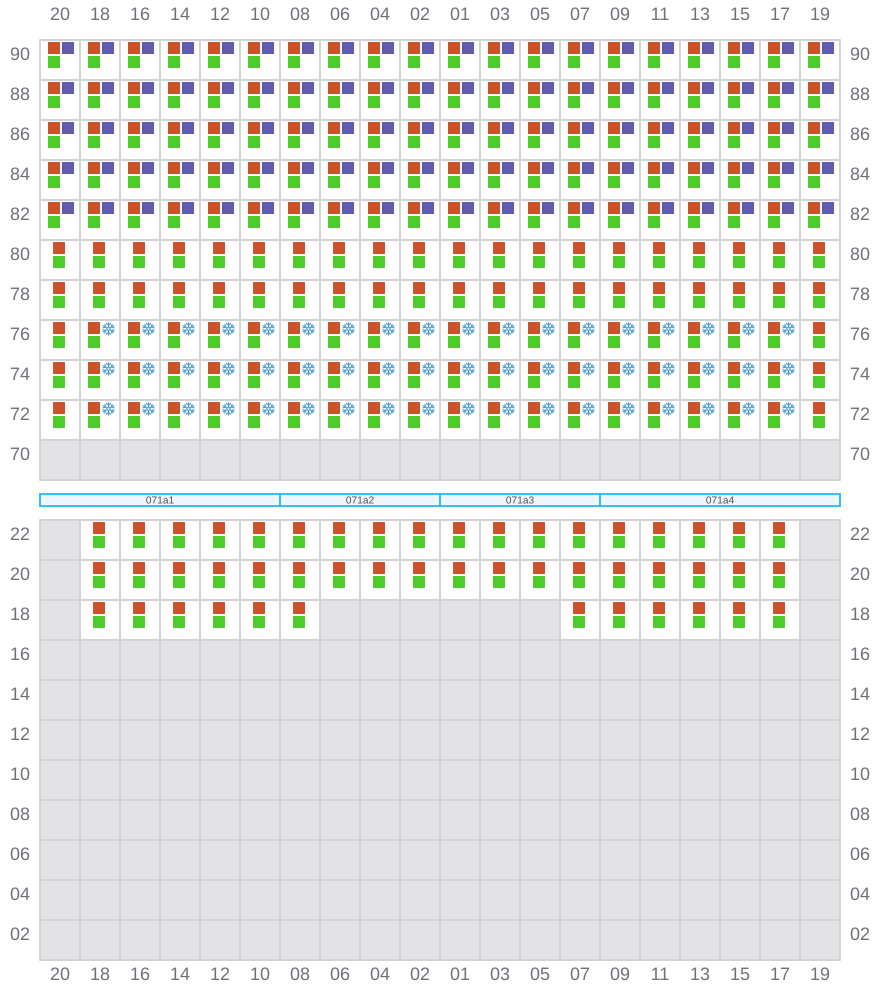

Bay 071 view and slots of YM WELLBEING

073

→
→
→
✓

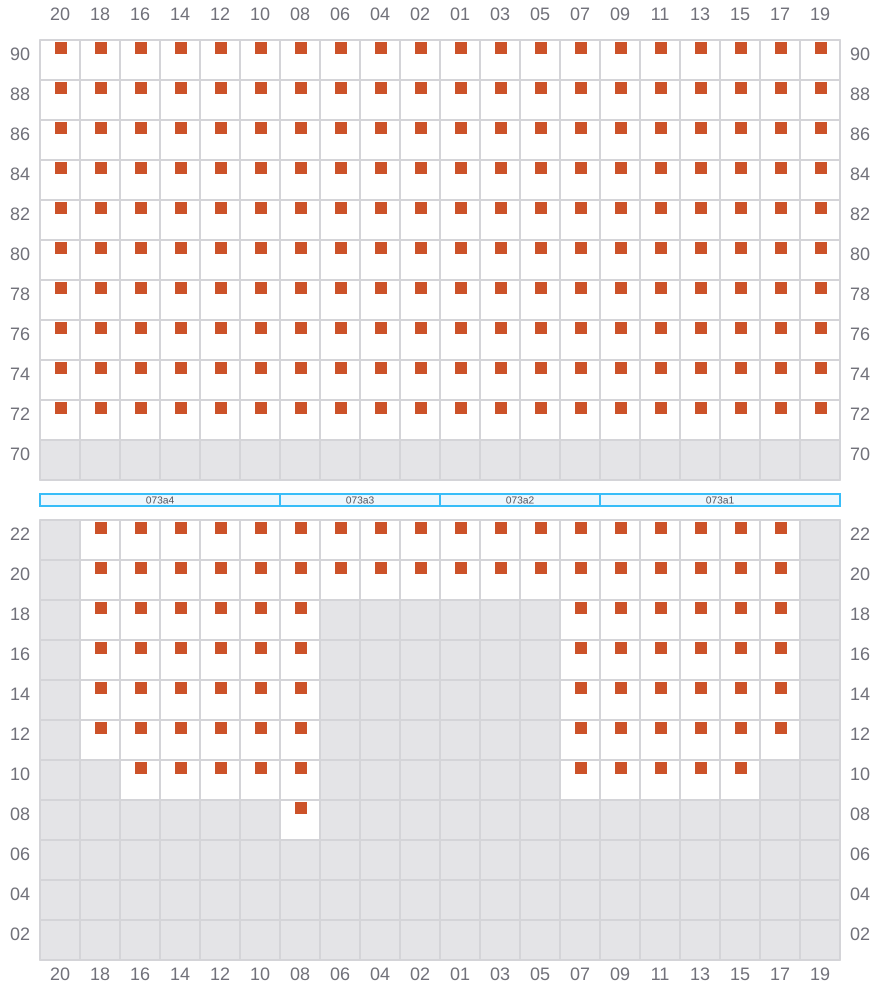

Bay 073 view and slots of YM WELLBEING

075 (074)

←
→
→
✓

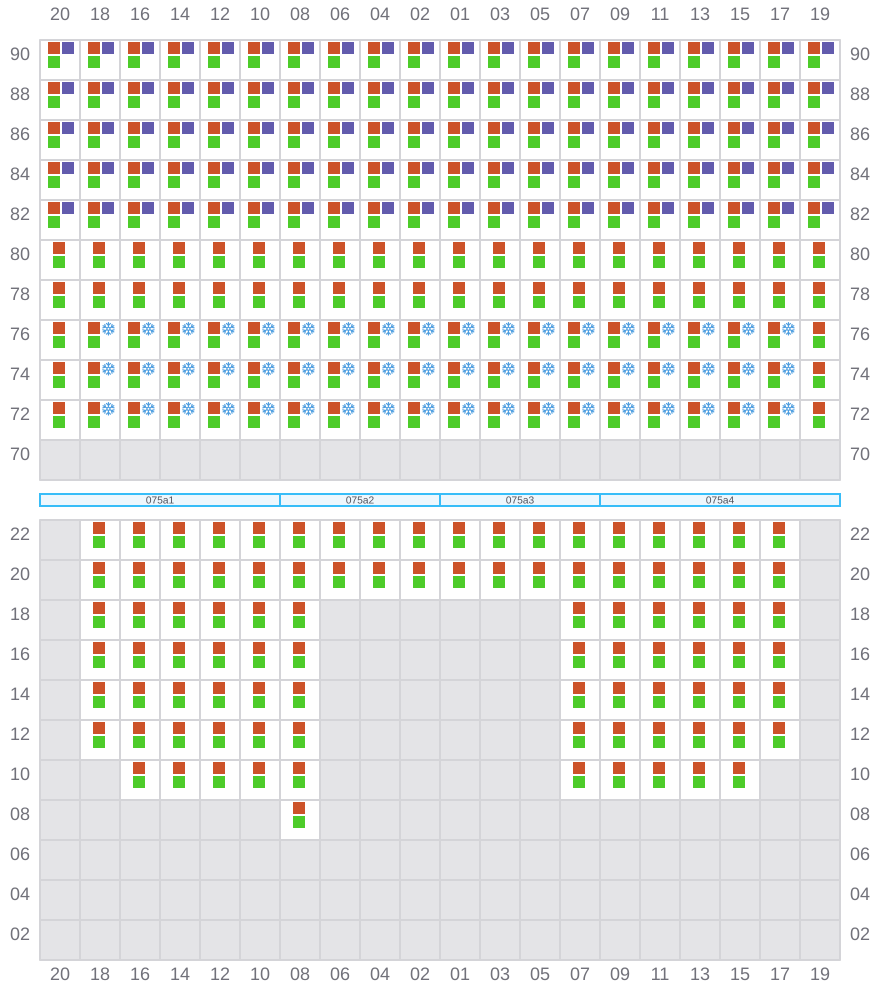

Bay 075 view and slots of YM WELLBEING

077

→
→
→
✓

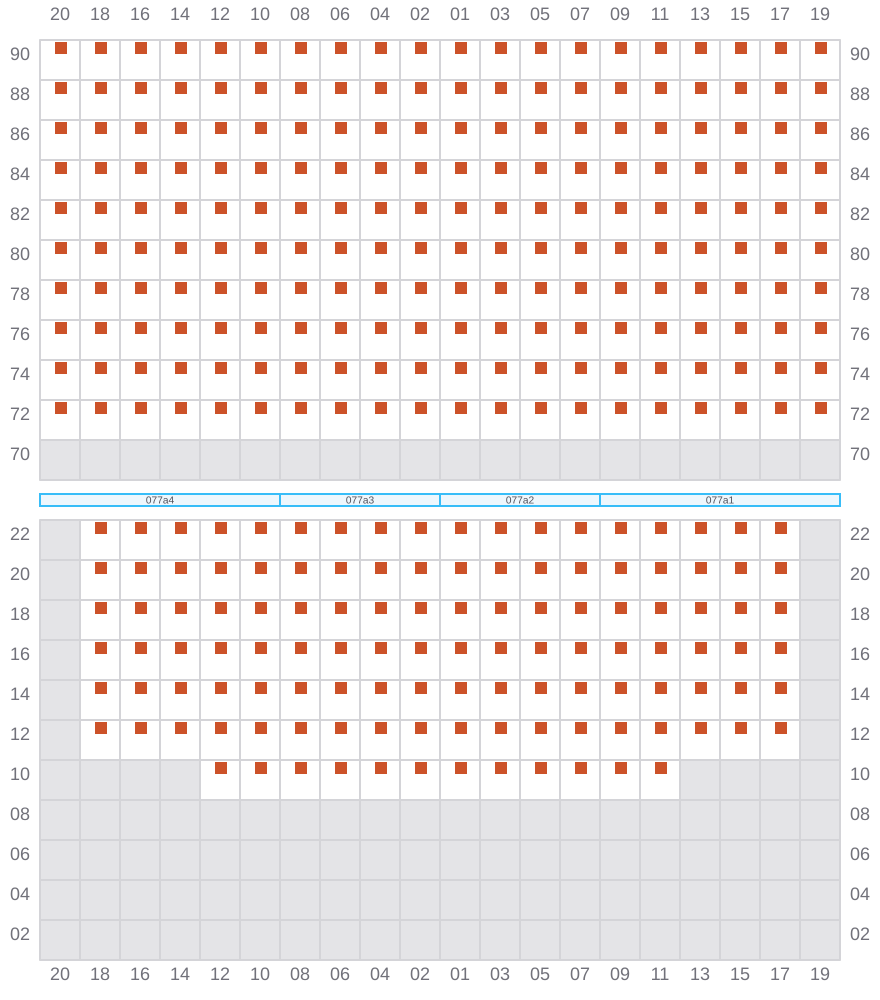

Bay 077 view and slots of YM WELLBEING

079 (078)

←
→
→
✓

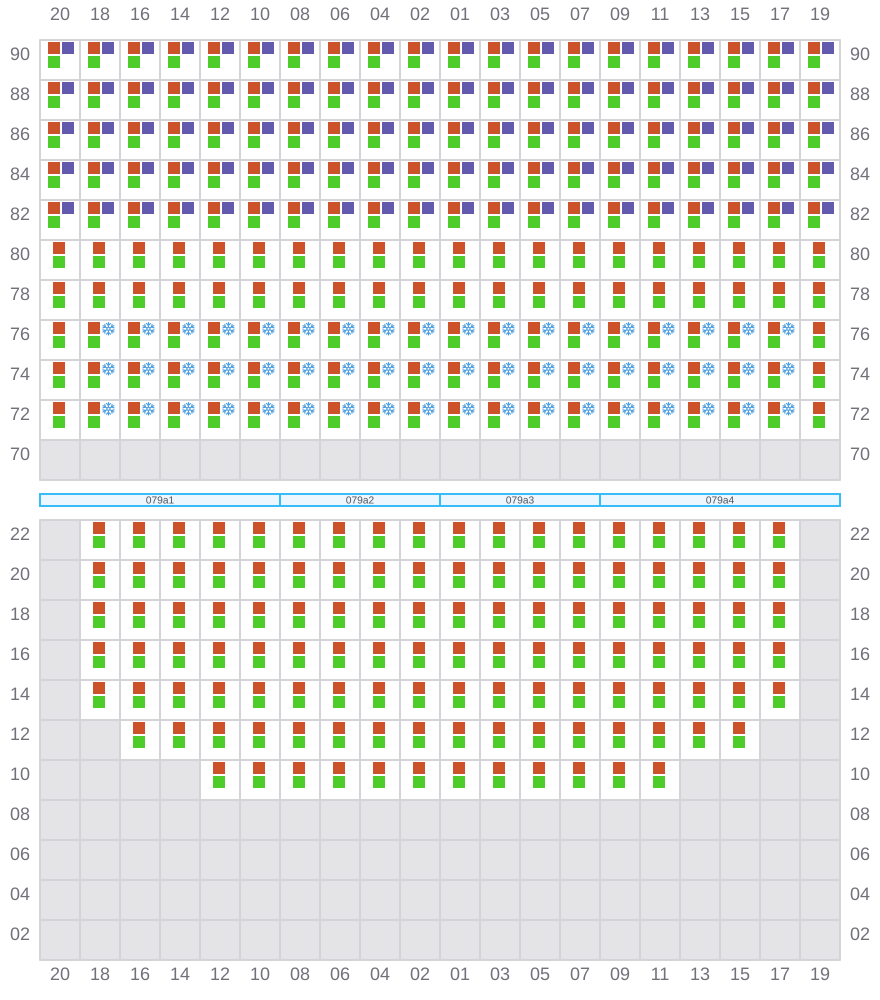

Bay 079 view and slots of YM WELLBEING

081

→
→
→
✓

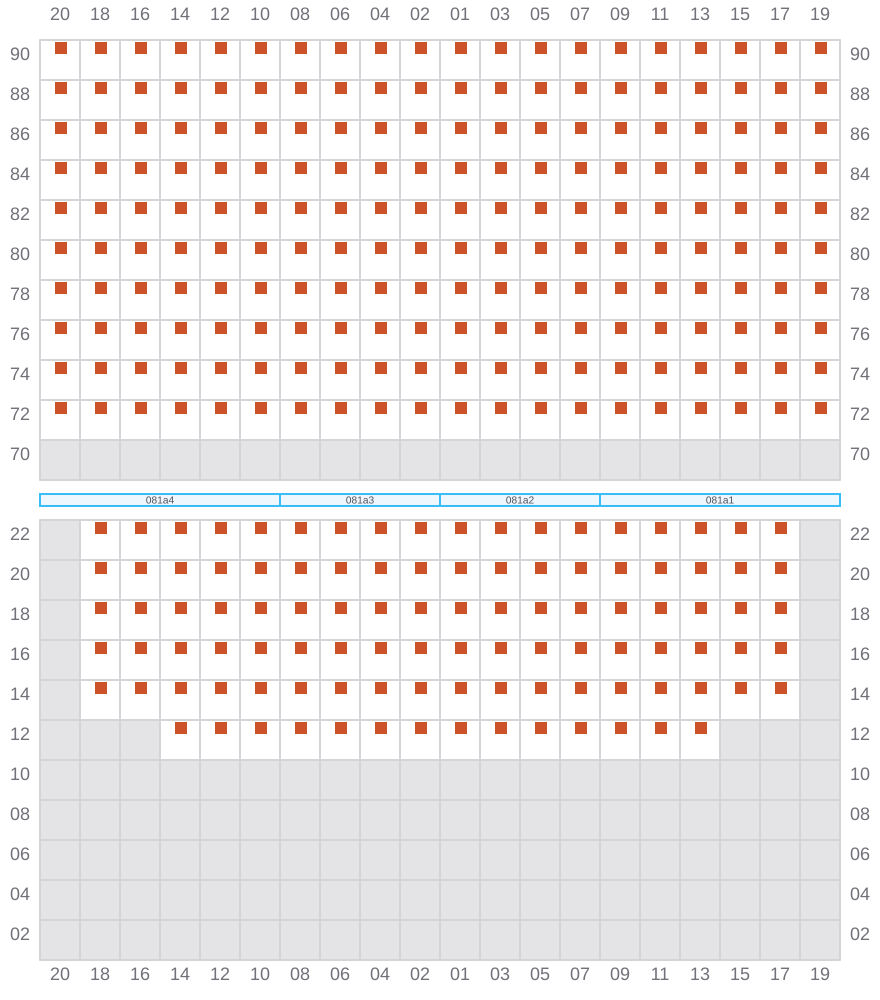

Bay 081 view and slots of YM WELLBEING

083 (082)

←
→
→
✓

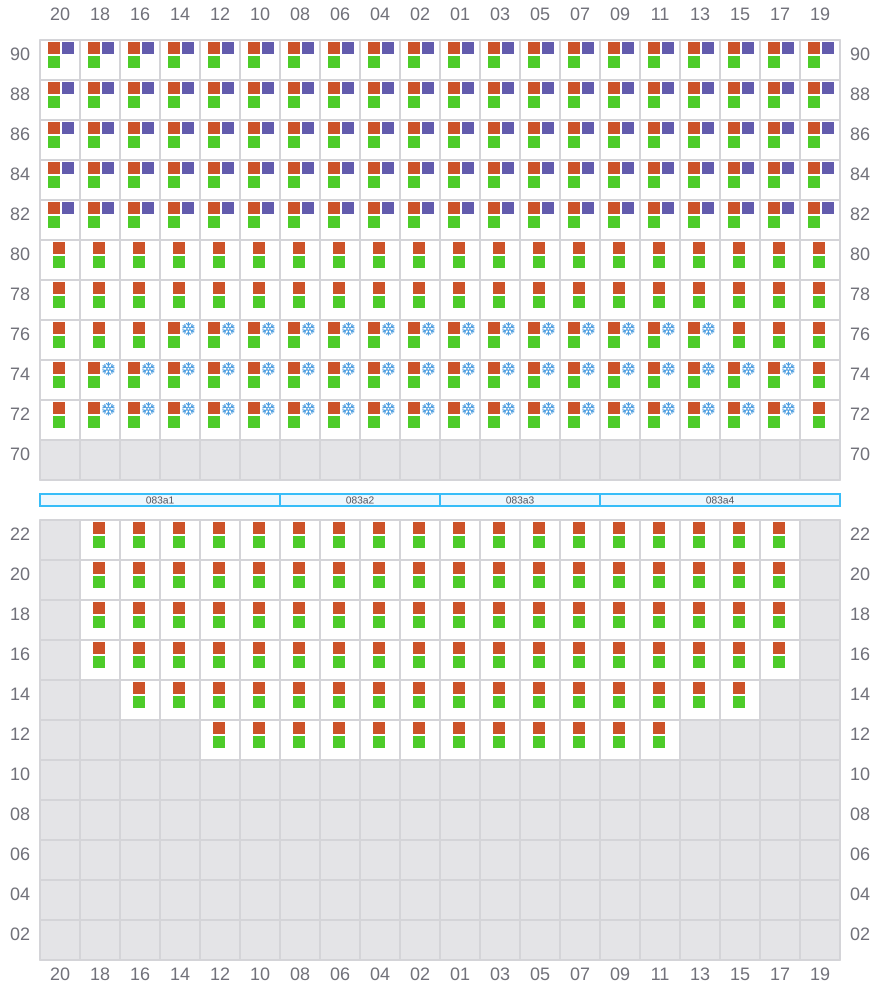

Bay 083 view and slots of YM WELLBEING

085

→
→
→
✓

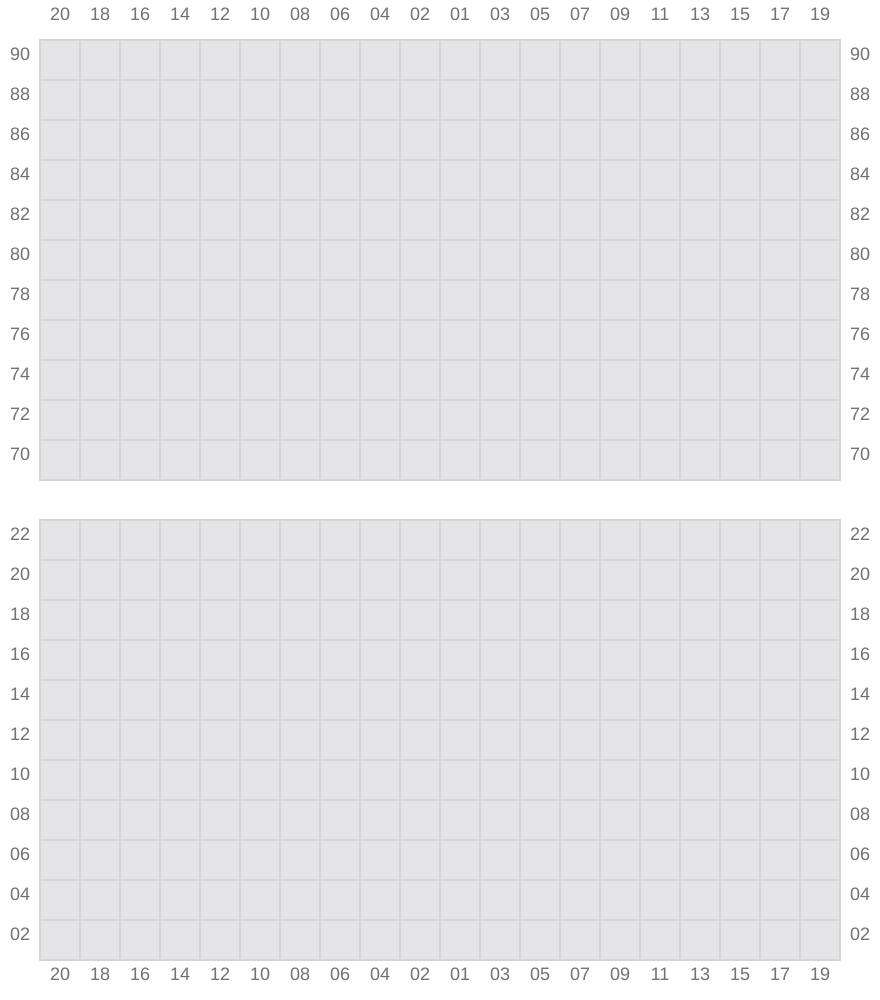

Bay 085 view and slots of YM WELLBEING

087 (086)

←
→
→
✓

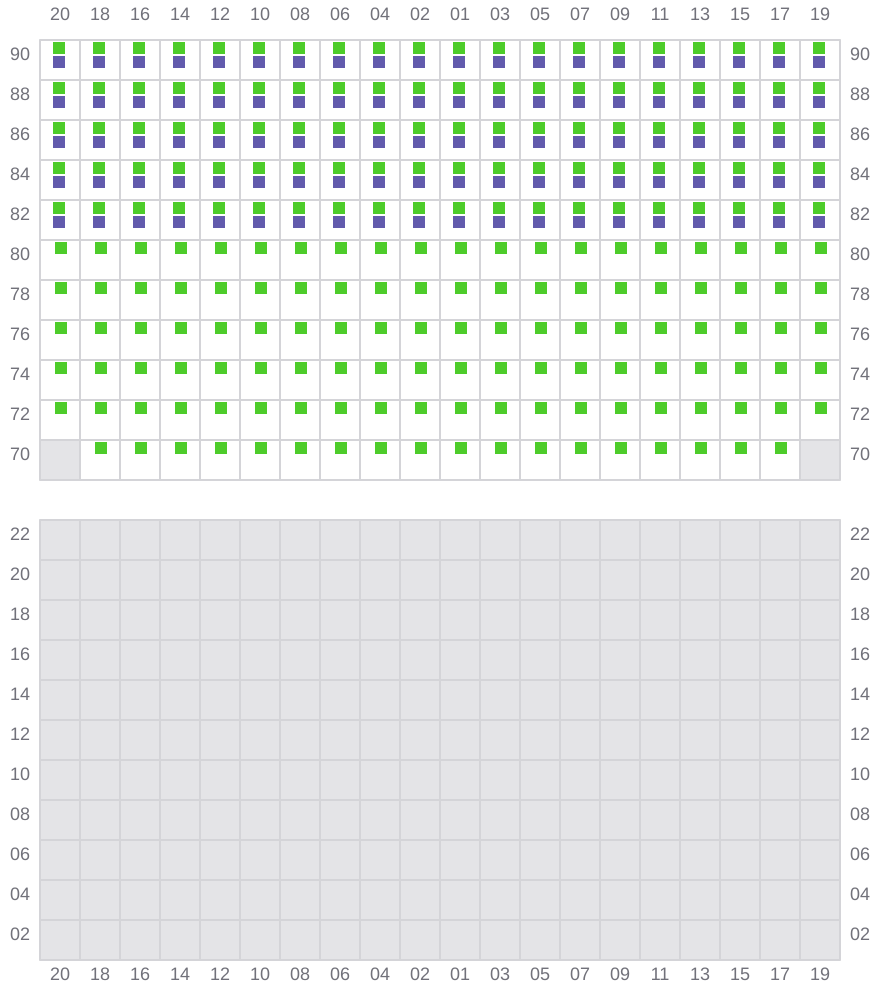

Bay 087 view and slots of YM WELLBEING
