ZAGOR
9313242 | 5LAV8 | 9313242 by ********* Last update: Tue May 21 2024
General Info
Ship Name:ZAGOR
IMO Code:9313242
Call Sign:5LAV8
Line Operator:9313242
Class Name for Sister Ships:CONTIEMDEN
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):205.28
LOA (Length Overall):215.29
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,702
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

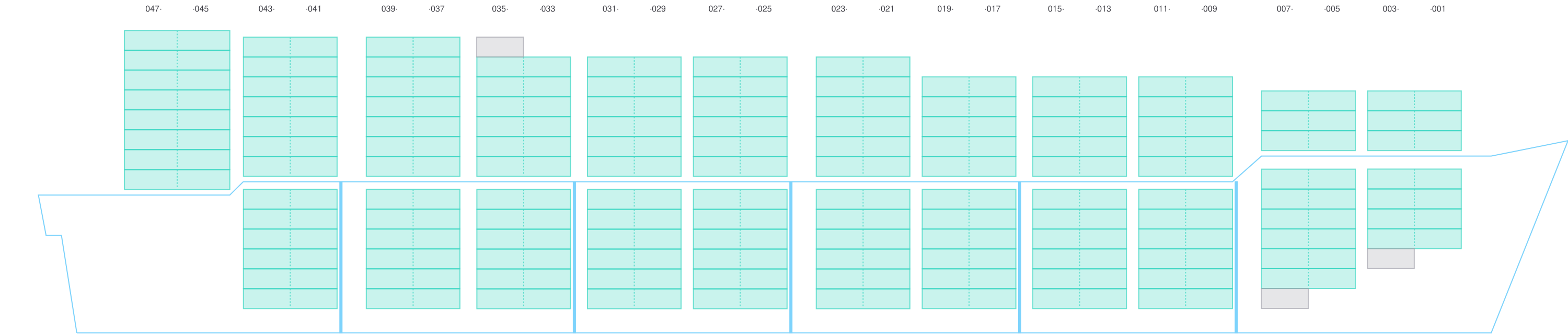

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

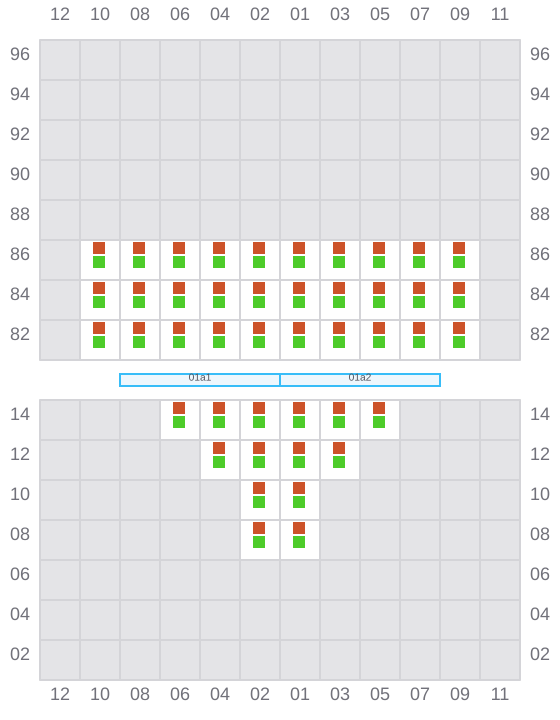

001 (002)
- →
003
- ←
- → / ?

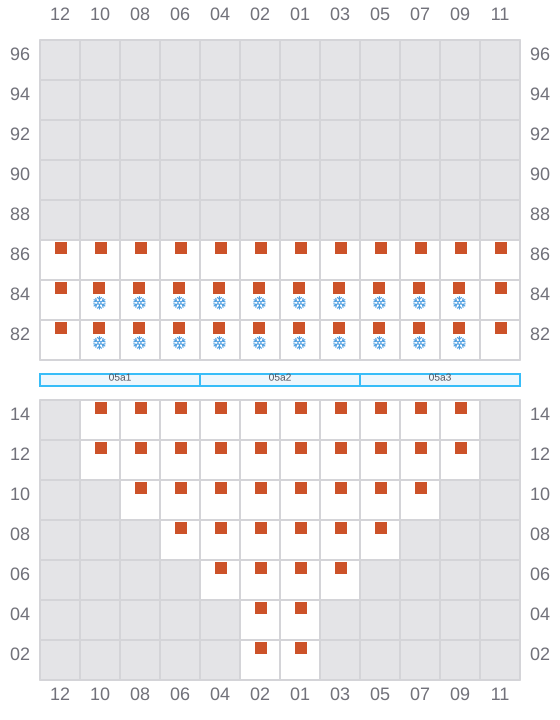

005 (006)
- →
007
- ←
- → / ?

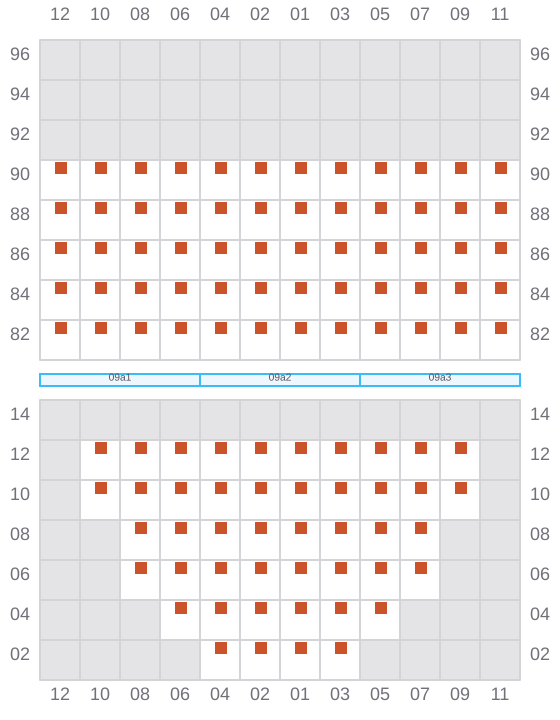

009 (010)
- →
- ← / ?
011
- ←
- → / ?

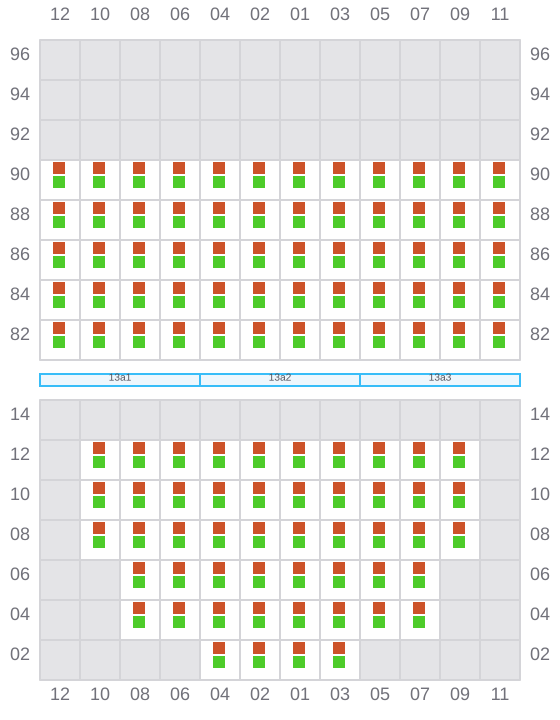

013 (014)
- →
015
- ←
- →
017 (018)
- →
- ←
019
- ←
- → / ?
021 (022)
- →
- ← / ?
023
- ←
- → / ?

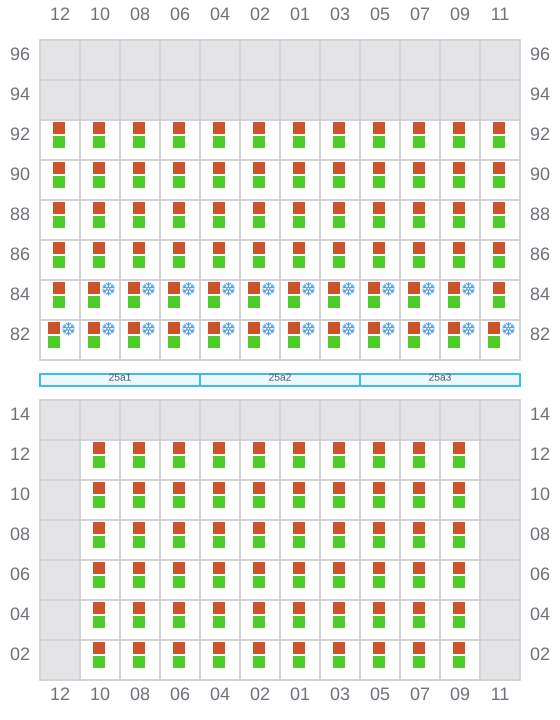

025 (026)
- →
- ← / ?
027
- ←
- → / ?
029 (030)
- →
- ← / ?
031
- ←
- →

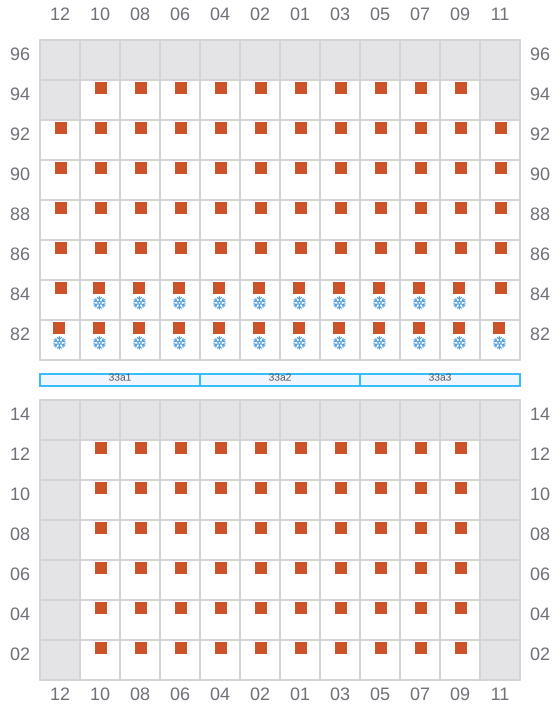

033 (034)
- →
- ←
035
- ←
- → / ?

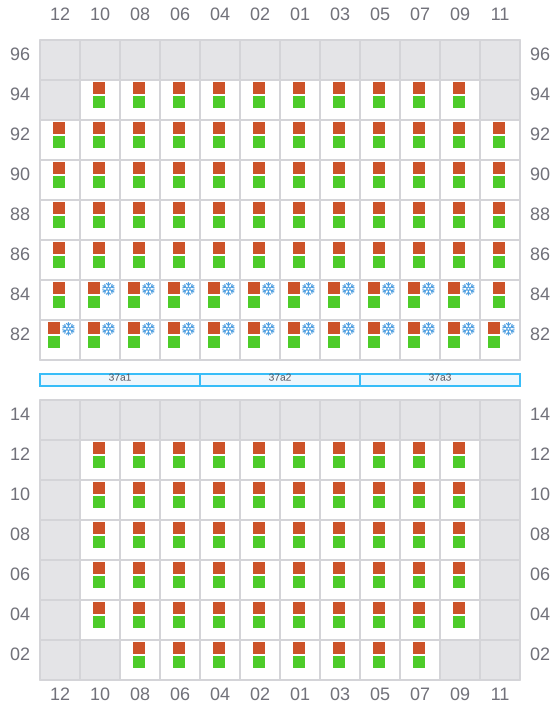

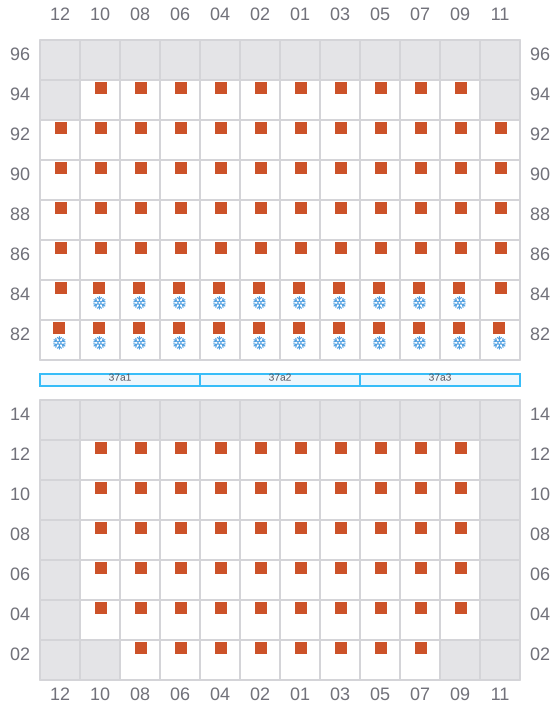

037 (038)
- →
- ←
039
- ←
- → / ?
041 (042)
- →
- ← / ?
043
- ←
- → / ?
045 (046)
- → / ?
- ← / ?

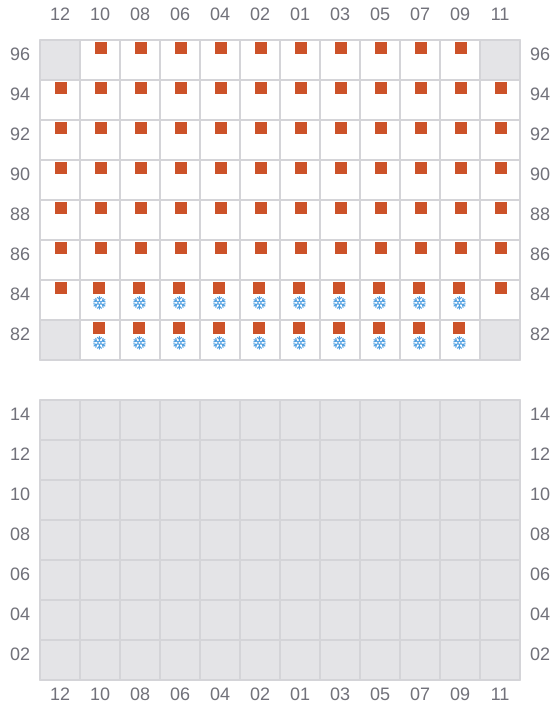

047
- ← / ?
- → / ?
