ZEBRA
9231157 | D5XY3 | HYUNDAI by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:ZEBRA
IMO Code:9231157
Call Sign:D5XY3
Line Operator:HYUNDAI
Class Name for Sister Ships:2530
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):199.00
LOA (Length Overall):210.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
40' Bays Location:-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,584
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

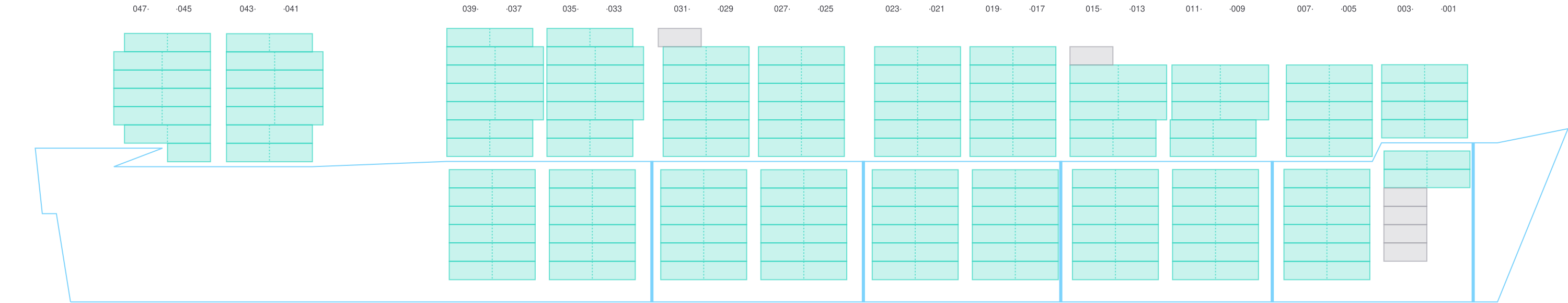

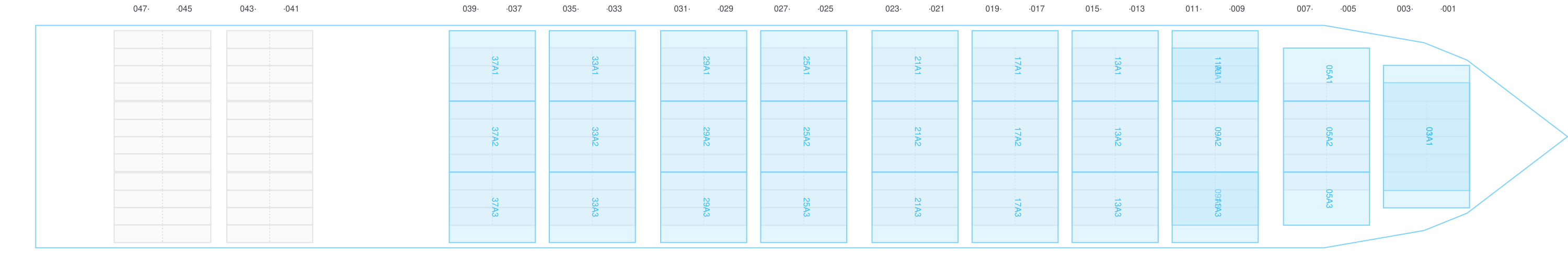

Side View
Hatch-Covers View

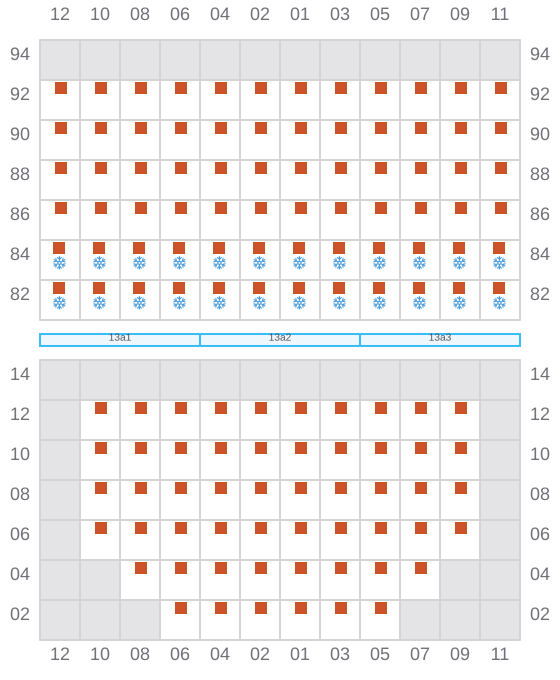

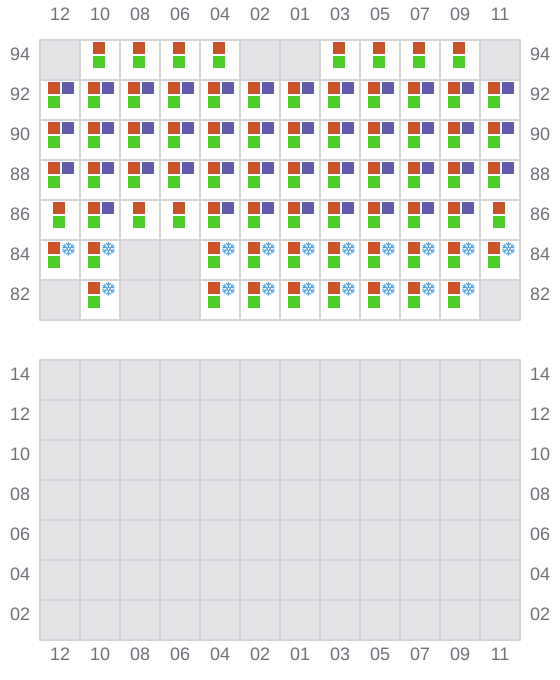

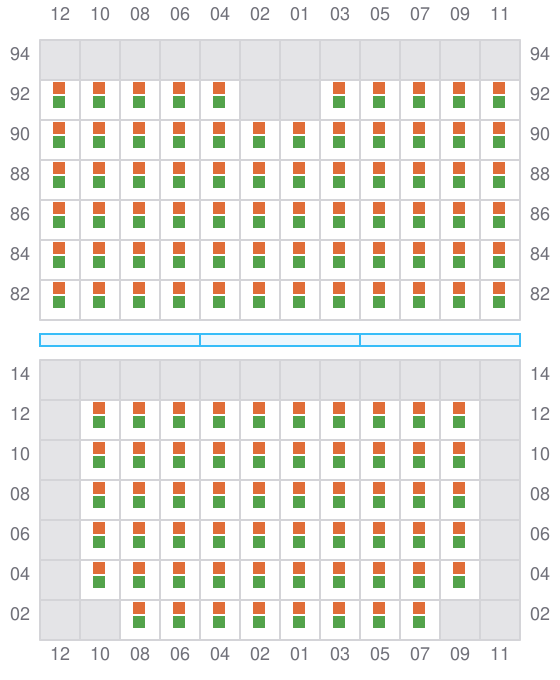

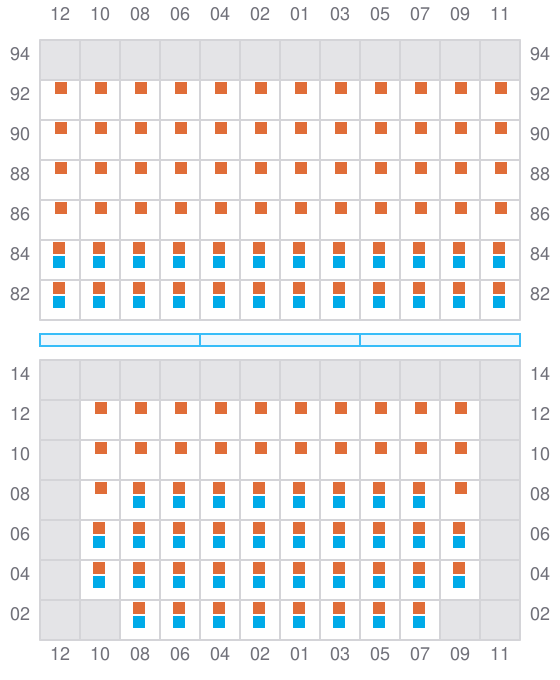

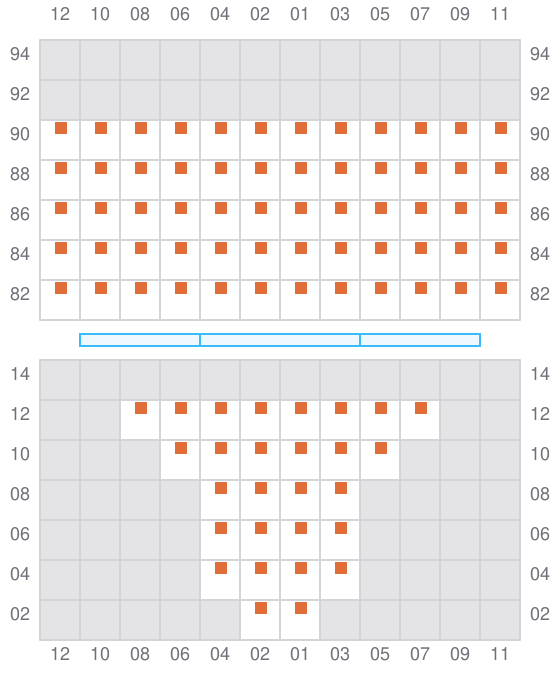

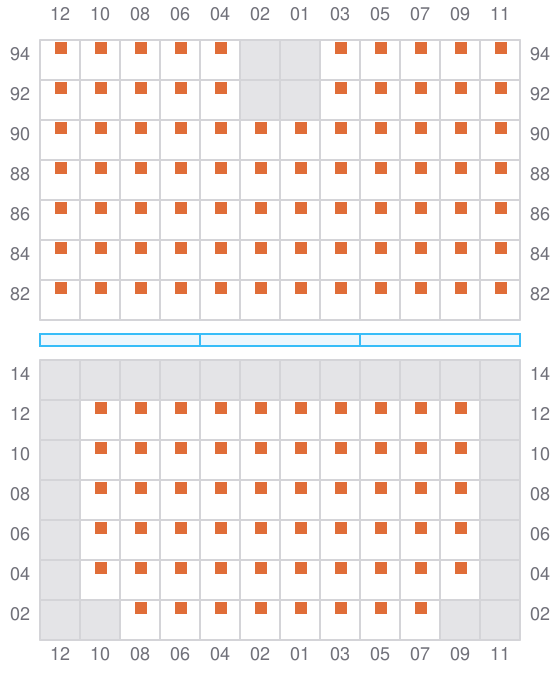

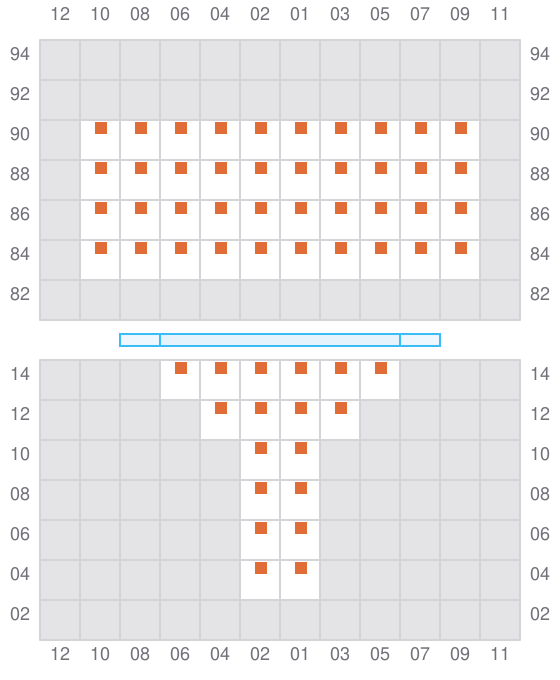

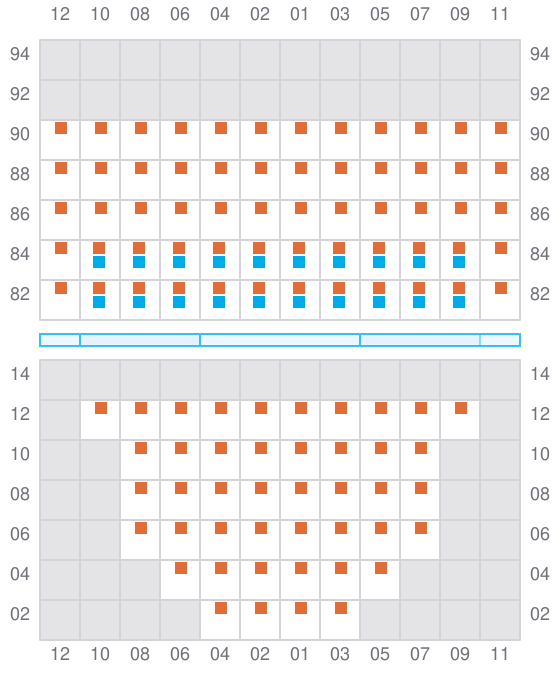

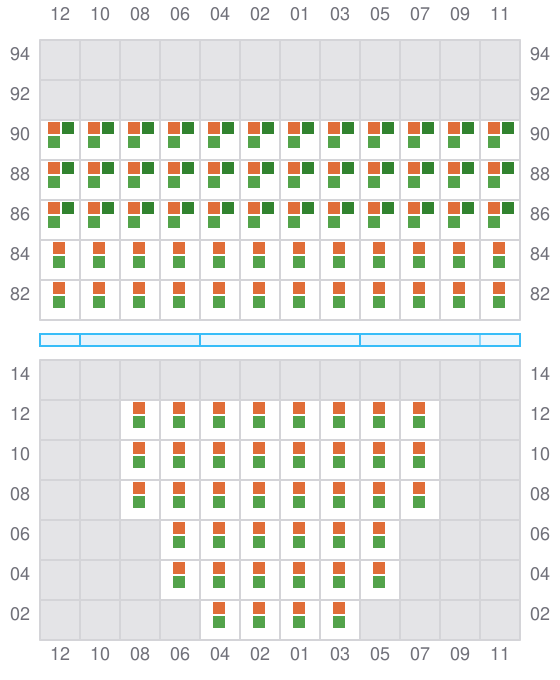

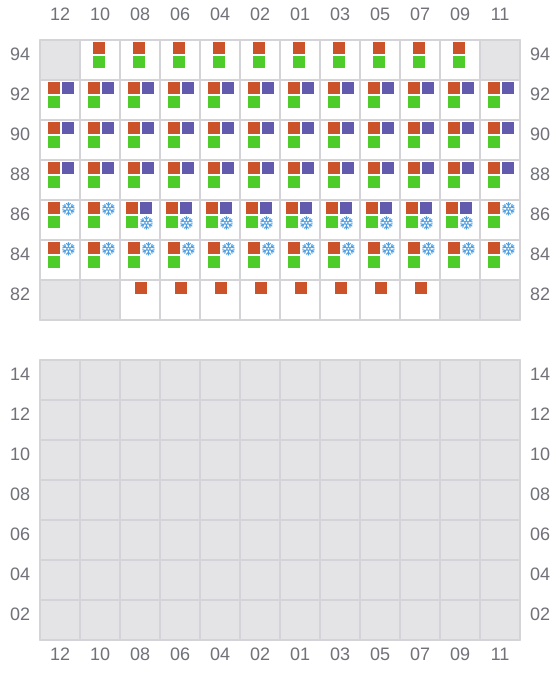

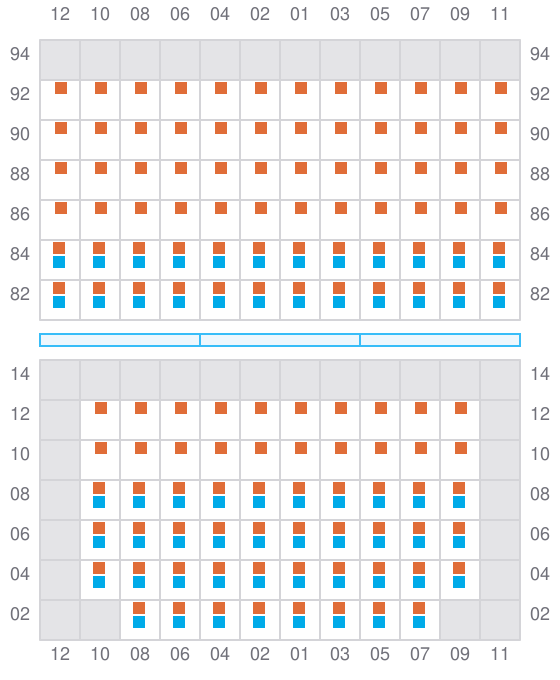

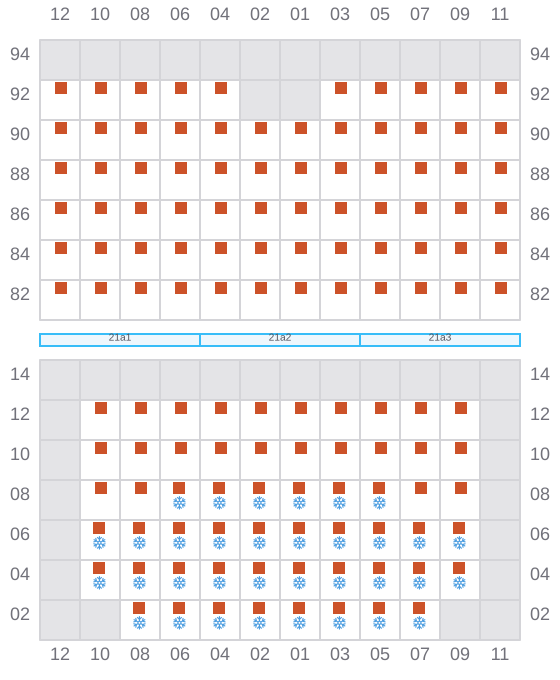

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

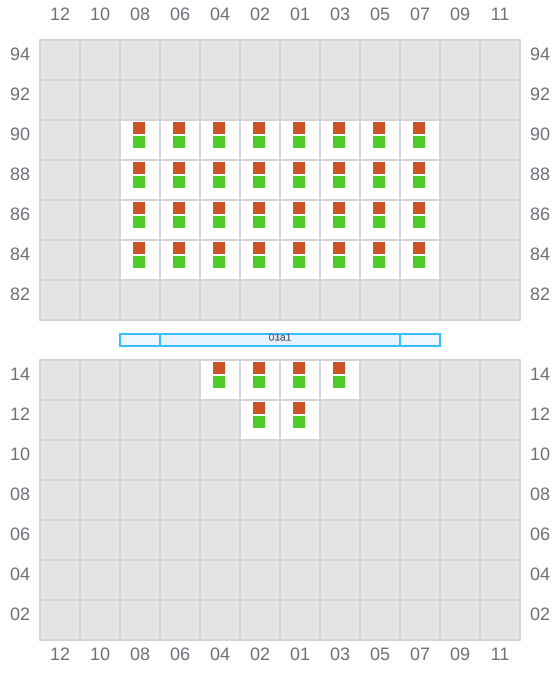

001 (002)
- →
003
- ←
005 (006)
- →
- ← / ?
007
- ←
- ? / →
009 (010)
- →
- → / ?
011
- ←
- →

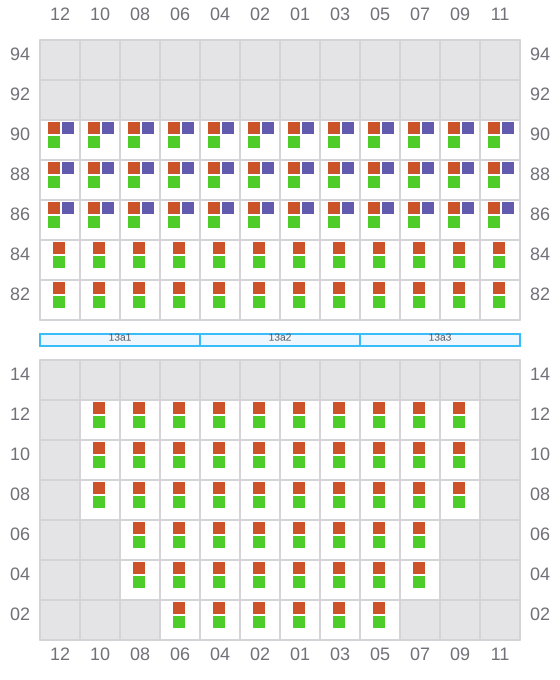

013 (014)
- →
015
- ←
- →

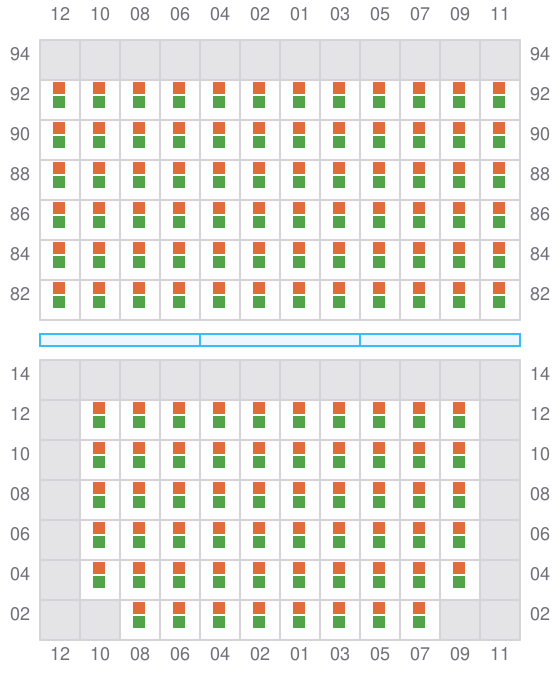

017 (018)
- →
019
- ←
- →
021 (022)
- →
- ← / ?
023
- ←
- ? / →
025 (026)
- →
027
- ←
- →

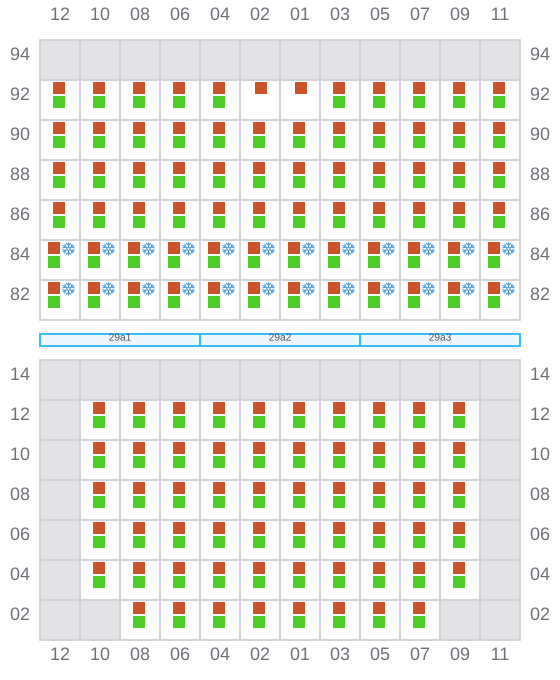

029 (030)
- →
- ← / ?
031
- ←
- ? / →
033 (034)
- →
035
- ←
- →

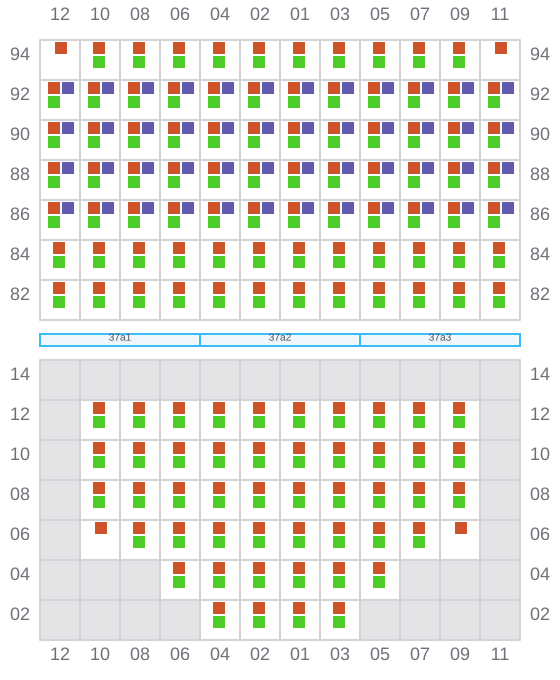

037 (038)
- →

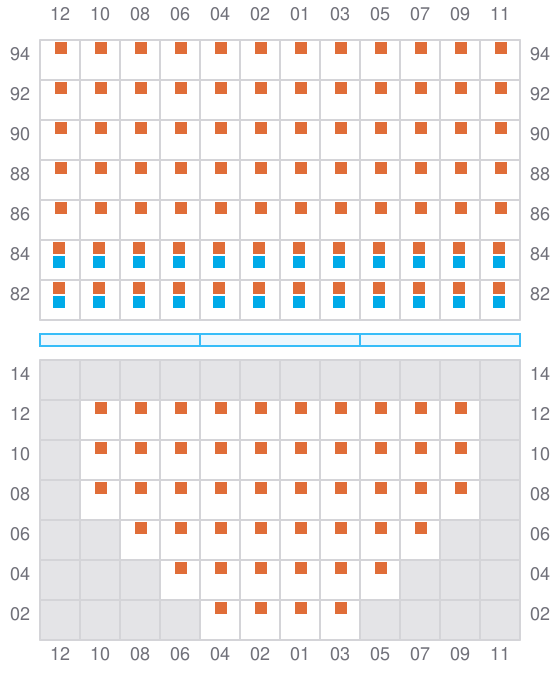

039
- ←
- →
041 (042)
- → / ?
- ← / ?
043
- ← / ?
045 (046)
- → / ?
- ← / ?

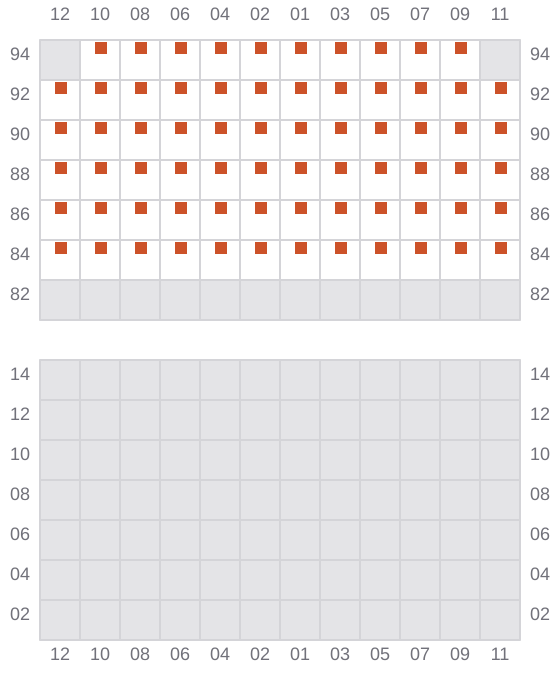

047
- ← / ?
