ZENITH LUMOS
9864215 | 5LOS7 | ONE by *********************** Last update: Wed Feb 12 2025

General Info

Ship Name:ZENITH LUMOS
IMO Code:9864215
Call Sign:5LOS7
Line Operator:ONE
Class Name for Sister Ships:OZEL
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):347.00
LOA (Length Overall):366.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:72
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,110

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of ZENITH LUMOS

Hatch-Covers View

Deck view of ZENITH LUMOS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →
Bay 001 view and slots of ZENITH LUMOS

003

  • ←
  • →

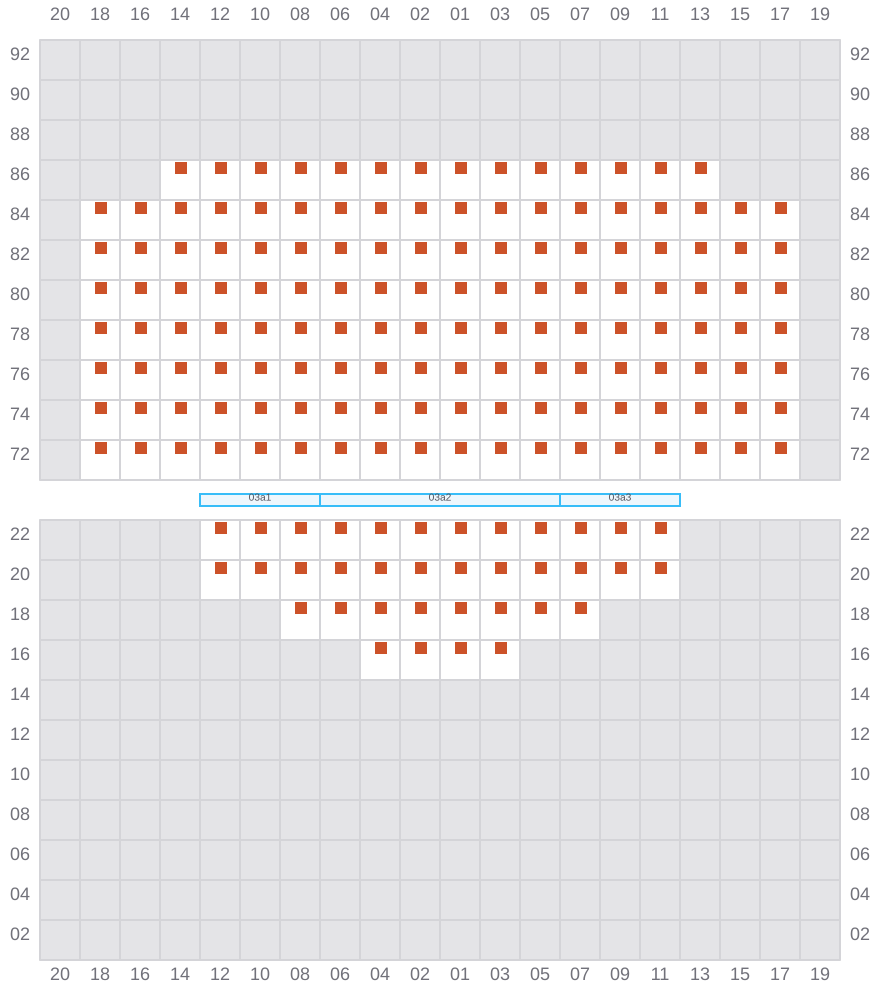

Bay 003 view and slots of ZENITH LUMOS

005 (006)

  • →
  • →
Bay 005 view and slots of ZENITH LUMOS

007

  • ←
  • →
Bay 007 view and slots of ZENITH LUMOS

009 (010)

  • →
  • → / ?
  • →
Bay 009 view and slots of ZENITH LUMOS

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of ZENITH LUMOS

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of ZENITH LUMOS

015

  • ←
  • → / ?
  • →
Bay 015 view and slots of ZENITH LUMOS

017 (018)

  • →
  • → / ?
  • →
Bay 017 view and slots of ZENITH LUMOS

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of ZENITH LUMOS

021 (022)

  • →
  • →
Bay 021 view and slots of ZENITH LUMOS

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of ZENITH LUMOS

025 (026)

  • →
  • → / ?
  • →
Bay 025 view and slots of ZENITH LUMOS

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of ZENITH LUMOS

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of ZENITH LUMOS

031

  • ←
  • → / ?
  • →

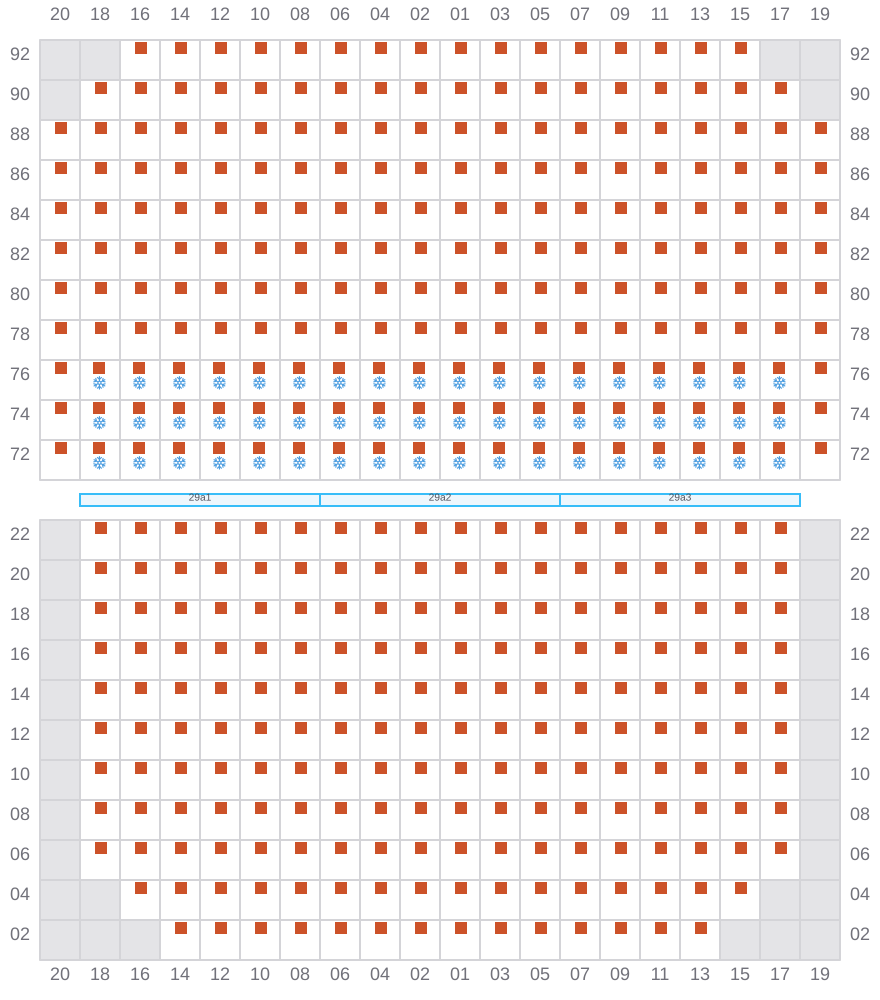

Bay 031 view and slots of ZENITH LUMOS

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of ZENITH LUMOS

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of ZENITH LUMOS

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of ZENITH LUMOS

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of ZENITH LUMOS

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of ZENITH LUMOS

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of ZENITH LUMOS

045 (046)

  • →
  • → / ?
  • →

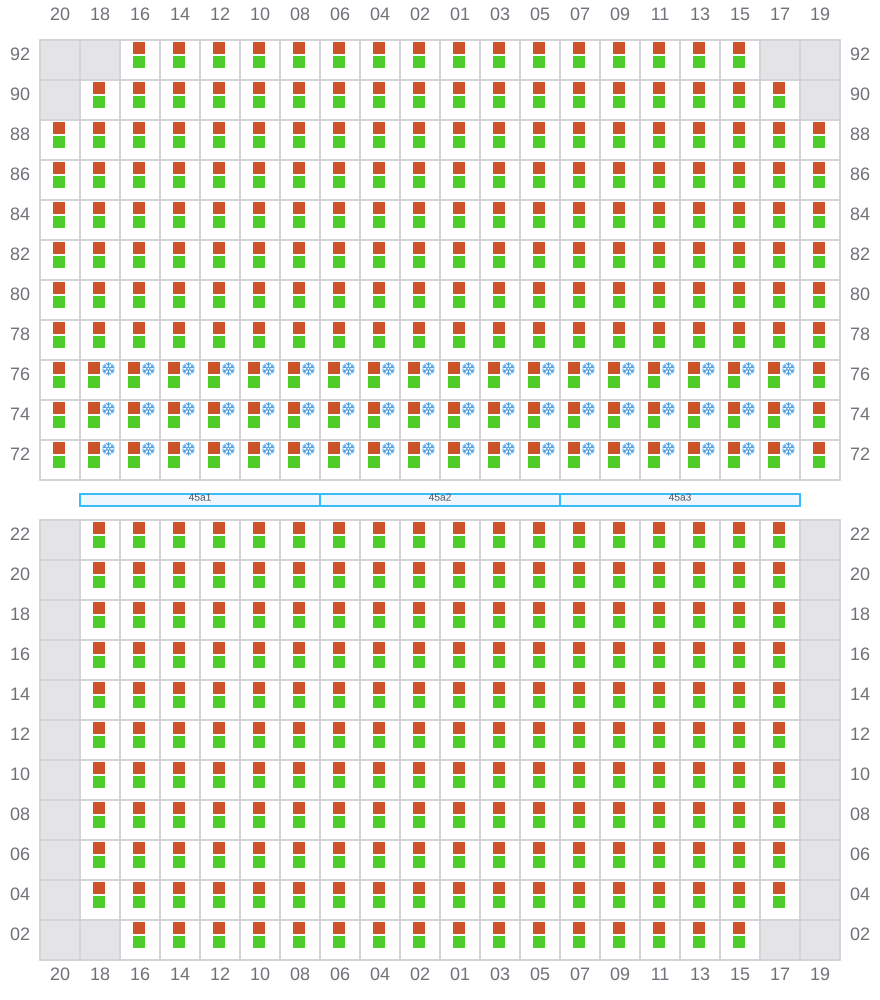

Bay 045 view and slots of ZENITH LUMOS

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of ZENITH LUMOS

049 (050)

  • →
  • → / ?
  • →

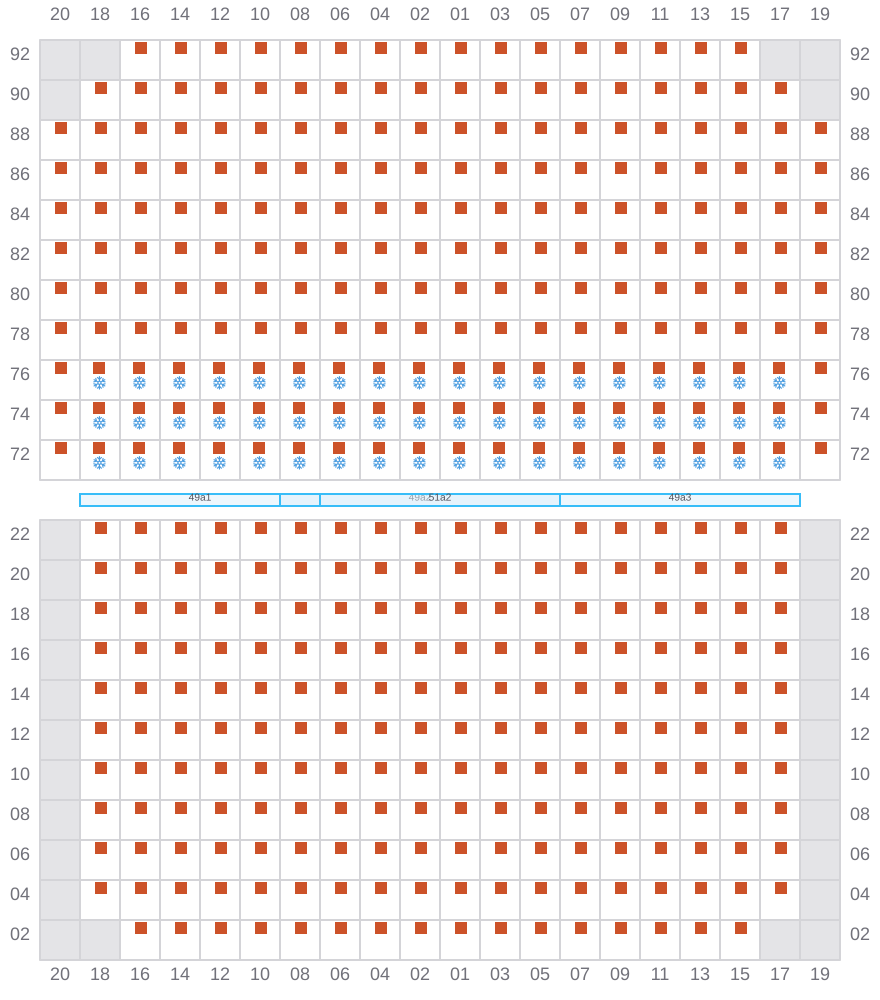

Bay 049 view and slots of ZENITH LUMOS

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of ZENITH LUMOS

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of ZENITH LUMOS

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of ZENITH LUMOS

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of ZENITH LUMOS

059

  • ←
  • → / ?
  • →

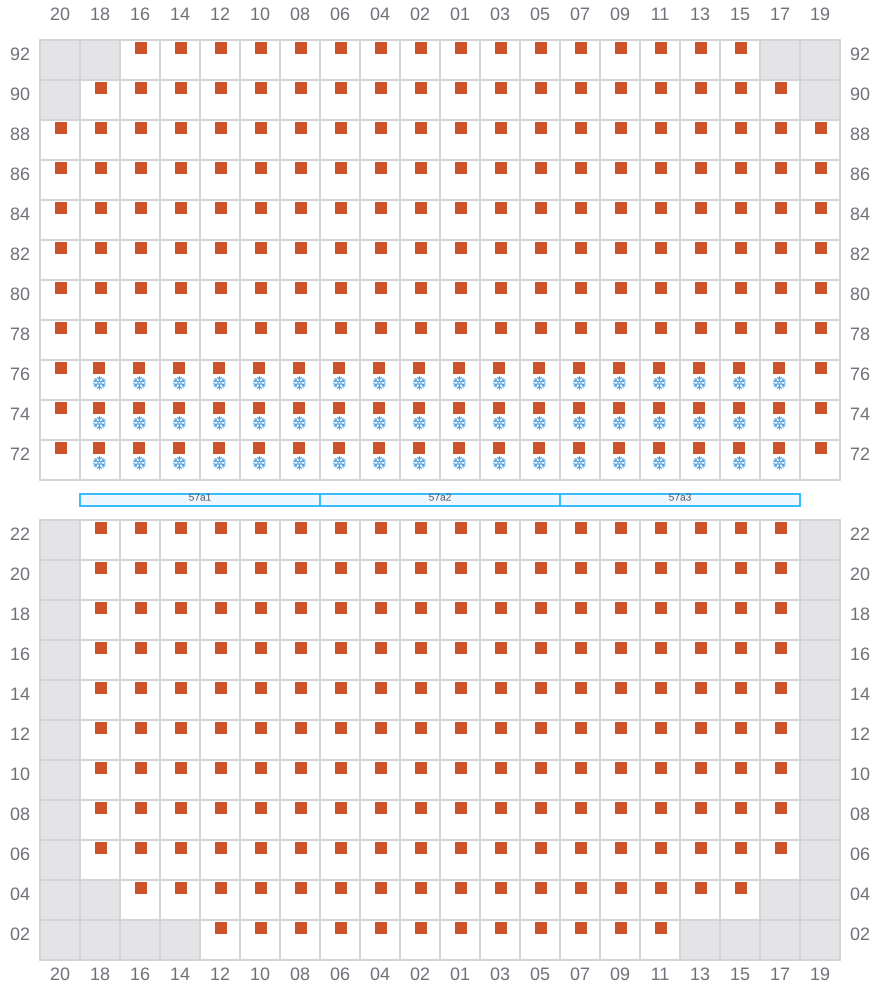

Bay 059 view and slots of ZENITH LUMOS

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of ZENITH LUMOS

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of ZENITH LUMOS

065 (066)

  • →
  • → / ?
  • →

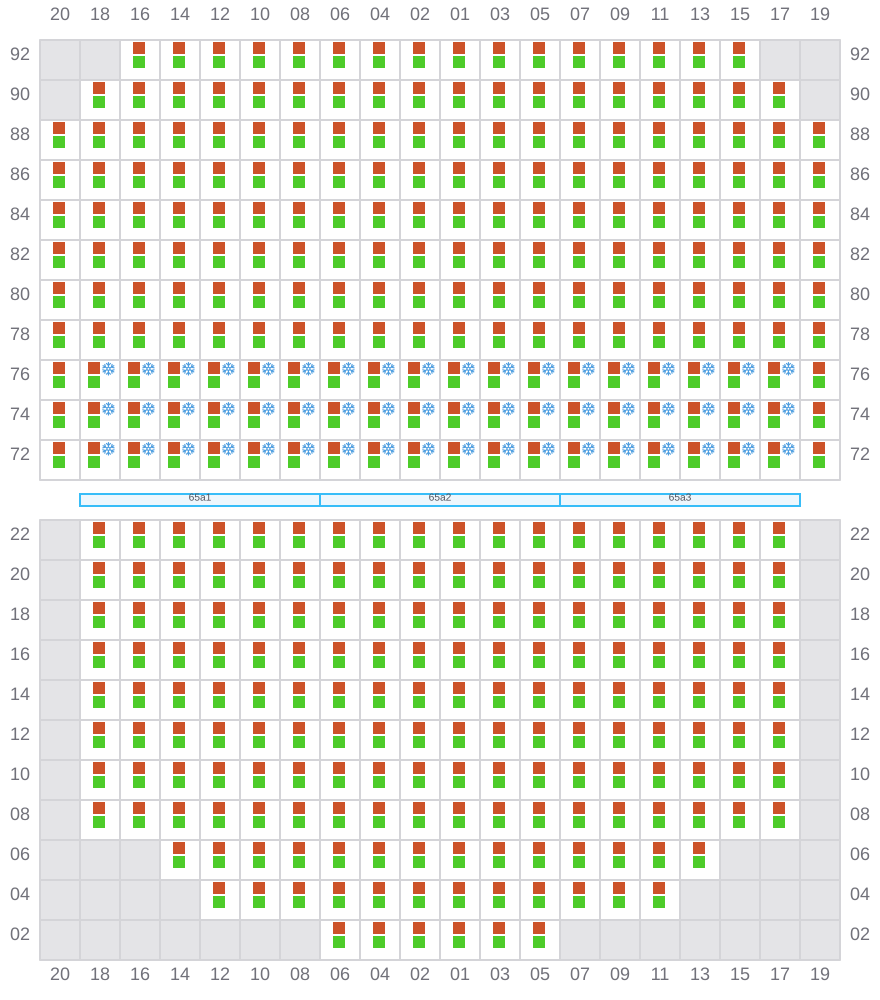

Bay 065 view and slots of ZENITH LUMOS

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of ZENITH LUMOS

069 (070)

  • →
  • → / ?
  • →
Bay 069 view and slots of ZENITH LUMOS

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of ZENITH LUMOS

073 (074)

  • →
  • →
Bay 073 view and slots of ZENITH LUMOS

075

  • ←
  • ← / ?
  • →
Bay 075 view and slots of ZENITH LUMOS

077 (078)

  • →
  • ← / ?
  • →
Bay 077 view and slots of ZENITH LUMOS

079

  • ←
  • ← / ?
  • →
Bay 079 view and slots of ZENITH LUMOS

081 (082)

  • →
  • ← / ?
  • →

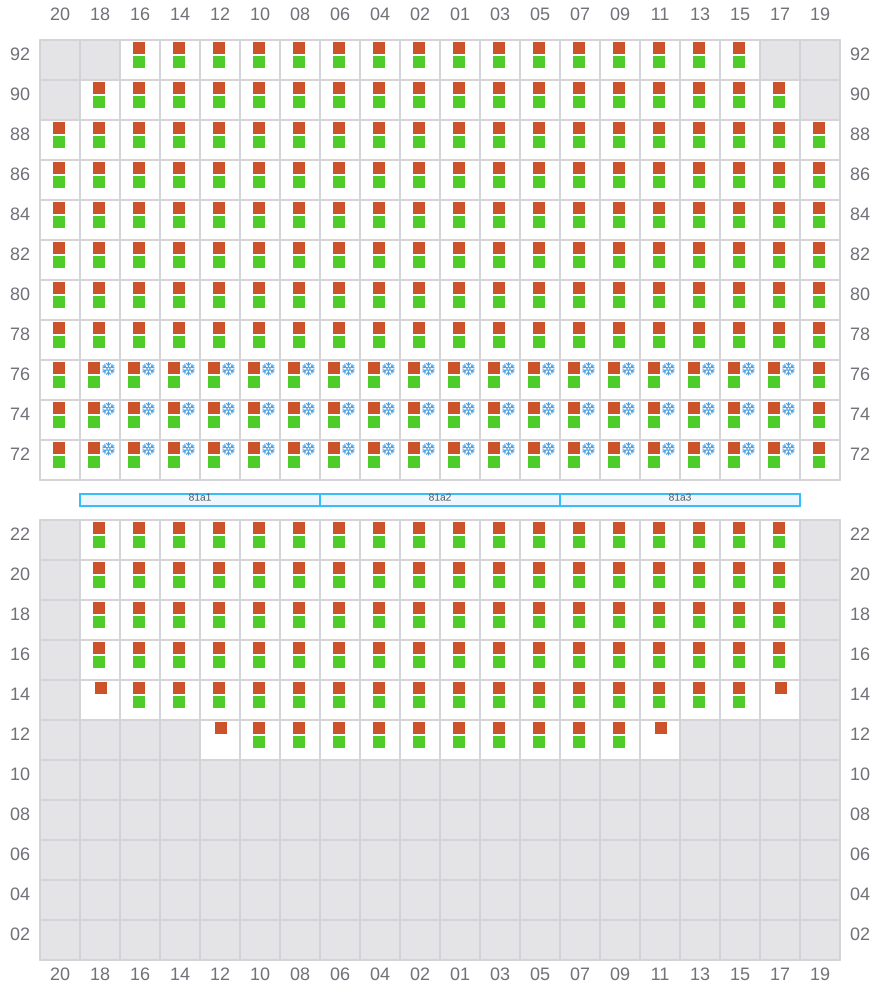

Bay 081 view and slots of ZENITH LUMOS

083

  • ←
  • ← / ?
  • →

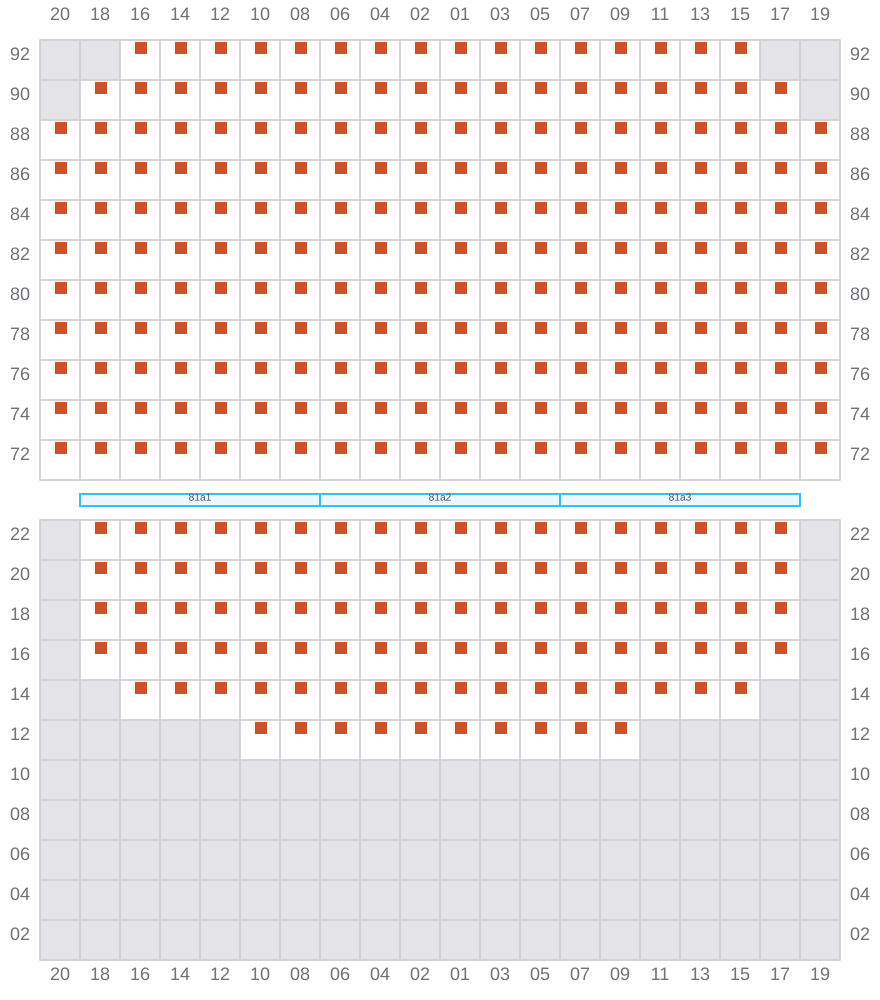

Bay 083 view and slots of ZENITH LUMOS

085 (086)

  • → / ?
  • ← / ?
  • → / ?
Bay 085 view and slots of ZENITH LUMOS
