ZIM AMERICA
9244934 | 5LHF9 | MSK by ************************** Last update: Thu Jun 22 2023

General Info

Ship Name:ZIM AMERICA
IMO Code:9244934
Call Sign:5LHF9
Line Operator:MSK
Class Name for Sister Ships:KBE
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.16
LOA (Length Overall):303.82
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,756

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

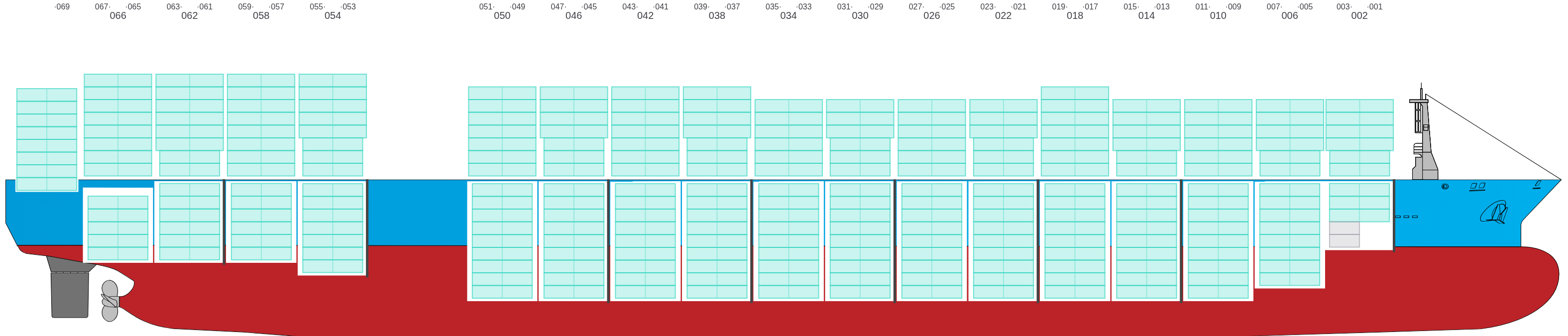

Side view of ZIM AMERICA

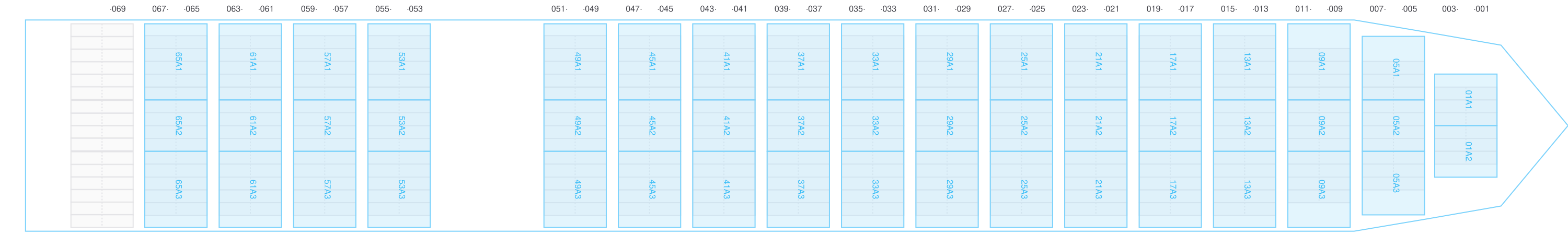

Hatch-Covers View

Deck view of ZIM AMERICA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

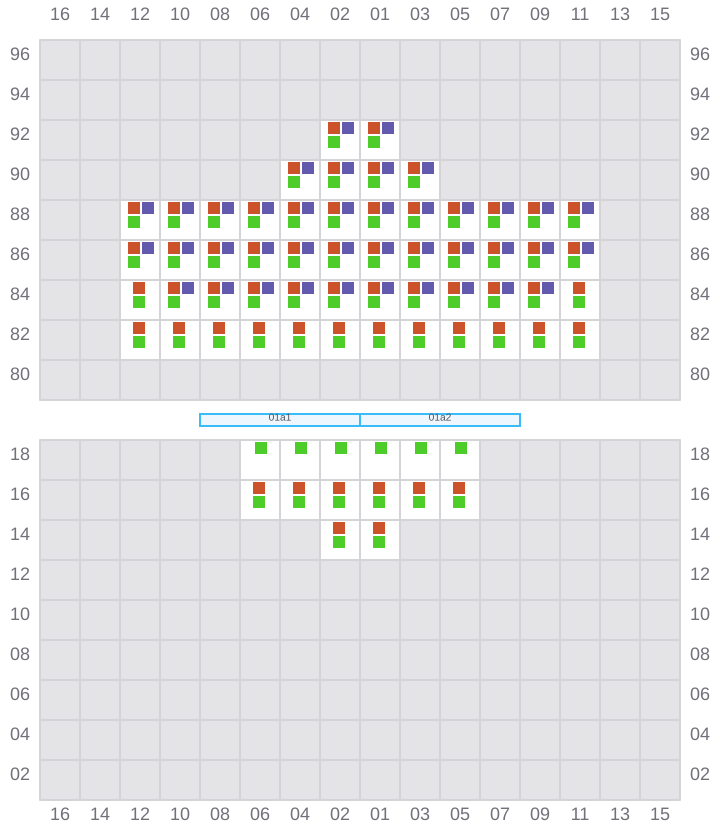

Bay 001 view and slots of ZIM AMERICA

003

  • ←
Bay 003 view and slots of ZIM AMERICA

005 (006)

  • →

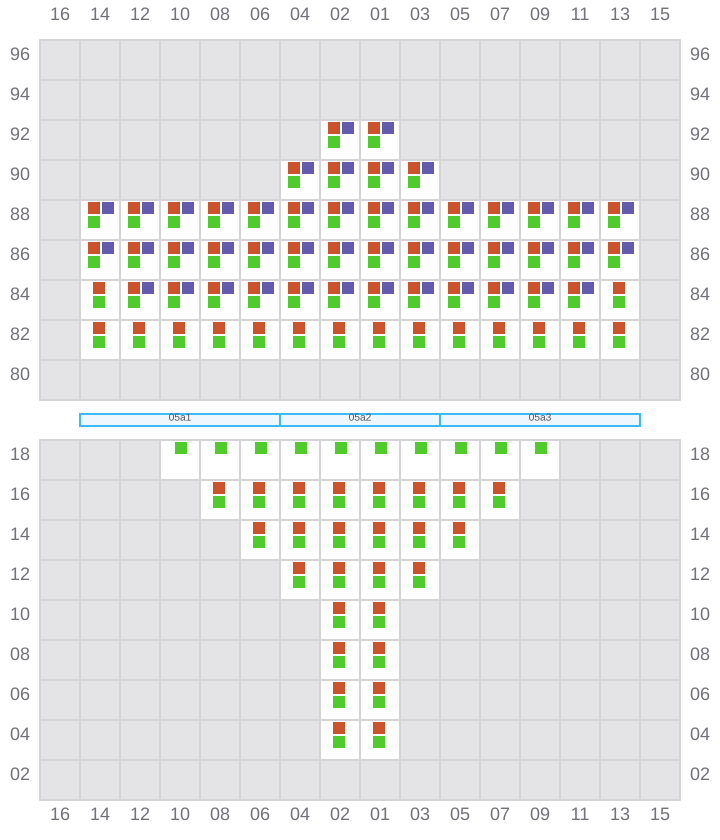

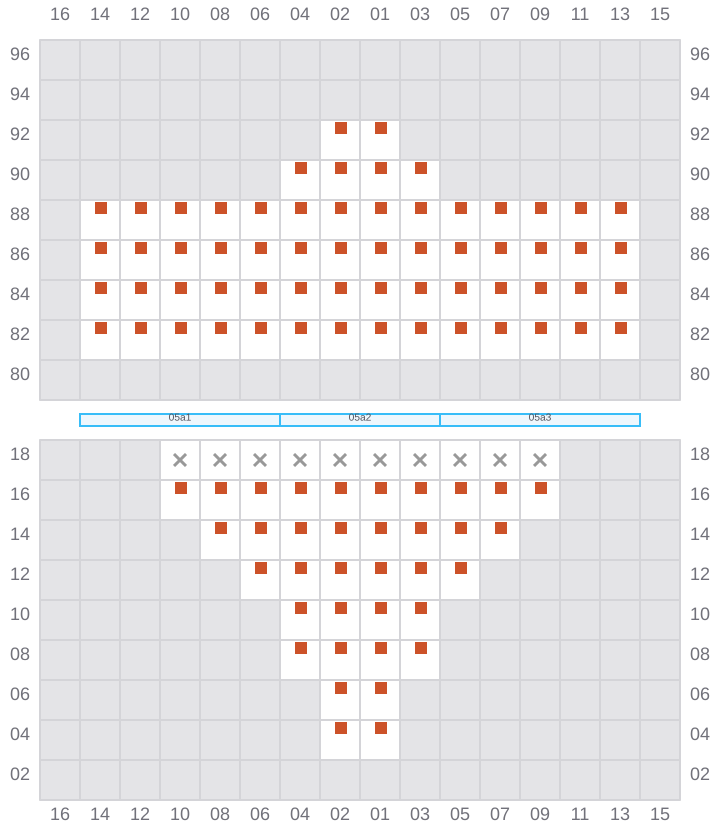

Bay 005 view and slots of ZIM AMERICA

007

  • ←
Bay 007 view and slots of ZIM AMERICA

009 (010)

  • →

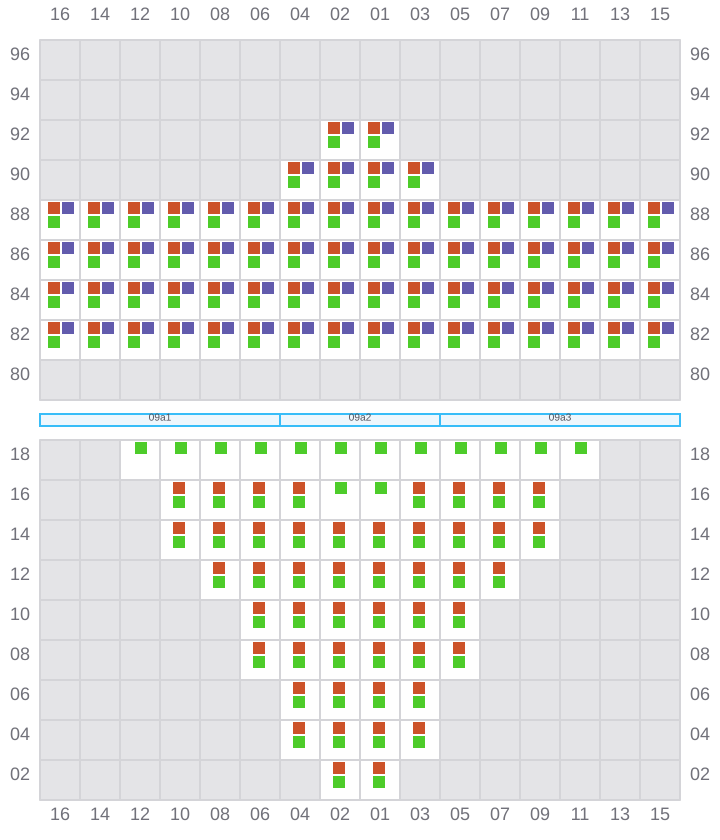

Bay 009 view and slots of ZIM AMERICA

011

  • ←
Bay 011 view and slots of ZIM AMERICA

013 (014)

  • →

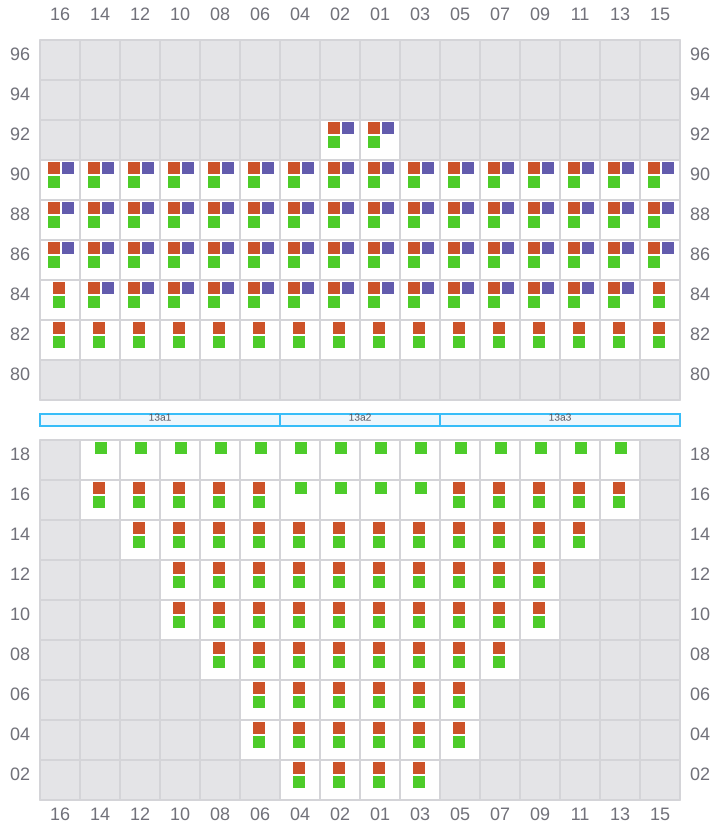

Bay 013 view and slots of ZIM AMERICA

015

  • ←
Bay 015 view and slots of ZIM AMERICA

017 (018)

  • →

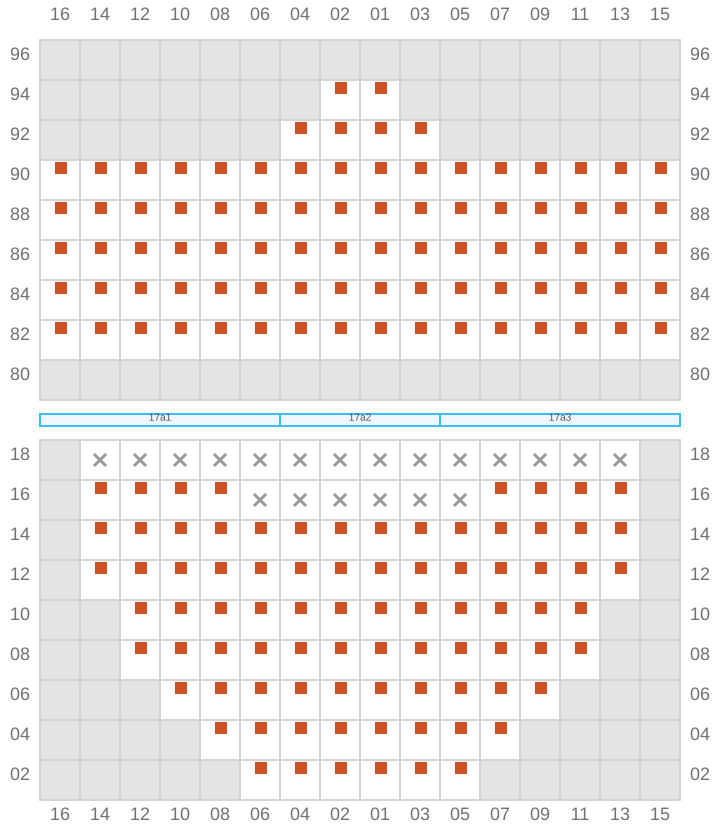

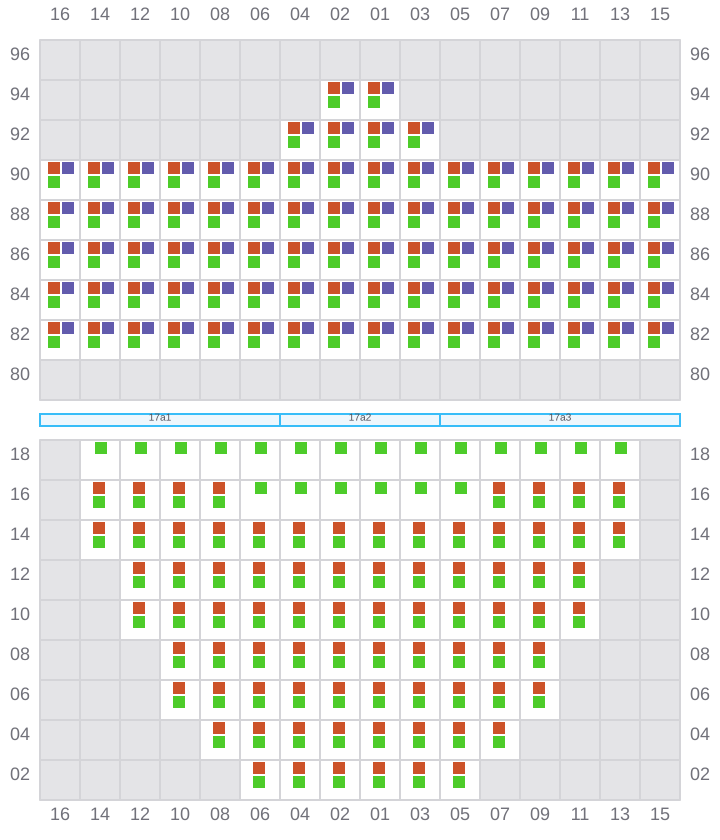

Bay 017 view and slots of ZIM AMERICA

019

  • ←
Bay 019 view and slots of ZIM AMERICA

021 (022)

  • →

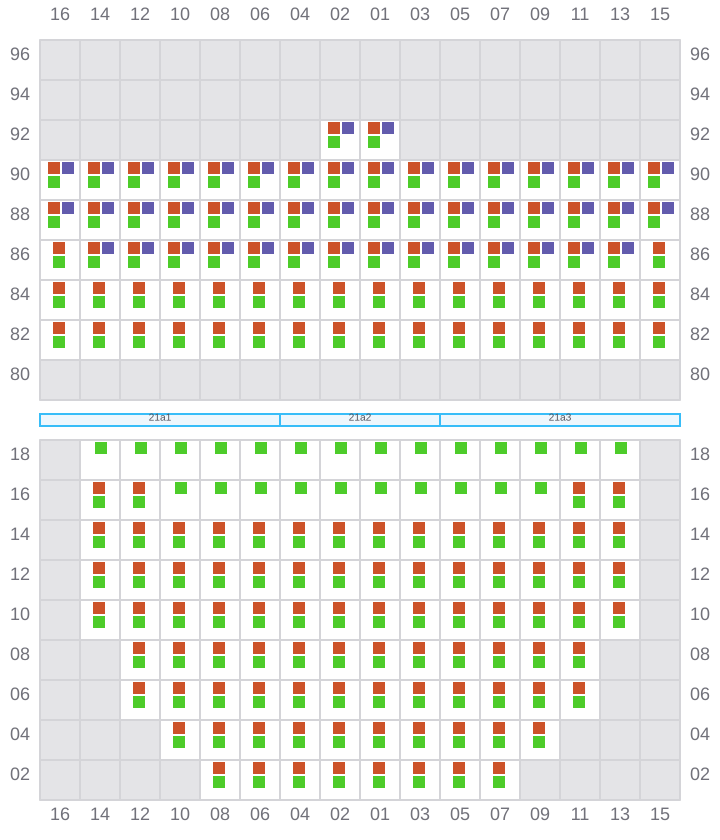

Bay 021 view and slots of ZIM AMERICA

023

  • ←

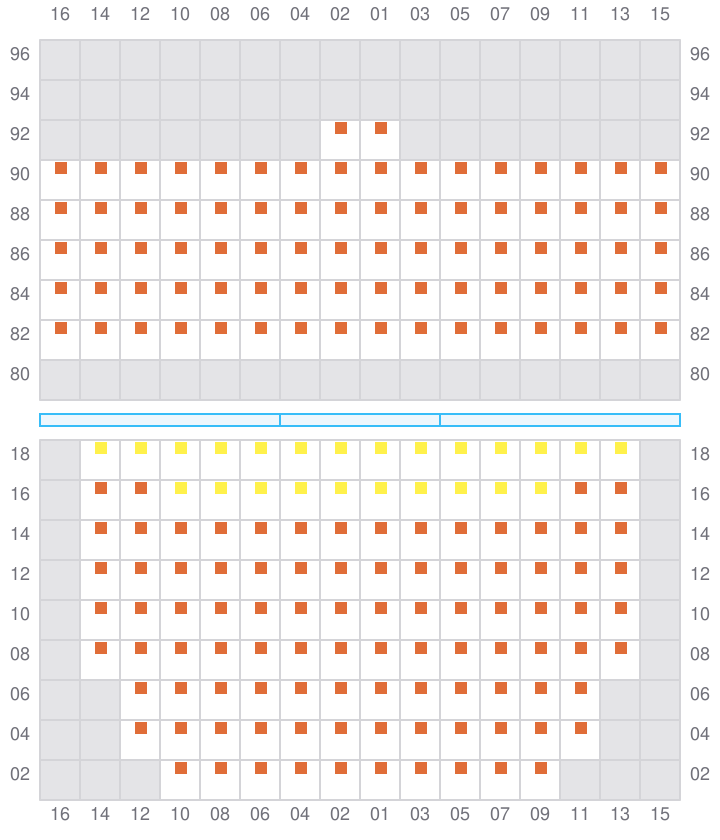

Bay 023 view and slots of ZIM AMERICA

025 (026)

  • →

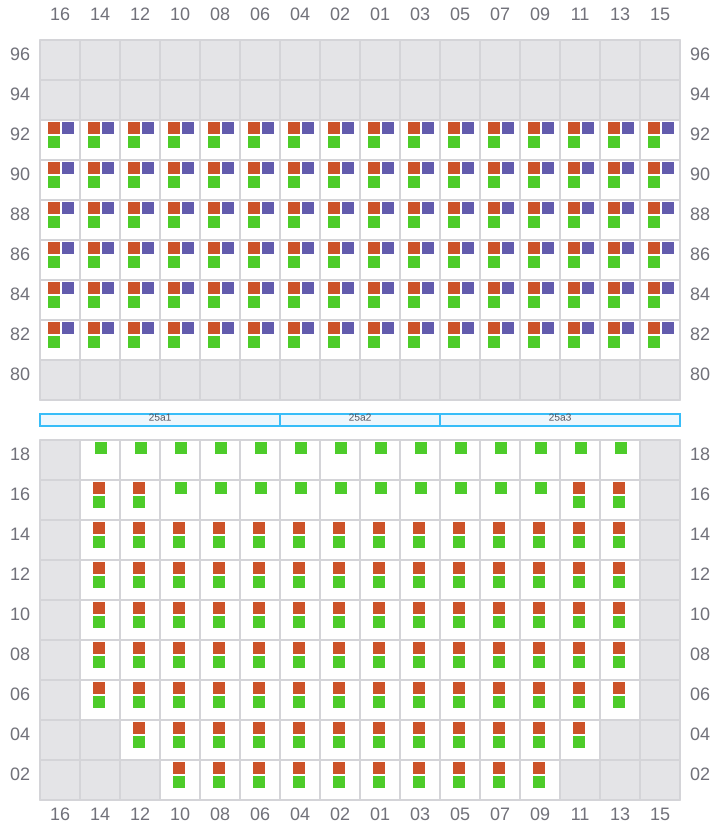

Bay 025 view and slots of ZIM AMERICA

027

  • ←
  • → / ?

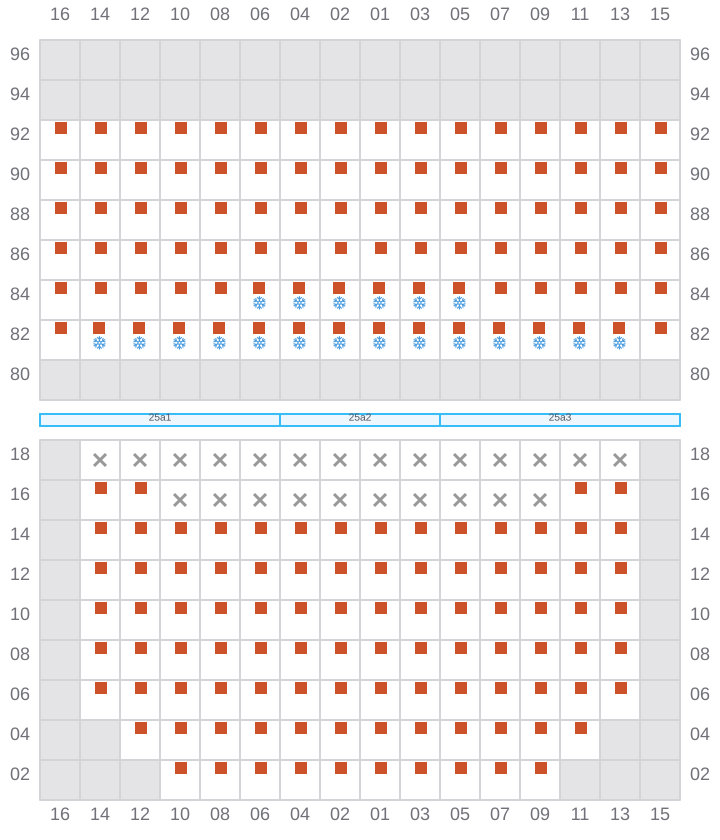

Bay 027 view and slots of ZIM AMERICA

029 (030)

  • →

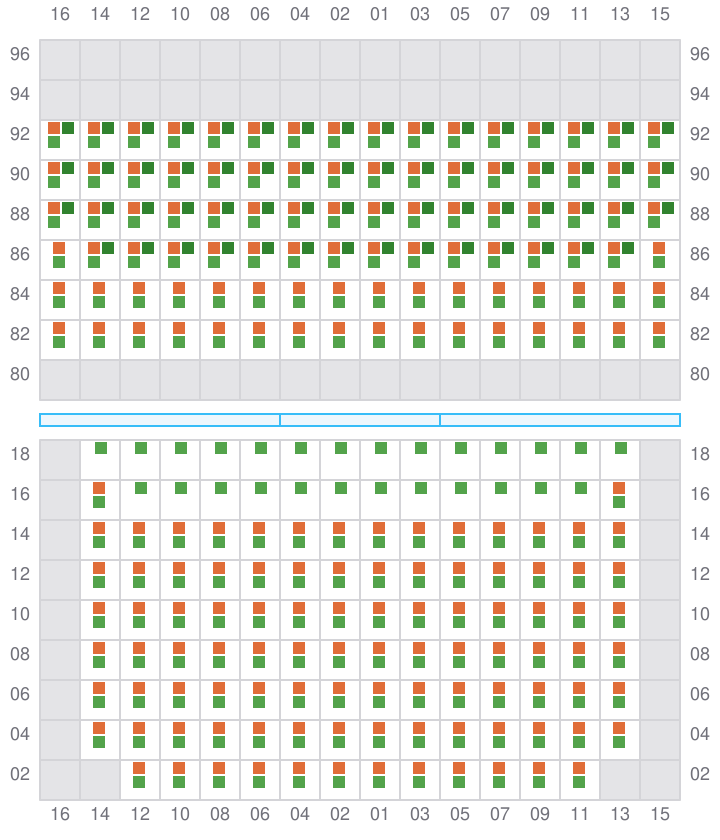

Bay 029 view and slots of ZIM AMERICA

031

  • ←
  • →

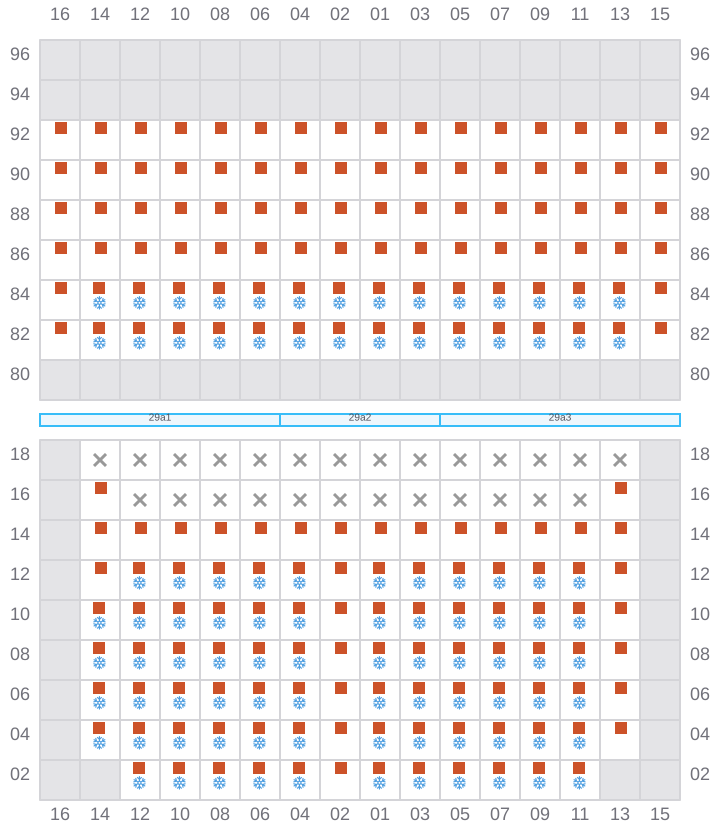

Bay 031 view and slots of ZIM AMERICA

033 (034)

  • →

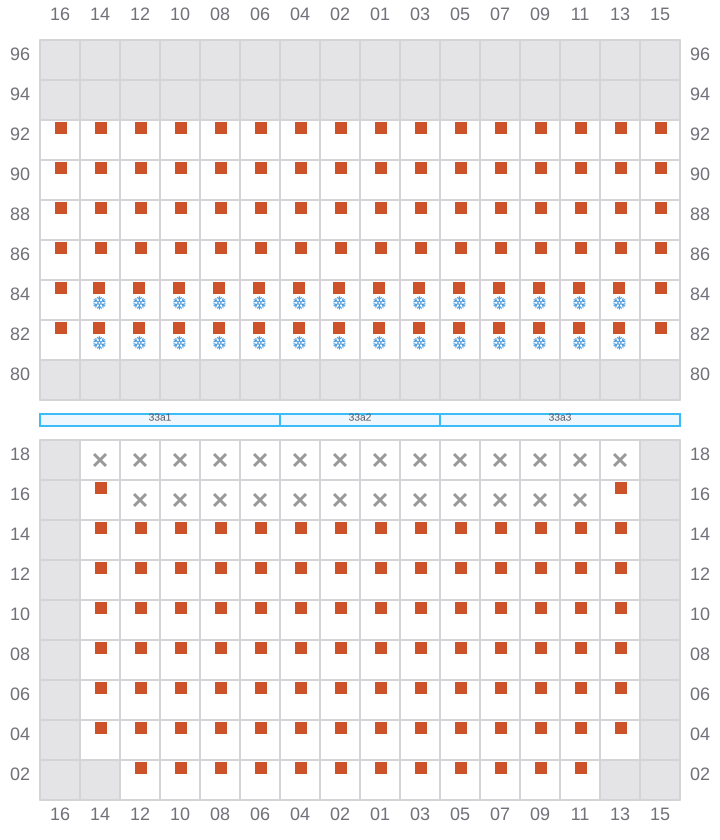

Bay 033 view and slots of ZIM AMERICA

035

  • ←
  • → / ?
Bay 035 view and slots of ZIM AMERICA

037 (038)

  • →

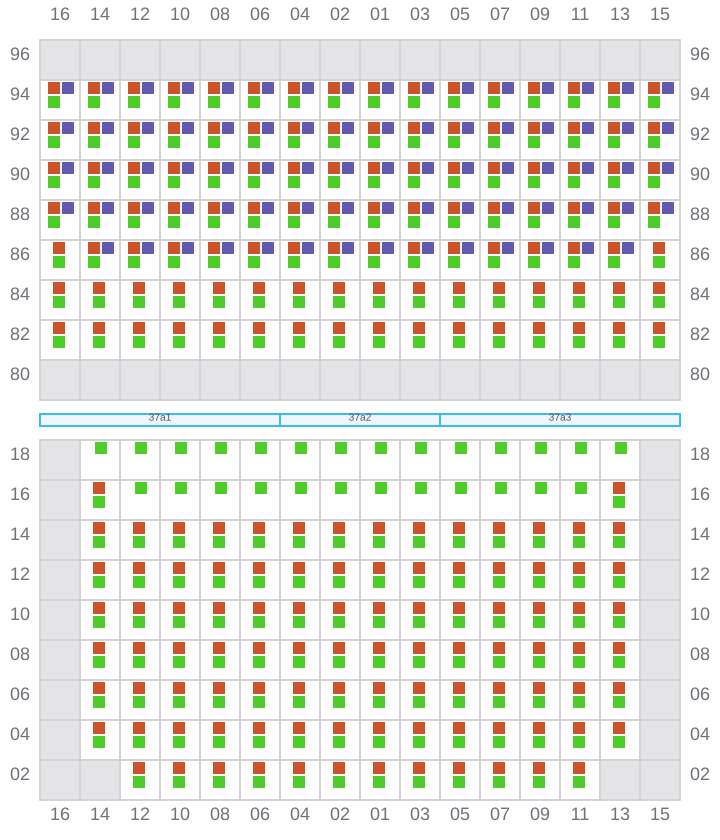

Bay 037 view and slots of ZIM AMERICA

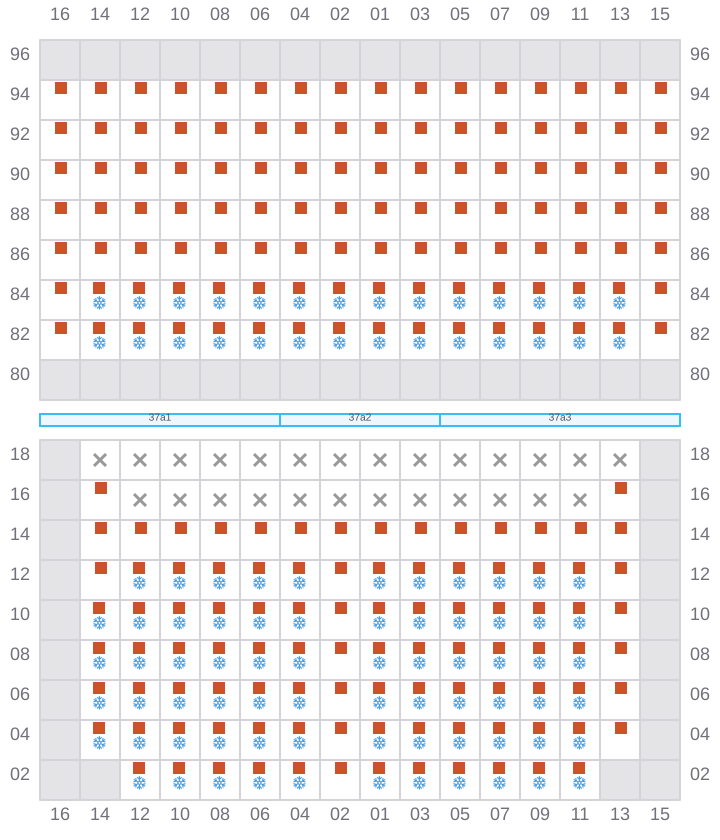

039

  • ←
  • →
Bay 039 view and slots of ZIM AMERICA

041 (042)

  • →

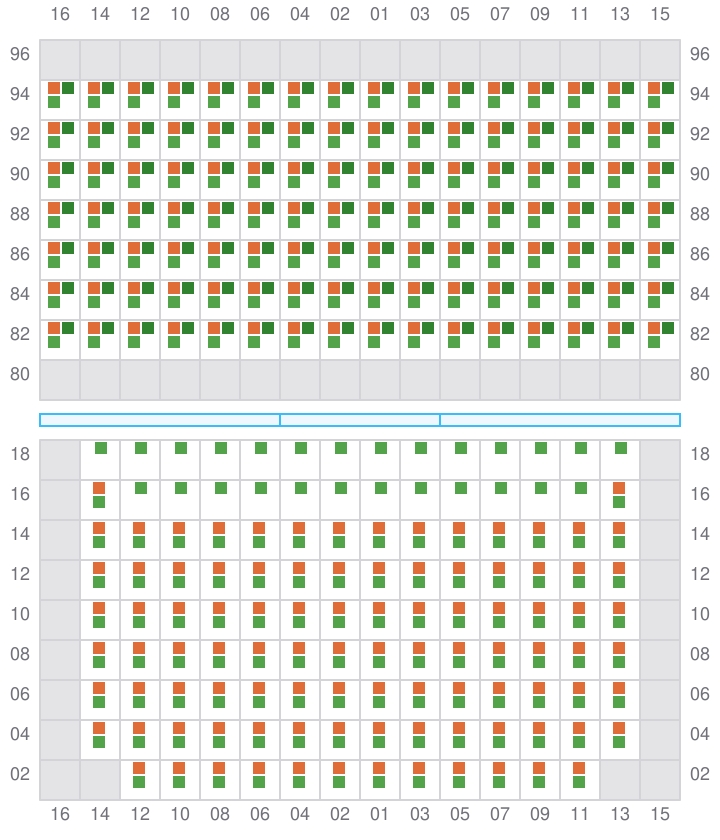

Bay 041 view and slots of ZIM AMERICA

043

  • ←
  • → / ?

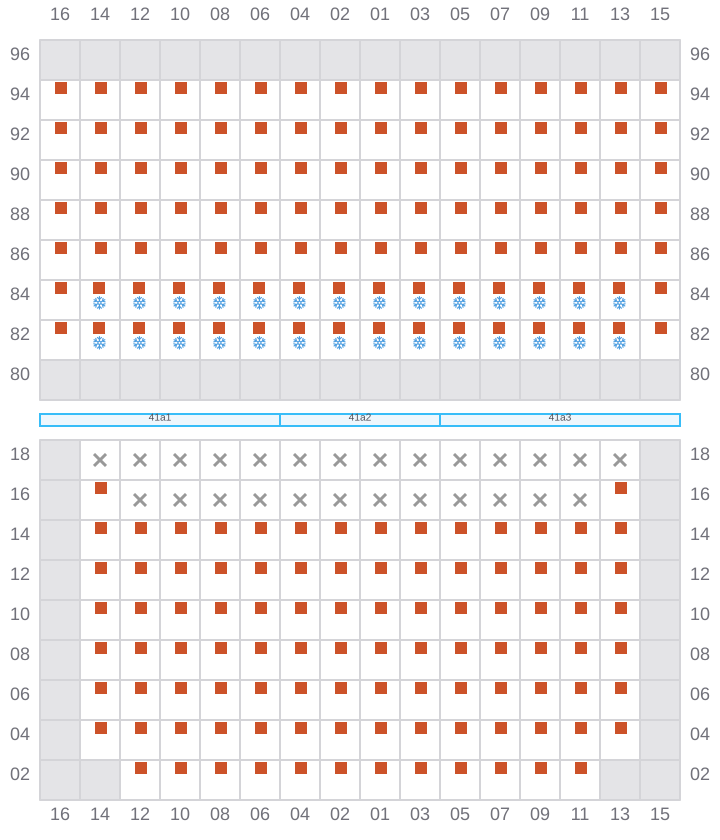

Bay 043 view and slots of ZIM AMERICA

045 (046)

  • →
Bay 045 view and slots of ZIM AMERICA

047

  • ←
  • →

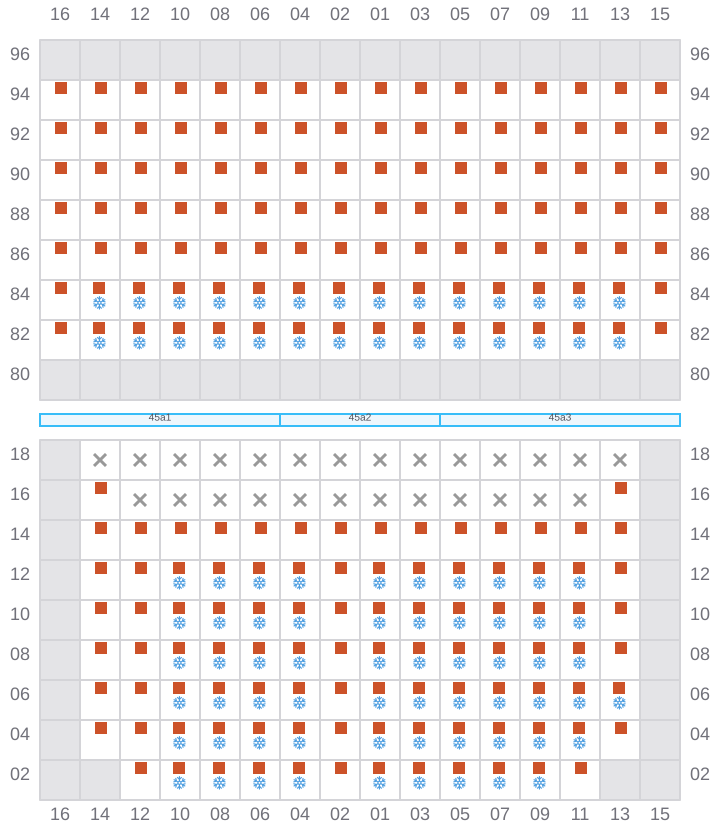

Bay 047 view and slots of ZIM AMERICA

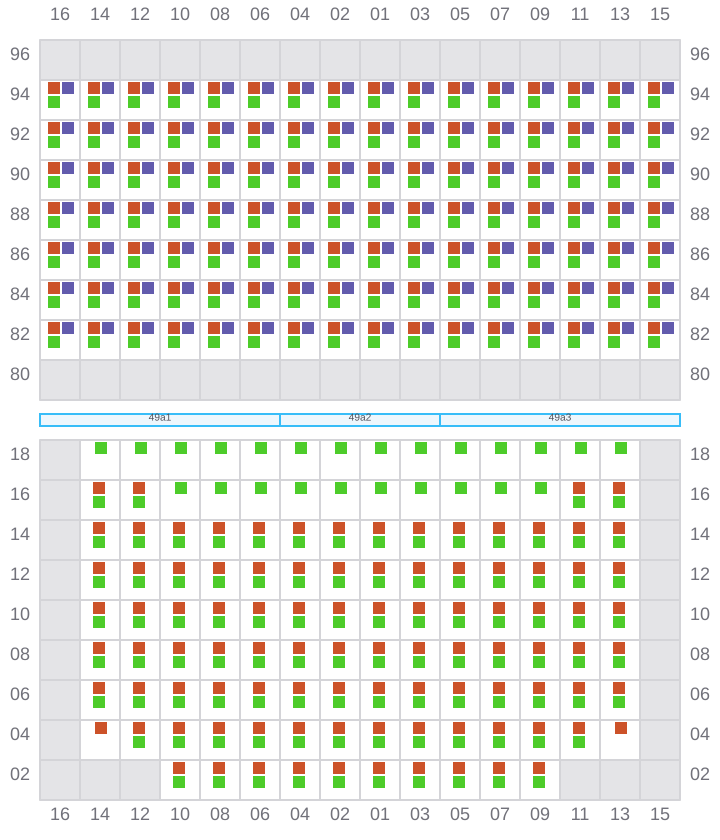

049 (050)

  • →
Bay 049 view and slots of ZIM AMERICA

051

  • ←
  • → / ?

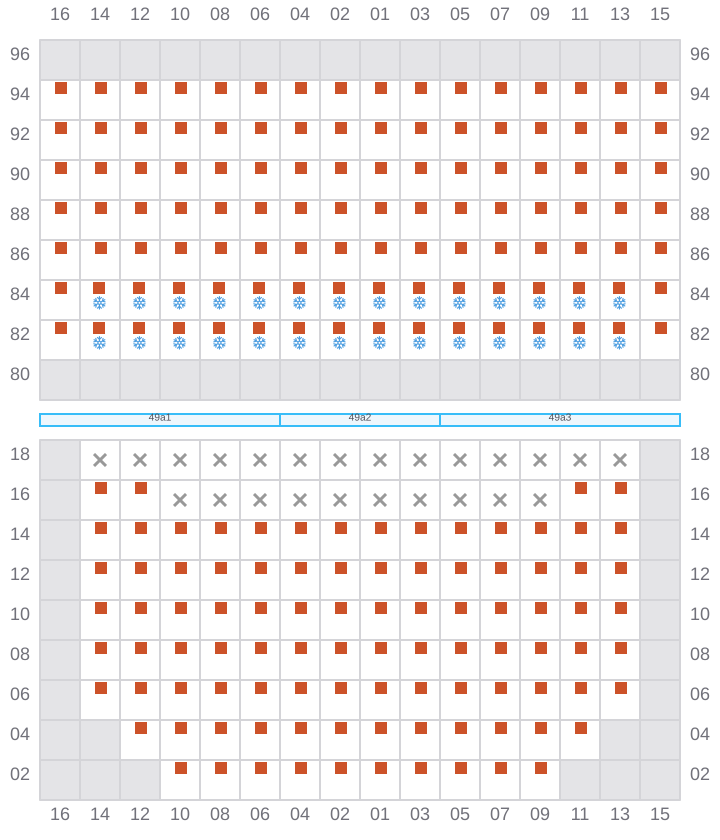

Bay 051 view and slots of ZIM AMERICA

053 (054)

  • →

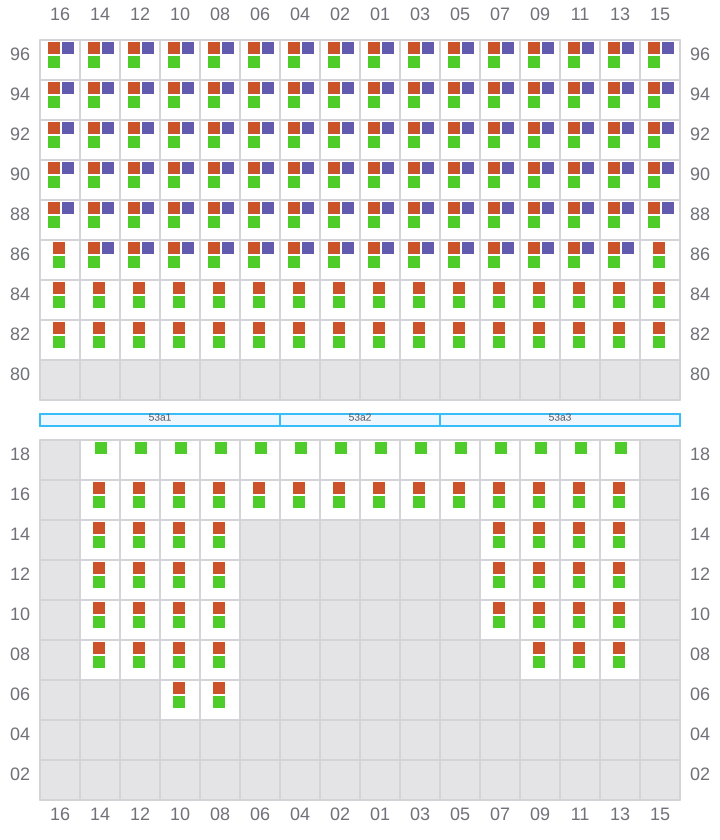

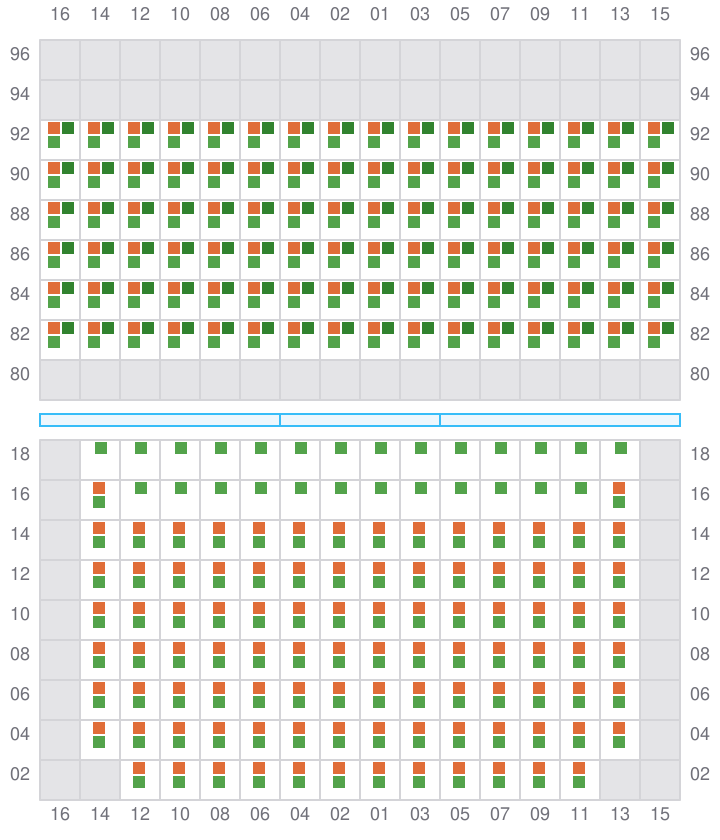

Bay 053 view and slots of ZIM AMERICA

055

  • ←
  • → / ?

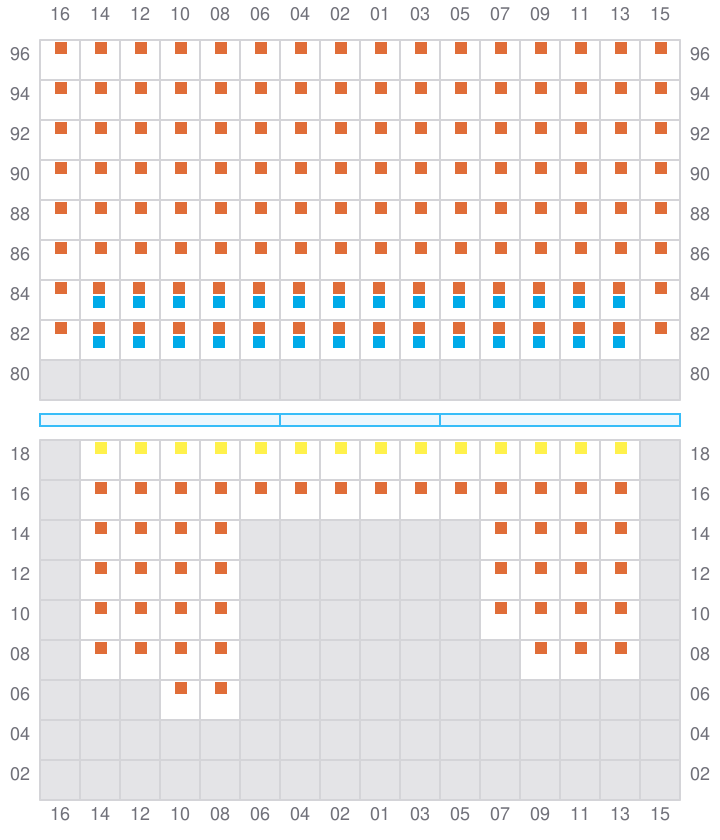

Bay 055 view and slots of ZIM AMERICA

057 (058)

  • →

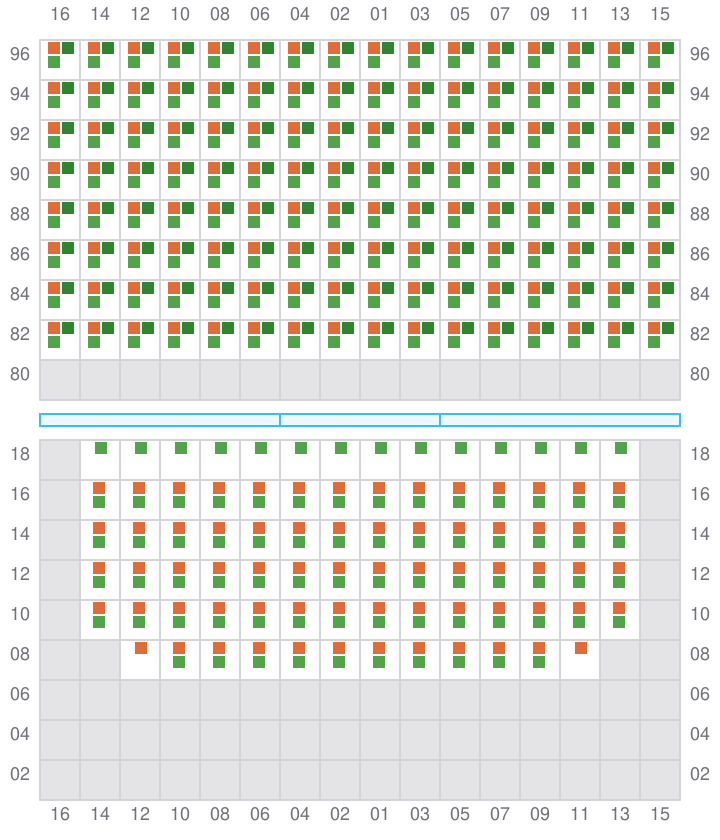

Bay 057 view and slots of ZIM AMERICA

059

  • ←
  • → / ?

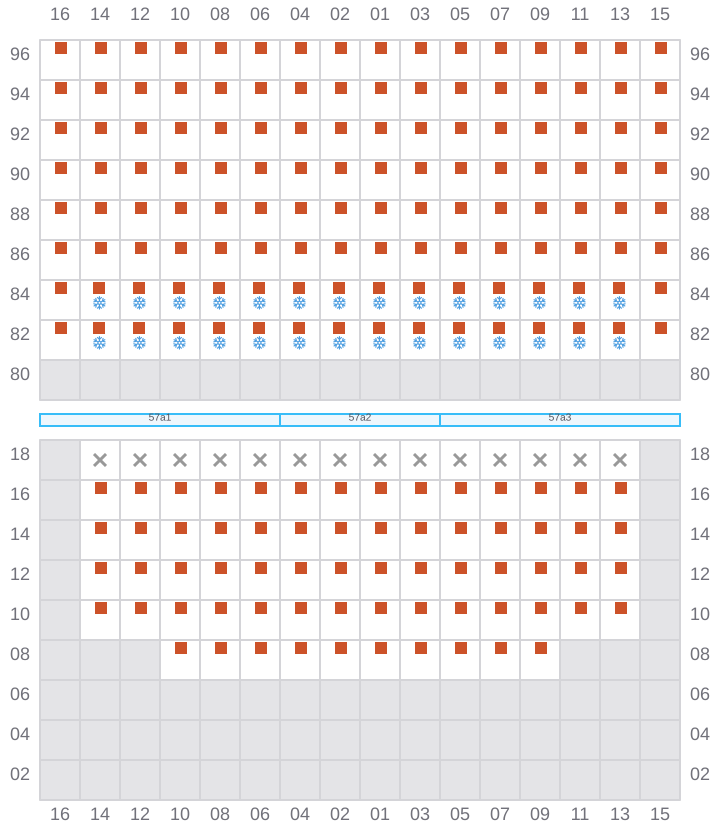

Bay 059 view and slots of ZIM AMERICA

061 (062)

  • →

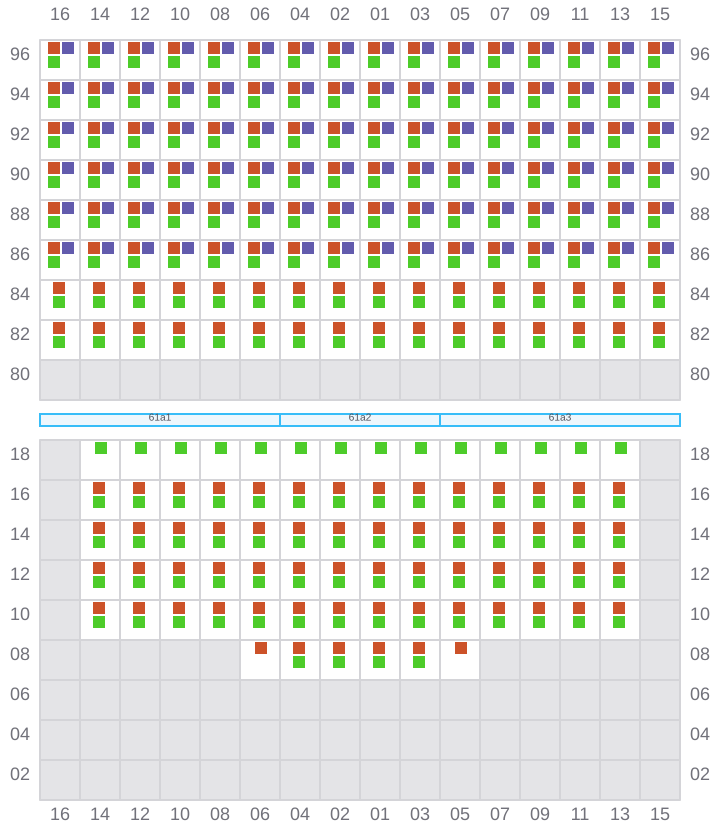

Bay 061 view and slots of ZIM AMERICA

063

  • ←
  • → / ?

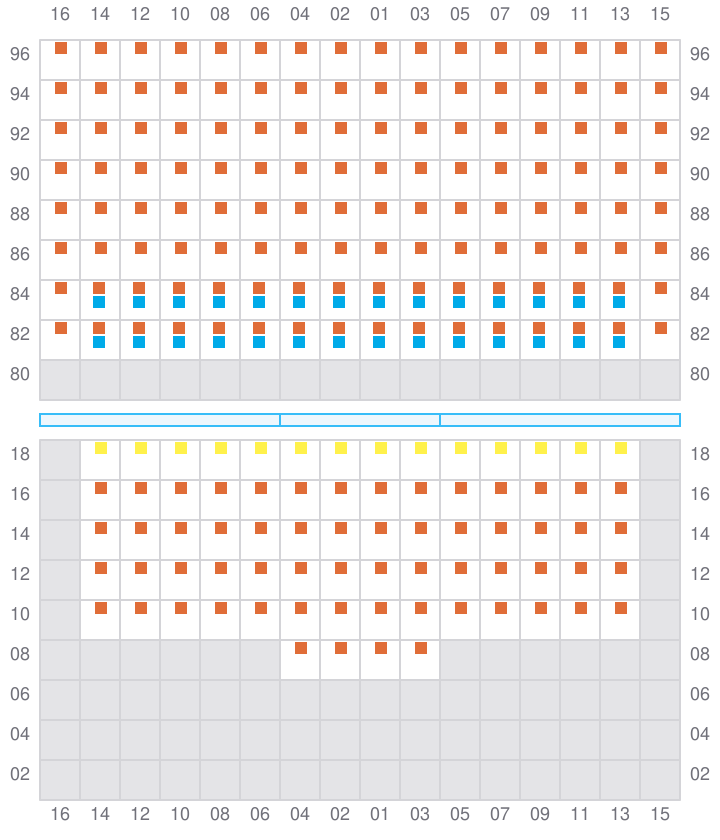

Bay 063 view and slots of ZIM AMERICA

065 (066)

  • →

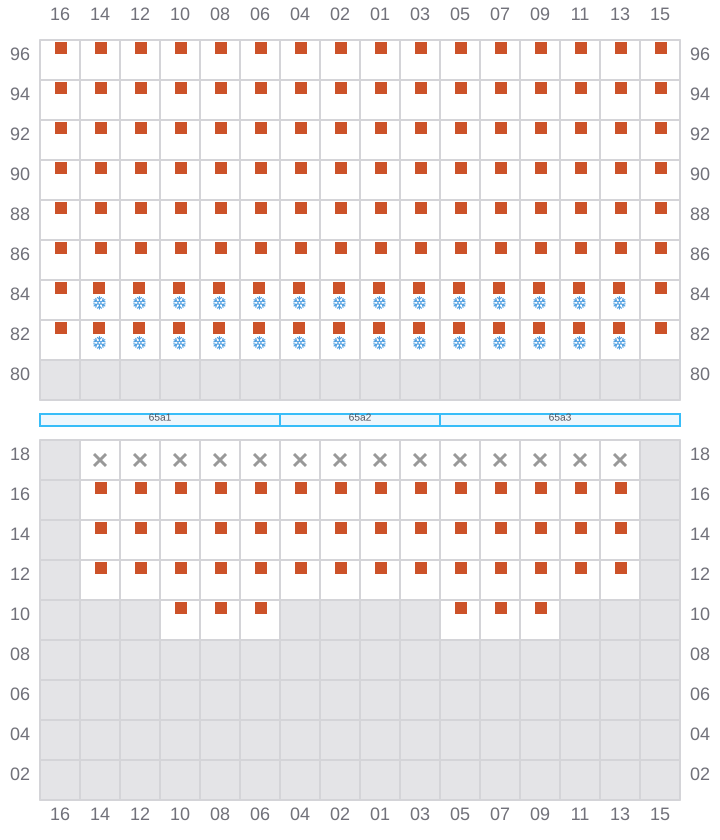

Bay 065 view and slots of ZIM AMERICA

067

  • ←
  • → / ?
Bay 067 view and slots of ZIM AMERICA

069 (070)

  • → / ?

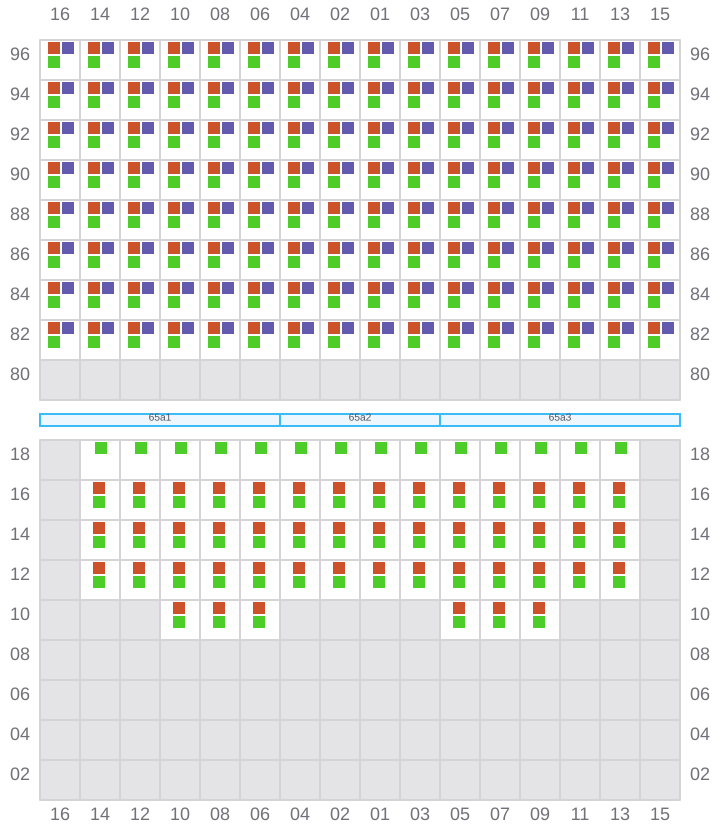

Bay 069 view and slots of ZIM AMERICA
