ZIM BALTIMORE
9395953 | A8UE8 | ZIM by ************************** Last update: Sat May 27 2023

General Info

Ship Name:ZIM BALTIMORE
IMO Code:9395953
Call Sign:A8UE8
Line Operator:ZIM
Class Name for Sister Ships:NAVI
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,061

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of ZIM BALTIMORE

Hatch-Covers View

Deck view of ZIM BALTIMORE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
Bay 001 view and slots of ZIM BALTIMORE

003 (002)

  • ←

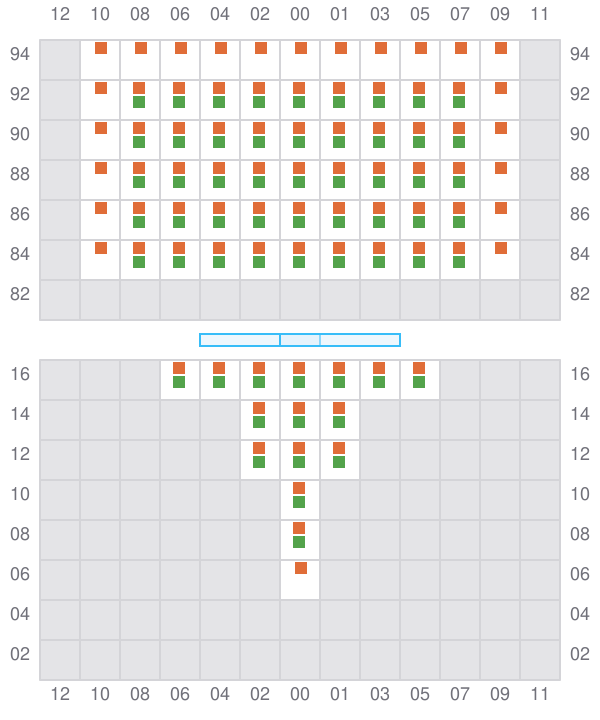

Bay 003 view and slots of ZIM BALTIMORE

005

  • →

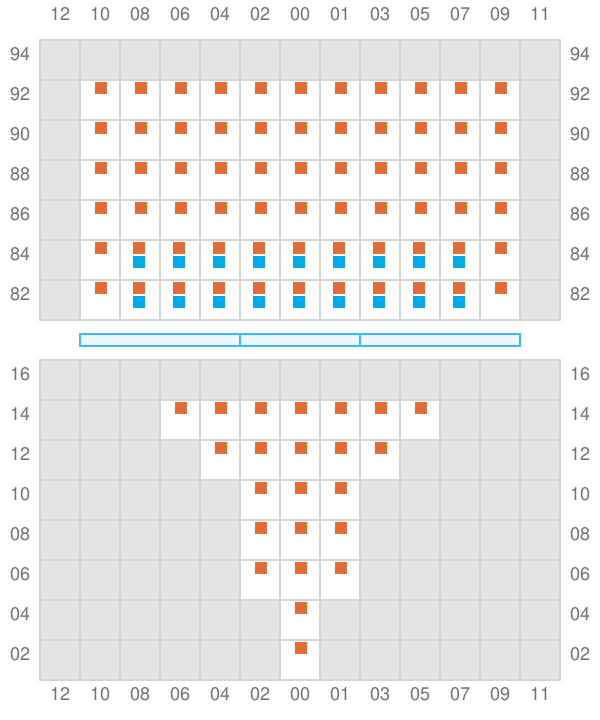

Bay 005 view and slots of ZIM BALTIMORE

007 (006)

  • ←
Bay 007 view and slots of ZIM BALTIMORE

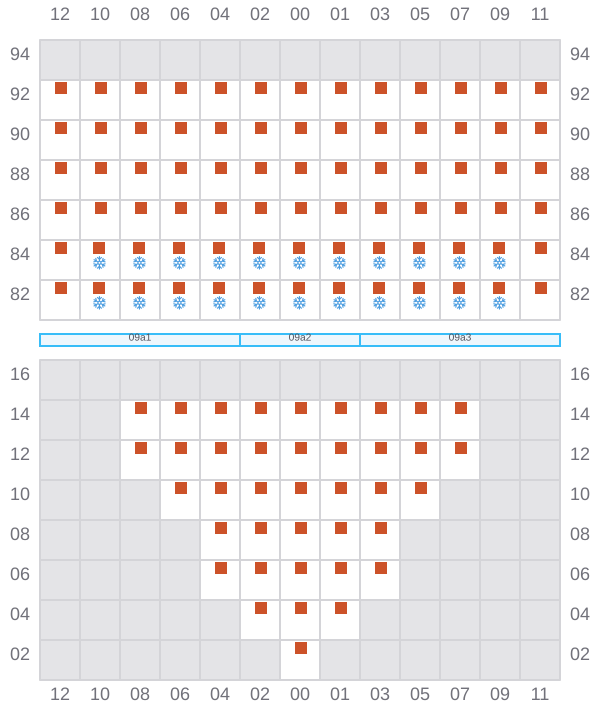

009

  • →
Bay 009 view and slots of ZIM BALTIMORE

011 (010)

  • ←
Bay 011 view and slots of ZIM BALTIMORE

013

  • →

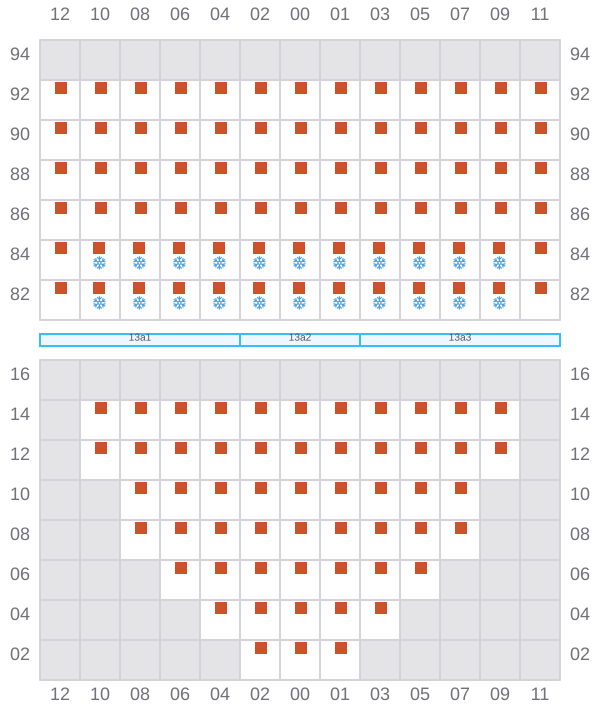

Bay 013 view and slots of ZIM BALTIMORE

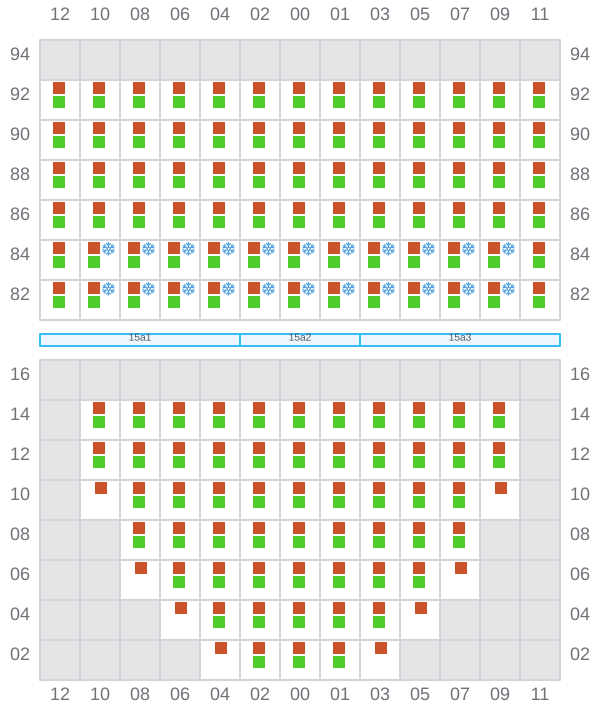

015 (014)

  • ←
Bay 015 view and slots of ZIM BALTIMORE

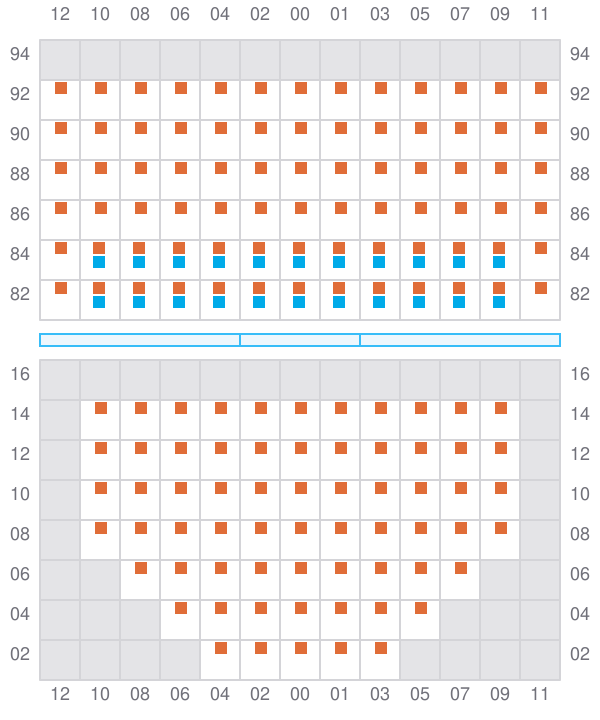

017

  • →
Bay 017 view and slots of ZIM BALTIMORE

019 (018)

  • ←
Bay 019 view and slots of ZIM BALTIMORE

021

  • →

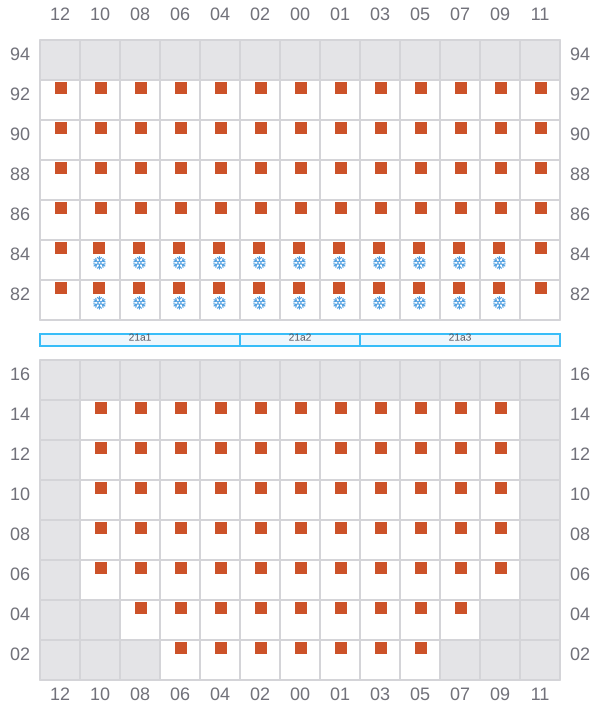

Bay 021 view and slots of ZIM BALTIMORE

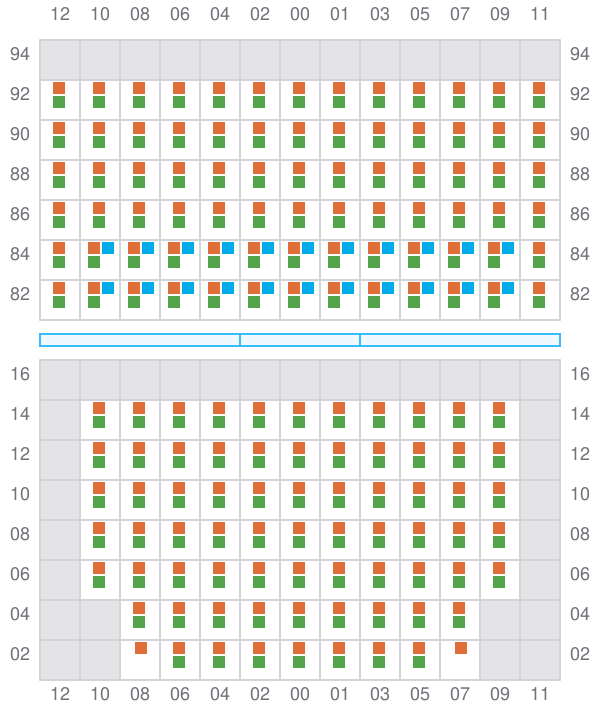

023 (022)

  • ←
Bay 023 view and slots of ZIM BALTIMORE

025

  • →
Bay 025 view and slots of ZIM BALTIMORE

027 (026)

  • ←
Bay 027 view and slots of ZIM BALTIMORE

029

  • →
Bay 029 view and slots of ZIM BALTIMORE

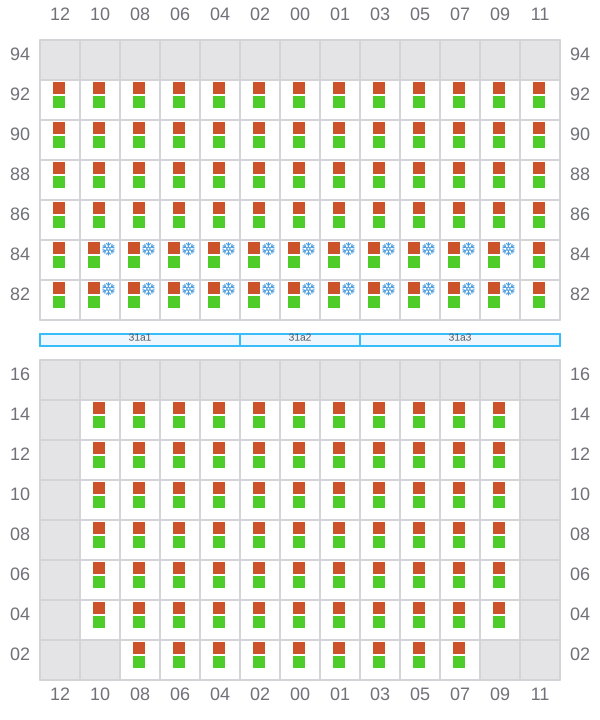

031 (030)

  • ←
Bay 031 view and slots of ZIM BALTIMORE

033

  • →

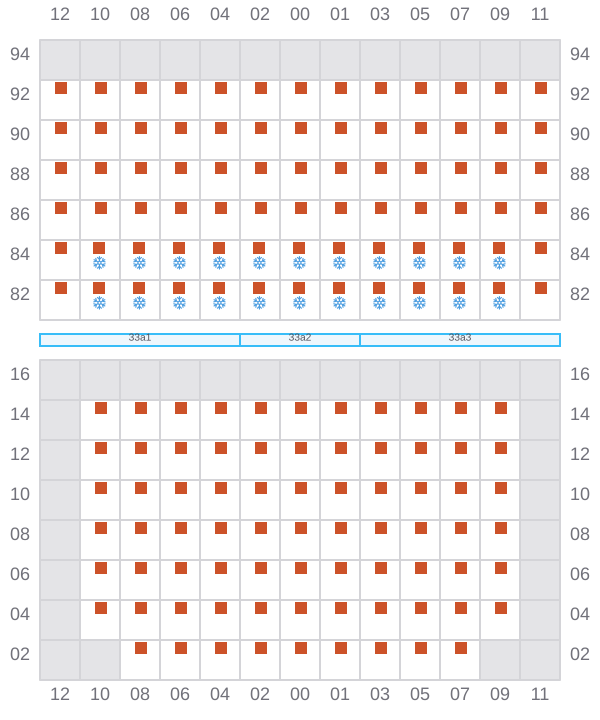

Bay 033 view and slots of ZIM BALTIMORE

035 (034)

  • ←
Bay 035 view and slots of ZIM BALTIMORE

037

  • →
Bay 037 view and slots of ZIM BALTIMORE

039 (038)

  • ←

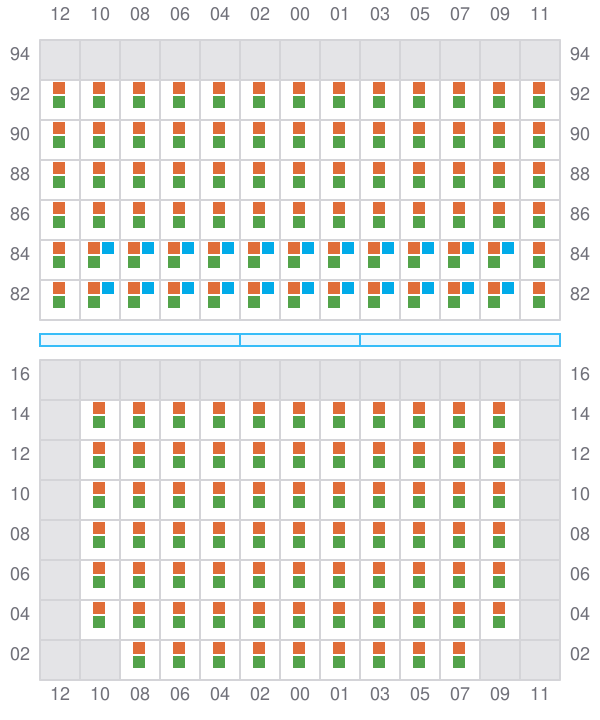

Bay 039 view and slots of ZIM BALTIMORE

041

  • →

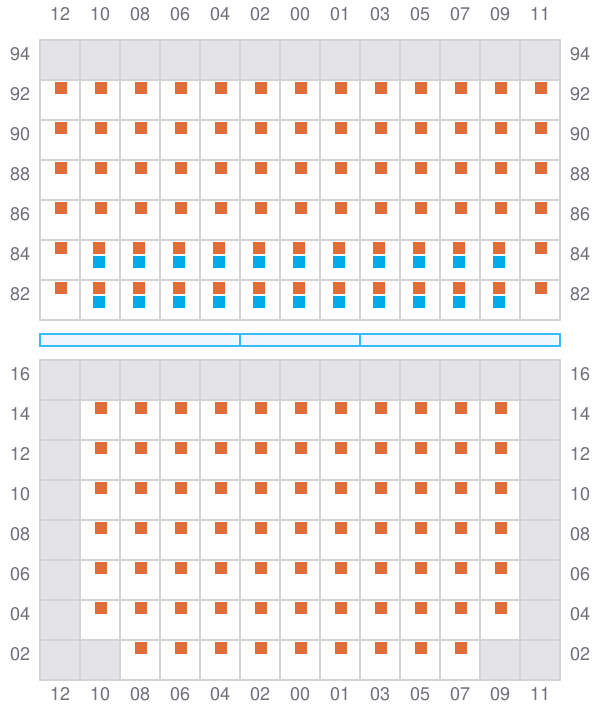

Bay 041 view and slots of ZIM BALTIMORE

043 (042)

  • ←

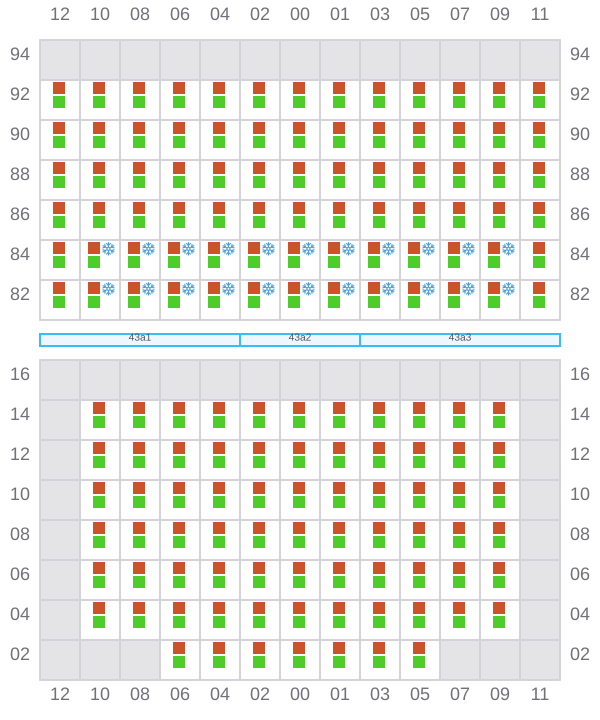

Bay 043 view and slots of ZIM BALTIMORE

045

  • →

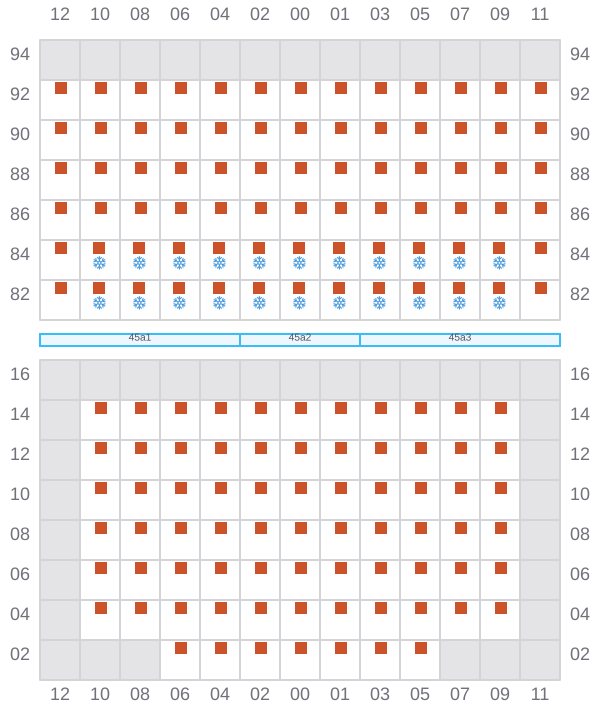

Bay 045 view and slots of ZIM BALTIMORE

047 (046)

  • ←

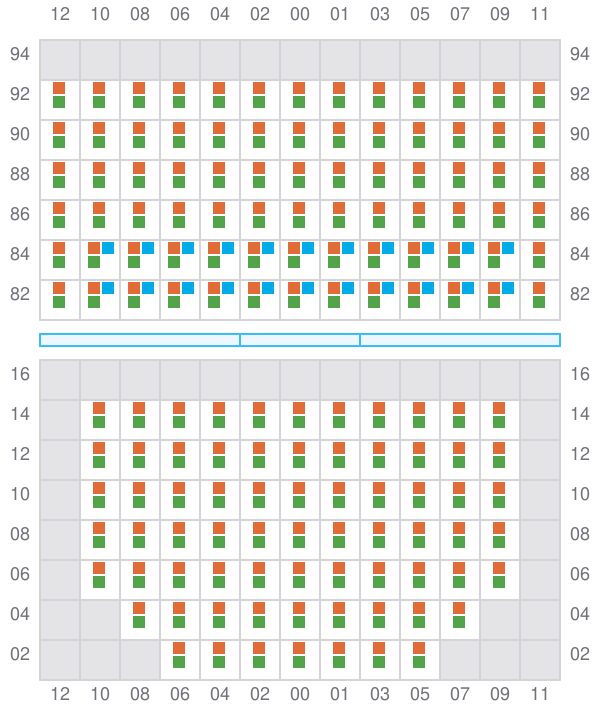

Bay 047 view and slots of ZIM BALTIMORE

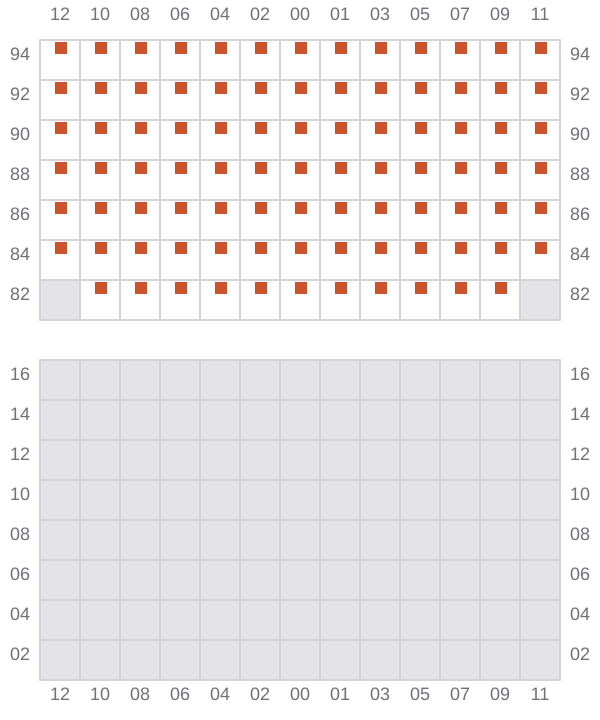

049

  • → / ?
Bay 049 view and slots of ZIM BALTIMORE

051 (050)

  • ← / ?

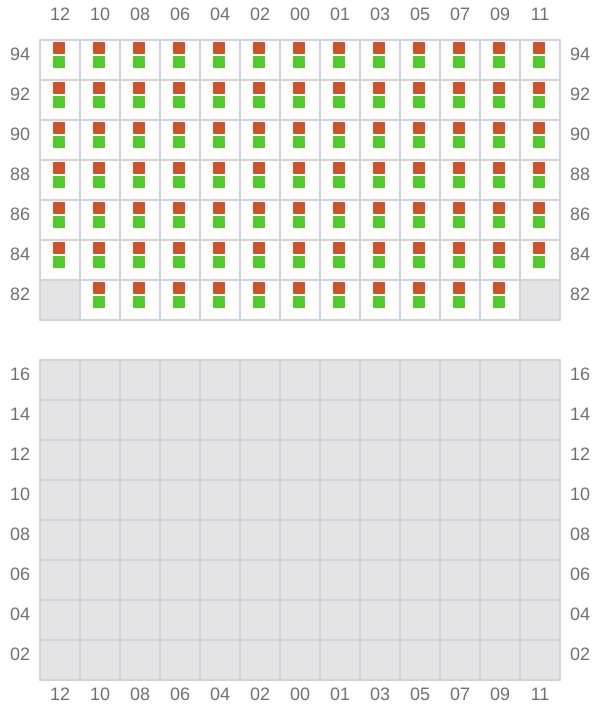

Bay 051 view and slots of ZIM BALTIMORE

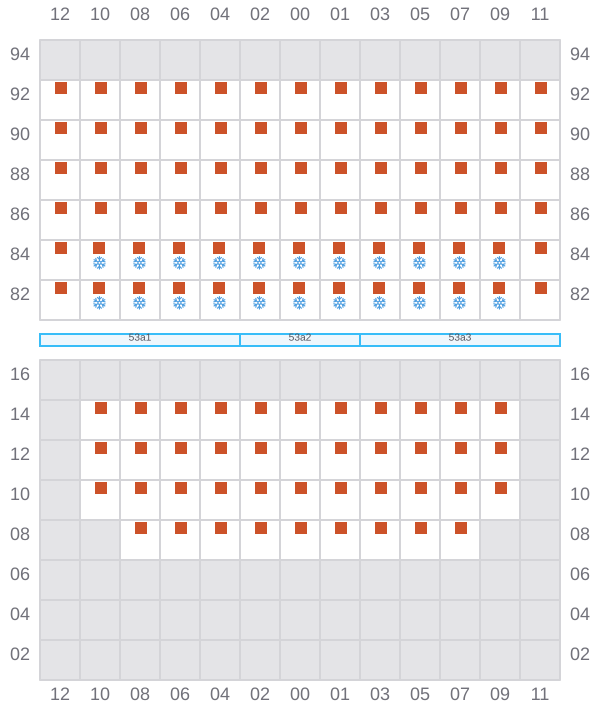

053

  • →
Bay 053 view and slots of ZIM BALTIMORE

055 (054)

  • ←
Bay 055 view and slots of ZIM BALTIMORE

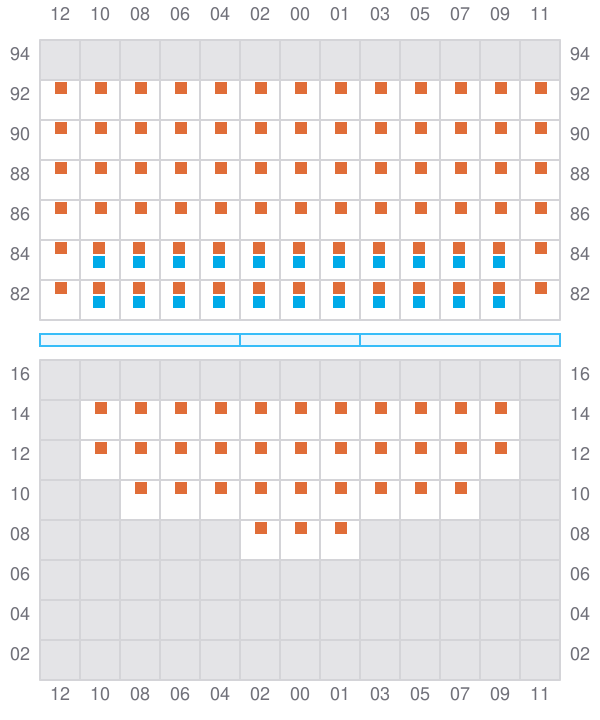

057

  • →
Bay 057 view and slots of ZIM BALTIMORE

059 (058)

  • ←

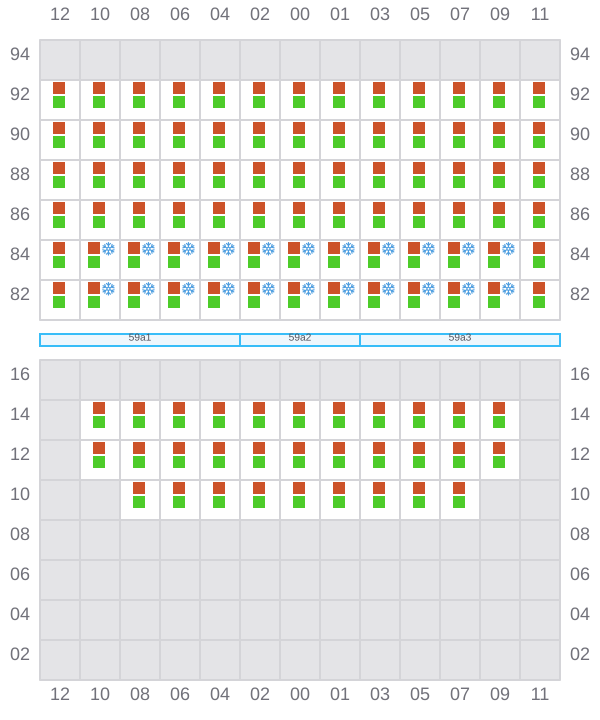

Bay 059 view and slots of ZIM BALTIMORE

061

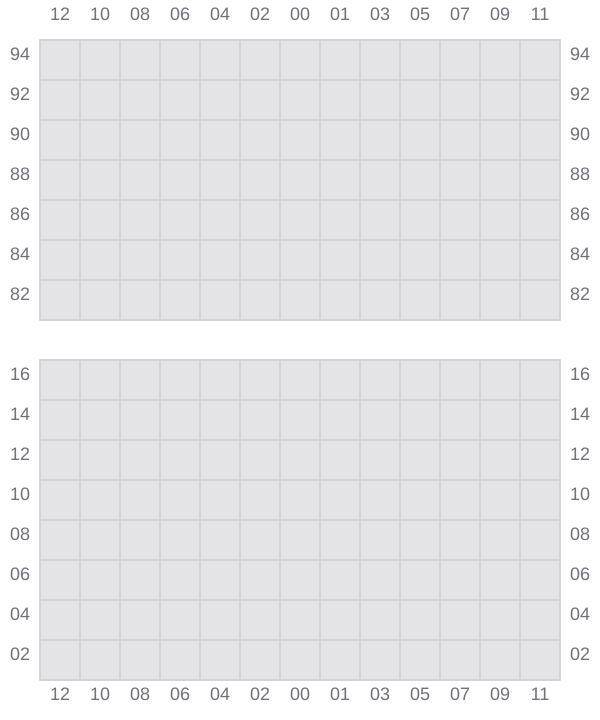

Bay 061 view and slots of ZIM BALTIMORE

063 (062)

  • ← / ?

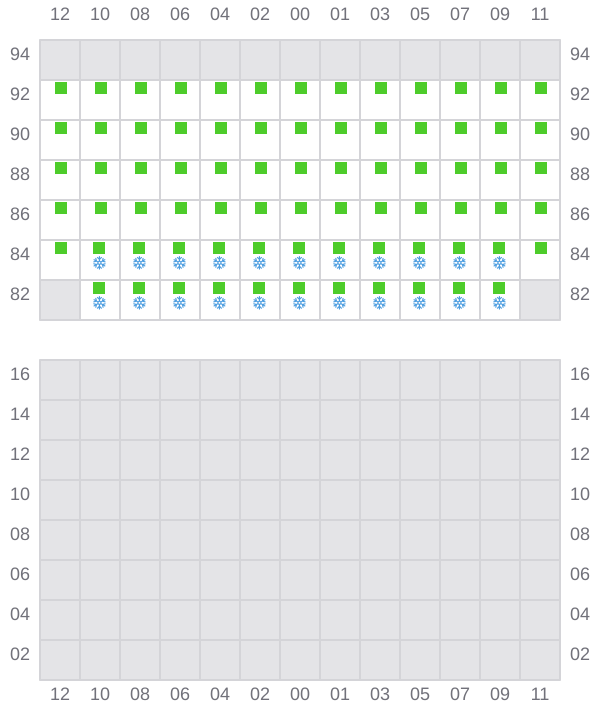

Bay 063 view and slots of ZIM BALTIMORE
